Using the R Package, nsink, to assess landscape N removal in coastal catchments

Overview

N-Sink as implemented in the nsink R package allows users to easily download all necessary spatial data (hydrography, land cover and soils), create static maps (N Removal Efficiency, N Transport Efficiency and N Delivery Index), and interactively investigate N removal along flowpaths within any specified catchment. Currently, the default catchment definition uses HUC-12 designations, though it is also possible to use larger catchments. Larger catchments would require longer download and processing times. We have created a web application that covers HUC-12 catchments in coastal CT, RI and southern MA using an interactive tool. This web app is easily accessible to all users and demonstrates the kinds of maps and associated information that nsink can produce.

Implementation in R

The package nsink implements the approach detailed in Kellogg et al. (2010) to estimate relative nitrogen (N) removal along a flowpath. The nsink package follows from an initial version of N-Sink written in ArcGIS using ModelBuilder. The initial version required time-consuming data manipulation by hand due to limitations of earlier NHDPlus datasets as well as the limitations of working in a GIS environment requiring a user license. With the increasingly more versatile GIS packages now available in R Project for Statistical Computing (RRID:SCR_001905), the previously time-consuming spatial data acquisition and management of N-Sink was automated and applied to other HUC-12 catchments, leading to the development of the nsink package. Specifically, nsink relies on packages sf and terra. The nsink package is available from https://github.com/usepa/nsink and is fully described in (Hollister et al. 2022).

Using nsink

The nsink package provides several functions ( Table 1) to set up and run an N-Sink analysis for a specified 12-digit HUC. By using the package all required data are downloaded, prepared for the analysis, HUC-wide N removal calculated, and flowpaths summarized. Additionally, a convenience function, nsink_build(), is included that will run all of the required functions for a specified HUC. The workflow follows a simple series of steps to create a set of static maps: N Removal Efficiency, N Transport Index, and N Delivery Index.

Download the data

The first step for an N-Sink analysis with the nsink package is to download the required datasets. The only required information to download the data is a HUC identifier. The nsink package was developed using 12-digit HUC IDs from NHDPlus, but larger HUCs (e.g. 8-digit) may also be used. There are two functions provided for downloading the data.

Prepare the data

Once the data are downloaded there are several additional data processing steps that are required to subset the data to the HUC and set all data to a common coordinate reference system (CRS).

These include:

The nsink_prep_data() function will complete all of these processing steps. It requires a HUC ID, a specified CRS, and a path to a data directory. It returns a “list” (a specific data format in R) with all required data for subsequent N-Sink analyses.

Calculate N removal

The next step in the N-Sink workflow is to calculate potential nitrogen removal within each landscape sink, expressed as percent of incoming N. Details on how the nitrogen removal estimates are calculated are available in Kellogg et al. (2010), and make use of peer-reviewed literature. Since the publication of that article, changes have been implemented to make better use of the most recently available geospatial data. Those changes are described below. The nsink_calc_removal() function takes the prepared data as an input and returns a “list” with three items:

Generate and summarize flowpaths

A useful part of the N-Sink approach is not just the calculation of potential N removal for individual components of the landscape, it is the ability to summarize cumulative removal along the length of a specified flowpath. Starting from any specified location the flowpath on land is generated from a flow direction grid. Once that flowpath intersects the surface water network, flow is determined by flow along the NHD Plus surface water network. With a flowpath generated, the cumulative N removal along that flowpath can be calculated with the nsink_summarize_flowpath() function, taking the flowpath and removal as input. A data frame is returned with each segment identified by type of sink, if present (i.e., “Hydric”, “Stream”, “Lake/Pond”, or “No Removal”), the percent removal associated with that segment, and cumulative removal. Total cumulative removal is 100 - the minimum of the n_out column. That is, n_out keeps track of the percent of N leaving each subsequent downstream segment ( Table 2). Note that the most downstream pond and stream segments show essentially no N removal due to a short retention time.

Static maps

Individual flowpaths are useful for specific areas of interest, but it is also useful to look at removal patterns across the landscape. The nsink_generate_static_maps() function produces a set of HUC-wide raster maps. Required inputs are the prepped data, removal raster, and sampling density, for which a default is provided. The function returns four separate rasters.

These static maps can be quickly plotted with the convenience function nsink_plot() using the map argument to identify map type. For example, nsink_plot(niantic_static_maps, map = "removal") will create a plot of Nitrogen Removal Efficiency (Figure 1). The other map argument options are “transport” and “delivery” (Figures 2 and 3). These plots are designed for exploration and not necessarily for high quality maps. For higher quality maps, the source data can be plotted in software of a user’s choice (e.g. QGIS, ggplot2).

Figure 1. Nitrogen Removal Efficiency (range 0 to 1) for the Niantic River HUC-12, showing the estimated fraction of N removed within three types of landscape N sinks - wetlands, streams, lakes/ponds/reservoirs.

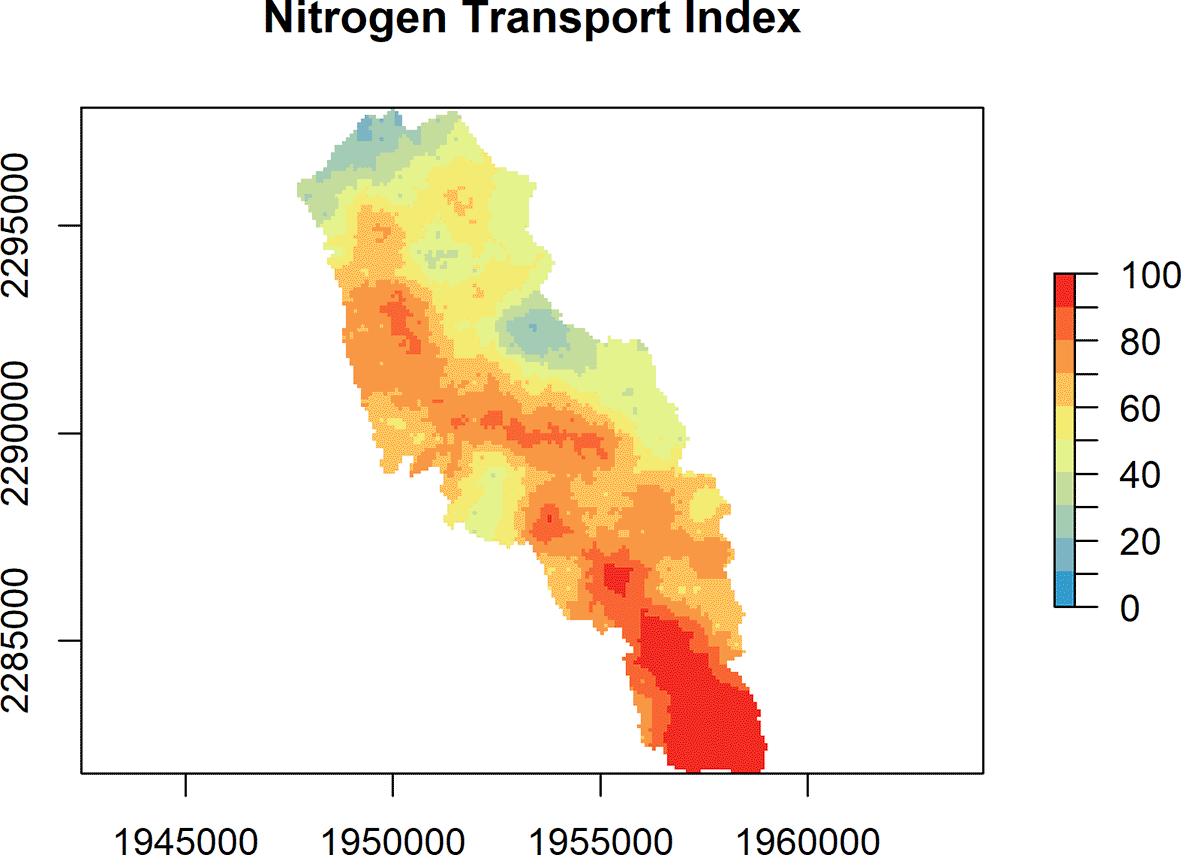

Figure 2. Nitrogen Transport Index (range 0 to 100%) for the Niantic River HUC-12, showing the estimated percentage of N originating at a given location within a watershed that is expected to reach downstream receiving waters, such as a coastal embayment.

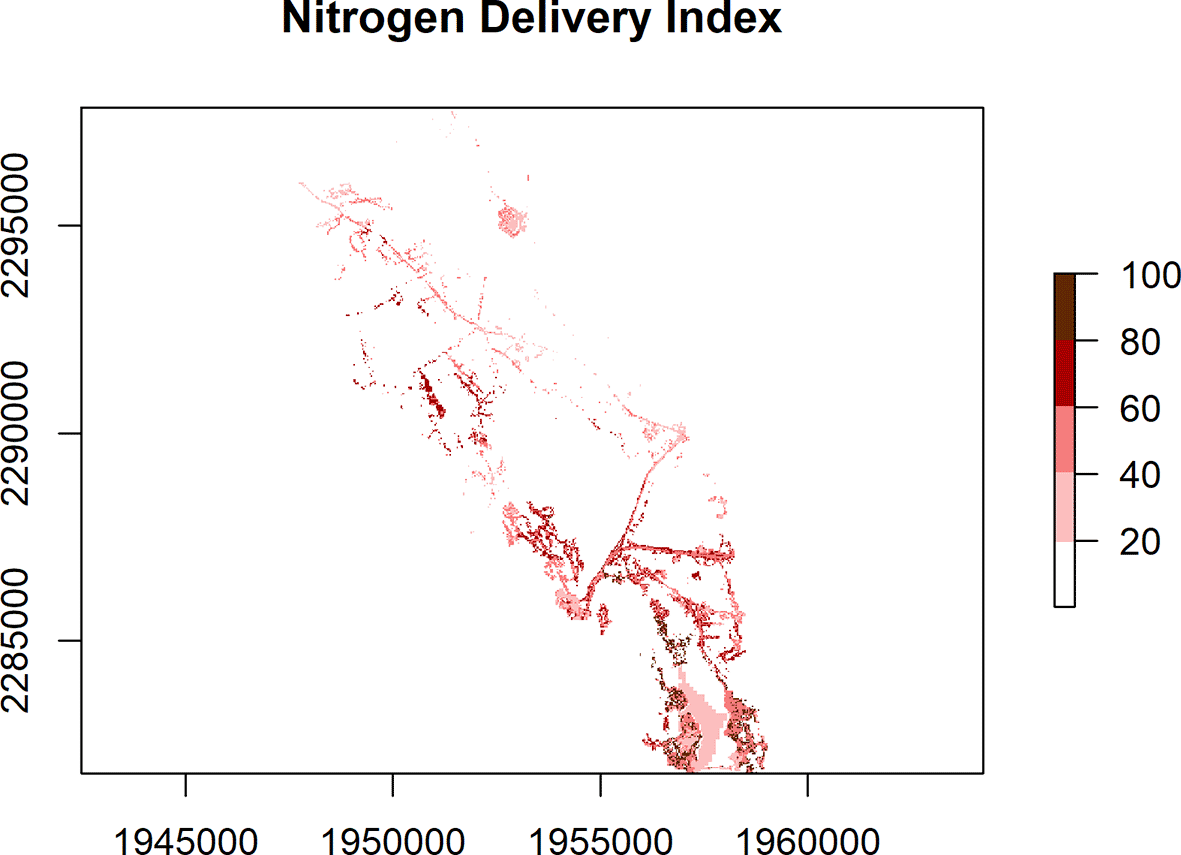

Figure 3. Nitrogen Delivery Index (range 0 to 100%) for the Niantic River HUC-12, showing a relative measure of the estimated N being transported from a location within a mapped watershed to receiving waters.

N loading estimates are based on land cover classes, making use of peer-reviewed published data, and normalized, with a range of 0 to 1. These N loading factors are then multiplied by the N Transport Efficiency (range 0 to 100) from a given location within a watershed, to arrive at the N Delivery Index.

Convenience function to build it all

The workflow described above includes all the basic functionality. Some users may wish to use nsink to calculate the base layers for an N-Sink analysis and then build an application outside of R. A convenience function that downloads all data, prepare the data, calculates removal, and generates static maps has been included to facilitate this type of analysis. The nsink_build() function requires a HUC ID, coordinate reference system, and sampling density. An output folder is also needed but has a default location. There is an optional argument for forcing a new download. All prepped data shape files and .tif files are written to the output folder for use in other applications.

N-Sink maps are now available for HUC-12 catchments in coastal CT, RI and southern MA as a web application interactive tool. This app can be used to examine and better understand N movement through these HUC-12 catchments.

Changes to underlying methodology

Several improvements have been made to the underlying N-Sink methodology used in Kellogg et al. (2010) that have allowed nsink to make use of more recently available spatial data. In estimating N removal in streams, we originally estimated stream depth and velocity based on other available geospatial data to arrive at a travel time along a given stream reach. With the updated and expanded NHD Plus V2 we use the estimates provided in that dataset, making use of USGS expertise that went into these estimates.

In estimating N removal occurring in the terrestrial portion of the flowpath, we originally focused on riparian wetlands, using SSURGO mapped hydric soils to identify this landscape sink. With the latest version of SSURGO we include all hydric soils in the catchment, except those identified as “subaqueous”. Each soil mapping unit (SMU) that has a positive hydric status also has an estimate of %hydric for that SMU. We then estimate N removal within that SMU as 80% of the %hydric. Each raster has one SMU associated with it and raster cell size is 30m X 30m. A 30-m wide wetland is estimated by Mayer et al. (2007) as having 80% N removal. In the current version, N removal is cumulative as a flowpath intercepts hydric soils in any cell before encountering surface water.

Off-network hydrology

In the NHD Plus dataset there are situations where a water body or stream segment is “off-network”, i.e., it is not linked to the larger surface flow network. These may be features such as groundwater-fed kettle ponds, or canals or ditches where connecting hydrology may not be captured in the NHD Plus dataset. These off-network features tend to have less NHD data (e.g., time of travel) associated with them, making direct N removal estimates impossible. In these cases, we must estimate removal based on other in-network surface water features. For the vast majority of HUC-12 catchments off-network features are rare and spatially small compared to the overall system. We examined seven HUC-12s within southern New England, with a range of land cover and soils, for the extent of off-network hydrology. None had off network stream or canal segments, while six of the seven had off-network waterbodies. These off-network waterbodies represented from 2 to 14% (mean of 7%) of total lake area. We estimated removal from off-network stream segments to be equal to the median removal of all first order streams in the same catchment. In this case we are assuming these first order segments behave similarly to other first order stream reaches. A subset of these off-network stream segments is identified by the NHD dataset as ditches and canals. These are expected to provide little N removal due to their designed intent to move water efficiently, reducing residence time (Buchanan et al. 2013), and therefore N-Sink assigns removal as the lower quartile of removal from the highest order streams in the same catchment. Finally, off-network lakes and ponds are assigned N removal at the 3rd quartile of removal from all lakes and ponds in the same catchment due to the level of uncertainty regarding residence time in these groundwater-fed lakes and ponds (Hampton et al. 2019).

Caveats

N-Sink was designed for catchments where surface and groundwater flow paths are not highly manipulated. In settings where substantial storm water conveyance networks or extensive subsurface agricultural drainage are present, flow can bypass the removal processes within wetland ecosystems (Gold et al. 2001). In these situations, first-order streams may be channelized, leading to higher velocities than in undisturbed channels and the N-Sink estimates of removal may be overstated. N-Sink does not account for nitrogen removal from high permeability (e.g., sand and gravel) unconfined aquifers along the coastal margin. Here, nitrogen-enriched groundwater may enter estuaries directly as submarine discharge rather than via baseflow to stream networks (Nowicki and Gold 2008), requiring site specific assessments to evaluate N removal in salt marshes or as upwelling into the seabed (Addy et al. 2005, Robinson et al. 2018). These situations have been estimated to account for approximately 6% of freshwater inputs to estuaries globally and in areas of New England (Burnett et al. 2003, Nowicki and Gold 2008).

The variation in loading associated with different agricultural practices, density of unsewered development and inputs from wastewater treatment plants are not encompassed in the default loading index. Thus the numeric outputs of the tool focus on metrics suitable for planning purposes, such as percent removal of N from source to receiving water and relative intensity of loading from different locations. It is not intended to replace high-resolution models that rely on long term weather records and incorporate detailed spatial data on N loading, within-field transport or variable source hydrology (e.g., Easton (2008)). Instead, N-Sink combines widely available datasets for waterway networks, soils and land cover with nitrogen dynamics developed for these datasets to highlight major sources and sinks of nitrogen within a watershed context.

Operation

The R package nsink requires R version >= 3.5.0. The nsink package is available from https://github.com/usepa/nsink and is fully described in (Hollister et al. 2022).

Use Case 1: Comparison of N delivery from two adjacent locations

Users can use the following code to interactively identify a starting point for a flowpath of interest.

# Plot watershed with base R
plot (st_geometry(niantic_data$huc))

# Select location on map for starting point using cursor and click
pt <- unlist (locator(n = 1))

# Convert to sf POINT
start_loc <- st_sf(st_sfc(st_point(pt), crs = aea))

# Generate the flowpath
niantic_fp <- nsink_generate_flowpath(start_loc, niantic_data)

# Plot flowpath
plot (st_geometry(niantic_fp$flowpath_network), add = TRUE)

# Summarize N removal along the flowpath
niantic_removal <- nsink_calc_removal(niantic_data)

# table of removal within flowpath segments
niantic_fp_removal <- nsink_summarize_flowpath(niantic_fp, niantic_removal)

Using this approach, we can compare the N delivery from two locations that are separated by approximately 900 meters. This example illustrates the importance of location with respect to landscape N sinks. Approximately 56% of the N that originates at point A is transported to the estuary vs. approximately 25% of the N that originates at point B (Figure 4). The difference is due to the different N sinks encountered along the way to the estuary. Most of the removal that occurs along flowpath A is due to flow through hydric (wetland) soils, with little removal occurring during flow along the downgradient stream network ( Table 2). Flowpath B encounters a large pond along the way, significantly increasing residence time and N transformation ( Table 3). These two currently undeveloped locations demonstrate the importance of understanding landscape position and its role in the movement of N from source to outlet. If development were proposed in the western portion of this area (flowpath A), source controls could be advised, while the less “leaky” eastern region (flowpath B) underlines the importance of wetlands and slow-moving water ways, such as ponds, that protect downstream waters by slowing flow and increasing opportunities for N transformation.

Figure 4. Flowpaths originating from two nearby locations within the Niantic River HUC-12 with differing N removal estimates.

Hydrofeatures are pictured on the Nitrogen Transport Index map.

Use Case 2: Source controls and sink protection or restoration

The maps produced by N-Sink can help prioritize source controls, sink protection and/or restoration. For example, many wetlands are considered “protected” by federal, state or local laws and regulations; but as occurs with many types of protected areas (Neal et al. 2018) they are frequently altered through variances granted by local commissions or committees charged with zoning decisions. By better understanding the important role that N sinks play in the protection of estuaries, local agencies have a better chance of achieving protection of downstream receiving waters. Variances granted on a case-by-case basis can quickly undermine local water quality goals. Land conservancies and other NGOs interested in identifying parcels of high value for protecting downstream waters from N loading can also use these maps to prioritize land acquisition or wetland restoration projects.

Similarly, sources of N that are contributing relatively more N due to their location within the catchment can be highlighted using the nsink static maps. The N Delivery Index map combines N sources with N transport to highlight developed areas that are located on “leakier” parts of a catchment. Figure 5A displays a high resolution image of land cover in the same watershed as Example 1, with two developed areas circled. Figure 5B displays the Nitrogen Transport Index map for the same area, showing the western area to be “leakier” than the eastern area.

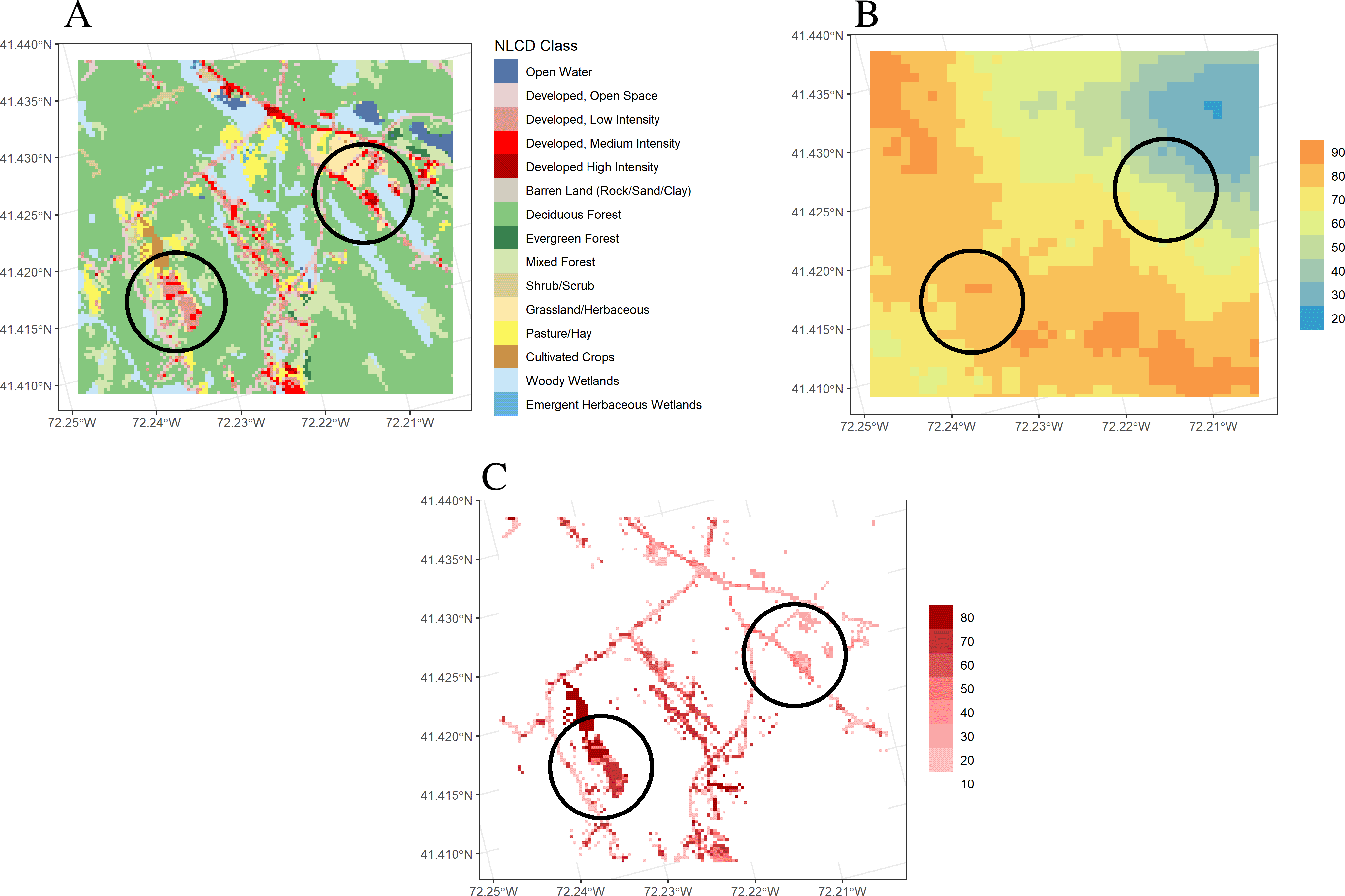

Figure 5. Comparison of two similarly developed areas with differing N delivery indices in the Niantic River HUC-12.

A. Land cover, summarized in Table 4. B. Nitrogen Transport Index. Hotter colors denote higher values. C. Nitrogen Delivery Index. Darker colors denote higher N delivery based on normalized loading from different land covers, multiplied by the N Transport Index.

An analysis of N delivery from these two similarly developed areas (average N loading index of developed areas: West = 0.57; East = 0.56), show the western area may contribute more N loading to the estuary than the eastern area, with the average delivery index value of the western area (41) almost 80% higher than the eastern area (23; Figure 5C), suggesting a greater need for N source controls within the western development.

Other examples using N-Sink to examine the N loading implications of past land use decisions are also available as bonus maps on the N-Sink website.
