Flexible modular dwelling for rural environments; specific case: Cebadas – Ecuador

[version 2; peer review: 2 approved]

Karina Elizabeth Cajamarca Dacto ¹, Jean Carlos Montero Riofrio¹, Erick Fabricio Nieto Páez¹, Dany Marcelo Tasan Cruz², Maikol Josueé González Espinosa¹

Karina Elizabeth Cajamarca Dacto ¹, Jean Carlos Montero Riofrio¹, [...] Erick Fabricio Nieto Páez¹, Dany Marcelo Tasan Cruz², Maikol Josueé González Espinosa¹

PUBLISHED 17 Jan 2025

Author details Author details

¹ Faculty of Engineering, Universidad Nacional de Chimborazo, Riobamba, Chimborazo Province, Ecuador
² Higher Technical School of Construction, Universidad Politecnica de Madrid, Madrid, Spain

Karina Elizabeth Cajamarca Dacto
Roles: Conceptualization, Investigation, Methodology, Supervision, Writing – Original Draft Preparation

Jean Carlos Montero Riofrio
Roles: Conceptualization, Investigation, Methodology, Writing – Original Draft Preparation

Erick Fabricio Nieto Páez
Roles: Conceptualization, Formal Analysis, Methodology, Resources

Dany Marcelo Tasan Cruz
Roles: Formal Analysis, Resources, Software

Maikol Josueé González Espinosa
Roles: Formal Analysis, Resources, Software

OPEN PEER REVIEW

REVIEWER STATUS

Abstract

Background

Sustainable modular dwelling design for rural areas should focus on creating healthy and economically accessible spaces, sensitive to local needs and integrating environmental, functional, sociological and technological aspects. Flexibility is essential to reduce the initial investment and allow future transformations, optimizing the recovery and reuse of materials. These houses must be adaptable, safe and have basic services, satisfying the needs and stages of families’ development. In Ecuador, poverty and energy inefficiency worsen the quality of life in rural areas. This project in the Cebadas parish proposes modular dwelling that applies bioclimatic and sustainable criteria, using local materials to improve habitability and promote the social and economic development of the community.

Method

The research approach is qualitative-quantitative. Qualitative, since it is necessary to identify the qualities of the sector, bibliographic exploration of guidelines and sustainable strategies. Quantitative, to evaluate the degree of affectation through a diagnosis of the study site and to provide efficient solutions that respond to the context and social reality.

Results

The spaces presented in the proposal respond to the spatial need for growth and expansion of the users of the sector, through 6 basic guidelines that this type of dwelling should have: Environment, Visual, Form, Function, Bioclimatic and Materials.

Conclusions

The flexible modular dwelling project for rural environments addresses complex housing needs, highlighting the flexibility and adaptability of an expandable module. It includes income generation with a duplex apartment, fosters communal and cultural life with public and commercial spaces, promotes tourism and rural development with landscape design and crops. In addition, it ensures sustainability through bioclimatic strategies and responsible use of resources.

Keywords

Housing, sustainability, rural, design, modular, flexible, bioclimatic, adaptable

Corresponding author: Karina Elizabeth Cajamarca Dacto

Competing interests: No competing interests were disclosed.

Grant information: The author(s) declared that no grants were involved in supporting this work.

Copyright: © 2025 Cajamarca Dacto KE et al. This is an open access article distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited.

How to cite: Cajamarca Dacto KE, Montero Riofrio JC, Nieto Páez EF et al. Flexible modular dwelling for rural environments; specific case: Cebadas – Ecuador [version 2; peer review: 2 approved]. F1000Research 2025, 13:845 (https://doi.org/10.12688/f1000research.154417.2) First published: 30 Jul 2024, 13:845 (https://doi.org/10.12688/f1000research.154417.1) Latest published: 17 Jan 2025, 13:845 (https://doi.org/10.12688/f1000research.154417.2)

Revised Amendments from Version 1

We are grateful for the valuable comments made by the reviewers, which have been carefully reviewed and incorporated into the manuscript to improve its quality and clarity. The following are the changes made:
- List of authors: the tilde in the surname of Dany Marcelo Tasán Cruz was corrected.
- Key words: “adaptable” was replaced by “modular” to adapt it to the context of the research.
- Methodology: In section 2, the sections on Design and Level of research were reorganized to improve the contextualization and understanding of the object of study. A more detailed explanation of the six basic guidelines (environment, visuals, form, function, bioclimatic and materials) was incorporated.
- Diagnosis: In section 3.1, the location of Figure No. 2 was adjusted to align it with the preceding text.
- Proposal: In section 3.2, information on the number of inhabitants of the architectural proposal was added, as suggested by the evaluators.
- Function: In section 3.2.1, the figure number was corrected (from 3 to 6) and its location was adjusted for consistency.
- Figures: Graphical scales were added to figures No. 5, 6, 7, 9, 10 and 11, and solar orientation was included in figure No. 8 to improve the bioclimatic analysis.
- Bioclimatic: In section 3.2.6, figures were reorganized for consistency between explanatory text and images.
- Conclusions: The term “Discussion” was removed from the title of section 4 to avoid confusion.
We are deeply grateful for the valuable suggestions of the reviewers, which were essential to optimize this article. We remain attentive to the publication process.

See the authors' detailed response to the review by Maria del Cisne Aguirre Ullauri
See the authors' detailed response to the review by Tanya Veridiana Cueva Kean Chong

1. Introduction

As part of sustainable design in the creation of healthy spaces, economically viable and sensitive to local needs, Garzón (2010), mentions that “Buildings should be designed and constructed in such a way that their purposes (environmental, functional, sociological and symbolic aspects) are interrelated and achieved through their means (technological and morphological aspects) in order to allow their habitability, operation and maintenance with the efficient use of natural and cultural resources of the area and with low levels of dependence (energy, economic, etc.) to minimize the impacts on their contexts. This is how the term flexibility is born as a viable option for rural housing, since it allows reducing the initial investment and facilitates the dwelling to be transformed, improved and completed over time, according to the needs, possibilities and preferences of the household members in a sustainable way.

Sanchez (2011) states that sustainable design refers to buildings that allow managing their end-of-life cycle efficiently. It ensures that the disassembly of the building reduces waste generation and maximizes the recovery of its high-value components, as well as materials for reuse and recycling. This process should encourage builders to design structures that are flexible in order to ensure the efficient operation of the construction, its maintenance, as well as its dismantling; allowing a variety of future scenarios for the building.

The key to achieve a truly flexible and adaptable dwelling is the ability and ease to recover the components and materials that make it up. Much of the current difficulties with deconstruction are due to the design inflexibility and unsuitability, as well as the demands of new requirements. Therefore, existing buildings at the end of their life cycle should be seen as new sources for new constructions, and for this, it must be understood that spatial systems cannot be treated independently from technical ones, since spatial transformations are directly related to the technical composition of the building. Consequently, spatial flexibility can be defined as: Spatially extensible, Divisible to reconfigure its space, Multifunction within the same space. Also, technical flexibility is related to the ease for: interchangeability, displacement, reuse and recycling of the elements and systems that define the structure such as: accessibility, replacement, reconfiguration and separation.

Therefore, buildings should be able to adapt to new trends, adopting new technological advances and facilitating the updating of its elements and systems, that is to say that they must be designed to adapt and deconstruct; creating sustainable buildings means designing to build demountable structures, maximizing their flexibility both in their spatial configuration and in having a lesser impact on the environment; this will be achieved by taking into account their complete life cycle, which goes from extraction to the end of their use, that is, their manufacture, design, construction, use and renovation. Hence, sustainable design is established as a combination of design strategies that address the same problem at different scales. These approaches are: design to recover, to reuse, to be durable, to use materials efficiently, to reduce waste, to regenerate, to repair, to adapt. In order to formulate an adaptive strategy, it is necessary to define what is sustainable housing, which can be defined as the habitable enclosure containing the minimum components to house a family nucleus. This basic unit, in an adaptive process such as the one we are trying to understand here, is an initial phase understood as a structure that is delivered unfinished, and with time, consolidates into a complete dwelling, this initial phase corresponds to the basic unit with maximum space and minimum cost, to house human activities in an adequate manner. For this, it must comply with some basic characteristics translated both in spaces and services.

Housing must be stable (safe) and have basic household services. In addition, it must differentiate spaces to properly house the different activities that take place within, “the four vital activities: rest, food preparation, sanitary activities, as well as family and cultural development gatherings” (Moncaleano & Morales, 2006). Not only does each family nucleus have different needs, but the stages of a family’s development over time must also be taken into account. The stages of household development must be attended to simultaneously. A consolidated household with children needs a complete dwelling or one in the process of being so; on the other hand, a newly couple may only need a rented space for the first stages of family consolidation; a flexible modular dwelling must consider the evolutionary factor in the organization of the different spaces that make it up.

Addressing the issue of housing requires a more comprehensive approach, focusing on interculturality and social, economic and environmental sustainability, hence it is essential to consider access to housing within the framework of rural development proposals that include support for production, implementation of marketing circuits, inclusion of new productive alternatives such as ecotourism or community tourism, development of energy technologies, strengthening of the social fabric and intercultural coexistence, among others.

The problem of self-construction and informality in Ecuador are only one aspect of the social problem of housing. Energy inefficiency and the high carbon emissions generated by construction increase the environmental impact of housing, as well as the existing poverty of the sectors, which together cause unsustainability and inefficiency. According to Pinto and Ruiz (2009) one out of every three Ecuadorian families lives in rural areas, where despite the fact that the population growth rate is three times lower than in the urban population, they concentrate the highest poverty rates. As a result, it is estimated that 4 out of every 5 families in rural areas are poor, which is evident in the quality of housing. It is estimated that more than 80% of them do not meet the habitability conditions necessary to ensure the life quality of families, due to lack of services, poor quality construction, overcrowding and insecurity. In the case of housing in Cebadas, one of the poorest parishes in Ecuador, 80.19% of the houses do not have acceptable living conditions, affecting the quality of life and development of the people.

Consequently, this research aims to suggest an architectural proposal for flexible modular dwelling in the Cebadas parish of Guamote canton in the province of Chimborazo, in response to the spatial requirements for growth and expansion presented by the inhabitants of the sector through strategic ideas that address bioclimatic criteria, modular design, using local materials, thus establishing principles of sustainability to be considered in future buildings, so that they are projected as sustainable, flexible housing.

2. Methods

2.1 Research design

The research is qualitative-quantitative; qualitative, since it is necessary to identify the qualities of the area, bibliographic exploration of 6 basic guidelines that this type of housing should have: Environment, Visual, Form, Function, Bioclimatic and Materials that will help to generate a solid base for the sustainable proposal. Quantitative, to evaluate the degree of affectation through a diagnosis of the study site and provide efficient solutions.

2.2 Type of research

This research aims to raise an architectural proposal of flexible modular dwelling in the Cebadas parish of the Guamote canton in the province of Chimborazo, which responds to the spatial need for growth and expansion presented by the inhabitants of the sector, it will also allow to solve current and future problems of sustainable criteria in buildings. Therefore, the ideal is to use a mixed approach, since it will allow obtaining necessary and essential qualitative data for the analysis of the sector, allowing to generate a broad vision on the critical thinking about architectural design, construction, standard of living, and quality of materials in the sector. Quantitative, for the collection of data, to have explicit values about the spatial needs in housing, as well as their functional and bioclimatic quality; in order to generate a proposal that addresses all these issues to solve them with a sustainable and flexible architectural design.

2.3 Level of research

Exploratory and propositional. The exploratory type identifies the problems affecting the area under study, which will provide data and diagnostic results including the bioclimatic requirements of exteriors and interiors. Propositional is the one that forces the previously developed research to provide ideas for an architectural proposal as well as sustainable strategies to solve the previously identified problems.

2.4 Research modality

Applied or Practical, since its intention is to improve the quality of life in the Cebadas parish in the province of Chimborazo and contribute to the construction of new knowledge in the field of rural housing sustainability.

2.5 Methodology

The research, qualitative-quantitative; qualitative, since it is necessary to identify the qualities of the area at the macro level, bibliographic exploration of basic guidelines that this type of housing should have: Environment, Visual, Form, Function, Bioclimatic and Materials that will help to generate a solid base for the sustainable proposal. Quantitative, to evaluate the degree of affectation through a diagnosis of the study site and provide efficient solutions in a flexible modular housing proposal for the Cebadas parish of the Guamote canton in the province of Chimborazo.

2.6 Research procedures and techniques

Field studies will be applied to diagnose the current state of the area. For data collection, the bibliographic research technique will be used to gather information about the cosmovision, traditions and available materials, as well as the existing problems in the study area by the inhabitants of the place. Once the information is obtained, it will be analyzed to design a plan according to the situation and needs of the sector.

2.7 Study population

Due to the territorial extension of the Cebadas parish, it has been considered to establish the research in Zone 2, in the parish head of Cebadas. Initially, it is planned to obtain information from the Decentralized Autonomous Government of Pichincha and the Development and Land Use Plan of Cebadas, as well as from the critical observation of the site visit, and then conduct a diagnosis of the place to obtain more accurate data on the needs of the sector.

3. Results

3.1 Diagnosis

Following the suggested methodology, the analysis of the houses in the study sector revealed that most of them are in a state of deterioration or in ruins. The evident precariousness of the sector prevents the maintenance or improvement of the houses, generating insecurity because of the deterioration of the structure, leading to disuse and abandonment.

Regarding the function of the houses, it is important to emphasize that they present: spaces whose dimensions do not respond to the needs of their inhabitants, lack of elements of direct connection with the immediate environment; such as large windows or balconies; poorly lit and uninhabitable spaces, lack of consideration in the future projection of housing, as well as lack of adaptability and flexibility of the spaces. All this has caused the abandonment of the houses, absence of spaces for production and breeding, and lack of bioclimatic and sustainability strategies.

In the formal approach, it should be noted that those dwellings that have undergone changes to adapt to the new conditions of the users have suffered formal affectations. Meanwhile, in the bioclimatic aspect, it is evident that despite the fact that the buildings are constructed with materials of high thermal inertia, the lack of lighting and the use of passive air conditioning systems have caused the internal spaces to be cold and unwelcoming.

Therefore, in the second stage an analysis of the bioclimatic requirements for outdoor and indoor spaces in the study area is carried out, to make informed decisions during the design, in order to optimize both thermal comfort and energy efficiency.

Figure 1 shows the bioclimatic chart of Olgyay (1963), applied to Cebadas. It shows a comfort zone that includes the ideal temperature and humidity values for outdoor environments. The ideal temperature values range between 18 and 24 degrees Celsius, and the relative humidity between 20% and 80%. In the case of Cebadas, most of these points are outside the comfort zone, presenting temperature ranges from 2 to 21 degrees Celsius and relative humidity from 81% to 100%. This indicates that heat is required during all months of the year, highlighting the need to use materials, colors and textures with high thermal inertia to absorb heat and prevent heat loss.

Figure 1. Analysis of the Bioclimatic as from of Olgyay (1963) applied to Cebadas using Microsoft Excel and Adobe Illustrator.

In the case of bioclimatic requirements for exteriors, it is noted that, above 18.5 degrees Celsius, solar protection is necessary to avoid the direct incidence of solar radiation, combined with other strategies to protect the interior of the building. As shown in Figure 2:

• Conventional heating: for temperatures below 2.5 degrees Celsius, coal, gas or electric power is required.
• Active solar heating: For temperatures between 2.5 and 8.5 degrees Celsius, support systems such as pumps and fans are required.
• Passive solar heating: For temperatures between 8.5 and 15 degrees Celsius, systems that passively capture and distribute solar energy are used.
• Internal gain heating: For temperatures between 15 and 21.5 degrees Celsius, comfort is achieved through heat generated by occupants and electrical equipment.

Above 18.5 degrees Celsius, solar protection is necessary to avoid direct solar radiation, combined with other strategies to protect the interior of the building. As shown in Figure 2:

Figure 2. Analysis of the Bioclimatic Chart as from of Givoni (1969) applied to Cebadas using Microsoft Excel and Adobe Illustrator.

3.2 Proposal

After these analyses, a flexible modular housing proposal is presented for the Cebadas parish of the Guamote canton in the province of Chimborazo, in response to the spatial need for growth and expansion presented by the inhabitants of the sector through 6 basic guidelines that this type of housing should have: Environment, Visual, Form, Function, Bioclimatic and Materials, housing focused on four people with modular expansion capacity.

3.2.1 Environment

This indicator shows that the location of the project is an elemental factor in the design proposal. Therefore, it is suggested to generate a layout that takes advantage of the immediate surroundings to generate visuals and points of attraction for users, in addition to proposing collaborative and shared social spaces for a new form of community life, taking advantage of a direct connection with the main access roads and integration with paths that project a route through the design.

Flexible modular dwelling proposal Cebadas – Ecuador: The project, proposed in the rural-urban area of Cebadas center, carefully manages the relationship with the immediate environment, hence it is surrounded by agricultural green areas and other houses in the sector that have been urbanized over time.

The project is located in isolation, in response to the rural environment in addition to taking advantage of the strategic location of implementation. The house responds to the natural landscape that characterizes the rural area of Cebadas, as a result the project not only seeks to integrate into the environment but also to blend in and mimic the exterior. The spaces are designed in a multifunctional way accompanied by a sensory landscape design with floor layout patterns to connect all the accesses to the rear of the project to revalue urban life with urban gardens for the sustenance of the family members. As shown in Figure 3:

Figure 3. Environmental guidelines proposal applied to flexible modular dwelling Cebadas-Ecuador using ArchiCad, Lumion, Adobe Photoshop and Adobe Illustrator.

3.2.2 Visuals

It is suggested to directly connect the surrounding environment with the architectural spaces using large windows that allow framing the visuals to appreciate the vegetation outside or at the same time, generate an interior landscape proposal, thus creating an atmosphere of tranquility for these spaces.

Flexible modular dwelling proposal Cebadas-Ecuador: The project carefully manages the visuals of the project in an introspective way, through landscaped frames oriented to the interior garden, the barbecue area and the orchards. As shown in Figure 4:

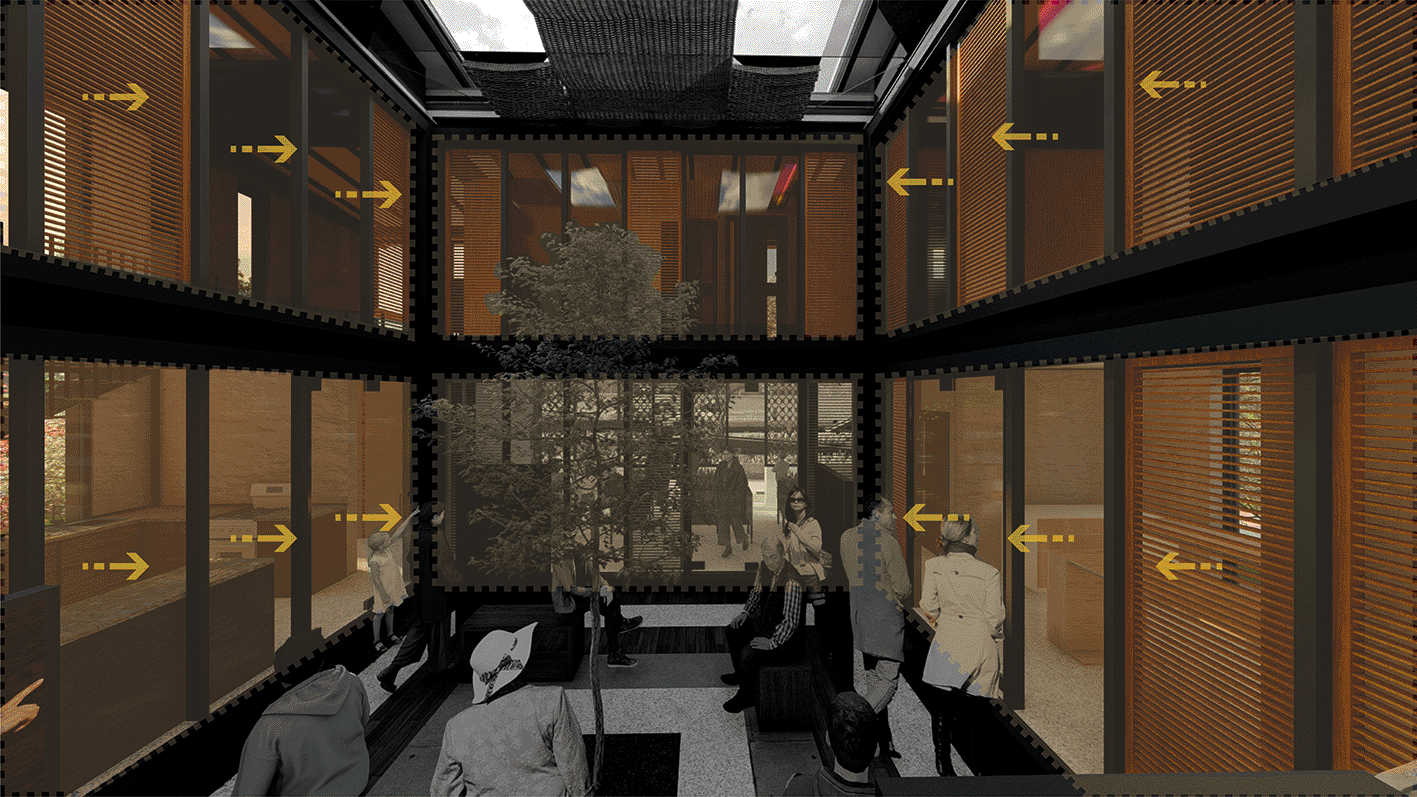

Figure 4. Proposal of Visual guidelines applied to flexible modular dwelling Cebadas-Ecuador using ArchiCad, Lumion, Adobe Photoshop and Adobe Illustrator.

3.2.3 Form

The project should start from a basic concept of modulation that generates new spaces according to the user’s needs. The formal organization of the building responds to several organizing principles with a spatial correlation.

Flexible modular dwelling proposal Cebadas-Ecuador: The organization of this system begins with an abstraction in the center, thus generating an internal courtyard that becomes the articulating void of the project, this central space serves as a starting point to which the other spaces are gradually added. Following these principles of organization, half of a central space is subtracted, creating a porch-like foyer that ends in the main entrance. Expanding to the upper floor, an addition is projected at the rear that functions as a balcony, redirecting views to the surrounding landscape. Ultimately, the project seeks to break with its formal orthogonality by projecting a set of heights through sloping roofs, as shown in Figure 5:

3.2.4 Function

The parameter suggests posing a relationship and interconnection in the project spaces generating permeability and visual interconnection with the immediate surroundings.

Flexible modular dwelling proposal Cebadas-Ecuador: The project establishes an axis to connect directly with the city, allocating the first floor to communal, public and semi-public spaces, and the upper floor to private spaces, ensuring a clear separation of uses. It employs a 1 m × 1 m modulation to provide the minimum essential space, complemented by 50 cm × 50 cm micro-modules for a flexible and functional distribution. The organization starts from a central internal courtyard, one half of which is subtracted to create a porch-like foyer to the main entrance. Upstairs, a rear balcony redirects the views to the landscape.

The project breaks the orthogonality with sloping roofs, creating a set of heights.

In terms of function, as shown in Figure 5, it is organized horizontally, with a central hierarchical axis where the greenhouse is located, which distributes the areas around it. This link leads to an exhibition gallery and a workshop, creating a community social space that integrates the production and sale of handicrafts and crops, promoting local identity.

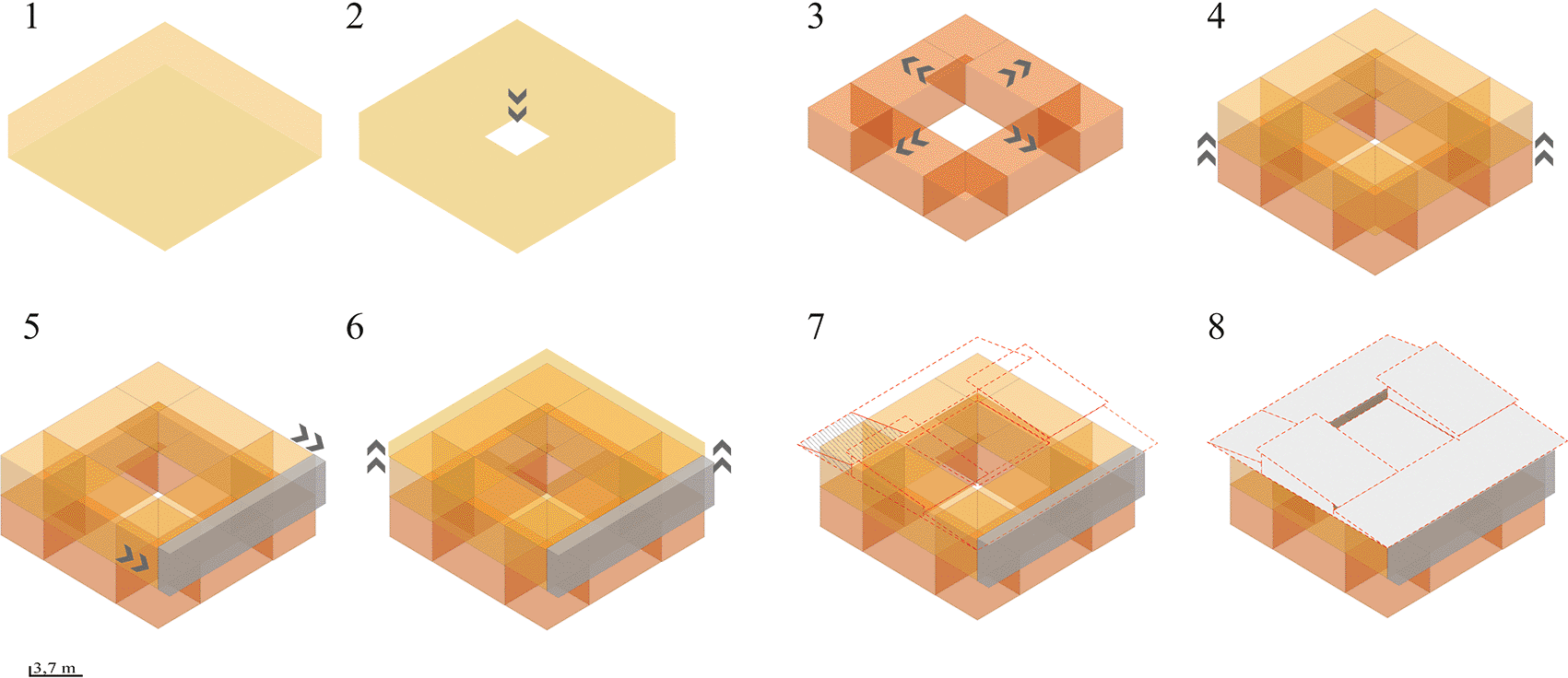

Figure 5. Proposal of Form guidelines applied to flexible modular dwelling Cebadas-Ecuador using Adobe Illustrator.

The greenhouse acts as a key element, visually and spatially connecting the interior and exterior, functionally segmenting the house and guiding circulation in a coherent and efficient manner from the street to the rear cultivation area. The rear of the lot is transformed to enhance the landscape and encourage cultivation, recovering the identity of the sector. In addition, the design allows for the expansion of the dwelling into a duplex apartment, offering a new source of income. As shown in Figure 6:

Figure 6. Proposed Functional Guidelines applied to the Cebadas-Ecuador flexible modular dwelling using ArchiCad, SketchUp and Adobe Illustrator.

3.2.5 Materials

The project should integrate materials with insulating properties, both thermal and acoustic, as these materials help the project to air condition the spaces. It also favors the use of local, sustainable materials from renewable sources.

Flexible modular dwelling proposal Cebadas-Ecuador: The project integrates materials with insulating properties, both thermal and acoustic, to air condition the spaces. The predominant materials are Compressed Earth Block (CEB) and steel. The CEB is used as an element of solar gain and thermal insulation to project them on most of the walls of the house. Wood, in the form of planks or boards, is mainly applied on the floor of the project to improve thermal gain as a support for the roof. The use of these local materials seeks to recover the identity and thermal characteristics of the sector’s dwellings, as shown in Figure 4. In addition, local materials are integrated with new systems such as steel, aluminum and glass. Steel and aluminum guarantee the flexibility of the spaces, while glass is used in the internal stained glass to create a suitable environment for both the landscape and the development of the internal vegetation. As shown in Figure 7.

Figure 7. Material guidelines proposal applied to flexible modular dwelling Cebadas-Ecuador using ArchiCad, SketchUp and Adobe Illustrator.

3.2.6 Bioclimatic

This indicator suggests maximizing solar and heat gain through passive and active strategies.

• The project should be oriented towards the sun to obtain greater solar collection, which would allow greater thermal gain. It is important that the spatial distribution organizes the bedrooms and the social area towards the facades directly facing the sun, so that the other spaces receive indirect solar incidence.
• Gain of natural lighting in all spaces of the project.
• Thermal gain through central greenhouses that can act as multifunctional-bioclimatic-landscapes, such as internal courtyards, surrounded by social and private areas.
• Regarding ventilation, cross ventilation strategies are suggested through large windows, but avoiding the prevailing winds of the sector.
• Adaptation and use of the existing topography.
• Wind protection through the modeling of the existing topography, vegetation curtains, use of surrounding vegetation.
• Involvement of materials with high thermal inertia such as wood for the roof, handmade bricks for walls, stone for floors, etc., so that heat is transmitted to the interior of the house.
• Use of colors that allow the sun’s rays to be reflected.
• Bioclimatic strategies in the project design to increase the temperature of the building, such as the use of Trombe walls or heat traps.
• The thickness of the perimeter walls allows keeping the heat inside the building, while the internal walls of lesser thickness allow a greater use and passage of heat, maintaining an adequate temperature inside the building.
• It is suggested that the building’s electrical system be supported by a system of solar panels that capture sunlight and transform it into energy.
• Making use of the collection and recycling system as an alternative source of energy income by being able to trade recycled materials.
• Rainwater harvesting and reuse strategies, to be used as irrigation for greenhouse crops and green areas or as water reserve for the house.

Flexible modular dwelling proposal Cebadas-Ecuador: The design of the lighting system focuses on providing direct light to the social and semi-social spaces of the project. Therefore, a greenhouse is projected in the central part, surrounded by curtain walls, thus allowing direct sunlight in these areas, as shown in Figure 8. This approach maximizes the entry of natural light, and also integrates the greenhouse element as a central component in the lighting distribution. Additionally, direct lighting is sought in the private spaces, specifically in the bedrooms, for which large floor-to-ceiling windows have been assigned on the side facades of the building, these windows provide an abundant entry of natural light, improving the quality of the interior lighting, as well as establishing a direct visual connection with the exterior environment. This lighting system design not only addresses practical considerations of efficient lighting, but also contributes to the thermal component of the building. As shown in Figure 8:

Figure 8. Light penetration analysis of flexible modular dwelling Cebadas-Ecuador using ArchiCad, and Adobe Photoshop.

The analysis of natural lighting of the house is presented in percentage ranges from 0 to 100% with 0 being least illuminated spaces, where natural light does not shine directly, and 100 being the spaces that receive direct lighting. As can be seen in Figure 9 generated by Dynamic Daylighting Analysis, it is evident that the highest incidence of light is concentrated in the greenhouse, although it is at 50% because the stained glass and retractable roof strategies sift direct light to control the passage of illumination, this luminosity is distributed to the other spaces which added to the reduction in the thickness of the internal walls, makes effective the passage of heat to all spaces of the house, generating warm and well-lit spaces. The same happens on the upper floor, where the presence of openings and balconies on the level allow the entry of diffuse light, achieving uniform illumination in most of the spaces. As shown in Figure 9:

Figure 9. Daylighting analysis of the Cebadas-Ecuador flexible modular dwelling using Dynamic Daylighting.

Figure 10 clearly shows that the materials used in the construction of the house have had an impact on the reduction of the energy flow, which has contributed to maintaining a constant temperature in the interior spaces.

Figure 10. Energy Flow analysis of the Cebadas- Ecuador flexible modular dwelling using Archicad and Adobe Illustrator.

The materials used have proven to be effective in thermal regulation by limiting heat loss or gain, hence the thermal comfort inside the house is optimal. As shown in Figure 11 the internal temperature varies between 17 and 20 degrees, numbers that are within the habitable thermal standards proposed by Olgyay, V. (1963) and Givoni, B. (1969). As shown in Figure 11:

Figure 11. Analysis of internal temperature in the Cebadas-Ecuador flexible modular dwelling using Archicad and Adobe Illustrator.

4. Conclusions

• The research project on flexible modular dwelling for rural environments has explored the complex housing needs in the sector, drawing conclusions that highlight the relevance and potential of the proposal.
• Flexibility and Adaptability: The introduction of a basic housing module with the capacity for future expansion effectively addresses the changing needs of users, allowing for continuous adaptation over time and anticipating the growth of families.
• Additional Income Generation: The inclusion of a duplex apartment as part of the expansion of the project responds to the housing needs of the users, and presents an opportunity for the residents to generate additional income, thus contributing to the economy of the families.
• Community and Cultural life: The incorporation of public spaces, stores and craft exhibitions promotes community life and rescues the cultural identity of the sector, contributing to the preservation of local traditions.
• Tourism and Rural Development: The combination of landscape design with crops serves agricultural needs, promotes tourism and redefines the perception of rural life.
• Bioclimatic and Sustainability: The implementation of bioclimatic strategies, such as the central greenhouse, efficiently addresses thermal problems, improving the habitability of the house. In addition, the use of local materials and sustainability strategies such as the reuse of rainwater for crop irrigation promotes responsible management of water resources, contributing to the sustainability and efficiency of the project.

Data availability statement

Extended data

Zenodo: Flexible modular dwelling for rural environments; specific case: Cebadas – Ecuador, https://doi.org/10.5281/zenodo.12785571 (Cajamarca et al., 2024).

Data are available under the terms of the Creative Commons Attribution 4.0 International license (CC-BY 4.0).

Software availability

- Adobe Illustrator (https://www.adobe.com/products/illustrator.html)/open access alternative: Inkscape (https://inkscape.org/).
- Adobe Photoshop (https://www.adobe.com/ec/products/photoshop/free-trial-download.html)/open access alternative: (https://www.gimp.org/).
- ArchiCAD (https://graphisoft.com/ec/solutions/archicad)/open access alternative: (https://www.freecad.org/).
- Dynamic Daylighting (https://andrewmarsh.com/software/daylight-box-web/)
- Lumion (https://lumion.com/)/open access alternative: (https://www.twinmotion.com/en-US ).
- Microsoft Excel (https://www.microsoft.com/en-us/microsoft-365/excel)/open access alternative: (https://www.libreoffice.org/discover/calc/).
- SketchUp (https://www.sketchup.com/es)/open access alternative: (https://www.blender.org/).

References

Cajamarca Dacto KE, Montero Riofrio JC, Nieto Páez EF, et al.: Flexible modular dwelling for rural environments; specific case: Cebadas – Ecuador. [Data set]. Zenodo. 2024. Publisher Full Text
Garzón B: Arquitectura Sostenible. Bases, soportes y casos demostrativos. NOBUKO; 2010. Reference Source
Givoni B: Man, Climate and Architecture. 1st ed.Elsevier Publising Company Limited; 1969. Reference Source
Moncaleano A, Morales A: Vivienda digna para todos, manifiesto hacia la construcción de una política pública de vivienda social, democrática, equitativa e incluyente que Protegido un hábitat digno para los colombianos. 1st ed.Pontificia Universidad Javeriana of Colombia; 2006.
Olgyay V: Arquitectura y clima, manual de diseño bio- climático para arquitectos y urbanistas. 1st ed.Gustavo Gili, SL, Barcelona; 1963. 1998 Reference Source
Pinto V, Ruiz S: La vivienda rural en el Ecuador: desafíos para procesos sustentables e incluyentes. 1st ed.Ciudad Research center: Paso a paso Program; 2009.
Sanchez E: Diseño Sostenible: Adaptabilidad y Deconstrucción [Trabajo de Fin de Master, Universidad Politécnica de Catalunya]. Institutional Repository - Polytechnic University of Catalunya; 2011.

Comments on this article Comments (0)

Version 2

VERSION 2 PUBLISHED 30 Jul 2024

Author details Author details

¹ Faculty of Engineering, Universidad Nacional de Chimborazo, Riobamba, Chimborazo Province, Ecuador
² Higher Technical School of Construction, Universidad Politecnica de Madrid, Madrid, Spain

Karina Elizabeth Cajamarca Dacto
Roles: Conceptualization, Investigation, Methodology, Supervision, Writing – Original Draft Preparation

Jean Carlos Montero Riofrio
Roles: Conceptualization, Investigation, Methodology, Writing – Original Draft Preparation

Erick Fabricio Nieto Páez
Roles: Conceptualization, Formal Analysis, Methodology, Resources

Dany Marcelo Tasan Cruz
Roles: Formal Analysis, Resources, Software

Maikol Josueé González Espinosa
Roles: Formal Analysis, Resources, Software

Competing interests

No competing interests were disclosed.

Grant information

The author(s) declared that no grants were involved in supporting this work.

Article Versions (2)

version 2

Revised

Published: 17 Jan 2025, 13:845

https://doi.org/10.12688/f1000research.154417.2

version 1

Published: 30 Jul 2024, 13:845

https://doi.org/10.12688/f1000research.154417.1

© 2025 Cajamarca Dacto KE et al. This is an open access article distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited.

Download

Export To

metrics

	Views	Downloads
F1000Research	-	-
PubMed Central Data from PMC are received and updated monthly.	-	-

Citations

SEE MORE DETAILS

CITE

how to cite this article

Cajamarca Dacto KE, Montero Riofrio JC, Nieto Páez EF et al. Flexible modular dwelling for rural environments; specific case: Cebadas – Ecuador [version 2; peer review: 2 approved]. F1000Research 2025, 13:845 (https://doi.org/10.12688/f1000research.154417.2)

NOTE: If applicable, it is important to ensure the information in square brackets after the title is included in all citations of this article.

track

receive updates on this article

Track an article to receive email alerts on any updates to this article.

Open Peer Review

Version 2

VERSION 2

PUBLISHED 17 Jan 2025

Revised

Views

Reviewer Report 21 Jan 2025

Maria del Cisne Aguirre Ullauri, Universidad Católica de Cuenca, Azuay, Ecuador

Approved

https://doi.org/10.5256/f1000research.176417.r360149

We are grateful for the adjustments made; the quality of the work has improved and it will surely be useful for teachers, students and researchers in the area.

References
1. Cajamarca Dacto K, Montero Riofrio J, Nieto Páez E, Tasan Cruz ... Continue reading

CITE

Report a concern

Respond or Comment

Version 1

VERSION 1

PUBLISHED 30 Jul 2024

Views

Reviewer Report 28 Dec 2024

Tanya Veridiana Cueva Kean Chong, Universidad Estatal de Milagro, Milagro, Guayas, Ecuador

Approved

https://doi.org/10.5256/f1000research.169441.r347420

The article addresses an important issue in sustainable architecture. However, to enhance its academic and practical impact, it would be beneficial to further explore the methods, data, and graphical representations, and to provide more detailed analysis of the socioeconomic and cultural aspects of the studied context.

The work is presented clearly and structured, using relevant citations, such as those of Garzón (2010), Sánchez (2011), Olgyay (1963), and Givoni (1969), to support its arguments on sustainability, bioclimatic design, and modularity. The literature review addresses principles of flexibility, sustainability, and adaptable design, essential for the topic discussed.

The study design is appropriate. It combines a qualitative-quantitative approach to address both the needs of the context and the technical diagnosis. Furthermore, the research has academic merit by integrating bioclimatic, sustainable, and social criteria into the modular housing proposal for a vulnerable rural area like Cebadas.

The methods and analyses are described in sufficient detail, including the site diagnosis, the use of tools such as bioclimatic charts and psychrometric diagrams, as well as software-assisted architectural design techniques. These elements enable other researchers to replicate or adapt the approach.

A numerical statistical analysis is not directly mentioned; instead, bioclimatic graphs and tools (such as Olgyay and Givoni charts) are used to interpret climatic conditions. These tools are relevant to the architectural design context.

The article mentions the use of sources such as climatic data and site characteristics, but it does not include a repository or appendix with the source data used. To ensure full reproducibility, it would be ideal to provide direct access to the supporting data

The conclusions are well-founded on the analyses conducted and the results obtained. Flexibility, adaptability, sustainability, and income generation are ideas consistent with the data and proposals developed in the project.

Suggestions:

It would be advisable to detail the numerical data used to assess the initial conditions or measure the effectiveness of the proposal.
A deeper exploration of socioeconomic aspects is needed, as the article mentions the poverty conditions of rural housing in Cebadas, Ecuador. It would be interesting for the proposal to address issues related to the financing of these homes.
The possible limitations of the study or challenges in implementing the proposal are not discussed, such as cultural acceptance, technical or logistical feasibility in rural contexts.
To better communicate the key aspects of architectural design, 3D diagrams or renders would be useful.

Is the background of the case’s history and progression described in sufficient detail?

Yes
Is the work clearly and accurately presented and does it cite the current literature?

Yes
If applicable, is the statistical analysis and its interpretation appropriate?

Not applicable
Are all the source data underlying the results available to ensure full reproducibility?

Partly
Are the conclusions drawn adequately supported by the results?

Yes
Is the case presented with sufficient detail to be useful for teaching or other practitioners?

Yes

Competing Interests: No competing interests were disclosed.

Reviewer Expertise: Social and community architecture

I confirm that I have read this submission and believe that I have an appropriate level of expertise to confirm that it is of an acceptable scientific standard.

CITE

Report a concern

Author Response 17 Jan 2025

Karina Elizabeth Cajamarca Dacto, Faculty of Engineering, Universidad Nacional de Chimborazo, Riobamba, Ecuador

17 Jan 2025

Author Response

We are grateful for the valuable comments made by the reviewers, which have been carefully reviewed and incorporated into the manuscript to improve its quality and clarity. The following are ... Continue reading We are grateful for the valuable comments made by the reviewers, which have been carefully reviewed and incorporated into the manuscript to improve its quality and clarity. The following are the changes made:
- List of authors: the tilde in the surname of Dany Marcelo Tasán Cruz was corrected.
- Key words: “adaptable” was replaced by “modular” to adapt it to the context of the research.
- Methodology: In section 2, the sections on Design and Level of research were reorganized to improve the contextualization and understanding of the object of study. A more detailed explanation of the six basic guidelines (environment, visuals, form, function, bioclimatic and materials) was incorporated.
- Diagnosis: In section 3.1, the location of Figure No. 2 was adjusted to align it with the preceding text.
- Proposal: In section 3.2, information on the number of inhabitants of the architectural proposal was added, as suggested by the evaluators.
- Function: In section 3.2.1, the figure number was corrected (from 3 to 6) and its location was adjusted for consistency.
- Figures: Graphical scales were added to figures No. 5, 6, 7, 9, 10 and 11, and solar orientation was included in figure No. 8 to improve the bioclimatic analysis.
- Bioclimatic: In section 3.2.6, figures were reorganized for consistency between explanatory text and images.
- Conclusions: The term “Discussion” was removed from the title of section 4 to avoid confusion.
We are deeply grateful for the valuable suggestions of the reviewers, which were essential to optimize this article. We remain attentive to the publication process.
We are grateful for the valuable comments made by the reviewers, which have been carefully reviewed and incorporated into the manuscript to improve its quality and clarity. The following are the changes made:
- List of authors: the tilde in the surname of Dany Marcelo Tasán Cruz was corrected.
- Key words: “adaptable” was replaced by “modular” to adapt it to the context of the research.
- Methodology: In section 2, the sections on Design and Level of research were reorganized to improve the contextualization and understanding of the object of study. A more detailed explanation of the six basic guidelines (environment, visuals, form, function, bioclimatic and materials) was incorporated.
- Diagnosis: In section 3.1, the location of Figure No. 2 was adjusted to align it with the preceding text.
- Proposal: In section 3.2, information on the number of inhabitants of the architectural proposal was added, as suggested by the evaluators.
- Function: In section 3.2.1, the figure number was corrected (from 3 to 6) and its location was adjusted for consistency.
- Figures: Graphical scales were added to figures No. 5, 6, 7, 9, 10 and 11, and solar orientation was included in figure No. 8 to improve the bioclimatic analysis.
- Bioclimatic: In section 3.2.6, figures were reorganized for consistency between explanatory text and images.
- Conclusions: The term “Discussion” was removed from the title of section 4 to avoid confusion.
We are deeply grateful for the valuable suggestions of the reviewers, which were essential to optimize this article. We remain attentive to the publication process.
Competing Interests: No competing interests were disclosed. Close
Report a concern
Respond or Comment

COMMENTS ON THIS REPORT

Author Response 17 Jan 2025

Karina Elizabeth Cajamarca Dacto, Faculty of Engineering, Universidad Nacional de Chimborazo, Riobamba, Ecuador

17 Jan 2025

Author Response

We are grateful for the valuable comments made by the reviewers, which have been carefully reviewed and incorporated into the manuscript to improve its quality and clarity. The following are ... Continue reading We are grateful for the valuable comments made by the reviewers, which have been carefully reviewed and incorporated into the manuscript to improve its quality and clarity. The following are the changes made:
- List of authors: the tilde in the surname of Dany Marcelo Tasán Cruz was corrected.
- Key words: “adaptable” was replaced by “modular” to adapt it to the context of the research.
- Methodology: In section 2, the sections on Design and Level of research were reorganized to improve the contextualization and understanding of the object of study. A more detailed explanation of the six basic guidelines (environment, visuals, form, function, bioclimatic and materials) was incorporated.
- Diagnosis: In section 3.1, the location of Figure No. 2 was adjusted to align it with the preceding text.
- Proposal: In section 3.2, information on the number of inhabitants of the architectural proposal was added, as suggested by the evaluators.
- Function: In section 3.2.1, the figure number was corrected (from 3 to 6) and its location was adjusted for consistency.
- Figures: Graphical scales were added to figures No. 5, 6, 7, 9, 10 and 11, and solar orientation was included in figure No. 8 to improve the bioclimatic analysis.
- Bioclimatic: In section 3.2.6, figures were reorganized for consistency between explanatory text and images.
- Conclusions: The term “Discussion” was removed from the title of section 4 to avoid confusion.
We are deeply grateful for the valuable suggestions of the reviewers, which were essential to optimize this article. We remain attentive to the publication process.
We are grateful for the valuable comments made by the reviewers, which have been carefully reviewed and incorporated into the manuscript to improve its quality and clarity. The following are the changes made:
- List of authors: the tilde in the surname of Dany Marcelo Tasán Cruz was corrected.
- Key words: “adaptable” was replaced by “modular” to adapt it to the context of the research.
- Methodology: In section 2, the sections on Design and Level of research were reorganized to improve the contextualization and understanding of the object of study. A more detailed explanation of the six basic guidelines (environment, visuals, form, function, bioclimatic and materials) was incorporated.
- Diagnosis: In section 3.1, the location of Figure No. 2 was adjusted to align it with the preceding text.
- Proposal: In section 3.2, information on the number of inhabitants of the architectural proposal was added, as suggested by the evaluators.
- Function: In section 3.2.1, the figure number was corrected (from 3 to 6) and its location was adjusted for consistency.
- Figures: Graphical scales were added to figures No. 5, 6, 7, 9, 10 and 11, and solar orientation was included in figure No. 8 to improve the bioclimatic analysis.
- Bioclimatic: In section 3.2.6, figures were reorganized for consistency between explanatory text and images.
- Conclusions: The term “Discussion” was removed from the title of section 4 to avoid confusion.
We are deeply grateful for the valuable suggestions of the reviewers, which were essential to optimize this article. We remain attentive to the publication process.
Competing Interests: No competing interests were disclosed. Close
Report a concern

Views

Reviewer Report 04 Nov 2024

Maria del Cisne Aguirre Ullauri, Universidad Católica de Cuenca, Azuay, Ecuador

Approved with Reservations

https://doi.org/10.5256/f1000research.169441.r333945

The initiative of the type of work presented is welcomed. At the same time, the following observations and comments are made:
Of form:
1. Revise the spelling of proper nouns in their own language.
2. Revise the naming of paragraph 2.5 considering the naming of paragraph 2.
3. In general, section 2 needs better structure and contextualization. For example, the macro and micro location of the object of study to enable understanding.
4. Revise the format of the textual citation, it is incomplete in the development of the text.
5. Check the punctuation in the development of the work.
6. Figure 2, figure 5, figure 6, figure 8 and figure 9 should be relocated according to the development of the text and the first reference given for consultation.
7. The use of subtitles should be reviewed to avoid those of the fourth order being more evident than those of the third order.
8. The typeface should be standardized. Figures have a different typeface to the text in general. The size is larger.
9. The wording should be revised; grammatical tenses are mixed up.
10. Figures should include graphic scale and orientation.
11. Discussion should be separated from Conclusions, necessarily.
12. The bibliography should be significantly improved in form and content. The sources consulted and used are limited and do not cover geographically the development of the subject and the contribution presented with the work in the world scenario.
13. Technical revision of the language by a specialist is recommended.
Background:
1. The summary does not present how the research work is developed, i.e. the method used and its main technical resources. The content is generic and does not match what was developed in the work being presented. The results should be expanded at a technical level in the 6 stated guidelines. Review the correspondence of the conclusions and the initial focus of the summary; the topic of tourism generates noise due to the emphasis given.
2. It is suggested to change the keyword adaptable, it does not contribute by itself and there is another keyword (modular) that is already presented.
3. In the third and fourth paragraph of the introduction there is a lack of reference to authors, necessarily. Other such cases are evident throughout the document.
4. The introduction is weak, it does not evidence about the existing contribution to the knowledge generated by the research.
5. In general, section 2 needs better structure and contextualization. For example, the macro and micro location of the object of study in order to understand it.
6. Section 2.1 is not clear about particulars such as: type of sources consulted, period of time during which the research was carried out, method of analysis of the documents, whether qualitative or quantitative. The same applies to sections 2.2 to 2.7, which are general and do not contribute to the research process developed.
7. Section 3.1 is introductory content, not a result, as stated in the work. It allows us to understand the situation of the place and the problems to be addressed, i.e. it is the state of the art, at least in the initial paragraphs.
8. Figure 1 refers to a specific methodology that is not indicated and explains how it was applied in the methodology section. In the following paragraph the case is repeated and extended to figure 2.
9. Paragraph 5 of section 3.1 needs to be reviewed for coherence and consistency of content; possibly there are contradictions.
10. The development of section 3.2 requires technical precision in each of the 6 components. The inclusion of renderings alone is deficient. If the context is rural, the architectural proposal may be aggressive. It is also suggested to mix conceptual descriptions with the proposal.
11. The proposal is not clear on certain particulars, e.g. how many people is the building designed for?
12. Discussion should be separated from Conclusions, necessarily. The current content is disjointed and needs more consistency.
13. The bibliography should be significantly improved in form and substance. The sources consulted and used are limited and do not cover geographically the development of the topic and the contribution presented with the work on the world stage.

Is the background of the case’s history and progression described in sufficient detail?

Partly
Is the work clearly and accurately presented and does it cite the current literature?

Partly
If applicable, is the statistical analysis and its interpretation appropriate?

No
Are all the source data underlying the results available to ensure full reproducibility?

No
Are the conclusions drawn adequately supported by the results?

No
Is the case presented with sufficient detail to be useful for teaching or other practitioners?

Partly

Competing Interests: No competing interests were disclosed.

Reviewer Expertise: Architecture; historical materials; stratigraphic muraria reading; risk and management

I confirm that I have read this submission and believe that I have an appropriate level of expertise to confirm that it is of an acceptable scientific standard, however I have significant reservations, as outlined above.

CITE

Report a concern

Author Response 17 Jan 2025

Karina Elizabeth Cajamarca Dacto, Faculty of Engineering, Universidad Nacional de Chimborazo, Riobamba, Ecuador

17 Jan 2025

Author Response

We have carefully reviewed the suggestions provided by the peer reviewer and would like to express our appreciation for their valuable comments. In response, we have made the necessary changes ... Continue reading We have carefully reviewed the suggestions provided by the peer reviewer and would like to express our appreciation for their valuable comments. In response, we have made the necessary changes to the article to improve its clarity, content and academic rigor. Likewise, changes have been implemented in the content of the article to ensure that all modifications are consistent with the observations made, improving the quality of the work presented.
We have carefully reviewed the suggestions provided by the peer reviewer and would like to express our appreciation for their valuable comments. In response, we have made the necessary changes to the article to improve its clarity, content and academic rigor. Likewise, changes have been implemented in the content of the article to ensure that all modifications are consistent with the observations made, improving the quality of the work presented.
Competing Interests: No competing interests were disclosed. Close
Report a concern
Author Response 17 Jan 2025

Karina Elizabeth Cajamarca Dacto, Faculty of Engineering, Universidad Nacional de Chimborazo, Riobamba, Ecuador

17 Jan 2025

Author Response

Agradecemos los valiosos comentarios realizados por los revisores. Todas las sugerencias y comentarios han sido cuidadosamente revisados e incorporados al manuscrito, con el objetivo de mejorar su calidad y claridad. ... Continue reading Agradecemos los valiosos comentarios realizados por los revisores. Todas las sugerencias y comentarios han sido cuidadosamente revisados e incorporados al manuscrito, con el objetivo de mejorar su calidad y claridad. Los siguientes son los cambios realizados:
- Sección de listado de autores: faltas de ortografía, tilde en el apellido de uno de los autores, Dany Marcelo Tasán Cruz, fueron corregidos.
- Sección de palabras clave: La palabra clave adaptable se ha cambiado a modular porque se adapta mejor al contexto de la investigación.
- Apartado Método: En el apartado 2 de Métodos, se han modificado los apartados correspondientes al Diseño de la investigación y al nivel de investigación con el fin de conseguir una mejor estructura, contextualización y comprensión del objeto de estudio. Estos cambios permiten una explicación más clara y precisa de la macro y micro localización del objeto de estudio. Asimismo, se ha cambiado el nombre de la sección 'Método' por el de 'Metodología', ya que el subtítulo tenía el mismo nombre. En cuanto a su contenido, se ha incorporado una explicación más clara de las seis pautas básicas que deben cumplir este tipo de viviendas: medio ambiente, visuales, forma, función, bioclimática y materiales. Con ello se pretende aportar mayor claridad a la metodología de esta investigación y al proceso que conduce a la propuesta arquitectónica.
- Apartado Diagnóstico: En el apartado 3.1, correspondiente al diagnóstico del parámetro de resultados, se ha ajustado la ubicación de la figura N 2 para alinearla con el texto anterior, consiguiendo así un orden lógico y coherente del texto explicativo seguido de la figura.
- Sección de Propuesta: En el apartado 3.2, correspondiente al parámetro de resultados, se ha incorporado la información sobre el número de personas que habitarán la propuesta arquitectónica, atendiendo a la sugerencia de uno de los pares evaluadores.
- Función de sección: En el apartado 3.2.1, correspondiente al parámetro de la propuesta, se ha corregido el número de figura, cambiándolo de 3 a 6, para garantizar la coherencia con la materia. Asimismo, se ha ajustado la ubicación de la figura número 6 para alinearla con el texto anterior, consiguiendo así un orden lógico y coherente del texto explicativo seguido de la figura.
- Figuras: Se ha modificado el contenido de las figuras N 5, 6, 7, 9, 10 y 11, añadiendo una escala gráfica que permite la representación visual y proporcional de la relación entre las dimensiones de un objeto o espacio en el mundo real y su representación en un plano o dibujo. Esto permite al observador del dibujo o plano interpretar correctamente las medidas y proporciones, facilitando su comprensión y análisis. Ya que la escala gráfica es especialmente útil en planos arquitectónicos, mapas y diagramas, ya que proporciona una referencia clara de tamaño y distancia. Y en cuanto a la figura N 8, se ha modificado su contenido, añadiendo la orientación solar para entender mejor el análisis bioclimático objeto de la presentación.
- Bioclimática: En el apartado 3.2.6, correspondiente al parámetro de la propuesta, se ha ajustado la ubicación de las figuras del subapartado (figuras nº 8, 9, 10 y 11) para alinearlas con el texto anterior, consiguiendo así un orden lógico y coherente en el que al texto explicativo le siguen las figuras.
- Conclusiones/Discusión: En la sección 4 del documento, en el título combinado, se ha eliminado el término "Discusión" porque genera confusión en relación con el tema de investigación.
Estos son los cambios incorporados en la nueva versión del documento. Estamos profundamente agradecidos por todas las valiosas sugerencias proporcionadas por los revisores, que han sido fundamentales para mejorar el contenido de este artículo. Permanecemos atentos al proceso de actualización y al avance del respectivo proceso de publicación. Saludos y gracias.
Agradecemos los valiosos comentarios realizados por los revisores. Todas las sugerencias y comentarios han sido cuidadosamente revisados e incorporados al manuscrito, con el objetivo de mejorar su calidad y claridad. Los siguientes son los cambios realizados:
- Sección de listado de autores: faltas de ortografía, tilde en el apellido de uno de los autores, Dany Marcelo Tasán Cruz, fueron corregidos.
- Sección de palabras clave: La palabra clave adaptable se ha cambiado a modular porque se adapta mejor al contexto de la investigación.
- Apartado Método: En el apartado 2 de Métodos, se han modificado los apartados correspondientes al Diseño de la investigación y al nivel de investigación con el fin de conseguir una mejor estructura, contextualización y comprensión del objeto de estudio. Estos cambios permiten una explicación más clara y precisa de la macro y micro localización del objeto de estudio. Asimismo, se ha cambiado el nombre de la sección 'Método' por el de 'Metodología', ya que el subtítulo tenía el mismo nombre. En cuanto a su contenido, se ha incorporado una explicación más clara de las seis pautas básicas que deben cumplir este tipo de viviendas: medio ambiente, visuales, forma, función, bioclimática y materiales. Con ello se pretende aportar mayor claridad a la metodología de esta investigación y al proceso que conduce a la propuesta arquitectónica.
- Apartado Diagnóstico: En el apartado 3.1, correspondiente al diagnóstico del parámetro de resultados, se ha ajustado la ubicación de la figura N 2 para alinearla con el texto anterior, consiguiendo así un orden lógico y coherente del texto explicativo seguido de la figura.
- Sección de Propuesta: En el apartado 3.2, correspondiente al parámetro de resultados, se ha incorporado la información sobre el número de personas que habitarán la propuesta arquitectónica, atendiendo a la sugerencia de uno de los pares evaluadores.
- Función de sección: En el apartado 3.2.1, correspondiente al parámetro de la propuesta, se ha corregido el número de figura, cambiándolo de 3 a 6, para garantizar la coherencia con la materia. Asimismo, se ha ajustado la ubicación de la figura número 6 para alinearla con el texto anterior, consiguiendo así un orden lógico y coherente del texto explicativo seguido de la figura.
- Figuras: Se ha modificado el contenido de las figuras N 5, 6, 7, 9, 10 y 11, añadiendo una escala gráfica que permite la representación visual y proporcional de la relación entre las dimensiones de un objeto o espacio en el mundo real y su representación en un plano o dibujo. Esto permite al observador del dibujo o plano interpretar correctamente las medidas y proporciones, facilitando su comprensión y análisis. Ya que la escala gráfica es especialmente útil en planos arquitectónicos, mapas y diagramas, ya que proporciona una referencia clara de tamaño y distancia. Y en cuanto a la figura N 8, se ha modificado su contenido, añadiendo la orientación solar para entender mejor el análisis bioclimático objeto de la presentación.
- Bioclimática: En el apartado 3.2.6, correspondiente al parámetro de la propuesta, se ha ajustado la ubicación de las figuras del subapartado (figuras nº 8, 9, 10 y 11) para alinearlas con el texto anterior, consiguiendo así un orden lógico y coherente en el que al texto explicativo le siguen las figuras.
- Conclusiones/Discusión: En la sección 4 del documento, en el título combinado, se ha eliminado el término "Discusión" porque genera confusión en relación con el tema de investigación.
Estos son los cambios incorporados en la nueva versión del documento. Estamos profundamente agradecidos por todas las valiosas sugerencias proporcionadas por los revisores, que han sido fundamentales para mejorar el contenido de este artículo. Permanecemos atentos al proceso de actualización y al avance del respectivo proceso de publicación. Saludos y gracias.
Competing Interests: No competing interests were disclosed. Close
Report a concern
Author Response 17 Jan 2025

Karina Elizabeth Cajamarca Dacto, Faculty of Engineering, Universidad Nacional de Chimborazo, Riobamba, Ecuador

17 Jan 2025

Author Response

We are grateful for the valuable comments made by the reviewers. All suggestions and comments have been carefully reviewed and incorporated into the manuscript, with the aim of improving its ... Continue reading We are grateful for the valuable comments made by the reviewers. All suggestions and comments have been carefully reviewed and incorporated into the manuscript, with the aim of improving its quality and clarity. The following are the changes made:

- List of authors section: spelling mistakes, tilde in the surname of one of the authors, Dany Marcelo Tasán Cruz, were corrected.

- Key words section: The key word adaptable has been changed to modular because it is better suited to the context of the research.

- Method section: In section 2 of Methods, the sections corresponding to the Design of the research and the level of research have been modified in order to achieve a better structure, contextualization and understanding of the object of study. These changes allow a clearer and more precise explanation of the macro and micro location of the object of study. Likewise, the name of the section 'Method' has been changed to 'Methodology', since the subtitle had the same name. As for its content, a clearer explanation of the six basic guidelines that this type of housing must comply with has been incorporated: environment, visuals, form, function, bioclimatic and materials. This is intended to provide greater clarity to the methodology of this research and the process leading to the architectural proposal.

- Diagnosis Section: In section 3.1, corresponding to the diagnosis of the results parameter, the location of figure N 2 has been adjusted to align it with the preceding text, thus achieving a logical and coherent order of explanatory text followed by the figure.

- Proposal Section: In section 3.2, corresponding to the results parameter, the information on the number of people who will inhabit the architectural proposal has been incorporated, attending to the suggestion of one of the peer reviewers.

- Section Function: In section 3.2.1, corresponding to the proposal parameter, the figure number has been corrected, changing it from 3 to 6, to ensure consistency with the subject matter. Also, the location of figure number 6 has been adjusted to align it with the preceding text, thus achieving a logical and coherent order of the explanatory text followed by the figure.

- Figures: The content of figures N 5, 6, 7, 9, 10 and 11 has been modified, adding a graphic scale that allows the visual and proportional representation of the relationship between the dimensions of an object or space in the real world and its representation in a plan or drawing. This allows the observer of the drawing or plan to correctly interpret the measurements and proportions, facilitating its understanding and analysis. Since the graphic scale is especially useful in architectural plans, maps and diagrams, as it provides a clear reference of size and distance. And as for figure N 8, its content has been modified, adding the solar orientation to better understand the bioclimatic analysis object of the presentation.

- Bioclimatic: In section 3.2.6, corresponding to the proposal parameter, the location of the figures in the subsection (figures No. 8, 9, 10 and 11) has been adjusted to align them with the preceding text, thus achieving a logical and coherent order in which the explanatory text is followed by the figures.

- Conclusions/Discussion: In section 4 of the document, in the combined title, the term “Discussion” has been removed because it generates confusion in relation to the research topic.

These are the changes incorporated in the new version of the paper. We are deeply grateful for all the valuable suggestions provided by the peer reviewers, which have been fundamental to improve the content of this article. We remain attentive to the updating process and to the progress of the respective publication process. Greetings and thanks.
We are grateful for the valuable comments made by the reviewers. All suggestions and comments have been carefully reviewed and incorporated into the manuscript, with the aim of improving its quality and clarity. The following are the changes made:

- List of authors section: spelling mistakes, tilde in the surname of one of the authors, Dany Marcelo Tasán Cruz, were corrected.

- Key words section: The key word adaptable has been changed to modular because it is better suited to the context of the research.

- Method section: In section 2 of Methods, the sections corresponding to the Design of the research and the level of research have been modified in order to achieve a better structure, contextualization and understanding of the object of study. These changes allow a clearer and more precise explanation of the macro and micro location of the object of study. Likewise, the name of the section 'Method' has been changed to 'Methodology', since the subtitle had the same name. As for its content, a clearer explanation of the six basic guidelines that this type of housing must comply with has been incorporated: environment, visuals, form, function, bioclimatic and materials. This is intended to provide greater clarity to the methodology of this research and the process leading to the architectural proposal.

- Diagnosis Section: In section 3.1, corresponding to the diagnosis of the results parameter, the location of figure N 2 has been adjusted to align it with the preceding text, thus achieving a logical and coherent order of explanatory text followed by the figure.

- Proposal Section: In section 3.2, corresponding to the results parameter, the information on the number of people who will inhabit the architectural proposal has been incorporated, attending to the suggestion of one of the peer reviewers.

- Section Function: In section 3.2.1, corresponding to the proposal parameter, the figure number has been corrected, changing it from 3 to 6, to ensure consistency with the subject matter. Also, the location of figure number 6 has been adjusted to align it with the preceding text, thus achieving a logical and coherent order of the explanatory text followed by the figure.

- Figures: The content of figures N 5, 6, 7, 9, 10 and 11 has been modified, adding a graphic scale that allows the visual and proportional representation of the relationship between the dimensions of an object or space in the real world and its representation in a plan or drawing. This allows the observer of the drawing or plan to correctly interpret the measurements and proportions, facilitating its understanding and analysis. Since the graphic scale is especially useful in architectural plans, maps and diagrams, as it provides a clear reference of size and distance. And as for figure N 8, its content has been modified, adding the solar orientation to better understand the bioclimatic analysis object of the presentation.

- Bioclimatic: In section 3.2.6, corresponding to the proposal parameter, the location of the figures in the subsection (figures No. 8, 9, 10 and 11) has been adjusted to align them with the preceding text, thus achieving a logical and coherent order in which the explanatory text is followed by the figures.

- Conclusions/Discussion: In section 4 of the document, in the combined title, the term “Discussion” has been removed because it generates confusion in relation to the research topic.

These are the changes incorporated in the new version of the paper. We are deeply grateful for all the valuable suggestions provided by the peer reviewers, which have been fundamental to improve the content of this article. We remain attentive to the updating process and to the progress of the respective publication process. Greetings and thanks.
Competing Interests: No competing interests were disclosed. Close
Report a concern
Author Response 17 Jan 2025

Karina Elizabeth Cajamarca Dacto, Faculty of Engineering, Universidad Nacional de Chimborazo, Riobamba, Ecuador

17 Jan 2025

Author Response

We are grateful for the valuable comments made by the reviewers, which have been carefully reviewed and incorporated into the manuscript to improve its quality and clarity. The following are ... Continue reading We are grateful for the valuable comments made by the reviewers, which have been carefully reviewed and incorporated into the manuscript to improve its quality and clarity. The following are the changes made:
- List of authors: the tilde in the surname of Dany Marcelo Tasán Cruz was corrected.
- Key words: “adaptable” was replaced by “modular” to adapt it to the context of the research.
- Methodology: In section 2, the sections on Design and Level of research were reorganized to improve the contextualization and understanding of the object of study. A more detailed explanation of the six basic guidelines (environment, visuals, form, function, bioclimatic and materials) was incorporated.
- Diagnosis: In section 3.1, the location of Figure No. 2 was adjusted to align it with the preceding text.
- Proposal: In section 3.2, information on the number of inhabitants of the architectural proposal was added, as suggested by the evaluators.
- Function: In section 3.2.1, the figure number was corrected (from 3 to 6) and its location was adjusted for consistency.
- Figures: Graphical scales were added to figures No. 5, 6, 7, 9, 10 and 11, and solar orientation was included in figure No. 8 to improve the bioclimatic analysis.
- Bioclimatic: In section 3.2.6, figures were reorganized for consistency between explanatory text and images.
- Conclusions: The term “Discussion” was removed from the title of section 4 to avoid confusion.
We are deeply grateful for the valuable suggestions of the reviewers, which were essential to optimize this article. We remain attentive to the publication process.
We are grateful for the valuable comments made by the reviewers, which have been carefully reviewed and incorporated into the manuscript to improve its quality and clarity. The following are the changes made:
- List of authors: the tilde in the surname of Dany Marcelo Tasán Cruz was corrected.
- Key words: “adaptable” was replaced by “modular” to adapt it to the context of the research.
- Methodology: In section 2, the sections on Design and Level of research were reorganized to improve the contextualization and understanding of the object of study. A more detailed explanation of the six basic guidelines (environment, visuals, form, function, bioclimatic and materials) was incorporated.
- Diagnosis: In section 3.1, the location of Figure No. 2 was adjusted to align it with the preceding text.
- Proposal: In section 3.2, information on the number of inhabitants of the architectural proposal was added, as suggested by the evaluators.
- Function: In section 3.2.1, the figure number was corrected (from 3 to 6) and its location was adjusted for consistency.
- Figures: Graphical scales were added to figures No. 5, 6, 7, 9, 10 and 11, and solar orientation was included in figure No. 8 to improve the bioclimatic analysis.
- Bioclimatic: In section 3.2.6, figures were reorganized for consistency between explanatory text and images.
- Conclusions: The term “Discussion” was removed from the title of section 4 to avoid confusion.
We are deeply grateful for the valuable suggestions of the reviewers, which were essential to optimize this article. We remain attentive to the publication process.
Competing Interests: No competing interests were disclosed. Close
Report a concern
Author Response 17 Jan 2025

Karina Elizabeth Cajamarca Dacto, Faculty of Engineering, Universidad Nacional de Chimborazo, Riobamba, Ecuador

17 Jan 2025

Author Response

Dear Editor, I enclose the text in the requested number of words:

We are grateful for the valuable comments made by the reviewers, which have been carefully reviewed and ... Continue reading Dear Editor, I enclose the text in the requested number of words:

We are grateful for the valuable comments made by the reviewers, which have been carefully reviewed and incorporated into the manuscript to improve its quality and clarity. The following are the changes made:
- List of authors: the tilde in the surname of Dany Marcelo Tasán Cruz was corrected.
- Key words: “adaptable” was replaced by “modular” to adapt it to the context of the research.
- Methodology: In section 2, the sections on Design and Level of research were reorganized to improve the contextualization and understanding of the object of study. A more detailed explanation of the six basic guidelines (environment, visuals, form, function, bioclimatic and materials) was incorporated.
- Diagnosis: In section 3.1, the location of Figure No. 2 was adjusted to align it with the preceding text.
- Proposal: In section 3.2, information on the number of inhabitants of the architectural proposal was added, as suggested by the evaluators.
- Function: In section 3.2.1, the figure number was corrected (from 3 to 6) and its location was adjusted for consistency.
- Figures: Graphical scales were added to figures No. 5, 6, 7, 9, 10 and 11, and solar orientation was included in figure No. 8 to improve the bioclimatic analysis.
- Bioclimatic: In section 3.2.6, figures were reorganized for consistency between explanatory text and images.
- Conclusions: The term “Discussion” was removed from the title of section 4 to avoid confusion.
We are deeply grateful for the valuable suggestions of the reviewers, which were essential to optimize this article. We remain attentive to the publication process.
Dear Editor, I enclose the text in the requested number of words:

We are grateful for the valuable comments made by the reviewers, which have been carefully reviewed and incorporated into the manuscript to improve its quality and clarity. The following are the changes made:
- List of authors: the tilde in the surname of Dany Marcelo Tasán Cruz was corrected.
- Key words: “adaptable” was replaced by “modular” to adapt it to the context of the research.
- Methodology: In section 2, the sections on Design and Level of research were reorganized to improve the contextualization and understanding of the object of study. A more detailed explanation of the six basic guidelines (environment, visuals, form, function, bioclimatic and materials) was incorporated.
- Diagnosis: In section 3.1, the location of Figure No. 2 was adjusted to align it with the preceding text.
- Proposal: In section 3.2, information on the number of inhabitants of the architectural proposal was added, as suggested by the evaluators.
- Function: In section 3.2.1, the figure number was corrected (from 3 to 6) and its location was adjusted for consistency.
- Figures: Graphical scales were added to figures No. 5, 6, 7, 9, 10 and 11, and solar orientation was included in figure No. 8 to improve the bioclimatic analysis.
- Bioclimatic: In section 3.2.6, figures were reorganized for consistency between explanatory text and images.
- Conclusions: The term “Discussion” was removed from the title of section 4 to avoid confusion.
We are deeply grateful for the valuable suggestions of the reviewers, which were essential to optimize this article. We remain attentive to the publication process.
Competing Interests: No competing interests were disclosed. Close
Report a concern
Respond or Comment

COMMENTS ON THIS REPORT

Author Response 17 Jan 2025

Karina Elizabeth Cajamarca Dacto, Faculty of Engineering, Universidad Nacional de Chimborazo, Riobamba, Ecuador

17 Jan 2025

Author Response

We have carefully reviewed the suggestions provided by the peer reviewer and would like to express our appreciation for their valuable comments. In response, we have made the necessary changes ... Continue reading We have carefully reviewed the suggestions provided by the peer reviewer and would like to express our appreciation for their valuable comments. In response, we have made the necessary changes to the article to improve its clarity, content and academic rigor. Likewise, changes have been implemented in the content of the article to ensure that all modifications are consistent with the observations made, improving the quality of the work presented.
We have carefully reviewed the suggestions provided by the peer reviewer and would like to express our appreciation for their valuable comments. In response, we have made the necessary changes to the article to improve its clarity, content and academic rigor. Likewise, changes have been implemented in the content of the article to ensure that all modifications are consistent with the observations made, improving the quality of the work presented.
Competing Interests: No competing interests were disclosed. Close
Report a concern
Author Response 17 Jan 2025

Karina Elizabeth Cajamarca Dacto, Faculty of Engineering, Universidad Nacional de Chimborazo, Riobamba, Ecuador

17 Jan 2025

Author Response

Agradecemos los valiosos comentarios realizados por los revisores. Todas las sugerencias y comentarios han sido cuidadosamente revisados e incorporados al manuscrito, con el objetivo de mejorar su calidad y claridad. ... Continue reading Agradecemos los valiosos comentarios realizados por los revisores. Todas las sugerencias y comentarios han sido cuidadosamente revisados e incorporados al manuscrito, con el objetivo de mejorar su calidad y claridad. Los siguientes son los cambios realizados:
- Sección de listado de autores: faltas de ortografía, tilde en el apellido de uno de los autores, Dany Marcelo Tasán Cruz, fueron corregidos.
- Sección de palabras clave: La palabra clave adaptable se ha cambiado a modular porque se adapta mejor al contexto de la investigación.
- Apartado Método: En el apartado 2 de Métodos, se han modificado los apartados correspondientes al Diseño de la investigación y al nivel de investigación con el fin de conseguir una mejor estructura, contextualización y comprensión del objeto de estudio. Estos cambios permiten una explicación más clara y precisa de la macro y micro localización del objeto de estudio. Asimismo, se ha cambiado el nombre de la sección 'Método' por el de 'Metodología', ya que el subtítulo tenía el mismo nombre. En cuanto a su contenido, se ha incorporado una explicación más clara de las seis pautas básicas que deben cumplir este tipo de viviendas: medio ambiente, visuales, forma, función, bioclimática y materiales. Con ello se pretende aportar mayor claridad a la metodología de esta investigación y al proceso que conduce a la propuesta arquitectónica.
- Apartado Diagnóstico: En el apartado 3.1, correspondiente al diagnóstico del parámetro de resultados, se ha ajustado la ubicación de la figura N 2 para alinearla con el texto anterior, consiguiendo así un orden lógico y coherente del texto explicativo seguido de la figura.
- Sección de Propuesta: En el apartado 3.2, correspondiente al parámetro de resultados, se ha incorporado la información sobre el número de personas que habitarán la propuesta arquitectónica, atendiendo a la sugerencia de uno de los pares evaluadores.
- Función de sección: En el apartado 3.2.1, correspondiente al parámetro de la propuesta, se ha corregido el número de figura, cambiándolo de 3 a 6, para garantizar la coherencia con la materia. Asimismo, se ha ajustado la ubicación de la figura número 6 para alinearla con el texto anterior, consiguiendo así un orden lógico y coherente del texto explicativo seguido de la figura.
- Figuras: Se ha modificado el contenido de las figuras N 5, 6, 7, 9, 10 y 11, añadiendo una escala gráfica que permite la representación visual y proporcional de la relación entre las dimensiones de un objeto o espacio en el mundo real y su representación en un plano o dibujo. Esto permite al observador del dibujo o plano interpretar correctamente las medidas y proporciones, facilitando su comprensión y análisis. Ya que la escala gráfica es especialmente útil en planos arquitectónicos, mapas y diagramas, ya que proporciona una referencia clara de tamaño y distancia. Y en cuanto a la figura N 8, se ha modificado su contenido, añadiendo la orientación solar para entender mejor el análisis bioclimático objeto de la presentación.
- Bioclimática: En el apartado 3.2.6, correspondiente al parámetro de la propuesta, se ha ajustado la ubicación de las figuras del subapartado (figuras nº 8, 9, 10 y 11) para alinearlas con el texto anterior, consiguiendo así un orden lógico y coherente en el que al texto explicativo le siguen las figuras.
- Conclusiones/Discusión: En la sección 4 del documento, en el título combinado, se ha eliminado el término "Discusión" porque genera confusión en relación con el tema de investigación.
Estos son los cambios incorporados en la nueva versión del documento. Estamos profundamente agradecidos por todas las valiosas sugerencias proporcionadas por los revisores, que han sido fundamentales para mejorar el contenido de este artículo. Permanecemos atentos al proceso de actualización y al avance del respectivo proceso de publicación. Saludos y gracias.
Agradecemos los valiosos comentarios realizados por los revisores. Todas las sugerencias y comentarios han sido cuidadosamente revisados e incorporados al manuscrito, con el objetivo de mejorar su calidad y claridad. Los siguientes son los cambios realizados:
- Sección de listado de autores: faltas de ortografía, tilde en el apellido de uno de los autores, Dany Marcelo Tasán Cruz, fueron corregidos.
- Sección de palabras clave: La palabra clave adaptable se ha cambiado a modular porque se adapta mejor al contexto de la investigación.
- Apartado Método: En el apartado 2 de Métodos, se han modificado los apartados correspondientes al Diseño de la investigación y al nivel de investigación con el fin de conseguir una mejor estructura, contextualización y comprensión del objeto de estudio. Estos cambios permiten una explicación más clara y precisa de la macro y micro localización del objeto de estudio. Asimismo, se ha cambiado el nombre de la sección 'Método' por el de 'Metodología', ya que el subtítulo tenía el mismo nombre. En cuanto a su contenido, se ha incorporado una explicación más clara de las seis pautas básicas que deben cumplir este tipo de viviendas: medio ambiente, visuales, forma, función, bioclimática y materiales. Con ello se pretende aportar mayor claridad a la metodología de esta investigación y al proceso que conduce a la propuesta arquitectónica.
- Apartado Diagnóstico: En el apartado 3.1, correspondiente al diagnóstico del parámetro de resultados, se ha ajustado la ubicación de la figura N 2 para alinearla con el texto anterior, consiguiendo así un orden lógico y coherente del texto explicativo seguido de la figura.
- Sección de Propuesta: En el apartado 3.2, correspondiente al parámetro de resultados, se ha incorporado la información sobre el número de personas que habitarán la propuesta arquitectónica, atendiendo a la sugerencia de uno de los pares evaluadores.
- Función de sección: En el apartado 3.2.1, correspondiente al parámetro de la propuesta, se ha corregido el número de figura, cambiándolo de 3 a 6, para garantizar la coherencia con la materia. Asimismo, se ha ajustado la ubicación de la figura número 6 para alinearla con el texto anterior, consiguiendo así un orden lógico y coherente del texto explicativo seguido de la figura.
- Figuras: Se ha modificado el contenido de las figuras N 5, 6, 7, 9, 10 y 11, añadiendo una escala gráfica que permite la representación visual y proporcional de la relación entre las dimensiones de un objeto o espacio en el mundo real y su representación en un plano o dibujo. Esto permite al observador del dibujo o plano interpretar correctamente las medidas y proporciones, facilitando su comprensión y análisis. Ya que la escala gráfica es especialmente útil en planos arquitectónicos, mapas y diagramas, ya que proporciona una referencia clara de tamaño y distancia. Y en cuanto a la figura N 8, se ha modificado su contenido, añadiendo la orientación solar para entender mejor el análisis bioclimático objeto de la presentación.
- Bioclimática: En el apartado 3.2.6, correspondiente al parámetro de la propuesta, se ha ajustado la ubicación de las figuras del subapartado (figuras nº 8, 9, 10 y 11) para alinearlas con el texto anterior, consiguiendo así un orden lógico y coherente en el que al texto explicativo le siguen las figuras.
- Conclusiones/Discusión: En la sección 4 del documento, en el título combinado, se ha eliminado el término "Discusión" porque genera confusión en relación con el tema de investigación.
Estos son los cambios incorporados en la nueva versión del documento. Estamos profundamente agradecidos por todas las valiosas sugerencias proporcionadas por los revisores, que han sido fundamentales para mejorar el contenido de este artículo. Permanecemos atentos al proceso de actualización y al avance del respectivo proceso de publicación. Saludos y gracias.
Competing Interests: No competing interests were disclosed. Close
Report a concern
Author Response 17 Jan 2025

Karina Elizabeth Cajamarca Dacto, Faculty of Engineering, Universidad Nacional de Chimborazo, Riobamba, Ecuador

17 Jan 2025

Author Response

We are grateful for the valuable comments made by the reviewers. All suggestions and comments have been carefully reviewed and incorporated into the manuscript, with the aim of improving its ... Continue reading We are grateful for the valuable comments made by the reviewers. All suggestions and comments have been carefully reviewed and incorporated into the manuscript, with the aim of improving its quality and clarity. The following are the changes made:

- List of authors section: spelling mistakes, tilde in the surname of one of the authors, Dany Marcelo Tasán Cruz, were corrected.

- Key words section: The key word adaptable has been changed to modular because it is better suited to the context of the research.

- Method section: In section 2 of Methods, the sections corresponding to the Design of the research and the level of research have been modified in order to achieve a better structure, contextualization and understanding of the object of study. These changes allow a clearer and more precise explanation of the macro and micro location of the object of study. Likewise, the name of the section 'Method' has been changed to 'Methodology', since the subtitle had the same name. As for its content, a clearer explanation of the six basic guidelines that this type of housing must comply with has been incorporated: environment, visuals, form, function, bioclimatic and materials. This is intended to provide greater clarity to the methodology of this research and the process leading to the architectural proposal.

- Diagnosis Section: In section 3.1, corresponding to the diagnosis of the results parameter, the location of figure N 2 has been adjusted to align it with the preceding text, thus achieving a logical and coherent order of explanatory text followed by the figure.

- Proposal Section: In section 3.2, corresponding to the results parameter, the information on the number of people who will inhabit the architectural proposal has been incorporated, attending to the suggestion of one of the peer reviewers.

- Section Function: In section 3.2.1, corresponding to the proposal parameter, the figure number has been corrected, changing it from 3 to 6, to ensure consistency with the subject matter. Also, the location of figure number 6 has been adjusted to align it with the preceding text, thus achieving a logical and coherent order of the explanatory text followed by the figure.

- Figures: The content of figures N 5, 6, 7, 9, 10 and 11 has been modified, adding a graphic scale that allows the visual and proportional representation of the relationship between the dimensions of an object or space in the real world and its representation in a plan or drawing. This allows the observer of the drawing or plan to correctly interpret the measurements and proportions, facilitating its understanding and analysis. Since the graphic scale is especially useful in architectural plans, maps and diagrams, as it provides a clear reference of size and distance. And as for figure N 8, its content has been modified, adding the solar orientation to better understand the bioclimatic analysis object of the presentation.

- Bioclimatic: In section 3.2.6, corresponding to the proposal parameter, the location of the figures in the subsection (figures No. 8, 9, 10 and 11) has been adjusted to align them with the preceding text, thus achieving a logical and coherent order in which the explanatory text is followed by the figures.

- Conclusions/Discussion: In section 4 of the document, in the combined title, the term “Discussion” has been removed because it generates confusion in relation to the research topic.

These are the changes incorporated in the new version of the paper. We are deeply grateful for all the valuable suggestions provided by the peer reviewers, which have been fundamental to improve the content of this article. We remain attentive to the updating process and to the progress of the respective publication process. Greetings and thanks.
We are grateful for the valuable comments made by the reviewers. All suggestions and comments have been carefully reviewed and incorporated into the manuscript, with the aim of improving its quality and clarity. The following are the changes made:

- List of authors section: spelling mistakes, tilde in the surname of one of the authors, Dany Marcelo Tasán Cruz, were corrected.

- Key words section: The key word adaptable has been changed to modular because it is better suited to the context of the research.

- Method section: In section 2 of Methods, the sections corresponding to the Design of the research and the level of research have been modified in order to achieve a better structure, contextualization and understanding of the object of study. These changes allow a clearer and more precise explanation of the macro and micro location of the object of study. Likewise, the name of the section 'Method' has been changed to 'Methodology', since the subtitle had the same name. As for its content, a clearer explanation of the six basic guidelines that this type of housing must comply with has been incorporated: environment, visuals, form, function, bioclimatic and materials. This is intended to provide greater clarity to the methodology of this research and the process leading to the architectural proposal.

- Diagnosis Section: In section 3.1, corresponding to the diagnosis of the results parameter, the location of figure N 2 has been adjusted to align it with the preceding text, thus achieving a logical and coherent order of explanatory text followed by the figure.

- Proposal Section: In section 3.2, corresponding to the results parameter, the information on the number of people who will inhabit the architectural proposal has been incorporated, attending to the suggestion of one of the peer reviewers.

- Section Function: In section 3.2.1, corresponding to the proposal parameter, the figure number has been corrected, changing it from 3 to 6, to ensure consistency with the subject matter. Also, the location of figure number 6 has been adjusted to align it with the preceding text, thus achieving a logical and coherent order of the explanatory text followed by the figure.

- Figures: The content of figures N 5, 6, 7, 9, 10 and 11 has been modified, adding a graphic scale that allows the visual and proportional representation of the relationship between the dimensions of an object or space in the real world and its representation in a plan or drawing. This allows the observer of the drawing or plan to correctly interpret the measurements and proportions, facilitating its understanding and analysis. Since the graphic scale is especially useful in architectural plans, maps and diagrams, as it provides a clear reference of size and distance. And as for figure N 8, its content has been modified, adding the solar orientation to better understand the bioclimatic analysis object of the presentation.

- Bioclimatic: In section 3.2.6, corresponding to the proposal parameter, the location of the figures in the subsection (figures No. 8, 9, 10 and 11) has been adjusted to align them with the preceding text, thus achieving a logical and coherent order in which the explanatory text is followed by the figures.

- Conclusions/Discussion: In section 4 of the document, in the combined title, the term “Discussion” has been removed because it generates confusion in relation to the research topic.

These are the changes incorporated in the new version of the paper. We are deeply grateful for all the valuable suggestions provided by the peer reviewers, which have been fundamental to improve the content of this article. We remain attentive to the updating process and to the progress of the respective publication process. Greetings and thanks.
Competing Interests: No competing interests were disclosed. Close
Report a concern
Author Response 17 Jan 2025

Karina Elizabeth Cajamarca Dacto, Faculty of Engineering, Universidad Nacional de Chimborazo, Riobamba, Ecuador

17 Jan 2025

Author Response

We are grateful for the valuable comments made by the reviewers, which have been carefully reviewed and incorporated into the manuscript to improve its quality and clarity. The following are ... Continue reading We are grateful for the valuable comments made by the reviewers, which have been carefully reviewed and incorporated into the manuscript to improve its quality and clarity. The following are the changes made:
- List of authors: the tilde in the surname of Dany Marcelo Tasán Cruz was corrected.
- Key words: “adaptable” was replaced by “modular” to adapt it to the context of the research.
- Methodology: In section 2, the sections on Design and Level of research were reorganized to improve the contextualization and understanding of the object of study. A more detailed explanation of the six basic guidelines (environment, visuals, form, function, bioclimatic and materials) was incorporated.
- Diagnosis: In section 3.1, the location of Figure No. 2 was adjusted to align it with the preceding text.
- Proposal: In section 3.2, information on the number of inhabitants of the architectural proposal was added, as suggested by the evaluators.
- Function: In section 3.2.1, the figure number was corrected (from 3 to 6) and its location was adjusted for consistency.
- Figures: Graphical scales were added to figures No. 5, 6, 7, 9, 10 and 11, and solar orientation was included in figure No. 8 to improve the bioclimatic analysis.
- Bioclimatic: In section 3.2.6, figures were reorganized for consistency between explanatory text and images.
- Conclusions: The term “Discussion” was removed from the title of section 4 to avoid confusion.
We are deeply grateful for the valuable suggestions of the reviewers, which were essential to optimize this article. We remain attentive to the publication process.
We are grateful for the valuable comments made by the reviewers, which have been carefully reviewed and incorporated into the manuscript to improve its quality and clarity. The following are the changes made:
- List of authors: the tilde in the surname of Dany Marcelo Tasán Cruz was corrected.
- Key words: “adaptable” was replaced by “modular” to adapt it to the context of the research.
- Methodology: In section 2, the sections on Design and Level of research were reorganized to improve the contextualization and understanding of the object of study. A more detailed explanation of the six basic guidelines (environment, visuals, form, function, bioclimatic and materials) was incorporated.
- Diagnosis: In section 3.1, the location of Figure No. 2 was adjusted to align it with the preceding text.
- Proposal: In section 3.2, information on the number of inhabitants of the architectural proposal was added, as suggested by the evaluators.
- Function: In section 3.2.1, the figure number was corrected (from 3 to 6) and its location was adjusted for consistency.
- Figures: Graphical scales were added to figures No. 5, 6, 7, 9, 10 and 11, and solar orientation was included in figure No. 8 to improve the bioclimatic analysis.
- Bioclimatic: In section 3.2.6, figures were reorganized for consistency between explanatory text and images.
- Conclusions: The term “Discussion” was removed from the title of section 4 to avoid confusion.
We are deeply grateful for the valuable suggestions of the reviewers, which were essential to optimize this article. We remain attentive to the publication process.
Competing Interests: No competing interests were disclosed. Close
Report a concern
Author Response 17 Jan 2025

Karina Elizabeth Cajamarca Dacto, Faculty of Engineering, Universidad Nacional de Chimborazo, Riobamba, Ecuador

17 Jan 2025

Author Response

Dear Editor, I enclose the text in the requested number of words:

We are grateful for the valuable comments made by the reviewers, which have been carefully reviewed and ... Continue reading Dear Editor, I enclose the text in the requested number of words:

We are grateful for the valuable comments made by the reviewers, which have been carefully reviewed and incorporated into the manuscript to improve its quality and clarity. The following are the changes made:
- List of authors: the tilde in the surname of Dany Marcelo Tasán Cruz was corrected.
- Key words: “adaptable” was replaced by “modular” to adapt it to the context of the research.
- Methodology: In section 2, the sections on Design and Level of research were reorganized to improve the contextualization and understanding of the object of study. A more detailed explanation of the six basic guidelines (environment, visuals, form, function, bioclimatic and materials) was incorporated.
- Diagnosis: In section 3.1, the location of Figure No. 2 was adjusted to align it with the preceding text.
- Proposal: In section 3.2, information on the number of inhabitants of the architectural proposal was added, as suggested by the evaluators.
- Function: In section 3.2.1, the figure number was corrected (from 3 to 6) and its location was adjusted for consistency.
- Figures: Graphical scales were added to figures No. 5, 6, 7, 9, 10 and 11, and solar orientation was included in figure No. 8 to improve the bioclimatic analysis.
- Bioclimatic: In section 3.2.6, figures were reorganized for consistency between explanatory text and images.
- Conclusions: The term “Discussion” was removed from the title of section 4 to avoid confusion.
We are deeply grateful for the valuable suggestions of the reviewers, which were essential to optimize this article. We remain attentive to the publication process.
Dear Editor, I enclose the text in the requested number of words:

We are grateful for the valuable comments made by the reviewers, which have been carefully reviewed and incorporated into the manuscript to improve its quality and clarity. The following are the changes made:
- List of authors: the tilde in the surname of Dany Marcelo Tasán Cruz was corrected.
- Key words: “adaptable” was replaced by “modular” to adapt it to the context of the research.
- Methodology: In section 2, the sections on Design and Level of research were reorganized to improve the contextualization and understanding of the object of study. A more detailed explanation of the six basic guidelines (environment, visuals, form, function, bioclimatic and materials) was incorporated.
- Diagnosis: In section 3.1, the location of Figure No. 2 was adjusted to align it with the preceding text.
- Proposal: In section 3.2, information on the number of inhabitants of the architectural proposal was added, as suggested by the evaluators.
- Function: In section 3.2.1, the figure number was corrected (from 3 to 6) and its location was adjusted for consistency.
- Figures: Graphical scales were added to figures No. 5, 6, 7, 9, 10 and 11, and solar orientation was included in figure No. 8 to improve the bioclimatic analysis.
- Bioclimatic: In section 3.2.6, figures were reorganized for consistency between explanatory text and images.
- Conclusions: The term “Discussion” was removed from the title of section 4 to avoid confusion.
We are deeply grateful for the valuable suggestions of the reviewers, which were essential to optimize this article. We remain attentive to the publication process.
Competing Interests: No competing interests were disclosed. Close
Report a concern

Comments on this article Comments (0)

Version 2

VERSION 2 PUBLISHED 30 Jul 2024

Open Peer Review

Reviewer Status

Reviewer Reports

	Invited Reviewers
	1	2
Version 2 (revision) 17 Jan 25	read
Version 1 30 Jul 24	read	read

Maria del Cisne Aguirre Ullauri, Universidad Católica de Cuenca, Azuay, Ecuador
Tanya Veridiana Cueva Kean Chong, Universidad Estatal de Milagro, Milagro, Ecuador

Comments on this article

All Comments(0)

Add a comment

Browse by related subjects

Back to all reports

Reviewer Report

5 Views

21 Jan 2025 | for Version 2

Maria del Cisne Aguirre Ullauri, Universidad Católica de Cuenca, Azuay, Ecuador

5 Views Cite this report Responses(0)

Approved

We are grateful for the adjustments made; the quality of the work has improved and it will surely be useful for teachers, students and researchers in the area.

References

1. Cajamarca Dacto K, Montero Riofrio J, Nieto Páez E, Tasan Cruz D, et al.: Vivienda modular flexible para entornos rurales; caso específico: Cebadas – Ecuador. F1000Research. 2025; 13. Publisher Full Text

Competing Interests

No competing interests were disclosed.

Reviewer Expertise

Architecture; historical materials; stratigraphic muraria reading; risk and management; heritage architecture

I confirm that I have read this submission and believe that I have an appropriate level of expertise to confirm that it is of an acceptable scientific standard.

Respond to this report

Responses (0)

Back to all reports

Reviewer Report

15 Views

28 Dec 2024 | for Version 1

Tanya Veridiana Cueva Kean Chong, Universidad Estatal de Milagro, Milagro, Guayas, Ecuador

15 Views Cite this report Responses(1)

Approved

It would be advisable to detail the numerical data used to assess the initial conditions or measure the effectiveness of the proposal.
A deeper exploration of socioeconomic aspects is needed, as the article mentions the poverty conditions of rural housing in Cebadas, Ecuador. It would be interesting for the proposal to address issues related to the financing of these homes.
The possible limitations of the study or challenges in implementing the proposal are not discussed, such as cultural acceptance, technical or logistical feasibility in rural contexts.
To better communicate the key aspects of architectural design, 3D diagrams or renders would be useful.

Is the background of the case’s history and progression described in sufficient detail?

Yes
Is the work clearly and accurately presented and does it cite the current literature?

Yes
If applicable, is the statistical analysis and its interpretation appropriate?

Not applicable
Are all the source data underlying the results available to ensure full reproducibility?

Partly
Are the conclusions drawn adequately supported by the results?

Yes
Is the case presented with sufficient detail to be useful for teaching or other practitioners?

Yes

Competing Interests

No competing interests were disclosed.

Reviewer Expertise

Social and community architecture

I confirm that I have read this submission and believe that I have an appropriate level of expertise to confirm that it is of an acceptable scientific standard.

Respond to this report

Responses (1)

Author Response

17 Jan 2025

Karina Elizabeth Cajamarca Dacto, Faculty of Engineering, Universidad Nacional de Chimborazo, Riobamba, Ecuador

View more View less

Competing Interests

No competing interests were disclosed.

Back to all reports

Reviewer Report

36 Views

04 Nov 2024 | for Version 1

Maria del Cisne Aguirre Ullauri, Universidad Católica de Cuenca, Azuay, Ecuador

36 Views Cite this report Responses(5)

Approved With Reservations

Is the background of the case’s history and progression described in sufficient detail?

Partly
Is the work clearly and accurately presented and does it cite the current literature?

Partly
If applicable, is the statistical analysis and its interpretation appropriate?

No
Are all the source data underlying the results available to ensure full reproducibility?

No
Are the conclusions drawn adequately supported by the results?

No
Is the case presented with sufficient detail to be useful for teaching or other practitioners?

Partly

Competing Interests

No competing interests were disclosed.

Reviewer Expertise

Architecture; historical materials; stratigraphic muraria reading; risk and management

Respond to this report

Responses (5)

Author Response

17 Jan 2025

Karina Elizabeth Cajamarca Dacto, Faculty of Engineering, Universidad Nacional de Chimborazo, Riobamba, Ecuador

Agradecemos los valiosos comentarios realizados por los revisores. Todas las sugerencias y comentarios han sido cuidadosamente revisados e incorporados al manuscrito, con el objetivo de mejorar su calidad y claridad. Los siguientes son los cambios realizados:
- Sección de listado de autores: faltas de ortografía, tilde en el apellido de uno de los autores, Dany Marcelo Tasán Cruz, fueron corregidos.
- Sección de palabras clave: La palabra clave adaptable se ha cambiado a modular porque se adapta mejor al contexto de la investigación.
- Apartado Método: En el apartado 2 de Métodos, se han modificado los apartados correspondientes al Diseño de la investigación y al nivel de investigación con el fin de conseguir una mejor estructura, contextualización y comprensión del objeto de estudio. Estos cambios permiten una explicación más clara y precisa de la macro y micro localización del objeto de estudio. Asimismo, se ha cambiado el nombre de la sección 'Método' por el de 'Metodología', ya que el subtítulo tenía el mismo nombre. En cuanto a su contenido, se ha incorporado una explicación más clara de las seis pautas básicas que deben cumplir este tipo de viviendas: medio ambiente, visuales, forma, función, bioclimática y materiales. Con ello se pretende aportar mayor claridad a la metodología de esta investigación y al proceso que conduce a la propuesta arquitectónica.
- Apartado Diagnóstico: En el apartado 3.1, correspondiente al diagnóstico del parámetro de resultados, se ha ajustado la ubicación de la figura N 2 para alinearla con el texto anterior, consiguiendo así un orden lógico y coherente del texto explicativo seguido de la figura.
- Sección de Propuesta: En el apartado 3.2, correspondiente al parámetro de resultados, se ha incorporado la información sobre el número de personas que habitarán la propuesta arquitectónica, atendiendo a la sugerencia de uno de los pares evaluadores.
- Función de sección: En el apartado 3.2.1, correspondiente al parámetro de la propuesta, se ha corregido el número de figura, cambiándolo de 3 a 6, para garantizar la coherencia con la materia. Asimismo, se ha ajustado la ubicación de la figura número 6 para alinearla con el texto anterior, consiguiendo así un orden lógico y coherente del texto explicativo seguido de la figura.
- Figuras: Se ha modificado el contenido de las figuras N 5, 6, 7, 9, 10 y 11, añadiendo una escala gráfica que permite la representación visual y proporcional de la relación entre las dimensiones de un objeto o espacio en el mundo real y su representación en un plano o dibujo. Esto permite al observador del dibujo o plano interpretar correctamente las medidas y proporciones, facilitando su comprensión y análisis. Ya que la escala gráfica es especialmente útil en planos arquitectónicos, mapas y diagramas, ya que proporciona una referencia clara de tamaño y distancia. Y en cuanto a la figura N 8, se ha modificado su contenido, añadiendo la orientación solar para entender mejor el análisis bioclimático objeto de la presentación.
- Bioclimática: En el apartado 3.2.6, correspondiente al parámetro de la propuesta, se ha ajustado la ubicación de las figuras del subapartado (figuras nº 8, 9, 10 y 11) para alinearlas con el texto anterior, consiguiendo así un orden lógico y coherente en el que al texto explicativo le siguen las figuras.
- Conclusiones/Discusión: En la sección 4 del documento, en el título combinado, se ha eliminado el término "Discusión" porque genera confusión en relación con el tema de investigación.
Estos son los cambios incorporados en la nueva versión del documento. Estamos profundamente agradecidos por todas las valiosas sugerencias proporcionadas por los revisores, que han sido fundamentales para mejorar el contenido de este artículo. Permanecemos atentos al proceso de actualización y al avance del respectivo proceso de publicación. Saludos y gracias.

View more View less

Competing Interests

No competing interests were disclosed.

Author Response

17 Jan 2025

Karina Elizabeth Cajamarca Dacto, Faculty of Engineering, Universidad Nacional de Chimborazo, Riobamba, Ecuador

We are grateful for the valuable comments made by the reviewers. All suggestions and comments have been carefully reviewed and incorporated into the manuscript, with the aim of improving its quality and clarity. The following are the changes made:

- List of authors section: spelling mistakes, tilde in the surname of one of the authors, Dany Marcelo Tasán Cruz, were corrected.

- Key words section: The key word adaptable has been changed to modular because it is better suited to the context of the research.

- Method section: In section 2 of Methods, the sections corresponding to the Design of the research and the level of research have been modified in order to achieve a better structure, contextualization and understanding of the object of study. These changes allow a clearer and more precise explanation of the macro and micro location of the object of study. Likewise, the name of the section 'Method' has been changed to 'Methodology', since the subtitle had the same name. As for its content, a clearer explanation of the six basic guidelines that this type of housing must comply with has been incorporated: environment, visuals, form, function, bioclimatic and materials. This is intended to provide greater clarity to the methodology of this research and the process leading to the architectural proposal.

- Diagnosis Section: In section 3.1, corresponding to the diagnosis of the results parameter, the location of figure N 2 has been adjusted to align it with the preceding text, thus achieving a logical and coherent order of explanatory text followed by the figure.

- Proposal Section: In section 3.2, corresponding to the results parameter, the information on the number of people who will inhabit the architectural proposal has been incorporated, attending to the suggestion of one of the peer reviewers.

- Section Function: In section 3.2.1, corresponding to the proposal parameter, the figure number has been corrected, changing it from 3 to 6, to ensure consistency with the subject matter. Also, the location of figure number 6 has been adjusted to align it with the preceding text, thus achieving a logical and coherent order of the explanatory text followed by the figure.

- Figures: The content of figures N 5, 6, 7, 9, 10 and 11 has been modified, adding a graphic scale that allows the visual and proportional representation of the relationship between the dimensions of an object or space in the real world and its representation in a plan or drawing. This allows the observer of the drawing or plan to correctly interpret the measurements and proportions, facilitating its understanding and analysis. Since the graphic scale is especially useful in architectural plans, maps and diagrams, as it provides a clear reference of size and distance. And as for figure N 8, its content has been modified, adding the solar orientation to better understand the bioclimatic analysis object of the presentation.

- Bioclimatic: In section 3.2.6, corresponding to the proposal parameter, the location of the figures in the subsection (figures No. 8, 9, 10 and 11) has been adjusted to align them with the preceding text, thus achieving a logical and coherent order in which the explanatory text is followed by the figures.

- Conclusions/Discussion: In section 4 of the document, in the combined title, the term “Discussion” has been removed because it generates confusion in relation to the research topic.

These are the changes incorporated in the new version of the paper. We are deeply grateful for all the valuable suggestions provided by the peer reviewers, which have been fundamental to improve the content of this article. We remain attentive to the updating process and to the progress of the respective publication process. Greetings and thanks.

View more View less

Competing Interests

No competing interests were disclosed.

Author Response

17 Jan 2025

Karina Elizabeth Cajamarca Dacto, Faculty of Engineering, Universidad Nacional de Chimborazo, Riobamba, Ecuador

View more View less

Competing Interests

No competing interests were disclosed.

Author Response

17 Jan 2025

Karina Elizabeth Cajamarca Dacto, Faculty of Engineering, Universidad Nacional de Chimborazo, Riobamba, Ecuador

Dear Editor, I enclose the text in the requested number of words:

We are grateful for the valuable comments made by the reviewers, which have been carefully reviewed and incorporated into the manuscript to improve its quality and clarity. The following are the changes made:
- List of authors: the tilde in the surname of Dany Marcelo Tasán Cruz was corrected.
- Key words: “adaptable” was replaced by “modular” to adapt it to the context of the research.
- Methodology: In section 2, the sections on Design and Level of research were reorganized to improve the contextualization and understanding of the object of study. A more detailed explanation of the six basic guidelines (environment, visuals, form, function, bioclimatic and materials) was incorporated.
- Diagnosis: In section 3.1, the location of Figure No. 2 was adjusted to align it with the preceding text.
- Proposal: In section 3.2, information on the number of inhabitants of the architectural proposal was added, as suggested by the evaluators.
- Function: In section 3.2.1, the figure number was corrected (from 3 to 6) and its location was adjusted for consistency.
- Figures: Graphical scales were added to figures No. 5, 6, 7, 9, 10 and 11, and solar orientation was included in figure No. 8 to improve the bioclimatic analysis.
- Bioclimatic: In section 3.2.6, figures were reorganized for consistency between explanatory text and images.
- Conclusions: The term “Discussion” was removed from the title of section 4 to avoid confusion.
We are deeply grateful for the valuable suggestions of the reviewers, which were essential to optimize this article. We remain attentive to the publication process.

View more View less

Competing Interests

No competing interests were disclosed.

Alongside their report, reviewers assign a status to the article:

Approved - the paper is scientifically sound in its current form and only minor, if any, improvements are suggested

Approved with reservations - A number of small changes, sometimes more significant revisions are required to address specific details and improve the papers academic merit.

Not approved - fundamental flaws in the paper seriously undermine the findings and conclusions

[1] Cajamarca Dacto KE, Montero Riofrio JC, Nieto Páez EF, et al.: Flexible modular dwelling for rural environments; specific case: Cebadas – Ecuador. [Data set]. Zenodo. 2024. Publisher Full Text

[2] Garzón B: Arquitectura Sostenible. Bases, soportes y casos demostrativos. NOBUKO; 2010. Reference Source

[3] Givoni B: Man, Climate and Architecture. 1st ed.Elsevier Publising Company Limited; 1969. Reference Source

[4] Moncaleano A, Morales A: Vivienda digna para todos, manifiesto hacia la construcción de una política pública de vivienda social, democrática, equitativa e incluyente que Protegido un hábitat digno para los colombianos. 1st ed.Pontificia Universidad Javeriana of Colombia; 2006.

[5] Olgyay V: Arquitectura y clima, manual de diseño bio- climático para arquitectos y urbanistas. 1st ed.Gustavo Gili, SL, Barcelona; 1963. 1998 Reference Source

[6] Pinto V, Ruiz S: La vivienda rural en el Ecuador: desafíos para procesos sustentables e incluyentes. 1st ed.Ciudad Research center: Paso a paso Program; 2009.

[7] Sanchez E: Diseño Sostenible: Adaptabilidad y Deconstrucción [Trabajo de Fin de Master, Universidad Politécnica de Catalunya]. Institutional Repository - Polytechnic University of Catalunya; 2011.

Flexible modular dwelling for rural environments; specific case: Cebadas – Ecuador

Abstract

Background

Method

Results

Conclusions

Keywords

Revised Amendments from Version 1

1. Introduction

2. Methods

2.1 Research design

2.2 Type of research

2.3 Level of research

2.4 Research modality

2.5 Methodology

2.6 Research procedures and techniques

2.7 Study population

3. Results

3.1 Diagnosis

Figure 1. Analysis of the Bioclimatic as from of Olgyay (1963) applied to Cebadas using Microsoft Excel and Adobe Illustrator.

Figure 2. Analysis of the Bioclimatic Chart as from of Givoni (1969) applied to Cebadas using Microsoft Excel and Adobe Illustrator.

3.2 Proposal

Figure 3. Environmental guidelines proposal applied to flexible modular dwelling Cebadas-Ecuador using ArchiCad, Lumion, Adobe Photoshop and Adobe Illustrator.

Figure 4. Proposal of Visual guidelines applied to flexible modular dwelling Cebadas-Ecuador using ArchiCad, Lumion, Adobe Photoshop and Adobe Illustrator.

Figure 5. Proposal of Form guidelines applied to flexible modular dwelling Cebadas-Ecuador using Adobe Illustrator.

Figure 6. Proposed Functional Guidelines applied to the Cebadas-Ecuador flexible modular dwelling using ArchiCad, SketchUp and Adobe Illustrator.

Figure 7. Material guidelines proposal applied to flexible modular dwelling Cebadas-Ecuador using ArchiCad, SketchUp and Adobe Illustrator.

Figure 8. Light penetration analysis of flexible modular dwelling Cebadas-Ecuador using ArchiCad, and Adobe Photoshop.

Figure 9. Daylighting analysis of the Cebadas-Ecuador flexible modular dwelling using Dynamic Daylighting.

Figure 10. Energy Flow analysis of the Cebadas- Ecuador flexible modular dwelling using Archicad and Adobe Illustrator.

Figure 11. Analysis of internal temperature in the Cebadas-Ecuador flexible modular dwelling using Archicad and Adobe Illustrator.

4. Conclusions

Data availability statement

Extended data

Software availability

References

Comments on this article Comments (0)

Open Peer Review

Comments on this article Comments (0)

Open Peer Review

Reviewer Status

Reviewer Reports

Comments on this article

Browse by related subjects

Competing Interests Policy

Stay Updated
