Research Article

Effect of non-linear thermal radiation and Cattaneo-Christov heat and mass fluxes on the flow of Williamson hybrid nanofluid over a stretching porous sheet

[version 1; peer review: 2 approved with reservations]
PUBLISHED 14 Feb 2025
Author details Author details
OPEN PEER REVIEW
REVIEWER STATUS

Abstract

Background

Hybrid nanofluids, consisting of two distinct nanoparticles dispersed in a base fluid, are widely used in industries requiring enhanced heat and mass transfer, such as cooling systems and heat exchangers. These fluids improve thermal conductivity and fluid dynamics, leading to better heat management and energy efficiency. This study investigates the combined effects of non-linear thermal radiation, Cattaneo-Christov heat and mass fluxes, and other factors on the three-dimensional flow, heat, and mass transfer of a Williamson hybrid nanofluid. The flow occurs over a stretching porous sheet subjected to an external magnetic field, Joule heating, chemical reactions, and heat generation.

Methods

Copper (Cu) and aluminum oxide (Al₂O₃) nanoparticles are suspended in ethylene glycol (C₂C₆O₂) to form the hybrid nanofluid. The governing partial differential equations are transformed into ordinary differential equations using similarity transformations and solved numerically with MATLAB’s bvp4c solver. The study examines various parameters, including stretching ratio, nanoparticle volume fraction, and relaxation times for concentration and thermal effects. Results are validated against existing literature.

Results

The findings reveal that a higher stretching ratio reduces velocity, temperature, concentration profiles, and local Nusselt and Sherwood numbers, while also lowering skin friction and secondary velocity. Increasing nanoparticle volume fraction decreases velocity and temperature profiles but enhances skin friction, local Nusselt, and Sherwood numbers. Concentration profiles decline with higher concentration relaxation time, while temperature increases with longer thermal relaxation time.

Conclusions

In conclusion, Cu−Al₂O₃/C₂C₆O₂ hybrid nanofluids demonstrate superior heat and mass transfer capabilities compared to mono-nanofluids. The performance is significantly influenced by parameters such as nanoparticle volume fraction, relaxation times, and the stretching ratio, providing valuable insights for heat and mass transfer applications.

Keywords

Williamson fluid, Hybrid nanofluid, Cattaneo-Christov heat and mass flux, non-linear thermal radiation, stretching sheet

1. Introduction

Nowadays, researchers have created novel fluids to suit the requirement for improved heat transmission and thermal conductivity. The heat transfer properties of conventional fluids like water, ethylene glycol, glycerin, and ethanol are limited in applications such as power generation, chemical processes, and heating and cooling systems. Scientists are investigating better heat transmission materials to meet the rising energy demands and address concerns about shortages of resources and environmental impacts. A single kind of nanoparticle can be added to the aforementioned fluids to make up for their deficiency. The term nanofluid refers to this process, which was initially studied by Choi and Eastman.1 Researchers have considered many combinations of nanoparticles, including semiconductors (SiO2, TiO2), metallic oxides (Al2O3, CuO), and metal nanoparticles (Al, Cu, and Fe). Heat transfer through nanofluids has been investigated from various perspectives. Mahian et al.2 presented the uses of nanofluid in a variety of contexts, such as renewable energy systems. They also covered the advantages of energy systems from an environmental perspective when employing nanofluid. Mansoury et al.3 investigated the flow of Al2O3/H2O nanofluids through parallel heat exchangers. Unfortunately, to obtain the required thermal performance, a single nanoparticle suspension is insufficient. To attain the required thermal properties, hybrid nanofluid is employed. Several experimental and theoretical models have been published and studied in order to use hybrid nanofluids for more efficient industrial and technological processes. Mahanthesh et al.4 reviewed the flow behavior of hybrid nanofluids, focusing on the effects of Brownian motion and thermophoresis. Sensitivity analysis revealed that the Brownian motion parameter has the most significant impact on the heat transfer rate. Bilal et al.5 investigated the Darcy-Forchheimer mixed convection flow of hybrid nanofluids through an inclined, extending cylinder using the homotopy analysis method. Their findings indicated that CNT−Fe3O4/H2O hybrid nanofluids enhance the thermal efficiency of the base fluid more effectively than conventional fluids. The investigation provides further information on the hybrid nanofluid flow as provided in these reference.6,7

Scientists and engineers have been motivated by the non-Newtonian motion of fluids because these ma- terials have multiple applications in science and technology processes. Some examples of non-Newtonian fluid are Paints, mud, Soap, glues, apple sauce, printing ink, shampoos, sugar solutions, tomato paste, etc. Furthermore, non-Newtonian fluids are used in several kinds of fields of study, such as the chemical en- gineering field, biology, and geophysical sciences. The Williamson model is the fluid model that is being studied. In the case of Williamson fluid rheology, the constitutive equation for stress-strain is non-linear. Therefore, viscosity that depends on the shear rate forms the basis of the Williamson fluid model. This model captures both shear-thinning and shear-thickening behavior. Williamson8 introduced the Williamson fluid model, which defines the relationship between stress and strain in pseudoplastic materials. Kebede et al.9 studied the heat and mass transport properties of Williamson nanofluid flow. Kumar et al.10 explored the impact of Brownian motion and thermophoresis on heat and mass transfer in pseudoplastic materials.

Heat and mass transport are natural phenomena caused by concentration and temperature differences within or between materials. Many industrial processes, including wire drawing, artificial fiber production, paper manufacturing, chemical waste migration, and distillation, are influenced by this phenomenon. Significant efforts have been made in the past to study heat and mass transport mechanisms using Fourier’s law of heat transfer11 and Fick’s law of diffusion.12 Previously,”Fourier’s law of heat conduction” was commonly used to explain heat transfer. However, this law does not fully capture the fundamental nature of heat transfer. To address this issue, Cattaneo13 introduced thermal relaxation into Fourier’s theory, making heat transfer resemble thermal wave propagation at normal speed. Christov14 improved the Cattaneo model’s thermal relaxation time by using upper-convected Oldroyd derivatives for frame-invariant formation. Sui et al.15 extended the Cattaneo-Christov model to mass diffusion problems, applying it to the Maxwell nanofluid mass diffusion across a moving surface. Recent developments on this concept are gathered in.1620

Magnetohydrodynamics is the study of the interaction between a magnetic field and electrically con- ducting fluids, such as salt water solutions, liquid metals, and plasmas. Magnetohydrodynamic flow studies have significant applications in chemistry, physics, and engineering. Additionally, MHD flow has applica- tions in industrial equipment, pumps, electric transformers, and hydro-magnetic generators, among others. Zhao et al.21 studied the thermally induced electro-kinetic flow of Al2O3-water nanofluid through a permeable micro-tube to examine its heat transfer properties, considering the effect of an applied magnetic field. Chamkaa et al.22 used the finite-difference method to analyze mixed convection in a square cavity filled with Cu-water nanofluid. Recent studies on MHD can be found in references.23,24

Flow over a stretching sheet is a classic fluid mechanics problem with various practical applications in industries such as glass fiber production, glass blowing, wire drawing, and copper wire tinning. The concept of boundary layer flow for solid surface motion at a constant speed was first introduced by Sakiadis.2527 Several researchers have recently investigated the flow of boundary layers over stretchable surfaces.28,29

In fluid dynamics, a porous medium refers to a solid material that contains a network of interconnected voids or pores, allowing fluids (such as gases or liquids) to flow through it. The structure of the porous medium, including the size, shape, and distribution of its pores, significantly influences the flow behavior and other transport phenomena (e.g., heat and mass transfer) within the medium. Shaw et al.30 investigated the effects of entropy production in a Casson fluid containing MWCNT/Fe3O4 through a stretched disc and the Darcy-Forchheimer porous medium concept using a numerical approach. There are further investigations on the porous media in.31,32

Nonlinear thermal radiation refers to the heat transfer process where the radiation heat flux does not follow a simple linear relationship with temperature. Unlike linear radiation, where the heat flux is proportional to the fourth power of temperature (as in the Stefan-Boltzmann law), nonlinear thermal radiation accounts for more complex interactions between the radiating bodies and the surrounding medium. This phenomenon arises in high-temperature environments, where the radiation intensity varies non-linearly due to factors such as temperature gradients, optical properties of materials, or the nature of the medium. Alamirew et al.33 studied the impact of nonlinear thermal radiation, ion slip, and Hall on MHD Williamson nanofluid flow over a stretched sheet. Building on this, other researchers34,35 have explored the effects of thermal radiation in various geometries and methods.

Several studies have investigated Williamson nanofluid flow over a stretching sheet using various geometries and methods. Different approaches have been employed in the literature to study the heat and mass fluxes in Williamson nanofluid flow. However, to the best of the authors’ knowledge, no studies have yet considered the combined effects of non-linear thermal radiation, Joule heating, non-Fourier heat flux, non-Fick mass flux, chemical reactions, heat generation/absorption, Brownian motion, and thermophoresis. The present study aims to provide a comprehensive analysis of mass and heat transfer in 3D MHD Williamson hybrid nanofluid flow, which consists of Cu and Al2O3 nanoparticles in ethylene glycol, over a linearly stretching porous sheet. By applying similarity transformations, the governing nonlinear partial differential equations are converted into a system of ordinary differential equations. The reduced mathematical model is then solved using the bvp4c function in MATLAB. The study uses tables and figures to analyze the effects of various parameters, such as velocity, temperature, concentration, skin friction, the Nusselt number, and the Sherwood number.

2. Problem formulation

Assume a steady three-dimensional hybrid nanofluid ( CuAl2O3 /Ethylene glycol) flow past a stretching porous sheet in the presence of an applied magnetic field. The schematic representation in Cartesian coordinates is displayed in Figure 1. The flow is incompressible and laminar. The velocities of the stretching sheets are vw=by in y and uw=ax in x , and a constant external magnetic field B is applied in z . The temperature and concentration of the surface are kept constant at Tw and Cw respectively, which is higher than its ambient temperature, T and ambient concentration, C . Furthermore, the double diffusion Cattaneo-Christove theorya generalization of the well-known Fourier and Fick laws was used to study heat and mass transmission.36,37

(1)
q+κT+λe[qt+V·qq·V+(·V)q]=0
(2)
J+DBC+λc[Jt+V·JJ·V+(·V)J]=0


Figure 1. Coordinate system.

In equation (1) and (2), q and J,DB,T,C,κ,V,λe and λc represents the heat and mass fluxes, the Brownian motion, the temperature, the concentration, the thermal conductivity, the velocity field, the energy and concentration relaxation factors, respectively. By letting λe=0=λc , the famous Fourier’s and Fick’s laws can be obtained. From equations (1) and (2), which generalize the classic Fourier and Fick’s laws, the steady-state conditions of the nanofluid flow are expressed as follows:

(3)
q+κT+λe[V·qq·V+(·V)q]=0
(4)
J+DBC+λc[V·JJ·V+(·V)J]=0.

The Williamson fluid model is given Refs. 38, 39 by

(5)
τ=PI+S
(6)
S=[μ+μ0μ1Γγ̇]A1

The shear rate ( γ̇ ) and is defined as

(7)
γ̇=0.5trace(A1)2

This is taken into consideration for pseudo-plastic fluids μ=0 and Γγ̇<1 . Equation (6) can be written as

(8)
S=[μ0/(1Γγ̇)]A1

Using the binomial expansion to Equation (8), given as

(9)
Sμ0[1+Γγ̇]A1.

Considering the above assumptions, and after applying the boundary layer approximations, the governing equations are expressed as follows36,40,41

(10)
ux+vy+wz=0
(11)
uux+vuy+wuz=μhnfρhnf2uz2+2Γμhnfρhnfuz2uz2σhnfB2ρhnfuμhnfρhnfKpu
(12)
uvx+vvy+wvz=μhnfρhnf2vz2+2Γμhnfρhnfvz2vz2σhnfB2ρhnfvμhnfρhnfKpv
(13)
uTx+vTy+wTz=αhnf2Tz21(ρCp)hnfqrzλe[u22Tx2+v22Ty2+w22Tz2+2(uv2Txy+vw2Tyz+uw2Txz)+(uux+vuy+wuz)Tx+(uvx+vvy+wvz)Ty+(uwx+vwy+wwz)Tz]+Q0(TT)(ρCp)hnf+σhnfB2(u2+v2)(ρCp)hnf+τ[DBCzTz+DTT(Tz)2]
(14)
uCx+vCy+wCz+κcλc=DB2Cz2+DTT(2Tz2)Kr(CC)λc[u22Cx2+v22Cy2+w22Cz2+2(uv2Cxy+vw2Cyz+uw2Cxz)+(uux+vuy+wuz)Cx+(uvx+vvy+wvz)Cy+(uwx+vwy+wwz)Cz]

The boundary conditions for the problem are given by40,42

(15)
{w=0,v=vw=by,u=uw=ax,T=Tw,C=Cw,atz0u=v=0,T=T,C=C,asz

The hybrid nanofluids thermophysical characteristics are described as39,40:

μhnf=μf(1ϕ1)2.5(1ϕ2)2.5,αhnf=κhnf(ρCp)hnf,ρhnf=(1ϕ2)[(1ϕ1)ρf+ϕ1ρn1]+ϕ2ρn2,(ρCp)hnf=(1ϕ2)[(1ϕ1)(ρCp)f+ϕ1(ρCp)n1]+ϕ2(ρCp)n2,κhnfκnf=κn2+2κnf2ϕ2(κnfκn2)κn2+2κnf+ϕ2(κnfκn2),κnfκf=κn1+2κf2ϕ1(κfκn1)κn+2κf+ϕ(κfκn1),σhnfσnf=σn2+2σnf2ϕ2(σnfσn2)σn2+2σnf+ϕ2(σnfσn2),σnfσf=σn1+2σf2ϕ1(σfσn1)σn+2σf+ϕ(σfσn1),
where μf,ϕ1,ϕ2,ρf,κ,(ρCp)f,σhnf,hnf,nf,f , and n the base fluid viscosity, nanoparticle volume fraction of Cu, nanoparticle volume fraction of Al2O3 , density, thermal conductivity, heat capacitance, electrical conductivity of hybrid nanofluid, hybrid nanofluid, nanofluid, base fluid, and nanoparticle. Furthermore, in terms of shape, only spherical nanoparticles are taken into consideration.

Using the nonlinear Rosseland diffusion approximation, the radiative heat flux qr can be expressed as:

(16)
qr=4σ3κT4z
(17)
qr=16σ3κT3Tz
and therefore
(18)
qrz=16σ3κz(T3Tz)

By means of Equations (16), (17) and (18), Equation (13) reduces to

(19)
uTx+vTy+wTz=αhnf2Tz2+1(ρCp)hnf16σ3κz(T3Tz)λe[u22Tx2+v22Ty2+w22Tz2+2(uv2Txy+vw2Tyz+uw2Txz)+(uux+vuy+wuz)Tx+(uvx+vvy+wvz)Ty+(uwx+vwy+wwz)Tz]+Q0(TT)(ρCp)hnf+σhnfB2(u2+v2)(ρCp)hnf+τ[DBCzTz+DTT(2Tz2)2]

The similarity transformations are given by40,42

(20)
{w=aνf(f(η)+g(η)),u=axf(η),v=ayg(η),η=zaνfT=T+(TwT)θ(η),C=C+(CwC)Φ(η)

Equations (10) to (14) are simplified accordingly:

(21)
A1A2f[1+Wef]+(f+g)ff2A3A2MfA1A2Kf=0
(22)
A1A2g[1+Weg]+(f+g)gg2A3A2MgA1A2Kg=0
(23)
A4A5Prθ+(f+g)θβ1[(f+g)2θ+(f+g)(f+g)θ]+1A5PrR[(1+(θw1))2×3(θw1)θ2+(1+(θw1)θ)3θ]+1A5+NbθΦ+Ntθ2+A3A5M(Ecx(f)2+Ecy(g)2)=0
(24)
Φ+NtNbθ+Sc(f+g)Φβ2Sc[(f+g)2Φ+(f+g)(f+g)Φ]ScHΦ=0
with subject to boundary conditions
(25)
{f(0)=1,f(0)=0,g(0)=0,g(0)=d,θ(0)=1,Φ(0)=1,atη=0f(η)=0,g(η)=0,θ(η)=0,Φ(η)=0,asη
where, the Weissenberg number (We) , magnetic field parameter (M) , porosity parameter (K) , Prandtl number (Pr) , non-linear thermal radiation (R) , ratio of temperature (θw),Q is the heat generation (Q>0) or absorption parameter (Q<0) , Brownian motion parameter (Nb) , Thermophoresis parameter (Nt) , Eckert number (Ec) along the x - and y -axis, thermal relaxation parameter (β1) , concentration relaxation parameter (β2) , Schmidt number (Sc) , Chemical reaction (H),d is ratio of stretching sheet, and A1,A2,A3,A4 , and A5 are dynamic viscosity, density, electrical conductivity, thermal conductivity, and heat capacitance of the hybrid nanofluid, respectively can be described as follows:
We=xΓ2a3νf,M=σfB2ρfa,K=νfaKp,Pr=νf(ρCp)fκf,R=16σT33κκ,θw=TwTQ=Q0a(ρCp)f,Nb=DBτ(CwC)νf,Nt=DTτ(TwT)νfT,Ecx=uw2(TwT)(Cp)fEcy=vw2(TwT)(Cp)f,β1=λea,β2=λca,Sc=νfDB,H=Kra,d=baA1=μhnfμf,A2=ρhnfρf,A3=σhnfσf,A4=κhnfκf,A5=(ρCp)hnf(ρCp)f

The engineering components of the skin friction coefficients Cfx and Cfy , Nusselt number Nux and Sherwood number Shx are defined as

(26)
Cfx=τxzρfuw2,Cfy=τyzρfvw2,Nux=xqwκf(TwT),Shx=xjmDB(CwC),
where τxz and τyz are the wall shear stresses in the x- and y-direction respectively, given as
(27)
τxz=μhnf[uz+Γ2(uz)2]z=0,τyz=μhnf[vz+Γ2(vz)2]z=0
and the wall heat and mass flux from the sheets, which is given by:
(28)
qw=[κhnf+16σT33κ](Tz)z=0,jm=DB(Cz)z=0

By using Equations (26), (27) and (28), the dimensionless variables, we obtain:

(29)
(Rex)12Cfx=A1[1+We2f(0)]f(0)
(30)
d1.5(Rey)12Cfy=A1[1+We2g(0)]g(0)
(31)
(Rey)12Nux=(A4+R)θ(0)
(32)
(Rey)12Shx=Φ(0)
where Rey=yvwνf and Rex=xuwνf are the local Reynolds numbers.

3. Numerical method

Using Table 1, and the MATLAB software (https://github.com/asfawmat/BVP-MATLAB-Implementation ) uses the bvp4c technique to numerically solve equations (21) through (24) and the boundary condition (25). The bvp4c is an effective instrument that provides precision and dependability in addressing boundary value problems for differential equation systems. With a high degree of accuracy specifically, fourth- order accuracy this solver exemplifies a collocation technique that provides a precise, continuous solution. The mesh selection and error control are determined by evaluating the residual of the continuous solution. As discussed later, the boundary value problems must be transformed into a system of first-order initial value problems (IVPs) to apply the bvp4c method using the shooting technique. Now let us defined the new variable by the equation

(33)
{y1=f,y2=f,y3=f,y4=g,y5=g,y6=g,y7=θ,y8=θ,y9=Φ,y10=Φ.
y1=y2y2=y3y3=1A1A2(1+Wey3)[A3A2My2+A1A2Ky2+y22(y1+y4)y3],y4=y5,y5=y6,y6=1A1A2(1+Wey6)[A3A2My5+A1A2Ky5+y52(y1+y4)y6],y7=y8,y8=[1(A4A5Pr+RA5Pr(1+(θw1)y7)3β1(y1+y4)2)]×[RA5Pr(1+(θw1))2×3(θw1)y82+(y1+y4)y8β1(y1+y4)(y2+y5)y8+1A5Qy7+Nby8y10+Nty82+A3A5M(Ecx(y2)2+Ecy(y5)2)],y9=y10,y10=[1(1β2Sc(y1+y4)2)]×[β2Sc((y1+y4)(y2+y5)Sc(y1+y4))y10+ScHy9NtNb[[1(A4A5Pr+RA5Pr(1+(θw1)θ)3β1(y1+y4)2)]×[RA5Pr((1+(θw1))2×3(θw1)y82)+(y1+y4)y8β1(y1+y4)(y2+y5)y8+1A5Qy7+Nby8y10+Nty82+A3A5M(Ecx(y2)2+Ecy(y5)2)]]
with corresponding initial conditions
(34)
{y1(0)=0,y2(0)=1,y3(0)=α1,y4(0)=0,y5(0)=dy6(0)=α2,y7(0)=1,y8(0)=α3,y9(0)=1,y10(0)=α4
where α1,α2,α3 , and α4 are the missing initial conditions.

Table 1. Thermophysical properties.39,43

Physical propertiesEthylene glycol(C2H6O2)(f )Copper (Cu( ϕ1 )) Alumina (Al2O3( ϕ2 ))
ρ 111589333970
Cp 2430385765
κ 0.25340040
σ 0.1075.96×1073.5×107

Utilizing the bvp4c technique, a system of differential equations of the form y=f(x,y) is integrated according to the specified boundary conditions. The bvp4c routine uses finite difference method with an achievable accuracy of about 107 .

4. Results and Discussion

In this section, we present the numerical solutions to the problem, considering various physical effects. The system of equations (21)-(24) is solved using the numerical bvp4c method, which satisfies the boundary conditions given by equation (25). Additionally, we conducted a comparative analysis of our numerical results with those from previous studies to verify the accuracy of our solution and evaluate its consistency with earlier findings. The comparison of our findings with those from earlier research is presented in Table 2. Comparing our findings with those of previous studies, the comparison’s results show generally excellent agreement. Using a variety of graphs, the impacts of various physical factors on temperature, concentration, velocity, mass transfer rate, surface drag coefficient, and the hybrid Cu-Al 2O3/ethylene glycol nanofluid phase and nanofluid Al2O3/ethylene glycol phase are displayed. In each figure, a comparison of mono- and hybrid nanofluids is also provided. The numerical computations are discussed by keeping d=0.5,Sc=1,Nb=Nt=0.1,We=0.2,R=θw=1.2,K=0.1,Pr=1,Ec=0.2,β1=β2=0.1,H=0.2,Q=0.1,M=1,0.01ϕ10.05,0.01ϕ20.05 throughout the complete study.

Table 2. Comparison of f″ (0) and g″ (0).

d Wang44You & Wang40Present
f g f g f g
0-10-1--10
0.25-1.04881-0.19456-1.04881--1.048813-0.194565
0.5-1.09310-0.46521-1.09310--1.093096-0.465205
0.75-1.13449-0.79462-1.13449--1.134486-0.794619
1-1.17372-1.17372-1.17372--1.173721-1.173721

An analysis of the differences between the numerical results of Wang,44 You & Wang,40 and the current study’s conclusions by calculating the values of f"(0) and g"(0) under the conditions of Pr = 1, Nb = 1 × 1014, when We = M = K = β1 = β2 = R = θw = Q = Nt = Ec = Sc = H = ϕ1=ϕ2 = 0, as shown in Table 2 below.

4.1 Velocity characteristics

Figures 2 and 3 illustrate the impact of the stretching ratio on both primary and secondary velocities. As the stretching ratio increases, the primary velocity profiles decrease, while the secondary velocity profiles of the MHD Williamson hybrid nanofluid flow increase. Because d=b/a it decreases when the stretching rate is applied along the x-axis direction. It is evident that the velocity component (a) in the x-direction and the velocity component (b) in the y-direction have an inverse connection with the stretching ratio parameter. The interaction between primary and secondary velocity with a magnetic field is depicted in Figures 4 and 5. As the magnetic field strength increases, the resistance force also increases. The Lorentz force, which arises from the magnetic field, represents the resistance to fluid motion and can hinder the flow. As the magnetic field strengthens, both primary and secondary velocity profiles decrease. Figures 6 and 7 illustrate the effect of the Weissenberg number on these velocities. As the Weissenberg number increases, the velocity profiles (both primary and secondary) decrease because higher Weissenberg values reduce the relaxation time of the fluid particles. This increase in viscosity results in greater resistance to the fluid flow. Figures 8 and 9 demonstrate how the primary and secondary velocity profiles fall as the porosity parameter rises. This is because the hybrid nanofluid will pass through the sheet more readily as its permeability increases, influencing the flow. The contribution of volume fraction to the primary and secondary velocities of the mono- and hybrid nanofluids is shown in Figures 10 and 11. This variation demonstrates how increased volume friction will result in an increase in the fluid’s viscous forces, which are its internal resistive forces. When nanoparticles are added to ethylene glycol, the viscous forces in the fluid increase, and the fluid’s velocity decreases.

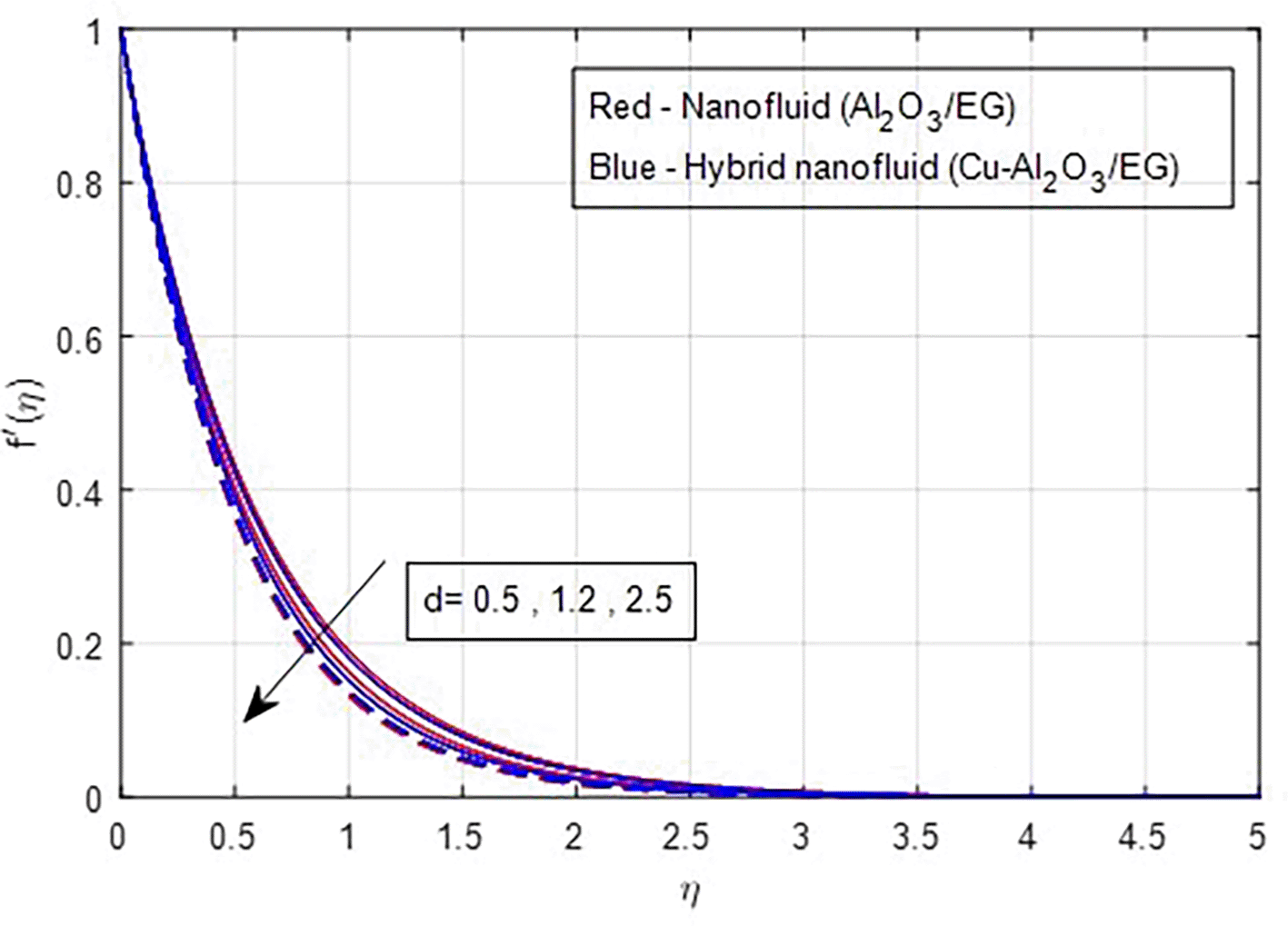

Figure 2. Primary velocity vs d.


Figure 3. Secondary velocity vs d.


Figure 4. Primary velocity vs M.

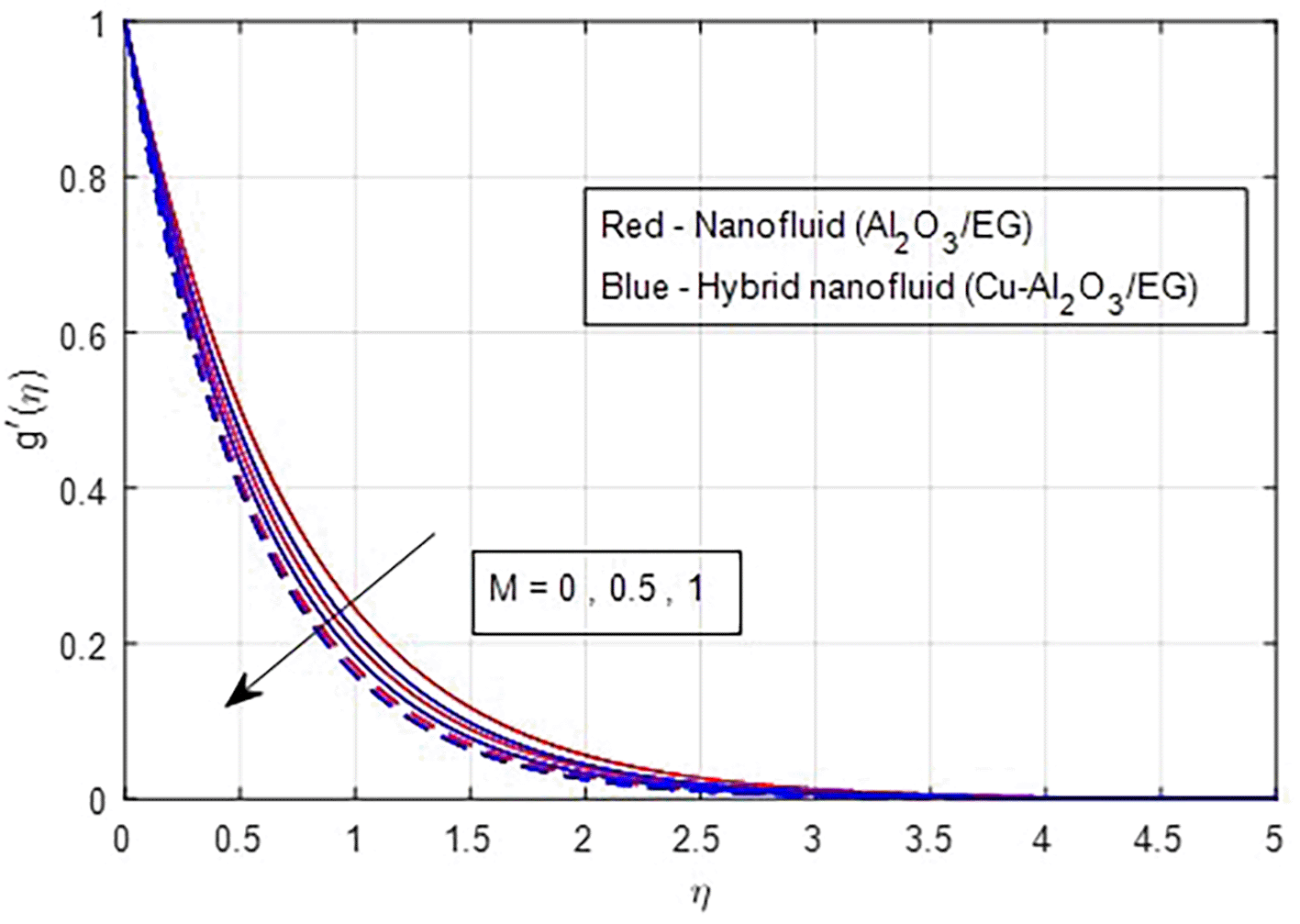

Figure 5. Secondary velocity vs M.


Figure 6. Primary velocity vs We.


Figure 7. Secondary velocity vs We.


Figure 8. Primary velocity vs K.


Figure 9. Secondary velocity vs K.


Figure 10. Primary velocity vs ϕ1,ϕ2 .


Figure 11. Secondary velocity vs ϕ1,ϕ2 .

4.2 Thermal characteristics

The impacts of the thermal relaxation parameter on fluid temperatures are illustrated in Figure 12. A greater thermal relaxation parameter occurs with temperature diminish. This trend can be explained by the fact that the thermal relaxation parameter in a non-Fourier heat transfer process quantifies the lag time between the temperature gradient and the flux. The time it takes for a material to return to a particular proportion of its equilibrium temperature following a temperature change is known as its thermal relaxation time. The temperature profile graph’s decline over time suggests that the material is gradually cooling. This is caused by the thermal relaxation time; the temperature will drop more slowly the higher the value. Figure 13 depicts the thermal distribution against R. The temperature of the thermal system rises when R increases because it increases thermal efficiency (conductivity). The temperature distribution and the accompanying thickness of the boundary film both improve with an increase in the R estimate. As a result, the temperature in the boundary layer region rises. In this instance, hybrid nanoparticles outperform mono-nanofluid. The strength of thermal boundaries increases as the source of heat generation grows. This physical process leads to increased heat transfer, which elevates the thermal profiles, as shown in Figure 14. The increase in thermal profiles is more pronounced for hybrid nanoparticles. The random motion of solid nanoparticles is directly related to higher values of the Brownian motion factor. As a result, the thermal boundary layer strengthens when the internal energy of the solid nanoparticles is converted into kinetic or heat energy. Consequently, the thermal properties rise as Brownian motion increases, as depicted in Figure 15. Similarly, when the thermophoresis factor increases, additional heat is transferred from a region of higher concentration to a region of lower concentration. Consequently, an increase in the thermophoresis parameter is correlated with a corresponding rise in the thermal properties, as Figure 16 illustrates. The temperature functions improve when the magnetic parameter M grows in value, as seen by the temperature distribution graphs in Figure 17. The valuable heat produced by the resistivity impact of the Lorentz force accounts for the rising thermal patterns observed for increasing values of magnetic parameters. These figures show that the curves produced by hybrid nanofluids are larger than those produced by mono-nanofluids. Hence, hybrid nanoparticles are noticed as more efficient at enhancing the base fluid temperature. The relationship between profiles of temperature and the Eckert number is seen in Figure 18, where it is observed that temperature profiles rise as the Eckert number grows. From a physical perspective, a higher Eckert number corresponds to a higher amount of heat energy in the boundary layer. Frictional heating keeps heat energy from being produced. As Figure 19 demonstrates, the temperature falls as the stretching ratio grows. We can observe that temperature reduces as the stretching ratio parameter increases. This could happen as a result of the fluid’s temperature dropping as a result of an increase in the stretching ratio parameter, which increases the flow of the colder fluid at the ambient surface toward the hot surface. Increases in the volumetric fraction of solid nanoparticles provide greater resistance to the flow of fluid because the fluid particles have higher densities. In this process, more heat is transmitted from the hotter zone to the colder zone. A graph of the temperature profile resulting from an increasing volume percentage of nanoparticles is presented in Figure 20. Physically, increasing the concentration of nanoparticles in the base fluid makes the fluid more viscous, leading to the formation of intermolecular frictional forces within the fluid. This results in a noticeable rise in the temperature curve at higher nanoparticle volume fractions. As a result, the temperature is observed to increase with a higher nanoparticle volume fraction.

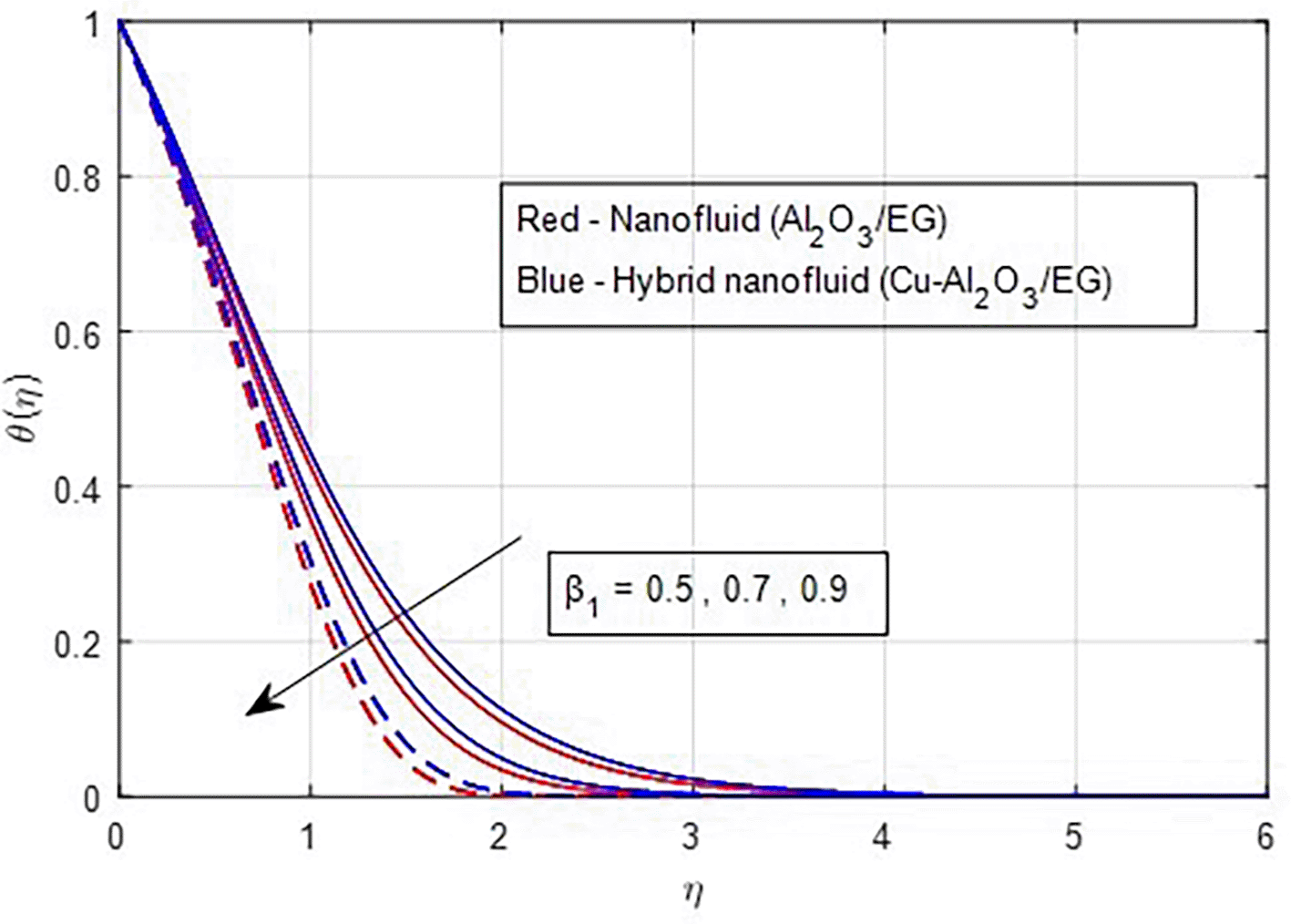

Figure 12. Temperature vs β1 .


Figure 13. Temperature vs R.


Figure 14. Temperature vs Q.


Figure 15. Temperature vs Nb.


Figure 16. Temperature vs Nt.


Figure 17. Temperature vs M.


Figure 18. Temperature vs Ec.


Figure 19. Temperature vs d.


Figure 20. Temperature vs ϕ1,ϕ2.

4.3 Concentration characteristic

Higher Schmidt numbers are linked to lower nanoparticle concentrations due to the inverse relationship between molecular diffusivity and the Schmidt number, as shown in Figure 21. Figure 22 depicts the effect of the concentration relaxation parameter on the concentration field. As the concentration relaxation parameter increases, both the concentration profile and the thickness of the concentration boundary layer decrease. This occurs because the particles need more time to diffuse when the concentration relaxation time parameter increases. Figure 23 shows that both the solute’s boundary layer thickness and the nanoparticle concentration in the hybrid nanofluid decrease as the chemical reaction parameter increases. Changes in the intensity of the chemical reaction affect the fluid’s diffusivity, leading to a reduction in concentration. Finally, Figure 24 illustrates the decrease in the concentration profile as the stretching ratio increases.


Figure 21. Concentration vs Sc.


Figure 22. Concentration vs β2.


Figure 23. Concentration vs H.


Figure 24. Concentration vs d.

4.4 Influence of factors on Coefficient of skin friction, Nusselt and Sherwood numbers

In Table 3, the numerical results of skin friction drag along x- and y-directions (CfxRe12) and (d1.5CfyRe12) and the Nusselt number (NuxRe12) , the Sherwood number (ShxRe12) , the essential emerging parameters, are estimated using different dimensionless parameters for mono-nanofluids and hybrid nanofluids. For mono-nanofluids and hybrid nanofluids, skin friction drags rise in the x- and y-directions as ϕ1,ϕ2,M , and d grow but diminish as We grows for mono-nanofluids and hybrid nanofluids. For hybrid nanofluids, Nusselt numbers grow with the values of ϕ1,ϕ2,d and β1 , but they decrease as We,M,θw,H,β2 , and R values increases. According to these findings, thermal radiation, temperature ratio parameters, magnetic forces, relaxation time, and other flow parameters all have a major impact on the rate of heat transfer close to the surface. Sherwood numbers drop with rising values of d,ϕ1,ϕ2 , and β1 , but increase with values of We,M,R,θw , and H . These results indicate that the mass transfer rate near the surface is strongly affected by relaxation time, chemical processes, and other flow characteristics.

Table 3. Mathematical data of coefficient of skin friction, Nusselt and Sherwood number of some values of parameters.

We M ϕ1 ϕ2 d β 1 R θ w β2 H CfxRe12 d32CfyRe12 NuxRe12 ShxRe12
0.11.9393820.9037380.4880150.379954
0.21.8736740.8900980.4785650.384044
0.31.7942270.8753490.4673490.388856
01.4799470.6539970.6626930.284334
11.8736740.8900980.4785650.384044
22.1855421.0739190.3470220.454532
00.011.4610740.6986280.4214140.381833
00.031.5459860.7402680.4519520.375229
00.051.6340680.7833700.4846980.368544
0.010.011.5060240.7185400.4188450.385502
0.030.031.6848610.8019750.4463830.385221
0.050.051.8736740.8900980.4785650.384044
0.11.8140540.1594630.3427750.444855
0.51.8736740.8900980.4785650.384044
11.9409780.9409780.5881500.334435
0.11.8736740.8900980.4785650.384044
0.21.8736740.8900980.4892310.381149
0.31.8736740.8900980.5011310.377928
0.21.8736740.8900980.4785650.384044
0.31.8736740.8900980.4703200.403437
0.41.8736740.8900980.4647090.418902
1.21.8736740.8900980.4785650.384044
1.41.8736740.8900980.4169210.417224
1.61.8736740.8900980.3478530.452785
0.11.8736740.8900980.4785650.384044
0.21.8736740.8900980.4774010.409733
0.31.8736740.8900980.4761510.439006
0.21.8736740.8900980.4785650.384044
11.8736740.8900980.4675031.012973
21.8736740.8900980.4640651.449359

Mathematical data of coefficient of skin friction, Nusselt and Sherwood number of some values of parameters for d = 0.5, Nb = Nt = θw = Q = K = β 1 = β 2 = 0.1,We = H = R = Ec = 0.2, Pr = M = Sc = 1, ϕ1 = ϕ2 = 0.05.

5. Conclusion

This section presents the results for a 3D MHD Williamson hybrid nanofluid flow. The study utilizes the Cattaneo-Christov and modified Boungerno’s models to simulate the Cu−Al2O3/Ethylene glycol MHD Williamson hybrid nanofluid flow over a linearly stretching sheet, influenced by factors such as magnetic field, heat generation/absorption, non-linear thermal radiation, Joule heating, Brownian motion, thermophoresis, porosity, Williamson fluid parameter, Eckert number, Prandtl number, Schmidt number, chemical reaction parameter, stretching ratio, thermal relaxation, and concentration relaxation parameters. By applying appropriate similarity variables, the system of partial differential equations is transformed into a non-linear ordinary differential equation formulation. These ordinary differential equations are solved numerically using the bvp4c solver on the MATLAB platform. Similarly, graphical analysis is used to plot the obtained flow parameters so that their effects on flow, heat, and mass can be easily seen. Researchers and engineers working on related issues can benefit greatly from the obtained data. Moreover, our findings demonstrate the effectiveness and utility of hybrid nanofluid performance.

The present study leads to the following deductions:

  • When the stretching ratio parameter rises, the primary velocity profile diminishes, but the secondary velocity profile grows.

  • The primary and secondary velocities diminishes with increasing porosity, the Williamson fluid, and the magnetic field parameter.

  • As the volume fractions of mono-nanofluid and hybrid nanofluid increase, both the primary and secondary velocities decrease. The addition of nanoparticles to a base fluid enhances the viscous forces, resulting in a reduction of the fluid’s velocity. However, the primary and secondary velocity profiles of the Williamson hybrid nanofluid model are notably higher compared to those of the mono-nanofluid and conventional base fluid models.

  • When the non-linear thermal radiation parameter, heat generation (Q0 > 0), Brownian motion, thermophoresis, magnetic field parameter, and Eckert number increases, the temperature profile rises. The temperature profile diminishes, when the stretching ratio and thermal relaxation parameter increases.

  • Temperature curves diminishes with increases estimates of nanofluid volume fraction and hybrid nanofluid volume fraction. When nanoparticles are added to a base fluid, the viscosity increases and the fluid temperature falls. When viscosity increases, temperature decreases.

  • As the stretching ratio, concentration relaxation, chemical reaction parameter, and Schmidt number rise, the concentration profile decreases.

  • As the volume fraction of hybrid nanoparticles increases, both the skin friction and Nusselt number of the Williamson hybrid nanofluid rise. However, the local Sherwood number of the MHD Williamson hybrid nanofluid decreases with a higher volume fraction of hybrid nanoparticles.

  • Finally, based on the current findings, we deduced that hybrid nanofluid performs better in ethylene glycol than mono-nanofluid.

CRediT authorship contribution statement

Asfaw Tsegaye Moltot contributed to Writing review & editing, conceptualization, methodology, formal analysis, validation, and writing the original draft. Eshetu Haile contributed to Writing the review, editing, supervision, conceptualization, and resources. Gurju Awgichew contributed to Writing the review, editing, supervision and resources. Hunegnaw Dessie contributed to Writing the review, editing, supervision and resources.

Ethics and consent

Ethical approval and consent were not required.
