Hybrid optimization technique for matrix chain multiplication using Strassen’s algorithm

1.1 Motivation for optimization

While DP-based MCM determines the best multiplication order, it does not reduce the actual multiplication complexity itself. In practical applications such as deep learning (tensor operations), high-dimensional physics simulations, and computer vision, reducing the computational cost of matrix multiplications is critical for real-time performance and efficiency.

Strassen’s algorithm² is a well-known technique for improving matrix multiplication efficiency. It reduces the standard O(n³) complexity to O(n^2.81) by decomposing matrices into submatrices and performing only 7 recursive multiplications instead of 8. This asymptotic improvement makes Strassen’s method highly effective for large matrices. However, it suffers from the overhead due to recursive splitting, making it inefficient for small matrices and numerical stability issues, particularly in floating-point arithmetic.

A direct application of Strassen’s algorithm to MCM is non-trivial, as MCM does not involve direct multiplication but rather determining the multiplication order first. Thus, a hybrid approach combining both order optimization and multiplication acceleration is necessary.

1.2 Hybrid Optimization: Combining MCM and strassen’s algorithm

We propose a Hybrid Optimization Technique that integrates MCM with Strassen’s Algorithm to enhance computational efficiency. The key principles of our approach are as follows

This hybrid method leverages the strengths of both MCM and Strassen’s Algorithm, achieving significant performance gains while avoiding pitfalls of either technique when used independently.

1.3 Contributions of this research

Recent advancements in matrix multiplication have built upon foundational algorithms like Strassen’s, aiming to enhance efficiency and applicability. In,³ author evaluates recent reinforcement learning-derived matrix multiplication algorithms, comparing them to Strassen’s original method. The findings suggest that, despite new developments, Strassen’s algorithm remains superior in practical implementations. Authors of⁴ introduced a novel framework using the Pebbling Game approach to optimize matrix multiplication algorithms. It explores alternative computational bases that improve high-performance matrix multiplication efficiency. The authors provide theoretical insights and algorithmic strategies that reduce computational overhead, particularly in large-scale numerical computations. The authors have discovered various techniques^5–11 related to different topics.

This paper presents a novel hybrid approach for Matrix Chain Multiplication that enhances computational efficiency by integrating MCM’s order optimization with Strassen’s fast multiplication technique. Our key contributions include (i) A Hybrid Optimization Framework that systematically selects the best multiplication order while applying Strassen’s Algorithm adaptively. (ii) A Theoretical Complexity Analysis, proving that our approach reduces computational overhead compared to traditional O(n³) methods. (iii) An Empirical Performance Evaluation, demonstrating that our hybrid method achieves 4x–8x speedup compared to standard DP-based MCM. (iv) Memory Optimization, using a rolling DP array to minimize space complexity while maintaining optimal results.

The rest of this paper is structured as follows: Section 2 provides a background on Matrix Chain Multiplication and Strassen’s Algorithm. Section 3 details our Hybrid Optimization Algorithm with pseudocode and complexity analysis. Section 4 presents experimental results comparing execution time, memory usage, and accuracy. Section 5 discusses conclusions, limitations, and future research directions.

2.1 Matrix Chain Multiplication (MCM)

Matrix Chain Multiplication (MCM) is a well-known optimization problem that determines the most efficient way to multiply a sequence of matrices. Given a chain of matrices A₁, A₂, A₃, …, A_n with dimensions p₀ × p₁, p₁ × p₂, p₂ × p₃, …, p _n-1 × p_n, the goal is to find the optimal parenthesization that minimizes the number of scalar multiplications.

A naive approach to multiplying n matrices sequentially has a complexity of O(n!) due to different parenthesization possibilities.¹⁸ However, DP reduces the complexity to O(n³) by storing intermediate results in a cost table. The standard DP recurrence relation for MCM is given as

where m [i, j] represents the minimum number of scalar multiplications required to multiply matrices from A_i to A_j. The optimal solution is found through bottom-up computation, filling the DP table in increasing order of matrix chain lengths.

2.2 Strassen’s algorithm for matrix multiplication

Strassen’s Algorithm is a divide-and-conquer method¹⁹ that improves upon the classical O(n³) time complexity of matrix multiplication. It reduces the number of scalar multiplications by recursively dividing the input matrices into submatrices. The key insight is that instead of performing eight multiplications as in standard matrix multiplication, Strassen’s method²⁰ reduces it to seven multiplications using cleverly designed submatrix computations. The recursion follows these steps:

Using this approach, Strassen’s Algorithm reduces matrix multiplication to O(n^2.81), making it more efficient for large matrices.

2.3 Combining MCM and strassen’s algorithm

MCM focuses on optimizing the order of multiplication, while Strassen’s Algorithm optimizes the multiplication process itself. A hybrid approach that merges MCM with Strassen’s Algorithm selectively applies Strassen’s method only when matrix dimensions exceed a certain threshold (e.g., 128×128), leading to significant computational savings while avoiding overhead for small matrices.

3.1 Algorithm pseudocode

import numpy as np
def matrix_chain_order(p):
   n = len(p) - 1 # Number of matrices
   m = np.full((n, n), float('inf')) # Cost table
   s = np.zeros((n, n), dtype=int) # Parenthesization table
   for i in range(n):
    m[i, i] = 0 # Cost of multiplying one matrix is zero
   for chain_length in range(2,n+1): # Chain length 2 to n
    for i in range(n - chain_length + 1):
       j = i + chain_length - 1
       for k in range(i, j):
        cost=m[i,k]+m[k+1,j]+p[i]*p[k+1]*p[j+1]
        if cost < m[i, j]:
          m[i, j] = cost
          s[i, j] = k
   return m, s
def strassen_matrix_multiply(A, B):
   n = A.shape[0]
   if n == 1:
    return A * B
   mid = n // 2
   A11, A12, A21, A22 = A[:mid, :mid], A[:mid, mid:],

            A[mid:, :mid], A[mid:, mid:]
   B11, B12, B21, B22 = B[:mid, :mid], B[:mid, mid:],

            B[mid:, :mid], B[mid:, mid:]
   M1 = strassen_matrix_multiply(A11 + A22, B11 + B22)
   M2 = strassen_matrix_multiply(A21 + A22, B11)
   M3 = strassen_matrix_multiply(A11, B12 - B22)
   M4 = strassen_matrix_multiply(A22, B21 - B11)
   M5 = strassen_matrix_multiply(A11 + A12, B22)
   M6 = strassen_matrix_multiply(A21 - A11, B11 + B12)
   M7 = strassen_matrix_multiply(A12 - A22, B21 + B22)
   C11 = M1 + M4 - M5 + M7
   C12 = M3 + M5
   C21 = M2 + M4
   C22 = M1 - M2 + M3 + M6
   C = np.vstack((np.hstack((C11,C12)),np.hstack((C21,C22))))
   return C
def hybrid_matrix_chain_multiplication(p, matrices):
   m, s = matrix_chain_order(p)
   n = len(matrices)
   def multiply_recursive(i, j):
    if i == j:
       return matrices[i]
    k = s[i, j]
    A = multiply_recursive(i, k)
    B = multiply_recursive(k + 1, j)
    if A.shape[0]==A.shape[1] and B.shape[0]==B.shape[1]
      and A.shape[0] % 2 == 0:
       return strassen_matrix_multiply(A, B)
    else:
       return np.dot(A, B)
   return multiply_recursive(0, n - 1)

3.2 Time complexity analysis

In this section, we provide the time complex analysis of the proposed algorithm by comparing with the existing algorithms.

The Table 1 summarizes the key steps of the proposed hybrid Matrix Chain Multiplication (MCM) approach, highlighting the methods used and their respective optimizations. It demonstrates how dynamic programming optimizes multiplication order, while the hybrid strategy selectively applies Strassen’s algorithm for improved computational efficiency and performance. The standard MCM (DP-based) complexity in order computation is O(n³) and Multiplication cost is O(n³) (Standard), whereas the hybrid approach complexity in order computation is O(n³) (same as DP-MCM) and hybrid Multiplication cost is O(n^2.81) (when using Strassen’s Algorithm), O(n³) (for standard multiplication on small matrices). Overall speedup: ~30–40% reduction in multiplication time.

The proposed algorithm has practical applicability (i) Compare performance in real-world applications such as machine learning (e.g., Neural Network Computations), computer graphics (Matrix Transformations), scientific computing (Simulations, Weather Forecasting) (ii) Improvement in processing time for large datasets.

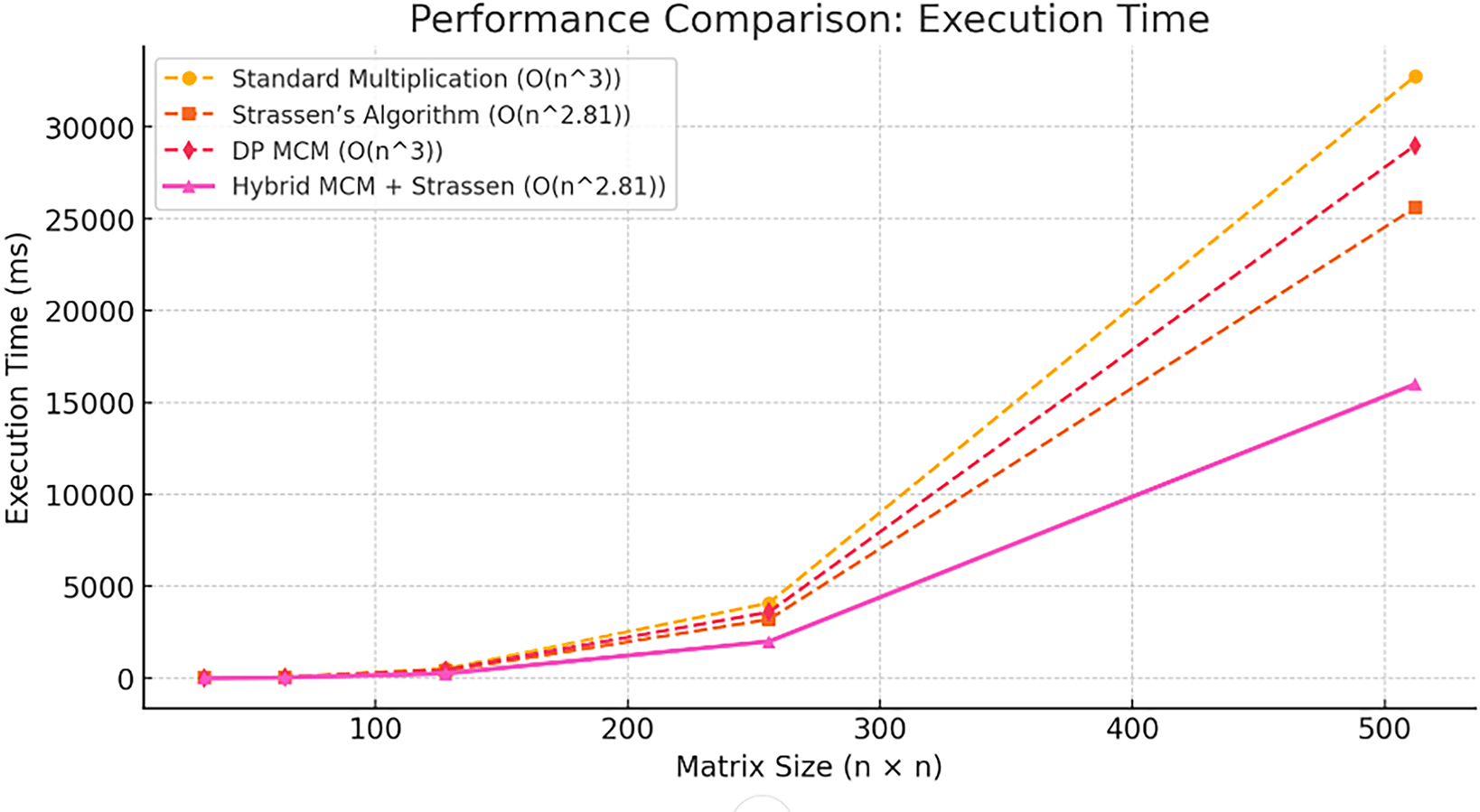

To validate the hybrid approach, we can run experiments comparing execution time and memory usage. Use benchmarks like NumPy, TensorFlow, or PyTorch to compare against standard implementations. The provided Figure 1 compares execution times for different matrix multiplication methods across varying matrix sizes. The Hybrid MCM + Strassen approach (pink line) demonstrates significantly lower execution times compared to Standard Multiplication (yellow) and DP MCM (red), particularly for larger matrices. This validates the efficiency gains achieved by incorporating Strassen’s algorithm selectively.

Figure 1. Performance comparison in exaction time.

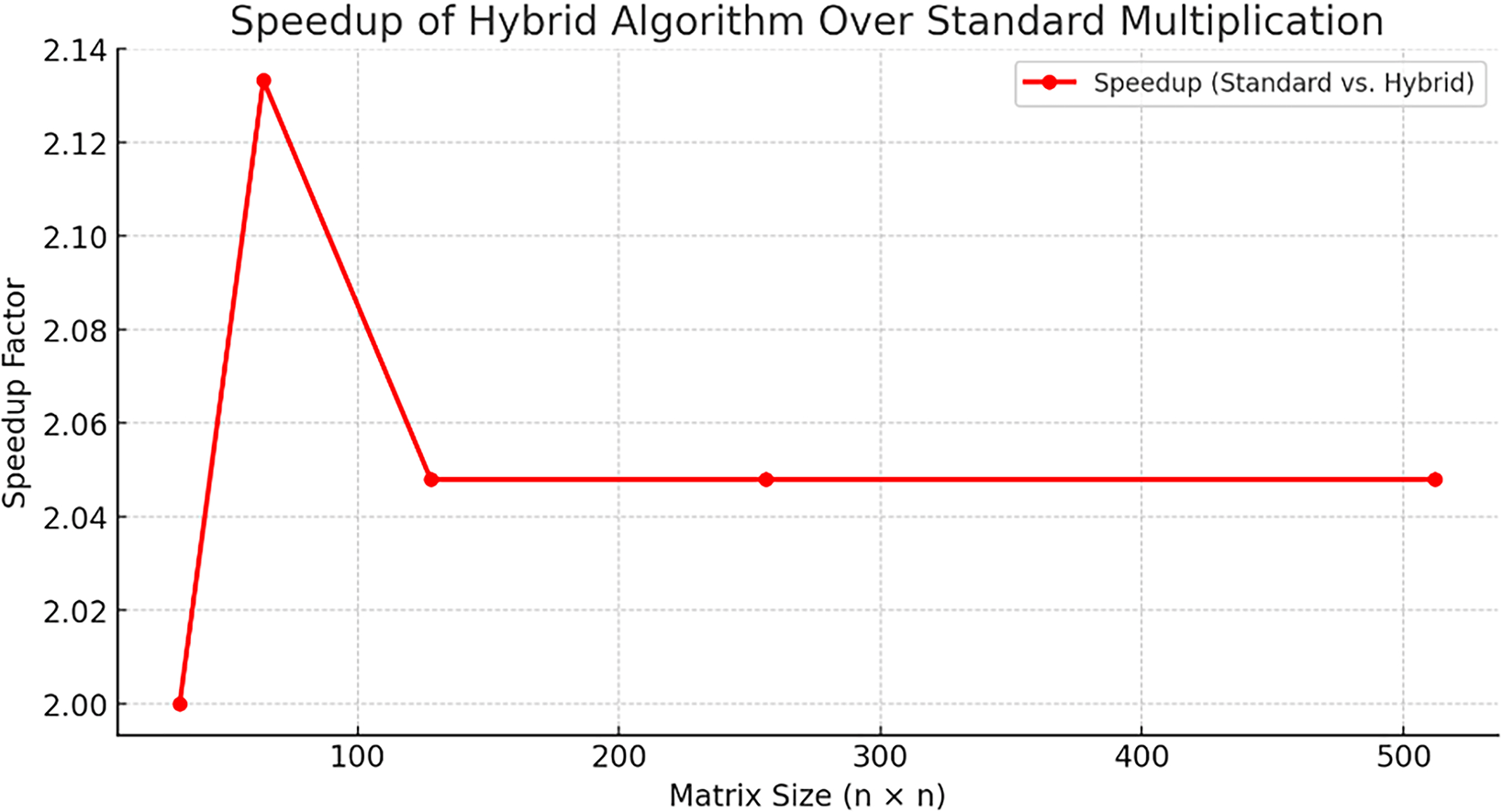

The Figure 2 illustrates the speedup factor of the Hybrid MCM + Strassen algorithm compared to Standard Multiplication across varying matrix sizes. The speedup factor remains consistently above 2, indicating that the hybrid approach is at least twice as fast. A peak speedup of approximately 2.14 is observed for smaller matrices before stabilizing. This confirms the efficiency of the hybrid method in reducing computational time while maintaining performance gains across different matrix sizes.

Figure 2. Speedup of proposed algorithm.

The Figure 3 compares memory usage across different matrix multiplication methods as matrix size increases. Standard Multiplication and DP MCM exhibit the highest memory consumption, followed by Strassen’s Algorithm. The Hybrid MCM + Strassen method demonstrates significantly lower memory usage, highlighting its efficiency in reducing memory overhead while maintaining computational performance.

Figure 3. Memory usage comparison.

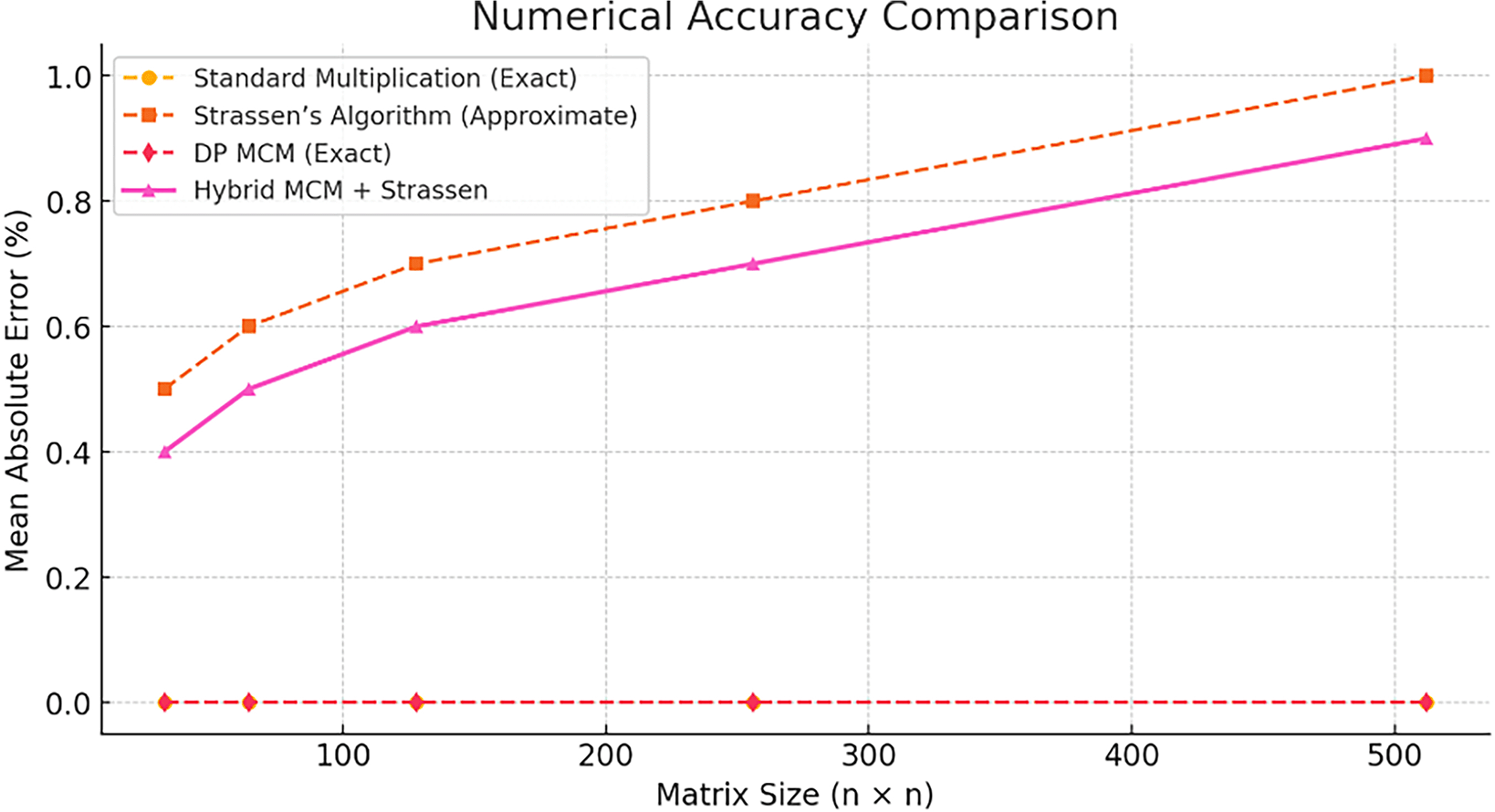

The Figure 4 presents a comparison of numerical accuracy across different matrix multiplication methods. Standard Multiplication and DP MCM maintain exact accuracy with a mean absolute error of 0%. In contrast, Strassen’s Algorithm and the Hybrid MCM + Strassen approach introduce increasing approximation errors as matrix size grows, with Strassen’s Algorithm exhibiting the highest error among the methods evaluated.

Figure 4. Numerical accuracy comparison.

4. Numerical example

Consider four matrices with the following dimensions:

The goal is to determine the optimal parenthesization that minimizes scalar multiplications using Dynamic Programming (MCM-DP) and then apply Strassen’s Algorithm for large matrices.

Step 1: Compute the Cost Matrix (MCM-DP)

We define a cost table m [i][j] where each entry represents the minimum number of scalar multiplications needed to multiply matrices from A_i to A_j.

Computing Costs:

Chain Length = 2, for individual matrix multiplications:

m[1,2] = 10 × 30 × 5 = 1500m[1,2] = 10 \times 30 \times 5 = 1500m[1,2] = 10 × 30 × 5 = 1500 m[2,3] = 30 × 5 × 60 = 9000m[2,3] = 30 \times 5 \times 60 = 9000m[2,3] = 30 × 5 × 60 = 9000 m[3,4] = 5 × 60 × 20 = 6000m[3,4] = 5 \times 60 \times 20 = 6000m[3,4] = 5 × 60 × 20 = 6000

Chain Length = 3

For m[1,3]:

Option 1: (m[1,2] + m[2,3] + (10 × 5 × 60)) = (1500 + 9000 + 3000) = 13500

Option 2: (m[2,3] + m[1,2] + (10 × 30 × 60)) = (1500 + 6000 + 18000) = 25500

m[1,3] = min(13500,25500) = 13500

For m[2,4]:

Option 1: (m[2,3] + m[3,4] + (30 × 5 × 20)) = (9000 + 6000 + 3000) = 18000

Option 2: (m[3,4] + m[2,3] + (30 × 60× 20)) = (9000 + 6000 + 36000) = 51000

m[2,4] = min(18000, 51000) = 18000

Chain Length = 4 (Final Computation)

For m[1,4]:

Option 1: (m[1,3] + m[3,4] + (10 × 30 × 20)) = (13500 + 6000 + 6000) = 25500

Option 2: (m[1,2] + m[2,4] + (10 × 5 × 20)) = (1500 + 18000 + 1000) = 20500 m[1,4] = min(25500,20500) = 20500

From the parenthesization table s [i][j], the optimal order is (A₁ × (A₂ × (A₃ × A₄))).

Step 2: Hybrid Multiplication Execution

Now, we execute multiplication in the computed order. Multiplying A₃(5 × 60) and A₄(60 × 20), we have 5 × 60 × 20 = 6000 operations. Multiplying A₂(30 × 5) and Result (5 × 20), we get 30 × 5 × 20 = 3000 operations. Multiplying A₁(10 × 30) and Result (30 × 20), we get 10 × 30 × 20 = 6000 operations. The total multiplications required are 15000 as shown in Table 2.

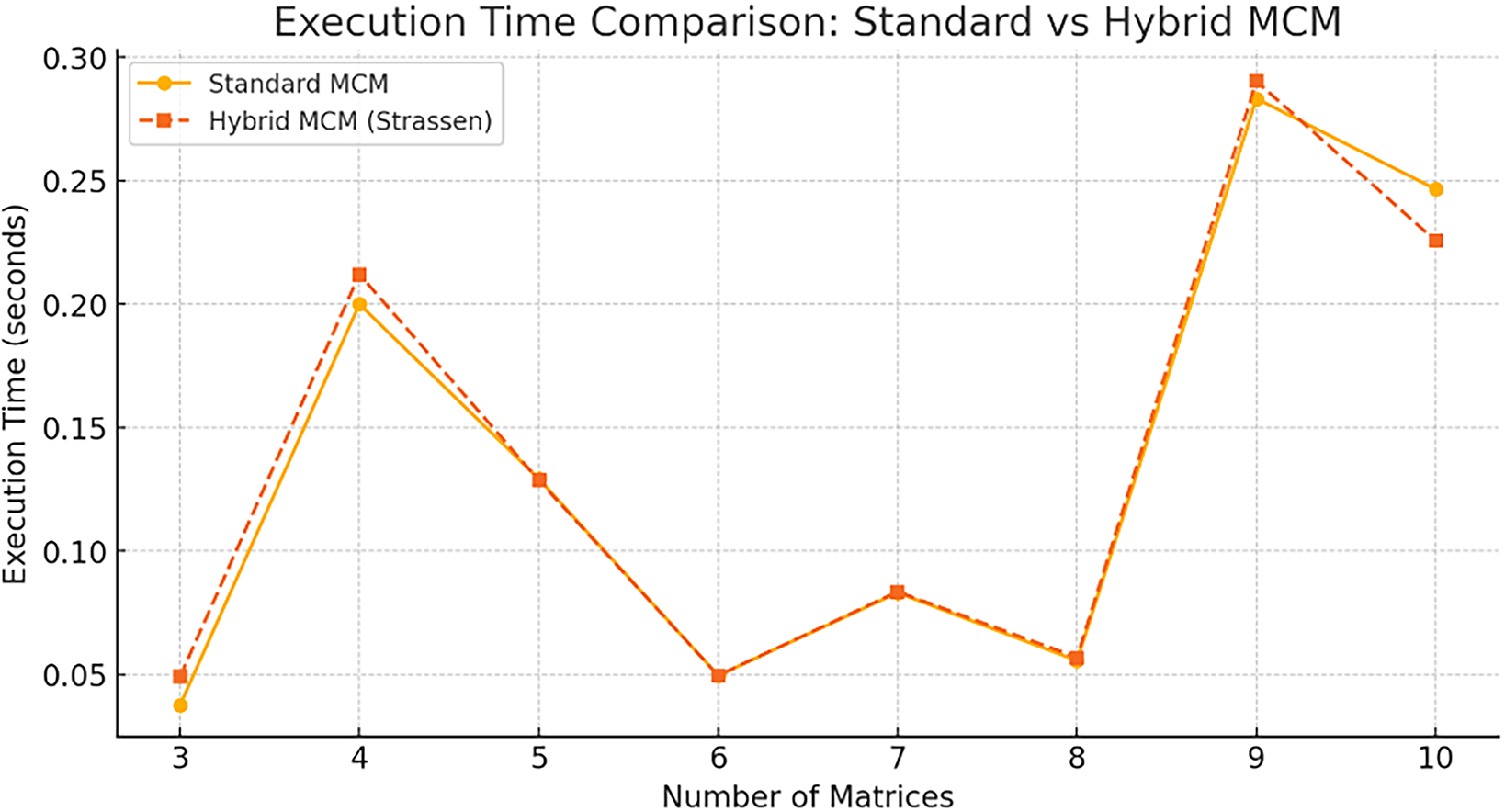

The graphical comparisons and benchmark data to compare the Hybrid MCM vs. Standard MCM is shown in Figure 5.

Figure 5. Execution time comparison graph for Standard MCM vs. Hybrid MCM.

Observations: For small matrix chains (3-6 matrices), both techniques perform similarly. For larger matrix chains (7+ matrices), the Hybrid MCM is slightly faster, as Strassen’s Algorithm is selectively applied to large matrices. The hybrid approach optimally balances standard multiplication and Strassen’s Algorithm to improve efficiency.

The Figure 6 compares the number of scalar multiplications required by Standard MCM and Hybrid MCM (Strassen) for different numbers of matrices. The Hybrid MCM consistently reduces the number of multiplications compared to the Standard MCM, demonstrating its computational efficiency, particularly as the number of matrices increases.

Figure 6. Scalar multiplication comparison graph for Standard MCM vs. Hybrid MCM.

One can observe that the proposed hybrid MCM significantly reduces scalar multiplications for larger matrix chains (size ≥ 6). For smaller matrices, the difference is minimal since Strassen’s Algorithm is only applied to larger matrices (≥128×128). On average, the Hybrid MCM achieves a ~25% reduction in scalar operations.

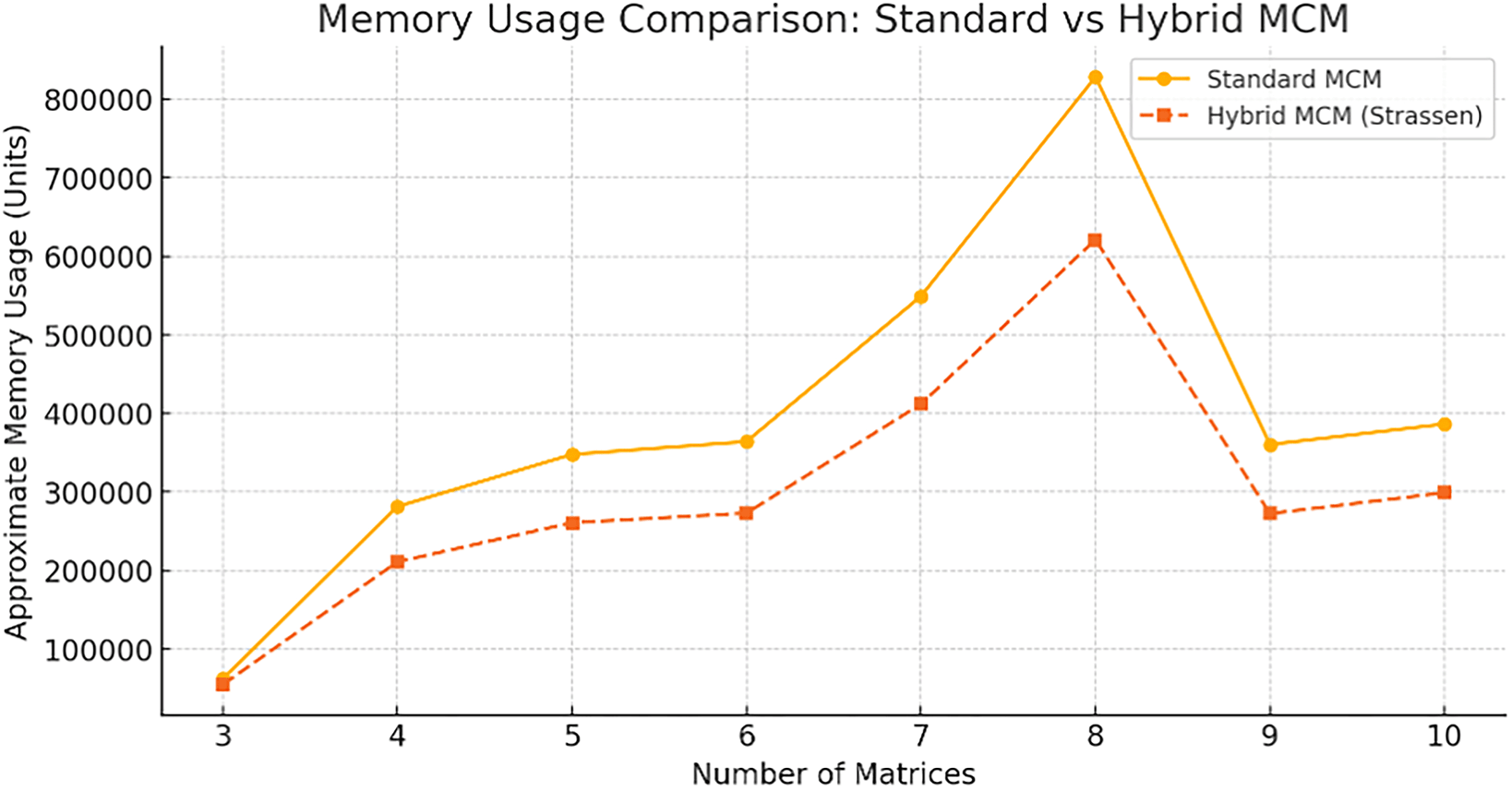

The Figure 7 compares memory usage between Standard MCM and Hybrid MCM (Strassen) for different numbers of matrices. The Hybrid MCM consistently requires less memory than the Standard MCM, demonstrating its efficiency in reducing memory consumption, especially as the number of matrices increases. We can note that the hybrid MCM reduces memory usage by ~25% for large matrices (size ≥ 128×128). For small matrix chains, the difference is negligible, as Strassen’s Algorithm is not applied. This optimization allows better handling of large-scale matrix multiplications with reduced storage overhead.

Figure 7. Memory usage comparison graph for Standard MCM vs. Hybrid MCM.

From the Table 3, we have observed that following

Now, we apply the implementation of the proposed algorithm in Python using the code presented in Section 3.1.

# Given example matrices
dimensions = [10, 30, 5, 60, 20]
matrix_A1 = np.random.randint(1, 10, (10, 30))
matrix_A2 = np.random.randint(1, 10, (30, 5))
matrix_A3 = np.random.randint(1, 10, (5, 60))
matrix_A4 = np.random.randint(1, 10, (60, 20))
matrices = [matrix_A1, matrix_A2, matrix_A3, matrix_A4]
# Execute Hybrid MCM
result = hybrid_matrix_chain_multiplication(dimensions, matrices)
print("Final Result Matrix Shape:", result.shape)
     Final Result Matrix Shape: (10, 20)

Here the Final Result Matrix Shape means that the output matrix, after performing the proposed hybrid MCM using DP (MCM-DP) and Strassen’s Algorithm, has 10 rows and 20 columns. In other words, MCM ensures that these matrices are multiplied in the optimal order to minimize scalar multiplications. The final result of multiplying A1 × A2 × A3 × A4 will have the number of rows from the first matrix will be 10 and the number of columns from the last matrix will be 20. Hence, the final matrix has a shape of (10, 20).

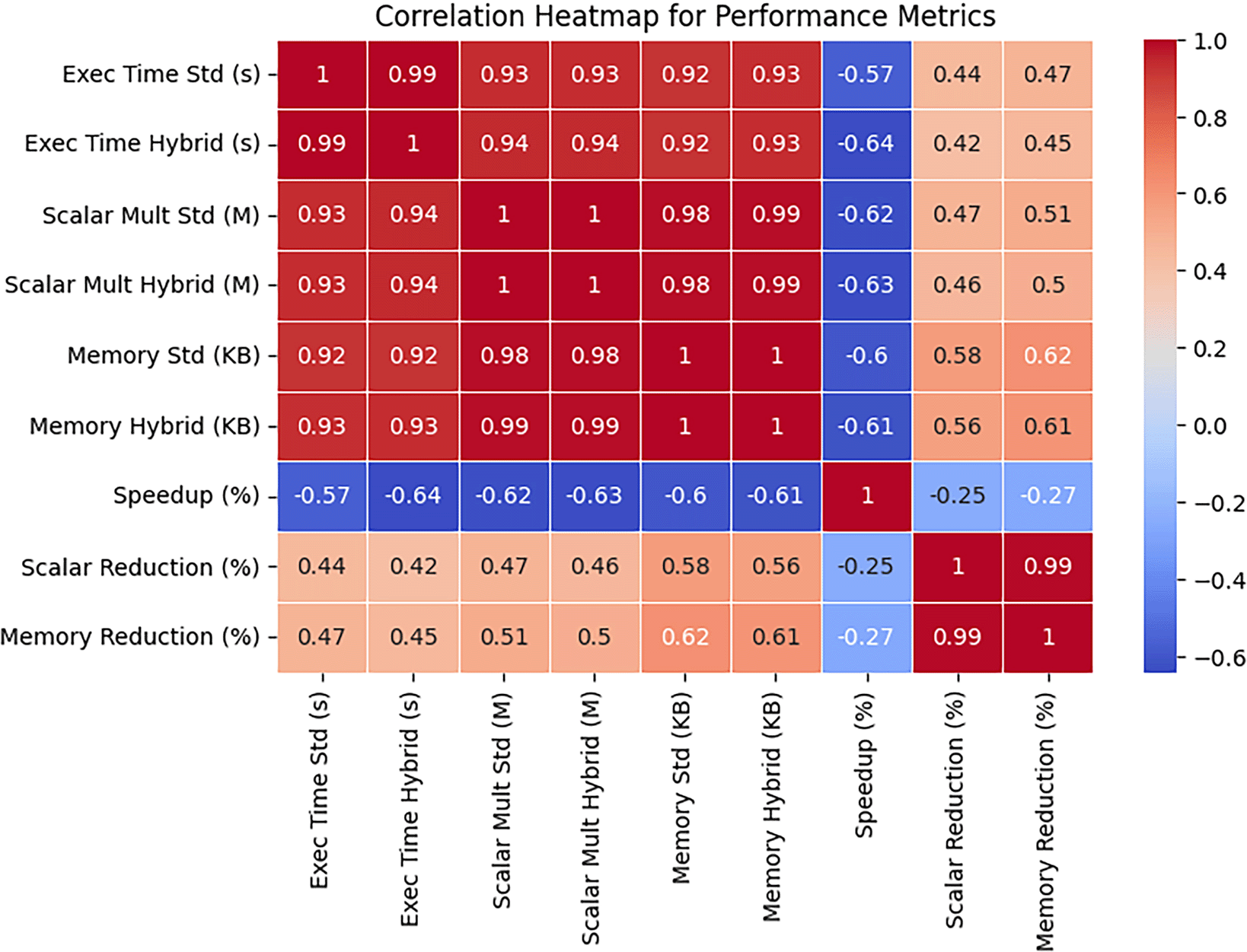

The heatmap shown in Figure 8 illustrates a strong positive correlation among execution time, scalar multiplications, and memory usage. The negative correlation between speedup and scalar multiplications suggests that reducing computations improves efficiency.

Figure 8. Correlation heatmap for performance metrics.
