Short Research Article

Negative/null result

Regulation of Cancerous inhibitor of PP2A (CIP2A) by small molecule inhibitor for c-Jun NH₂-Terminal Kinases (JNKs), SP600125, in Human Fibrosarcoma (HT1080) cells

[version 1; peer review: 1 approved with reservations]

Anchit Khanna^1-3

PUBLISHED 14 Aug 2013

Author details Author details

¹ Adult Cancer Program, Lowy Cancer Research Centre and Prince of Wales Hospital, UNSW Medicine, University of New South Wales, Sydney, Australia
² Institute of Biomedical Technology and BioMediTech, University of Tampere and Tampere University Hospital, Tampere, Finland
³ 3Tampere Graduate Program in Biomedicine and Biotechnology (TGPBB), University of Tampere, Tampere, Finland

OPEN PEER REVIEW

REVIEWER STATUS

Abstract

Background: Protein phosphatase 2A inhibition is one of the pre-requisites for human cell transformation. Previously, we have identified an endogenous inhibitor of PP2A, CIP2A (Cancerous Inhibitor of Protein Phosphatase 2A) in human fibrosarcoma cells (HT1080) using tandem affinity purification. CIP2A over expression has been demonstrated in almost every tumour type studied so far. However, our understanding on the mechanisms regulating CIP2A expression in human cancers, especially in sarcomas, is still emerging.
Methods: Human fibrosarcoma (HT1080) cells were treated with small molecule inhibitors against the three major signalling pathways, namely p38, MEK and JNK pathways to identify the pathway regulating CIP2A expression in the sarcoma cells. This was followed by verification of the results using small interfering RNAs (siRNA) for the kinases.
Results: In line with previous observations, small molecule inhibitor for MEK pathway (PD98059) decreased CIP2A mRNA and protein expression. Interestingly, small molecule inhibitor for the JNK pathway, SP600125 decreased mRNA and protein levels of CIP2A oncoprotein with negligible effect of SB203580 (p38 kinase) inhibitor on CIP2A expression in HT1080 cells. However, siRNAs specific to either JNK1 or JNK2 kinases did not result in decrease in CIP2A expression. Contrarily, two different CIP2A siRNAs, which were used as positive controls, decreased JNK2 expression in HT1080 cells.
Conclusion: Although it is well established that SP600125 inhibits JNK kinases, it has also been shown to inhibit a spectra of other kinases. SP600125 inhibits CIP2A protein expression both in time and concentration dependent manner. However, depletion of both JNK1 and JNK2 kinases using specific siRNAs fails to decrease CIP2A protein expression levels, thereby indicating the need to verify the results obtained by treatment with small molecular inhibitors of kinases by independent approaches like two different target specific siRNAs. Finally, fortuitously we identify JNK2 as a CIP2A downstream target in HT1080 cells.

Keywords

Fibrosarcoma, HT1080, SP600125, CIP2A, JNK2, siRNA, PP2A

Corresponding author: Anchit Khanna

Competing interests: No competing interests were disclosed.

Grant information: The work was funded by Academy of Finland through the Tampere Graduate Program in Biomedicine and Biotechnology.
The funders had no role in study design, data collection and analysis, decision to publish, or preparation of the manuscript.

Copyright: © 2013 Khanna A. This is an open access article distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. Data associated with the article are available under the terms of the Creative Commons Zero "No rights reserved" data waiver (CC0 1.0 Public domain dedication).

How to cite: Khanna A. Regulation of Cancerous inhibitor of PP2A (CIP2A) by small molecule inhibitor for c-Jun NH₂-Terminal Kinases (JNKs), SP600125, in Human Fibrosarcoma (HT1080) cells [version 1; peer review: 1 approved with reservations]. F1000Research 2013, 2:174 (https://doi.org/10.12688/f1000research.2-174.v1) First published: 14 Aug 2013, 2:174 (https://doi.org/10.12688/f1000research.2-174.v1) Latest published: 11 Dec 2013, 2:174 (https://doi.org/10.12688/f1000research.2-174.v2)

Introduction

It has been recently established that regardless of phenotypic variability between different cancer types, perturbation of a limited number of genetic elements is sufficient to induce transformation in different human cell types¹. Experimentally, it was demonstrated that activation of RAS and telomerase (TERT), along with inactivation of the tumour suppressor proteins P53 and Retinoblastoma protein (RB) can immortalize a variety of human cell types, which can subsequently transform to a tumourigenic state in response to inhibition of protein phosphatase 2A (PP2A)^1,2. Various independent studies have shown that inhibition of PP2A activity is a pre-requisite for human cell transformation^1,3–5. Therefore, understanding the mechanisms by which PP2A is inhibited in cancer cells is vital for developing new anti-cancer therapies.

Cancerous Inhibitor of Protein Phosphatase 2A (CIP2A) is a recently identified oncogene, which has been demonstrated to inhibit the endogenous tumour suppressive activity of PP2A in cancer cells⁶. Several layers of evidence, both from us and others, have shown CIP2A to be required for malignant cell growth and in vivo tumour formation^7–12. In addition, the prognostic role of CIP2A has been demonstrated in several human tumours^8,11–13. Moreover, since CIP2A overexpression has been observed at a high frequency in most human cancers studied so far^{6–9,13–20}, identification of mechanisms regulating its expression in human cancers becomes important to address.

Although several transcription factors like MYC⁸, ETS1¹⁷, E2F1⁹ and ATF2¹⁹ have been identified as positive regulators of CIP2A in various carcinomas, factors influencing CIP2A expression in non-hematopoietic mesenchymal cells or sarcomas, are yet to be discovered. Notably, CIP2A amplification has been observed in soft-tissue sarcomas²¹. In addition, since CIP2A was identified using HT1080 (human fibrosarcoma cell line) cell extracts⁶ this cell line was selected to dissect the mechanisms for high CIP2A expression in sarcomas. Since p38, ERK and JNK signalling pathways are commonly perturbed in cancers, we assessed the role of these pathways in CIP2A expression in HT1080 cells. To this end, respective small molecule kinase inhibitors, namely SB203580 (p38 pathway inhibitor), PD98059 (MEK pathway inhibitor) and SP600125 (JNK pathway inhibitor) were used to inhibit signalling through these pathways in HT1080 cells.

Material and methods

Chemicals

SP600125 was purchased from Calbiochem (Cat No. - 420119, Merck-Millipore CAS 129-56-6, San Diego, CA) and stocked as a 20 mM solution in DMSO. PD98059 was purchased from Calbiochem (Cat No. - 513000, Merck-Millipore, San Diego, CA) and stocked as 40 mM stock in DMSO. SB203580 was purchased from Calbiochem (Cat No. - 559389, Merck-Millipore, San Diego, CA) and stocked as 20 mM.

RNAi

The siRNAs to inhibit CIP2A expression were obtained from Eurofins MWG operon (Ebersberg, Germany). Either of the following double-stranded oligonucleotides was transiently transfected into HT1080 cell line as CIP2A siRNAs: CIP2A.1, 5´-CUGUGGUUGUGUUUGCACUTT-3´, and CIP2A.2, 5´-ACCAUUGAUAUCCUUAGAATT-3´. As a control, a scrambled siRNA with the sequence 5´-UAACAAUGAGAGCACGGCTT-3´ was used instead. HP-validated siRNAs for human JNK1 and JNK2 were purchased from Qiagen Sciences (Germantown, MD). Either of the following oligonucleotides were transiently transfected into HT1080 at 30%–50% confluency in a six-well plate were transfected with the siRNA in antibiotic free medium using RNAiMAX Reagent (Invitrogen, Carlsbad, CA), according to the manufacturer’s instructions.

Immunoblotting

Proteins were extracted in hot Laemmli sample buffer and subjected to immunoblot analysis. Thirty micrograms of total protein extracts was separated by 12% sodium dodecyl sulfate–polyacrylamide gel electrophoresis (Bio-Rad Laboratories, Helsinki, Finland) and transferred to nitrocellulose membranes (Thermo Scientific Pierce Protein Biology Products, Rockford, USA). Membranes were blocked with 5% non-fat milk in Tris-buffered saline (TBS; 20 mM Trizma Base and 150 mM NaCl dissolved in distilled water and adjusted with HCl to pH 7.5) containing 0.1%-NP40 (Igepal Ca-630; Sigma-Aldrich)⁸. Nitrocellulose membranes (Thermo Scientific Pierce Protein Biology Products, Rockford, USA) were incubated with antibodies to JNK1 (Cat. No. sc-1648: 1:500 dilution, Santa Cruz Biotechnology, Santa Cruz, CA), JNK2 (Cat. No. sc-827: 1:500 dilution, Santa Cruz Biotechnology, Santa Cruz, CA) in 5% milk in TBS-NP40 (Igepal Ca-630; Sigma-Aldrich) at 4°C overnight, with a 1:5000 dilution of the rabbit polyclonal anti-CIP2A antibody⁸ at 4°C overnight, or with a 1:1000 dilution of goat polyclonal anti-β-Actin antibody (Cat. No. sc-47778, Santa Cruz Biotechnology) at room temperature for 1 hour. The proteins were visualized by enhanced chemiluminescence (ECL) with Proteome Grasp ECL Kit (Thermo Scientific Pierce Protein Biology Products, Rockford, USA).

Cell culture

HT1080 cells originally were obtained from ATCC and were cultured in DMEM (Gibco) supplemented with 10% (v/v) fetal calf serum (FCS), 2 mM glutamine, 100 units/ml penicillin and 100 µg/ml streptomycin (Bio-Whittaker Europe, Verviers, Belgium).

mRNA analysis

Total mRNA was extracted from cells using the RNeasy kit (Qiagen, Valencia, CA) and converted to cDNA by using the M-MLV Reverse Transcriptase, RNase H Minus, Point Mutant cDNA synthesis kit (Promega Corporation, Madison, WI). cDNAs were subjected to quantitative real-time polymerase chain reaction (PCR) by using the Light Cycler (Roche Diagnostics, Mannheim, Germany) and SYBR Green PCR Master Mix kit (Roche Diagnostics). Primer sequences (Sigma-Proligo, St Louis, MO) used for PCR of CIP2A were as follows: CIP2A forward, 5´-CTGGTGAGATAATCAGCAATTT-3´ and CIP2A reverse, 5´-CGAAACATTCATCAGACTTTTCA-3´. Transcript levels were normalized to levels of TATA-binding protein (TBP) or β-Actin expression, which were determined by PCR of the same samples using the following primers: TBP forward, 5´-GAATATAATCCCAAGCGGTTTG-3´, and TBP reverse, 5´-ACTTCACATCACAGCTCCCC-3´; Actin forward, 5´-CGAGCACAGAGCCTCGCCTTTGC-3´, and Actin reverse: 5´-CATAGGAATCCTTC TGACCCATG-3´.

Bioinformatics

Cancer cell line encyclopaedia (http://www.broadinstitute.org/software/cprg/?q=node/11) was used to get the expression levels of JNK1 and JNK2 in HT1080 cells²². This is a resource which provides analysis and visualization of DNA copy number, mRNA expression, mutation data and more, for 1000 cancer cell lines.

Statistics

Student T-test was used obtain the statistical significance value using Graph Pad software.

Results

SP600125 inhibits CIP2A mRNA and protein expression in a time and concentration dependent manner in HT1080 cells

To determine the oncogenic signalling pathways that may be involved in regulating CIP2A expression in human fibrosarcoma, HT1080 cells were treated with small molecule inhibitors for the p38 (SB203580; 20 µM), JNK (SP600125; 10 µM) and ERK (PD98058; 20 µM) signalling pathways. As previously observed in gastric cancer cells¹⁷, PD98058 reduced CIP2A mRNA and protein expression in HT1080 cells (Figure 1A and B). Importantly, while SB203580 showed negligible effect, SP600125 potently inhibited CIP2A mRNA and protein expression in HT1080 (Figure 1A and B) cells. Furthermore, inhibition of CIP2A protein expression by SP600125 was observed to be both time and concentration dependent (Figure 1C and D).

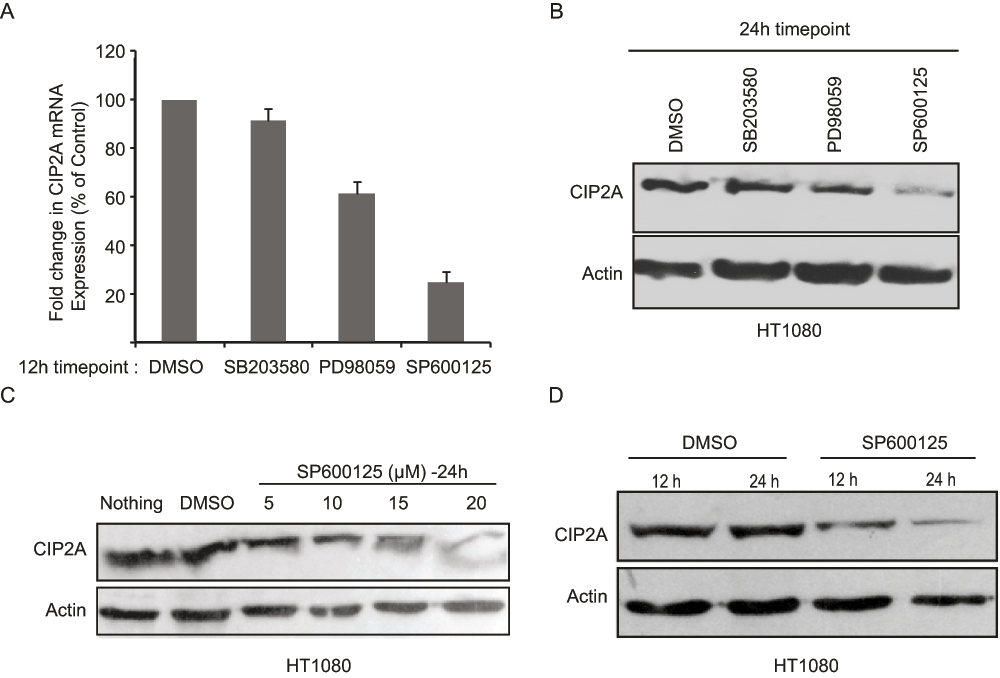

Figure 1. SP600125 positively regulates CIP2A expression in HT1080 cells.

A. qRT-PCR showing the effect of small molecule inhibitors against the p38 (SB203580), MEK-ERK (PD98059) and JNK (SP600125) pathways on CIP2A mRNA expression (12h timepoint; Shown is mean values ± S.D., of representative results from three independent experiments. Student T-test was used obtain the statistical significance value) B. Western blot showing the effect of small molecule inhibitors against the p38 (SB203580), MEK-ERK (PD98059) and JNK (SP600125) pathways on CIP2A protein expression (24h timepoint). Shown is the representative picture of two independent experiments. C and D. Effect of small molecule inhibitors against JNK (SP600125) pathway on CIP2A protein expression in concentration (C) and time (D) dependent manner. Shown is the representative picture of two independent experiments.

Neither JNK1 nor JNK2 regulate CIP2A protein expression in HT1080

SP600125-mediated inhibition of CIP2A expression suggested the involvement of the c-Jun N-Terminal Kinases (JNKs) in regulation of CIP2A expression in HT1080 cells. Since the JNK3 isoform is well known to be neural-specific²³, specific validated siRNAs against JNK1 and JNK2 isoforms were transfected into HT1080 cells and CIP2A expression estimated. Although, both JNK1 and JNK2 siRNAs reduced their target proteins (JNK1 and JNK2 respectively), there was no change in CIP2A protein expression with either of them individually (Figure 2A and B) or in combination (Figure 2C). Since the JNK2 isoform is expressed more than 10-fold higher than the JNK1 isoform in the HT1080²² (Figure 2D) cell line we transfected two validated and specific siRNAs against JNK2. In addition, we also transfected the HT1080 cells with two different CIP2A siRNA as positive controls. In line with our previous observation (Figure 2B and C), the two different siRNAs for JNK2 knocked out JNK2 expression (Figure 2E), while CIP2A expression remained unaltered. Surprisingly, two different CIP2A siRNA, which worked well as positive controls, efficiently decreased JNK2 expression (Figure 2E).

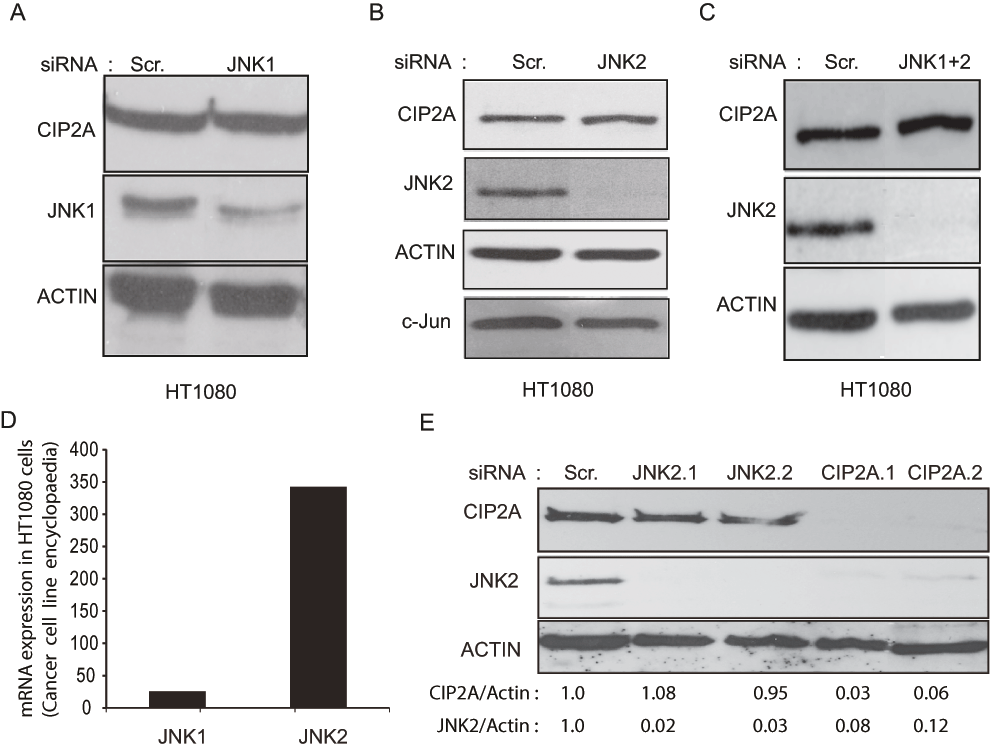

Figure 2. JNK1 and JNK2 do not regulate CIP2A expression in HT1080 cells.

A, B, and C. Western blots showing the effect of JNK1 (A), JNK2 (B) and combination of both JNK1 and JNK2 (C) siRNAs on CIP2A protein expression, 72h post-transfection. Shown is a representative result from two independent experiments. D. mRNA expression of JNK1 and JNK2 in HT1080 cell line from the cancer cell encyclopaedia study. E. Western blot showing the effect of two different siRNAs specific for JNK2 and CIP2A proteins and their protein expression levels 72h post-transfection. The numbers below the blot are the quantified values for CIP2A and JNK2 protein levels normalized to Actin protein levels, relative to the levels in Scrambled (control) transfected cells. Shown is a representative result of two independent experiments.

Discussion

Even though small molecule inhibitors are an emerging therapeutic option against cancers, the specificity issues limit their potential to be used in clinics. They have been extensively used to study various cell signalling pathways. In particular SP600125 has been used to study the effect of c-Jun N-Terminal Kinases (JNKs) in various processes^24–26. Our results suggest that even though we were able to see decrease in CIP2A expression in HT1080 cells on treatment with SP600125 (Figure 1), at doses used previously to inhibit c-Jun NH₂-terminal kinase (JNKs) activity^27,28, we were not able to validate the findings using two different siRNAs specific to the JNK2 kinase (Figure 2E). Interestingly, a decade ago a previous study emphatically demonstrated the effect of SP600125 on different kinases²⁹. The study revealed that SP600125, although a JNK inhibitor, could inhibit the activity of several other kinases²⁹. In fact, SP600125 was demonstrated to inhibit kinases like CK1, DYRK1 and AMPK even more effectively than JNK kinase itself²⁹ (Supplementary Table 1).

Surprisingly, two different CIP2A siRNAs used as positive controls, decreased JNK2 expression levels in HT1080. This has also been observed in a separate study in an epithelial origin cell line, HeLa²⁰. Interestingly, JNK2 has been shown to regulate CIP2A expression via ATF2 transcription factor in mouse embryo fibroblasts (MEFs)¹⁹ in the pre-transformed stage. Since we observe the vice versa in fully transformed HT1080 cells, it can suggest that there may be a molecular switch between JNK2 and CIP2A which may have a possible role in the RAS-transformation of mesenchymal cells. Nevertheless, the functional consequence of CIP2A-mediated JNK2 expression in mesenchymal cells would require further exploration.

Altogether, our study highlights the need for the validation of results obtained by small molecule treatments with independent approaches like two or more target specific siRNAs, shRNAs or use of inducible systems like RNAi or Tamoxifen/Tetracycline-induced overexpression systems⁸.

Competing interests

No competing interests to declare.

Grant information

The work was funded by Academy of Finland through the Tampere Graduate Program in Biomedicine and Biotechnology.

Acknowledgements

Professor Jukka Westermarck is acknowledged for his guidance.

Supplementary table

Supplementary Table 1.

	List of SP600125-sensitive kinases (with their kinase activity as a percentage of control incubations at 10 µM of SP600125 in parenthesis)
1.	CK1 (10 ± 1)
2.	DYRK1 (16 ± 6)
3.	CDK2 (20 ± 1)
4.	SGK (22 ± 7)
5.	AMPK (26 ± 1)
6.	PHK (34 ± 1)
7.	JNK (38 ± 5)
8.	CHEK1 (39 ± 0)
9.	PRAK (39 ± 1)
10.	PKCα (79 ± 8)

Faculty Opinions recommended

References

1. Zhao JJ, Roberts TM, Hahn WC: Functional genetics and experimental models of human cancer. Trends Mol Med. 2004; 10(7): 344–50. PubMed Abstract | Publisher Full Text
2. Mumby M: PP2A: Unveiling a Reluctant Tumor Suppressor. Cell. 2007; 130(1): 21–4. PubMed Abstract | Publisher Full Text
3. Westermarck J, Hahn WC: Multiple pathways regulated by the tumor suppressor PP2A in transformation. Trends Mol Med. 2008; 14(4): 152–60. PubMed Abstract | Publisher Full Text
4. Hahn WC, Dessain SK, Brooks MW, et al.: Enumeration of the simian virus 40 early region elements necessary for human cell transformation. Mol Cell Biol. 2002; 22(7): 2111–23. PubMed Abstract | Publisher Full Text | Free Full Text
5. Hahn WC, Weinberg RA: Rules for making human tumor cells. N Engl J Med. 2002; 347(20): 1593–603. PubMed Abstract | Publisher Full Text
6. Junttila MR, Puustinen P, Niemela M, et al.: CIP2A inhibits PP2A in human malignancies. Cell. 2007; 130(1): 51–62. PubMed Abstract | Publisher Full Text
7. Come C, Laine A, Chanrion M, et al.: CIP2A is associated with human breast cancer aggressivity. Clin Cancer Res. 2009; 15(16): 5092–100. PubMed Abstract | Publisher Full Text
8. Khanna A, Bockelman C, Hemmes A, et al.: MYC-dependent regulation and prognostic role of CIP2A in gastric cancer. J Natl Cancer Inst. 2009; 101(11): 793–805. PubMed Abstract | Publisher Full Text
9. Laine A, Sihto H, Come C, et al.: Senescence sensitivity of breast cancer cells is defined by positive feedback loop between CIP2A and E2F1. Cancer Discov. 2013; 3(2): 182–97. PubMed Abstract | Publisher Full Text | Free Full Text
10. Chen KF, Liu CY, Lin YC, et al.: CIP2A mediates effects of bortezomib on phospho-Akt and apoptosis in hepatocellular carcinoma cells. Oncogene. 2010; 29(47): 6257–66. PubMed Abstract | Publisher Full Text
11. Dong QZ, Wang Y, Dong XJ, et al.: CIP2A is overexpressed in non-small cell lung cancer and correlates with poor prognosis. Ann Surg Oncol. 2011; 18(3): 857–65. PubMed Abstract | Publisher Full Text
12. He H, Wu G, Li W, et al.: CIP2A Is Highly Expressed in Hepatocellular Carcinoma and Predicts Poor Prognosis. Diagn Mol Pathol. 2012; 21(3): 143–9. PubMed Abstract | Publisher Full Text
13. Bockelman C, Lassus H, Hemmes A, et al.: Prognostic role of CIP2A expression in serous ovarian cancer. Br J Cancer. 2011; 105(7): 989–95. PubMed Abstract | Publisher Full Text | Free Full Text
14. Bockelman C, Hagstrom J, Makinen LK, et al.: High CIP2A immunoreactivity is an independent prognostic indicator in early-stage tongue cancer. Br J Cancer. 2011; 104(12): 1890–5. PubMed Abstract | Publisher Full Text | Free Full Text
15. Bockelman C, Koskensalo S, Hagstrom J, et al.: CIP2A overexpression is associated with c-Myc expression in colorectal cancer. Cancer Biol Ther. 2012; 13(5): 289–95. PubMed Abstract | Publisher Full Text
16. Khanna A, Böckelman C, Laine A, et al.: 859 Constitutive DNA-damage signaling promotes cancer cell proliferation through Chk1-CIP2A pathway. Ejc Supplements. 2010; 8(5): 217. Publisher Full Text
17. Khanna A, Okkeri J, Bilgen T, et al.: ETS1 mediates MEK1/2-dependent overexpression of cancerous inhibitor of protein phosphatase 2A (CIP2A) in human cancer cells. PloS One. 2011; 6(3): e17979. PubMed Abstract | Publisher Full Text | Free Full Text
18. Khanna A, Okkeri J, Westermarck J: KIAA1524. Atlas of Genetics and Cytogenetics in Oncology and Haematology. 2010; 14(10): 976–978. Publisher Full Text
19. Mathiasen DP, Egebjerg C, Andersen SH, et al.: Identification of a c-Jun N-terminal kinase-2-dependent signal amplification cascade that regulates c-Myc levels in ras transformation. Oncogene. 2012; 31(3): 390–401. PubMed Abstract | Publisher Full Text
20. Niemela M, Kauko O, Sihto H, et al.: CIP2A signature reveals the MYC dependency of CIP2A-regulated phenotypes and its clinical association with breast cancer subtypes. Oncogene. 2012; 31(39): 4266–78. PubMed Abstract | Publisher Full Text
21. Barretina J, Taylor BS, Banerji S, et al.: Subtype-specific genomic alterations define new targets for soft-tissue sarcoma therapy. Nat Genet. 2010; 42(8): 715–21. PubMed Abstract | Publisher Full Text | Free Full Text
22. Barretina J, Caponigro G, Stransky N, et al.: The Cancer Cell Line Encyclopedia enables predictive modelling of anticancer drug sensitivity. Nature. 2012; 483(7391): 603–7. PubMed Abstract | Publisher Full Text | Free Full Text
23. Namgung U, Xia Z: Arsenite-induced apoptosis in cortical neurons is mediated by c-Jun N-terminal protein kinase 3 and p38 mitogen-activated protein kinase. J Neurosci. 2000; 20(17): 6442–51. PubMed Abstract
24. Guillemot L, Citi S: Cingulin regulates claudin-2 expression and cell proliferation through the small GTPase RhoA. Mol Biol Cell. 2006; 17(8): 3569–77. PubMed Abstract | Publisher Full Text | Free Full Text
25. Chen Y, Gorelik GJ, Strickland FM, et al.: Decreased ERK and JNK signaling contribute to gene overexpression in "senescent" CD4+CD28- T cells through epigenetic mechanisms. J Leukoc Biol. 2010; 87(1): 137–45. PubMed Abstract | Publisher Full Text | Free Full Text
26. Cao Y, Xia DS, Qi SR, et al.: Epiregulin can promote proliferation of stem cells from the dental apical papilla via MEK/Erk and JNK signalling pathways. Cell Prolif. 2013; 46(4): 447–56. PubMed Abstract | Publisher Full Text
27. Martinez K, Kennedy A, McIntosh MK: JNK inhibition by SP600125 attenuates trans-10, cis-12 conjugated linoleic acid-mediated regulation of inflammatory and lipogenic gene expression. Lipids. 2011; 46(10): 885–92. PubMed Abstract | Publisher Full Text | Free Full Text
28. Tang G, Yue Z, Talloczy Z, et al.: Autophagy induced by Alexander disease-mutant GFAP accumulation is regulated by p38/MAPK and mTOR signaling pathways. Hum Mol Genet. 2008; 17(11): 1540–55. PubMed Abstract | Publisher Full Text | Free Full Text
29. Bain J, McLauchlan H, Elliott M, et al.: The specificities of protein kinase inhibitors: an update. Biochem J. 2003; 371(Pt 1): 199–204. PubMed Abstract | Publisher Full Text | Free Full Text
