Mapping whole genome shotgun sequence and variant calling in mammalian species without their reference genomes

Introduction

As the price per base for next generation sequencing continues to fall, sequencing projects that are broad in scope become possible for research groups with modest budgets. As a result, research tools and approaches that once required large consortia^1–3, may now be used by small groups of collaborators or even independent labs. Although high throughput technology has been democratized, formidable impediments remain that prohibit researchers whose work is not in human, model human, or agriculturally important species from realizing its benefits. Specifically, sequence data, once produced, is mapped to a reference genome for the species of the subject under investigation. The 10ktrees⁴ project describes the phylogenetic relationship of 299 even-toed ungulates. Of these, only cattle, swine, sheep, goat, water buffalo, and bison have annotated reference genomes. For the other species a reference genome has not been built, and will likely not be built for another decade or more.

The goal of this study is to investigate whether or not an even-toed ungulate could benefit from the reference genomes of the few member species that do have them. To test this, one lane of paired-end Illumina sequence data (~35 billion bases) for a Katahdin ram was generated and mapped to its ovine reference assembly Oarv3.1⁵ and to the bovine reference assembly UMD3.1⁶. The variants measured for the Katahdin ram vs. UMD3.1 demonstrate the wealth of information that can be derived from an interspecies mapping. The majority of these variants are homozygous, and for the most part represent species-specific differences. Any heterozygous variant plausibly represents an intraspecies variation present in sheep. Approximately 78 million homozygous, and 3.6 million heterozygous variants were identified for this ram in non-repeat regions of the cattle genome (which excluded the X chromosome; chrX). Mapping the same dataset to Oar3.1 corroborated more than 1.2 million of the heterozygous variants (>80% of what could be checked, see Table 1). This result suggests that high throughput sequence data for any of the distantly related even-toed ungulates may be mapped to the reference genomes of related species that have annotated references for variant discovery, comparative genetics, and even, perhaps genotype-phenotype association studies.

Results are presented here that include the variants identified for the animal against the bovine genome, as well as those corroborated by mapping to the sheep genome. Additionally, the mapped data sets (binary alignment map files) for this sheep are made available for inspection by researchers interested in analyzing the findings of this study for loci most relevant to their work. The datasets are stored in the data management system developed and maintained by Intrepid Bioinformatics, and may be viewed in a version of the Integrative Genomics Viewer⁷ modified to use their web service application programming interface (https://sourceforge.net/projects/intrepidbioinfo/), the UCSC Genome Browser (http://genome.ucsc.edu)⁸, or dragged and dropped into a number of other analytical tools such as SAMtools (http://samtools.sourceforge.net)⁹. This data set, and its direct access is designed to benefit researchers interested in comparative genomics, disease association studies, and ultimately understanding mammalian gene function¹⁰.

Methods

Results

Sequencing results for one lane of paired-end reads for the Katahdin ram consisted of 35,917,868 filtered (i.e. clean) reads comprising 35,891,768,800 bases. The average read length and insert size was 100 and 500 bp, respectively with 95.4% of the reads meeting the Q20 quality score. These reads were mapped to the sheep and cattle reference genomes Oar3.1 and UMD3.1, respectively. In total, 56% of reads covered 76% of UMD3.1 to an average depth of 6.8 reads per site (Table 2). More than 83 million variants were identified by the interspecies mapping, of which 78 million were homozygous and likely represent interspecies nucleotide differences (Table 3). An aim of this work was to determine how many heterozygous sites in this animal could be identified via interspecies mapping.

Excluding genome repeat regions and sex chromosomes, nearly 3.7 million heterozygous sites were identified in this animal vs. bovine UMD3.1, representing polymorphisms occurring in sheep. The homozygous variants are also directly informative for comparative genomics studies and may be used to create a catalogue of interspecies variation.

The reads for this sheep were also mapped to the ovine reference genome Oar3.1. The statistics for mapping, and variant discovery are shown in Table 2 and Table 3 respectively. The objectives of this exercise were twofold. 1) to get a rough estimate of the number of interspecies variants that could be measured, and 2) to determine how many of the intraspecies variants could be measured using the heterozygous variants measured against UMD3.1. The total number of variants measured vs. Oar3.1 were in excess of 16.2 million, 9.1 million of those were heterozygotes, all of which would be considered intraspecies. The total number of heterozygous variants detected vs. the UMD3.1 reference was 4.8 million. There are certainly variants identified in both sets that are artifacts, as well as some that would have been missed due to low read coverage (even though they are the same set of reads, in conserved regions, the depth of coverage was lower in the UMD3.1 mapped dataset (Table 2)). These numbers provide a rough estimate that suggests roughly 52.7% (4.8M/9.1) of the heterozygous variation can be measured via this interspecies approach.

Due to the myriad mapping artifacts that will occur in an interspecies mapping, measurement of putative intraspecies variation with this approach is likely to be the most error prone. To estimate an error rate, an attempt was made to corroborate these heterozygous measurements vs. UMD3.1 using the Oar3.1 mapping result. Using the process described in the Methods, a table was created that listed the positions identified as heterozygotes vs. non-repeat, regions for UMD3.1, and the coordinate of the corresponding position in the Oar3.1 reference. The UnifiedGenotyper was used to genotype the dataset mapped to Oar3.1 at these corresponding coordinates, and the results are summarized in Table 1. Of the called heterozygous variants vs. UMD3.1, it was possible via our method to identify the corresponding position in Oar3.1 for 1,524,297 variants. Of these variants, heterozygotes could be corroborated for slightly more than 80% of them. For the nearly 20% of the variants that could not be corroborated, there are several explanations including, incorrect mapping of interspecies reads, as well as overzealous calls on the part of the UnifiedGenotyper vs. the UMD3.1 mapping, and errors in our process for identification of corresponding positions between the two assemblies. This error rate could be mitigated significantly with either more coverage, or better yet, more animals from the same species. By adding more coverage there will be a benefit to the genotype likelihood models that identify variants. By adding more animals, many of the artifacts that are the result of inappropriate mappings of reads from orthologous regions will manifest themselves as fixed heterozygotes. In fact, if one were to use this approach to perform an association study, many of the genotyping errors will be weeded out by producing high P-value associations. Regardless, this result suggests that of the 3.67 million heterozygous variants identified in the autosomal, non-repeat regions of the UMD3.1 reference, as many, or more than, 2.94 million (3.67M×0.8) of them are legitimate intraspecies variation.

To evaluate the genotype accuracy of the mapping process, we compared genotypes for the Katahdin ram to those from an Ovine SNP50 BeadArray dataset¹³. The dataset was distributed by ISGC as a PLINK formatted PED file with corresponding MAP file. The PED file was compared to the 1.52 M filtered heterozygous variants to identify 5283 SNPs present in both data sets. It was necessary to convert the genotypes from the UnifiedGenotyper to the Illumina top strand format. Specifically, C/T, and G/T genotypes identified by the UnifiedGenotyper were converted to A/G, and A/C genotypes, respectively. The comparision showed that, 415 of the 5283 BeadArray SNPs had no genotype call for this animal. However, of the remaining 4868 SNPs, 4821 were concordant (99.03%).

This approach to variant detection using moderate coverage whole genome shotgun (WGS) sequence data in species without reference genomes shows a great deal of promise. However when studying only one animal, an estimated 20% error rate for heterozygous variant detection is sufficiently high to suggest caution in using this information in a high throughput analysis pipelines. When implementing analysis pipelines that use variation data, it is common practice to work directly with a distilled list of variants such as in a VCF file, or other list that would provide the variant as well as summary information derived from the mapped dataset. This summary information includes probability likelihoods, and information about the number of times each allele was measured. This information is very useful, but visual inspection of the alignments are a far more effective approach when working to gain an understanding of the quality of the mappings used to derive the genotype. For this reason, the BAM files used as the foundation of this analysis as well as the VCF files derived from them are provided for direct visual interrogation, and use in analytical pipelines.

The BAM and VCF files for the UMD3.1, and Oar3.1 mappings are made available for visualization directly within the IGV modified to use the Intrepid Bioinformatics application programming interface. The links to access the data are provided in Table 4. An example of one of the pages is shown in Figure 1, and the use of the information on the page is described in Supplementary materials. The “View All in IGV” link will display all data mapped to the respective assemblies in IGV.

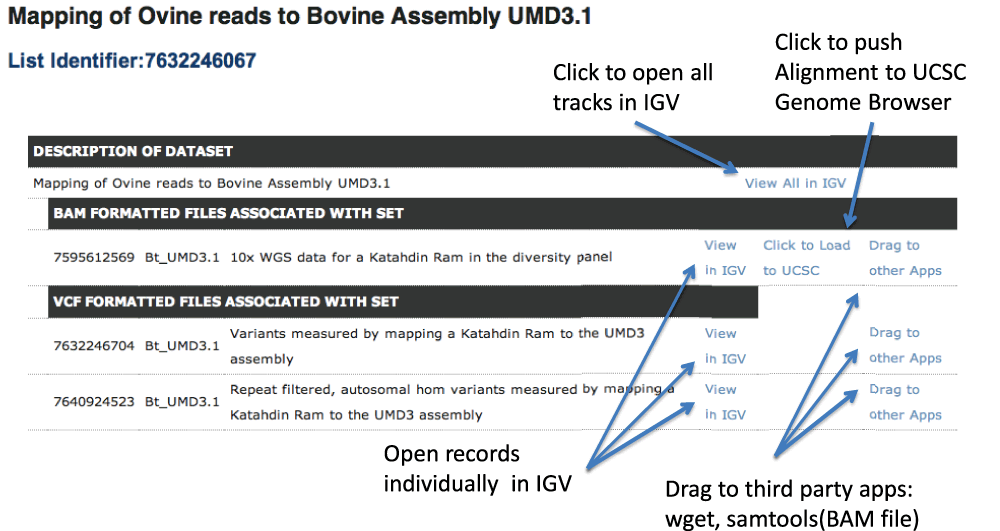

Figure 1. Screen shot of web page with links for the mapped Katahdin Ram reads to the bovine reference genome UMD3.1 (See the Methods for detail description of use).

From these web links it is possible to readily view, retrieve, and transfer subsets of these voluminous datasets between autonomous applications such as SAMtools, wget, and other third party applications in a straightforward fashion without requiring researchers to download, or reprocess them.

Discussion and conclusion

In this work it has been demonstrated that WGS sequence data from one ruminant species (sheep) could be mapped to a mature reference genome from another ruminants species (cattle) diverged 15 to 30 million years ago for the purpose of identifying both inter-, and intraspecies variation in highly conserved genomic regions. Although there is a high quality, annotated reference genome for the sheep, we chose this species for two reasons. First, it provided the opportunity to determine what percentage of intraspecies variation could be identified, and second, it allowed an estimation of how many of the heterozygous variants identified by cross-species mapping could be corroborated against its own genome.

The catalogue of interspecies variation derived from the homozygous variation measured vs. the bovine genome provides insight into the relationship of genome structure and function across different biological species. Although the sequence of one animal is not intended to represent the comprehensive spectrum of alleles within a species, it provides at least one example of alleles that have evolved. Using only one animal as a representative of a species, it will be impossible to determine whether a homozygous variant is between or within species. Irrespective of this limitation whether the variation is inter- or intraspecies, a researcher is given insight as to how much variation is tolerated in an otherwise conserved region. However, for the purpose of intraspecies variation detection, homozygous variants derived from a single animal should be ignored. This problem could be mitigated if more animals were used since that would dramatically increase the number of alleles represented and greatly increase the likelihood that a heterozygote would be measured. The majority of heterozygotes will represent a pair of alleles present in this animal, and therefore intra-species variants. Caution should be exercised, as some of the heterozygotes will be due to artifacts either specific to this approach, or otherwise, of the alignment process. Artifacts specific to this approach include the difficulties inherent in performing variant discovery via interspecies mapping since there is significantly more legitimate variation between the reads and the reference sequence due to interspecies variation. This variation, even within conserved regions, results in significantly lower coverage for interspecies mappings (refer again to Table 2). As for artifacts of the alignment process, if there are two very similar regions of the ovine genome (paralogs, which are orthologous to a unique region in the bovine genome), then reads corresponding to both ovine regions may map to a single region in the bovine genome, and differences between the two ovine regions would appear as heterozygotes in the mapping vs. cattle. It is possible to identify these regions by visual inspection as there would be many heterozygotes within the length scale of a read, and very few homozygous variants in the same region, but it would be difficult to reliably identify these algorithmically. If a population of animals were being analyzed these variants would distinguish themselves as being heterozygous, fixed for all animals in the population.

The approach described here suggests that researchers can pursue important comparative genomics work as well as association studies in species that may be a decade or more from reference genomes. Eventually, our current approach to whole genome analysis, high throughput sequencing followed by mapping to a reference genome will likely be supplanted by technologies that produce, as closely as possible, fully assembled whole genomes for each individual being studied. However, this new reality is still years away.

Finally, a new method for readily viewing, using, and accessing mapped, high throughput datasets and variant files is described. The links allow for access to subsets of data that may be useful to researchers without requiring them to download datasets that may be 10s to 100s of gigabytes in size. Also, the drag and drop formalism presented here introduces a mechanism for user-driven, surface-to-surface interoperation between autonomous applications. This ultimately will allow non-scientific programmers to easily move data between graphical user interfaces of the informatics platforms necessary to do their work.
