Quality parameters for a multimodal EEG/EMG/kinematic brain-computer interface (BCI) aiming to suppress neurological tremor in upper limbs

[version 2; peer review: 1 approved, 2 approved with reservations]

Giuliana Grimaldi¹, Mario Manto^1,2, Yassin Jdaoudi¹

PUBLISHED 30 Apr 2014

Author details Author details

¹ Unité d’Etude du Mouvement, Université Libre de Bruxelles, Erasme, Bruxelles, 1070, Belgium
² Fonds de la Recherche Scientifique, Université Libre de Bruxelles, Bruxelles, 1070, Belgium

OPEN PEER REVIEW

REVIEWER STATUS

Abstract

Tremor is the most common movement disorder encountered during daily neurological practice. Tremor in the upper limbs causes functional disability and social inconvenience, impairing daily life activities. The response of tremor to pharmacotherapy is variable. Therefore, a combination of drugs is often required. Surgery is considered when the response to medications is not sufficient. However, about one third of patients are refractory to current treatments. New bioengineering therapies are emerging as possible alternatives. Our study was carried out in the framework of the European project “Tremor” (ICT-2007-224051). The main purpose of this challenging project was to develop and validate a new treatment for upper limb tremor based on the combination of functional electrical stimulation (FES; which has been shown to reduce upper limb tremor) with a brain-computer interface (BCI). A BCI-driven detection of voluntary movement is used to trigger FES in a closed-loop approach. Neurological tremor is detected using a matrix of EMG electrodes and inertial sensors embedded in a wearable textile. The identification of the intentionality of movement is a critical aspect to optimize this complex system. We propose a multimodal detection of the intentionality of movement by fusing signals from EEG, EMG and kinematic sensors (gyroscopes and accelerometry). Parameters of prediction of movement are extracted in order to provide global prediction plots and trigger FES properly. In particular, quality parameters (QPs) for the EEG signals, corticomuscular coherence and event-related desynchronization/synchronization (ERD/ERS) parameters are combined in an original algorithm which takes into account the refractoriness/responsiveness of tremor. A simulation study of the relationship between the threshold of ERD/ERS of artificial EEG traces and the QPs is also provided. Very interestingly, values of QPs were much greater than those obtained for the corticomuscular module alone.

Keywords

EEG, EMG, gyroscopes, multimodal, brain-computer interface, tremor

Corresponding author: Mario Manto

Competing interests: GG received fundings (covering the salary) from the European Commission. The authors did not apply for any patent and are not preparing a patent application. No financial return is expected from the present article. The authors declare that they have no non-financial competing interests (political, personal, religious, ideological, academic, intellectual, commercial).

Grant information: The multi-disciplinary research project “Tremor” (ICT-2007-224051) was supported by the European Commission (FP7). The grant was assigned to MM for the contribution of ULB to the research project. GG received a salary from the grant.
The funders had no role in study design, data collection and analysis, decision to publish, or preparation of the manuscript.

Copyright: © 2014 Grimaldi G et al. This is an open access article distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. Data associated with the article are available under the terms of the Creative Commons Zero "No rights reserved" data waiver (CC0 1.0 Public domain dedication).

How to cite: Grimaldi G, Manto M and Jdaoudi Y. Quality parameters for a multimodal EEG/EMG/kinematic brain-computer interface (BCI) aiming to suppress neurological tremor in upper limbs [version 2; peer review: 1 approved, 2 approved with reservations]. F1000Research 2014, 2:282 (https://doi.org/10.12688/f1000research.2-282.v2) First published: 20 Dec 2013, 2:282 (https://doi.org/10.12688/f1000research.2-282.v1) Latest published: 30 Apr 2014, 2:282 (https://doi.org/10.12688/f1000research.2-282.v2)

Revised Amendments from Version 1

The original version of the article has been revised according to referees’ comments. Some piece of information have been added or clarified. Here is below a list of the main modifications:
- The notion of “initiation phase of movement in a patient with rest tremor” has been better explained. New references have been added.
- A table reporting patients’ description has been added, as requested by the reviewers.
- The experimental set-up has been further detailed (including the definition of the pre-movement period and patients’ preparation in order to avoid artefacts).
- We have provided a wider background for BCI, ERD/ERS phenomenon, movement-related EEG studies, and reduction of multidimensional data.
- The discussion on our the EEG simulation study and its practical usefulness has been extended.
- An explanation on the meaning and application of the “probability tree” is now provided.
- In the discussion, we have introduced the concept of “multimodal control unit” suggested by one of the referees.
-The discussion and conclusion provide now a deeper interpretation of our findings and future perspectives of the proposed multimodal approach for the detection of movement intention.
- Figure 2 has been revised and appears now as a composite figure to increase its clarity.
- Legend of figures 1,2,4,14 have been modified.

See the authors' detailed response to the review by Yvonne Hoeller
See the authors' detailed response to the review by Christoph M Michel
See the authors' detailed response to the review by Carlos M. Gomez

Introduction

Tremor is the most common movement disorder encountered during daily practice¹. It causes functional disability and social inconvenience, disturbing daily life activities. Its incidence and prevalence increase with ageing¹. The response of tremor to pharmacotherapy is variable and a combination of drugs is often required after a few years of therapy. Neurosurgical procedures are considered when the clinical response is not sufficient or when the patient becomes refractory. However, a number of patients do not respond to current therapies. Therefore novel strategies are being developed. New bioengineering therapies are now emerging as viable solutions². In particular, recent studies aim to develop and validate a new treatment for upper limb tremor based on the combination of functional electrical stimulation (FES) with a brain-computer interface (BCI)^2–3. The main goal is to set up a semi-automatic procedure to reduce/stop upper limb tremor, with a selective cancellation of tremor oscillations while preserving natural voluntary movement. The intentionality of movement is tracked by the BCI, in order to trigger FES in the upper limbs. Such concepts open new doors for the treatment of numerous neurological disorders affecting the upper limbs.

We describe a multimodal detection of the intentionality of movement by fusing signals from EEG, EMG and kinematic sensors (in particular gyroscopes and accelerometers). A kinematic module is applied purely for analyzing tremor, but also finds a specific application for the early detection of movement in patients presenting with a rest tremor - a tremor occurring while in a rest position. Indeed, it has been reported that patients presenting a rest tremor show a decrement of the rest tremor before voluntary movement onset⁴. This phenomenon might be induced by a cortico-cerebellar activation during voluntary movements⁵. Why the use of a multimodal detection of the intentionality of movement? Although the potential for BCIs in neurological disorders is huge, the applicability of current BCI systems has been limited by several factors⁶. One of them is the poor performance of BCIs based on EEG analysis only (also due to: inter-individual differences in the detectability of movement-related EEG-activity; differences in the way BCI users can voluntary modify their brain activity; and the fact that brain atrophy and neuroplastic changes occurring in patients affected with movement disorders makes it difficult to generalize EEG markers). Therefore, this multimodal processing is assumed to add accuracy in the prediction of movements, thus improving the effectiveness of the system.

Materials and methods

Figure 1 gives a schematic glance at the multimodal approach. From each module, acting during different time-windows (EEG, kinematic and corticomuscular (described in detail in sections C–F) quality parameters (QPs) for the detection of the intentionality of movement or for the early detection of movement are extracted. QPs were calculated for each movement executed by the patients (one run contains several movements; see section B). These QPs are also considered as probabilities of stimulation, given their potential application in a tremor suppression system based on BCI-trigged FES (see also section F).

Figure 1. Expected prediction order.

Different modules are used to predict a voluntary movement: EEG, EMG, Corticomuscular (CM) and a Kinematic module. Notice that movement might be predicted by the kinematic module, as happened in the case of rest tremor decreasing before a voluntary movement.

A. Description of patients

Acquisition of data was carried out on 4 neurological patients exhibiting a bilateral upper limb tremor (combinations of rest, postural and/or kinetic tremor), following approval of the Ethical Committee of ULB – Hôpital Erasme (Table 1). All the patients were followed at the Erasme Hospital and gave their written informed consent to participate in the study. Patients were affected by: Parkinsonism of vascular origin (n=1), Parkinson’s disease (n=1), essential tremor (n=1) and post-traumatic brain injury (n=1). Male/female ratio was 3:1. Mean age of the patients was 62±20 years. The patients were all right-handed and presented with upper limb tremor of grade 1 to 3/4. The ADL-T24 score range was 3–20/24⁷. The Schwab and England ADL score ranged from 50 to 80%⁸.

Table 1. Description of patients.

Subject	Sex	Age	Disease	Rest tremor	Kinetic tremor	ADL-T24 score	Schwab and England ADL score
001	M	83	Parkinsonism of vascular origin	1/4	¼	3	70%
007	M	53	Parkinson’s Disease	2/4	¼	9	80%
009	F	75	Essential tremor	0/4	¼	4	80%
012	M	38	Post-traumatic brain injury	0/4	¼	20	50%

B. Experimental set-up

The patients were comfortably seated and performed sequences of "finger-to-nose" movements cued by acoustic signals. The patients kept their eyes open. The dominant arm was studied. The finger-to-nose task consists of touching the nose with the index finger, keeping the index finger on the nose for about one second and then putting it back onto the thigh (starting position). Patients were told to keep the most relaxed attitude. After hearing an acoustic signal, they prepared themselves for the execution of movement by mental imagery of the movement. During a single run, the task was repeated about 10 times. Patients were first trained in order to perform the task correctly. Each patient executed a maximum of 6 runs. The nomenclature used for the recorded files–as reported in figures- is “pppFNnn” standing for patient’s code, task executed ("Finger-to-nose") and run number, respectively.

Patients were equipped with:

(i) IMU sensors (inertial measurement units: tri-axial gyroscopes, accelerometers, magnetometers). Two IMUs were located on the anterior face of the upper limb at about 4 cm above and below the elbow, respectively. Sensors were attached with tape.

(ii) a conventional EEG cap with the following location of EEG electrodes (international 10–20 system): FC3, FCz, FC4, C5, C3, C1, CZ, C2, C4, C6, CP3, CPZ, and CP4 (POz: ground; linked ear-lobes: reference). Artifacts were minimized by restraining head movements, keeping the jaw and face relaxed and by avoiding swallowing or blinking during the recordings. Artifact rejection was applied by visual inspection of traces. EEG signals were sampled at 256 Hz (re-sampling at 1000 Hz for synchronization purposes) and band-pass filtered at 0.5–60 Hz.

(iii) EMG multi-array electrodes (arrays of 16 electrodes) located on the flexor carpi radialis (FCR), extensor carpi radialis (ECR), biceps and triceps muscles. EMG data were sampled at 1 KHz.

C. Movement detection

The main goal of this module is to identify the beginning and the end of a movement in the time domain. In order to build a “movement window”, the signal from the magnetometer (which provides a very clean signal) is processed first. The delay generated with magnetometers is then corrected with accelerometer and gyroscope signals. This results in an “extended movement window” within a time frame of 500 ms before the “basic movement window” generated by the magnetometer signal alone (Figure 2). Each variation (in accelerometer and gyroscope channels) larger than the standard deviation channel will extend the basic ‘movement window’ until the detected variation. This module, in the multimodal strategy, will be used by all other modules to determine whether a context is well predicting a movement or a false positive is occurring.

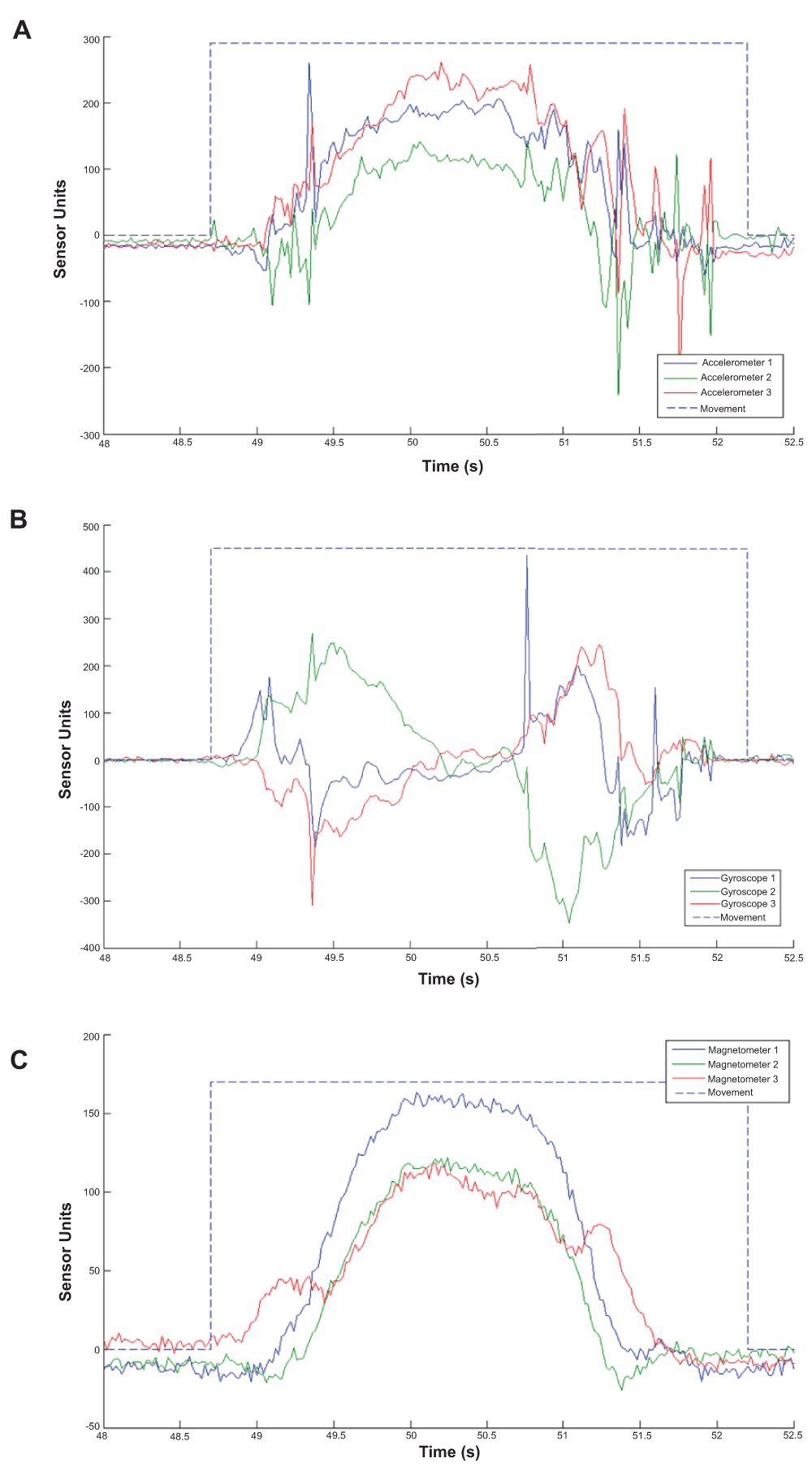

Figure 2. Movement detection based on signal processing.

A: signal processing of an accelerometer; B: of a gyroscope; and C: of a magnetometer (triaxial sensors: axis x, y, and z). The dotted line corresponds to a voluntary movement.

D. EEG module

Cortical activation occurring during the preparation of movement is detected by the EEG module thanks to a method based on the event-related desynchronization/synchronization (ERD/ERS) phenomenon^7,9,10. We extracted a QP for the detection of intentionality of movement¹¹ by considering: (i) the changes in the β²/α and β/α ratio (representing bursts of β-γ frequencies) during the pre-movement period; (ii) an appropriate threshold indicating which peaks of ratios are actually followed by a movement (and therefore may be considered as a predictor of movement); (iii) the number of movements executed.

Upsampled EEG data were processed with a Hamming window of 256 samples, using an overlap of 250 in the time domain. Spectrograms were computed at the frequencies from 1 Hz to 40 Hz with the Goertzel algorithm using a short time Fourier Transform (STFT)¹². A one-sided power spectral density (PSD) matrix was then obtained with the following formula:

P = \frac{2 {| S (i, j) |}^{2}}{F s \sum_{n = 1}^{L} {| w (n) |}^{2}} (1)

Where P contains the PSD of each segment for the frequency range 1–40 Hz, w(n) denotes the Hamming window function and Fs is the sampling frequency (1000 Hz).

Three time intervals were studied: pre-movement period, movement period, post-movement period. The pre-movement period (lasting 2 seconds) was defined according to the acoustic order given to the patients and the detection of the beginning of movement via the gyroscopes, by considering 2 seconds back from the point of detection of the beginning of movement. We decided to use a period of 2000 msec based on the available literature which considers that 2 seconds encompasses the preparation phase at the cortical level¹³.

The α, β and γ frequency bands were compared by calculating β/α and β²/α ratios. PSD in a β-γ frequency band was divided by the PSD in the α frequency band:

r a t i o (t) = 10 \log_{10} \frac{\sum β_{f}^{n} (t)}{\sum α_{f'}^{} (t)} (2)

Where n = {1,2} depends on the ratio considered (squared or not), f is the interval of β-γ frequencies (e.g.: from 26 to 33 Hz), and f’ is the interval of α frequency (e.g.: from 8 to 10 Hz).

To extract these sub-bands, the following intervals in the α, β and γ frequency bands were first studied: 8–12 Hz (8 Hz, 9 Hz, 10 Hz, 11 Hz, 12 Hz), 8–10 Hz, 10–12 Hz, 13–40 Hz, 13–26 Hz, 26–40 Hz, 13–20 Hz, 20–26 Hz, 26–33 Hz, 33–40 Hz, 13–16 Hz, 16–20 Hz, 20–23 Hz, 23–26 Hz, 26–30 Hz, 30–33 Hz, 33–40 Hz. Therefore, each β-γ interval was compared with the α intervals. A total amount of 105 pairs of intervals were thus analyzed. By applying (2) to the EEG power spectra from all the EEG channels and the successive runs, we obtained ratiograms which are spectrogram-like representations of EEG activities on the skull. The peaks (β/α and β²/α ratios) higher than a defined threshold were considered as indicators of a potential voluntary movement¹¹, given that they represent the detection of the cortical motor preparation of the movement^14,15. To determine the occurrence of false positive results, the number of movements detected was added. EEG QP is the geometric mean of the probability of movement (true positive stimulations) and the percentage of movements predicted¹¹.

E. Corticomuscular module (EEG-EMG)

A low-pass filter at 30 Hz was applied to EMG data. Corticomuscular coherence is a function of frequency (with values between 0 and 1) and indicates the degree of correlation between the two signals¹⁰. The Welch's averaged modified periodogram method was used to compute the magnitude squared coherence of an EEG channel and an EMG electrode along the frequency subbands^7,12,16. More than 800 possible EEG/EMG combinations (n=832) were tested for the cortico-muscular coherence analysis:

C_{x y} (f) = \frac{{| P_{x y} (f) |}^{2}}{P_{x x} (f) P_{y y} (f)} (3)

Where P_xx and P_yy are the PSDs and P_xy is the cross-spectral density, f is the frequency and C_xy is the magnitude squared coherence. The signal was first segmented in 200 ms squared windows. Each window was then processed with an FFT (length 512, window of 8 samples, and overlap of 6).

F. Kinematic module

As mentioned above, the kinematic module was applied both to characterize tremor and for the early detection of movement in patients presenting with a rest tremor. Up-sampled gyroscope signals (from 50 Hz to 1 KHz) were processed with a Hamming window of 256 samples, an overlap of 250 in the time domain. The spectrogram was computed at the frequencies from 1 Hz to 20 Hz with the Goertzel algorithm using a STFT. A one-sided PSD matrix was then obtained with the following equation:

P = \frac{2 {| S (i, j) |}^{2}}{F s \sum_{n = 1}^{L} {| w (n) |}^{2}} (4)

Where P contains the PSD of each segment for the frequency range 1–20 Hz, w(n) denotes the Hamming window function and Fs is the sampling frequency (1000 Hz).

The prediction of the movement was based on two major features of the pre-movement period:

- a 200 ms gap in the spectrum corresponding to a temporary dramatic decrease of the tremor

- a rise of low frequencies.

The rise of low frequencies was used for a mathematical modelling which considered:

- the ratio of high frequencies (7–20 Hz) divided by low frequencies (0–7 Hz)

- the max PSD in the low-frequency band over time.

A threshold was then applied and the prediction was based upon the following algorithm:

If (ratio(t) > T and maxPSD(t) > T) then

Potential movement predicted

Else

No movement detected

End

Where t is the time and T stands for threshold and is defined as the standard deviation of the ratio and the maxPSD.

The kinematic QP extracted is the following:

$Q P = \sqrt{p \times n}$ Where p is the probability of movement and n the number of movements predicted, as previously described for the EEG QP¹¹. A QP can be derived for one axis (X or Y or Z) or from several axes combined. Probability of movement p represents a key signal for the BCI-triggered delivery of FES to launch the muscle stimulation. Thus, this parameter is also named “probability of stimulation”. QP is an index of prediction of movement, while the “probability of stimulation/of movement” is the accuracy of this index, corresponding to the true positives.

Results

A. EEG module

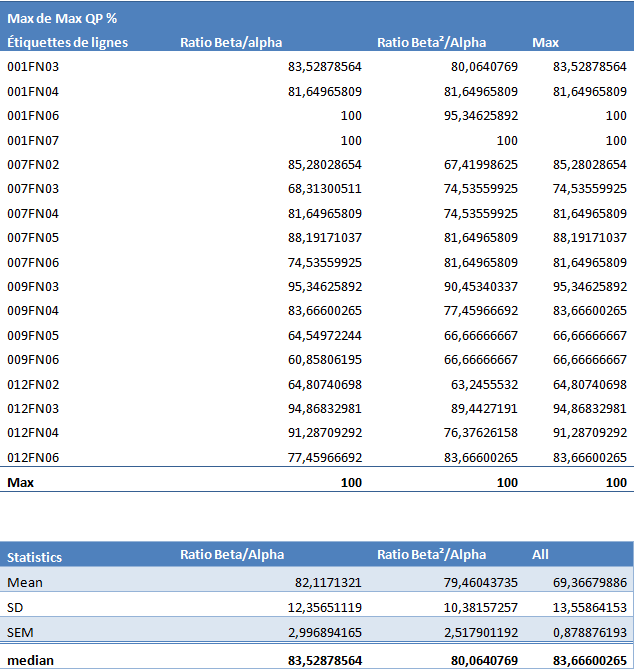

The EEG QP allowed the prediction of the voluntary movement with a probability between 70% and 90%. The mean QP was 82±12% (median = 83.5%) for the β/α ratio and 79.5±10.4% (median = 80%) for the β²/α ratio. We found no significant difference between the QP calculated from β/α ratio and β²/α ratio (p = 0.502)¹¹. The highest QPs were found when the selected sub-band of frequency included the 30–35 Hz (Figure 3). A sub-band of interest was more difficult to identify for the α band. However, the entire α band and its sub-bands never provided low values of QP. In terms of QP distribution on the scalp, the central areas of the brain showed the highest values of QPs¹¹. The highest probability to predict efficiently the intention of the upper limb movement corresponded to the contralateral central area of the brain.

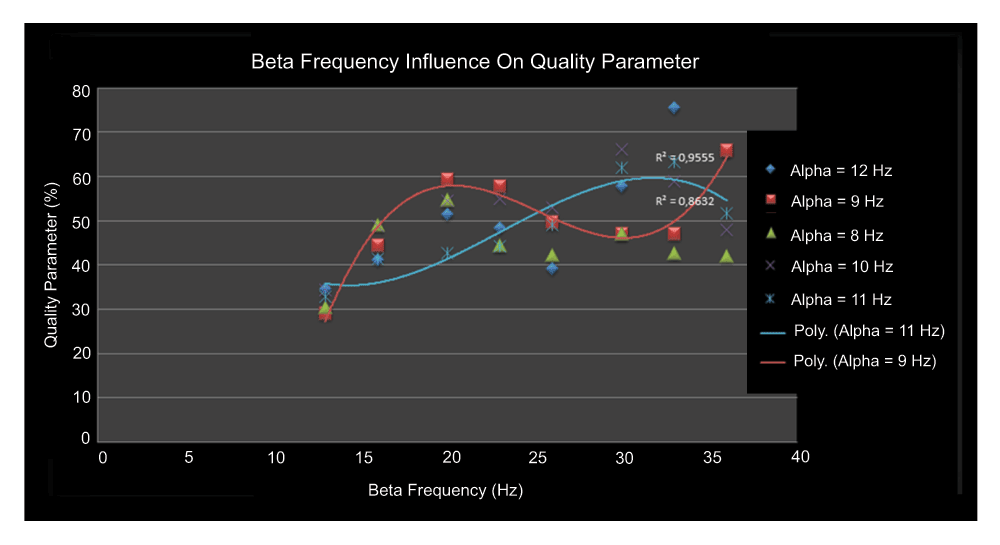

Figure 3. Influence of beta band frequency on EEG quality parameter (QP).

Two peaks can be identified for a beta frequency of 20 Hz and 35 Hz. Polynomial fitting (order 3) for an alpha frequency of 11 Hz (blue; R² = 0.9555) and 9 Hz (red; R² = 0.8632).

B. Corticomuscular module

By applying the process described in the Corticomuscular module section of the Materials and methods for each EEG channel compared to an EMG electrode, we obtained a graphical representation of the corticomuscular coherence (coherogram, Figure 4). A coherogram can be designed in different ways: either combining all EEG channels with one EMG electrode or associating all electrodes of an EMG device with one EEG channel. Here the first option was chosen because the possibility of a practical implementation of this approach in clinical applications is greater. Statistics for one coherogram channel were obtained by applying a threshold equal to the standard deviation. The same process was then applied on all channels. Data from two patients (3 trials for each patient) were analyzed in-depth (see additional Data Set). Probabilities of stimulation were extracted. For example, the coherence probability reached a maximum of 35.97% for patient 009FN03 (ECR muscle). Figure 5 shows the maximum values from all the possible EEG/EMG channels combinations. These patients exhibited reproducible low values for the cortico-muscular coherence, by contrast to reproducible high values for the other QPs. This highlights the importance of our multimodal approach.

Figure 4. Coherogram showing the evolution of coherence over time during voluntary movements of the upper limb (EEG channels-central area of the brain-correlated to an EMG electrode of the biceps muscle).

The black vertical dotted lines correspond to the detected movements.

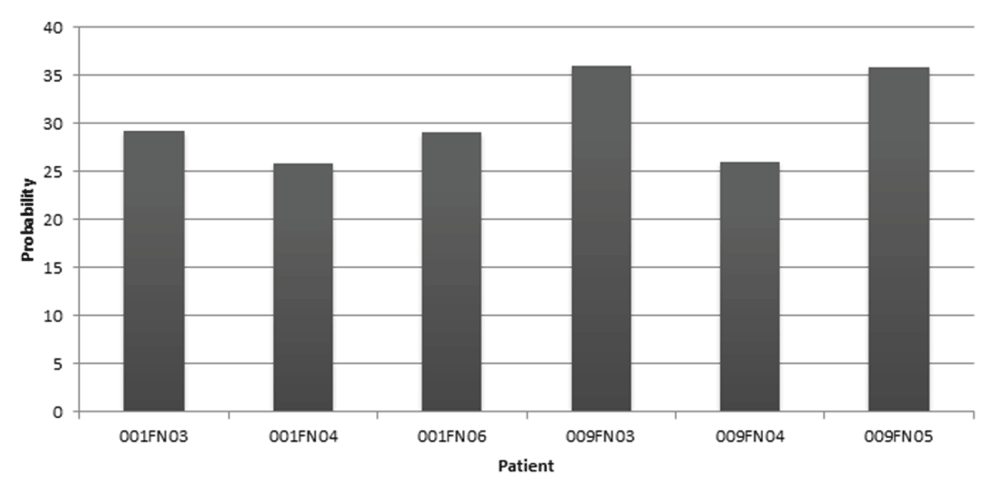

Figure 5. Probability of stimulation.

Results of corticomuscular coherence from patient 001 (presenting a Parkinsonism of vascular origin) and from patient 009 (presenting essential tremor). Three trials were analyzed for each patient.

C. Kinematic module

The selection of the axis of tremor is extremely important in this module. Indeed, if a patient has a pure mono-axial tremor on x-axis then better results are expected for this axis (as compared to the y- or z-axis). In our group of patients, the y-axis provided better results. Figure 6 shows the results of predictions of movements with the kinematic module. Figure 7 shows a comparison of kinematic QPs for the x-axis, the y-axis, and a combination. Values above 70% were reached for the y-axis. Figure 8 illustrates the probability of stimulation (see the Kinematic module section in Materials and methods). Clear differences between the x-axis and the y-axis were observed.

Figure 6. Prediction of the movement on the basis of the kinematic module (see also Figure 2).

Red and green lines represent the predictions from the x-axis and y-axis, respectively. The black vertical dotted line corresponds to the voluntary movement. In this case, the movement is predicted approximately 250 ms in advance with the y-axis of the gyroscope (green).

Figure 7. Kinematic QPs.

Results for axis x, y and xy combined. Note the better results from channel y.

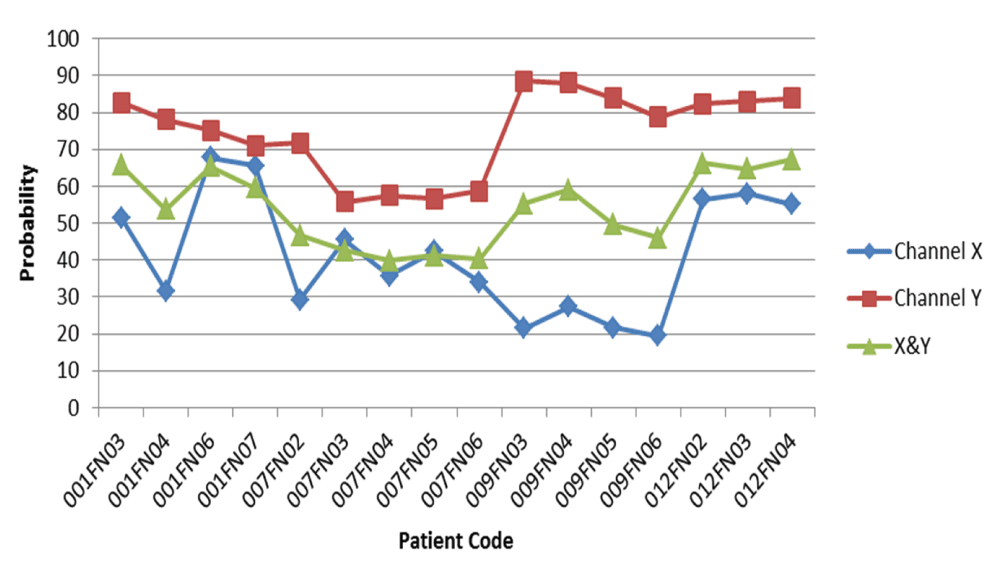

Figure 8. Probability of stimulation from the kinematic module for axis x, y and xy combined.

D. Global multimodal plot

To select the appropriate parameters for the BCI, a probability tree was built in order to identify the best associations of parameters. As an example, probability trees from 2 patients are shown in Figure 9. The probability can be extended with several combinations (probabilities for each EEG channel, each EMG electrode or combinations). From the statistical point of view, it is important to note that in some cases the association of several parameters can worsen the prediction of the intentionality of movement, as compared to a single parameter. For example, the association of the channel x and y in the kinematic module yielded lower statistics than the y-axis alone (Figure 9).

Figure 9. Example of probability tree from patients 001 and 009 (trials FN003).

EEG QPs and the probabilities of stimulation for the kinematic and the cortico-muscular modules are visualized in a tree form. For each leaf of the tree, a parameter of prediction can be computed. Values are given in %. Once the tree is filled, it is possible to identify the best parameters and associate them.

E. Simulation of ERD/ERS: which thresholds would be required to obtain high EEG QPs?

One main issue and challenge for the use of a BCI-based on ERD/ERS in neurological patients is to predict whether a given patient would exhibit a sufficient ERD/ERS to be enrolled in therapies based on BCIs. To this aim, we simulated an EEG signal and specifically looked for the relationship between ERD/ERS and QPs. EEG signal was simulated according to a method reported earlier¹⁷. The signal generated was a sum of four sinusoids with frequencies chosen randomly from specified ranges of frequencies (delta, theta, alpha, beta, gamma), with a random initial phase. The phase of the oscillations was reset at a specified timing for the simulation. The following parameters were used for generation of EEG signals: sampling frequency of 250 Hz, range of delta band: 0.5–4 Hz, range of theta band: 4–8 Hz, range of alpha band: 8–13 Hz, range of beta band: 13–40 Hz, range of gamma band: 36–44 Hz. Segments of 8 seconds were generated for each of these bands and were superimposed to obtain an artificial EEG trace (Figure 10 and Figure 11). We repeated this procedure to obtain an EEG signal of 32 seconds. The spectrogram was computed with the Goertzel algorithm between 0.5 and 44 Hz (window of 256 samples, overlap of 250). A number of four events of desynchronization (with a duration of the desynchronization period of 2–4 sec for each of them) were introduced. Ratios beta/alpha and beta²/alpha were extracted. Figure 12 illustrates an example of the true positives (in green) for the QP for a threshold of desynchronization set as -4.8 and 9.5 for the simple and squared ratio, respectively. The threshold varied from mean – 10*SD to mean + 10*SD, using steps of 0.1. We performed a simulation for 2875 trials similar to the trial shown in Figure 12. Figure 13 illustrates how QP evolved as a function of the threshold values used. The traces of averaged QPs were characterized by values around 70% (Figure 14). Very interestingly, these values are much greater than the values obtained for the corticomuscular module alone.

Figure 10. Method used to generate an artificial EEG for the simulation study.

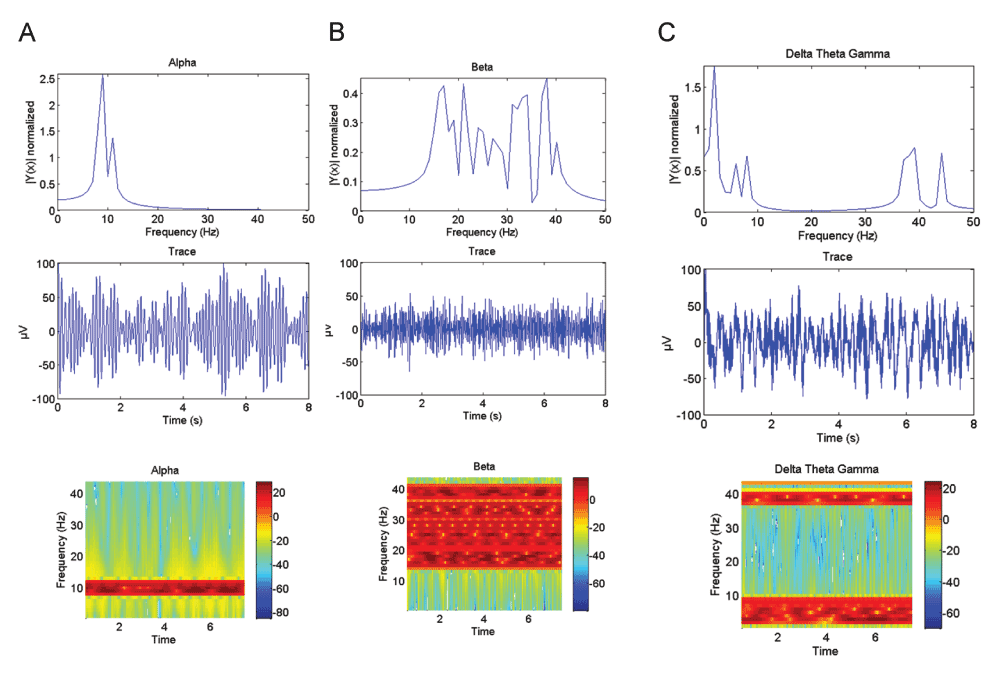

Figure 11. Example of spectral analysis of an artificial EEG containing alpha (A), beta (B) and delta theta gamma sub-bands (C).

A color-code is used for the representation of spectral densities (bottom panels). Note the red bands corresponding to the highest spectral densities.

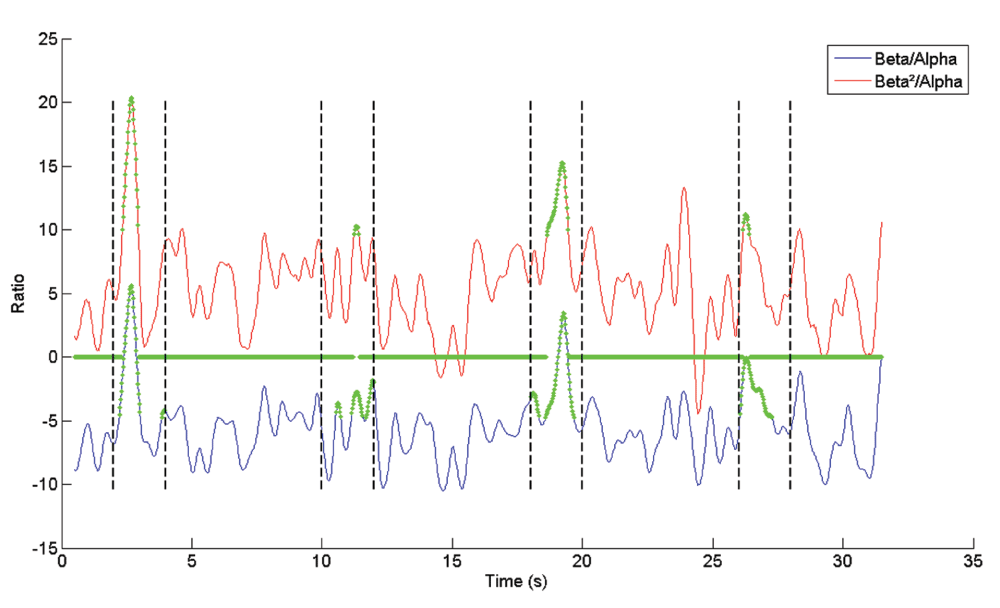

Figure 12. True positive values (green diamonds) for 4 events of desynchronization of the EEG (represented by vertical dotted lines).

Blue trace: ratio beta/alpha; red trace: ratio beta²/alpha.

Figure 13. Relationship between the threshold of ERD/ERS and the QP.

Threshold varying from mean – 10*SD to mean + 10*SD (steps of 0.1). QP is expressed in %.

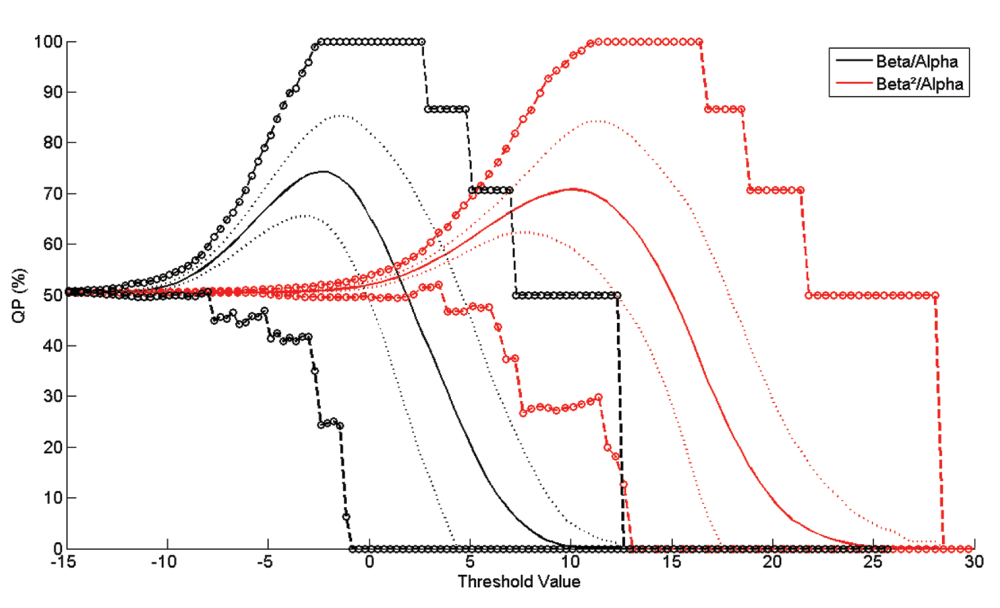

Figure 14. QP obtained as a function of the threshold of ERD/ERS used.

Continuous trace: mean values. Dotted lines: mean ± SD. External lines with larger dots: 95% confidence interval.

Discussion

We present a novel method to predict the intentionality of movement in neurological patients presenting tremor in the upper limbs. We use a multimodal approach based on the combination of several parameters, in order to decrease the rate of false positive and false negative detections. Starting from the EEG and the kinematic signals, we have extracted a QP, defined as the geometric mean of the probability of movement prediction and the number of movements detected. For the EEG module, the extraction of QP is based on the changes in ratios of sub-bands according to the ERD/ERS phenomenon. We suggest that values equal or higher than 70% correspond to a good QP, as compared to values in the literature^18,19. QP values greater than 90% were observed in some of the runs performed by our patients. However, an inter-patient and intra-patient variability was found and further evaluations with a larger number of patients and more runs per patient are required. The complexity of EEG recordings in patients with tremor performing upper limb movements should not be underestimated, especially when tremor genesis involves deep nuclei in the brain.

Our protocol in neurological patients with tremor differs from those in the literature, hence our study on the multiple combinations of frequency bands. When a neurological patient with tremor is seated and assessed, he/she may exhibit a tremor of the head and trunk. This tremor may be pretty stable or rather intermittent. There may even be an overlap with the main frequencies of the EEG signal, for instance in the alpha band (a rapid head tremor may be found in patients). Therefore, we decided to have a close look to each of these bands. For instance, we have seen patients with cerebellar disorders and orthostatic tremor in whom the sub-band 8–10 Hz was much less informative as compared with the sub-band 10–12 Hz. We would like to point out that in the study of Pfurtscheller et al. on single-trial classification of EEG and imagination²⁰, the frequency of the most reactive components was 11±0.4 Hz (mean±SD). The SD was thus small. Although the desynchronized components were centered at 10.9 Hz±0.9 Hz, the synchronized components were narrow-banded, with higher frequencies at 12.0 Hz±1.0 Hz. We agree with the authors that the classification of single EEG trials improves when ERD and ERS patterns are combined for multiple tasks. We aim to pursue the use of narrow bands of frequency in multiple tasks.

The QP parameter has been defined as a geometric mean in order to force both the true positive stimulation rate (in case of FES application) and the percentage of detected movements to be high enough to obtain a good QP value. Adaptive algorithms could be implemented to take into account variations of the standard deviation and, thus, to adapt to different kinds of activities that have different ratio profiles. We suggest that the choice of the thresholding method and the convenient sub-band ratio for the application of QP in the framework of a BCI-driven system should be made for each patient, depending on the neurological disorder considered. Neuroscience and engineering research support the hypothesis that the inclusion of non-invasive EEG data in the pre-movement period (which corresponds to motor preparation and planning) is useful to reach more effective rehabilitation procedures and to decrease the response time of BCIs²¹. It is very likely that the design of more advanced neuroprostheses and robot-assisted neurorehabilitation will benefit from EEG-based BCIs²². Techniques of multichannel EEG compression, phase congruency and graphical representations aiming at a reduction of multidimensional data have been proposed^23–25. However, no technique has been widely accepted so far.

In theory, BCI is an interface between brain and computer. As such, our system would be a multimodal control unit, including an EEG-module like often used for BCIs, but also body modules to control a stimulation unit. Future works could apply some feature selection algorithm and train the multimodal control unit in discriminating movements based on the multimodal input. These two steps could further be included in one step e.g. by use of random forests. By doing so, the performance of the modules would be evaluated to find out which ones contribute most to a high detection rate. This would be done separately for each patient, thus taking into account the inter-individual variability.

The study of the kinematic data has revealed interesting features in terms of detection of voluntary movements in patients with rest tremor. This tremor occurs mainly in extra-pyramidal disorders such as Parkinson’s disease, which is a very common neurological disorder in the elderly. Assessments of kinematic data per se are particularly interesting because of their simplicity and their direct access without intrusion in the body. Three main neuronal mechanisms have been hypothesized for rest tremor: a cortico-subthalamo-pallido-thalamic loop generating tremor, a pacemaker consisting of the external pallidum and the subthalamic nucleus, and an abnormal synchronization within the whole striato-pallido-thalamic pathway leading to a loss of segregation²⁶. The findings of a decrement of rest tremor before voluntary movement in Parkinson’s disease patients suggest an involvement of a neuronal input from the cerebellum to the thalamus, which may occur sufficiently early to suppress the resting tremor before the voluntary movement¹¹. However, it remains unclear how the understanding of these oscillators in the brain will impact directly on the design of BCIs.

Probability trees show a global visualization of the parameters proposed for the prediction of movement and allow the identification of the best ones (or the best association of them). When all the possible combinations of EEG/EMG/kinematic QPs are tested, the probability trees could yield an optimal efficiency. An exhaustive list of the probabilities for the entire amount of data recorded is not provided, because of the huge amount of time that this analysis requires in terms of data processing. The global multimodal plot improves the effectiveness of the system by providing redundant parameters for the prediction of movements. Moreover, it could be particularly helpful during the training phases of the BCI implementation in a given patient. These training phases are known to be time-consuming in some patients. Our data provide a ground for the concept of multimodal approach developed for the early detection of the intentionality of movement. The presented probability trees are general schemes. A case-by-case analysis is required. In order to provide the most possible accurate BCI-driven FES system, each subject needs to be studied in order to define the best combination of QPs. For instance the kinematic QPs may be more efficient than the EEG QPs in a given patient (as it may happen when ERD/ERS is not stronger enough to be detected). The system would take into account these features. By analysing a larger group of patients, we might identify subgroups of patients on the basis of the results of the probability trees. In other words, the probability trees would be used as an elegibility procedure to multimodal BCI-driven treatments in neurological patients with tremor.

Results obtained with the simulation study provide useful information about EEG QP in order to select patients more effectively for a BCI-based treatment, including rehabilitation. The simulation demonstrates the relationship between the threshold and the QP. Future studies could take advantage of these findings to select the best neurological candidates on the basis of the ERD/ERS for BCI-based management.

In patients responding to FES, we propose a novel closed-loop approach (Figure 15). FES is applied to the upper limbs following the detection of the intentionality to move by the multimodal platform reported here and taking into account the analysis of the QPs, in order to prevent the emergence of tremor just before the start of action. FES is triggered to reduce or cancel tremor. In case of detection of rest tremor by the kinematic sensors, FES is applied accordingly to the muscles in the upper limbs. The parameters of FES (intensity of stimulation, duration of stimuli, modes selected) are adapted according to the severity of tremor and the tolerance. Refractory rest tremor may occur in patients in whom FES is not effective to suppress tremor. In these patients, the on-line multimodal prediction is used to trigger FES once the intentionality to move is detected. Indeed, the various forms of upper limb tremor may react differently to FES due to their distinct pathogenesis.

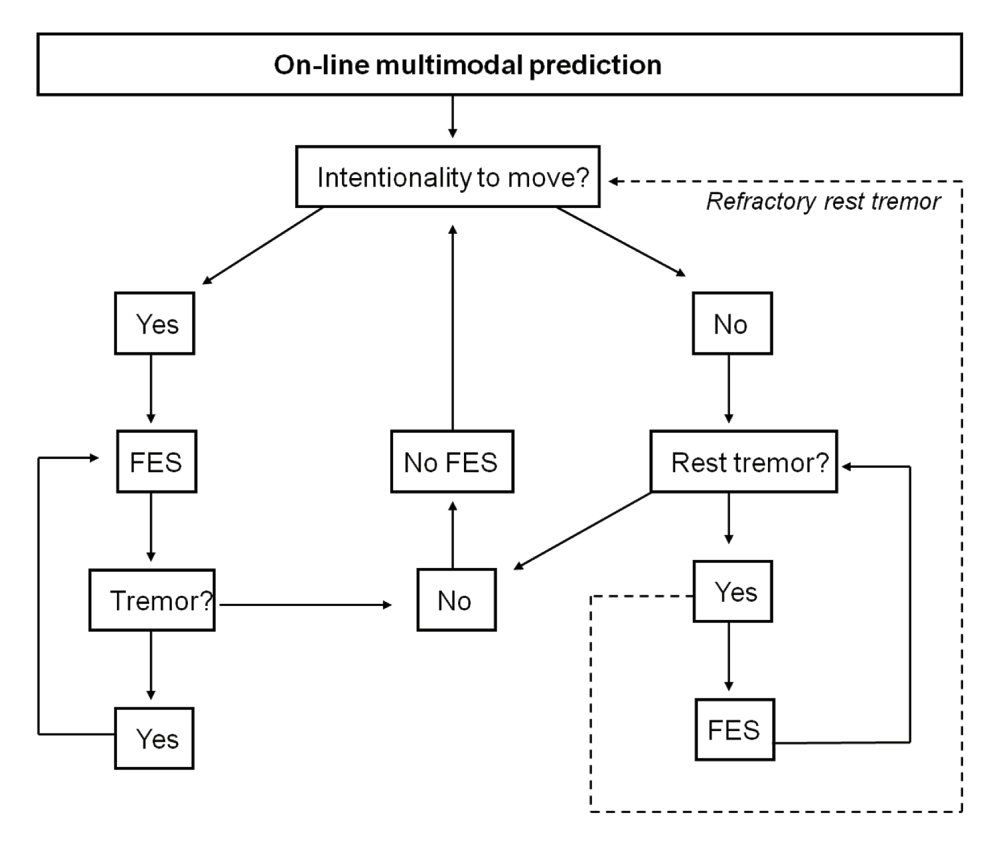

Figure 15. Proposal of a closed-loop approach for the detection of intentionality of movement and the triggering of FES.

The detection of the intentionality to move is based on the quality parameters (QPs) reported here.

Conclusion

We suggest a multimodal approach to identify the intentionality of movement. The QP is a promising index in the field of the ERD/ERS-based methods to detect the intention of movement for future BCI applications. This parameter could be also used to process EEG recordings from wearable dry electrodes. Novel wearable devices developed for the treatment of motor disturbances outside the field of neurological tremor might benefit from this approach. We propose that the EEG QP can be complemented by the QPs extracted from the cortico-muscular coherence and the QPs obtained by the analysis of the changes in the kinematic signals, which occur prior to the voluntary movements. We suggest a fusion of the QP parameters in order to increase the likelihood to detect the intentionality of movement. The analysis of the corticomuscular coherence shows that this parameter alone cannot be used to predict voluntary motion and be implemented in a BCI. Global multimodal plots may become attractive with the development of wearable technologies. They will have to take into account the various pathologies of the central nervous system, especially the localization of the lesions and their course with time. It is very likely that in progressive neurological disorders, the parameters selected in global multimodal plots will have to be modified or adapted accordingly. This is in agreement with adaptive methods which are being developed currently with the goal of improving the classification algorithms for BCI system in order to extract EEG patterns related to a cognitive or motor status^6,27. Our approach will have to be tested in a large sample of patients in the future, in order to demonstrate its real clinical usefulness in daily practice. We propose to select a larger group of neurological patients to confirm the strength of the multimodal prediction. The present study opens the door for future studies in terms of how to increase EEG-based detection of movement intention by incorporating information from multiple modules.

Data availability

figshare: EEG, EMG, accelerometer and gyroscope data for a FES-mediated brain-computer interface (BCI) aiming to suppress neurological tremor, http://dx.doi.org/10.6084/m9.figshare.879661²⁸

Author contributions

Overall study design and protocol development: GG, MM. Data analysis: GG, MM, JY. Writing of manuscript: GG, MM, JY. Final version reviewed and approved by all the authors.

Competing interests

GG received fundings (covering the salary) from the European Commission. The authors did not apply for any patent and are not preparing a patent application. No financial return is expected from the present article. The authors declare that they have no non-financial competing interests (political, personal, religious, ideological, academic, intellectual, commercial).

Grant information

The funders had no role in study design, data collection and analysis, decision to publish, or preparation of the manuscript.

Acknowledgements

Preliminary results were presented at the annual conference of the Engineering in Medicine and Biology Society, EMBC, 2011, Boston, USA.

Faculty Opinions recommended

References

1. Louis ED, Marder K, Cote L, et al.: Differences in the prevalence of essential tremor among elderly African Americans, whites, and Hispanics in northern Manhattan, NY. Arch Neurol. 1995; 52(12): 1201–5. PubMed Abstract | Publisher Full Text
2. Grimaldi G, Manto M: "Old" and emerging therapies of human tremor. Clin Med Insights: Ther. 2010; 2: 169–178. Publisher Full Text
3. Prochazka A, Elek J, Javidan M: Attenuation of pathological tremors by functional electrical stimulation. I: Method. Ann Biomed Eng. 1992; 20(2): 205–24. PubMed Abstract | Publisher Full Text
4. Kinoshita M, Hitomi T, Matsuhashi M, et al.: How does voluntary movement stop resting tremor? Clin Neurophysiol. 2010; 121(6): 983–5. PubMed Abstract | Publisher Full Text
5. Helmich RC, Hallett M, Deuschl G, et al.: Cerebral causes and consequences of parkinsonian resting tremor: a tale of two circuits? Brain. 2012; 135(Pt 11): 3206–26. PubMed Abstract | Publisher Full Text | Free Full Text
6. Llera A, van Gerven MA, Gomez V, et al.: On the use of interaction error potentials for adaptive brain computer interfaces. Neural Netw. 2011; 24(10): 1120–7. PubMed Abstract | Publisher Full Text
7. Grimaldi G, Manto M: Neurological tremor: sensors, signal processing and emerging applications. Sensors. 2010; 10(2): 1399–1422. PubMed Abstract | Publisher Full Text | Free Full Text
8. Gillingham FJ, Donaldson MC: Third Symp. of Parkinson's Disease, Edinburgh, Scotland, E&S Livingstone. 1969; pp.152–157.
9. Rektor I, Sochůrková D, Bocková M: Intracerebral ERD/ERS in voluntary movement and in cognitive visuomotor task. Prog Brain Res. 2006; 159: 311–30. PubMed Abstract | Publisher Full Text
10. Shibasaki H, Hallett M: What is the Bereitschaftspotential? Clin Neurophysiol. 2006; 117(11): 2341–56. PubMed Abstract | Publisher Full Text
11. Grimaldi G, Manto M, Jdaoudi Y: A quality parameter for the detection of the intentionality of movement in patients with neurological tremor performing a finger-to-nose test. Conf Proc IEEE Eng Med Biol Soc. 2011; 2011: 7707–10. PubMed Abstract | Publisher Full Text
12. Proakis JG, Manolakis DG: Digital Signal Processing: Principles, Algorithms, and Applications, Upper Saddle River, NJ: Prentice Hall, 1996; pp. 480–481.
13. Defebvre L, Derambure P, Bourriez JL, et al.: Event-related desynchronization and Parkinson disease. Importance in the analysis of the phase of preparation for movement. Neurophysiol Clin. 1999; 29(1): 71–89. PubMed Abstract
14. Pfurtscheller G, Lopes da Silva FH: Event-related EEG/MEG synchronization and desynchronization: basic principles. Clin Neurophysiol. 1999; 110(11): 1842–1857. PubMed Abstract | Publisher Full Text
15. Birbaumer N, Weber C, Neuper C, et al.: Physiological regulation of thinking: brain-computer interface (BCI) research. Prog Brain Res. 2006; 159: 369–91. PubMed Abstract | Publisher Full Text
16. Timmer J, Lauk M, Köster B, et al.: Cross-spectral analysis of tremor time series. Int J Bifurc Chaos. 2000; 10(11): 2595–2610. Reference Source
17. Mäkinen V, Tiitinen H, May P: Auditory event-related responses are generated independently of ongoing brain activity. Neuroimage. 2005; 24(4): 961–8. PubMed Abstract | Publisher Full Text
18. Pfurtscheller G, Flotzinger D, Neuper C: Differentiation between finger, toe and tongue movement in man based on 40 Hz EEG. Electroencephalogr Clin Neurophysiol. 1994; 90(6): 456–460. PubMed Abstract | Publisher Full Text
19. Shishkin SL, Ganin IP, Kaplan AY: Event-related potentials in a moving matrix modification of the P300 brain-computer interface paradigm. Neurosci Lett. 2011; 496(2): 95–9. PubMed Abstract | Publisher Full Text
20. Pfurtscheller G, Brunner C, Schlögl A, et al.: Mu rhythm (de)synchronization and EEG single-trial classification of different motor imagery tasks. Neuroimage. 2006; 31(1): 153–9. PubMed Abstract | Publisher Full Text
21. Ahmadian P, Cagnoni S, Ascari L: How capable is non-invasive EEG data of predicting the next movement? A mini review. Front Hum Neurosci. 2013; 7: 124. PubMed Abstract | Publisher Full Text | Free Full Text
22. Lew E, Chavarriaga R, Silvoni S, et al.: Detection of self-paced reaching movement intention from EEG signals. Front Neuroeng. 2012; 5: 13. PubMed Abstract | Publisher Full Text | Free Full Text
23. Gasser T, Möcks J: Graphical representation of multidimensional EEG data and classificatory aspects. Electroencephalogr Clin Neurophysiol. 1983; 55(5): 609–12. PubMed Abstract | Publisher Full Text
24. Logesparan L, Rodriguez-Villegas E: Improving phase congruency for EEG data reduction. Conf Proc IEEE Eng Med Biol Soc. 2010; 2010: 642–5. PubMed Abstract | Publisher Full Text
25. Dauwels J, Srinivasan K, Reddy MR, et al.: Near-lossless multichannel EEG compression based on matrix and tensor decompositions. IEEE J Biomed Health Inform. 2013; 17(3): 708–14. PubMed Abstract
26. Deuschl G, Raethjen J, Baron R, et al.: The pathophysiology of parkinsonian tremor: a review. J Neurol. 2000; 247(Suppl 5): V33–48. PubMed Abstract | Publisher Full Text
27. Pfurtscheller G, Kalcher J, Neuper C, et al.: On-line EEG classification during externally-paced hand movements using a neural network-based classifier. Electroencephalogr Clin Neurophysiol. 1996; 99(5): 416–25. PubMed Abstract | Publisher Full Text
28. Grimaldi G, Manto M, Jdaoudi Y: EEG, EMG, accelerometer and gyroscope data for a FES-mediated brain-computer interface (BCI) aiming to suppress neurological tremor. Figshare. 2013. Data Source

Comments on this article Comments (0)

Version 2

VERSION 2 PUBLISHED 20 Dec 2013

Author details Author details

¹ Unité d’Etude du Mouvement, Université Libre de Bruxelles, Erasme, Bruxelles, 1070, Belgium
² Fonds de la Recherche Scientifique, Université Libre de Bruxelles, Bruxelles, 1070, Belgium

Competing interests

Grant information

The multi-disciplinary research project “Tremor” (ICT-2007-224051) was supported by the European Commission (FP7). The grant was assigned to MM for the contribution of ULB to the research project. GG received a salary from the grant.
The funders had no role in study design, data collection and analysis, decision to publish, or preparation of the manuscript.

Article Versions (2)

version 2

Revised

Published: 30 Apr 2014, 2:282

https://doi.org/10.12688/f1000research.2-282.v2

version 1

Published: 20 Dec 2013, 2:282

https://doi.org/10.12688/f1000research.2-282.v1

© 2014 Grimaldi G et al. This is an open access article distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. Data associated with the article are available under the terms of the Creative Commons Zero "No rights reserved" data waiver (CC0 1.0 Public domain dedication).

Download

Export To

metrics

	Views	Downloads
F1000Research	-	-
PubMed Central Data from PMC are received and updated monthly.	-	-

Citations

SEE MORE DETAILS

CITE

how to cite this article

Grimaldi G, Manto M and Jdaoudi Y. Quality parameters for a multimodal EEG/EMG/kinematic brain-computer interface (BCI) aiming to suppress neurological tremor in upper limbs [version 2; peer review: 1 approved, 2 approved with reservations]. F1000Research 2014, 2:282 (https://doi.org/10.12688/f1000research.2-282.v2)

NOTE: If applicable, it is important to ensure the information in square brackets after the title is included in all citations of this article.

track

receive updates on this article

Track an article to receive email alerts on any updates to this article.

Open Peer Review

Current Reviewer Status: ?

Key to Reviewer Statuses VIEW HIDE

ApprovedThe paper is scientifically sound in its current form and only minor, if any, improvements are suggested

Approved with reservations A number of small changes, sometimes more significant revisions are required to address specific details and improve the papers academic merit.

Not approvedFundamental flaws in the paper seriously undermine the findings and conclusions

Version 2

VERSION 2

PUBLISHED 30 Apr 2014

Revised

Views

Reviewer Report 17 Jun 2014

Carlos M. Gomez, Human Psychobiology Lab, Experimental Psychology Department, University of Seville, Sevilla, Spain

Approved

https://doi.org/10.5256/f1000research.4274.r5149

CITE

Report a concern

Respond or Comment

Views

Reviewer Report 07 May 2014

Yvonne Hoeller, Christian-Doppler-Clinic, Paracelsus Medical University, Salzburg, Austria

Approved with Reservations

https://doi.org/10.5256/f1000research.4274.r4610

Again, I have to emphasise that this is interesting research and I found the detailed answers to my concerns very useful. I assume there were some minor misunderstandings in this large revision and some major concerns remain.

I suggested including frontal

I suggested including frontal electrodes because we recently found that they are indeed important for detecting motor imagery. I agree with you that preprocessing is needed when using these electrodes. I would at least use frontal electrodes in your future work, even if you decide not to include them into your analysis (which I would really regret because I think the results would benefit from it).
I have a concern about studies in which the participants are told not to blink during a specified period. Participants are additionally engaged to concentrate on not blinking. Since motor imagery is a demanding task this could cause some bias. I would mention this in the limitations section.
I asked you about the up-sampling because I found that the explanation in the paper "Upsampled EEG data were processed with a Hamming window of 256 samples, using an overlap of 250 in the time domain" with the subsequent mentioning of 1000 Hz sampling frequency in some following paragraph is a little confusing. The intention of my questions was to guide you to the details of the paper which are unclear. By changing the text according to my questions, the paper could become more understandable. In other words: I did not only expect an answer to this question, I expected some changes in the text. This applies to all the other questions I raised in the first review. I would kindly ask you to change the manuscript according to my questions raised upon the first version. If readers can quickly understand what you have done, they are more likely to cite your work.
You wrote in your answers: "We represent here the QPs that reached a good value of accuracy." It is recommendable to state this in the paper together with a quantitative criterion for a good value of accuracy.
In general I find it difficult to see the statistics which were performed. In the results you state that there is "no significant difference between the QP calculated from β/α ratio and β²/α ratio" but there is no information on what test was used and which electrodes were tested etc.
For evaluating accuracy, you should use statistics instead of "good" accuracy above 70%, which comes out of the blue and may not be sufficient. There is a statistical test to assess if accuracy is significantly above chance. You could use the maximum chance criteria and an adequate measure of significance and effect size, as described in Marcoulides G, Hershberger S (1974) Statistical Methods: A first course. Psychology Press.
With respect to Figure 3 you answered that these data correspond to the central area of the brain. Is this data of a single electrode? You should exactly indicate this information in the revision.
Although you discuss the issue of BCI and multimodal interfacing, I find it still misleading to just read BCI in the title/abstract. This is simply the wrong term. You could change the title: Quality parameters for a multimodal human-computer-interface based on EEG, EMG, and kinematics, aiming to suppress neurological tremor in upper limbs.
Although you justify the selection of 2 patients and 3 trials, it needs to be discussed that this may not be representative. Thus, generalisations are limited. I would emphasise the exploratory character of this study in the title or at least in the abstract and the discussion.

Competing Interests: No competing interests were disclosed.

I confirm that I have read this submission and believe that I have an appropriate level of expertise to confirm that it is of an acceptable scientific standard, however I have significant reservations, as outlined above.

CITE

Report a concern

Respond or Comment

Version 1

VERSION 1

PUBLISHED 20 Dec 2013

Views

Reviewer Report 27 Jan 2014

Carlos M. Gomez, Human Psychobiology Lab, Experimental Psychology Department, University of Seville, Sevilla, Spain

Approved with Reservations

https://doi.org/10.5256/f1000research.3288.r3358

This report tries to identify EEG, EMG and kinematics features that permit prediction of movement production, in order to use functional electrical stimulation (FES) to compensate for tremor in neurological patients. The rational and the methodology is sound, but several points must be clarified in order to improve the validity of the result and to increase readability of the results of these important and worthy results, not only for academics but also in the clinical settings. The queries can be answered, clarified or considered for more advanced reports in the future.

Introduction:

In Figure 1 the dashed line seemed to indicate the movement, but how it is possible that the movement itself is predicted by the movement kinematic - that should be zero before movement. Except if some thresholds are defined, pre-thresholds movements are the predictors. Please clarify the sentence "decrement of the rest tremor before movement onset" - does it means that the reduction in tremor is not the initial voluntary movement but a different neural command which is being inhibited by the voluntary control? Then define physiological characteristics, frequency amplitude, of tremor. Otherwise it would be difficult to distinguish between the reduction of tremor and the initial phases of movement.

Methods:

"Mean age of the patients was 62 ± 20 years" . It would be more precise to describe the age of each individual subjects. Means are useful for high number of subjects. Same for other parameters.
"After (1) hearing an acoustic signal, the patient (2) prepared themselves mentally for the execution of movement and (3) performed the task." It is not clear how long it takes this preparation. Was it induced by the experimenter instructions or it was an spontaneous strategy? How long does each of the phases take?
Is it neccesary to indicate the files code? Otherwise please suppress it.
"EEG signals were sampled at 256 Hz (re-sampling at 1000 Hz for synchronization purposes). " It seems that the data were re-sampled to a higher frequency. Could it be considered an interpolation rather than a re-sampling? Anyway it would be better to sample at 1000 Hz, if needed.
Figure 2 is very difficult to follow, maybe doing a composite figure with accelerometer, gyroscopes and magnetometers separated would be better. One example of tremor suppression would be appreciated.
"The peaks (β/α and β²/α ratios) higher than a defined threshold were considered as indicators of a potential voluntary movement. given that they represent the detection of the cortical motor preparation of the movement" The authors are very confident with this option, but some information should be given to the non-specialist of BCI.
"Three time intervals were studied: pre-movement period, movement period, post-movement period. The pre-movement period (lasting 2 seconds) was defined according to the acoustic order given to the patients and the detection of the beginning of movement via the gyroscopes." Please give a more precise description of the time window analyzed - 2000 ms before the movement? 2000 ms after the auditory signal? In the middle? Was there always 2000 ms between auditory signal and movement?
"The peaks (β/α and β²/α ratios) higher than a defined threshold were considered as indicators of a potential voluntary movement" Was the threshold pre-defined a priori (which value?), or adjusted following the predictive value.
"More than 800 possible EEG/EMG combinations (n=832)", please clarify the origin of these 832 combinations.
"Where p is the probability of movement and n the number of movements predicted", please define more precisely the probability of movement.
In general, it would be desirable to have an experimental protocol in which the subjects have the opportunity to decide if he/she wants to move or not. Or still better to go to a more ecological situation in which the subject is instructed to do the finger-to-nose movement at its own pace. And compare false positive and false negative predictions.

Results:

"The mean QP was 82±12% (median = 83.5%) for the β/α ratio and 79.5±10.4% (median = 80%) for the β²/α ratio." Please report individual subjects' values.
Figure 3 reports values of QP much lower than the mean values reported in the text. Please clarify.
Which are the coherence values for Figure 4? The Y axis is missing.
Figure 6: Is not the predicted predicting? Or, is not the movement pre-threshold predicting the post-threshold movement? Is that the reason why the Y channel is so good predictor of movement? Please clarify. If it is reduction of tremor, please show some examples.
The motivation of the simulation is not clear, because only the EEG can be simulated, not the movement. Please clarify the interest of the simulations study or remove it.

Discussion:

The discussion seems to clarify that the excellent predictor of reduction of tremor is produced by a different command than the voluntary control. But tremor should have a definite frequency, and this frequency property of the tremor seems not be taken in account in present report.

Competing Interests: No competing interests were disclosed.

CITE

Report a concern

Author Response (F1000Research Advisory Board Member) 24 Apr 2014

Mario Manto, Unité d’Etude du Mouvement, Université Libre de Bruxelles, Erasme, Bruxelles, 1070, Belgium

24 Apr 2014

Author Response F1000Research Advisory Board Member
We thank the referee for their criticisms.

Introduction:
- “In Figure 1 the dashed line seemed to indicate the movement, but how it is possible that the movement itself is predicted by the
... Continue reading
We thank the referee for their criticisms.

Introduction:
“In Figure 1 the dashed line seemed to indicate the movement, but how it is possible that the movement itself is predicted by the movement kinematic - that should be zero before movement. Except if some thresholds are defined, pre-thresholds movements are the predictors. Please clarify the sentence "decrement of the rest tremor before movement onset" - does it means that the reduction in tremor is not the initial voluntary movement but a different neural command which is being inhibited by the voluntary control? Then define physiological characteristics, frequency amplitude, of tremor. Otherwise it would be difficult to distinguish between the reduction of tremor and the initial phases of movement.”

The initiation phase of movement in a patient with rest tremor has been characterized in details in the literature (Papengut et al. 2013). In patients exhibiting a rest tremor, tremor suppression at movement onset (reduction in amplitude or complete cessation, detectable with kinematic sensors) is an example of noticeable changes in tremor features occurring at the beginning of the voluntary movement: tremor features change and this is detectable by kinematic analysis. It is presumed that the voluntary command inhibits the central oscillator generating rest tremor. Since we are using both accelerometry and gyroscopes, the beginning of the finger-to-nose movement is clearly identified by changes in kinematics.

The introduction and the legend of Figure 1 have been changed.
Methods:
“"Mean age of the patients was 62 ± 20 years". It would be more precise to describe the age of each individual subjects. Means are useful for high number of subjects. Same for other parameters.

We have included a table detailing age and other parameters in the Methods of the revised article. Patients were followed on a regular basis during this European project. The clinical scores were pretty stable, although slight clinical fluctuations were observed (this is very common in the follow-up of neurological patients exhibiting a tremor in the upper limb).

“"After (1) hearing an acoustic signal, the patient (2) prepared themselves mentally for the execution of movement and (3) performed the task." It is not clear how long it takes this preparation. Was it induced by the experimenter instructions or it was a spontaneous strategy? How long does each of the phases take?”

The text has been changed to the following:

“Patients were told to keep the most relaxed attitude. After hearing an acoustic signal, they prepared themselves for the execution of movement by mental imagery of the movement. During a single run, the task was repeated about 10 times.”

The preparation phase lasted typically between 2 and 8 sec. There was variability between trials depending on self-estimation by patients. This is typical in mental imagery. Some patients are “fast-imagers” and others are “slow-imagers”.

“Is it necessary to indicate the files code? Otherwise please suppress it.”

This is useful in making the figures more readable (see Figures 7, 9 and 10).

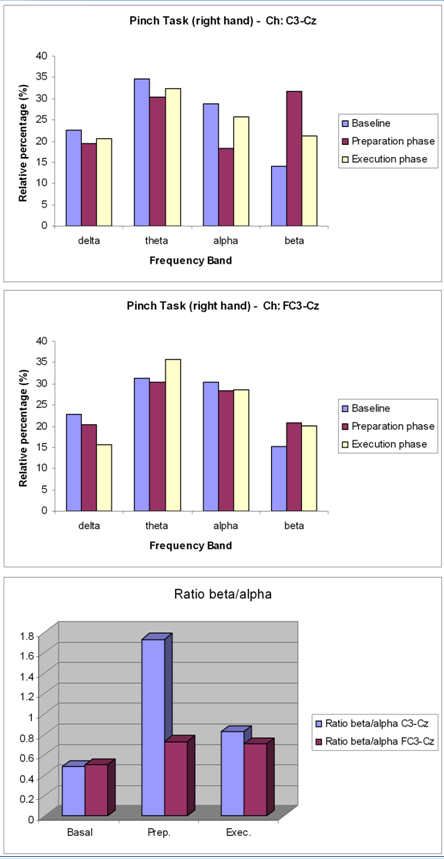

“"EEG signals were sampled at 256 Hz (re-sampling at 1000 Hz for synchronization purposes)." It seems that the data were re-sampled to a higher frequency. Could it be considered an interpolation rather than a re-sampling? Anyway it would be better to sample at 1000 Hz, if needed.”

Yes, we could consider an interpolation and/or a re-sampling. The rationale for the re-sampling at 1000 Hz is that it does not affect the spectral contents in the frequency sub-bands that are particularly of interest in our study. An interpolation technique is an alternative.

“Figure 2 is very difficult to follow, maybe doing a composite figure with accelerometer, gyroscopes and magnetometers separated would be better. One example of tremor suppression would be appreciated.”

We agree with the referee that this figure might be confusing. We have modified the figure in the revised article. The description of the sensors is reported in Gallego et al. (2010)

Sensors are a combination of triaxial accelerometers, gyroscopes, and magnetometers. The low weight of IMUs makes them an optimal solution, as tremor changes its characteristics if a larger mass is attached to the limbs. Moreover, their small size does not interfere with user’s movements.

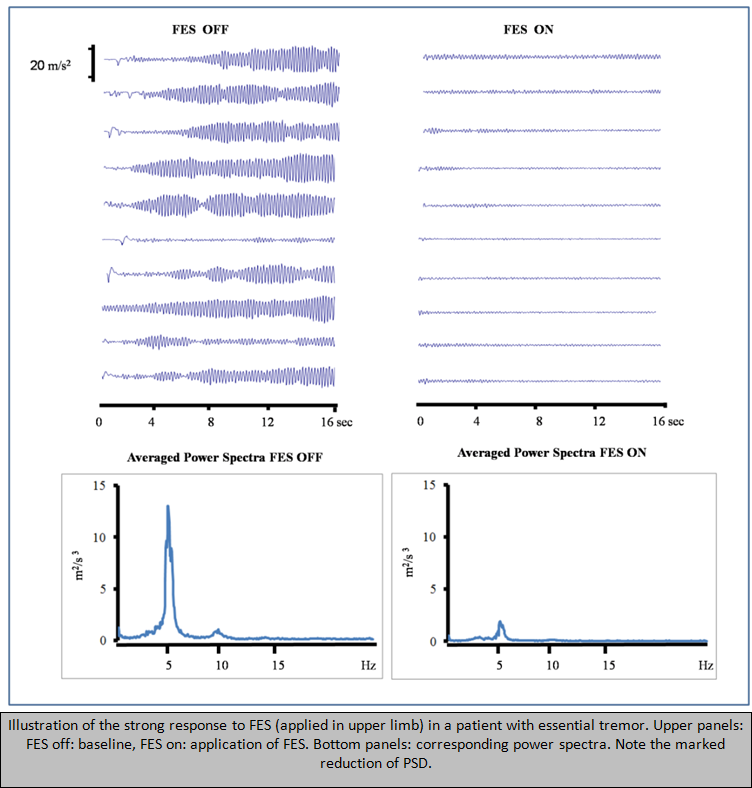

The phenomenon of tremor suppression induced by the application of FES has been published earlier. Here is an example of essential tremor responding strongly to FES. This patient does not respond to any medication (including: propranolol, primidone, topiramate). Although refractory to conventional drugs, this patient was FES-sensitive.

Figure from:

Grimaldi G, Manto M: “Old” and Emerging Therapies of Human Tremor. Clinical Medicine Insights: Therapeutics. 2010; 2: 169-178. Publisher Full Text. Published under the Creative Commons CC-BY-NC 3.0 license.

“"The peaks (β/α and β²/α ratios) higher than a defined threshold were considered as indicators of a potential voluntary movement given that they represent the detection of the cortical motor preparation of the movement" The authors are very confident with this option, but some information should be given to the non-specialist of BCI.”

This method is now explained in the revised text. The following reference has been added: Pfurtscheller and Lopes da Silva (1999). This methodology is considered as a sound procedure for the detection of the preparation of movement.

“"Three time intervals were studied: pre-movement period, movement period, post-movement period. The pre-movement period (lasting 2 seconds) was defined according to the acoustic order given to the patients and the detection of the beginning of movement via the gyroscopes." Please give a more precise description of the time window analyzed - 2000 ms before the movement? 2000 ms after the auditory signal? In the middle? Was there always 2000 ms between auditory signal and movement?”

The following sentence has been added: “by considering 2 seconds back from the point of detection of the beginning of movement. We decided to use a period of 2000 msec based on the available literature which considers that 2 seconds encompasses the preparation phase at the cortical level.”

“"The peaks (β/α and β²/α ratios) higher than a defined threshold were considered as indicators of a potential voluntary movement" Was the threshold pre-defined a priori (which value?), or adjusted following the predictive value.”

This has been studied earlier. The best thresholding process should be decided in a case-by-case scenario, as described in Giuliana, Mario and Yassin (2011); % of maximum ratio overtime; threshold considering mean and standard deviation of the ratios.

“"More than 800 possible EEG/EMG combinations (n=832)", please clarify the origin of these 832 combinations."

The number of combinations corresponds to 13 EEG channels (excluding the 2 channels for the eyes) and 64 EMG channels (16 EMG channels for each of the 4 muscles of the upper limb)

13x64 = 832 combinations

“"Where p is the probability of movement and n the number of movements predicted", please define more precisely the probability of movement.”

The text has been changed to the following:

“Where p is the probability of movement (true positives) and n the number of movements predicted, as previously described for the EEG QP.”

“In general, it would be desirable to have an experimental protocol in which the subjects have the opportunity to decide if he/she wants to move or not. Or still better to go to a more ecological situation in which the subject is instructed to do the finger-to-nose movement at its own pace. And compare false positive and false negative predictions.”

Thanks to the acoustic signal, the period of preparation of movement followed by the execution of the task is clearly defined. The patient knows that after the signal (1) he/she has to relax, (2) he/she has to prepare for the movement, and (3) he/she has to execute it. It is important to note that it is much easier for neurological patients to follow this sequence with an acoustic signal and not to include an additional internal evaluation to move or not to move. The introduction of an additional decision to move or not is a source of complexity, which by itself interferes with the severity of tremor. Some neurological patients have difficulties and show hesitations for self-paced movements. The task is easier with the acoustic cue. See also the reply to Yvonne Hoeller.
Results:
“"The mean QP was 82±12% (median = 83.5%) for the β/α ratio and 79.5±10.4% (median = 80%) for the β²/α ratio." Please report individual subjects' values."

This table shows the individual values.

“Figure 3 reports values of QP much lower than the mean values reported in the text. Please clarify.”

Figure 3 illustrates the effects of the selection of the sub-band beta upon the quality parameter. The figure illustrates values for one patient.

“Which are the coherence values for Figure 4? The Y axis is missing.”

The computed coherograms are shown using arbitrary units.

“Figure 6: Is not the predicted predicting? Or, is not the movement pre-threshold predicting the post-threshold movement? Is that the reason why the Y channel is so good predictor of movement? Please clarify. If it is reduction of tremor, please show some examples.”

There is very often one channel of the sensor which gives a much better predicting value. This rule can be applied to movement in general and to tremor in particular: one direction is much more informative (this is called the dominant axis). This explains why some groups consider that a single-axis sensor may provide relevant information.

“The motivation of the simulation is not clear, because only the EEG can be simulated, not the movement. Please clarify the interest of the simulations study or remove it.”

The simulation study is very important in order to have information about the strength of the ERS/ERD phenomenon. This parameter is important to state that a given patient having a strong enough ERS/ERD may be enrolled for a BCI-based therapy. This is a critical step, because some patients will benefit from a BCI-based management, whereas others not. We want to underline that we anticipate that in the near future this methodology will help to select patients for BCI programs. For the moment, some patients are enrolled and perform hours of training without success. An ERS/ERD-based decision to include patients in training programs will render the BCI-based management much more efficient.
Discussion:
“The discussion seems to clarify that the excellent predictor of reduction of tremor is produced by a different command than the voluntary control. But tremor should have a definite frequency, and this frequency property of the tremor seems not be taken in account in present report.”

Tremor parameters have not been taken into account in this paper which is focused on the detection of voluntary movement. The overall concept of this European study was to predict the intentionality of movement and not to track the tremor parameters. FES is supposed to be active on the various forms of tremor. The point raised by the reviewer was addressed in detail in a previous European study (Manto et al., 2003). Tremor is a very dynamic process, but the major advantage of FES is to have a non-selective suppressive effect by acting on the peripheral nervous system.
We thank the referee for their criticisms.

Introduction:
“In Figure 1 the dashed line seemed to indicate the movement, but how it is possible that the movement itself is predicted by the movement kinematic - that should be zero before movement. Except if some thresholds are defined, pre-thresholds movements are the predictors. Please clarify the sentence "decrement of the rest tremor before movement onset" - does it means that the reduction in tremor is not the initial voluntary movement but a different neural command which is being inhibited by the voluntary control? Then define physiological characteristics, frequency amplitude, of tremor. Otherwise it would be difficult to distinguish between the reduction of tremor and the initial phases of movement.”

The initiation phase of movement in a patient with rest tremor has been characterized in details in the literature (Papengut et al. 2013). In patients exhibiting a rest tremor, tremor suppression at movement onset (reduction in amplitude or complete cessation, detectable with kinematic sensors) is an example of noticeable changes in tremor features occurring at the beginning of the voluntary movement: tremor features change and this is detectable by kinematic analysis. It is presumed that the voluntary command inhibits the central oscillator generating rest tremor. Since we are using both accelerometry and gyroscopes, the beginning of the finger-to-nose movement is clearly identified by changes in kinematics.

The introduction and the legend of Figure 1 have been changed.
Methods:
“"Mean age of the patients was 62 ± 20 years". It would be more precise to describe the age of each individual subjects. Means are useful for high number of subjects. Same for other parameters.

We have included a table detailing age and other parameters in the Methods of the revised article. Patients were followed on a regular basis during this European project. The clinical scores were pretty stable, although slight clinical fluctuations were observed (this is very common in the follow-up of neurological patients exhibiting a tremor in the upper limb).

“"After (1) hearing an acoustic signal, the patient (2) prepared themselves mentally for the execution of movement and (3) performed the task." It is not clear how long it takes this preparation. Was it induced by the experimenter instructions or it was a spontaneous strategy? How long does each of the phases take?”

The text has been changed to the following:

“Patients were told to keep the most relaxed attitude. After hearing an acoustic signal, they prepared themselves for the execution of movement by mental imagery of the movement. During a single run, the task was repeated about 10 times.”

The preparation phase lasted typically between 2 and 8 sec. There was variability between trials depending on self-estimation by patients. This is typical in mental imagery. Some patients are “fast-imagers” and others are “slow-imagers”.

“Is it necessary to indicate the files code? Otherwise please suppress it.”

This is useful in making the figures more readable (see Figures 7, 9 and 10).

“"EEG signals were sampled at 256 Hz (re-sampling at 1000 Hz for synchronization purposes)." It seems that the data were re-sampled to a higher frequency. Could it be considered an interpolation rather than a re-sampling? Anyway it would be better to sample at 1000 Hz, if needed.”

Yes, we could consider an interpolation and/or a re-sampling. The rationale for the re-sampling at 1000 Hz is that it does not affect the spectral contents in the frequency sub-bands that are particularly of interest in our study. An interpolation technique is an alternative.

“Figure 2 is very difficult to follow, maybe doing a composite figure with accelerometer, gyroscopes and magnetometers separated would be better. One example of tremor suppression would be appreciated.”

We agree with the referee that this figure might be confusing. We have modified the figure in the revised article. The description of the sensors is reported in Gallego et al. (2010)

Sensors are a combination of triaxial accelerometers, gyroscopes, and magnetometers. The low weight of IMUs makes them an optimal solution, as tremor changes its characteristics if a larger mass is attached to the limbs. Moreover, their small size does not interfere with user’s movements.

The phenomenon of tremor suppression induced by the application of FES has been published earlier. Here is an example of essential tremor responding strongly to FES. This patient does not respond to any medication (including: propranolol, primidone, topiramate). Although refractory to conventional drugs, this patient was FES-sensitive.

Figure from:

Grimaldi G, Manto M: “Old” and Emerging Therapies of Human Tremor. Clinical Medicine Insights: Therapeutics. 2010; 2: 169-178. Publisher Full Text. Published under the Creative Commons CC-BY-NC 3.0 license.

“"The peaks (β/α and β²/α ratios) higher than a defined threshold were considered as indicators of a potential voluntary movement given that they represent the detection of the cortical motor preparation of the movement" The authors are very confident with this option, but some information should be given to the non-specialist of BCI.”

This method is now explained in the revised text. The following reference has been added: Pfurtscheller and Lopes da Silva (1999). This methodology is considered as a sound procedure for the detection of the preparation of movement.

“"Three time intervals were studied: pre-movement period, movement period, post-movement period. The pre-movement period (lasting 2 seconds) was defined according to the acoustic order given to the patients and the detection of the beginning of movement via the gyroscopes." Please give a more precise description of the time window analyzed - 2000 ms before the movement? 2000 ms after the auditory signal? In the middle? Was there always 2000 ms between auditory signal and movement?”

The following sentence has been added: “by considering 2 seconds back from the point of detection of the beginning of movement. We decided to use a period of 2000 msec based on the available literature which considers that 2 seconds encompasses the preparation phase at the cortical level.”

“"The peaks (β/α and β²/α ratios) higher than a defined threshold were considered as indicators of a potential voluntary movement" Was the threshold pre-defined a priori (which value?), or adjusted following the predictive value.”

This has been studied earlier. The best thresholding process should be decided in a case-by-case scenario, as described in Giuliana, Mario and Yassin (2011); % of maximum ratio overtime; threshold considering mean and standard deviation of the ratios.

“"More than 800 possible EEG/EMG combinations (n=832)", please clarify the origin of these 832 combinations."

The number of combinations corresponds to 13 EEG channels (excluding the 2 channels for the eyes) and 64 EMG channels (16 EMG channels for each of the 4 muscles of the upper limb)

13x64 = 832 combinations

“"Where p is the probability of movement and n the number of movements predicted", please define more precisely the probability of movement.”

The text has been changed to the following:

“Where p is the probability of movement (true positives) and n the number of movements predicted, as previously described for the EEG QP.”

“In general, it would be desirable to have an experimental protocol in which the subjects have the opportunity to decide if he/she wants to move or not. Or still better to go to a more ecological situation in which the subject is instructed to do the finger-to-nose movement at its own pace. And compare false positive and false negative predictions.”

Thanks to the acoustic signal, the period of preparation of movement followed by the execution of the task is clearly defined. The patient knows that after the signal (1) he/she has to relax, (2) he/she has to prepare for the movement, and (3) he/she has to execute it. It is important to note that it is much easier for neurological patients to follow this sequence with an acoustic signal and not to include an additional internal evaluation to move or not to move. The introduction of an additional decision to move or not is a source of complexity, which by itself interferes with the severity of tremor. Some neurological patients have difficulties and show hesitations for self-paced movements. The task is easier with the acoustic cue. See also the reply to Yvonne Hoeller.
Results:
“"The mean QP was 82±12% (median = 83.5%) for the β/α ratio and 79.5±10.4% (median = 80%) for the β²/α ratio." Please report individual subjects' values."

This table shows the individual values.

“Figure 3 reports values of QP much lower than the mean values reported in the text. Please clarify.”

Figure 3 illustrates the effects of the selection of the sub-band beta upon the quality parameter. The figure illustrates values for one patient.

“Which are the coherence values for Figure 4? The Y axis is missing.”

The computed coherograms are shown using arbitrary units.

“Figure 6: Is not the predicted predicting? Or, is not the movement pre-threshold predicting the post-threshold movement? Is that the reason why the Y channel is so good predictor of movement? Please clarify. If it is reduction of tremor, please show some examples.”

There is very often one channel of the sensor which gives a much better predicting value. This rule can be applied to movement in general and to tremor in particular: one direction is much more informative (this is called the dominant axis). This explains why some groups consider that a single-axis sensor may provide relevant information.

“The motivation of the simulation is not clear, because only the EEG can be simulated, not the movement. Please clarify the interest of the simulations study or remove it.”

The simulation study is very important in order to have information about the strength of the ERS/ERD phenomenon. This parameter is important to state that a given patient having a strong enough ERS/ERD may be enrolled for a BCI-based therapy. This is a critical step, because some patients will benefit from a BCI-based management, whereas others not. We want to underline that we anticipate that in the near future this methodology will help to select patients for BCI programs. For the moment, some patients are enrolled and perform hours of training without success. An ERS/ERD-based decision to include patients in training programs will render the BCI-based management much more efficient.
Discussion:
“The discussion seems to clarify that the excellent predictor of reduction of tremor is produced by a different command than the voluntary control. But tremor should have a definite frequency, and this frequency property of the tremor seems not be taken in account in present report.”

Tremor parameters have not been taken into account in this paper which is focused on the detection of voluntary movement. The overall concept of this European study was to predict the intentionality of movement and not to track the tremor parameters. FES is supposed to be active on the various forms of tremor. The point raised by the reviewer was addressed in detail in a previous European study (Manto et al., 2003). Tremor is a very dynamic process, but the major advantage of FES is to have a non-selective suppressive effect by acting on the peripheral nervous system.
Competing Interests: No competing interests were disclosed. Close
Report a concern
Respond or Comment

COMMENTS ON THIS REPORT

Author Response (F1000Research Advisory Board Member) 24 Apr 2014

Mario Manto, Unité d’Etude du Mouvement, Université Libre de Bruxelles, Erasme, Bruxelles, 1070, Belgium

24 Apr 2014

Author Response F1000Research Advisory Board Member
We thank the referee for their criticisms.

Introduction:
- “In Figure 1 the dashed line seemed to indicate the movement, but how it is possible that the movement itself is predicted by the
... Continue reading
We thank the referee for their criticisms.

Introduction:
“In Figure 1 the dashed line seemed to indicate the movement, but how it is possible that the movement itself is predicted by the movement kinematic - that should be zero before movement. Except if some thresholds are defined, pre-thresholds movements are the predictors. Please clarify the sentence "decrement of the rest tremor before movement onset" - does it means that the reduction in tremor is not the initial voluntary movement but a different neural command which is being inhibited by the voluntary control? Then define physiological characteristics, frequency amplitude, of tremor. Otherwise it would be difficult to distinguish between the reduction of tremor and the initial phases of movement.”

The initiation phase of movement in a patient with rest tremor has been characterized in details in the literature (Papengut et al. 2013). In patients exhibiting a rest tremor, tremor suppression at movement onset (reduction in amplitude or complete cessation, detectable with kinematic sensors) is an example of noticeable changes in tremor features occurring at the beginning of the voluntary movement: tremor features change and this is detectable by kinematic analysis. It is presumed that the voluntary command inhibits the central oscillator generating rest tremor. Since we are using both accelerometry and gyroscopes, the beginning of the finger-to-nose movement is clearly identified by changes in kinematics.

The introduction and the legend of Figure 1 have been changed.
Methods:
“"Mean age of the patients was 62 ± 20 years". It would be more precise to describe the age of each individual subjects. Means are useful for high number of subjects. Same for other parameters.

We have included a table detailing age and other parameters in the Methods of the revised article. Patients were followed on a regular basis during this European project. The clinical scores were pretty stable, although slight clinical fluctuations were observed (this is very common in the follow-up of neurological patients exhibiting a tremor in the upper limb).

“"After (1) hearing an acoustic signal, the patient (2) prepared themselves mentally for the execution of movement and (3) performed the task." It is not clear how long it takes this preparation. Was it induced by the experimenter instructions or it was a spontaneous strategy? How long does each of the phases take?”

The text has been changed to the following:

“Patients were told to keep the most relaxed attitude. After hearing an acoustic signal, they prepared themselves for the execution of movement by mental imagery of the movement. During a single run, the task was repeated about 10 times.”

The preparation phase lasted typically between 2 and 8 sec. There was variability between trials depending on self-estimation by patients. This is typical in mental imagery. Some patients are “fast-imagers” and others are “slow-imagers”.

“Is it necessary to indicate the files code? Otherwise please suppress it.”

This is useful in making the figures more readable (see Figures 7, 9 and 10).

“"EEG signals were sampled at 256 Hz (re-sampling at 1000 Hz for synchronization purposes)." It seems that the data were re-sampled to a higher frequency. Could it be considered an interpolation rather than a re-sampling? Anyway it would be better to sample at 1000 Hz, if needed.”

Yes, we could consider an interpolation and/or a re-sampling. The rationale for the re-sampling at 1000 Hz is that it does not affect the spectral contents in the frequency sub-bands that are particularly of interest in our study. An interpolation technique is an alternative.

“Figure 2 is very difficult to follow, maybe doing a composite figure with accelerometer, gyroscopes and magnetometers separated would be better. One example of tremor suppression would be appreciated.”

We agree with the referee that this figure might be confusing. We have modified the figure in the revised article. The description of the sensors is reported in Gallego et al. (2010)

Sensors are a combination of triaxial accelerometers, gyroscopes, and magnetometers. The low weight of IMUs makes them an optimal solution, as tremor changes its characteristics if a larger mass is attached to the limbs. Moreover, their small size does not interfere with user’s movements.

The phenomenon of tremor suppression induced by the application of FES has been published earlier. Here is an example of essential tremor responding strongly to FES. This patient does not respond to any medication (including: propranolol, primidone, topiramate). Although refractory to conventional drugs, this patient was FES-sensitive.

Figure from:

Grimaldi G, Manto M: “Old” and Emerging Therapies of Human Tremor. Clinical Medicine Insights: Therapeutics. 2010; 2: 169-178. Publisher Full Text. Published under the Creative Commons CC-BY-NC 3.0 license.

“"The peaks (β/α and β²/α ratios) higher than a defined threshold were considered as indicators of a potential voluntary movement given that they represent the detection of the cortical motor preparation of the movement" The authors are very confident with this option, but some information should be given to the non-specialist of BCI.”

This method is now explained in the revised text. The following reference has been added: Pfurtscheller and Lopes da Silva (1999). This methodology is considered as a sound procedure for the detection of the preparation of movement.

“"Three time intervals were studied: pre-movement period, movement period, post-movement period. The pre-movement period (lasting 2 seconds) was defined according to the acoustic order given to the patients and the detection of the beginning of movement via the gyroscopes." Please give a more precise description of the time window analyzed - 2000 ms before the movement? 2000 ms after the auditory signal? In the middle? Was there always 2000 ms between auditory signal and movement?”

The following sentence has been added: “by considering 2 seconds back from the point of detection of the beginning of movement. We decided to use a period of 2000 msec based on the available literature which considers that 2 seconds encompasses the preparation phase at the cortical level.”

“"The peaks (β/α and β²/α ratios) higher than a defined threshold were considered as indicators of a potential voluntary movement" Was the threshold pre-defined a priori (which value?), or adjusted following the predictive value.”

This has been studied earlier. The best thresholding process should be decided in a case-by-case scenario, as described in Giuliana, Mario and Yassin (2011); % of maximum ratio overtime; threshold considering mean and standard deviation of the ratios.

“"More than 800 possible EEG/EMG combinations (n=832)", please clarify the origin of these 832 combinations."

The number of combinations corresponds to 13 EEG channels (excluding the 2 channels for the eyes) and 64 EMG channels (16 EMG channels for each of the 4 muscles of the upper limb)

13x64 = 832 combinations

“"Where p is the probability of movement and n the number of movements predicted", please define more precisely the probability of movement.”

The text has been changed to the following:

“Where p is the probability of movement (true positives) and n the number of movements predicted, as previously described for the EEG QP.”

“In general, it would be desirable to have an experimental protocol in which the subjects have the opportunity to decide if he/she wants to move or not. Or still better to go to a more ecological situation in which the subject is instructed to do the finger-to-nose movement at its own pace. And compare false positive and false negative predictions.”

Thanks to the acoustic signal, the period of preparation of movement followed by the execution of the task is clearly defined. The patient knows that after the signal (1) he/she has to relax, (2) he/she has to prepare for the movement, and (3) he/she has to execute it. It is important to note that it is much easier for neurological patients to follow this sequence with an acoustic signal and not to include an additional internal evaluation to move or not to move. The introduction of an additional decision to move or not is a source of complexity, which by itself interferes with the severity of tremor. Some neurological patients have difficulties and show hesitations for self-paced movements. The task is easier with the acoustic cue. See also the reply to Yvonne Hoeller.
Results:
“"The mean QP was 82±12% (median = 83.5%) for the β/α ratio and 79.5±10.4% (median = 80%) for the β²/α ratio." Please report individual subjects' values."

This table shows the individual values.

“Figure 3 reports values of QP much lower than the mean values reported in the text. Please clarify.”

Figure 3 illustrates the effects of the selection of the sub-band beta upon the quality parameter. The figure illustrates values for one patient.

“Which are the coherence values for Figure 4? The Y axis is missing.”

The computed coherograms are shown using arbitrary units.

“Figure 6: Is not the predicted predicting? Or, is not the movement pre-threshold predicting the post-threshold movement? Is that the reason why the Y channel is so good predictor of movement? Please clarify. If it is reduction of tremor, please show some examples.”

There is very often one channel of the sensor which gives a much better predicting value. This rule can be applied to movement in general and to tremor in particular: one direction is much more informative (this is called the dominant axis). This explains why some groups consider that a single-axis sensor may provide relevant information.

“The motivation of the simulation is not clear, because only the EEG can be simulated, not the movement. Please clarify the interest of the simulations study or remove it.”

The simulation study is very important in order to have information about the strength of the ERS/ERD phenomenon. This parameter is important to state that a given patient having a strong enough ERS/ERD may be enrolled for a BCI-based therapy. This is a critical step, because some patients will benefit from a BCI-based management, whereas others not. We want to underline that we anticipate that in the near future this methodology will help to select patients for BCI programs. For the moment, some patients are enrolled and perform hours of training without success. An ERS/ERD-based decision to include patients in training programs will render the BCI-based management much more efficient.
Discussion:
“The discussion seems to clarify that the excellent predictor of reduction of tremor is produced by a different command than the voluntary control. But tremor should have a definite frequency, and this frequency property of the tremor seems not be taken in account in present report.”

Tremor parameters have not been taken into account in this paper which is focused on the detection of voluntary movement. The overall concept of this European study was to predict the intentionality of movement and not to track the tremor parameters. FES is supposed to be active on the various forms of tremor. The point raised by the reviewer was addressed in detail in a previous European study (Manto et al., 2003). Tremor is a very dynamic process, but the major advantage of FES is to have a non-selective suppressive effect by acting on the peripheral nervous system.
We thank the referee for their criticisms.

Introduction:
“In Figure 1 the dashed line seemed to indicate the movement, but how it is possible that the movement itself is predicted by the movement kinematic - that should be zero before movement. Except if some thresholds are defined, pre-thresholds movements are the predictors. Please clarify the sentence "decrement of the rest tremor before movement onset" - does it means that the reduction in tremor is not the initial voluntary movement but a different neural command which is being inhibited by the voluntary control? Then define physiological characteristics, frequency amplitude, of tremor. Otherwise it would be difficult to distinguish between the reduction of tremor and the initial phases of movement.”

The initiation phase of movement in a patient with rest tremor has been characterized in details in the literature (Papengut et al. 2013). In patients exhibiting a rest tremor, tremor suppression at movement onset (reduction in amplitude or complete cessation, detectable with kinematic sensors) is an example of noticeable changes in tremor features occurring at the beginning of the voluntary movement: tremor features change and this is detectable by kinematic analysis. It is presumed that the voluntary command inhibits the central oscillator generating rest tremor. Since we are using both accelerometry and gyroscopes, the beginning of the finger-to-nose movement is clearly identified by changes in kinematics.

The introduction and the legend of Figure 1 have been changed.
Methods:
“"Mean age of the patients was 62 ± 20 years". It would be more precise to describe the age of each individual subjects. Means are useful for high number of subjects. Same for other parameters.

We have included a table detailing age and other parameters in the Methods of the revised article. Patients were followed on a regular basis during this European project. The clinical scores were pretty stable, although slight clinical fluctuations were observed (this is very common in the follow-up of neurological patients exhibiting a tremor in the upper limb).

“"After (1) hearing an acoustic signal, the patient (2) prepared themselves mentally for the execution of movement and (3) performed the task." It is not clear how long it takes this preparation. Was it induced by the experimenter instructions or it was a spontaneous strategy? How long does each of the phases take?”

The text has been changed to the following:

“Patients were told to keep the most relaxed attitude. After hearing an acoustic signal, they prepared themselves for the execution of movement by mental imagery of the movement. During a single run, the task was repeated about 10 times.”

The preparation phase lasted typically between 2 and 8 sec. There was variability between trials depending on self-estimation by patients. This is typical in mental imagery. Some patients are “fast-imagers” and others are “slow-imagers”.

“Is it necessary to indicate the files code? Otherwise please suppress it.”

This is useful in making the figures more readable (see Figures 7, 9 and 10).

“"EEG signals were sampled at 256 Hz (re-sampling at 1000 Hz for synchronization purposes)." It seems that the data were re-sampled to a higher frequency. Could it be considered an interpolation rather than a re-sampling? Anyway it would be better to sample at 1000 Hz, if needed.”

Yes, we could consider an interpolation and/or a re-sampling. The rationale for the re-sampling at 1000 Hz is that it does not affect the spectral contents in the frequency sub-bands that are particularly of interest in our study. An interpolation technique is an alternative.

“Figure 2 is very difficult to follow, maybe doing a composite figure with accelerometer, gyroscopes and magnetometers separated would be better. One example of tremor suppression would be appreciated.”

We agree with the referee that this figure might be confusing. We have modified the figure in the revised article. The description of the sensors is reported in Gallego et al. (2010)

Sensors are a combination of triaxial accelerometers, gyroscopes, and magnetometers. The low weight of IMUs makes them an optimal solution, as tremor changes its characteristics if a larger mass is attached to the limbs. Moreover, their small size does not interfere with user’s movements.

The phenomenon of tremor suppression induced by the application of FES has been published earlier. Here is an example of essential tremor responding strongly to FES. This patient does not respond to any medication (including: propranolol, primidone, topiramate). Although refractory to conventional drugs, this patient was FES-sensitive.

Figure from:

Grimaldi G, Manto M: “Old” and Emerging Therapies of Human Tremor. Clinical Medicine Insights: Therapeutics. 2010; 2: 169-178. Publisher Full Text. Published under the Creative Commons CC-BY-NC 3.0 license.

“"The peaks (β/α and β²/α ratios) higher than a defined threshold were considered as indicators of a potential voluntary movement given that they represent the detection of the cortical motor preparation of the movement" The authors are very confident with this option, but some information should be given to the non-specialist of BCI.”

This method is now explained in the revised text. The following reference has been added: Pfurtscheller and Lopes da Silva (1999). This methodology is considered as a sound procedure for the detection of the preparation of movement.

“"Three time intervals were studied: pre-movement period, movement period, post-movement period. The pre-movement period (lasting 2 seconds) was defined according to the acoustic order given to the patients and the detection of the beginning of movement via the gyroscopes." Please give a more precise description of the time window analyzed - 2000 ms before the movement? 2000 ms after the auditory signal? In the middle? Was there always 2000 ms between auditory signal and movement?”

The following sentence has been added: “by considering 2 seconds back from the point of detection of the beginning of movement. We decided to use a period of 2000 msec based on the available literature which considers that 2 seconds encompasses the preparation phase at the cortical level.”

“"The peaks (β/α and β²/α ratios) higher than a defined threshold were considered as indicators of a potential voluntary movement" Was the threshold pre-defined a priori (which value?), or adjusted following the predictive value.”

This has been studied earlier. The best thresholding process should be decided in a case-by-case scenario, as described in Giuliana, Mario and Yassin (2011); % of maximum ratio overtime; threshold considering mean and standard deviation of the ratios.

“"More than 800 possible EEG/EMG combinations (n=832)", please clarify the origin of these 832 combinations."

The number of combinations corresponds to 13 EEG channels (excluding the 2 channels for the eyes) and 64 EMG channels (16 EMG channels for each of the 4 muscles of the upper limb)

13x64 = 832 combinations

“"Where p is the probability of movement and n the number of movements predicted", please define more precisely the probability of movement.”

The text has been changed to the following:

“Where p is the probability of movement (true positives) and n the number of movements predicted, as previously described for the EEG QP.”

“In general, it would be desirable to have an experimental protocol in which the subjects have the opportunity to decide if he/she wants to move or not. Or still better to go to a more ecological situation in which the subject is instructed to do the finger-to-nose movement at its own pace. And compare false positive and false negative predictions.”

Thanks to the acoustic signal, the period of preparation of movement followed by the execution of the task is clearly defined. The patient knows that after the signal (1) he/she has to relax, (2) he/she has to prepare for the movement, and (3) he/she has to execute it. It is important to note that it is much easier for neurological patients to follow this sequence with an acoustic signal and not to include an additional internal evaluation to move or not to move. The introduction of an additional decision to move or not is a source of complexity, which by itself interferes with the severity of tremor. Some neurological patients have difficulties and show hesitations for self-paced movements. The task is easier with the acoustic cue. See also the reply to Yvonne Hoeller.
Results:
“"The mean QP was 82±12% (median = 83.5%) for the β/α ratio and 79.5±10.4% (median = 80%) for the β²/α ratio." Please report individual subjects' values."

This table shows the individual values.

“Figure 3 reports values of QP much lower than the mean values reported in the text. Please clarify.”

Figure 3 illustrates the effects of the selection of the sub-band beta upon the quality parameter. The figure illustrates values for one patient.

“Which are the coherence values for Figure 4? The Y axis is missing.”

The computed coherograms are shown using arbitrary units.

“Figure 6: Is not the predicted predicting? Or, is not the movement pre-threshold predicting the post-threshold movement? Is that the reason why the Y channel is so good predictor of movement? Please clarify. If it is reduction of tremor, please show some examples.”

There is very often one channel of the sensor which gives a much better predicting value. This rule can be applied to movement in general and to tremor in particular: one direction is much more informative (this is called the dominant axis). This explains why some groups consider that a single-axis sensor may provide relevant information.

“The motivation of the simulation is not clear, because only the EEG can be simulated, not the movement. Please clarify the interest of the simulations study or remove it.”

The simulation study is very important in order to have information about the strength of the ERS/ERD phenomenon. This parameter is important to state that a given patient having a strong enough ERS/ERD may be enrolled for a BCI-based therapy. This is a critical step, because some patients will benefit from a BCI-based management, whereas others not. We want to underline that we anticipate that in the near future this methodology will help to select patients for BCI programs. For the moment, some patients are enrolled and perform hours of training without success. An ERS/ERD-based decision to include patients in training programs will render the BCI-based management much more efficient.
Discussion:
“The discussion seems to clarify that the excellent predictor of reduction of tremor is produced by a different command than the voluntary control. But tremor should have a definite frequency, and this frequency property of the tremor seems not be taken in account in present report.”

Tremor parameters have not been taken into account in this paper which is focused on the detection of voluntary movement. The overall concept of this European study was to predict the intentionality of movement and not to track the tremor parameters. FES is supposed to be active on the various forms of tremor. The point raised by the reviewer was addressed in detail in a previous European study (Manto et al., 2003). Tremor is a very dynamic process, but the major advantage of FES is to have a non-selective suppressive effect by acting on the peripheral nervous system.
Competing Interests: No competing interests were disclosed. Close
Report a concern

Views

Reviewer Report 13 Jan 2014

Yvonne Hoeller, Christian-Doppler-Clinic, Paracelsus Medical University, Salzburg, Austria

Approved with Reservations

https://doi.org/10.5256/f1000research.3288.r2883

This article presents a highly promising idea of using a multimodal control unit for FES to treat tremor during movement. I think this is a valuable contribution to the literature since the possible application (closed-loop FES) is an auspicious field of treatment research.

The manuscript is well-written and technically sound. However, due to lack of clarity I have several questions regarding the methods and the results. Moreover, given the exhaustive analysis of EEG frequency ratios and EEG-MEG coherence, I would suggest applying some feature selection methods in order to overcome the problem of multidimensional data, which is hard to present and to interpret.

Abstract
The sentence "A BCI-driven detection of voluntary movement is used to trigger FES in a closed-loop approach." sounds to me like you have used FES in this study. Perhaps it would be less misleading if you wrote this in the subjunctive.

Introduction
In the introduction you emphasize the limitations of BCIs, which are based on conventional EEG analysis. Although I fully agree with you, this is a rather unspecific statement. Does this mean that "conventional" EEG analysis is less reliable for BCI-performance than "high-tech" EEG-analysis? Although we both know that this is not the case (BCIs are fed with highly sophisticated markers of the EEG and still do not perform at 100%), the sentence could be understood in this way. Therefore, I would suggest that you specify that you mean BCIs which ware based on EEG analysis only.

I would like to make a further point on this: BCI users differ between each other in the way they can voluntarily modify their brain activity, and there is even an interindividual difference in the detectability of movement-related EEG-activity. Moreover, the fact that movement disorders often show up with brain atrophy or neuroplastic changes makes it difficult to generalize BCI markers that have been tested in a healthy population to patients with varying pathologies. I think this variance is a major reason why your multimodal processing could do so much better than a BCI-system that is solely based on EEG analysis.

Methods

(A) I don't think that the sentence "Patients and the experimental procedure were as detailed in the next sections." in the first paragraph of the Methods section is necessary (the reader sees that there is a section for patients etc.)
(A) Maybe in this first paragraph it would be nice to read that the different modules act during different time-windows.
(B) Why did you prefer acoustically triggered movement over self-paced movement? How did you ensure that the acoustic signal did not influence the EEG signal which was used for detection of movement planning?
(B) Why did you restrict your EEG-setup to centrally positioned electrodes? Movement planning involves frontal regions (e.g. electrodes F3, F4, F7, F8) and it is highly likely that you get a better prediction of movement if you include signals from these positions.
(B) How did you avoid blinking during the recordings? If you tell the participants that they should not blink, they might concentrate on this instruction instead on the task, making EEG-data less valid. In addition, participants who are told not to blink usually blink more frequently than if you would not mention blinks.
(Fig. 2) I did not understand the reason why you only used three colors for the lines in figure 2. The reader can distinguish the three cases but not which sensor is represented by what line. Moreover, the first blue line, entitled "Mouvement..." should be entitled Movement... and should be a dashed line as indicated below the figure. Are the three cases three different sensors, three patients or three movements?
(D) You write "upsampled EEG data..." and indicate that there were 256 samples - is this one second? Does an overlap of 250 in the time domain refer to the original sampling rate or to the upsampled data, resulting in 250ms? Did I get this right; the Hamming window was 1 sec but overlapped with 250ms?
(D) I do not exactly understand how you realized that the pre-movement period lasted for 2 sec, but participants performed the task following the acoustic signal. Were participants instructed to wait 2 sec? Or is this the average time the participants took until they performed the task?
(D) I did not understand what you intended by the (8 Hz, 9 Hz, ... 12 Hz) after the first interval.
(E) Possibly because this is the first time I have read about this very interesting method of correlating brain and muscle signals - I did not fully understand the segmentation/processing of the data. You segmented data into epochs of 200ms and calculated the FFT on this window - what then does the "window of 8 samples" mean? Moreover, how did you determine the optimal window length? I see that the epochs vary between the modules.

Results

(A) Why do you refer to reference no. 8 when you report your results? Aren't these your present results?
(A) The central areas showed the highest values of QPs - indeed, you used only a central montage?
(A) You talk about means - obviously, you may indicate averages over patients, but did you also average over electrodes?
(Fig. 3) What electrode positions are used to build this figure?
(Fig. 4) The vertical dashed lines seem to occur periodically (each 20ms) with a certain time-distance but not necessarily on the highest peaks - do you have an interpretation/explanation for this phenomenon?
(Fig. 5) With what rationale were the 2 patients and 3 trials chosen?
(Fig. 6) It would be helpful to rescale the x-axis, so that the beginning of movement is time 0 and then indicate steps of +-250ms.
(Fig. 9) What is the EEG/CorticoMuscular probability based on - averages across channels/channel combinations or one single channel/combination (the best one?)?
(Fig 14) There are not only continuous and dotted lines but also external lines with "big dots" - is this the range (min-max)?

Supplementary data
What do the rows in e.g. 001FN03.mat_EE...csv mean? Are these samples?

Discussion

You state that QP values greater than 90% were observed in some of the runs...That is, QP was calculated for each run? This is not clear from the methods section.
Why are EEG recordings more complex when tremor is generated in nuclei deep in the brain?
In the discussion of kinematic data it seems to me that you discuss the background generally without referring to your own results. You should rather discuss why the y axis alone is superior to x axis or a combination of the two.
Do probability trees really show the best association of parameters? In a subsequent sentence you write that all possible combinations need to be tested. To me probability trees as used in this paper seem to give the impression of how complex the problem is, but they do not answer the question: Which feature/combination of features leads to highest detection rates? This problem is solved by feature selection algorithms (see general remark 2).
I am not an FES-expert, but wonder if there is any literature about the instance of time when FES has to be applied in order to make a movement free of tremor. Should it be applied at movement onset, or before the movement is carried out, i.e., in the planning phase? It probably depends on each individual patient, since tremor can occur pre- movement or during movement. Thus, the kind of FES should be different for each patient and similarly, depending on the type of application, the EEG-part may or may not be useful. Also if planning the action induced the tremor, detection of movement intention based on EEG could be too late?
There is no discussion about the simulation results.

Conclusion

In the conclusion it seems that the QP is an EEG-specific value which can be complemented by values from other modules (kinematic...) - instead, the QP is a value for estimating the performance in detecting movement and can be applied to each modality. But is this really a main conclusion? I think the conclusion should be that the EEG can be supplemented by other modalities. However, the extent to which the detection rate of the EEG can be supplemented, i.e., how much the QP can be increased by combining several modalities, has not been evaluated.
The last minus one sentence: The term classifiers comes out of the blue. This technique deserves some place in the discussion (as suggested in general remark 2).
Last sentence: The approach has firstly to be implemented - the present manuscript is a pre-study. The next step is to integrate all of the modalities. Then you could evaluate the approach on a large sample.

General remarks

You use BCI in terms of a control unit. BCI is an interface between brain and computer. As such, your system would be a multimodal control unit, including also an EEG-module like often used for BCIs, but also body modules to control a stimulation unit. I think the term BCI is not the best choice here, since it does not take into consideration the EMG module etc.
The way such a problem would be solved by the current BCI-community is a classification by use of machine learning techniques i.e., you apply some feature selection algorithm and train your machine in discriminating movements based on the multimodal input. These two steps could further be included in one step e.g. by use of random forests. By doing so you evaluate the performance of your modules and find out which ones contribute most to a high detection rate - separately for each patient (thus, you take into account interindividual variability). I would at least include this option in the discussion.
I think the data presented here could help to determine what detection rate is possible by combining several modalities. This is what the reader could expect when they read the abstract and the introduction. Then, the conclusion could be that combining several modalities increases the detection rate or it does not change it or it decreases the detection rate (I expect that it increases it). Instead, the authors presented the detection rate by calculating a detection-rate affine measure (QP) separately for each module, and in the conclusion the authors just suggest to fusion the parameters. I think a deeper analysis (e.g. by using random forests...) could answer the very important question of how to increase EEG-based detection of movement intention by including information from other modules. I see that the authors want to leave this important question for future publications, but the abstract and the introduction should be clear in determining the aim of this study. The authors separately evaluated the value of multimodal parameters, in order to determine if it could be interesting to integrate them in one system.
The presentation of the results is rather descriptive, the authors report QP, SDs etc. but no statistical test is applied. It would have been interesting if the QPs differ between modalities, within modalities with respect to electrode locations etc. I think some statistical evaluation could allow more concrete conclusions to be drawn. Furthermore, a feature-selection algorithm can be based on some statistics. I would suggest having a look at the recent BCI-research which provides many ideas on how to reduce multidimensional data.
The cited references in the introduction and discussion are reduced to a minimum. I would suggest doing some extensive research on movement-related EEG studies etc.

Competing Interests: No competing interests were disclosed.

CITE

Report a concern

Author Response (F1000Research Advisory Board Member) 24 Apr 2014

Mario Manto, Unité d’Etude du Mouvement, Université Libre de Bruxelles, Erasme, Bruxelles, 1070, Belgium

24 Apr 2014

Author Response F1000Research Advisory Board Member
We thank the referee for their criticisms.
- “Moreover, given the exhaustive analysis of EEG frequency ratios and EEG-MEG coherence, I would suggest applying some feature selection methods in order to overcome
... Continue reading
We thank the referee for their criticisms.

“Moreover, given the exhaustive analysis of EEG frequency ratios and EEG-MEG coherence, I would suggest applying some feature selection methods in order to overcome the problem of multidimensional data, which is hard to present and to interpret.”
We have attempted to simplify the analysis, but unfortunately simplification would result in poorly informative findings. The field of BCI is highly complex and data often require an exhaustive approach in order to make BCIs really applicable to neurological patients. These patients are often heterogeneous in terms of mental imagery (see also the reply to Christoph M Michel) and a simple scheme could not be applicable to more than a single patient. This would mean that very few patients would benefit from BCI-based programs.

Abstract
“The sentence "A BCI-driven detection of voluntary movement is used to trigger FES in a closed-loop approach." sounds to me like you have used FES in this study. Perhaps it would be less misleading if you wrote this in the subjunctive.”
The relevant paragraph of the abstract has been changed to the following:

“The main purpose of this challenging project was to develop and validate a new treatment for upper limb tremor based on the combination of functional electrical stimulation (FES; which has been shown to reduce upper limb tremor) with a brain-computer interface (BCI); thus providing a BCI-driven detection of voluntary movement which can be used to trigger FES in a closed-loop approach.”

Since this article’s publication, our global concept has now been validated by the MENRVA Group who used an affordable, BCI-controlled, wearable robot and electrical stimulation to assist subjects in drinking a glass of water. In this very recent study, the set-up required an EEG headset on the head of subjects along with FES electrodes on their arm. An embedded potentiometer was used to measure wrist rotation angle whereas an encoder in the elbow motor was used to quantify elbow angle. A gyroscope was used for the shoulder (Looned et al., 2014).

The general approach of the project has been presented earlier (Rocon et al., 2010).

Introduction
“In the introduction you emphasize the limitations of BCIs, which are based on conventional EEG analysis. Although I fully agree with you, this is a rather unspecific statement. Does this mean that "conventional" EEG analysis is less reliable for BCI-performance than "high-tech" EEG-analysis? Although we both know that this is not the case (BCIs are fed with highly sophisticated markers of the EEG and still do not perform at 100%), the sentence could be understood in this way. Therefore, I would suggest that you specify that you mean BCIs which ware based on EEG analysis only.”
The word “only” has been added. As stated previously, recent studies point out that for some specific tasks a conventional affordable EEG can be used (Looned et al., 2014). We do not want to reduce the importance of EEG.

“I would like to make a further point on this: BCI users differ between each other in the way they can voluntarily modify their brain activity, and there is even an interindividual difference in the detectability of movement-related EEG-activity. Moreover, the fact that movement disorders often show up with brain atrophy or neuroplastic changes makes it difficult to generalize BCI markers that have been tested in a healthy population to patients with varying pathologies. I think this variance is a major reason why your multimodal processing could do so much better than a BCI-system that is solely based on EEG analysis.”
We have added these sentences to the article.

Methods
“I don't think that the sentence "Patients and the experimental procedure were as detailed in the next sections." in the first paragraph of the Methods section is necessary (the reader sees that there is a section for patients etc.)”
The sentence has been removed.

“Maybe in this first paragraph it would be nice to read that the different modules act during different time-windows”
The paragraph has been changed to the following:

“From each module, acting during different time-windows, (EEG, Kinematic and corticomuscular - described in detail in sections C-F) quality parameters (QPs) for the detection of the intentionality of movement or for the early detection of movement are extracted.”

“Why did you prefer acoustically triggered movement over self-paced movement? How did you ensure that the acoustic signal did not influence the EEG signal which was used for detection of movement planning”
This protocol did not generate artefacts as a consequence of the acoustic signal. Indeed, after the acoustic signal the subject first relaxes, then prepares the movement and subsequently executes it. This protocol provides a defined time window during which influences on EEG are minimized. Several groups in the world working with patients have observed that patients tend to execute automatic movements (probably with a smaller contribution of the cortical potential) when the task is self-paced. This is in contrast with experimental findings in control subjects (Niazi et al., 2012). Providing an acoustic cue is particularly interesting in Parkinson’s disease (Lohnes and Earhart, 2011). It is plausible that a visual or somatosensory cue could also be used (Rochester et al., 2007).

“Why did you restrict your EEG-setup to centrally positioned electrodes? Movement planning involves frontal regions (e.g. electrodes F3, F4, F7, F8) and it is highly likely that you get a better prediction of movement if you include signals from these positions”.
Our ultimate aim is to propose a wearable EEG cap with a few channels, in order to reach the goal of a BCI which could be used in daily life (outside the laboratory and the clinic) by neurological patients. Using 14 electrodes, we have detected the ERD/ERS phenomenon. The conventional caps which include the prefrontal electrodes require an important signal processing step, because of the artefacts generated - in particular by the frontalis muscle. This muscle often contaminates the EEG traces in neurological patients. Note McFarland et al. (2000)’s study which focused on the central areas of the brain for the principal component analysis related to motor imagery and movement. Schröder et al. (2003) have shown that choosing physiologically motivated channels improves classification accuracy when compared to all-channels. The choice of a subset of EEG channels is one of the selection features for the classification of EEG signals in BCI systems in order to avoid dealing with high dimensional and noisy data.

“How did you avoid blinking during the recordings? If you tell the participants that they should not blink, they might concentrate on this instruction instead on the task, making EEG-data less valid. In addition, participants who are told not to blink usually blink more frequently than if you would not mention blinks”
Patients were told not to blink only in the period after the acoustic signal until the end of the movement. They were free to blink or swallow after the end of the movement until the successive acoustic signal. Therefore, we did not encounter difficulties related to blinking prevention.
“I did not understand the reason why you only used three colours for the lines in figure 2. The reader can distinguish the three cases but not which sensor is represented by what line. Moreover, the first blue line, entitled "Mouvement..." should be entitled Movement... and should be a dashed line as indicated below the figure. Are the three cases three different sensors, three patients or three movements?”
We have modified Figure 2.

“You write "upsampled EEG data..." and indicate that there were 256 samples - is this one second? Does an overlap of 250 in the time domain refer to the original sampling rate or to the upsampled data, resulting in 250ms? Did I get this right; the Hamming window was 1 sec but overlapped with 250ms?”
Data were upsampled from 256 samples to 1000/sec. Subsequently, signal processing is applied to these upsampled data.

“I do not exactly understand how you realized that the pre-movement period lasted for 2 sec, but participants performed the task following the acoustic signal. Were participants instructed to wait 2 sec? Or is this the average time the participants took until they performed the task?”
The acoustic signals indicate the beginning of the test. After hearing the signal, the patients relaxed their face (no more blinking, swallowing....), prepared by mental imagery, and then executed the movement. In the study of Defebvre et al. (1999) desynchronization of EEG was recorded 2 s before to 0.5 s after voluntary wrist flexions from 11 leads covering the primary sensorimotor cortex (central), supplementary motor area (frontocentral) and parietal cortex (parietocentral). This has been added to the Methods.

“I did not understand what you intended by the (8 Hz, 9 Hz, ... 12 Hz) after the first interval.”
These are frequencies of interest that are used for the analysis.

“Possibly because this is the first time I have read about this very interesting method of correlating brain and muscle signals - I did not fully understand the segmentation/processing of the data. You segmented data into epochs of 200ms and calculated the FFT on this window - what then does the "window of 8 samples" mean? Moreover, how did you determine the optimal window length? I see that the epochs vary between the modules.”
This is a conventional method to calculate the FFT on epochs of data. According to the module used, the window may vary because the window is adapted to obtain the more relevant spectral information (see the details in McNames (2013)). The values used are based on our experience with signal processing in movement disorders.

Results
“Why do you refer to reference no. 8 when you report your results? Aren't these your present results?”
The present study provides a detailed analysis and novel data as compared to the previous reference, which corresponded to a conference presentation. In addition, the present article includes the simulation study which is novel and was not published earlier.

“The central areas showed the highest values of QPs - indeed, you used only a central montage?”
We represent here the QPs that reached a good value of accuracy.

“You talk about means - obviously, you may indicate averages over patients, but did you also average over electrodes?”
No, we did not average the traces over the electrodes. This results in a lower spatial resolution, especially in neurological patients with focal brain lesions or disorders. We have observed that individual channels provide more meaningful information as compared to averages for the task of finger-to-nose. Other studies have been performed in the framework of this project and have not shown a superiority of averages (they rather showed a lower performance when all the channels are averaged).

“(Fig. 3) What electrode positions are used to build this figure?”
These data correspond to the central area of the brain. This has been added to the revised article.

“(Fig. 4) The vertical dashed lines seem to occur periodically (each 20ms) with a certain time-distance but not necessarily on the highest peaks - do you have an interpretation/explanation for this phenomenon?”
This is well known for the cortico-muscular coherence. This is why some groups use a flexible window in their software to extract the best cortico-muscular coherence. There are several explanations: the variability in the preparation of movement, the variability in the corticospinal tract command from trial-to-trial, the variability in the muscle contraction from trial-to-trial and the electro-mechanical delay in muscle contraction (see Jenkins, Palmer and Cramer (2013) and Howatson et al. (2009)).

“(Fig. 5) With what rationale were the 2 patients and 3 trials chosen?”
These patients exhibited reproducible low values for the cortico-muscular coherence, by contrast to reproducible high values for the QP. This highlights the importance of our approach. This has been added to the revised article.

“(Fig. 6) It would be helpful to rescale the x-axis, so that the beginning of movement is time 0 and then indicate steps of +-250ms.”
It might be interesting to keep the same presentation in order to highlight the prediction phase from the post-movement period.

“(Fig. 9) What is the EEG/CorticoMuscular probability based on - averages across channels/channel combinations or one single channel/combination (the best one?)?”
The combinations of EEG/EMG were done for each electrode. Averages across channels decrease the values obtained, and therefore reduce the strength of the study. This is in agreement with the current wearable EEG caps, which include a few selected channels only (and this is also a better approach in terms of ergonomics and aesthetics).

“(Fig 14) There are not only continuous and dotted lines but also external lines with "big dots" - is this the range (min-max)?”
External lines with larger dots indicate the 95% confidence interval. This has been added in the legend of the figure in the revised article.

Supplementary data
"What do the rows in e.g. 001FN03.mat_EE...csv mean? Are these samples?"
Yes, these are samples. The referee and the reader can use the data to extract QPs and compare with other methods they might develop in the future.

Discussion
“You state that QP values greater than 90% were observed in some of the runs...That is, QP was calculated for each run? This is not clear from the methods section.”
QPs were calculated for each movement executed by the patients. One run contains several movements. QPs extracted showed good accuracy (fixed for values higher that 70%), with some QPs which were extremely good (accuracy greater than 90%). The methods section has been modified accordingly in the revised version of the article.

“Why are EEG recordings more complex when tremor is generated in nuclei deep in the brain?”
Because EEG activity is mainly driven by the cortical brain electrical activity, which is detectable through the scalp. Activities generated in depth, for instance in basal ganglia (putamen, caudate nucleus…), are very weakly recorded with conventional EEG electrodes. They require the use of invasive deep brain electrodes. The same observation can be put forward for tremor related to lacunar stroke.

“In the discussion of kinematic data it seems to me that you discuss the background generally without referring to your own results. You should rather discuss why the y axis alone is superior to x axis or a combination of the two.”
We have added one sentence explaining that there is very often a so-called dominant axis which provides the most meaningful information. For instance, in cases of cerebellar kinetic tremor, the vertical axis perpendicular to the direction of motion is the most meaningful (relevant for kinetic tremor).

“Do probability trees really show the best association of parameters? In a subsequent sentence you write that all possible combinations need to be tested. To me probability trees as used in this paper seem to give the impression of how complex the problem is, but they do not answer the question: Which feature/combination of features leads to highest detection rates? This problem is solved by feature selection algorithms (see general remark 2).”
The best association of QPs is a case by case decision. We confirm that the probability trees can be used to extract the best combination. However, these probability trees have been built for a given task and it is very likely that the ultimate choice will rely on the selection of the best probability trees related to a given number of selected tasks representative for daily life. A specific study should address this very interesting but very complex question.

“I am not an FES-expert, but wonder if there is any literature about the instance of time when FES has to be applied in order to make a movement free of tremor. Should it be applied at movement onset, or before the movement is carried out, i.e., in the planning phase? It probably depends on each individual patient, since tremor can occurr pre- movement or during movement. Thus, the kind of FES should be different for each patient and similarly, depending on the type of application, the EEG-part may or may not be useful. Also if planning the action induced the tremor, detection of movement intention based on EEG could be too late?”
Muscular FES induces mainly a peripheral suppression of tremor, since electrical stimulation exerts its effect on the activities of the agonist and antagonist muscles of the trembling limb, rather than on the central sources of tremor. Our aim is to trigger the electrical stimulator on the basis of an early detection of the intention of movement. FES appears as a viable option to suppress the different forms of tremor. Several articles have been published on this topic. For instance, our group has now demonstrated that FES is effective to block physiological tremor - Grimaldi, Fernandez and Manto (2013). The intensity of stimulation and the pattern of stimulation can be adapted as a function of the percentage of tremor reduction.

“There is no discussion about the simulation results.”
The following sentences have been added to the revised version of the article:

“Results obtained with the simulation study provide useful information about EEG QP in order to select patients more effectively for a BCI-based treatment, including rehabilitation. The simulation demonstrates the relationship between the threshold and the QP. Future studies could take advantage of these findings to select the best neurological candidates on the basis of the ERD/ERS for BCI-based management."

Conclusion
“In the conclusion it seems that the QP is an EEG-specific value which can be complemented by values from other modules (kinematic...) - instead, the QP is a value for estimating the performance in detecting movement and can be applied to each modality. But is this really a main conclusion? I think the conclusion should be that the EEG can be supplemented by other modalities. However, the extent to which the detection rate of the EEG can be supplemented, i.e., how much the QP can be increased by combining several modalities, has not been evaluated.”
The paragraph has been changed to the following:

“We propose that the EEG QP can be complemented by the QPs extracted from the cortico-muscular coherence and the QPs obtained by the analysis of the changes in the kinematic signals, which occur prior to the voluntary movements. We suggest a fusion of the QP parameters in order to increase the likelihood to detect the intentionality of movement. The analysis of the corticomuscular coherence shows that this parameter alone cannot be used to predict voluntary motion and be implemented in a BCI”.

Some studies focusing only on corticomuscular coherence have failed.

“The last minus one sentence: The term classifiers comes out of the blue. This technique deserves some place in the discussion (as suggested in general remark 2). ”
The word “classifier” has been changed to:

“classification algorithms for BCI system in order to extract EEG patterns related to a cognitive or motor status”.

The following reference has been added: Pfurtscheller et al. (1996).

“Last sentence: The approach has firstly to be implemented - the present manuscript is a pre-study. The next step is to integrate all of the modalities. Then you could evaluate the approach on a large sample.”
The sentence has been changed to:

“Our approach will have to be tested in a large sample of patients in the future, in order to demonstrate its real clinical usefulness in daily practice. We propose to select a larger group of neurological patients to confirm the strength of the multimodal prediction.” in the revised version of the article.

General remarks
“You use BCI in terms of a control unit. BCI is an interface between brain and computer. As such, your system would be a multimodal control unit, including also an EEG-module like often used for BCIs, but also body modules to control a stimulation unit. I think the term BCI is not the best choice here, since it does not take into consideration the EMG module etc.”
The terminology is used in the literature, but we understand the point made by the referee. In the revised version of the Discussion, we have introduced the concept of a “multimodal control unit”:

“In theory, BCI is an interface between brain and computer. As such, our system would be a multimodal control unit, including also an EEG-module like often used for BCIs, but also body modules to control a stimulation unit.”

“The way such a problem would be solved by the current BCI-community is a classification by use of machine learning techniques i.e., you apply some feature selection algorithm and train your machine in discriminating movements based on the multimodal input. These two steps could further be included in one step e.g. by use of random forests. By doing so you evaluate the performance of your modules and find out which ones contribute most to a high detection rate - separately for each patient (thus, you take into account interindividual variability). I would at least include this option in the discussion.”
This is a great idea. We have added the following sentence to the Discussion:

“Future works could apply some feature selection algorithm and train the multimodal control unit in discriminating movements based on the multimodal input. These two steps could further be included in one step e.g. by use of random forests. By doing so, the performance of the modules would be evaluated to find out which ones contribute most to a high detection rate. This would be done separately for each patient, thus taking into account the inter-individual variability.”

“The way such a problem would be solved by the current BCI-community is a classification by use of machine learning techniques i.e., you apply some feature selection algorithm and train your machine in discriminating movements based on the multimodal input. These two steps could further be included in one step e.g. by use of random forests. By doing so you evaluate the performance of your modules and find out which ones contribute most to a high detection rate - separately for each patient (thus, you take into account interindividual variability). I would at least include this option in the discussion.”
We have added the following sentence to the Conclusion:

“The present study opens the door for future studies in terms of how to increase EEG-based detection of movement intention by incorporating information from multiple modules.”

We feel that we respond partially to this critical question, for instance by showing that a cortico-muscular module cannot provide a good evaluation of the intentionality of movement (some groups still try to rely on this parameter to detect the preparation of movement and to manipulate an effector).

“The presentation of the results is rather descriptive, the authors report QP, SDs etc. but no statistical test is applied. It would have been interesting if the QPs differ between modalities, within modalities with respect to electrode locations etc. I think some statistical evaluation could allow more concrete conclusions to be drawn. Furthermore, a feature-selection algorithm can be based on some statistics. I would suggest having a look at the recent BCI-research which provides many ideas on how to reduce multidimensional data.”
We have added the references below and have included the following sentence in the Discussion:

“Techniques of multichannel EEG compression, phase congruency and graphical representations aiming at a reduction of multidimensional data have been proposed [Gasser and Möcks, 1983; Logesparan and Rodriguez-Villegas, 2010; Dauwels et al. 2013]. However, no technique has been widely accepted so far.”
Gasser and Möcks (1983)
Logesparan and Rodriguez-Villegas (2010)
Dauwels et al. (2013)
The following references have been added:
Rektor, Sochůrková and Bocková (2006)
Shibasaki and Hallett (2006)
We thank the referee for their criticisms.

“Moreover, given the exhaustive analysis of EEG frequency ratios and EEG-MEG coherence, I would suggest applying some feature selection methods in order to overcome the problem of multidimensional data, which is hard to present and to interpret.”
We have attempted to simplify the analysis, but unfortunately simplification would result in poorly informative findings. The field of BCI is highly complex and data often require an exhaustive approach in order to make BCIs really applicable to neurological patients. These patients are often heterogeneous in terms of mental imagery (see also the reply to Christoph M Michel) and a simple scheme could not be applicable to more than a single patient. This would mean that very few patients would benefit from BCI-based programs.

Abstract
“The sentence "A BCI-driven detection of voluntary movement is used to trigger FES in a closed-loop approach." sounds to me like you have used FES in this study. Perhaps it would be less misleading if you wrote this in the subjunctive.”
The relevant paragraph of the abstract has been changed to the following:

“The main purpose of this challenging project was to develop and validate a new treatment for upper limb tremor based on the combination of functional electrical stimulation (FES; which has been shown to reduce upper limb tremor) with a brain-computer interface (BCI); thus providing a BCI-driven detection of voluntary movement which can be used to trigger FES in a closed-loop approach.”

Since this article’s publication, our global concept has now been validated by the MENRVA Group who used an affordable, BCI-controlled, wearable robot and electrical stimulation to assist subjects in drinking a glass of water. In this very recent study, the set-up required an EEG headset on the head of subjects along with FES electrodes on their arm. An embedded potentiometer was used to measure wrist rotation angle whereas an encoder in the elbow motor was used to quantify elbow angle. A gyroscope was used for the shoulder (Looned et al., 2014).

The general approach of the project has been presented earlier (Rocon et al., 2010).

Introduction
“In the introduction you emphasize the limitations of BCIs, which are based on conventional EEG analysis. Although I fully agree with you, this is a rather unspecific statement. Does this mean that "conventional" EEG analysis is less reliable for BCI-performance than "high-tech" EEG-analysis? Although we both know that this is not the case (BCIs are fed with highly sophisticated markers of the EEG and still do not perform at 100%), the sentence could be understood in this way. Therefore, I would suggest that you specify that you mean BCIs which ware based on EEG analysis only.”
The word “only” has been added. As stated previously, recent studies point out that for some specific tasks a conventional affordable EEG can be used (Looned et al., 2014). We do not want to reduce the importance of EEG.

“I would like to make a further point on this: BCI users differ between each other in the way they can voluntarily modify their brain activity, and there is even an interindividual difference in the detectability of movement-related EEG-activity. Moreover, the fact that movement disorders often show up with brain atrophy or neuroplastic changes makes it difficult to generalize BCI markers that have been tested in a healthy population to patients with varying pathologies. I think this variance is a major reason why your multimodal processing could do so much better than a BCI-system that is solely based on EEG analysis.”
We have added these sentences to the article.

Methods
“I don't think that the sentence "Patients and the experimental procedure were as detailed in the next sections." in the first paragraph of the Methods section is necessary (the reader sees that there is a section for patients etc.)”
The sentence has been removed.

“Maybe in this first paragraph it would be nice to read that the different modules act during different time-windows”
The paragraph has been changed to the following:

“From each module, acting during different time-windows, (EEG, Kinematic and corticomuscular - described in detail in sections C-F) quality parameters (QPs) for the detection of the intentionality of movement or for the early detection of movement are extracted.”

“Why did you prefer acoustically triggered movement over self-paced movement? How did you ensure that the acoustic signal did not influence the EEG signal which was used for detection of movement planning”
This protocol did not generate artefacts as a consequence of the acoustic signal. Indeed, after the acoustic signal the subject first relaxes, then prepares the movement and subsequently executes it. This protocol provides a defined time window during which influences on EEG are minimized. Several groups in the world working with patients have observed that patients tend to execute automatic movements (probably with a smaller contribution of the cortical potential) when the task is self-paced. This is in contrast with experimental findings in control subjects (Niazi et al., 2012). Providing an acoustic cue is particularly interesting in Parkinson’s disease (Lohnes and Earhart, 2011). It is plausible that a visual or somatosensory cue could also be used (Rochester et al., 2007).

“Why did you restrict your EEG-setup to centrally positioned electrodes? Movement planning involves frontal regions (e.g. electrodes F3, F4, F7, F8) and it is highly likely that you get a better prediction of movement if you include signals from these positions”.
Our ultimate aim is to propose a wearable EEG cap with a few channels, in order to reach the goal of a BCI which could be used in daily life (outside the laboratory and the clinic) by neurological patients. Using 14 electrodes, we have detected the ERD/ERS phenomenon. The conventional caps which include the prefrontal electrodes require an important signal processing step, because of the artefacts generated - in particular by the frontalis muscle. This muscle often contaminates the EEG traces in neurological patients. Note McFarland et al. (2000)’s study which focused on the central areas of the brain for the principal component analysis related to motor imagery and movement. Schröder et al. (2003) have shown that choosing physiologically motivated channels improves classification accuracy when compared to all-channels. The choice of a subset of EEG channels is one of the selection features for the classification of EEG signals in BCI systems in order to avoid dealing with high dimensional and noisy data.

“How did you avoid blinking during the recordings? If you tell the participants that they should not blink, they might concentrate on this instruction instead on the task, making EEG-data less valid. In addition, participants who are told not to blink usually blink more frequently than if you would not mention blinks”
Patients were told not to blink only in the period after the acoustic signal until the end of the movement. They were free to blink or swallow after the end of the movement until the successive acoustic signal. Therefore, we did not encounter difficulties related to blinking prevention.
“I did not understand the reason why you only used three colours for the lines in figure 2. The reader can distinguish the three cases but not which sensor is represented by what line. Moreover, the first blue line, entitled "Mouvement..." should be entitled Movement... and should be a dashed line as indicated below the figure. Are the three cases three different sensors, three patients or three movements?”
We have modified Figure 2.

“You write "upsampled EEG data..." and indicate that there were 256 samples - is this one second? Does an overlap of 250 in the time domain refer to the original sampling rate or to the upsampled data, resulting in 250ms? Did I get this right; the Hamming window was 1 sec but overlapped with 250ms?”
Data were upsampled from 256 samples to 1000/sec. Subsequently, signal processing is applied to these upsampled data.

“I do not exactly understand how you realized that the pre-movement period lasted for 2 sec, but participants performed the task following the acoustic signal. Were participants instructed to wait 2 sec? Or is this the average time the participants took until they performed the task?”
The acoustic signals indicate the beginning of the test. After hearing the signal, the patients relaxed their face (no more blinking, swallowing....), prepared by mental imagery, and then executed the movement. In the study of Defebvre et al. (1999) desynchronization of EEG was recorded 2 s before to 0.5 s after voluntary wrist flexions from 11 leads covering the primary sensorimotor cortex (central), supplementary motor area (frontocentral) and parietal cortex (parietocentral). This has been added to the Methods.

“I did not understand what you intended by the (8 Hz, 9 Hz, ... 12 Hz) after the first interval.”
These are frequencies of interest that are used for the analysis.

“Possibly because this is the first time I have read about this very interesting method of correlating brain and muscle signals - I did not fully understand the segmentation/processing of the data. You segmented data into epochs of 200ms and calculated the FFT on this window - what then does the "window of 8 samples" mean? Moreover, how did you determine the optimal window length? I see that the epochs vary between the modules.”
This is a conventional method to calculate the FFT on epochs of data. According to the module used, the window may vary because the window is adapted to obtain the more relevant spectral information (see the details in McNames (2013)). The values used are based on our experience with signal processing in movement disorders.

Results
“Why do you refer to reference no. 8 when you report your results? Aren't these your present results?”
The present study provides a detailed analysis and novel data as compared to the previous reference, which corresponded to a conference presentation. In addition, the present article includes the simulation study which is novel and was not published earlier.

“The central areas showed the highest values of QPs - indeed, you used only a central montage?”
We represent here the QPs that reached a good value of accuracy.

“You talk about means - obviously, you may indicate averages over patients, but did you also average over electrodes?”
No, we did not average the traces over the electrodes. This results in a lower spatial resolution, especially in neurological patients with focal brain lesions or disorders. We have observed that individual channels provide more meaningful information as compared to averages for the task of finger-to-nose. Other studies have been performed in the framework of this project and have not shown a superiority of averages (they rather showed a lower performance when all the channels are averaged).

“(Fig. 3) What electrode positions are used to build this figure?”
These data correspond to the central area of the brain. This has been added to the revised article.

“(Fig. 4) The vertical dashed lines seem to occur periodically (each 20ms) with a certain time-distance but not necessarily on the highest peaks - do you have an interpretation/explanation for this phenomenon?”
This is well known for the cortico-muscular coherence. This is why some groups use a flexible window in their software to extract the best cortico-muscular coherence. There are several explanations: the variability in the preparation of movement, the variability in the corticospinal tract command from trial-to-trial, the variability in the muscle contraction from trial-to-trial and the electro-mechanical delay in muscle contraction (see Jenkins, Palmer and Cramer (2013) and Howatson et al. (2009)).

“(Fig. 5) With what rationale were the 2 patients and 3 trials chosen?”
These patients exhibited reproducible low values for the cortico-muscular coherence, by contrast to reproducible high values for the QP. This highlights the importance of our approach. This has been added to the revised article.

“(Fig. 6) It would be helpful to rescale the x-axis, so that the beginning of movement is time 0 and then indicate steps of +-250ms.”
It might be interesting to keep the same presentation in order to highlight the prediction phase from the post-movement period.

“(Fig. 9) What is the EEG/CorticoMuscular probability based on - averages across channels/channel combinations or one single channel/combination (the best one?)?”
The combinations of EEG/EMG were done for each electrode. Averages across channels decrease the values obtained, and therefore reduce the strength of the study. This is in agreement with the current wearable EEG caps, which include a few selected channels only (and this is also a better approach in terms of ergonomics and aesthetics).

“(Fig 14) There are not only continuous and dotted lines but also external lines with "big dots" - is this the range (min-max)?”
External lines with larger dots indicate the 95% confidence interval. This has been added in the legend of the figure in the revised article.

Supplementary data
"What do the rows in e.g. 001FN03.mat_EE...csv mean? Are these samples?"
Yes, these are samples. The referee and the reader can use the data to extract QPs and compare with other methods they might develop in the future.

Discussion
“You state that QP values greater than 90% were observed in some of the runs...That is, QP was calculated for each run? This is not clear from the methods section.”
QPs were calculated for each movement executed by the patients. One run contains several movements. QPs extracted showed good accuracy (fixed for values higher that 70%), with some QPs which were extremely good (accuracy greater than 90%). The methods section has been modified accordingly in the revised version of the article.

“Why are EEG recordings more complex when tremor is generated in nuclei deep in the brain?”
Because EEG activity is mainly driven by the cortical brain electrical activity, which is detectable through the scalp. Activities generated in depth, for instance in basal ganglia (putamen, caudate nucleus…), are very weakly recorded with conventional EEG electrodes. They require the use of invasive deep brain electrodes. The same observation can be put forward for tremor related to lacunar stroke.

“In the discussion of kinematic data it seems to me that you discuss the background generally without referring to your own results. You should rather discuss why the y axis alone is superior to x axis or a combination of the two.”
We have added one sentence explaining that there is very often a so-called dominant axis which provides the most meaningful information. For instance, in cases of cerebellar kinetic tremor, the vertical axis perpendicular to the direction of motion is the most meaningful (relevant for kinetic tremor).

“Do probability trees really show the best association of parameters? In a subsequent sentence you write that all possible combinations need to be tested. To me probability trees as used in this paper seem to give the impression of how complex the problem is, but they do not answer the question: Which feature/combination of features leads to highest detection rates? This problem is solved by feature selection algorithms (see general remark 2).”
The best association of QPs is a case by case decision. We confirm that the probability trees can be used to extract the best combination. However, these probability trees have been built for a given task and it is very likely that the ultimate choice will rely on the selection of the best probability trees related to a given number of selected tasks representative for daily life. A specific study should address this very interesting but very complex question.

“I am not an FES-expert, but wonder if there is any literature about the instance of time when FES has to be applied in order to make a movement free of tremor. Should it be applied at movement onset, or before the movement is carried out, i.e., in the planning phase? It probably depends on each individual patient, since tremor can occurr pre- movement or during movement. Thus, the kind of FES should be different for each patient and similarly, depending on the type of application, the EEG-part may or may not be useful. Also if planning the action induced the tremor, detection of movement intention based on EEG could be too late?”
Muscular FES induces mainly a peripheral suppression of tremor, since electrical stimulation exerts its effect on the activities of the agonist and antagonist muscles of the trembling limb, rather than on the central sources of tremor. Our aim is to trigger the electrical stimulator on the basis of an early detection of the intention of movement. FES appears as a viable option to suppress the different forms of tremor. Several articles have been published on this topic. For instance, our group has now demonstrated that FES is effective to block physiological tremor - Grimaldi, Fernandez and Manto (2013). The intensity of stimulation and the pattern of stimulation can be adapted as a function of the percentage of tremor reduction.

“There is no discussion about the simulation results.”
The following sentences have been added to the revised version of the article:

“Results obtained with the simulation study provide useful information about EEG QP in order to select patients more effectively for a BCI-based treatment, including rehabilitation. The simulation demonstrates the relationship between the threshold and the QP. Future studies could take advantage of these findings to select the best neurological candidates on the basis of the ERD/ERS for BCI-based management."

Conclusion
“In the conclusion it seems that the QP is an EEG-specific value which can be complemented by values from other modules (kinematic...) - instead, the QP is a value for estimating the performance in detecting movement and can be applied to each modality. But is this really a main conclusion? I think the conclusion should be that the EEG can be supplemented by other modalities. However, the extent to which the detection rate of the EEG can be supplemented, i.e., how much the QP can be increased by combining several modalities, has not been evaluated.”
The paragraph has been changed to the following:

“We propose that the EEG QP can be complemented by the QPs extracted from the cortico-muscular coherence and the QPs obtained by the analysis of the changes in the kinematic signals, which occur prior to the voluntary movements. We suggest a fusion of the QP parameters in order to increase the likelihood to detect the intentionality of movement. The analysis of the corticomuscular coherence shows that this parameter alone cannot be used to predict voluntary motion and be implemented in a BCI”.

Some studies focusing only on corticomuscular coherence have failed.

“The last minus one sentence: The term classifiers comes out of the blue. This technique deserves some place in the discussion (as suggested in general remark 2). ”
The word “classifier” has been changed to:

“classification algorithms for BCI system in order to extract EEG patterns related to a cognitive or motor status”.

The following reference has been added: Pfurtscheller et al. (1996).

“Last sentence: The approach has firstly to be implemented - the present manuscript is a pre-study. The next step is to integrate all of the modalities. Then you could evaluate the approach on a large sample.”
The sentence has been changed to:

“Our approach will have to be tested in a large sample of patients in the future, in order to demonstrate its real clinical usefulness in daily practice. We propose to select a larger group of neurological patients to confirm the strength of the multimodal prediction.” in the revised version of the article.

General remarks
“You use BCI in terms of a control unit. BCI is an interface between brain and computer. As such, your system would be a multimodal control unit, including also an EEG-module like often used for BCIs, but also body modules to control a stimulation unit. I think the term BCI is not the best choice here, since it does not take into consideration the EMG module etc.”
The terminology is used in the literature, but we understand the point made by the referee. In the revised version of the Discussion, we have introduced the concept of a “multimodal control unit”:

“In theory, BCI is an interface between brain and computer. As such, our system would be a multimodal control unit, including also an EEG-module like often used for BCIs, but also body modules to control a stimulation unit.”

“The way such a problem would be solved by the current BCI-community is a classification by use of machine learning techniques i.e., you apply some feature selection algorithm and train your machine in discriminating movements based on the multimodal input. These two steps could further be included in one step e.g. by use of random forests. By doing so you evaluate the performance of your modules and find out which ones contribute most to a high detection rate - separately for each patient (thus, you take into account interindividual variability). I would at least include this option in the discussion.”
This is a great idea. We have added the following sentence to the Discussion:

“Future works could apply some feature selection algorithm and train the multimodal control unit in discriminating movements based on the multimodal input. These two steps could further be included in one step e.g. by use of random forests. By doing so, the performance of the modules would be evaluated to find out which ones contribute most to a high detection rate. This would be done separately for each patient, thus taking into account the inter-individual variability.”

“The way such a problem would be solved by the current BCI-community is a classification by use of machine learning techniques i.e., you apply some feature selection algorithm and train your machine in discriminating movements based on the multimodal input. These two steps could further be included in one step e.g. by use of random forests. By doing so you evaluate the performance of your modules and find out which ones contribute most to a high detection rate - separately for each patient (thus, you take into account interindividual variability). I would at least include this option in the discussion.”
We have added the following sentence to the Conclusion:

“The present study opens the door for future studies in terms of how to increase EEG-based detection of movement intention by incorporating information from multiple modules.”

We feel that we respond partially to this critical question, for instance by showing that a cortico-muscular module cannot provide a good evaluation of the intentionality of movement (some groups still try to rely on this parameter to detect the preparation of movement and to manipulate an effector).

“The presentation of the results is rather descriptive, the authors report QP, SDs etc. but no statistical test is applied. It would have been interesting if the QPs differ between modalities, within modalities with respect to electrode locations etc. I think some statistical evaluation could allow more concrete conclusions to be drawn. Furthermore, a feature-selection algorithm can be based on some statistics. I would suggest having a look at the recent BCI-research which provides many ideas on how to reduce multidimensional data.”
We have added the references below and have included the following sentence in the Discussion:

“Techniques of multichannel EEG compression, phase congruency and graphical representations aiming at a reduction of multidimensional data have been proposed [Gasser and Möcks, 1983; Logesparan and Rodriguez-Villegas, 2010; Dauwels et al. 2013]. However, no technique has been widely accepted so far.”
Gasser and Möcks (1983)
Logesparan and Rodriguez-Villegas (2010)
Dauwels et al. (2013)
The following references have been added:
Rektor, Sochůrková and Bocková (2006)
Shibasaki and Hallett (2006)
Competing Interests: No competing interest to declare. Close
Report a concern
Respond or Comment

COMMENTS ON THIS REPORT

Author Response (F1000Research Advisory Board Member) 24 Apr 2014

Mario Manto, Unité d’Etude du Mouvement, Université Libre de Bruxelles, Erasme, Bruxelles, 1070, Belgium

24 Apr 2014

Author Response F1000Research Advisory Board Member
We thank the referee for their criticisms.
- “Moreover, given the exhaustive analysis of EEG frequency ratios and EEG-MEG coherence, I would suggest applying some feature selection methods in order to overcome
... Continue reading
We thank the referee for their criticisms.

“Moreover, given the exhaustive analysis of EEG frequency ratios and EEG-MEG coherence, I would suggest applying some feature selection methods in order to overcome the problem of multidimensional data, which is hard to present and to interpret.”
We have attempted to simplify the analysis, but unfortunately simplification would result in poorly informative findings. The field of BCI is highly complex and data often require an exhaustive approach in order to make BCIs really applicable to neurological patients. These patients are often heterogeneous in terms of mental imagery (see also the reply to Christoph M Michel) and a simple scheme could not be applicable to more than a single patient. This would mean that very few patients would benefit from BCI-based programs.

Abstract
“The sentence "A BCI-driven detection of voluntary movement is used to trigger FES in a closed-loop approach." sounds to me like you have used FES in this study. Perhaps it would be less misleading if you wrote this in the subjunctive.”
The relevant paragraph of the abstract has been changed to the following:

“The main purpose of this challenging project was to develop and validate a new treatment for upper limb tremor based on the combination of functional electrical stimulation (FES; which has been shown to reduce upper limb tremor) with a brain-computer interface (BCI); thus providing a BCI-driven detection of voluntary movement which can be used to trigger FES in a closed-loop approach.”

Since this article’s publication, our global concept has now been validated by the MENRVA Group who used an affordable, BCI-controlled, wearable robot and electrical stimulation to assist subjects in drinking a glass of water. In this very recent study, the set-up required an EEG headset on the head of subjects along with FES electrodes on their arm. An embedded potentiometer was used to measure wrist rotation angle whereas an encoder in the elbow motor was used to quantify elbow angle. A gyroscope was used for the shoulder (Looned et al., 2014).

The general approach of the project has been presented earlier (Rocon et al., 2010).

Introduction
“In the introduction you emphasize the limitations of BCIs, which are based on conventional EEG analysis. Although I fully agree with you, this is a rather unspecific statement. Does this mean that "conventional" EEG analysis is less reliable for BCI-performance than "high-tech" EEG-analysis? Although we both know that this is not the case (BCIs are fed with highly sophisticated markers of the EEG and still do not perform at 100%), the sentence could be understood in this way. Therefore, I would suggest that you specify that you mean BCIs which ware based on EEG analysis only.”
The word “only” has been added. As stated previously, recent studies point out that for some specific tasks a conventional affordable EEG can be used (Looned et al., 2014). We do not want to reduce the importance of EEG.

“I would like to make a further point on this: BCI users differ between each other in the way they can voluntarily modify their brain activity, and there is even an interindividual difference in the detectability of movement-related EEG-activity. Moreover, the fact that movement disorders often show up with brain atrophy or neuroplastic changes makes it difficult to generalize BCI markers that have been tested in a healthy population to patients with varying pathologies. I think this variance is a major reason why your multimodal processing could do so much better than a BCI-system that is solely based on EEG analysis.”
We have added these sentences to the article.

Methods
“I don't think that the sentence "Patients and the experimental procedure were as detailed in the next sections." in the first paragraph of the Methods section is necessary (the reader sees that there is a section for patients etc.)”
The sentence has been removed.

“Maybe in this first paragraph it would be nice to read that the different modules act during different time-windows”
The paragraph has been changed to the following:

“From each module, acting during different time-windows, (EEG, Kinematic and corticomuscular - described in detail in sections C-F) quality parameters (QPs) for the detection of the intentionality of movement or for the early detection of movement are extracted.”

“Why did you prefer acoustically triggered movement over self-paced movement? How did you ensure that the acoustic signal did not influence the EEG signal which was used for detection of movement planning”
This protocol did not generate artefacts as a consequence of the acoustic signal. Indeed, after the acoustic signal the subject first relaxes, then prepares the movement and subsequently executes it. This protocol provides a defined time window during which influences on EEG are minimized. Several groups in the world working with patients have observed that patients tend to execute automatic movements (probably with a smaller contribution of the cortical potential) when the task is self-paced. This is in contrast with experimental findings in control subjects (Niazi et al., 2012). Providing an acoustic cue is particularly interesting in Parkinson’s disease (Lohnes and Earhart, 2011). It is plausible that a visual or somatosensory cue could also be used (Rochester et al., 2007).

“Why did you restrict your EEG-setup to centrally positioned electrodes? Movement planning involves frontal regions (e.g. electrodes F3, F4, F7, F8) and it is highly likely that you get a better prediction of movement if you include signals from these positions”.
Our ultimate aim is to propose a wearable EEG cap with a few channels, in order to reach the goal of a BCI which could be used in daily life (outside the laboratory and the clinic) by neurological patients. Using 14 electrodes, we have detected the ERD/ERS phenomenon. The conventional caps which include the prefrontal electrodes require an important signal processing step, because of the artefacts generated - in particular by the frontalis muscle. This muscle often contaminates the EEG traces in neurological patients. Note McFarland et al. (2000)’s study which focused on the central areas of the brain for the principal component analysis related to motor imagery and movement. Schröder et al. (2003) have shown that choosing physiologically motivated channels improves classification accuracy when compared to all-channels. The choice of a subset of EEG channels is one of the selection features for the classification of EEG signals in BCI systems in order to avoid dealing with high dimensional and noisy data.

“How did you avoid blinking during the recordings? If you tell the participants that they should not blink, they might concentrate on this instruction instead on the task, making EEG-data less valid. In addition, participants who are told not to blink usually blink more frequently than if you would not mention blinks”
Patients were told not to blink only in the period after the acoustic signal until the end of the movement. They were free to blink or swallow after the end of the movement until the successive acoustic signal. Therefore, we did not encounter difficulties related to blinking prevention.
“I did not understand the reason why you only used three colours for the lines in figure 2. The reader can distinguish the three cases but not which sensor is represented by what line. Moreover, the first blue line, entitled "Mouvement..." should be entitled Movement... and should be a dashed line as indicated below the figure. Are the three cases three different sensors, three patients or three movements?”
We have modified Figure 2.

“You write "upsampled EEG data..." and indicate that there were 256 samples - is this one second? Does an overlap of 250 in the time domain refer to the original sampling rate or to the upsampled data, resulting in 250ms? Did I get this right; the Hamming window was 1 sec but overlapped with 250ms?”
Data were upsampled from 256 samples to 1000/sec. Subsequently, signal processing is applied to these upsampled data.

“I do not exactly understand how you realized that the pre-movement period lasted for 2 sec, but participants performed the task following the acoustic signal. Were participants instructed to wait 2 sec? Or is this the average time the participants took until they performed the task?”
The acoustic signals indicate the beginning of the test. After hearing the signal, the patients relaxed their face (no more blinking, swallowing....), prepared by mental imagery, and then executed the movement. In the study of Defebvre et al. (1999) desynchronization of EEG was recorded 2 s before to 0.5 s after voluntary wrist flexions from 11 leads covering the primary sensorimotor cortex (central), supplementary motor area (frontocentral) and parietal cortex (parietocentral). This has been added to the Methods.

“I did not understand what you intended by the (8 Hz, 9 Hz, ... 12 Hz) after the first interval.”
These are frequencies of interest that are used for the analysis.

“Possibly because this is the first time I have read about this very interesting method of correlating brain and muscle signals - I did not fully understand the segmentation/processing of the data. You segmented data into epochs of 200ms and calculated the FFT on this window - what then does the "window of 8 samples" mean? Moreover, how did you determine the optimal window length? I see that the epochs vary between the modules.”
This is a conventional method to calculate the FFT on epochs of data. According to the module used, the window may vary because the window is adapted to obtain the more relevant spectral information (see the details in McNames (2013)). The values used are based on our experience with signal processing in movement disorders.

Results
“Why do you refer to reference no. 8 when you report your results? Aren't these your present results?”
The present study provides a detailed analysis and novel data as compared to the previous reference, which corresponded to a conference presentation. In addition, the present article includes the simulation study which is novel and was not published earlier.

“The central areas showed the highest values of QPs - indeed, you used only a central montage?”
We represent here the QPs that reached a good value of accuracy.

“You talk about means - obviously, you may indicate averages over patients, but did you also average over electrodes?”
No, we did not average the traces over the electrodes. This results in a lower spatial resolution, especially in neurological patients with focal brain lesions or disorders. We have observed that individual channels provide more meaningful information as compared to averages for the task of finger-to-nose. Other studies have been performed in the framework of this project and have not shown a superiority of averages (they rather showed a lower performance when all the channels are averaged).

“(Fig. 3) What electrode positions are used to build this figure?”
These data correspond to the central area of the brain. This has been added to the revised article.

“(Fig. 4) The vertical dashed lines seem to occur periodically (each 20ms) with a certain time-distance but not necessarily on the highest peaks - do you have an interpretation/explanation for this phenomenon?”
This is well known for the cortico-muscular coherence. This is why some groups use a flexible window in their software to extract the best cortico-muscular coherence. There are several explanations: the variability in the preparation of movement, the variability in the corticospinal tract command from trial-to-trial, the variability in the muscle contraction from trial-to-trial and the electro-mechanical delay in muscle contraction (see Jenkins, Palmer and Cramer (2013) and Howatson et al. (2009)).

“(Fig. 5) With what rationale were the 2 patients and 3 trials chosen?”
These patients exhibited reproducible low values for the cortico-muscular coherence, by contrast to reproducible high values for the QP. This highlights the importance of our approach. This has been added to the revised article.

“(Fig. 6) It would be helpful to rescale the x-axis, so that the beginning of movement is time 0 and then indicate steps of +-250ms.”
It might be interesting to keep the same presentation in order to highlight the prediction phase from the post-movement period.

“(Fig. 9) What is the EEG/CorticoMuscular probability based on - averages across channels/channel combinations or one single channel/combination (the best one?)?”
The combinations of EEG/EMG were done for each electrode. Averages across channels decrease the values obtained, and therefore reduce the strength of the study. This is in agreement with the current wearable EEG caps, which include a few selected channels only (and this is also a better approach in terms of ergonomics and aesthetics).

“(Fig 14) There are not only continuous and dotted lines but also external lines with "big dots" - is this the range (min-max)?”
External lines with larger dots indicate the 95% confidence interval. This has been added in the legend of the figure in the revised article.

Supplementary data
"What do the rows in e.g. 001FN03.mat_EE...csv mean? Are these samples?"
Yes, these are samples. The referee and the reader can use the data to extract QPs and compare with other methods they might develop in the future.

Discussion
“You state that QP values greater than 90% were observed in some of the runs...That is, QP was calculated for each run? This is not clear from the methods section.”
QPs were calculated for each movement executed by the patients. One run contains several movements. QPs extracted showed good accuracy (fixed for values higher that 70%), with some QPs which were extremely good (accuracy greater than 90%). The methods section has been modified accordingly in the revised version of the article.

“Why are EEG recordings more complex when tremor is generated in nuclei deep in the brain?”
Because EEG activity is mainly driven by the cortical brain electrical activity, which is detectable through the scalp. Activities generated in depth, for instance in basal ganglia (putamen, caudate nucleus…), are very weakly recorded with conventional EEG electrodes. They require the use of invasive deep brain electrodes. The same observation can be put forward for tremor related to lacunar stroke.

“In the discussion of kinematic data it seems to me that you discuss the background generally without referring to your own results. You should rather discuss why the y axis alone is superior to x axis or a combination of the two.”
We have added one sentence explaining that there is very often a so-called dominant axis which provides the most meaningful information. For instance, in cases of cerebellar kinetic tremor, the vertical axis perpendicular to the direction of motion is the most meaningful (relevant for kinetic tremor).

“Do probability trees really show the best association of parameters? In a subsequent sentence you write that all possible combinations need to be tested. To me probability trees as used in this paper seem to give the impression of how complex the problem is, but they do not answer the question: Which feature/combination of features leads to highest detection rates? This problem is solved by feature selection algorithms (see general remark 2).”
The best association of QPs is a case by case decision. We confirm that the probability trees can be used to extract the best combination. However, these probability trees have been built for a given task and it is very likely that the ultimate choice will rely on the selection of the best probability trees related to a given number of selected tasks representative for daily life. A specific study should address this very interesting but very complex question.

“I am not an FES-expert, but wonder if there is any literature about the instance of time when FES has to be applied in order to make a movement free of tremor. Should it be applied at movement onset, or before the movement is carried out, i.e., in the planning phase? It probably depends on each individual patient, since tremor can occurr pre- movement or during movement. Thus, the kind of FES should be different for each patient and similarly, depending on the type of application, the EEG-part may or may not be useful. Also if planning the action induced the tremor, detection of movement intention based on EEG could be too late?”
Muscular FES induces mainly a peripheral suppression of tremor, since electrical stimulation exerts its effect on the activities of the agonist and antagonist muscles of the trembling limb, rather than on the central sources of tremor. Our aim is to trigger the electrical stimulator on the basis of an early detection of the intention of movement. FES appears as a viable option to suppress the different forms of tremor. Several articles have been published on this topic. For instance, our group has now demonstrated that FES is effective to block physiological tremor - Grimaldi, Fernandez and Manto (2013). The intensity of stimulation and the pattern of stimulation can be adapted as a function of the percentage of tremor reduction.

“There is no discussion about the simulation results.”
The following sentences have been added to the revised version of the article:

“Results obtained with the simulation study provide useful information about EEG QP in order to select patients more effectively for a BCI-based treatment, including rehabilitation. The simulation demonstrates the relationship between the threshold and the QP. Future studies could take advantage of these findings to select the best neurological candidates on the basis of the ERD/ERS for BCI-based management."

Conclusion
“In the conclusion it seems that the QP is an EEG-specific value which can be complemented by values from other modules (kinematic...) - instead, the QP is a value for estimating the performance in detecting movement and can be applied to each modality. But is this really a main conclusion? I think the conclusion should be that the EEG can be supplemented by other modalities. However, the extent to which the detection rate of the EEG can be supplemented, i.e., how much the QP can be increased by combining several modalities, has not been evaluated.”
The paragraph has been changed to the following:

“We propose that the EEG QP can be complemented by the QPs extracted from the cortico-muscular coherence and the QPs obtained by the analysis of the changes in the kinematic signals, which occur prior to the voluntary movements. We suggest a fusion of the QP parameters in order to increase the likelihood to detect the intentionality of movement. The analysis of the corticomuscular coherence shows that this parameter alone cannot be used to predict voluntary motion and be implemented in a BCI”.

Some studies focusing only on corticomuscular coherence have failed.

“The last minus one sentence: The term classifiers comes out of the blue. This technique deserves some place in the discussion (as suggested in general remark 2). ”
The word “classifier” has been changed to:

“classification algorithms for BCI system in order to extract EEG patterns related to a cognitive or motor status”.

The following reference has been added: Pfurtscheller et al. (1996).

“Last sentence: The approach has firstly to be implemented - the present manuscript is a pre-study. The next step is to integrate all of the modalities. Then you could evaluate the approach on a large sample.”
The sentence has been changed to:

“Our approach will have to be tested in a large sample of patients in the future, in order to demonstrate its real clinical usefulness in daily practice. We propose to select a larger group of neurological patients to confirm the strength of the multimodal prediction.” in the revised version of the article.

General remarks
“You use BCI in terms of a control unit. BCI is an interface between brain and computer. As such, your system would be a multimodal control unit, including also an EEG-module like often used for BCIs, but also body modules to control a stimulation unit. I think the term BCI is not the best choice here, since it does not take into consideration the EMG module etc.”
The terminology is used in the literature, but we understand the point made by the referee. In the revised version of the Discussion, we have introduced the concept of a “multimodal control unit”:

“In theory, BCI is an interface between brain and computer. As such, our system would be a multimodal control unit, including also an EEG-module like often used for BCIs, but also body modules to control a stimulation unit.”

“The way such a problem would be solved by the current BCI-community is a classification by use of machine learning techniques i.e., you apply some feature selection algorithm and train your machine in discriminating movements based on the multimodal input. These two steps could further be included in one step e.g. by use of random forests. By doing so you evaluate the performance of your modules and find out which ones contribute most to a high detection rate - separately for each patient (thus, you take into account interindividual variability). I would at least include this option in the discussion.”
This is a great idea. We have added the following sentence to the Discussion:

“Future works could apply some feature selection algorithm and train the multimodal control unit in discriminating movements based on the multimodal input. These two steps could further be included in one step e.g. by use of random forests. By doing so, the performance of the modules would be evaluated to find out which ones contribute most to a high detection rate. This would be done separately for each patient, thus taking into account the inter-individual variability.”

“The way such a problem would be solved by the current BCI-community is a classification by use of machine learning techniques i.e., you apply some feature selection algorithm and train your machine in discriminating movements based on the multimodal input. These two steps could further be included in one step e.g. by use of random forests. By doing so you evaluate the performance of your modules and find out which ones contribute most to a high detection rate - separately for each patient (thus, you take into account interindividual variability). I would at least include this option in the discussion.”
We have added the following sentence to the Conclusion:

“The present study opens the door for future studies in terms of how to increase EEG-based detection of movement intention by incorporating information from multiple modules.”

We feel that we respond partially to this critical question, for instance by showing that a cortico-muscular module cannot provide a good evaluation of the intentionality of movement (some groups still try to rely on this parameter to detect the preparation of movement and to manipulate an effector).

“The presentation of the results is rather descriptive, the authors report QP, SDs etc. but no statistical test is applied. It would have been interesting if the QPs differ between modalities, within modalities with respect to electrode locations etc. I think some statistical evaluation could allow more concrete conclusions to be drawn. Furthermore, a feature-selection algorithm can be based on some statistics. I would suggest having a look at the recent BCI-research which provides many ideas on how to reduce multidimensional data.”
We have added the references below and have included the following sentence in the Discussion:

“Techniques of multichannel EEG compression, phase congruency and graphical representations aiming at a reduction of multidimensional data have been proposed [Gasser and Möcks, 1983; Logesparan and Rodriguez-Villegas, 2010; Dauwels et al. 2013]. However, no technique has been widely accepted so far.”
Gasser and Möcks (1983)
Logesparan and Rodriguez-Villegas (2010)
Dauwels et al. (2013)
The following references have been added:
Rektor, Sochůrková and Bocková (2006)
Shibasaki and Hallett (2006)
We thank the referee for their criticisms.

“Moreover, given the exhaustive analysis of EEG frequency ratios and EEG-MEG coherence, I would suggest applying some feature selection methods in order to overcome the problem of multidimensional data, which is hard to present and to interpret.”
We have attempted to simplify the analysis, but unfortunately simplification would result in poorly informative findings. The field of BCI is highly complex and data often require an exhaustive approach in order to make BCIs really applicable to neurological patients. These patients are often heterogeneous in terms of mental imagery (see also the reply to Christoph M Michel) and a simple scheme could not be applicable to more than a single patient. This would mean that very few patients would benefit from BCI-based programs.

Abstract
“The sentence "A BCI-driven detection of voluntary movement is used to trigger FES in a closed-loop approach." sounds to me like you have used FES in this study. Perhaps it would be less misleading if you wrote this in the subjunctive.”
The relevant paragraph of the abstract has been changed to the following:

“The main purpose of this challenging project was to develop and validate a new treatment for upper limb tremor based on the combination of functional electrical stimulation (FES; which has been shown to reduce upper limb tremor) with a brain-computer interface (BCI); thus providing a BCI-driven detection of voluntary movement which can be used to trigger FES in a closed-loop approach.”

Since this article’s publication, our global concept has now been validated by the MENRVA Group who used an affordable, BCI-controlled, wearable robot and electrical stimulation to assist subjects in drinking a glass of water. In this very recent study, the set-up required an EEG headset on the head of subjects along with FES electrodes on their arm. An embedded potentiometer was used to measure wrist rotation angle whereas an encoder in the elbow motor was used to quantify elbow angle. A gyroscope was used for the shoulder (Looned et al., 2014).

The general approach of the project has been presented earlier (Rocon et al., 2010).

Introduction
“In the introduction you emphasize the limitations of BCIs, which are based on conventional EEG analysis. Although I fully agree with you, this is a rather unspecific statement. Does this mean that "conventional" EEG analysis is less reliable for BCI-performance than "high-tech" EEG-analysis? Although we both know that this is not the case (BCIs are fed with highly sophisticated markers of the EEG and still do not perform at 100%), the sentence could be understood in this way. Therefore, I would suggest that you specify that you mean BCIs which ware based on EEG analysis only.”
The word “only” has been added. As stated previously, recent studies point out that for some specific tasks a conventional affordable EEG can be used (Looned et al., 2014). We do not want to reduce the importance of EEG.

“I would like to make a further point on this: BCI users differ between each other in the way they can voluntarily modify their brain activity, and there is even an interindividual difference in the detectability of movement-related EEG-activity. Moreover, the fact that movement disorders often show up with brain atrophy or neuroplastic changes makes it difficult to generalize BCI markers that have been tested in a healthy population to patients with varying pathologies. I think this variance is a major reason why your multimodal processing could do so much better than a BCI-system that is solely based on EEG analysis.”
We have added these sentences to the article.

Methods
“I don't think that the sentence "Patients and the experimental procedure were as detailed in the next sections." in the first paragraph of the Methods section is necessary (the reader sees that there is a section for patients etc.)”
The sentence has been removed.

“Maybe in this first paragraph it would be nice to read that the different modules act during different time-windows”
The paragraph has been changed to the following:

“From each module, acting during different time-windows, (EEG, Kinematic and corticomuscular - described in detail in sections C-F) quality parameters (QPs) for the detection of the intentionality of movement or for the early detection of movement are extracted.”

“Why did you prefer acoustically triggered movement over self-paced movement? How did you ensure that the acoustic signal did not influence the EEG signal which was used for detection of movement planning”
This protocol did not generate artefacts as a consequence of the acoustic signal. Indeed, after the acoustic signal the subject first relaxes, then prepares the movement and subsequently executes it. This protocol provides a defined time window during which influences on EEG are minimized. Several groups in the world working with patients have observed that patients tend to execute automatic movements (probably with a smaller contribution of the cortical potential) when the task is self-paced. This is in contrast with experimental findings in control subjects (Niazi et al., 2012). Providing an acoustic cue is particularly interesting in Parkinson’s disease (Lohnes and Earhart, 2011). It is plausible that a visual or somatosensory cue could also be used (Rochester et al., 2007).

“Why did you restrict your EEG-setup to centrally positioned electrodes? Movement planning involves frontal regions (e.g. electrodes F3, F4, F7, F8) and it is highly likely that you get a better prediction of movement if you include signals from these positions”.
Our ultimate aim is to propose a wearable EEG cap with a few channels, in order to reach the goal of a BCI which could be used in daily life (outside the laboratory and the clinic) by neurological patients. Using 14 electrodes, we have detected the ERD/ERS phenomenon. The conventional caps which include the prefrontal electrodes require an important signal processing step, because of the artefacts generated - in particular by the frontalis muscle. This muscle often contaminates the EEG traces in neurological patients. Note McFarland et al. (2000)’s study which focused on the central areas of the brain for the principal component analysis related to motor imagery and movement. Schröder et al. (2003) have shown that choosing physiologically motivated channels improves classification accuracy when compared to all-channels. The choice of a subset of EEG channels is one of the selection features for the classification of EEG signals in BCI systems in order to avoid dealing with high dimensional and noisy data.

“How did you avoid blinking during the recordings? If you tell the participants that they should not blink, they might concentrate on this instruction instead on the task, making EEG-data less valid. In addition, participants who are told not to blink usually blink more frequently than if you would not mention blinks”
Patients were told not to blink only in the period after the acoustic signal until the end of the movement. They were free to blink or swallow after the end of the movement until the successive acoustic signal. Therefore, we did not encounter difficulties related to blinking prevention.
“I did not understand the reason why you only used three colours for the lines in figure 2. The reader can distinguish the three cases but not which sensor is represented by what line. Moreover, the first blue line, entitled "Mouvement..." should be entitled Movement... and should be a dashed line as indicated below the figure. Are the three cases three different sensors, three patients or three movements?”
We have modified Figure 2.

“You write "upsampled EEG data..." and indicate that there were 256 samples - is this one second? Does an overlap of 250 in the time domain refer to the original sampling rate or to the upsampled data, resulting in 250ms? Did I get this right; the Hamming window was 1 sec but overlapped with 250ms?”
Data were upsampled from 256 samples to 1000/sec. Subsequently, signal processing is applied to these upsampled data.

“I do not exactly understand how you realized that the pre-movement period lasted for 2 sec, but participants performed the task following the acoustic signal. Were participants instructed to wait 2 sec? Or is this the average time the participants took until they performed the task?”
The acoustic signals indicate the beginning of the test. After hearing the signal, the patients relaxed their face (no more blinking, swallowing....), prepared by mental imagery, and then executed the movement. In the study of Defebvre et al. (1999) desynchronization of EEG was recorded 2 s before to 0.5 s after voluntary wrist flexions from 11 leads covering the primary sensorimotor cortex (central), supplementary motor area (frontocentral) and parietal cortex (parietocentral). This has been added to the Methods.

“I did not understand what you intended by the (8 Hz, 9 Hz, ... 12 Hz) after the first interval.”
These are frequencies of interest that are used for the analysis.

“Possibly because this is the first time I have read about this very interesting method of correlating brain and muscle signals - I did not fully understand the segmentation/processing of the data. You segmented data into epochs of 200ms and calculated the FFT on this window - what then does the "window of 8 samples" mean? Moreover, how did you determine the optimal window length? I see that the epochs vary between the modules.”
This is a conventional method to calculate the FFT on epochs of data. According to the module used, the window may vary because the window is adapted to obtain the more relevant spectral information (see the details in McNames (2013)). The values used are based on our experience with signal processing in movement disorders.

Results
“Why do you refer to reference no. 8 when you report your results? Aren't these your present results?”
The present study provides a detailed analysis and novel data as compared to the previous reference, which corresponded to a conference presentation. In addition, the present article includes the simulation study which is novel and was not published earlier.

“The central areas showed the highest values of QPs - indeed, you used only a central montage?”
We represent here the QPs that reached a good value of accuracy.

“You talk about means - obviously, you may indicate averages over patients, but did you also average over electrodes?”
No, we did not average the traces over the electrodes. This results in a lower spatial resolution, especially in neurological patients with focal brain lesions or disorders. We have observed that individual channels provide more meaningful information as compared to averages for the task of finger-to-nose. Other studies have been performed in the framework of this project and have not shown a superiority of averages (they rather showed a lower performance when all the channels are averaged).

“(Fig. 3) What electrode positions are used to build this figure?”
These data correspond to the central area of the brain. This has been added to the revised article.

“(Fig. 4) The vertical dashed lines seem to occur periodically (each 20ms) with a certain time-distance but not necessarily on the highest peaks - do you have an interpretation/explanation for this phenomenon?”
This is well known for the cortico-muscular coherence. This is why some groups use a flexible window in their software to extract the best cortico-muscular coherence. There are several explanations: the variability in the preparation of movement, the variability in the corticospinal tract command from trial-to-trial, the variability in the muscle contraction from trial-to-trial and the electro-mechanical delay in muscle contraction (see Jenkins, Palmer and Cramer (2013) and Howatson et al. (2009)).

“(Fig. 5) With what rationale were the 2 patients and 3 trials chosen?”
These patients exhibited reproducible low values for the cortico-muscular coherence, by contrast to reproducible high values for the QP. This highlights the importance of our approach. This has been added to the revised article.

“(Fig. 6) It would be helpful to rescale the x-axis, so that the beginning of movement is time 0 and then indicate steps of +-250ms.”
It might be interesting to keep the same presentation in order to highlight the prediction phase from the post-movement period.

“(Fig. 9) What is the EEG/CorticoMuscular probability based on - averages across channels/channel combinations or one single channel/combination (the best one?)?”
The combinations of EEG/EMG were done for each electrode. Averages across channels decrease the values obtained, and therefore reduce the strength of the study. This is in agreement with the current wearable EEG caps, which include a few selected channels only (and this is also a better approach in terms of ergonomics and aesthetics).

“(Fig 14) There are not only continuous and dotted lines but also external lines with "big dots" - is this the range (min-max)?”
External lines with larger dots indicate the 95% confidence interval. This has been added in the legend of the figure in the revised article.

Supplementary data
"What do the rows in e.g. 001FN03.mat_EE...csv mean? Are these samples?"
Yes, these are samples. The referee and the reader can use the data to extract QPs and compare with other methods they might develop in the future.

Discussion
“You state that QP values greater than 90% were observed in some of the runs...That is, QP was calculated for each run? This is not clear from the methods section.”
QPs were calculated for each movement executed by the patients. One run contains several movements. QPs extracted showed good accuracy (fixed for values higher that 70%), with some QPs which were extremely good (accuracy greater than 90%). The methods section has been modified accordingly in the revised version of the article.

“Why are EEG recordings more complex when tremor is generated in nuclei deep in the brain?”
Because EEG activity is mainly driven by the cortical brain electrical activity, which is detectable through the scalp. Activities generated in depth, for instance in basal ganglia (putamen, caudate nucleus…), are very weakly recorded with conventional EEG electrodes. They require the use of invasive deep brain electrodes. The same observation can be put forward for tremor related to lacunar stroke.

“In the discussion of kinematic data it seems to me that you discuss the background generally without referring to your own results. You should rather discuss why the y axis alone is superior to x axis or a combination of the two.”
We have added one sentence explaining that there is very often a so-called dominant axis which provides the most meaningful information. For instance, in cases of cerebellar kinetic tremor, the vertical axis perpendicular to the direction of motion is the most meaningful (relevant for kinetic tremor).

“Do probability trees really show the best association of parameters? In a subsequent sentence you write that all possible combinations need to be tested. To me probability trees as used in this paper seem to give the impression of how complex the problem is, but they do not answer the question: Which feature/combination of features leads to highest detection rates? This problem is solved by feature selection algorithms (see general remark 2).”
The best association of QPs is a case by case decision. We confirm that the probability trees can be used to extract the best combination. However, these probability trees have been built for a given task and it is very likely that the ultimate choice will rely on the selection of the best probability trees related to a given number of selected tasks representative for daily life. A specific study should address this very interesting but very complex question.

“I am not an FES-expert, but wonder if there is any literature about the instance of time when FES has to be applied in order to make a movement free of tremor. Should it be applied at movement onset, or before the movement is carried out, i.e., in the planning phase? It probably depends on each individual patient, since tremor can occurr pre- movement or during movement. Thus, the kind of FES should be different for each patient and similarly, depending on the type of application, the EEG-part may or may not be useful. Also if planning the action induced the tremor, detection of movement intention based on EEG could be too late?”
Muscular FES induces mainly a peripheral suppression of tremor, since electrical stimulation exerts its effect on the activities of the agonist and antagonist muscles of the trembling limb, rather than on the central sources of tremor. Our aim is to trigger the electrical stimulator on the basis of an early detection of the intention of movement. FES appears as a viable option to suppress the different forms of tremor. Several articles have been published on this topic. For instance, our group has now demonstrated that FES is effective to block physiological tremor - Grimaldi, Fernandez and Manto (2013). The intensity of stimulation and the pattern of stimulation can be adapted as a function of the percentage of tremor reduction.

“There is no discussion about the simulation results.”
The following sentences have been added to the revised version of the article:

“Results obtained with the simulation study provide useful information about EEG QP in order to select patients more effectively for a BCI-based treatment, including rehabilitation. The simulation demonstrates the relationship between the threshold and the QP. Future studies could take advantage of these findings to select the best neurological candidates on the basis of the ERD/ERS for BCI-based management."

Conclusion
“In the conclusion it seems that the QP is an EEG-specific value which can be complemented by values from other modules (kinematic...) - instead, the QP is a value for estimating the performance in detecting movement and can be applied to each modality. But is this really a main conclusion? I think the conclusion should be that the EEG can be supplemented by other modalities. However, the extent to which the detection rate of the EEG can be supplemented, i.e., how much the QP can be increased by combining several modalities, has not been evaluated.”
The paragraph has been changed to the following:

“We propose that the EEG QP can be complemented by the QPs extracted from the cortico-muscular coherence and the QPs obtained by the analysis of the changes in the kinematic signals, which occur prior to the voluntary movements. We suggest a fusion of the QP parameters in order to increase the likelihood to detect the intentionality of movement. The analysis of the corticomuscular coherence shows that this parameter alone cannot be used to predict voluntary motion and be implemented in a BCI”.

Some studies focusing only on corticomuscular coherence have failed.

“The last minus one sentence: The term classifiers comes out of the blue. This technique deserves some place in the discussion (as suggested in general remark 2). ”
The word “classifier” has been changed to:

“classification algorithms for BCI system in order to extract EEG patterns related to a cognitive or motor status”.

The following reference has been added: Pfurtscheller et al. (1996).

“Last sentence: The approach has firstly to be implemented - the present manuscript is a pre-study. The next step is to integrate all of the modalities. Then you could evaluate the approach on a large sample.”
The sentence has been changed to:

“Our approach will have to be tested in a large sample of patients in the future, in order to demonstrate its real clinical usefulness in daily practice. We propose to select a larger group of neurological patients to confirm the strength of the multimodal prediction.” in the revised version of the article.

General remarks
“You use BCI in terms of a control unit. BCI is an interface between brain and computer. As such, your system would be a multimodal control unit, including also an EEG-module like often used for BCIs, but also body modules to control a stimulation unit. I think the term BCI is not the best choice here, since it does not take into consideration the EMG module etc.”
The terminology is used in the literature, but we understand the point made by the referee. In the revised version of the Discussion, we have introduced the concept of a “multimodal control unit”:

“In theory, BCI is an interface between brain and computer. As such, our system would be a multimodal control unit, including also an EEG-module like often used for BCIs, but also body modules to control a stimulation unit.”

“The way such a problem would be solved by the current BCI-community is a classification by use of machine learning techniques i.e., you apply some feature selection algorithm and train your machine in discriminating movements based on the multimodal input. These two steps could further be included in one step e.g. by use of random forests. By doing so you evaluate the performance of your modules and find out which ones contribute most to a high detection rate - separately for each patient (thus, you take into account interindividual variability). I would at least include this option in the discussion.”
This is a great idea. We have added the following sentence to the Discussion:

“Future works could apply some feature selection algorithm and train the multimodal control unit in discriminating movements based on the multimodal input. These two steps could further be included in one step e.g. by use of random forests. By doing so, the performance of the modules would be evaluated to find out which ones contribute most to a high detection rate. This would be done separately for each patient, thus taking into account the inter-individual variability.”

“The way such a problem would be solved by the current BCI-community is a classification by use of machine learning techniques i.e., you apply some feature selection algorithm and train your machine in discriminating movements based on the multimodal input. These two steps could further be included in one step e.g. by use of random forests. By doing so you evaluate the performance of your modules and find out which ones contribute most to a high detection rate - separately for each patient (thus, you take into account interindividual variability). I would at least include this option in the discussion.”
We have added the following sentence to the Conclusion:

“The present study opens the door for future studies in terms of how to increase EEG-based detection of movement intention by incorporating information from multiple modules.”

We feel that we respond partially to this critical question, for instance by showing that a cortico-muscular module cannot provide a good evaluation of the intentionality of movement (some groups still try to rely on this parameter to detect the preparation of movement and to manipulate an effector).

“The presentation of the results is rather descriptive, the authors report QP, SDs etc. but no statistical test is applied. It would have been interesting if the QPs differ between modalities, within modalities with respect to electrode locations etc. I think some statistical evaluation could allow more concrete conclusions to be drawn. Furthermore, a feature-selection algorithm can be based on some statistics. I would suggest having a look at the recent BCI-research which provides many ideas on how to reduce multidimensional data.”
We have added the references below and have included the following sentence in the Discussion:

“Techniques of multichannel EEG compression, phase congruency and graphical representations aiming at a reduction of multidimensional data have been proposed [Gasser and Möcks, 1983; Logesparan and Rodriguez-Villegas, 2010; Dauwels et al. 2013]. However, no technique has been widely accepted so far.”
Gasser and Möcks (1983)
Logesparan and Rodriguez-Villegas (2010)
Dauwels et al. (2013)
The following references have been added:
Rektor, Sochůrková and Bocková (2006)
Shibasaki and Hallett (2006)
Competing Interests: No competing interest to declare. Close
Report a concern

Views

Reviewer Report 03 Jan 2014

Christoph M Michel, Functional Brain Mapping Laboratory, Department of Neuroscience, University of Geneva, Geneva, Switzerland

Approved with Reservations

https://doi.org/10.5256/f1000research.3288.r2881

The manuscript evaluates the use of a combination of neurophysiological signals to detect movement intention in tremor patients. Multichannel scalp EEG, multi-array MEG and kinematic sensors were jointly analyzed in a trigger-initiated finger-to-nose movement task. The aim was to optimize detection of movement initiation. Four patients with upper limb tremor were studied.

The paper is technically sound and the analysis methods are clear. However, some of the analyzed parameters are irrelevant, redundant or highly correlated, making it difficult to understand why they were all performed separately. I have the following major comments:

EEG analysis of Beta-Alpha ratio was analyzed in 105 different combinations of frequency bands that were highly overlapping. The rational for this fine distinction of different frequency bands is not very clear given the existing (but not cited) literature on event-related synchronization/desynchronization (work by Pfurtscheller, for example). While not explicitly stated, I guess that these 105 combinations were done for each electrode. Studying the existing literature would have allowed the authors to restrict to the known electrodes and frequency-bands of interest.
EEG-MEG coherence analysis: each EEG channel is correlated with one MEG channel. Figure 4 shows very similar results for each electrode. This is not surprising given that each EEG electrode measures part of the activity of the same generators in the brain. Volume conductance makes the different EEG signals highly correlated when referred to a common reference and thus they are all correlated with the MEG waveform.
It is not clear whether the results are specific to tremor patients - a control group is missing.
The results are not clear. One would have expected a conclusion that informs the reader which of the multiple parameters seem to be most promising. The presented probability trees are very abstract and do not allow one to make a conclusion on specific parameters.
The Table at the end of the manuscript is not clear. What do the different numbers represent?
The abstract should not be a verbatim copy of the Introduction.
A better description of the literature on ERD in BCI is needed in the Introduction. Important work is missing.

Competing Interests: No competing interests were disclosed.

CITE

Report a concern

Author Response (F1000Research Advisory Board Member) 24 Apr 2014

Mario Manto, Unité d’Etude du Mouvement, Université Libre de Bruxelles, Erasme, Bruxelles, 1070, Belgium

24 Apr 2014

Author Response F1000Research Advisory Board Member

We thank the referee for their criticisms.

1. “EEG analysis of Beta-Alpha ratio was analyzed in 105 different combinations of frequency bands that were highly overlapping. The rational for this fine ... Continue reading We thank the referee for their criticisms.

1. “EEG analysis of Beta-Alpha ratio was analyzed in 105 different combinations of frequency bands that were highly overlapping. The rational for this fine distinction of different frequency bands is not very clear given the existing (but not cited) literature on event-related synchronization/desynchronization (work by Pfurtscheller, for example). While not explicitly stated, I guess that these 105 combinations were done for each electrode. Studying the existing literature would have allowed the authors to restrict to the known electrodes and frequency-bands of interest.”

We have added the following sentences in the Discussion:

“Our protocol in neurological patients with tremor differs from those in the literature, hence our study on the multiple combinations of frequency bands. When a neurological patient with tremor is seated and assessed, he/she may exhibit a tremor of the head and trunk. This tremor may be pretty stable or rather intermittent. There may even be an overlap with the main frequencies of the EEG signal, for instance in the alpha band (a rapid head tremor may be found). Therefore, we decided to have a close look to each of these bands. For instance, we have seen patients with cerebellar disorders and orthostatic tremor in whom the sub-band 8-10 Hz was much less informative as compared with the sub-band 10-12 Hz. We would like to point out that in the study of Pfurtscheller et al. on single-trial classification of EEG and imagination (Neuroimage. 2006;31(1):153-9), the frequency of the most reactive components was 11.7 +/- 0.4 Hz (mean +/- SD). The SD was thus small. Although the desynchronized components were centered at 10.9 Hz +/- 0.9 Hz, the synchronized components were narrow-banded, with higher frequencies at 12.0 Hz +/- 1.0 Hz. We agree with the authors that the classification of single EEG trials improves when ERD and ERS patterns are combined for multiple tasks. We aim to pursue the use of narrow bands of frequency in multiple tasks.”

2. “EEG-MEG coherence analysis: each EEG channel is correlated with one MEG channel. Figure 4 shows very similar results for each electrode. This is not surprising given that each EEG electrode measures part of the activity of the same generators in the brain. Volume conductance makes the different EEG signals highly correlated when referred to a common reference and thus they are all correlated with the MEG waveform.”

The combinations of EEG/EMG were done for each electrode. We agree that in theory the volume conductance effect and the common generators could impact on the coherence analysis in healthy subjects. The rationale is the following: EEG signals taken from nearby areas may be very different in patients with brain lesions (the density of MEG channels is also much higher as compared to our set-up). This is due to structural lesions in the brain. These MRI images (T2-weighted axial sections) illustrate the subcortical lesions in a patient with Parkinsonism of vascular origin. The lesions disrupt the subcortical tracts of the periventricular white matter. The attempt to translate data obtained in healthy subjects cannot be efficient. In these patients, a case-by-case BCI scenario is required. We want also to point out that fMRI studies show an activation of selected areas of the homunculus during limb movements. Hence also the selection of the central area for the EEG channels (see the reply to Yvonne Hoeller). Several groups working on BCIs are now attempting to focus on the EEG signals located nearby the pre-central sulcus. We would like to stress that our patients do exhibit tremor (including of the head-trunk), unlike control subjects. The algorithm suggested for tremor suppression requires tremor. It might be interesting to investigate patients showing tremor likely induced by a disruption of the peripheral nervous system, and to compare the results with those obtained in patients showing brain lesions.

This figure illustrates an example of the results of ERD/ERS in a patient with post-traumatic tremor (multiple brain lesions) pressing on a force transducer during a pinch task of the right hand. The patient is seated in front of a computer: (a) baseline measurement (rest) during 2 seconds, followed by (b) the patient prepares himself by mental imagery for 4 seconds, and (c) the patient presses a force transducer during 2 seconds. The channels C3-Cz and FC3-Cz are compared. The relative results for the main sub-bands (delta, theta, alpha, beta) are shown. Note the clear difference between the ratio beta/alpha. The ERD/ERS is much stronger for C3-Cz as compared to FC3-Fz.

3. “It is not clear whether the results are specific to tremor patients - a control group is missing.”

Our project focused on tremor patients and not on healthy subjects. This has been addressed by other partners of the project. We would like to point out that the attempt to translate findings in healthy subjects to neurological patients with brain lesions is very likely to be poorly productive. See also the reply to the previous query.

“The results are not clear. One would have expected a conclusion that informs the reader which of the multiple parameters seem to be most promising. The presented probability trees are very abstract and do not allow one to make a conclusion on specific parameters.”

We have modified the Discussion as follows:

“Our data provide a ground for the concept of multimodal approach developed for the early detection of the intentionality of movement. The presented probability trees are general schemes. A case-by-case analysis is required. In order to provide the most possible accurate BCI-driven FES system, each subject needs to be studied in order to define the best combination of QPs. For instance the kinematic QPs may be more efficient than the EEG QPs in a given patient (as it may happen when ERD/ERS is not stronger enough to be detected). The system would take into account these features. By analysing a larger group of patients, we might identify subgroups of patients on the basis of the results of the probability trees. In other words, the probability trees would be used as an eligibility procedure to multimodal BCI-driven treatments in neurological patients with tremor”.

- “The Table at the end of the manuscript is not clear. What do the different numbers represent?”

Data from experiments have been included, so that the referee or the reader can compare them with his/her own software.

- “The abstract should not be a verbatim copy of the Introduction.”

The introduction has been re-written.

4. “A better description of the literature on ERD in BCI is needed in the Introduction. Important work is missing.”

The following references have been added:

·        Pfurtscheller and Lopes da Silva (1999)

·        Pfurtscheller et al. (2006)

·        Birbaumer et al. (2006)
We thank the referee for their criticisms.

1. “EEG analysis of Beta-Alpha ratio was analyzed in 105 different combinations of frequency bands that were highly overlapping. The rational for this fine distinction of different frequency bands is not very clear given the existing (but not cited) literature on event-related synchronization/desynchronization (work by Pfurtscheller, for example). While not explicitly stated, I guess that these 105 combinations were done for each electrode. Studying the existing literature would have allowed the authors to restrict to the known electrodes and frequency-bands of interest.”

We have added the following sentences in the Discussion:

“Our protocol in neurological patients with tremor differs from those in the literature, hence our study on the multiple combinations of frequency bands. When a neurological patient with tremor is seated and assessed, he/she may exhibit a tremor of the head and trunk. This tremor may be pretty stable or rather intermittent. There may even be an overlap with the main frequencies of the EEG signal, for instance in the alpha band (a rapid head tremor may be found). Therefore, we decided to have a close look to each of these bands. For instance, we have seen patients with cerebellar disorders and orthostatic tremor in whom the sub-band 8-10 Hz was much less informative as compared with the sub-band 10-12 Hz. We would like to point out that in the study of Pfurtscheller et al. on single-trial classification of EEG and imagination (Neuroimage. 2006;31(1):153-9), the frequency of the most reactive components was 11.7 +/- 0.4 Hz (mean +/- SD). The SD was thus small. Although the desynchronized components were centered at 10.9 Hz +/- 0.9 Hz, the synchronized components were narrow-banded, with higher frequencies at 12.0 Hz +/- 1.0 Hz. We agree with the authors that the classification of single EEG trials improves when ERD and ERS patterns are combined for multiple tasks. We aim to pursue the use of narrow bands of frequency in multiple tasks.”

2. “EEG-MEG coherence analysis: each EEG channel is correlated with one MEG channel. Figure 4 shows very similar results for each electrode. This is not surprising given that each EEG electrode measures part of the activity of the same generators in the brain. Volume conductance makes the different EEG signals highly correlated when referred to a common reference and thus they are all correlated with the MEG waveform.”

The combinations of EEG/EMG were done for each electrode. We agree that in theory the volume conductance effect and the common generators could impact on the coherence analysis in healthy subjects. The rationale is the following: EEG signals taken from nearby areas may be very different in patients with brain lesions (the density of MEG channels is also much higher as compared to our set-up). This is due to structural lesions in the brain. These MRI images (T2-weighted axial sections) illustrate the subcortical lesions in a patient with Parkinsonism of vascular origin. The lesions disrupt the subcortical tracts of the periventricular white matter. The attempt to translate data obtained in healthy subjects cannot be efficient. In these patients, a case-by-case BCI scenario is required. We want also to point out that fMRI studies show an activation of selected areas of the homunculus during limb movements. Hence also the selection of the central area for the EEG channels (see the reply to Yvonne Hoeller). Several groups working on BCIs are now attempting to focus on the EEG signals located nearby the pre-central sulcus. We would like to stress that our patients do exhibit tremor (including of the head-trunk), unlike control subjects. The algorithm suggested for tremor suppression requires tremor. It might be interesting to investigate patients showing tremor likely induced by a disruption of the peripheral nervous system, and to compare the results with those obtained in patients showing brain lesions.

This figure illustrates an example of the results of ERD/ERS in a patient with post-traumatic tremor (multiple brain lesions) pressing on a force transducer during a pinch task of the right hand. The patient is seated in front of a computer: (a) baseline measurement (rest) during 2 seconds, followed by (b) the patient prepares himself by mental imagery for 4 seconds, and (c) the patient presses a force transducer during 2 seconds. The channels C3-Cz and FC3-Cz are compared. The relative results for the main sub-bands (delta, theta, alpha, beta) are shown. Note the clear difference between the ratio beta/alpha. The ERD/ERS is much stronger for C3-Cz as compared to FC3-Fz.

3. “It is not clear whether the results are specific to tremor patients - a control group is missing.”

Our project focused on tremor patients and not on healthy subjects. This has been addressed by other partners of the project. We would like to point out that the attempt to translate findings in healthy subjects to neurological patients with brain lesions is very likely to be poorly productive. See also the reply to the previous query.

“The results are not clear. One would have expected a conclusion that informs the reader which of the multiple parameters seem to be most promising. The presented probability trees are very abstract and do not allow one to make a conclusion on specific parameters.”

We have modified the Discussion as follows:

“Our data provide a ground for the concept of multimodal approach developed for the early detection of the intentionality of movement. The presented probability trees are general schemes. A case-by-case analysis is required. In order to provide the most possible accurate BCI-driven FES system, each subject needs to be studied in order to define the best combination of QPs. For instance the kinematic QPs may be more efficient than the EEG QPs in a given patient (as it may happen when ERD/ERS is not stronger enough to be detected). The system would take into account these features. By analysing a larger group of patients, we might identify subgroups of patients on the basis of the results of the probability trees. In other words, the probability trees would be used as an eligibility procedure to multimodal BCI-driven treatments in neurological patients with tremor”.

- “The Table at the end of the manuscript is not clear. What do the different numbers represent?”

Data from experiments have been included, so that the referee or the reader can compare them with his/her own software.

- “The abstract should not be a verbatim copy of the Introduction.”

The introduction has been re-written.

4. “A better description of the literature on ERD in BCI is needed in the Introduction. Important work is missing.”

The following references have been added:

·        Pfurtscheller and Lopes da Silva (1999)

·        Pfurtscheller et al. (2006)

·        Birbaumer et al. (2006)
Competing Interests: No competing interests were disclosed. Close
Report a concern
Respond or Comment

COMMENTS ON THIS REPORT

Author Response (F1000Research Advisory Board Member) 24 Apr 2014

Mario Manto, Unité d’Etude du Mouvement, Université Libre de Bruxelles, Erasme, Bruxelles, 1070, Belgium

24 Apr 2014

Author Response F1000Research Advisory Board Member

We thank the referee for their criticisms.

1. “EEG analysis of Beta-Alpha ratio was analyzed in 105 different combinations of frequency bands that were highly overlapping. The rational for this fine ... Continue reading We thank the referee for their criticisms.

1. “EEG analysis of Beta-Alpha ratio was analyzed in 105 different combinations of frequency bands that were highly overlapping. The rational for this fine distinction of different frequency bands is not very clear given the existing (but not cited) literature on event-related synchronization/desynchronization (work by Pfurtscheller, for example). While not explicitly stated, I guess that these 105 combinations were done for each electrode. Studying the existing literature would have allowed the authors to restrict to the known electrodes and frequency-bands of interest.”

We have added the following sentences in the Discussion:

“Our protocol in neurological patients with tremor differs from those in the literature, hence our study on the multiple combinations of frequency bands. When a neurological patient with tremor is seated and assessed, he/she may exhibit a tremor of the head and trunk. This tremor may be pretty stable or rather intermittent. There may even be an overlap with the main frequencies of the EEG signal, for instance in the alpha band (a rapid head tremor may be found). Therefore, we decided to have a close look to each of these bands. For instance, we have seen patients with cerebellar disorders and orthostatic tremor in whom the sub-band 8-10 Hz was much less informative as compared with the sub-band 10-12 Hz. We would like to point out that in the study of Pfurtscheller et al. on single-trial classification of EEG and imagination (Neuroimage. 2006;31(1):153-9), the frequency of the most reactive components was 11.7 +/- 0.4 Hz (mean +/- SD). The SD was thus small. Although the desynchronized components were centered at 10.9 Hz +/- 0.9 Hz, the synchronized components were narrow-banded, with higher frequencies at 12.0 Hz +/- 1.0 Hz. We agree with the authors that the classification of single EEG trials improves when ERD and ERS patterns are combined for multiple tasks. We aim to pursue the use of narrow bands of frequency in multiple tasks.”

2. “EEG-MEG coherence analysis: each EEG channel is correlated with one MEG channel. Figure 4 shows very similar results for each electrode. This is not surprising given that each EEG electrode measures part of the activity of the same generators in the brain. Volume conductance makes the different EEG signals highly correlated when referred to a common reference and thus they are all correlated with the MEG waveform.”

The combinations of EEG/EMG were done for each electrode. We agree that in theory the volume conductance effect and the common generators could impact on the coherence analysis in healthy subjects. The rationale is the following: EEG signals taken from nearby areas may be very different in patients with brain lesions (the density of MEG channels is also much higher as compared to our set-up). This is due to structural lesions in the brain. These MRI images (T2-weighted axial sections) illustrate the subcortical lesions in a patient with Parkinsonism of vascular origin. The lesions disrupt the subcortical tracts of the periventricular white matter. The attempt to translate data obtained in healthy subjects cannot be efficient. In these patients, a case-by-case BCI scenario is required. We want also to point out that fMRI studies show an activation of selected areas of the homunculus during limb movements. Hence also the selection of the central area for the EEG channels (see the reply to Yvonne Hoeller). Several groups working on BCIs are now attempting to focus on the EEG signals located nearby the pre-central sulcus. We would like to stress that our patients do exhibit tremor (including of the head-trunk), unlike control subjects. The algorithm suggested for tremor suppression requires tremor. It might be interesting to investigate patients showing tremor likely induced by a disruption of the peripheral nervous system, and to compare the results with those obtained in patients showing brain lesions.

This figure illustrates an example of the results of ERD/ERS in a patient with post-traumatic tremor (multiple brain lesions) pressing on a force transducer during a pinch task of the right hand. The patient is seated in front of a computer: (a) baseline measurement (rest) during 2 seconds, followed by (b) the patient prepares himself by mental imagery for 4 seconds, and (c) the patient presses a force transducer during 2 seconds. The channels C3-Cz and FC3-Cz are compared. The relative results for the main sub-bands (delta, theta, alpha, beta) are shown. Note the clear difference between the ratio beta/alpha. The ERD/ERS is much stronger for C3-Cz as compared to FC3-Fz.

3. “It is not clear whether the results are specific to tremor patients - a control group is missing.”

Our project focused on tremor patients and not on healthy subjects. This has been addressed by other partners of the project. We would like to point out that the attempt to translate findings in healthy subjects to neurological patients with brain lesions is very likely to be poorly productive. See also the reply to the previous query.

“The results are not clear. One would have expected a conclusion that informs the reader which of the multiple parameters seem to be most promising. The presented probability trees are very abstract and do not allow one to make a conclusion on specific parameters.”

We have modified the Discussion as follows:

“Our data provide a ground for the concept of multimodal approach developed for the early detection of the intentionality of movement. The presented probability trees are general schemes. A case-by-case analysis is required. In order to provide the most possible accurate BCI-driven FES system, each subject needs to be studied in order to define the best combination of QPs. For instance the kinematic QPs may be more efficient than the EEG QPs in a given patient (as it may happen when ERD/ERS is not stronger enough to be detected). The system would take into account these features. By analysing a larger group of patients, we might identify subgroups of patients on the basis of the results of the probability trees. In other words, the probability trees would be used as an eligibility procedure to multimodal BCI-driven treatments in neurological patients with tremor”.

- “The Table at the end of the manuscript is not clear. What do the different numbers represent?”

Data from experiments have been included, so that the referee or the reader can compare them with his/her own software.

- “The abstract should not be a verbatim copy of the Introduction.”

The introduction has been re-written.

4. “A better description of the literature on ERD in BCI is needed in the Introduction. Important work is missing.”

The following references have been added:

·        Pfurtscheller and Lopes da Silva (1999)

·        Pfurtscheller et al. (2006)

·        Birbaumer et al. (2006)
We thank the referee for their criticisms.

1. “EEG analysis of Beta-Alpha ratio was analyzed in 105 different combinations of frequency bands that were highly overlapping. The rational for this fine distinction of different frequency bands is not very clear given the existing (but not cited) literature on event-related synchronization/desynchronization (work by Pfurtscheller, for example). While not explicitly stated, I guess that these 105 combinations were done for each electrode. Studying the existing literature would have allowed the authors to restrict to the known electrodes and frequency-bands of interest.”

We have added the following sentences in the Discussion:

“Our protocol in neurological patients with tremor differs from those in the literature, hence our study on the multiple combinations of frequency bands. When a neurological patient with tremor is seated and assessed, he/she may exhibit a tremor of the head and trunk. This tremor may be pretty stable or rather intermittent. There may even be an overlap with the main frequencies of the EEG signal, for instance in the alpha band (a rapid head tremor may be found). Therefore, we decided to have a close look to each of these bands. For instance, we have seen patients with cerebellar disorders and orthostatic tremor in whom the sub-band 8-10 Hz was much less informative as compared with the sub-band 10-12 Hz. We would like to point out that in the study of Pfurtscheller et al. on single-trial classification of EEG and imagination (Neuroimage. 2006;31(1):153-9), the frequency of the most reactive components was 11.7 +/- 0.4 Hz (mean +/- SD). The SD was thus small. Although the desynchronized components were centered at 10.9 Hz +/- 0.9 Hz, the synchronized components were narrow-banded, with higher frequencies at 12.0 Hz +/- 1.0 Hz. We agree with the authors that the classification of single EEG trials improves when ERD and ERS patterns are combined for multiple tasks. We aim to pursue the use of narrow bands of frequency in multiple tasks.”

2. “EEG-MEG coherence analysis: each EEG channel is correlated with one MEG channel. Figure 4 shows very similar results for each electrode. This is not surprising given that each EEG electrode measures part of the activity of the same generators in the brain. Volume conductance makes the different EEG signals highly correlated when referred to a common reference and thus they are all correlated with the MEG waveform.”

The combinations of EEG/EMG were done for each electrode. We agree that in theory the volume conductance effect and the common generators could impact on the coherence analysis in healthy subjects. The rationale is the following: EEG signals taken from nearby areas may be very different in patients with brain lesions (the density of MEG channels is also much higher as compared to our set-up). This is due to structural lesions in the brain. These MRI images (T2-weighted axial sections) illustrate the subcortical lesions in a patient with Parkinsonism of vascular origin. The lesions disrupt the subcortical tracts of the periventricular white matter. The attempt to translate data obtained in healthy subjects cannot be efficient. In these patients, a case-by-case BCI scenario is required. We want also to point out that fMRI studies show an activation of selected areas of the homunculus during limb movements. Hence also the selection of the central area for the EEG channels (see the reply to Yvonne Hoeller). Several groups working on BCIs are now attempting to focus on the EEG signals located nearby the pre-central sulcus. We would like to stress that our patients do exhibit tremor (including of the head-trunk), unlike control subjects. The algorithm suggested for tremor suppression requires tremor. It might be interesting to investigate patients showing tremor likely induced by a disruption of the peripheral nervous system, and to compare the results with those obtained in patients showing brain lesions.

This figure illustrates an example of the results of ERD/ERS in a patient with post-traumatic tremor (multiple brain lesions) pressing on a force transducer during a pinch task of the right hand. The patient is seated in front of a computer: (a) baseline measurement (rest) during 2 seconds, followed by (b) the patient prepares himself by mental imagery for 4 seconds, and (c) the patient presses a force transducer during 2 seconds. The channels C3-Cz and FC3-Cz are compared. The relative results for the main sub-bands (delta, theta, alpha, beta) are shown. Note the clear difference between the ratio beta/alpha. The ERD/ERS is much stronger for C3-Cz as compared to FC3-Fz.

3. “It is not clear whether the results are specific to tremor patients - a control group is missing.”

Our project focused on tremor patients and not on healthy subjects. This has been addressed by other partners of the project. We would like to point out that the attempt to translate findings in healthy subjects to neurological patients with brain lesions is very likely to be poorly productive. See also the reply to the previous query.

“The results are not clear. One would have expected a conclusion that informs the reader which of the multiple parameters seem to be most promising. The presented probability trees are very abstract and do not allow one to make a conclusion on specific parameters.”

We have modified the Discussion as follows:

“Our data provide a ground for the concept of multimodal approach developed for the early detection of the intentionality of movement. The presented probability trees are general schemes. A case-by-case analysis is required. In order to provide the most possible accurate BCI-driven FES system, each subject needs to be studied in order to define the best combination of QPs. For instance the kinematic QPs may be more efficient than the EEG QPs in a given patient (as it may happen when ERD/ERS is not stronger enough to be detected). The system would take into account these features. By analysing a larger group of patients, we might identify subgroups of patients on the basis of the results of the probability trees. In other words, the probability trees would be used as an eligibility procedure to multimodal BCI-driven treatments in neurological patients with tremor”.

- “The Table at the end of the manuscript is not clear. What do the different numbers represent?”

Data from experiments have been included, so that the referee or the reader can compare them with his/her own software.

- “The abstract should not be a verbatim copy of the Introduction.”

The introduction has been re-written.

4. “A better description of the literature on ERD in BCI is needed in the Introduction. Important work is missing.”

The following references have been added:

·        Pfurtscheller and Lopes da Silva (1999)

·        Pfurtscheller et al. (2006)

·        Birbaumer et al. (2006)
Competing Interests: No competing interests were disclosed. Close
Report a concern

Comments on this article Comments (0)

Version 2

VERSION 2 PUBLISHED 20 Dec 2013

Open Peer Review

Reviewer Status

Reviewer Reports

	Invited Reviewers
	1	2	3
Version 2 (revision) 30 Apr 14		read	read
Version 1 20 Dec 13	read	read	read

Christoph M Michel, University of Geneva, Geneva, Switzerland
Yvonne Hoeller, Paracelsus Medical University, Salzburg, Austria
Carlos M. Gomez, University of Seville, Sevilla, Spain

Comments on this article

All Comments(0)

Add a comment

Browse by related subjects

Back to all reports

Reviewer Report

5 Views

17 Jun 2014 | for Version 2

Carlos M. Gomez, Human Psychobiology Lab, Experimental Psychology Department, University of Seville, Sevilla, Spain

5 Views Cite this report Responses(0)

Approved

The paper has clearly improved in clarity. As there are no statistics or the determination of an algorithm to predict the intentionality of movement, it is still a step to obtain the goal of controlling tremor by electrical stimulation.

The less clear part of the manuscript is the EEG simulation, if they do not have a neuro-muscular model of the tremor and its suppression by beta/alpha ratios is not clear how it is possible to estimate a false positive in the movement prediction. Also the EEG model is a descriptive, not a neurophysiological model.

With these reserves and positively scoring the obtained goals by the authors, it is an interesting contribution to find an on-line algorithm for predicting intentional movements in Parkinson diseases.

Competing Interests

No competing interests were disclosed.

I confirm that I have read this submission and believe that I have an appropriate level of expertise to confirm that it is of an acceptable scientific standard.

Respond to this report

Responses (0)

Back to all reports

Reviewer Report

16 Views

07 May 2014 | for Version 2

Yvonne Hoeller, Christian-Doppler-Clinic, Paracelsus Medical University, Salzburg, Austria

16 Views Cite this report Responses(0)

Approved With Reservations

I suggested including frontal electrodes because we recently found that they are indeed important for detecting motor imagery. I agree with you that preprocessing is needed when using these electrodes. I would at least use frontal electrodes in your future work, even if you decide not to include them into your analysis (which I would really regret because I think the results would benefit from it).
I have a concern about studies in which the participants are told not to blink during a specified period. Participants are additionally engaged to concentrate on not blinking. Since motor imagery is a demanding task this could cause some bias. I would mention this in the limitations section.
I asked you about the up-sampling because I found that the explanation in the paper "Upsampled EEG data were processed with a Hamming window of 256 samples, using an overlap of 250 in the time domain" with the subsequent mentioning of 1000 Hz sampling frequency in some following paragraph is a little confusing. The intention of my questions was to guide you to the details of the paper which are unclear. By changing the text according to my questions, the paper could become more understandable. In other words: I did not only expect an answer to this question, I expected some changes in the text. This applies to all the other questions I raised in the first review. I would kindly ask you to change the manuscript according to my questions raised upon the first version. If readers can quickly understand what you have done, they are more likely to cite your work.
You wrote in your answers: "We represent here the QPs that reached a good value of accuracy." It is recommendable to state this in the paper together with a quantitative criterion for a good value of accuracy.
In general I find it difficult to see the statistics which were performed. In the results you state that there is "no significant difference between the QP calculated from β/α ratio and β²/α ratio" but there is no information on what test was used and which electrodes were tested etc.
For evaluating accuracy, you should use statistics instead of "good" accuracy above 70%, which comes out of the blue and may not be sufficient. There is a statistical test to assess if accuracy is significantly above chance. You could use the maximum chance criteria and an adequate measure of significance and effect size, as described in Marcoulides G, Hershberger S (1974) Statistical Methods: A first course. Psychology Press.
With respect to Figure 3 you answered that these data correspond to the central area of the brain. Is this data of a single electrode? You should exactly indicate this information in the revision.
Although you discuss the issue of BCI and multimodal interfacing, I find it still misleading to just read BCI in the title/abstract. This is simply the wrong term. You could change the title: Quality parameters for a multimodal human-computer-interface based on EEG, EMG, and kinematics, aiming to suppress neurological tremor in upper limbs.
Although you justify the selection of 2 patients and 3 trials, it needs to be discussed that this may not be representative. Thus, generalisations are limited. I would emphasise the exploratory character of this study in the title or at least in the abstract and the discussion.

Competing Interests

No competing interests were disclosed.

Respond to this report

Responses (0)

Back to all reports

Reviewer Report

34 Views

27 Jan 2014 | for Version 1

Carlos M. Gomez, Human Psychobiology Lab, Experimental Psychology Department, University of Seville, Sevilla, Spain

34 Views Cite this report Responses(1)

Approved With Reservations

In Figure 1 the dashed line seemed to indicate the movement, but how it is possible that the movement itself is predicted by the movement kinematic - that should be zero before movement. Except if some thresholds are defined, pre-thresholds movements are the predictors. Please clarify the sentence "decrement of the rest tremor before movement onset" - does it means that the reduction in tremor is not the initial voluntary movement but a different neural command which is being inhibited by the voluntary control? Then define physiological characteristics, frequency amplitude, of tremor. Otherwise it would be difficult to distinguish between the reduction of tremor and the initial phases of movement.

Methods:

"Mean age of the patients was 62 ± 20 years" . It would be more precise to describe the age of each individual subjects. Means are useful for high number of subjects. Same for other parameters.
"After (1) hearing an acoustic signal, the patient (2) prepared themselves mentally for the execution of movement and (3) performed the task." It is not clear how long it takes this preparation. Was it induced by the experimenter instructions or it was an spontaneous strategy? How long does each of the phases take?
Is it neccesary to indicate the files code? Otherwise please suppress it.
"EEG signals were sampled at 256 Hz (re-sampling at 1000 Hz for synchronization purposes). " It seems that the data were re-sampled to a higher frequency. Could it be considered an interpolation rather than a re-sampling? Anyway it would be better to sample at 1000 Hz, if needed.
Figure 2 is very difficult to follow, maybe doing a composite figure with accelerometer, gyroscopes and magnetometers separated would be better. One example of tremor suppression would be appreciated.
"The peaks (β/α and β²/α ratios) higher than a defined threshold were considered as indicators of a potential voluntary movement. given that they represent the detection of the cortical motor preparation of the movement" The authors are very confident with this option, but some information should be given to the non-specialist of BCI.
"Three time intervals were studied: pre-movement period, movement period, post-movement period. The pre-movement period (lasting 2 seconds) was defined according to the acoustic order given to the patients and the detection of the beginning of movement via the gyroscopes." Please give a more precise description of the time window analyzed - 2000 ms before the movement? 2000 ms after the auditory signal? In the middle? Was there always 2000 ms between auditory signal and movement?
"The peaks (β/α and β²/α ratios) higher than a defined threshold were considered as indicators of a potential voluntary movement" Was the threshold pre-defined a priori (which value?), or adjusted following the predictive value.
"More than 800 possible EEG/EMG combinations (n=832)", please clarify the origin of these 832 combinations.
"Where p is the probability of movement and n the number of movements predicted", please define more precisely the probability of movement.
In general, it would be desirable to have an experimental protocol in which the subjects have the opportunity to decide if he/she wants to move or not. Or still better to go to a more ecological situation in which the subject is instructed to do the finger-to-nose movement at its own pace. And compare false positive and false negative predictions.

Results:

"The mean QP was 82±12% (median = 83.5%) for the β/α ratio and 79.5±10.4% (median = 80%) for the β²/α ratio." Please report individual subjects' values.
Figure 3 reports values of QP much lower than the mean values reported in the text. Please clarify.
Which are the coherence values for Figure 4? The Y axis is missing.
Figure 6: Is not the predicted predicting? Or, is not the movement pre-threshold predicting the post-threshold movement? Is that the reason why the Y channel is so good predictor of movement? Please clarify. If it is reduction of tremor, please show some examples.
The motivation of the simulation is not clear, because only the EEG can be simulated, not the movement. Please clarify the interest of the simulations study or remove it.

Competing Interests

No competing interests were disclosed.

Respond to this report

Responses (1)

Author Response F1000Research Advisory Board Member

24 Apr 2014

Mario Manto, Unité d’Etude du Mouvement, Université Libre de Bruxelles, Erasme, Bruxelles, 1070, Belgium

We thank the referee for their criticisms.

Introduction:

“In Figure 1 the dashed line seemed to indicate the movement, but how it is possible that the movement itself is predicted by the movement kinematic - that should be zero before movement. Except if some thresholds are defined, pre-thresholds movements are the predictors. Please clarify the sentence "decrement of the rest tremor before movement onset" - does it means that the reduction in tremor is not the initial voluntary movement but a different neural command which is being inhibited by the voluntary control? Then define physiological characteristics, frequency amplitude, of tremor. Otherwise it would be difficult to distinguish between the reduction of tremor and the initial phases of movement.”

The initiation phase of movement in a patient with rest tremor has been characterized in details in the literature (Papengut et al. 2013). In patients exhibiting a rest tremor, tremor suppression at movement onset (reduction in amplitude or complete cessation, detectable with kinematic sensors) is an example of noticeable changes in tremor features occurring at the beginning of the voluntary movement: tremor features change and this is detectable by kinematic analysis. It is presumed that the voluntary command inhibits the central oscillator generating rest tremor. Since we are using both accelerometry and gyroscopes, the beginning of the finger-to-nose movement is clearly identified by changes in kinematics.

The introduction and the legend of Figure 1 have been changed.

Methods:

“"Mean age of the patients was 62 ± 20 years". It would be more precise to describe the age of each individual subjects. Means are useful for high number of subjects. Same for other parameters.

We have included a table detailing age and other parameters in the Methods of the revised article. Patients were followed on a regular basis during this European project. The clinical scores were pretty stable, although slight clinical fluctuations were observed (this is very common in the follow-up of neurological patients exhibiting a tremor in the upper limb).
“"After (1) hearing an acoustic signal, the patient (2) prepared themselves mentally for the execution of movement and (3) performed the task." It is not clear how long it takes this preparation. Was it induced by the experimenter instructions or it was a spontaneous strategy? How long does each of the phases take?”

The text has been changed to the following:

“Patients were told to keep the most relaxed attitude. After hearing an acoustic signal, they prepared themselves for the execution of movement by mental imagery of the movement. During a single run, the task was repeated about 10 times.”

The preparation phase lasted typically between 2 and 8 sec. There was variability between trials depending on self-estimation by patients. This is typical in mental imagery. Some patients are “fast-imagers” and others are “slow-imagers”.
“Is it necessary to indicate the files code? Otherwise please suppress it.”

This is useful in making the figures more readable (see Figures 7, 9 and 10).
“"EEG signals were sampled at 256 Hz (re-sampling at 1000 Hz for synchronization purposes)." It seems that the data were re-sampled to a higher frequency. Could it be considered an interpolation rather than a re-sampling? Anyway it would be better to sample at 1000 Hz, if needed.”

Yes, we could consider an interpolation and/or a re-sampling. The rationale for the re-sampling at 1000 Hz is that it does not affect the spectral contents in the frequency sub-bands that are particularly of interest in our study. An interpolation technique is an alternative.
“Figure 2 is very difficult to follow, maybe doing a composite figure with accelerometer, gyroscopes and magnetometers separated would be better. One example of tremor suppression would be appreciated.”

We agree with the referee that this figure might be confusing. We have modified the figure in the revised article. The description of the sensors is reported in Gallego et al. (2010)

Sensors are a combination of triaxial accelerometers, gyroscopes, and magnetometers. The low weight of IMUs makes them an optimal solution, as tremor changes its characteristics if a larger mass is attached to the limbs. Moreover, their small size does not interfere with user’s movements.

The phenomenon of tremor suppression induced by the application of FES has been published earlier. Here is an example of essential tremor responding strongly to FES. This patient does not respond to any medication (including: propranolol, primidone, topiramate). Although refractory to conventional drugs, this patient was FES-sensitive.

Figure from:

Grimaldi G, Manto M: “Old” and Emerging Therapies of Human Tremor. Clinical Medicine Insights: Therapeutics. 2010; 2: 169-178. Publisher Full Text. Published under the Creative Commons CC-BY-NC 3.0 license.
“"The peaks (β/α and β²/α ratios) higher than a defined threshold were considered as indicators of a potential voluntary movement given that they represent the detection of the cortical motor preparation of the movement" The authors are very confident with this option, but some information should be given to the non-specialist of BCI.”

This method is now explained in the revised text. The following reference has been added: Pfurtscheller and Lopes da Silva (1999). This methodology is considered as a sound procedure for the detection of the preparation of movement.

“"Three time intervals were studied: pre-movement period, movement period, post-movement period. The pre-movement period (lasting 2 seconds) was defined according to the acoustic order given to the patients and the detection of the beginning of movement via the gyroscopes." Please give a more precise description of the time window analyzed - 2000 ms before the movement? 2000 ms after the auditory signal? In the middle? Was there always 2000 ms between auditory signal and movement?”

The following sentence has been added: “by considering 2 seconds back from the point of detection of the beginning of movement. We decided to use a period of 2000 msec based on the available literature which considers that 2 seconds encompasses the preparation phase at the cortical level.”
“"The peaks (β/α and β²/α ratios) higher than a defined threshold were considered as indicators of a potential voluntary movement" Was the threshold pre-defined a priori (which value?), or adjusted following the predictive value.”

This has been studied earlier. The best thresholding process should be decided in a case-by-case scenario, as described in Giuliana, Mario and Yassin (2011); % of maximum ratio overtime; threshold considering mean and standard deviation of the ratios.
“"More than 800 possible EEG/EMG combinations (n=832)", please clarify the origin of these 832 combinations."

The number of combinations corresponds to 13 EEG channels (excluding the 2 channels for the eyes) and 64 EMG channels (16 EMG channels for each of the 4 muscles of the upper limb)

13x64 = 832 combinations
“"Where p is the probability of movement and n the number of movements predicted", please define more precisely the probability of movement.”

The text has been changed to the following:

“Where p is the probability of movement (true positives) and n the number of movements predicted, as previously described for the EEG QP.”
“In general, it would be desirable to have an experimental protocol in which the subjects have the opportunity to decide if he/she wants to move or not. Or still better to go to a more ecological situation in which the subject is instructed to do the finger-to-nose movement at its own pace. And compare false positive and false negative predictions.”

Thanks to the acoustic signal, the period of preparation of movement followed by the execution of the task is clearly defined. The patient knows that after the signal (1) he/she has to relax, (2) he/she has to prepare for the movement, and (3) he/she has to execute it. It is important to note that it is much easier for neurological patients to follow this sequence with an acoustic signal and not to include an additional internal evaluation to move or not to move. The introduction of an additional decision to move or not is a source of complexity, which by itself interferes with the severity of tremor. Some neurological patients have difficulties and show hesitations for self-paced movements. The task is easier with the acoustic cue. See also the reply to Yvonne Hoeller.

Results:

“"The mean QP was 82±12% (median = 83.5%) for the β/α ratio and 79.5±10.4% (median = 80%) for the β²/α ratio." Please report individual subjects' values."

This table shows the individual values.
“Figure 3 reports values of QP much lower than the mean values reported in the text. Please clarify.”

Figure 3 illustrates the effects of the selection of the sub-band beta upon the quality parameter. The figure illustrates values for one patient.
“Which are the coherence values for Figure 4? The Y axis is missing.”

The computed coherograms are shown using arbitrary units.
“Figure 6: Is not the predicted predicting? Or, is not the movement pre-threshold predicting the post-threshold movement? Is that the reason why the Y channel is so good predictor of movement? Please clarify. If it is reduction of tremor, please show some examples.”

There is very often one channel of the sensor which gives a much better predicting value. This rule can be applied to movement in general and to tremor in particular: one direction is much more informative (this is called the dominant axis). This explains why some groups consider that a single-axis sensor may provide relevant information.
“The motivation of the simulation is not clear, because only the EEG can be simulated, not the movement. Please clarify the interest of the simulations study or remove it.”

The simulation study is very important in order to have information about the strength of the ERS/ERD phenomenon. This parameter is important to state that a given patient having a strong enough ERS/ERD may be enrolled for a BCI-based therapy. This is a critical step, because some patients will benefit from a BCI-based management, whereas others not. We want to underline that we anticipate that in the near future this methodology will help to select patients for BCI programs. For the moment, some patients are enrolled and perform hours of training without success. An ERS/ERD-based decision to include patients in training programs will render the BCI-based management much more efficient.

Discussion:

“The discussion seems to clarify that the excellent predictor of reduction of tremor is produced by a different command than the voluntary control. But tremor should have a definite frequency, and this frequency property of the tremor seems not be taken in account in present report.”

Tremor parameters have not been taken into account in this paper which is focused on the detection of voluntary movement. The overall concept of this European study was to predict the intentionality of movement and not to track the tremor parameters. FES is supposed to be active on the various forms of tremor. The point raised by the reviewer was addressed in detail in a previous European study (Manto et al., 2003). Tremor is a very dynamic process, but the major advantage of FES is to have a non-selective suppressive effect by acting on the peripheral nervous system.

View more View less

Competing Interests

No competing interests were disclosed.

Back to all reports

Reviewer Report

26 Views

13 Jan 2014 | for Version 1

Yvonne Hoeller, Christian-Doppler-Clinic, Paracelsus Medical University, Salzburg, Austria

26 Views Cite this report Responses(1)

Approved With Reservations

(A) I don't think that the sentence "Patients and the experimental procedure were as detailed in the next sections." in the first paragraph of the Methods section is necessary (the reader sees that there is a section for patients etc.)
(A) Maybe in this first paragraph it would be nice to read that the different modules act during different time-windows.
(B) Why did you prefer acoustically triggered movement over self-paced movement? How did you ensure that the acoustic signal did not influence the EEG signal which was used for detection of movement planning?
(B) Why did you restrict your EEG-setup to centrally positioned electrodes? Movement planning involves frontal regions (e.g. electrodes F3, F4, F7, F8) and it is highly likely that you get a better prediction of movement if you include signals from these positions.
(B) How did you avoid blinking during the recordings? If you tell the participants that they should not blink, they might concentrate on this instruction instead on the task, making EEG-data less valid. In addition, participants who are told not to blink usually blink more frequently than if you would not mention blinks.
(Fig. 2) I did not understand the reason why you only used three colors for the lines in figure 2. The reader can distinguish the three cases but not which sensor is represented by what line. Moreover, the first blue line, entitled "Mouvement..." should be entitled Movement... and should be a dashed line as indicated below the figure. Are the three cases three different sensors, three patients or three movements?
(D) You write "upsampled EEG data..." and indicate that there were 256 samples - is this one second? Does an overlap of 250 in the time domain refer to the original sampling rate or to the upsampled data, resulting in 250ms? Did I get this right; the Hamming window was 1 sec but overlapped with 250ms?
(D) I do not exactly understand how you realized that the pre-movement period lasted for 2 sec, but participants performed the task following the acoustic signal. Were participants instructed to wait 2 sec? Or is this the average time the participants took until they performed the task?
(D) I did not understand what you intended by the (8 Hz, 9 Hz, ... 12 Hz) after the first interval.
(E) Possibly because this is the first time I have read about this very interesting method of correlating brain and muscle signals - I did not fully understand the segmentation/processing of the data. You segmented data into epochs of 200ms and calculated the FFT on this window - what then does the "window of 8 samples" mean? Moreover, how did you determine the optimal window length? I see that the epochs vary between the modules.

Results

(A) Why do you refer to reference no. 8 when you report your results? Aren't these your present results?
(A) The central areas showed the highest values of QPs - indeed, you used only a central montage?
(A) You talk about means - obviously, you may indicate averages over patients, but did you also average over electrodes?
(Fig. 3) What electrode positions are used to build this figure?
(Fig. 4) The vertical dashed lines seem to occur periodically (each 20ms) with a certain time-distance but not necessarily on the highest peaks - do you have an interpretation/explanation for this phenomenon?
(Fig. 5) With what rationale were the 2 patients and 3 trials chosen?
(Fig. 6) It would be helpful to rescale the x-axis, so that the beginning of movement is time 0 and then indicate steps of +-250ms.
(Fig. 9) What is the EEG/CorticoMuscular probability based on - averages across channels/channel combinations or one single channel/combination (the best one?)?
(Fig 14) There are not only continuous and dotted lines but also external lines with "big dots" - is this the range (min-max)?

Supplementary data
What do the rows in e.g. 001FN03.mat_EE...csv mean? Are these samples?

Discussion

You state that QP values greater than 90% were observed in some of the runs...That is, QP was calculated for each run? This is not clear from the methods section.
Why are EEG recordings more complex when tremor is generated in nuclei deep in the brain?
In the discussion of kinematic data it seems to me that you discuss the background generally without referring to your own results. You should rather discuss why the y axis alone is superior to x axis or a combination of the two.
Do probability trees really show the best association of parameters? In a subsequent sentence you write that all possible combinations need to be tested. To me probability trees as used in this paper seem to give the impression of how complex the problem is, but they do not answer the question: Which feature/combination of features leads to highest detection rates? This problem is solved by feature selection algorithms (see general remark 2).
I am not an FES-expert, but wonder if there is any literature about the instance of time when FES has to be applied in order to make a movement free of tremor. Should it be applied at movement onset, or before the movement is carried out, i.e., in the planning phase? It probably depends on each individual patient, since tremor can occur pre- movement or during movement. Thus, the kind of FES should be different for each patient and similarly, depending on the type of application, the EEG-part may or may not be useful. Also if planning the action induced the tremor, detection of movement intention based on EEG could be too late?
There is no discussion about the simulation results.

Conclusion

In the conclusion it seems that the QP is an EEG-specific value which can be complemented by values from other modules (kinematic...) - instead, the QP is a value for estimating the performance in detecting movement and can be applied to each modality. But is this really a main conclusion? I think the conclusion should be that the EEG can be supplemented by other modalities. However, the extent to which the detection rate of the EEG can be supplemented, i.e., how much the QP can be increased by combining several modalities, has not been evaluated.
The last minus one sentence: The term classifiers comes out of the blue. This technique deserves some place in the discussion (as suggested in general remark 2).
Last sentence: The approach has firstly to be implemented - the present manuscript is a pre-study. The next step is to integrate all of the modalities. Then you could evaluate the approach on a large sample.

General remarks

You use BCI in terms of a control unit. BCI is an interface between brain and computer. As such, your system would be a multimodal control unit, including also an EEG-module like often used for BCIs, but also body modules to control a stimulation unit. I think the term BCI is not the best choice here, since it does not take into consideration the EMG module etc.
The way such a problem would be solved by the current BCI-community is a classification by use of machine learning techniques i.e., you apply some feature selection algorithm and train your machine in discriminating movements based on the multimodal input. These two steps could further be included in one step e.g. by use of random forests. By doing so you evaluate the performance of your modules and find out which ones contribute most to a high detection rate - separately for each patient (thus, you take into account interindividual variability). I would at least include this option in the discussion.
I think the data presented here could help to determine what detection rate is possible by combining several modalities. This is what the reader could expect when they read the abstract and the introduction. Then, the conclusion could be that combining several modalities increases the detection rate or it does not change it or it decreases the detection rate (I expect that it increases it). Instead, the authors presented the detection rate by calculating a detection-rate affine measure (QP) separately for each module, and in the conclusion the authors just suggest to fusion the parameters. I think a deeper analysis (e.g. by using random forests...) could answer the very important question of how to increase EEG-based detection of movement intention by including information from other modules. I see that the authors want to leave this important question for future publications, but the abstract and the introduction should be clear in determining the aim of this study. The authors separately evaluated the value of multimodal parameters, in order to determine if it could be interesting to integrate them in one system.
The presentation of the results is rather descriptive, the authors report QP, SDs etc. but no statistical test is applied. It would have been interesting if the QPs differ between modalities, within modalities with respect to electrode locations etc. I think some statistical evaluation could allow more concrete conclusions to be drawn. Furthermore, a feature-selection algorithm can be based on some statistics. I would suggest having a look at the recent BCI-research which provides many ideas on how to reduce multidimensional data.
The cited references in the introduction and discussion are reduced to a minimum. I would suggest doing some extensive research on movement-related EEG studies etc.

Competing Interests

No competing interests were disclosed.

Respond to this report

Responses (1)

Author Response F1000Research Advisory Board Member

24 Apr 2014

Mario Manto, Unité d’Etude du Mouvement, Université Libre de Bruxelles, Erasme, Bruxelles, 1070, Belgium

We thank the referee for their criticisms.

“Moreover, given the exhaustive analysis of EEG frequency ratios and EEG-MEG coherence, I would suggest applying some feature selection methods in order to overcome the problem of multidimensional data, which is hard to present and to interpret.”

We have attempted to simplify the analysis, but unfortunately simplification would result in poorly informative findings. The field of BCI is highly complex and data often require an exhaustive approach in order to make BCIs really applicable to neurological patients. These patients are often heterogeneous in terms of mental imagery (see also the reply to Christoph M Michel) and a simple scheme could not be applicable to more than a single patient. This would mean that very few patients would benefit from BCI-based programs.

Abstract

“The sentence "A BCI-driven detection of voluntary movement is used to trigger FES in a closed-loop approach." sounds to me like you have used FES in this study. Perhaps it would be less misleading if you wrote this in the subjunctive.”

The relevant paragraph of the abstract has been changed to the following:

“The main purpose of this challenging project was to develop and validate a new treatment for upper limb tremor based on the combination of functional electrical stimulation (FES; which has been shown to reduce upper limb tremor) with a brain-computer interface (BCI); thus providing a BCI-driven detection of voluntary movement which can be used to trigger FES in a closed-loop approach.”

Since this article’s publication, our global concept has now been validated by the MENRVA Group who used an affordable, BCI-controlled, wearable robot and electrical stimulation to assist subjects in drinking a glass of water. In this very recent study, the set-up required an EEG headset on the head of subjects along with FES electrodes on their arm. An embedded potentiometer was used to measure wrist rotation angle whereas an encoder in the elbow motor was used to quantify elbow angle. A gyroscope was used for the shoulder (Looned et al., 2014).

The general approach of the project has been presented earlier (Rocon et al., 2010).

Introduction

“In the introduction you emphasize the limitations of BCIs, which are based on conventional EEG analysis. Although I fully agree with you, this is a rather unspecific statement. Does this mean that "conventional" EEG analysis is less reliable for BCI-performance than "high-tech" EEG-analysis? Although we both know that this is not the case (BCIs are fed with highly sophisticated markers of the EEG and still do not perform at 100%), the sentence could be understood in this way. Therefore, I would suggest that you specify that you mean BCIs which ware based on EEG analysis only.”

The word “only” has been added. As stated previously, recent studies point out that for some specific tasks a conventional affordable EEG can be used (Looned et al., 2014). We do not want to reduce the importance of EEG.

“I would like to make a further point on this: BCI users differ between each other in the way they can voluntarily modify their brain activity, and there is even an interindividual difference in the detectability of movement-related EEG-activity. Moreover, the fact that movement disorders often show up with brain atrophy or neuroplastic changes makes it difficult to generalize BCI markers that have been tested in a healthy population to patients with varying pathologies. I think this variance is a major reason why your multimodal processing could do so much better than a BCI-system that is solely based on EEG analysis.”

We have added these sentences to the article.

Methods

“I don't think that the sentence "Patients and the experimental procedure were as detailed in the next sections." in the first paragraph of the Methods section is necessary (the reader sees that there is a section for patients etc.)”

The sentence has been removed.

“Maybe in this first paragraph it would be nice to read that the different modules act during different time-windows”

The paragraph has been changed to the following:

“From each module, acting during different time-windows, (EEG, Kinematic and corticomuscular - described in detail in sections C-F) quality parameters (QPs) for the detection of the intentionality of movement or for the early detection of movement are extracted.”

“Why did you prefer acoustically triggered movement over self-paced movement? How did you ensure that the acoustic signal did not influence the EEG signal which was used for detection of movement planning”

This protocol did not generate artefacts as a consequence of the acoustic signal. Indeed, after the acoustic signal the subject first relaxes, then prepares the movement and subsequently executes it. This protocol provides a defined time window during which influences on EEG are minimized. Several groups in the world working with patients have observed that patients tend to execute automatic movements (probably with a smaller contribution of the cortical potential) when the task is self-paced. This is in contrast with experimental findings in control subjects (Niazi et al., 2012). Providing an acoustic cue is particularly interesting in Parkinson’s disease (Lohnes and Earhart, 2011). It is plausible that a visual or somatosensory cue could also be used (Rochester et al., 2007).

“Why did you restrict your EEG-setup to centrally positioned electrodes? Movement planning involves frontal regions (e.g. electrodes F3, F4, F7, F8) and it is highly likely that you get a better prediction of movement if you include signals from these positions”.

Our ultimate aim is to propose a wearable EEG cap with a few channels, in order to reach the goal of a BCI which could be used in daily life (outside the laboratory and the clinic) by neurological patients. Using 14 electrodes, we have detected the ERD/ERS phenomenon. The conventional caps which include the prefrontal electrodes require an important signal processing step, because of the artefacts generated - in particular by the frontalis muscle. This muscle often contaminates the EEG traces in neurological patients. Note McFarland et al. (2000)’s study which focused on the central areas of the brain for the principal component analysis related to motor imagery and movement. Schröder et al. (2003) have shown that choosing physiologically motivated channels improves classification accuracy when compared to all-channels. The choice of a subset of EEG channels is one of the selection features for the classification of EEG signals in BCI systems in order to avoid dealing with high dimensional and noisy data.

“How did you avoid blinking during the recordings? If you tell the participants that they should not blink, they might concentrate on this instruction instead on the task, making EEG-data less valid. In addition, participants who are told not to blink usually blink more frequently than if you would not mention blinks”

Patients were told not to blink only in the period after the acoustic signal until the end of the movement. They were free to blink or swallow after the end of the movement until the successive acoustic signal. Therefore, we did not encounter difficulties related to blinking prevention.

“I did not understand the reason why you only used three colours for the lines in figure 2. The reader can distinguish the three cases but not which sensor is represented by what line. Moreover, the first blue line, entitled "Mouvement..." should be entitled Movement... and should be a dashed line as indicated below the figure. Are the three cases three different sensors, three patients or three movements?”

We have modified Figure 2.

“You write "upsampled EEG data..." and indicate that there were 256 samples - is this one second? Does an overlap of 250 in the time domain refer to the original sampling rate or to the upsampled data, resulting in 250ms? Did I get this right; the Hamming window was 1 sec but overlapped with 250ms?”

Data were upsampled from 256 samples to 1000/sec. Subsequently, signal processing is applied to these upsampled data.

“I do not exactly understand how you realized that the pre-movement period lasted for 2 sec, but participants performed the task following the acoustic signal. Were participants instructed to wait 2 sec? Or is this the average time the participants took until they performed the task?”

The acoustic signals indicate the beginning of the test. After hearing the signal, the patients relaxed their face (no more blinking, swallowing....), prepared by mental imagery, and then executed the movement. In the study of Defebvre et al. (1999) desynchronization of EEG was recorded 2 s before to 0.5 s after voluntary wrist flexions from 11 leads covering the primary sensorimotor cortex (central), supplementary motor area (frontocentral) and parietal cortex (parietocentral). This has been added to the Methods.

“I did not understand what you intended by the (8 Hz, 9 Hz, ... 12 Hz) after the first interval.”

These are frequencies of interest that are used for the analysis.

“Possibly because this is the first time I have read about this very interesting method of correlating brain and muscle signals - I did not fully understand the segmentation/processing of the data. You segmented data into epochs of 200ms and calculated the FFT on this window - what then does the "window of 8 samples" mean? Moreover, how did you determine the optimal window length? I see that the epochs vary between the modules.”

This is a conventional method to calculate the FFT on epochs of data. According to the module used, the window may vary because the window is adapted to obtain the more relevant spectral information (see the details in McNames (2013)). The values used are based on our experience with signal processing in movement disorders.

Results

“Why do you refer to reference no. 8 when you report your results? Aren't these your present results?”

The present study provides a detailed analysis and novel data as compared to the previous reference, which corresponded to a conference presentation. In addition, the present article includes the simulation study which is novel and was not published earlier.

“The central areas showed the highest values of QPs - indeed, you used only a central montage?”

We represent here the QPs that reached a good value of accuracy.

“You talk about means - obviously, you may indicate averages over patients, but did you also average over electrodes?”

No, we did not average the traces over the electrodes. This results in a lower spatial resolution, especially in neurological patients with focal brain lesions or disorders. We have observed that individual channels provide more meaningful information as compared to averages for the task of finger-to-nose. Other studies have been performed in the framework of this project and have not shown a superiority of averages (they rather showed a lower performance when all the channels are averaged).

“(Fig. 3) What electrode positions are used to build this figure?”

These data correspond to the central area of the brain. This has been added to the revised article.

“(Fig. 4) The vertical dashed lines seem to occur periodically (each 20ms) with a certain time-distance but not necessarily on the highest peaks - do you have an interpretation/explanation for this phenomenon?”

This is well known for the cortico-muscular coherence. This is why some groups use a flexible window in their software to extract the best cortico-muscular coherence. There are several explanations: the variability in the preparation of movement, the variability in the corticospinal tract command from trial-to-trial, the variability in the muscle contraction from trial-to-trial and the electro-mechanical delay in muscle contraction (see Jenkins, Palmer and Cramer (2013) and Howatson et al. (2009)).

“(Fig. 5) With what rationale were the 2 patients and 3 trials chosen?”

These patients exhibited reproducible low values for the cortico-muscular coherence, by contrast to reproducible high values for the QP. This highlights the importance of our approach. This has been added to the revised article.

“(Fig. 6) It would be helpful to rescale the x-axis, so that the beginning of movement is time 0 and then indicate steps of +-250ms.”

It might be interesting to keep the same presentation in order to highlight the prediction phase from the post-movement period.

“(Fig. 9) What is the EEG/CorticoMuscular probability based on - averages across channels/channel combinations or one single channel/combination (the best one?)?”

The combinations of EEG/EMG were done for each electrode. Averages across channels decrease the values obtained, and therefore reduce the strength of the study. This is in agreement with the current wearable EEG caps, which include a few selected channels only (and this is also a better approach in terms of ergonomics and aesthetics).

“(Fig 14) There are not only continuous and dotted lines but also external lines with "big dots" - is this the range (min-max)?”

External lines with larger dots indicate the 95% confidence interval. This has been added in the legend of the figure in the revised article.

Supplementary data

"What do the rows in e.g. 001FN03.mat_EE...csv mean? Are these samples?"

Yes, these are samples. The referee and the reader can use the data to extract QPs and compare with other methods they might develop in the future.

Discussion

“You state that QP values greater than 90% were observed in some of the runs...That is, QP was calculated for each run? This is not clear from the methods section.”

QPs were calculated for each movement executed by the patients. One run contains several movements. QPs extracted showed good accuracy (fixed for values higher that 70%), with some QPs which were extremely good (accuracy greater than 90%). The methods section has been modified accordingly in the revised version of the article.

“Why are EEG recordings more complex when tremor is generated in nuclei deep in the brain?”

Because EEG activity is mainly driven by the cortical brain electrical activity, which is detectable through the scalp. Activities generated in depth, for instance in basal ganglia (putamen, caudate nucleus…), are very weakly recorded with conventional EEG electrodes. They require the use of invasive deep brain electrodes. The same observation can be put forward for tremor related to lacunar stroke.

“In the discussion of kinematic data it seems to me that you discuss the background generally without referring to your own results. You should rather discuss why the y axis alone is superior to x axis or a combination of the two.”

We have added one sentence explaining that there is very often a so-called dominant axis which provides the most meaningful information. For instance, in cases of cerebellar kinetic tremor, the vertical axis perpendicular to the direction of motion is the most meaningful (relevant for kinetic tremor).

“Do probability trees really show the best association of parameters? In a subsequent sentence you write that all possible combinations need to be tested. To me probability trees as used in this paper seem to give the impression of how complex the problem is, but they do not answer the question: Which feature/combination of features leads to highest detection rates? This problem is solved by feature selection algorithms (see general remark 2).”

The best association of QPs is a case by case decision. We confirm that the probability trees can be used to extract the best combination. However, these probability trees have been built for a given task and it is very likely that the ultimate choice will rely on the selection of the best probability trees related to a given number of selected tasks representative for daily life. A specific study should address this very interesting but very complex question.

“I am not an FES-expert, but wonder if there is any literature about the instance of time when FES has to be applied in order to make a movement free of tremor. Should it be applied at movement onset, or before the movement is carried out, i.e., in the planning phase? It probably depends on each individual patient, since tremor can occurr pre- movement or during movement. Thus, the kind of FES should be different for each patient and similarly, depending on the type of application, the EEG-part may or may not be useful. Also if planning the action induced the tremor, detection of movement intention based on EEG could be too late?”

Muscular FES induces mainly a peripheral suppression of tremor, since electrical stimulation exerts its effect on the activities of the agonist and antagonist muscles of the trembling limb, rather than on the central sources of tremor. Our aim is to trigger the electrical stimulator on the basis of an early detection of the intention of movement. FES appears as a viable option to suppress the different forms of tremor. Several articles have been published on this topic. For instance, our group has now demonstrated that FES is effective to block physiological tremor - Grimaldi, Fernandez and Manto (2013). The intensity of stimulation and the pattern of stimulation can be adapted as a function of the percentage of tremor reduction.

“There is no discussion about the simulation results.”

The following sentences have been added to the revised version of the article:

“Results obtained with the simulation study provide useful information about EEG QP in order to select patients more effectively for a BCI-based treatment, including rehabilitation. The simulation demonstrates the relationship between the threshold and the QP. Future studies could take advantage of these findings to select the best neurological candidates on the basis of the ERD/ERS for BCI-based management."

Conclusion

“In the conclusion it seems that the QP is an EEG-specific value which can be complemented by values from other modules (kinematic...) - instead, the QP is a value for estimating the performance in detecting movement and can be applied to each modality. But is this really a main conclusion? I think the conclusion should be that the EEG can be supplemented by other modalities. However, the extent to which the detection rate of the EEG can be supplemented, i.e., how much the QP can be increased by combining several modalities, has not been evaluated.”

The paragraph has been changed to the following:

“We propose that the EEG QP can be complemented by the QPs extracted from the cortico-muscular coherence and the QPs obtained by the analysis of the changes in the kinematic signals, which occur prior to the voluntary movements. We suggest a fusion of the QP parameters in order to increase the likelihood to detect the intentionality of movement. The analysis of the corticomuscular coherence shows that this parameter alone cannot be used to predict voluntary motion and be implemented in a BCI”.

Some studies focusing only on corticomuscular coherence have failed.

“The last minus one sentence: The term classifiers comes out of the blue. This technique deserves some place in the discussion (as suggested in general remark 2). ”

The word “classifier” has been changed to:

“classification algorithms for BCI system in order to extract EEG patterns related to a cognitive or motor status”.

The following reference has been added: Pfurtscheller et al. (1996).

“Last sentence: The approach has firstly to be implemented - the present manuscript is a pre-study. The next step is to integrate all of the modalities. Then you could evaluate the approach on a large sample.”

The sentence has been changed to:

“Our approach will have to be tested in a large sample of patients in the future, in order to demonstrate its real clinical usefulness in daily practice. We propose to select a larger group of neurological patients to confirm the strength of the multimodal prediction.” in the revised version of the article.

General remarks

“You use BCI in terms of a control unit. BCI is an interface between brain and computer. As such, your system would be a multimodal control unit, including also an EEG-module like often used for BCIs, but also body modules to control a stimulation unit. I think the term BCI is not the best choice here, since it does not take into consideration the EMG module etc.”

The terminology is used in the literature, but we understand the point made by the referee. In the revised version of the Discussion, we have introduced the concept of a “multimodal control unit”:

“In theory, BCI is an interface between brain and computer. As such, our system would be a multimodal control unit, including also an EEG-module like often used for BCIs, but also body modules to control a stimulation unit.”

“The way such a problem would be solved by the current BCI-community is a classification by use of machine learning techniques i.e., you apply some feature selection algorithm and train your machine in discriminating movements based on the multimodal input. These two steps could further be included in one step e.g. by use of random forests. By doing so you evaluate the performance of your modules and find out which ones contribute most to a high detection rate - separately for each patient (thus, you take into account interindividual variability). I would at least include this option in the discussion.”

This is a great idea. We have added the following sentence to the Discussion:

“Future works could apply some feature selection algorithm and train the multimodal control unit in discriminating movements based on the multimodal input. These two steps could further be included in one step e.g. by use of random forests. By doing so, the performance of the modules would be evaluated to find out which ones contribute most to a high detection rate. This would be done separately for each patient, thus taking into account the inter-individual variability.”

“The way such a problem would be solved by the current BCI-community is a classification by use of machine learning techniques i.e., you apply some feature selection algorithm and train your machine in discriminating movements based on the multimodal input. These two steps could further be included in one step e.g. by use of random forests. By doing so you evaluate the performance of your modules and find out which ones contribute most to a high detection rate - separately for each patient (thus, you take into account interindividual variability). I would at least include this option in the discussion.”

We have added the following sentence to the Conclusion:

“The present study opens the door for future studies in terms of how to increase EEG-based detection of movement intention by incorporating information from multiple modules.”

We feel that we respond partially to this critical question, for instance by showing that a cortico-muscular module cannot provide a good evaluation of the intentionality of movement (some groups still try to rely on this parameter to detect the preparation of movement and to manipulate an effector).

“The presentation of the results is rather descriptive, the authors report QP, SDs etc. but no statistical test is applied. It would have been interesting if the QPs differ between modalities, within modalities with respect to electrode locations etc. I think some statistical evaluation could allow more concrete conclusions to be drawn. Furthermore, a feature-selection algorithm can be based on some statistics. I would suggest having a look at the recent BCI-research which provides many ideas on how to reduce multidimensional data.”

We have added the references below and have included the following sentence in the Discussion:

“Techniques of multichannel EEG compression, phase congruency and graphical representations aiming at a reduction of multidimensional data have been proposed [Gasser and Möcks, 1983; Logesparan and Rodriguez-Villegas, 2010; Dauwels et al. 2013]. However, no technique has been widely accepted so far.”
Gasser and Möcks (1983)
Logesparan and Rodriguez-Villegas (2010)
Dauwels et al. (2013)
The following references have been added:
Rektor, Sochůrková and Bocková (2006)
Shibasaki and Hallett (2006)

View more View less

Competing Interests

No competing interest to declare.

Back to all reports

Reviewer Report

26 Views

03 Jan 2014 | for Version 1

Christoph M Michel, Functional Brain Mapping Laboratory, Department of Neuroscience, University of Geneva, Geneva, Switzerland

26 Views Cite this report Responses(1)

Approved With Reservations

EEG analysis of Beta-Alpha ratio was analyzed in 105 different combinations of frequency bands that were highly overlapping. The rational for this fine distinction of different frequency bands is not very clear given the existing (but not cited) literature on event-related synchronization/desynchronization (work by Pfurtscheller, for example). While not explicitly stated, I guess that these 105 combinations were done for each electrode. Studying the existing literature would have allowed the authors to restrict to the known electrodes and frequency-bands of interest.
EEG-MEG coherence analysis: each EEG channel is correlated with one MEG channel. Figure 4 shows very similar results for each electrode. This is not surprising given that each EEG electrode measures part of the activity of the same generators in the brain. Volume conductance makes the different EEG signals highly correlated when referred to a common reference and thus they are all correlated with the MEG waveform.
It is not clear whether the results are specific to tremor patients - a control group is missing.
The results are not clear. One would have expected a conclusion that informs the reader which of the multiple parameters seem to be most promising. The presented probability trees are very abstract and do not allow one to make a conclusion on specific parameters.
The Table at the end of the manuscript is not clear. What do the different numbers represent?
The abstract should not be a verbatim copy of the Introduction.
A better description of the literature on ERD in BCI is needed in the Introduction. Important work is missing.

Competing Interests

No competing interests were disclosed.

Respond to this report

Responses (1)

Author Response F1000Research Advisory Board Member

24 Apr 2014

Mario Manto, Unité d’Etude du Mouvement, Université Libre de Bruxelles, Erasme, Bruxelles, 1070, Belgium

We thank the referee for their criticisms.

1. “EEG analysis of Beta-Alpha ratio was analyzed in 105 different combinations of frequency bands that were highly overlapping. The rational for this fine distinction of different frequency bands is not very clear given the existing (but not cited) literature on event-related synchronization/desynchronization (work by Pfurtscheller, for example). While not explicitly stated, I guess that these 105 combinations were done for each electrode. Studying the existing literature would have allowed the authors to restrict to the known electrodes and frequency-bands of interest.”

We have added the following sentences in the Discussion:

“Our protocol in neurological patients with tremor differs from those in the literature, hence our study on the multiple combinations of frequency bands. When a neurological patient with tremor is seated and assessed, he/she may exhibit a tremor of the head and trunk. This tremor may be pretty stable or rather intermittent. There may even be an overlap with the main frequencies of the EEG signal, for instance in the alpha band (a rapid head tremor may be found). Therefore, we decided to have a close look to each of these bands. For instance, we have seen patients with cerebellar disorders and orthostatic tremor in whom the sub-band 8-10 Hz was much less informative as compared with the sub-band 10-12 Hz. We would like to point out that in the study of Pfurtscheller et al. on single-trial classification of EEG and imagination (Neuroimage. 2006;31(1):153-9), the frequency of the most reactive components was 11.7 +/- 0.4 Hz (mean +/- SD). The SD was thus small. Although the desynchronized components were centered at 10.9 Hz +/- 0.9 Hz, the synchronized components were narrow-banded, with higher frequencies at 12.0 Hz +/- 1.0 Hz. We agree with the authors that the classification of single EEG trials improves when ERD and ERS patterns are combined for multiple tasks. We aim to pursue the use of narrow bands of frequency in multiple tasks.”

2. “EEG-MEG coherence analysis: each EEG channel is correlated with one MEG channel. Figure 4 shows very similar results for each electrode. This is not surprising given that each EEG electrode measures part of the activity of the same generators in the brain. Volume conductance makes the different EEG signals highly correlated when referred to a common reference and thus they are all correlated with the MEG waveform.”

The combinations of EEG/EMG were done for each electrode. We agree that in theory the volume conductance effect and the common generators could impact on the coherence analysis in healthy subjects. The rationale is the following: EEG signals taken from nearby areas may be very different in patients with brain lesions (the density of MEG channels is also much higher as compared to our set-up). This is due to structural lesions in the brain. These MRI images (T2-weighted axial sections) illustrate the subcortical lesions in a patient with Parkinsonism of vascular origin. The lesions disrupt the subcortical tracts of the periventricular white matter. The attempt to translate data obtained in healthy subjects cannot be efficient. In these patients, a case-by-case BCI scenario is required. We want also to point out that fMRI studies show an activation of selected areas of the homunculus during limb movements. Hence also the selection of the central area for the EEG channels (see the reply to Yvonne Hoeller). Several groups working on BCIs are now attempting to focus on the EEG signals located nearby the pre-central sulcus. We would like to stress that our patients do exhibit tremor (including of the head-trunk), unlike control subjects. The algorithm suggested for tremor suppression requires tremor. It might be interesting to investigate patients showing tremor likely induced by a disruption of the peripheral nervous system, and to compare the results with those obtained in patients showing brain lesions.

This figure illustrates an example of the results of ERD/ERS in a patient with post-traumatic tremor (multiple brain lesions) pressing on a force transducer during a pinch task of the right hand. The patient is seated in front of a computer: (a) baseline measurement (rest) during 2 seconds, followed by (b) the patient prepares himself by mental imagery for 4 seconds, and (c) the patient presses a force transducer during 2 seconds. The channels C3-Cz and FC3-Cz are compared. The relative results for the main sub-bands (delta, theta, alpha, beta) are shown. Note the clear difference between the ratio beta/alpha. The ERD/ERS is much stronger for C3-Cz as compared to FC3-Fz.

3. “It is not clear whether the results are specific to tremor patients - a control group is missing.”

Our project focused on tremor patients and not on healthy subjects. This has been addressed by other partners of the project. We would like to point out that the attempt to translate findings in healthy subjects to neurological patients with brain lesions is very likely to be poorly productive. See also the reply to the previous query.

“The results are not clear. One would have expected a conclusion that informs the reader which of the multiple parameters seem to be most promising. The presented probability trees are very abstract and do not allow one to make a conclusion on specific parameters.”

We have modified the Discussion as follows:

“Our data provide a ground for the concept of multimodal approach developed for the early detection of the intentionality of movement. The presented probability trees are general schemes. A case-by-case analysis is required. In order to provide the most possible accurate BCI-driven FES system, each subject needs to be studied in order to define the best combination of QPs. For instance the kinematic QPs may be more efficient than the EEG QPs in a given patient (as it may happen when ERD/ERS is not stronger enough to be detected). The system would take into account these features. By analysing a larger group of patients, we might identify subgroups of patients on the basis of the results of the probability trees. In other words, the probability trees would be used as an eligibility procedure to multimodal BCI-driven treatments in neurological patients with tremor”.

- “The Table at the end of the manuscript is not clear. What do the different numbers represent?”

Data from experiments have been included, so that the referee or the reader can compare them with his/her own software.

- “The abstract should not be a verbatim copy of the Introduction.”

The introduction has been re-written.

4. “A better description of the literature on ERD in BCI is needed in the Introduction. Important work is missing.”

The following references have been added:

·        Pfurtscheller and Lopes da Silva (1999)

·        Pfurtscheller et al. (2006)

·        Birbaumer et al. (2006)

View more View less

Competing Interests

No competing interests were disclosed.

Alongside their report, reviewers assign a status to the article:

Approved - the paper is scientifically sound in its current form and only minor, if any, improvements are suggested

Approved with reservations - A number of small changes, sometimes more significant revisions are required to address specific details and improve the papers academic merit.

Not approved - fundamental flaws in the paper seriously undermine the findings and conclusions

[1] 1. Louis ED, Marder K, Cote L, et al.: Differences in the prevalence of essential tremor among elderly African Americans, whites, and Hispanics in northern Manhattan, NY. Arch Neurol. 1995; 52(12): 1201–5. PubMed Abstract | Publisher Full Text

[2] 2. Grimaldi G, Manto M: "Old" and emerging therapies of human tremor. Clin Med Insights: Ther. 2010; 2: 169–178. Publisher Full Text

[3] 3. Prochazka A, Elek J, Javidan M: Attenuation of pathological tremors by functional electrical stimulation. I: Method. Ann Biomed Eng. 1992; 20(2): 205–24. PubMed Abstract | Publisher Full Text

[4] 4. Kinoshita M, Hitomi T, Matsuhashi M, et al.: How does voluntary movement stop resting tremor? Clin Neurophysiol. 2010; 121(6): 983–5. PubMed Abstract | Publisher Full Text

[5] 5. Helmich RC, Hallett M, Deuschl G, et al.: Cerebral causes and consequences of parkinsonian resting tremor: a tale of two circuits? Brain. 2012; 135(Pt 11): 3206–26. PubMed Abstract | Publisher Full Text | Free Full Text

[6] 6. Llera A, van Gerven MA, Gomez V, et al.: On the use of interaction error potentials for adaptive brain computer interfaces. Neural Netw. 2011; 24(10): 1120–7. PubMed Abstract | Publisher Full Text

[7] 7. Grimaldi G, Manto M: Neurological tremor: sensors, signal processing and emerging applications. Sensors. 2010; 10(2): 1399–1422. PubMed Abstract | Publisher Full Text | Free Full Text

[8] 8. Gillingham FJ, Donaldson MC: Third Symp. of Parkinson's Disease, Edinburgh, Scotland, E&S Livingstone. 1969; pp.152–157.

[9] 9. Rektor I, Sochůrková D, Bocková M: Intracerebral ERD/ERS in voluntary movement and in cognitive visuomotor task. Prog Brain Res. 2006; 159: 311–30. PubMed Abstract | Publisher Full Text

[10] 10. Shibasaki H, Hallett M: What is the Bereitschaftspotential? Clin Neurophysiol. 2006; 117(11): 2341–56. PubMed Abstract | Publisher Full Text

[11] 11. Grimaldi G, Manto M, Jdaoudi Y: A quality parameter for the detection of the intentionality of movement in patients with neurological tremor performing a finger-to-nose test. Conf Proc IEEE Eng Med Biol Soc. 2011; 2011: 7707–10. PubMed Abstract | Publisher Full Text

[12] 12. Proakis JG, Manolakis DG: Digital Signal Processing: Principles, Algorithms, and Applications, Upper Saddle River, NJ: Prentice Hall, 1996; pp. 480–481.

[13] 13. Defebvre L, Derambure P, Bourriez JL, et al.: Event-related desynchronization and Parkinson disease. Importance in the analysis of the phase of preparation for movement. Neurophysiol Clin. 1999; 29(1): 71–89. PubMed Abstract

[14] 14. Pfurtscheller G, Lopes da Silva FH: Event-related EEG/MEG synchronization and desynchronization: basic principles. Clin Neurophysiol. 1999; 110(11): 1842–1857. PubMed Abstract | Publisher Full Text

[15] 15. Birbaumer N, Weber C, Neuper C, et al.: Physiological regulation of thinking: brain-computer interface (BCI) research. Prog Brain Res. 2006; 159: 369–91. PubMed Abstract | Publisher Full Text

[16] 16. Timmer J, Lauk M, Köster B, et al.: Cross-spectral analysis of tremor time series. Int J Bifurc Chaos. 2000; 10(11): 2595–2610. Reference Source

[17] 17. Mäkinen V, Tiitinen H, May P: Auditory event-related responses are generated independently of ongoing brain activity. Neuroimage. 2005; 24(4): 961–8. PubMed Abstract | Publisher Full Text

[18] 18. Pfurtscheller G, Flotzinger D, Neuper C: Differentiation between finger, toe and tongue movement in man based on 40 Hz EEG. Electroencephalogr Clin Neurophysiol. 1994; 90(6): 456–460. PubMed Abstract | Publisher Full Text

[19] 19. Shishkin SL, Ganin IP, Kaplan AY: Event-related potentials in a moving matrix modification of the P300 brain-computer interface paradigm. Neurosci Lett. 2011; 496(2): 95–9. PubMed Abstract | Publisher Full Text

[20] 20. Pfurtscheller G, Brunner C, Schlögl A, et al.: Mu rhythm (de)synchronization and EEG single-trial classification of different motor imagery tasks. Neuroimage. 2006; 31(1): 153–9. PubMed Abstract | Publisher Full Text

[21] 21. Ahmadian P, Cagnoni S, Ascari L: How capable is non-invasive EEG data of predicting the next movement? A mini review. Front Hum Neurosci. 2013; 7: 124. PubMed Abstract | Publisher Full Text | Free Full Text

[22] 22. Lew E, Chavarriaga R, Silvoni S, et al.: Detection of self-paced reaching movement intention from EEG signals. Front Neuroeng. 2012; 5: 13. PubMed Abstract | Publisher Full Text | Free Full Text

[23] 23. Gasser T, Möcks J: Graphical representation of multidimensional EEG data and classificatory aspects. Electroencephalogr Clin Neurophysiol. 1983; 55(5): 609–12. PubMed Abstract | Publisher Full Text

[24] 24. Logesparan L, Rodriguez-Villegas E: Improving phase congruency for EEG data reduction. Conf Proc IEEE Eng Med Biol Soc. 2010; 2010: 642–5. PubMed Abstract | Publisher Full Text

[25] 25. Dauwels J, Srinivasan K, Reddy MR, et al.: Near-lossless multichannel EEG compression based on matrix and tensor decompositions. IEEE J Biomed Health Inform. 2013; 17(3): 708–14. PubMed Abstract

[26] 26. Deuschl G, Raethjen J, Baron R, et al.: The pathophysiology of parkinsonian tremor: a review. J Neurol. 2000; 247(Suppl 5): V33–48. PubMed Abstract | Publisher Full Text

[27] 27. Pfurtscheller G, Kalcher J, Neuper C, et al.: On-line EEG classification during externally-paced hand movements using a neural network-based classifier. Electroencephalogr Clin Neurophysiol. 1996; 99(5): 416–25. PubMed Abstract | Publisher Full Text

[28] 28. Grimaldi G, Manto M, Jdaoudi Y: EEG, EMG, accelerometer and gyroscope data for a FES-mediated brain-computer interface (BCI) aiming to suppress neurological tremor. Figshare. 2013. Data Source

Quality parameters for a multimodal EEG/EMG/kinematic brain-computer interface (BCI) aiming to suppress neurological tremor in upper limbs

Abstract

Keywords

Revised Amendments from Version 1

Introduction

Materials and methods

Figure 1. Expected prediction order.

A. Description of patients

Table 1. Description of patients.

B. Experimental set-up

C. Movement detection

Figure 2. Movement detection based on signal processing.

D. EEG module

E. Corticomuscular module (EEG-EMG)

F. Kinematic module

Results

A. EEG module

Figure 3. Influence of beta band frequency on EEG quality parameter (QP).

B. Corticomuscular module

Figure 4. Coherogram showing the evolution of coherence over time during voluntary movements of the upper limb (EEG channels-central area of the brain-correlated to an EMG electrode of the biceps muscle).

Figure 5. Probability of stimulation.

C. Kinematic module

Figure 6. Prediction of the movement on the basis of the kinematic module (see also Figure 2).

Figure 7. Kinematic QPs.

Figure 8. Probability of stimulation from the kinematic module for axis x, y and xy combined.

D. Global multimodal plot

Figure 9. Example of probability tree from patients 001 and 009 (trials FN003).

E. Simulation of ERD/ERS: which thresholds would be required to obtain high EEG QPs?

Figure 10. Method used to generate an artificial EEG for the simulation study.

Figure 11. Example of spectral analysis of an artificial EEG containing alpha (A), beta (B) and delta theta gamma sub-bands (C).

Figure 12. True positive values (green diamonds) for 4 events of desynchronization of the EEG (represented by vertical dotted lines).

Figure 13. Relationship between the threshold of ERD/ERS and the QP.

Figure 14. QP obtained as a function of the threshold of ERD/ERS used.

Discussion

Figure 15. Proposal of a closed-loop approach for the detection of intentionality of movement and the triggering of FES.

Conclusion

Data availability

Author contributions

Competing interests

Grant information

Acknowledgements

References

Comments on this article Comments (0)

Open Peer Review

Comments on this article Comments (0)

Open Peer Review

Reviewer Status

Reviewer Reports

Comments on this article

Browse by related subjects

Competing Interests Policy

Stay Updated
