Deletion of ENTPD3 does not impair nucleotide hydrolysis in primary somatosensory neurons or spinal cord

Animal care and use

All vertebrate animals and procedures used in this study were approved by the Institutional Animal Care and Use Committee at the University of North Carolina at Chapel Hill. Mice were maintained on a 12 h:12 h light:dark cycle, were given food (Harlan 2920X) and water ad libitum, and were tested during the light phase. Mice were acclimated to the testing room, equipment and experimenter 1–3 days prior to testing.

Molecular biology and knockout mouse generation

Recombineering was used to generate the Entpd3 targeting arms from a 129S7/SvEv-derived bacterial artificial chromosome (BAC; bMQ-111o06; CHORI). The start codon, located in exon 2 (Lavoie et al., 2004), was replaced with an AscI site to facilitate cloning of AscI-LoxP-EGFPf-3xpA-LoxP-DTR-pA-Frt-PGK-NeoR-Frt-AscI. EGFPf=farnesylated enhanced GFP (Zylka et al., 2005), DTR=human diptheria toxin receptor (Saito et al., 2001). Use of this construct for axonal tracing and cell ablation of calcitonin gene-related peptide (CGRP)-expressing DRG neurons was previously described (McCoy et al., 2013; McCoy et al., 2012). Correct targeting was confirmed in 5.2% of all embryonic stem cell clones by Southern blotting using flanking 5’ and 3’ probes and a NeoR internal probe. High percentage chimeras were crossed to C57BL/6 females to establish germline transmission and then crossed to PGK1-FLPo mice [B6(C3)-Tg(Pgk1-FLPo)10Sykr/J, Jackson Laboratory] to remove the Frt-flanked selection cassette (confirmed by PCR). Mice were backcrossed to C57BL/6 mice for eight generations to remove the PGK1-FLPo allele (confirmed by PCR) and establish the Entpd3^-/- line. Note, the knocked-in GFP was undetectable in DRG and spinal cord neurons of the Entpd3^-/- line.

Immunoblotting

Male WT and Entpd3^-/- (3 month-old; ~25 g; n=3 for each genotype) were decapitated, and the DRG and bladder tissue was collected and digested in modified RIPA buffer (50 mM HEPES pH 7.4, 150 mM NaCl, 1% Triton X-100, 1% SDS, 0.5% deoxycholate) supplemented with protease inhibitors (Roche Complete Mini). Protein samples from the cell lysate (1 mg/ml) were analyzed by SDS-PAGE with 4–20% gradient Tris-Glycine polyacrylamide gels (BioRad). The protein samples were then transferred to a polyvinylidene difluoride membrane and probed with a sheep anti-ENTPD3 polyclonal antibody overnight at 4°C (0.2 μg/ml; AF4464, R&D Systems), followed by a rabbit anti-sheep horseradish peroxidase-conjugated secondary antibody for 1 h at room temperature (0.16 μg/ml; #31480, Thermo Scientific).

Tissue collection and preparation for histology

Hindpaw skin (glabrous and hairy), lumbar DRGs, and spinal cords were removed from male mice (n=3; ~10 weeks old) following decapitation, and immersion-fixed in cold 4% paraformaldehyde in 0.1 M phosphate buffer, pH 7.4, for 3 h, 4 h, and 8 h, respectively, and then cryoprotected in 30% sucrose in 0.1 M phosphate buffer at 4°C. DRGs were sectioned at 20 µm and collected on SuperFrost Plus slides; spinal cords and hindpaw skin were sectioned at 30 µm and 60 µm, respectively, and collected in PBS or a cryoprotectant solution containing PBS, ethylene glycol, and glycerol for long-term storage at -20°C.

Histochemistry

Enzyme histochemistry was performed as described previously (Zylka et al., 2008) with a few modifications. Sections of DRG and spinal cord from 3 WT and 3 Entpd3^-/- mice were incubated with a given concentration of a nucleotide (AMP, 6 mM for DRG, 3 mM for spinal cord; ADP, 1 mM for DRG and spinal cord; ATP, 0.2 mM for DRGs and spinal cord; UTP, 0.2 mM for spinal cord) in Trizma-maleate buffer containing 20 mM MgCl₂, pH 7.0, and 2.4 mM lead nitrate for 3 h at room temperature. For some experiments, we included (in the rinse and substrate incubation steps) 10 mM levamisole to block alkaline phosphatase activity, 5 mM ouabain to block Na+/K+-ATPases, a combination of levamisole and ouabain, or 0.1–1.0 mM ARL67156 (N-diethyl-d-β,γ-dibromomethylene ATP) to nonselectively block ENTPD enzymes. All reagents were purchased from Sigma.

Immunohistochemistry

Tissue sections from 3 WT and 3 Entpd3^-/- mice were stained immunohistochemically as previously reported (Taylor-Blake & Zylka, 2010). Antibodies used were: polyclonal sheep anti-mouse ENTPD3/CD39L3 (skin, 1:75; DRG and spinal cord 1:400; AF4464, R&D Systems), monoclonal mouse anti-NeuN (1:250; MAB377, Millipore), polyclonal chicken anti-Prostatic acid phosphatase (1:4,000; PAP, Aves Labs), polyclonal rabbit anti-NF200 (1:800; N4142, Sigma), monoclonal mouse anti-NF200 (Clone RT97; MAB5262, Millipore), polyclonal rabbit anti-CGRP (1:150; BML-CA1134, Enzo Life Sciences), polyclonal sheep anti-CGRP (1:300; BML-CA1137, Enzo Life Sciences); polyclonal rabbit anti-PKCγ (1:800; sc-211, Santa Cruz), and polyclonal rat anti-PECAM1/CD31 (1:400; Clone MEC 13.3, 553370, BD Biosciences). IB4 conjugated with Alexa Fluor dyes and secondary antibodies conjugated with Alexa Fluor dyes were purchased from Invitrogen. DRAQ5 (Catalog # 4084) was purchased from Cell Signaling Technology. Stained sections were imaged on a Zeiss LSM 510 confocal microscope or a Zeiss LSM 710 confocal microscope.

Fast-Scan Cyclic Voltammetry (FSCV)

Mouse sagittal spinal cord slices were prepared as described previously (Street et al., 2011). In brief, male mice aged 1–2 months old (~15 g; n=7 for each genotype) were anesthetized with urethane before decapitation, and the spinal cords were dissected and sectioned at 4°C in buffer that contained the following (in mM): 87 NaCl, 2.5 KCl, 1.25 NaH₂PO₄, 26 NaHCO₃, 75 sucrose, 10 glucose, 1.5 ascorbic acid, 0.5 CaCl₂, 7 MgCl₂. The slices were then incubated for 45 minutes in artificial cerebrospinal fluid (ACSF), which contained the following (in mM): 125 NaCl, 2.5 KCl, 1.25 NaH₂PO₄, 26 NaHCO₃, 25 glucose, 2.5 CaCl₂, 1.5 MgCl₂. All solutions were bubbled with 95%O₂/5%CO₂ for the duration of the dissection, incubation, and experiment steps.

FSCV monitoring of adenosine was performed as previously reported (Street et al., 2011), with the major difference being 100 µM ADP was used as the nucleotide substrate. Briefly, a disk-shaped carbon fiber microelectrode (Amoco) was inserted (Cahill et al., 1996), with the disk facing downwards, into the superficial dorsal horn. The potential of the microelectrode was scanned linearly at 400 V/s from -0.4 V to 1.5 V and back again once every 100 ms and was held at -0.4 V otherwise (all potentials versus Ag/AgCl). A micropipette inserted approximately 100 µm from the microelectrode was used to pressure-eject a bolus of 100 µM ADP using a Picospritzer^® III (Parker Instrumentation, Pinebrook, NJ) (ejection parameters: 1 s, 20 PSI). The current was recorded for 5 ejections, 5 minutes apart, at the same location in each sample to obtain a mean response. The current was processed, as previously described (Street et al., 2011), using the background subtracted current at the voltammetric peak at ~1.0 V potential, which has been shown to be sensitive to adenosine and not to nucleotides, such as ATP, ADP, and AMP (Swamy & Venton, 2007).

Behavioral assays

For all behavioral assays, ~3 month-old male WT (n=10) and Entpd3^-/- (n=10; all mice weighing ~26 g) mice were tested in each assay. Mice were acclimated to handling, testing rooms and facilities prior to testing, and the experimenter was blinded to the genotype of each animal. Heat sensitivity was measured by heating each hindpaw once per day using the Plantar Test apparatus (IITC) with a cut-off time of 20 s. For the tail immersion assay, each mouse was gently restrained in a towel, and the distal one-third of the tail was immersed into a water bath heated to 46.5°C or 49°C or into 75% ethanol cooled to -10°C (Wang et al., 1995). The latency to flick or withdraw the tail was measured once per mouse. The cut-off was set at 40 s, 30 s, and 60 s, respectively. For the hot plate test, the latency to jump, shake, or lick a hindpaw was measured within a 30 s cut-off time. To determine mechanical sensitivity, we used an electronic von Frey apparatus (IITC) with semi-flexible tips. Two measurements from each hindpaw were taken and averaged to determine the paw withdrawal threshold in grams. The tail clip assay (noxious mechanical) and cotton swab assay (innocuous mechanical) were performed as described (Garrison et al., 2012; Lariviere et al., 2002). For the acetone test (Bautista et al., 2007), each mouse was placed into a Plexiglas chamber with a wire mesh floor, 50 μL of acetone was placed onto the left hindpaw, and the time spent licking was measured for 1 minute. The cold plantar assay was performed with mice resting on the glass surface of the Plantar Test apparatus (IITC) (Brenner et al., 2012). For the two-temperature discrimination assay, each mouse was placed into a Plexiglas chamber covering two metal surfaces that could be set at different temperatures (Bautista et al., 2007; Dhaka et al., 2007). The amount of time mice spent on each side over a 10 minute period was recorded. Hot and cold sensitivity was assessed on a metal plate heated/cooled to a range of temperatures (5–55°C), with a cut-off time of 30 s, as described (Gentry et al., 2010). For measuring itch responses, histamine (10 μg/μL), chloroquine (CQ; 4 μg/μL) or β-alanine (20 μg/μL) dissolved in 0.9% saline was injected subcutaneously into the nape of the neck (50 μL injection volume). The number of scratching bouts was measured for 30 minutes in 5 minute blocks. One bout consisted of a set of scratches at the injection site until the hindpaw was either licked or placed onto the floor. For the water repulsion assay (Westerberg et al., 2004), the mouse was immersed in a 37°C water bath for 2 min. The mouse was removed from the water and placed onto a paper towel for 5 s, then weight and rectal temperature (deep body temperature, Tb, measured using a digital thermometer, Acorn Temp TC Thermocouple) were measured every 5 min for 60 min. The Complete Freund’s adjuvant (CFA) model of inflammatory pain and the lysophosphatidic acid (LPA) model of neuropathic pain were performed as described (Sowa et al., 2010a; Zylka et al., 2008). Twenty microliters of CFA was injected into the left hindpaw centrally beneath the glabrous skin, and 5 nmol of LPA was administered intrathecally.

ENTPD3 colocalizes with nociceptive and non-nociceptive neuronal markers in DRG

ENTPD3 is expressed throughout the nervous system, including nociceptive neurons (Belcher et al., 2006; Langer et al., 2007; Vongtau et al., 2011). To determine which subsets of lumbar DRG neurons expressed ENTPD3, we immunostained for ENTPD3 and markers of nociceptive and non-nociceptive neurons. As previously reported (Vongtau et al., 2011), most DRG neurons, including small-, medium-, and large-diameter neurons, showed some level of staining for ENTPD3 (Figure 2). For colocalization studies, we assessed only those neurons that were stained moderately to strongly for ENTPD3. All cells that expressed ENTPD3 also expressed NeuN, recapitulating previous results showing that ENTPD3 was primarily associated with neuronal cell types (Figure 2A–C, Table 1) (Belcher et al., 2006; Langer et al., 2007; Vongtau et al., 2011). Conversely, 56.8% of all DRG neurons (identified by NeuN expression) labeled for ENTPD3 (Figure 2A–C, Table 1). PAP, a marker of nonpeptidergic and some peptidergic nociceptive neurons, was extensively colocalized with ENTPD3—the majority (72.7%) of DRG neurons expressing PAP also expressed ENTPD3, while almost half (43.5%) of all ENTPD3⁺ neurons expressed PAP (Figure 2D–F, Table 1). These results were similar to those found by Vongtau and co-workers, who reported that 97% of IB4-binding nonpeptidergic DRG neurons expressed ENTPD3 (Vongtau et al., 2011). NF200, a marker for large-diameter, non-nociceptive neurons and smaller, thinly myelinated (Aδ) nociceptive neurons, colocalized with ENTPD3 (Figure 2G–I, Table 1), suggesting that ENTPD3 was expressed by some non-nociceptive neurons. Finally, an antibody to CGRP was used to identify peptidergic neurons (Figure 2J–L). Of CGRP-expressing neurons, 48.7% were also positive for ENTPD3 (Table 1). Thus, our results indicate that ENTPD3 is expressed in nociceptive and non-nociceptive neurons of the DRG.

Figure 2. ENTPD3 is broadly expressed in DRG neurons.

Mouse DRG neurons were immunostained for ENTPD3 (A,D,G,J) and selected markers (B,E,H,K). (C,F,I,L) Merged images. Images were acquired by confocal microscopy. Scale bar: (in L) A–L = 50 μM.

ENTPD3 expression in spinal dorsal horn

We also immunostained lumbar spinal cord sections to ascertain where ENTPD3 was located in the dorsal horn, the spinal region where axons of nociceptive and non-nociceptive sensory neurons terminate. ENTPD3⁺ nerve terminals were located primarily in lamina II, where IB4 terminals are located (Figure 3A–D,I), consistent with a previous report (Vongtau et al., 2011). ENTPD3⁺ terminals also extended dorsally into lamina I, an area occupied by CGRP⁺ terminals (Figure 3E,G,I) and ventrally into lamina III, an area with Protein Kinase Cγ (PKCγ)-expressing spinal neurons (Figure 3F,H,J). We also observed small ENTPD3⁺ spinal neurons in laminae I, II, and III (Figure 3A,B,G,H) as was reported by Vongtau and co-workers (Vongtau et al., 2011). This localization pattern in spinal laminae and spinal neurons suggests that ENTPD3 might hydrolyze extracellular nucleotides in spinal pathways devoted to nociception and somatosensation.

Figure 3. ENTPD3 is colocalized with peptidergic and nonpeptidergic markers in the dorsal horn of the spinal cord.

Mouse lumbar spinal cord sections were immunostained for ENTPD3 (A–B), and for the indicated markers (C–F). (G–J) Merged images at high (G–H) and low (I–J) magnification. Scale bar in H (A–H) = 50 μM. Scale bar in J (I–J) = 100 μM.

Generation and characterization of an Entpd3^-/- mouse

To assess the extent to which ENTPD3 was necessary for extracellular nucleotide hydrolysis, we disrupted the Entpd3 gene by knocking a LoxP-flanked GFP construct into the start codon of ENTPD3 (Figure 4A). Expression of GFP was not detectable in DRG or spinal cord even when amplified with antibodies against GFP (image not shown). We were thus unable to use GFP to mark cells that expressed Entpd3. Using immunoblotting, we detected ENTPD3 protein in DRG and bladder (tissues known to express high levels of ENTPD3 (Vongtau et al., 2011; Yu et al., 2011)) from WT mice, but no ENTPD3 protein was detectable in tissues from Entpd3^-/- mice (Figure 4B). These results confirmed that ENTPD3 protein was eliminated in our knockout line and that the antibody we used was specific for ENTPD3. We also immunohistochemically stained DRG, spinal cord, and hindpaw skin of WT and Entpd3^-/- mice. We found that lumbar DRG sections from WT mice showed neuronal staining characteristic of ENTPD3, whereas sections from Entpd3^-/- mice showed no staining (Figure 4C,F). Similarly, sections of lumbar spinal cord and hindpaw skin from Entpd3^-/- mice showed none of the ENTPD3⁺ neural profiles observed in WT spinal cord and hindpaw skin (Figure 4D–E,G–H). Mice lacking ENTPD3 produced normal-sized litters (5–9 pups/litter) and had normal weights relative to WT mice (at 3 months ~26 g WT; ~27 g Entpd3^-/-).

Figure 4. ENTPD3 protein is eliminated in Entpd3^-/- mice.

(A) Cartoon depiction of the farnesylated GFP-DTR construct that was knocked-in to the start codon of Entpd3. (B) Immunoblot showing loss of ENTPD3 protein in DRG and bladder collected from adult mice. (C–H) Loss of ENTPD3 in DRG (F), spinal cord (G), and glabrous skin (H) in Entpd3^-/- mouse tissue compared to wild-type tissues (C, D, and E, respectively). Scale bars: D = 50 μM; F = 100 μM; H = 50 μM.

Next, we used immunohistochemistry to determine if primary somatosensory neurons or axon terminals were affected by deletion of Entpd3. In DRG, the number of neurons that expressed nociceptive and non-nociceptive markers was not changed with the exception of a small, but statistically significant decrease in the number of neurons expressing NT5E (Table 2). In WT mice, 35% of DRG neurons expressed NT5E, but in Entpd3^-/- animals this percentage was reduced to 30.5% (Table 2). We also used immunohistochemistry to assess whether the spinal dorsal horn of Entpd3^-/- mice exhibited altered organization in comparison with that of WT animals. The laminar organization in the dorsal spinal cord of Entpd3^-/- mice, as revealed by staining for CGRP and PKCγ and binding of IB4, was indistinguishable from that of WT mice (Figure 5), suggesting that there was no alteration in the organization of primary afferents or spinal neurons in the dorsal horns of mice that lack ENTPD3.

Figure 5. Superficial dorsal horn organization in Entpd3^-/- mice is normal.

Sections of lumbar spinal cord from WT (A) and Entpd3^-/- (B) mice were stained with antibodies to distinguish laminar organization of the superficial dorsal horn. Scale bar in B = 100 μM.

Finally, to determine if cutaneous innervation was altered in Entpd3^-/- mice, we co-stained sections of glabrous and hairy skin of WT and Entpd3^-/- mice with antibodies to ENTPD3 and PGP9.5, a pan-neuronal marker (Figure 6). ENTPD3 marked most PGP9.5⁺ epidermal free nerve endings in hairy and glabrous skin as well as Meissner corpuscles and Merkel cells in volar pads (Figure 6A–F). These findings were similar to the previously reported staining pattern of ENTPD3 in skin sections (Vongtau et al., 2011). Sections of skin from Entpd3^-/- mice lacked all ENTPD3 staining. Expression of PGP9.5 was retained, revealing no differences in the density or structure of free nerve endings, Meissner corpuscles, and Merkel cells in Entpd3^-/- mice compared to those observed in skin from WT mice (Figure 6G–L). Thus, cutaneous innervation was not altered by the loss of ENTPD3. Further, nerve fibers co-expressing ENTPD3 and PGP9.5 were found on blood vessels in the dermis and deep dermis of the hindpaw (image not shown). There was no difference in the density of innervation of blood vessels (as revealed by PGP9.5 immunostaining) between WT and Entpd3^-/- mice (image not shown). Taken together, these results suggest that, with the exception of a small decrease in NT5E staining in DRG neurons, deletion of Entpd3 did not affect afferents in the skin, DRG neurons, or primary somatosensory afferents in the dorsal spinal cord.

Figure 6. Deletion of Entpd3 does not affect the density of nerve fiber staining in skin.

Sections of glabrous skin from the volar pads in WT (A–F) and Entpd3^-/- (G–L) mice were stained with antibodies against ENTPD3 (A,D,G,J) and PGP9.5 (B,E,H,K). D–F and J–L are high magnification insets of A–C and G–H and show Meissner corpuscles. Scale bar in I (A–C and G–I) = 100 μM. Scale bar in L (D–F and J–L) = 50 μM.

Entpd3^-/- mice do not exhibit deficits in nucleotide hydrolysis or adenosine generation

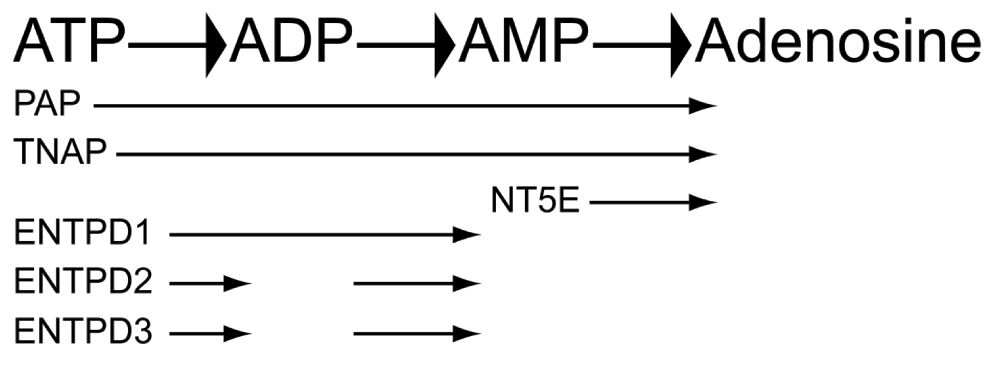

We previously reported that AMP hydrolysis in the DRG and dorsal spinal cord was redundantly carried out by three ectonucleotidases, PAP, NT5E, and TNAP (Street et al., 2013). However, the enzymes that contribute to ATP and ADP hydrolysis in DRG and spinal cord have not yet been fully characterized. To determine if ENTPD3 contributed to nucleotide hydrolysis in DRG, we performed histochemistry at a neutral pH (7.0) on DRG sections from WT and Entpd3^-/- mice using the indicated nucleotides (Figure 7). AMP histochemical staining was found in cell bodies of small- and medium-diameter neurons (Figure 7A,D; where PAP and NT5E are located); ADP histochemical staining was strongest in blood vessels (where ENTPD1 is located) and on the membrane of most neurons (Figure 7B,E); and ATP histochemical staining was present on blood vessels and the cell membrane of most neurons (Figure 7C,F). These staining patterns matched what was previously seen in DRG sections from WT mice (Sowa et al., 2010b; Street et al., 2011; Vongtau et al., 2011; Zylka et al., 2008).

Figure 7. Nucleotide hydrolysis, assessed via enzyme histochemistry, is not reduced in DRG neurons from Entpd3^-/- mice.

DRG sections from WT (A–C) and Entpd3^-/- (D–F) mice were stained using AMP (A,D), ADP (B,E), and ATP (C,F) enzyme histochemistry at pH 7.0 in the presence of 20 mM MgCl₂. Concentration of nucleotides used for histochemistry were as follows: AMP, 6 mM; ADP, 1 mM; ATP, 0.1 mM; UTP, 0.1 mM. Scale bar in F = 50 μM.

When comparing staining between WT and Entpd3^-/- DRGs, we saw no difference in AMP histochemical staining (Figure 7A,D), consistent with the fact that AMP is not a substrate for ENTPD3 (Ciancaglini et al., 2010). Surprisingly however, there were also no differences in histochemical staining between WT and Entpd3^-/- DRGs when ADP or ATP was used as substrates (Figure 7B–C,E–F). These data suggest either that ENTPD3 does not hydrolyze these nucleotides in DRG or that other ADP- and ATP-hydrolyzing ectonucleotidases are present and function redundantly with ENTPD3. To determine if ENTPD3 hydrolyzed ADP and ATP redundantly with alkaline phosphatases at pH 7.0, we inhibited alkaline phosphatase activity in histochemical experiments with levamisole (10 mM). However, we observed no difference in staining between WT and Entpd3^-/- DRGs in the presence of levamisole (image not shown). These data suggest DRG neurons contain additional ectonucleotidases besides TNAP and ENTPD3 that hydrolyze ATP and ADP at neutral pH.

We also found that enzyme histochemical staining was equivalent in the superficial dorsal spinal cord of WT and Entpd3^-/- mice when the indicated nucleotides were used as substrates (Figure 8). Many ectonucleotidases, including ENTPD3 (Lavoie et al., 2004), are slightly more active in biochemical assays with calcium as the divalent cation. However, we detected no difference in UTP histochemical activity in spinal cord between WT and Entpd3^-/- mice when 2 mM or 20 mM CaCl₂ was substituted for 20 mM MgCl₂ (Figure 9; with deletion of ENTPD3 confirmed in these sections using immunostaining, Figure 9H). Thus Mg²⁺ and Ca²⁺ appear to be interchangeable in this histochemical assay.

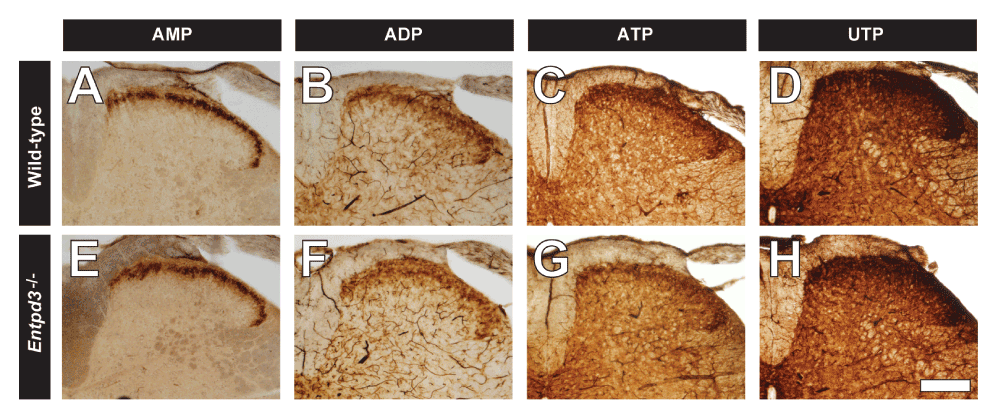

Figure 8. Nucleotide hydrolysis is not reduced in spinal cord sections from Entpd3^-/- mice.

Lumbar spinal cord sections from WT (A–D) and Entpd3^-/- (E–H) mice were stained using AMP (A,E), ADP (B,F), ATP (C,G), and UTP (D,H) enzyme histochemistry at pH 7.0 in the presence of 20 mM MgCl₂. Nucleotide concentrations were as follows: AMP, 3 mM; ADP, 1 mM; ATP, 0.2 mM; UTP, 0.2 mM. Scale bar in H = 200 μM.

Figure 9. UTP hydrolysis in spinal cord sections from WT and Entpd3^-/- mice is unaffected by substitution of divalent cations in histochemistry procedure.

Lumbar spinal cord sections from WT (A–C) and Entpd3^-/- (E–G) mice were examined for UTP hydrolysis at pH 7.0 in the presence of either 2 mM CaCl₂ (A,E), 20 mM CaCl₂ (B,F), or 20 mM MgCl₂ (C,G). UTP concentration for A–B and E–F is 0.2 mM and 0.1 mM for C and G. Representative images of ENTPD3 antibody staining in lumbar spinal cords from the same WT and Entpd3^-/- mice are shown in D and H. Scalebar in G,H = 200 μM.

To determine if other enzymes contributed to histochemical staining in the dorsal spinal cord when ATP and UTP (0.2 mM) were used as substrates, we used levamisole to block activity of alkaline phosphatases (10 mM), ouabain to block activity of Na⁺/K⁺-ATPase (5 mM), and ARL67156 (0.1 and 1 mM), an inhibitor of ENTPD1 and ENTPD3 (Levesque et al., 2007). The addition of these inhibitors did not result in any change in the staining intensity or pattern in the superficial dorsal horn of WT mice relative to Entpd3^-/- mice, but adding ARL67156 caused a near-complete loss of histochemical staining in microglia in the spinal gray in both genotypes, presumably because of blockade of ENTPD1 activity (Braun et al., 2000) (image not shown). Vongtau et al. also tested various inhibitors (ouabain, levamisole, and sodium azide) to block Na⁺/K⁺-ATPase, alkaline phosphatase, and ENTPD1 activity, respectively (Vongtau et al., 2011). They found that none of these inhibitors affected ATP or UTP hydrolysis in the spinal cord and concluded that ENTPD3 might be responsible for the remaining staining. Our study demonstrates that the level of nucleotide histochemical staining was the same in the Entpd3^-/- mice in the presence of ouabain and levamisole plus an ENTPD1/3 inhibitor (ARL67156), suggesting that one or more enzymes other than ENTPD3 are present that hydrolyze nucleotides in the spinal cord.

Enzyme histochemistry detects phosphate that is produced following nucleotide hydrolysis. As an alternative, we used FSCV to quantify adenosine production upon nucleotide hydrolysis in spinal cord slices of WT and Entpd3^-/- mice. As previously reported, FSCV can be used to detect adenosine based on characteristic oxidation voltages at 1.0 and 1.5 V (Swamy & Venton, 2007). We applied 100 mM ADP to lamina II and then measured adenosine production at the tip of a carbon-fiber microelectrode (Street et al., 2011). Application of ADP led to the generation of adenosine in WT and Entpd3^-/- mice, detected as an increase in measured current at oxidation voltages of 1.0 and 1.5 V (Figure 10A–B). Currents at 1.0 V were then converted to adenosine concentration. We then compared the peak adenosine concentration in WT and Entpd3^-/- mice (n=5 slices/genotype) to determine if mice lacking ENTPD3 had any deficit in the production of adenosine (Figure 10C). We saw no significant differences in adenosine generation from ADP between spinal cord slices of WT and Entpd3^-/- mice.

Note that FSCV cannot resolve neuronal ENTPD3 activity in the dorsal horn from spinal microglial ENTPD1 activity, so the adenosine detected by FSCV after applying ADP could originate from microglial ENTPD1 or other ectonucleotidases in the tissue. For example, this adenosine could originate from PAP and/or TNAP, as these enzymes are located in the same region and can also hydrolyze ADP to adenosine (Figure 1).

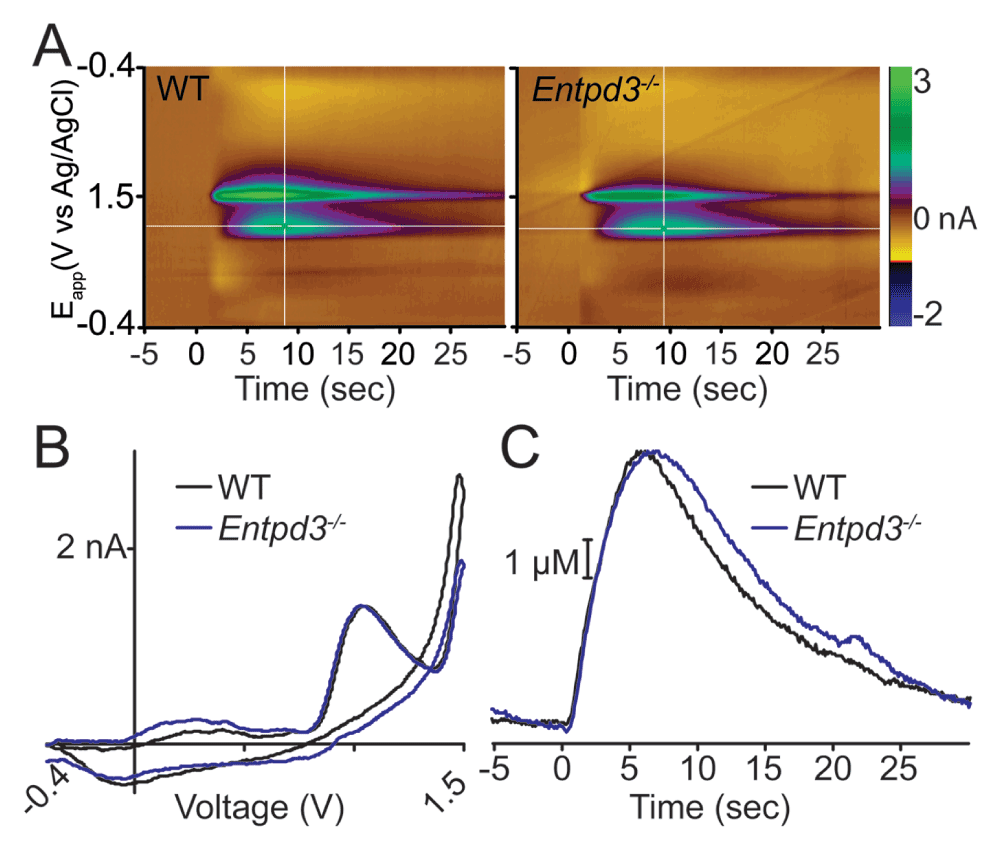

Figure 10. Hydrolysis of ADP to adenosine is not reduced in Entpd3^-/- mice.

FSCV was used to measure adenosine production in response to a bolus of ADP. (A) Representative FSCV color plots: 100 μM of ADP was pressure ejected for 1 s onto lamina II of (A) WT or Entpd3^-/- mice. (B) Cyclic voltammogram of one voltage trace from -0.4 V to 1.5 V and back to -0.4 V confirms the production of adenosine in WT (black trace) and Entpd3^-/- animals (blue trace) (shown as an increase in current at 1.0 and 1.5 V). (C) Adenosine concentration calculated from 1.0 V current (white horizontal lines in A) in WT (black trace) and Entpd3^-/- (blue trace) animals. There was no statistically significant difference between slices from WT and Entpd3^-/- mice (n=5 slices for each condition; paired t-test).

These FSCV results, when combined with enzyme histochemistry results, suggest that there are multiple ectonucleotidases that function redundantly to dephosphorylate ATP and ADP in DRG and superficial dorsal horn. Determining the molecular identities of these enzymes will require future studies with additional ectonucleotidase knockout mice and pharmacological inhibitors. Intriguingly, a redundant group of enzymes mediates AMP hydrolysis in the spinal cord, as PAP, NT5E, and TNAP must all be inhibited to completely block the generation of adenosine from AMP (Street et al., 2013). Likewise, TNAP can fully compensate for the loss of NT5E and generate adenosine from nucleotides in the hippocampus (Zhang et al., 2012).

Nociceptive behaviors are not impaired in Entpd3^-/- mice

Given the high expression of ENTPD3 in nociceptive neurons, we examined whether loss of ENTPD3 affected nociceptive-related behaviors by testing heat, cold, mechanical, and itch sensation (Table 3). In tests of heat sensitivity, there was no difference between WT and Entpd3^-/- mice in the tail immersion assay (46.5°C or 49°C; Table 3). Similarly, there was no difference in withdrawal latency in the hot plate test (Table 3). There was also no difference in responses between WT and Entpd3^-/- mice in any of the cold assays (acetone evaporative cooling, cold tail immersion at -10°C, or cold plantar; Table 3). To further validate our thermal data, we used a hindpaw withdrawal assay (Gentry et al., 2010) that measures sensitivity to temperatures ranging from noxious cold to noxious hot (Figure 11A). No difference was found between WT and Entpd3^-/- mice at any temperature. We also examined responses to mechanical stimuli and observed no difference between WT and Entpd3^-/- mice in noxious mechanical (tail clip) and innocuous mechanical (cotton swab) assays (Table 3).

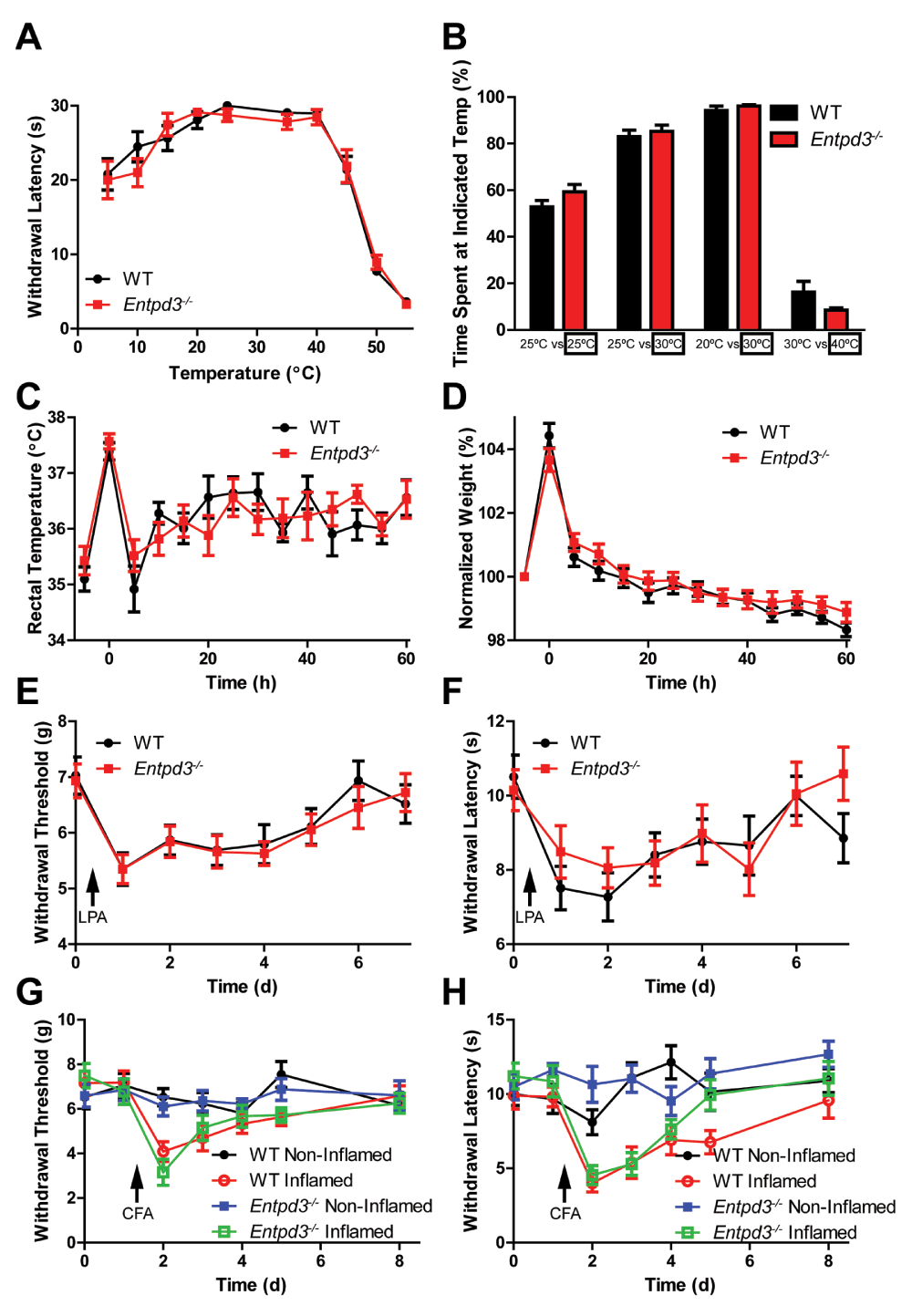

Figure 11. Entpd3^-/- mice show no nociceptive or thermoregulatory behavioral deficits.

(A) Sensitivity to temperatures ranging from noxious cold to noxious hot was measured using the hindpaw withdrawal assay. Cutoff time was 30 s. (B) Two-choice temperature discrimination assay. Temperatures were maintained at 25°C/25°C, 25°C/30°C, 20°C/30°C, or 30°C/40°C, and time on each side was measured for 10 minute. (C and D) The water repulsion assay examined rectal body temperature and body weight before and after immersion into a 37°C water bath for 2 min. (E–H) Mechanical allodynia and thermal hyperalgesia were measured in the LPA model of neuropathic pain (E and F) and in the CFA model of inflammatory pain (G and H). n=10 per group. t-tests were used to compare responses between genotypes at each time point, no significant differences detected. All values are represented as means ± SEM.

To determine if loss of ENTPD3 affected itch, we injected pruritogens (histamine, chloroquine, β-alanine) into the nape of the neck and quantified scratching responses. Histamine- and chloroquine-mediated itch were not altered in Entpd3^-/- mice compared to WT mice, but there was a statistically significant reduction (a decrease of 34%) in β-alanine-mediated itch (Table 3). β-alanine activates the Mas-related G-protein-coupled receptor D (MRGPRD) in nonpeptidergic nociceptive neurons (Liu et al., 2012; Rau et al., 2009; Shinohara et al., 2004). Therefore, it is possible that loss of ENTPD3 affects nonpeptidergic DRG neurons. When taken together, these data suggest that ENTPD3 does not play a widespread role in regulating sensitivity to noxious or innocuous somatosensory stimuli.

Temperature discrimination and thermoregulation are not impaired in Entpd3^-/- mice

We next tested WT and Entpd3^-/- mice in a two-temperature discrimination assay. In this assay, the amount of time spent in chambers with equal or different floor temperatures is quantified. Four temperature pairs were evaluated (25°C versus 25°C, 25°C versus 30°C, 20°C versus 30°C, and 30°C versus 40°C). There were no significant differences between WT and Entpd3^-/- mice at any of the tested temperature pairs (Figure 11B). These data indicate that temperature discrimination is not impaired in Entpd3^-/- mice.

We next examined the extent to which Entpd3^-/- mice regulate body temperature in the water repulsion assay. Mice were placed in a 37°C water bath for 2 minutes and their core body (rectal) temperatures and body weights were measured every 5 minutes for 60 minutes after removal from the water bath (Figure 11C,D). Following removal from the water bath, WT and Entpd3^-/- mice showed no differences in the initial body temperature increase or in the subsequent rate to recover their body temperature following hypothermia (Figure 11C). These data demonstrate that Entpd3^-/- mice have no deficits in body temperature regulation due to evaporative cooling.

The water repulsion assay also tests fur barrier function (Westerberg et al., 2004). Once the mouse is removed from the water bath, the initial increase in body weight is indicative of the amount of water absorbed by the fur. We found no significant difference between WT and Entpd3^-/- mice in this assay (Figure 11D), including in the rate at which water is removed/evaporates from the mice.

Hyperalgesia and allodynia in Entpd3^-/- mice are not impaired in models of chronic pain

Lastly, we sought to determine if deletion of ENTPD3 affected the magnitude of allodynia and hyperalgesia in models of inflammatory pain and neuropathic pain. Lysophosphatidic acid (LPA) is a pronociceptive ligand that sensitizes nociceptors and produces a chemically-induced form of neuropathic pain when injected intrathecally (i.t.) (Inoue et al., 2004). Administration of CFA into the hindpaw causes thermal hyperalgesia and mechanical allodynia and serves as a model of inflammatory pain. We monitored thermal and mechanical sensitivity before and after administration of either LPA (i.t.) or CFA (into hindpaw) and observed no differences between WT and Entpd3^-/- mice in either chronic pain model (Figure 11E,F).
