Diversity of two-component systems: insights into the signal transduction mechanism by the Staphylococcus aureus two-component system GraSR

Cloning and expression of bceR, graR, graR^N (1-134), and graR^C (123-244), and purification of the respective gene products

The bceR gene was amplified from B. subtilis strain 168 genome, and graR was amplified from S. aureus strain Mu50 genome. The primer sets used for amplification of each gene are specified in Table 1. Cloning protocols for bceR, graR and graR^C were the same. Briefly, each amplicon was ligated to the blunt end sites of pSTBlue-1, and each construct was amplified in NovaBlue cells. The respective plasmids were digested with the appropriate set of restriction enzymes (Table 1), and the inserts were ligated into pET26b(+) at the respective restriction sites. Cloning was confirmed by DNA sequencing (Core Facility, Biology, York University). The pET26b::bceR(or graR, graR^C) construct was used to transform BL21(DE3). To clone graR^N, we introduced a stop codon after the 134^th residue using the Quick-Change mutagenesis kit (Agilent, Mississauga, Canada).

To express and isolate the target proteins, cell cultures were grown to exponential phase with an optical density at 600 nm (OD₆₀₀) of ~0.6, induced with 0.5 mM isopropyl β-D-1-thiogalactopyranoside (IPTG, Rose Scientific, Edmonton, Canada), and shaken overnight at 18°C. Cells were harvested at 7,459 × g, resuspended in buffer I (20 mM Tris supplemented with 5 mM MgCl₂, pH 7.0 for BceR and pH 7.5 for GraR), and sonicated to liberate the protein. Cellular debris was removed by centrifugation at 18,138 × g for 60 min. The supernatant was loaded onto a DEAE-Sepharose^TM column equilibrated in buffer I, and the protein was eluted with a linear gradient of 500 mM Tris supplemented with 5 mM MgCl₂ (pH 7.0 for BceR and pH 7.5 for GraR). In the case of BceR, fractions containing the protein were pooled and concentrated using Amicon ultracentrifugation membrane (ultracel 10K, Thermo-Fisher) and then loaded onto a heparin-sepharose affinity column equilibrated with buffer I. Protein was eluted with a linear gradient of 500 mM Tris supplemented with 5 mM MgCl₂. For GraR, GraR^N and GraR^C, as a second step of purification, we employed size-exclusion chromatography. Protein samples were loaded onto Sephacryl S-200 HiPrep 26–60 size-exclusion column (GE Healthcare) equilibrated with 50 mM Tris buffer (pH 7.4) and supplemented with 100 mM KCl and 5 mM MgCl₂. The column was run at 1 mL/min. Fractions containing pure protein, as assessed by Coomassie-stained SDS-PAGE, were collected together and concentrated.

Protein concentrations were determined by the Bradford reagent (GE Healthcare). The molecular masses of the isolated proteins were confirmed by electron-spray ionization mass spectrometry (ESI-MS) at the Advanced Protein Technology Centre, Hospital for Sick Kids (Toronto, Canada).

Cloning and expression of glutathione S-transferase (gst)-tagged bceS, -graS, -graS^CA, -graS^DHp-CA, and purification of the respective gene products

The nucleic acid sequence encoding the cytoplasmic region of bceS, spanning residues 62 to 334, was amplified from B. subtilis 168 genome. The nucleic acid sequence encoding the cytoplasmic domain of graS, spanning residues 77–346, was amplified from S. aureus Mu50 genome. The same genome was used to amplify the nucleic acid sequence encoding the ATP-binding domain of GraS (GraS^CA), spanning residues 181–346. We also amplified the nucleic acid sequence encoding the dimerization and histidine phosphorylation (DHp) domain and the CA domain of graS, spanning residues 110–346. This construct is referred to as GraS^DHp-CA. The primer sets used for amplification of the above graS regions are specified in Table 1. We used the pGEX-4T-1 vector to clone the N-terminal GST-fusion proteins of GraS, GraS^CA, GraS^DHp-CA and BceS. We also cloned the GraS cytoplasmic domain with a hexa-histidine tag on its NH₂-terminus, using the pET151/D-TOPO vector.

Each gene was ligated to the blunt-end sites of pSTBlue-1, and this construct was amplified in E. coli NovaBlue. Each plasmid was isolated using the GeneJet^TM plasmid extraction kit and digested with the appropriate set of restriction enzymes to liberate the respective insert, which was then ligated into pGEX-4T-1 at the respective restriction sites (Table 1). The pGEX-4T-1::bceS(graS, graS^CA or graS^DHp-CA) plasmid was introduced into E. coli BL21(DE3). Expression and purification of GST-GraS, GST-GraS^CA, GraS^DHp-CA or GST-BceS was carried out in the same way. Briefly, protein expression was initiated with 0.5 mM IPTG once the cell cultures reached OD₆₀₀ ~0.6. Induction proceeded overnight at 18°C. Cells were spun down at 7,459 × g for 20 min, resuspended in 1 × phosphate-buffered saline buffer (PBS, pH 7.4), and then sonicated to liberate the cell contents. Cellular debris was removed by centrifugation at 18,138 × g for 60 min. Purification of each protein was carried out using glutathione-sepharose affinity resin (GE Healthcare). The target protein was eluted with 10 mM reduced glutathione in 50 mM Tris (pH 8.0). Fractions containing the protein were collected together.

Expression of His-GraS was performed in the same manner as for GST-GraS. The cell pellet was resuspended in 20 mM sodium phosphate pH 8.0 buffer supplemented with 300 mM NaCl and 20 mM imidazole. The cells were processed as described above. The supernatant was loaded onto a Ni-NTA (nickel-nitrilotriacetic acid) column (Qiagen), and protein was purified using a linear gradient of imidazole.

Cloning and expression of graX and purification of the respective gene product

The full length graX gene was amplified from S. aureus Mu50 genome using the primers provided in Table 1. The graX gene was cloned into pET26b between NdeI and HindIII restriction sites. The graX gene was also cloned to the C-terminus of MAT-Tag (HNHRHKH) and -FLAG (DYKDDDDK) epitopes using the pT7 MAT-tagFLAG-1 vector (Sigma). In this case, graX was inserted between the HindIII and XhoI restriction sites of the vector (Table 1). Each expression vector, pET26b::graX or pT7MAT-tagFLAG-1::graX, was introduced into E. coli BL21(DE3).

GraX and MAT-FLAG-GraX were expressed in the same way. Cell cultures were grown to an OD₆₀₀ ~0.6 at 37°C. At this point, the cultures were cooled at 4°C, induced with 0.5 mM IPTG, and allowed to express protein over 16 hours at 18°C. Cells were harvested by centrifugation at 7,459 × g for 20 min and resuspended in 50 mM sodium phosphate pH 7.2. For MAT-FLAG-GraX, the buffer was supplemented with 300 mM NaCl, and the pH was adjusted to 8.0. Cellular content was liberated through sonication, and the resulting cell lysate was centrifuged at 18,138 × g for 1 hour to remove the cellular debris. For GraX, the supernatant was loaded onto SP-Sepharose cation exchange column. GraX protein was eluted using a linear gradient of 0 to 1 M sodium chloride in 50 mM sodium phosphate pH 7.2. The fractions containing GraX were pooled and concentrated using Amicon stirred cell concentrator (EMD Millipore). The protein sample was dialyzed against 50 mM Tris, pH 7.4, 5 mM MgCl₂ and 300 mM NaCl. MAT-FLAG-GraX was purified using a Ni-NTA column (Qiagen). The protein was eluted with a linear gradient of imidazole from 10 mM to 300 mM imidazole over 5 column volume.

Cloning and expression of six-histidine-tagged vraF, and purification of the respective gene product

The full length vraF DNA sequence (762 bp) was amplified from S. aureus Mu50 genome. The primers designed to clone vraF into the pET24d expression vector harbor the restriction sites of NcoI and BamHI (Table 1). The amplicon was digested with NcoI and BamHI and ligated into the pre-treated pET24d vector with the same restriction enzymes. The resulting construct, pET24d::vraF was introduced into E. coli Nova Blue by heat shock at 42°C. The vraF insertion into the pET vector and the correctness of the gene sequence was confirmed by DNA sequencing (The Centre for Applied Genomics, The Hospital for Sick Kids, Toronto, Canada). The pET24d::vraF construct was introduced into the expression host E. coli BL21(DE3) by heat shock.

To enable cloning of VraF fused to a 6 × histidine tag (His₆-tag) on its C-terminus (His-VraF), we removed the stop codon on vraF to enable translation of a linker region and the 6 histidine tag in pET24d, downstream of vraF. The mutagenesis primers are provided in Table 1. The QuickChange^® mutagenesis kit was used to carry out the mutation (Agilent Technology). The mutation was confirmed by DNA sequencing.

Untagged vraF expression was attempted with 0.5 mM or 1 mM IPTG concentration at 18°C or 25°C for 18 hrs, in the absence or presence of 0.5 M sorbitol and 3 mM betaine. However, all these conditions resulted in expression of the protein trapped in inclusion bodies.

Over-expression of the C-terminal His₆-tagged vraF was carried out with 0.1 mM IPTG, over 16 hrs by shaking at 16°C. Briefly, 1 mL of overnight grown cell culture of E. coli BL21(DE3) was used to inoculate 1 L of Terrific Broth medium, supplemented with 2.5 M sorbitol and 3 mM betaine. When cell culture reached an OD₆₀₀ ~0.6, the cell culture was cooled down at 4°C and IPTG was added to a final concentration of 0.1 mM to induce protein expression. The cells were induced over 16 hours at 16°C and subjected to continuous shaking at 200 rpm. They were then collected by centrifugation at 7,459 × g for 20 min. The cell pellet was resuspended in Buffer A (50 mM sodium phosphate, 100 mM NaCl, 10 mM imidazole, pH 7.0 buffer). The cells were lysed by sonication and cell debris was removed by centrifugation at 18,138 × g at 4°C for 1 hr.

Purification of His-VraF was carried out using the batch method. The cell lysate was incubated with 1 mL Ni-NTA resin (Qiagen) for 1 hr at 4°C. The cell lysate-resin mixture was loaded into a column. The resin was washed with Buffer A until no protein was washed out from the column. Elution of VraF was carried out using a step gradient of imidazole in Buffer A: 4 × 1.5 ml 100 mM imidazole, 4 × 1.5 ml 150 mM imidazole; 4 × 1.5 ml 200 mM imidazole and 4 × 1.5 ml 300 mM imidazole.

Autophosphorylation of histidine kinases

Autophosphorylation of GST-GraS or GST-BceS was performed as described previously with minor modifications¹⁶. Purified GST-BceS, GST-GraS or His-GraS (5 µM) was equilibrated in the phosphorylation buffer (PB: 50 mM Tris, 50 mM KCl, 5 mM MgCl₂, pH 7.4) at a final volume of 10 µL. The PB was supplemented with 20 mM CaCl₂ (BceS) or 10 mM CaCl₂ (GraS). The reaction was initiated by adding [γ-³²P] ATP (10 Ci/mmol or 3000 Ci/mmol) at room temperature. Aliquots were removed at different time intervals, and the reactions were quenched by the addition of 5 × SDS sample buffer (2.5% SDS, 25% glycerol, 125 mM Tris-HCL, pH 6.8, 0.0025% bromophenol blue). Samples were analyzed by 12.5% SDS-PAGE. The gels were dried and exposed to an autoradiography cassette, which was scanned using TYPHOON Trio⁺ (GE Healthcare). The band intensities were analyzed by NIH ImageJ software (version 1.45s). The band intensities were plotted against time, and these curves were referred to as progress curves. The rate constant was determined by plotting the intensity values against a first-order integrated rate law with the equation I = A * (1 – e^–kt) where, I is the intensity of the band, k is the rate constant, t is time, and A is the proportionality constant between the intensity and concentration of GST-BceS-P. Erithacus GraFit software (version 5.0.10) was used to fit the experimental data. The phosphotransfer between the HK and its cognate RR, and phosphorylation of RRs by small molecule phosphate donors such as acetyl phosphate were carried out as described previously¹⁶.

Circular Dichroism (CD) experiments

To investigate whether the purified proteins were folded properly, we collected the CD spectrum (200–240 nm) of each protein on a Jasco J-810 instrument (Jasco, Tokyo, Japan) at 22°C using a cuvette with a 0.1cm path length. The CD spectra were collected in 30 mM Tris (pH 7.0) supplemented with 5 mM MgCl₂. The final spectra were corrected for buffer contribution.

Investigation of protein-protein interactions by pull-down assays

Glutathione-sepharose affinity resin (75 µL) was equilibrated in 1 × PBS buffer. GST-BceS, GST-GraS, GST-GraS^CA or GST-GraS^DHp-CA was incubated with the resin for 30 min at room temperature. The flow-through was collected, and the resin was washed with 1 × PBS buffer until no protein eluted. At this point, GST-BceS-bound resin was incubated with BceR at a 1:1.6 ratio, the GST-GraS-bound resin was incubated with GraR at a 1:2 or 1:5 ratio, GraX at a 1:1.3 ratio, or His-VraF at 1:1.3 ratio, the GST-GraS^CA-bound resin was incubated with His-GraX at 1:1.6 ratio, or His-VraF at 1:2 ratio, and GST-GraS^DHp-CA was incubated with His-VraF at 1:2 ratio. The incubation time in all the cases was 30 min at room temperature. Subsequently, the resins were washed five to seven times with 200 µL of 1 × PBS buffer. The proteins were eluted with 200-µL aliquots of 10 mM reduced glutathione in 50 mM Tris (pH 8.0). Flow-through fractions, wash fractions, and elution fractions were analyzed by 12.5% SDS-PAGE. The immobilized GST-BceS or GST-GraS were also incubated with bovine serum albumin (BSA) to investigate potential non-specific interactions with BceR and GraR, respectively. In addition, the resin itself was incubated with the prey proteins BceR, GraR or GraX to investigate for non-specific interactions of these proteins with resin.

A similar protocol was used to investigate the interaction between GraX and GraR, and His-VraF and GraX. In the former case, MAT-FLAG-GraX was immobilized onto Ni-NTA agarose resin, GraR was added at a 1.2:1 ratio. In the latter case, His-VraF was immobilized onto Ni-NTA agarose resin and untagged GraX was added at 1:2 ratio. The elution fractions were analyzed by 15% SDS-PAGE.

Oligomerization state of proteins

The oligomerization states of GraR, GraR^N and GraR^C were determined by the high-performance liquid chromatography (HPLC) size-exclusion column TSK Gel (7.8mm × 30cm, 5µm). The column was calibrated with the standard proteins: aprotonin (6.5 kD), carbonic anhydrase (29 kD), ribonuclease A (37 kD), ovalbumin (45 kD), and conalbumin (75 kD). The molecular masses of the target proteins were determined from the standard curve (log of molecular mass versus retention time). The oligomerization state of GraX was investigated by SDS-PAGE in the presence and absence or dithiothreitol (DTT). The low solubility level of GraX prevented investigation of oligomerization by size exclusion chromatography.

DNase I footprinting experiments

The promoter region of vraFG (P_vraFG), spanning between +28 to -168 with respect to the transcription start site¹⁵, was amplified and used to probe the DNA-binding activity of GraR. The graSR promoter region spanning -115 to +75 was amplified using the primers Dir-5′-CGGAATTCATTGAAATGAAATTTTCTACA TC-3′ and Rev-5′-CGGGATCCTTTAGGTTTCATCTAAAATACTCC-3′. Prior to amplification, the primers were 5′ end-labeled with [γ-³²P]ATP (3000 Ci/mmol) using T4 polynucleotide kinase. The DNase I footprinting was carried out as described previously¹⁷. The gels were dried and exposed to an autoradiography cassette, which was scanned using TYPHOON Trio⁺ (GE Healthcare). The footprinting gels were analyzed by NIH ImageJ software (version 1.45s). The DNase I footprinting data were used to assess the dissociation constant as the GraR concentration that provided 50% protection.

Isolation of target proteins

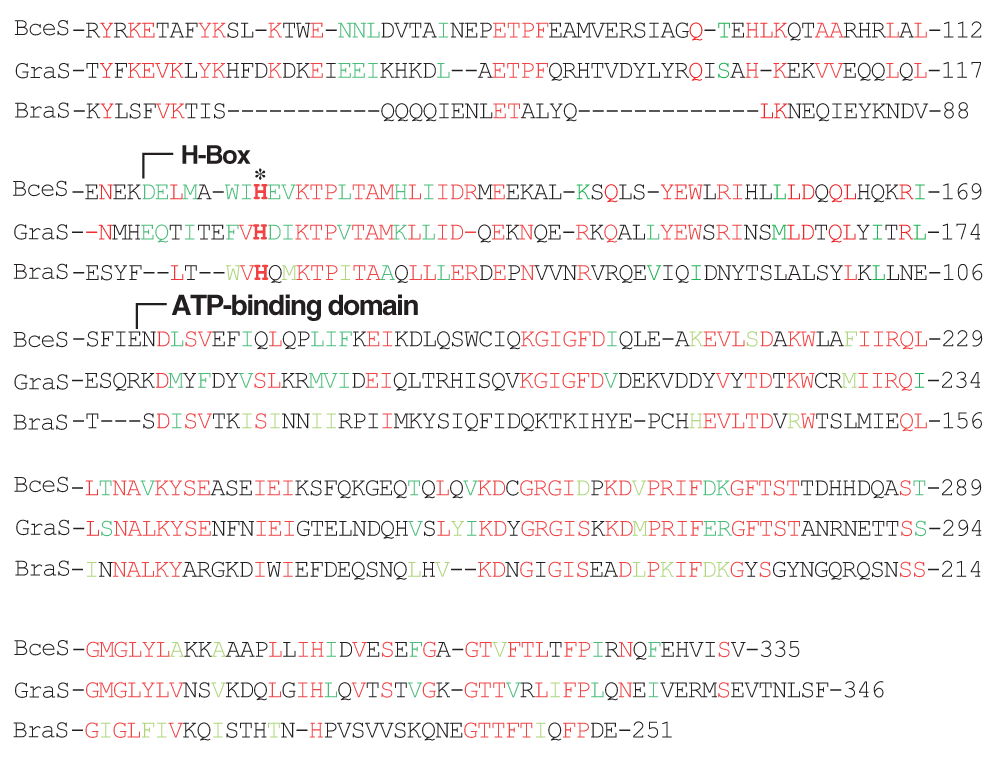

GraS (346 amino acids) and BceS (334 amino acids) are similar HKs; they share 36% sequence identity and both use an ABC transporter for signaling^14,15. They consist of a membrane bound domain (BceS: spanning residues 1–55; GraS: spanning residues 1–63) and a cytoplasmic domain referred to as the kinase domain (BceS: spanning residues 105–336; GraS: spanning residues 110–346). We used the amino acid sequence alignments of both proteins to determine the N-termini of each protein construct so that similar regions of these proteins were cloned. Cloning of similar regions of the cytoplasmic portions of GraS and BceS will allow a direct comparison of their functions. The cytoplasmic domains of GraS (77–346) and BceS (62–334) were independently fused at the COOH-terminus of GST, and the proteins were purified to homogeneity. Two other constructs of GraS were fused to the COOH-terminus of GST: GraS^DHp-CA, spans residues 110 to 346 and lacks the membrane domain and the linker region; and GraS^CA, spans residues 181 to 346 and harbors only the ATP-binding domain of GraS. In addition, the cytoplasmic domain of GraS was also fused to a hexa-histidine tag at its NH₂-terminus.

Cloning of bceR, graR, graR^N, and graR^C encoded, respectively, proteins with no extra amino acids on their NH₂- or COOH-termini. The proteins were purified in two steps. GraR, GraR^N, and GraR^C were purified to homogeneity, and BceR was purified up to 90% purity. The identities of the proteins were confirmed by trypsin digestion and liquid chromatography mass spectrometry (LC/MS), and their molecular masses were confirmed by electrospray-ionization MS at Toronto’s Sick Kids Advance Protein Technology Center (Toronto, Canada). GraR, GraR^N, and GraR^C are monomers in solution, as indicated by the size exclusion chromatography (Figure 1).

Figure 1. Oligomerization states of GraR, GraR^C and GraR^N proteins as assessed by size-exclusion chromatography.

A) The chromatographs represent the elution profile of the GraR, GraR^N and GraR^C proteins on a HPLC size-exclusion TSK Gel (7.8mm × 30cm, 5µm) column calibrated using the following proteins: aprotonin (6.5 kDa), carbonic anhydrase (29 kDa), ribonuclease A (37 kDa), ovalbumin (45 kDa) and conalbumin (75 kDa). B) Calibration graph of log of molecular masses against the retention time of each protein standard.

Cloning of graX was performed into two ways to result in production of a tagless GraX or fused to the COOH-terminus of a MAT-FLAG tag. In both cases, the proteins were purified to 90%. SDS-PAGE indicated presence of GraX dimers in solution (data not shown). Dimeric GraX species were removed in the presence of DTT, suggesting that the single cysteine residue of GraX could mediate dimerization through disulfide bond formation. Aggregation of GraX at high protein concentrations (>50 µM) hampered our efforts to determine the oligomerization state of GraX by size exclusion chromatography.

Production of tagless VraF was in good amount but in insoluble form. We fused a (His)₆-tag to the COOH-terminus of VraF which increased the solubility of the produced protein and resulted in its purification at 90% homogeneity.

GraS lacks autophosphorylation activity in contrast to BceS

Cytoplasmic domains of histidine kinases have been used as models to study the autokinase activities of full-length proteins^18,19. Herein, we undertook the study of the autokinase activities of BceS and GraS. Efforts to express full-length graS resulted in production of GraS in insoluble form.

Autophosphorylation of GST-BceS in the presence of 1 mM ATP, at room temperature, showed a sharp increase in the signal intensity during the first 15 min, followed by saturation over the next 45 min (Figure 2). The pseudo-first order rate constant was determined to be 0.15 ± 0.03 min^-1. In contrast, GraS did not undergo phosphorylation either as GST-GraS or as His-GraS (Figure 3A, B). We tried different ATP concentrations and different concentrations of GST-GraS or His-GraS, but no autophosphorylation activity of GraS was observed (data not shown). As a positive control in our experiments, we used GST-VraS¹⁶. In addition, we investigated the effect of the auxiliary protein GraX on the autokinase activity of GST-GraS and did not observe any effect (Figure 4).

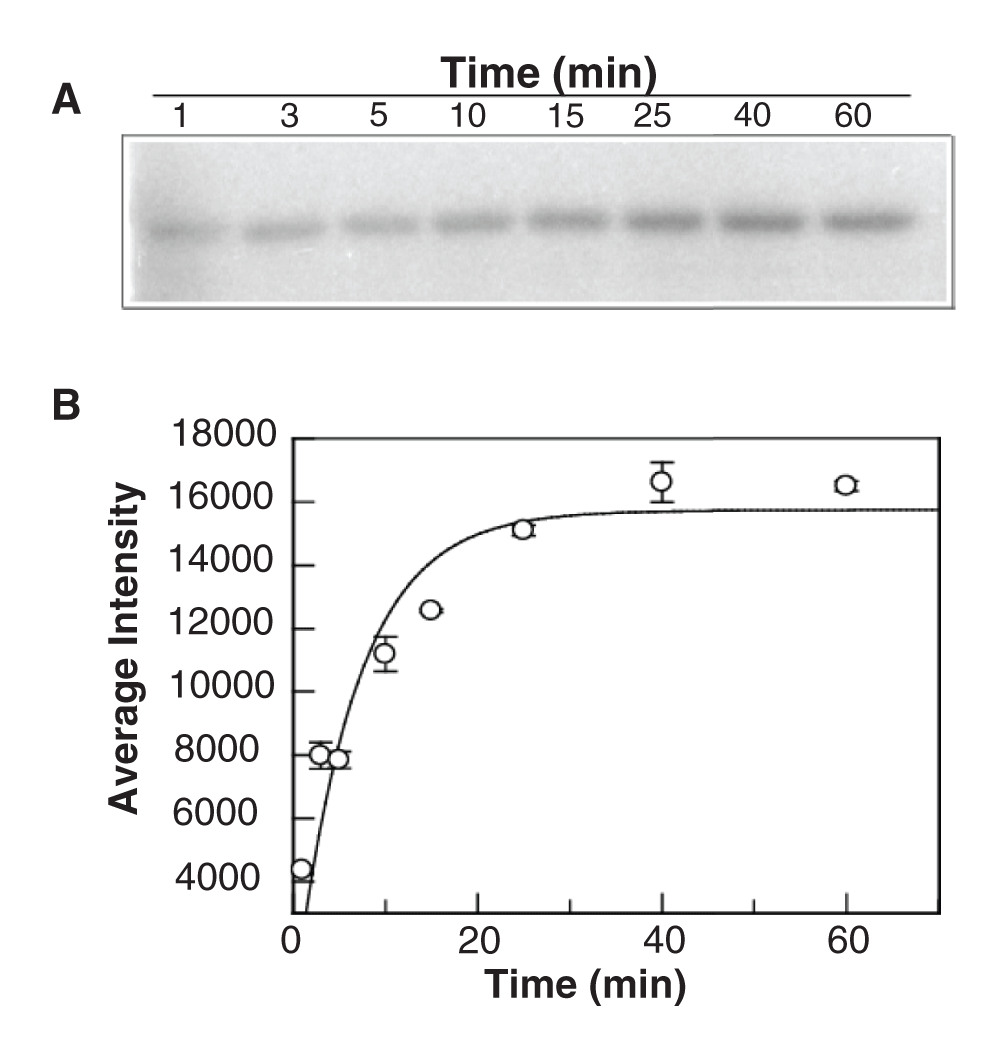

Figure 2. Autophosphorylation of BceS.

(A) GST-BceS (5 µM) was incubated with [γ-³²P] ATP (1 mM) in 50 mM Tris, 50 mM KCl, 20 mM CaCl₂, and 5 mM MgCl₂ (pH 7.4). Reactions were quenched at different incubation times and analyzed by 12.5% SDS-PAGE. (B) The experimental data obtained in (A) were quantified using ImageJ and plotted against the incubation time (the error bars represent the standard deviations calculated from three independent experiments). The data were fitted to the equation given in the Experimental Section.

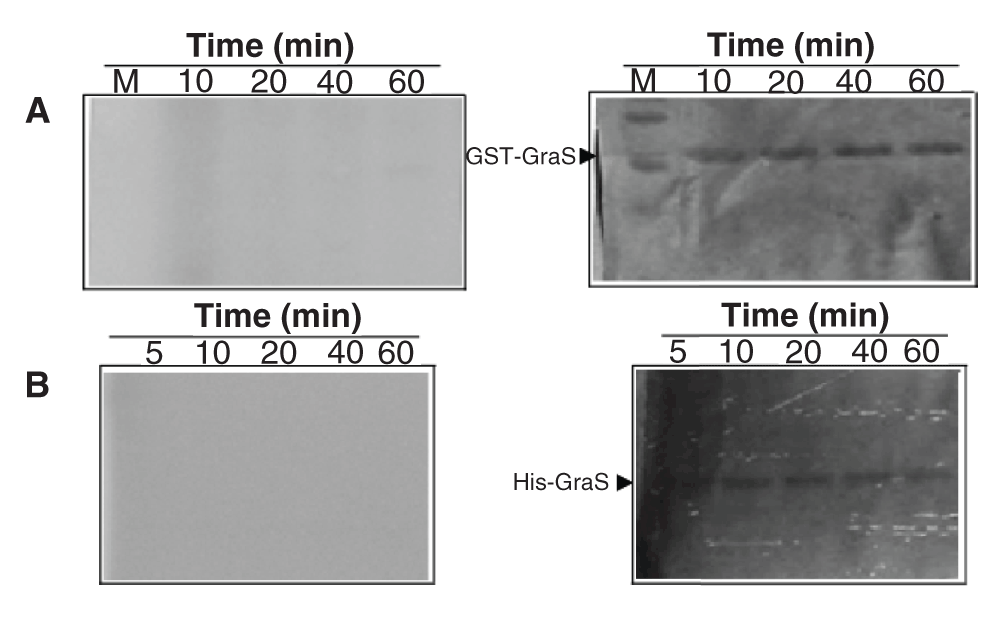

Figure 3. Attempted autophosphorylation of GraS.

(A) GST-GraS (5 µM) in 50 mM Tris, 50 mM KCl, 10 mM CaCl₂, and 5 mM MgCl₂ (pH 7.4) was incubated with 10 µM γ-³²P-ATP. The reaction was quenched at different time intervals. (B) Autophosphorylation of His-GraS under the same conditions as in (A). Left panel represent phosphor imaging and right panels represent the Coomassie staining of the SDS-PAGE gels.

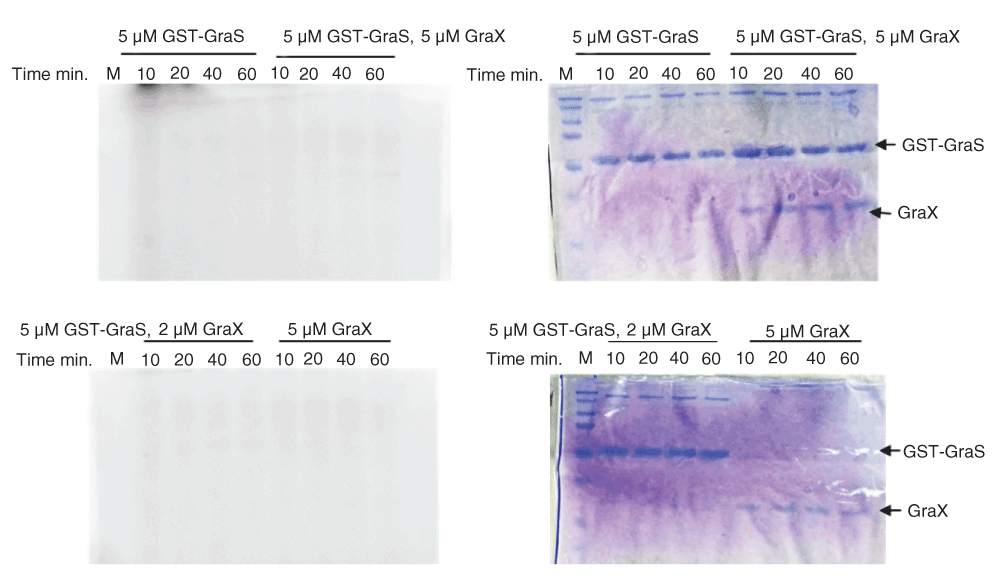

Figure 4. Attempt to phosphorylate GST-GraS in the presence of GraX.

GST-GraS 5 µM alone or along with 2 or 5 µM GraX was incubated at room temperature for 30 min before adding [γ-³²P] ATP. GraX (5 µM) was used as control. Reactions were quenched at different time intervals and analyzed by 12.5% SDS-PAGE. On left side are shown the radiogram images of the SDS-PAGE and on the right the Coomassie stained images of the SDS-PAGE.

Interestingly, we noted that presence of sodium phosphate and CaCl₂ in the phosphorylation buffer resulted in false-positive phosphorylation of His-GraS or GST-GraS, and a similar observation was made for BSA (Figure 5). This could be due to the formation of insoluble calcium phosphate species in the buffer. Proper buffer exchange of the GST-GraS into Tris-HCl buffer eliminated the non-specific phosphorylation of GraS (Figure 5).

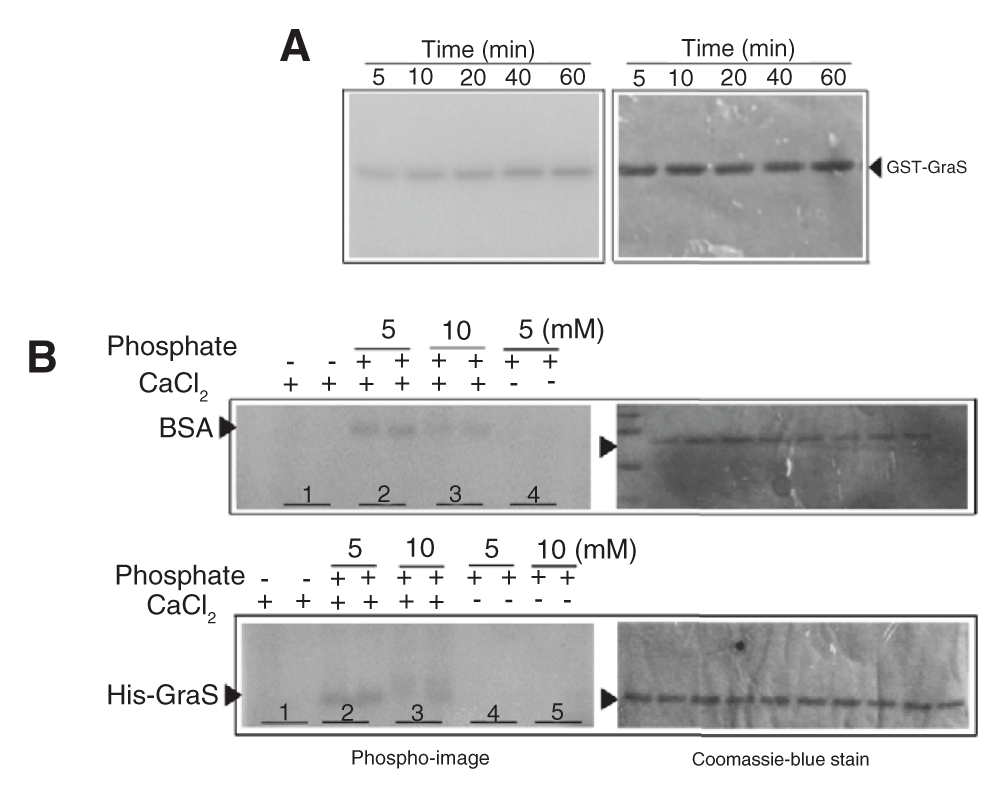

Figure 5. Investigation of CaCl₂ and sodium phosphate roles on non-specific phosphorylation of GraS by ATP.

(A) GST-GraS (5 µM) in the phosphorylation buffer supplemented with 10 mM CaCl₂ and 10 mM sodium phosphate incubated with [γ-P³²] ATP. The samples were resolved in a 12.5% SDS-PAGE. Gels were analyzed by autoradiography. (B) His-GraS (5 µM) or BSA (5 µM) was incubated in the phosphorylation buffer supplemented with different concentrations of sodium phosphate in the presence or absence of 10 mM CaCl₂ and incubated with [γ-P³²] ATP. Samples at a particular condition were quenched at 30 and 60 min (respectively, first and second lane of each sample) and analyzed by 12.5% SDS-PAGE. Gels were analyzed by autoradiography.

BceR undergoes phosphorylation by its cognate kinase, BceS

The autophosphorylation of BceS allowed us to investigate the phosphotransfer between the kinase and its cognate RR, BceR. Incubation of the phosphorylated GST-BceS (2 µM) with BceR (10 µM) resulted in the phosphotransfer of the phosphoryl group to BceR (Figure 6). The maximum amount of phosphorylated BceR was achieved within 5 min, at which point phosphorylated-BceR species started to decrease, suggesting that GST-BceS has phosphatase activity in addition to its kinase activity in analogy with the observations made for VraSR system¹⁶. Because of the high sequence homology between GraR and BceR and their similar functions, we investigated whether there was cross-talk between BceS and GraR. Incubation of phosphorylated GST-BceS with GraR did not result in the phosphorylation of GraR (data not shown).

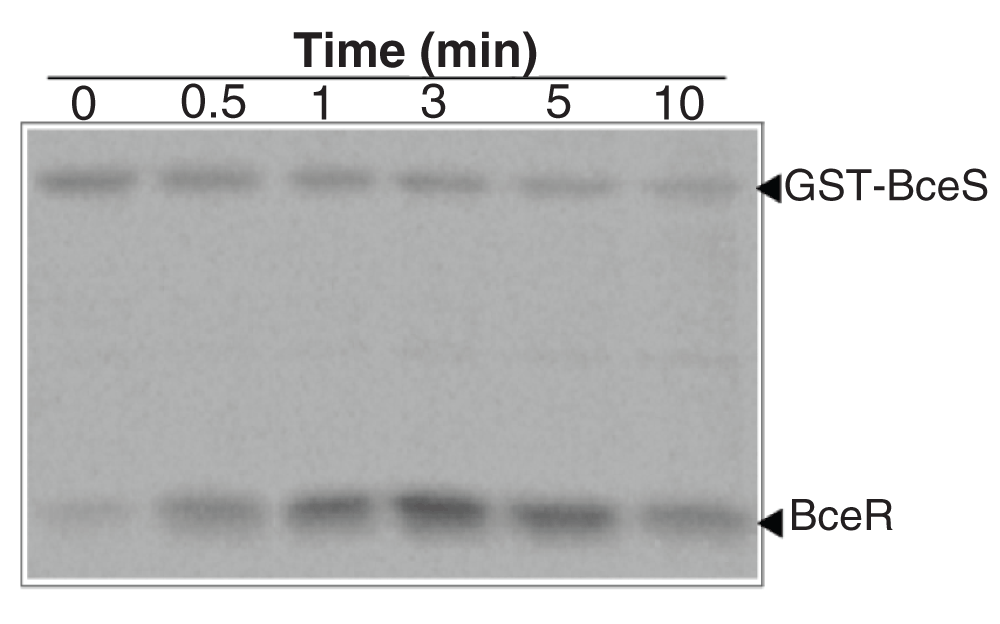

Figure 6. Phosphotransfer between BceS and BceR.

BceR (5 µM) was incubated with GST-BceS-³²P (1 µM) at different time intervals in 50 mM Tris, 50 mM KCl, 20 mM CaCl₂, and 5 mM MgCl₂ (pH 7.4). The samples were analyzed by 15% SDS-PAGE. Gels were analyzed by autoradiography.

BceR and GraR do not undergo phosphorylation by acetyl phosphate. BceR and GraR were incubated with acetyl phosphate under conditions known to phosphorylate VraR¹⁶. Samples were analyzed in a C4 reverse-phase column connected to a HPLC (Prostar, Agilent). We found that BceR and GraR did not undergo phosphorylation. Under the same conditions, VraR underwent phosphorylation (Figure 7, Figure 8), as reported before¹⁶.

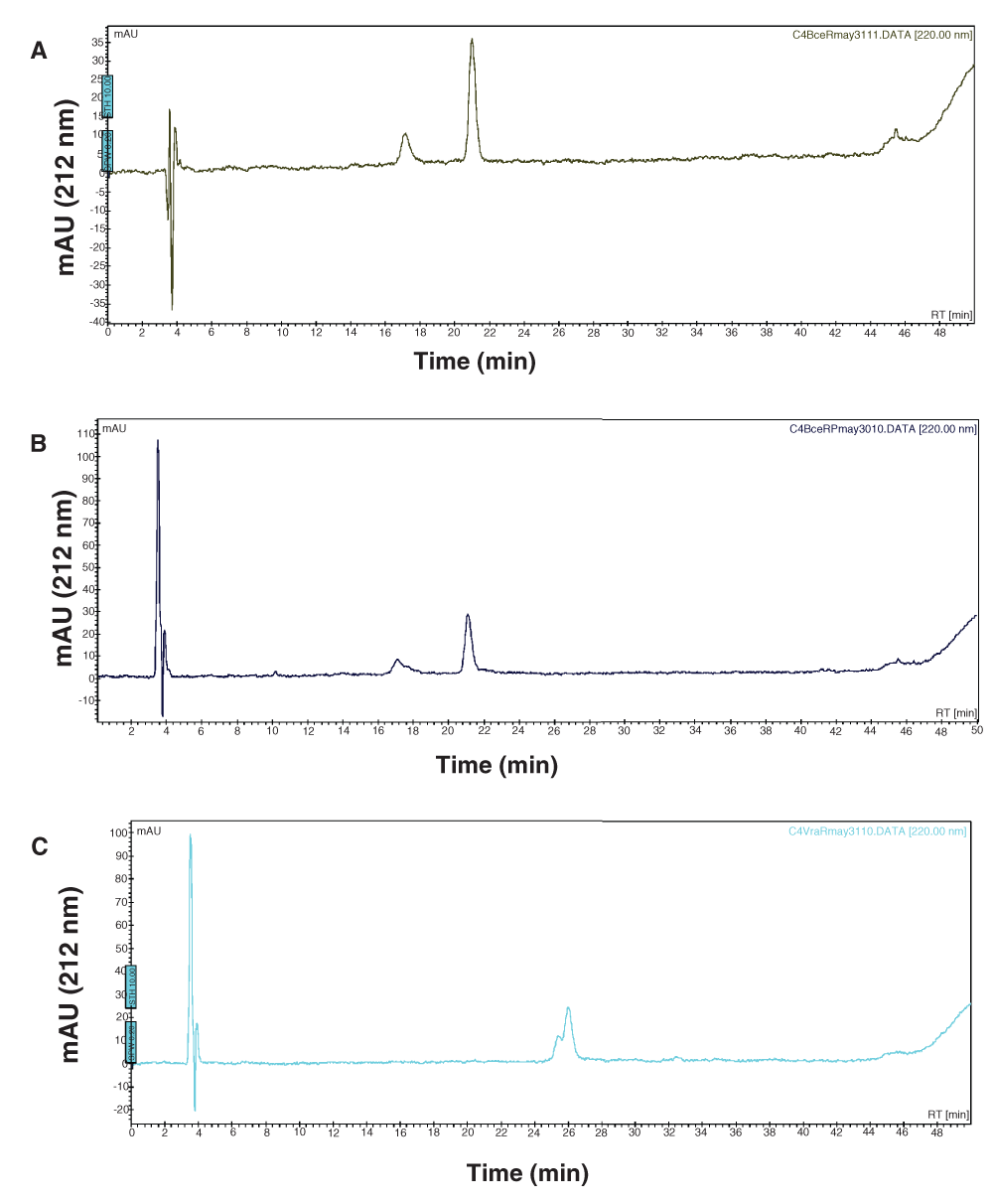

Figure 7. Attempts to phosphorylate BceR with acetyl phosphate.

A 50 µL reaction was prepared containing 9.52 µM of BceR incubated in the absence (A) or presence of 50 mM of acetylphosphate in 50 mM Tris, 50 mM KCl, and 20 mM MgCl₂ (B) (The smaller peak that elutes at 17 min is an impurity in both graphs A and B). The reaction mixtures were incubated at 37°C for 1 hour and then 40 µL were loaded onto an HPLC C4 reverse phase column. Elution of the protein was monitored. As a control, we monitored phosphorylation of VraR under the same conditions (C) (The smaller peak that elutes at 25.2 min corresponds to the phosphorylated VraR).

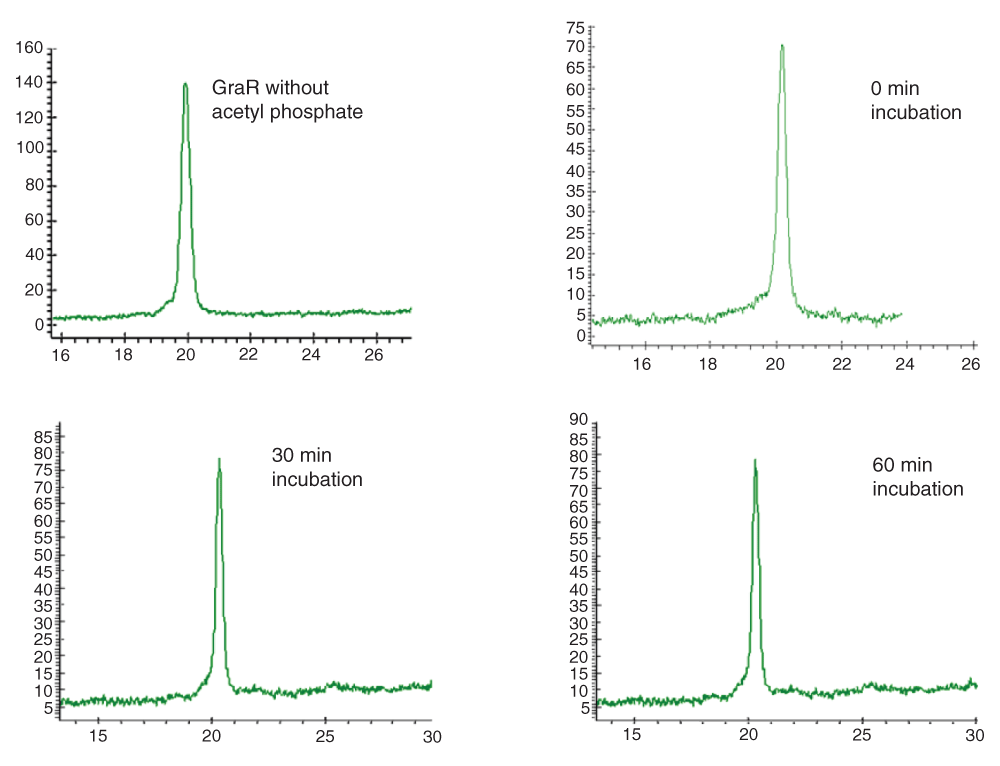

Figure 8. Attempts to phosphorylate GraR with acetyl phosphate.

Full length GraR (40 µM) was incubated with 50 mM acetyl phosphate in 50 mM Tris, 50 mM KCl, and 20 mM MgCl₂ for different time intervals at 37°C. The samples were analyzed on an HPLC C4 reverse phase column by monitoring the absorbance at 212 nm (Y-axis; X-axis is the elution time in min).

BceR interacts strongly with its cognate kinase, unlike GraR

To investigate the interactions between the histidine kinases and their cognate response regulators, GST-GraS or GST-BceS was immobilized onto the glutathione resin. The resin-bound GST-GraS or GST-BceS was incubated with GraR or BceR, respectively. BceR co-eluted with BceS during the elution steps (Figure 9A). By contrast, GraR eluted during the washing steps when incubated with GraS at 1:2 ratio (Figure 10A). In the case when GraR concentration was 5-fold more than GraS, we observed co-elution of GraR with GST-GraS during the elution steps (Figure 9B).

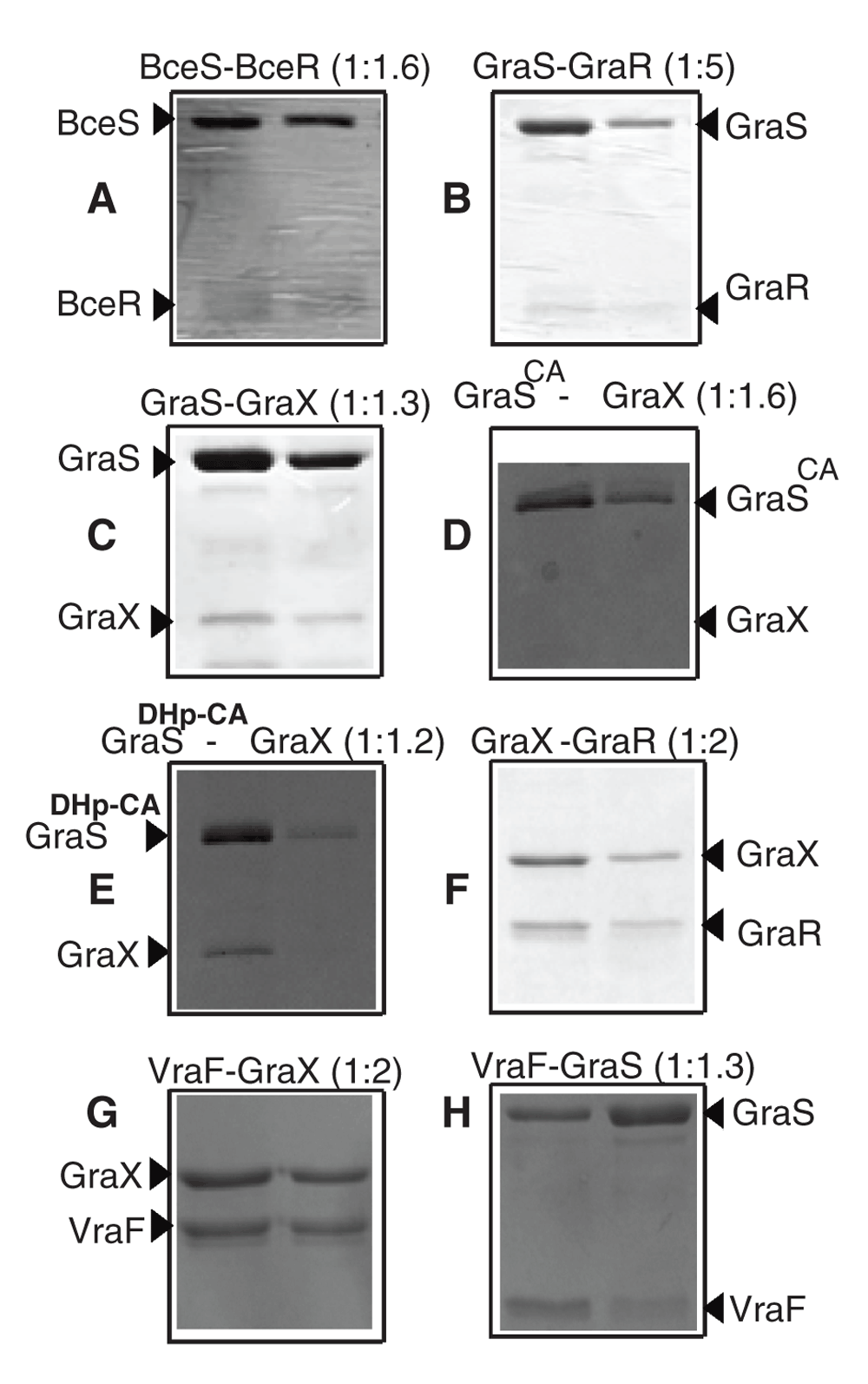

Figure 9. Pull-down assays.

The bait proteins: GST-BceS (A), GST-GraS (B), GST-GraS (C), GST-GraS^CA (D), MAT-FLAG-GraX (E, F), His-VraF (G, H), were immobilized onto their respective resins, glutathione resin (A–D) or Ni-NTA resin (E–H). The resins were washed to remove unbound proteins. The prey proteins, BceR (A), GraR (B, F), GraX (C, D, G) or GraS (H) were incubated with the resins at room temperature, and the unbound proteins were removed through seven successive washes. The protein contents of two successive elution fractions were analyzed by 12.5% SDS-PAGE. The ratios of bait protein to prey protein are given in parenthesis in each case.

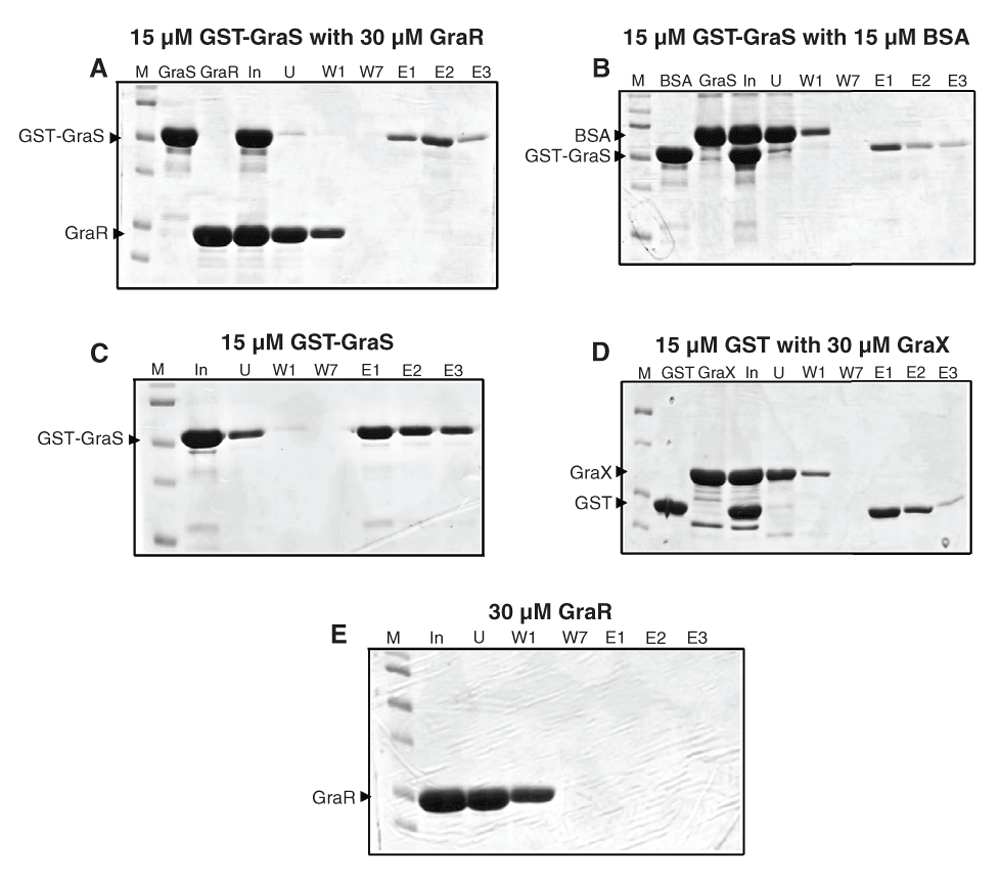

Figure 10. Investigation of interactions amongst GraS, GraX, GraR and BSA.

(A) GST-GraS was immobilized onto the glutathione resin and incubated with GraR. The resin was washed seven times, and finally eluted three times with 10 mM glutathione. Lanes: M, marker; GraS, protein prior to immobilization; GraR, protein prior to incubation with resin; In, incubation mixture in the absence of resin; U, unbound fraction; W1 and W7, fractions collected through washes of the resin; E1, E2, E3, three subsequent elution fractions collected when resin was incubated with elution buffer. (B) GST-GraS was immobilized onto the glutathione resin and incubated with BSA. Similar protocol of washing and elution was used as in (A). (C) GST-GraS was immobilized onto the glutathione resin followed by the protocol given in (A). (D) GST was immobilized onto the glutathione resin, followed by the protocol given in (A). (E) GraR was immobilized onto the Ni-NTA resin, washing and elutions were done as in (A).

To ensure the specificity of the interactions in our experimental set-up, we used BSA as the prey. In this case, BSA (at a ratio of 1:1) was not retained by the resin-bound GST-GraS. Elution with 10 mM reduced glutathione released only GST-GraS (Figure 10B).

GraX interacts with GraS and GraR

To investigate the interaction between GraS and GraX, pull-down experiments were carried out by incubating resin-bound GST-GraS with GraX at the 1:1.3 ratio. No GraX eluted from the column during the seven washes of the resin. GST-GraS and GraX co-eluted in the first fraction of the elution step (Figure 9C). We repeated the experiments by immobilizing GST only and incubating the resin-bound GST with GraX. Using the same protocol for washing and elution, we observed that GraX eluted in the first three washes, and GST eluted alone when the resin was incubated with 10 mM glutathione buffer (Figure 10).

The full-length GraS protein consists of two domains, the N-terminal dimerization and histidine phosphotransfer domain (DHp) and the C-terminal ATP-binding domain (CA)²⁰. The DHp domain harbors the conserved histidine residue, His129, that undergoes phosphorylation upon activation of the kinase, and the CA domain binds to ATP and catalyzes the transfer of the γ-phosphoryl group of ATP to the conserved histidine residue. To determine which GraS domain interacts with GraX, we investigated its interaction with GraS^CA (181–346) and GraS^DHp-CA (110–346) using the pull-down assay. In this experiment, GST-GraS^CA was immobilized on the resin and incubated with GraX. At a ratio of 1:1.2 GraX:GST-GraS^CA, we did not observe interaction between GraX and GST-GraS^CA (Figure 9D). However, at the same ratio, GraX was pulled down by GraS^DHp-CA (Figure 9E). This is a strong indication that GraX requires the DHp domain of GraS for interaction.

To investigate the interaction between GraX and GraR, MAT-FLAG-GraX was immobilized onto Ni-NTA resin. Immobilized GraX was incubated with GraR at a 1:1.2 ratio. GraR co-eluted with GraX during the elution steps (Figure 9F). GraR was not retained by the resin alone (Figure 10E).

VraF interacts with GraX and GraS

His-VraF immobilized on Ni-NTA column was able to recruit GraX when incubated at 1:2 ratio with this protein (Figure 9G). To investigate the interaction of VraF with GraS, we looked at three different constructs of GraS: the full-length cytoplasmic domain of GraS which harbors partially the linker (residues 77–110) that connects the cytoplasmic domain to the membrane binding domain; GraS^DHp-CA which lacks completely the linker; and GraS^CA that harbors the ATP-binding domain. The pull down experiments showed that only full-length cytoplasmic domain of GraS was pull-downed by VraF (Figure 9H), indicating that VraF requires the linker region of GraS (77–110) for interaction.

CD spectra of the target proteins

We used CD to assess the overall folding of the target proteins and ensure that they maintain their structure during our experimental conditions. These experiments revealed that BceR and GraR share similar CD signature, indicating that any difference in their activities is not due to abnormal folding of the proteins in our experiments. GST-BceS and GST-GraS also share similar CD signature, indicating that they, too, share a similar folding pattern and any difference in their activities is not due to abnormal folding of the proteins in our experiments (Figure 11).

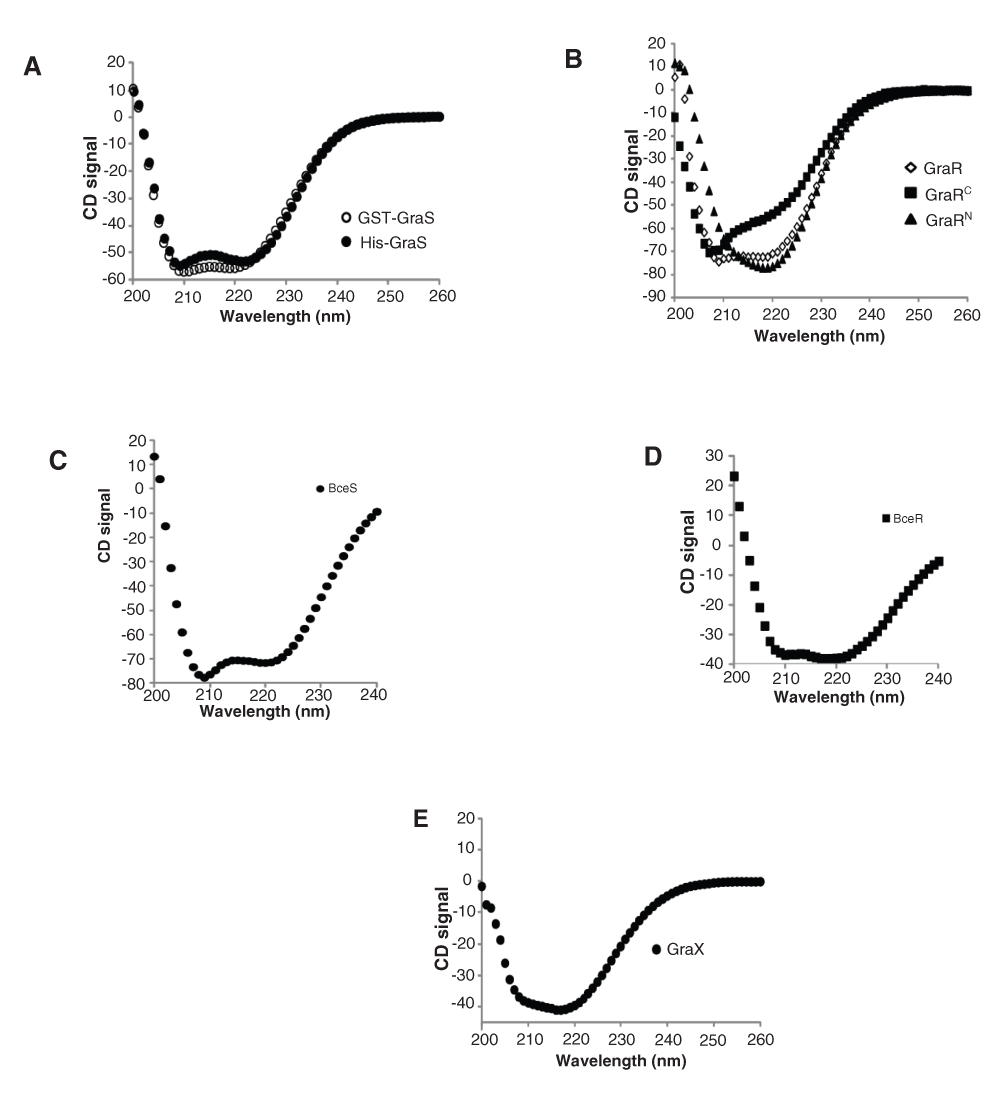

Figure 11. CD spectra of target proteins.

CD spectra of GST-GraS (20 μM), His-GraS (20 μM), GraR (30 μM), GraRC (40 μM), GraRN (40 μM), BceR (20 µM), BceS (40 µM) and GraX (18 μM) were obtained in 30 mM Tris (pH 7.0) supplemented with 5 mM MgCl₂. The spectra were corrected for the buffer contribution.

DNA-binding activity of GraR

To confirm that GraR is a functional protein in our study, we assessed the DNA-binding activity of this protein through DNase I footprinting experiments. These experiments showed that GraR bound to P_vraFG and protected a specific ~24 bp region located 110 bp upstream of the transcription starting point on the coding strand (Figure 12). On the non-coding strand, the protected region was found 114 bp upstream of the P_vraFG transcription starting point (Figure 13). The protected region overlapped with the proposed GraR DNA-binding sequence^15,21. We calculated the binding affinity of GraR for the target DNA (expressed as the dissociation constant K_d) as the concentration of GraR that provided 50% protection from DNase I. Intensities of four bands, in the protected region, were measured at different GraR concentrations using ImageJ software. The estimated K_d was 0.8 ± 0.2 µM. Another region of P_vraFG, spanning from -109 to -88, was slightly protected by GraR at concentrations greater than 15 µM.

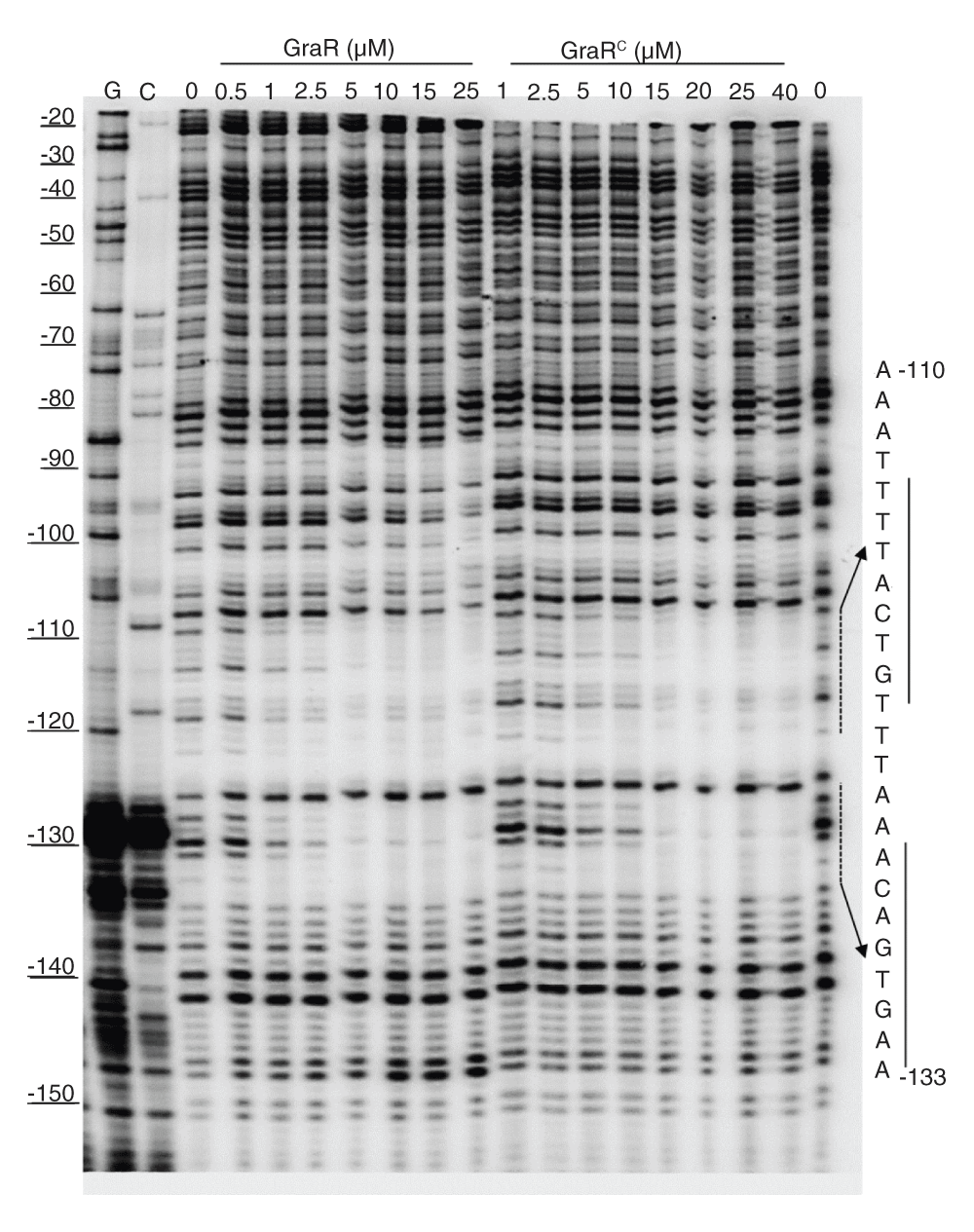

Figure 12. DNase I footprint analysis of P_vraFG with GraR and GraR^C (coding strand).

P_vraFG (10 ng) labeled on the coding strand was incubated with increasing concentrations of GraR or GraR^C and subjected to DNase I. The DNA sequence protected by GraR is shown on the right. The dashed lines indicate the binding sites, and the solid lines show the palindromic sequence in DNA, as suggested by Dintner et al.²¹.

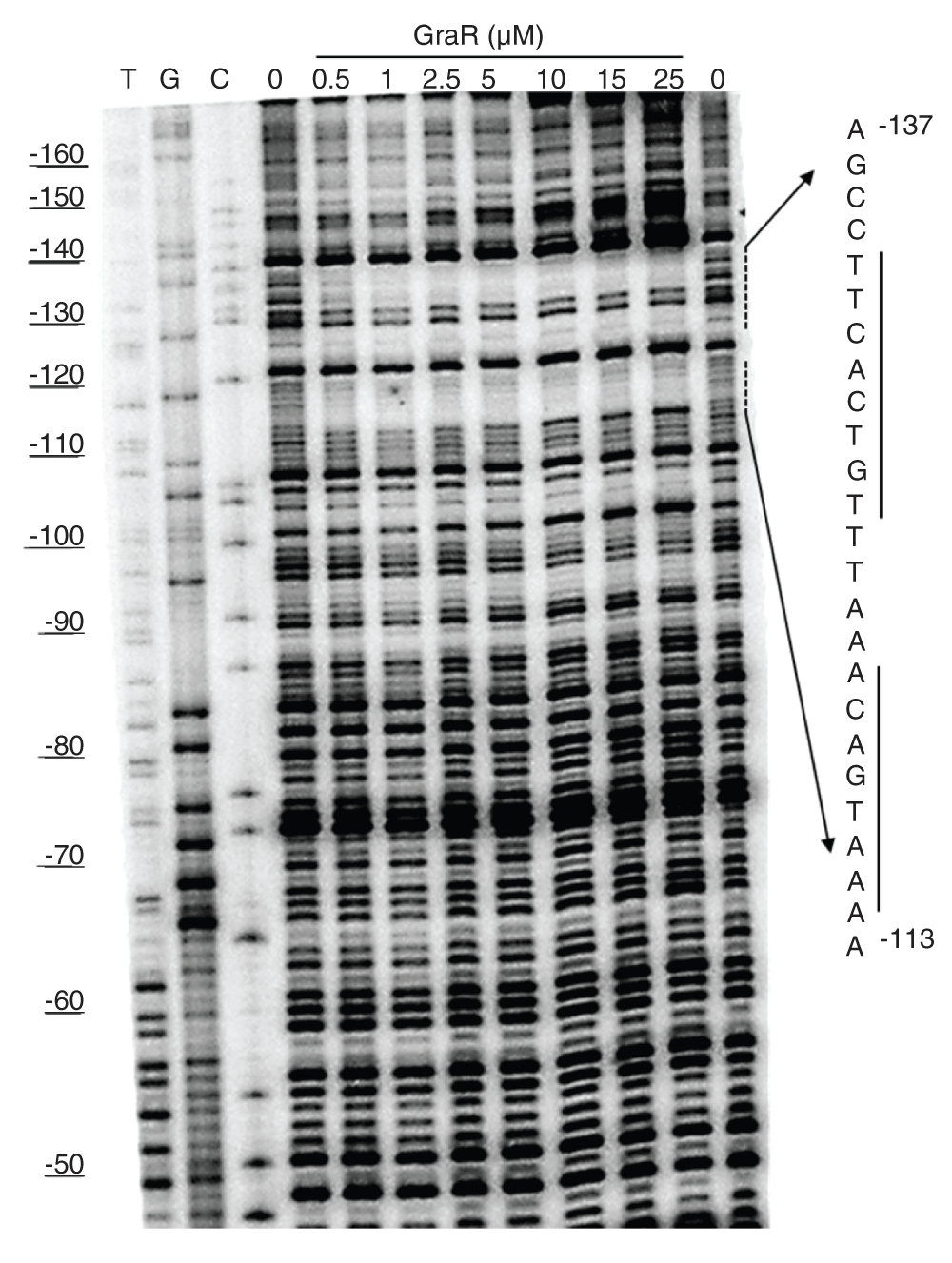

Figure 13. DNase I footprint analysis of P_vraFG with GraR and GraR^C (non-coding strand).

P_vraFG (10 ng) labeled on the non-coding strand was incubated with increasing concentrations of GraR or GraR^C and subjected to DNase I. The DNA sequence protected by GraR is shown on the right. The dashed lines indicate the binding sites, and the solid lines show the palindromic sequence in DNA, as suggested by Dintner et al.²¹.

GraR^C protected similar regions of P_vraFG as full length GraR (Figure 2); however, it protected these regions at higher GraR^C concentrations, indicating that the N-terminal domain has a role in the interaction of GraR with DNA probably mediating dimerization of GraR. The estimated K_d value for GraR^C was 2.4 ± 0.5 µM (Figure 14). GraR did not protect any region on the graRS promoter (data not shown), which corroborates previous findings that GraR does not regulate expression of its operon (15) and furthermore confirms that GraR is a functional protein in our experiments.

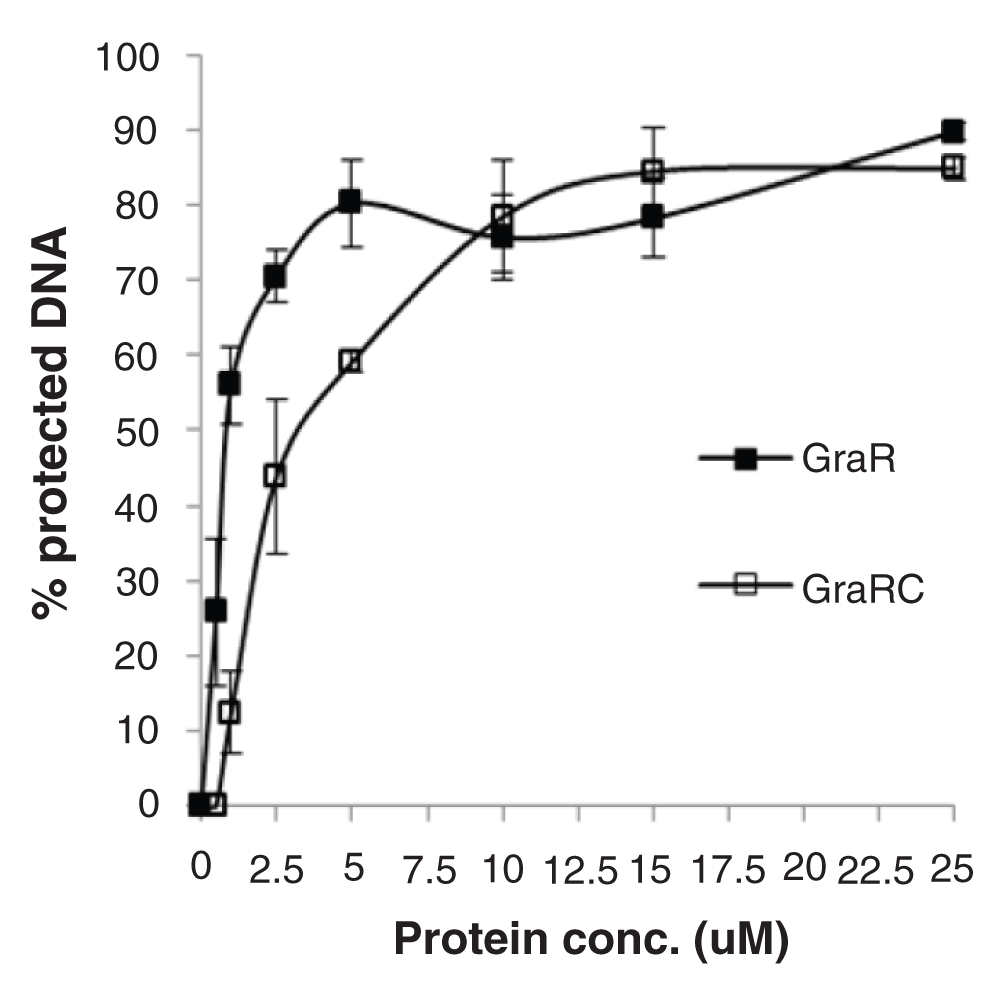

Figure 14. Quantification of DNAse I footprinting data (Figure 12).

Percentage of protected DNA in the region -110- to -133 is plotted against protein concentration used in the assay. We used the intensity of four most prominent bands in the GraR-protected region as measured using ImageJ (NIH software) and averaged them out to calculate the percentage of protected DNA. Error bars indicate standard error of mean calculated from three independent experiments.
