Why are enteric ganglia so small? Role of differential adhesion of enteric neurons and enteric neural crest cells.

Embryo and tissue origin

Fertilised quail (Coturnix japonica) and White Leghorn/Black Australorp cross chicken (Gallus gallus domesticus) eggs were obtained respectively from Lago Game Supplies and Research Poultry Farm, Vic., Australia. Eggs were incubated at 38°C in a 60% humidity incubator. Embryos were staged according to the number of embryonic days (E) and Hamburger and Hamilton stages (HH) (Hamburger & Hamilton, 1951). Animal ethics permission was obtained for the Royal Children’s Hospital Animal Ethics Committee, AEC677.

Wholemount midgut preparation

The midgut (defined as the intestine caudal to the stomach to rostral to about half way along the caecum) was removed from quail (Q) embryos at half-day intervals from QE4.5 (HH25) to QE8 (HH34) and then at intervals to QE14 (HH43). These were fixed from times varying from 1 h to overnight in 4% PFA. Antigen retrieval of fixed specimens employed 10 mM citrate buffer pH 6 for 20 minutes at 95°C. Specimens were washed in phosphate-buffered saline (PBS) for 10 minutes, then blocked and permeabilised overnight with 1% horse serum (CSL, Melb., Aust.) and Triton X-100 (Sigma-Aldrich, USA) at 0.1% in PBS. These were then incubated for 1–2 days at 4°C sequentially in primary and secondary antibodies (see Supplemental Table T1) prepared in blocking/permeabilising solution. Between treatments, the specimens were washed extensively in PBS. Gut tissue and aggregate specimens were mounted in Vectashield antifade reagent (Vector Laboratories, Inc., CA, USA) between two coverslips with coverslip spacers.

Counts of myenteric ENS cells in wholemounts

Four to eight areas of 100×100 μm were selected along the midguts from QE4.5 to QE8.5 and cell counts of Hu^+ve and SoxE^+ve cells were made from optical sections of the myenteric plexus. Cells outside this layer, such as submucosal ENS cells, were not counted.

Cell dissociation

The midgut was removed from QE5 (HH27) and from QE8 embryos and 9-day chick embryos (ChE9), about HH34-35 (Supplemental Figure S1). The intestinal tissue pooled from 15–60 embryos was digested for 35 minutes at 37^oC in Ham’s F12 media (Gibco Cell Culture, Invitrogen, USA) with 0.5% w/v Dispase II (Roche, USA) and 0.05% w/v CLSAFA Collaganase (Worthington, USA). To disrupt cadherin-based cell interactions ethylenediaminetetraacetic acid (EDTA; Sigma-Aldrich, USA)) was added to a concentration of 1 mM for a further 10 minutes. The tissue was mechanically triturated and the cell suspension was washed in F12 media with 5% BSA. Cells from mid-trunk dorsal root ganglia (DRG) from the QE8 embryos were dissociated in the same way.

Fluorescent labelling and fluorescence-activated cell sorting (FACS)

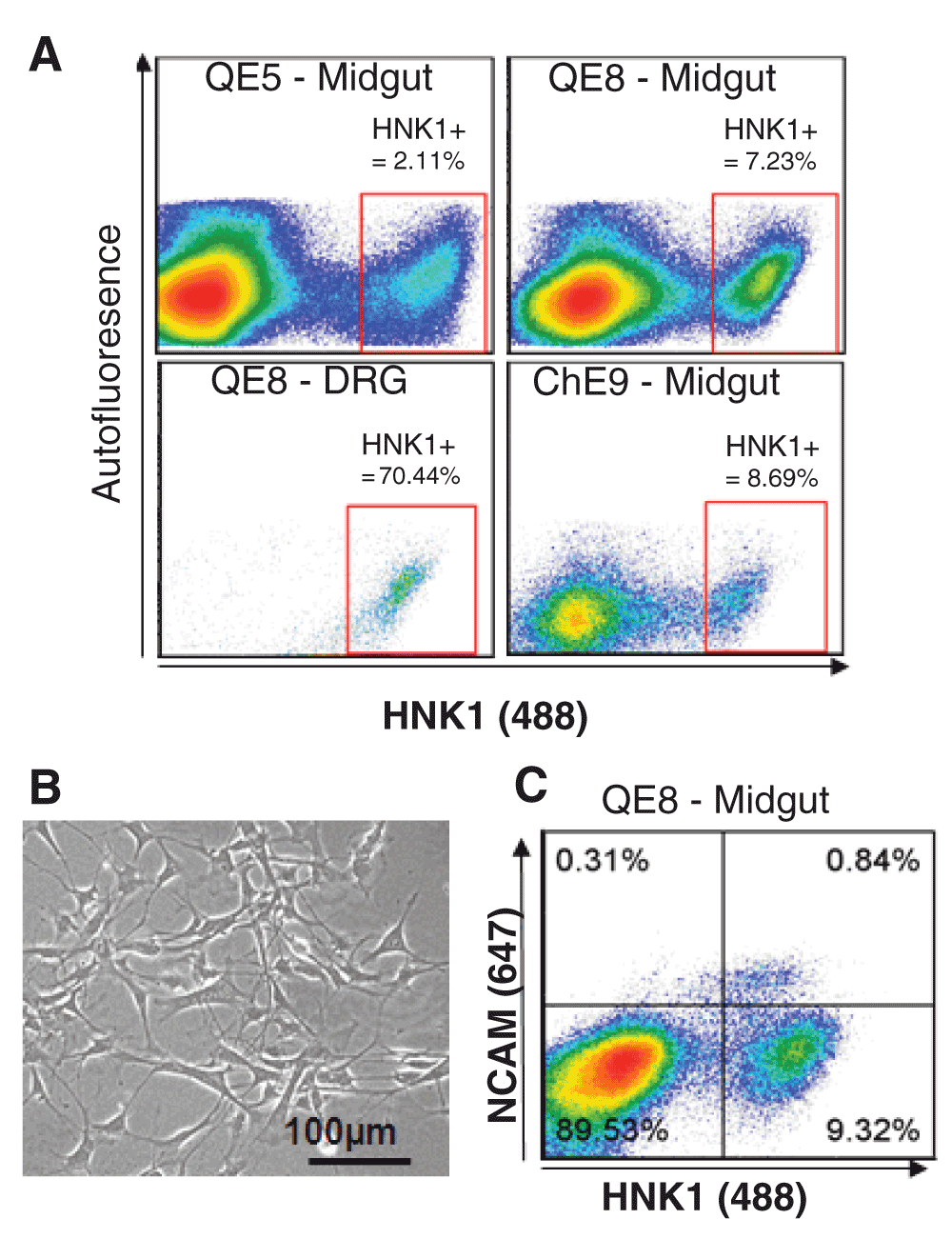

Intestinal and DRG cells were labelled in suspension with mouse anti-HNK-1 IgM antibody (1/50 volume of supernatant; hybridoma maintained at MCRI) followed by secondary labelling with goat anti-mouse IgMμ Alexafluor 488 antibody (Supplemental Table 1). In some cases mouse anti-NCAM was also included followed by goat anti-mouse IgG Alexafluor 647 (see Supplemental Figure S2). Cells were filtered through a 30 μm strainer (BD-Falcon, USA) and propidium iodide (Sigma-Aldrich, USA) was added (final concentration 10 μg/ml) to detect dead cells. Cells positive for Alexa 488 fluorescence which also excluded propidium iodide were sorted using a MoFlo cell sorter (MoFlo, USA). About 2–3% of the dissociated QE5 and 5–10% of QE8/ChE9 midgut cells were selected by this process (Supplemental Figure S2). Each QE5 midgut segment provided 1900–2900 HNK-1+ve cells (range from 4 runs, total 268 midgut segments). Each QE8 gut segment yielded about 40–50,000 HNK-1+ cells (range from 4 runs, total 128 midgut segments), and the ChE9 about 50–60,000 HNK-1+ cells (range from 2 runs, total 33 midgut segments). HNK-1 FACS of QE8 DRG as expected produced a yield of >70% of the dissociated cells being HNK-1^+ve.

Cell identification and FACS validation

After selection by FACS, HNK-1^+ve and HNK-1^-ve cells (as well as unselected cells) were examined by q-PCR for the NC marker Sox-10 and the neuronal marker Hu-D, and by cell culture.

Total RNA was isolated from cells using the RNeasy mini kit (Qiagen, USA) and contaminant genomic DNA removed with DNA-free reagents (Ambion, USA). Primer sequences were designed using Primer3 (http://frodo.wi.mit.edu/primer3/) and are listed below.

Primer sequences

GAPDH: 5’-TTATCATCTCAGCTCCCTCAGC-3’, 3’-AAGTTGTCATGGATGACCTTGG-5’;

SOX10: 5’-AGGAAATTGGCTGACCAGTACC-3’, 3’-GTCCTTCTTGTGCTGCATCC-5’;

HU-D: 5’-ACAGATGACAGCAAAACCAACC, 3’-ATTTTGTCTCTCACGAGCTTGC-5’.

For quantitative reverse transcription and polymerase chain reaction qRT-PCR, oligo-dT primed cDNA was synthesised from 200 ng total RNA using Murine Moloney Leukaemia Virus reverse transcriptase (Promega, USA). qRT-PCR was performed on an ABI Prism^® 7500 Real Time PCR System using SYBR green master mix (Applied Biosystems, USA) according to the manufacturer’s protocols. Relative gene expression values were obtained by normalization to the reference gene GAPDH using the −2^ΔΔCt method, where −2ΔΔCt = ΔCt sample−ΔCt calibrator as described (Peterson et al., 2010). All fold changes were calibrated to the negative sort population. Results are shown in Supplemental Figure S3.

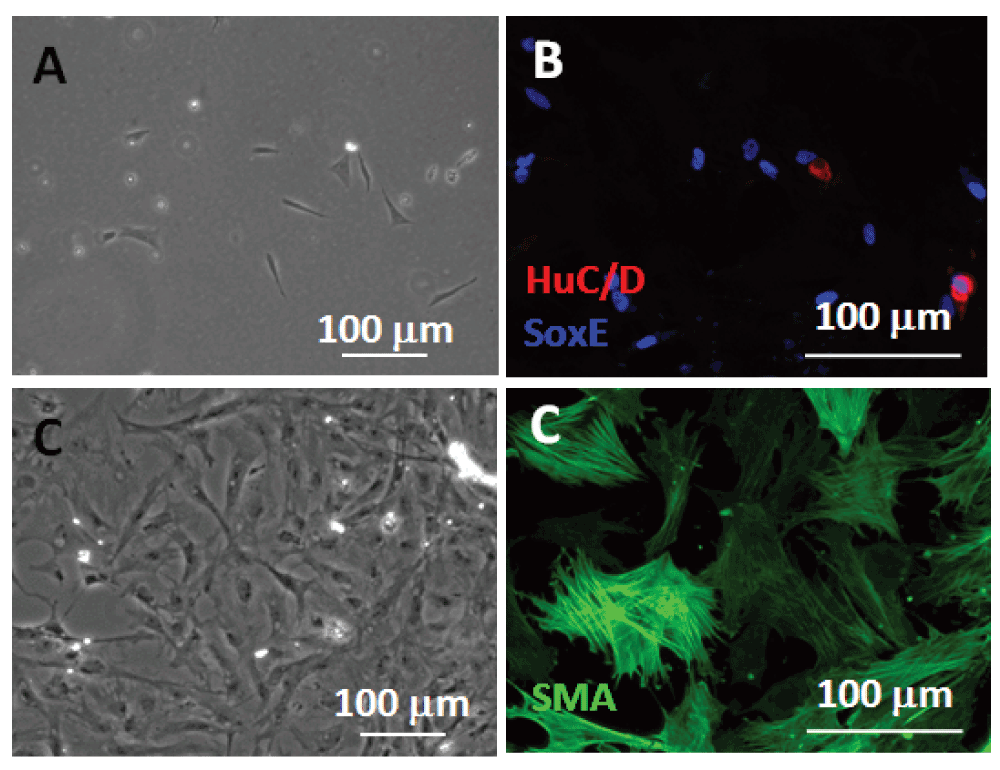

For cell culture substrates, HLA Terasaki-plates (10 μl wells; Greiner Bio-One, Sigma M6062) were coated with human plasma fibronectin (FN; 20 μg/ml in PBS, 2 h; Roche 11051407001) or rat laminin-1 (LN; 50 μg/ml in PBS, 2 h; Roche 1124321700). HNK-1 and NCAM FACS-selected quail E8 midgut ENS cells were plated at 3000 cells/well into the above wells in Ham’s F12 with 1–10% heat inactivated fetal calf serum (FCS; Thermo-Fisher, USA) plus 0.5% BSA, and penicillin/streptomycin (pen/strep; Sigma-Aldrich, USA). In addition, the HNK-1^-ve cells were also plated in the same way. Cells were fixed and immunolabelled at 18 h to 66h in vitro, as for gut wholemounts, except that Terasaki cultures were not antigen retrieved (see Supplemental Figure S4).

Both q-PCR and culturing of FACS sorted cells indicated that the HNK-1-based sorting accurately selected for virtually all cells in the gut that expressed NC and neuronal markers.

Short term cell aggregation assays

After cell dissociation and FACS analysis, the HNK-1^+ve cells remained for 1 h at 37°C in cell culture medium of F12 with 2% heat inactivated FCS, 0.5% BSA and pen/strep, to recover cell-cell adhesive potential (Steinberg et al., 1973; Takeichi, 1977). A low degree of aggregation occurred in the recovery period, indicated by a 6–15% reduction in particle number from the count recorded at the time of FACS. In three dissociation runs Calcein AM (1/4000; Invitrogen/Molecular Probes) was added for 20 min to reveal live cells, with the cells then centrifuged into fresh medium. This indicated that about 90% of cells were alive at this stage. The cell suspension was then aliquoted into Eppendorf tubes (100 μl cell suspension/tube) with particle density adjusted to 0.3–0.5×10⁶ cellular particles/ml. A minimum of three replicate tubes were prepared for each assay, and each assay was repeated at least twice. In parallel tubes ethylene glycol tetraacetic acid (EGTA) was added to 1 mM; this chelates Ca²⁺ and therefore prevents cadherin-dependent cell-cell adhesions. The tubes were then incubated on a rotating platform (120 rpm, radius 1 cm) at 37°C. At t=0, 15, 30, 60 and 120 min., 10 μl samples were withdrawn from each tube and the particles were counted (see below). A particle was defined as a single cell or group of contacting cells of any size. Cell aggregation was indicated by a decreasing particle number.

Longer term cell aggregation assays

Cells were allowed to aggregate as above, but with aggregation time of 2h, 4h, 6h, 18h and 48h. Rotation rates of 150, 120, 100, 75 and 0 rpm were tested. Starting cell densities were varied from 0.167×10⁶ to 1.0×10⁶ particles/ml. Aggregation assays were also performed with the inclusion of BrdU (Amersham-GE Healthcare, USA) for 4 h prior to fixation. At the end of the incubation period, aggregates were collected for imaging and image measurement by allowing them to settle in the Eppendorf tube for 5 min then removing the bottom 20 μl of medium plus aggregates. This was placed as a standing drop on a non-TC Petri dish which was oscillated at 80 rpm for 5 minutes to centralise the aggregates, which were then imaged. For fixation, 200 μl of 4% PFA in PBS was added to each Eppendorf tube. After overnight fixation, the fixative was washed out with PBS prior to immunolabelling as for midgut wholemounts.

Imaging, cell and aggregate counting and evaluation

Samples were screened using an Olympus IX70 microscope (Olympus Optical Co., Tokyo, Japan), under selective Texas Red, FITC and AMCA filters, and by phase contrast. Images were recorded using a Spot Monochrome camera model 2.1.1 with Image-Pro Plus 4.5 (MediaCybernetics, Silver Spring, MD, USA). Confocal imaging was prepared on a Leica TCS SP2 with image processing via Leicalite and Image-Pro–Analyser 6.1 (MediaCybernetics). For short-term aggregation assays, particles (cells and cell groups) at each time point were counted in a haemocytometer chamber with 10–20 microscope field images each of 1.14 mm² recorded using an Olympus IX70 microscope (Olympus Optical Co., Tokyo, Japan) with 10× objective. Particle counts were made from these images by operators blinded to the assay conditions. For the long term aggregation assays, aggregate diameters were measured from phase contrast images (×20 objective) of at least 50 aggregates per treatment and time. Aggregates were chosen for measurement on the basis of roundness and defined edges, and very small and or loose cell clusters and single cells were ignored.

Statistical analysis

Unless specified, data were expressed as mean± standard error of mean (SEM). All statistical tests were performed using GraphPad Prism version 6. A difference between two groups was determined using a two-tailed Student’s t-test and for nonparametric data Mann-Whitney test was used. For differences among multiple groups, statistical comparisons were performed using one-way analyses of variance (one-way ANOVA) followed with Fisher’s LSD post-test. A p-value of <0.05 was considered significant.

The developing ENS in vivo has a constant ENC cell/neuron ratio

The sparse ENS cell population in the nascent myenteric plexus of the midgut was dominated by SoxE^+ve ENC cells. The total ENS cell density (cells/unit plexus area) continued to increase over the period QE4.5 to QE8 (Figure 1) and the plexus area increased by exponential gut growth (Binder et al., 2008). From about QE6, correlating with the assembly of ENS cells into coherent groups, the proportion of Hu^+ve neurons increased to reach a ratio of 1.2:1 Hu^+ve: Sox^E+ve cells. This ratio was maintained until at least QE8 (Figure 1). The constancy of the ratio of Sox^+ve cells to Hu^+ve cells while the population number and density increased suggests an effective co-ordinate control between neurons and ENC cells.

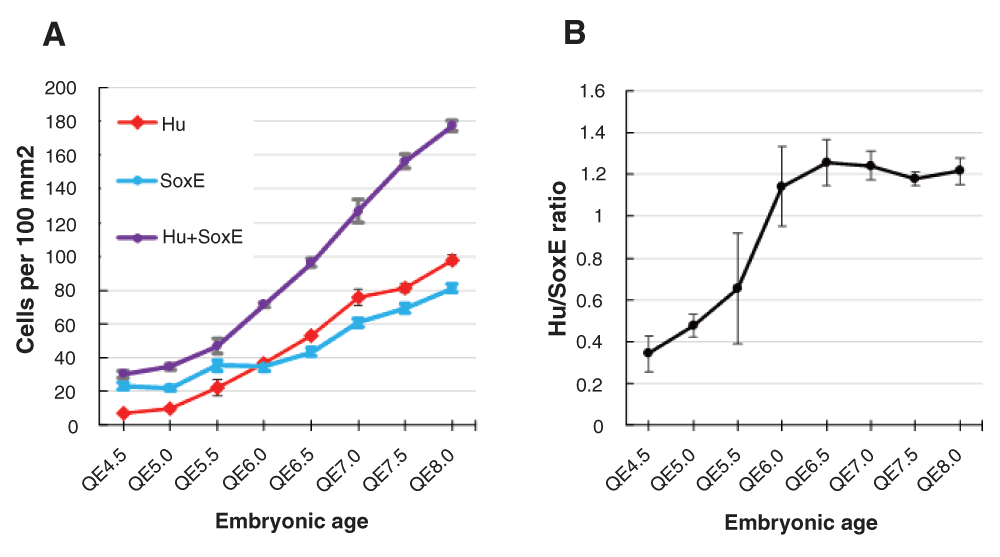

Figure 1. The density of neurons and ENC cells increases in the quail embryo midgut myenteric plexus, but the ratio stabilises.

A. The density (number per 100×100 μm area) of neurons (Hu; red), ENC cells (SoxE; blue) and total ENS cells (Hu plus SoxE; purple) increases from QE4.5 to QE8. B. The ratio of neurons to ENC cells stabilises by E6. Error bar=SEM.

Inhibition of Notch activity in mice by NC cell-specific knockout of the Pofut1 gene, and Notch inhibition by DAPT in mouse and human enteric neurospheres in vitro (Okamura & Saga, 2008; Theocharatos et al., 2013) led to loss of Sox10^+ve ENC cells and a bias towards enteric neuron differentiation. This strongly suggests that after cell aggregation has been achieved by morphogenetic cell re-arrangements, the Notch system forms part of the intercellular signaling agency maintaining the ENC cell/neuron balance in the developing ENS.

ENS ganglia undergo progressive morphogenesis in vivo

In the quail embryonic midgut at HH27 (QE4.5 to 5), shortly after arrival of vagal ENC cells at HH25/6 (QE4.25), the relatively sparse ENS cell population was mainly SoxE^+ve ENC cells (Hu-ve) distributed in chains (Figure 2A). The number of Hu^+ve neurons (SoxE^-ve) increased in the nascent myenteric plexus and they commenced forming clusters by QE6 (Figure 2B). Later (QE8), the Hu^+ve cells and the SoxE^+ve cells formed co-aggregates with almost all the SoxE^+ve cells segregated to the periphery of each neuronal cluster (Figure 2C). The ENS cell aggregates increased in size and developed increasingly smooth borders and by QE14 the SoxE^+ve cells were found not only surrounding the neuron groups but also between the individual neurons, as well as along axon tracts (Figure 2D). In other NC-derived ganglia like the DRG a similar sequence of events, but chronologically earlier, has been observed, with the late-appearing intraganglionic cells being differentiated ganglionic glia (Henion et al., 2000).

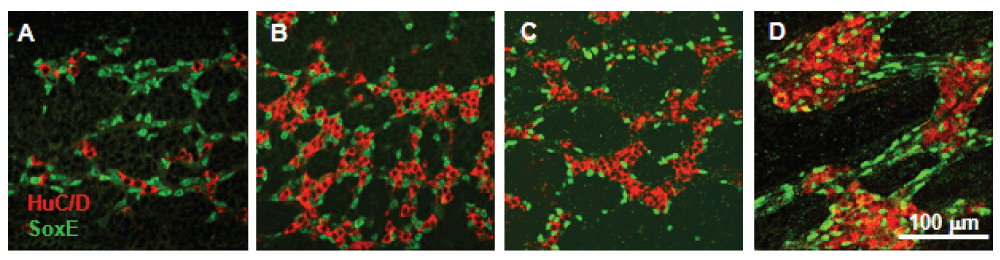

Figure 2. Gradual aggregation of ENS cells form ganglia in the embryonic quail midgut.

A. QE5 midgut with chains of SoxE^+ve ENC cells and a smaller number of scattered Hu^+ve neurons. B. QE6 midgut with relatively more neurons in small groups, with adjacent ENC cells. C. QE8 midgut with coherent ENS neuron groups surrounded by SoxE^+ve cells. D. QE14 midgut with large ENS ganglia with SoxE^+ve cells both around the ganglia and in the ganglia mixed with the neurons, and also distributed along interganglionic tracts. Images are single confocal optical sections through the myenteric plexus.

We sought an explanation in differential cell-cell adhesion (Steinberg, 2007) for the progressive aggregation of ENS cells into ganglia, with internal neurons and a shell of ENC cells. Time-lapse microscopy in mouse intestine has revealed that ENS cells (both neurons and ENC cells) are motile for a considerable period after the initial colonization phase (Hao et al., 2009; Young et al., 2014). It can be imagined that such motile ENS cells might, by differential adhesion, finally collect together to form few very large ganglia; we therefore also sought reasons for the ENS forming only small ganglia.

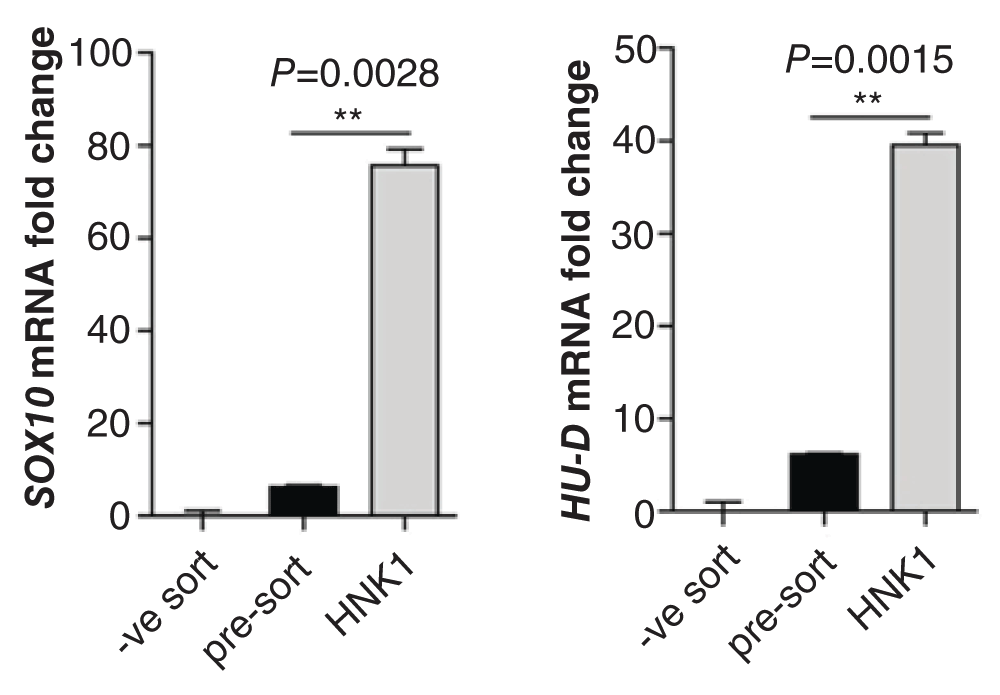

HNK-1 FACS effectively selects for NC-derived cells

Unsorted dissociated midgut cells showed modest NC (Sox10) and neuronal markers (Hu) by q-PCR. The HNK-1^+ve sorted moiety showed high levels of these neural sequences whereas the HNK-1^-ve moiety had very low expression (Supplemental Figure S3). HNK-1^+ve sorted cells plated on fibronectin or laminin surfaces showed neural immunoreactivity, including SoxE (recognizes Sox9 and Sox10), HNK-1, HuC/D, Tuj1 and E-C8. A few cells (<2.5% at 18 h in vitro) were negative for neural markers but fibroblast-like in appearance and smooth muscle actin (SMA)^+ve. We regard these as contaminating gut mesoderm cells. In contrast HNK-1^-ve cells when plated were virtually entirely fibroblast-like in appearance and SMA^+ve (Supplemental Figure S4). This cell sorting procedure therefore provides highly enriched ENS cells for performance of cell aggregation assays.

ENS cell clusters in vitro are due to cell aggregation, not proliferation

Dissociated HNK-1^+ve midgut ENS cells in low serum aggregation assays rapidly formed clusters which were relatively small and uniform. We examined ENS cell aggregates (N=7) at 22 h with confocal microscopy after 4 h bromodeoxyuridine (BrdU) exposure, and examined 18 h aggregates (N=6) with phosphohistone-H3 antibody and detected no cells labeled by these markers of proliferation. We conclude that there was little or no cell proliferation in vitro, and therefore the cell clusters under these conditions are due to cell aggregation.

ENS cell aggregation indicates several adhesive mechanisms are operative and increase with age

Avian ENS cells in previous studies showed immunoreactivity for N-cadherin and NCAM and also for Ng-CAM (L1CAM) at the stages equivalent to the early stage shown above (Hackett-Jones et al., 2011; Nagy et al., 2012). Ng-CAM soon became almost undetectable while N-cadherin and NCAM labelling became more intense on both SoxE^+ve and Hu^+ve cells. By QE8 in the midgut NCAM was clearly more strongly labelled on the Hu^+ve neurons compared to the SoxE^+ve cells (Hackett-Jones et al., 2011). This suggests that there may be a general increase in cell-cell adhesion in the ENS and a further increase in adhesion between neurons.

The short-term rotating cell aggregation assays indicated that dissociated QE5 and QE8 midgut ENS cells adhered progressively (Figure 3A, Figure 4A–D), but aggregation was faster and more complete in cells from the older embryos. This confirms a developmental increase in ENS cell cohesion. QE5 and QE8 ENS cell aggregation occurred over the first 30 minutes at the same rate with Ca²⁺ chelation (i.e. 1 mM EGTA) as with normal medium but later the level of cell aggregation was impaired (Figure 3B, C, Figure 4E). The sensitivity to EGTA showed involvement of Ca²⁺-dependent (i.e. cadherin) mechanisms, but the residual aggregation indicated Ca²⁺-independent mechanisms (such as NCAM) were operative as well, and suggests that the initial phase of adhesion in these conditions was largely due to Ca²⁺-independent adhesion. This is in accord with the immunoreactivity for both N-cadherin and NCAM in situ noted above and in these cells in vitro (Figure 6A, B).

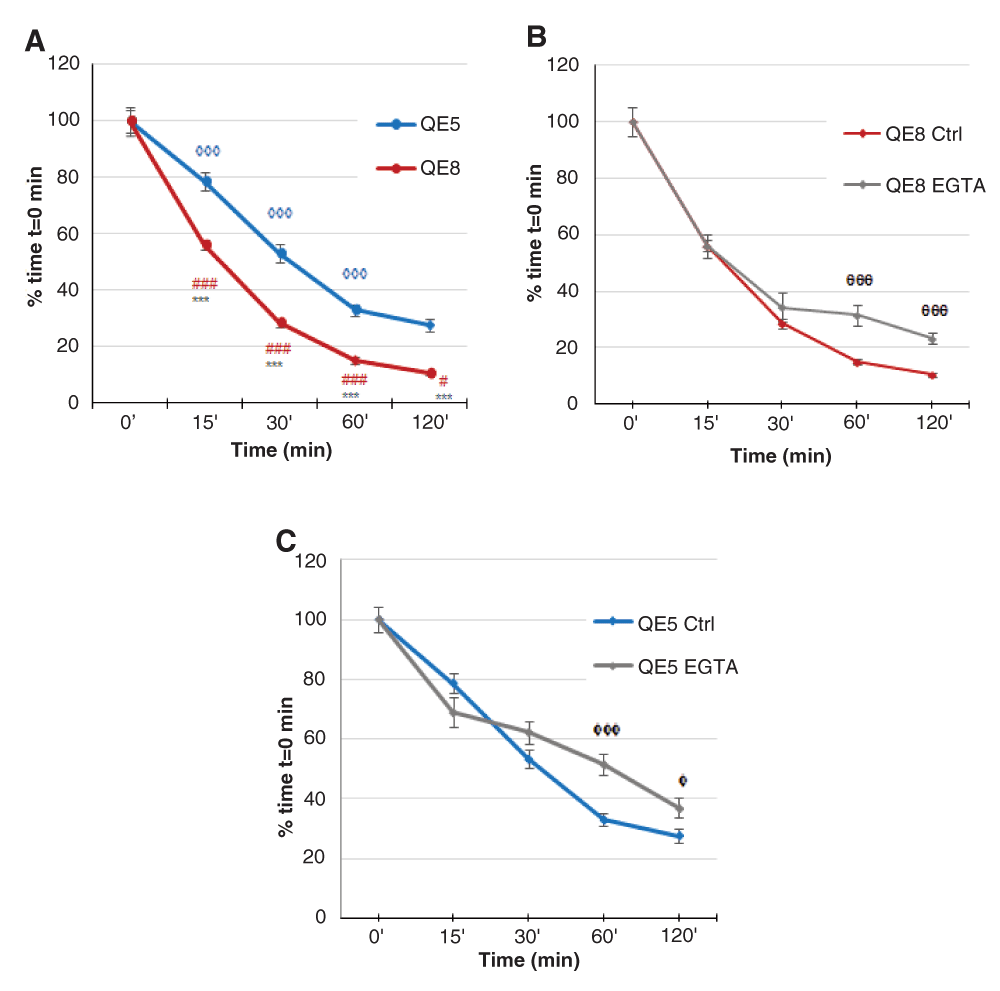

Figure 3. Initial aggregation kinetics of HNK-1^+ve midgut ENS cells are stage and cadherin dependent.

Aggregation was indicated by decrease in particle count and is expressed as % of time t=0 min. A. QE5 and QE8 ENS cells aggregated continuously, with particle count at each time point significantly less than at the previous time point (0 min vs 15 min, 15 min vs 30 min, 30 min vs 60 min and 60 min vs 120 min) (◊◊◊ p<0.001 for QE5; # p=0.0455, ### p<0.001 for QE8), except for QE5 at 60 min vs 120 min, where the particle counts were not significantly different. In addition, aggregation was greater for QE8 ENS cells compared to QE5 ENS cells (*** p<0.001 QE8 vs QE5 at each time point), consistent with a developmentally increasing adhesive capacity. B. With EGTA, early aggregation (0 min, 15 min and 30 min) of QE8 ENS cells proceeded rapidly and was not significantly different from particle counts in control medium at the same time points. At later time points (60 min and 120 min) particle counts with EGTA were significantly greater than from the same time points in control medium (θθθ p<0.001 EGTA vs Ctrl). This strongly indicates that early aggregation events in these assays are largely calcium-independent but after about 30 min aggregation is dependent on cadherin function. C. QE5 ENS cells showed a similar early rate of decline in particle number with EGTA medium at matched time points of 0 min, 15 min and 30 min. Later, particle number decline decreased in EGTA (φφφ, p<0.001 EGTA vs Ctrl at 60 min; φ p=0.0225, EGTA vs Ctrl at 120 min;). This indicates that for QE5 ENS cells early aggregation is largely calcium-independent but further aggregation requires cadherin function. Error bar=SEM.

ENS cell aggregation is progressive

The earliest stage of aggregation for HNK-1^+ve E8 quail (and E9 chick) midgut ENS cells was as small clumps and strings, at about 2 h in rotating culture. They formed spheres by 4 h, and initially cells bulged from the surface of spheres (resembling a “bunch of grapes”) but the spheres became more smooth-surfaced, and maintained this from 18 h to 48 h (Figure 4A–D). The diameter of the aggregates increased between 4 h and 48 h (Figure 4D, Figure 5A) and the range of diameters recorded became wider (Supplemental Figure S5) but aggregation into a few huge cellular masses did not occur. ENS cells from quail and chick behaved identically in these assays (Figure 5B).

Figure 4. HNK-1^+ve ENS cells in rotating culture form aggregates.

ENS cells at 0 h (A), 4 h (B), 18 (C) and 48 h (D) show rapid aggregation without the later formation of super-aggregates. The importance of cadherins is shown by Ca²⁺-chelation with 1 mM EGTA, which reduced aggregate formation at 18 h (E). F–H. Altering the rotation speed (0 rpm (F), 75 rpm (G) and 150 rpm (H)) had only slight effect on aggregation at 18 h. I–L. Increasing the initial ENS cell density (0.167×10⁶ cells/ml (I), 0.33×10⁶ cells/ml (J), 0.67×10⁶ cells/ml (K), 1.0×10⁶ cells/ml (L)) resulted in a decrease in the aggregate size by 18 h.

The spherical form of the aggregates suggests isotropic adhesion forces while the evolution of the aggregates from a “bunch of grapes” appearance to smooth-surfaced spheres indicates an increase in cell-cell adhesion strength in vitro with time after initial cell-cell adhesion. A time-dependent increase in adhesive bond energy has been observed in direct measurement of cadherin-mediated adhesion maturation in biophysical tests (Chu et al., 2004).

SoxE^+ve/Hu^-ve (ENC cells) and SoxE^-ve/Hu^+ve cells (neurons) occurred first in tiny clumps, with SoxE^+ve/Hu^-ve cells predominating in the strings; these ENC cells displayed both N-cadherin and NCAM immunoreactivity (Figure 6A’, A”). The transient presence of cell-strings has also been described in cells with only cadherin adhesive mechanisms operative (Takeichi, 1977). Cadherins move on the plane of the membrane and cluster in cis, via intercadherin bonds extracellularly and via binding to the cytoskeleton intracellularly (Hong et al., 2013). The generation of cell strings by SoxE^+ve ENS cells suggests that the ENC cells have a limited number of adhesive molecules on their surface, this cis-clustering may restrict cadherin to a few patches capable of mediating adhesion in trans.

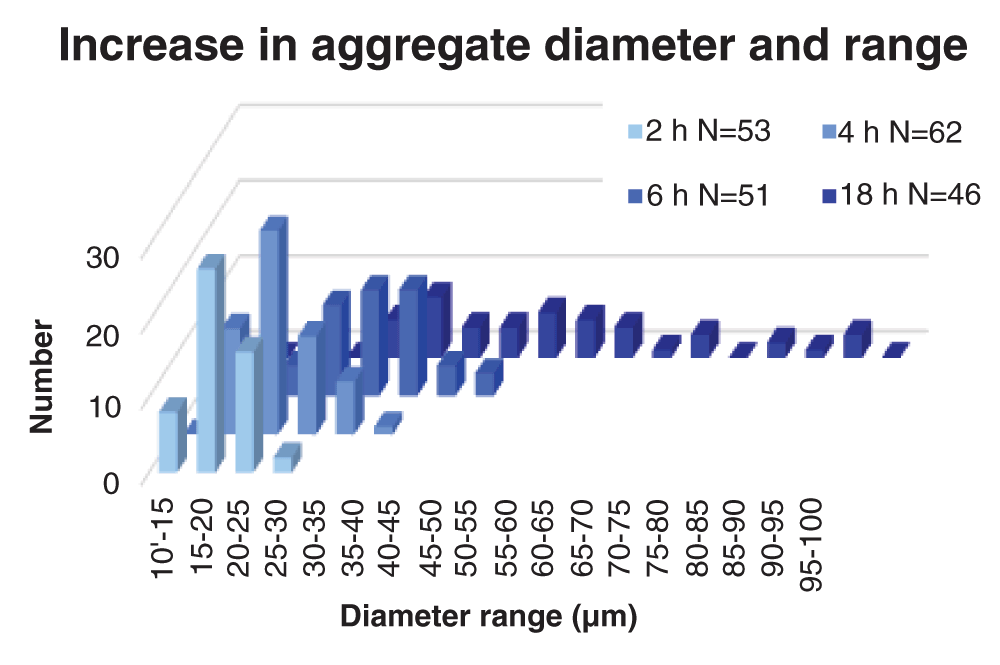

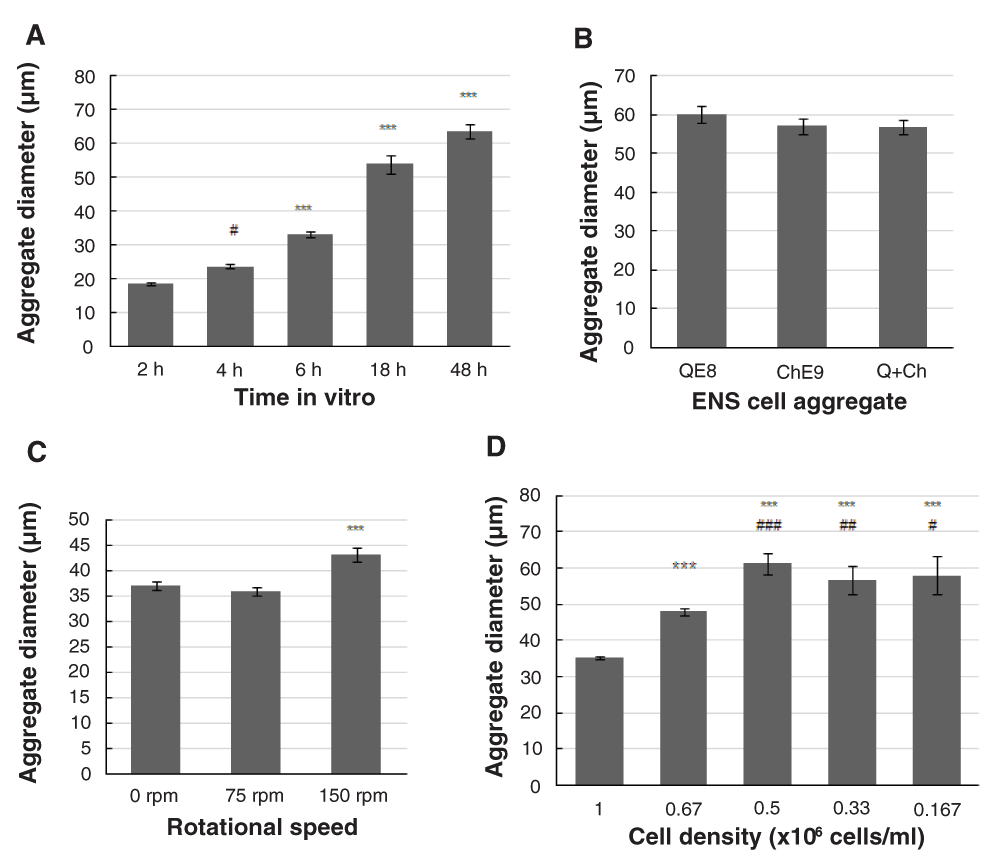

Figure 5. Histograms of the size of ENS cell aggregates in rotation cell-cell adhesion assays.

A. QE8 cell aggregates gradually increased in diameter from 0–48 h in vitro. (# p=0.0229, 4h vs 2h; ***p<0.001 for all other times). Starting cell density 0.3×10⁶ cells/ml. B. ENS cells from QE8, ChE9 and mixed populations (Q+Ch) showed identical aggregation at 18 h in vitro, with no significant difference (Q:Ch p=0.29; Q:Q+Ch p=0.23; Ch:Q+Ch p=0.93;). Starting cell density 0.3 ×10⁶ cells/ml. C. Aggregate diameter attained at 18 h in vitro was slightly larger at the highest rotational speed (*** p<0.001, 150 rpm vs 0 and 75 rpm). Starting cell density 0.5×10⁶ cells/ml. D. Aggregate diameter at 18 h in vitro was starting cell density-related. Starting cell density at 1×10⁶ cells/ml produced aggregates of least diameter. With the gradually reduced starting cell density, the aggregate diameter increased (relative to 1×10⁶ cells/ml: *** p<0.001; relative to 0.67×10⁶ cells/ml: # p=0.0186, ### p<0.001). However, this increase plateaued, with no significant difference in aggregate diameter at 0.167, 0.33 and 0.5×10⁶ cells/ml. Error bar=SEM.

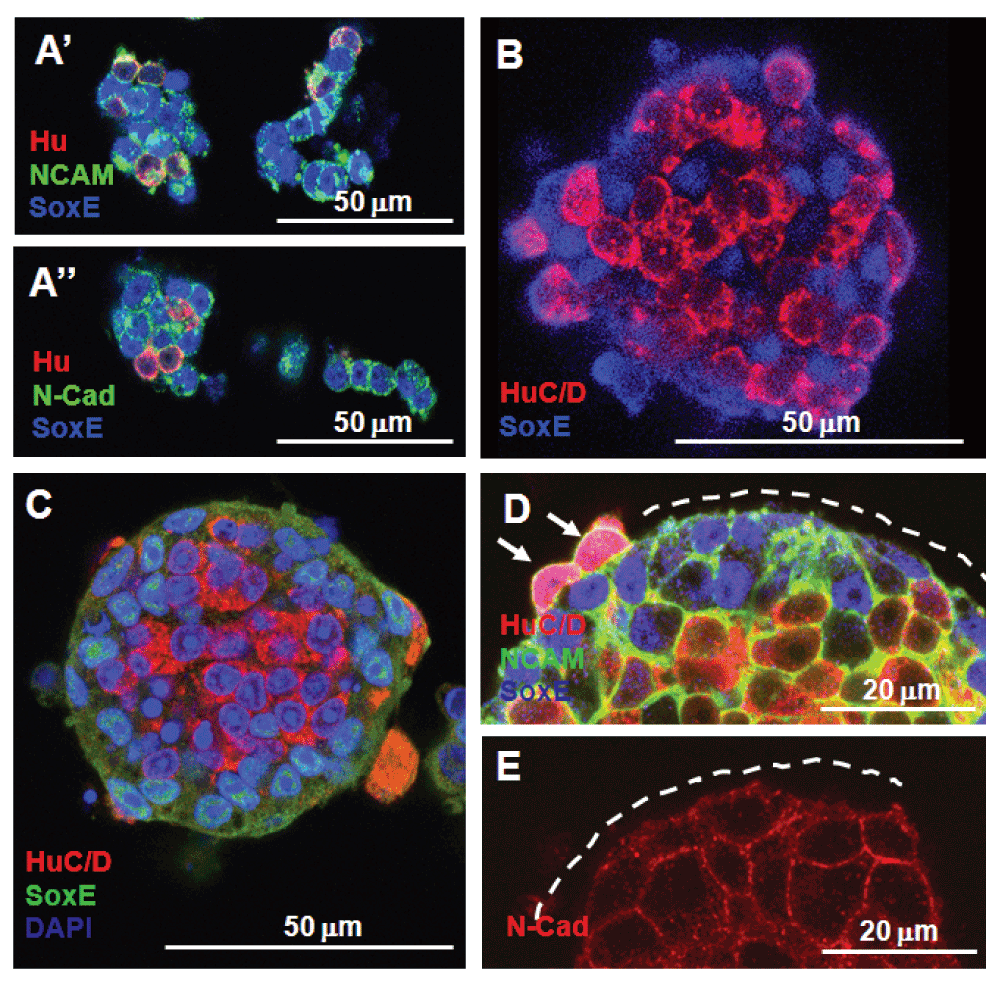

Figure 6. Formation of aggregates by ENS cells in cell-cell adhesion assays correlates with adhesion molecule expression pattern.

A’ A’’. At 2 h QE8 N-cadherin and NCAM^+ve ENS cells formed small aggregates (mixed Hu^+ve neurons and SoxE^+ve ENC cells) and chains (mostly ENC cells). B. At 6 h spherical aggregates were formed but neurons (HuC/D^+ve) and ENC cells (SoxE^+ve) were only partially segregated. C. At 18 h most HuC/D^+ve neurons formed the centre of each spherical aggregate surrounded by SoxE^+ve ENC cells. D. NCAM immunoreactivity was low on the external face of SoxE^+ve ENC cells (indicated by dotted line), but high around HuC/D^+ve neurons, whether these were located centrally or on the periphery (arrows). E. N-cadherin immunoreactivity was associated with all cells in the aggregate, but was less distinct on the external surface (indicated by dotted line).

ENS cell aggregation is insensitive to fluid shear but sensitive to initial cell density

Varying the speed of rotation (0 and 75 rpm) had little effect on aggregate form or size at 18 h, while aggregates at 150 rpm were somewhat larger in diameter (Figure 4F–H, Figure 5C). Since increasing rotation rates did not prevent aggregation, the intercellular cell-cell adhesions of these ENS cells must display a rapid “catch” to initiate adhesion, with initial adhesion strength sufficiently high to resist external distractive forces in the highest shear used here. On the other hand, the similar size and shape of the aggregates even down to zero rpm (Figure 4F, Figure 5C) suggests an overriding intrinsic adhesive mechanism that regulates not only accumulation of cells into aggregates but also governs the preferred size of the aggregates under these conditions.

Varying the initial density of ENS cells in suspension over a 6-fold range (0.167×10⁶ to 1.0×10⁶ cells/ml) led, counter-intuitively, to smaller aggregates in much larger numbers at higher starting cell densities (Figure 4I–L, Figure 5D).

The spatial patterning within aggregates indicates ENS neuron cohesion is greater than ENC cell cohesion

Confocal examination of 4–6 h spherical aggregates showed mixed Sox10^+ve and Hu^+ve cells (Figure 6B), but by 18 h cells in the aggregates showed most of the Hu^+ve cells located in the centre, with the SoxE^+ve cells forming the outer part of the spheres (Figure 6C). Labelling for NCAM showed that this adhesion molecule was most strongly expressed on the internal Hu^+ve cells with lower immunoreactivity on the SoxE^+ve cells, and especially low on the outer surface (Figure 6D). Such differential labelling was also present with labelling for N-cadherin (Figure 6E).

Confocal examination of four aggregates (diameter range: 63.8–98.7 μm; cell number range 276–861) revealed a remarkably uniform average cell density of 0.24 ± 0.02 cells/(10 μm) ³. Likewise the neuron/ENC cell ratio of 1.19 ± 0.06 (Hu^+ve/SoxE^+ve cells) was identical to that in the ENS in vivo (Figure 1). The spatial order of central neurons and peripheral ENC cells in the aggregates in vitro strikingly resembled that in the ENS ganglia in vivo (Figure 2C) (Hackett-Jones et al., 2011).

In assays of this kind, cells move within aggregates (“sort out”) with their final equilibrium positions determined by the most favoured adhesive balance, that is, with the least surface free energy of adhesion (Foty & Steinberg, 2005). To satisfy this, the external position of the ENC cells relative to neurons indicates that the ENC cells must have lower overall adhesive capacity than the neurons, and the lower levels of NCAM immunoreactivity in SoxE^+ve cells is in accord with this. Cell variants with a step difference in adhesiveness segregate especially rapidly in co-aggregates (Zhang et al., 2011), and this is likely to be represented by the two ENS cell types -neurons and ENC cells- used here.

ENS cells are mobile within aggregates, allowing sorting out

In vivo the neurons form recognisable groups first (Figure 2B), at a time when the ENC cells still appear randomly placed, and the ENC cells co-assemble around neurons later (Fairman et al., 1995; Hackett-Jones et al., 2011). In contrast, the final internal/external distribution observed here would be attained from any starting distribution of the cell types (Steinberg, 2007). Indeed, when we followed aggregation in vitro, the neurons and ENC cells were initially mixed (Figure 6B) and only later did the relative positions of neurons and ENC cells develop (Figure 6C).

To test whether cells were able to sort out within aggregates we combined pre-formed (E9 chick) ENS cell aggregates with freshly dissociated QE8 ENS cells. A few quail cells adhered to the surface of pre-formed ENS cell aggregates when combined for 4 h in rotating culture (Figure 7A. By 18 h some of these quail ENS cells had penetrated deep into the chick ENS cell aggregates (Figure 7B). This confirms that cells can move within the aggregates. This is consistent with the SoxE^+ve/Hu^-ve ENC cells and SoxE^-ve/Hu^+ve neurons physically sorting out, although it does not preclude an additional spatial differentiation whereby internally placed ENC cells differentiate mostly into neurons.

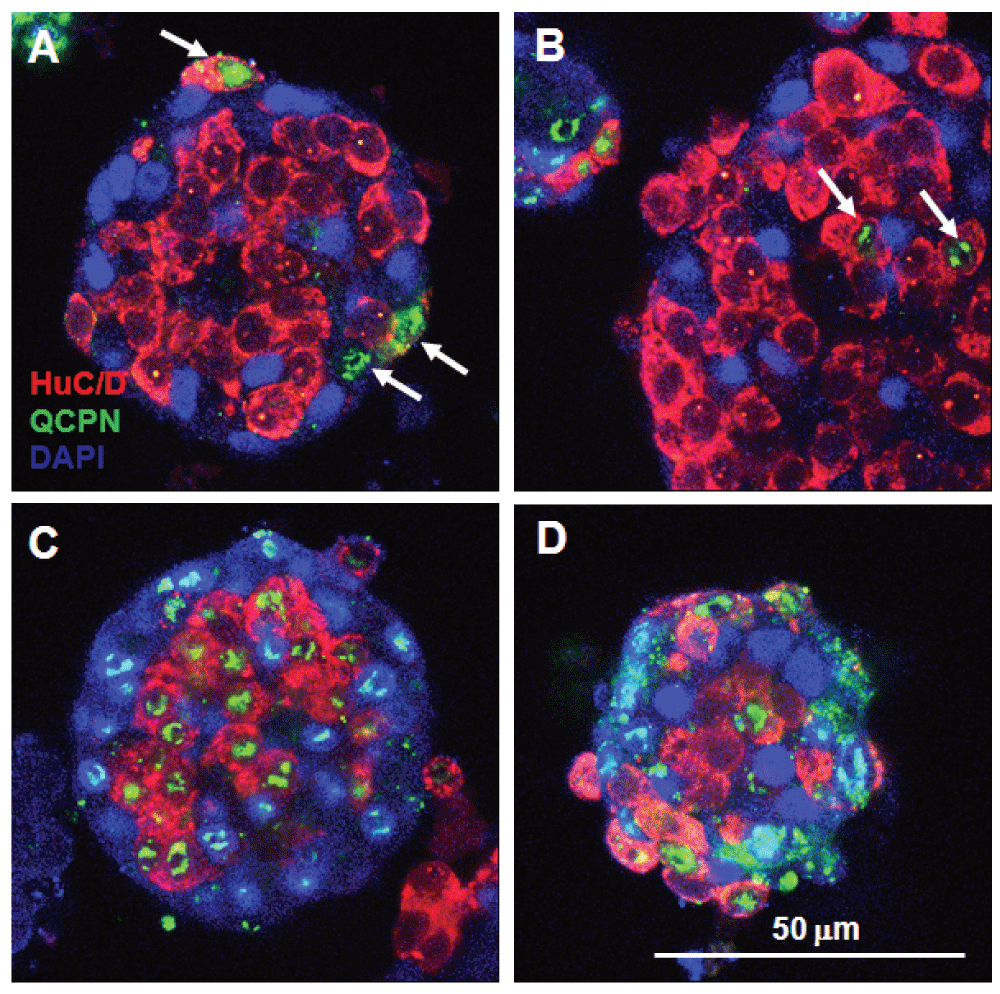

Figure 7. Cells in ENS aggregates are mobile and the surface of formed ENS cell aggregates is relatively non-adhesive.

A. Few freshly dissociated E8 quail ENS cells (arrows, labelled QCPN^+ve in green) at 3 h in vitro attached to the periphery of pre-formed (21 h) E9 chick ENS QCPN^-ve cell aggregates. B. At 18 h in vitro some quail ENS cells (arrows) relocated deep into the chick ENS 36 h aggregate. C. Most quail ENS cells formed entirely quail cell aggregates after 18 h, rather than adhering to pre-formed chick ENS cell aggregates. D. QE8 and ChE9 ENS cells when combined as freshly dissociated cells formed mixed aggregates at 6 h, showing that there is no species-related adhesive incompatibility. All specimens were labelled with HuC/D, QCPN and SoxE. Scale bar applies to all images.

The external surface of ENS cell aggregates is poorly adhesive for ENS cells

When freshly dissociated QE8 HNK-1^+ve cells were added to pre-formed (18 h) chick E9 ENS cell aggregates, QCPN-labelling showed that only a few quail cells adhered to the outer surface of pre-formed chick cell aggregates (Figure 7A), and most quail ENS cells formed separate aggregates entirely of quail cells (Figure 7C). This separation was not caused by species-specific adhesive differences, because when freshly dissociated E9 chick and QE8 ENS cells were mixed at the time of dissociation, all cell aggregates were a mixture of both chick and quail cells (Figures 5B, Figure 7D).

This shows that the outer surface of pre-formed aggregates is relatively non-adhesive, and is consistent with the observation that the outer surface of the peripheral cells of aggregates showed low immunoreactivity for CAMs (Figures 6D, E). We therefore propose that the outer SoxE^+ve ENC cells segregate a limited number of CAMs mainly to the internal face to bind to similar but more numerous molecules on the neurons, leaving the external surface relatively non-adhesive. This process would automatically restrict the size of ENS cell aggregates by preventing new cells from binding to the surface.

Altering the ENC cell/neuron ratio alters the aggregate size

If the peripherally located Sox10^+ve ENC cells in the aggregates form an insulating coating preventing ever-larger aggregates from forming, then reducing the number of these cells should allow larger aggregates to form. By combining NCAM with HNK-1 FACS, we produced HNK-1^+ve populations of higher and lower NCAM levels (Figure 6D, Supplemental Figure S2C). Previous immunolabelling in vivo (Hackett-Jones et al., 2011) and here in aggregates in vitro shows that the NCAM-high sub-population will be enriched for neurons, and the NCAM-low sub-population depleted in neurons. Culturing these cells in Terasaki wells confirmed this was the case, both populations had SoxE^+ve cells but HuC/D^+ve cells with E-C8^+ve, Tuj1^+ve neurites occurred only in the NCAM high fraction. Aggregation of NCAM-high and NCAM-low sub-populations produced respectively larger and smaller irregularly shaped aggregates than was usual for unsorted HNK-1^+ve cells (Figure 8A–C).

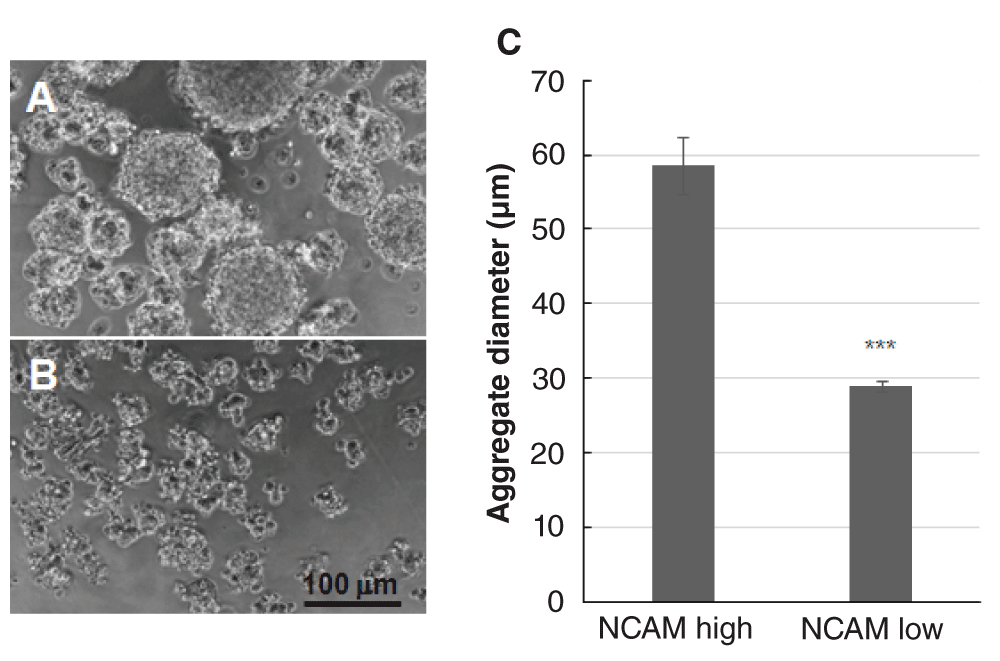

Figure 8. HNK-1^+ve QE8 ENS cell aggregate size is influenced by NCAM levels.

A. NCAM-high FACS fraction of HNK-1^+ve ENS cells form aggregates with a wide range of diameters including very large aggregates. B. NCAM-low fraction ENS cells form small misshapen aggregates. C. Histogram of aggregate diameters formed at 18h in vitro by NCAM-high and NCAM-low ENS cell fractions. Difference is highly significant (*** p<0.001). Starting cell density 0.67 ×10⁶ cells/ml. Error bar=SEM.

Different NC cell ganglia show aggregation differences

Quail E8 trunk DRG were dissociated as for the ENS cells and placed in aggregation assays. Like the ENS cells, DRG cells rapidly formed aggregates with similar average size although the range of size of DRG aggregates was larger (Figure 9A). Interestingly, the internal structure of the aggregates was strikingly different: SoxE⁺/Hu^-ve cells and SoxE^-/Hu^+ve neurons were mixed not segregated (Figure 9B inset). In addition, although all Hu+ve neurons were strongly NCAM^+ve and all outer SoxE^+ve cell membranes were deficient in NCAM labelling (as in equivalent ENS cells), the internal SoxE^+ve cells were strongly NCAM-labelled (Figure 9B, C).

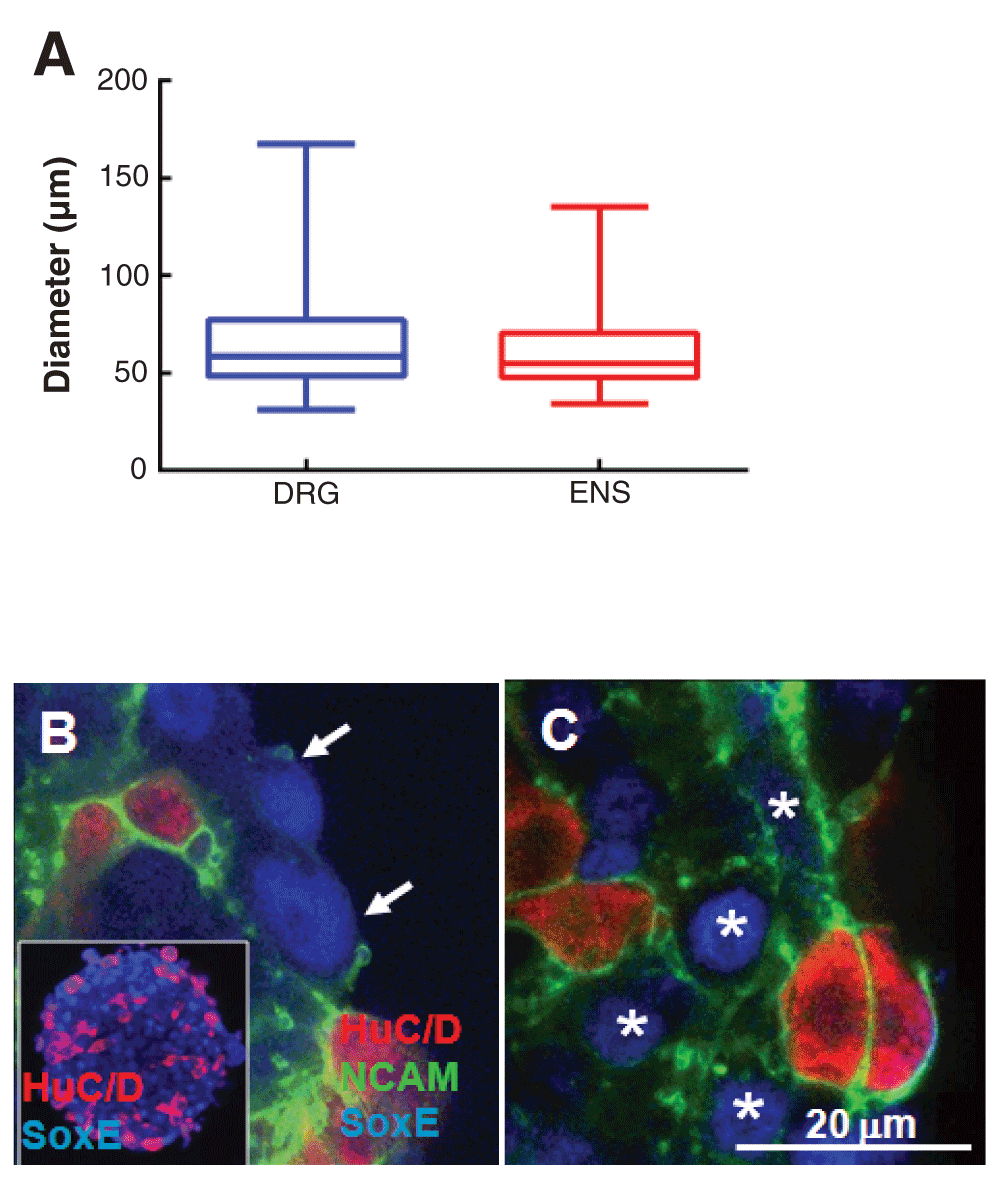

Figure 9. QE8 DRG cell aggregates in vitro have different internal structure than ENS cell aggregates.

A. QE8 DRG and ENS HNK-1^+ve cell aggregates were similar in average size and size distribution. Box plots show the first quartile to inter quartile range and whiskers show minimum and maximum range of data, while the median is represented by a vertical line. There was no difference between DRG and ENS in aggregate size when analysed using Mann-Whitney test for nonparametric data. Starting cell density was 0.5 ×10⁶ cells/ml. B. Unlike QE8 ENS cell aggregates, Hu^+ve neurons and SoxE^+ve cells are not segregated in DRG aggregates (inset), but like ENS aggregates, peripheral SoxE^+ve cells show little outer NCAM labelling (arrows). C. In contrast, internal SoxE^+ve cells (stars) as well as surface and internal Hu^+ve cells show strong NCAM labelling in DRG cell aggregates.

In vivo, NC-derived cells coalesce to form DRG as early as about E4 (in chick; equivalent to E3.5 in quail), and at these early stages the DRG display NC cell/neuron segregation as seen for ENS cells, with all neurons placed centrally (Wakamatsu et al., 2000). As early as E5 in chick, however, early DRG glial cells identified by transitin expression (which are also SoxE^+ve) spread centrally between the DRG neurons (Henion et al., 2000). We propose that the different sorting behavior of QE8 ENS cells and QE8 DRG cells represents a difference in developmental stage of the two ganglion types of the same chronological age, with DRG being much further advanced in ganglion cell differentiation, marked by the appearance of highly NCAM^+ve glial cells. The morphogenetic consequence of this drives the internal relocalisation of glial cells among the neurons they support by E8 in trunk DRG. We propose that a similar process evolves later, by E14, in midgut ENS (Figure 2D).

Conclusions: intrinsic regulation of cell distribution and size of ENS ganglia

A mechanism of separation by sorting of more and less adhesive cells would produce the observed core/shell spatial distribution of SoxE^+ve and Hu^+ve cells (Figure 10A). Translocation of a numerically limited number of CAMs in the plane of the cell membrane to the internal-facing side of the less adhesive cells (i.e. the Sox10^+ve cells) to engage the more numerous homophilic CAMs on the more adhesive cells (i.e. Hu^+ve neurons) (Figure 10B) would automatically limit the size of the aggregates by denuding the external surface of CAMs. This mechanism would predict that the size of the aggregate depends at least in part on the ratio of more adhesive neurons to less adhesive ENC cells. We suggest that this operates also in vivo and is of importance for ensuring that the ENS consists of relatively small and uniform ganglia. However, alteration of adhesion of ENS cells to ECM leads to ENS ganglia of abnormal size, shape and pattern of distribution in vivo (Breau et al., 2009; Broders-Bondon et al., 2012). This shows that the balance of cell-ECM adhesion as well as cell-cell adhesion, needs to be taken into account to achieve correct ENS ganglionic morphogenesis.

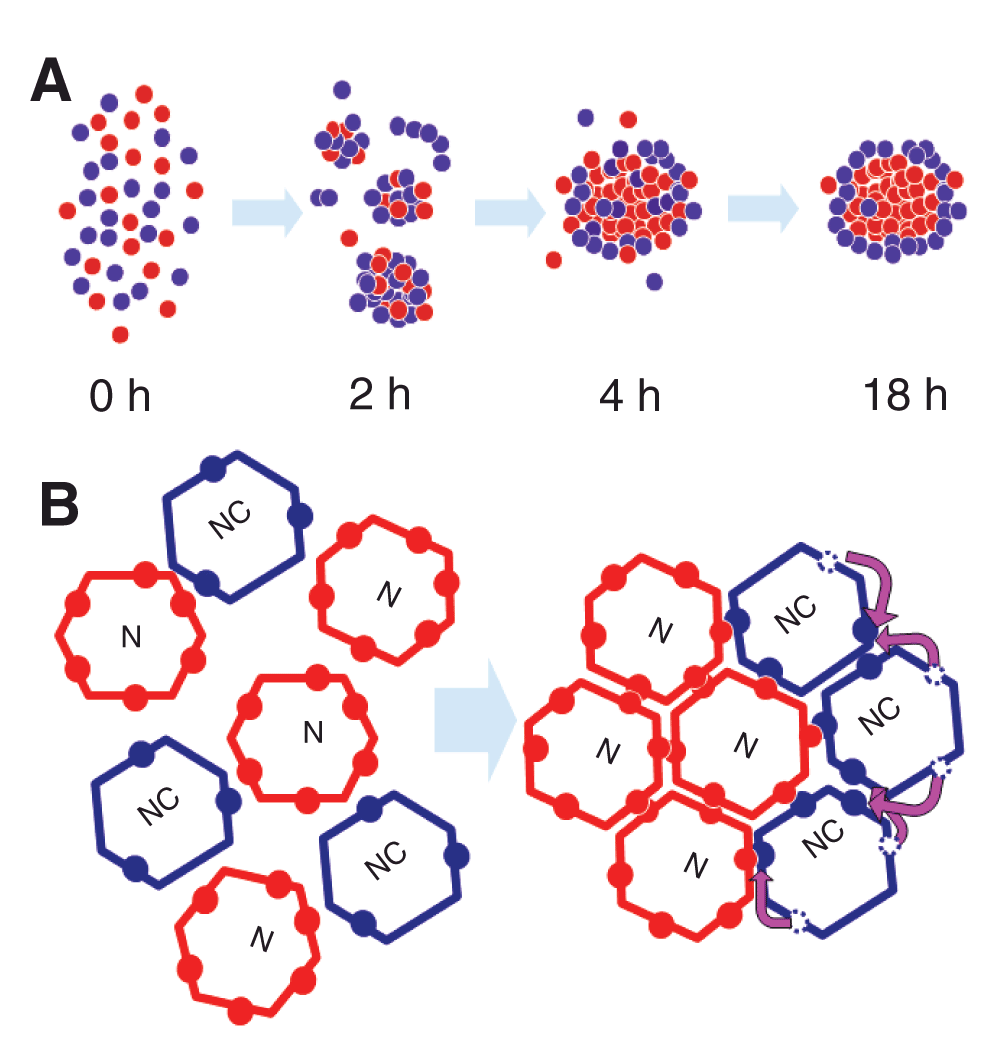

Figure 10. Scheme of ENS neuron (red) and ENC (blue) aggregation.

A. Initially ENC cells and neurons cohere in a disorderly fashion (2–4 h) but gradually the neurons sort out to a central position (18 h), indicating neurons have a greater adhesive bond energy. B. Neurons and ENC cells have adhesive molecules (coloured circles) which are free to move in the cell surface, but the neurons have more adhesive molecules. Cell-cell adhesion requires juxtaposition in trans of two adhesive molecules (red-red, blue-blue or red-blue). To minimise adhesive free energy, adhesive molecules on ENC cells move (pink arrows) in order to form an adhesion, thereby denuding the outer face of adhesion molecules. This insulates the group from further adhesion.
