An adaptable toolkit to assess commercial fishery costs and benefits related to marine protected area network design

Introduction

Marine Protected Areas (MPAs) have risen to be among the most popular measures to conserve biodiversity and manage populations subjected to strong fishing pressure. MPAs offer ‘safe zones’ for individuals to breed and grow, thus potentially facilitating population persistence. Biological impacts of MPAs also have been shown to extend beyond their boundaries via “spillover effects”, potentially benefitting adjacent fisheries and thus contributing to existing management strategies (Bellier et al., 2013; Kellner et al., 2007; Sanchirico et al., 2006). Concomitant with the global establishment of MPAs, there has been a growing field of science seeking to objectively quantify the contribution of MPAs to the conservation of commercially and culturally important species. Importantly, studies are highlighting the need for improvements on design (Gaines et al., 2010). Careful consideration should be paid to the placement of MPAs relative to the natural history of focal species, particularly if connectivity is rooted in the objectives and/or design. For example, studies based on genetic analyses have revealed that invertebrate larvae disperse shorter distances than fish species (~50–100 vs. 100–200 km, respectively) (Kinlan & Gaines, 2003; Shanks et al., 2003), suggesting that optimal size and spacing between MPAs should be adjusted according to the target species.

Dispersal processes are particularly relevant to MPA design because many marine species under protection by MPAs disperse during different life stages. The dynamics and persistence of populations are influenced by connectivity, which in turn is regulated by dispersal during the larval, juvenile or adult phases (Cowen & Sponaugle, 2009; Grüss et al., 2011; Levin, 2006). Environmental variables (e.g. temperature, currents) may also influence these processes. For instance, the temperature dependence of the planktonic larval duration (PLD) may add a latitude-dependent element to dispersion, which is rarely incorporated into MPA design protocols because of a scarcity of dispersal data (Laurel & Bradbury, 2006).

A promising effort to account for environmental complexities has been the development of MPA networks; that is, a series of independent protected areas interconnected by the movement of organisms between them (Avasthi, 2005; Gaines et al., 2010). For these networks to succeed, managers are required to make decisions about the optimal size, location, and number of MPAs to implement (Halpern, 2003). While poorly chosen locations for reserves may have negative effects on populations’ productivity (Costello & Polasky, 2008; Crowder et al., 2000), well-designed networks, with highly connected reserves, may allow for increased reproduction and survival, although much of the evidence is theoretical or indirect.

Currently, the theoretical importance of connectivity is well established in the ecological literature (e.g., Gaines et al., 2010; Palumbi, 2004). Although one of the four main design principles for MPAs is connectivity (UNEP-CBD, 2011), many networks of MPAs have not adequately considered this factor in their designs (Allison et al., 2003; Hastings & Botsford, 2003; Lester et al., 2009). Globally, only 18 to 49% of MPAs are regarded as part of a connected network depending on which definition of “connected network” is used (Wood et al., 2008). These definitions range from having at least one other MPA greater than 12.5 km² within 10–20 km to at least one other MPA greater than 3.14 km² within 20–150 km. There is also a bias towards large reserves, as the ten largest MPAs (most of which were created after 2005) comprise 53% of the protected area (Devillers et al., 2015). As of 2011, California is the only jurisdiction that uses both size and spacing in MPA design (Moffitt et al., 2011). Additionally, there is a spatial bias in protection due to jurisdictional, political and logistical concerns. The pelagic environment, which constitutes 99% of biosphere volume and supplies >80% of human fish food supply, may be <0.1% protected (Game et al., 2009) while areas within the exclusive economic zones are 1.5% protected (Wood et al., 2008). However, these estimates are now outdated and the area protected is growing every year. While opinions vary regarding the total proportion of area that should be protected (10–30%), it is clear that more MPAs are needed to meet that goal (Game et al., 2009; Wood et al., 2008). Adding new MPAs is an opportunity to improve the connectivity of existing networks.

MPA research has also revealed that, in addition to the biological and ecological benefits, the success of MPAs needs to be quantified in terms of economic factors. For instance, evidence shows that substantial investment (i.e., USD 5–19 billion; Balmford et al., 2004) would greatly increase the sustainability in the global marine fish catch. In this regard, studies that address the feedbacks between empirical fishery data and human behavior are expected to improve our ability to forecast short-term fisheries (White et al., 2013). One economic tool that is used to assess fisheries is cost-benefit analysis, which quantifies the balance between costs and benefits of a management action (e.g., Zimmerman et al., 2015). A major challenge for cost-benefit analysis for MPAs is that the costs are incurred immediately, yet the benefits may not be fully realized until the distant future. Hence, it is necessary to conduct cost-benefit analysis over a multi-year time horizon and apply a social discount factor to account for the fact that costs and benefits are valued less in the future than in the present (Arrow et al., 2013).

Despite the need for more comprehensive analytical models that encompass both biological and economic criteria, few have been developed thus far (White et al., 2013). One such program is the freeware Marxan, which has been mainly used for conservation planning purposes (Ball et al., 2009). There are also add-on programs, such as MultCSync (Moffett et al., 2005) and NatureServe Vista (http://www.natureserve.org/vista) that can be used to evaluate conservation goals in light of social and economic criteria. However, these tools do not incorporate population connectivity into their analyses by default. Here we introduce a flexible and user-friendly toolkit developed in R as an open-source package for stakeholders to explore the effects of varying different biological and economical parameters on the performance of an MPA network. It addresses specifically the interaction between MPA network design and population connectivity. To illustrate how this toolkit can be applied to different scenarios, we address two specific objectives: (1) examine if having a network of connected MPAs provides more resilience/population stability compared to having a single small, isolated MPA; and (2) determine if there is an economic benefit associated with connected networks of MPAs compared to other potential MPA designs.

We used the Canadian Atlantic cod (Gadus morhua) fishery for our case study because cod is a species with high commercial and cultural value. Cod populations found off the continental shelf of Newfoundland were once one of the world’s richest fishing resources, and shaped Newfoundland society for centuries (Hamilton & Butler, 2001). Atlantic cod stocks suffered greatly between 1960 and 1990, mostly due to poorly managed fishing pressure. While northwestern cod annual landings were <300 kt before the 1960s, the introduction of advanced fishing gear (e.g. factory trawlers) boosted catches to >800 kt by 1968. The high fishing pressure dramatically reduced standing stocks, and by 1977 fish landings had dropped significantly. Populations seemed to recover in the 1980s, along with increased fishing efforts, which corresponded with a twofold decline in survival probability (Hutchings & Myers, 1994). As a result, the stocks off Newfoundland and Labrador went commercially extinct (i.e., were no longer economically viable to harvest) in 1992 (Hutchings & Myers, 1994). The fishery has since shifted to one focused on lobster ($19M), snow crab ($121M), and northern shrimp ($179M) and the total value of the fisheries harvest is now worth more than it was before the moratorium (Schrank & Roy, 2013). While some cod stocks have started showing tenuous signs of recovery, they are nowhere near pre-moratorium levels (DFO, 2014); however, protecting a few populations from targeted or bycatch fisheries mortality may improve the probability of recovery. For this reason, we think that exploring the potential benefit of MPA networks for Atlantic Cod would be an informative exercise with implications for management.

Methods

We developed an individual-based population model for Atlantic Cod (Gadus morhua), which includes fisheries harvesting and alternative management strategies. The model is available as an open-source R package (Daigle et al., 2017a), which can be downloaded and adapted to the researcher’s specific questions. We describe the general structure of the model below without going into exhaustive detail. Please refer to the toolkit’s ‘read me’ section for more information on the model mechanics and specific parameter information. The model output presented below is available on zenodo (Daigle et al., 2017b).

Model framework

The model is organized hierarchically into modules and sub-modules (Figure 1) for users to manipulate according to their own requirements. Here we used this model to evaluate four management strategies (Figure 2) in terms of socially discounted net financial benefit.

Figure 1. Conceptual diagram of the individual-based population model for Atlantic Cod (Gadus morhua), which includes fisheries harvesting and management.

This model evaluates contrasting management scenarios and compares them based on socially discounted net benefits.

Figure 2. Map of eastern Canadian EEZ (Exclusive Economic Zone) and examples of different scenarios for the planning of Marine Protected Areas (MPAs).

The “Status Quo” scenario has all existing MPAs ≥ 400 km². The MPAs in the “Maximum Distance” scenario have been placed to maximize the distance between them. The MPAs in the “Fixed Distance” scenario have been placed to optimize the distance between them (~75km). The cod’s breeding locations in the “Targeted” scenarios have been protected by default and optimal distance MPAs have been added exclusively in habitat suitable for cod. Scenarios from replicate 1 used as an example, other replicates are available in the appendix (Figure A1–Figure A99).

The first module establishes a ‘Spatial Base Layer’ by defining a basic grid and creating specific protection scenarios for the resource. The model then runs three modules in sequence; ‘Growth and Reproduction’, ‘Dispersal’, and ‘Harvesting’, all of which determine the population dynamics of the resource (see section Population dynamics). These modules are contained in two nested recursive loops, an outer loop that instructs for specific management strategies scenarios (see section Management strategies scenarios), and an inner loop that defines the time dimension. Here we ran the model between the years 2000 and 2050, with 1 yr time steps. Finally, the model runs through a ‘Cost of Evaluation’ module, which factors in costs associated with complying with MPA spatial restrictions, the benefits based on catch values, and social discount rates (Figure 1).

Results

Cod biomass did not recover to historically high abundances in any of the four management scenarios. Cod biomass ranged from an average of 8.9 to 11.3 kt depending on the management scenario (Table 1, Figure 3). While there were no dramatic increases in biomass over time, there is a slight increase in mean biomass for the Fixed Distance and Targeted scenarios. Similarly, the pattern for the harvest follows that of biomass with a few differences. The total catch in all protected scenarios, particularly the Targeted scenario, decreases drastically within the first 5 y, then recovers within ~12 y. In Contrast, total catch in the Status Quo scenario steadily decreases over the entire 51 y. (Table 1, Figure 4). The probability of a moratorium (triggered when total biomass is below 10 kt) being enforced in a given year was substantially higher for the Status Quo scenario (5.02%) and was lowest for the Targeted scenario (0.98) (Table1).

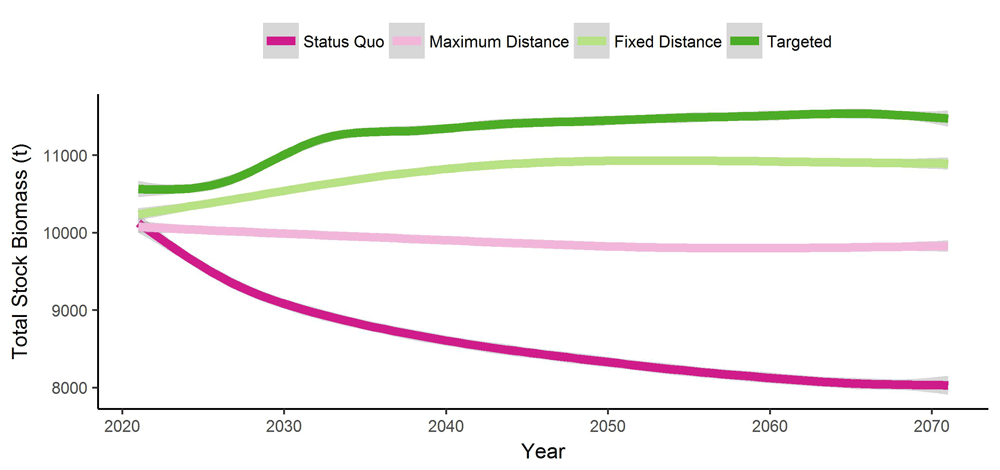

Figure 3. Total stock biomass for each scenario over time.

The solid lines represent the mean of all replicates (n=100) and the shaded regions show the standard error around each mean.

Figure 4. Total catch biomass for each scenario over time.

The solid lines represent the mean of all replicates (n=100) and the shaded regions show the standard error around each mean.

The mean distance from shore of each fish caught was actually highest in the Status Quo scenario (Table 1, Figure 5). There is a 5 to 10 yr period of adjustment to the management scenario regulation, but the distances in each scenario achieve a stable plateau. On average, fish were caught 327 km from shore in the Status Quo scenario while only 314 km in the Targeted scenario.

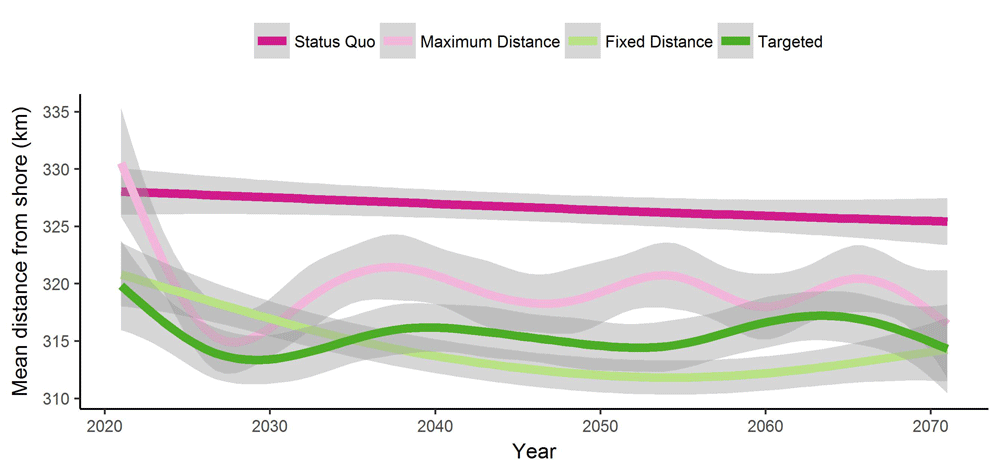

Figure 5. Mean distance from shore of each fish caught for each scenario over time.

The solid lines represent the mean of all replicates (n=100) and the shaded regions show the standard error around each mean.

In any given year, the differences between management scenarios in terms of biomass, catch, or mean distance from shore are not very large, particularly among scenarios with added MPAs (Table 1, Figure 3–Figure 5). However, when compounded over multiple decades, these differences have a meaningful effect on economic value (Figure 6). For the first ~20 y, all scenarios have similar present catch cumulative values (Figure 6); however, for the remaining 30 y, the Targeted and Maximum Distance scenarios diverge significantly from the Status Quo and Fixed Distance scenarios. For all values of SDR, NPV was highest for the Targeted and lowest for the Status Quo scenarios. The absolute and relative differences in NPVs between Status Quo and treatment scenarios gradually decreased with increasing SDR (Figure 6; Table 2). With an SDR of 0.015, 0.03, or 0.06, the mean total value of the Status Quo scenario over 51 years is 32, 25, or 17 million CAD respectively while that of the Targeted scenario is 44, 32, or 20 million CAD.

Figure 6. Net present values for each MPA scenario, taking into account three levels of social discount rate.

The figures on the left show cumulative net present value, which represents the progression of net present values for each of the years in the time horizon. The solid lines display the mean of all replicates (n=100) and the shaded regions represent standard error. The figures on the right show the final net present value for the full 50 year time horizon. Here, the replicates are represented using a box plot. The median line is surrounded by the 25% and 75% quartiles, whiskers show the limits of 1.5 times the inter-quartile range, and points beyond that range are considered outliers.

Sensitivity analysis revealed that increasing or decreasing the estimates for most parameters did not change the predicted NPV, nor influence the conclusion of the model (Table 3, Figure 7). NPV increases with an increase in fecundity, but the Targeted scenario still produces more benefit than the Status Quo. The only exception is that when minimum age of catch is increased by one year, the Status Quo scenario produces a higher NPV than does the Targeted scenario.

Figure 7. Effect of 10%* increase or decrease of select model parameters on mean final net present value for the full 50 year time horizon with a social discount rate of 0.015.

Dotted line indicates the mean value with unaltered parameters. * parameters ‘min_age_migration’ and ‘min_age_catch’ are integer values, therefore sensitivity was determined using ± 1 y. Parameters and their values are defined in Table 3.

Discussion

These findings suggest that well-designed MPA networks can provide net benefits to the fishing industry, while poorly designed networks can have some deleterious effects, such as an increased probability of moratoriums. This dichotomy highlights the importance of objectively measuring outcomes when evaluating management options. Our R package provides an ideal platform for such studies since it is open source and adaptable. The user can simply input a different set of biological parameters, study area, or fisheries parameters to evaluate similar management scenarios on a different species, or area. Given that spatially explicit population models for multiple species are critical to properly evaluate MPA network design (Moffitt et al., 2011), we have designed our package so that the biological parameters are easy to modify. At the next level of complexity, the user can create customized functions that create management scenarios or input predefined management scenarios by supplying the necessary shapefiles containing geospatial vector data. Finally, the user can edit whole modules or sub-modules if they wish to explore specific questions such as the effect of non-random dispersal or interactions between species. It is worth noting, however, that adding complexity such as evaluating multiple species at one time would require substantially higher computational power. As a result, simplification in some other areas of the model may be necessary if computational power is a limiting factor.

In terms of network design principles, adding MPAs consistently increased the biomass, but not all MPA networks were equal in terms of Net Present Value. Well-connected MPA network design is thought to reduce population demographic variability by diversifying the potential source populations (Andrello et al., 2015; Costello & Polasky, 2008; Cowen & Sponaugle, 2009). Correspondingly, our results indicate that abiding to principles of connectivity (Fixed Distance scenarios) and protecting productive habitats (Targeted scenarios) increases the NPV by ensuring well-connected populations. By combining the positive effects of population connectivity, protection of vital habitats, and near-shore source habitats, the Targeted scenario provides the greatest net benefit to the fishing industry.

Intuitively, we expected to see mean fishing distance from shore increase in scenarios with MPAs since we assumed fishermen would be displaced by the presence of MPAs. Our findings were entirely contradictory to these expectations. In all scenarios with MPAs, mean fishing distance from shore decreases relative to the Status Quo since MPAs in our model promote the presence of near-shore source populations that cannot be depleted by fishing. In these scenarios, fishermen spend less on fuel and labour since they do not travel as far. It should be noted here that our model currently assumes that fishermen can have a home port anywhere on the shoreline, which minimizes displacement in our model. In reality, there will be much greater social, economic, and logistical constraints on MPA placement. However, our model has the ability to assess the economic and ecological consequences of any arrangement of MPAs that managers determine to be feasible.

The efficacy of any MPA network is greatly influenced by the level of compliance among commercial fishermen in that region (McClanahan, 1999). For this reason, we conducted this cost-benefit analysis from the operational point of view (i.e., both the costs and benefits are directly connected to the commercial fishery). As a result, the model outcome is most relevant to the fishermen and can help to make a case for compliance. Mascia (2003) recommended that one measure of performance for an MPA should be how well it enhances the livelihoods of fishermen. Therefore, we should describe the net benefits as they relate to the people most immediately affected by the new MPA network.

A complete evaluation of all costs and benefits associated with MPA networks is beyond the scope of this study. The model does not include other benefits associated with expanding the MPA network. Indeed, benefits are not limited to only increasing fisheries’ profits via increasing yields. Other benefits include job creation related to recreational fisheries or tourism and maintaining other ecosystem services; the value of which exceeds that of the commercial fisheries itself (Agardi, 1997; Armstrong, 2007; Ghermandi & Nunes, 2013; Lester et al., 2009; Pendleton et al., 2012). In early iterations of the model, we included the costs of establishing and maintaining the MPAs, but the NPV estimates were consistently negative and large. This is to be expected since we are not considering the full suite of benefits listed above. A full treatment of costs and benefits would provide important information for governments seeking to justify the large expense associated with MPAs and would therefore be a rich area for future development.

One trend made clear in our results is that the benefits are realized on long time scales. Fishermen must follow the restrictions for up to 20 years before the net benefits of the Targeted scenario clearly surpass those of the Status Quo. This requires patience and a commitment to preserving a resource for future generations, particularly in the face of inevitable uncertainty in how the cod population will respond along the way. The standard market discount rate tends to be impatient and may not be appropriate for valuing future ecosystem services with high cultural value. If the environmental outcome will affect multiple people and generations, there is a higher social value placed on the service (Hardisty & Weber, 2009). Therefore, it is justified to apply a lower social discount rate when evaluating future costs and benefits. Social discount rate can have a strong influence on the recommendations from cost-benefit analysis. With increasing discount rates, there is less incentive to preserve fish stocks to generate future profits (Sanchirico et al., 2006). In our study, the net benefits of the enhanced MPA network scenarios are diminished when SDR >3%. Similarly, Zimmermann et al. (2015) found that the difference in NPV between their fishery models was indistinguishable at discount rates >5%.

Sound reserve design has potential for directly enhancing fisheries and preserving sensitive species. Additionally, evidence shows that paying attention to the network design can make populations more resilient to both natural and anthropogenic disturbances. For example, networks can be tailored to better cope with the threats imposed by ongoing climate change (McLeod et al., 2009). Specifically, a system’s resilience could be enhanced by considering MPAs’ size, shape, risk spreading (i.e., protection of a variety of habitat types), protection of ecologically critical areas, degree of connectivity, maintenance of important functional groups, and external sources of stress like pollution (Green et al., 2015; McLeod et al., 2009). These aspects can be addressed in the model presented here via some shape of a Targeted scenario, which again lends support to this management strategy.

Our modeling results suggested that the capacity for Atlantic cod populations to significantly recover densities comparable to those observed before the 1960s is limited in every management scenario considered. Similarly, one study reported that only one of 12 stocks of Northwest Atlantic cod analyzed showed ‘substantial recovery’, despite moratoria and fishing quota restrictions established after mid 1990s (Shelton et al., 2006). Another study by Swain & Chouinard (2008) predicted extinction of cod within the next 20 years (with fishing) or 40 years (without fishing) given the current levels of productivity. As argued by Shelton et al. (2006) the low productivity in cod populations documented after the big collapse, as indicated by higher natural mortalities and reduced growth rates (Swain et al., 2003), might hinder recovery along with the negative impacts of continuing fishery practices. Although our results are consistent with this previous work, our model makes multiple simplifying assumptions about biotic (e.g. ecological interactions) and abiotic (e.g. oceanographic processes) variables that can drive population dynamics and potentially contribute to ecosystem regime shifts. Additionally, our model does not predict any extinctions using the current parameters- possibly because we did not incorporate an Allee effect at low population densities (Stephens & Sutherland, 1999).

While our model currently provides interesting results regarding MPA design, there are some key aspects to consider when interpreting these findings. This model only considers the interaction between the fishing industry and a single commercial species. This removes possibly important interactions with cod predators (Cook et al., 2015), competitors (Minto & Worm, 2012), or prey (Worm & Myers, 2003). We believe that by choosing a relatively high natural mortality rate that reflects the new ecological reality (Swain & Chouinard, 2008), we have incorporated the bulk of these ecosystem effects. We have considered both larval and adult dispersal to be entirely random in the model, which neglects potentially important oceanographic, migratory, and homing behaviours (Green et al., 2014; Lawson & Rose, 2000). Similarly, carrying capacity is randomly generated from a realistic distribution, which ignores the true spatial subtleties of actual cod habitat. However, much of the information needed to incorporate such spatially explicit behaviours and habitats is currently unavailable. Our focus on a single species also eliminates the possibility of a mixed species fishery or evaluating the consequences of switching to alternative species (e.g., crab, and shrimp, and lobster). Although testing multiple species simultaneously was beyond our scope, other studies have employed different techniques for doing so. White et al. (2010) calculated unweighted means across species for both recruitment and yield, as well as weighted means that represented the relative commercial landings of each species. Sala et al. (2002) incorporated data from seven commercially important species and then used optimization algorithms to choose the most effective combination of MPAs.

In conclusion, the fishing industry stands to benefit financially from well-designed MPA networks (e.g., the Targeted scenario) through increased yields, lower operating costs for the commercial fishermen, and a lower probability of a moratorium. Under scenarios with new MPAs some traditional fishing locations may have been closed, thereby displacing fishing efforts. However, the spill-over effects of the well-designed MPA networks more than compensated for any displacement by providing near-shore source populations and ultimately decreased mean fishing distance from shore. Further, targeted protection of adult habitat can produce long-term financial benefits that exceed those associated with the other simulated MPA network scenarios. These findings demonstrate the power and flexibility of our spatially explicit package in assessing the costs and benefits of different MPA network designs.

Data and software availability

The tabulated output for the model is available at https://doi.org/10.5281/zenodo.260444
