agINFRA: a research data hub for agriculture, food and the environment

agINFRA stakeholders analysis

One of the key elements of the agINFRA analysis that took place during the first years of the project was the stakeholders analysis. We have in several project reports stated that the main prospective “users” of the agINFRA infrastructure are data managers, information service managers and information system developers dealing with agriculture-related data and more precisely:

This stakeholder analysis was essential to understand the potential users of agINFRA, understand their needs and proceed with the deployment of an infrastructure that will serve the actual needs of the agricultural community. The detailed analysis that was done, helped the project partners shape the agINFRA common vision^1,2.

agINFRA common infrastructure

From the beginning of the agINFRA project, it was promised to develop and deliver a shared technology infrastructure. During the lifetime of the project, agINFRA partners designed and deployed research infrastructure components and APIs (Application Profile Interfaces) that support the agINFRA applications and layers in a federated way. The agINFRA Virtual Organisation (VO) has been created to organise the infrastructure provided by the agINFRA partners (Institute of Physics Belgrade - IPB, Instituo Nazionale di Fisica Nucleare - INFN, Computer and Automation Research Institute of the Hungarian Academy of Science - SZTAKI) but also to connect with external infrastructure providers as for example the Greek Research and Technology Network (GRNET), the National Centre for Scientific Research ‘Demokritos’ (NCSR) or other National Grid Initiatives through the European Grid Initiative network. The “vo.aginfra.eu” Virtual Organization (VO) supporting the agINFRA community is operated on the European Grid Infrastructure (EGI) infrastructure, it is supported by all Grid sites participating in the project (AEGIS01-IPB-SCL, INFN-CATANIA, INFN-ROMA3 and SZTAKI), and it is delivering access to more than 2000 CPU cores and 900 TB of storage space to its users. The primary agINFRA Virtual Organization Membership Service (VOMS) server (voms.ipb.ac.rs) is installed at the IPB. The name vo.aginfra.eu is chosen with a format recommended by EGI, and allows global VO registration at CIC portal that will certainly increase VO visibility³. On top of the agINFRA infrastructure a number of application have been ported to the Grid infrastructure (Grid modules) with a RESTful interface on top that enables configuration of application input parameters and output retrieval. For each of the Grid modules, the applications had to be gridified and exposed through a RESTful API (Figure 1). All the ported applications are related with the aggregation and management of data (e.g. agHarvester) and the list of the services is available through the API section of the agINFRA site (www.aginfra.eu/api).

Figure 1. Documentation of the agINFRA REST API.

Source: agINFRA website (www.aginfra.eu).

In addition agINFRA took advantage of two different Science Gateways (SG) architectures for the management of complex job workflows and on user membership management through the adoption of the Identity Federations and Identity Providers approach for access to Grid and/or Cloud resources. Both of the generic versions of the SG have been customized to support the needs of the agricultural research data community. Finally, one of the biggest risks in e-infrastructure projects is the sustainability and compatibility of the infrastructure elements. From the beginning of the project, the agINFRA infrastructure was created in a way to be fully compatible with the EGI Federated Cloud. Being compliant with such an initiative allows the easy of new resources to be committed to the project. In addition, EGI itself has recognized the work and the needs of the community and during the upcoming EGI-ENGAGE project (the flagship project of EGI) a Virtual Team for the Agricultural Sciences is to be created. At the same time, additional initiatives have shown the will to provide resources and support the work of the agINFRA as for example the pledge for a Linked Open Data layer for the agricultural community.

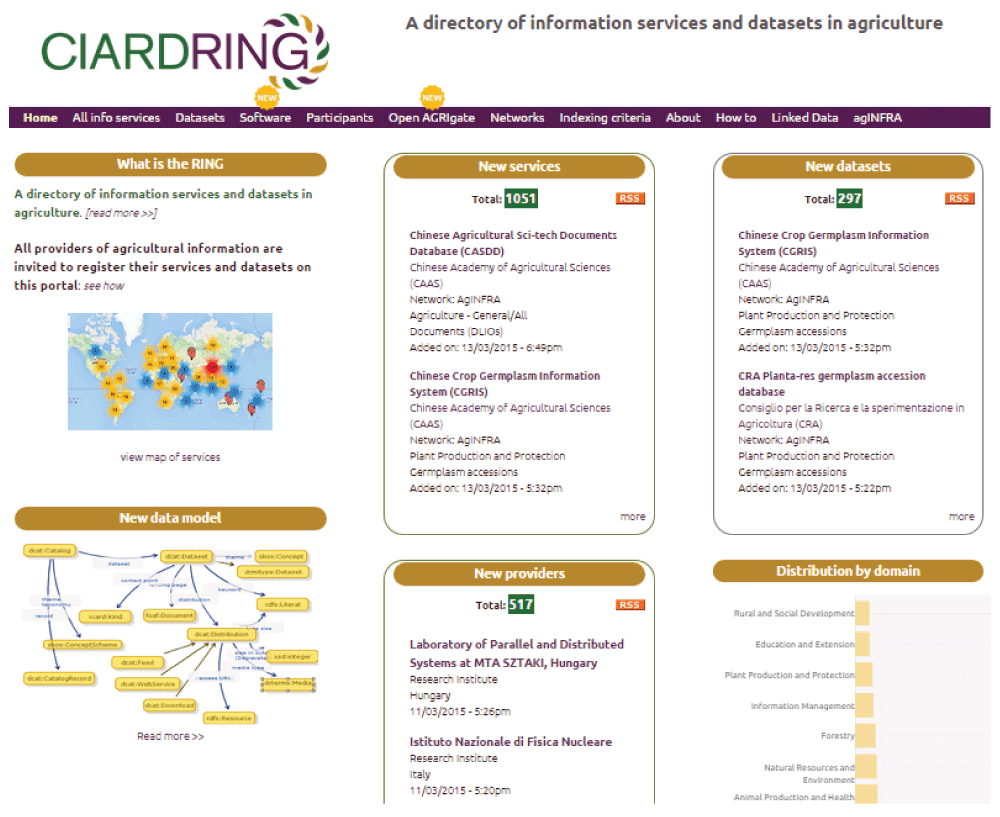

Figure 2. The CIARD RING home page.

Source: CIARD RING (http://ring.ciard.net).

CIARD-RING registry of information services and datasets

One of the main advances during the agINFRA project was the revamp of the CIARD RING (http://ring.ciard.net) global directory of web-based information services and datasets for agriculture. The CIARD RING, a project maintained within the CIARD initiative and is led by the Global Forum on Agricultural Research (GFAR), has become a machine-readable hub/switchboard to information sources such as search engines, databases, repositories, Open Archives, feeds, data sheets etc (Figure 2). All information stored/registered in the RING i.e. metadata about services and datasets, can be queried via SPARQL and via a simpler REST API. In addition, during the agINFRA project, it has become evident that in order for the RING to become the ‘central broker of the information’ around the agricultural community, even more additions had to be made. Today, the RING includes a registry of organizations and networks with the vision of being part of the future AgriProfiles list of people, networks and organizations in the agricultural research. Starting from the agINFRA project, software are also registered in the RING as a way to easily find and retrieve software services (tools, web services) that can process datasets. Parallel with the RING evolution, the AIMS Vocabularies, Metadata Sets and Tool (VEST) registry (http://aims.fao.org/vest-registry) was also enhanced as a catalog to retrieve datasets, metadata sets, tools and Knowledge Organization Systems (KOS) used in the broader agricultural information management community. Last but not least, during the lifetime of the project, project partners registered their own datasets or collections in the RING enhancing the number of available datasets especially for the case of bibliographic, educational, germplasm and soil datasets.

Data Interoperability and Linked Open Data

The agINFRA project specifically aimed to create an environment to support data interoperability. One of the main outcomes of the data interoperability work was the generic aggregation workflow and the common metadata model. As it has been show cased in the project, a very well designed, domain specific aggregation workflow can be used to aggregate data from different sources. This generic version of the aggregation workflow was used and tested under the prism of the agINFRA services (i.e. AGRIS, Green Learning Network - GLN). As it was specified, part of the workflow was the transformation of the aggregated metadata records to an internal format. The usage of such format allows easily managing and re-using the data. But the work around the data interoperability didn’t stop in the aggregation of metadata. During the agINFRA project a lot of effort was made on the implementation of a Linked Open Data layer, especially for the case of germplasm and soilmaps data (http://vocabularies.aginfra.eu). The work done in the agINFRA project set the first steps for the Global agricultural Concept Scheme (GACS) project that aims to create a hub for thesauri in the agricultural field, in multiple languages, for use in Linked Data, a project supporter by The Food and Agricultural Organization of the United Nations (FAO) responsible for the AGROVOC Concept Scheme, CAB International (CABI) responsible for the CAB Thesaurus (CABT), and the National Agricultural Library of the USA (NAL) managing the NAL Thesaurus.

agINFRA European Open Data Node

One of the obligations of the agINFRA project was to participate in the FP7 pilot program that requires all project publications to be openly available and delivered in OpenAIRE². OpenAIRE (https://www.openaire.eu), a three-year project, establish the infrastructure for researchers to support them in complying with the European Commission Open Access pilot and the European Resuscitation Council Guidelines on Open Access. It delivers an electronic infrastructure and supporting mechanisms for the identification, deposition, access, and monitoring of FP7 and ERC funded articles. With the pilot program during FP7 becoming mandatory for all projects funded under the Horizon 2020 framework, agINFRA saw the need and opportunity to provide its data management services for projects and researchers in the agri-food community. Hence, in collaboration with OpenAIRE, the thematic agINFRA European (EU) Node was created as an aggregator that will collect all information for the agri-food sector and supply it to OpenAIRE relieving its contributors from the duty from registering themselves. To support the agINFRA EU Node, the agINFRA project in collaboration and with the support of AIMS and CIARD introduced a set of recommendations applying to agri-food research community for data management, sharing and dissemination aiming among others to provide a framework for the research community of European agri-food research institutions that need to follow the H2020 Open Access mandate and share their metadata. These recommendations are: 1) Metadata repository for data sources and publications following international metadata standards and classification schemes:

2) Repository registration in an agricultural aggregator (like the CIARD RING: http://ring.ciard.net) 3) Institutions’ researchers’ profiles and/or Institutions’ profiles need to be publicly available and accessibly by the agri-food community (using tools like registration in the AgriVIVO: http://www.agrivivo.net or the future AgriProfiles) 4) Data and publications accompanied by licenses using an international common standard (like Creative Commons: http://creativecommons.org) 5) Sharing the (metadata) descriptions of institutions data/publications with the agri-food research community (like the European AGRIS node “agINFRA”: http://aginfra.eu, OpenAIRE: https://www.openaire.eu). 6) Storing and preserving metadata over a data infrastructure (e.g. agINFRA e-infrastructure), provided with persistent identifiers compliant with known standards (e.g EUDAT or DataCite recommendations).

A Global Movement for Open Agricultural Data

After the kick-off meeting of the agINFRA project, it was obvious that the expectations were set very high. The agINFRA project and the work performed quickly got in the spotlight of the EC and global initiatives as the Research Data Alliance (RDA; https://rd-alliance.org). Up to now, the agINFRA project has been invited in a number of EC events (e.g. European Union Delegation to Australia on Research Infrastructure) and has an important role in the RDA leading the Interest Group on Agricultural Data and supporting the Wheat Data Interoperability Working Group. In the meantime, the movement of open data for the agricultural domain was spreading with a highlight event the ‘G-8 International Conference on Open Data for Agriculture’ that took place in Washington, D.C., US, on April 2013, just in the middle of the agINFRA project. Following this event, the Global Open Data for Agriculture and Nutrition (GODAN; http://www.godan.info) initiative was launched in October 2013. GODAN is an initiative that seeks to support global efforts to make data relevant to agriculture and nutrition available, accessible, and usable for unrestricted use worldwide. The initiative focuses on building high-level policy and public and private institutional support for open data, encouraging collaboration and cooperation among existing agriculture and open data activities, without duplication, bringing together all stakeholders to solve long-standing global problems. The agINFRA project was among the first to support GODAN and both the project and the project’s partners are actively involved in the initiative. The agINFRA services and outcomes in many times have set the pace for the GODAN strategy towards agricultural open data. In collaboration with CIARD, agINFRA supported the GODAN initiative and collaborated for the organization of its annual meetings and workshops.

Conclusion: Creating new products and opportunities

agINFRA provides data infrastructure and services for agricultural and related scientific communities, relevant data repositories in Europe, as well as virtual collaboration with researchers and repositories from other countries around the globe. This effort was realized with a European approach, involving partners from EU member states and European and international initiatives. agINFRA had identified a strategy to deliver socio-economic impacts across Europe. Towards this end, two different aspects of agINFRA work implemented this strategy: the open availability of services to create new products and the organisation of hackathons events to train users and create new opportunities². Firstly all services created and data managed by agINFRA are openly shared with the community so anyone can use them. Today business models around open data and open services and are more and more common. In agINFRA one of the partners, Agro-Know, took advantage of the provided technology to create and launch a new product, the Agro-Know Stem (http://www.akstem.com), a solution that help users open, track, monitor and disseminate their research data. The Agro-Know Stem makes use of many of the agINFRA technologies (e.g. CIARD-RING, micro-finders, Grid powered aggregation workflows, etc.) and experience (e.g. metadata formats, vocabularies) to provide a high end product to their clients (Figure 3).

Figure 3. The landing page of the Agro-Know Stem.

Source: Agro-Know Stem website (www.akstem.com).

Similarly and in order to stimulate the community for the creation of new products/applications, the agINFRA project organized, sponsored or supported a number of hackathons events around the world. A hackathon is an event, which aims to use datasets from various sources (agricultural sciences in the case of agINFRA) in order to provide alternative, useful applications or enhance existing ones with new functionalities. It brings together web/software developers, domain and usability experts who are interested in applying their technical skills in the agricultural context and use the data sets suggested by the organizers in order to develop useful applications. Typical hackathons focus on the provision of working prototypes for one or more problems proposed by the organizers. The outcomes from hackathon events are propriety of the participants who are up to them to use this chance to evolve their idea to actual products. In the context of the agINFRA hackathons, new ideas and applications were conceptualized with some of them aiming to become products (e.g. the Skalidi project, an outcome of the Athens Green City Hackathon).
