Metabarcoding-based fungal diversity on coarse and fine particulate organic matter in a first-order stream in Nova Scotia, Canada

Introduction

Headwaters are almost entirely heterotrophic – up to 99% of their energy is supplied by coarse organic matter (CPOM, diameter > 1 mm) imported from the terrestrial surroundings (e.g., twigs, branches, and leaves). These allochthonous sources are converted into fine particulate organic matter (FPOM) mechanically by the water current, by feeding activities of invertebrate shredders (both by “sloppy” feeding and by feces production due to incomplete digestion; Cummins & Klug, 1979; Shepard & Minshall, 1981; Wotton et al., 1998) and by fungal maceration (Suberkropp & Klug, 1980). Stream fungi are vitally important for energy transformation of submerged leaf litter (Baldy et al., 1995; Gessner & Chauvet, 1994; Gulis & Suberkropp, 2003; Hieber & Gessner, 2002). FPOM may also be blown in or washed in from adjacent forest soils, or originate from sloughed-off algal biofilms, consist of plant spores and pollen (Czeczuga & Orlowska, 2001), or be produced by flocculation of DOM, with or without microbial participation (Lush & Hynes, 1973; Wotton, 1990). Due to the many biological processes involving CPOM and FPOM, bacteria and fungal spores will also contribute to the pool of stream FPOM (Bärlocher & Brendelberger, 2004; Callisto & Graça, 2013; Edwards & Meyer, 1987; Gleason et al., 2009). FPOM is one of the major components of stream ecosystems, and entire groups of organisms, such as the filter feeding guild, depend on it (Callisto & Graça, 2013; Wallace & Merritt, 1980).

However, very little is known about FPOM associated microbial communities. Fine particles, regardless of their origin, are continually colonized and transformed by microorganisms. Due to resource limitation on small particles, we can assume that the biomass of mycelial fungi, as measured by ergosterol concentrations (Callisto & Graça, 2013; Findlay et al., 2002), will be low and that zoosporic and/or unicellular fungi will be more prominent due to their adaptations to small substrates such as algae and pollen (Gleason et al., 2008). Previous studies have shown that ascomycetous hyphomycetes are dominant stream dwelling fungi on leaf-litter (e.g. Bärlocher, 1990; Duarte et al., 2015). Some of these leaf-litter fungi survive passage through the gut of leaf-eating amphipods (Bärlocher, 1981; Sridhar et al., 2011), and DNA from both ascomycetes and chytridiomycetes is present in fecal particles (Sridhar et al., 2011).

The present paper seeks to examine the fungal community on collected stream FPOM and whether it is possible to use it as a sum parameter for various fungal processes in the stream ecosystem. For this feasibility study we collected three FPOM size fractions and compared them with four weeks old submerged leaf-litter. We measured ergosterol as a biomass indicator of Dikarya and employed a metabarcoding approach in order to classify the fungal community of stream organic matter (OM).

Methods

The field experiment was conducted in Boss Brook, a small stream in Fenwick, Nova Scotia, Canada (45° 43.00'N, 64° 09.56'W) (Nikolcheva et al., 2003). This first-order stream runs through a mixed forest dominated by white birch (Betula papyrifera Marsh), several maple species (Acer rubrum L., Acer saccharum Marsh., Acer spicatum Lam.), and white spruce (Picea glauca [Moench] Voss). The stream bed consists of stones and gravel. At the sampling site, the stream is 2 to 3 m wide and 20 to 50 cm deep (Grimmett et al., 2012). On three dates (27 September, 25 October, 7 November 2011), 100 l of stream water were passed through a stack of metal filters, yielding 4 FPOM fractions (fraction 1: 2–1 mm; fraction 2: 1–0.5 mm; fraction 3: 0.5–0.25 mm, fraction 4: 0.25–0.020 mm). Most material was recovered in the lowest size fraction (4) and no material was recovered in fraction 1 (Dataset 1). Samples were lyophilized and weighed. Additional samples for ergosterol measurements were collected on 12 November. These were freeze-dried and stored in methanol/potassium hydroxide (3 × 15 mg in 2 ml each at – 20°C; Nikolcheva et al., 2003, Dataset 2). Samples of different dates were combined for pyrosequencing in order to adjust for the temporal variation and to increase the resolution, resulting in one sample each for size fractions 2 to 4. In parallel, senescent leaves from individual trees (Maple: Acer platanoides) were incubated as leaf discs (15 cm) in duplicate bags in the stream for four weeks (11 October to 9 November, 2011) to evaluate fungal communities on CPOM (procedures as in Grimmett et al., 2012). As an (aquatic) outgroup we incubated leaves from a non-native tree (European beech, Fagus sylvatica) in the littoral zone of a lentic system (Lake Utopia, near St. George, NB, Canada; 45° 10.18'N 66° 47.67'W) for two weeks. The goal was to obtain an indication if substrate type (leaf vs. fine particles) may be more important than species (maple vs. beech) or habitat (lotic vs. lentic). All leaf samples were stored at -20°C until DNA extraction. In total we sequenced 6 samples consisting of two replicates (Maple I and Maple II) from the leaf bags, one lake-derived beech leaf bag sample, and one sample per stream-particle sample.

DNA from freeze-dried particle fractions and frozen leaf samples was extracted with the PowerSoil MoBio Kit as per the manufacturer's instructions (leaves were first cut into smaller pieces with a sterile scalpel). Amplicon PCR was performed using the barcoded 18S primers nu-SSU-0817 and nu-SSU-1536 of Borneman & Hartin (2000), and AccuPrime High Fidelity Polymerase (Life Technologies # 12337016) in a two-step PCR for 32 cycles (94°C for 1 min and 60°C for 4 min) with an initial denaturation for 5 min; BSA was added at a final concentration of 0.9 µg µl^-1. Amplicons were prepared according to the Lib-L protocol (454 Life Sciences, Roche) and sequenced by a benchtop GS Junior System (454 Life Sciences, Roche). Raw data were processed by Mothur (version 1.26, Schloss et al., 2011), following recommendations for standard operating procedure (http://www.mothur.org/wiki/Schloss_SOP, accessed 7/2012), implementing denoising, trimming, alignment, filtering, chimera removal, classification, and preclustering steps against the eukaryotic reference database provided by Mothur. OTUs were calculated on a 97% basis of a final alignment with a median length of 279 nt and statistics (diversity estimates and similarities) were done with a random submatrix normalized to the lowest number of reads. After the filtering process and removal of chimeric sequences, there were 10,000–22,000 reads per sample, resulting in a sampling coverage of > 99%. The OTU table (Dataset 3) for those reads was exported to R (version 2.15.1) for cluster analysis with the second Kulczynski similarity index (http://cran.r-project.org/). In addition, representative OTUs of the associated FASTA file were realigned with SINA (version 1.2.11, Pruesse et al., 2012) and imported into the SILVA SSU reference database version 111 (http://www.arb-silva.de/). The representative sequences from all OTUs were added to the SILVA reference database by the parsimony option activating the eukaryotic positional variability filter implemented in ARB (version 5.5, Ludwig et al., 2004). The resulting tree (i.e. the top 100 subtree) was exported and processed by FigTree (version 1.4, http://tree.bio.ed.ac.uk/software/figtree/). The raw sequences were deposited in the European Nucleotide Archive (ENA; accession number PRJEB10809).

Results

Average stream FPOM concentration of the three sampling dates was 2.7 mg l^-1. Distribution among the various size fractions is summarized in Table 1. Due to fluctuating water flow, there was a high temporal variation in the amount of recovered particles. On average the smallest size fraction (250 µm – 20 µm) was the most abundant. Ergosterol concentrations decreased with lower particle size (Table 1). It was highest on maple leaves recovered from Boss Brook and also higher on our lentic outgroup: beech leaves from Lake Utopia.

The DNA sequences were assigned to 821 fungal OTUs. Of these, 726 were detected exclusively in the particle fractions, and 47 (out of 95 OTUs detected on leaves) were restricted to leaf samples. The particles shared 130 OTUs (with an extrapolated shared species Chao index of 215.5). The taxon richness of the particles was an order of magnitude higher than the one of maple leaf samples and the inverse Simpson index pointed to a more even and diverse community structure on particles than on leaves (Table 2). This is further reflected in the rank abundance curves of the two substrate types (Figure 1). Correspondingly, the analysis of fungal communities separates leaves from particles with less than 40% similarity (Figure 2). When we looked at the most prominent 100 OTUs from stream particles, which accounted for 96% of all sequences (Figure 1), we found representatives of most fungal phyla including yeast lineages (e.g. Taphrinaceae and Saccharomycotina), Basidiomycota, and the phyla Chytridiomycota and Cryptomycota (Figure 3). The fungal diversity was dominated by several classes of Pezizomycotina (Ascomycota).

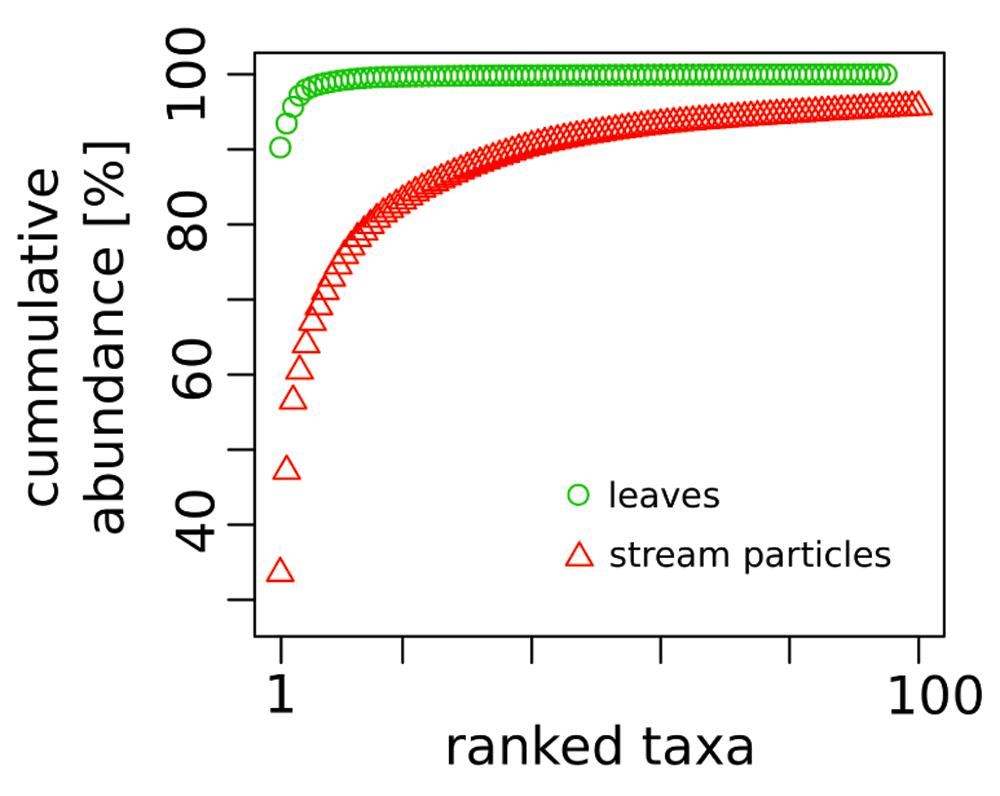

Figure 1. Rank abundance curves for the dominant 100 OTUs of leaves and stream particles, all leaf samples (beech and maple samples) and all size fractions were combined into the two categories “leaves” and “stream particles” (based on Dataset 3).

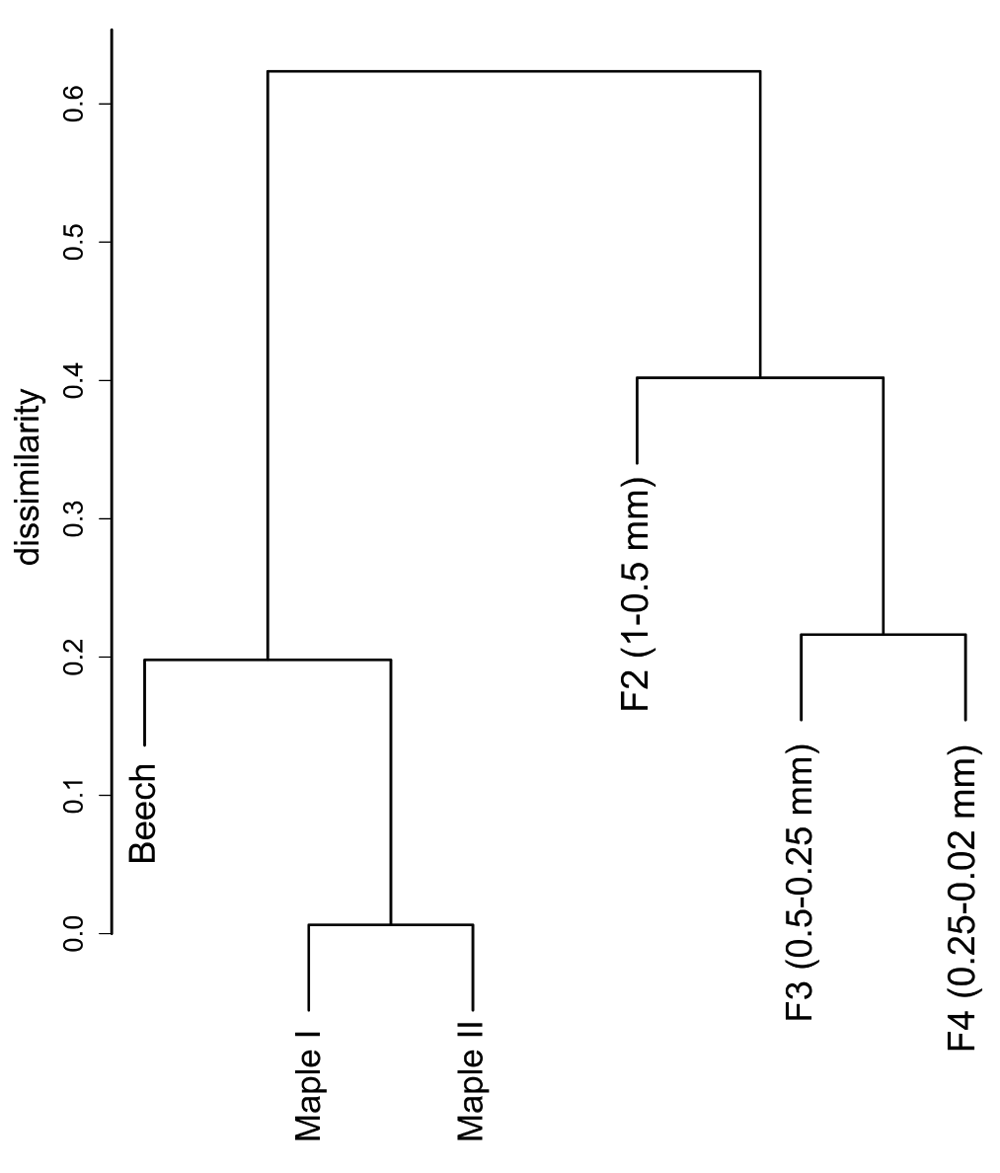

Figure 2. Cluster dendrogram of the fungal community composition data presenting the dissimilarity of the leave samples and the particle size fractions based on pyrosequencing.

Data based on a Kulczynski similarity matrix, clustered with UPGMA (average) method (based on Dataset 3).

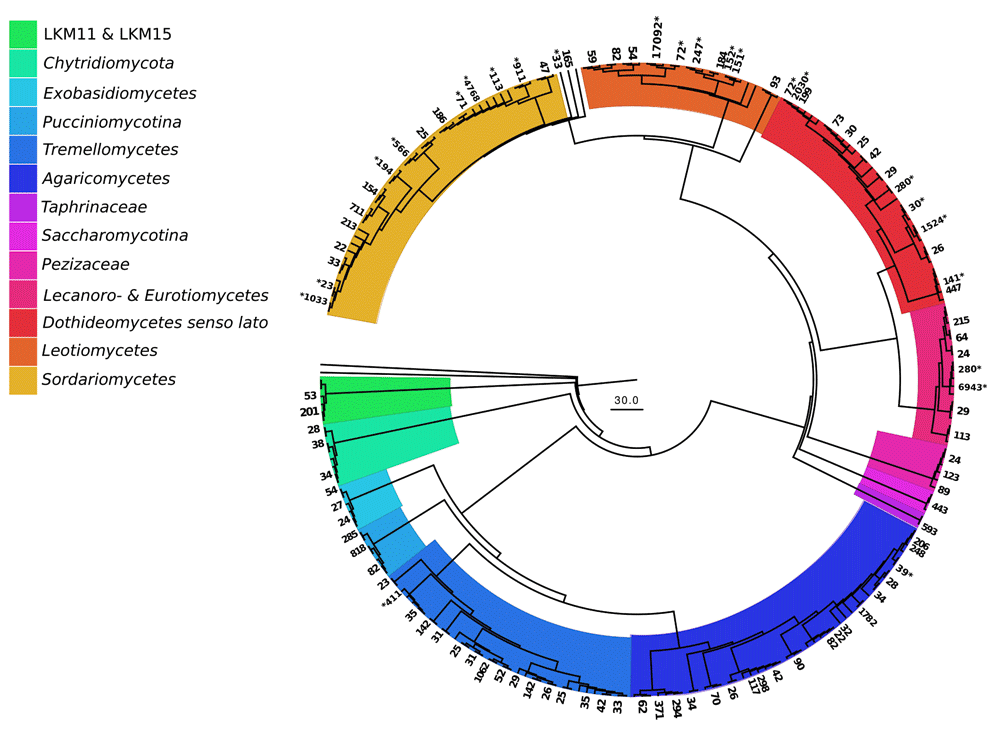

Figure 3. Phylogenetic tree based on the SILVA reference database and the top 100 OTUs retrieved from particle DNA (added with parsimony).

Numbers of retrieved sequences per OTU are written at the outer rim; asterisks mark taxa that were also recovered on leaf litter. Branches without numbers are reference sequences (SILVA) (based on Dataset 3).

In order to trace back fungal taxa derived from leaf-litter decomposition (marked with asterisks in Figure 3), we looked at the most abundant OTUs on the maple leaves incubated in the stream (Table 3). OTU 1 (Pezizomycotina) was the most abundant OTU in all samples. On average between 62.0 – 72.1% of the taxa found on each of the FPOM fractions were also present on submerged leaf litter. To get rough estimates of alternative origins and functions of the fungal communities on stream particles, we split them into different categories: potential soil fungi (with Agaricomycetes as proxy) accounted for 4.8 – 12.3%, yeast-like fungi made up 5.3 – 6.8%, and non-Dikarya fungal lineages ranged between 0.8 – 1.6%.

Discussion

In this study we focussed on stream particles and we were especially interested in the fungal phyla we may find on them. Thus we applied a conservative marker gene, which is especially efficient at resolving the basal branches of Fungi (Mohamed & Martiny, 2011). With this we could successfully detect a broad spectrum of fungal phyla on FPOM, including Chytridiomycota sequences and taxa belonging to the newly described group of Cryptomycota (Jones et al., 2011). Chytridiomycota have been documented on leaf litter in freshwater streams before (Bärlocher et al., 2012; Marano et al., 2011; Nikolcheva & Bärlocher, 2004), but, to our knowledge, this is the first study to document Cryptomycota in streams (Jones et al., 2011). Cryptomycota are assumed to be parasitic on various organisms including fungi (Gleason et al., 2012), however, some evidence also points to a saprobic life style (Wurzbacher et al., 2014). Their ecological role in streams needs to be further elucidated, especially since they have the potential for mycoparasitism. Some aspects of their occurrence and ecology have been summarized by Grossart et al. (2016). We did not find typical trichomycete sequences (e.g. Lichtwardt, 1972), which would have pointed to a gut passage of particles through filter-feeders. Possibly, the sampling sites had an insufficient number of filter feeders or too few gut fungi on fecal pellets to allow detection using our methods.

The high diversity of fungi on stream particles stands in contrast to the very low diversity on leaf-litter. It is likely that the dominant OTU 1 comprises several prominent aquatic hyphomycete species, since these rarely differ in their nuclear SSU sequence (Belliveau & Bärlocher, 2005, see also Tedersoo et al., 2015 for general limitations of SSU for Dikarya). In general we think that the high diversity on particles reflects their multiple origins and histories. The fact that those few leaf-litter taxa were also abundant in the stream particles points to leaf-litter as one important particle origin. For example, if the stream is dominated by particles washed in from the forest we would have expected Basidiomycota to dominate (Tedersoo et al., 2014). They accounted for 72% in Lim et al. (2010) and for ≥ 60% in Shi et al. (2014) with Agaricomycetes as the most common class, a much larger proportion than on leaves or particles in the current study (4.8 – 12.3%). However, it is also conceivable that soil particles, upon immersion in a stream, undergo further processing during which Basidiomycota are rapidly replaced by indigenous stream fungi. The transport and age of FPOM and its distribution among various size classes is highly variable and strongly depends on hydrological fluctuations throughout the seasons (Bilby & Likens, 1979; Thomas et al., 2001). In other words, it may not possible to deduce the origin of the stream FPOM by looking at taxonomic composition of its mycoflora. But the high fungal diversity on stream particles points to the interaction of various stream processes. In this context it is interesting to compare our findings with an arctic study which focussed on unfractionated water samples (Crump et al., 2012) that showed that only a minor fraction of eukaryotic microorganisms (< 10%) in a first order stream originated from the soil, while the majority seemed to be indigenous. Interestingly, the situation was the reverse for prokaryotes, which were predominantly washed in from soil (Crump et al., 2012).

In our study, ergosterol concentration decreased in smaller particles, pointing to reduced biomass of living fungi derived from e.g. leaf-litter. Still, fungal OTUs found on submerged CPOM (leaf-litter) dominate the sequences on all particle size classes. This suggests that most fungal taxa were reduced non-selectively during the processing of CPOM to FPOM, or that the fungal cells were degraded (as suggested by the decline of ergosterol) but their DNA remained largely intact and attached to the particles as environmental DNA. Such bound DNA can remain stable for extended periods of time (Guggenberger & Kaiser, 2003; Nguyen & Elimelech, 2007) and it is known that extracellular DNA occurs in considerable quantities in aquatic systems and sediments (summarized in Pietramellara et al., 2009).

In order to test the hypothesis that the fungal community of FPOM is indeed a function of present stream processes, the storage potential of FPOM has to be defined accurately by investigating the fungal taxa turnover on particles of known origin and composition incubated in a stream. Supplementing these approaches with ribosomal RNA will allow us to control for the proportion of environmental DNA. Much of the biological processing of FPOM in streams is still unclear (Tank et al., 2010), and tracking their DNA levels and diversity might shed some light on their origin, history and in-stream transport.

Conclusions

We successfully looked at the broad phylogenetic diversity of stream FPOM (> 20 µm), which was much higher than on leaf-litter and included members of novel groups (Cryptomycota). The most abundant operational taxonomic units on particles were identical to taxa on submerged decomposing leaf litter. We documented distinct differences in ergosterol content between particle sizes, which points to the near absence of living Dikarya mycelium on smaller stream particles. Both fungal diversity and community composition differed significantly between the two substrate types. Nevertheless, more extensive efforts will be required to unravel the relative effects of origin (e.g., leaves decomposing in the stream vs. soil particles vs. algal particles) and processing or ageing of particles including DNA storage within the fungal community. Combining this information should allow us to more fully document various stream processes initiated by fungal organism.

Data availability

Raw sequence data for the samples reported here can be found in the European Nucleotide Archive (http://www.ebi.ac.uk/ena), under accession PRJEB10809.

F1000Research: Dataset 1. Amount of particles in the stream, 10.5256/f1000research.7359.d107489 (Wurzbacher et al., 2015a).

F1000Research: Dataset 2. Ergosterol content of particle size fractions, 10.5256/f1000research.7359.d107490 (Wurzbacher et al., 2015b).

F1000Research: Dataset 3. OTU matrix including fasta sequences, 10.5256/f1000research.7359.d107491 (Wurzbacher et al., 2015c).
