Case Report: Severe acute respiratory distress by tracheal obstruction due to a congenital thyroid teratoma.

Introduction

Congenital thyroid teratoma is a rare condition^1,2. We report a case of an infant with a neck mass diagnosed by ultrasound during pregnancy which was initially supposed to be a congenital goiter. Two doses of levothyroxine were administered into the amniotic fluid. The goiter kept growing after birth until it caused severe respiratory distress by compressing the trachea, necessitating immediate tracheal intubation. The tumor was surgically resected and the patient went eupneic for the first time in his life. The histological analysis demonstrated a mature teratoma with no atypias. Thyroid hormone substitute therapy was started and the infant is thriving well.

Case report

A 2-months-and-20-days-old Brazilian white male infant weighing 4.2 kg was admitted to the pediatric intensive care unit of our hospital (Santa Catarina Hospital, São Paulo, Brazil) in acute respiratory distress and was immediately intubated and placed in mechanical ventilation.

From a routine ultrasound during pregnancy, the fetus had been diagnosed with a cervical mass, considered initially to be a goiter (Figure 1) by doctors at another institution. Family history of the mother uncovered a cousin with hypothyroidism. The mother was previously healthy, but after diagnosis of the cervical mass of the fetus, she was tested for thyroid hormones and had hypothyroidism diagnosed during pregnancy (TSH: 5.0 mUI/mL – normal: 0.2 to 3.0 mUI/mL; free T4: 0.7 ng/dL – normal: 0. To 1.3 ng/dL; antithyroglobulin antibodies: 65 U/mL – normal: inferior to 60 U/mL and thyroid antiperoxidase antibodies: 166 UI/mL – normal: inferior to 9 UI/mL). Two single doses of 200µg of levothyroxine were administered into the amniotic fluid, one during the 28th and one during the 31st week of pregnancy, in order to treat the supposed fetal thyroid hormone deficiency. Chorioamnionitis appeared after the second levothyroxine administration which triggered a premature cesarean birth which was undertaken in the other hospital. The premature newborn had sepsis due to maternal infection (chorioamnionitis) and remained in mechanical ventilation for 10 days. After tracheal extubation, he remained in nasal continuous positive airway pressure (CPAPn) for 7 more days, and after that was kept on oxygen therapy for 10 days. He was discharged from the hospital 50 days after birth, still presenting with a laryngeal stridor that was attributed to tracheal malacia by the doctors that initially treated the patient.

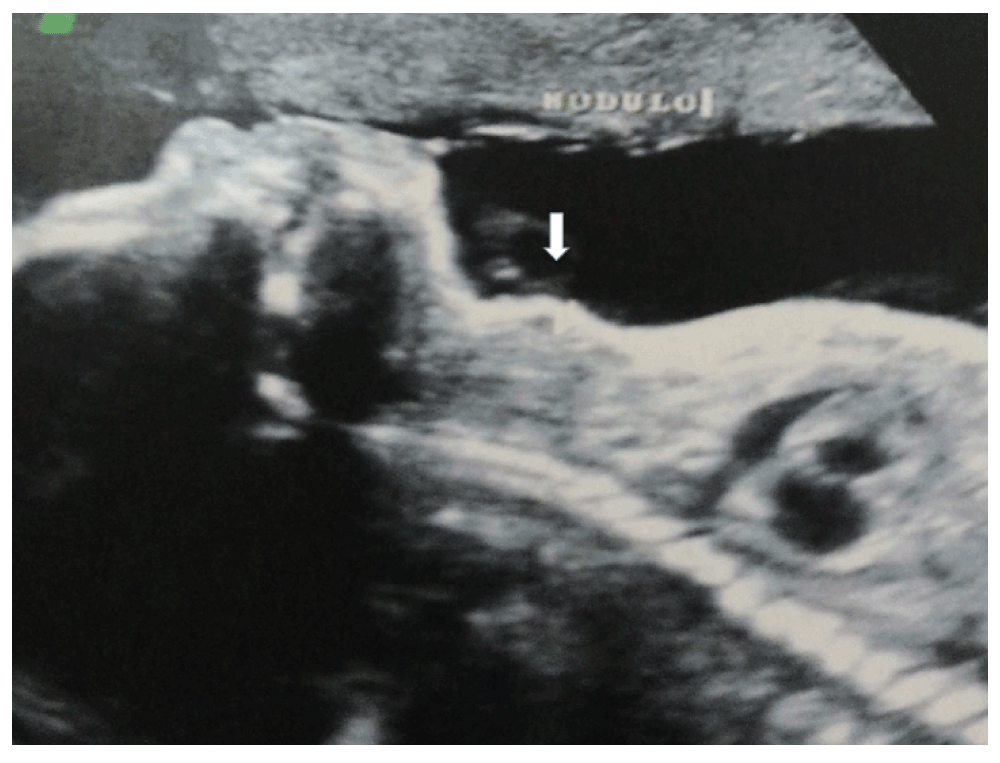

Figure 1. Prenatal ultrasound showing the neck mass.

After hospital discharge, he was observed by a pediatric endocrinologist who started research on thyroid disorders. Meanwhile, the infant maintained a euthyroid state, receiving no treatment, waiting for more investigation on the cause of the neck mass. However, the cervical mass kept visibly growing, was palpable and the infant presented a laryngeal stridor that was still attributed, by the pediatrician who followed the infant, to laryngomalacia. In the few days preceding hospitalization at our institution, the infant became increasingly dispneic each day, as related by his mother. One day, after choking and vomiting during breastfeeding he became hypotonic and went into acute respiratory distress.

He was admitted to our pediatric intensive care unit 25 days after he had been discharged from the other hospital, and was immediately intubated. An X-ray showed a small amount of interstitial infiltrate, compatible with aspiration pneumonia. However, the respiratory distress was attributed mainly to an upper airway obstruction. It was difficult to tracheally intubate the infant; only an uncuffed 2.5 mm endotracheal tube (ETT) was able to be inserted into the trachea and it was difficult to place this in the right position. The X-ray after intubation showed the ETT in a high position and the trachea displaced to the right (Figure 2). Magnetic resonance imaging (MRI) revealed the extent of the cervical mass and its compression on the trachea, and the latter’s subsequent displacement (Figure 3a and 3b).

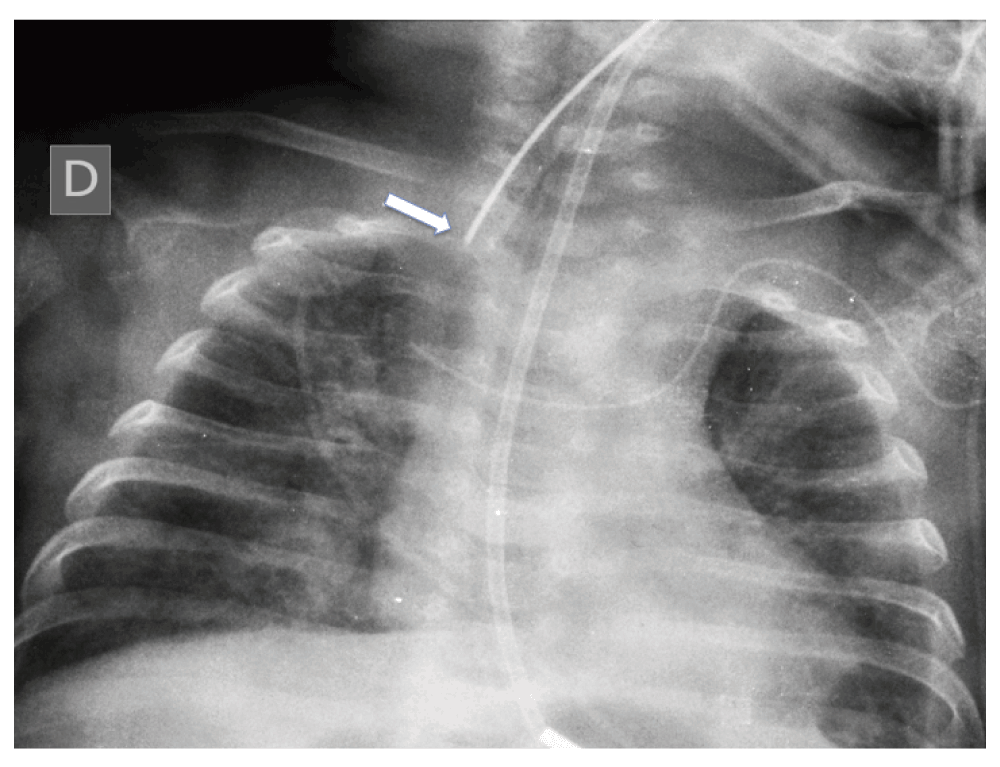

Figure 2. Endotracheal tube displaced to the right position.

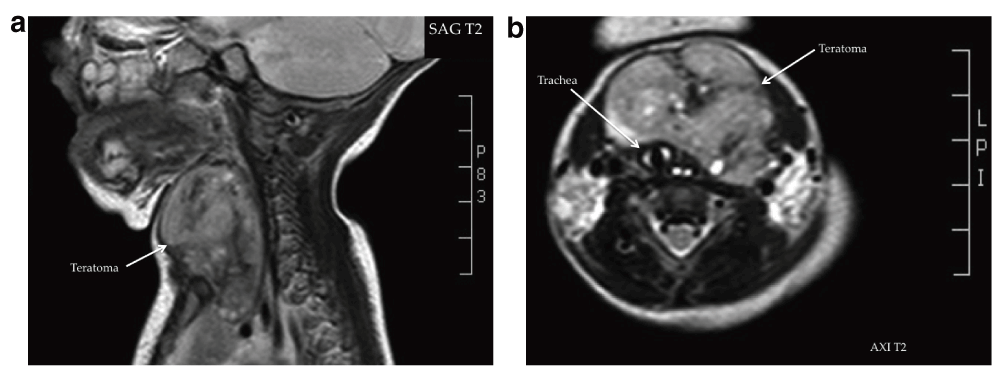

Figure 3.

a. Sagittal MRI (T2) of the neck showing the teratoma. b. Axial MRI (T2) of the neck showing the teratoma and the tracheal displacement.

Meanwhile, we started investigation into the cause of the neck mass and performed blood tests on the infant: thyroid hormones were in the normal range (free thyroxine (T4): 1.3 ng/dL and thyroid-stimulating hormone (TSH): 4.7 ng/dL). Calcitonin levels, for investigations into potential malignance, were normal (calcitonin: 21 pg/mL), as was the alpha-fetoprotein: 505 µg/L.

We decided to remove the cervical mass, since it was causing the tracheal obstruction. The surgery lasted 35 minutes and was uneventful. The mass was well circumscribed and could be easily dissected, weighed 20 grams and measured 33×61×45 mm Figure 4. The infant returned from surgery in good condition. A bronchoscopy was performed the next day after surgery, during tracheal extubation, which revealed no malacia or any other disorders on the trachea or the upper respiratory tract. The patient has been eupneic since then. The histological analysis revealed a mature teratoma with no atypias or signs of malignancy.

Figure 4. The resected benign teratoma.

Levothyroxine was started (25µg, once a day) as thyroid hormone substitute therapy and the infant is thriving well according to the pediatric endocrinologist that continues following the patient.

Discussion

Teratomas originate from multipotent primitive germ cells and result in different tissues, diverging from the anatomical site of origin^2,3. They are most common during early childhood and the most common location is the sacrococcygeal region in children and the gonadal region in adults^2–4. The frequency of these embryonic tumours is about 1:20,000–40,000 live births. However, only 1.5% to 5.5% of all pediatric teratomas are placed in the neck region. These tumours are usually solitary, with no other associated congenital malformations or chromosomal abnormalities⁴. Although 95% of all teratomas are benign, the cervical teratomas if not properly treated, lead to death in 80% of the cases due to obstructive respiratory distress^3–5.

In this case, the acute clinical presentation of the neck mass with severe respiratory distress, needing ready intervention and immediate tracheal intubation should alert all pediatricians to the risk of these neck masses, and consider it as a potentially fatal case. In the presented case, surgical removal of the neck mass was both diagnostic and therapeutic.

Conclusion

Thyroid teratoma is rare in infants, it is usually benign, and can cause airway compression depending on the site and size of the mass. The likelihood of a malignant thyroid teratoma is low in infants, however it could be fatal by causing upper airway obstruction. Therefore, surgical resection is required both for diagnosis and treatment. If the surgical removal is a success, the long-term outcome and quality of life should be good⁵.

Consent

Written informed consent was obtained from parents of the patient for publication of this case report and any accompanying images. A copy of the written consent is available for review by the editor of this journal.
