Discovering, Indexing and Interlinking Information Resources

Introduction

AGRIS (http://agris.fao.org/) is the International System for Agricultural Science and Technology, a collection of nearly 8 million multilingual bibliographic resources spanning the last forty years and produced by a network of more than 150 institutions from 65 countries. AGRIS is currently part of the CIARD initiative (http://www.ciard.net/), a self-described “global movement dedicated to open agricultural knowledge”. Some AGRIS data sources are unique (http://aims.fao.org/activity/blog/agris-enriched-data-fao) to the system and AGRIS is the only way in which they can be accessed. The system’s goal is to make agricultural research globally discoverable, and as evidenced by Google Analytics it supports both developed and developing countries. Indeed, AGRIS is accessed from more than 200 countries and territories, reaching peaks of 250,000 visits per month. AGRIS users belong to two very different categories: the general public and agriculture professionals. In particular, a survey conducted at the end of 2014 helped to better describe the AGRIS audience [Celli et al., 2015]: researchers, professors, and graduate students looking for bibliographies, librarians, cataloguers, and people responsible for managing and disseminating research outcomes to the community and the rest of the world (including small and big journal publishers), and government officers asking for reports on specific topics. Since December 2013, AGRIS adopted a LOD (Linked Open Data) infrastructure [Anibaldi et al., 2015], which allowed the creation of mashup pages, where users looking for specific topics (e.g. impacts of climate change in a country) can access a publication from the AGRIS database, together with other related resources extracted from other preselected datasets. External resources available in AGRIS mashup pages are not only bibliographic metadata, but also distribution maps, statistics, germplasm accessions, and so on. In this paper we explore a new data source available in AGRIS mashup pages: the web itself.

Nowadays, scientists and researchers publish their results not only in journals or at conferences, but also via web 2.0 tools and other media [Kouper, 2010; Shema et al., 2012] in order to efficiently and broadly communicate their outcomes, a technique that also helps scientific research reach the general public, since newspapers, magazines and science blogs are often the quickest way to reach people informally. Blogs and other websites may also contain a corpus of ongoing research activities, unpublished material, grey literature, quick discussions, and experiments with negative results and ideas. The problem is that this information is usually not exposed using web services that can be consumed by machines, and the only way to access this rich amount of data is to use web search engines that typically return thousands of results, largely meaningless. In addition, most blogs and websites are not well categorized and so it is difficult for users and machines to discover what is actually relevant to the topic of interest.

In this context, we believe that it is important for AGRIS users – especially for researchers – to have access to those valuable pieces of information that are neither exposed in a database nor accessible via web service. Our goal is to crawl the web, starting from a list of manually preselected websites and then apply a set of machine learning algorithms to categorize discovered web resources. In recent years, much research has been done to crawl and mine the web. Numerous solutions have been proposed [Liakos et al., 2015; Soulemane et al., 2012; Suganya et al., 2015] to cope with the size of both the publicly indexable and the hidden web employing added semantics to discovered resources and to reuse them in fact sheets and mashups. In fact, it is not only important to discover web links, but also to process them in a way that allows reuse in multiple scenarios. The adoption of ontologies and LOD methodologies helps the analysis and enrichment of discovered web resources [Berendt et al., 2004]. Our work shows how it is possible to apply semantic enrichment to crawled web resources and to use this semantic knowledge to enhance the AGRIS web portal. More specifically, our work leverages Semantic Web technologies and the knowledge encoded in the AGROVOC (http://aims.fao.org/standards/agrovoc/about) thesaurus in order to recommend web resources that are relevant to a given AGRIS bibliographic item. AGROVOC is a multilingual vocabulary containing more than 32,000 agricultural concepts in 22 languages, aligned with 16 other multilingual knowledge organization systems related to agriculture, and developed by FAO over the course of thirty years [Caracciolo et al., 2011]. Adopting Semantic Web and LOD best practices and technologies, AGROVOC vocabulary items have been assigned URIs, organized into a SKOS-XL concept scheme (http://www.w3.org/TR/skos-reference/skos-xl.html), and served both as Linked Open data and via SPARQL endpoint (http://www.w3.org/TR/sparql11-overview).

In this article we discuss crawling and analyzing web resources to populate our “Crawler Database”; a SPARQL endpoint with AGROVOC annotations of web resources identified by the URL from which they were crawled. By providing web resources with semantics we can use the AGROVOC descriptions of AGRIS bibliographic entries to interlink AGRIS and the Crawler Database. This linking is then exploited by a recommender that identifies web resources that are relevant to AGRIS entries. Furthermore, we also discuss the preliminary testing of the SemaGrow Stack (http://www.semagrow.eu/) as the computational infrastructure for interlinking the AGRIS bibliographic database with the Crawler Database. The query federation and data integration functionalities of the SemaGrow Stack facilitate setting up experiments aiming at estimating semantic similarity between AGRIS entries and other resources. Although the core example that we discuss in this paper is based on the entities described in the Crawler Database, the power of the SemaGrow Stack is that it allows the re-use of this software in the context of different mashup pages combining AGRIS with a variety of LOD sources.

The entire process we discuss in this paper has already been implemented and integrated in the AGRIS website. While the tuning of the recommender system to compute accurate similarities is still an ongoing process, AGRIS mashup pages are enriched with the content of the Crawler Database and statistics are being collected in order to train the recommender system using user behavior. In addition, the workflow and the components described in this paper can be used in any domain, so they are not restricted to agriculture; one can simply use another thesaurus to annotate web resources and populate the Crawler Database.

Crawling and indexing the web

The process of discovering and tagging web resources to display new content in the AGRIS website is based on two backend components: a customized Apache Nutch web crawler and AgroTagger. Figure 1 provides an overview of the entire process. As a starting point, in order to display relevant content in AGRIS, we manually preselect related websites to be used as input for the web crawler. Using these URLs the web crawler discovers other related web URLs, while AgroTagger assigns AGROVOC URIs to web URLs and creates the Crawler Database. In sections 2.1 and 2.2 we describe the two backend components.

Figure 1. The process of crawling and indexing the web.

The web crawler

A web crawler is a piece of software that methodically and automatically analyzes web pages provided as input. Each input web page is a ROOT of the crawling process. During the analysis of a web page, the web crawler discovers all the hyperlinks available in that page, adding them to the list of web pages to be visited. The process stops at a specific depth, i.e. the number of hops a discovered link is from the ROOT. The depth parameter is defined by the user of the web crawler, with the idea that links decrease in relevance as their distance from the ROOT grows. At the end of the crawling process, a list with discovered web URLs is produced. Figure 2 shows an example execution of the web crawler.

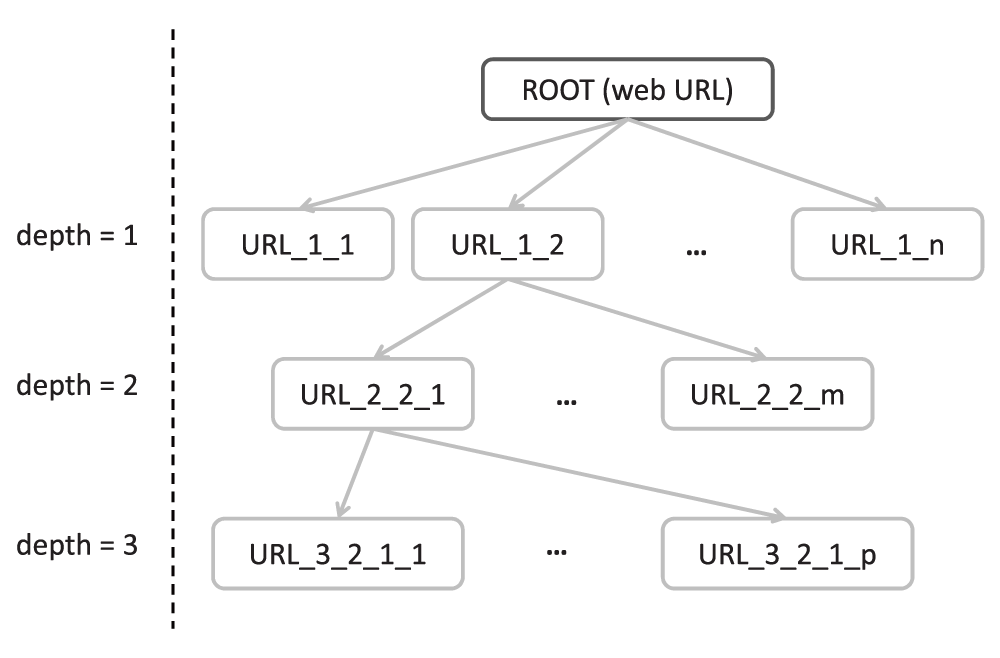

Figure 2. Execution of the web crawler using depth=3.

In order to implement the process of enriching the AGRIS website with relevant web resources, we used a customized version of Apache Nutch (http://nutch.apache.org/), a highly extensible, scalable and configurable open-source web crawler. Web URLs provided as input were manually selected by experts in the domain of agriculture, in order to start the process from “trusted” and valuable websites. Currently, the depth parameter is set to 5, since this value seems to be a good compromise between discovering a good quantity of relevant resources and completing the task within an acceptable response time. The application, including the customized Apache Nutch web crawler and some Bash scripts to run it is available on GitHub (https://github.com/fcproj/agrotagger/tree/master/crawler). The application requires three input parameters:

• - The depth of the crawling process

• - The path to the directory that stores the output of the process

• - The path to the text file that contains the list of web URLs used as ROOTs by the crawler

The output of the application is a text file containing a structured list of discovered web URLs. Here is a snapshot of the output file:

URL:: http://
URL:: http://%20www.umabroad.umn.edu/students/healthsafety/emergency.php
URL:: http://10-29-2013-tfic-luncheon.eventbrite.com/
URL:: http://1z8jbr3nz90837simd2d2fwoktj.wpengine.netdna-cdn.com/wp-content/uploads/2014/05/Nina-Hale-Inc-FactSheet.pdf
URL:: http://2014.northernspark.org/
URL:: http://2014.northernspark.org/project/chimera
  outlink: toUrl: http://media2.northernspark.org/wp-includes/wlwmanifest.xml anchor:
  outlink: toUrl: http://2014.northernspark.org/partners/arts-culture-and-the-creative-economy-program-of-the-city-of-minneapolis anchor:
  outlink: toUrl: http://2014.northernspark.org/project/bell-museum-staff anchor:
URL:: http://aaea.execinc.com/edibo/JobMarketCandidates
  outlink: toUrl: http://www.aaea.org/ anchor: AAEA
  outlink: toUrl: http://aaea.execinc.com/edibo/LoginHelp anchor: Create an Account / Need Help Logging In
  outlink: toUrl: http://www.aaea.org/about-aaea/aaea-sections anchor: AAEA Sections

AgroTagger classifier

AgroTagger engine (https://github.com/fcproj/agrotagger) is a toolkit that assigns semantic terms to textual content. At a high level of abstraction, it can be considered as a keyword extractor that uses the AGROVOC thesaurus to extract keywords from a set of web URLs. It is based on MAUI (https://code.google.com/p/maui-indexer), a tool that combines a keyphrase extraction algorithm and a machine learning toolkit for the identification of topics in textual documents. AgroTagger has been trained to assign terms from the AGROVOC thesaurus, even if it currently works only with English documents. Training MAUI with AGROVOC in other languages will allow the applicability of AgroTagger in a multilingual environment, even if further tests need to be performed to understand how the tool behaves with non-Latin characters. Regarding accuracy, a recent test in which AgroTagger results were analyzed by professional indexers showed an accuracy of approximately 80%; in 20% of the cases the results were too broad. In brief, the accuracy measurement was carried out by domain experts actively involved in the development of the AGROVOC vocabulary based on manual annotations of a test sample from the AGRIS database.

In the process described in this paper, we apply AgroTagger to web URLs discovered by the web crawler and we annotate such URLs with AGROVOC URIs. Annotations are stored in a triple store (the Crawler Database) after which a recommender system defines some relevant combinations between AGRIS bibliographic resources and web documents, making use of AGROVOC as the backbone of the entire process. Considering AgroTagger as a black box, we can describe its I/O as:

• - Input: web URLs discovered by the web crawler

• - Output: a set of triples that annotate web URLs

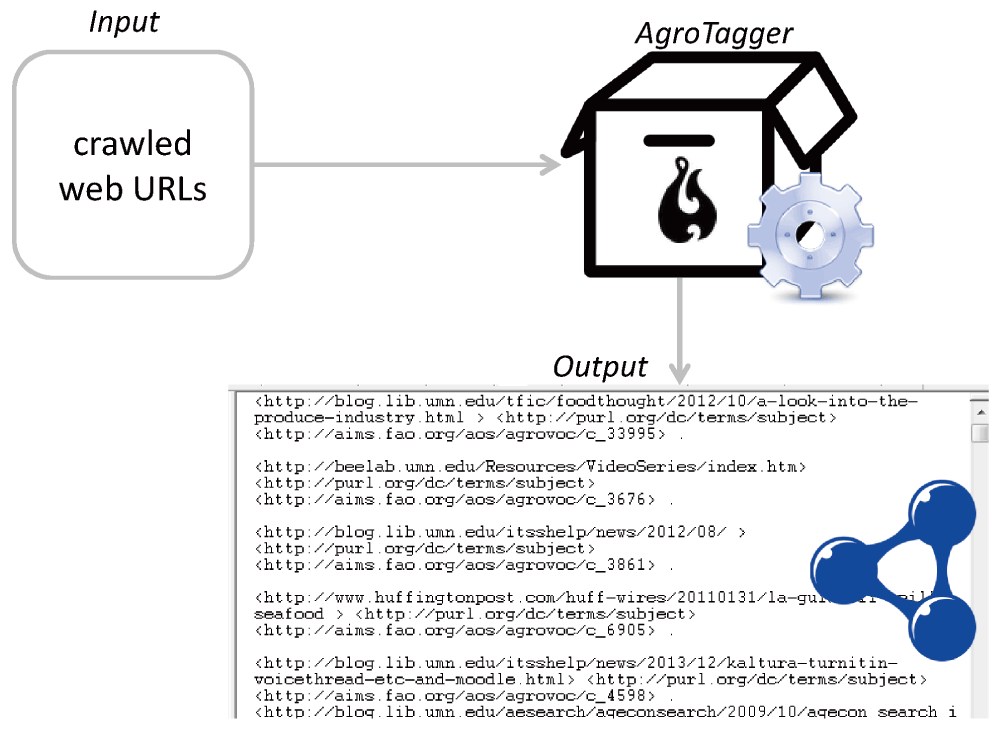

Figure 3. AgroTagger workflow.

AgroTagger is a multi-threaded application, guaranteeing better performance while manipulating web URLs. For each web URL available in the input file, AgroTagger:

• - Downloads the resource available at the given web URL and converts it to a text file

• - Runs the MAUI indexer trained with AGROVOC

• - Produces a set of annotations as RDF triples

Figure 4. RDF schema of AgroTagger output annotations.

Currently, AgroTagger produces an RDF NTRIPLE file that describes semantic annotations for web URLs. Here is an example of an annotated web URL:

<http://www.eje.cz/pdfs/eje/2008/04/01.pdf> <http://www.w3.org/1999/02/22-rdf-syntax-ns#type> <http://semagrow.eu/rdf#CrawledDocument> .
<http://www.eje.cz/pdfs/eje/2008/04/01.pdf> <http://purl.org/dc/terms/title> "Word Pro - Hoshizaki.lwp" .
<http://www.eje.cz/pdfs/eje/2008/04/01.pdf> <http://purl.org/dc/terms/subject> <http://aims.fao.org/aos/agrovoc/c_24778> .
<http://www.eje.cz/pdfs/eje/2008/04/01.pdf> <http://purl.org/dc/terms/subject> <http://aims.fao.org/aos/agrovoc/c_27496> .
<http://www.eje.cz/pdfs/eje/2008/04/01.pdf> <http://purl.org/dc/terms/subject> <http://aims.fao.org/aos/agrovoc/c_12332> .

Training AgroTagger with a different thesaurus allows one to reuse the entire workflow and components described in this paper in completely different research domains.

The SemaGrow Stack

SemaGrow is an FP7 European Project that seeks to develop scalable, efficient, and robust data services needed to take full advantage of the data-intensive and inter-disciplinary Science of 2020, re-shaping the way that data analysis techniques are applied to the heterogeneous data cloud. The core technical outcome of the project is the SemaGrow Stack. The SemaGrow Stack implements a SPARQL endpoint that federates SPARQL endpoints, transparently optimizing federated queries and dynamically integrating heterogeneous data models by applying the appropriate vocabulary transformations to queries and results [Konstantopoulos et al., 2013].

There are several key features of the SemaGrow Stack that address AGRIS use cases: it provides a querying interface that uses the result of ontology alignment to completely hide schema heterogeneity and also applies methods from database research and artificial intelligence that take into account data contents and optimize federated querying plans. The ontology alignment and dynamic vocabulary transformation facilities allow us to take advantage of multiple agricultural knowledge organization systems that have been aligned to AGROVOC. In this manner, one can develop AGROVOC-aware applications and use them over non-AGROVOC (but aligned) datasets without modification. The query optimizer is based on methods that automatically extract detailed metadata about the content of the federated endpoints, overcoming the lack of detail in manually provided annotations [Zoulis et al., 2015]. As an added benefit, the SemaGrow Stack implements fail-over mechanisms that fall back to alternatives in the face endpoint unavailability. It furthermore does not require any modification of the federated endpoints or any other obtrusion of current workflows.

The SemaGrow Stack is developed and distributed as open-source software (https://github.com/semagrow) and requires an Apache Tomcat environment (http://tomcat.apache.org/) in order to be deployed and executed.

The recommender system

The Crawler Database is composed of triples generated by AgroTagger. At this stage, the biggest problem is to compute a meaningful intersection with the AGRIS bibliographic database in order to display relevant information in an AGRIS mashup page. First of all we need to define the concept of “meaningful combinations”. A naïve approach is based on counting the number of AGROVOC URIs in common between resources from the Crawler Database and resources from the AGRIS bibliographic database. Thus, for an AGRIS mashup page, we can state that we want to display those resources from the Crawler Database having as many AGROVOC URIs as possible in common with the AGRIS bibliographic entry. To implement this naïve algorithm we developed a recommender system (https://github.com/fcproj/recommender), a JAVA component that computes meaningful combinations between the Crawler Database and the AGRIS database, and generates a new triplestore: the “Recommender Database”. The recommender system runs as required as new data is periodically generated by the web crawler.

Figure 5. Generation of the Recommender Database, which contains meaningful combinations between the AGRIS bibliographic database and the Crawler Database.

The recommender system can make use of the SemaGrow Stack as the backbone of the process: in this way, the recommender system is able to compute meaningful combinations between all datasets federated by SemaGrow. Combinations are computed by counting the number of common “dcterms:subject” URIs (http://dublincore.org/documents/dcmi-terms/) between entities of the federated datasets (in the case of the AGRIS dataset, “dcterms:subject” URIs are AGROVOC URIs). The SemaGrow Stack is not strictly necessary, since the recommender system can also work querying two target SPARQL endpoints one by one. In any case, the SemaGrow Stack allows code reuse for all datasets; it is sufficient to configure the SemaGrow Stack by defining the URLs of the SPARQL endpoints included in the federation, and the recommender system can work using a single endpoint. Without the usage of the SemaGrow Stack as an intermediate layer, there is the need to modify the code to add further SPARQL endpoints to the process. Let’s explain this statement with an example. Currently, the recommender system has two ways of working (the user can configure it to use either mode): “federated”, which requires a single SPARQL endpoint, and “individual”, which accepts two SPARQL endpoints. The “federated” mode makes use of the SemaGrow Stack: if the user configures the Stack defining three or four endpoints in the federation, the recommender system can combine all of them. On the contrary, the “individual” mode works with a maximum of two SPARQL endpoints and would require additional software code if one wanted to add further endpoints to the process.

Our experiments focus on the usage of the recommender system to interlink the AGRIS database and the Crawler Database, storing computed combinations in the Recommender Database. At this stage, the algorithm is very easy: we simply need to count the number of common AGROVOC URIs (expressed as objects of a “dct:subject” predicate) between entities of the AGRIS dataset and the Crawler Database. Using the SemaGrow Stack and the single query “federated” mode, the SPARQL query to implement the algorithm is:

PREFIX dct: <http://purl.org/dc/terms/>
PREFIX rdf: <http://www.w3.org/1999/02/22-rdf-syntax-ns#>
SELECT distinct ?s (COUNT(distinct ?o) as ?NELEMENTS) WHERE {
  <$AGRIS_URI> dct:subject ?o .
  ?s dct:subject ?o .
  ?s rdf:type <http://semagrow.eu/rdf#CrawledDocument> .
}
GROUP BY ?s
ORDER BY DESC(?NELEMENTS)
LIMIT 20

This SPARQL query sorts resources from the Crawler Database by the number of AGROVOC URIs in common with a given AGRIS entity <$AGRIS_URI> after which it takes the 20 most relevant web resources and stores them in the Recommender Database as a set of recommendations for an AGRIS URI. In the query, the statement including the rdf:type predicate is only needed in order to get results from the Crawler Database; since the recommender system can work with any dataset federated by the SemaGrow Stack, the type needs to be an application-dependent parameter so that it can be configured to query different datasets.

Unfortunately, there are still few limitations with the SemaGrow Stack. First of all, SPARQL queries must be optimized and they are affected by their content. For instance, using a FILTER statement makes for a high response time. Thus, in order to identify entities from the different datasets federated by the SemaGrow Stack, it is necessary that such datasets define an “rdf:type” (http://www.w3.org/TR/rdf-schema/) for their entities in order to avoid the usage of the FILTER statement. Moreover, given that at the time of these experiments the SemaGrow Stack distribution was limited and allowed only SPARQL queries with dct:subject and/or rdf:type predicates, we ran our experiments using the “individual” mode during processing and testing. At the time of publication, our final experiments using the “federated” mode are very promising; SPARQL queries that combine triples from federated datasets show a response time comparable to the execution time of a process that runs individual SPARQL queries to different endpoints and programmatically combines their results.

The “individual” mode that makes use of two different SPARQL queries to two different SPARQL endpoints: AGRIS and the Crawler Database. The first SPARQL query provides the list of AGROVOC URIs (“dct:subject” predicate) for a given <$AGRIS_URI>:

PREFIX dct:<http://purl.org/dc/terms/>
SELECT ?term WHERE {
   <$AGRIS_URI> dct:subject ?term .
}

For all AGROVOC URIs provided by the previous query, a second SPARQL query computes the crawled web URLs which contain that AGROVOC URI:

PREFIX dct:<http://purl.org/dc/terms/>
SELECT ?url WHERE {
   ?url dct:subject <$AGROVOC_URI>.
   ?url rdf:type <http://semagrow.eu/rdf#CrawledDocument> .
}

Then, a custom algorithm implemented in JAVA is used to count the number of common AGROVOC URIs between the AGRIS entity and web URLs returned by the previous query, storing the top 20 most relevant web resources in the Recommender Database. The overall custom algorithm can be defined as:

1. Get list “L” of AGROVOC_URIs for a given AGRIS_URI
2. Initialize a Map “MC” whose keys are WEB_URLs and values are the number of common AGROVOC URIs with the given AGRIS_URI
3. For all AGROVOC_URI “ag” in “L”
      a. Get list “WL” of WEB_URLs indexed with “ag”
      b. For all WEB_URL “wurl” in “WL”
           i. If “wurl” is in “MC”, increment the correspondent value
          ii. Otherwise, add “wurl” to “MC”, setting the value to 1
4. Sort “MC” by values in descending order
5. Take top 20 keys from “MC”
6. Generate recommendations for the AGRIS_URI

The algorithm was executed on 134,847 AGRIS URIs. The recommender system ran in a CentOS 5 environment with the following configuration:

For each AGRIS URI, the computation of combinations required 3.65 seconds on average. The execution time range was between 2.34 and 5.33 seconds for each AGRIS URI. Differences depended on three aspects:

It is important to remember that this is a background, offline process that runs periodically to keep the dataset up to date. End users querying AGRIS resources will never have to wait for these processes as they have already been performed. Thus, the aforementioned response times are perfectly acceptable.

<?xml version="1.0" encoding="UTF-8"?>
<rdf:RDF xmlns:rdf="http://www.w3.org/1999/02/22-rdf-syntax-ns#"
xmlns:rdfs="http://www.w3.org/2000/01/rdf-schema#" xmlns:semag="http://semagrow.eu/rdf/recom#">
  <rdf:Description rdf:about="http://agris.fao.org/aos/records/IR2015000018">
    <semag:rel>
      <rdf:Description>
        <semag:order>1</semag:order>
        <semag:recom>
          <rdf:Description
            rdf:about="http://afsic.nal.usda.gov/soil-and-water-management/water-conservation">
            <rdfs:type
               rdf:resource="http://semagrow.eu/rdf/recom#CrawledDocument"/>
          </rdf:Description>
          <semag:score>0.6</semag:score>
        </semag:recom>
      </rdf:Description>
    </semag:rel>
    <semag:rel>
      <rdf:Description>
        <semag:order>2</semag:order>
        <semag:recom>
          <rdf:Description
            rdf:about="http://orgprints.org/3357/1/ESSC_pap_Per-Schjonning.pdf">
            <rdfs:type
               rdf:resource="http://semagrow.eu/rdf/recom#CrawledDocument"/>
          </rdf:Description>
        </semag:recom>
        <semag:score>0.4166666666666667</semag:score>
      </rdf:Description>
    </semag:rel>
    ...
</rdf:RDF>

The AGRIS front-end

Figure 6. An AGRIS mashup page displaying an AGRIS bibliographic record with related information from external data sources.

The creation of an AGRIS mashup page is a dynamic and sensitive process, which is made possible by the usage of AGROVOC as the backbone of the system. In fact, AGRIS records come with AGROVOC URIs and, relying on AGROVOC formal alignments to many thesauri, it is possible to query publicly accessible web services or SRARQL endpoints to provide access to resources indexed with various thesauri. Thus, when the user selects a publication from the AGRIS database, the system can display related information on the same topic. External data sources are identified based on the content, the relevancy to the AGRIS domain, and the information provider [Celli et al., 2015].

This paper presented a set of components that implement a process of discovering web resources related to AGRIS records in order to enrich the user experience in AGRIS mashup pages. We also ran experiments with the SemaGrow Stack as a backend component that can easily extend the data sources federated by the AGRIS mashup pages. These experiments led directly to the addition of a new data source to the AGRIS mashup pages: the dataset of related resources crawled from the web.

The creation of this new data source required setting up a process that used numerous components. We implemented an automatic process that makes use of a web crawler to discover web resources, and relies on AgroTagger to annotate discovered URLs with AGROVOC URIs. Then, in order to compute meaningful combinations between the AGRIS database and the Crawler Database, we implemented a recommender system to define the relevance of web resources. The output of this process is a widget in the AGRIS mashup pages that, reading the content of the Recommender Database (that is continuously updated by an offline process), can display relevant resources from the web. In this way, we believe that AGRIS users may find relevant data that assists them in working with agricultural issues and food security.

Figure 7. A widget displaying related resources from the web.

Conclusions

The web contains much latent knowledge, especially when that knowledge is expressed as unstructured and poorly categorized full-text content. This paper describes a proposed solution to discover such knowledge making use of modified open source software (Nutch and Maui) together with the SemaGrow Stack and a custom recommender in order to enrich the relevance of AGRIS bibliographic resources and hence the AGRIS web portal mashup.

The adoption of the SemaGrow Stack as a backend facilitated the development of a recommender engine as it was possible to implement the system without requiring any prior knowledge of the specifics of the datasets that are combined with the AGRIS database. In this manner, the system can be re-used with any dataset using AGROVOC (or any terminology aligned to AGROVOC) to describe websites, experiments, software, or any resources relevant to agriculture. We are now able to show to AGRIS users any relevant content extracted from the web, something possible thanks to the adoption of semantic web technologies. The entire process will continue to be extended and improved as experiments continue: AgroTagger and the recommender system will be tuned to guarantee better precision in the computation of recommendations (for instance, trying to match AGROVOC keywords with titles of target resources and experimenting with alternative algorithms), while the SemaGrow Stack will be optimized and used to federate additional data sources.

Furthermore, as previously mentioned, training AgroTagger with a different thesaurus allows to apply the entire process to different research domains, and not only to the AGRIS website.

Software availability

Latest source code (AgroTagger): https://github.com/fcproj/agrotagger

Latest source code (recommender system): https://github.com/fcproj/recommender

Archived source code at the time of publication (AgroTagger): http://dx.doi.org/10.5281/zenodo.20777 (Celli, 2015a).

Archived source code at the time of publication (recommender system): http://dx.doi.org/10.5281/zenodo.20775 (Celli, 2015b).

License: CC BY 4.0 http://creativecommons.org/licenses/by/4.0/
