Towards understanding the molecular mechanism of cardiolipin transport in Salmonella typhimurium: interactions between an essential inner membrane protein YejM and its newly found ligand, YejL

Specific construct development was needed to achieve YejM crystal growth

We purified full-length YejM and periplasmic constructs YejM191-586 as described in (Dalebroux et al., 2015). The original construct YejM191-586 failed to crystallize and showed a degradation product after electrophoresis in the SDS polyacrylamide gel (Figure 1B, middle lane). To prevent degradation, reduce flexible protein parts and remove positively charged arginine clusters, we deleted the linker region A191 to E240 in the YejM191-586 construct, resulting in YejM241-586. These modifications were made to increase the chance of crystal growth. Initial crystals of YejM241-586 appeared after one week incubation at 18°C under different conditions; e.g. needle clusters in 2.8 M sodium acetate trihydrate pH 7.0, 0.1 M BIS-TRIS propane pH 7.0 (Hampton SaltRx condition A2, Hampton Research), needle clusters in 2.8 M sodium acetate (Hampton Index condition B12, Hampton Research), and rhombohedral crystals appeared in 3.5 M sodium formate pH 7.0 (Hampton Index HR conditions C1, Hampton Research). These early hit crystals diffracted poorly, only up to 6Å (data not shown) and optimization and up-scaling of the crystallization setup from a 96 well format to a 24 well format did not improve the diffraction quality. Further screening using (Hampton PEGRx HT screen, Hampton Research) resulted in new crystal forms grown in condition C6 (0.1 M HEPES pH 7.5, 12% w/v polyethylene glycol 3,350) and C4 (0.1 M Citric acid pH 3.5, 25% w/v polyethylene glycol 3,350). Screening around these two conditions led to crystals in a condition consisting of 0.1 M citric acid pH 4, 18% w/v polyethylene glycol 3,350 (Figure 1C). YejM241-586 crystals grown in condition C6 diffracted well, up to 1.6 Å (Figure 1D). Data indexing and scaling with XDS (Kabsch, 2010) and further analysis with AIMLESS (Evans, 2006) resulted in a data set up to 1.8Å resolution and good overall statistics (Table 1).

YejL is a ligand of YejM

The gene yejl is localized upstream on the same operon as yejm. yejl encodes for a small (8.5 kDa) protein, YejL, that forms an intertwined four-helix bundle (PDB code: 2JRX) and has negatively charged regions located at the “tail” ends of the four-helix bundle (Figure 1A). The biological function of YejL is unknown, however, its presence on the same operon as YejM suggests that it may interact with YejM and function as a regulatory element. More specifically, we hypothesize that the negatively charged regions of YejL could be involved in specific interaction with the positively charged arginine-rich linker region of YejM. Notably, this arginine-rich linker region is proposed to bind cardiolipin and may be a crucial region for cardiolipin translocation by YejM (Dalebroux et al., 2015). To test our hypothesis that YejL is a ligand of YejM, we purified and mixed both proteins in different stoichiometric ratio and conducted Blue Native PAGE (BNE) and size-exclusion chromatography (SEC) for detection of population of higher molecular weight oligomers/complexes in the mixtures. Our SEC experiments showed that, increasing concentrations of YejL fraction into YejM191-586 or YejM241-586 fractions, respectively (Figure 2A) resulted in a shift in the apparent molecular weight that suggested formation of a higher molecular weight complex. In BNE, we observed a clear shift in position of YejL towards YejM191-586 and YejM241-586, which indicated binding between YejL and YejM191-586 or YejM241-586, respectively (Figure 2B). Our data do not show an apparent difference between YejL binding to YejM191-586 that includes the arginine-rich linker region, and YejM241-586 that lacks the linker region. Further analysis using isothermal titration calorimetry and/or microscale thermophoresis will be used to determine the exact binding affinity and potential changes thereof between the two YejM constructs and YejL.

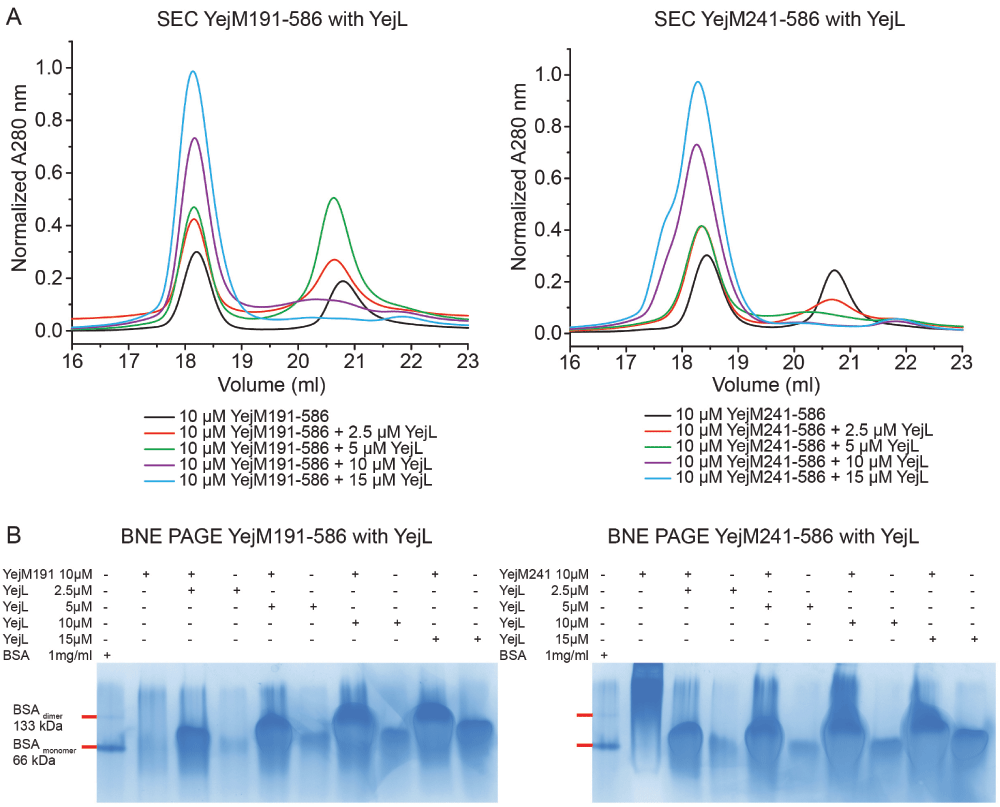

Figure 2. YejL is a ligand of YejM.

A) SEC chromatograms showing controls and mixtures of YejM191-586 with YejL (left) and YejM241-586 with YejL (right). B) BNE showing controls and mixtures of YejM191-586 with YejL (left) and YejM241-586 with YejL (right), BSA was used as size reference.

Cloning, expression and purification of YejM

Initial clones of full-length YejM 1-586 (YejM) (Uniprot ID P40709) in pBAD24 and the periplasmic domain of YejM 191-586 in pET28a plasmid are described in (Dalebroux et al., 2015). We used forward primer YejM241-586 5'-ccgcgcggcagccatatggctagcgcggtctccgttcagtacccg- 3' and reverse primer YejM241-586 5'-gcgggtactgaacggagaccgcgctagccatatggctgccgcgcgg- 3' to create a shorter construct of the periplasmic domain lacking the linker region resulting in YejM 241-586. Purification of YejM, YejM 191-586, and YejM 241-586 was performed as described previously (Dalebroux et al., 2015). Samples used for subsequent crystallization experiments were further purified by SEC using a Superose 6 increase 10/300 GL column (GE Healthcare) in buffer containing 50 mM Tris pH 8.0, and 150 mM NaCl. SEC buffer for YejM contained 20 mM HEPES, pH 7.5, 150 mM NaCl, and 0.02% Dodecyl-β-D-Maltopyranoside (DDM). The concentration of DDM was kept right above the critical micelle concentration throughout all subsequent experiments. YejM and YejM241-586 SEC peak fractions were pooled and concentrated with 30 kDa NMWL centricon (Millipore) to 12 mg/ml and up to 50 mg/ml, respectively. The purity of the samples was judged by polyacrylamide gel electrophoresis (Figure 1B).

Expression and purification of YejL

YejL construct (ID ER309-21.7), an E. coli homolog, was obtained from the Northeast Structural Genomics (NESG) consortium (http://www.nesg.org) with the vector ID: pET21_NESG. The pET21-YejL plasmid was transformed into E. coli BL21(DE3) (Novagen) competent cells. Overnight saturated cultures of transformed bacteria in Luria Bertani (LB) medium (EMD Chemicals Inc.) with 50µg/ml ampicillin (Dot Scientific Inc.) were grown at 37°C and diluted 1:200 in fresh Terrific Broth (TB) medium (Dot Scientific Inc.) with 50µg/ml ampicillin and further grown at 37°C at 200 rpm. The cultures were induced with 0.1 mM isopropyl β-D-1-thiogalactopyranoside (IPTG) (Teknova) when OD₆₀₀ reached 0.5–0.8. The expression was carried out at 37°C for three hours. All further steps were performed at 4°C unless noted otherwise. Cells were harvested by centrifugation and resuspended in a buffer containing 50 mM Tris, pH 8.0, 150 mM NaCl, and 5 mM MgCl₂. 10µg/ml DNAse (Sigma Aldrich), 1 mg/ml lyzosyme (Sigma Aldrich), protease inhibitor cocktail (Roche), and 0.1 mM Phenylmethane sulfonyl fluoride (PMSF) (Dot Scientific Inc.) were freshly added to the resuspended cells. Cells were lysed by passing several times through a microfluidizer (Divtech Equipment Company) and the cell debris was removed by centrifugation.

The clear cell lysate was bound to Ni-NTA resin (Qiagen) in batch mode and incubated on a rotarod at 4°C for 30 – 60 minutes. The slurry was loaded into a column and the flow through was collected under gravity. The column was washed first with 30 column volumes of Wash buffer 1 (25mM Tris pH, 8.0, 300mM NaCl and 25mM Imidazole); then with two column volumes of Wash buffer 2 (25mM Tris pH 7.5–8, 150mM NaCl, 75mM Imidazole). The bound protein was eluted from the column with elution buffer (25 mM Tris, pH 8.0, 150 mM NaCl, and 300 mM Imidazole) in 200–500µl increments. Elutions were monitored for protein content by Bradford test. YejL was further purified by SEC using a Superose 6 increase 10/300 GL column (GE Healthcare) equilibrated in a buffer containing 50 mM Tris, pH 8.0 and 150 mM NaCl. Peak fractions of YejL were consolidated and concentrated using 3 kDa NMWL centricon (Millipore).

Crystallization of the periplasmic domain of YejM

Vapor diffusion crystallization of YejM 241-586 (5–50 mg/ml) was set up using 96-well crystallization plates (Hampton Research) with a Phoenix robot (ARI). Various sparse matrix screens were used to set up sitting drops with a drop sizes between 500 nl to 1 µl. Crystallization plates were incubated at 20°C and monitored for crystal growth in a Minstel^TM HT crystal imaging and detection tower (Rigaku). Optimal crystal growth was obtained at a protein concentration of 4mg/ml.

Blue Native PAGE

10 µM of YejM191-586 or YejM241-586 was mixed with varying concentrations (2.5, 5, 10, and 15 µM) of YejL separately. Samples were incubated at 4°C for minimum 1 hr, mixed with sample buffer (5% Coomassie Brillant Blue G250, 100mM Bis-Tris pH 7.5, 0.5M 6-aminocaproacid (Biorad) for a total individual sample volume of 30μL. The samples were loaded on Mini-protean TGX Any-kD precast gels (Biorad) and electrophoresis was carried out at 4°C at 100 V for 60–90 minutes. The gels were destained in a solution containing 5% ethanol and 7.5% acetic acid.

Size Exclusion Chromatography of protein mixtures of YejL with YejM191 and YejL with YejM241

10 µM of YejM191-586 and YejM241-586 were each mixed with varying concentrations (2.5, 5, 10, and 15 µM) of YejL separately. Each protein mixture was incubated overnight at 4°C and subsequently purified by size-exclusion chromatography using Superose 6 Increase 10/300 GL gel-filtration column (GE Healthcare) equilibrated with 50 mM Tris pH 8.0, 150 mM NaCl. The UV absorption profiles at 280 nm of each run were normalized and compared.

Data collections and processing of YejM 241-586 crystals

Crystals were harvested using Litho loops (Molecular Dimensions) and Nylon loops (Hampton Research), submerged into paraffin and blotted until no phase separation was visible between paraffin and the excess crystallization solvent. Diffraction data of YejM241-586 crystals were collected at the Advanced Light Source beamline 4.2.2 in Berkeley CA at 100K, using an oscillation of 0.1–0.2° per image. Diffraction data were processed using iMosflm (Powell et al., 2013) or XDS (Kabsch, 2010) and scaled with Scala (Evans, 2006).
