Visual acuity measured with luminance-modulated and contrast-modulated noise letter stimuli in young adults and adults above 50 years old

Introduction

Visual acuity (VA) measurement is one of the clinical routines for ocular examination. VA is the capacity for seeing distinctly the details of an object. It can be described as the eye’s ability to discriminate or resolve spatially organised details. It is usually represented in two ways, which are the reciprocal of the minimum angle of resolution and Snellen fraction. The common acuity charts which are widely used are Snellen chart, logMAR chart, Kay pictures, and etc. Several conditions are known to have an impact on VA, including blur, amblyopia (lazy eye) and normal ageing (e.g. Chung et al., 2007; Elliot et al., 1995). Clinical letter acuity charts rely on the ability of the patient to discriminate between different letters or optotypes. A common feature of letter charts is having black letters on a white background, resulting in maximum difference in luminance or brightness between them. As such, these letters can be classified as luminance-based or first order stimuli.

The human visual system is sensitive at detecting objects or images irrespective of the types of features defining them. First-order or luminance-defined information is known to be processed by linear mechanisms through linear processing within the striate visual cortex (V1). Stimuli which portray variation in properties such as contrast, texture or orientation without any change in mean luminance are known as second-order stimuli (Hairol et al., 2013; Sukumar & Waugh, 2007; Wong et al., 2001). Processing mechanisms of second-order stimuli are thought to be more complex, and occur in higher and more binocular areas of the visual cortex, than those of first-order stimuli (e.g. Calvert et al., 2005; Hairol & Waugh, 2010; Wong et al., 2005). Neurophysiology studies in cat (Mareschal & Baker, 1998) and primates (Baker & Mareschal, 2001) support the idea that neurons in extrastriate visual cortex, for example V2, are more responsive to contrast-modulated stimuli, compared to neurons in V1. Further evidence is shown by functional magnetic resonance imaging (fMRI) findings in human brain (Ashida et al., 2007; Larsson et al., 2006).

It is well known that human visual performance reduces with normal ageing, i.e., ageing that is free of pathology or disease. In the past 30 years, many experimental studies have been conducted to investigate changes in a number of visual functions. Frisen & Frisen (1981) stated that VA shows a monotonic rise towards the age of 25 years and a gradual decline thereafter. The most marked decline occurs after the age of 60. Another study showed a slow but significant gradual worsening of VA after 50 years of age (Elliot et al., 1995). Spatial contrast sensitivity for first-order, luminance based gratings is also one of the visual functions which shows significant reduction in elderly compared to younger adults, even when senile miosis and reduced optical transmission factors are taken into consideration (Elliott et al., 1990). Contrast sensitivity for second-order stimuli in healthy elderly declines earlier with slower progression rate compared to that measured with first-order stimuli (Tang & Zhou, 2009). These visual deficits in the elderly cannot be fully attributed to optical changes, but may be due to changes in retina and/or visual pathway (Spear, 1993). Stereoacuity in healthy older adults is also reduced even without cognitive impairment such as Alzheimer’s disease (Bassi et al., 1993), implying that deterioration in binocular vision and binocular neurons of the visual cortex occurs later in life, even when VA is relatively spared. Ageing also increases contrast threshold for detecting second-order stimuli than for first-order stimuli (Habak & Faubert, 2000). As the ageing population increases, there is a pressing need to identify the nature of perceptual capabilities in elderly. In this study, we measured and compared VA between visually healthy older and younger adults using luminance-modulated (LM) and contrast-modulated (CM) noise letters using the staircase method. This study of age-related visual system can act as a model for addressing questions relevant to a general understanding of the effects of ageing on neural information processing and VA deterioration.

Methods

Stimuli

Recognition of luminance-modulated (LM) and contrast-modulated (CM) letters was determined using H, O, T, and V, derived from the clinically used Sloan letters. The HOTV letters were constructed on a 5×5 template, where each stroke of the letter is one fifth of the letter’s size. The LM letters (an example shown in Figure 1a) were created by adding a luminance modulation function to a binary white noise carrier. The CM letters (an example shown in Figure 1b) were created by multiplying a modulation function with a binary white noise carrier (eg. Chung et al., 2006; Hairol et al., 2013; Hairol & Waugh, 2010). The stimuli can be mathematically expressed as follows:

I(x, y) = I [1+ nN(x, y) + lL(x, y) + mnM(x, y)N(x, y)] (Equation 1)

where I (x, y) is the luminance at position (x, y); I is the mean luminance; n is the noise contrast, which was fixed at 0.2 for all experiments; N(x, y) is the binary noise value at position (x, y) of −1 or 1; l is the luminance amplitude, which is zero for CM letters; m is the contrast amplitude, which is zero for LM letters; L(x, y) is the luminance modulation function, a square wave; and M(x, y) is the contrast modulation, also a square wave. For generation of LM and CM stimuli, either l or m was adjusted, respectively, the other being set to zero. Total size of noise matrix was 500 pixels. Noise checks were scaled to the letter size and each letter consisted of 15 noise checks with 0.47 mm pixel size for one noise check. Noise was presented dynamically throughout the experiment to avoid any luminance artefacts which may occur due to pixel clumping (Smith & Ledgeway, 1997; Sukumar & Waugh, 2007).

Figure 1.

Stimuli, (a) luminance-modulated (LM) letter and (b) contrast-modulated (CM) letter.

Results

The mean VA (logMAR) measured with LM and CM letters of all participants are shown in Table 1. For monocular viewing, in younger adults, VA with LM letters was 1.18 × better than that in older adults while VA with CM letters was 1.24 × better than that in older adults. For binocular viewing, VA with LM letters in younger adults was 1.27 × better than that in older adults while VA with CM letters in younger adults was 1.58 × better than that in older adults.

In Figure 2, VA of younger adults were always better than older adults’, regardless of stimulus type and viewing condition. For monocular viewing, VA with LM letters were significantly better than with CM letters in older and younger adults [F(1, 8)= 427.63, p< 0.001]. There was no significant main effect of age [F(1, 8)= 2.50, p> 0.05] on VA. There was also no significant interaction between stimulus type and age on VA [F(1, 8)= 0.50, p> 0.05], that is, the difference in VA in the two participant groups was similar for the two stimulus types. For binocular viewing, VA with LM letters were significantly better than with CM letters in older and younger adults [F(1, 8)= 609.58, p< 0.001]. However, there was a significant main effect of age on VA [F(1, 8)= 5.67, p< 0.05], that is, the difference in VA in the two participant groups was significantly different for the two stimulus types [F(1, 8)= 7.27, p< 0.05].

Figure 2. Mean VA (logMAR) for LM (open circles: younger adults; open squares: older adults) and CM (filled circles: younger adults; filled squares: older adults) letters under monocular and binocular viewing.

Table 2 shows binocular summation ratios [defined as monocular VA (MAR)÷binocular VA (MAR)] for LM and CM letters in older and younger adult groups. ANOVA test showed no main significant effect of age on stimulus types and binocular summation ratios, [F(1, 8)= 0.67, p> 0.05]. However, the mean difference between binocular acuities of CM letters in older and younger adults was 0.19 logMAR, which was approximately two lines worse on the letter charts and may be of clinical significance.

Retinal illuminance for older adults is reduced to between 10%–33% that of younger adults (Weale, 1961). In order to simulate the reduced retinal illumination in older adults, younger participants were tested with neutral density (ND) filters. Three of the younger participants were re-tested with 85N6 ND filters (Kodak) which reduced light transmission to 19%. The stimuli and procedures were the same as described in the main experiment. VA with and without ND filters for LM and CM letters are compared in Figure 3. There was no interaction between stimulus type and retinal illumination on VA for both monocular [F(1, 2)= 1.44, p> 0.05] and binocular viewing [F(1, 2)= 14.85, p> 0.05], that is, the difference in VA for LM and CM letters measured with and without ND filters was not statistically significant.

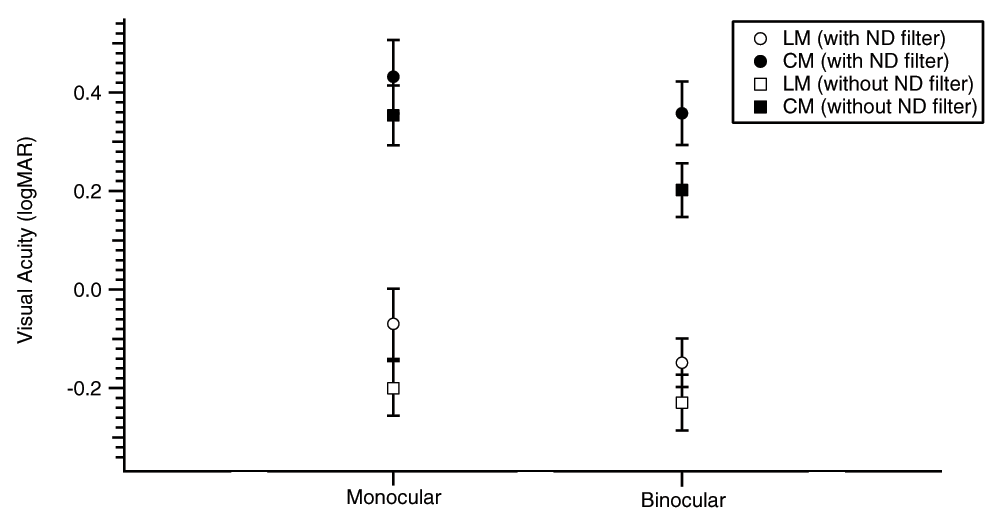

Figure 3. Mean VA (logMAR) with LM (open symbols) and CM letters (filled symbols) under monocular and binocular viewing for with (circles) and without neutral density (ND) filter (squares) in younger adults.

Conclusions and discussion

VA with LM and CM letters in visually normal older and younger adults were investigated in this study. In previous psychophysical studies, VA with LM stimuli is found to be better than that with CM stimuli in normal young adults (Hairol et al., 2013; Waugh et al., 2010). Similar results were shown in our study, where VA with LM letters was better than that with CM letters in visually normal older and younger adults (Table 1 and Figure 2). The worse acuity for CM letters suggests that larger scale mechanisms are needed for CM information processing compared to that for LM, similar to the findings of Schofield & Georgeson (1999), and Sukumar & Waugh (2007).

An effect of ageing on perception of CM stimuli has been reported by Habak & Faubert (2000). They found that the contrast sensitivity for CM stimuli of older adults was significantly worse than that for LM stimuli, which is consistent with our results. Besides, our findings is in accordance with study of Tang & Zhou (2009) as well. They showed that contrast sensitivity for second-order stimuli begins to decline significantly earlier than for first order stimuli, and with a slower rate of progression. These findings suggest that CM stimulus processing mechanisms may be more vulnerable to neurophysiological changes during ageing.

A noteworthy finding in this study is that the binocular summation ratio for CM letters in younger adults was higher than that for LM letters, while the binocular summation ratio for CM letters was almost similar to LM letters in older adults. Waugh & her colleagues (2009) measured the monocular and binocular detection thresholds for LM and CM Gaussian blobs, and showed that binocular summation ratios for CM stimuli were equal or higher than that for LM Gabors for all modulation frequencies above 0.5 cycles per degree (cpd), and were more consistent across modulation frequencies. The findings led to a speculation that CM stimuli are likely to be processed in more binocular areas than LM stimuli, such as in V2, given the predominantly binocular nature of V2 neurons (Hubel & Livingstone, 1987). Indeed, human fMRI study (Calvert et al., 2005) and psychophysical study in amblyopes (Wong et al., 2005) also suggested that CM processing may involve higher visual areas than that for LM. The lesser improvement of CM VA during binocular viewing in older adults compared to younger adults, suggests that CM stimuli neural processing mechanisms may be more vulnerable to neurophysiological changes that are associated with increasing age, may start earlier in higher visual areas. In fact, single-unit recordings showed decreases in which signal-to-noise ratio and sensitivity in cortical neurons of elderly monkeys, and these losses were even more robust in V2 than in V1 neurons (Wang et al., 2005).

Our results of binocular summation ratios for LM stimuli in younger and older adults are not consistent with the findings of Pardhan (1996). She measured monocular and binocular contrast sensitivities at spatial frequencies of one and six cpd in young and older adults with normal healthy eyes. Binocular summation ratios were higher for the younger adults compared to the older adults for both spatial frequencies. However, vertical sinusoidal gratings were used as the target for her study for determining participants’ contrast sensitivity threshold while we used noise letter stimuli for resolution threshold. The difference in binocular summation ratios between younger and older adults in Pardhan’s study could be due to the difference in stimuli and tasks.

We have shown that VA reduction in magnitude for CM letters was greater than that for LM letters under binocular viewing. However, older adults experience age-related physiological changes in vision, which included senile miosis, ie. reduction in pupil size. Senile miosis lowers retinal illumination levels, thereby affecting visual performance in elderly (Winn et al., 1994). Reduced retinal illumination in older adults may have lead to the difference between older and younger participants’ visual performance. Our retinal illumination control experiment showed no significant difference between VA for both stimulus types with and without the presence of neutral density filters. This is consistent with the study done by Habak & Faubert (2000) where they showed that contrast thresholds for LM and CM gratings are similar with or without neutral density filters on younger adults. Therefore, it appears unlikely that our findings were a result of the reduced retinal illumination in our older adults group.

In conclusion, reduction of VA for CM letters is higher than that for LM letters especially in binocular vision for healthy older adults compared to younger adults. This suggests that a young and intact visual cortex plays a key role for good visual performance with CM letters. This extra age-related VA deficit may not be fully revealed when measured with luminance-based stimuli alone. A decrease in binocular summation ratio with ageing for CM letters in older adults may reflect an early decline in higher visual areas, most likely higher than V1. This speculation is supported by the study of Costa et al. (2013) which suggested that ageing might have a more pronounced effect in higher visual areas than in the primary striate cortex. It is vital to know what biological (e.g. neural function, optical changes) and environmental characteristics (e.g. daily lifestyle, dietary) differentiate those older adults who lose little to no visual performance as they age and those who do not (Owsley, 2011). It is also prudent to include a clinical measure of VA to examine age-associated differences in neural activity during cognitive processing that may affect neurologic functioning, e.g. dementia, cerebrovascular disease and depression (Daffner et al., 2013). A quick yet effective VA test is commonly being relied on to measure visual performance. However, the rate of VA changes during ageing which measure with luminance-based acuity charts may not be sufficient to be considered as ‘clinically normal’. Therefore, the advantage of CM stimuli which may serve to more sensitively detect early visual deterioration in ageing should be further investigated. A limitation in our study is that our older adults (54.0±1.83 years old) are relatively young by WHO definition (http://www.who.int/healthinfo/survey/ageingdefnolder/en/). Therefore, a model of VA deterioration with LM and CM stimuli throughout wider normal healthy age groups is worth to be explored in future studies, which could lead to the development of a prototype of a novel CM based acuity test that might benefit the older age population.

Data availability

F1000Research: Dataset 1. VA with LM and CM letters in older and younger adults, 10.5256/f1000research.9410.d132585 (Woi et al., 2016a).

F1000Research: Dataset 2. Binocular summation ratios with LM and CM letters in older and younger adults, 10.5256/f1000research.9410.d132586 (Woi et al., 2016b).

F1000Research: Dataset 3. VA for both stimulus types with and without neutral density (ND) filter in younger adults, 10.5256/f1000research.9410.d132587 (Woi et al., 2016c).
