Using diverse U.S. beef cattle genomes to identify missense mutations in EPAS1, a gene associated with pulmonary hypertension

Ethics statement

This article contains no studies performed with animal subjects. Archival DNA was used from extracts of samples that were either: purchased from commercial sources that collected them for artificial insemination of cattle and not for research, purchased from individuals that collected them privately for their purposes (such as food), or donated to the U.S. Meat Animal Research Center (USMARC) by private individuals that collected them privately for their own purposes.

Discovery and validation panels of cattle

The discovery panel consists of 96 unrelated individuals from 19 popular U.S. beef breeds (USMARC Beef Diversity Panel version 2.9 [MBCDPv2.9], Figure 1). The current panel design was based on a previous set of commercially-available sires from 16 breeds with minimal pedigree relationships (MBCDPv2.1)²¹. For both panels, pedigrees were obtained from leading suppliers of U.S. beef cattle semen and analyzed to identify unrelated individuals for inclusion. On the basis of the number of registered progeny, the breeds in the MBCDPv2.1 were estimated to represent greater than 99% of the germplasm used in the US beef cattle industry, contain more than 187 unshared haploid genomes, and allow a 95% probability of detecting any allele with a frequency greater than 0.016²¹. As previously described, this “threshold” frequency was defined as the minimum allele frequency at which the probability of observing the allele at least once in an animal group was 0.95. The probability of observing an allele at least once is 1 − (1 − p)ⁿ where “p” is the frequency of the allele and “n” is the number of independent samplings, or, in this case, the number of unshared haploid genomes for diploid organisms. This assumes that samplings (haploid genomes) are independent and identically distributed (the same p applies to all animals). Setting power or the probability of observing the allele at least once to 0.95 results in the equation: 0.95 = 1 − (1 − p)ⁿ. Solving this equation for p yields p = 1 − (0.05)^1/n for all p between 0 and 1. The panel was updated to increase the number of beef breeds from 16 to 19, and remove the Holstein breed which was well represented in other WGS datasets. To make room for three additional beef breeds (Braunvieh, Corriente, and Tarentaise), the maximum number of sires within a breed was reduced from eight to six (NCBI BioProject PRJNA324822).

Figure 1. USMARC Beef Cattle Diversity Panel version 2.9.

This group of 96 registered beef sires was chosen to have a minimum of pedigree relationships within each of the 19 breeds.

A separate set of cattle samples was used to validate results obtained from the above discovery panel. The validation panel consisted of samples from male and female registered purebred cattle with diverse pedigrees. Samples were from semen, blood, or hair follicles, depending on gender and availability as previously described³. Where possible, animals within breed were chosen so they did not share parents or grandparents, and none were closely related to the 96 sires in the MBCDPv2.9. The breeds and samples used were: Angus (n = 24), Ankole-Watusi (n = 24), Ayrshire (n = 24), Beefmaster (n = 24), Belgian Blue (n = 24), Blonde d'Aquitaine (n = 24), Brahman (n = 24), Brahmousin (n = 24), Braunvieh (n = 24), Brangus (n = 24), Brown Swiss (n = 26), Charolais (n = 24), Chianina (n = 24), Corriente (n = 24), Devon (n = 24), Dexter (n = 24), Gelbvieh (n = 24), Guernsey (n = 25), Hereford (n = 24), Highland (n = 24), Holstein (n = 86), Indu-Brazil (n = 24), Jersey (n = 28), Limousin (n = 24), Maine-Anjou (n = 24), Marchigiana (n = 24), Mini-Hereford (n = 24), Mini-Zebu (n = 24), Montbeliarde (n = 24), Murray Grey (n = 21), Nelore (n = 24), Piedmontese (n = 24), Pinzgauer (n = 24), Red Angus (n = 24), Red Poll (n = 24), Romagnola (n = 24), Salers (n = 24), Santa Gertrudis (n = 24), Senepol (n = 23), Shorthorn (n = 24), Simmental (n = 24), Tarentaise (n = 24), Texas Longhorn (n = 24), Texas Longhorn, Cattlemen’s Texas Longhorn Registry (CTLR, n = 22), Tuli (n = 24), and Wagyu (n = 24).

WGS production, alignment, and SNP genotyping

DNA was extracted from commercial semen with a typical phenol:chloroform method and stored at 4°C in 10 mM TrisCl, 1 mM EDTA (pH 8.0) as previously described²². Approximately 5 μg of bovine genomic DNA was fragmented by focused-ultrasonication to generate fragments less than 800 bp long (Covaris, Inc. Woburn, Massachusetts USA). These fragments were used to make an indexed, 500 bp paired-end library according to the manufacturer’s instructions (TruSeq DNA PCR-Free LT Library Preparation Kits A and B, Illumina, Inc., San Diego, California USA). After construction, indexed libraries were pooled in groups of four to eight, and sequenced with a massively parallel sequencing machine and high-output kits (NextSeq500, two by 150 paired-end reads, Illumina Inc.). After sequencing, the raw reads were filtered to remove adaptor sequences, contaminating dimer sequences, and low quality reads. Pooled libraries with compatible indexes were repeatedly sequenced until 40 GB of data with greater than Q20 quality, was collected for each sire. In preliminary trials, 40 GB of Q20 data consistently resulted in greater than 10-fold read coverage for each animal. Previous results showed that this level of coverage provided scoring rates and accuracies that exceeded 99%²³.

The DNA sequence alignment process was similar to that previously reported²³. Briefly, FASTQ files corresponding to a minimum of 40 GB of Q20 sequence were aggregated for each animal. DNA sequences from FASTQ files were aligned individually to UMD3.1²⁴ with the BWA aln algorithm version 0.7.12²⁵, then merged and collated with bwa sampe. The resulting sequence alignment map (SAM) files were converted to binary alignment map (BAM) files, and subsequently sorted via SAMtools version 1.3.1²⁶. Potential PCR duplicates were marked in the BAM files using the Genome Analysis Toolkit (GATK) version 3.6²⁷. Regions in the mapped dataset that would benefit from realignment due to small indels were identified with the GATK module RealignerTargetCreator, and realigned using the module IndelRealigner. The BAM files produced at each of these steps were indexed using SAMtools. The resulting indexed BAM files were made immediately available via the Intrepid Bioinformatics genome browser http://www.intrepidbio.com/ with groups of animals linked at the USMARC WGS browser http://www.ars.usda.gov/Services/Docs.htm?docid=25585. The raw reads were deposited at NCBI BioProject PRJNA324822. Mapped datasets for each animal were individually genotyped with the GATK UnifiedGenotyper with arguments “--alleles” set to the VCF file (File S1), “--genotyping_mode” set to “GENOTYPE_GIVEN_ALLELES”, and “--output_mode” set to “EMIT_ALL_SITES”. Lastly, some SNP variants were identified manually by inspecting the target sequence with IGV software version 2.1.28 (described in the Methods section entitled ‘Identifying protein variants encoded by EPAS1’). In these cases, read depth, allele count, allele position in the read, and quality score were taken into account when the manual genotype determination was made.

Evaluating WGS data integrity with 121 reference SNPs and 770 k bead array SNPs

Genotypes from a set of 121 reference SNPs were used as an initial verification of the WGS datasets. Many of these DNA markers have been widely used for parentage determination, animal identification, and disease traceback (Table S1)^21,28,29. The 121 reference SNPs were previously genotyped across the MBCDPv2.9 by multiple PCR-Sanger sequencing reactions, two independent designs of multiplexed matrix-assisted laser desorption/ionization time-of-flight mass spectrometry (MALDI-TOF MS) genotyping assays, and multiple bead array platforms, and are tabulated in Table S2. The error rate in the WGS data was estimated by comparing the consensus genotypes for these SNPs to the WGS genotypes. An animal’s WGS dataset passed initial verification when the accuracy of the WGS genotypes exceeded 97%, and the average mapped read depth was proportional to the amount of WGS data collected. Animals’ datasets that failed this initial verification were inspected closely for contaminating and/or missing files. Electronic file transfer errors resulted in contaminated and missing data for approximately one third of the 96 WGS datasets and required systematic testing, correction, and reprocessing. Linear regression analysis was accomplished in Excel version 2016. Access to the sequence via USDA internet site (http://www.ars.usda.gov/Services/Docs.htm?docid=25585) and Intrepid Bioinformatics site (http://server1.intrepidbio.com/FeatureBrowser/customlist/record?listid=7686214634) was provided as soon as the .BAM files were produced. Because the raw datasets were available online as they were produced, the FASTQ files were deposited in the NCBI SRA only after they were validated as described above. These 96 sets of files can be accessed through BioProject PRJNA324822 in the Project Data table under the Resource Name: SRA Experiments. SNPs from the BovineHD BeadChip (Illumina Inc.) were selected for comparison because they were numerous, uniformly distributed across the bovine genome, and available. Based on the nucleotide sequence of the probes obtained from the manufacturer, the positions of the SNPs were verified via a BLAT process as previously described²³. A total of 772,990 variant positions were successfully mapped with this process, with 54 positions being discrepant when compared to those in the manufacturer’s most recent release of probe descriptions. The VCF file for these 772,990 variants is provided (File S1). The genotypes from the WGS data were compared to those from the high-density bead array with a custom program written specifically for this operation. Three classes of discordant genotypes were identified. First, were those scored as homozygous in the WGS data and heterozygous in bead array data. These could have resulted from low coverage in WGS data at that position, or errors in the bead array caused by probes hybridizing to repeated sequences. The second type of discordance was scored as heterozygous in the WGS data, and homozygous in the bead array data. These could have resulted from allele-specific probe hybridization problems in the bead array platform. The final category consisted of missing genotypes in the bead array data, which were likely caused by errors in the conversion of the manufacturer’s “AB” genotype calls to the nucleotide calls.

Identifying protein variants encoded by bovine EPAS1

Using public internet access to USMARC sites, the nucleotide variation in the exon regions of EPAS1 was visualized with open source software installed on a laptop computer and recorded manually in a spreadsheet. Briefly, a Java Runtime Environment (Oracle Corporation, Redwood Shores, CA) was first installed on the computer. When links to the data were selected from the appropriate web page, IGV software^13,14 automatically loaded from a third-party site (Intrepid Bioinformatics, Louisville KY) and the mapped reads were loaded in the context of the bovine UMD3.1 reference genome assembly. For viewing EPAS1 gene variants, WGS from a set of eight animals of different breeds was loaded (“mixed groups of 8”, http://www.ars.usda.gov/Research/docs.htm?docid=25586) and the IGV browser was directed to the appropriate genome region by entering “EPAS1” in the search field. The IGV zoom function was used to view the first exon at nucleotide resolution with the “Show translation” option selected in IGV. The exon sequences were visually scanned for polymorphisms that would alter amino acid sequences, such as missense, nonsense, frameshift, and splice site mutations. Once identified, the nucleotide position corresponding to a protein variant was viewed and recorded for all 96 animals. Using IGV, codon tables, and knowledge of the HIF2A protein sequence (NP_777150), the codons affected by nucleotide alleles were translated into their corresponding amino acids and their positions noted. Haplotype-phased protein variants were assigned unambiguously in individuals that were homozygous, and those individuals with only one variant amino acid. A maximum parsimony phylogenetic tree was constructed manually from the unambiguously phased protein variants and used to infer phase in any remaining variants with simple maximum parsimony assumptions.

WGS datasets from five closely-related Bovinae species were mapped to the cattle reference assembly UMD3.1 with a process similar to that previously reported²³. These mapped Bovinae samples included two each of yak, gaur, and banteng; and one sample each of plains bison, water buffalo. The mapped genomes were visually inspected across the EPAS1 exons in the same browser environment as the cattle data, and variant codons were recorded. Information about the source and the content of the WGS datasets is provided in Table S3. Because reference SNP genotypes are not readily available for these species, verification of the integrity and quality of the newly sequenced Bovinae WGS datasets was limited. For each dataset, the mapped read density in conserved exons was estimated and compared to the amount of Q20 sequence collected for that animal. No inconsistencies were noted between the expected and observed read depths. In addition, distinctive homozygous “species-specific” nucleotides were observed for each species, and these same nucleotides were not observed in the other species. The genomes for all eight animals were made viewable by IGV at http://www.ars.usda.gov/Services/Docs.htm?docid=25585. They are also available at NCBI BioProjects: PRJNA325061, PRJNA221623, and PRNJA207334.

MALDI-TOF MS genotyping of six EPAS1 missense mutations

A single multiplex assay was designed for the six EPAS1 missense SNPs with the information in Table 1 with software provided by the manufacturer (Agena Biosciences, San Diego, California, USA). The oligonucleotide sequences and assay conditions are provided in Table S4. After design and validation with bovine control DNAs for each SNP, the MBCDPv2.9 DNA was tested in a blinded experiment in which the true genotypes were unknown by those typing the samples. Assay design and genotyping was performed at GeneSeek (Lincoln, Nebraska, USA) with the MassARRAY platform and iPLEX Gold chemistry according to the manufacturer’s instructions (Agena Biosciences). MALDI-TOF MS genotypes for six SNPs are provided for the MBCDPv2.9 and 1154 of 1168 cattle from 46 breeds in Table S5.

Panel design, genome sequencing, and quality control of WGS datasets

A beef cattle diversity panel was designed to broadly sample the genetic diversity of U.S. populations, while fitting within the constraints of a 96-sample format, often used for automated DNA sequencing and genotyping. The composition and design of the panel was updated from a previously reported set as described in the Methods. A minimum of four sires were included for each breed, with the more popular U.S. breeds having five or six animals (Figure 1). There was relatively little power for detecting rare variants within breed, since not more than 12 haploid genomes were sampled (95% probability of detecting any polymorphism with a frequency greater than 0.22, Methods). Despite the modest power within breed, sequencing the entire panel significantly increased the chances of detecting relatively rare variants segregating in U.S. beef cattle. With more than 187 of 192 unshared haploid genomes in the 96 sires, it was estimated there was a 95% probability of observing polymorphisms with a frequency greater than 0.016. Thus, the power for allele detection in this beef diversity panel was derived from having exceedingly few pedigree relationships within breed, and essentially none between breeds.

The WGS was generated by sequencing indexed pools of libraries whose composition was adjusted iteratively across multiple instrument runs to achieve at least 40 GB of FASTQ sequence. The average amount of total sequence per sample was 48.3 GB (±12.0) and varied between 40.2 GB and 109.4 GB. This approach reduced the overall data production cost, however each animal had data files from multiple sequencing runs that required manual collation prior to analysis, and thus increased the labor cost. In addition to the usual challenges of sample contamination, sample switches, missing data, variable quality data, and data transfer errors, the FASTQ files produced by the instrument had identical names across multiple machine runs. This added another layer of complexity to maintaining file provenance. The process of manually aggregating and transferring an average of 42 similarly-named FASTQ files for each animal was inherently prone to error and unavoidable with the instrument and the institutional network security restrictions.

Thus, to verify the WGS data integrity at the end of the process, genotypes from a set of 121 reference SNPs were used as a first test. These SNPs are distributed across the genome, highly-informative in U.S. beef cattle, have been widely used for bovine parentage testing (Methods). The WGS-derived genotypes for these 121 SNPs were obtained by viewing an animal’s mapped reads at the relevant genome coordinates, with public software, a third party database, and web links created for this task (illustrated in Figure 2A, http://www.ars.usda.gov/Research/docs.htm?docid=25586). As described in the Methods, data inconsistencies of multiple types were discovered by comparison with the known reference genotypes and corrected in approximately one third of the file sets. Comparison to the reference SNP genotypes also provided a check for the expected linear relationship between the amount of sequence collected and the depth of reads mapped to the reference assembly. Regression analysis showed that the average read depth at the 121 reference SNPs was directly proportional the amount of sequence collected (Figure 2B). The 48.3 GB of sequence collected for each animal resulted in an average of 14.4-fold depth of mapped read coverage. The overall accuracy of WGS genotypes for the 121 reference SNPs was 99.5%, with 56 sires having 100% concordance (Figure 2C). The few WGS genotype errors observed were typically caused by undetected heterozygous alleles at sites with low read coverage. Thus, the use of 121 reference SNPs was effective for discovering and repairing errors in these WGS datasets, and verifying the coverage.

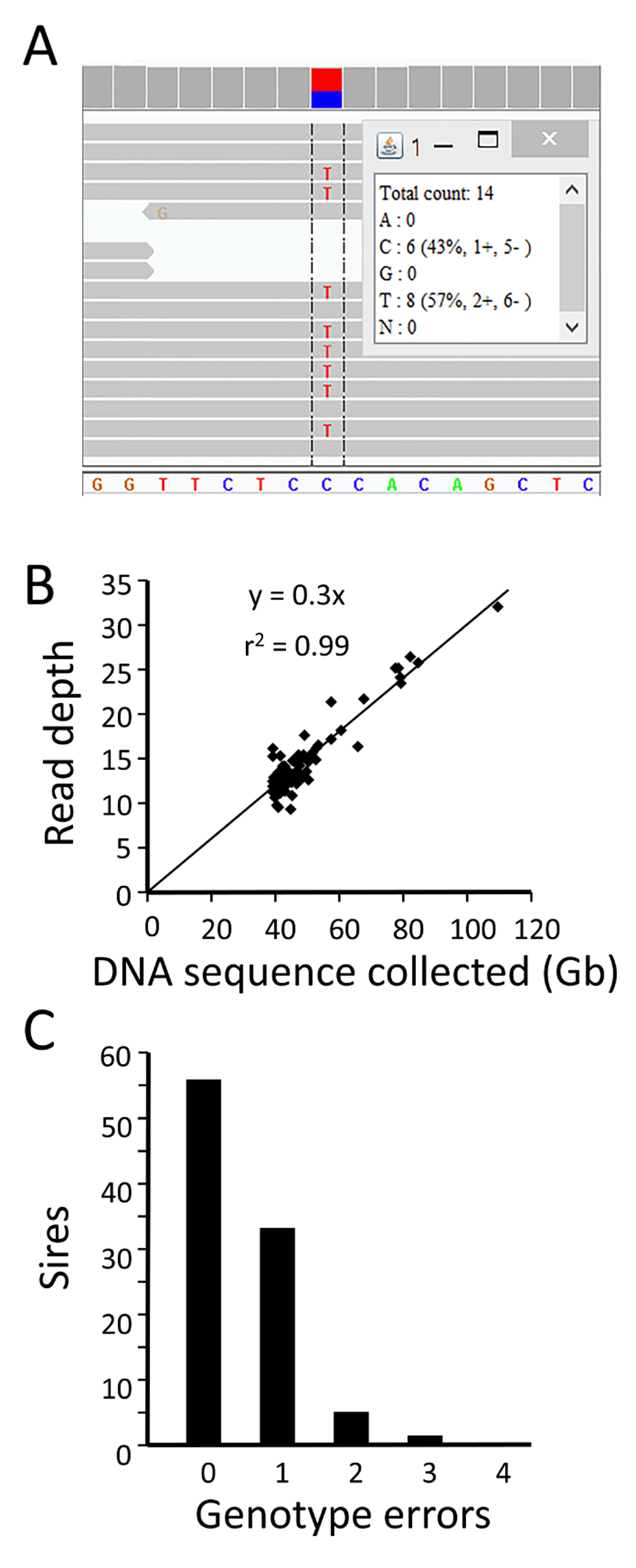

Figure 2. Comparison of 121 reference SNP genotypes with those derived from WGS data.

Panel A: Computer screen image of one animal’s WGS data aligned to bovine reference assembly UMD3.1 at a reference SNP site. The heterozygous C/T genotype is shown as viewed with the IGV software^13,14. Panel B: Linear relationship between mapped read depth and the amount (Gb) of Q20 WGS data collected. At each SNP position, the read depth and genotypes were visualized and manually recorded for 121 parentage SNPs. A list of these 121 parentage SNPs and their sequence information is provided in Table S1. Panel C: Genotype scoring accuracy for 121 parentage SNPs in 96 sires. Consensus reference genotypes (n = 11,616) for the parentage SNPs were previously determined by multiple methods (Table S2).

A broader characterization of the coverage and quality of each dataset was accomplished by comparing an average of 730,410 of SNP genotypes from each sire to those from a high density bead array (Methods). The average distribution of read depths was slightly positively skewed with a mode of 12.5 when combined for all animals (Figure 3A). The average read depth for these 730 k SNPs (14.8) was in close agreement with that for the 121 reference SNPs (14.4), confirming that the smaller SNP set was not biased subset of the larger set. Averaged over all animals, the concordance between WGS genotypes and those from bead arrays was high (98.8%, Figure 3B) and also agreed well with results from the 121 reference SNPs (99.5%). A surprising feature of this analysis was that the genotype concordance reached a maximum at approximately 99%, in spite of increasing coverage. Thus, WGS datasets with 13-fold and 33-fold coverage had 99.1 and 99.2 % concordance, respectively, possibly reflecting the percentage of bead array genotypes with problems. One notable exception was Corriente sire 19202900 which had a concordance of 91.8% (Figure 3B). However, the 121 reference SNP genotypes for this same animal were 98.4% accurate (119/121). This result suggests that the lower genotype concordance in the Corriente sire may have been caused by the quality of the bead array data. For all other animals, the discordant genotypes were infrequent, with “allele dropouts” being the most common type (Methods). Allele dropouts were inferred at a SNP site when one allele of a heterozygote was not detected (i.e., “dropped”). Although rare, there were more dropped alleles observed in the bead array data (1.1%) than for the WGS data (0.7%). Taken together, the analyses indicate that the WGS datasets from these 96 diverse beef sires are of sufficient quality and coverage for use in identifying and decoding gene variants in U.S. beef cattle.

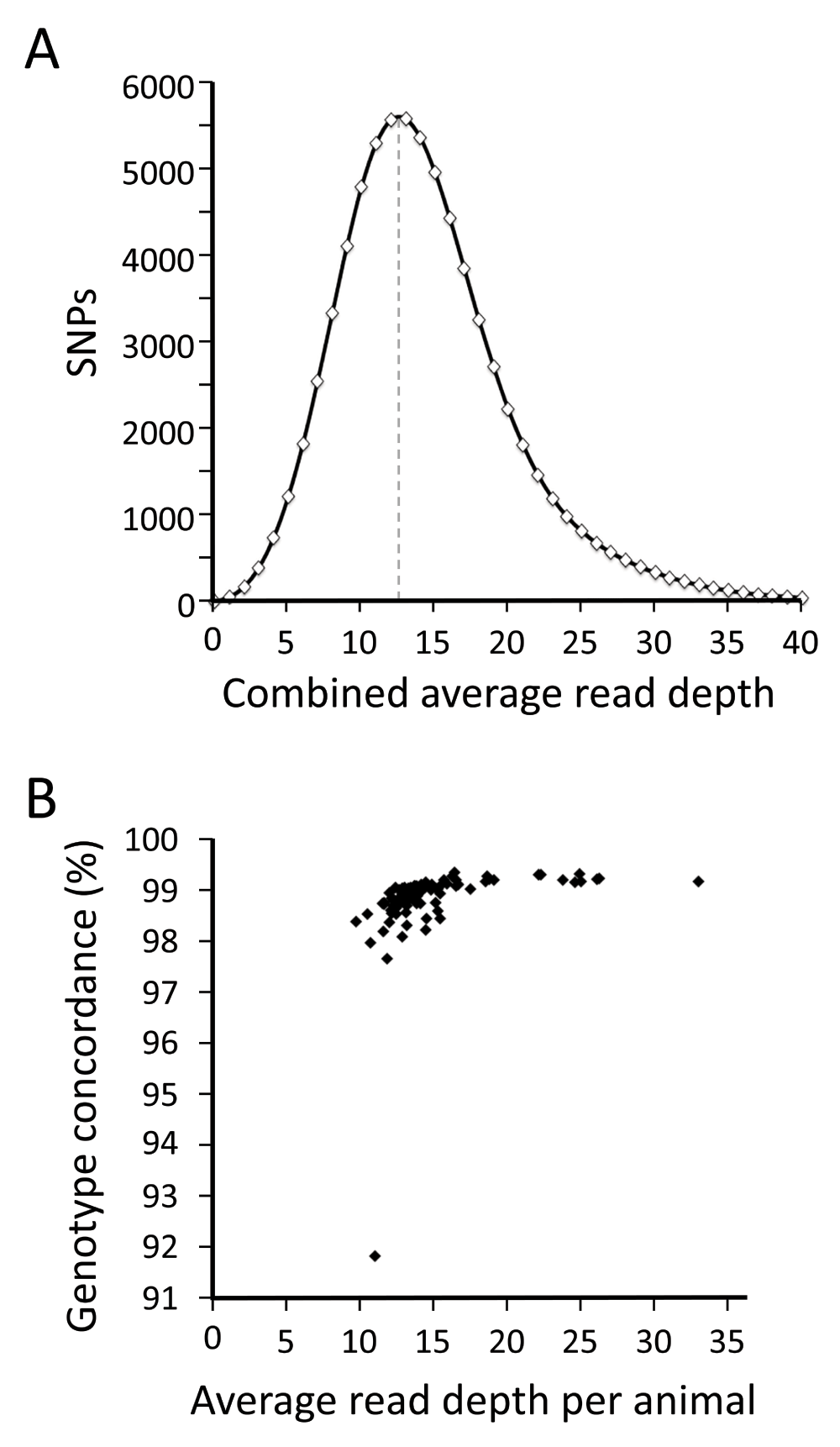

Figure 3. Comparison of WGS genotypes from 96 sires with those from bead arrays.

Panel A: The distribution of average WGS read depth across 730 k SNP sites for 96 sires combined. Panel B: A comparison of the average WGS read depth per animal to the average genotype concordance between 730 k WGS and bead array genotypes.

Identification of protein variants encoded by EPAS1

The 96 sets of aligned WGS data were visually analyzed in the EPAS1 coding region to identify potential HIF2A protein variants (Methods). EPAS1 consists of 16 exons spanning 90 kb of genomic DNA and encodes an 870 amino acid protein with multiple functional domains (Figure 4A and Figure 4B). Viewing the aligned sequences and detecting variants was simple, fast, and accurate with the IGV software and a browser developed for this purpose (Figure S1). Four previously undescribed missense mutations were discovered and predicted to cause the substitution of glutamine (Q) for glutamate (E) at position 270; leucine (L) for proline (P) at position 362; glycine (G) for Alanine (A) at position 671; and phenylalanine (F) for leucine (L) at position 701 (Table 1 and Figure 4B). The two additional amino acid variants previously associated with PH, were also observed (A606T and G610S). No other missense, nonsense, frameshift, splice site, or indel variants affecting the coding region were detected. Haplotypes encoding seven predicted HIF2A variants were translated and placed in the context of a phylogenetic tree (Figure 4C). Five of seven predicted HIF2A protein variants (variants “2”, “4”, “5”, “6”, and “7”) were previously unreported, and accounted for 17% of the total in the beef cattle diversity panel.

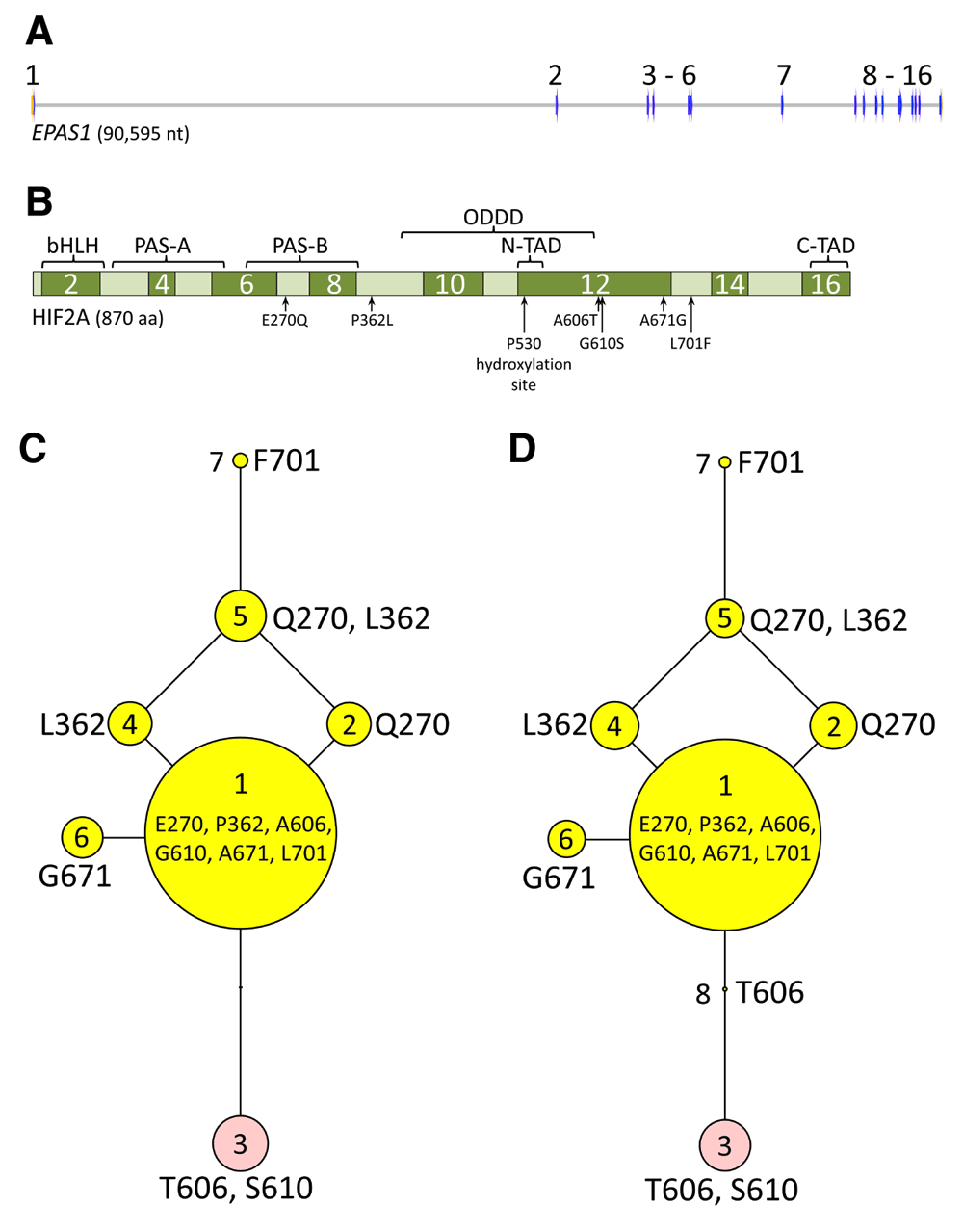

Figure 4. Physical maps and unrooted maximum parsimony phylogenetic trees of HIF2A protein variants found in cattle.

Panel A, genomic DNA map of EPAS1: blue arrows, exon regions; grey horizontal lines, intron regions. Panel B, map of HIF2A domains in relationship to missense mutations found in cattle: bHLH, basic helix-loop-helix domain; PAS-A and PAS-B, Per-Arnt-Sim domains; ODDD, oxygen-dependent degradation domain; N-TAD, N-terminal transactivation domain; C-TAD, C-terminal transactivation domain. Panels C and D represent results from the 96-member, 19 breed diversity panel and the 1154-member, 46 breed set, respectively. The most frequent HIF2A isoform (“variant 1”) was used as the reference sequence for the trees. For “variants 1” through “8”, each node in the tree represents a different isoform of HIF2A that varies by one amino acid compared to adjacent nodes. The areas of the circles are proportional to the variant frequency in the group of cattle tested. “Variant 3” (pink circle; T606, S610) is identical to that associated with PH in Angus cattle¹⁵. “Variant 2” (Q270) is identical to the 870 amino acid protein encoded by the bovine reference assembly UMD3.1.

To verify the accuracy of EPAS1 genotypes and determine the protein variant frequencies in a larger set of U.S. cattle, MALDI-TOF MS assays were developed for the six missense SNPs (Methods). In a blinded test, 575 of 576 (99.8%) EPAS1 MALDI-TOF MS genotypes from the 96 sires were concordant with those from WGS, confirming that the newly discovered SNPs were authentic and the WGS and MALDI-TOF MS genetic tests were accurate. The average HIF2A variant frequencies in a set of 1154 purebred cattle from 46 breeds were similar to those observed in the beef cattle diversity panel (Table 2 and Figure 4D) with a call rate of 98.8%.

The HIF2A isoform associated with an increased risk for PH in Angus cattle (T606, S610; “variant 3”) was observed in 18 of 46 breeds, with four breeds having frequencies higher than Angus (Table 3). The Guernsey dairy breed had the highest proportion of the risk allele with 18 of 26 animals (69%) having one or two copies of “variant 3” (Table S5). Notably, all 96 animals from the Bos indicus breeds (Brahman, Nelore, Indu-Brazil, and mini-zebu) were homozygous for the most common HIF2A “variant 1”. An important result of typing the extended 46 breed set of cattle, was the discovery of an unlinked T606 mutation (“variant 8”, Figure 4D) present in Romagnola, Chianina, and Maine-Anjou cattle (Table S5). The discovery of an eighth variant brought the number of possible HIF2A diploid combinations to 36, and underscored the importance of accurate HIF2A typing in animals used to study PH and RHF in beef cattle.

To determine the most likely phylogenetic root of the HIF2A tree, and thus establish a possible order of mutational events, HIF2A sequences were analyzed in eight individuals from closely related species: from the Bos, Bison, and Bubalus genera. HIF2A “variant 1” was the likely ancestral root, based on its similarity to HIF2A from the most closely related species (Figure 5). Thus, the S610 mutation likely occurred on the T606 haplotype and is the more recent mutation of the two. Identifying breeds and individuals that have the HIF2A T606 allele provides the opportunity for future comparisons of the relative effects of T606 alone (“variant 8”), or in combination with S610 (“variant 3”).

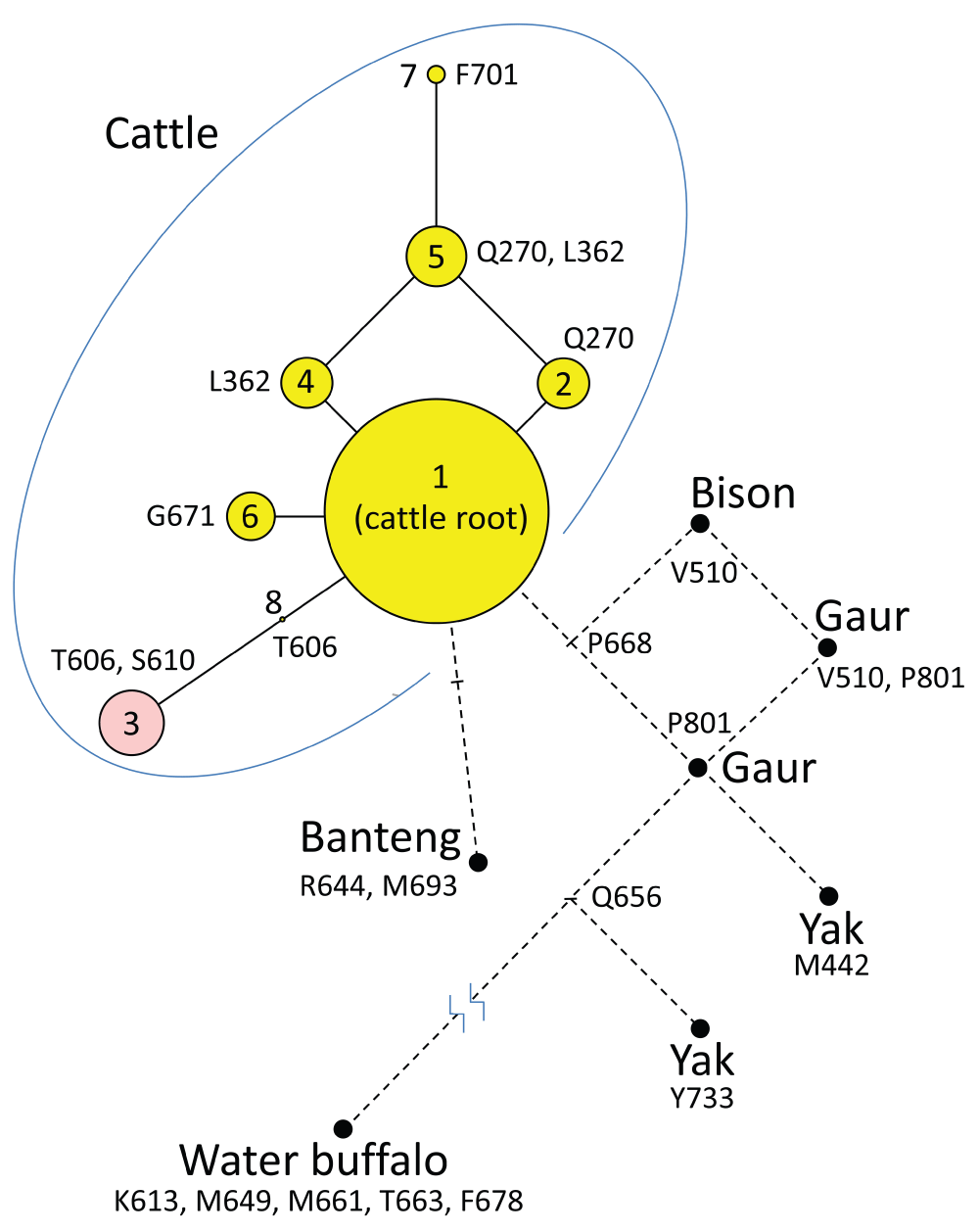

Figure 5. Rooted maximum parsimony phylogenetic tree of HIF2A protein variants found in cattle and closely related species.

The cattle HIF2A “variant 1” was used as the reference sequence for comparison with HIF2A from five other species (Methods). Cattle HIF2A residues were highly conserved between these species and only differed at 11 total sites. In “variant 1” the cattle residues at these 11 positions were: V442, K613, T663, L644, M649, R656, M661, L668, F678, V693, H733. For cattle “variants 1” through “8”, the areas of the circles shown are proportional to the variant frequency in the group of 1250 cattle tested. “Variant 3” (pink circle; T606, S610) is identical to that associated with PH in Angus cattle¹⁵. The nodes derived from analysis from other species are indicated with a black filled circles and do not represent frequency information.

The highly conserved HIF2A amino acid residues across vertebrates provides insight into the potential impact of missense mutations in cattle, because invariant residues tend to be critical for protein function. The 870 amino acid sequence of cattle HIF2A is highly similar to those from sheep, whale, human, mouse, and alligator (97, 90, 88, 83, and 73% identity, respectively). Alignment of cattle HIF2A sequences with 70 available species of the Gnathostomata superclass showed that a third of the residues (288 of 870) were perfectly conserved throughout (Table S6). Of the six HIF2A variant sites identified in cattle, the most conserved residue was glutamate at the E270Q site, which was present in all 70 Gnathostomata tested, 37 of which are shown in Figure 6. The leucine residue of the L701F variant site was less conserved, but still present throughout the Amniota, with the phenylalanine variant being present in the Tetrapoda and higher. The glycine residue at the G610S variant site was conserved in the Laurasiatheria, with the notable exception of S610 in swine, a species known for a marked pulmonary vasoconstrictive response to hypoxia. The proline residue of the P362L variant site was conserved through Cetartiodactyla with leucine present in Perissodactyla and higher. The alanine residue of the A671G variant site was conserved in the Bovidae with threonine and other residues present in Cetartiodactyla and higher. Variant A606T was the least conserved of all the variant sites with the alanine residue only conserved in the Bovinae, and the threonine residue present in other ruminants with isoleucine present in Cetartiodactyla and higher. Based exclusively on the degree of conservation across vertebrate species, the predicted ranking for potentially deleterious EPAS1 missense mutations in cattle was: E270Q > L701F > G610S > P362L > A671G > A606T. However, the actual impact of these polymorphisms on cattle is dependent on additional factors, some of which are discussed in the next section.

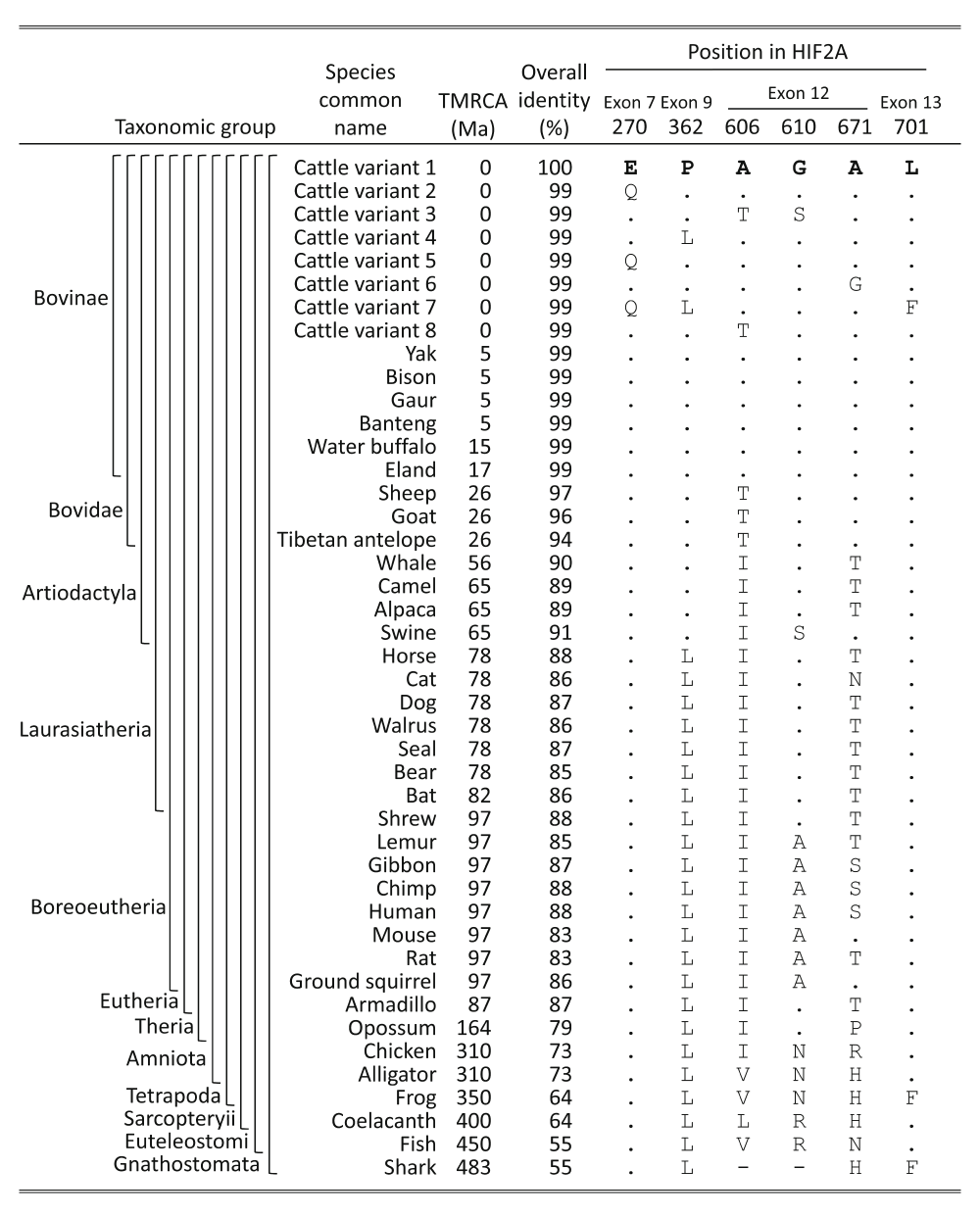

Figure 6. Evolutionary comparison of HIF2A residues from six variant sites.

HIF2A sequences from a representative subset of 37 species from the Gnathostomata superclass were deduced from WGS or downloaded from GenBank. Abbreviations and symbols are as follows: TMRCA, estimated time to most recent common ancestor in millions of years³⁰; letters, IUPAC/IUBMB codes for amino acids; dot, amino acid residues identical to those in cattle HIF2A “variant 1”; dash, polypeptide region missing in shark HIF2A.
