Prostate cancer is the most common malignant tumor among men and ranks third in terms of mortality after lung cancer and colorectal cancer. The major clinical treatment against prostate cancer is an anti-androgen therapy to inhibit male hormones providing to prostate cancer cells. However, the therapy cannot inhibit the cancer cell growth for long because these cells can develop the resistance against the androgen absence condition. This developed prostate cancer is called metastatic castrate resistant prostate cancer (mCRPC), which is the major cause of death in prostate cancer patients1,2. Even though some options for treatment of mCRPC have been developed, the most effective therapies remain unclear3. Finding key clinical variables related with mCRPC is an important first step for understanding the disease progression mechanism and clinical decision making for these patients. Halabi et al.4 identified key factors of mCRPC from a lot of clinical variables by feature selection based on a Cox’s proportional hazards model with a L1 penalty, i.e. a variant of Lasso for survival analysis6,7 and built a mCRPC prognostic model. This data-driven approach is important to correctly predict patient health status for treatment choices. To validate and improve such prediction models of mCRPC patients, larger scale clinical datasets collected from several clinical institutes are useful. The Prostate Cancer DREAM challenge in DREAM 9.5 (https://www.synapse.org/ProstateCancerChallenge) provided such datasets and an opportunity to tackle this essential challenge using the wisdom of the crowd, in which participating teams were required to submit prediction models based on clinical variables from the comparator arms of four phase III clinical trials with over 2,000 mCRPC patients treated with first-line docetaxel. My method for this challenge consists of a two-step feature selection procedure, which first performs both sparse feature selection7 and statistical hypothesis testing8, and then performs a forward feature selection9 to screen out non-informative features. Selected clinical variables were used to build a prognostic model to predict global risks of patients. For a survival time prediction, my method further used a linear model fitting with median survival time5 computed by the established progression model. The final result of this DREAM challenge demonstrated that, in the sub-challenge 1a, the proposed procedure outperforms Halabi’s model4 by correctly selecting more informative features on global risk prediction. In sub-challenge 1b, my method using these selected features predicted the survival time more correctly and outperforms most of the other team’s methods.
Data across comparator arms of four phase III clinical trials have been compiled, annotated, cleaned and were made available through the Challenge and remain available on the web site7. These datasets include over 150 clinical variables and over 2,000 mCRPC patients treated with first-line docetaxel. The output value to be predicted for unknown new patients is the survival time. The survival times of patients are not always observed because some patients are still alive when they are lost to follow-up or when the study ends. Thus the observed survival times are right censoring. For the training dataset, three of the clinical trial cohorts were provided, which includes data for 476, 598, and 526 patients from clinical trial ASCENT-2 (Novacea, provided by Memorial Sloan Kettering Cancer Center)10, VENICE (Sanofi)11, and MAINSAIL (Celgene)12, respectively. For the test dataset, 470 patients’ data were provided from clinical trial ENTHUSE-33 (AstraZeneca)13. The goal of this challenge was to correctly predict global risk of death and survival time of patients in the test dataset. In these datasets, clinical variables for some patients were missing. These missing values were imputed by the median of each variable for numerical values and by the most frequent value for each categorical variable.
A Cox proportional hazards model is assumed for the relationship between clinical variables (input variables) of a patient and the survival time (a output variable)5. Let x be clinical variables of a patient. The hazard function of the patient at time t is given by
where h0(t) is a baseline hazard function and β is a weight vector to be optimized from training data. When the weight value of the d-th clinical variable βd is large, the clinical variable is informative to predict the survival time. On the other hand, when βd =0, the d-th clinical variable is independent with the survival time. Thus the correctly estimating β is the most important task in survival analysis. A common estimation is performed by maximizing a partial log likelihood function of N patients given by
where xn is a vector of clinical variables of the n-th patient, δn is a binary variable. δn = 1 for died patients and δn = 0 for right-censored patients at time tn when is the survival time of the n-th patient. Rn is the risk set at time tn. This estimation is of course affected by non-informative clinical variables (noise variables) because the size of the training data is limited, where the number of clinical variable is large but the number of patients is small. Before estimating weight vector β in the hazard function, my method implemented a two-step feature selection to screen out non-informative clinical variables.
The goal of feature selection is to divide the set of all clinical variables into a set of informative variables and non-informative variables by optimizing the final scoring metric. However, this optimization is NP-hard, i.e. intractable in general. Thus my procedure implemented this task in a heuristic manner; 1) screening numerical features by a L1 sparse penalized regression and categorical features by a statistical hypothesis testing, and then 2) a forward sequential feature selection to narrow the list of informative selected features by optimizing the final scoring metric. For the first procedure, my procedure used a variant of LASSO for a Cox’s proportional hazards model7 provided by R package glmpath11. This approach should choose the weight of the L1 penalty term. My method automatically chose it by minimizing an information criterion (AIC), which is a criterion to estimate the generalized error. Because the computational cost of this implementation with a lot of clinical variables is expensive, my procedure used this sparse feature selection for only numerical variables to reduce the computational cost. Categorical variables were evaluated using rank statistical hypothesis testing5,8. This method tests if there is a significant difference between two or more survival curves with different values of a categorical variable. If the difference of curves is statistically significant, the categorical variable might be related with survival times of patients. Therefore, such variables should be selected for a survival time prediction model.
Among selected features described above, my procedure further implemented a forward feature selection9 to narrow the list of clinical variables. In my procedure, the most useful feature that maximally increases an integrated time-dependent AUC (iAUC)14, which is the final scoring metric in sub-challenge 1a, is sequentially added one by one until all variables are selected. After that, the optimal set of clinical variables is selected by maximizing iAUC. iAUCs were estimated by cross-validation (CV), which was performed by randomly splitting all training data into 90% training data and 10% test data. iAUC was estimated as the median among ten calculated iAUC values.
After selecting informative features, parameter β in the Cox proportional hazard function was optimized using only the selected clinical variables. Next, the hazard function was used to predict the global risk of death for each patient5. The survival time of each patient can be predicted based on the median time when an estimated survival probability is equal to 0.5, computed from the hazard function5. However the root mean squared error of this prediction method was still large and an estimation bias was included because of the right censoring setting, which will be experimentally demonstrated later. Against this problem, my method used a linear model fitting from computed median times to observed survival times in the training dataset. Survival time was predicted by the liner regression model whose input is the estimated median time of each patient.
My method removed clinical variables having a lot of missing values and then it used only 14 numerical clinical variables and 56 categorical clinical variables with less number of missing values. Feature selection for numerical clinical variables was first implemented using the L1 penalized approach7 by function coxpath in R package glmpath (https://cran.r-project.org/web/packages/glmpath/glmpath.pdf). This function can compute the entire regularization path for the L1 penalized model by increasing the weight of the penalty and check only steps of the path when a weight parameter of a clinical variable becomes greater than zero. Table 1 shows the first 20 steps and the sequence of added clinical variables. Figure 1 shows computed AIC scores of these steps. The best feature set (step) was selected by minimizing an AIC score. This procedure chose the 14th step and then selected nine clinical covariates (ENTRTPC, ALP, HB, AST, ECOGC, NEU, PLT, PSA and LDH) as informative clinical variables.
Step | Clinical variable |
---|---|
1 | ENTRT_PC |
2 | ALP |
3 | HB |
6 | AST |
8 | ECOG_C |
11 | NEU |
12 | PLT |
13 | PSA |
14 | LDH |
15 | CA |
16 | CREAT |
18 | ALT |
19 | WBC |
20 | TBILI |
On the other hand, differences of survival curves by categorical clinical variables were statistically tested using function survdiff in R package survival (https://cran.r-project.org/web/packages/survival/survival.pdf). Table 2 shows the ranking result of clinical variables with p-values. The threshold of a significance level was set to 0.05 and then the procedure selected categorical features ANALGESICS, MHGEN, MI, TURP, MHCARD, ACE_INHIBITORS, MHPSYCH and PROSTATECTOMY.
Rank | Clinical variable | p-value |
---|---|---|
1 | ANALGESICS | 9.8e-08 |
2 | MHGEN | 8.5e-03 |
3 | MI | 1.0e-02 |
4 | TURP | 1.2e-02 |
5 | MHCARD | 1.3e-02 |
6 | ACE_INHIBITORS | 2.6e-02 |
7 | MHPSYCH | 3.9e-02 |
8 | PROSTATECTOMY | 4.3e-02 |

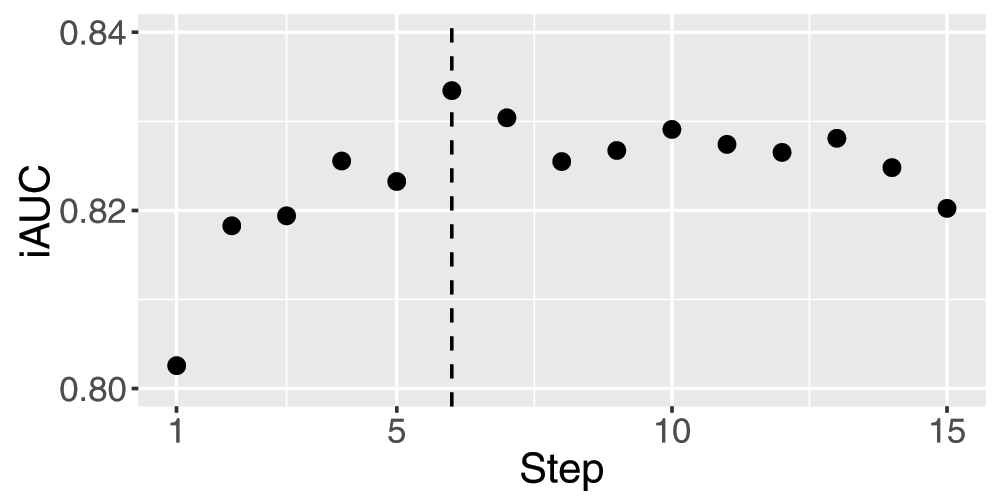

For these 17 selected clinical variables by two feature selections, we further implemented the forward feature selection described in the previous section. Figure 2 shows iAUC at each step of the forward feature selection. This figure shows that the step maximizing AUC is the sixth step which includes six clinical variables ALP, AST, ECOG_C, HB, MI and PLT. These clinical variables were finally selected to predict global risks and survival times of patients.
The parameter vector β of a Cox-proportional hazards model with six selected clinical variables was optimized by maximizing the partial log-likelihood function. Then the global risks of death of patients in the test dataset were predicted from the optimized model. Prediction performance iAUC by the proposed method is 0.7671 although iAUC by Halabi’s model is 0.7429, which can be found in the ranking result of sub-challenge 1a in the web site of Prostate Cancer DREAM Challenge (https://www.synapse.org/ProstateCancerChallenge). This result demonstrated that the proposed prediction outperforms Halabi’s method by correctly selecting informative features.
Furthermore, survival times of patients were predicted using median times computed from the optimized hazard model. Figure 3(a) shows predicted values and observed values in the training dataset. This result demonstrates that the estimation of variance is large and the center of plotted data is located to the upper-left from the diagonal line, meaning that predicted values are biased. To improve these prediction errors, the median survival times were transformed by a linear model. Figure 3(b) shows the prediction result after this transformation. These figures demonstrate that the proposed prediction reduces both the estimation bias and variance. As a result, the root mean square error (RMSE) between true values and predictions is drastically improved, from 281.3 by median survival times to 198.7 by the proposed method. This prediction result in sub-challenge 1-b in the Prostate Cancer DREAM Challenge was ranked in the group of top-performers even though the global risk prediction result in sub-challenge 1a was worse than the best 10 performers.
This paper outlines a prediction method of global risks of mCRPC patients for sub-challenge 1a and that of survival time for sub-challenge 1b in the Prostate Cancer DREAM Challenge. The challenge result in sub-challenge 1b demonstrated that this procedure, which is based on the two-step feature selection and the correction of naïve survival time predictions from the optimized hazard model, outperformed the other teams’ methods. Especially, for survival time prediction, this correction method based on centering and reducing estimation variance works well to improve RMSE, the scoring metric of sub-challenge 1b. This analysis demonstrates that a naïve prediction from a basic model (Cox’s proportional hazards model) is not always optimal for an evaluation metric. Thus a suitable transformation is necessary to optimize the metric.
This paper also provides a two-step feature selection procedure because using only a single feature selection method leaves a lot of non-informative features. By carefully selecting features by this two-step procedure, the global risk prediction outperformed Halabi’s model4 in sub-challenge 1a. This result demonstrated that multiple feature selection procedures are necessary to screen out non-informative features. Future work includes the validation of informative clinical variables selected by not only of the method proposed here, but also other top-performing methods. Table 3 shows the comparison of our selected clinical variables with Halabi’s selected variables4. Both models selected ALP, ECOG_C and HB but neither our model nor Halabi’s model selected the other eight clinical variables. Although selection results depend on the datasets used, we should further investigate the importance of these clinical variables using knowledge in clinical and biological research areas.
Clinical Variables | Proposed Model | Halabi’s Model |
---|---|---|
ALB | × | ○ |
ALP | ○ | ○ |
ANALGESICS | × | ○ |
AST | ○ | × |
ECOG_C | ○ | ○ |
HB | ○ | ○ |
LDH | × | ○ |
LIVER | × | ○ |
MI | ○ | × |
PLT | ○ | × |
PSA | × | ○ |
The Challenge datasets can be accessed at: https://www.projectdatasphere.org/projectdatasphere/html/pcdc
Challenge documentation, including the detailed description of the Challenge design, overall results, scoring scripts, and the clinical trials data dictionary can be found at: https://www.synapse.org/ProstateCancerChallenge
The code and documentation underlying the method presented in this paper can be found at: http://dx.doi.org/10.7303/syn422926615
This work is partially supported by JSPS KAKENHI 25870322.
The funders had no role in study design, data collection and analysis, decision to publish, or preparation of the manuscript.
Datasets were kindly provided by Celgene, Sanofi, Memorial Sloan Kettering Cancer Center, AstraZeneca and compiled in the Project Data Sphere® platform. I acknowledge Sage Bionetworks and the organizers of Prostate Cancer DREAM Challenge to provide this interesting clinical data analysis throughout this challenge.
This publication is based on research using information obtained from www.projectdatasphere.org, which is maintained by Project Data Sphere, LLC. Neither Project Data Sphere, LLC nor the owner(s) of any information from the web site have contributed to, approved or are in any way responsible for the contents of this publication.
