Observation Article

Bringing experiential learning into the lecture theatre using 3D printed objects

[version 1; peer review: 2 approved with reservations]
PUBLISHED 13 Jan 2016
Author details Author details
OPEN PEER REVIEW
REVIEWER STATUS

This article is included in the Innovations and best practices in undergraduate education collection.

Abstract

The ability to conceptualize 3D shapes is central to understanding biological processes. The concept that the structure of a biological molecule leads to function is a core principle of the biochemical field. Conceptual teaching usually involves vocal explanations or using two dimensional slides or video presentations. A deeper understanding may be obtained by the handling of objects. 3D printed biological molecules can be used as active learning tools to stimulate engagement in large group lectures. These models can be used to build upon initial core knowledge which can be delivered in either a flipped form or a more didatic manner. Within the teaching session the students are able to learn by handling, rotating and viewing the objects to gain an appreciation of an enzyme’s active site or the structure of DNA for example. Models and other artefacts are handled in small groups and act as a focus for talking points to generate conversation. Through this approach core knowledge is first established and then supplemented with high level problem solving through a "Think-Pair-Share" cooperative learning strategy. The teaching delivery is adjusted based around experiential learning activities by moving the object from mental cognition and into a physical environment leading to student engagement in the lecture theatre and a dialog with the lecturer. The use of artefacts in teaching allows the lecturer to create interactive sessions that challenge and enable the student. This approach can be applied at all levels and across many disciplines.

Keywords

3D printing, Active Learning, Experiental Learning, Higher Education, Biomolecules

Introduction

Ability to conceptualize 3D shapes is central to the understanding of biological processes. The dogma that the structure of biological molecules leads to function is central to biochemical understanding and is a core principle of the field. For example how the binding site of enzymes catalyses a reaction or how the major groove of DNA allows specific interactions with transcription factors. Understanding of such concepts is often a requirement for accreditation by learned bodies such as the Society of Biology, 2013 and the Institute of Biomedical Science, 2010 (https://www.ibms.org/go/qualifications/ibms-courses/accreditation). Grounding in these concepts is often undertaken during the first year of study on the undergraduate courses within core modules in large group teaching environments. Students arrive with a range of experiences and prior knowledge ranging from the basic to more in-depth understanding of these topics.

Eysenck (2012) explains that within the teaching space students are required to imagine what would happen if an object was rotated or altered in a process known as "mental rotation". Although some students have the ability to picture 3D objects in their minds, this is not true for all. Even at higher levels fellow researchers have stated that they "can't conceptualise protein shapes in my mind".

Traditionally the knowledge required to understand 3D structure and related concepts have been presented through the use of PowerPoint slides; slides which are often heavy in text. PowerPoint slides represent objects two dimensionally and this is useful for detailing core knowledge. This approach however does not help the students develop more complex cognitive 3D mental rotation skills (Nigel, 2014). There is a danger that the activities are perceived to be content driven by using a two dimensional approach in which the students remain passive observers throughout the session. This approach affords a more superficial engagement with the subject, potentially promoting ‘surface learning’ behaviour, leading to poorer understanding (Biggs, 1999). This behaviourist approach has its merits under certain conditions such as when a large amount of content needs to be covered in a short amount of time (Woolfolk, 2009). However, this approach is restricted to the acquisition and learning of knowledge and can prevent access to higher tiers of learning (Anderson & Krathwohl, 2000; Bloom, 1956). An alternative to this approach is the inclusion of active learning in teaching sessions whereby students become involved in the learning and are engaged in activities leading to higher order thinking (analysis, synthesis, evaluation) (Bonwell, 1991). Presented here is one such approach where students handle physical 3D printed objects within a teaching setting.

Methodology

Within the research setting physical structural models of molecules have long-been used to help understand function. Models of the protein in question are often generated and handled in small group meetings as talking points to generate new hypotheses. This approach was adapted to large group teaching sessions with cohorts of 150 students in a standard tiered lecture theatre. Sessions using the models were delivered twice to the same students on their first year of study. Once in their first semester and once in the second semester of a two semester core Biochemistry module. The models have also been used in second year teaching when discussing DNA binding proteins within a Molecular Biology module. To encourage students to become engaged in the learning existing sessions were adapted to deliver base level learning supplemented with high level problem solving through the use of 3D printed models. The 3D printed molecules in question were linked to the core content and act as a focal point for learning. Models where created from the protein data bank (PDB) code 2LYZ (Lysozyme) and B-form of DNA was taken from the now defunct Glactone Pedagogical PDB collection. The PDB file was modified by the removal of the water molecules and the surface of the molecule was calculated in a molecular graphics program (Visual Molecular Dynamics 1.8.5). PDB files are also included as Supplementary material 1 and Supplementary material 2. The resulting files where rendered in a standard STL format using the (STL Plugin, Version 2.0) which is compatible with CAD and most 3D printers. STL files are also included as Supplementary material 3 and Supplementary material 4. Models used here were produced on a fused deposition modeling (FDM) Dimension sst 768 rapid prototyping 3D printer (Figure 1) and were approximately 2 × 2 × 4 cm. Paper based stereo images were also provided in the same session. The use of the 3D projection images also allowed the students to review and reflect on the learning at a later date and gave a focal point and prompt for later revision (Figure 2).


Figure 1. 3D printed models.

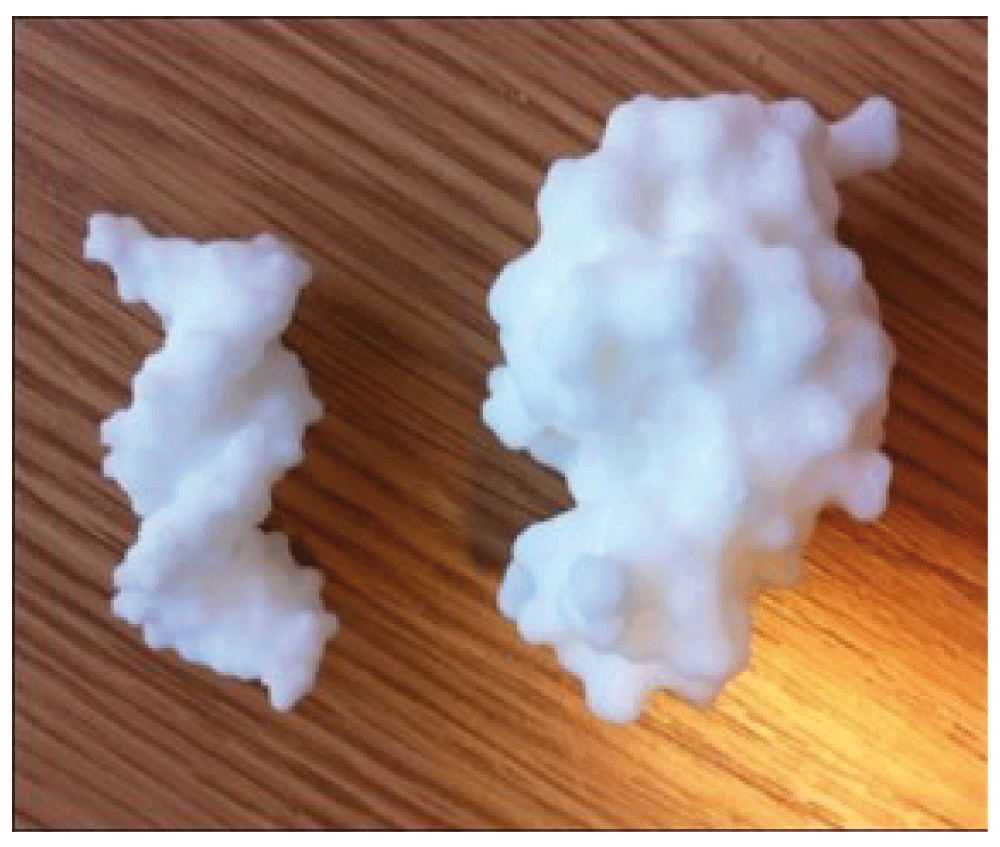

B-form DNA (right) and the enzyme lysozyme PDB: 2LYZ (left) used within the teaching session.


Figure 2. Handout example.

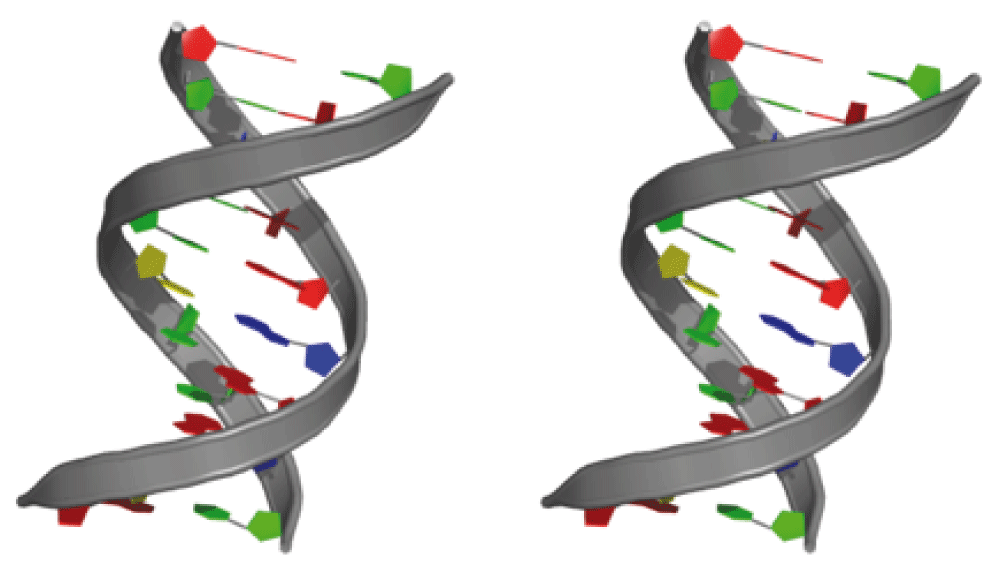

Cross eye stereo image: Instruction to students were gaze at the stereo pair, keeping your eyes level (don’t tilt your head left or right), and cross your eyes slightly so that the two images in the center come together. When they converge or fuse, you will see them as a single 3D image.

Sessions were structured so that taught content prepared the students for the experiential learning activities by first establishing core knowledge. This content gave the students the vocabulary to later describe the objects they would handle. The taught content laid foundation knowledge relating to how molecules such as enzymes perform reactions and to gain an appreciation of the structure of DNA. The active learning component was then included to placing the object out from mental cognition and into a physical environment. This was achieved by allowing the students to rotate and view objects physically through the handling of 3D printed models of these biomolecules. The overall teaching style follows a simplified form of Kolb’s experiential learning cycle (Kolb, 1984). This model is well-established in science based learning. As teachers and learners we are able to jump onto the cycle at any point but in order for it to be useful the stages must be followed in sequence. Learning can then be applied in new situations and subsequently built upon.

Thinking (abstract conceptualization)

New concepts were introduced through the use of slides, videos and written material. A range of media animations, web-based content and strong links to core texts were used. The "thinking" section of the lesson plan had prepared the students to identify key features of the models they would later handle.

Doing (active experimentation)

In order to develop a 3D understanding of biomolecules students were asked to handle printed models and apply their new knowledge and concepts through self-directed small group discussions (Figure 3). Questioning was centred on those features they could observe and was objective, such as: What do they feel like? What general shape do they have? What features can you observe? This encouraged student interaction as there was no wrong answers to the questions as it was personal observation.


Figure 3. Photograph.

Students handle the 3D printed molecules and were asked to identify structural features.

Feeling (concrete experience)

Through this approach core knowledge is first established which is then supplemented with high level problem solving through "Think-Pair-Share" cooperative learning strategies. Students are asked to think through questioning about an aspect of the object and discuss the answers with each other. Questions were asked that probed understanding, such as what are those bumps on the surface? What is the function of that groove? As such, learning is enhanced through the opportunities to elaborate on the ideas through conversation. I observed that this approach led to increased student engagement in the lecture theatre as the students are willing to talk with each other and the lecturer as confidence in their understanding increased.

Reflective observation

Finally the students are given time and encouraged to write on handouts in their own words the key points and note theories that have been discussed. (Figure 4). The handouts were structured such that the key learning objectives were recorded (handouts used can be found in Supplementary material 5). For example, students were asked to identify key features of the molecule in question and complete a question sheet where they were asked to identify structural features. In order for the students to take ownership of the knowledge, they discussed specific situations for how this information is used in practice. Examples where given from a research-informed context and were tailored to be course specific.


Figure 4. Handout example.

Handouts where designed that allowed the students to identify key features of the molecule in question and complete a question sheet. This ensured key learning objectives were recorded.

Conclusion

Access to 3D printing technology is becoming more wide spread as the costs associated with the technology drop and most institutes already have access to such printers. Active learning approaches are becoming increasing common place as teaching staff move away from didactic strategies (DesLauriers et al., 2011; Seery, 2015; Sharples et al., 2014).

The use of objects within the classroom is one such approach and, in evaluations conducted with my own students, they identify them as both engaging and informative. Students describe helpful visual aids such as “scale models" and "engaging lectures" with reference to previously produced 3D printed models. The students engage with the models which stimulate conversation rather than distract attention.

The use of objects, therefore, can be seen as a focal point for conversation and suggests there are similar applications to enhance other areas of teaching. Peers within the nursing team at my own university have considered the use of dolls as talking points for their students to support discussions about empathy. Such abstract learning environments dealing with relationships rather than facts and thinking situations in symbolic form can be pictured as an area of conceptual knowledge (Anderson & Krathwohl, 2000). Objects have also been used by peers in analytical chemistry teaching where parts of instruments help to develop understanding into drug detection when taken to the lecture theatre.

The use of artefacts in teaching opens new ways to challenge students. Teachers can create interactive sessions that challenge students to see artefacts through the lenses of mathematics, science, language, arts, and social studies. While the use of objects in both large and small group teaching is currently under researched and under reported, it has the potential to increase student engagement by facilitating active learning methods.
