Software Tool Article

GAC: Gene Associations with Clinical, a web based application

[version 1; peer review: 1 approved with reservations]

Xinyan Zhang¹, Manali Rupji¹, Jeanne Kowalski^1,2

PUBLISHED 03 Jul 2017

Author details Author details

¹ Winship Cancer Institute of Emory University, Atlanta, GA, 30322, USA
² Department of Biostatistics and Bioinformatics, Rollins School of Public Health, Emory University, Atlanta, GA, 30322, USA

Xinyan Zhang
Roles: Software, Writing – Original Draft Preparation, Writing – Review & Editing

Manali Rupji
Roles: Software, Writing – Original Draft Preparation, Writing – Review & Editing

Jeanne Kowalski
Roles: Conceptualization, Resources, Supervision, Writing – Review & Editing

OPEN PEER REVIEW

REVIEWER STATUS

This article is included in the RPackage gateway.

Abstract

We present GAC, a shiny R based tool for interactive visualization of clinical associations based on high-dimensional data. The tool provides a web-based suite to perform supervised principal component analysis (SuperPC), an approach that uses both high-dimensional data, such as gene expression, combined with clinical data to infer clinical associations. We extended the approach to address binary outcomes, in addition to continuous and time-to-event data in our package, thereby increasing the use and flexibility of SuperPC. Additionally, the tool provides an interactive visualization for summarizing results based on a forest plot for both binary and time-to-event data. In summary, the GAC suite of tools provide a one stop shop for conducting statistical analysis to identify and visualize the association between a clinical outcome of interest and high-dimensional data types, such as genomic data. Our GAC package has been implemented in R and is available via http://shinygispa.winship.emory.edu/GAC/. The developmental repository is available at https://github.com/manalirupji/GAC.

Keywords

SuperPC, binary outcome, continuous, time-to-event, forest plot,

Corresponding author: Jeanne Kowalski

Competing interests: No competing interests were disclosed.

Grant information: Research reported in this publication was supported in part by the Biostatistics and Bioinformatics Shared Resource of Winship Cancer Institute of Emory University and NIH/NCI under award number P30CA138292. The content is solely the responsibility of the authors and does not necessarily represent the official views of the National Institutes of Health.

Copyright: © 2017 Zhang X et al. This is an open access article distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited.

How to cite: Zhang X, Rupji M and Kowalski J. GAC: Gene Associations with Clinical, a web based application [version 1; peer review: 1 approved with reservations]. F1000Research 2017, 6:1039 (https://doi.org/10.12688/f1000research.11840.1) First published: 03 Jul 2017, 6:1039 (https://doi.org/10.12688/f1000research.11840.1) Latest published: 15 Feb 2018, 6:1039 (https://doi.org/10.12688/f1000research.11840.4)

Introduction

Heterogeneity in terms of tumor characteristics, prognosis, and survival among cancer patients has been a persistent problem for many decades. Currently, prognosis and outcome predictions are solely based on clinical factors. However, inaccurate prognosis and prediction may result from using only these. For example, based on clinical factors only, two tumor patients may have the same prognosis, but may not respond to the same treatment as the tumors may have a completely different molecular composition^1–5.

One way to improve prognosis and clinical outcome predictions in cancer is to examine such associations using a tumor’s genomic profile. To achieve this goal, Bair and Tibshirani⁶ proposed a supervised principal component (SuperPC) method to identify subtypes of cancer. The method uses both gene expression and clinical data to diagnose future patients. This approach was applied to several publicly available datasets, showing that it was able to accurately predict the clinical outcome of interest based on a given gene expression profile. Since its inception, SuperPC has been introduced as a powerful tool for cancer diagnosis and treatment.

Currently, the SuperPC method has been developed as an R package, ‘superpc’ but as it stands, it is unable to address the following:

1) clinical association based on a binary outcome (e.g. responders versus non-responders);
2) ease of use for clinicians and researchers with limited programming skills; and
3) a visual summary of results.

To address these limitations, we developed GAC: Gene Association with Clinical, an interactive, GUI-based web-based application for analysis of gene associations with various clinical outcomes of interest. We developed GAC based on the R packages ‘shiny’ and ‘superpc’. Our GAC tool enables the user to perform a SuperPC analysis for three types of outcomes: time-to-event, continuous, and binary, and provides a summary of results using forest plots that may be readily exported into a file.

Methods

Supervised principal component analysis

SuperPC is a generalization of principal component analysis, which generates a linear combination of the features or variables of interest that capture the directions of largest variation in a dataset. Instead of using the whole dataset directly, SuperPC defines a list of genes based on their association with an outcome of interest. To select the list of genes, a univariate score for each gene is calculated and those features (a.k.a., genes) whose score exceeds a threshold are retained as input into a principal component analysis, based on the retained features. For details, refer to Bair and Tibshirani⁶.

Time-to-event outcome

SuperPC for time-to-event was conducted using the ‘superpc’ package in R. Depending on the sample size of the original dataset; the researcher selects what proportion of the dataset to split into training and testing. The researcher can also specify how many numbers to test to check which the optimal threshold is. The number of folds for cross validation to determine the threshold also needs to be determined. There is also an option to run the analysis randomly, or upload fold IDs to replicate an analysis that was previously carried out. The association between the time-to-event outcome and the predicted principal component may be represented in a KM plot by dichotomizing the principal component using the median (Figure 1).

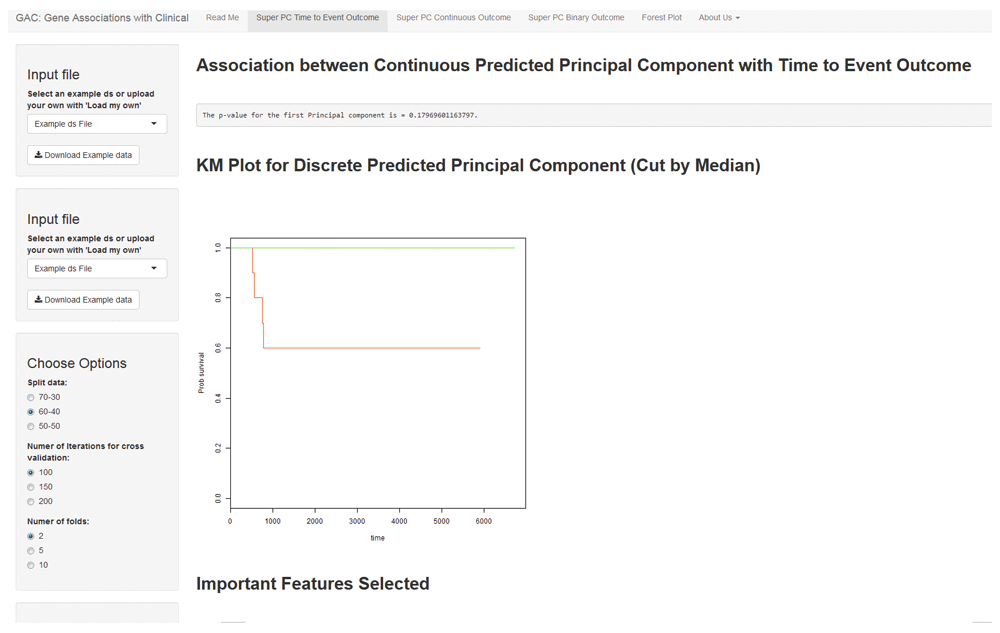

Figure 1. SuperPC time-to-event outcome.

The interface shows an example SuperPC for time-to-event outcome. The left panel allows the user to select the various options such as data split, the optimal threshold, number of folds and a choice of generating new fold IDs or using a pre-existing set to replicate results. The right panel includes the results of the analysis. The KM plot displays the association of the outcome with the predicted principal component by the median. In addition, the univariate analysis regression scores and tables are also available for download.

Continuous outcome

SuperPC for continuous outcomes is implemented using the ‘superpc’ package in R, with the same options as time-to-event analysis. The predicted principal component is presented visually as continuous values through a scatter plot along with Pearson’s correlation (Figure 2). The predicted principal component could also be presented as binary groups (cutoff at median) through a boxplot, with a t-test applied.

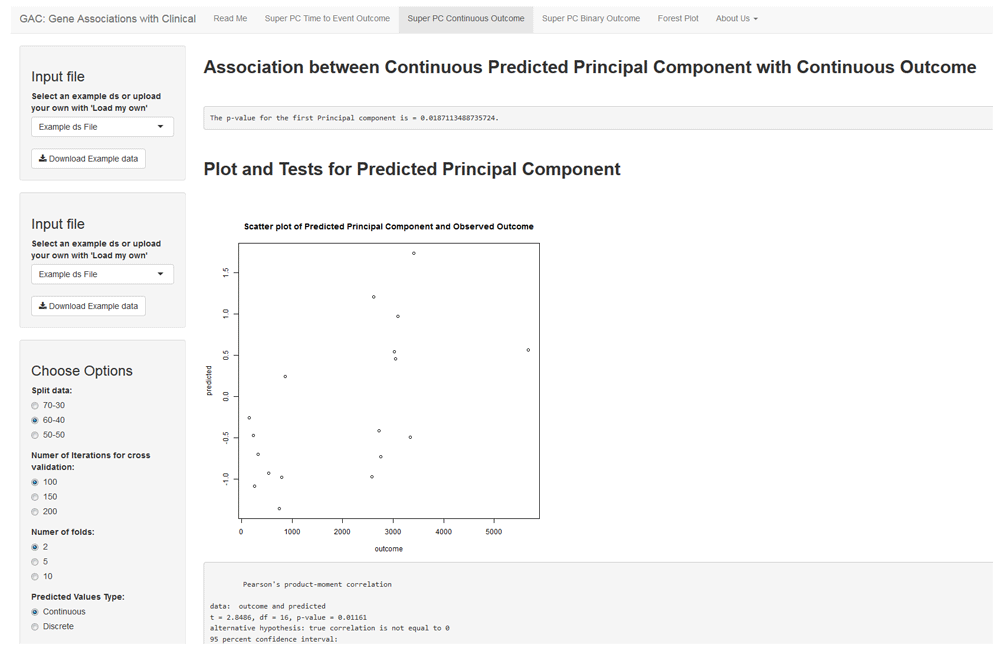

Figure 2. SuperPC continuous outcome.

The interface shows an example SuperPC for continuous outcome. Similar to Figure 1, the user can choose the appropriate settings using the left panel and view the results of the analysis to the right. The association of the continuous outcome with the predicted principal component is summarized using a scatter plot (as seen). The user can alternatively choose to summarize these results through boxplots by dichotomizing the predicted principal component based on the median. As in Figure 1, the univariate regression scores and plots are available for download in the left panel.

Binary outcome

SuperPC for binary outcome follows the same analysis workflow as the other two outcomes. The predicted principal component can be visualized as either a continuous variable through a box plot, with a t-test to summarize the statistical association (Figure 3), or as binary groups (cutoff at median) using a bar plot, with a chi-square test to summarize the statistical association between the predicted and the observed outcome.

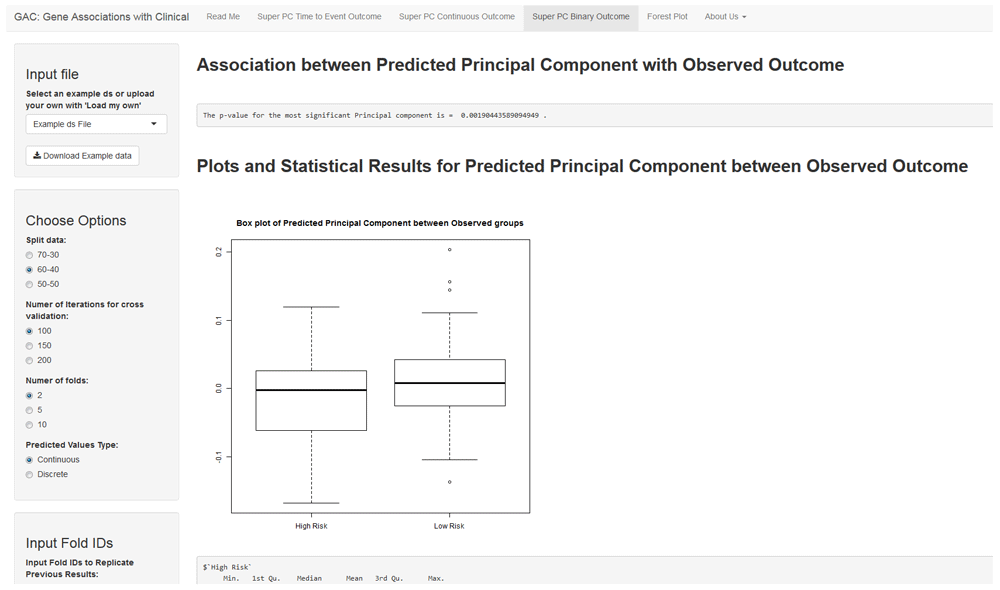

Figure 3. SuperPC binary outcome.

The interface shows an example SuperPC for binary outcome. The user can opt for similar options as in the previous figures. Also, as in Figure 2, the user has a choice to display the continuous predicted principal component as a scatter plot, or divide it into binary discrete groups (using median cut-off) to represent the association through a barplot. Similar download options are available.

Forest plot

A forest plot is a graphical display of point estimates of association widely used in meta-analysis. It has become popular for displaying the associations between clinical and genomic data. With our GAC tool, users have the option to generate a forest plot to display results (Figure 4).

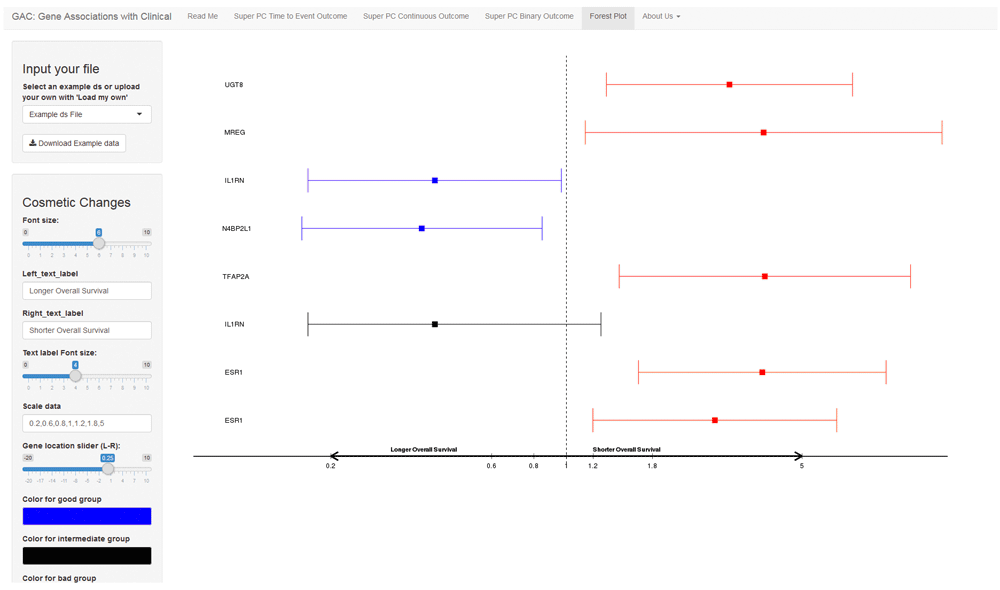

Figure 4. Forest plot.

The interface shows an example forest plot. The left side comprises a user menu and the right includes the result plot. Users can upload their own summarized results with hazard ratio and confidence intervals for the survival outcome, or odds ratio and confidence intervals for the binary outcome. For graphical display, the researchers could choose to input different labels, font sizes and colors.

Implementation

The GAC tool is written in R and tested using version 3.3.0. The interactive plots and data tables are made available using the shiny R package (www.rstudio.com/shiny).

Operation

Using a windows 7 Enterprise SP1 PC with a 32.0 GB RAM and a 3.30 GHz Intel^® Xeon^® Processor E5 Family, the time-to-event and regression analysis with 45 patients from the TCGA BRCA dataset was completed in 2.54 s and 1.80 s, respectively. The binary outcome analysis using the CoMMPass data of 135 patients was completed in 65.05 s. Source code is available at https://doi.org/10.5281/zenodo.803309.

Discussion

GAC is a suite of tools that allows the user to conduct statistical analysis to identify and visualize the association between clinical outcomes of interest and genomic data using an interactive application in R.

Data and software availability

For SuperPC time-to-event and regression analysis, we used TCGA BRCA RNASeqV2 gene expression and clinical data, downloaded from the TCGA data portal (now accessed at https://portal.gdc.cancer.gov/)⁷. The data included 380 differentially expressed genes when favorable (patients who did not die with at least 7 years of follow up) and unfavorable (patients who died 30 months post-treatment) outcomes from 45 patients were compared.

For SuperPC binary outcome analysis, CoMMPass IA9 RNASeq expression and clinical data was downloaded from the publicly available Multiple Myeloma Research Foundation (MMRF) database (https://research.themmrf.org/rp/download). Patient cytogenetics for outcome dichotomization was obtained from the MMRF data portal’s ‘Analysis Tools’ section (https://research.themmrf.org/rp/explore/). 135 patients with clinical, gene expression and copy number data were classified as high risk based on cytogenetics and the remaining 343 as not high risk. Among these patients, the top 1450 most variable genes were used.

The example data used in this article is available in Zenodo (https://doi.org/10.5281/zenodo.803309).

License: GAC is available under the GNU public license (GPL-3).

Competing interests

No competing interests were disclosed.

Grant information

Research reported in this publication was supported in part by the Biostatistics and Bioinformatics Shared Resource of Winship Cancer Institute of Emory University and NIH/NCI under award number P30CA138292. The content is solely the responsibility of the authors and does not necessarily represent the official views of the National Institutes of Health.

Faculty Opinions recommended

References

1. Alizadeh AA, Eisen MB, Davis RE, et al.: Distinct types of diffuse large B-cell lymphoma identified by gene expression profiling. Nature. 2000; 403(6769): 503–11. PubMed Abstract | Publisher Full Text
2. Sørlie T, Perou CM, Tibshirani R, et al.: Gene expression patterns of breast carcinomas distinguish tumor subclasses with clinical implications. Proc Natl Acad Sci U S A. 2001; 98(19): 10869–74. PubMed Abstract | Publisher Full Text | Free Full Text
3. van 't Veer LJ, Dai H, van de Vijver MJ, et al.: Gene expression profiling predicts clinical outcome of breast cancer. Nature. 2002; 415(6871): 530–6. PubMed Abstract | Publisher Full Text
4. van de Vijver MJ, He YD, van't Veer LJ, et al.: A gene-expression signature as a predictor of survival in breast cancer. N Engl J Med. 2002; 347(25): 1999–2009. PubMed Abstract | Publisher Full Text
5. Lapointe J, Li C, Higgins JP, et al.: Gene expression profiling identifies clinically relevant subtypes of prostate cancer. Proc Natl Acad Sci U S A. 2004; 101(3): 811–6. PubMed Abstract | Publisher Full Text | Free Full Text
6. Bair E, Tibshirani R: Semi-supervised methods to predict patient survival from gene expression data. PLoS Biol. 2004; 2(4): E108. PubMed Abstract | Publisher Full Text | Free Full Text
7. NCI and NHGRI: The Cancer Genome Atlas (TCGA) Data Portal. Accessed in December 2015. Reference Source
