Unexpected results in Chernozem soil respiration while measuring the effect of a bio-fertilizer on soil microbial activity

[version 1; peer review: 1 approved, 1 approved with reservations]
PUBLISHED 03 Nov 2017
Author details Author details
OPEN PEER REVIEW
REVIEWER STATUS

Abstract

The number of studies investigating the effect of bio-fertilizers is increasing because of their importance in sustainable agriculture and environmental quality. In our experiments, we measured the effect of different fertilizers on soil respiration. In the present study, we were looking for the cause of unexpected changes in CO2 values while examining Chernozem soil samples. We concluded that CO2 oxidizing microbes or methanotrophs may be present in the soil that periodically consume CO2 . This is unusual for a sample taken from the upper layer of well-ventilated Chernozem soil with optimal moisture content.

Keywords

bio-fertilizer, soil respiration, Chernozem, OxiTop

Introduction

Research related to the benefits of microbes as biofertilizer has become increasingly important in the agricultural sector. This is due to their potential role in achieving higher crop yields while minimizing negative impact on the environment. It is well known that bio-fertilizers increase plant yield and improve soil fertility13. Soil respiration is an important indicator of soil microbial activity46. In our experiments, we measured the effect of different chemicals79 and a bio fertilizer on soil microbial activity, using both well-established and novel methods under laboratory conditions. We present some unexpected results from a setup in which Chernozem soil samples were examined.

Methods

The phylazonit bio-fertilizer (produced by Phylazonit.Ltd, Hungary) was used for testing (15 l/ha). It has the following composition: Bacillus megaterium, Bacillus circulans, Pseudomonas putida, in an optimized ratio for soil injection. Number of bacteria: 109 piece/cm3.

A total of 24 soil samples were collected near Debrecen, Hungary on the 19th April 2016, from an upper layer (0–20 cm) of Chernozem soil (47° 33’ 55.36” N; 21° 28’ 12.27” E). All samples had optimum moisture content with 19–21 percent. Soil moisture content was determined gravimetrically by drying the soil at 105 degrees C for 24 hours according to Klimes-Szmik, 197010. The experimental design was completely randomized, treatments were applied at 25 °C. An OxiTop OC110 respirometer was used to quantify the release and capture of CO2, automatically determined by the device after the biological oxygen demand (BOD) required for the degradation of organic matter has been measured. We used a 500 ml glass bottle system, following the protocol in the manual (https://www.wtw.com/en/service/downloads/operating-manuals.html). 10g of soil sample were placed into OxiTop flasks, capped with the sensor heads according to Barrales-Brito et al., 201411. 2.5 g of CO2 absorber (sodalime) were then added to a tank, to absorb the generated CO2 according to Barrales-Brito et al., 201411. Induced samples were given 0.1g of glucose . Each treatment was replicated four times. As Figure 1 shows, four samples were always measured in parallel: Absolute control (does not contain fertilizer, nor added glucose), Induced control (contains added glucose), Treated (contains bio-fertilizer) and Induced treated (contains bio-fertilizer and glucose). The Oxitop automatically provides the values related to CO2 production.

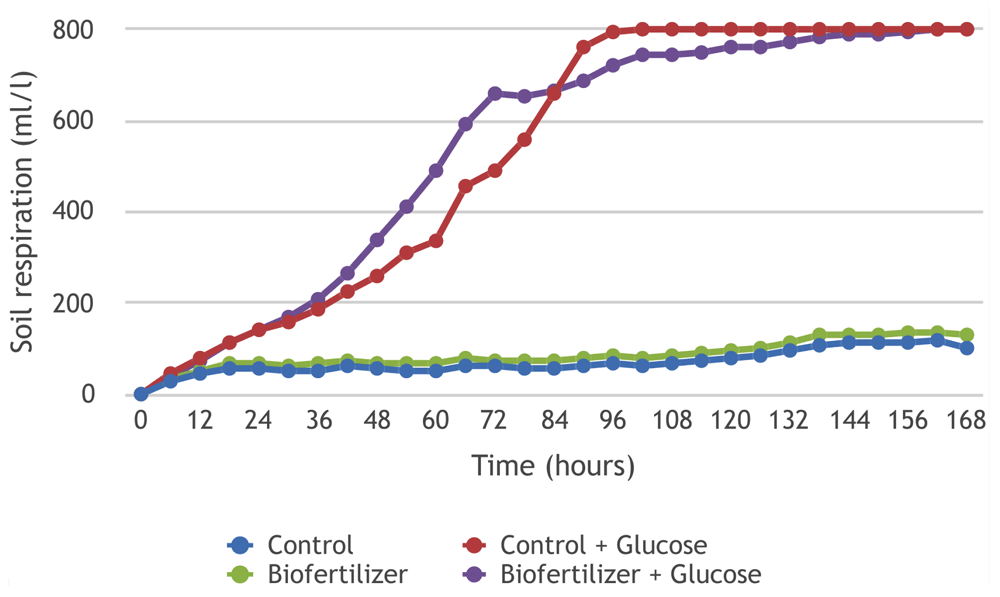

Figure 1. Differences in CO2 production of treated and control soil samples.

The induced method was also applied in order to differentiate between the control and the treated soil samples to become detectable sooner. Glucose was applied as inducer. As expected the CO2 values increase or stagnate.

Results

The treated samples produced more CO2 than the controls, as expected. Each repeat with the exception of one showed growing CO2 values (Figure 1), as the pressure continuously decreased in the bottle due to gas (oxygen) consumption. One sample produced unexpected results (Figure 2). In the first 12 hours, the treated samples produced more CO2 than the controls in each measurement. Following this, a fluctuation in the values was observed.

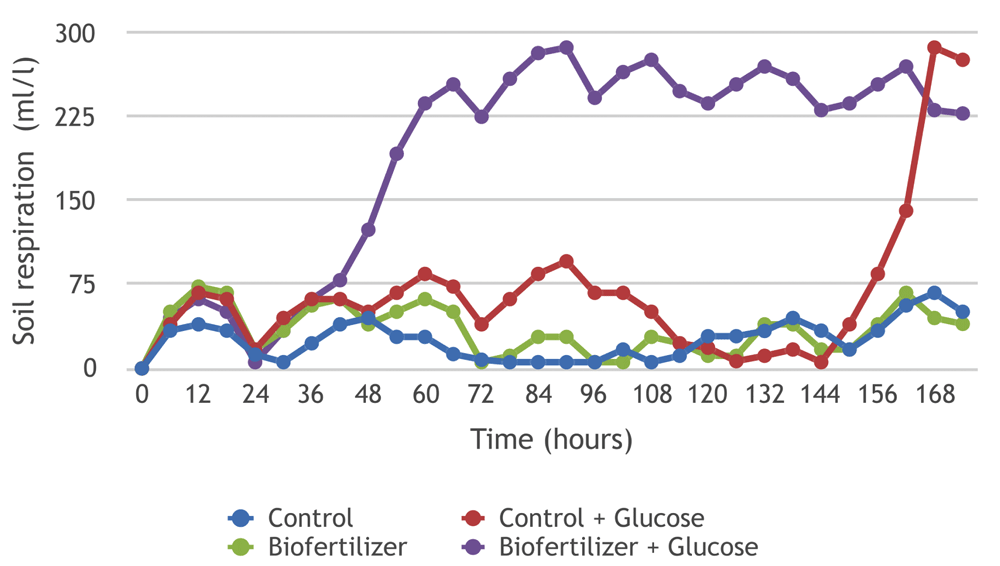

Figure 2. This sample shows CO2 values periodically decreasing in all conditions.

After examining the Oxitop device’s operation, this pattern became more interesting for us, as the device quantifies CO2 production by measuring BOD required for the degradation of organic matter. From the decreasing CO2 values, we conclude that there was oxygen production and/or CO2 consumption in the Oxitop bottles.

Dataset 1.Average values for a number of different soil properties.
Dataset 2.Average values of produced CO2 (ml/l) with different treatments. ’Control’ does not contain fertilizer, nor added glucose. ’Control+Glucose’ contains 0,1 g of added glucose. ’Biofertilizer’ contains Phylazonit biofertilizer. ’Biofertilizer+Glucose’ contains Phylazonit biofertilizer and 0,1 g of added glucose.
Dataset 3.Comparison of produced CO2 (ml/l) in the sample in which unexpected (periodically decreasing CO2 ) values can be observed. ’Control’ does not contain fertilizer, nor added glucose. ’Control+Glucose’ contains 0,1 g of added glucose. ’Biofertilizer’ contains Phylazonit bio-fertilizer. ’Biofertilizer+Glucose’ contains Phylazonit bio-fertilizer and 0,1 g of added glucose.

Discussion

In a closed system where the pressure decreases due to oxygen consumption, the values must increase or stagnate with the passage of time, but this was not the case with one of the samples (Figure 2). Here, a decrease in CO2 occurred. The following possible reasons were excluded:

  • Presence of algae: there was no light in the incubator, so there was no photosynthesis.

  • Changing pressure caused by changing temperature: the temperature was constant in the setup.

  • Absorption by the water in the sample: all other samples that produced increasing amount of CO2 had the same or comparable moisture content.

One reason that seemed more likely was that CO2 oxidizing microbes or methanotrophs may have been present in the soil, periodically using the produced CO2. This is unusual since most of studies report the presence of these bacteria in seawater12, paddy fields13 or industrial processes14 and not in well-ventilated Chernozem soil. Further genomics research could detect the bacterial strains that consumed the CO2 in this soil.

Data availability

Dataset 1: Average values for a number of different soil properties. DOI, 10.5256/f1000research.12936.d18265515.

Dataset 2: Average values of produced CO2 (ml/l) with different treatments. ’Control’ does not contain fertilizer, nor added glucose. ’Control+Glucose’ contains 0,1 g of added glucose. ’Biofertilizer’ contains Phylazonit bio-fertilizer. ’Biofertilizer+Glucose’ contains Phylazonit bio-fertilizer and 0,1 g of added glucose. DOI, 10.5256/f1000research.12936.d18266316.

Dataset 3: Comparison of produced CO2 (ml/l) in the sample in which unexpected (periodically decreasing CO2) values can be observed. ’Control’ does not contain fertilizer, nor added glucose. ’Control+Glucose’ contains 0,1 g of added glucose. ’Biofertilizer’ contains Phylazonit bio-fertilizer. ’Biofertilizer+Glucose’ contains Phylazonit bio-fertilizer and 0,1 g of added glucose. DOI, 10.5256/f1000research.12936.d18266417.

Comments on this article Comments (0)

Version 2
VERSION 2 PUBLISHED 03 Nov 2017
Comment
Author details Author details
Competing interests
Grant information
Copyright
Download

Export To
metrics
Views Downloads
F1000Research - -
PubMed Central
Data from PMC are received and updated monthly.
- -
Citations
CITE
how to cite this article
Bautista G and Mátyás B. Unexpected results in Chernozem soil respiration while measuring the effect of a bio-fertilizer on soil microbial activity [version 1; peer review: 1 approved, 1 approved with reservations]. F1000Research 2017, 6:1950 (https://doi.org/10.12688/f1000research.12936.1)
NOTE: If applicable, it is important to ensure the information in square brackets after the title is included in all citations of this article.
track
receive updates on this article
Track an article to receive email alerts on any updates to this article.

Open Peer Review

Current Reviewer Status: ?
Key to Reviewer Statuses VIEW
ApprovedThe paper is scientifically sound in its current form and only minor, if any, improvements are suggested
Approved with reservations A number of small changes, sometimes more significant revisions are required to address specific details and improve the papers academic merit.
Not approvedFundamental flaws in the paper seriously undermine the findings and conclusions
Version 1
VERSION 1
PUBLISHED 03 Nov 2017
Views
22
Cite
Reviewer Report 29 Nov 2017
Muhammad Aslam Ali, Department of Environmental Science, Bangladesh Agricultural University, Mymensingh, Bangladesh
Approved with Reservations
VIEWS 22
1. Why did the authors select Phylazonit biofertilizer?  Does it contain any methanotrophs bacterial spp. or any electron acceptors? Didn’t find the composition.
2. Why not investigate the CO2 production rate with varying levels such as 0.5%, 1% and ... Continue reading
CITE
CITE
HOW TO CITE THIS REPORT
Ali MA. Reviewer Report For: Unexpected results in Chernozem soil respiration while measuring the effect of a bio-fertilizer on soil microbial activity [version 1; peer review: 1 approved, 1 approved with reservations]. F1000Research 2017, 6:1950 (https://doi.org/10.5256/f1000research.14027.r27583)
NOTE: it is important to ensure the information in square brackets after the title is included in all citations of this article.
  • Author Response 18 Dec 2017
    Gabriela Bautista, Grupo de Investigación Mentoria y Gestión del Cambio, Universidad Politécnica Salesiana, Cuenca, Ecuador
    18 Dec 2017
    Author Response
    Dear Prof. Muhammad Aslam Ali

    We are trying to answer your questions, and submit a second version of the manuscript in order to clarify the following points.

    1. Why ... Continue reading
COMMENTS ON THIS REPORT
  • Author Response 18 Dec 2017
    Gabriela Bautista, Grupo de Investigación Mentoria y Gestión del Cambio, Universidad Politécnica Salesiana, Cuenca, Ecuador
    18 Dec 2017
    Author Response
    Dear Prof. Muhammad Aslam Ali

    We are trying to answer your questions, and submit a second version of the manuscript in order to clarify the following points.

    1. Why ... Continue reading
Views
23
Cite
Reviewer Report 20 Nov 2017
Ankit Singla, Regional Centre of Organic Farming, Bhubaneswar, Odisha, India
Approved
VIEWS 23
Bautista and Matyas observed unexpected results in Chernozem soil respiration following the different fertilizer treatments. I think, the values of Dataset 2 could be directly included in the main content of the paper, if possible. The title of Dataset 1 ... Continue reading
CITE
CITE
HOW TO CITE THIS REPORT
Singla A. Reviewer Report For: Unexpected results in Chernozem soil respiration while measuring the effect of a bio-fertilizer on soil microbial activity [version 1; peer review: 1 approved, 1 approved with reservations]. F1000Research 2017, 6:1950 (https://doi.org/10.5256/f1000research.14027.r27580)
NOTE: it is important to ensure the information in square brackets after the title is included in all citations of this article.
