The PathLinker app: Connect the dots in protein interaction networks

[version 1; peer review: 1 approved, 2 approved with reservations]

Daniel P. Gil¹, Jeffrey N. Law², T. M. Murali^1,3

PUBLISHED 20 Jan 2017

Author details Author details

¹ Department of Computer Science, Virginia Tech, Blacksburg, USA
² Genetics, Bioinformatics, and Computational Biology, Virginia Tech, Blacksburg, USA
³ ICTAS Center for Systems Biology of Engineered Tissues, Virginia Tech, Blacksburg, USA

OPEN PEER REVIEW

REVIEWER STATUS

This article is included in the Bioinformatics gateway.

This article is included in the Cytoscape gateway.

Abstract

PathLinker is a graph-theoretic algorithm for reconstructing the interactions in a signaling pathway of interest. It efficiently computes multiple short paths within a background protein interaction network from the receptors to transcription factors (TFs) in a pathway. We originally developed PathLinker to complement manual curation of signaling pathways, which is slow and painstaking. The method can be used in general to connect any set of sources to any set of targets in an interaction network. The app presented here makes the PathLinker functionality available to Cytoscape users. We present an example where we used PathLinker to compute and analyze the network of interactions connecting proteins that are perturbed by the drug lovastatin.

Keywords

signaling pathways, pathway reconstruction, protein interaction networks, PathLinker, Cytoscape, k-shortest paths

Corresponding author: T. M. Murali

Competing interests: No competing interests were disclosed.

Grant information: The National Institute of General Medical Sciences of the National Institutes of Health grant R01-GM095955 (TMM) and National Science Foundation (NSF) grant DBI-1062380 (TMM) supported this work.

The funders had no role in study design, data collection and analysis, decision to publish, or preparation of the manuscript.

Copyright: © 2017 Gil DP et al. This is an open access article distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited.

How to cite: Gil DP, Law JN and Murali TM. The PathLinker app: Connect the dots in protein interaction networks [version 1; peer review: 1 approved, 2 approved with reservations]. F1000Research 2017, 6:58 (https://doi.org/10.12688/f1000research.9909.1) First published: 20 Jan 2017, 6:58 (https://doi.org/10.12688/f1000research.9909.1) Latest published: 20 Jan 2017, 6:58 (https://doi.org/10.12688/f1000research.9909.1)

Introduction

Signaling pathways are a cornerstone of systems biology. While several databases store high-quality representations of these pathways, they require time-consuming manual curation. PathLinker is an algorithm that automates the reconstruction of any human signaling pathway by connecting the receptors and transcription factors (TFs) in that pathway through a physical and regulatory interaction network¹. In previous work, we have demonstrated that PathLinker achieved much higher recall (while maintaining reasonable precision) than several other methods¹. Furthermore, it was the only method that could control the size of the reconstruction while ensuring that receptors were connected to TFs in the result. We have also experimentally validated PathLinker’s novel finding that CFTR, a transmembrane protein, facilitates the signaling from receptor tyrosine kinase Ryk to the phosphoprotein Dab2, which controls signaling to β-catenin in the Wnt pathway¹. These encouraging results suggest that PathLinker may serve as a powerful approach for discovering the structure of poorly studied processes and prioritizing both proteins and interactions for experimental study.

More generally, PathLinker can be useful for connecting sources to targets in protein networks, a problem that has been the focus of many studies in the past^2–8. Applications have included explaining high-throughput measurements of the effects of gene knockouts^9,10, discovering genomic mutations that are responsible for changes in downstream gene expression^11,12, studying crosstalk between different cellular processes^13,14, and linking environmental stresses through receptors to transcriptional changes⁸.

In this paper, we describe a Cytoscape app that implements the PathLinker algorithm. We describe in detail a use case where we employ PathLinker to analyze the Environmental Protection Agency’s ToxCast data. Specifically, we compute and analyze the network of interactions connecting proteins that are perturbed in this dataset by lovastatin, a drug used to lower cholesterol. We conclude by comparing PathLinker to other path-based Cytoscape apps.

Methods

Implementation

PathLinker requires three inputs (Figure 1): a (directed) network G, a set S of sources, and a set T of targets. Each element of S and T must be a node in G. Each edge in G may have a real-valued weight. The primary algorithmic component of PathLinker is the computation of the k best-scoring loopless paths in the network from any source in S to any target in T (Figure 1). By loopless, we mean that a path contains any node at most once. The definition of the score of a path depends on the interpretation of the edge weights, as described in “Operation.” PathLinker computes the k-highest scoring paths by integrating Yen’s algorithm¹⁵ with the A* heuristic, which allows very efficient computation for very large k values, e.g., 20,000, on networks with hundreds of thousands of edges¹; see Table 2 below for statistics on the running time. PathLinker outputs the sub-network composed of the k best paths.

Figure 1. Overview of PathLinker.

In this figure, PathLinker computes five paths from receptors (blue diamonds) to TFs (yellow squares) and ranks each node and edge by the index of the first path that contains it.

Table 1. The top 15 functional enrichment results from the ClueGO app for the Lovastatin network computed by PathLinker.

The column titled “# of Genes” displays the number of genes in the PathLinker network that are annotated to that GO term/pathway. The column titled “% Associated Genes” shows the percentage of genes annotated to that term/pathway that are in the PathLinker network.

Ontology Source	Ontology Term	Corrected p-value	# of Genes	% Associated Genes
GO	cellular response to peptide hormone stimulus	3.17 × 10^–21	22	4.1%
GO	response to insulin	6.18 × 10^–19	20	4.1%
KEGG	ErbB signaling pathway	6.95 × 10^–17	12	13.7%
GO	Fc receptor signaling pathway	1.62 × 10^–15	17	4.0%
GO	insulin receptor signaling pathway	2.62 × 10^–15	16	4.6%
KEGG	AGE-RAGE signaling pathway in diabetic complications	3.35 × 10^–14	11	10.8%
KEGG	T cell receptor signaling pathway	4.62 × 10^–14	11	10.5%
KEGG	Focal adhesion	5.26 × 10^–14	13	6.4%
KEGG	Chronic myeloid leukemia	7.28 × 10^–14	10	13.6%
KEGG	Acute myeloid leukemia	5.73 × 10^–13	9	15.7%
GO	DNA-templated transcription, initiation	1.55 × 10^–12	14	4.1%
KEGG	Prolactin signaling pathway	5.14 × 10^–12	9	12.5%
GO	positive regulation of T cell activation	8.00 × 10^–12	12	5.2%
KEGG	Chemokine signaling pathway	2.98 × 10^–11	11	5.8%
KEGG	FoxO signaling pathway	3.55 × 10^–11	10	7.4%

Table 2. Time taken by the PathLinker app using lovastatin’s and each pathway’s set of sources and targets for increasing values of k.

Pathway	Lovastatin	TNFα Pathway	TGFβ Pathway	Wnt Pathway
# of sources	3	4	5	14
# of targets	5	44	77	14
k	time (sec)
100	3.6	3.3	4.7	5.2
1,000	9.8	7.7	10.5	13.8
10,000	94.3	86.0	116.8	144.4

One of the first steps in Yen’s algorithm is to compute the shortest path from T to S. Initially, we implemented this step by running Dijkstra’s algorithm after reversing G. Reversing the network using the Cytoscape API proved to be time costly. Therefore, we modified our implementation of Dijkstra’s algorithm to traverse edges from target to source. Yen’s algorithm periodically requires the temporary removal of edges from the network. However, it transpires that using the Cytoscape API to delete and add edges is inefficient. Therefore, we maintain a set of "hidden edges," which our implementation of Yen’s algorithm ignores. When PathLinker completes, the app renders the computed network using the built-in hierarchical layout, if k ≤ 200. Since this layout renders the network upside down, i.e., with source nodes at the bottom and target nodes at the top, we reflected node coordinates around the x-axis before displaying the layout.

Operation

We have implemented PathLinker in Java 7. We have tested it with Cytoscape v3.2, 3.3, and 3.4. PathLinker requires a network to be already loaded in Cytoscape. To run PathLinker on the currently selected network, the user needs to fill in the inputs and press the “Submit” button. The input panel has three sections (Figure 2(a)):

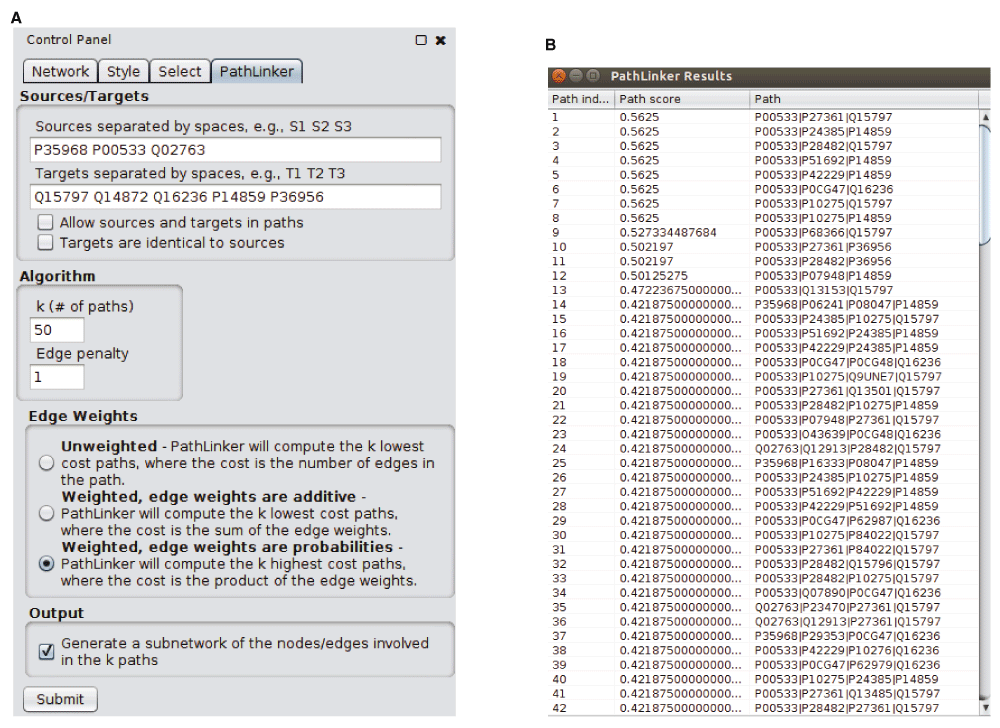

Figure 2. PathLinker screenshots.

(a) The input panel for the app. (b) PathLinker lovastatin results (described in “Use Case”).

Sources/Targets: The names of the sources and the targets, separated by spaces. If there are sources or targets that are not nodes in the network, PathLinker will warn the user, identify the errant nodes, and ask the user for permission to continue with the remaining nodes. If none of the sources or none of the targets are in the network, PathLinker will exit. There are two options here:
- Allow sources and targets in paths: Normally, PathLinker removes incoming edges to sources and outgoing edges from targets before computing paths. If the user selects this option, PathLinker will not remove these edges. Therefore, source and target nodes can appear as intermediate nodes in paths computed by PathLinker.
- Targets are identical to sources: If the user selects this option, PathLinker will copy the sources to the targets field. This option allows the user to compute a subnetwork that connects a single set of nodes. In this case, PathLinker will allow sources and targets to appear in paths, i.e., it will behave as if the previous option is also selected. Note that since PathLinker computes loopless paths, if the user inputs only a single node and selects this option, PathLinker will not compute any paths at all.
Algorithm: There are two parameters here.
- k: the number of paths the user seeks. The default is k = 200. If the user inputs an invalid value (e.g., a negative number or a non-integer), PathLinker will use the default value.
- Edge penalty: This value is relevant only when the network has edge weights. In the case of additive edge weights, PathLinker will penalize each path by a factor equal to the product of the number of the edges in the path and the value of this parameter. In other words, each edge in the path will increase the cost of the path by the value of this parameter. When edge weights are multiplicative, PathLinker performs the same penalization but only after transforming the weights and the edge penalty to their logarithms. The default value is one for multiplicative weights and zero for the other two cases.
Edge weights: There are three options for the edge weights to be used in the algorithm:
- No weights: The score of a path is the number of edges in it. PathLinker computes the k paths of lowest score.
- Edge weights are additive: The score of a path is the sum of the weights of the edges in it. PathLinker computes the k paths of lowest score in this case as well.
- Edge weights are probabilities: This situation arises often with protein interactions networks, since such a weight indicates the experimental reliability of an edge. PathLinker treats the edge weights as multiplicative and computes the k highest cost paths, where the cost of a path is the product of the edge weights. Internally, PathLinker transforms each weight to the absolute value of its logarithm to map the problem to the additive case.
Output: The user can select a checkbox to generate a sub-network containing the nodes and edges in the top k paths. If k ≤ 200, PathLinker will display this sub-network using the built-in hierarchical layout (Figure 3). If k > 200, PathLinker will use the default layout algorithm.

Figure 3. A hierarchical layout of the lovastatin network computed by PathLinker.

We have mapped UniProt ids to gene names in this network.

When it completes, PathLinker opens a table containing the k paths. Each line in the table displays the rank of each path, its score, and the nodes in the path itself. The user may analyze the network computed by PathLinker using other Cytoscape apps. The next section describes a use case that further elaborates on these possibilities.

Use Case: analysis of ToxCast data for lovastatin

The Environmental Protection Agency’s (EPA) Toxicity Forecaster (ToxCast) initiative and its extension Tox21, have screened over 9,000 chemicals (such as pesticides and pharmaceuticals) using high-throughput assays designed to test the response of many receptors, TFs, and enzymes in the presence of each chemical^16,17. Here we show a use case on how to integrate PathLinker with the ToxCast data to examine possible signaling pathways by which the chemical lovastatin could affect a cell.

Input datasets and pre-processing. We downloaded the “ToxCast & Tox21 Summary Files” data from the ToxCast website¹⁸. In these data, lovastatin perturbed three receptors (EGFR, KDR and TEK) and five TFs (MTF1, NFE2L2, POU2F1, SMAD1 and SREBF1). We used these proteins as the sources and targets, respectively, for PathLinker (Figure 2(a)). Rather than use the default Cytoscape human network, we used the interactome used in the original PathLinker paper¹, which contained 12,046 nodes and 152,094 directed edges (http://bioinformatics.cs.vt.edu/~murali/supplements/2016-sys-bio-applications-pathlinker). We preferred this network as we had used a popular Bayesian approach¹² to estimate edge weights so as to favor signaling interactions.

Running PathLinker. We used k = 50, no edge penalty (i.e., a penalty of 1), and the option for edge weights that indicated that they are like probabilities (Figure 2(a)). The results appear in Figure 2(b) and Figure 3. Each row in Figure 2(b) describes a path: its index (from 1 to k = 50), the score of the path, and the nodes in the path, ordered from receptor to TF. Note that the score of the path is the product of the weights of the edges in it, due to the edge weight option we selected. Since PathLinker prefers high-scoring paths in this case, the paths appear in decreasing order of score. Figure 3 displays a hierarchical layout of the sub-network composed of the paths computed by PathLinker.

Further analysis. We mapped the node UniProt accession number names to gene names using UniProt’s ID mapping tool (http://www.uniprot.org/uploadlists), imported the mapping results to the PathLinker network, and then changed the node labels using the Style tab. Finally we applied a hierarchical layout to the (lovastatin) sub-network and spread apart overlapping nodes to make the paths easier to visualize (Figure 3). We noted that the target MTF1 did not appear in any of the top 50 paths.

Functional Enrichment. Since the result from PathLinker is a network in the current session of Cytoscape, it is amenable for analysis by other Cytoscape apps. As an example, we demonstrate how we applied the ClueGo app for functional enrichment¹⁹ to see if the lovastatin sub-network was enriched for any Gene Ontology (GO) terms or KEGG pathways. Table 1 displays the top 15 enriched terms/pathways. Most of the paths in the PathLinker result come from the EGFR source node, so it is not surprising the ErbB signaling pathway is highly significant. We found considerable support in the literature for this pathway and other significant GO terms/pathways. Lovastatin has been shown to inhibit epidermal growth factor (EGF) and insulin-like growth factor 1 (IGF-1)^20,21. Moreover, the PathLinker sub-network for lovastatin includes an interaction from EGFR to AKT1, which agrees with a study showing that lovastatin inhibits EGFR dimerization and results in the activation of AKT²². Lovastatin has also been shown to inhibit the T cell receptor pathway²³, the Ras signaling pathway²³, and the Fc receptor–mediated phagocytosis by macrophages²⁴. Thus, the network computed by PathLinker for lovastatin promises to capture several possible mechanisms by which the chemical inhibits cellular pathways.

Running time. As we mentioned earlier in "Implementation," PathLinker is very efficient. In Table 2, we show the running time for the PathLinker app for lovastatin and for a representative set of signaling pathways. Even for k = 10,000, the app completed in less than 2.5 minutes for all inputs. We executed PathLinker on the same network on which we performed the lovastatin analysis.

Comparison to related Cytoscape apps

In this section, we compare PathLinker to other Cytoscape apps that compute paths in networks. A difficulty we faced in understanding the functionality of some of these apps was that they did not precisely define their output in the documentation. Therefore, we had to take recourse to studying the source code for some of these apps in order to understand precisely the properties of the computed paths. We focus the comparison mainly on these properties and not on other features of the apps.

PathExplorer. (http://apps.cytoscape.org/apps/pathexplorer) This app uses breadth first search (BFS) to compute the shortest path from a single node (that the user can select) to every other node in the network. The app can also compute the shortest path from every node in the network to a single node. Since the app uses BFS, the shortest path property is guaranteed only for unweighted networks. If there are multiple shortest paths to a node, it appears that the app will select one.

StrongestPath. (http://apps.cytoscape.org/apps/strongestpath) This app computes the “strongest” paths from a group of source nodes to a group of target nodes. The authors do not provide a definition of “strongest” paths. We describe our understanding of their algorithm now. Suppose the input network is G. Their software takes a real-valued threshold τ > 0 as input; the user can manipulate a slider to select this value. The app appears to operate as follows:

1. Connect a super source s to each source in G. Connect each target to a super target t in G.
2. Use Dijkstra’s algorithm to compute the shortest path in G from s to every node in G.
3. Create a new network G′ with the same node set as G. For every edge (u, v) in G, add the reverse of that edge (v, u) to G′ .
4. Use Dijkstra’s algorithm to compute the shortest path in G′ from t to every node in G.
5. For every node v in G, record d(v) the sum of the length of the shortest s-v path in G and the length of the shortest t-v in G′ . Compute the corresponding s-t path π_v that goes through v.
6. Sort all the nodes in G in increasing order of d(v).
7. Let a be the smallest value of d(v).
8. For every node v such that d(v) ≤ a + τ, output the path π_v.

In other words, for every node v, the app computes the shortest path that starts at some source node, goes through v, and ends at some target node. The number of such paths returned depends on the value of the threshold τ selected by the user. This app can operate on weighted and directed networks. We believe that the algorithm will compute the shortest path from any source to any target correctly. However, when τ > 0, it is not possible to guarantee that the algorithm will compute all paths from a source to a target of length ≤ a + τ, since the method computes at most n distinct paths, where n is the number of nodes in the network.

PesCa [25]. (http://apps.cytoscape.org/apps/pesca30) For a single node, this app computes the shortest path from that node to every other node in the network. If the user selects multiple nodes, PesCa computes the shortest path(s) between each pair of selected nodes. A useful feature is that if there are multiple shortest paths between a pair of nodes, the app computes all of them. This app focuses on shortest paths.

PathLinker. Our algorithm is strikingly different in that it allows the user to compute as many (k) shortest paths from sources to targets as desired. For example, if k = 1, PathLinker will compute the shortest path from some source to some target using Dijkstra’s algorithm on a graph with a new super source and a super target. For larger values of k, Yen’s algorithm (used by PathLinker) uses a dynamic program to mathematically guarantee the following property: if π_k−₁ is the (k −1)st path and π_k is the kth path, then there is no source-to-target path in the graph whose length is strictly between the lengths of π_k−1 and π_k. The other Cytoscape apps discussed here either cannot guarantee this property (e.g., StrongestPath) or do not compute less-than-optimal paths (e.g., PathExplorer and PesCa).

Summary

We have described a new Cytoscape app that implements a mathematically rigorous, computationally-efficient, and experimentally-validated network connection algorithm called PathLinker. While we had originally developed PathLinker for reconstructing signaling pathways, the method is general enough to connect any set of sources to any set of targets in a weighted and directed network. As a specific example, we used PathLinker to compute the network of interactions connecting proteins perturbed by the drug lovastatin in the ToxCast dataset and showed how the literature supported PathLinker’s findings. The app may also be used to compute a sub-network connecting a single set of nodes. This app promises to be a useful addition to the suite of Cytoscape apps for analyzing networks.

Data and software availability

Software available from: http://apps.cytoscape.org/apps/pathlinker

Latest source code: https://github.com/Murali-group/PathLinker-Cytoscape

Archived source code as at time of publication: 10.5281/zenodo.165162²⁶

License: GNU General Public License version 3

The original Python implementation is available at https://github.com/Murali-group/PathLinker for users who seek to integrate PathLinker directly into their own computational pipelines or want to apply PathLinker for large values of k.

Datasets: We obtained the lovastatin data from the following three files in the INVITRODB_V2_SUMMARY.zip file that we downloaded¹⁸:

• hitc_Matrix_151020.csv
• Chemical_Summary_151020.csv
• Assay_Summary_151020.csv

Author contributions

DPG implemented and tested the Cytoscape app. JNL performed the lovastatin analysis. TMM proposed the development of the PathLinker app and the lovastatin analysis, and supervised DPG and JNL. All three authors wrote the paper.

Competing interests

No competing interests were disclosed.

Grant information

The National Institute of General Medical Sciences of the National Institutes of Health grant R01-GM095955 (TMM) and National Science Foundation (NSF) grant DBI-1062380 (TMM) supported this work.

The funders had no role in study design, data collection and analysis, decision to publish, or preparation of the manuscript.
