Chemical genetics and strigolactone perception

[version 1; peer review: 2 approved]
PUBLISHED 22 Jun 2017
Author details Author details
OPEN PEER REVIEW
REVIEWER STATUS

Abstract

Strigolactones (SLs) are a collection of related small molecules that act as hormones in plant growth and development. Intriguingly, SLs also act as ecological communicators between plants and mycorrhizal fungi and between host plants and a collection of parasitic plant species. In the case of mycorrhizal fungi, SLs exude into the soil from host roots to attract fungal hyphae for a beneficial interaction. In the case of parasitic plants, however, root-exuded SLs cause dormant parasitic plant seeds to germinate, thereby allowing the resulting seedling to infect the host and withdraw nutrients. Because a laboratory-friendly model does not exist for parasitic plants, researchers are currently using information gleaned from model plants like Arabidopsis in combination with the chemical probes developed through chemical genetics to understand SL perception of parasitic plants. This work first shows that understanding SL signaling is useful in developing chemical probes that perturb SL perception. Second, it indicates that the chemical space available to probe SL signaling in both model and parasitic plants is sizeable. Because these parasitic pests represent a major concern for food insecurity in the developing world, there is great need for chemical approaches to uncover novel lead compounds that perturb parasitic plant infections.

Keywords

chemical biology, plant development, hormones, signal transduction, Arabidopsis, Striga, parasitic plants

Introduction

Small organic molecules are important sources of signaling hormones in both plants and animals13. With respect to plants, around ten small molecule hormones have been identified so far, and core signaling pathways for each of these hormones have been characterized3. Much of the success in understanding how small molecule hormones are perceived in plants comes from genetic analysis, which usually involves finding mutants with altered hormone sensitivity followed by molecular identification of the wild-type protein involved. The power of genetics in dissecting plant hormone signaling was impressive, especially since many players in plant hormone signaling were genetically redundant, which precluded their identification as simple recessive mutations46. Many saturated genetic screens, however, led to the identification of rare dominant mutations79 which served as toeholds in building many signaling pathways. The subsequent development of well-characterized mutant knockout collections in Arabidopsis10 allowed more components to be validated through the construction of multiple loss-of-function mutant lines in redundant steps.

The contribution of genetics to unravelling plant hormone biology is self-evident, which raises interest in where genetic analysis can make future contributions. A good example of the evolution of genetic approaches in plant hormone signaling is now occurring in the field of chemical genetics11. Simply defined, chemical genetics involves the development of chemical agonists and antagonists to probe biological processes. This approach by definition should be well suited for plant hormone signaling since plant hormones are small molecules and as such their receptors should be “druggable”12. However, geneticists often look suspiciously on chemical perturbation experiments because of concerns of off-target effects. Chemical geneticists have tried to address this criticism by defining criteria for what makes a good chemical probe13,14 (Table 1). From a sceptic’s perspective, two of these conditions go far to assuage their chemical fears. First, chemical addition to wild-type organisms must clearly and specifically mimic a well-characterized mutant phenotype. For example, the addition of silver ions or 1-methylcyclopropene, both of which antagonize ethylene receptors, results in dark-grown seedlings that look phenotypically similar to mutations that decrease ethylene perception15. A second and more powerful criterion that monitors off-target effects is the use of a “decoder strategy”16. In this case, application of the compound in question to a loss-of-function mutant in the target gene should result in loss of the global gene expression signature generated by compound treatment of the wild-type. For example, addition of the histidine biosynthetic inhibitor 5-amino triazole (5-AT) to a mutant lacking the 5-AT target (histidine3 [his3]) resulted in dramatic reductions in the global gene expression signature observed in 5-AT-treated wild-type yeast cells16.

Table 1. Some criteria used for determining the utility of a chemical probe.

Chemistry
StructureDefined structure
StabilityStable in test media
Potency
Biochemical<100 nM in in vitro biochemical assay
Cellular<1–10 mM in cell or whole organism assay
AnalogsClosely related structures have similar activity
Selectivity
Inactive
analogs
Analogs with no biochemical activity have no
biological activity
GeneticChemical closely mimics mutant phenotypes
TargetChemical follows “decoder” parameters16

In plants, perhaps the best example of chemical probe development involved the identification of pyrabactin as a selective agonist of the receptor for the hormone abscisic acid (ABA)17. Pyrabactin was first identified as a general germination inhibitor in a chemical screen in Arabidopsis, but its specific role in ABA signaling was suggested by the ability of ABA-insensitive mutants to germinate on pyrabactin. Second, the pyrabactin analog, apyrabactin, showed no biological activity. Finally, although a decoder approach was not applied, global gene expression experiments between seeds treated with ABA or pyrabactin were highly correlated, suggesting few off-target effects.

The identification of pyrabactin allowed the development of genetic screens to identify mutations in an essential gene encoding an ABA receptor that is involved in germination17. Because pyrabactin was a selective ABA agonist, it activated only a subset of ABA receptors and particularly the major one involved in germination17. Thus, resistant mutants to pyrabactin circumvent genetic redundancy issues that cannot be resolved by traditional ABA screens. This result showed how a new approach like chemical genetics, which can identify more selective compounds, can uncover novelty when wedded to an old approach like a traditional forward genetics screen. The pyrabactin story also demonstrated how the identification of a specific chemical probe can have broader applications beyond basic biology. Information on the pyrabactin structure has led to the identification of chemical analogs that could be used to protect important agronomic crops from drought, a process that is mediated by ABA signaling18,19.

This development of chemicals as both probes for plant hormone signaling and translational leads is clearly exciting. Perhaps there is not a more obvious application of chemicals than in the study of a recently identified collection of chemically related hormones called strigolactones (SLs)20,21. SLs, like all small molecule plant hormones, have many roles in plant growth ranging from filament growth in nonvascular plants22 to shoot branching23 and root development24 in vascular plants. However, unlike most plant hormones, SLs also have ecological signaling roles. SLs are exuded from plant roots into the rhizosphere, where they attract arbuscular mycorrhizal (AM) fungi for a beneficial interaction that brings water and nutrients to the plant25. Unfortunately, root-exuded SLs also act as a cue to tell a number of parasitic plant species that a host is nearby26. In these cases, obligate parasites of the Striga, Phelipanche, and Orobanche genera have evolved strong seed dormancy, which is broken only when they sense host-derived SLs. After germination, the parasite infects the host with devastating consequences. The range of infestations by the Striga genera alone includes much of sub-Saharan Africa, and these infestations are considered to be a major impediment to poverty alleviation on the continent27,28. Thus, the identification of chemicals that probe SL perception not only will help to understand SL biology but also may lead to the development of new compounds to combat parasitic plant infestations in the developing world.

SL chemistry and signaling

The application of chemical genetics to understanding and perturbing SL functions in parasitic plants requires a basic understanding of both SL chemistry and signaling. The canonical structure of a SL molecule is usually represented as a butenolide ring (D ring) connected to a tricyclic lactone (ABC rings) via an enol-ether bridge (Figure 1)29,30. The ABC rings do show natural chemical variation, and to date approximately 20 SLs have now been identified29,30. SLs can be further categorized based on stereochemistry around the B and C ring into the strigol and orobanchol families (Figure 1). Finally, stereochemistry at the C2' position appears to be important, with the natural R-isomer showing the best SL activity3134.


Figure 1. Chemical structure of strigolactone (SL).

The chemical structures of naturally occurring SLs can be divided into two families, the orobancol family (a) and the strigol family (b) based on stereochemistry around the BC ring. Chemical differences within a family are related to substitutions (R) on the A or C rings. All naturally occurring SLs found to date have C2'-(R) stereochemistry via the enol-ether bridge that connects the C and D rings. GR24 (c) shown in the C2'-(R) conformation is the most commonly used synthetic SL.

Further hints as to what parts of a SL molecule are important for perception have come from both natural and synthetic sources35. Avenaol, for example, which is found in root exudates from Avena strigosa (black oat) and shows SL activity, has the C and D moieties but lacks a B ring and has an additional carbon between the A and C rings (Figure 2)36. Synthetic compounds, such as GR7 and GR5, that lack A and B rings but retain CD ring chemistry also show activity in both parasitic and nonparasitic plants, whilst compounds that contain the ABC rings but lack a D ring are inactive (Figure 2)3335. Together, these chemical variants suggest that the C and D rings are essential for SL activity.

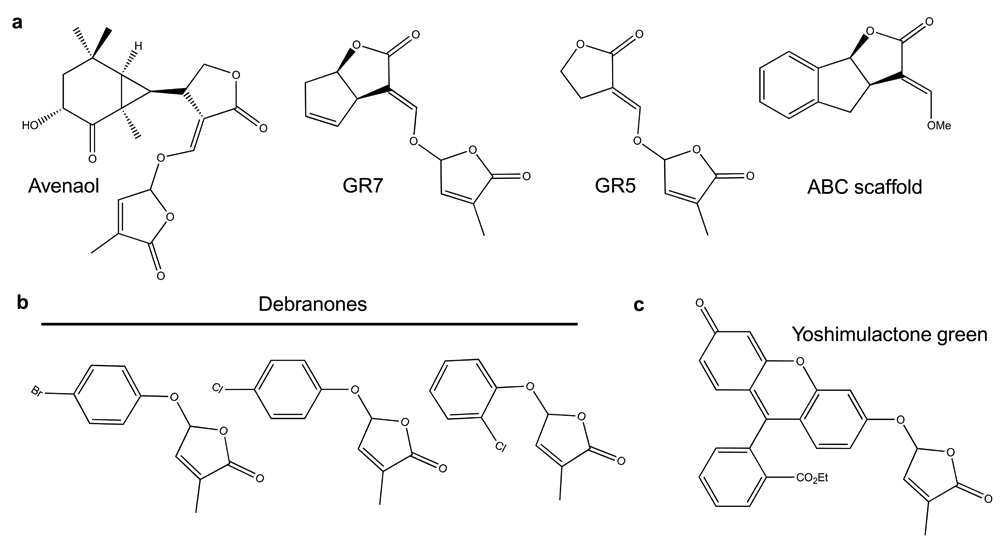

Figure 2. Chemical structures of some strigolactone (SL) agonists with butenolide rings.

(a) Each of these SL agonists has an attached butenolide and is expected to be hydrolyzed by D14-type hydrolases. (b) These debranones are three monohalogenated derivatives. The chlorinated derivative on the right is moderately active in Striga hermonthica germination assays. (c) Yoshimulactone green (YLG) is hydrolyzed by SL receptors to yield a D ring and fluorescein that fluoresces green.

The enol-ether linkage between the C and D rings also seems to be important. SL receptors in model plants, collectively called D14-type SL receptors after the rice DWARF14 (D14) receptor37, metabolize SLs to generate tricyclic ABC and D ring moieties38. Structurally, D14-type receptors have a canonical α/β-fold consisting of four β-sheets bound by a collection of four α-helices (αT1–αT4), which form a lid encompassing the SL ligand-binding pocket (Figure 3)3842. Within the pocket, there is a functional serine–histidine–aspartate catalytic triad that is required for SL hydrolysis38,41. Although the order of signaling events after an SL binds a D14-type receptor still needs to be clarified, one simple path appears to be emerging (Figure 3). As SL enters the ligand-binding pocket, a catalytic serine (Ser96 in the D14 protein from rice) attacks the C5' position of the D ring, resulting in cleavage and release of the tricyclic ABC ring43,44. The remaining D-ring moiety covalently bonds with the catalytic histidine (His247). This event appears to result in small conformational changes that allow the recruitment of other SL signaling partners. The recruitment of these signaling partners in turn appears to cause a larger conformational change of the receptor to a closed state by trapping either a D-ring intermediate or the D ring itself43. Although many details on timing and order need to be worked out, the covalent bond between the D-ring moiety and D14-type receptors suggests that the metabolism of the SL ligand may be integral to perception and downstream SL signaling44. This also explains why D14-type receptors retain a canonical α/β hydrolase amino acid catalytic triad that shows very slow kinetics of hydrolysis38,41,44.

So what about parasitic plant SL signaling? Unlike model plants, D14-type receptors do not appear to be the major player in the germination response of parasites to host-derived SLs. This function falls to a related D14 α/β hydrolase given the name HYPOSENSITIVE TO LIGHT/KARRIKIN INSENSITIVE2 (HTL/KAI2)45. The double-barreled name of HTL/KAI2 is because of two groups independently identifying loss-of-function mutations in this gene based on two phenotypes: 1) hyposensitivity to light (HTL)46 and 2) insensitivity to the smoke-derived germination stimulant karrikin (KAI2)47. The identification of HTL/KAI2 hydrolases as SL receptors in parasitic plants was surprising, as these proteins in model systems do not respond well to naturally occurring C2'-(R) SL isomers and at this time their natural ligand is unknown48. Analysis of HTL/KAI2 genes from Striga hermonthica (ShHTL/KAI2) revealed that these receptors have a range of sensitivity and specificity with respect to the SLs they recognize49,50. Functional analysis in Arabidopsis demonstrated that one receptor, ShHTL7, was sufficient to increase the sensitivity of the SL response in Arabidopsis to picomolar levels, which is within the concentration range observed for the response of Striga hermonthica seed to SLs50. Recent biochemical analysis of ShHTL7 suggested that it may have a similar mode of action to D14-type receptors with respect to transducing an SL signal51. Although a mechanistic understanding of how parasitic plant receptors attain high levels of SL sensitivity has not been clearly elucidated, it does appear that parasitic plant HTL/KAI2 genes, unlike their nonparasitic plant counterparts, have evolved away from perceiving karrikins to sensing SLs45,50.

Chemical screening for SL agonists

The requirement of host-derived SLs for the germination of parasitic plant seed has been a major focus on which to develop strategies to combat these pests52,53. The logic involves synthesizing cheap SL analogs that are stable in the soil which would germinate parasitic seed in the absence of a host. These compounds are generically called “suicide germination compounds” because these obligate parasites like Striga hermonthica will die after germination without a host. The first synthesized suicide germination compounds such as the popular derivative GR24 (Figure 1) were designed around the SL core structure, but it soon became clear that the chemical space for SL activity was not limited to canonical SL scaffolds. Partially this occurred as hormone-based SL bioassays became routine35. For example, rice54 and pea34 researchers used rescue of SL-deficient branching phenotypes as a screening tool to determine SL activity of their compounds. This approach led to the identification of phenoxy furanone derivatives called debranones (de-branching furanones) that showed good SL activity although they lacked the ABC ring structures and any enol-ether linkages (Figure 2). This observation that enol-ether chemistry was not required for activity was in part responsible in the development of on-off fluorescent probes such as yoshimulactone green (YLG) that were instrumental in understanding the SL responses in parasitic plants like Striga hermonthica (Figure 2)49. Interestingly, although YLG acts as a SL in both parasitic plant germination and nonparasitic plant branching, debranone was not potent in parasitic plant germination assays54,55. However, specific chlorine additions on the phenyl ring of the debranone scaffold (Figure 2) do improve the response of parasitic seeds55. This implies that compounds can be developed that preferentially target the pests without influencing host behavior.

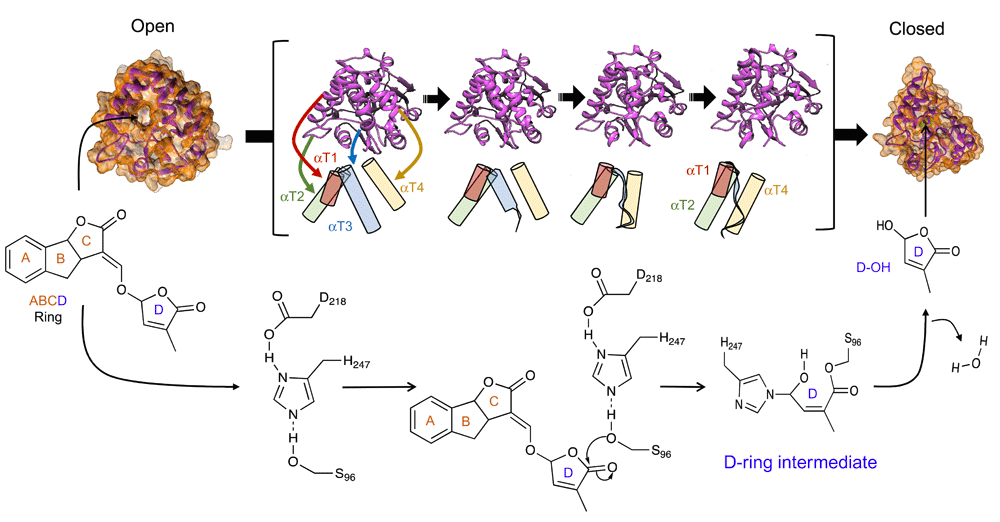

Figure 3. A model of strigolactone (SL) perception.

A D14-type receptor without SL is in an unbound open conformation (open). Upon SL binding, the SL is hydrolyzed, releasing the ABC rings. Hydrolysis occurs via a nucleophilic attack by the S96 amino acid of the catalytic triad, releasing an ABC ring. A covalent bond then occurs between the C5' moiety of the D ring and H247, leading to a D-ring intermediate. During this process, it is thought that D14 signaling partners are recruited, which promotes transition of the receptor to a closed state (closed). Receptor transition from an open to a closed configuration is represented by models of four intermediate crystal structures (pink, within the brackets). Below each crystal is a tube representation of the four α helices (αT1–αT4) that form a lid and their positions during the transition from an open to a closed state. As the receptor transitions, the αT1 (brown), αT2 (green), and αT4 (yellow) helices move to close the lid. The αT2 helix becomes an unordered ribbon (blue). A movie of the transition from the open to the closed form can be found in Supplementary File 1. The exact order of events after SL hydrolysis with respect to conformational changes and recruitment of signaling partners remains to be clarified. Based on in vitro analysis, it is unclear whether the D ring is irreversibly trapped within the closed receptor. The open structure has the PDB code 4IH4. The closed structure has the PDB code 5HZG.

This idea of using biology rather than chemistry to guide SL activity has greatly expanded as good large annotated chemical libraries became commercially available11. For example, a chemical screen designed strictly around Arabidopsis germination and early seedling growth identified a collection of succinimide and phthalimide compounds that appeared to impinge on SL biology56. Collectively called cotylimides (CTLs), a number of these compounds have subsequently been shown to bind and activate AtHTL/KAI257. The phthalimide structure in some cotylimides (CTL-IV) is also found in Nijmegen-1, a potent SL mimic58. However, unlike Nijmegen-1, CTL compounds do not contain a D ring and certainly are not a hydrolysable substrate. Interestingly, other compounds built on phthalimide lactone scaffolds but lacking enol-ether linkages have good selectivity activity on various Orobanche and Philibanche species59. Finally, a screen for novel germination agonists developed specifically around the activation of the AtHTL/KAI2 receptor with one of its protein partners, MORE AXILLARY GROWTH2 (MAX2), identified more structurally unrelated compounds that have activity in Striga hermonthica germination assays (Figure 4)57. Thus, biologically based screens appear to be uncovering a myriad of chemical compounds that show little chemical relatedness to canonical SLs. The diversity of compounds with SL activity is surprising, as early work suggested that CD rings and stereochemistry are vital to the SL response. Furthermore, all the known SL receptors have a conserved catalytic triad, indicating that hydrolysis is essential to signaling. Possibly, these new SL agonists bind SL receptors in different places than the canonical SLs and as such do not require hydrolysis for activity. Alternatively, it would also be interesting to test these compounds on catalytically dead tirad mutants. Whatever the case, structural studies with these different compounds will be needed to resolve these issues.

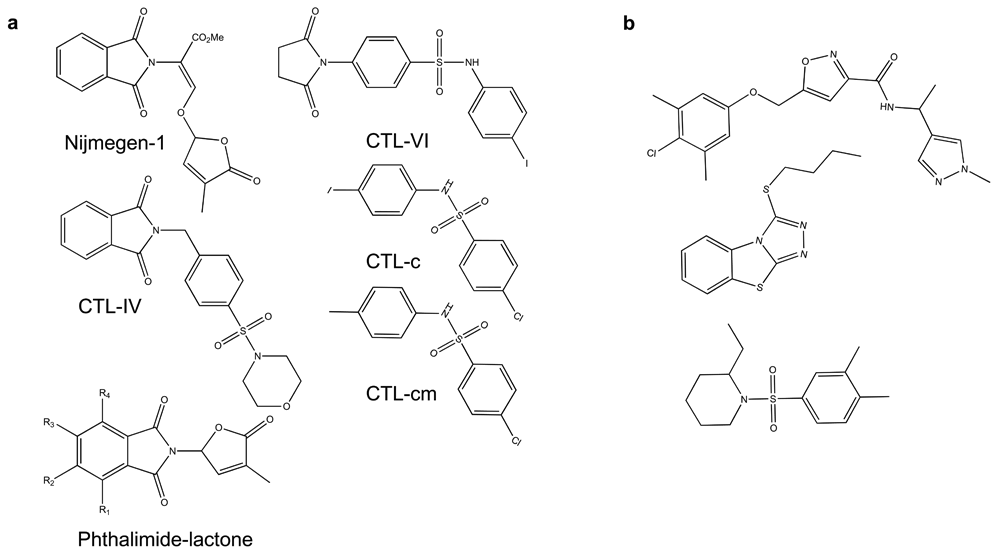

Figure 4. Chemical structures of some strigolactone (SL) agonists lacking butenolide rings.

(a) Nijmegen-1 (upper left corner), which contains a butenolide ring, is shown as a reference phthalimide-based SL mimic. The phthalimide lactone core structure (lower left corner) was used to develop new parasitic plant germination stimulants. R-groups represent different places on the core structure where modifications were made. (b) The structures of these three compounds were found by screening for compounds that encourage protein–protein interactions between AtHTL/KAI2 and its F-box partner protein MAX238.

Chemical screening for SL antagonists

Although chemical genetic screens for new SL agonists are viewed through the prism of SL chemistry, screening for SL antagonists has not had this bias. One of the first attempts to identify SL antagonists involved taking advantage of D14-type receptor structural biology. Compounds were first screened in silico for chemicals that would theoretically fit the binding pocket of the rice D14 receptor60. Positive hits were next tested using a yeast two-hybrid assay to find which compounds reduced SL-dependent D14-protein-protein interactions. This approach identified 2-methoxy-1-naphthaldehyde (2-MN) (Figure 5), and subsequent experiments showed 2-MN interfered with a number of SL-dependent processes in rice and Arabidopsis60. 2-MN showed some activity in inhibiting Striga hermonthica seed germination, and this reduced potency may reflect the experimental design that was based on D14-type receptors rather than parasitic plant HTL/KAI2 receptors. A crystal structure of the SL receptor (ShHTL5) from Striga hermonthica now exists50, and it would be interesting to see how in silico screening of this receptor may influence lead compound identification.

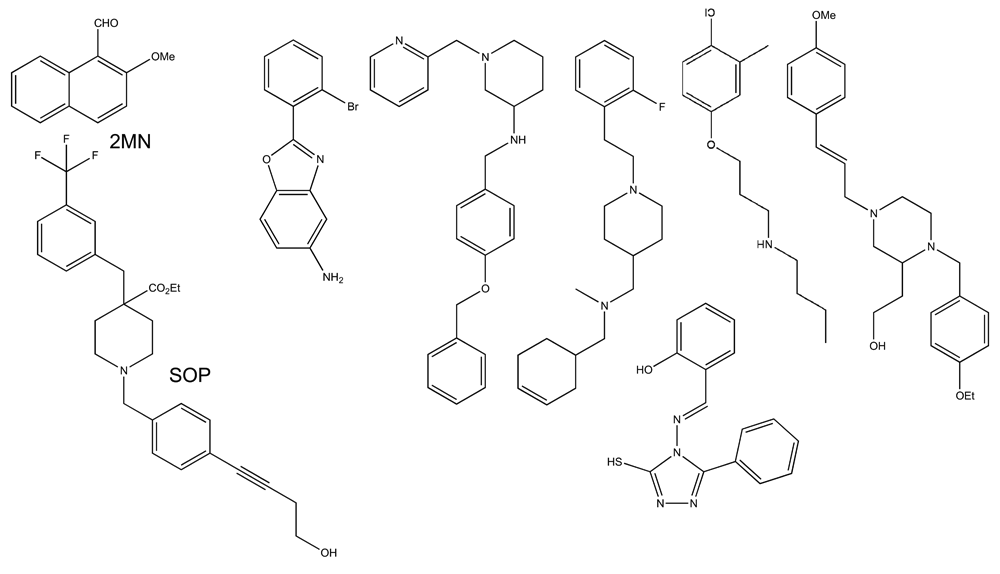

Figure 5. Chemical structures of some strigolactone (SL) antagonists.

Within these antagonists, only 2-methoxy-1-naphthaldehyde (2-MN) and soporidine (SOP) have been closely characterized biochemically in model systems and with respect to Striga hermonthica germination.

Recently, a second SL antagonist screen has been performed using whole plant SL-dependent assays in Arabidopsis rather than knowledge of the receptor structure a priori. This assay was based on the observation that SLs inhibited Arabidopsis hypocotyl elongation. Another advantage to using Arabidopsis was a genotype whose hypocotyl was sensitized to SL inhibition, which was used in the primary screen to identify compounds that interfered with SL-dependent inhibition of hypocotyl growth61. Seven compounds were found, one of which was a piperidine-based molecule called soporidine (SOP). In addition to binding AtHTL/KAI2, SOP bound the Striga hermonthica receptor ShHTL7 and inhibited its hydrolytic activity. Functionally, SOP inhibited the germination of Striga hermonthica seed in the presence of SL61. Thus, hypocotyl-based assays in Arabidopsis appear to be a good screening platform to identify lead compounds that may perturb Striga germination. None of the antagonists identified so far have significant structural similarity to known naturally occurring SLs. Similar to the case of SL agonists, it is possible that these antagonists bind somewhere else on the receptor to inhibit activity. This again begs for more studies on the structure–function relationships between the SL receptors and the plethora of compounds identified from chemical screens.

Concluding remarks

The rapid increase in our knowledge of the fundamental biology of SL signaling based on studies on model plants is allowing researchers to test the mechanism by which SLs are perceived in parasitic plants. Furthermore, this information is currently being used to identify new chemical probes that perturb SL perception in both nonparasitic and parasitic plants. Although it is not surprising that small molecules resembling SLs have activity in SL-based plant assays, the identification of a large number of synthetic lead compounds from chemical screens that do not possess canonical SL structures is intriguing. This could simply reflect different binding sites and modes of action. It could also mean that SL receptors, whether from parasitic or nonparasitic plants, are more promiscuous than previously thought with respect to small molecule activation, particularly at higher concentrations.

Biologists are usually taught that compounds that bind a receptor with high affinity are most likely the most relevant in vivo. This explanation, however, has never really explained functional low-affinity ligands in vivo and many times these compounds are written off as nonspecific and biologically irrelevant. In some sense, this hand-waving argument is akin to early beliefs about “sticky proteins” found in large-scale protein–protein interaction networks. Once thought to be biochemical artifacts, most of these proteins are now viewed as essential components in scale-free signaling networks62,63. It is now becoming clear from evolutionary studies on small molecule hormone receptors from animals that many small molecule receptors were initially low-affinity sensors for a range of metabolites and later evolved to become high-affinity receptors of particular chemicals6466. These models are consistent with suggestions that the ancient HTL/KAI2 receptors may have had reduced chemical specificity that later evolved into high-specificity SL receptors67. Such a model may explain why HTL/KAI2-type receptors were selected over D14-type receptors by parasitic plants, since these species must be able to readily evolve to new host SL ligands and compositions in order to move to new hosts68.

The lack of high-affinity agonists and antagonists could suggest chemical genetics will not yield useful probes and interesting insights. However, although traditionally searches for drugs have been based on finding high-affinity compounds, the pharmaceutical industry has changed its strategy to perform “fragment-based screening”, which is designed to find low-molecular-weight compounds that work in the high micromolar range initially69. Once compounds have been identified, the methods of medicinal chemistry can be used to increase their potency orders of magnitude. In this scenario, lead compounds identified with SL activity would serve as chemical scaffolds for the development of more potent compounds. Applying the same logic, perhaps the addition of D-ring structures to leads implicated in SL function, would increase their efficacy.

Finally, insights into plant versus animal hormone signaling have come from different approaches. Animal cell culture systems2, which are well defined developmentally and easy to handle experimentally, were instrumental in dissecting how small molecule hormones are perceived and signal. By contrast, plant hormone signaling was led by phenotypic screening typically on whole organisms such as Arabidopsis70. Chemical genetic analysis of hormone signaling in these two kingdoms will most likely follow the same route, and animal researchers are now more frequently using phenotypic screening as an effective method of drug discovery71. In plant systems, compounds will continue to be identified through some phenotypic screen and the resulting compounds will be the basis for mutational analysis to further understand the mode of action as was seen with pyrabactin17. The grounding of plant chemical genetics in phenotypic screening bodes well for new insights, since phenotypic screening is gathering momentum as a way to re-energize animal drug research71,72. In this sense, plant biologists are already there.
