Root mass may affect soil water infiltration more strongly than the incorporated residue

[version 7; peer review: 3 not approved]

Masato Oda ¹, Burhanuddin Rasyid², Hide Omae¹

PUBLISHED 05 Mar 2020

Author details Author details

¹ Japan International Research Center for Agricultural Sciences, Owashi, Japan
² Department of Soil Science, Faculty of Agriculture, Hasanuddin University, Jawa Barat, Indonesia

Masato Oda
Roles: Conceptualization, Data Curation, Formal Analysis, Investigation, Methodology, Writing – Original Draft Preparation

Burhanuddin Rasyid
Roles: Data Curation, Investigation

Hide Omae
Roles: Data Curation, Formal Analysis, Investigation, Methodology

OPEN PEER REVIEW

REVIEWER STATUS

This article is included in the Agriculture, Food and Nutrition gateway.

Abstract

This Brief Report includes a single-finding that is reported with descriptions of an unexpected observation. Crop residue incorporation increases stable soil pores and soil water infiltration, consequently, reduces surface water runoff and soil erosion. However, to our knowledge, quantitative studies for the relation between incorporated residue and infiltration rate has not been conducted. To know the relation is important for avoiding soil erosion under crop rotation in practically. We continuously grew corn (cleaning crop), rhodes grass, and okra under greenhouses. The water infiltration rate was measured on the ridge at similar soil moisture conditions, on the day incorporating the prior crop residue. The simple linear regression analysis was conducted. The coefficient of determination R² was 0.91; however, that for aboveground dry matter of prior crop was 0.93, unexpectedly. Though, our experiment not designed for distinguish those effect; previous studies have revealed the positive relation between plant root mass and soil erosion resistance. Our data also show a positive relationship between resistance to erosion and root mass when assuming that the aboveground biomass is proportional to the root mass. The result also showed that the effect of the prior crop root mass disappears within the next crop period. This suggests that maintaining a large root mass is crucial for reducing soil erosion.

Keywords

Crop residue, Crop rotation, Soil erosion, Soil water infiltration, Sustainable agriculture

Corresponding author: Masato Oda

Competing interests: No competing interests were disclosed.

Grant information: The author(s) declared that no grants were involved in supporting this work.

Copyright: © 2020 Oda M et al. This is an open access article distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited.

How to cite: Oda M, Rasyid B and Omae H. Root mass may affect soil water infiltration more strongly than the incorporated residue [version 7; peer review: 3 not approved]. F1000Research 2020, 7:1523 (https://doi.org/10.12688/f1000research.16242.7) First published: 21 Sep 2018, 7:1523 (https://doi.org/10.12688/f1000research.16242.1) Latest published: 05 Mar 2020, 7:1523 (https://doi.org/10.12688/f1000research.16242.7)

Revised Amendments from Version 6

1) Correlation analysis was changed to regression analysis.
2) The manuscript was simplified and focused on the findings.
3) The figure was revised to easily understand the research question.
4) The method described the relation of the limitation and the analysis.

See the authors' detailed response to the review by Kae Miyazawa
See the authors' detailed response to the review by Bingcheng Xu

Introduction

This Brief Report includes a single-finding that is reported with descriptions of an unexpected observation. Soil degradation is a major constraint of food security (Gomiero, 2016; Lal, 2015), and soil erosion represents one of the crucial intervention points for reversing soil degradation (Karlen & Rice, 2015). The Universal Soil Loss Equation (USLE) (Wischmeier & Smith, 1978), the standard for estimating erosion, shows that the risk of erosion is drastically reduced when a crop has covered soil surface. This emphasizes the importance of preventing erosion in the early stage of crop growth. There are two aspects to preventing erosion; the one is to fix soil, another is to increase the water infiltration rate. Especially, increasing infiltration rate has an additional benefit for water harvesting and reducing the surface runoff. Therefore, technologies increasing the water infiltration rate are critical to prevent soil erosion in tillage systems.

Tillage makes soil porous, but the physical properties are rapidly lost (Strudley et al., 2008); however, organic matter application increases the stability of soil pores (Turmel et al., 2015). Interestingly, Potter et al. (1995) reported that water infiltration of soil was higher under no-tillage than tillage conditions when the residue input was low, but the opposite result was shown when the residue input was high. All in all, the soil erosion decreased according to the degree of water infiltration (Potter et al., 1995). However, to our knowledge, quantitative study for the relation between incorporated residue and infiltration rate has not been conducted. The amount of crop residue is largely different in the crop rotation in practical.

Therefore, we investigated the relation between the quantity of crop residue of the prior crop and the water infiltration rate in a crop rotation of corn, rhodes grass, and okra because crop rotation is practical and makes a large difference in the biomass. Though the data supported the relation, unexpectedly, the data also suggested that the relation between the quantity of remaining underground root mass of the prior crop and the infiltration rate was stronger.

Methods

The experiment was conducted in greenhouses to prevent the rainwater. We grew corn as a cleaning crop, then after 63 days fallow period grew rhodes grass, and okra sequentially under different nitrogen application levels and mulch conditions. All the crop residues were collected in each greenhouse, and the equal amount was returned each plot but different amount between the greenhouses. The water infiltration rate was measured on the ridge at similar soil moisture conditions, on the day incorporating the prior crop residue.

Study site and treatment

We conducted the experiment in two greenhouses at the Japan International Research Center for Agricultural Sciences experimental field (24.38°N and 124.19°E) on Ishigaki Island. The climate is subtropical. The soil type was Ultisol (Soil Survey Staff, 2014) and the texture was sandy clay loam. The greenhouse was 5 m wide and 18 m long. We made three ridges (0.2 m high and 1 m wide) with a 0.5 m path on each side. We divided these ridges into three plots with 0.8 m paths between each plot. In this way, we created nine plots (1 m × 5.2 m) in each greenhouse and randomly assigned them with nine treatments (3 × 3 factorial design). These treatments comprised three nitrogen levels (0, 10, and 40 kg N ha⁻¹; slow-release-type urea only, no other fertilizers were used) and three mulching treatment (unmulched, weed barrier fabric, and black plastic film mulch). Although both nitrogen application and mulch treatment have impacts on the biomass, the treatments were expected to make differences on top-root ratios.

We replicated the treatments using two greenhouses (A and B). We cropped corn (Zea mays) without fertilizer as a cleaning crop and collected the residue, then chopped the residue into approximately 3 cm pieces using a chopper and dried it for two months under a roof. We adjusted the soil moisture of the greenhouse at a suitable level for tillage by irrigating (25–40 mm) with mist irrigation tubes (Kiriko; Mitsubishi Chemical Agri Dream Co., Ltd., Tokyo) and then removed the tubes. We scattered 2 Mg ha⁻¹ of the corn residue, tilled by a rotary tiller, made the ridges, measured the soil water infiltration, set the irrigation tubes again, set the mulch films, transplanted rhodes grass (Chloris gayana) seedlings with fertilizer, and irrigated up to the field capacity. Additional irrigation was not provided. After harvesting rhodes grass, the crop residues were collected in each greenhouse then evenly returned to the plots (each plot received the same amount of residue but the amount was different between the greenhouses). We grew okra (Abelmoschus esculentus) in the same way. All crops were planted 40 cm intervals of two rows. The growing season of corn, rhodes grass, and okra were 7 June to 10 August 2016, 14 October 2016 to 11 January 2017, and 12 January to 14 April 2017, respectively. An interval of 65 days was provided between the corn harvesting and the rhodes grass planting. There was no interval between rhodes grass harvesting and okra planting. (Oda, 2020)).

Infiltration rate measurement

We measured the soil water infiltration rate with Mariotte’s bottle (20 cm high, 10 cm in diameter), with two holes in the bottom. Mariotte’s bottle is a device that delivers a constant rate of flow. We inserted a plastic ring of the same diameter into the ridge to a 10 cm depth and then watered from a 1 m height to the ring at a 60 mm min⁻¹ rate. We recorded the time needed to waterlog 50% of the soil surface area. We measured infiltration on the center of ridges at the initial stage (before the rhodes grass; with incorporated corn residue), after the rhodes grass (with incorporated rhodes grass residue), and after the okra (with incorporated okra residue).

Determination and analysis

The effect of the soil moisture difference treatment was determined at the end of okra cropping by extracting soil core samples from 0 to 5 cm soil depth on the ridge. Aboveground biomass was calculated by multiplying the plot’s whole fresh biomass weight to the average moisture content of the air-dried samples’ in each greenhouse. The simple linear regression analysis of the infiltration rate was conducted for the quantity of incorporated residue or for the aboveground biomass (dry weight) using MS Excel 2016. Because, the experiment design cannot distinguish the effect of input DM and prior crop root mass. The analysis was conducted for the mean values of nitrogen levels and for that of the mulch levels. The mean values of nitrogen levels show the effects of aboveground biomass, which averaged out the effect of soil moisture. By contrast, the mean values of mulch levels show the effect of soil moisture. The coefficient of determination (R²) is expected to decrease because soil moisture affects to the top-root ratio.

Results

The R² values were high for both input DM and aboveground DM. The infiltration rate per incorporated residue of corn, had no prior crop, is two-fifth of other crops. By contrast, for the aboveground biomass of the prior crop showed a constant regression (Figure 1). These R² values decreased for the mulch level treatment (Figure 2). The soil moisture range of mulch treatment (6.5–9.7 %) was larger than that of nitrogen treatment (7.2–8.3 %).

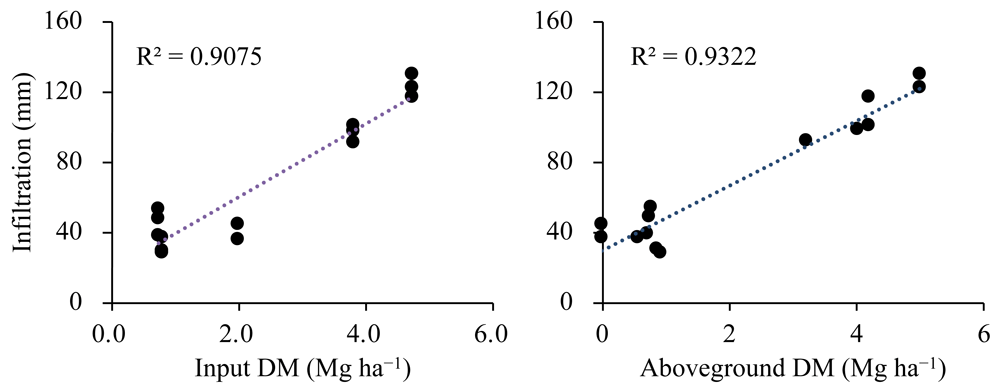

Figure 1. Regressions for the Means of the nitrogen-level treatment.

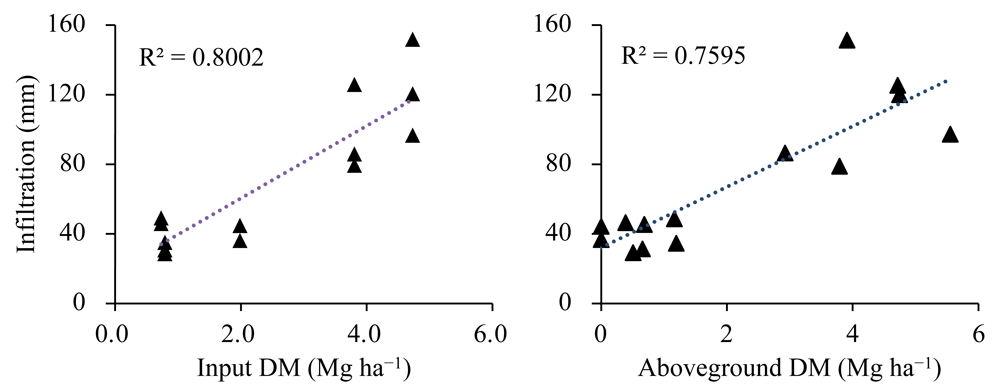

Figure 2. Regressions for the Means of the mulch treatment.

Discussion and conclusions

The R² values were high for both input DM and aboveground DM. This means not only the input DM but also the aboveground biomass may affect the water infiltration rate. The question is of which is the real cause; although the experiment is not designed to distinguish it.

The first hint is that the infiltration rate per input DM of corn (2 Mg DW ha^–1) had no prior crop, is two-fifth of other crops. By contrast, for the aboveground DM shows no such outliers. The second hint is that the crop biomass is generally proportional to the crop root biomass but, the soil moisture strongly affects to top-root ratio. We can expect the lower R² value in terms of mulch treatments; because the top-root ratio is more unstable in mulch treatment. In fact, the R² values were decreased by the treatment affected the soil moisture. This again supports the effect of the root mass.

We should consider the duration of the “after-effect” of the prior crop (Wischmeier & Smith, 1978). The outlier of corn for input DM is reasonable if the roots of rhodes grass affected on the soil water infiltration rate of after okra. However, the effect of the prior crop root mass almost disappears within the present crop growth period under the experimental conditions because the regression for the aboveground biomass on the infiltration rate is constant. Especially, the performance of the initial (63 days after corn) shows no after-effect.

The previous study reported the degree of water infiltration was related to the level of soil erosion (Potter et al., 1995). Another study reveals the logarithmic relation between plant root mass and soil erosion resistance, although infiltration was not mentioned (Gyssels et al., 2005). These studies support a positive relationship between resistance to erosion and root mass. To our knowledge, quantitative studies for the relation between incorporated residue and infiltration rate has not been conducted. This might be that researchers have published no negative data.

Finally, the key finding of this study is that the effect of aboveground residue quantity, more precisely root mass, was stronger than the incorporated residue. From a physical viewpoint, the area of residue surface is far smaller than that of the root surface and the gap is easily clogged by sediment caused by rainfall. Therefore, the improvement of soil water infiltration probably comes from root mass (Gyssels et al., 2005). In addition, our result also showed that the effect of the prior crop root mass disappears within the next crop period. This suggests that maintaining a large root mass is crucial for reducing soil erosion. Our results were obtained in greenhouses of the sub-tropical environment so the further study should be conducted in other conditions.

Data availability

Underlying data

Raw data of this article are presented in figshare: https://doi.org/10.6084/m9.figshare.6741890.v1 (Oda et al., 2018).

Extended data

Timeline of the experiment is present in figshare: https://doi.org/10.6084/m9.figshare.11775003.v1 (Oda, 2020)

Data are available under the terms of the Creative Commons Zero “No rights reserved” data waiver (CC0 1.0 Public domain dedication).

Acknowledgments

We thank Masato Shimajiri, Yasuteru Shikina, Masashi Takahashi and Masahide Maetsu for their assistance with experiment. We thank Akiko Sawa for her assistance with the sample analysis.

Faculty Opinions recommended

References

Gomiero T: Soil Degradation, Land Scarcity and Food Security: Reviewing a Complex Challenge. Sustainability. 2016; 8(3): 281. Publisher Full Text
Gyssels G, Poesen J, Bochet E, et al.: Impact of plant roots on the resistance of soils to erosion by water: a review. Prog Phys Geogr. 2005; 29(2): 189–217. Publisher Full Text
Karlen DL, Rice CW: Soil Degradation: Will Humankind Ever Learn? Sustainability. 2015; 7(9): 12490–12501. Publisher Full Text
Lal R: Restoring Soil Quality to Mitigate Soil Degradation. Sustainability. 2015; 7(5): 5875–5895. Publisher Full Text
Oda M: Timeline of the experiment. figshare. Figure. 2020. http://www.doi.org/10.6084/m9.figshare.11775003.v1
Oda M, Rasyid B, Omae H: Crop residue and soil water infiltration. figshare. Dataset. 2018. http://www.doi.org/10.6084/m9.figshare.6741890.v1
Potter KN, Torbert HA, Morrison JE Jr: Tillage and residue effects on infiltration and sediment losses on Vertisols. Trans ASAE. 1995; 38(5): 1413–1419. Publisher Full Text
Strudley MW, Green TR, Ascough JC: Tillage effects on soil hydraulic properties in space and time: State of the science. Soil Tillage Res. 2008; 99(1): 4–48. Publisher Full Text
Turmel MS, Speratti A, Baudron F, et al.: Crop residue management and soil health: A systems analysis. Agric Syst. 2015; 134: 6–16. Publisher Full Text
Wischmeier WH, Smith DD: Predicting rainfall erosion losses. USDA, Maryland. 1978. Reference Source
