DNA sequence features in the establishing of H3K27ac

[version 1; peer review: 2 approved]

Anatoliy Zubritskiy¹, Yulia A. Medvedeva^1-3

PUBLISHED 08 Feb 2018

Author details Author details

¹ Institute of Bioengineering, Research Center of Biotechnology, Russian Academy of Sciences, Moscow, 119071, Russian Federation
² Department of System Biology and Bioinformatics, Vavilov institute of General Genetics, Russian Academy of Sciences, Moscow, 119991, Russian Federation
³ Department of Biological and Medical Physics, Moscow Institute of Physics and Technology, Dolgoprudny, 141701, Russian Federation

Anatoliy Zubritskiy
Roles: Investigation, Methodology, Validation, Visualization, Writing – Original Draft Preparation

Yulia A. Medvedeva
Roles: Conceptualization, Funding Acquisition, Supervision, Writing – Review & Editing

OPEN PEER REVIEW

REVIEWER STATUS

Abstract

The presence of H3K27me3 has been demonstrated to correlate with the CpG content. In this work, we tested whether H3K27ac has similar sequence preferences. We performed a translocation of DNA sequences with various properties into a beta globin locus to control for the local chromatin environment. We demonstrate that H3K27ac is not linked to CpG content of the sequence, while extremely high GC-content may contribute to the establishment of this mark.

Keywords

histone modification, H3K27ac, GC-content, CpG dinucleotides

Corresponding author: Yulia A. Medvedeva

Competing interests: No competing interests were disclosed.

Grant information: This work was supported by the Russian Science Foundation [15-14-30002].
The funders had no role in study design, data collection and analysis, decision to publish, or preparation of the manuscript.

Copyright: © 2018 Zubritskiy A and Medvedeva YA. This is an open access article distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. Data associated with the article are available under the terms of the Creative Commons Zero "No rights reserved" data waiver (CC0 1.0 Public domain dedication).

How to cite: Zubritskiy A and Medvedeva YA. DNA sequence features in the establishing of H3K27ac [version 1; peer review: 2 approved]. F1000Research 2018, 7:165 (https://doi.org/10.12688/f1000research.13441.1) First published: 08 Feb 2018, 7:165 (https://doi.org/10.12688/f1000research.13441.1) Latest published: 09 Aug 2018, 7:165 (https://doi.org/10.12688/f1000research.13441.2)

Introduction

Histone modification is a key mechanism of epigenetic regulation. Histone modification varies between cells in some genomic locations but not others. This observation raises the question to what extent histone modifications depend on the underlying nucleotide sequences. It has been reported that the attraction of PRC2 complex and consequent H3K27me3 is correlated with the local density of CpG dinucleotides¹. More complex sequence patterns, such as transcription factor (TF) binding sites (TFBS), also affect the presence of histone modifications; SUZ12, a member of the PRC2 complex, binds DNA in a sequence-specific manner; NRCF and ZBTB33 recruit histone deacetylase. The ENCODE project demonstrated a specific histone modification profile around binding sites of many TFs².

Since the same lysine residue cannot be both methylated and acetylated, the presence of H3K27ac is negatively correlated with the presence of H3K27me3³. Although there are several pieces of evidence showing that H3K27me3 is established at least partially in a sequence-specific manner, it is unclear if H3K27ac — an antagonistic activator to a repressive H3K27me3 — shares any sequence specific patterns. A computational approach⁴ predicted some TF to be linked to H3K27ac, yet the results were dependent on the a background set. In this work, we perform a direct experiment to test whether a specific genomic sequence is capable of recovering H3K27ac.

Methods

Cas9 target selection and plasmid design

We selected a site for Cas9 in the intergenic region of human beta globin locus using services CCTop⁵ (hg38) and Off-Spotter⁶ (hg38). The chosen targeting sequence was CTTGTCCCTGCAGGGTATTA. Then we designed targeting oligonucleotides (listed in Table 2) for pSpCas9(BB)-2A-Puro (pX-459 plasmid, a gift from E.P.). Oligonucleotides Bgl1Cas_F and Bgl1Cas_R were diluted to 10µM each with annealing buffer (10 mM Tris, pH 7.5, 100 mM NaCl, 1 mM EDTA), heated for 5 minutes to 95°C and then slowly cooled down to room temperature. 500ng of pX459 was digested with 5U of BpiI (Thermo Scientific) for 1h at 37°C, heat inactivated, run on 1.5% agarose, linearized plasmid was cut out and purified with QIAquick Gel extraction kit (Qiagen, cat. no. 28706) and ligated with Bgl1Cas_F/Bgl1Cas_R duplex. Ligation product was transformed into E. coli Top-10 cells, one of the clones was chosen and the insert was confirmed by Sanger sequencing. This plasmid was called pX459-b1.

Selection plasmid design

Selection cassette design (HSV thymidine kinase, 2A peptide, G418R in one frame) was performed with Ugene⁷. HSVtk and NeoR sequences were PCR amplified with Phusion polymerase (Thermo Scientific) from pHSVTK-Neo (a gift from E.P.) with primers HSVtk_F, HSVtk_R, and G418_F, G418_R, correspondingly. T2A peptide coding sequence, corresponding to amino acid sequence GSGEGRGSLLTCGDVEENPGP, was synthesized by hybridization of oligonucleotides T2A(+) and T2A(-) in annealing buffer. Hybridized duplex was treated with T4 PNK (Thermo Scientific) and gel purified. NeoR fragment was digested with XbaI (Thermo Scientific), T2A fragment was digested with NheI (Thermo Scientific), then these fragments were ligated and the fragment of expected size was gel purified. This T2A-NeoR fragment was digested with XhoI (Thermo Scientific), HSVtk fragment was digested with SalI (Thermo Scientific), fragments were ligated and the fragment of predicted length was gel purified again. This HSVtk-T2A-NeoR fragment was double digested with EcoRI (Thermo Scientific) and BshTI (Thermo Scientific) and ligated with pX459-b1 double digested with EcoRI and BshTI. This step gave the plasmid with full length selection cassette called pHSVtk-T2A-G418R. Then plasmid pHSVtk-T2A-G148R was double digested with XbaI and Acc65I (Thermo Scientific), gel purified and ligated with hybridized AdaptUp(+)-AdaptUp(-) duplex. A successful insert was verified by digestion of newly introduced restriction sites: SalI and BamHI. This plasmid was called pAdaptUp-HSVtk-T2A-G148R. This plasmid was digested with NotI (Thermo Scientific), treated with FastAP (Thermo Scientific), gel purified and ligated with AdaptDown(+)-AdaptDown(-) duplex to introduce 2xBpiI site that generate half-sites for BclI and XhoI after cleavage. Resulting plasmid was transformed into E. coli Top-10 cells and called pAdaptUp-HSVtk-T2A-G418R-AdaptDown. To obtain LoxP-flanked sequences, we used a pBK-CMV-derived plasmid with modified multiple cloning site containing ordered sites for BclI, NheI, and XhoI. This plasmid was transformed into E. coli JM110 to eradicate Dam methylation, double digested with BclI and NheI, dephosphorylated, gel purified and ligated with LoxP(+)- LoxP(-) duplex, treated with T4 PNK. This plasmid was transformed into E. coli Top10 cells and called pLoxP. To obtain homology regions that flank Cas9 cleavage site we PCR amplified them from Caki1 gDNA, using primer pairs Bgl1Up_F and Bgl1Up_R for an upstream fragment and Bgl1 Down_F and Bgl1Down_R for a downstream fragment. These PCR fragments were double digested with NheI and XhoI and ligated with pLoxP, double digested by the same sites and dephosphorylated. Ligation products were transformed into E. coli JM110, and purified plasmids were digested with BclI and XhoI to yield upstream and downstream fragments of DNA bearing LoxP site on its end. Upstream fragment was ligated with pAdaptUp-HSVtk-T2A-G148R-AdaptDown double digested with SalI and BamHI to give pUp1L-HSVTK-2a-G418R-AdaptDown. Downstream fragment was ligated with pUp1L-HSVTK-2a-G418R-AdaptDown treated with BpiI and dephosphorylated. This step brought us pUp1L-HSVTK-2a-G418R-L1Down.

Stably transfected cell line generation

We co-transfected Caki1 cells with pX459-b1 and pUp1L-HSVTK-2a-G418R-L1Down using Lipofectamine 3000 (Thermo Scientific) in 2cm² wells following manufacturers instructions. After one week of Puromycin (3µg/ml) selection, cells were split into 96-well plates and selected with 1mg/ml G418 for two weeks. Cells from successfully growing clones were split into two equal aliquots, one for growth and another for genomic DNA isolation. Clones were checked for presence of insert with primer pair BGL1pcr_F - BGL1pcr_R that surround the insertion site. One clone (called Caki1-GcvS-G418R) with homozygous insertion was selected for further work.

Construction of recombination target

Plasmid pBK-CMV was digested with SacI and HpaI, blunted with T4 polymerase, self-ligated, transformed into E. coli Top10 and called pBCK-CMVdHpaI-SacI. LoxP(+) oligo was PNK treated and annealed with LoxP(-) to form a duplex. Bait(+) and Bait(-) oligos were annealed and ligated with hemi-phosphorylated LoxP duplex. Ligation products were resolved on 3% agarose gel, the longest fragment was excised and purified with QIAquick gel extraction kit, treated with T4 PNK and ligated to NheI treated and dephosphorylated pBCK-CMVdHpaI-SacI. Ligation product was transformed into E. coli Top10 and called p1L-bait-L1. Ten sequences chosen to be insertion targets were PCR amplified from genomic DNA of Caki1 cells with primer pairs 01_Hi_Ac_FUBP1_F...10_No_Ac_GC53_R. Amplicons were gel purified, diluted to a concentration of 100nM, treated with T4 PNK and ligated with a plasmid p1L-bait-L1 treated with Ecl136II and dephosphorylated. Then library of ligation products was transformed into E. coli Top10, plasmid library was purified using plasmid mini kit (Evrogen, cat. no. BC021) and co-transfected with pBS598 EF1alpha-EGFPcre (Addgene) to Caki1-GcvS-G418R cells for Cre-mediated recombination exchange of the insertion and the HSVTK-2a-G418 cassette. After 3-day growth Ganciclovir (2µM) was added to eliminate cells that did not undergo recombination. After selection for 10–14 days survived cells were grown to subconfluent monolayer in 10cm dishes and then ChIP on H3K27Ac was performed.

ChIP

ChIP was performed according to Abcam X-chip protocol with following modification: we increased the number of washes in High Salt buffer from one to three times. Sonication was performed in PCR tubes (SSIbio, cat. no. 3245-00) on ice using Sonics vibra cell VCX 130 with an eight-element probe (cat. no. 630-0602). Sonication setup was: 10s pulse, 20s pause, 75% power, total sonication time is 30min. We used 2µg of Anti-H3K27Ac antibody (Abcam, ab4729) per ChIP. Control ChIP was performed in the same conditions with Caki1 cells.

Nested PCR

After ChIP 1ng of obtained DNA fragments was PCR amplified with primer pair BaitF - BaitR. At this step we amplified all DNA sequences inserted between this primer pair. Then 10ng of PCR amplicons from the first step was used as a template for a PCR with primer pairs 01_Hi_Ac_FUBP1_F...10_No_Ac_GC53_R, each pair in an individual reaction tube.

Results and Discussion

None of the GC- and CpG rich promoter regions, that were acetylated in their original genomic loci (rows 1–3 in Table 1 and lanes 1–3 in Figure 1) recovered H3K27ac after relocation to a foreign genomic context in the beta globin locus, suggesting that H3K27ac may not depend directly on such features. An alternative explanation is that some of the CpG dinucleotides became methylated in a foreign genomic environment. Surprisingly, two extremely GC-rich but CpG poor (and, therefore, unmethylated) sequences (rows 5, 6 in Table 1 and lanes 5, 7 in Figure 1) gained H3K27ac in the foreign environment, while in their native environment (in their original genomic location) they had no H3K27ac. Sequences 5 and 6 are located far from promoters of known genes. Sequence 5 contains a lowly expressed CAGE cluster, representing a weak alternative promoter of the KMT2D gene (ZENBU). Therefore, we conclude that the gain of H3K27ac in these regions is unlikely to be explained by transcriptional activity. The lack of H3K27ac in sequence 6 in the native location may be due to the presence of the antagonistic mark H3K27me3, which is lost after translocation to the foreign environment. Yet, for sequence 5, H3K27me3 is absent in all cell types reported in ENCODE. We conclude that the establishment of H3K27ac is not dependent on a CpG content of the sequence per se, as opposed to its antagonistic mark H3K27me3, while it might depend on an extremely high GC-content.

Table 1. Sequences inserted to foreign genomic context and their properties.

Sample number	Genome location, hg38	Gene name	Length, bp	GC, %	CpGs	H3K27Ac, native location	H3K27ac, foreign location	H3K27Me3, native location
1	chr1:62435851-62436130	USP1	280	59.6	15	yes	no	no
2	chr1:77979434-77979693	FUBP1	260	58	27	yes	no	no
3	chr1:86913854-86914119	HS2ST1	266	56.4	16	yes	no	no
4	chr20:63473349-63473556	-	208	65	1	no	no	yes
5	chr12:49033153-49033412	-	260	66.6	1	no	yes	no
6	chr17:81127213-81127450	-	238	67.7	2	no	yes	yes
7	chr2:227381301-227381590	-	290	26.6	1	no	no	no
8	chr1:108505575-108505854	-	280	37.5	0	no	no	no
9	chr19:50816997-50817284	-	288	51.7	0	yes (only GM12878)	no	yes (in some cells)
10	chrX:48988617-48988801	-	185	52	1	no	no	no

Table 2. Oligonucleotides used in this article.

Name	Sequence
Bgl1Cas_F	CACCGCTTGTCCCTGCAGGGTATTA
Bgl1Cas_R	AAACTAATACCCTGCAGGGACAAGC
HSVtk_F	AATTACCGGTATGGCTTCGTACCCCTGCC
HSVtk_R	AATTGTCGACGTTAGCCTCCCCCATCTCC
T2A(+)	AAAGCTCGAGGGCAGTGGAGAGGGCAGAGGAAGTCTGCTAACATGCGGTG
T2A(-)	ATTCGCTAGCTGGGCCAGGATTCTCCTCGACGTCACCGCATGTTAGCAGAC
G418R_F	ATTATCTAGAATTGAACAAGATGGATTGCACG
G418R_R	TAATGAATTCTCAGAAGAACTCGTCAAGAAGG
AdaptUp(+)	CTAGCAGTCGACTTAAGGATCCAT
AdaptUp(-)	GTACATGGATCCTTAAGTCGACTG
AdaptDown(+)	GGCCGCGATCCTGTCTTCAAGAAGACCTTCGAGC
AdaptDown(-)	GGCCGCTCGAAGGTCTTCTTGAAGACAGGATCGC
LoxP(+)	CTAGCATAACTTCGTATAATGTATGCTATACGAAGTTATT
LoxP(-)	GATCAATAACTTCGTATAGCATACATTATACGAAGTTATG
Bgl1Up_F	TCCACTCGAGACCTGGAAACCCATGTCG
Bgl1Up_R	GAATGCTAGCTCTGCGTTACACTCTAGTCACAC
Bgl1Down_F	CATCGCTAGCCCAGGCATACCAGGCAAATAAG
Bgl1_Down_R	TGCTCTCGAGAAATTGACACCATGGCCCAC
BGL1pcr_F	TGCTGCAGATACCATCATCC
BGL1pcr_R	GTAGAATAGACCTGCACCTGCT
Bait(+)	GATCACACTCCTCTGAAGTGAGAGAGCTCCACTAGGACACCTTCTGGT
Bait(-)	GATCACCAGAAGGTGTCCTAGTGGAGCTCTCTCACTTCAGAGGAGTGT
Bait-seq_F	CACACTCCTCTGAAGTGAGAGAG
Bait-seq_R	CCAGAAGGTGTCCTAGTGGAG
01_Hi_Ac_FUBP1_F	CCGCTATGGGTCATTCTCGG
01_Hi_Ac_FUBP1_R	ATTCAACACCCACCCTCGTG
02_Hi_Ac_USP1_F	GGCTGAACGTATCCTGCTTAAC
02_Hi_Ac_USP1_R	GCGAATGCTGTAGAGCTGAG
03_Hi_Ac_HS2ST1_F	GGGGAAGGAGAAGGATCAACC
03_Hi_Ac_HS2ST1_R	TGCGGAAAATGGTAGCGATG
04_No_Ac_GC66_F	GGCAGTAGGACCCCCTAGAC
04_No_Ac_GC66_R	GCATAACTAAGTCCAGGCCCC
05_No_Ac_GC67_F	CTGTGTCCCATAAGGCCCTG
05_No_Ac_GC67_R	ACAAACCAAGCTCTGGGTCC
06_No_Ac_GC68_F	CCCCCATGGCAAAAGCAAG
06_No_Ac_GC68_R	CCCACCACCTTCCAGAGGAG
07_No_Ac_GC28_F	CTATCAACACAACACACAAAACACC
07_No_Ac_GC28_R	AGGTAAGTAACTACCACCTCCCAC
08_No_Ac_GC39_F	AAATCCACTTTTCATCACCACCTC
08_No_Ac_GC39_R	TTTAAGAGAAATGGTTAATGTGGGG
09_No_Ac_GC51_F	TGAGGTGATTCTGTGGGGTAAC
09_No_Ac_GC51_R	ACAACCCCAAAGTCTGGCAC
10_No_Ac_GC53_F	TTCAGACACACTCATCTCCCAC
10_No_Ac_GC53_R	GGTTAACTGGGTCTGAAGATTCC

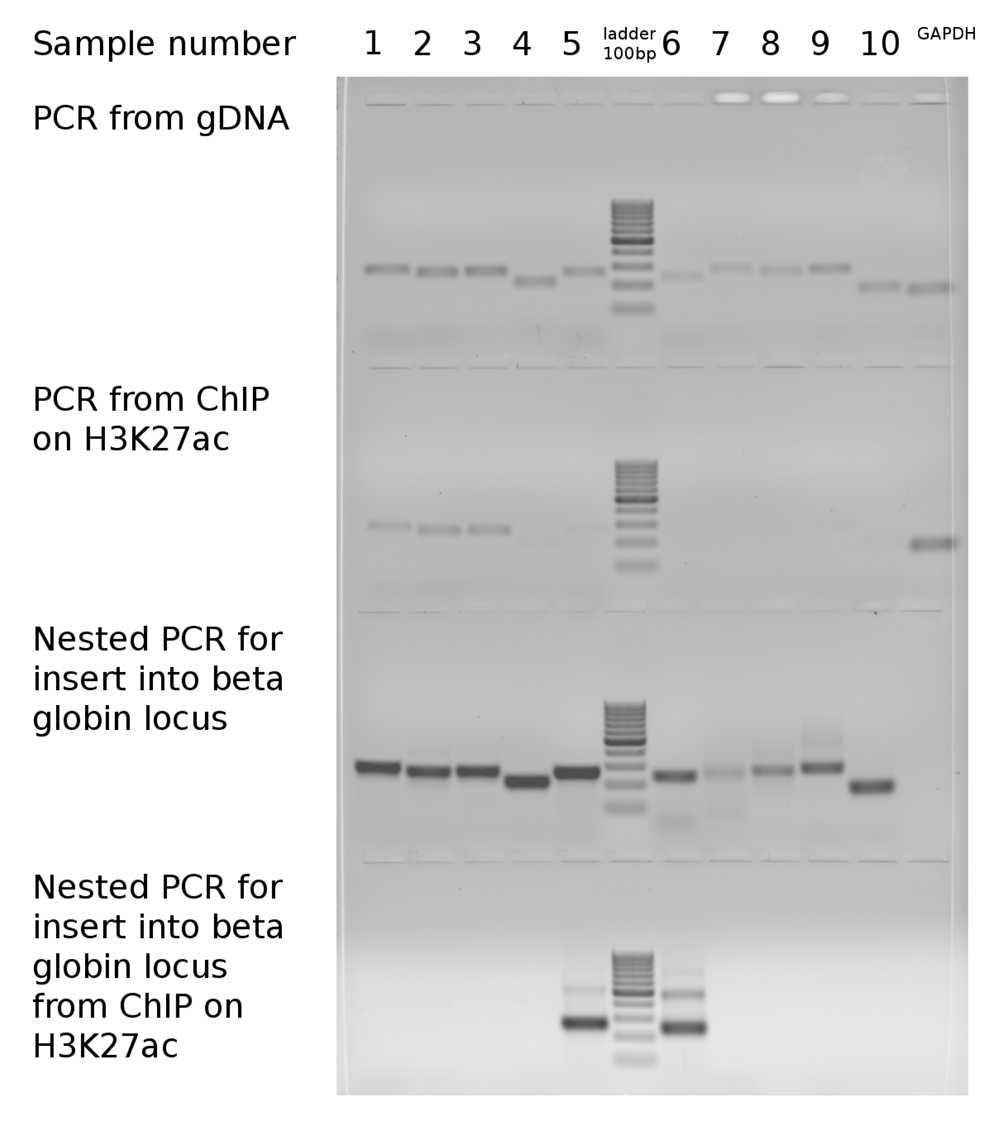

Figure 1. Amplification of chosen sequences in native and foreign genomic context; H3K27ac ChIP-PCR in native and foreign genomic context.

Dataset 1.Gel image of amplification of target sequences from native genomic loci compared with amplification from beta-globin locus with or without ChIP on H3K27ac..

Data availability

Dataset 1: Gel image of amplification of target sequences from native genomic loci compared with amplification from beta-globin locus with or without ChIP on H3K27ac. DOI, 10.5256/f1000research.13441.d192774⁸

Competing interests

No competing interests were disclosed

Grant information

This work was supported by the Russian Science Foundation [15-14-30002].

The funders had no role in study design, data collection and analysis, decision to publish, or preparation of the manuscript.

Acknowledgements

We are thankful to Egor Prokhorchuck for providing access to the laboratory equipment, cell lines, plasmid library and help with the experimental setup.

Faculty Opinions recommended

References

1. Jermann P, Hoerner L, Burger L, et al.: Short sequences can efficiently recruit histone H3 lysine 27 trimethylation in the absence of enhancer activity and DNA methylation. Proc Natl Acad Sci U S A. 2014; 111(33): E3415–3421. PubMed Abstract | Publisher Full Text | Free Full Text
2. Hoffman MM, Ernst J, Wilder SP, et al.: Integrative annotation of chromatin elements from ENCODE data. Nucleic Acids Res. 2013; 41(2): 827–841. PubMed Abstract | Publisher Full Text | Free Full Text
3. Tie F, Banerjee R, Stratton CA, et al.: CBP-mediated acetylation of histone H3 lysine 27 antagonizes Drosophila Polycomb silencing. Development. 2009; 136(18): 3131–3141. PubMed Abstract | Publisher Full Text | Free Full Text
4. Whitaker JW, Chen Z, Wang W: Predicting the human epigenome from DNA motifs. Nat Methods. 2015; 12(3): 265–272, 7 p following 272. PubMed Abstract | Publisher Full Text | Free Full Text
5. Stemmer M, Thumberger T, Del Sol Keyer M, et al.: CCTop: An Intuitive, Flexible and Reliable CRISPR/Cas9 Target Prediction Tool. PLoS One. 2015; 10(4): e0124633. PubMed Abstract | Publisher Full Text | Free Full Text
6. Pliatsika V, Rigoutsos I: "Off-Spotter": very fast and exhaustive enumeration of genomic lookalikes for designing CRISPR/Cas guide RNAs. Biol Direct. 2015; 10: 4. PubMed Abstract | Publisher Full Text | Free Full Text
7. Okonechnikov K, Golosova O, Fursov M, et al.: Unipro UGENE: a unified bioinformatics toolkit. Bioinformatics. 2012; 28(8): 1166–1167. PubMed Abstract | Publisher Full Text
8. Zubritskiy A, Medvedeva YA: Dataset 1 in: DNA sequence features in the establishing of H3K27ac. F1000Research. 2018. Data Source
