ESforRPD2: Expert System for Rice Plant Disease Diagnosis

Data collection and ES development

The ES of rice plant disease diagnosis was designed to help farmers and agricultural officials to diagnose rice plant diseases occurring in the Samarinda region, East Kalimantan province, Indonesia. Rice plant experts were recruited from the Seed Technology Development Division at the Department of Food Crops and Horticulture of East Kalimantan Province and from the Department of Agro-eco-technology of Agricultural Faculty of Mulawarman University (one expert from each). The experts were the primary source for information on rice plant symptoms and diseases. The two rice plant experts have experience in diagnosing rice plant disease in the region of East Kalimantan Province for 20 years. Symptoms and diseases specific for rice plant and their relationships (and their ranked importance) were derived from the experts by questionnaire (Supplementary File 1). This allows the ES to be specific for rice plant diseases diagnosis. This information was then used to construct the knowledge base for building the ES software.

The ES software was developed using the Waterfall paradigm as recommended by Sommerville¹⁷ using five stages, i.e. (i) planning and requirement, (ii) analysis and software design, (iii) implementation and unit testing, (iv) integration and (v) system testing and operation and maintenance. ES architecture consists of three parts, namely the user interface, the inference engine and the knowledge base as proposed by Lucas and van der Gaag⁷. The user interface is used as a consulting interface in order to obtain knowledge and advice from the ES, which would be like consulting an expert. In this ES, the inference engine works as a consultation system in processing input data to build a diagnosis based on the knowledge base developed. The construction of the knowledge-based system employs the Dempster-Shafer approach.

Implementation

The implementation of the ESforRPD2 application is based on Unified Modelling Language (Figure 1) as proposed by Sommerville¹⁷, which consists of use case diagrams, activity diagrams, and class diagrams.

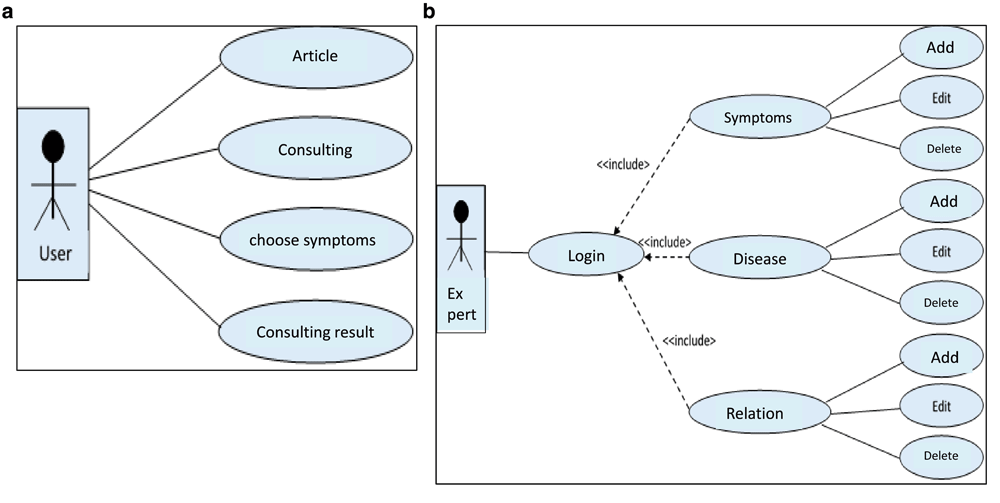

Figure 1.

a. Use case diagram of user. b. Use case diagram of expert.

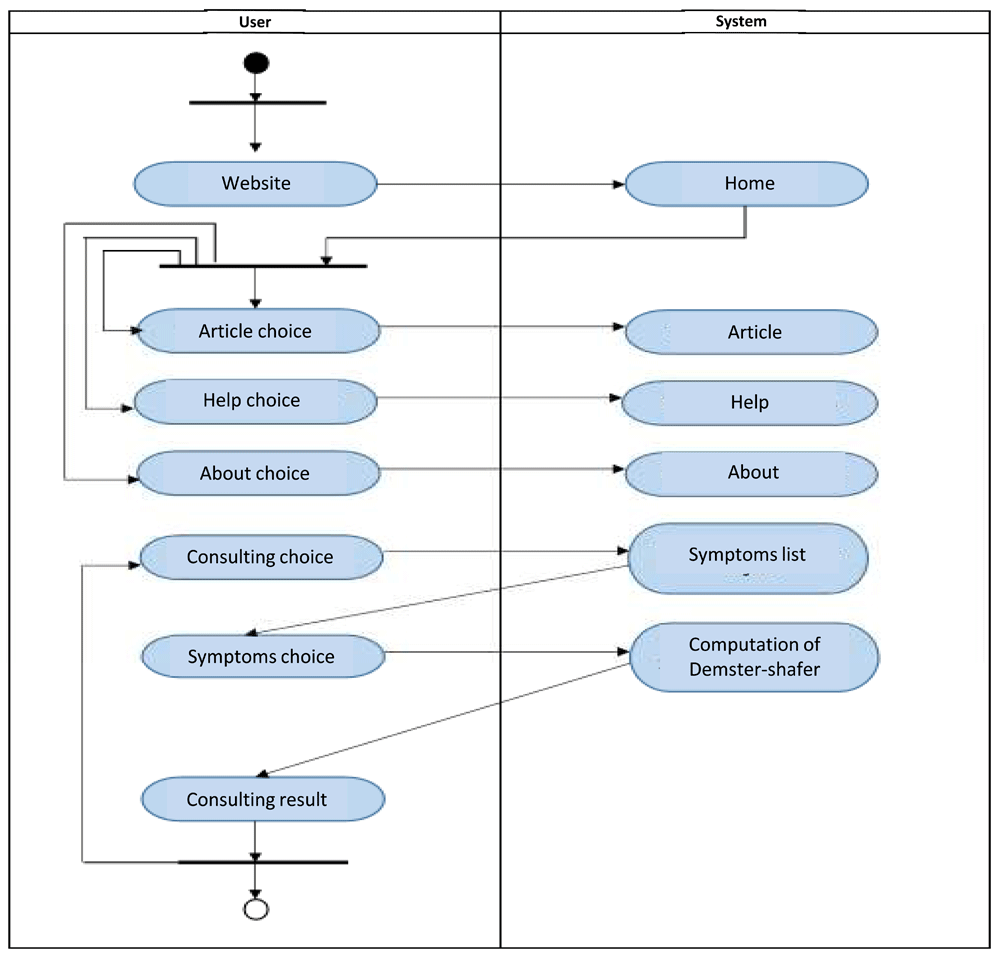

Figure 1c. Activity diagram of ESforRPD2 system application.

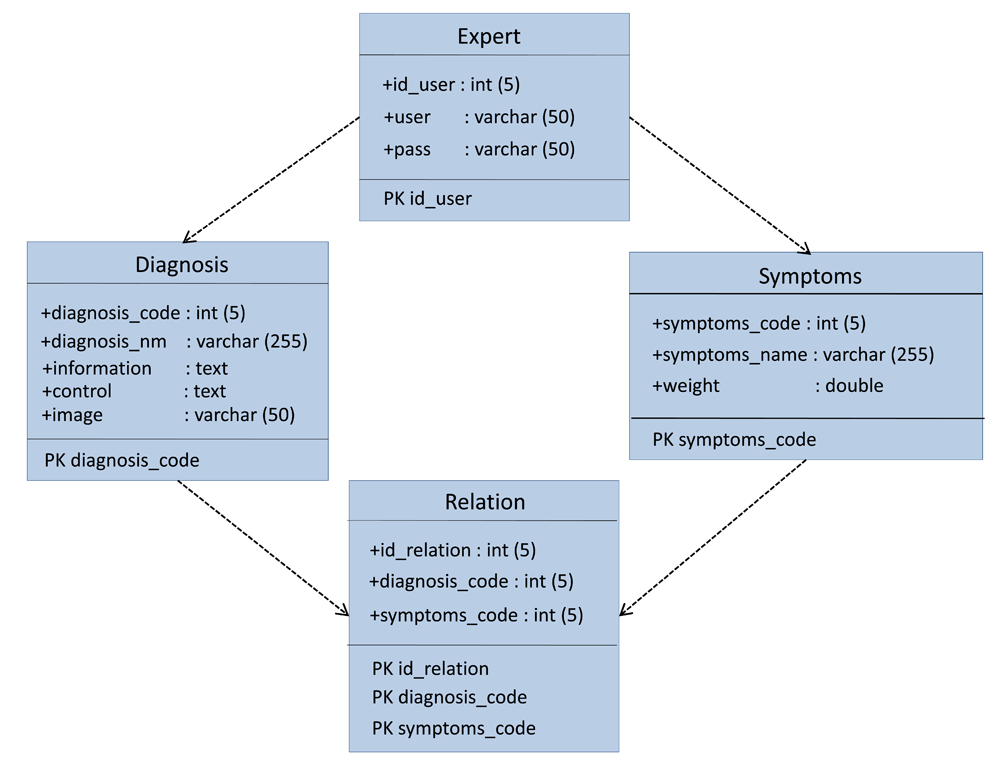

Figure 1d. Class diagram of ESforRPD2 system application.

We constructed two types of “Use case diagram”, namely “Use case for user” consisting of four cases (Article, Consulting, Choose Symptoms and Consulting Result); and “Use case for expert” consisting of three cases (Symptoms, Diseases, and Relation). The use case describes the functions of the ES interacting with user and expert. The activity diagram illustrates the flow of various activities being designed in the ES, i.e. how the flow starts, the decision that might occur, and the flow end. The activity diagram also describes parallel processes that might occur in some executions. In this ES, we build four data stores (Expert, Symptoms, Relation, and Diagnosis) in the class diagram. The ESforRPD2 application uses four datasets, namely disease- and symptoms-data, knowledge base, and symptoms-disease-weight relationships table (Dataset 2). The construction of decision trees and forward-chaining tracing for diagnosing of rice plant diseases in the ES is shown in Figure 2.

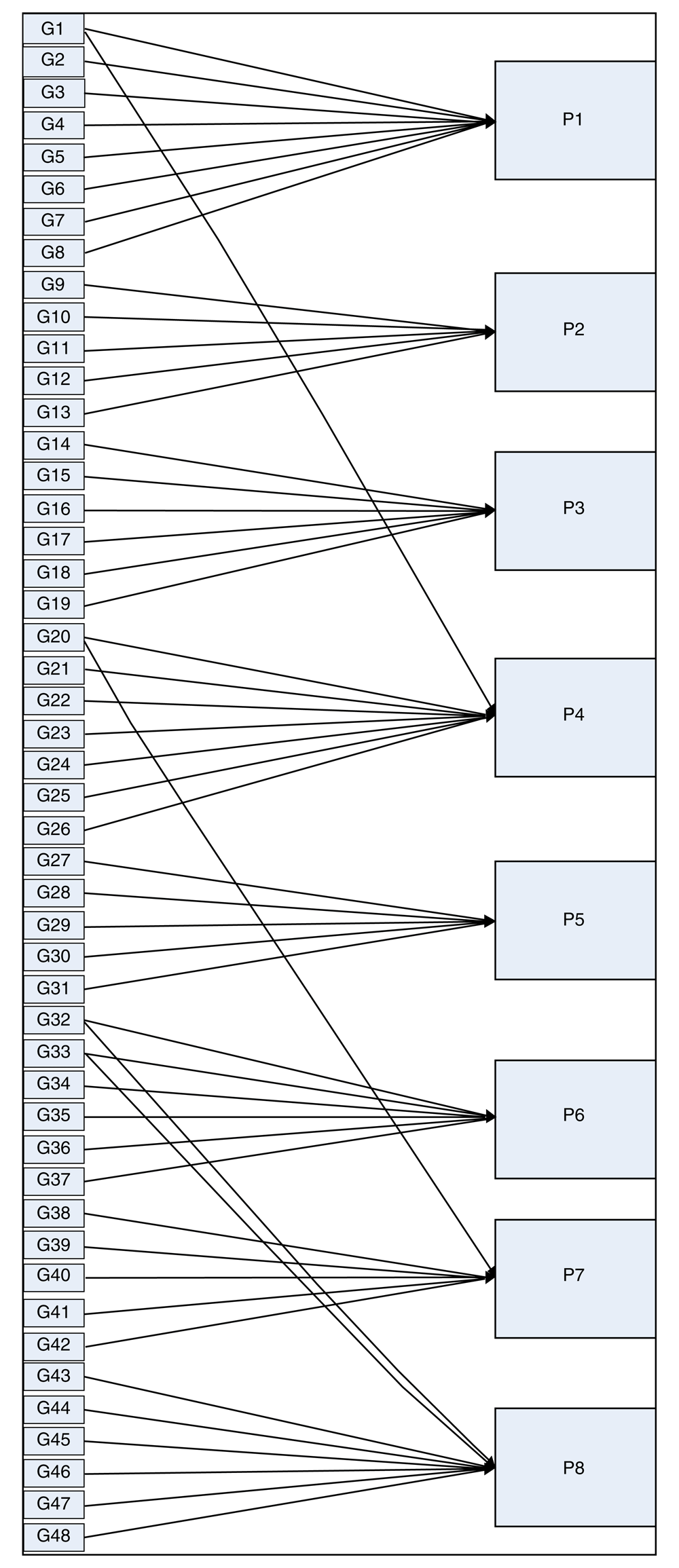

Figure 2. Decision tree and forward chaining tracing.

ESforRPD2 is the first version of ES (in a bilingual interface that combines both English and Indonesia language) to make it user-friendly for Indonesian users. Users use a consultation page to choose the symptoms of the rice plant. The ES performs the calculation process to obtain the trust level using the Dempster-Shafer method¹⁸. The user page (Figure 3a) is the main web page for users without logging in. In the user page, there is also a home menu that displays articles about ES, rice plant diseases, and the Dempster-Shafer method. The consultation page starts the user consultation about the disease of rice plants (Figure 3b). The ES will provide an output as a display showing the symptoms, diagnosis of disease and the confidence level (Figure 3c).

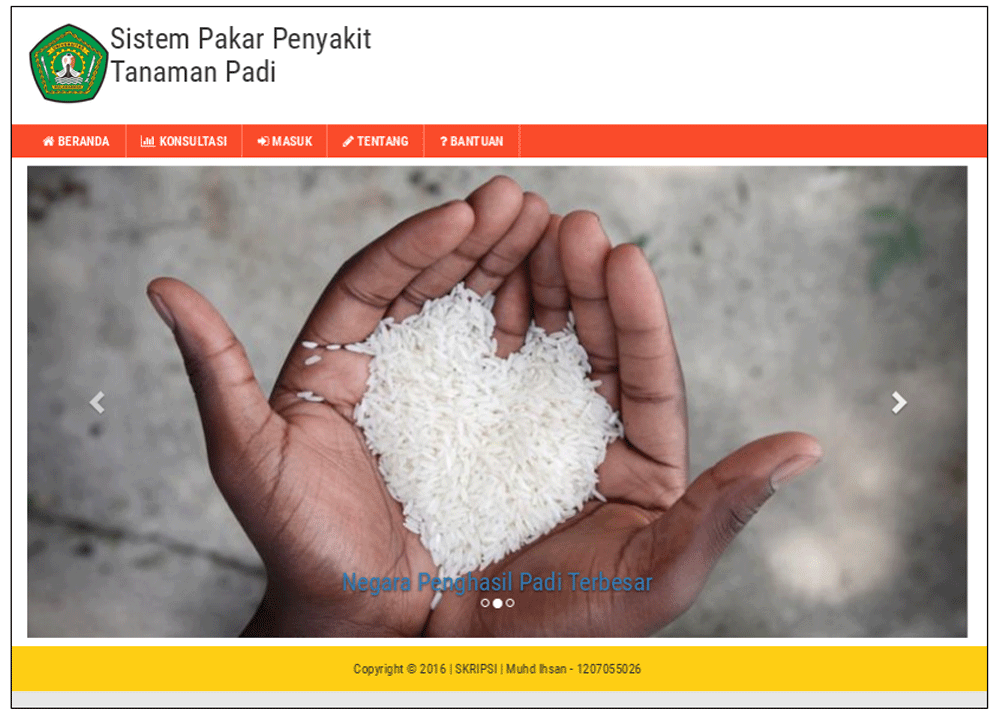

Figure 3a. User main page.

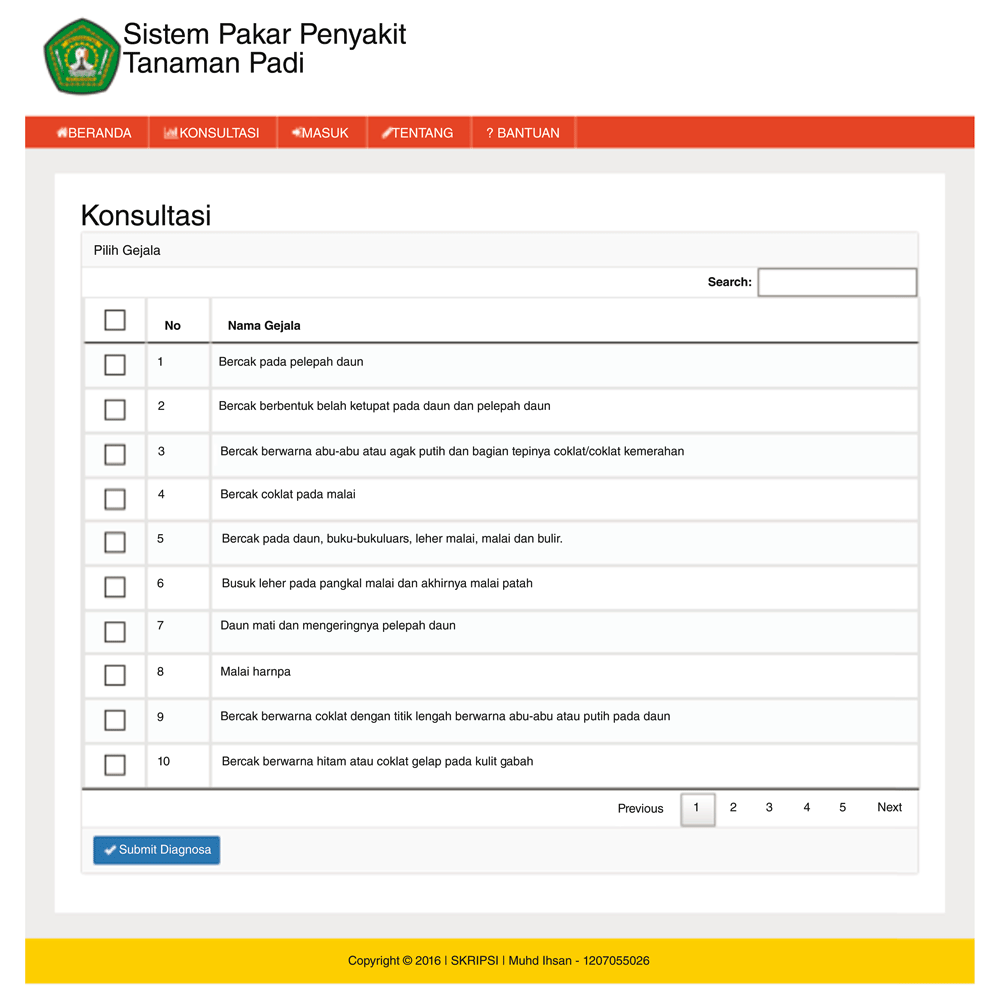

Figure 3b. Consultation page.

Figure 3c. Diagnosis results page.

Operation

The ESforRPD2 application is developed using CPU with specifications of Intel Core i3, 4GB RAM, and 300GB HDD. The same specification of CPU is needed to operate this application.
