BED: a Biological Entity Dictionary based on a graph data model

Data model

The BED (Biological Entity Dictionary) system relies on a data model inspired by the central dogma of molecular biology (Crick, 1970) and describing relationships between molecular concepts usually manipulated in the frame of genomics studies (Figure 1). A biological entity identifier (BEID) can identify either a Gene (GeneID), a Transcript (TranscriptID), a Peptide (PeptideID) or an Object (ObjectID). Object entities can correspond to complex concepts coded by any number of genes (i.e. a protein complex or a molecular function). BEID are extracted from public or private databases (BEDB). BEDB can provide an Attribute related to each BEID. For example it can be the sequencing region provided by the Ensembl database (Zerbino et al., 2018) or the identifier status provided by Uniprot (The UniProt Consortium, 2017). BEID can have one or several associated names (BENames) and symbols (BESymbol). GeneID can have one or several homologs in other organisms belonging to the same GeneIDFamily. Many genomics platforms, such as micro-array, allow the identification of biological entity by using probes identified by ProbeID. In general, BEID can be targeted by several probes belonging to a Platform which is focused on one, and only one, type of entity (BEType) among those described above: Gene, Transcript, Peptide or Object. A BEType can have several BEType products but can be the product of at most one BEType. This constraint allows the unambiguous identification of the most relevant path to convert identifiers from one scope to another and is fulfilled by the current data model: peptides are only produced from transcripts, which are only produced from genes, which can also code for objects.

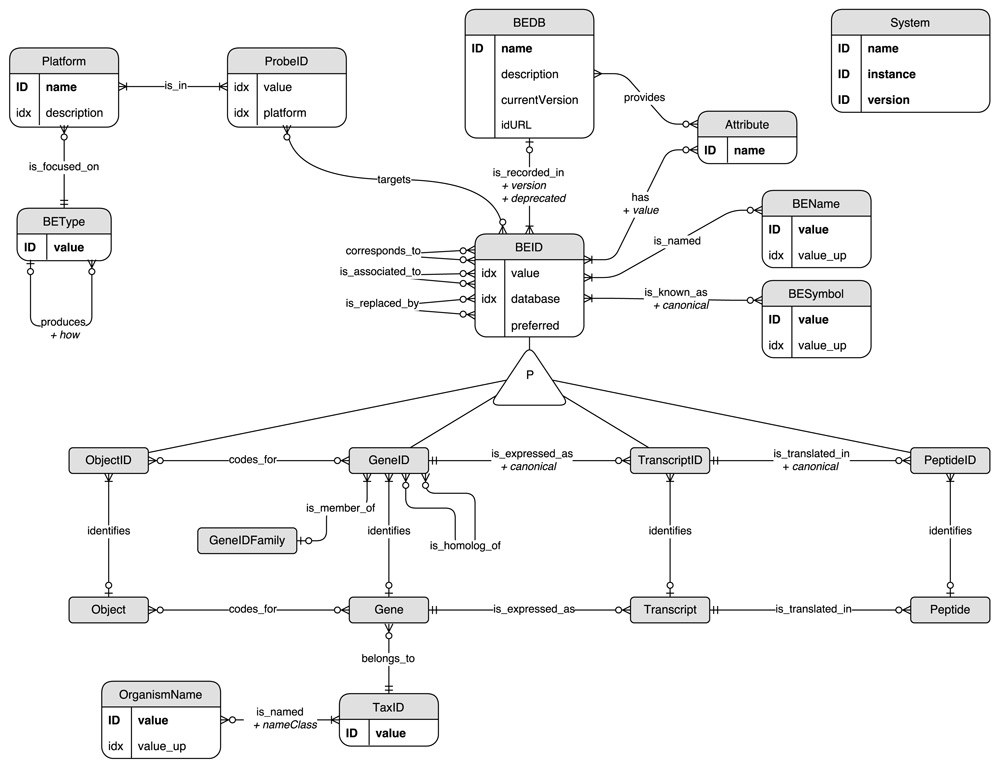

Figure 1. The BED graph data model.

The model is shown as an Entity/Relationship (ER) diagram: entities correspond to graph nodes and relationships to graph edges. “ID” and “idx” indicate if the corresponding entity property is unique or indexed respectively. Some redundancies occur in this data model. Indeed some “value” properties are duplicated in upper case (“value_up”) in order to improve the performance of case-insensitive searches. Also the database of a BEID node is provided as a property to ensure uniqueness of the couples of “database” and “value” properties. The same approach has been applied for the “platform” property of ProbeID nodes.

BEID identifying the same biological entity are related through three different kinds of relationship according to the information available in the source databases, and to the decision made by the database administrator about how to use them. Two BEID which corresponds_to each other both identify the same biological entity. A BEID which is_associated_to or which is_replaced_by another BEID does not directly identify any biological entity: the link is always indirect through one or several other BEID. Therefore, by design a BEID which is_associated_to or which is_replaced_by another BEID can be related to several different biological entities. It is not the case for other BEID which identify one and only one biological entity. This set of possible relationship allows the indirect mapping of different identifiers not necessarily provided by any integrated resource.

In order to efficiently leverage an indirect path through these different relationships the data model has been implemented in a Neo4j^® graph database (Neo4j inc, 2017).

Feeding the database

Two R (R Core Team, 2017) packages have been developed to feed and query the database. The first one, neo2R, provides low level functions to interact with Neo4j^®. The second R package, BED, provides functions to feed and query the BED Neo4j^® graph database according to the data model described above.

Many functions are provided within the package to build a tailored BED database instance. These functions are not exported in order not to mislead the user when querying the database (which is the expected most frequent usage of the system). An R markdown document showing how to build a BED database instance for human, mouse and rat organisms is provided within the package. It can be adapted to other organisms or needs.

Briefly these functions can be divided according to three main levels:

Querying the database

The BED R package provides several functions to retrieve identifiers from different resources, and also to convert identifiers from one reference to another. These functions generate and call Cypher^® queries on the Neo4j^® database. Converting thousands of identifiers can take some time (generally a few seconds). Also such conversions are often recurrent and redundant. In order to improve the performance for such recurrent and redundant queries, a cache system has been implemented. The first time, the query is run on Neo4j^® for all the relevant ID related to user input and the result is saved in a local file. Next time similar queries are requested, the system does not call Neo4j^® but loads the cached results and filters it according to user input. By default the cache is flushed when the system detects inconsistencies with the BED database. It can also be manually flushed if needed.

Operation

Minimal system requirements for running BED and neo2R R packages:

The graph database has been implemented with Neo4j^® version 3 (Neo4j inc, 2017). The BED R package depends on the following packages available in the Comprehensive R Archive Network (CRAN):

Available database instance

An instance of the BED database (UCB-Human) has been built using the script provided in the BED R package and made available in a Docker^® image (Docker inc, 2017) available here: https://hub.docker.com/r/patzaw/bed-ucb-human/

This instance used to exemplify the following use cases is focused on Homo sapiens, Mus musculus and Rattus norvegicus organisms and it has been built from the following resources:

The numbers of biological entity (BE) identifiers (BEID) available in this BED database instance and which can be mapped to each other are shown in Table 1. In total, 3,519,181 BEID are available in this BED instance. This number includes deprecated identifiers without successor and which therefore cannot be mapped to any other identifier. All the genomics platforms included in this BED database instance are shown in Table 2. They provide mapping to BEID from 354,205 ProbeID in total.

Exploring identifiers of biological entities

The getBeIds function returns all BE identifiers from a specific scope. A scope is defined by the type of BE or probe, the source of the identifiers (database or platform) and the organism. For example, the following code returns all the Ensembl identifiers of human genes.

beids <- getBeIds(
    be="Gene", source="Ens_gene", organism="human",
    restricted=FALSE
)
head(beids)

##                    id preferred  Gene db.version db.deprecated
## 82643 ENSG00000283891      TRUE 64781         91         FALSE
## 82642 ENSG00000207766      TRUE 64783         91         FALSE
## 82645 ENSG00000276678      TRUE 64785         91         FALSE
## 82644 ENSG00000265993      TRUE 64787         91         FALSE
## 82647 ENSG00000283793      TRUE 64789         91         FALSE
## 82646 ENSG00000283621      TRUE 64791         91         FALSE

The id column corresponds to the BEID from the source of interest. The column named according to the BE type (in this case Gene) corresponds to the internal identifiers of the related BE. This internal identifier is not a stable reference that can be used as such. Nevertheless, it is useful to identify BEID identifying the same BE. In the example above even if most of Gene BE are identified by only one Ensembl gene BEID, many of them are identified by two or more (5,809 / 59,515 = 10%); 277 BE are even identified by more than 10 Ensembl BEID (Figure 2.a). In this case, most of these redundancies come from deprecated ID from former versions of the Ensembl database (version in use here: 91) and can be excluded by setting the restricted parameter to TRUE when calling the getBeIds function (Figure 2.b). However many BE are still identified by two or more current Ensembl BEID (2,715 / 59,515 = 5%). This result comes from the way the BED database is constructed: When two identifiers from the same resource correspond to the same identifier in another resource (correspond_to relationship in the data model), all these BEID are considered to identify the same BE.

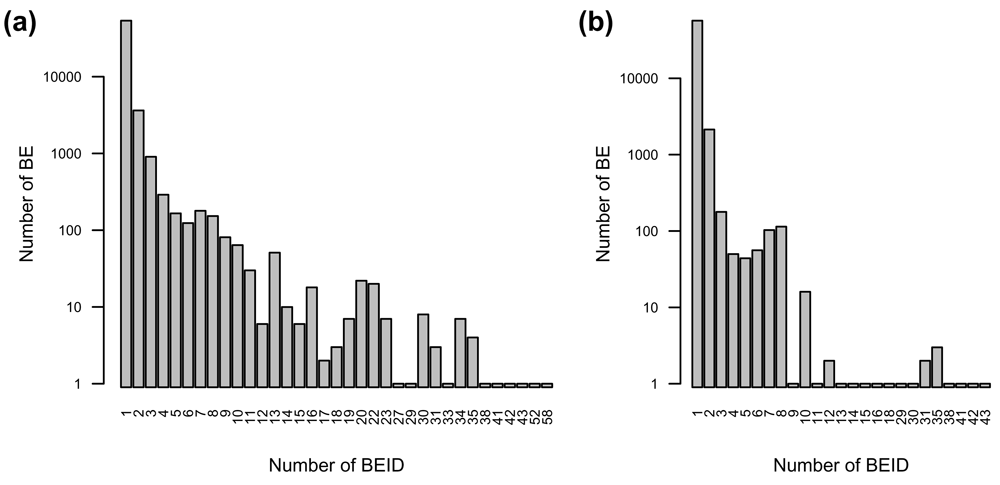

Figure 2. Barplots showing the number of gene BE (log scale) identified by one or more Ensembl gene BEID.

a) All Ensembl gene ID. b) Current Ensembl gene ID (version 91).

A complex example of such mapping is shown in Figure 3 mapping all the BEID of the human TAS2R8 gene which codes for a protein of the family of candidate taste receptors. There are three identifiers corresponding to this gene symbol in Ensembl. All these three identifiers correspond to the same Entrez gene and the same HGNC identifiers. All these BEID are thus considered to identify the same gene. It turns out that the three Ensembl BEID correspond to the same gene mapped on different sequence version of the chromosome 12: the canonical (ENSG00000121314), CHR_HSCHR12_2_CTG2 (ENSG00000272712) and CHR_HSCHR12_3_CTG2 (ENSG00000277316). This information provided by Ensembl is encoded in the seq_region attribute for each Ensembl BEID (see data model) and is used to define preferred BEID which are mapped on canonical version of chromosome sequences. The ENSG00000272712 identifier shows also a complex history in former Ensembl versions.

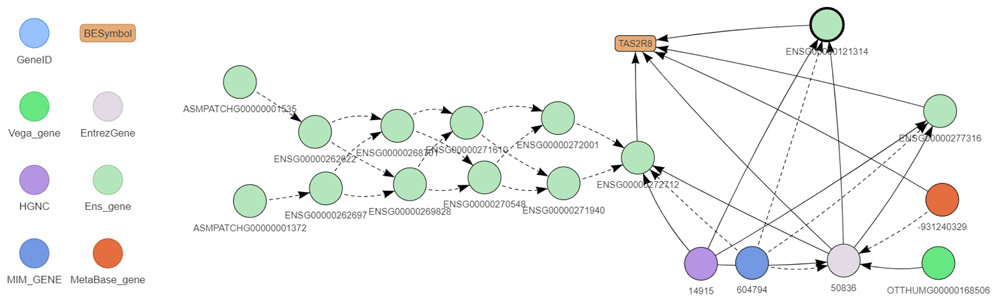

Figure 3. BED relationships between all the different identifiers of the human TAS2R8 gene recorded in the database.

BEID are shown as circle and gene symbol in the rounded box. The color legend is shown to the left of the figure. BEID surrounded in bold correspond to preferred identifiers. Solid arrows represent correspond_to and is_known_as relationships. Dotted arrows represent is_replaced_by and is_associated_to relationships. This graph has been drawn with the exploreBe function.

Converting identifiers

The main goal of BED is to convert identifiers from one scope to another easily, rapidly and with high completeness. It has been thought in order to allow recurring comparisons to each other of many lists of biological entities from various origins.

The function guessIdOrigin can be used to guess the scope of any list of identifiers. A simple example regarding the conversion of human Ensembl gene to human Entrez gene identifiers is shown below and discussed hereafter. By setting the restricted parameter to TRUE the converted BEID are restricted to current - non-deprecated - version of Entrez gene identifiers. Nevertheless all the input BEID are taken into account, current and deprecated ones.

bedConv <- convBeIds(
   ids=beids$id, from="Gene", from.source="Ens_gene", from.org="human",
   to.source="EntrezGene", restricted=TRUE
)

Among all the 68,460 human Ensembl gene identifiers available in the database, 21,718 (32%) were not converted to any human Entrez gene identifier: 21,073 (33%) of the 64,661 non-deprecated and 645 (17%) of the 3,799 deprecated identifiers.

Three other tools were used on January 04, 2018 to perform the same conversion task: biomaRt (Durinck et al., 2009; Kinsella et al., 2011), mygene (Mark et al., 2014; Wu et al., 2013), and gProfileR (Reimand et al., 2016a; Reimand, 2016b). At that time, biomaRt and mygene were based on the Ensembl 91 release whereas gProfileR was based on release 90.

The numbers of human Ensembl gene identifiers successfully converted by each method are compared in Figure 4. Five identifiers were only converted by gProfileR. They were provided by former versions of Ensembl or NCBI but are now deprecated in the current releases of these two resources. All the other gene identifiers converted by the different methods were also converted by BED. However, BED was able to map at least 17,912 more identifiers than all the other tools (Figure 4.a). A few of these mappings (3,154) are explained by the fact that BED is the only tool mapping deprecated identifiers to current versions. Nevertheless, even when focusing on the mapping of current versions of Ensembl identifiers BED was able to map 14,758 more identifiers than all the other tools (Figure 4.b). A few of these mappings (627) are directly provided by the NCBI. But most of them (14,131) are inferred from a mapping of the Ensembl and Entrez gene identifiers to the same HGNC (Gray et al., 2015) identifier.

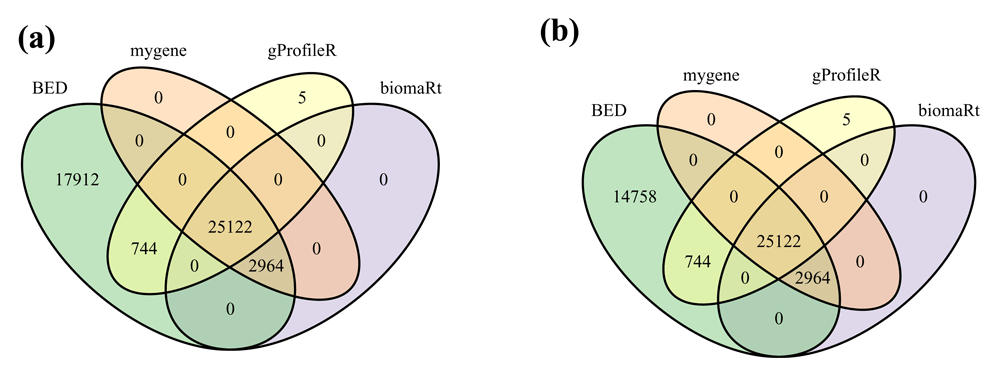

Figure 4.

Venn diagrams showing the number of human Ensembl gene identifiers mapped to at least one human Entrez gene identifier by the different tested tools when focusing (a) on all 68,460 or (b) on current 64,661 BEID (Ensembl 91 release).

A rough approximation of running times of the different methods is provided in Table 3. The aim of this table is to show that BED, as a dedicated and locally available tool, is a very efficient option to convert large lists of identifiers on the fly and recurrently. The aim of BED is to improve the efficiency of identifier conversion in a well defined context (organism, information resources of interest. . .) and not to replace biomaRt, mygene, gProfileR or other tools which provide many more features for many organisms and which should not be narrowed to this task for a complete comparison.

The BED convBeIds function can be used to convert identifiers from any available scope to any other one. It automatically find the most relevant path according to the considered biological entities. It allows elaborate mapping such as the conversion between probe identifiers from a platform focused on mouse transcripts into human protein identifiers. Because such mappings can be intricate, BED also provides a function to show the shortest relevant path between two different identifiers (Figure 5).

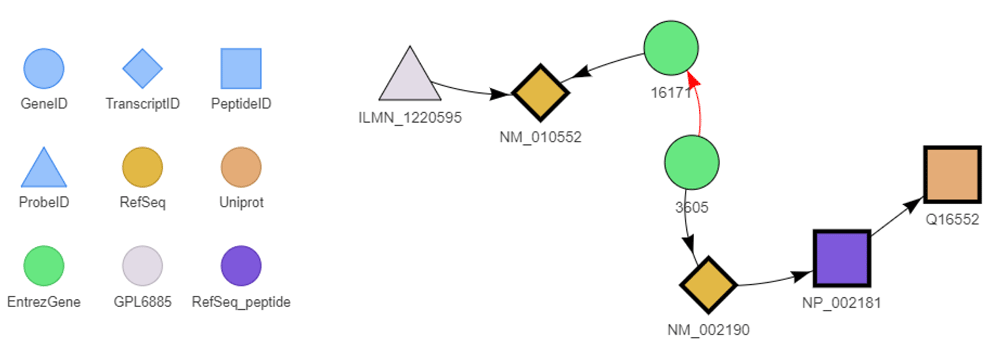

Figure 5. BED conversion shortest path between the ILMN_1220595 probe identifier targeting a transcript of the mouse Il17a gene and the Uniprot Q16552 identifier of the human IL17 protein.

The legend is shown to the left of the figure. The red arrow represents the is_homolog_of relationship. This graph has been drawn with the exploreConvPath function.

Additional features

Some additional use cases and examples are provided in the BED R package vignette. Several functions are available for annotating BEID with symbols and names, again taking advantage of information related to connected identifiers. Other functions are also provided to seek relevant identifiers of a specific biological entity. These functions are used by a shiny (Chang et al., 2017) gadget (Figure 6) providing an interactive dictionary of BEID which is also made available as an Rstudio add-in (Allaire et al., 2017; Cheng, 2016).

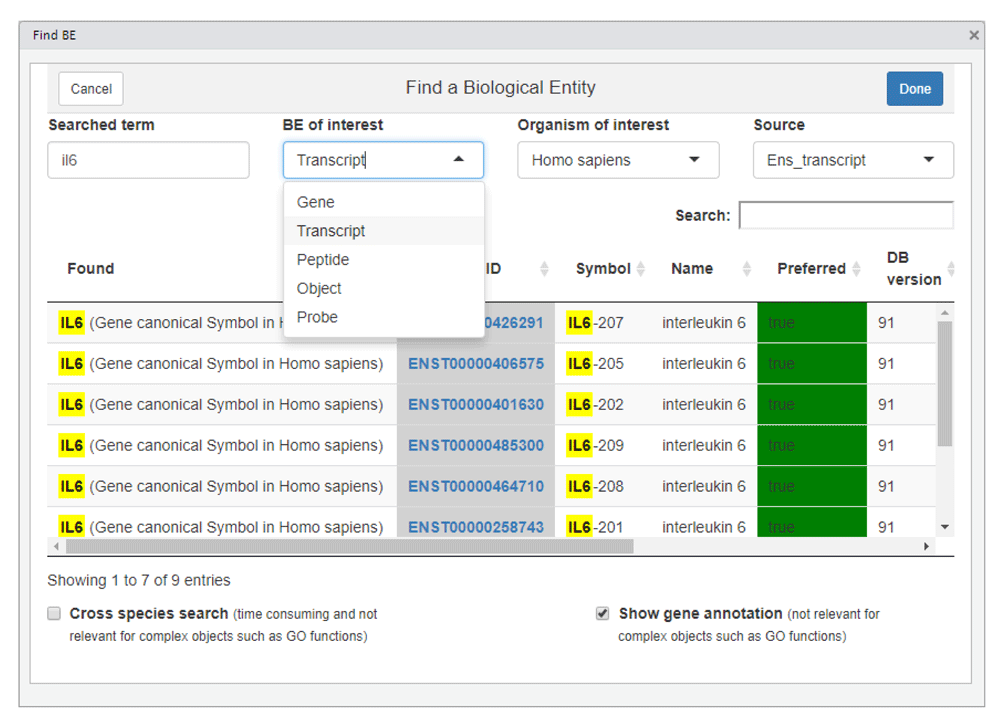

Figure 6. findBe Shiny gadget to seek relevant identifiers of a specific biological entity.

In this example the user is looking after human Ensembl transcript identifiers corresponding to “il6”.
