A biochemical logarithmic sensor with broad dynamic range

[version 1; peer review: 1 approved with reservations]

Steven A. Frank

PUBLISHED 16 Feb 2018

Author details Author details

Department of Ecology and Evolutionary Biology, University of California, Irvine, CA, 92697-2525, USA

Steven A. Frank
Roles: Conceptualization, Formal Analysis, Funding Acquisition, Investigation, Methodology, Project Administration, Resources, Software, Supervision, Validation, Visualization, Writing – Original Draft Preparation, Writing – Review & Editing

OPEN PEER REVIEW

REVIEWER STATUS

Abstract

Sensory perception often scales logarithmically with the input level. Similarly, the output response of biochemical systems sometimes scales logarithmically with the input signal that drives the system. How biochemical systems achieve logarithmic sensing remains an open puzzle. This article shows how a biochemical logarithmic sensor can be constructed from the most basic principles of chemical reactions. Assuming that reactions follow the classic Michaelis-Menton kinetics of mass action or the more generalized and commonly observed Hill equation response, the summed output of several simple reactions with different sensitivities to the input will often give an aggregate output response that logarithmically transforms the input. The logarithmic response is robust to stochastic fluctuations in parameter values. This model emphasizes the simplicity and robustness by which aggregate chemical circuits composed of sloppy components can achieve precise response characteristics. Both natural and synthetic designs gain from the power of this aggregate approach.

Keywords

Biochemical circuit, Hill equation, synthetic biology, systems biology, aggregation, robustness

Corresponding author: Steven A. Frank

Competing interests: No competing interests were disclosed.

Grant information: National Science Foundation grant DEB–1251035 supports my research.
The funders had no role in study design, data collection and analysis, decision to publish, or preparation of the manuscript.

Copyright: © 2018 Frank SA. This is an open access article distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited.

How to cite: Frank SA. A biochemical logarithmic sensor with broad dynamic range [version 1; peer review: 1 approved with reservations]. F1000Research 2018, 7:200 (https://doi.org/10.12688/f1000research.14016.1) First published: 16 Feb 2018, 7:200 (https://doi.org/10.12688/f1000research.14016.1) Latest published: 18 Apr 2018, 7:200 (https://doi.org/10.12688/f1000research.14016.3)

Introduction

I present a simple biochemical circuit that logarithmically transforms input signals. This circuit adds the outputs of several reactions that follow standard mass action Michaelis-Menton kinetics. Alternatively, the biochemical kinetics may follow the commonly observed Hill equation response, which includes Michaelis-Menton kinetics as a special case. This sensor has high dynamic range, responding logarithmically across many orders of magnitude. The high dynamic range is achieved by adding together reactions with different sensitivity ranges. The aggregate nature of this circuit provides robustness to parameter variations. Aggregate sensor design may explain the commonly observed high dynamic range of logarithmic biological responses and may also provide a useful tool for synthetic biology.

Results and discussion

Many biochemical reactions and cellular responses transform an input, x, into an output, y, according to the Hill equation

y = \frac{x^{k}}{c^{k} + x^{k}},

in which c is the value of the input x that yields one-half of the maximal output response, k is the Hill coefficient that determines the shape of the response, and y is normalized to be between 0 and 1¹. Simple mass action kinetics often follows the Hill equation with k = 1, which corresponds to classical Michaelis-Menton kinetics². For example, the input may drive production of the output, and the output may spontaneously transform back to a prior state.

The output of the Hill equation scales approximately logarithmically with its input through the middle part of its response range, because y is roughly linear with respect to log x. Prior studies have emphasized that a Hill equation response can act as a logarithmic sensor^3,4. However, a single Hill equation response provides a logarithmic sensor with limited dynamic range (Figure 1A).

My extended dynamic range sensor arises by adding together n Hill equations with increasing values of the half-maximal response, c_i, as

y = \sum_{i = 0}^{n - 1} \frac{x^{k}}{c_{i}^{k} + x^{k}} . (1)

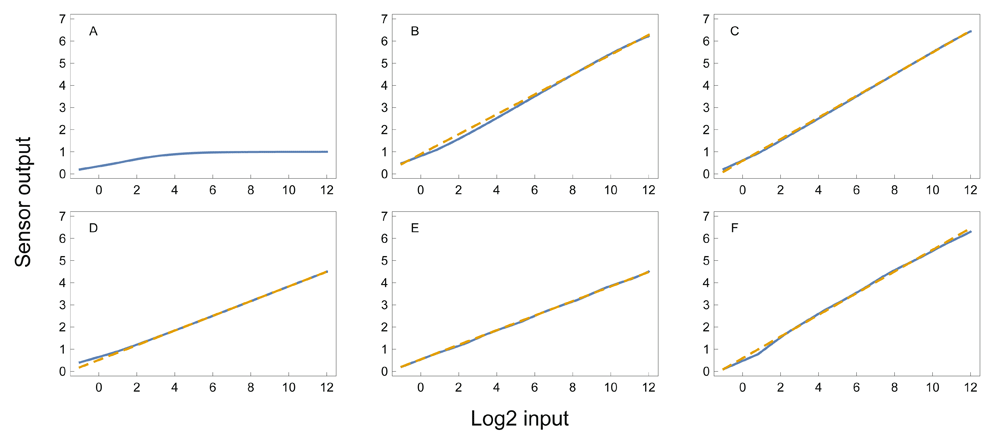

Figure 1. The logarithmic sensor response, y, from the sum of Hill equations given in Equation 1, versus the logarithm of the input, x, on a log₂ scale.

Each unit on the input scale corresponds to a doubling of the input. The range of 13 doublings is approximately four orders of magnitude, 2¹³ ≈ 10⁴. A logarithmic sensor responds linearly with respect to the logarithm of the input. The solid blue lines show the response, y, from Equation 1. The dashed gold lines are linear fits to the response. (A) A single Hill equation with c = 1 and k = 2. A linear response with low sensitivity occurs over a few doublings at small input levels. The following plots all use n = 7 and additional parameters as described from the summed Hill equation in Equation 1, in which c_i = bⁱ. (B) Response with k = 1 and b = 4. (C) Response with k = 2 and b = 4. (D) Response with k = 1 and b = 8. (E) Response with k = 2 and b = 8. (F) Same average parameters values of k = 2 and c_i = bⁱ for b = 4 as in the plot above, but with random parameter fluctuations around those average values. For each of the 7 Hill equations in the sum given in Equation 1, each parameter was obtained by a different random number drawn from a normal distribution. For each k, the parameters were drawn from a normal distribution with mean 2 and standard deviation 2 × 0.25 = 0.5. For each c_i, the parameters were drawn from a normal distribution with mean 4ⁱ and standard deviation 4ⁱ ×0.25. The response remains nearly linear in spite of the random parameter fluctuations.

For example, if c_i = bⁱ, then each reaction in the sum has an increasing input value at which its maximal sensitivity occurs. Figure 1B–E shows that simple combinations of k and b create a logarithmic sensor, in which the output is linearly related to the logarithm of the input. The logarithmic relation holds robustly when the parameters k and b of the individual reactions vary stochastically (Figure 1F).

Several biochemical circuit responses and many aspects of perception scale logarithmically⁵. A robust and generic pattern of this sort seems likely to depend on a robust and generic underlying design. In the search for a generic circuit, my biochemical logarithmic sensor has three advantages over prior designs. First, prior models depended on particular molecular assumptions about biochemical kinetics or reaction pathways^3,4. My design requires only Michaelis-Menton or Hill equation responses, which are very widely observed in biochemical and cellular systems¹. Second, prior models focused on single input-output processes, which have relatively narrow dynamic range. My aggregate design provides a logarithmic response over a vastly greater range. Third, the prior models’ responses are easily perturbed by parameter fluctuations. My design performs robustly with respect to broad fluctuations in parameters. The robustness of my logarithmic sensor emphasizes the potential to achieve precise response characteristics from underlying sloppy components when using an aggregate design^{6, 7}.

Competing interests

No competing interests were disclosed.

Grant information

National Science Foundation grant DEB–1251035 supports my research.

The funders had no role in study design, data collection and analysis, decision to publish, or preparation of the manuscript.

Faculty Opinions recommended

References

1. Zhang Q, Bhattacharya S, Andersen ME: Ultrasensitive response motifs: basic amplifiers in molecular signalling networks. Open Biol. 2013; 3(4): 130031. PubMed Abstract | Publisher Full Text | Free Full Text
2. Frank SA: Input-output relations in biological systems: measurement, information and the Hill equation. Biol Direct. 2013; 8: 31. PubMed Abstract | Publisher Full Text | Free Full Text
3. Daniel R, Rubens JR, Sarpeshkar R, et al.: Synthetic analog computation in living cells. Nature. 2013; 497(7451): 619–623. PubMed Abstract | Publisher Full Text
4. Olsman N, Goentoro L: Allosteric proteins as logarithmic sensors. Proc Natl Acad Sci U S A. 2016; 113(30): E4423–E4430. PubMed Abstract | Publisher Full Text | Free Full Text
5. Adler M, Alon U: Fold-change detection in biological systems. Curr Opin Syst Biol. 2018; 8: 81–89. Publisher Full Text
6. Frank SA: The common patterns of nature. J Evol Bio. 2009; 22(8): 1563–1585. PubMed Abstract | Publisher Full Text | Free Full Text
7. Frank SA: Evolution of robustness and cellular stochasticity of gene expression. PLoS Biol. 2013; 11(6): e1001578. PubMed Abstract | Publisher Full Text | Free Full Text
