Taxa: An R package implementing data standards and methods for taxonomic data

Implementation

The basic classes. Taxa defines some basic taxonomic classes and functions to manipulate them (Figure 1). The goal is to use these as low-level building blocks that other R packages can use. The database class stores the name of a database and any associated information, such as a description, its URL, and a regular expression matching the format of valid taxon identifiers (IDs). The classes taxon_name, taxon_id, and taxon_rank store the names, IDs, and ranks of taxa and can include a database object indicating their source. All of the classes mentioned so far can be replaced with character vectors in the higher-level classes that use them. This is convenient for users who do not have or need database information. However, using these classes allows for greater flexibility and rigor as the package develops; new kinds of information can be added to these classes without affecting backwards compatibility and the database objects stored in the taxon_name, taxon_id, and taxon_rank classes can be used to verify the integrity of data, even if data from multiple databases are combined. These classes are used to create the taxon class, which is the main building block of the package. It stores the name, ID, and rank of a taxon using the taxon_name, taxon_id, and taxon_rank classes. The taxa class is simply a list of taxon objects with a custom print method.

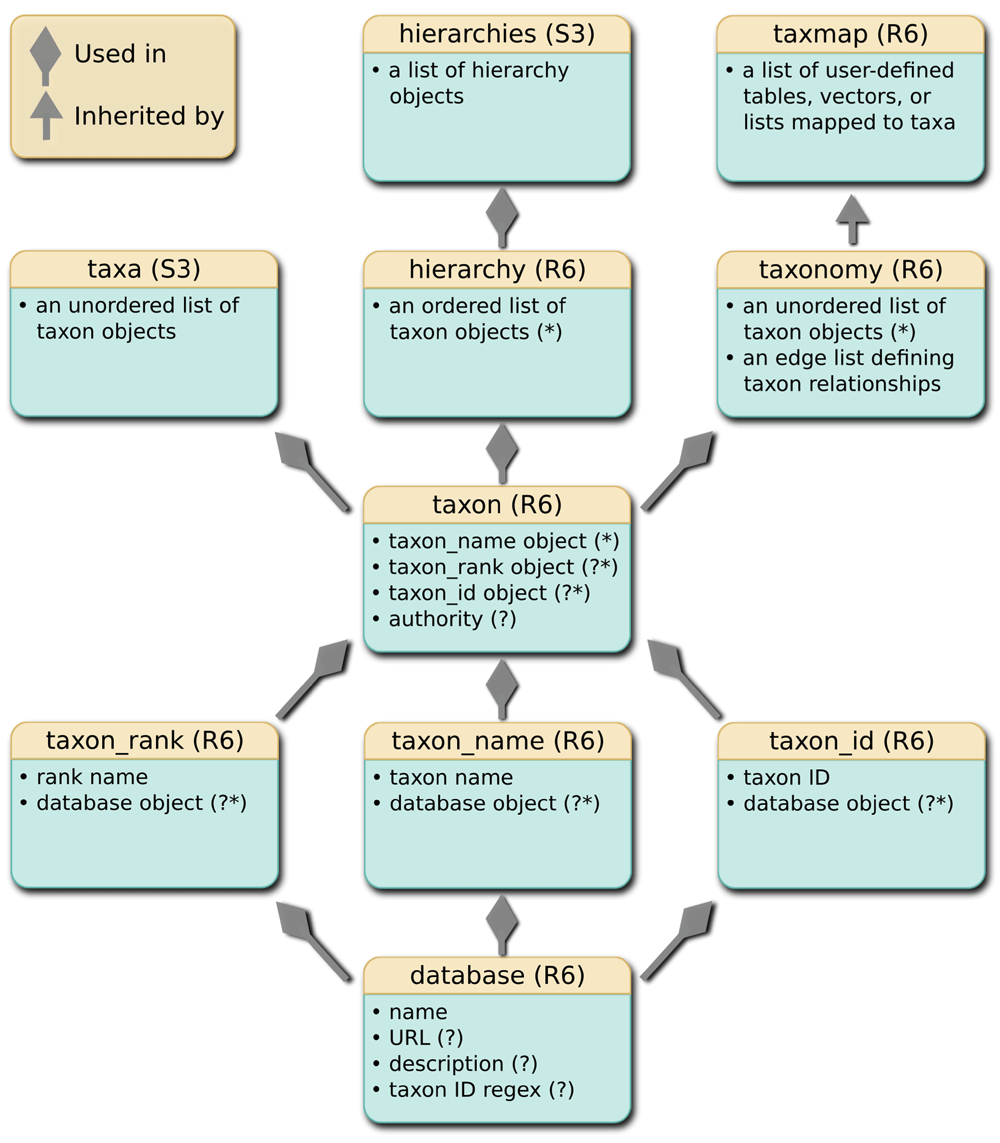

Figure 1. A class diagram representing the relationship between classes implemented in the taxa package.

Diamond-tipped arrows indicate that objects of a lower class are used in a higher class. For example, a database object can be stored in the taxon_rank, taxon_name, or taxon_id objects. A standard arrow indicates that the lower class is inherited by the higher class. For example, the taxmap class inherits the taxonomy class. An asterisk indicates that an object (e.g. a database object) can be replaced by a simple character vector. A question mark indicates that the information is optional.

The hierarchy and taxonomy classes. The taxon class is used in the hierarchy and taxonomy classes, which store multiple taxa (Figure 1). The hierarchy class stores a taxonomic classification composed of nested taxa of different ranks (e.g. Animalia, Chordata, Mammalia, Primates, Hominidae, Homo, sapiens). The hierarchies class is simply a list of hierarchy objects with a custom print method. The taxonomy class stores multiple taxa in a tree structure representing a taxonomy. The individual taxa are stored as a list of taxon objects and the tree structure is stored as an edge list representing subtaxa-supertaxa relationships. The edge list is a two-column table of taxon IDs that are automatically generated for each taxon. Using automatically generated taxon IDs, as opposed to taxon names, allows for multiple taxa with identical names. For example, “Achlya” is the name of an oomycete genus as well as a moth genus. It is also preferable to using taxon IDs from particular databases, since users might combine data from multiple databases and the same ID might correspond to different taxa in different databases. For example, “180092” is the ID for Homo sapiens in the Integrated Taxonomic Information System, but is the ID for Acianthera teres (an orchid) in the NCBI taxonomy database. The tree structure of the taxonomy class uses less memory than the same information saved as a table of ranks by taxa, since the information for each taxon occurs in only one instance. It also does not require explicit rank information (e.g. “genus” or “family”).

The taxmap class. The taxmap class inherits the taxonomy class and is used to store any number of data sets associated with taxa in a taxonomy (Figure 1). A list called “data” stores any number of lists, tables, or vectors that are mapped to all or a subset of the taxa at any rank in the taxonomy. In the case of tables, the presence of a “taxon_id” column containing unique taxon IDs indicates which rows correspond to which taxa. Lists and vectors can be named by taxon IDs to indicate which taxa their elements correspond to. When a taxmap object is subset or otherwise manipulated, these IDs allow for the taxonomy and associated data to remain in sync. The taxmap also contains a list called “funcs” that stores functions that return information based on the content of the taxmap object. In most functions that operate on taxmap objects, the results of built-in functions (e.g. n_obs), user-defined functions, and the user-defined content of lists, vectors, or columns of tables can be referenced as if they are variables on their own, using non-standard evaluation (NSE). Any value returned by the all_names function can be used in this way. This greatly reduces the amount of typing needed and makes the code easier to read.

Manipulation functions. The hierarchy, hierarchies, and taxa classes have a relatively simple structure that is easily manipulated using standard indexing (i.e. using [, [[, or $), but the taxonomy and taxmap classes are hierarchical, making them much harder to modify for the average user. To make manipulating these classes easier, we have developed a set of functions based on the dplyr data manipulation philosophy. The dplyr framework provides a consistent, intuitive, and chain-able set of commands that is easier for new users to understand than equivalent base R commands, which have accumulated some idiosyncrasies over the last 40 years. For example, filter_taxa and filter_obs are analogs of the dplyr filter function used to subset tables.

One aspect that makes dplyr convenient is the use of NSE to allow users to refer to column names as if they are variables on their own. The taxa package builds on this idea. Since taxmap objects can store any number of user-defined tables, vectors, lists, and functions, the values accessible by NSE are more diverse. All columns from any table and the contents of lists/vectors are available. There are also built-in and user-defined functions whose results are available via NSE. Referring to the name of the function as if it were an independent variable will run the function and return its results. This is useful for data that is dependent on the characteristics of other data and allows for convenient use of the magrittr %>% piping operator. For example, the built-in n_subtaxa function returns the number of subtaxa for each taxon. If this was run once and the result was stored in a static column, it would have to be updated each time taxa are filtered. If there are multiple filtering steps piped together using %>%, a static “n_subtaxa” column would have to be recalculated after each filtering to keep it up to date. Using a function that is automatically called when needed eliminates this hassle. The user still has the option of using a static column if it is preferable to avoid redundant calculations with large data sets.

Unlike dplyr’s filter function, filter_taxa works on a hierarchical structure and, optionally, on associated data simultaneously. By default, the hierarchical nature of the data is not considered; taxa that meet some criterion are preserved regardless of their place in the hierarchy. When the subtaxa option is TRUE, all of the subtaxa of taxa that pass the filter are also preserved and when supertaxa is TRUE, all of the supertaxa are likewise preserved. For example,

filter_taxa(my_taxmap, taxon_names == 'Fungi', subtaxa = TRUE)

would remove any taxa that are not named “Fungi” or are not a subtaxon of a taxon named “Fungi”. By default, steps are taken to ensure that the hierarchy remains intact when taxa are removed and that user-defined data are remapped to remaining taxa. When the reassign_taxa option is TRUE (the default), the subtaxa of removed taxa are reassigned to any supertaxa that were not removed, keeping the tree intact. When the reassign_obs option is TRUE (the default), any user-defined data assigned to removed taxa are reassigned to the closest supertaxa that passed the filter. This makes it easy to remove levels of the taxonomy without losing associated information. Finally, if the drop_obs option is TRUE (the default), any user-defined data assigned to removed taxa are also removed, allowing for subsetting of user-defined data based on taxon characteristics. The many combinations of these powerful options make filter_taxa a flexible tool and make it easier for new users to deal with the hierarchical nature of taxonomic data. The function sample_n_taxa is a wrapper for filter_taxa that randomly samples some number of taxa. All of the options of filter_taxa can also be used for sample_n_taxa, in addition to options that influence the relative probability of each taxon being sampled.

Other dplyr analogs that help users manipulate their data include filter_obs, sample_n_obs, and mutate_obs, filter_obs is similar to running the dplyr function filter on a tabular, user-defined dataset, except that there are more values available to NSE and lists and vectors can also be subset. The drop_taxa option can be used to remove any taxa whose only observations have been removed during the filtering. The sample_n_obs function is a wrapper for filter_obs that randomly samples some number of observations. Like sample_n_taxa, there are options to weight the relative probability that each observation will be sampled. The mutate_obs function simply adds columns to tables of user-defined data.

Mapping functions. There are also a few functions that create mappings between different parts of the data contained in taxmap or taxonomy objects. These are heavily used internally in the functions described already, but are also useful for the user. The subtaxa and supertaxa functions return the taxon IDs (or other values) associated with all subtaxa or supertaxa of each taxon. They return one value per taxon. The recursive option controls how many ranks below or above each taxon are traversed. For example, subtaxa(obj, recursive = 3) will return information for all subtaxa and their immediate subtaxa for each taxon. The recursive option also accepts a simple TRUE/FALSE, with TRUE indicating all subtaxa of subtaxa, etc., and FALSE only returning immediate subtaxa, but not their descendants. By default, subtaxa and supertaxa return taxon IDs, but the value option allows the user to choose what information to return for each taxon. For example, subtaxa(obj, value = "taxon_names") will return the names of taxa instead of their IDs. Any data available to NSE (i.e. in the result of all_names(obj)) can be returned in this way.

The functions roots, stems, branches, and leaves are a conceptual set of functions that return different subsets of a taxonomy. A “root” is any taxon that does not have a supertaxon. A “stem” is a root plus all subtaxa before the first split in the tree. A “branch” is any taxon that has only one subtaxon and one supertaxon. Stems and branches are useful to identify since they can be removed without losing information on the relative relationship among the remaining taxa. “Leaves” are taxa with no subtaxa. By default, these options return taxon IDs, but also have the value option like subtaxa and supertaxa, so they can return other information as well. For example, leaves(obj, value = "taxon_names") will return the names of taxa on the tips of the tree.

In the case of taxmap objects, the obs function returns information for observations associated with each taxon and its subtaxa. The observations could be rows in a table or elements in a list/vector that are named by taxon IDs. This is used to easily map between user-supplied information and taxa. For example, assuming a taxonomy with a single root, the value returned by obs for the root taxon will contain information for all observations, since they will all be assigned to a subtaxon of the root taxon. By default, row/element indices of observations will be returned, but the obs function also accepts the value option, so the contents of any column or other information associated with taxa can be returned as well.

The parsers. Taxonomic data appear in many different forms depending on the source of the data, making parsing a challenge for many users. There are two main sources of variation in how taxonomic data are typically stored: the type of information supplied (e.g. a taxon name vs. a taxon ID) and how it is encoded (e.g. in a table vs. as part of a string). In addition, there might be additional user-specific data associated with the taxa that need to be parsed. These data might be associated with each taxon in a classification (e.g the taxon ranks) or might be associated with each classification (e.g. a sequence ID). In many cases, both types are present. This complexity makes implementing a generic parser for all types of taxonomic data difficult, so parsers are typically only available for specific formats. The taxa package introduces a set of three parsing functions that can parse the vast majority of taxonomic data as well as any associated data and return a taxmap object.

The parse_tax_data function is used to parse taxonomic classifications stored as vectors in tables that have already been read into R. In the case of tables, the classification can be spread over multiple columns or in a single column with character separators (e.g. “Primates;Hominidae;Homo;sapiens”) or a combination of the two. Other columns are preserved in the output and the rows are mapped to the taxon IDs (e.g. the ID assigned to “sapiens” in the above example). For both tables and vectors, additional lists, vectors or tables can be included and are assigned taxon IDs based on some shared attribute with the source of the taxonomic data (e.g. a shared element ID or the same order). This makes it possible to parse many data sets at once and have them all mapped to the same taxonomy in the resultant taxmap object. Data associated with each taxon in each classification can also be parsed and included in the output using regular expressions with capture groups identifying the information to be stored and a key corresponding to the capture groups that identifies what each piece of information is. For example, Hominidae_f_2;Homo_g_3;sapiens_s_4 would use the sep ";", the regular expression "(.+)_(.+)_(.+)", and the key c(my_taxon = "taxon_name", my_rank = "info", my_id = "info"). The values of the key indicate what the information is (a taxon name and two arbitrary pieces of information) and the names of the key (e.g. “my_rank”) determine the names of columns in the output.

If only a taxon name (e.g. “Primates”) or a taxon ID for a reference database (e.g. the NCBI taxon ID for Homo sapiens is “180092”) is available in a table or vector, then the classification information must be queried from online databases and the function lookup_tax_data is used. lookup_tax_data has all the same functionality of parse_taxa_data in addition to being able to look up taxonomic classifications associated with taxon names, taxon IDs, and NCBI sequence IDs. If the data are embedded in a string (e.g. a FASTA header), then the function extract_tax_data is used instead. extract_tax_data has the functionality of parse_tax_data and lookup_tax_data, except that the information is extracted from raw strings using a regular expression and a corresponding key, the same way that data for each taxon in a classification is extracted by parse_tax_data. Together, these three parsing functions can handle every combination of data type and format (Figure 2).

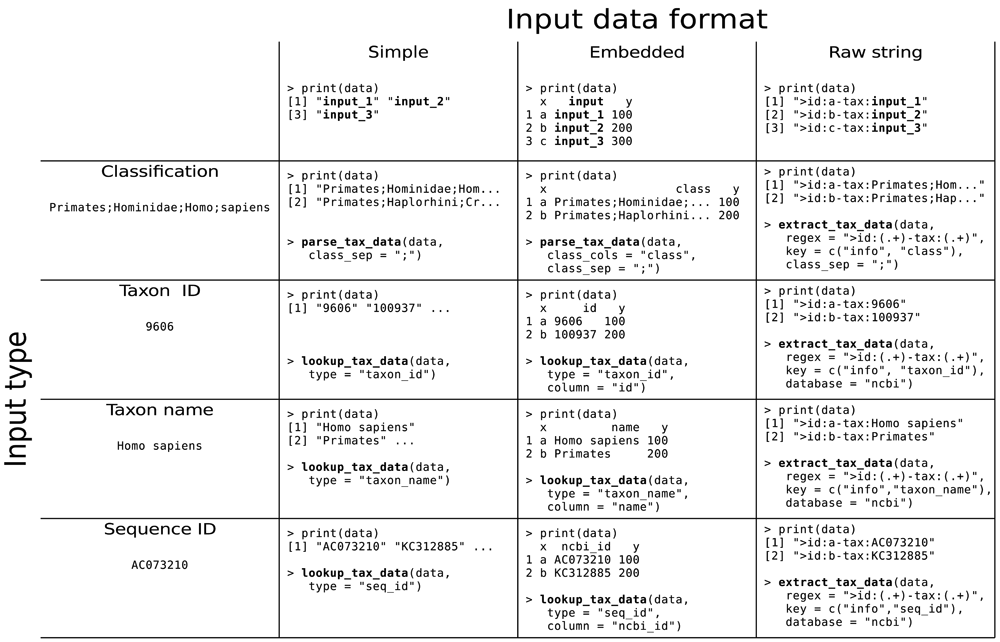

Figure 2. A table for determining how to parse different sources of taxonomic information using the taxa package.

The rows correspond to the common sources of taxonomic information: full taxonomic classifications encoded in text, taxon IDs from a database, taxon names (a single rank), and NCBI sequence IDs. The columns correspond to the different formats the information can be encoded in: as a simple vector, as columns in a table, and as a piece of a complex string (e.g. a FASTA header). In the case of tables and complex strings, other information associated with the taxa can be preserved in the parsed result, as is done in the “use cases” example below. Any one cell in the table shows how to parse a given taxonomic information source in a given format using one of the three parsing functions: parse_tax_data, lookup_tax_data, extract_tax_data.

Operation

Taxa is an R package hosted on CRAN, so only an R installation and internet connection are needed to install and use taxa. Once installed, most of the functionality of the package can be used without an internet connection. R can be installed on nearly any operating system, including most UNIX systems, MacOS, and Windows. The minimum system requirements of R and the taxa package are easily met by most personal computers. The amount of resources needed will depend on the size of data being used and the complexity of analyses being conducted. The package can be installed by entering install.packages("taxa") in an interactive R session. The development version can be installed from GitHub using the devtools package:

library(devtools)
install_github("ropensci/taxa")

For users, the typical operation of the software will involve parsing some kind of input data into a taxmap object using a method demonstrated in Figure 2. Alternatively, a dependent package, such as metacoder, might provide a parser that wraps one of the taxa parsers or otherwise returns a taxmap object. Once the data is in a taxmap object, the majority of a user’s interaction with the taxa package would typically involve filtering and manipulating the data using functions described in Table 1 and applying application-specific functions in other packages, such as metacoder (Figure 3).

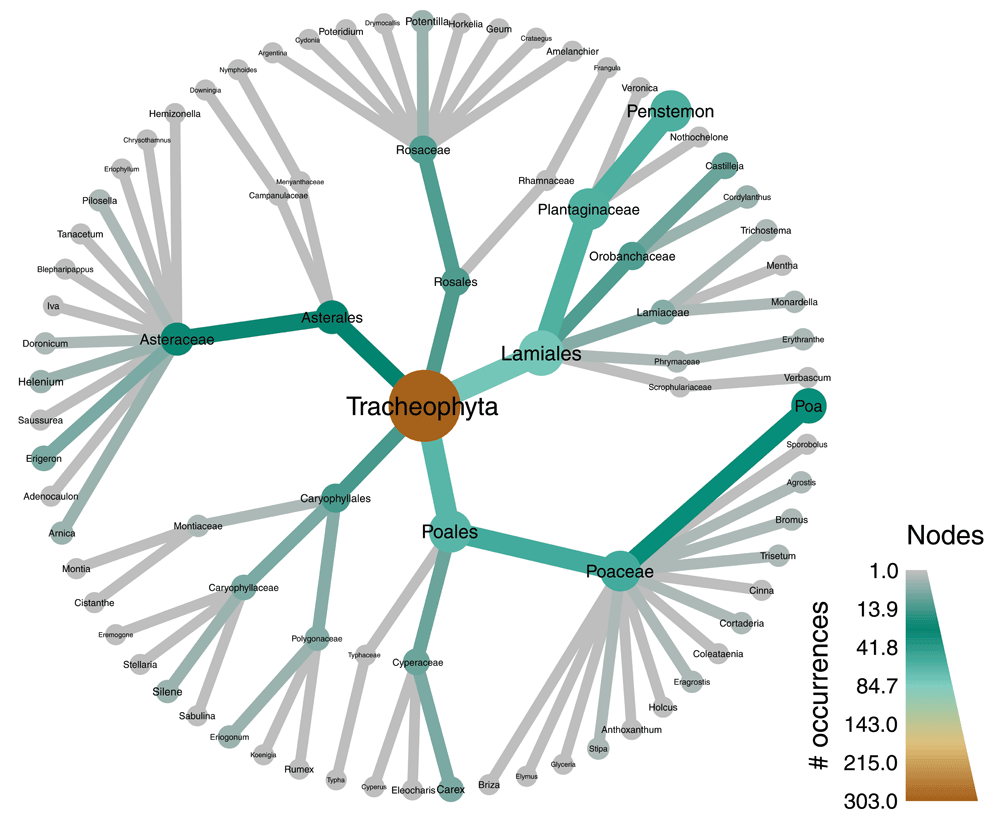

Figure 3. The result of the example analysis shown in the text.

Records of plant species occurrences in Oregon are downloaded from the Global Biodiversity Information Facility (GBIF) using the rgbif package (Chamberlain, 2017). Then a taxa parser is used to parse the table of GBIF data into a taxmap object. A series of filters are then applied. First, all occurrences that are not from preserved specimens as well any taxa that have no occurrences from preserved specimens are removed. Then, all taxa at the species level are removed, but their occurrences are reassigned to the genus level. All taxa without names are then removed. In the final two filters, only orders within Tracheophyta with greater than 10 subtaxa are preserved. The metacoder package is then used to create a heat tree (i.e. taxonomic tree) with color and size used to display the number of occurrences associated with each taxon at each level of the hierarchy.
