Badges for sharing data and code at Biostatistics: an observational study

Aim

Our aim is to investigate the effect of badges at increasing reproducible research, specifically, data and code sharing, at Biostatistics.

Participants

This is an observational study with two journals, intervention and control, using a pre-post study design, with 30 randomly selected papers per year from 2006 to 2013 for each journal. We chose Statistics in Medicine as the control journal as it did not have a badges or any type of reproducible research reward scheme during those years, but is in the same field of research with similar goals of publishing papers on statistical methods development in health and medicine. The study setting is the Biostatistics and Statistics in Medicine research archive. All the information required was publicly available online, as such participant consent was not required and an ethics exemption (exemption number: 1700001051) was granted by the Office of Research Ethics and Integrity at the Queensland University of Technology.

Sample size calculation and power

A sample of only 19 papers per journal would have given us a 90% power to detect a difference in data sharing of 37.9%, based on the effect of badges from the Kidwell et al. study⁸. This uses a two-sided 5% significance level. We felt this sample was unrealistically small, hence we instead based our sample size on the practical considerations of reading papers and examining their data and code sharing choices, given the time constraints of the first author’s (ARF) PhD. Thirty papers per year from 2006 to 2013 for two journals is a total sample of 480 papers, which is practically possible, and provides good coverage over the time of the policy change at Biostatistics.

Data collection

For each year and journal a random number generator was used to select the research articles (in Microsoft Excel 2016l). Articles were included if they:

Articles were excluded if:

If an article was excluded then we sampled another article from the same year and journal to maintain the sample size. ARF read the research papers and extracted the details of the articles included in the study. Each article was screened using these search terms: “data”, “code”, “package”, “available”, “https”, “www”, “figshare”, and “github”. For the included articles, the following variables were documented: submission date, data sharing statement, data availability, hyperlink to dataset, code sharing statement, code availability, hyperlink to code, and badge allocation (for Biostatistics articles).

The second author (AGB) independently assessed data and code sharing for 20 randomly selected articles. There were minor discrepancies between the authors, which were resolved by discussion.

Using definitions from our previous work⁵, each research article was categorised for data and code sharing as:

Data sharing

available: articles that had a functioning link to a publicly available dataset deposited at a third-party site or attached as supplementary material to the electronic version of the article

potentially available: articles that indicated that the dataset was potentially available upon request from the authors

not available: articles that did not indicate the availability of the dataset analysed in the article or where the link to the data was no longer working

none to share: articles that used simulated data and so did not have a raw dataset to share

Code sharing

available: articles that had a functioning link to publicly available code deposited at a third-party site, or attached as supplementary material to the electronic version of the article or available within the article itself

potentially available: articles that indicated that the code was potentially available upon request from the authors

not available: articles that did not indicate the availability of the code used to analyse the data (raw or simulated) or where the link to the code was no longer working

Intervention period

We defined the intervention period based on the policy change date at Biostatistics and using the article’s submission date as this is when authors are thinking about the journal requirements and perhaps becoming aware of the badge. Since the policy change was on 1 July 2009, papers submitted to Biostatistics after that date were in the intervention period. We included a six month gap before the policy change as an interim phase because papers submitted during this time (1 January 2009 to 1 July 2009) could experience the badge policy upon re-submission, so papers submitted in this period were categorized into the interim period. Any papers submitted to Biostatistics before 1 January 2009 were in the control period and all papers submitted to Statistics in Medicine were controls.

The first analysis examined data and code availability and probability of sharing over time using submission date. As a sensitivity analysis, we used the articles’ publication dates extracted from PubMed in place of submission date. We conducted this sensitivity analysis to examine whether the policy was associated with a change based on the very latest date that authors could make changes to their papers.

Statistics methods

We plotted the binary data and code sharing over time and included a smooth curve to estimate the mean sharing rate over time in each journal. The smooth curves were made using a LOESS smooth with a span of 0.9, and we also plotted the 95% confidence intervals. Papers where there was no data to share (i.e., using simulated data) were excluded from these plots.

To test for a difference in the probability of making data and code available after the introduction of badges, we used logistic regression and presented the results as prevalence ratios rather than odds ratios, as prevalence ratios are generally easier to understand¹⁴. Due to possible convergence issues with a standard logistic regression model using a log-link to estimate prevalence ratios, we ran a Bayesian logistic regression model using WinBUGS (version 1.3.4). Using a Bayesian model has the added advantage of giving 95% credible intervals and Bayesian p-values that are far easier to interpret than frequentist confidence intervals and p-values. The Bayesian p-values used here estimate the probability that sharing increased after the policy change at Biostatistics. As well as showing the change in data and code sharing probability, on the relative scale, of the prevalence ratio, we also show the absolute increase in sharing probability after the policy change together with 95% credible intervals.

In a sensitivity analysis we used a strong control for time by including year as a random effect, assuming that each year has its own data sharing rate. This essentially matches papers from Biostatistics and Statistics in Medicine from the same year. We did this to adjust for other changes over time, for example a potential increase over time in data and code depositories such as GitHub, Figshare, and Dryad, and a potential decrease in data and code availability for papers published many years ago because of broken links¹⁵.

The data analysis was made using the statistical software R (version 3.2.3).

Frequency of data and code availability

Flow charts show the frequency of data and code availability for each journal (Figures 1a and 1b). Biostatistics had 8 articles with no data to share, bringing the sample with possible data available to 232; 20 of which had data available, 3 had data potentially available and 209 had no data available. Statistics in Medicine had 31 articles with no data to share, bringing the sample with possible data available to 209; 3 of which had data available, 4 had data potentially available and 202 had no data available.

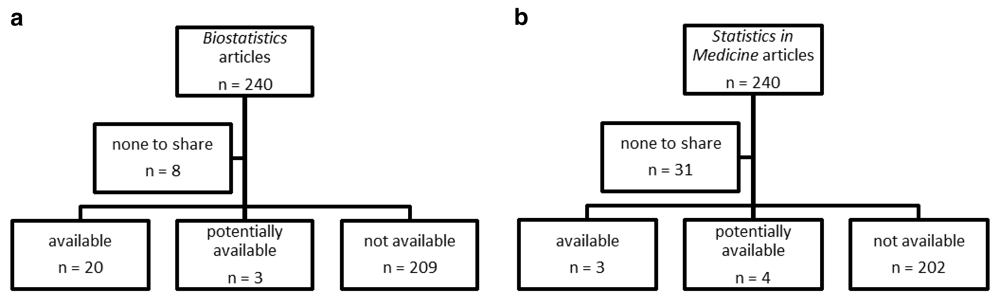

Figure 1.

a: Flow chart of data availability. Randomly selected Biostatistics articles from 2006 to 2013, b: Flow charts of data availability. Randomly selected Statistics in Medicine articles from 2006 to 2013.

The frequency of code availability for each journal is in Figures 2a and 2b, which were comparable for the two journals. Statistics in Medicine had 24 articles with code available, 27 potentially available, and 189 with no code available, while Biostatistics had 14 articles with code available, 22 potentially available, and 204 with no code available.

Figure 2.

a: Flow charts of code availability. Randomly selected Biostatistics articles from 2006 to 2013, b: Flow charts of code availability. Randomly selected Statistics in Medicine articles from 2006 to 2013.

The data available and probability of sharing by submission date together with a smooth curve and 95% confidence intervals are in Figure 3a. The vertical red lines are at 1 July 2009, the date badges were introduced at Biostatistics, and 1 January 2009, six months prior to the policy change (interim period). It is clear that data availability and probability of sharing were greater over time in Biostatistics than in the control journal, Statistics in Medicine, but the probability of sharing data at Biostatistics was still low, at well below 0.25. Interestingly an increase in data sharing at Biostatistics took place before badges were introduced at the journal. The results of the sensitivity analysis using publication date are shown in Figure 3b. The smooth curves in Figure 3b are similar to those in Figure 3a and show that data availability and probability of sharing were increasing at Biostatistics before badges were introduced.

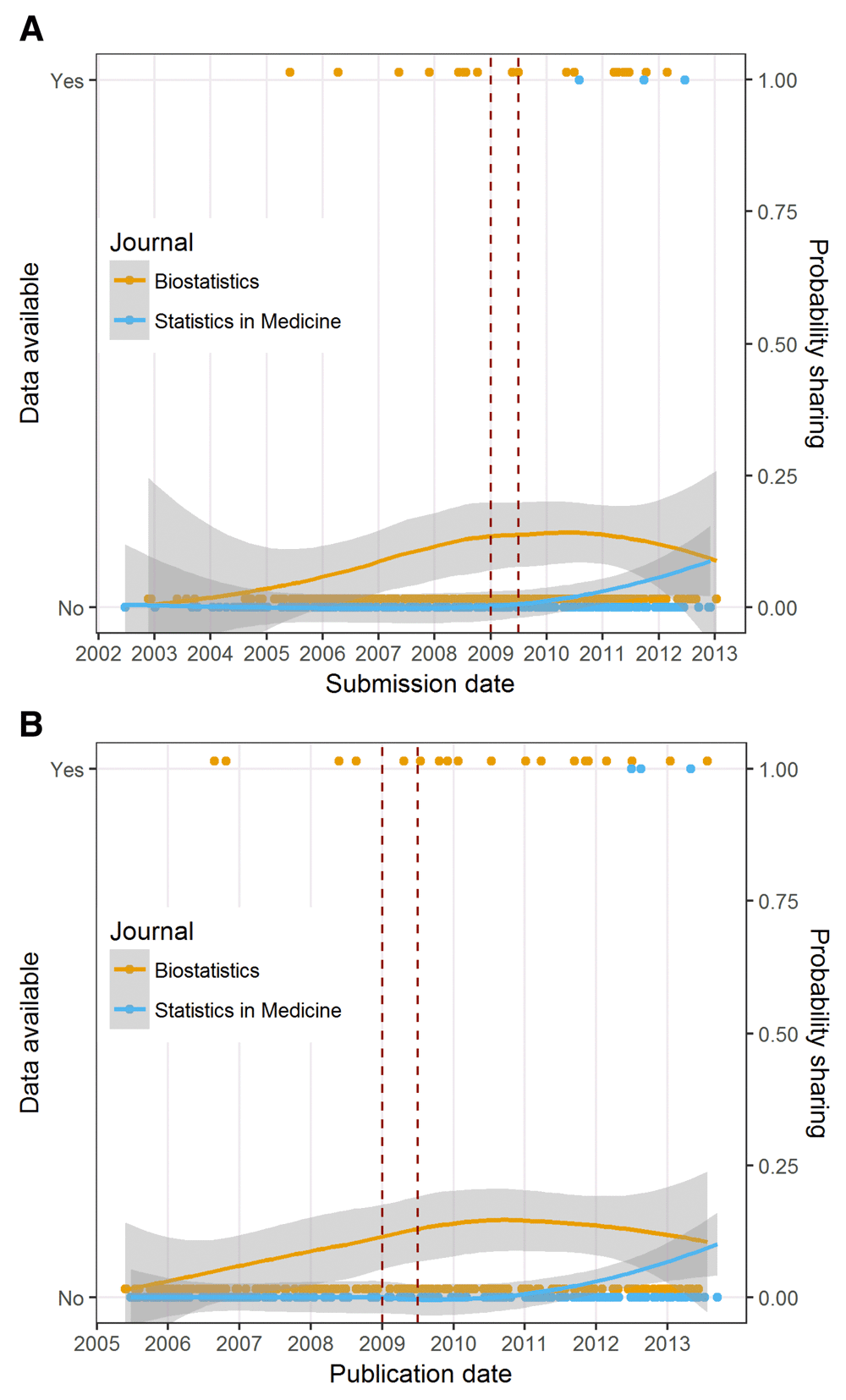

Figure 3.

a: Plot of data availability over time by submission date. The dots at ‘No’ or ‘Yes’ are individual articles and the lines are a smoothed mean using a LOESS together with 95% confidence intervals (grey areas). The red lines indicate the interim period: 1 January 2009 to 1 July 2009. b: Plot of data availability over time by publication date. The dots at ‘No’ or ‘Yes’ are individual articles and the lines are a smoothed mean using a LOESS together with 95% confidence intervals (grey areas). The red lines indicate the interim period: 1 January 2009 to 1 July 2009.

The code availability and probability of sharing by submission date together with a smooth curve and 95% confidence intervals are in Figures 4a. The smooth curves for Biostatistics and Statistics in Medicine are mostly on top of each other in this graph, except for a drop-off in sharing at Biostatistics in later years. This indicates no great difference in code sharing at these journals. Figure 4b shows the results of the sensitivity analysis, where publication date was used instead of submission date. In this graph (Figure 4b), the smooth curve for Biostatistics and Statistics in Medicine are again mostly on top of each other, showing an increase in code sharing over time at both journals, but around mid-2011 the two curves diverged, with Statistics in Medicine showing an increase in code sharing and Biostatistics a drop.

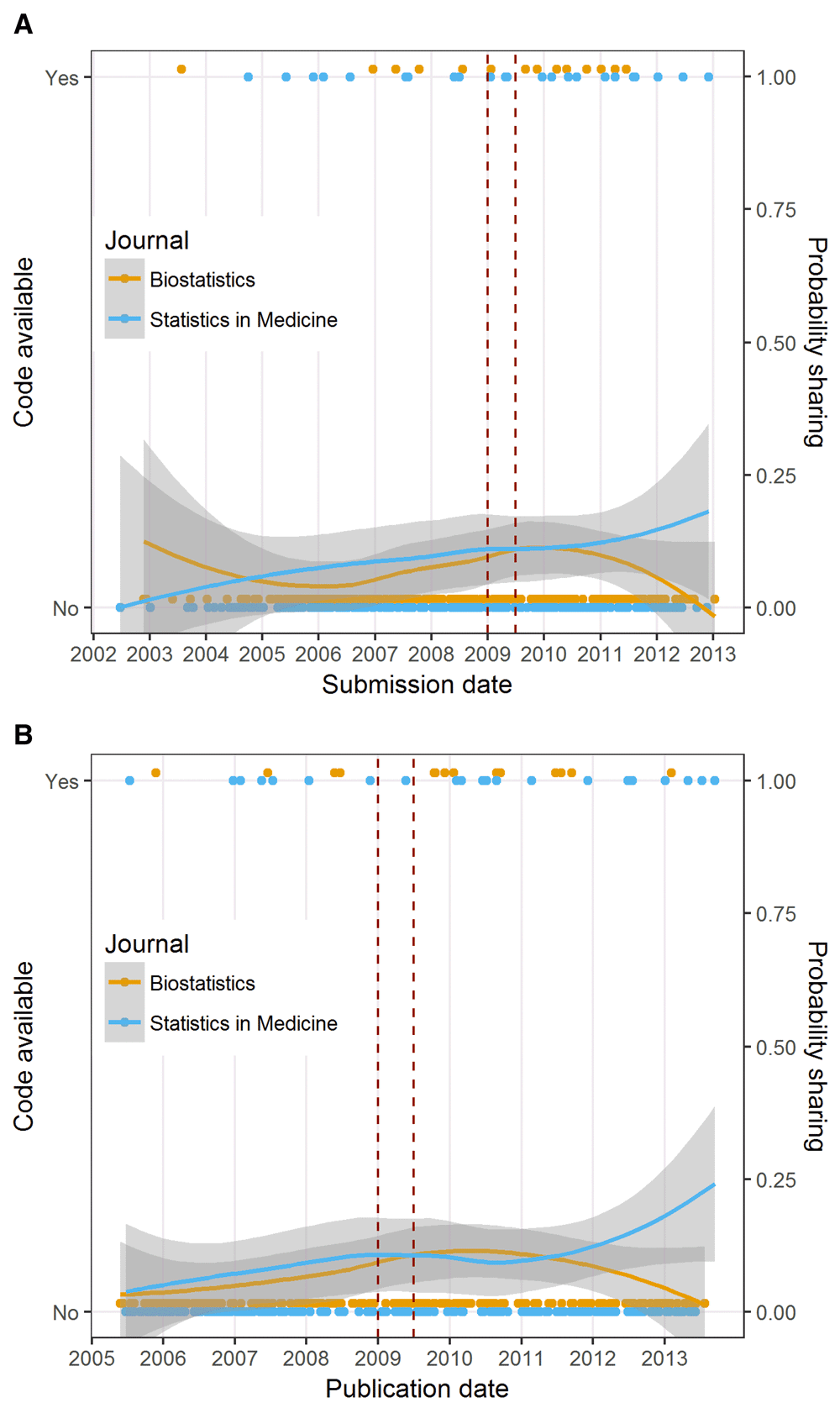

Figure 4.

a: Plot of code sharing over time. The dots at ‘No’ or ‘Yes’ are individual articles and the lines are a smoothed mean using a LOESS together with 95% confidence intervals (grey areas). The red lines indicate the interim period: 1 January 2009 to 1 July 2009. b: Plot of code sharing over time. The dots at ‘No’ or ‘Yes’ are individual articles and the lines are a smoothed mean using a LOESS together with 95% confidence intervals (grey areas). The red lines indicate the interim period: 1 January 2009 to 1 July 2009.

Data sharing

The logistic regression model estimated that the probability of data sharing increased by 5.1 (95% CI for prevalence ratio: 0.6 to 14.8, p-value: 0.942) times that of the control period in the interim period of 1 January 2009 to 1 July 2009. This Bayesian p-value gives an estimated 94.2% probability that the mean rate of sharing increased. After the interim period, the probability of data sharing increased by an estimated 3.5 (95% CI: 1.4 to 7.4, p-value: 0.996) times after badges were introduced. On an absolute scale, this difference was only a 7.3% increase in data sharing (95% CI: 2 to 14%). After controlling for time, badges increased the probability of data sharing at the journal by an estimated 3.9 times (95% CI: 1.2 to 9.5, p-value: 0.991). This is comparable to the prevalence ratio of 3.5 when time was not added as a random effect, which shows that controlling for time only slightly increased the effect badges had on the probability of data sharing.

Code sharing

During the interim period, badges did not have an effect on code sharing (prevalence ratio of approximately 1). After the interim period there was an estimated 0.6% increase (95% CI: –5 to 8%, p-value: 0.549) in sharing. After adjusting for time, this absolute difference reduced to –1.4% (95% CI: –7 to 5%, p-value: 0.286). This suggests that badges did not have an impact on the probability of sharing code.

Broken links

We often encountered issues with broken hyperlinks at both journals. Forty-nine out of 76 (64%) articles that provided links to data and code at Biostatistics had broken links and at Statistics in Medicine, 21 out of 50 (42%) articles that provided links to data and code had broken links.

Are badges effective incentives for reproducibility?

The results of this observational study and those of the related Kidwell et al. badge study⁸ cannot accurately deduce the effectiveness of badges because of the biases of the non-randomised study design. The Kidwell et al. 2016 badge study received criticism from Hilda Bastian on its study design, analyses, and claims¹⁶. One of the criticisms was that the badges scheme was not the only intervention offered at the journal, there were four other co-interventions offered in 2014, and so any effect could not be attributed to badges alone¹⁶. Bastian reasonably argued that to isolate the impact of badges, groups that had the same conditions except badges were needed¹⁶. Our study is also exposed to similar limitations with regard to confounding as other changes may have occurred that we were not aware of. However, we can derive some insight into the effect badges had on data and code sharing from the results of both observational studies.

After the introduction of badges at Biostatistics, the probability of data sharing increased 3.5 times. This prevalence ratio might seem like a large increase but on an absolute scale it is only a 7.3% increase in the rate of data sharing, which is much lower than the 37.9% effect of badges at Psychological Science⁸. The large difference between the effect of badges at Biostatistics and Psychological Science could be related to differences in the culture of sharing between the two fields, and the timeframes of the studies: 2006 to 2013 for our study, versus 2012 to 2015 for Kidwell et al. Our study analysed incentives for data and code sharing at an earlier time when the reproducibility crisis was not yet a testified reality, hence researchers may have been more primed to change behaviour in the Kidwell et al. study. Also, since statisticians typically re-analyse existing datasets, it might be harder for them to share the data as they might not have the rights. This is contrary to research in psychological science where original data is normally collected and analysed, making sharing a potentially simpler task.

There was an apparent increase in data sharing before badges were introduced at Biostatistics (Figure 3a). One possibility is that articles that were submitted before the policy change could still have experienced the policy because of the time needed for peer review and resubmission. We used submission date to determine if articles were prepared before or after the policy change because we know that sharing data often takes preparation time and we believed that authors were therefore more likely to react to the policy when they were writing their first draft. However, data sharing seemed to be increasing before badges were introduced even when we used publication date in a sensitivity analysis. The reproducibility policy at Biostatistics was built on the existing framework that “allowed and encouraged authors to place supplementary materials online”¹. Such an option of depositing supplementary material could have contributed to the rise in data sharing before badges. Also, Roger Peng assumed the role as the Associate Editor for reproducibility at Biostatistics in 2006, which might have catalysed a change in the culture of reproducibility at the journal.

Badges did not appear to have an effect on code sharing as the prevalence ratio was close to 1 with a 95% credible interval that included 1. This is an unexpected outcome as code is of great importance in the field of biostatistics. A possible explanation behind the lack of badge effect on code sharing could be our definition of code sharing, which might seem traditional compared to the reproducibility policy at Biostatistics. We defined code sharing as the availability of the code used to analyse the data (original or simulated) in the article. The policy at Biostatistics included referencing “…software that is widely available from central repositories (e.g. CRAN, Statlib)”. It is true that providing a link to a third-party repository where software packages are deposited, such as vignettes, typically contain some general code, but it often takes specialized skills to work out the code at these repositories, and they might not always explain the analyses covered in the actual published article. This is in line with what Stodden et al. recommended in their piece on reproducibility in Science, “Data and code underlying discoveries must be discoverable from the related publication, accessible, and reuseable”¹⁷.

The effect of badges on data and code sharing could have been higher if we did not encounter issues with broken links. For Biostatistics the “Supplementary Material” link did not work for the majority of articles. The current editors of Biostatistics indicated that when the publisher (Oxford) switched to a new publishing platform in January 2017, some of the supplemental material was lost in the transfer (personal communication, J Leek, 8 November 2017). Our results could have looked different if we had started collecting data in 2006, as the links could have been working back then.

Badges have been promoted as a simple solution because they are low cost. However, while collecting data for our study, we noticed that articles did not always appear to be allocated with badges correctly, implying that assigning badges is not always clear cut and journal staff may need to spend more time on verification. An alternative approach is that peer-reviewers check for data and code availability and assign badges as part of the standard peer review process. It could be that peer-reviewers prefer to have access to the data and code in order to review the article anyway, so this model might work, but it still requires additional time and effort on their part and as they receive little recognition for their work, plus it might be unfair to expect all peer-reviewers to check for data and code sharing.
