Abstract
The word "incorporate" was clarified as "avoiding rice straw incorporating into soil". The word "effective method" was deleted and only facts based on data were mentioned. The text was improved by eliminating overly detailed explanations.
Introduction
The purpose was stated more clearly. The statement of application of the results was deleted.
Method
Information on soil properties was added. Added information for the characteristics of the dike related to flood impacts. Clearly stated the treatment of rice straw. Moved the description of rice straw movement during the flood period from the results.
Results
The consideration of the previous study was moved to the discussion. The term "emission pattern" has been changed to "emission pattern in each cropping”.
Discussion
We divided the discussion of patterns into increasing and resetting methane emissions. The small size of rice plants at the peak of methane emission was added, and the incorporation of organic matter just before the start of cultivation increases methane emissions, citing the literature. For reset of emission, more clearly stated the interpretation of the previous study.
See the authors' detailed response to the review by Tran Dang Hoa
See the authors' detailed response to the review by Arika Bridhikitti
See the authors' detailed response to the review by Kazuyuki Yagi
Vietnam is the world’s fifth largest rice producer (FAO 2018). The Mekong Delta produces the half (23.8 million tons) (General Statistics Office of Vietnam 2016). The climate of tropical monsoon (Am) enables high productivity by triple rice cropping (cropping three times a year). Rice paddies are a methane emission source, and the Mekong Delta is a hotspot (Arai et al., 2018; Werner et al., 2016). The high emissions are caused by the rice straw incorporation (Oda & Chiem, 2019). However, the methane emission of triple rice cropping has not been well studied (Vo et al., 2018).
The Mekong’s natural flood of two months (starting from around late September to late October) limits the rice cultivation period. The 1st crop (winter-spring) begins after the natural flood, then after harvesting the rice straw is incorporated into the soil. The 2nd (spring-summer) and the 3rd crop (summer-autumn) follows without interval. Just after the 3rd crop, the natural flood starts so the straw is left on the paddies and decomposes under the floodwater. Then, the 1st crop begins again without incorporation of the straw in the soil (field leveling only), because they are sufficiently decomposed by that time.
Can Tho University (CTU) and the Japan International Research Center for Agricultural Sciences (JIRCAS) conducted joint research and monitored methane emissions in typical triple rice cropping paddies for 5 years (for a total of 15 crops). This paper is a specific analysis of a part of the data set from this project. We aimed to clarify the pattern of the methane emission.
The observation was conducted on a farmer’s paddies (three fields) managed by the above typical triple-cropping in Thuan Hung village (10°22' N, 105°58' E), Thot Not district, Can Tho city, Vietnam from 2011 to 2016. The soil is alluvium soil (Aquic Tropaquepts; 52% clay, 48% silt, <1% sand). Normally, from May to October is the rainy season. The farmer managed the water with continuous flooding. The low dike system could not protect their paddy fields from the annual flood. The rice (Oryza sativa) variety Jasmine was used for the 1st crop, and OM501 was used for the 2nd and 3rd crop every year. The average number of growth days per crop were 103, 89, and 92, for the 1st, 2nd, and 3rd crops, respectively. The average intervals between the 1st and the 2nd crop and the 2nd and the 3rd crop were 5.6 and 6.6 days, respectively. The average rice straw dry weight per crop were 9.0, 9.3, and 7.4 (Mg ha–1), for the 1st, 2nd, and 3rd crops, respectively, and the whole amount were returned. Rice straws were incorporated into the soil after the 1st and 2nd crop but left on the ground after the 3rd crop. Note, we confirmed that no rice straw (the source of methanogenesis) was lost to the floodwater. This study was conducted with the approval of the farmer.
We used the closed chamber method established by NARO and IRRI (http://globalresearchalliance.org/research/paddy-rice/), and the measurements were taken at 8 a.m. (ca. 90% of the average daily emissions). In periods of natural flood, chambers with attached Styrofoam floats were used. Measurements were taken once a week throughout the rice growing stage, but every 3 days for 2 weeks after seeding, heading stage, and around draining (Oda & Chiem, 2019).
According to the IPCC guidelines, standard methane emissions over 100 days of continuously flooding rice cropping are 130 kg ha−1 crop−1. Wassmann et al. (1996) reported very high emissions (160–240 kg ha−1 crop−1) from double cropping rice paddies in the Philippines after organic matter incorporation. However, we observed larger emissions (710, 1290, and 1789 kg ha−1 crop−1), for the 1st, 2nd, and 3rd crops in average, respectively. Vo et al. (2018) measured the same level of emission in the Mekong delta (ca. 900 kg CH4 ha–1 crop–1). The emission level doubled in the 2nd crop, and tripled in the 3rd crop, then reset after the natural flood (Figure 1). Furthermore, the total emissions during the flood period and the 1st crop was lower than that of the 3rd crop (Figure 1).
Oda & Chiem (2019) indicated three types of methane emission patterns during the rice growth period. Generally, the emissions peak at the heading stage due to the methanogenesis substrate provided by the present rice. Another pattern can occur with an additional peak at the early stage of rice growth if organic matter was incorporated beforehand. The third is the pattern in the triple rice cropping. The emission peaks at the early stage of rice growth, then gradually decreases; the peak at the heading stage is undetectable because of the high emission levels. This means the contribution of the rice-derived carbon is small. The pattern of methane emission in each crop season was the same as the study of Oda & Chiem (2019). The emissions began with irrigation, reached peaks from 0 to 3 weeks after the start of irrigation (see Extended data, Supplemental figure; Oda, 2019b), and gradually decreased, and the peak at the heading stage was undetected. Furthermore, the emissions during the natural flood appeared to be a continuation of the emissions of the 3rd crop (Figure 2).

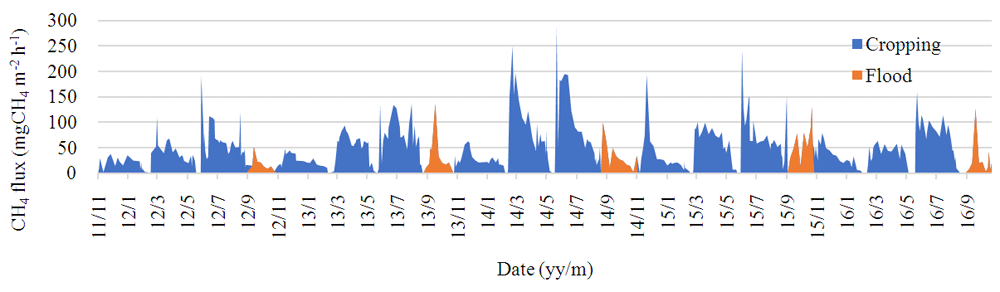

CH4 emissions of triple crop rice paddies in the Mekong Delta (2011–2016). Data are the mean of three replications. Irrigation started 6 days after seeding and drained about 10 days before harvesting. The average days of interval between the harvesting and seeding was 6.1 days. The heading stage of the rice is about a month before drainage.

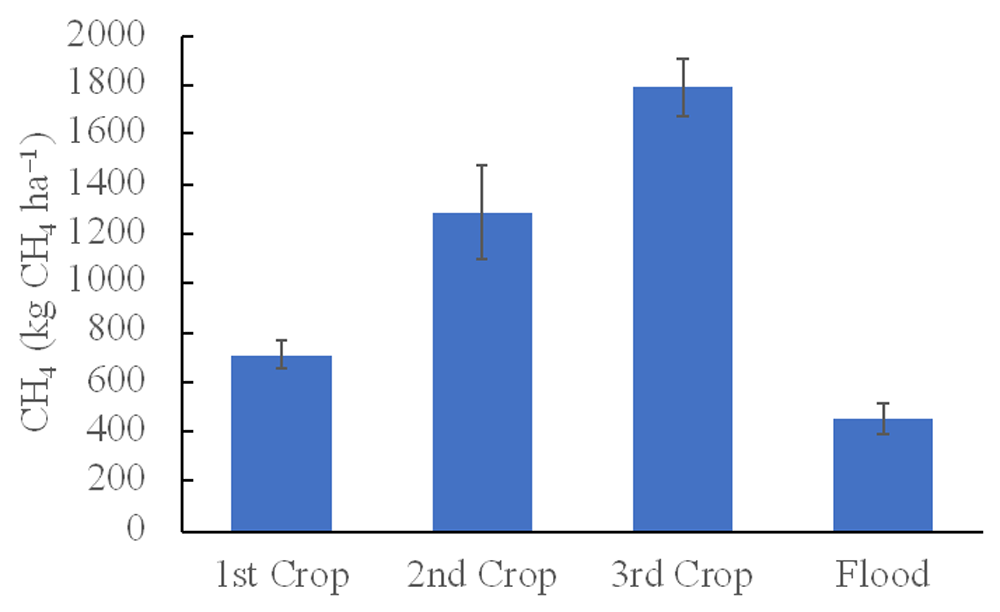

The total emissions in a crop season doubled in the second crop, tripled in the third crop. This can be explained by the accumulation of rice residue from the preceding crops, especially by the rice straw incorporated into the soil, because the amount of the present rice-derived carbon at emission peak (small plant just after sowing) is small (Oda & Chiem, 2019). Incorporation of organic matter just before rice cultivation largely increases the methane emission in the paddy field (Wassmann et al., 1996).
In contrast, that just after the 3rd crop, the natural flood starts so the straw is left on the paddies. No rice straw is incorporated into the soil before the flood period. That results in the reduction of CH4 emission. The reset of emission levels after the annual flood means that the rice straw is decomposed without methanogenesis in water because the water includes dissolved oxygen. Convection of surface water transports new water to rice straws and new oxygen replenishes from the atmosphere when reducing the concentration of dissolved oxygen. Thus, the redox potential of water hardly achieves the level of methane generation. In fact, the rice straw on the paddy surface contribute to little methane emission because the emissions during the natural flood appeared to be a continuation of the emissions of the 3rd crop. If the rice plant residues were incorporated into the soil, the total emission of the flood period should be higher than that of the 3rd crop. Because the accumulation of organic matter is larger. In addition, although the absence of rice-derived carbon, the absence of rice plants doubles the methane emission from the field because of the lack of methanogenesis inhibition by rice plants (Oda & Chiem, 2019). A portion of emission in the first crop will be caused by incorporation of the remaining rice straw related to the leveling of the field.
Our results indicate that the main cause of the increase in methane emissions was the incorporation of rice straw into the soil. In contrast, decomposing rice straw in paddy surface-water generated less methane. Thus, decomposing rice straw in paddy surface-water is an effective method to reduce methane emissions in this area. In developing a practical technologies, environmental sustainability or socioeconomic considerations must be considered.
We analyzed the methane emission patterns of triple rice cropping paddies in the Mekong Delta. Methane emissions increased with rice straw incorporation into the soil. The natural flood resulted in decomposition occurring in the water, leading to less methane emission. Therefore, the annual emission pattern suggests that decomposing rice straw in paddy surface-water is an effective method to reduce methane emissions. In developing a practical technologies, environmental sustainability or socioeconomic considerations must be considered. The development of practical technology to attain this reduction is a subject for a future study.
Figshare: Methane emission from triple cropping rice field. https://doi.org/10.6084/m9.figshare.9757934.v1 (Oda, 2019a).
Figshare: Methane flux of days after transplanting. https://doi.org/10.6084/m9.figshare.9746006.v1 (Oda, 2019b).
Data are available under the terms of the Creative Commons Attribution 4.0 International license (CC-BY 4.0).
