Epitope mapping of an uncertain endogenous antigen implies secretogranin II peptide splicing

Introduction

Polyclonal antisera (hereafter ‘antibodies’) raised in rabbits and a goat to a synthetic peptide have provided neuroendocrine immunohistochemistry (IHC) images in mammals (human, sheep, rat) and in the embryo of the fruit fly Drosophila melanogaster¹. But what exactly were the antibodies seeing endogenously? They had been raised as a result of a hunt for a tissue-mass inhibiting reproductive hormone². A peptide of 7-8 kDa (polyacrylamide gel electrophoresis, MALDI-TOF MS) was found in sheep jugular vein plasma subjected to fractionation via ultrafiltration and guided by assays in vivo (internal organ reduction in rats) and in vitro (reduced division of rat bone marrow cells), but scant amino acid sequence data could be obtained before the target molecule was lost to view. In this prior work¹ an unambiguous sequence obtained by automated step-wise Edman degradation (Applied Biosystems/PROCISE, Foster City, CA, US) was the N-terminal 14 amino acids MKPLTGKVKEFNNI, synthesized as a peptide designated EPL001. The preceding purification run provided the partially similar ML/KPLTGQAMEF, while a following run delivered the highly similar MKPLT/GKVKxFNNI. On another occasion readings at only four positions could be obtained, providing, however, in-register matches: - - P - - - - V - - FN. This was deemed significant as it involved a maximally purified bioactive fraction derived from ultrafiltered sheep plasma subjected also to gel filtration and anion exchange chromatography. The unambiguous 14-residue sequence is bioinformatically obscure and proved resistant to investigation by molecular biology approaches involving the use of oligonucleotide probes and RT-PCR to find matching sequences in DNA and RNA libraries and the use of anti-EPL001 antibodies to identify cDNA synthesized proteins. The 14 residues MKPLTGKVKEFNNI were synthesized as a peptide designated EPL001. A goat anti-EPL001 antibody was raised¹ and designated G530. Apart from being used in IHC, G530 was deployed in an antigen capture campaign featuring immunoprecipitation (IP) with liquid chromatography-mass spectroscopy (LC-MS), using two main feedstocks: aqueous extract of rat hypothalamus and fruit fly embryo material¹. The former was tested for bioactivity. It proved to have anti-proliferative and pro-apoptotic effects in an assay in vitro involving rat bone marrow cells. This inhibitory influence was subject to prior immunodepletion by an anti-EPL001 antibody, except when peptide EPL001 was added as well during the immunodepletion process, achieving preabsorption. Multiple lines of evidence indicated that the mammalian antigen was likely to be a proteoform of secretogranin II (SgII), the neuroendocrine secretory vesicle helper protein and prohormone. At ~70 residues, this polypeptide derivative was dubbed SgII-70 (pronounced ‘sig two-seventy’). Cryopreserved material in IP/LC-MS delivered no credible candidate. ‘Likely SgII relatedness’ arose from rat hypothalamic aqueous extract subjected to formalin fixation and antigen retrieval. What works in IHC seems to have worked in IP/LC-MS. Meanwhile the fruit fly antigen appeared to be an uncharacterised protein, (UniProt ID Q9W2X8), which was newly recognised as having extensive homology in detail with SgII. Both the fly and mammalian candidates bear homologues of the other’s MS ID peptide¹.

The G530 IP/LC-MS campaign yielded a protein identified by the MS software as Q8CGL8, a splice variant of rSgII of 37.1 kDa, though it could equally have been full-length rSgII. This was the only item snare in both of the two forms of antigen retrieval used and so was to that extent the sole mammalian candidate, but SgII-70 itself was not bagged. In regard to EPL001, preliminary mapping of the epitope – defined as that part of an antigen molecule to which an antibody binds – involved dot blot analysis with G530 of three peptides: full length EPL001 and two component peptides, the N-terminal ₁MKPLTG₆ and the C-terminal ₇KVKEFNNI₁₄¹. This showed that the synthetic epitope (singular for parsimony) resides in the C-terminal section of EPL001. Mammalian Q8CGL8 has the EPL001 C-terminal match V---NNI, while fly Q9W2X8 has K----NNI, sketchy resemblances both. Is the EPL001 sequence really related to these proteins?

A chance observation provided a platform for the current investigation, which amounts to an attempt to get beyond the frustrating vagaries of purification and instead use G530 in IHC to elucidate the primary sequence of whatever it is that the antibody sees endogenously, putatively SgII-70. SgII has a pair of domains which sort the protein intracellularly into secretory vesicles³. It was noticed that the ovine-derived EPL001 sequence, MKPLTGKVKEFNNI, finds a nine-residue resemblance in the second sorting domain of sheep SgII (W5QEU8). The nine-residue string, ‘sSgII-9’, is ₃₆₇MLKTGEKPV₃₇₅ (residue numbering with signal sequence). The shaded residues match those from the front half of EPL001, in the form of three doublets, separated by singleton matches to the residues in the second half of EPL001. Disregarding the apparent non-random interleaving of the front and back halves of EPL001, Spearman’s rank correlation between sSgII-9 and EPL001 is 0.59, a moderate positive correlation. The probability of a nine-residue partial anagram of EPL001’s 11 residues (i.e. minus NNI) occurring by chance in a typical ovine protein is about 1 in 146,000, as previously calculated¹. Going further, EPL001 and sSgII-9 have the same initial residue: methionine. The probability of this is 1 in 11. The overall likelihood therefore of there being a methionine-commencing nine-residue anagram is 1/146000 x 1/11 or about 1 in 1.6m. The likelihood of there being a nine-residue anagram and NNI in the same protein is tinier still. (NNI probably has sorting domain relatedness too¹, like sSgII-9.) Finally, there is an alignment of M - - - - - K between EPL001, sSgII-9 and the homologue of SgII’s second sorting domain within fly Q9W2X8 that is also unlikely to be due to chance. Why EPL001 might be an encoded version of sSgII will be considered later (see Discussion). Comparing EPL001’s C-terminal section with sSgII sequence elements sets up the prediction that the endogenous epitope could involve six residues, thus:

Or thus, reading sSgII-9 in reverse:

These possibilities can be represented as K·E·F·NNI and KE·F·NNI, respectively. There are numerous other combinations of three or more residues from these sSgIIs sequence elements that match the order of residues in EPL001’s C-terminal section, such as K·V·F·NNI and V·KE·F·NNI. All are mixed, i.e. part contiguous, part non-contiguous, except NNI.

This paper attempts to deduce the endogenous epitope of the G530 anti-EPL001 goat antibody in mammals, via IHC peptide preabsorption studies on selected tissues (cerebrovasculature, gut), aided by deductive bioinformatics and molecular modelling in silico. Preabsorption, i.e. mixing of the antibody with antigen prior to application of the antibody, to block staining, has been achieved in western blotting with the C-terminal EPL001 peptide but not with the N-terminal peptide, in regard to aqueous extract of rat hypothalamus purified using an immunoaffinity column¹. Both the western blotting and the immunopurification used G530. IHC is not described in a review of epitope mapping methods⁴, but is comparable to ELISA-based peptide-panel techniques for dissecting antigen-antibody interactions. The hypothesis here is that the G530 anti-EPL001 antibody binds to a SgII-related epitope; the null hypothesis is that it binds to something else. The hypothesis informed preabsorption peptide design and predicts that the endogenous epitope is probably a part non-contiguous version of EPL001’s presumed contiguous epitope. Data consistent with the SgII hypothesis and its epitope prediction are presented herein. This first attempt to elucidate the primary sequence implies that SgII-70 is the product of peptide splicing.

Methods

Results

Labelling of antibody G530

Antibody G530, raised to the 14mer peptide EPL001, demonstrated labelling within the walls of cerebral blood vessels in mouse, rat and human, in a manner not previously described. The labelling was observed in the walls of arteries and arterioles, but not capillaries and appeared to be associated with the fibroblast and smooth muscle layers surrounding the contractile vessels (Figure 1). Co-labelling employing an antibody to LRP1 confirmed the vascular G530 labelling to be within blood vessel walls (Figure 2). In mouse small intestine sections, G530 produced labelling within the muscularis mucosae and possibly some columnar epithelium but no labelling within lamina propria (Figure 3), consistent with prior findings¹. In other tissues evaluated prior to the study proper, labelling of blood vessel walls was observed within mouse spleen and kidney and bovine (this paper) and ovine brain¹. Labelling was noted within cortical neurons of the species examined, with preabsorption in one series by EPL001 but not in another. The greater reliability of the cerebrovascular staining commended this as a focus in the present study. An antibody to SgII did not produce any labelling of mouse, rat and human cerebral blood vessels; although labelling was observed in the mouse small intestine, this bore no relation to G530 labelling. Raw images used to generate Figure 1–Figure 5 and Table 1 are available as Underlying data^6–14.

Figure 1. Immunohistochemical labelling within the walls of human cerebral blood vessels.

Sections of human cingulate cortex were labelled by antibody G530 as described in Methods. (A–D) Cerebrovascular wall labelling at differing magnifications (scale bars: A = 500 μm; B, C = 25 μm; D = 10 μm). (E) Lack of labelling (arrowed) in cerebral capillary walls (scale bar = 500 μm).

Figure 2. Immunofluorescent labelling within the walls of human cerebral blood vessels.

Sections of human cingulate cortex were labelled by antibody G530 as described in Methods. (A) Labelling by an antibody to LRP-1. (B) Labelling by G530. (C) Merge of (A) and (B). Scale bars, 50 μm.

Figure 3. Preabsorption of G530 labelling by peptide EPL001.

Wax sections of cerebral cortex, human (A, B) and mouse (C, D), and of mouse small intestine (E, F) were incubated with either antibody G530 (A, C, E) or G530 preabsorbed by a ten-fold excess of cognate peptide EPL001. Scale bars: (A–D) = 100 μm; (E, F) = 25 μm.

Peptide competition experiments

In initial peptide competition experiments, labelling within both human and mouse cerebral blood vessels and mouse small intestine was prevented by preincubating G530 with its cognate peptide EPL001 (Figure 3). Table 1 shows that peptides with a C-terminal NNI block labelling. Thus, effective blockers, in straightforward competition with the native antigen for antibody binding, are the NNI-concluding 14mers EPL142 and EPL143 (Figure 4), MKPVFNNI and the EPL001 C-terminal fragments KEFNNI, EFNNI and FNNI. Ineffective are six peptides: the fly and rodent SgII 20mer homologs and the 20mer extended form of EPL142 (EPL122), all with mid-sequence NNIs; a scrambled-sequence version of EPL001 lacking NNI but with a mid-sequence NI, KLKMNGKNIEPVFT; and two peptides lacking NNI altogether but terminating in N, in one case FN: MLKTGEKPN and MKPVFN. NNI was the only one of seven EPL001-related trimers that preabsorbed G530. Given this result, the attempt was not made to co-administer NNI and EPL001, inhibitors both. The other six trimers co-administered separately with EPL001 were ineffective as counter-inhibitors. EPL001 administered alone achieved near-total preabsorption across a range of concentrations (mean ± SEM, n = 4): 0.1 ng/ml = 0.56 ± 0.56; 1 ng/ml = 0.30 ± 0.30; 10 ng/ml = 0 ± 0; 100 ng/ml = 0.09 ± 0.05; and 1 µg/ml = 0 ± 0. Preabsorption titration across the same range of concentrations then focussed on FNNI, EPL001’s C-terminal tetramer, via alanine substitutions. Three tetramers in the form F - - I returned concentration-response curves; two tetramers in the form - - - I and F - - - did not (Figure 5). Labelling was actually increased by ANNI, except at the highest concentration. Preabsorption with EPL001’s C-terminal tetramer FNNI was asymptotic at the highest concentrations, with 2.7% staining (G530 alone bring 100%) at 100 ng/ml (~0.2 μM/L) and 3.5% at 1 μg/ml. Preabsorption was further investigated using EPL001’s C-terminal hexamer KEFNNI. At 100 ng/ml (~0.13 μM/L) the area of staining (as % of G530 staining without competing peptide) was 29.53 ± 9.69 (n = 8, p = 0.062, not significant (NS) vs preabsorption by EPL001 at 100 ng/ml), while at 10 μg/ml it was 4.7 ± 2.4 (n = 3, p = 0.12, NS). (The corresponding figures for MKPVFNNI were 44.40 ± 11.85, n = 8, p = 0.028 vs EPL001 and 3.92 ± 1.97, with n = 3, p = 0.11, NS.) In approximate terms, the IC₅₀ preabsorption trend is as follows: EPL001 < 0.1 ng/ml; FNNI ≤ 10 ng/ml; KEFNNI ≤100 ng/ml.

Interatomic distances between residues of different peptide sequences

Figure 4. Preabsorption of G530 labelling of elements within the wall of mouse small intestine by different peptides.

G530 was preincubated for 30 min with a x10 excess of potential preabsorption peptide before application to wax sections of mouse small intestine. (A) G530 alone. (B) G530 + EPL001. (C) G530 + EPL030. (D) G530 + EPL142. (E) G530 + EPL143. Amino acid sequences of peptides are shown in Table 1. Scale bars, 10 μm.

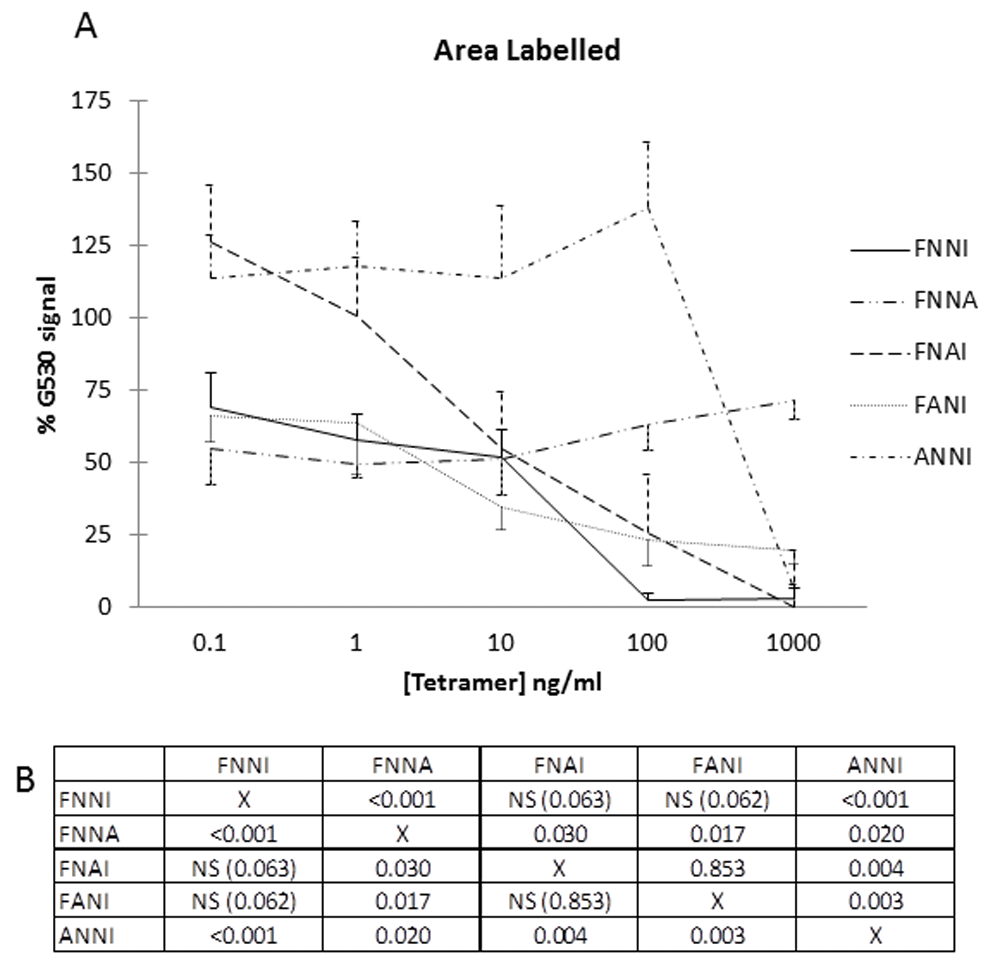

Figure 5. Preabsorption of G530 labelling by C-terminal tetramer (FNNI) and alanine substituted variants thereof.

(A) G530 (dilution 1:4000) was incubated for 30 min with tetramers at concentrations of 0.1 to 1000 ng/ml before application to the sections for IHC. Graph shows staining intensity (ImageJ) expressed as a percentage of G530 signal in absence of tetramer. Consistency of results invited data aggregation (murine gut, rat cerebrovasculature). Data are expressed as mean ± SEM of four determinations. The horizontal axis effectively represents the full preabsorption achieved with EPL001 at all concentrations. (B) Statistical comparisons (p values) are shown in the matrix for data points at 100 ng/ml (~0.2 μM).

The interatomic distances calculated via molecular modelling (Figure 6) yielded on statistical analysis a proportion of (O-E)² values >10, betokening a big difference between observed and expected, as follows: KEFNNI, 39%; EFNNI, 11%; FNNI, 5%; NNI, 25%. Free FNNI is indistinguishable from EPL001’s ₁₁FNNI₁₄ in statistical terms (Chi² = 4.54, degrees of freedom (dof) = 19, 99.5% confidence level). The null hypothesis, that there is no correlation between EPL001 and, separately, KEFNNI (Chi² = 111.31, dof = 45, NS), EFNNI (Chi² = 23.67, dof = 35, NS) or NNI (Chi² = 4.36, dof = 7, NS), was accepted for the other comparisons of interatomic distances (see Underlying data)¹⁵. Interatomic distances were also compared between the Ks and E in the C-terminal section of EPL001 (₇KV₉K₁₀EFNNI) and those in sSgII-9: ML₃KTG₆E₇KPV (see Introduction). The same side chain measurements (in Å) were made for these sequences as for the K and E in EPL001’s KEFNNI. Using the letters given in Figure 6, EPL001’s K7-E10: a-b = 3.06, a-c = 3.49. EPL001’s K9-E10: a-b = 11.09, a-c = 12.24. sSgII-9’s K3-E6: a-b = 3.12, a-c = 2.77. sSgII-9’s E6-K7: a-b = 11.58, a-c = 11.92. Interatomic measurements (20 in total) were made of the FNNI in an in silico model of MKPVFNNI (EPL801, Table 1). These were compared with FNNI measurements in EPL001’s ₉KEFNNI₁₄ and in free KEFNNI. The FNNI distances for EPL001 and EPL801 are similar, with the KEFNNI results very dissimilar (see Underlying data)¹⁵. F-I measurements for EPL001 are as follows (using letters as given in Figure 6), with EPL801 data in parentheses: d-f = 6.79 (6.34), d-g = 5.49 (7.40), e-f = 7.45 (6.90), e-g = 8.45 (8.96). The figures for KEFNNI are: d-f = 10.57, d-g = 13.56, e-f = 12.21, e-g = 14.01. A chi-squared test of all 20 measurements with EPL001 data as expected showed that the FNNI in MKPVFNNI is highly similar to ₁₁FNNI₁₄ in EPL001: Chi² = 4.33, dof = 19, 99.5% confidence level. The K2-F5 gaps in MKPVFNNI are a-d = 8.91 and a-e = 9.42, taking ‘a’ as the side-chain nitrogen of K2. For comparison, KEFNNI’s figures for K1-F3 are a-d = 8.69 and a-e = 11.14, while EPL001’s K9-F11 gaps are a-d = 11.38 and a-e = 10.37.

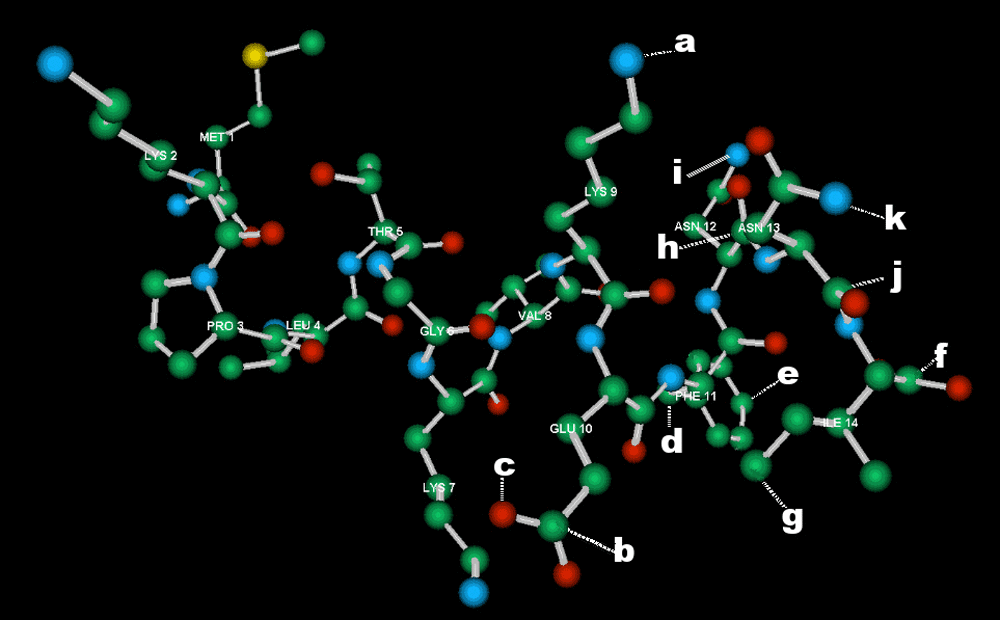

Figure 6. Model in silico of peptide EPL001.

Minimized molecular model of the 14mer MKPLTGKVKEFNNI. Carbon = green; nitrogen = blue; oxygen = red; sulphur = yellow. Hydrogen atoms omitted for clarity. Within the putative epitope KEFNNI (LYS 9 – ILE 14) atoms are indicated (a–k) that were used to determine interatomic distances. a = nitrogen in the side-chain of K9; b = delta carbon in E; c = hydroxyl oxygen in the side-chain of E; d = beta carbon in F; e = gamma carbon of F; f = peptide bond carbon of I; g = delta carbon of I; h = gamma carbon of N13; i = nitrogen of the side-chain of N13; j = peptide bond carbon of N12, k = nitrogen of side-chain of N12.

Discussion

This report describes the unusual situation where the identity is unclear of an endogenous antigen of an antibody raised to a synthetic peptide, itself of problematic sequence. Epitope mapping is being used here to help solve a purification puzzle, the pieces of which are ‘EPL001’, ‘G530’ and ‘SgII’. It has been demonstrated previously¹ that a goat polyclonal antiserum (G530) raised to the synthetic peptide MKPLTGKVKEFNNI (EPL001) labels neuroendocrine and other tissues in various mammalian species and that the endogenous antigen likely relates to secretogranin II (SgII). To determine the endogenous epitope at amino acid resolution, the present report uses IHC, after previous immunoblotting showed that the synthetic epitope resides within or comprises KVKEFNNI, EPL001’s C-terminal section¹. Conventional epitope mapping techniques involve X-ray crystallography, nuclear magnetic resonance spectrometry, MS, phage display, ELISA and mutagenesis³, with electron cryomicroscopy a recently developed method of revealing the structures of antibody-antigen complexes. MS-based epitope mapping has been reviewed¹⁶, with studies involving synthetic peptide antigens ranging from 47 residues down to 14, as here. In the latter case of a 14mer peptide¹⁷, antibodies were interrogated via a panel of synthetic peptides, with alanine substitution, using immunoaffinity-MS and, separately, dot blotting and ELISA. Epitope mapping has been reported for a granin, chromogranin A, using ELISA with a panel of overlapping peptides¹⁸. The approach used in the present study has been to probe an enigmatic native antigen in situ because of its resistance to purification. A panel of IHC preabsorption peptides included overlapping trimers, plus a series of alanine-substituted C-terminal tetramers. Immunolabelling is described within the walls of mouse, rat and human cerebral blood vessels and in the wall of the mouse small intestine. Although the EPL001 peptide displays anti-proliferative and pro-apoptotic activities in vitro⁵ and tissue-mass reducing properties in vivo¹⁹ (with relevant immunoneutralizations by anti-EPL001 antibodies in vitro^1,5 and in vivo¹⁹), implying that an endogenous analogue might do likewise, functional aspects are not a concern in the current report. Neither is the import of the histomorphology. Instead, for antigen elucidation, the focus is exclusively on what the anti-EPL001 antibody binds endogenously in a detailed molecular sense.

The efficacy of preabsorption and the absence of non-specific binding confirm the ostensible specificity of G530. But to what is it specific? The deployment of two-dozen 3–20mer synthetic peptides in competitive preabsorption studies has demonstrated the importance of a C-terminal NNI in blocking G530 labelling. Although a phenylalanine residue adjacent to the NNI sequence does not appear essential for competition, as the NNI trimer preabsorbs G530 on its own, three N-containing tetramers in the form F - - I, including EPL001’s C-terminal FNNI itself, each delivered the semblance of a concentration-response curve, while two tetramers in the forms - - - I and F - - - did not. In a preliminary analysis, the epitope in the mammalian endogenous antigen could be a C-terminal tetramer, FNNI. Granted EPL001’s ovine provenance, there are no full-length proteins with a C-terminal FNNI in that part of the TrEMBL database²⁰ devoted to Ovis aries (personal communication, Chris Mundy, independent bioinformatician, Liverpool, UK). There are three in a total of 26,443 proteins C-terminating in NNI: two uncharacterised proteins (W5Q2R9 and W5QFS6) and sheep ubiquitin-conjugating enzyme (C5IS99). All have similar sequences C-terminating in MNNI and 152/153 residues, double the expected number from the purification campaign. None of these bears any sequence resemblance to EPL001 beyond the possession of C-terminal NNI. The same is true of 80 hits C-terminating in NNI in 499,317 all-species sequences in UniRef50²⁰, though four more terminate in FNNI without otherwise resembling EPL001 to a significant degree. None ends in EPL001’s C-terminal EFNNI. That leaves the possibility of a proteolytically derived peptide, converting a non-C terminal NNI into a C-terminus, but there are no searchable databases of such items.

Among endogenous antigens, 10% are contiguous in that they involve a sequence of neighbouring amino acids along a protein backbone¹⁶. The other 90% are either entirely non-contiguous, comprising non-consecutive amino acids brought together in space by protein folding, or mixed contiguous and non-contiguous. It has been hypothesized that the native antigen of G530 is related to SgII and that it is mixed, perhaps K·E·F·NNI or KE·F·NNI, corresponding to EPL001’s conjectured maximum likely contiguous epitope ₉KEFNNI₁₄ (see Introduction). If KEFNNI endogenously were fully contiguous, then the triplets KEF, EFN and FNN might be expected to block the antibody, but they don’t – though FNN extended to FNNA does to a modest extent (Figure 5). That NNI alone among the trimers successfully preabsorbed G530 indicates that NNI is probably the only contiguous epitopic element endogenously. The sole NNI in the SgII parent protein is not preceded by an F (see Table 1, third item, for the relevant sequences of rSgII, hSgII and sSgII). This implies that the endogenous epitope is thus at least minimally mixed, in the form of F·NNI – and that this is why alanine substitution can be used successfully to probe this part of the epitope. Epitopes cannot be predicted reliably from amino acid sequences, according to a survey of MS epitope mapping, with structure-based rules lacking¹⁶. This review found 57 relevant papers from 1986–2015, disclosing 63 epitopes. These ranged in size from 4–71 amino acid residues, with a mean of 15, median of 12 and mode of 8. The present epitope might be F·NNI, but smallness renders this unlikely. That free FNNI is markedly less preabsorptive than EPL001 supports the view that there is more to the epitope than F·NNI.

‘SgII relatedness’ arose on the basis of the present antibody’s deployment in an antigen-capture campaign directed at rat hypothalamus aqueous extract¹. SgII itself has been described previously in secretory granules in human astrocytes²¹ and in mouse cerebellar brush cells²², as well as in rat lateral hypothalamic neurons^23,24 and endocrine cells of the small intestine²⁵. The tissue distribution of SgII, however, does not match that of the G530 binding site (as reported here and discussed previously¹). The G530 immunopurification campaign did not bring forth SgII-70 as such, but a larger protein identified by the MS software as Q8CGL8, a splice variant of rSgII¹. This item has a single non-C terminal NNI that the present work suggests would not be seen by the antibody. It can, however, be surmised that such an NNI might be seen in the presence of other relevant co-located non-contiguous epitope residues, notably F. This is perhaps why FNNA is preabsorptive. Western blots with G530 on sheep serum and rat PC12 conditioned medium visualized single bands at ~7+ kDa (op. cit.). These monobands related to extracellular secreted entities. In contrast, rat hypothalamus yielded three or more close bands around 7+ kDa, whether the aqueous extract was subjected to anion exchange chromatography or purified using a G530 affinity column¹. Staining intensity increased down the gels, with all bands preabsorbed by EPL001. The hypothalamic bands represent intracellular forms. They could be intermediates in the processing of SgII-70 towards secretion. This suggests that a non-C-terminal NNI becomes C-terminal, with the IHC exhibiting pre-SgII-70 as well as SgII-70. In this model, G530 is monoepitopic in both senses, towards the synthetic antigen and the endogenous antigen, but in the latter case there is more than one (appropriately folded) SgII-related form.

G530 labels features within the walls of the cerebrovasculature, labelling which is likely to represent at least in part the smooth muscle cell layer. This interpretation is strongly supported by the association of this labelling with that for LRP1, a marker for smooth muscle cells²⁶. No association has been reported between SgII and vascular smooth muscle cells, although secretoneurin (SN), a 33mer peptide derived from the proteolytic processing of SgII has angiogenic properties²⁷. The SN sequence does not contain NNI and has no overlap with that of EPL001. Another SgII peptide is EM66²⁸. This 66mer does possess SgII’s NNI but the sequence of EM66 otherwise does not resemble that of EPL001 and includes no F. If a peptide, possibly with a C-terminal NNI, is processed from SgII then it must be derived via a different proteolytic pathway than SN or EM66.

Immunostaining was paradoxically enhanced by ANNI (Figure 5 and Table 1, where ANNI is recorded as the NNI sequence in hSgII and sSgII). Binding of this tetramer to tissue can be suspected, via its alanine N terminus, providing additional NNI epitopes for the antibody to bind. The 14mer peptide EPL143 was preabsorptive (Table 1). In this case a culminating NNI is preceded by K, showing that G530 may be able to recognize any C-terminal NNI, though the F tetramer data indicate that this is not the endogenous epitope in full. Molecular modelling upheld the immunosorbent trimer NNI as a passable representation in space of EPL001’s ₁₂NNI₁₄, although the likeness narrowly escaped statistical significance. Referring to three peptides in particular, the spatial resemblance in each case to EPL001’s ₁₁FNNI₁₄ is FNNI = MKPVFNNI (both significantly associated)>KEFNNI (NS). In contrast, the preabsorption power ranking is FNNI>KEFNNI>MKPVFNNI. The activity of KEFNNI supports the relevance of KE to the endogenous epitope, in addition to FNNI. (The relative weakness and variability of KEFNNI as a preabsorptive agent and the divergent dimensions of the hexamer from the parent peptide made alanine substitution of the hexamer an unpromising option.) MKPVFNNI, with lower immunosorbence, lacks an E. This indicates that E is a key component in the endogenous epitope, especially as the K-F gaps are similar in KEFNNI and MKPVFNNI.

Ovine SgII-9 is MLKTGEKPV (see Introduction), while human SgII-9 has one difference, involving a dissimilar type of amino acid: MLKTGEKPN. As IHC staining is seen in tissue sections from both species¹, the V in sSgII-9 and hence in EPL001’s C-terminal section (₇KVKEFNNI₁₄) is arguably irrelevant to the epitope. Side-chain interatomic distances (Figure 6: a–b and a–c) between K and E in sSgII-9 (MLKTGEKPV) are strikingly smaller, at ~3 Å, than those relating to the KE in EPL001 (MKPLTGKVKEFNNI), but those of EK in sSgII-9 (MLKTGEKPV), at a little under 12 Å, are similar to those of EPL001’s ₉KE₁₀. Leaving aside any contribution to the epitope of nearby peptide backbone atoms and potential reverse-sequence steric differences, this first-order fit supports the deductions that the synthetic epitope of the G530 antibody is EPL001’s ₉KEFNNI₁₄ (Figure 6, LYS 9 – ILE 14) and that the endogenous epitope is KE·F·NNI. This latter refines an earlier prediction¹ of K·E·F·NNI. By species, the SgII-related epitopes are proposed to be: sheep (W5QEU8), ₃₇₃KE₃₇₂·_?F·₂₃₆NNI₂₃₈; human (P13521), ₃₇₄KE₃₇₃·_?F·₂₃₈NNI₂₄₀; rat (P10362), ₃₇₆KE₃₇₅·_?F·₂₃₉NNI₂₄₁; and mouse (Q03517), ₃₇₆KE₃₇₅·_?F·₂₃₉NNI₂₄₁.

The foregoing is consistent with there being a peptide derivative of SgII of ~70 residues that N-terminates in MLKTGEKPV/N and C-terminates in NNI, with these motifs sufficiently close together in space to be seen by an antibody. This is a piquant deduction because of residue numbering, which in sSgII is as follows: ₃₆₇MLKTGEKPV₃₇₅ and ₂₃₆NNI₂₃₈. Reverse peptide splicing is implied by the present results or splicing from separate SgII molecules. Peptide splicing has been reported for another granin protein, chromogranin A, in an SgII-relevant intracellular locus, the secretory vesicle²⁹.

The immunosorbent power of EPL001 – against which peptide the G530 antibody was of course raised – overtops that of any of its C-terminal components in isolated form. The full 14mer alone seems to present the relevant residues in an appropriate consecutive approximation of a mixed endogenous epitope, for full binding. The relationship between the bioinformatically obscure EPL001 sequence and the proposed SgII-related endogenous antigen is in fact a circular conundrum: how can an endogenous protein be encoded in a synthetic peptide in such a way that an antibody to the synthetic peptide can get back to the endogenous protein? A speculative solution to this is as follows: faced with sSgII-70 the Edman machine did not provide a faithful N-terminal sequence (except for the initial methionine). Instead, it read available superficial residues, of the sort recognized indeed by antibodies. EPL001 thus represents epitope mapping by aberrant Edman sequencing. Hence an anti-EPL001 antibody recognizes sSgII-70. The reason that Edman sequencing was befuddled is deduced to be sSgII-70’s structure (relating perhaps to sorting domain chemistry), which lends itself to depolymerisation on the machine’s analytical matrix, a subject for further work.

Probing, via IHC preabsorption, an endogenous epitope that might be non-contiguous using a panel of short synthetic peptides, while requiring careful interpretation and a guiding hypothesis, has proved productive. A key insight is that antibody binding can be blocked with less than a full complement of epitope residues. Within the EPL001 14mer peptide MKPLTGKVKEFNNI, the epitope of the anti-EPL001 G530 antibody is evidently ₉KEFNNI₁₄. This must be so, as the endogenous epitope is deemed to be KE·F·NNI, a mixed contiguous and non-contiguous antibody binding site, as predicted by the hypothesis of antigen relatedness to SgII. The present data are thus consistent with the hypothesis that the anti-EPL001 antibody binds to an SgII related epitope. The postulated SgII-70 evidently N-terminates in MLKTGEKPV/N and C-terminates in NNI. The next desideratum, en route to hormone substantiation, is a full primary sequence.
