Optimization of glutaminase-free L-asparaginase production using mangrove endophytic Lysinibacillus fusiformis B27

Isolation and screening of L-ASNase producers

Isolation and screening of L-ASNase-producing endophytic bacteria was performed as described by Prihanto et al.¹² and Mahajan et al.¹³. Mangrove (Rhizophora mucronata) was obtained from Aeng Sareh Beach, Madura Island, Indonesia with the location of 7°13'5.57"S and 113°19'8.89"E. Mangrove stem was aseptically cut to approximately 1 cm diameter. The sample was placed in a plastic bag and immediately transported to the laboratory on ice (4°C). It was crushed and weighed (1 g) and then serially diluted with physiological buffer. Three independent treatments were applied. An appropriately diluted sample (10^–3–10^–5) was plated onto Luria-Bertani agar (Sigma-Aldrich, USA) using the pour plate method and incubated for 72 h at 35°C. Colonies were purified in Luria-Bertani agar (Sigma-Aldrich, USA) using three quadrants streaking, and stored at −20°C.

A modified M9 medium was used for screening isolates that were produced glutaminase-free L-ASNase. All materials and reagents were purchased from Merck, USA. The composition of the medium was 6 g/l of Na₂HPO₄, 2 g/l of KH₂PO₄, 0.5 g/l of NaCl, 20 g/l of L-ASN or L-glutamine, 2 g/l of glucose, 0.2 g/l of MgSO₄, 0.005 g/l of CaCl₂, agar 2%, and Bromotymol blue (BTB) 0.007%. The pH of the medium was set to 5.5 using a pH meter with 2 N HCl. BTB served as a color indicator. Two media (M9 medium with L-ASN, and M9 medium with L-glutamine) were applied to the isolates. Glutaminase-free L-ASNase isolates were detected by the ability to hydrolyze only L-ASN.For isolate which able to hydrolyze both L-ASN, and L-glutamine was not chosen for further analysis. Initial identification of the selected isolates was performed by Gram staining.

Identification of bacterial isolates

Molecular identification of the selected bacterial isolates from mangrove was performed based on the methods of Prihanto et al.¹². Genomic DNA from bacteria was amplified using 27F primers (5’-AGAGTTTGATCATGGCTCAG-3') and 1492R (5'-TACGGCTACCTTGTTACGA-3'). Primers were purchased from 1^st BASE (Singapore). Genomic DNA of bacteria were extracted, and amplified by following the company manual procedures (Wizard^TM DNA purification Kit, Cat. No. A1120, and Gotaq® DNA polymerase, Cat No. M3005, Promega, USA). Obtained DNA sample (1 μL) was mixed with 18.5 μL double distilled H₂O (ddH₂O), 2.5 μL Buffer B with Mg2 + 10X, 1 μL dNTPs, 1 μL forward primer, 1 μL reverse primer, and 0.2 μL Taq polymerase. The reaction was performed in a thermocycler (T100 Thermal Cycler, Bio-Rad, USA) (denaturation: 94°C, 45 s; annealing: 61°C, 45 s; elongation: 72°C, 2 min). The amplification process was performed over 32 cycles. The Polymerase Chain Reaction results were checked by gel electrophoresis (Mupid EXu submarine, Takara, Japan) under 80 volt and 40 mA with 1.5% agarose. The gel was visualized using Benchtop UV Transilluminator (UVP, Canada).

The amplicon was further sequenced with ABI PRISM 3130×1 DNA sequencer (Applied Biosystems, USA). The sequence homology was investigated at the National Center for Biotechnology Information (NCBI) GenBank database using BLAST nucleotide programs, on the nucleotides collection database by excluding human and mouse genomic. The program was optimized for highly similar sequences (megablast). A phylogenetic tree was constructed using the UPGMA method with the MAFFT online ver 7. phylogenetic analysis service¹⁴.

Optimization of L-ASNase production

All materials and reagents were purchased from Merck, USA. Enzyme production was performed in a medium containing trisodium citrate 0.375 g, (NH₄)₂HPO₄ 0.1 g, K₂HPO₄ 0.00625 g, MgSO₄·7H₂O 0.01 g, FeSO₄·7H₂O 0.001 g, yeast extract 0.075 g, and L-ASN 0.25–1 g¹⁵. Different volume of inoculum (10⁸ CFU/ml) was inoculated on 50 ml fresh treated-production mediums. The cultures were incubated in a shaker incubator (120 rpm) at different temperatures. Four factors at four levels, L-ASN (0.5–2%), pH (6–9), temperature (30–45°C), and inoculum volume (0.5–2%), were investigated (Table 1). The L16 orthogonal array was selected for experimental design (Table 2). After 24 h incubation, the culture was harvested and the production of enzyme was investigated.

L-ASNase assay

A slightly modified method¹⁶ was used for the enzyme activity assay. The samples (150 μl) were transferred to microtubes to which 100 μl of 150 mM L-ASN, 200 μl aquades, and 50 μl of 1 M phosphate buffer (pH 7) were added before homogenization. The samples were then incubated in a water bath at 30°C for 30 min to react. Subsequently, 100 μl of 1.5 M Trichloro Acetic Acid was added to stop the reaction followed by centrifugation at 2,000 rpm for 12 min; the supernatant (450 μl) was then transferred into the microtube. Nessler’s reagent (125 μl) was then added and reacted for 15 min until the color changed; the absorbance was read with a UV–vis spectrophotometer at a wavelength of 480 nm. NH₄Cl served as standard ammonia. The enzyme activity was expressed as micromoles ammonia released per minute.

The activity was calculated with the following formula:

Enzyme activity (U/ml) $=\frac{(\mathrm{\mu }molofliberatedNH3)x(0.6)}{(0\text{.45)×}\text{(30)}\text{×}(0\text{.1)}}$

Where 0.6 = initial volume of enzyme mixture (ml)

            0.45 = volume of enzyme mixture used in final reaction (ml)

            30   = incubation time (min)

            0.1   = volume of enzyme used (ml)

Data analysis

All L16 data were analyzed using Qualitek-4 software (Nutek Inc., MI). The analysis was used to obtain the predicted optimum conditions for achieving the highest L-ASNase production. Analysis of variance (ANOVA) was used to identify factors that influenced L-ASNase production. The F-ratio was calculated with a 95% confidence interval. Interactions among factors and levels of experiment was analyzed by determining the severity index (SI)

Experimental validation was conducted to confirm the accuracy of the obtained results. This aimed to verify the optimum factors and levels obtained from the experiment. After determining the optimum treatment, the next step was to conduct a confirmatory experiment by creating the optimum conditions based on the predetermined factors and levels.

Screening and identification

The screening results showed that 31 endophytic mangrove isolates could produce the L-ASNase enzyme. Judging from the blue color of the medium, isolate B27 was the best producer (Figure 1A). Isolate B27 had a more extensive and darker blue tone compared to other isolates. Furthermore, only isolate B27 produced glutaminase-L-asparaginase. Hence, further molecular identification was applied only to the B27 isolate. Further, Gram stain analysis revealed that the bacteria was Gram positive (Figure 1B).

Figure 1. Results of L-asparaginase screening producing endophytic bacteria B27 isolated from Rhizophora mucronata.

(A) Blue color indicating the production of glutaminase-free L-asparaginase. (B). Gram stain of B27 isolate.

The 16S rDNA molecular identification results showed that B27 isolates had a similarity of 98% with the Lysinibacillus fusiformis species. The phylogenetic analysis results showed that L. fusiformis was most closely related to L. fusiformis strain NBRC15717 (Figure 2). The production of L-ASNase from this bacteria was further optimized using the Taguchi method.

Figure 2. UPGMA phylogenetic tree of Lysinibacillus fusiformis B27 isolated from Rhizophora mucronata.

Optimization of L-ASNase production

L-ASNase production was controlled to determine enzyme production without optimization. The enzyme production during incubation periods of 24 and 48 h was 3.18 and 1.99 U/ml, respectively. The higher production was observed after 24 h. During the exponential phase, bacteria experience fast growth and produce metabolites for growth and self-defense¹⁷. The result for optimization experiment is shown in Table 2.

Influence of culture factors

To determine the effects of factors that could increase the L-ASNase production, L-ASN concentration (0.5, 1, 1.5, and 2%), pH (6, 7, 8, and 9), temperature (30, 35, 40, and 45°C), and inoculum concentration (0.5, 1, 1.5, and 2%) were evaluated. L-ASN concentration was used to determine the effect of inducers on increasing enzyme production. pH, temperature, and inoculum concentration were subsequently investigated. The effects of these factors are shown in Figure 3.

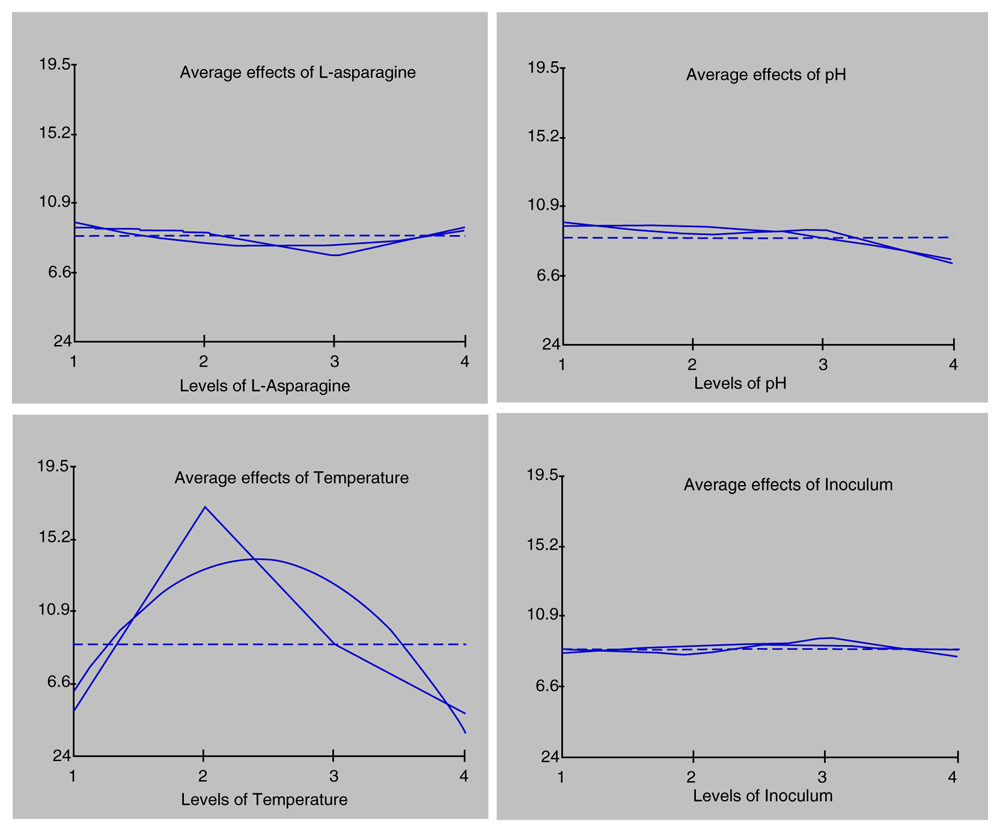

Figure 3. Impact of selected variables (L-asparagine, pH, temperature and inoculum) on the production of L-asparaginase producing bacteria isolated from Rhizophora mucronata.

Angled lines is the enzyme activity. Non-angled lines is regression function of the enzyme activity.

L-ASN concentration influenced L-ASNase production, with the best concentration being 2% L-ASN with enzyme production of 9.466 U/ml. Therefore, to some extent, L-ASN could increase enzyme activity. However, the results showed that L-ASN concentration 1% could reduce enzyme production. Consequently, the higher the substrate concentration added to the enzyme solution, the lower the enzyme activity until the enzyme reached the optimum substrate concentration¹⁸. This data suggested that the enzyme production exhibited an optimum concentration of more than 2% L-ASN in the medium.

L. fusiformis B27 at pH 6 showed an enzyme production of 9.795 U/ml. When the pH was too high or low, enzyme production was reduced. Therefore, the optimum pH for enzyme production must always be considered. L. fusiformis B27 grown at 35°C showed the highest enzyme production of 17.037 U/ml. Temperature plays a vital role in enzymatic reactions. High temperatures increase the reaction rate of the enzyme. Hence, the optimum temperature for enzymes needs to be determined.

The optimum inoculum concentration for L-ASNase production was 1.5% with an enzyme production of 9.638 U/ml. A very high inoculum concentration can cause competition between microbes in obtaining nutrition. This competition can cause some microbes to lack the nutrients required for growth^19,20.

Factors influencing enzyme production

Analysis of variance (ANOVA) was used to identify factors that influenced L-ASNase production (Table 3). The F-ratio was calculated with a 95% confidence interval. The results showed that all factors significantly influenced enzyme production. The most influential factor affecting L-ASNase enzyme production was temperature, while the inoculum concentration, although it was known to affect the enzyme production, showed the least effect.

Factor interaction, optimized conditions, and validation of enzyme production

Interactions among factors and levels of experiment can be analyzed by determining the severity index (SI), as shown in Table 4. The SI can be used to predict the effect of combined factors on enzyme production.

The SI measures the interaction between two factors. The analysis showed that the interaction between pH and inoculum was the highest with a SI of 69.72%, while the lowest SI of 4.5% was found for the interaction between pH and temperature. The interaction between pH and inoculum significantly influenced L-ASNase production. Conversely, the ANOVA results showed that the most influential factor for L-ASNase production was temperature. Different SI values could result in different values of individual factors²¹.

Optimum factors for enzyme production

L-ASN at a concentration of 2% (level 4), pH 6 (level 1), temperature 35°C (level 2), and an inoculum concentration of 1.5% (level 3) for 24 h of incubation were deduced as the best conditions for L-ASNase production with an expected enzyme production of 19.2065 U/ml (Table 5).

A validation experiment was required to confirm the expected result. Based on the confirmation test results, the L-ASNase activity obtained from L. fusiformis B27 at 24 h was 8.51 U/ml. The L-ASNase enzyme activity from L. fusiformis B27 at 24 h before and after optimization is shown in Table 6.

The data showed that before optimization (control) L-ASNase had a low activity of 3.18 U/ml. This was because the bacterial environment for producing L-ASNase was suboptimal. The L-ASNase activity increased to 8.51 U/ml after optimization. The optimized factors for enzyme production could be predicted using the Taguchi method^22–24. Confirmation experiment results are usually closer to the predicted values. However, these are sometimes lower than the predicted results. In this study, the optimized factors enhanced the enzyme production from 3.18 to 8.51 U/ml. This represented an almost three-fold increase. This increase was higher than that published in previous research²¹ but lower than that in another study²⁵.

Underlying data

Figshare: Raw data for production improvement of L-Asparaginase from Lysinibacillus fusiformis. https://doi.org/10.6084/m9.figshare.10265396.v2²⁶

This project contains the following underlying data:

Data are available under the terms of the Creative Commons Attribution 4.0 International license (CC-BY 4.0).
