Generalized EmbedSOM on quadtree-structured self-organizing maps

Landmark-directed embedding

EmbedSOM projection can be viewed as an embedding enrichment method: From a set of landmarks in the high-dimensional space and a set of corresponding landmarks in the low-dimensional space, it produces a smooth function that maps all points from the higher-dimensional space to the low-dimensional space and preserves the relative neighborhoods of the landmarks. EmbedSOM was originally designed to work with simple SOM-originating landmarks, as shown in Figure 1.

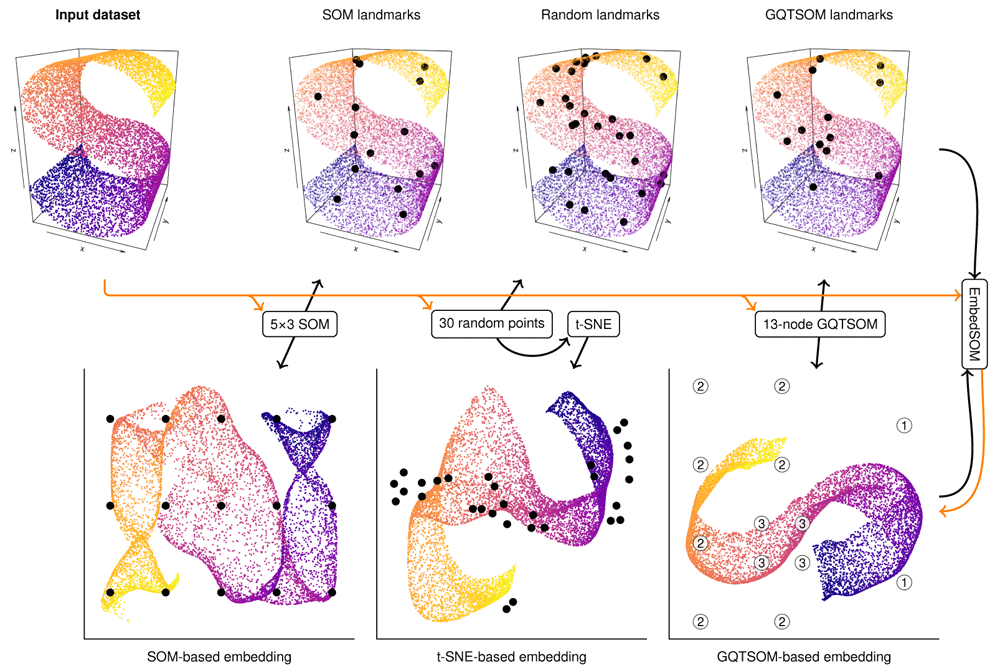

Figure 1. Overview of EmbedSOM interaction with landmarks on a toy dataset.

Embedding process starts by reducing the input dataset (data flow is visualized as orange arrows) to landmarks (black arrows and dots) in high-dimensional (top) and low-dimensional space (bottom). EmbedSOM quickly places the relatively large amount of individual input points into matching neighborhoods of the low-dimensional landmarks. The landmark-generating methods from left: A simple SOM-based grid, a random selection of input points with 2-D topology reconstructed by t-SNE, and a GQTSOM-based grid. GQTSOM-based landmarks are labeled by their level in the quadtree.

We will refer to the high- and low-dimensional landmarks as L ϵ ℝ^n×D and l ϵ ℝ^n×2. EmbedSOM embedding of a single high-dimensional point is achieved by reducing it to a collection of coordinates of its projections into subspaces that are generated by affine combinations of landmark pairs from L, and reconstructing it in low-dimensional space by reversing the process with corresponding landmark pairs from l.

The procedure is detailed as Algorithm 1. First, the algorithm chooses k landmarks closest to X, which are expected to give sufficient approximation. In lines 2–6 it computes scores for the k landmarks. The affine projection of X to a space defined by a pair of landmarks from L is computed at line 12 as d, its value is used to create a linear equation which has solutions at positions that would project to the same position d in the affine space generated from corresponding landmarks in l. After adding all parts of the approximation together, the linear system stored in M is very unlikely to remain singular. The position of embedded point is then obtained by simply solving the linear equation of 2 variables. Alternatively, one can view the algorithm as a minimization of the total squared error in all projected d:

Since the squared term is linear in x, the inner function is a quadratic form that can be minimized algebraically by finding zero of its derivation. This procedure gives the formulas used in the algorithm.

The algorithm can be easily expanded to embedding into general P-dimensional spaces by taking the low-dimensional landmarks l from ℝ^n×P, increasing the size of the matrix M for a linear equation of P variables, and solving a larger linear system at the end.

Notably, the initial reduction of the input data to one-dimensional projections to affine spaces (d in the algorithm) prevents various complications from fitting the high-dimensional distances into low-dimensional space, avoiding many problems that arise from dimensionality overhead in other DR algorithms. A similar approach has been taken e.g. by TriMap⁵, where the transferred information is reduced to mere binary relations between point distances.

Embedding parameters The embedding procedure admits several tunable parameters: k is the number of nearest landmarks used for the approximation, m > 0 is an arbitrary parameter that selects the steepness of score decay for distance order approaching k, b > 0 chooses the steepness of score decay for landmarks far from X, and a lowers the score of approximations to pairs of relatively far low-dimensional landmarks.

Parameter m is specifically designed to lower the score of landmarks with distances that approach k-closest landmark. As a result, small changes in the input point X can not cause sharp changes in the scores assigned to individual parts of the approximation. Consequently, EmbedSOM function is smooth in X.

Values of parameters k, m, m and a must be chosen to avoid singularities and near-singularities when computing the final approximation, which may happen if the set of s_i,j contains insufficient number of higher-than-negligible scores. That may be caused mainly by setting too low values of k or m, or too high value of b. Argument setting of $k\simeq \sqrt{\left|L\right|}$, m = 10, b = e⁻¹ and a = 1 worked well in a majority of tested use cases and can be considered a good default.

Embedding complexity To compute a P-dimensional projection of a single point from a D-dimensional space, EmbedSOM projection conducts the following operations: |L| measurements of distances in high-dimensional space, sorting the k smallest elements of the distance vector of size |L|, and conversion of k distances to scores. On the landmark pairs, it conducts at most k² computations of scores s, the same number of computations of d_i,j from 2 dot-products in high-dimensional space, and computation of a partial P-by-(P + 1) matrix for solving the linear system in ℝ^P. Finally, the linear system is solved using Cramer’s rule. The total of computation times is thus, in respective order,

Assuming the default parameter setting and P ϵ {2, 3}, this complexity sums to 𝒪(D · |L|). The procedure can be trivially repeated for any number of input points.

Different distance measures We have assumed that the metric used in both high-dimensional and low-dimensional spaces is Euclidean. Generally, EmbedSOM behaves well even if the distance measure used for the scoring function is swapped for any function that acts as a metric on vector spaces, including the popular L¹ and L^∞ metrics.

Nevertheless, the computation of ‘projections’ using dot-products may then be viewed as a rather questionable reinterpretation of the point coordinates in an inner product space. Fortunately, the minimal-distance projection to a fixed subspace is a linear operator under both L¹ and L^∞6, which is sufficient for EmbedSOM computation even without requiring the inner product property.

Generalized landmarks and GQTSOMs

While the SOMs are a great method to generate landmarks L and l that carry various beneficial properties that simplify human interpretation of the result (notably the regularity of l), other methods are admissible as well, as long as they can cover the input space sufficiently by L and generate the corresponding landmarks l in the low-dimensional output space so that the topology is similar to L.

For example, the embedding process can be simplified to a great extent by completely removing SOMs: Instead of constructing L in a complicated way so that it reflects the input space topology, we can take only a small random sample of input points as the landmarks, and use a general DR method to find its topology and arrange landmarks l in a matching way, as shown in Figure 1 on an example with t-SNE. While this is often sufficient, for the purposes of embedding it is more beneficial to find a smaller set of landmarks that provide better description of the various features in the input space than the random sampling.

Many variants of the SOM algorithm have been created to optimize this metric: For example, the Growing SOMs (GSOMs) by Dittenbach et al.⁷, start with a simple 2×2 SOM grid, and dynamically add new SOM grid vertices at the SOM perimeter only if it is necessary to keep the total quantization error low. A hierarchical variant of GSOM called GHSOM introduced by Rauber et al.⁴ aims to improve the description of small details in the input data space that were not described sufficiently by GSOMs. Depending on the heuristic, the vertices of GHSOM grid are converted to small independent versions of GHSOMs, which map the corresponding local parts of the input space; this continues recursively to create a layered structure of SOMs that describe increasingly fine and subtle details in the data.

GQTSOMs Although the GHSOMs improve the classification of small-scale features in the datasets, the hypertree structure complicates their use as landmarks for planar visualization with EmbedSOM. We propose the Growing QuadTree-structured SOMs (GQTSOMs) to alleviate this problem: The GQTSOMs grow by recursively splitting the nodes to form a hypertree, but unlike GHSOMs the hypertree shape is restricted to a quadtree, which possesses straightforward interpretation as a 2-dimensional structure⁸.

The nodes in GQTSOMs are identified by their position and depth in the quadtree, represented as an integer triple (L, x, y). The corresponding 2-dimensional coordinates are obtained as (2x + 1, 2y + 1) ⋅ 2^−L. Initial nodes in training occupy positions (1, 0, 0), (1, 0, 1), (1, 1, 1) and (1, 1, 0). Upon growing, a node (L, x, y) is split into 4 nodes identified as (L +1, 2x, 2y), (L +1, 2x +1, 2y), (L +1, 2x +1, 2y +1), and (L +1, 2x, 2y +1). Figure 1 shows an example of 3-level GQTSOM in a 2-dimensional space, where the initial 2×2 SOM growed three times to produce 13 landmarks.

GQTSOM training proceeds by batches as in the usual batch SOM training. After each epoch, several nodes with greatest position change in the input data space are split, so that the total number of nodes grows linearly during the whole training. Initial positions for the new nodes are interpolated from the topological SOM neighborhood, using the same neighborhood function as for training the SOM (e.g. a Gaussian). To avoid overcrowding of the map by small nodes and promote their specialization to fine details, the nodes are penalized by a factor of L⁻¹ in the growing heuristic, and by a factor of 4^L applied to their neighborhood volume in both input space and SOM space.

Implementation

The current version of EmbedSOM is available as R package EmbedSOM from http://github.com/exaexa/EmbedSOM, together with the customized versions of SOM and GQTSOM algorithms. The implementations are conducted in C++; the code is independent from the actual package or R language, and can be reused in other environments. The integration into R serves mostly as a bridge to the large number of cytometry-oriented packages in the ecosystem.

Low-level implementation has provided several additional ways to improve the performance of the algorithms when compared to the original implementation: For example, cache-efficient version of the SOM training has improved the performance by up to 15× on large SOMs; SIMD-based acceleration of the vector operations by up to 4×, and parallelization of the batch SOM training and embedding by a factor roughly equivalent to the number of used CPUs.

Overall, the computation time required for typical datasets was reduced by a factor greater than 10× on commonly available hardware, and more than 30× in case of processing complicated datasets using large SOMs.

Operation

EmbedSOM is now used primarily from R environment; the package can be downloaded from GitHub using R command devtools::install_github('exaexa/EmbedSOM'). The package installation will automatically compile the code that uses the SIMD capabilities if they are enabled on the target platform.

Generally, the SOM and embedding process can be executed on any real matrix with individual data points in rows, and parameters in columns. This expectation is consistent with many other DR or clustering packages, including FlowSOM, Rtsne and umap. For example, a user may obtain an embedding of the Iris dataset as such:

library(EmbedSOM)
d <- iris[,1:4]
map <- SOM(d)
e <- EmbedSOM(map=map, data=d)

In the code, the landmarks are first created using a SOM and saved in the map, which is then passed to the EmbedSOM function that produces the final 2-column matrix e with embedded coordinates. These can be plotted e.g. using the standard plot function.

On data larger than Iris dataset, GQTSOMs may be used to generate the landmarks and a map usable with EmbedSOM function in a similar way:

map <- GQTSOM(d, target_codes=500, parallel=T)

Here, target_codes chooses the desired final number of the landmarks in the fully grown SOM, and parameter parallel=T allows the computation to use multiple available CPUs. Functions SOM and EmbedSOM support parallelization as well, using the same parameter.

Other DR methods may create the landmarks. In case of t-SNE, the following code generates a map object with 500 landmarks suitable for embedding:

library(Rtsne)
landmark_idx <- sample(dim(d)[1], 500)
map <- list(codes=d[landmark_idx,], grid=Rtsne(d[landmark_idx,])$Y)

The parameters of the SOM, GQTSOM and EmbedSOM functions are extensively documented in the supplied R manual pages.

Alternative landmark-generating methods improve visualization

To visualize the Wong dataset, we have embedded it using EmbedSOM with SOM landmarks (i.e. the original EmbedSOM), EmbedSOM with t-SNE generated landmarks, and EmbedSOM with GQTSOM-generated landmarks. As seen in Figure 2, the original EmbedSOM implementation has managed to separate and visualize both the different cell types and their layout according to source organ. However, the result may seem unsatisfactory due to overcrowding and loss of both detail and global layout, especially when compared to UMAP visualizations of the same dataset [9, Figure 1a,b]. Despite the overcrowding, it is still possible to identify separate clusters of CD69⁺CD103⁺ Trms (resident-memory T cells) in all organs except cord blood, and naive (CD69⁺CD45RA⁺), central memory (CCR7⁺CD62L⁺) and effector memory T cells (CD45RA^– CD45RO⁺CCR7^–CD62L^–) within both CD4 and CD8 T cell types; this is in agreement with findings of van Unen et al. [11, Figure 3a,b]. Plots of all marker expressions are available as Extended data.

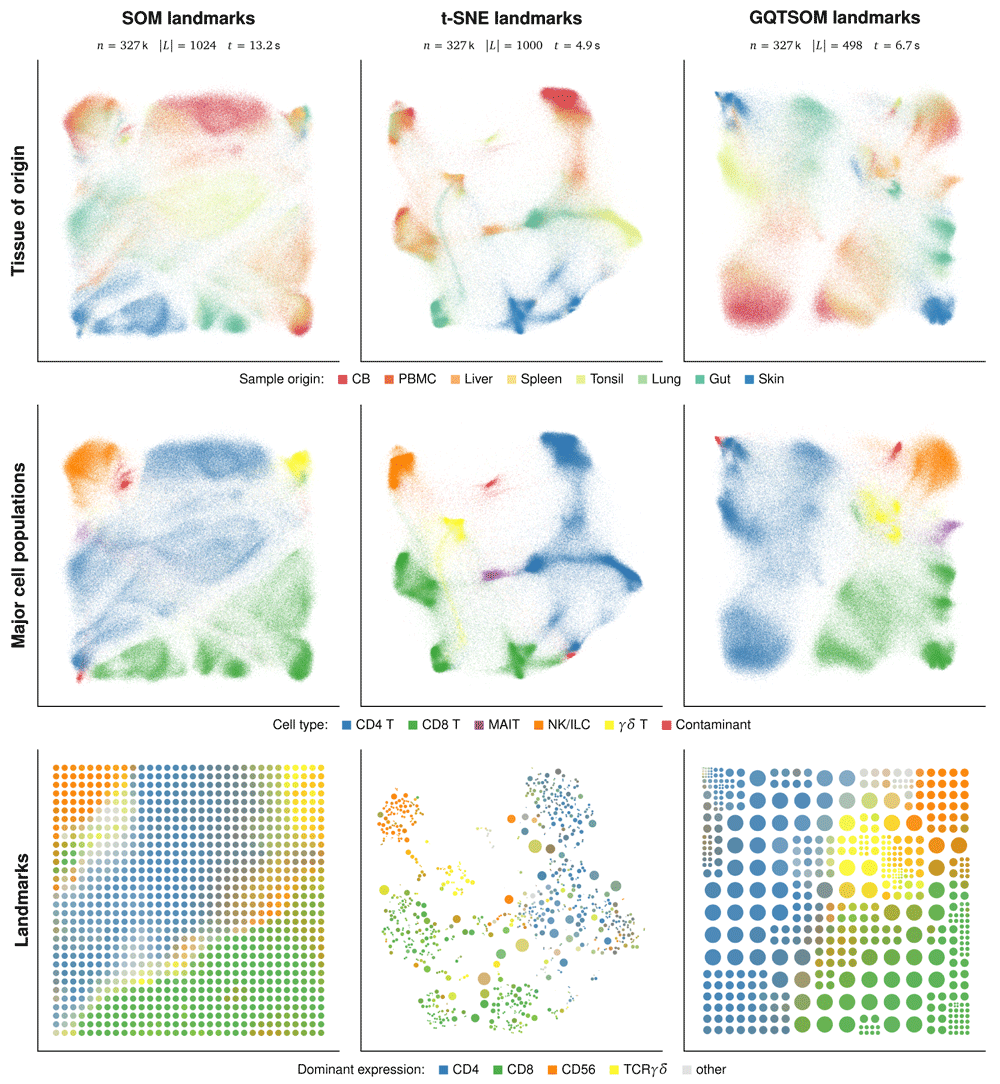

Figure 2. Comparison of EmbedSOM visualizations of the Wong dataset using different landmarks.

Top row: cells embedded using 3 different landmark-generating methods, colored by the tissue of sample origin. Middle row: The same embedding colored by major cell types. The colors used for annotation are purposefully reproduced from the article of Becht et al.⁹ to simplify comparison. Bottom row: visualizations of the low-dimensional landmark images, colored by their corresponding marker expressions.

We have observed that the improved methods of landmark positioning have successfully alleviated both overcrowding and layout problems. In particular, the layout of MAIT (mucosal-associated invariant T) and γδ T cells in the embedding with t-SNE-generated landmarks reflects the expected properties of cell populations, and the individual population clusters are clearly separated by low-density areas with intermediate cell states and noise. Additionally, the smoothness of EmbedSOM projection has displayed even features and similarities that were not captured by t-SNE. That can be seen on the cluster of γδ T cells, where EmbedSOM shows a clear connection of the gut-originating part of the cluster to both the very similar gut-originating CD8⁺ T cells and the other γδ T cells. In comparison, this connection is preserved by all tested types of SOMs, but neglected by both plain t-SNE and UMAP, which show the population separated to 3 resp. 2 separate clusters [9, Figure 1a]. The embedding based on GQTSOM landmarks has provided similar global layout of the output as the one with t-SNE landmaks, additionally capturing the continuity of γδ T cell cluster and its similarity to MAIT and NK cells, and providing separation of individual clusters differentiated by tissue of origin comparable to that of UMAP. Regardless of that, the main advantage of using GQTSOMs comes with the ability to generate smaller amount of more precise landmarks than plain SOMs. Compared to the SOM used with the original EmbedSOM approach, this resulted in significant computation speed increase (around 50%) and better description of the small and rare cell populations by landmarks (and, therefore, also by subsequent FlowSOM-style clustering). In particular, the small subpopulations of γδ T cells were assigned roughly twice the number of landmarks by GQTSOM than by the standard SOM, which resuted in spatially correct separation of the cell subtypes in the embedding.

GQTSOM landmarks improve display of rare cell types

We showcase the ability of GQTSOM landmark generation method to capture and display various rare cell types using a dataset by van Unen et al.¹¹. The dataset was created as such: A total of 5.2 million single cells were collected from duodenum biopsies, rectum biopsies, perianal fistulas, and PBMC from patients undergoing various gastrointestinal disorders and healthy individuals (as controls). The gastrointestinal disorders included celiac disease (CeD), refractory celiac disease type-II (RCDII), enteropathy associated T-cell lymphoma type II (EATLII), and Crohn’s disease. Cells were stained using 32 metal conjugated monoclonal antibodies to identify cells within the innate and adaptive immune system. This dataset was later reanalyzed by van Unen et al.¹² using a hierarchical version of t-SNE algorithm called HSNE, showing that the hierarchical dissection of the data was able to identify several rare cell types within the innate lymphoid cell (ILC) compartment.

For the purpose of demonstration, we preprocessed the same dataset by removing debris, doublets and dead cells based on simple thresholds on the DNA, Event length and Viability parameters. The 32 antibody markers of the 4.14 million cleaned cells were then transformed by hyperbolic arcsine and used to train the GQTSOM and produce an embedding. The result in Figure 3 allows easy observation of both the ILC compartment and the CD4⁺ T cell subset, corresponding to the observations produced by second-level HSNE [12, Figures 3 and 5]. Additionally, the embedding shows presence of many clusters from lower levels of the hierarchical dissection: In the figure, it is possible to identify clusters of CD4M⁺CD28^–CCR7^–CD56^– and CD4⁺CD28^–CCR7^–CD56⁺ rare cell types within the CD4⁺ compartment, and of the CD127^–CD45RA^–CD56^partial cluster within the ILC (CD7⁺CD3^–) compartment. These clusters were identified by HSNE at 4^th resp. 3^rd levels of dissection [12, Figures 5b and 3c]. Recently, Belkina et al.¹³ showed that the opt-SNE algorithm can additionally identify CD4⁺CD28^–CCR7⁺ CD56^– rare cell type, which is also clearly separated by the GQTSOM-based embedding, using much less computational resources than optSNE.

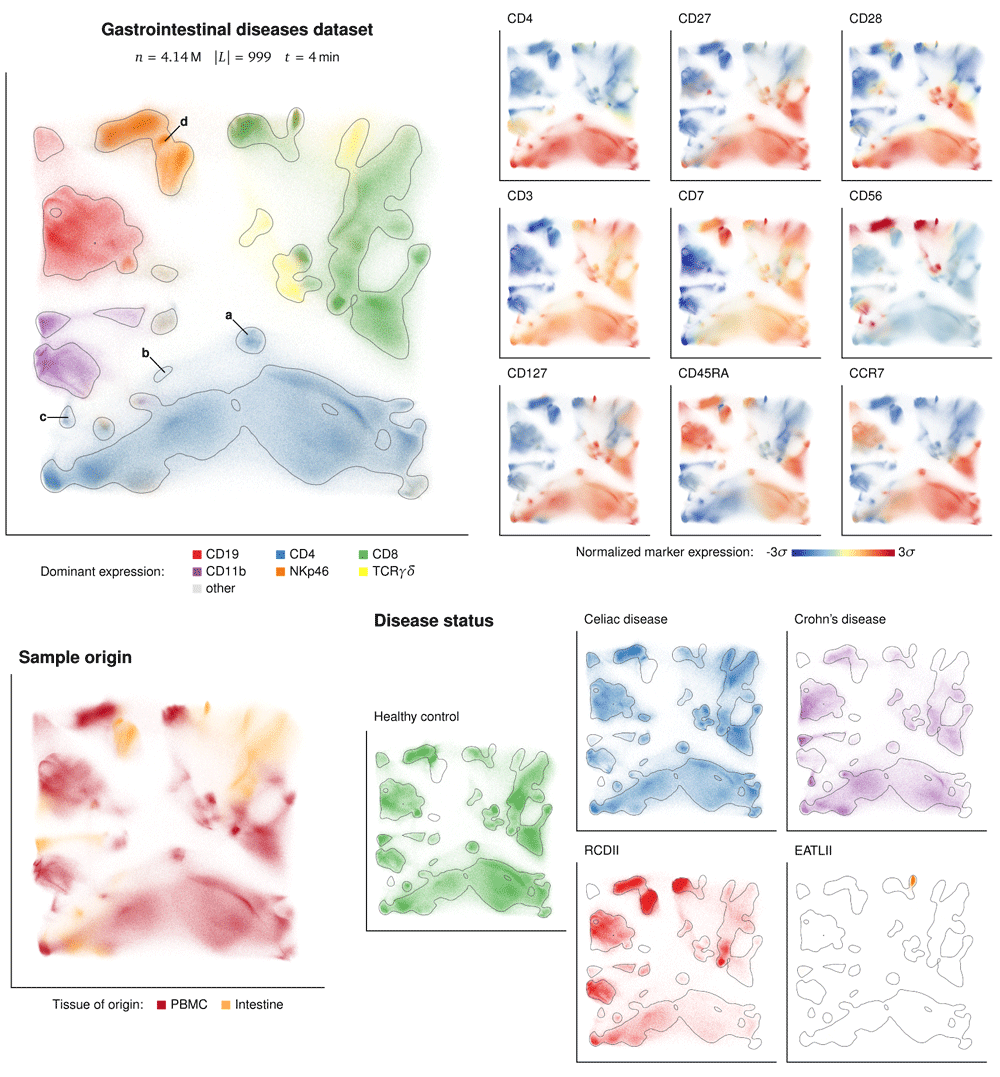

Figure 3. Display of clusters of rare cell types in GQTSOM-based embedding.

Top left: Overview of the cleaned and embedded Unen dataset, colored by expression of main cell lineage markers. The contour based on Gaussian difference is added for easier identification of changes in cell density. Labels mark the rare cell types identified by van Unen et al.¹², Belkina et al.¹³: (a) CD4⁺CD28^–CCR7⁺, (b) CD4⁺CD28^–CCR7^–CD56^–, (c) CD4⁺CD28^–CCR7^–CD56⁺, and (d) CD7⁺CD3^–CD127^–CD45RA^– CD56^partial. Top right: Expressions of separate markers used for the identification. Bottom: Cells color-coded by sample origin (left) and separated by disease status of the patient (right).

The plot of cells separated by disease status in Figure 3 confirms the observation that the rare CD4⁺CD28^–CD56⁺ phenotype is enriched in the samples from patients with Crohn’s disease. Moreover, the plot gives a useful overview for identifying cell types specific for the other diseases, showing two specific and one enriched cluster for RCDII, a single specific cluster of CD8⁺CD56⁺CD127⁺c-KIT⁺ cells for EATLII, and one specific and some enriched cell types in patients with CeD.
