The effect of two clinical criteria in the assessment of caries lesions around restorations in children (CARDEC-03): study protocol for a diagnostic randomized clinical trial

[version 1; peer review: 1 approved with reservations]

Bruna Lorena Pereira Moro¹, Cácia Signori², Raiza Dias Freitas¹, [...] Laura Regina Antunes Pontes¹, Tathiane Larissa Lenzi³, Tamara Kerber Tedesco⁴, Daniela Prócida Raggio¹, Mariana Minatel Braga¹, Kim Rud Ekstrand⁵, Maximiliano Sérgio Cenci², Fausto Medeiros Mendes ¹, CARDEC collaborative group, CaCIA collaborative group

Bruna Lorena Pereira Moro¹, Cácia Signori², [...] Raiza Dias Freitas¹, Laura Regina Antunes Pontes¹, Tathiane Larissa Lenzi³, Tamara Kerber Tedesco⁴, Daniela Prócida Raggio¹, Mariana Minatel Braga¹, Kim Rud Ekstrand⁵, Maximiliano Sérgio Cenci², Fausto Medeiros Mendes ¹, CARDEC collaborative group, CaCIA collaborative group

PUBLISHED 26 Jun 2020

Author details Author details

¹ Department of Pediatric Dentistry, School of Dentistry, University of São Paulo, São Paulo, Brazil
² Graduate Program in Dentistry, Federal University of Pelotas, Pelotas, Rio Grande do Sul, Brazil
³ Department of Surgery and Orthopedics, School of Dentistry, School of Dentistry, Federal University of Rio Grande do Sul, Porto Alegre, Brazil
⁴ Graduate Program in Dentistry, Ibirapuera University, São Paulo, Brazil
⁵ Department of Odontology, Faculty of Health and Medical Sciences, University of Copenhagen, Copenhagen, Denmark

Bruna Lorena Pereira Moro
Roles: Funding Acquisition, Investigation, Methodology, Writing – Original Draft Preparation

Cácia Signori
Roles: Methodology, Writing – Review & Editing

Raiza Dias Freitas
Roles: Data Curation, Methodology, Writing – Review & Editing

Laura Regina Antunes Pontes
Roles: Data Curation, Investigation, Writing – Review & Editing

Tathiane Larissa Lenzi
Roles: Methodology, Validation, Writing – Review & Editing

Tamara Kerber Tedesco
Roles: Investigation, Writing – Review & Editing

Daniela Prócida Raggio
Roles: Data Curation, Methodology, Resources, Writing – Review & Editing

Mariana Minatel Braga
Roles: Methodology, Writing – Review & Editing

Kim Rud Ekstrand
Roles: Methodology, Writing – Review & Editing

Maximiliano Sérgio Cenci
Roles: Conceptualization, Methodology, Writing – Review & Editing

Fausto Medeiros Mendes
Roles: Conceptualization, Funding Acquisition, Methodology, Project Administration, Supervision, Writing – Review & Editing

OPEN PEER REVIEW

REVIEWER STATUS

Abstract

Introduction: The detection of caries lesions around restoration can be challenging. Therefore, the use of some criteria has been proposed in order to give more objectivity to the diagnosis process. Two of them are the International Dental Federation (FDI) and the Caries Associated with Restorations and Sealants (CARS) criteria. Both methods have a different approach to caries, and it is not possible to know which one of them is the best to use in clinical practice to assess restorations in children. Thus, the present protocol aims to evaluate the effect of the use of the FDI and CARS criteria in the assessment of caries lesions around restorations in primary teeth on outcomes related to oral health in children and costs resulting from the assessments.
Methods and analysis: A total of 626 restorations of children from three to 10 years were randomly assessed and are being treated following the FDI criteria (FDI group) or CARS criteria (CARS group). Participants will be followed-up after six, 12, 18, and 24 months. The primary outcome will be the need for a new intervention in the evaluated restorations. This outcome consists of several components, and each of these events will be analyzed separately as secondary outcomes. The changes in children’s oral health-related quality of life and the cost of the restoration dental treatments will also be analyzed as secondary outcomes. The methods will be compared using the Cox regression model with shared frailty. A significance level of 5% will be adopted for all statistical analyses.
Discussion: This will be the first randomized clinical study carried out regarding the detection of caries lesions around restorations in primary teeth.
Trial registration: The study underwent registration in Clinicaltrials.gov (NCT03520309) on 9 May 2018.

Keywords

Randomized Controlled Trial, Dental Caries, Diagnosis, Permanent Dental Restoration, Dental Restoration Repair, Pediatric Dentistry

Corresponding author: Fausto Medeiros Mendes

Competing interests: No competing interests were disclosed.

Grant information: This work was supported by São Paulo Research Foundation (FAPESP; Grants # 2017/22897-3 and # 2018/20464-5), Coordination for the Improvement of Higher Education Personnel (CAPES) and The National Council for Scientific and Technological Development (CNPq; Grants # 141425/2017-2 and # 420458/2018-2).
The funders had no role in study design, data collection and analysis, decision to publish, or preparation of the manuscript.

Copyright: © 2020 Moro BLP et al. This is an open access article distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited.

How to cite: Moro BLP, Signori C, Freitas RD et al. The effect of two clinical criteria in the assessment of caries lesions around restorations in children (CARDEC-03): study protocol for a diagnostic randomized clinical trial [version 1; peer review: 1 approved with reservations]. F1000Research 2020, 9:650 (https://doi.org/10.12688/f1000research.23801.1) First published: 26 Jun 2020, 9:650 (https://doi.org/10.12688/f1000research.23801.1) Latest published: 11 Jan 2021, 9:650 (https://doi.org/10.12688/f1000research.23801.3)

Introduction

Caries lesions around restoration, also known as secondary caries or recurrent caries, are the main reason for restoration failure¹. However, the detection of these lesions can be challenging for a few reasons, as the presence of gaps between the restoration and tooth surface² and the presence of stained margins on resin-based composite restorations makes it difficult to differentiate between lesions and demineralization³. For this reason, the use of some criteria has been proposed to give more objectivity to the diagnosis process.

One such set of criteria is the International Dental Federation (FDI) criteria⁴, developed in 2007. Although largely used to assess restorations, it evaluates some aspects that might not be directly related to caries lesions, such as marginal staining and marginal adaptation. Using these criteria may lead to a more interventional approach. Another set of criteria is the Caries Associated with Restorations and Sealants (CARS) criteria, which has been integrated into the International Caries Classification and Management System⁵ and its more recent update, named CariesCare 4D⁶. The CARS criteria⁵ focus on aspects related to caries and not on other possible reasons for restoration failure. This method is probably more conservative when it comes to restoration reintervention.

When it comes to the management of restorations in primary dentition, it is not possible to know if a more conservative or invasive approach would bring more benefits to children. Restorations that are repaired seem to be more likely to have an additional treatment compared to restorations that are replaced⁷. On the other hand, replacement often causes the loss of healthy dental structure^8,9, leading to a repeated restorative cycle¹⁰, increasing the professional time and costs for health systems⁸.

It would be preferable that the criteria for assessing caries around restorations in children is in line with the philosophy of minimal intervention dentistry¹¹. However, the majority of studies about the detection of these lesions were performed in vitro, assessed caries lesion in permanent teeth, and did not evaluate relevant aspects to the clinical practice^12,13. This lack of evidence inspires the conduction of a third study, which is part of an initiative that aims to build scientific evidence for diagnostic strategies in children - CARies DEtection in Children nº 3 (CARDEC-03).

Thus, this trial aims to evaluate the effect of the use of two different visual criteria, the FDI and CARS criteria, for assessing caries lesions around restorations in primary teeth on outcomes related to children’s oral health and costs resulting from the assessments. We hypothesize that the diagnostic criteria that lead to a more conservative approach would bring more benefits to children’s oral health, decreasing the treatment costs and professional time.

Methods

A controlled, triple-blind (participant, care provider, outcomes assessor), randomized clinical trial with two parallels arms (1:1) is being carried out. The present protocol is reported according to the Standard Protocol Items: Recommendations for Interventional Trials (SPIRIT) guidelines¹⁴. The completed checklist can be accessed on Figshare¹⁵.

The local ethics committee from the School of Dentistry of the University of São Paulo, São Paulo, Brazil, previously approved the study (registration no. 2.291.642) on 22 September 2017. The participants of the study were recruited from 16 November 2017 to 30 November 2018. The trial was retrospectively registered on Clinicaltrials.gov (NCT03520309) on 9 May 2018 due to of a lack of awareness that registration must occur before enrollment begins. No changes were made to the study after approval by the local ethics committee in 2017, and no results were analyzed before the trial registration on Clinicaltrials.gov. The authors are aware of possible causes of publication bias and selective reporting, and are committed to promoting complete transparency in our research.

Participants, interventions, and outcomes

Study setting

This trial is being conducted at the School of Dentistry Dental Clinic of the University of São Paulo, Brazil. The participants (three to 10 years-old) were randomly selected from a list of patients who sought dental treatment at the School of Dentistry. A random sequence was generated using the website “Sealed Envelope” through the tool “Create a randomisation list”. Only patients who fulfilled the eligibility criteria were included in the study after their legal guardians signed the informed consent form and literate children signed an assent form. Both documents are available as Extended data in English^16,17 and the original language^18,19.

Participant eligibility

The inclusion criteria for the present study are children:

a) Who have sought treatment at the School of Dentistry;
b) From three to 10 years-old;
c) Presenting at least one restoration of any restorative material (composite resin, amalgam or glass ionomer cement) on a primary tooth (anterior or posterior) regardless of its condition.

The exclusion criteria for the present study are children:

a) Whose parents refuse to participate in the study;
b) Who did not agree to participate, or showed behavior problems during the first appointment.

All children’s restorations were included for the assessment, except restorations on teeth with fistula, abscess, pulp exposure, history of spontaneous dental pain or mobility. Children presenting these conditions in one or more teeth, but also presenting at least one eligible tooth fitting the inclusion criteria were included in the study.

Allocation: sequence generation and concealment mechanism

Randomization was stratified by blocks of different sizes (2, 4, 6 or 8). The strata considered were: (1) children aged 3 to 6 years presenting three restorations or less; (2) children aged 7 to 10 years presenting three restorations or less; (3) children aged 3 to 6 years presenting more than three restorations; (4) children aged 7 to 10 years presenting more than three restorations.

The random sequence was generated using the website “Sealed Envelope” through the tool “Create a randomisation list”. It was done by an external examiner and to guarantee allocation confidentiality, blocks with allocation sequences were kept in opaque sequential envelopes.

Interventions

A preliminary visual inspection was performed to assess all participants’ dental surfaces according to the International Caries Detection and Assessment System (ICDAS)²⁰ described in the CariesCare 4D to detect and assess the caries lesions stage and activity⁶. The assessment was performed by an examiner (LRAP) who is not participating in the subsequent phases of the study. All the assessments of the study are being conducted under a dental clinic setting using a dental chair and artificial illumination. Participants’ teeth receive a professional oral hygiene using a rotating bristle brush, pumice/water slurry and dental floss. A plane buccal mirror and a ball-point probe are being used for all visual inspection and tactile examination of the clinical trial.

Then, children meeting the inclusion criteria were classified into subgroups for further block stratification, according to the number of restorations present in mouth (0 to 3 restorations vs. more than three restorations) and age (3 to 6 years old vs. 7 to 10 years old).

The children included in the study were randomly allocated in two groups to have their restorations evaluated and treated according to different clinical criteria for caries lesion around restoration:

a) FDI group: diagnosis and treatment decision based on the International Dental Federation (FDI) criteria⁴ (Table 1).
b) CARS group: diagnosis according to the Caries Associated with Restorations and Sealants (CARS) detection criteria, described in the ICCMS⁵ and in CariesCare 4D⁶ (Table 2), and proposed treatment decision (Table 3). The definitions and characteristics of activity for primary caries from CariesCare International 4D will also be used in association (Table 4).

Table 1. International Dental Federation (FDI) criteria linked to the treatment decision.

FDI scores					FDI treatment
Scores	Classification	Marginal staining*	Marginal adaptation	Recurrence of caries	Indication
1	Clinically excellent/very good	No marginal staining.	Harmonious outline, no gaps, no white or discolored lines	No secondary or primary caries	No treatment
2	Clinically good	Minor marginal staining, easily removable by polishing.	Marginal gap (<150 μm), white lines. Small marginal fracture removable by polishing. Slight ditching, slight step/flashes, minor irregularities.	Very small and localized demineralization	No treatment
3	Clinically sufficient/ satisfactory	Moderate marginal staining, not esthetically unacceptable.	Gap <250μm not removable. Several small marginal fractures. Major irregularities, ditching or flash, steps.	Larger areas of demineralization	No treatment
4	Clinically unsatisfactory	Pronounced marginal staining; major intervention necessary for improvement.	Gap > 250μm or dentine/ base exposed. Severe ditching or marginal fractures. Larger irregularities or steps.	Caries with cavitation	Repair
5	Clinically poor	Deep marginal staining, not accessible for intervention.	Restoration (complete or partial) is loose but in situ. Generalized major gaps or irregularities.	Deep secondary caries or exposed dentine that is not accessible for repair of restoration.	Replacement

This table was created based on information from Hickel et al. 2010⁴.

Table 2. Caries Associated with Restorations and Sealants (CARS) criteria.

Caries Associated with Restorations and Sealants codes
Code 0	Sound tooth surface with restoration or sealant	A sound tooth surface adjacent to a restoration/sealant margin. There should be no evidence of caries (either no or questionable change in enamel translucency after prolonged air drying for 5 seconds). Surfaces with marginal defects less than 0.5mm in width (i.e. will not admit the ball end of the CPI Probe), developmental defects such as enamel hypoplasias; fluorosis; tooth wear (attrition, abrasion and erosion), and extrinsic or intrinsic stains will be recorded as sound. Stained margins consistent with non-carious habits (e.g. frequent tea drinking) and which do not exhibit signs consistent with demineralization should be scored as sound.
Code 1	First visual change in enamel	When seen wet there is no evidence of any change in color attributable to carious activity, but after prolonged air drying (for approximately 5 seconds) an opacity or discoloration consistent with demineralization is visible that is not consistent with the clinical appearance of sound enamel.
Code 2	Distinct visual change in enamel/ dentin adjacent to a restoration margin	If the restoration margin is placed on enamel the tooth must be viewed wet. When wet there is an opacity consistent with demineralization or discoloration that is not consistent with the clinical appearance of sound enamel (Note: the lesion is still visible when dry). If the restoration margin is placed on dentin: Code 2 applies to discoloration that is not consistent with the clinical appearance of sound dentin or cementum.
Code 3	Carious defects of <0.5 mm with the signs of code 2	Cavitation at the margin of the restoration/sealant less than 0.5mm, in addition to either an opacity or discoloration consistent with demineralization that is not consistent with the clinical appearance of sound enamel or with a shadow of discolored dentin.
Code 4	Marginal caries in enamel/dentin/ cementum adjacent to restoration with underlying dark shadow from dentin	The tooth surface may have characteristics of code 2 and has a shadow of discolored dentin which is visible through an apparently intact enamel surface or with localized breakdown in enamel but no visible dentin. This appearance is often seen more easily when the tooth is wet and is a darkening and intrinsic shadow which may be grey, blue, orange, or brown in color. Note: view tooth wet and then dry. This lesion should be distinguished from amalgam shadows.
Code 5	Distinct cavity adjacent to restoration	Distinct cavity adjacent to restoration/sealant with visible dentin in the interfacial space with signs of caries as described in code 4, in addition to a gap > 0.5mm in width. OR In those instances where margins are not visible, there is evidence of discontinuity at the margin of the restoration/sealant and tooth substance of the dentin as detected by 0.5mm ball-ended probe run along the restoration/sealant margin.
Code 6	Extensive distinct cavity with visible dentin	Obvious loss of tooth structure, the extensive cavity may be deep or wide and dentin is clearly visible on both the walls and at the base.

This table was created based on information from Pitts et al. 2016⁵ and Martignon et al. 2019⁶.

Table 3. Treatment decision linked to the Caries Associated with Restoration and Sealants (CARS) criteria.

CARS code	CARS Treatment
0	No treatment	No treatment	-
1	Non-operative treatment	No treatment ¹ Topical fluoride application 2	¹ Adjacent inactive lesion ² Adjacent active lesion.
2		No treatment ¹ Topical fluoride application ²
3		No treatment ¹ Topical fluoride application ²
4	Operative treatment	Repair Replacement³	³ Replacement should be indicated case the carious lesion involves more than half of the restoration.
5		Repair Replacement³
6		Repair Replacement³

This table was created based on information from Pitts et al. 2016⁵ and Martignon et al. 2019⁶.

Table 4. Characteristics of active and inactive caries linked to caries around restorations system - Caries Associated with Restoration and Sealants (CARS) - adapted.

ICCMS Code	Characteristics of Lesion
ICCMS Code	Signs of Active Lesions	Signs of Inactive Lesions
ICCMS Initial and Moderate Caries Stage	Surface of enamel is whitish/yellowish; opaque with loss of luster, feels rough when the tip of the ball-ended probe is moved gently across the surface. Lesion is in a plaque stagnation area, i.e. in the entrance of pits and fissures, near the gingival margin or, for proximal surfaces, below or above the contact point. The lesion may be covered by thick plaque prior to cleaning.	Surface of enamel is whitish, brownish or black. Enamel may be shiny and feels hard and smooth when the tip of the ball-ended probe is moved gently across the surface. For smooth surfaces, the caries lesion is typically located at some distance from the gingival margin. Lesion may not be covered by thick plaque prior to cleaning.
ICCMS Extensive Caries Stage	Dentine feels soft or leathery on gentle probing.	Dentine is shiny and hard on gentle probing.

This table was created based on information from Pitts et al. 2016⁵ and Martignon et al. 2019⁶.

The restorations assessment was performed by an examiner (BLPM), who was trained and calibrated before the beginning of the study. Calibration involves a lecture of clinical criteria, and training was carried out using photos of clinical cases. The web-based training and calibration tool ICDAS Calibration for ICCMS(TM) by ICCMS e-learning was used for this purpose.

After these procedures, the examiner evaluated restorations in 10 children who did not participate in the clinical trial. The examiner repeated the same evaluation for intra-examiner agreement. A benchmark examiner (TLL) also performed the tests to assess inter-examiner reproducibility. The assessment of children included in the study started after the intra-examiner and inter-examiner weighted kappa value reached values greater than 0.75 for both FDI and CARS criteria.

For examinations using the FDI criteria, all tooth surfaces are dried before. When using the CARS criteria, teeth are examined firstly wet and then dried for 5 seconds with a dental 3-in-1 air water syringe.

The first assessment was performed with the participant’s allocated group (FDI or CARS). After reaching the diagnosis and treatment decision according to the allocated group, the same examiner performed a second assessment according to the other criteria. This procedure aims to compare the methods of the study, and the second assessment did not influence or change the classification and treatment decision proposed by the criteria the participant is allocated. If a legal guardian presents a complaint related to any children’s restoration, it can be repaired or replaced independently of the criteria used. The scores obtained with the restoration assessment were collected using a specific sheet that can be found as Extended data in English²¹ and Portuguese²².

At the first appointment, legal guardians were asked to answer a questionnaire to assess the impact on children’s oral health-related quality of life. The instrument used was the Brazilian version^23,24 of the Early Childhood Oral Health Impact Scale (ECOHIS)²⁵. Besides that, an anamnesis related to children’s health and medical history was carried out (this form is available as Extended data in English²⁶ and original language²⁷). At the end of the first appointment, oral hygiene instructions were delivered, showing the correct use of toothbrush and fluoride toothpaste (1000 to 1500 ppm of fluoride)²⁸. Dietary advice was also given to all participants and their parents or legal guardians to reduced intake of free sugars throughout the life course²⁹.

For all appointments, the time spent and materials used on patient care are collected using a specific sheet that can be found as Extended data in English³⁰ and original language³¹. Parents or guardians are asked about transportation and absenteeism in the workplace.

Dental treatment protocols

In the subsequent appointments, dental treatments following a predefined protocol are being performed by postgraduate dental students in Pediatric Dentistry, who are blind to the criteria used to reach the treatment decision. In all situations, if there is active dentine tissue, it is removed using dentin excavators. Diamond burs are used to remove the restorations, if necessary.

The treatment decisions for the restorations evaluated according to the FDI and CARS criteria are being classified into:

No treatment: no intervention needed and the restoration will be followed-up;
Professional topical fluoride application: a treatment for non-cavitated active caries lesions detected by the CARS criteria;
Refurbishment: restorations finishing and polishing;
Repair: minimally invasive approach resulting in the addition of a restorative material, with or without a preparation of the restoration and/or dental hard tissues³². Composite resin or glass ionomer cement will be used as a restorative material;
Replacement: complete removal of the restoration present on the tooth³². Composite resin will be used as restorative material for the new restoration.

The presence or absence of soft or hard carious tissue is evaluated and recorded after the restoration removal when replacement is indicated. This procedure is performed to record a possible false-positive diagnosis for dentine caries lesion around the restoration since the authors will also develop an accuracy study nested in this clinical trial.

The same operators are performing additional dental treatment needs (not related to the restorations included in the study). Treatment plan related to additional dental treatment was carried out by the examiner responsible for children's initial clinical examination. Details of the pre-established treatment protocols can be found in Figure 1.

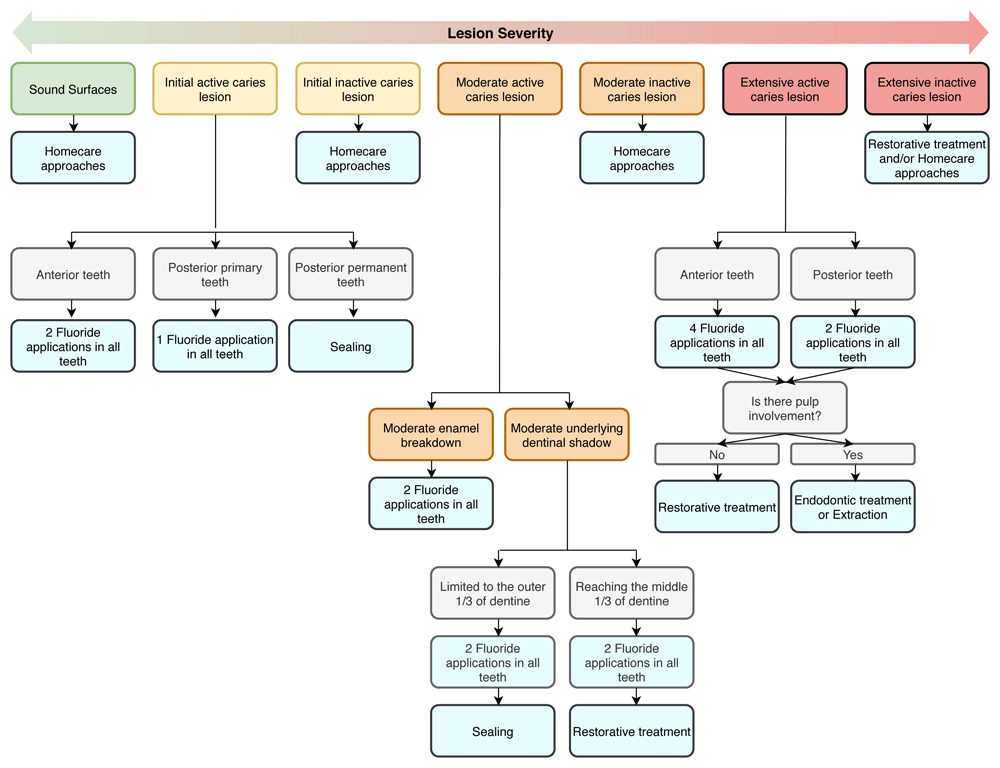

Figure 1. Patient’s plan decision flowchart based on the International Caries Detection and Assessment System (ICDAS) criteria.

Follow-up visits

After the completion of the treatment plan, participants will be followed up considering the outcome evaluation after six, 12, 18, and 24 months. At the follow-up visits, if a new dental treatment is needed (related or not to the restorations), necessary procedures will be carried out. Hygiene and dietary instructions will be given to children at each follow-up visit.

The treatment decisions for the restorations evaluated during the follow-up visits will be decided according to the FDI or CARS criteria, considering the child’s allocation group. The same trained and calibrated examiner (BLPM) who conducted the assessments at the beginning of the study will perform the evaluations.

During the 24 months follow-up visit, a new ECOHIS questionnaire will be applied for parents or legal guardians who had previously answered at the time the child was included in the study.

Adherence

Stimuli for participants' adherence to the treatment and follow-up sessions are happening via mobile and social networks. Facebook and Instagram profiles were created to stay in touch with patients through social media. Humanized care is provided for all participants. Explanations about the importance of participation for their benefit are also being given.

Outcomes

The primary outcome of this trial will be the need for a new intervention during the follow-up of restorations evaluated by different criteria. This outcome consists of several components. Thus, the outcome occurrence will be considered if any of the following conditions are detected:

Presence of secondary caries lesion exposing dentin;
Need for repair;
Need for restoration replacement;
Need for extension of the existing restoration on the examined tooth due to a tooth fracture or caries lesion development exposing dentin;
An episode of pain or need for endodontic treatment;
Extraction requirement (except in the case of prolonged retention).

The occurrence of any of these conditions at any time of follow-up will be considered as an event related to the primary outcome. Each of the events that make up the primary outcome will be analyzed separately as secondary outcomes. Changes in children's oral health-related quality of life after two years will be considered as a secondary outcome. The costs and effects per child of the treatments performed during the follow-up, considering the teeth included in our sample, are also going to be analyzed as a secondary outcome.

The occurrence of the outcomes will be evaluated according to predetermined criteria from two other criteria during the follow-up visits of six, 12, 18, and 24 months. Different criteria will be used according to the number of surfaces the restoration involves:

For one-surface restorations: the criteria used will be according to Frencken et al.³³;
For a multi-surface restoration: the criteria used will be according to Roeleveld et al.³⁴.

According to Frencken et al.³³ criteria, scores related to restoration success will be 0, 1 or 7. Those considered to have failed will be scored as 2, 3, 4 or 8; while those considered being unrelated to success and failure will be scored as 5, 6 or 9. Concerning the Roeleveld et al.³⁴ criteria, restoration success will be scored as 00 or 10. Those considered to have failed will be scored as 11, 12, 13, 20, 21, 30 or 40; while those considered being unrelated to success and failure will be scored as 50, 60, 70 or 90.

The follow-up evaluations will be carried out by an examiner (TKT) blind to children’s allocation group who was previously trained and calibrated for both criteria and not participating in the previous phases of the trial.

Sample size

The sample size calculation was performed based on the primary outcome (percentage of restorations requiring reintervention). A failure rate of 10% after two years was considered for occlusal restorations³⁵ and 30% for occlusal-proximal restorations³⁶. It was also considered that approximately 10% of the replaced restorations and 14% of the restorations undergoing repair fail again³⁷. Considering that half of the sample is occlusal restorations, an operative reintervention requirement rate of 24% is expected in two years. The minimum number of 522 restorations was reached, based on an absolute difference of 10% between the groups, using a two-tailed test. As a child can contribute with more than one restoration, 20% was added to the sample size (n = 626).

Considering that children with restored teeth have on average 3.7 restorations³⁸, and adding 20% for possible participants loss, a minimum number of 204 children presenting at least one restored primary tooth is required to be included in this trial.

Data management and analysis

Data management

Clinical data will be entered directly into predetermined sheets. Data quality will be ensured by validation checks that include missing data, out-of-range values, and illogical and invalid responses.

Statistical methods

Examiners' reproducibility will be performed using the weighted kappa test, calculating the weighted value of kappa and also the 95% confidence intervals. The primary outcome of the study is a dichotomous variable (with or without the need for intervention); therefore, the unit of analysis is the restored tooth. As children can have more than one tooth included in the study, the comparison between the groups will be carried out using survival analysis, considering the cluster-effect. Kaplan-Meyer graphs will be constructed, and the methods will be compared using the Cox regression model with a shared frailty.

Secondary clinical outcomes will also be analyzed using the same statistical tests. Quality of life will be analyzed using Poisson regression analysis and the unit of analysis will be the child.

A trial-based economic evaluation will be performed considering the difference of the inputs (costs) and outputs (effects) of the two diagnostic criteria (FDI and CARS) after two years. Further details regarding the economic evaluation will be described on a health economic analysis plan.

A p-value of 5% as the level of significance will be considered for all tests. The analyses will be performed using the statistical package Stata 13.0 (Stata Corp, College Station, USA).

Participant recruitment and timeline

Recruitment took place at the School of Dentistry of the University of São Paulo from November 2017 to November 2018. Each allocated participant will have an average treatment period of one month and will be followed-up for 24 months, resulting in a total of 25 months of enrollment. The detailed timeline for data collection is summarized in Figure 2.

Figure 2. Clinical trial's timeline.

ECOHIS, Early Childhood Oral Health Impact Scale; FDI, International Dental Federation; CARS, Caries Associated with Restorations and Sealants.

Monitoring

Data monitoring

No data monitoring committee is needed in this trial since adverse events are unlikely to happen during restoration evaluation and dental treatments. For this reason, the chief investigator of the study (FMM) will assume an independent oversight of trial data collection, management, and analysis.

Harms

The effects expected in this study are the ones listed as trial outcomes. All of them are usually expected to happen during pediatric dentistry clinical practice. Any other adverse event is unlikely to happen.

Auditing

The data will be periodically subjected to audit by the coordinator of the study. Any discrepancies will be verified, corrected and registered.

Ethics and dissemination

Confidentiality

Sequential numbers will be used to identify and ensure participant confidentiality. Participants’ identifiable information will be stored in filing cabinets in a locked secure room.

Access to data

The full data generated from this trial will be placed in a public repository (University of São Paulo Data Repository).

Ancillary and post-trial care

Participants included in this trial will have dental treatments provided at the School’s dental clinic during and after the completion of the trial if necessary.

Dissemination policy

All the findings of this trial will be reported in peer-reviewed journals, patient newsletters and the School of Dentistry of University of São Paulo website.

Study status

The patient recruitment took place from 16 November 2017 to 30 November 2018. The follow-up evaluations of 6 and 12 months were concluded; however, the study is now temporarily suspended since 16 March 2020 due to COVID-19.

Discussion

Restoration assessment is a challenge in dentistry, and the main point of debate is caries around restoration^1,39. However, due to the scarcity of well-conducted studies, its diagnosis is not based on objective clinical criteria, and there is a considerable variation in the criteria used. As a consequence, a significant number of restorations presenting small defects are often indicated to be replaced since they can be misdiagnosed as caries lesions⁸. Also, there is no homogeneity on the treatment decision-making for secondary caries between dentists^13,40, and studies based on clinical practice have shown that they tend to replace more restorations than necessary⁴¹.

Two recently published systematic reviews included around 20 accuracy studies of methods for detecting caries lesions around restorations^12,13. The majority of these studies were performed in vitro, assessed caries lesions in permanent teeth, and did not evaluate relevant aspects to the clinical practice^12,13. Nevertheless, the decision on what is the best method to be used should evaluate whether patients undergoing such methods would have greater health-related benefits than patients undergoing some other method⁴². For this assessment, ultimate health outcomes for patients must be considered. The experimental design to assess it is the randomized clinical trial (Phase IV question).

Randomized clinical trials are considered the best study design on which clinicians and policy-makers rely most to determine whether an intervention is effective⁴³. However, as far as we know, no randomized clinical study has been carried out regarding the detection of caries lesions around restorations in primary teeth. Besides that, no study compared the accuracy of FDI and CARS criteria clinically to detect caries around restoration on primary teeth, and the impact of the use of the criteria on the restorative treatment decisions for children. For this reason, an accuracy study (Phase III question) with the FDI and CARS methods will be developed nested to this trial.

For the present trial, the authors decided to use among the FDI criteria the subcategories marginal staining and marginal adaptation, beyond recurrence of caries. The decision was based on the fact that both aspects can be misinterpreted with secondary caries during restoration assessment^44–46. Therefore, we tried to simulate what can clinically be a reason for restoration reintervention in the daily clinical practice. Regarding the CARS criteria, the system does not present any treatment decision linked to the evaluation method. For this reason, we adapted the decisions based on the ICCMS recommendations for treating primary caries lesions⁴⁷.

The study’s limitation is that the first assessment performed with the participant’s allocation group (FDI or CARS criteria) and the second assessment according to the other criteria will be done at the same dental appointment. This will be done to reduce the number of dental appointments for the patients, enhancing their adherence to the clinical research. However, a carry-over effect could occur between the methods. Contrariwise, a strength of the study is the procedure used to avoid selection bias. The evaluations will be conducted in a sample of children randomly selected from a list of patients who sought dental treatment at our School. Besides that, the outcome assessor will be blinded regarding the allocation group to avoid assessment bias.

Thus, with the development of this clinical trial and expected results, we aim to define between FDI and CARS criteria the best approach for diagnosis and management of dental restorations in children, considering the impact on the treatment decision on clinically relevant outcomes for the patient and costs resulting from the treatments performed.

Data availability

Underlying data

No underlying data are associated with this article.

Extended data

Figshare: Consent form. https://doi.org/10.6084/m9.figshare.12327644.v1¹⁶.

Figshare: Consent form in the original language (Portuguese). https://doi.org/10.6084/m9.figshare.12327674.v1¹⁸.

Figshare: Assent form. https://doi.org/10.6084/m9.figshare.12327731.v1¹⁷.

Figshare: Assent form in the original language (Portuguese). https://doi.org/10.6084/m9.figshare.12327779.v1¹⁹.

Figshare: Restorations assessment form. https://doi.org/10.6084/m9.figshare.12331460.v1²¹.

Figshare: Restorations assessment form in the original language (Portuguese).

https://doi.org/10.6084/m9.figshare.12331466.v1²².

Figshare: Anamnesis form. https://doi.org/10.6084/m9.figshare.12324212.v1²⁶.

Figshare: Anamnesis form in the original language (Portuguese). https://doi.org/10.6084/m9.figshare.12327578.v1²⁷.

Figshare: Time and cost form. https://doi.org/10.6084/m9.figshare.12327854.v1³⁰.

Figshare: Time and cost form in the original language (Portuguese). https://doi.org/10.6084/m9.figshare.12331451.v1³¹.

Reporting guidelines

Figshare: SPIRIT checklist. https://doi.org/10.6084/m9.figshare.12331484.v1¹⁵.

Data are available under the terms of the Creative Commons Zero “No rights reserved” data waiver (CC0 1.0 Public domain dedication).

Acknowledgements

The authors would like to thank CARDEC-03 and CaCIA collaborative groups. Both collaborative groups have shared the ideas and collaborated with the planning and establishment of the present study. Members of each group can be found below. We also wish to thank the participants of the Post-Graduation in Pediatric Dentistry Seminar of University of São Paulo School of Dentistry (FOUSP) for the critical comments put forth.

CaCIA collaborative group – Trial 1:

Ana Beatriz Lima de Queiroz, Alessandra Braga de Avila, Bruna Oliveira Souza Cácia Signori, Camila Raubach Dias, Camila Thurow Becker, Eduardo Trota Chaves, Eugênia Carrera Malhão, Elenara Ferreira de Oliveira, Juliana Lays Stolfo Uehara, Fernanda Gonçalves da Silva, Fernanda Srynczyk da Silva, Gabriel Ventura Lima Kucharski, Gabriele Ribeiro dos Santos, Julia Macluf Torres, Karoline Von Ahn Pinto, Laura Lourenço Morel, Leonardo Blank Weymar, Marcelo Pereira Brod, Maria Fernanda Gamborgi, Maximiliano Sérgio Cenci, Renata Uliana Posser, Thaís da Silva Vieira, Vitor Henrique Romero Digmayer, Wagner da Silva Nolasco and Wagner Martins da Silva Leal.

CARDEC collaborative group – Trial 3:

Ana Laura Passaro, Annelry Costa Serra, Antonio Carlos Lopes Silva, Bruna Lorena Pereira Moro, Carolina de Picoli Acosta, Caroline Mariano Laux, Cíntia Saori Saihara, Daniela Prócida Raggio, Fausto Medeiros Mendes, Haline Cunha Medeiros Maia, Isabel Cristina Olegário da Costa, Isabella Ronqui de Almeida, Jhandira Daibelis Yampa Vargas, Jonathan Rafael Garbim, José Carlos P. Imparato, Julia Gomes Freitas, Karina Haibara De Natal, Kim Rud Ekstrand, Laura Regina Antunes Pontes, Mariana Bifulco, Mariana Minatel Braga, Mariana Pinheiro de Araújo, Mayume Amorim do Vale, Raiza Dias Freitas, Renata Marques Samuel, Rita Baronti, Rodolfo de Carvalho Oliveira, Simone Cesar, Tamara Kerber Tedesco, Tathiane Larissa Lenzi, Tatiane Fernandes Novaes and Thais Gimenez.

Faculty Opinions recommended

References

1. Nedeljkovic I, De Munck J, Vanloy A, et al.: Secondary caries: prevalence, characteristics, and approach. Clin Oral Investig. 2020; 24(2): 683–691. PubMed Abstract | Publisher Full Text
2. Nassar HM, González-Cabezas C: Effect of gap geometry on secondary caries wall lesion development. Caries Res. 2011; 45(4): 346–52. PubMed Abstract | Publisher Full Text
3. MJÖR IA: Clinical diagnosis of recurrent caries. J Am Dent Assoc. 2005; 136(10): 1426–33. PubMed Abstract | Publisher Full Text
4. Hickel R, Peschke A, Tyas M, et al.: FDI World Dental Federation - clinical criteria for the evaluation of direct and indirect restorations. Update and clinical examples. J Adhes Dent. 2010; 12(4): 259–72. PubMed Abstract | Publisher Full Text
5. Pitts NB, Ismail AI, Martignon S, et al.: ICCMS^TM Guide for Practitioners and Educators. 2016; 1–45. Reference Source
6. Martignon S, Pitts NB, Goffin G, et al.: CariesCare practice guide: consensus on evidence into practice. Br Dent J. 2019; 227(5): 353–362. PubMed Abstract | Publisher Full Text
7. Gordan VV, Riley JL, Rindal DB, et al.: Repair or replacement of restorations. J Am Dent Assoc. 2015; 146: 895–903. Publisher Full Text
8. Demarco FF, Collares K, Correa MB, et al.: Should my composite restorations last forever? Why are they failing? Braz Oral Res. 2017; 31(suppl 1): e56. PubMed Abstract | Publisher Full Text
9. Eltahlah D, Lynch CD, Chadwick BL, et al.: An update on the reasons for placement and replacement of direct restorations. J Dent. 2018; 72: 1–7. PubMed Abstract | Publisher Full Text
10. Elderton RJ: Clinical Studies Concerning Re-Restoration of Teeth. Adv Dent Res. 1990; 4: 4–9. PubMed Abstract | Publisher Full Text
11. Frencken JE, Peters MC, Manton DJ, et al.: Minimal Intervention Dentistry for Managing Dental Caries - A Review: Report of a FDI Task Group. Int Dent J. 2012; 62(5): 223–43. PubMed Abstract | Publisher Full Text | Free Full Text
12. Brouwer F, Askar H, Paris S, et al.: Detecting Secondary Caries Lesions: A Systematic Review and Meta-analysis. J Dent Res. 2016; 95(2): 143–51. PubMed Abstract | Publisher Full Text
13. Signori C, Gimenez T, Mendes FM, et al.: Clinical relevance of studies on the visual and radiographic methods for detecting secondary caries lesions - A systematic review. J Dent. 2018; 75: 22–33. PubMed Abstract | Publisher Full Text
14. Chan AW, Tetzlaff JM, Altman DG, et al.: SPIRIT 2013 statement: Defining standard protocol items for clinical trials. Ann Intern Med. 2013; 158(3): 200–7. PubMed Abstract | Publisher Full Text | Free Full Text
15. Moro BLP, Signori C, Freitas R, et al.: CARDEC-03 - SPIRIT_checklist. 2020. http://www.doi.org/10.6084/m9.figshare.12331484.v1
16. Moro BLP, Signori C, Freitas R, et al.: CARDEC-03 - Patient Consent Form. 2020. http://www.doi.org/10.6084/m9.figshare.12327644.v1
17. Moro BLP, Signori C, Freitas R, et al.: CARDEC-03 - Assent Form. 2020. http://www.doi.org/10.6084/m9.figshare.12327731.v1
18. Moro BLP, Signori C, Freitas R, et al.: CARDEC-03 - Patient Consent Form in Portuguese. 2020. http://www.doi.org/10.6084/m9.figshare.12327674.v1
19. Moro BLP, Signori C, Freitas R, et al.: CARDEC-03 - Assent Form in Portuguese. 2020. http://www.doi.org/10.6084/m9.figshare.12327779.v1
20. Shivakumar KM, Prasad S, Chandu GN: International Caries Detection and Assessment System: A new paradigm in detection of dental caries. J Conserv Dent. 2009; 12(1): 10–6. PubMed Abstract | Publisher Full Text | Free Full Text
21. Moro BLP, Signori C, Freitas R, et al.: CARDEC-03 - Restorations Assessment Form. 2020. http://www.doi.org/10.6084/m9.figshare.12331460.v1
22. Moro BLP, Signori C, Freitas R, et al.: CARDEC-03 - Restorations Assessment Form in Portuguese. 2020. http://www.doi.org/10.6084/m9.figshare.12331466.v1
23. Tesch FC, De Oliveira BH, Leão A: Equivalência semântica da versão em português do instrumento Early Childhood Oral Health Impact Scale. Cad Saude Publica. 2008; 24(8): 1897–909. Publisher Full Text
24. Martins-Júnior PA, Ramos-Jorge J, Paiva SM, et al.: Validação da versão brasileira do Early Childhood Oral Health Impact Scale (ECOHIS). Cad Saude Publica. 2012; 28(2): 367–74. PubMed Abstract | Publisher Full Text
25. Pahel B, Rozier RG, Slade GD: Parental perceptions of children’s oral health: The Early Childhood Oral Health Impact Scale (ECOHIS). Health Qual Life Outcomes. 2007; 5: 6. PubMed Abstract | Publisher Full Text | Free Full Text
26. Moro BLP, Signori C, Freitas R, et al.: CARDEC-03 - Anamnesis Form.pdf. 2020. http://www.doi.org/10.6084/m9.figshare.12324212.v1
27. Moro BLP, Signori C, Freitas R, et al.: CARDEC-03 - Anamnesis Form in Portuguese. 2020. http://www.doi.org/10.6084/m9.figshare.12327578.v1
28. Walsh T, Worthington HV, Glenny AM, et al.: Fluoride toothpastes of different concentrations for preventing dental caries in children and adolescents. Cochrane Database Syst Rev. 2010; 20(1): CD007868.PubMed Abstract | Publisher Full Text
29. Harris R, Gamboa A, Dailey Y, et al.: One-to-one dietary interventions undertaken in a dental setting to change dietary behaviour. Cochrane Database Syst Rev. 2012; 2012(3): CD006540. PubMed Abstract | Publisher Full Text | Free Full Text
30. Moro BLP, Signori C, Freitas R, et al.: CARDEC-03 - Time and Cost Form. 2020. http://www.doi.org/10.6084/m9.figshare.12327854.v1
31. Moro BLP, Signori C, Freitas R, et al.: CARDEC-03 - Time and Cost Form in Portuguese. 2020. http://www.doi.org/10.6084/m9.figshare.12331451.v1
32. Hickel R, Brüshaver K, Ilie N: Repair of restorations – Criteria for decision making and clinical recommendations. Dent Mater. 2013; 29(1): 28–50. PubMed Abstract | Publisher Full Text
33. Frencken JE, Makoni F, Sitholea WD: Atraumatic restorative treatment and glass-lonomer sealants in a school oral health programme in zimbabwe: Evaluation after 1 year. Caries Res. 1996; 30(6): 428–33. PubMed Abstract | Publisher Full Text
34. Roeleveld AC, van Amerongen WE, Mandari GJ: Influence of residual caries and cervical gaps on the survival rate of Class II glass ionomer restorations. Eur Arch Paediatr Dent. 2006; 7(2): 85–91. PubMed Abstract | Publisher Full Text
35. Qvist V, Poulsen A, Teglers PT, et al.: The longevity of different restorations in primary teeth. Int J Paediatr Dent. 2010; 20(1): 1–7. PubMed Abstract | Publisher Full Text
36. Tedesco TK, Calvo AFB, Lenzi TL, et al.: ART is an alternative for restoring occlusoproximal cavities in primary teeth - evidence from an updated systematic review and meta-analysis. Int J Paediatr Dent. 2017; 27(3): 201–209. PubMed Abstract | Publisher Full Text
37. Gordan VV, Riley JL, Rindal DB, et al.: Repair or replacement of restorations. J Am Dent Assoc. 2015; 146(12): 895–903. Publisher Full Text
38. Gimenez T, Moro BLP, Camargo LB: Impact of visual inspection and radiographs for caries detection in children: a 2-year randomized clinical trial. J Am Dent Assoc. 2020; 151(6): 407–415.e1. Publisher Full Text
39. Nedeljkovic I, Teughels W, De Munck J, et al.: Is secondary caries with composites a material-based problem? Dent Mater. 2015; 31(11): e247–77. PubMed Abstract | Publisher Full Text
40. Alomari Q, Al-Saiegh F, Qudeimat M, et al.: Recurrent Caries at Crown Margins: Making a Decision on Treatment. Med Princ Pract. 2009; 18(3): 187–92. PubMed Abstract | Publisher Full Text
41. Gordan VV, Riley JL 3rd, Geraldeli S, et al.: Repair or replacement of defective restorations by dentists in the dental practice-based research network. J Am Dent Assoc. 2012; 143(6): 593–601. PubMed Abstract | Publisher Full Text | Free Full Text
42. Sackett DL, Haynes RB: The architecture of diagnostic research. BMJ. 2002; 324(7336): 539–41. PubMed Abstract | Publisher Full Text | Free Full Text
43. Chassé M, Fergusson DA: Diagnostic Accuracy Studies. Semin Nucl Med. 2019; 49(2): 87–93. PubMed Abstract | Publisher Full Text
44. Mjör IA, Toffenetti F: Secondary caries: a literature review with case reports. Quintessence Int. 2000; 31(3): 165–79. PubMed Abstract
45. Kidd EA, Beighton D: Prediction of Secondary Caries around Tooth-colored Restorations: A Clinical and Microbiological Study. J Dent Res. 1996; 75(12): 1942–6. PubMed Abstract | Publisher Full Text
46. Foster LV: Validity of clinical judgements for the presence of secondary caries associated with defective amalgam restorations. Br Dent J. 1994; 177(3): 89–93. PubMed Abstract | Publisher Full Text
47. Pitts NB, Ekstrand KR: International Caries Detection and Assessment System (ICDAS) and its International Caries Classification and Management System (ICCMS) - methods for staging of the caries process and enabling dentists to manage caries. Community Dent Oral Epidemiol. 2013; 41(1): e41–52. PubMed Abstract | Publisher Full Text

Comments on this article Comments (0)

Version 3

VERSION 3 PUBLISHED 26 Jun 2020
