Sherlock: an open-source data platform to store, analyze and integrate Big Data for biology

Overview

Sherlock is an open source and freely accessible platform that combines several different software technologies together (https://earlham-sherlock.github.io/). One of the core software that Sherlock uses is Docker. Docker is an open and widely used technology to isolate Linux processes and provide them a reproducible, well defined runtime environment independent from the actual operating system (Matthias & Kane 2015). Each element in the Sherlock platform is running inside a separate Docker container. A Docker container is a standard unit of software that packages up all of the necessary code and all the dependencies for them, so the application runs quickly and reliably in an isolated environment on any computer. Container orchestration tools are used when a complex solution (like Sherlock) requires the interconnection of many docker containers distributed among multiple separate Linux machines. In Sherlock, we are using the standard Docker Swarm orchestration platform (Smith 2017), as it is easy to use and much easier to operate than other orchestration frameworks (like Kubernetes (https://kubernetes.io)). These industry standard technologies make the management (starting, stopping and monitoring) of Sherlock easy, while also enabling us to implement more advanced features, for example the on-demand scaling of the analytical cluster where Sherlock is running. This scalability is the biggest advantage of Docker Swarm. The entire cluster can be shut down or reduced to the minimum in the cloud when it is not used, while it can be scaled up to hundreds of nodes if necessary for executing very complex analytical queries. Other key benefits associated with Docker Swarm is the high level of availability offered for applications. This has a hierarchical structure, where several worker nodes and at least one manager node is responsible for handling the worker nodes' resources and ensuring that the cluster operates efficiently.

The first step for using Sherlock is to start a Docker Swarm with the deployment scripts on a cluster with several worker nodes. These scripts start different services, but each in a separate container. These deployment scripts are configurable ( Figure 1). One can specify exactly how many resources a service can use at once (e.g. CPU, memory allocation). Inside a running Docker Swarm, there are two different main parts of Sherlock: the Hive metastore and the Presto query engine. Sherlock follows the industry best practices in its architecture to enable scalability. Usually, the main idea behind scalable batch processing architectures is the separation of data storage and analytics (Dean & Ghemawat 2008). This architecture allows us to scale the analytical power and the storage size independently from each other and even dynamically. This is the case with Sherlock when deployed in the cloud.

Figure 1. Overview of the Sherlock platform and its relationship with the Data Lake.

In this image you can see how the different tools and the deployment scripts are connected to each other inside the core of Sherlock. The blue box represents the Data Lake, where the data is stored. You can see that only the Hive Metastore, the Presto Query Engine and the possible worker nodes have connection to the Data Lake. The box with the dashed line shows the Minio S3 server, where for example, the Sherlock platform can be used to test various features available in Sherlock.

The Sherlock platform does not include data, instead provides a platform where one can work on and manipulate the data (Figure 1). Then by leveraging powerful database architectures (Presto query engine and Hive metastore) and providing them a channel to connect to the Data Lake (where we are storing our data) the user can run different analytical queries on top of the data files. The starting step for using Sherlock is to submit an SQL query to the Presto query engine, which can answer the biological question in interest and then it will connect to the Data Lake and fetch the necessary data files. Then the final step is to execute the submitted SQL query on top of the data files and then it takes back the results to the user (Figure 1).

The minimal requirements for Sherlock depend on what the use case is and where Sherlock will be deployed. Sherlock can be used on a single laptop, single virtual machine (VM) or on a distributed cluster. Regarding using Sherlock on a single laptop we recommend using a relatively powerful laptop, which means that it has at least a dual-core processor (CPU) and at least 12 GB memory (RAM), as around half of these resources can be consumed by Sherlock. But the minimum requirement is at least 8 GB RAM and a dual-core processor. On the other hand, if the user wants to use it on a cluster with nodes, we will assume to have at least two machines with 32 GB memory (RAM) for each, and each of them having 8 processor (CPU) cores, but this can be scaled down to 16 GB RAM and 6 CPU cores.

Sherlock as a platform

Query engine

The first core part of Sherlock is the Query Engine (Figure 2A), which is responsible for running the given question through SQL commands on top of the data files and retrieving the ‘answer’ for the user. A Query Engines, for example Hive, Impala, Spark SQL or Presto, are distributed, mostly stateless and scalable technologies. In our case, we are using the Presto Query Engine (https://prestodb.io), developed by Facebook. Presto provides a high-performance Query Engine wrapped in an easily deployable and maintainable package. Furthermore, the Presto Query Engine can handle many different types of data storage solutions.

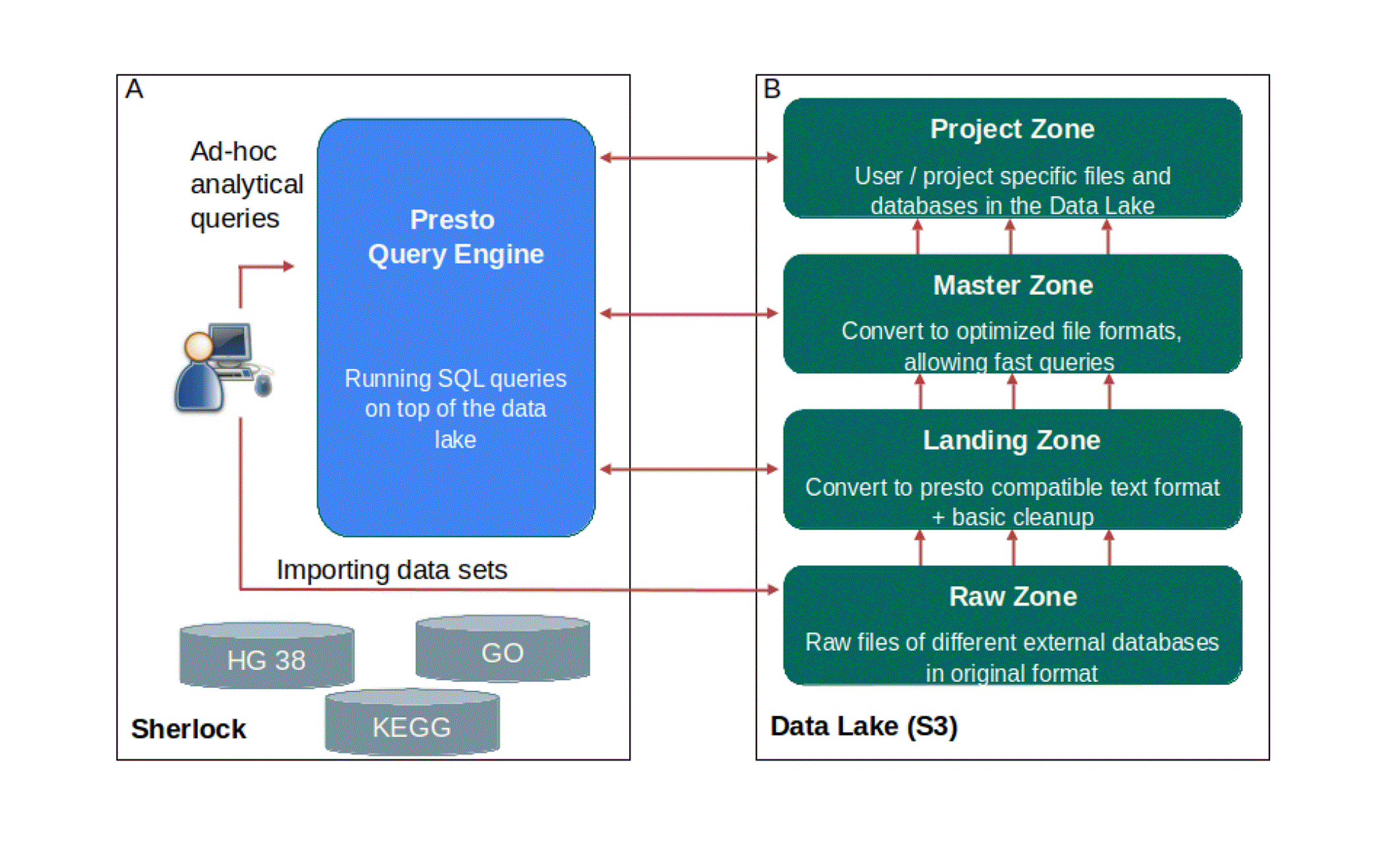

Figure 2. The relationship between the two parts of Sherlock: the platform itself with the query engine and the Data Lake.

A: The structure of Sherlock data platform with the core part, which is the Presto Query Engine. The user can execute different analytical SQL queries with the help of this query engine. Presto will run these queries on top of the data files, which are inside the Data Lake (B) B: The structure of our Data Lake. You can see the four different zones inside the Data Lake, what we are using right now. 1) The raw zone with the raw data from the different external databases. 2) The landing zone, with the Presto compatible text files in JSON Lines format. 3) The master zone, where the data is in a detailed and exact format, called ORC. 4) The project zone, where we store only the data which is needed only for specific projects.

With Presto, we can formalize analytical questions using SQL. SQL is composed of three main sub-languages: 1) data definition language (DDL), which allows the specification of database schemas; 2) a data manipulation language (DML), which supports operations on data (store, modify, delete; 3) and a data control language (DCL), which enables database administrators to configure security access to databases. On the one hand SQL is designed for working data, which held in a relational database management system (RDBMS), on the other hand it can be used for stream processing in a relational data stream management system (RDSMS). Moreover it is particularly really useful to handle with structured data (Silva et al. 2016). When combined with a Query Engine, SQL can be used to connect to the Data Lake, read and combine the data stored within it and execute different analytical queries, either sequentially or in parallel depending on the power of the given computer.

Hive metastore

The second core part of Sherlock is the Hive metastore (https://docs.cloudera.com/runtime/7.0.1/hive-metastore/topics/hive-hms-introduction.html), which is a service that stores metadata related to Apache Hive and other services, in a backend RDBMS, such as MySQL or PostgreSQL. With regards to Sherlock, Presto stores the metadata about the folders in the Data Lake and the Hive metastore which contains only the meta information about the different folders, which is in the Data Lake. In Sherlock we provide simple scripts to save this metadata in the Data Lake when you want to make a backup or before you want to terminate your analytical cluster.

Deployment

For Sherlock, we developed a dockerized version of Presto that also incorporates the Hive metastore. This addition of both the query engine and metastore makes Sherlock cloud-agnostic, so it can be installed at any cloud provider, providing it is a Linux machine with Docker installed. The advantage of running Presto in a dockerized environment is that it is not necessary to install and configure the whole Presto Query Engine manually. Furthermore, it can even be fired up on a local machine, multiple machines or any cloud service as well. On the deployment guide section of the GitHub page of Sherlock (https://earlham-sherlock.github.io/docs/deployment_guide.html), we show how to make a set of Linux virtual machines with Docker installed, then start a distributed Presto cluster by using the Sherlock platform.

The Data Lake - data storage

A Data Lake is a simple network storage repository that can be accessed by external machines (https://aws.amazon.com/big-data/datalakes-and-analytics/what-is-a-data-lake/). All the data which is imported into, transformed in, or exported from Sherlock will be stored here as simple data files. The biggest advantages of using a Data Lake is that its operation will be the same on a local machine, on the cloud and the data can be stored in a well structured way on a reliable storage. Furthermore it can be scaled independently from the query engine. The technologies in Sherlock are compatible with both of the most common Data Lake solutions; Hadoop Distributed File System (HDFS), which is a distributed file system designed to run on commodity hardware, and with the Simple Storage Service (S3) storage formats. However, we decided to only describe S3 in all of our examples, as S3 is more widely-used, modern, and accessible. Although HDFS is an older standard solution, it has some very powerful features which can result in better performance, but all in all it is also much more difficult to set up, maintain and in most cases its extra features are not necessary for the given project. In contrast, S3 is a standard remote storage API (Application Programming Interface) format, introduced first by Amazon (https://aws.amazon.com/s3/). As of writing, you can purchase S3 storage as a service from all major cloud providers like Digital Ocean, Amazon AWS, Google Cloud or Microsoft Azure and each of these can be compatible with the Sherlock platform.

Having somewhere to store the data is only one half of having an operational Data Lake. One cannot stress enough how important it is to organize the data in a well defined ‘folder’ structure. Many Data Lake deployments become unusable after a few years due to poor maintenance, resulting in a large amount of data ‘lost’ in the thousands of folders, or inconsistent file formats and no ownership over the data. Our solution is to separate all of the data in the Data Lake into four different main folders, representing different stages of the data and different access patterns in the Data Lake. Inside each of these main folders we can create subfolders, and it is a good practice to incorporate the name of the dataset, the data owner name, the creation date (or other version info), and the file formats somehow into their paths.

We separated our Data Lake into four different main zones, which are built on top of each other (Figure 2B). The first zone is the raw zone. Into the raw zone, we archived all the database files in their original formats. For example: if we downloaded the human genome, then we put the fasta files here, under a separate subfolder. The name of the subfolder should contain the exact version (for example: hg38_p12) (Figure 3), and also we put a small readme file to the folder, where we listed some metadata, like the date and the url of the download, etc. Usually, these files cannot be opened with Presto, as the file format is incompatible in most of the cases.

Figure 3. An example strategy, how one can store data inside the Data Lake.

The first part of the folder name is the name of the given database/dataset. In that case the human genome. The next part is the version of the data and the last is the uploaded date to the Data Lake.

The next zone is the landing zone. We needed to develop specific scripts, called loader scripts, converting and extracting the raw datasets into this zone. We converted the data to a text file in JSON Lines format (https://jsonlines.org), which can be opened by Presto. This is a specific JSON format, where each line of the text file represents a single JSON record. Each JSON file for a given dataset is placed into a separate sub-folder in the landing zone. It is then registered by Presto which sees the dataset now as a table. Then, Presto will be able to load the data, and perform other operations, for example it can execute simple data transformations on the data. However, we do not recommend using the tables in this zone for querying, because processing the large JSON files is very slow.

Using Presto, we converted the data from the landing zone into an optimized (ordered, indexed, binary) format to the next zone, which is the master zone. The main idea is that we use the tables in the master zone later for analytical queries. Here the data is in a more detailed and exact format, called Optimized Row Columnar (ORC), which is a free and open-source column-oriented data storage format (https://orc.apache.org/docs/). With ORC, Sherlock can perform SQL queries much more faster than using the JSON text file format from the zone below. If necessary, advanced bucketing or partitioning on these tables can be used to optimize the given queries. Furthermore, the master zone contains the ‘single source of truth’. This means that the data here cannot be changed, only extended upon, for example adding a new version of the datasets.

The last zone is the Project zone. This is where we save the tables that are needed only for specific projects. We can even create multiple project zones, one for each group, project or user. It is important to have a rule to indicate the owner of the tables, as mentioned before this dramatically increases the effectiveness of Sherlock and ease of maintenance.

Functionality of Sherlock

Here, we describe the key steps of how the query engine and the Data Lake can be used together (Figure 4). The first step is to submit an SQL query to the Presto query engine, then it will connect to the Data Lake and fetch the necessary data files. The third step is to execute the in-memory distributed query and then it takes back the results to the user.

Figure 4. Overview of how the query engine and the Data Lake work together.

This image represents the different steps, how a user can submit an analytical SQL query and what is the real path of this query until the results come back to the user.

It is important to mention that Sherlock has been designed for biologists, especially for network and system biologists. It can contain specific, interaction, expression and genome data-related databases thanks to loader scripts that are able to create the specific file formats from the source databases and upload them into the Data Lake. With these individual loader scripts, users can make and work with the necessary file formats from the different data sources without major time and coding efforts with their own scripts. The whole source code of the platform and the loader scripts ( Table 1) are freely available on Github: https://github.com/earlham-sherlock/earlham-sherlock.github.io

In the next section, we will outline three different use cases on how Sherlock can be used and what we can use it for.

Use Case 1: Identifier (ID) mapping

One of the most crucial and common tasks for those working in the field of bioinformatics is ID mapping. It is difficult to work with many different datasets from many different sources, all carrying diverse identifiers. In addition, these identifiers can have clashing structures, which makes it complicated and time consuming to work with them. Users have to make different scripts or use different tools to work with these identifiers at once. Nowadays the main and key idea behind these ID mapping steps is to have a separate table or tables, called mapping tables, which contain the different identifiers, but only those. The best practice is to have only one mapping table which contains all of the necessary identifiers for a given project. The limitation with this approach is when a team has to work with so many different identifiers at once means that this mapping table can be really large, and it can take a lot of time to go through it and get the data, which is needed.

In Sherlock, users can work with just one mapping table, which can be made easily with the help of the provided loader scripts from the Github repository, and it can significantly shorten the time needed for ID mapping. Sherlock can execute these queries very quickly despite the large size of the mapping tables, owing to the implemented ORC format. To demonstrate this capability in Sherlock, we search for genes from the STRING database (Szklarczyk et al. 2019), which are expressed only in the brain.

Figure 5 shows three tables. The string_proteins table contains the information from the STRING database (ensembl ID, taxonomy ID and the pubmed ID of the article); the mapping table contains the mapping between the different type of protein identifiers from different sources (ensembl (https://www.ensembl.org/info/genome/stable_ids/index.html) and uniprot (https://www.uniprot.org/help/accession_numbers); and the tissues table includes tissue information about the protein (uniprot identifier, tissue identifier and tissue name) (Figure 5).

SELECT string_proteins.ens_id,
FROM master.string_proteins
LEFT JOIN master.mapping ON string_proteins.ens_id =mapping.ens_id
LEFT JOIN master.tissues ON mapping.uniprot_id = tissues.uniprot_id
WHERE tissues.bto_name = ‘brain’;

Figure 5. Example query, how can we map between different identifiers with Sherlock.

It shows the three tables where we want to map between. All of the three tables are located in the master zone inside the Data Lake.

The SQL query will connect the three tables through the matching protein identifiers, selecting only those which are expressed in the brain according to the matching identifiers (light green and purple). The query results in the first two proteins from the string_proteins table (light green color). If the script does not find any match between the ensembl and uniprot IDs, it skips them, like in the case of the third protein in the string_proteins table.

Use Case 2: Tissue specificity

In this example, we would like to query the top 100 most highly expressed genes in a given tissue (in this case the human colon), and their protein interactors. The limitation with this use case is similar to the previous one: the user has to download the different structured interaction databases from web resources and write scripts or use online tools to work with the data at once. These are also prerequisite steps with the Sherlock platform (having to download the different sources and running preprocessing steps before working with them), but with the provided loader scripts, the user only has to do it once, and it is less time consuming. With Sherlock, the user can easily get this data from multiple interaction tables at once very quickly, thanks to the ORC format with the following SQL query:

SELECT molecule_id, molecule_id_type, tissue_uberon_id,tissue_uberon_name, score, interactor_a_id, interactor_b_id

FROM master.bgee_2020_11_16 bgee
LEFT JOIN master.omnipath_2020_10_04 ON bgee.molecule_id =omnipath_2020_10_04.interactor_a_id

LEFT JOIN master.omnipath_2020_10_04 ON bgee.molecule_id =omnipath_2020_10_04.interactor_b_id

WHERE tax_id = 9606
AND tissue_uberon_id = 1155
ORDER BY score DESC

LIMIT 100;

This query will select the top 100 highly expressed genes from a table imported from the BGee resource (Bastian et al. 2021) to the master zone. The result will be filtered to return only those genes, which are expressed in the colon, and the query will select their protein interactors as well. The results are ordered by the score, so only the colon genes with the top 100 score and their first neighbours will return as the results.

Use Case 3: Network enrichment

In the third example, we would like to enrich a network with interaction data from the Data Lake with the help of Sherlock. We have certain proteins of interest shown on Figure 6, and we would like to investigate if there is any relationship between them (find the interactions). We would also like to enrich this network and our proteins with their first neighbours, using an interaction table loaded from the OmniPath (Türei et al.) (https://omnipathdb.org) database.

Figure 6. Example query, how can we map between different identifiers with Sherlock.

A: Here you can see how we can find interconnections between our four chosen proteins. B: How can we enrich our network with the first neighbours of the given proteins.

The SQL query for finding the connections between the proteins (Figure 6A) is the following:

SELECT interactor_a_id, interactor_b_id

FROM master.omnipath_2020_10_04

WHERE interactor_a_id IN ('o95786', 'q96eq8', 'q6zsz5','q01113')
AND interactor_b_id IN ('o95786', 'q96eq8', 'q6zsz5','q01113');

To enrich our network with the first neighbours of the given proteins we have to use a different SQL query (Figure 6B), as below:

SELECT interactor_a_id, interactor_b_id

FROM master.omnipath_2020_10_04

WHERE interactor_a_id IN ('o95786', 'q96eq8', 'q6zsz5','q01113')
OR interactor_b_id IN ('o95786', 'q96eq8', 'q6zsz5','q01113');

Only a single logical operator changed between the two queries (AND > OR). The reason is, if we want to find the interactions between the proteins, the query has to select only those interactions from the OmniPath table, where the source and the target protein are uniformly included among the proteins we examined. But in the other case, when we want to enrich the network, it is enough to select all of the interactions where either the source or the target proteins are among the proteins of our interest.
