HormonomicsDB: a novel workflow for the untargeted analysis of plant growth regulators and hormones

Code, availability and issue reporting

The HormonomicsDB web-tool is available at http://hormonomicsdb.com/ (Figure 1). The code was written using R (https://www.r-project.org) and RStudio (https://rstudio.com). To run the app, the RShiny package was utilized (https://www.shiny.rstudio.com). The code of the current version 1.4 reported in this manuscript is archived on GitHub.com: https://github.com/plantSMART-UBC/HormonomicsDB.

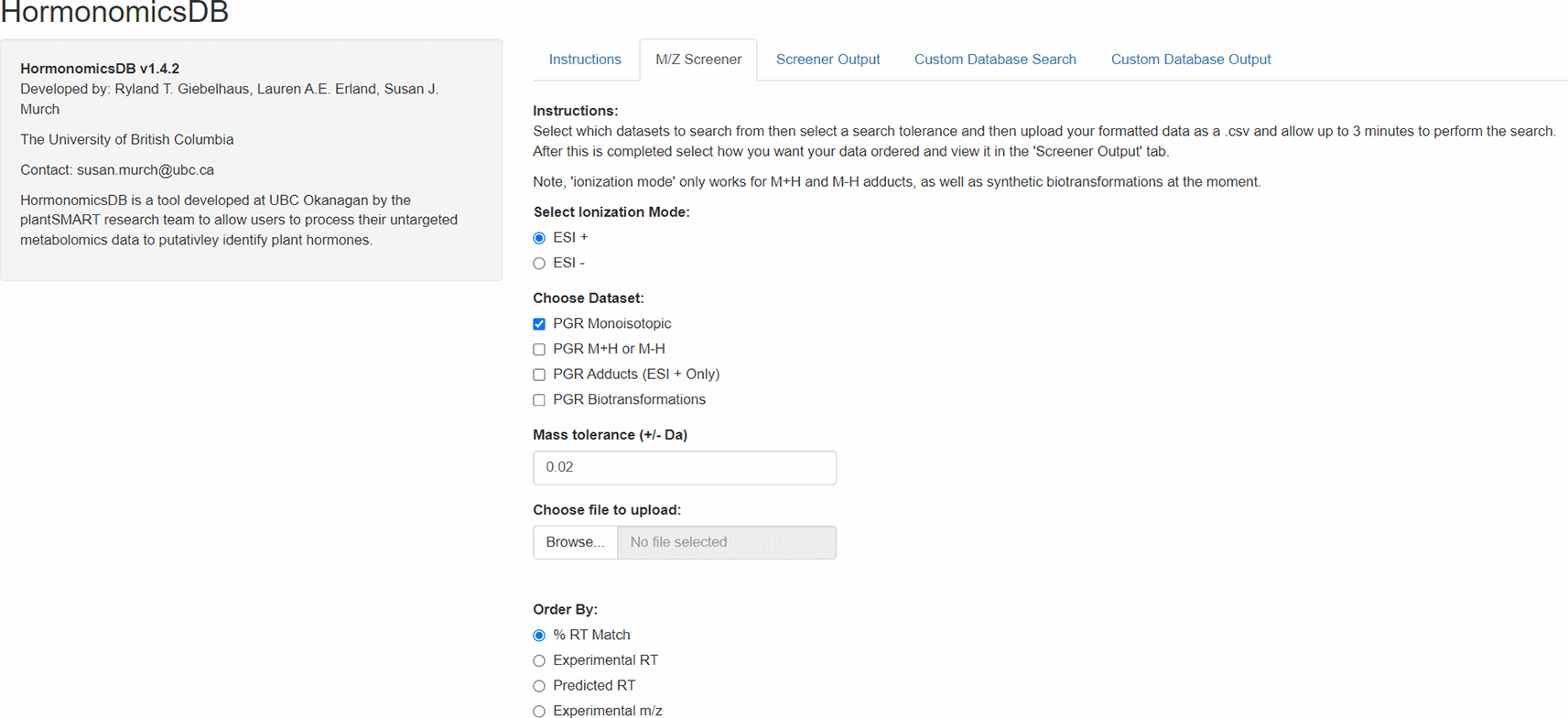

Figure 1. Screenshot of the current version of HormonomicsDB (v1.4) as viewed in Google Chrome.

Plant growth regulators

A list of 249 plant phytohormones of interest was catalogued in a csv file, along with the class, monoisotopic mass, and M+H, m/z, InChI and SMILES terms. The list was expanded from those previously published in Erland et al. 2020 and Simura et al. 2018.^4,5 For each database entry, 7 common adducts and 27 synthetic biotransformations (Table 1) are calculated.^4,12

Data input and output

User data is supplied via file upload as a comma separated value (CSV) file. A standard format is used for uploading data to HormonomicsDB, with m/z in the first column, RT in the second column, and sample intensities populating the remaining columns.

The maximum file size for HormonomicsDB has been set to 10 Mb for the web tool, however, this can be increased as desired when running locally in R by editing the source code manually. To demonstrate the features of the app, example data is provided on the app’s website, of which the details of the data can be found elsewhere 11. Prior to data upload, the user selects the databases that they wish to search against; PGR Monoisotopic, PGR M+H, PGR Adducts, or PGR Biotransformations (Table 1) and mass tolerance. The user can then view the data in the “Screener Output” tab on the app or downloaded as a CSV onto the user’s computer by clicking the “Download Results” on the “m/z Screener” tab.

HormonomicsDB custom search The HormonomicsDB code was modified to create the “Custom Database Search” feature which allows users to use the existing search algorithm and user interface to search against a user uploaded database rather than the internal list of compounds. To use this feature, the user first makes their own database of compounds in a CSV using the same standard format as the “m/z screener”.

Metabolite identification and the metabolomics standards initiative

HormonomicsDB putatively identifies metabolites on both m/z as well as RT. The query algorithm developed for HormonomicsDB first searches on m/z, selecting features that match to PGRs within the user specified search tolerance. Next these putatively identified PGRs are sorted on % RT match, calculating how close the experimental RT for the feature is to the predicted RT for the putatively identified PGR. HormonomicsDB putatively identifies metabolites to the metabolomics standards initiative (MSI) level 3, as two physicochemical properties, m/z and RT, are used to annotate compounds, without comparison to a chemical reference standard but which do not yield unambiguous matches.²

Standardized untargeted hormonomics protocol

An extraction protocol previously established for the extraction of phytohormones for LC-MS analysis was adapted for untargeted hormonomics.^12–15 For extraction, multiple different extraction solvents can be utilized to achieve the desired extraction. This includes water for polar extractions, as well as methanol for nonpolar extractions. Additionally, two extraction buffers used in previously published LC-MS protocols are recommended. The two extraction buffers are 0.5 N trichloroacetic acid (Fischer Scientific, Ottawa, ON, Canada) in 80% methanol (Optima, Fisher Scientific) and 50% methanol (MS Grade, Fisher Scientific, Canada; MeOH) and 4% acetic acid (glacial, Fisher Scientific, Canada) in Milli-Q water.

All sample preparation is performed in a reduced light environment, under a red light. Approximately 100 mg of plant tissue was weighed into a 1.5 mL microcentrifuge tube (Figure 2) and immediately stored on ice or in liquid nitrogen. Extraction buffer was added to the sample in a 3:1 volume (μL): mass (mg) ratio then homogenized on ice using a disposable tissue grinder (Kontes Pellet Pestle; Fisher). The resulting homogenate was vortexed for 30 seconds (Lab Dancer ©, VWR) then centrifuged for 3 minutes at 13,000 rpm (VWR Galaxy 16DH centrifuge). The supernatant was filtered using a 400 μL microcentrifuge filter (0.2 μm PVDF Ultrafree Centrifuge filter; Millipore, Etobicoke, ON, Canada) and centrifuged for 3 minutes at 13,000 rpm. If the sample matrix was complex, the filtrate could be further diluted with ultrapure water up to 1:10 filtrate: water. The filtrate was then aliquoted into an amber glass autosampler vial and stored at 4 °C prior to analysis.

Figure 2. Standardized workflow for untargeted hormonomics analysis (Figure generated in BioRender).

An untargeted metabolomics method previously established in Brown et al. 2012 was developed with slight modifications.^11,10,15,16 Separation was optimized for use with Waters Acquity UPLC BEH C18 column (2.1 × 150 mm × 1.7 μm) at a temperature of 30 °C. A volume of 5 μL was injected onto the column at the start of the gradient. The elution was performed using eluents consisting of 0.25% formic acid (Sigma) in ultrapure water (Eluent A); 100% acetonitrile (Eluent B) was used with the following gradient: 0.0-10.0 min, 95:5-5:95 v/v, 10.0-15.0 min, 5:95 v/v, 15.0-20.0min, 5:95-95:5 v/v, 20.025.0min, 95:5 v/v. The needle wash solvent and purge solvent were both 10:90% water: acetonitrile (v/v). A pre-inject wash of 5 seconds was performed, followed by a 10 second post-injection wash. The total runtime was 25 minutes and a flow rate of 0.25 mL/min was used. The method should be compatible with most mass spectrometry platforms. For acquisition of MS data we have tested data acquire on a Waters LCT Premier to good success using positive electrospray ionization and positive ion detection, with capillary voltage of 2.9 kV, cone voltage 60 V, source temperature 120 °C, desolvation temperature 250 °C, mass range of 100–1000 amu and a scan time of 0.1 s.

Retention time prediction

Using the validated method, a mixture of 46 known analytes were weighed then dissolved in the 0.5 N trichloroacetic acid and 80% methanol extraction buffer (Table 2), each with a concentration of approximately 100 ng/mL were injected and eluted. Using the predicted M+H m/z for each analyte, extracted ion chromatograms were generated to determine the retention time of these analytes. These RTs were then catalogued in an Excel^TM document.

Separation was performed according to the standardized protocol described above on a Waters Acquity I-Class ultra performance liquid chromatography system. Detection was on a Waters Xevo TQ-S in full scan mode (ESI+) using the following optimized settings: Mass range: 75.01100.0 m/z; capillary: 3.5 kV; cone voltage: 30.0 V; Source offset: 60.0 V; Source temperature: 150 °C; desolvation temperature: 400 °C; cone gas flow: 150 L/Hr; desolvation gas flow: 550 L/Hr; collision gas flow: 0.00 mL/min; nebulizer gas flow: 7.00 Bar. In addition to the injected samples, extraction solvent blanks and standards were injected between blocks of samples for quality control and to prevent carryover. In silico RT prediction was performed using the Retip package in the R environment.¹⁷ The package used the in-house RT database as a training set and testing set for up to five ML methods; Random Forest (RF), bidirectional recurrent neural networks (BRNN), XGBoost, lightGBM, and Keras. Of these five models, two worked and were tested; RF and BRNN. The RF ML model was selected as the model to predict RTs for HormonomicsDB. Validation was performed by comparing the predicted RTs to experimental values of known compounds.

Testing and validation

To test and validate the tool, a previously published untargeted metabolomics dataset generated using the same chromatographic parameters as described above was analyzed using HormonomicsDB.¹⁵ The purpose of testing and validating was to assess the tools querying ability to ensure fit for purpose, while processing a large dataset. Additionally, we wanted to compare HormonomicDBs outputs to a previously published list of putative metabolites to determine if the tool returning the desired outputs.

This dataset was analyzed through HormonomicsDB using the ‘M+H’ database and a search tolerance of ± 0.02 Da. The putative hits from HormonomicsDB were then exported as a CSV, duplicate hits were removed, yielding a list of putatively identified metabolites. This list was then compared to the putatively identified analytes from Brown et al. 2012 to determine if ‘HormonomicsDB’ has any major bugs which cause issues in querying.

Meta-analysis of previous metabolomics studies

To demonstrate the utility of the HormonomicsDB webtool, we performed untargeted hormonomics analysis on all LC-MS the plant studies present on Metabolomics Workbench (Figure 3).⁹ First, studies with the study organism “PLANT” were selected, which as of June 2022 returned 58 studies. From these, studies which incorrectly returned a plant species, or used nuclear magnetic resonance (NMR), gas chromatography mass spectrometry (GC-MS), separation techniques such as hydrophilic layer interaction chromatography (HILIC), or reversed phase LC techniques with detection methods other than high resolution MS were excluded, leaving 34 studies. Of these, a number of studies had named peak tables, incomplete peak tables, or only raw, unaligned data. These were excluded further narrowing the number of studies to 14 (Table 3). There were 13 studies, with 10 unique species, with peak tables acquired in ESI+ mode, and 8 studies with 5 unique species in ESI- mode. All these peak tables were formatted for HormonomicsDB and queued against the’M+H’ adduct with a mass tolerance of ±0.02 Da. The output from HormonomicsDB was sorted by RT match. For studies with the same gradient and column used to construct the in silico RT prediction training set, compounds with an RT match >70% were retained. If the gradient and column were different compounds with a match >50% were retained. For studies where the gradient was not provided, RTs >1 minute and before column re-equilibration were retained. If direct injection was used, all compounds were selected. Duplicate compound hits were then removed and the compounds were binned by class.

Figure 3. Overview of the steps in the meta-analysis of plant metabolomics studies from Metabolomics Workbench.

HormonomicsDB web-tool functionality and interface

The HormonomicsDB web-tool is an open source web tool developed using RShiny allowing users to perform compound annotation of untargeted metabolomics datasets using retention time and accurate mass matching (Figure 1). The database includes 249 hormones which were originally assembled from the plant science perspective. In addition to matching to monoisotopic mass the database allows for matching to common adducts as well as predicted metabolites through the synthetic biotransformations approach (Figure 2; Table 1). Data is uploaded in.csv format and results can be viewed either on the web or downloaded as a .csv file. The search functionality may also be used to search any two datasets given they contain m/z.RT data.

By comparing the putatively identified phytohormones from Brown et al. 2012 to the output of HormonomicsDB we determined the tool was fit for purpose.¹⁵ The match rate was 104.5%, and was considered acceptable as our algorithm matches first on m/z then on RT, therefore, two or more isobaric phytohormones may return for a given m/z (Table 4).

Development of the standardized protocol

In order to facilitate high confidence compound identification, a standardized and easily adapted LC-MS method was developed that accounts for the low concentration, labile nature of hormones and also accounts for the differential polarity of some phytohormones (Figure 2). The method is derived from established protocols and uses equipment and solvents already present in most biology, chemistry and analytical labs and is outlined in Figure 4.^13,18,14 Special consideration was applied to extraction conditions as phytohormones represent unique challenges as analytes. First, in sample preparation, keeping samples on ice in a low light environment helps to prevent the degradation of labile phytohormones such as melatonin and auxin.^13,19,20 Typically, degradation of analytes during sample preparation is negligible for quantitative work, however, hormones often occur at levels approaches detection limits, particularly in untargeted studies making extraction losses a significant concern. Another concern is the potential for reactions during the extraction process which may lead to modification of structures and potentially loss of the biologically relevant forms or bias in the forms observed in the dataset. The use of methanol and water in the extraction solution encourages the extraction of both polar and non-polar analytes. Acidification of the extraction buffer with acetic acid or trichloroacetic (TCA) acid helps to acidify the solution to increase the solubility of phytohormones and protonation increase ionization efficiency in ESI+. TCA also precipitates proteins, and provides ion paring to reduce ion suppression in the mass analyzer.²¹

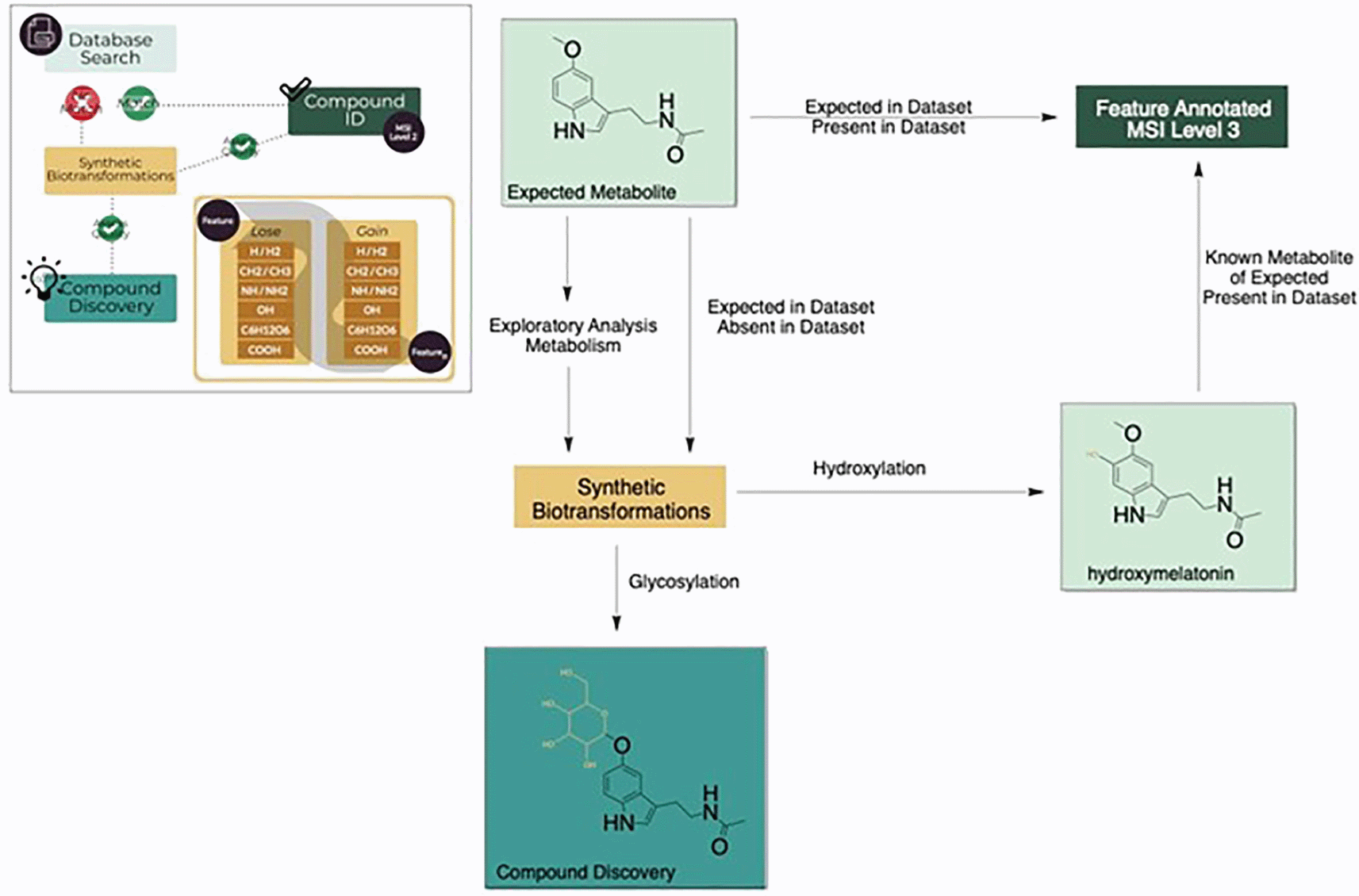

Figure 4. Overview of HormonomicsDB functionality.

Database curation

The databased includes 249 metabolites which are established hormones or precursors or metabolites thereof. Classes of hormones include both naturally occurring and synthetic hormones with broad class coverage of: catecholamines, indolamines, auxins, jasmonates, salicylates, cytokinins, gibberellins, polyamines, butenolids (karrikins and strigolactones), steroids and abscisic acid. While development of the initial database has been from a plant hormone perspective, it also represents good coverage of the overall hormone landscape across Kingdoms. Only known metabolites have been included in the database, though the capacity to predict novel metabolites is built into the predictive biotransformations functionality. Inclusion of molecular formula, SMILES and InChI terms facilitates interoperability between database search results and classification tools such as MetaboAnalyst, ChemRich or ClassyFire. Accurate mass and molecular formula are available for all database entries, predicted retention time is also included for all entries and was predicted for the standardized method using the Retip App¹⁷ to allow for compound identification to MSI Level 3 as the presence of isobars within the database leads to the possibility for non-unique matches even with integration of retention time.² The complete database is available in .csv format in Supplementary File 1.

Retention time prediction

The advent of machine learning algorithms has led to several important tools which facilitate compound identification. We have applied the ReTip app to allow for retention time prediction within the database, given users have uploaded data generated from the standard separation protocol or one similar. The random forest model for retention time prediction showed the best fit to the training data with an R2 = 0.92 (Table 5). Both the standard error (1.1 min) and the 95% confidence interval (± 1.17 min) were lowest of the models tested and were considered acceptable for the purpose. Manual plotting of predicted vs experimental retention time showed a highly linear relationship with R² > 0.9 and slope of 1.39. We anticipate that the predictions will be robust for LC-MS based systems running the standard separation protocol.

Synthetic biotransformations approach for hypothesis generation

One of the fundamental challenges which exists within the field of metabolomics is the scale of unknown unknowns within datasets. The average plant leaf has been estimated to contain >70,000 metabolites and with only a fraction of these having been characterized this leaves a vast chemical space for compound discovery as well as a significant challenge.¹⁰ One advantage to living systems is that metabolites are generally not independent and are the result of enzymatic reactions, meaning there are a finite number of reactions that can occur.¹⁰ While the vast number of potential novel metabolites is almost infinite, the number of basic reactions is more finite. In the synthetic biotransformations or logical algorithms approach developed in our group we use common chemical reactions such as (de) methylation, oxidation, reduction, (de) hydroxylation, (de) glycosylation, (de) carboxylation and apply these to a select subset of metabolites of interest to predict new pathways and metabolites in a sample based on a known starting point.^4,6,11,10 This approach uses the predicted change in monoisotopic mass of a specific metabolite by the addition or removal of a common moiety which can then be mined in the metabolomics dataset.

The synthetic biotransformations approach can also be used for the annotation of unknown knowns in a sample. This approach is particularly relevant for hormones as due to their biological activity at low concentrations, a common strategy is activation/deactivation of metabolites through simple reactions. It is possible that the active form is present at levels well below detection limits but a storage or deactivated form for transport is present at detectable levels and may still provide interesting biological context. Similarly, as the compounds are generally labile, a biologically active form of a hormone may be absent in a sample due to degradation during sample preparation or ionization but a modified form may be present. One of the best described examples of this is the classical phytohormone auxin which may be stored/deactivated/transported through methylation, glycosylation, and conjugation to amino acids among for example.^8,22,23 Phytohormones activity in some instances may also be enhanced or modified through conjugation or biotransformation as is the case for jasmonic acid, where the active form is jasmonic acid isoleucine,²⁴ or serotonin where phenolic conjugates such as feruloylserotonin are important in response to wounding, pathogen challenge and insect feeding.^25,26 A proof of concept of the application of synthetic biotransformations was performed on the pathway responsible for melatonin biosynthesis in plants using known conjugates (Figure 5). In this proof of concept, two glycosylated metabolites are present, tryptophan-N-glycoside, and serotonin 5-O-β-glycoside.²⁷ These glycosylated forms may serve as inactive storage or transport forms of their parent molecule. Furthermore, the serotonin conjugates N-coumaroyl-serotonin and N-feruloyl-serotonin (Figure 5, Table 5) have been found in several plant species where they serve important functions as defensive molecules.²⁸ There are potentially many more conjugates in this pathway that are yet to be identified, such as melatonin glycosides or N-coumaroyl-melatonin. The logic can also be performed in reverse, in the absence of a match for the parent compound melatonin the presence of for example while feruloyl-serotonin is not identified in the example cranberry dataset both a hydroxylated version and an aminated version are possible (Table 6).

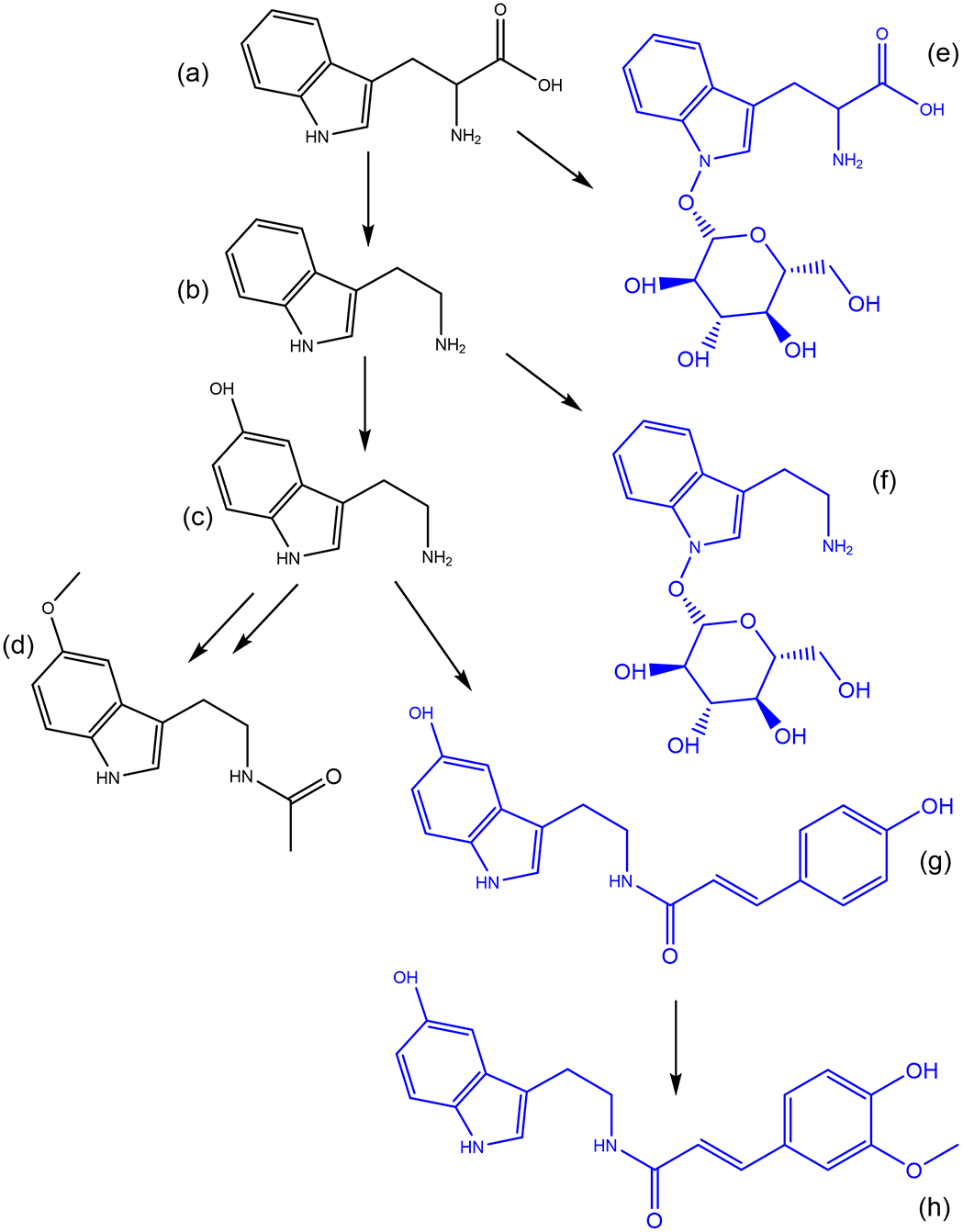

Figure 5. The pathway responsible for the biosynthesis of melatonin in plants starting from tryptophan (a) through to tryptamine (b) serotonin (c) and melatonin (d).

The molecules in blue represent identified conjugates of these main metabolites in the pathway.

Meta-analysis of previous studies Tryptophan metabolism had the most hits of all the classes, across both ionization modes. This is not unexpected as tryptophan is involved in both primary and secondary metabolism, and tryptophan metabolites also make up the largest class in HormonomicsDB, with 75 tryptophan metabolites catalogued in HormonomicsDB (Figure 6). Cytokinins and melatonin conjugates are the next two most abundant classes, respectively, however unlike tryptophan metabolism where the abundance is high across the species and experiments, these classes have a varying range in abundance across species. This demonstrates the sensitive nature of plant hormones, particularly with melatonin conjugates which are prone to degradation under light and oxidative conditions.¹⁸

Figure 6. Number of compounds returned in each class for each of the species in the meta-analysis of data from Metabolomics Workbench, with the total number of compounds per class in HormonomicsDB given in the left most column.

(a) Electrospray ionization (ESI) positive peak tables, and (b) ESI negative peak tables.

In species where there is an increase in tryptophan metabolism metabolites, an increase in melatonin conjugates and cytokinins is observed (Figure 6). Increases in tryptophan have been observed to increase auxin and indolamine levels in Hypericum perforatum L.²⁹ Additionally, there is evidence suggesting auxin mediates indolamine biosynthesis in plants.²⁹ These mechanisms are not yet well understood and require further investigation. These empirical observations of increased tryptophan, auxin, and melatonin conjugate biosynthesis through the HormonomicsDB meta-analysis reveals the usefulness of the HormonomicsDB approach and how it could be applied to better understand how auxins interact with indolamine biosynthesis in plants.

Unlike the other -omics fields, particularly transcriptomics and genomics, variation between metabolomics experimental conditions, including extraction conditions, column chemistry, mobile phase composition, and ionization voltages makes meta-analyses challenging the data is not easily normalized and aligned (Supplementary File 2).³⁰ Our demonstration of a metabolomics meta-analysis through HormonomicsDB demonstrates the utility of having a standardized untargeted hormonomics protocol, which not only allows for the HormonomicsDB web-tool to be utilized for putative identification, but permits other researchers to analyze multiple metabolomics datasets without the need to account for variation between experiments.
