A novel method for measuring sublingual temperature using conventional non-contact forehead thermometer

Introduction

Body temperature monitoring can be done from multiple sites like oral, rectal, axillary, tympanic, pulmonary, oesophageal, gastrointestinal, bladder and temporal. Sollai et al have viewed an ideal thermometer as “An ideal thermometer should: accurately reflect the core body temperature in all age groups; be convenient, easy and comfortable to use; give rapid results; not cause cross infection among patients; not be influenced by room temperature; and be safe and cost- effective”.¹ Although oral site is widely utilised for routine temperature recording in adults, rectal site is still considered as a representative of core body temperature.² Rectal temperature measurement involves an invasive procedure, needs thorough sterilisation after each use and is inconvenient to use. It can be influenced by multiple factors and does not rapidly reflect core body temperature changes.²

The oral site is the most convenient and reliable site for intermittent temperature recordings.³ The oral site is supplied by branches of the external carotid artery. Oral temperature is influenced by many factors like smoking,⁴ salivation, consumption of cold or warm fluids, chewing gum or mastication,⁴ and fast breathing, oral disease.

Tympanic site is the most suitable and convenient for non-invasive core body temperature monitoring. The tympanic temperature readings correlate well with the core temperature and is rarely affected with ambient temperature. However, taking tympanic temperature is inconvenient and involves contact of the body with the device which and hence needs cleaning and sterilisation/new probes after each use.

The use of non-contact infrared thermometers (NCIT) has become more prominent over time because of the simplicity and convenience. NCIT for forehead temperature measurement have been very popular but lack accuracy. Non-contact measurements are generally taken over the forehead at 3-15 cm distance.⁵ Infrared skin thermometers are equivocal in their performance. Hence, they are not routinely used in clinical practice.⁵

In the search to determine a more practical method of temperature recording, an infrared auditory thermometer was studied to evaluate the temperature measurements at various sites in the oral cavity.⁶ The sublingual site was found to be the ideal site since the floor of mouth (underside of the tongue) represents core temperature very closely,⁶ Despite its merits, disposable tips had to be changed for each patient during the study and the study was conducted in healthy individuals, not in patients with fever.⁶ None of the existing methods mentioned fulfill all the requirements of an ideal thermometer for clinical use.

We innovated the method of measuring sublingual temperature using a forehead infrared thermometer and evaluated its utility in recording the sublingual temperature in a non-contact manner. We established concurrent validity of sublingual temperature using a non-contact thermometer by comparing it with tympanic temperature measurement which is an established and standard method of recording the core temperature.

Methods

Results

In total, 35 participants fulfilling the inclusion criteria were recruited for the study, yet six were excluded due to noncompliance towards tympanic probe placement (Figure 1). A total of 328 paired recordings from 29 patients were collected.¹³ The mean age of the subjects was 32.8 ± 11.57 yrs. Medical diagnoses were: dengue fever (22), malaria (4), leptospirosis (1), enteric fever (1), pulmonary tuberculosis (1). There was a high degree of correlation between sublingual infrared (IR) and tympanic temperature; (correlation coefficient r = 0.860, p < 0.001). However, correlation at higher temperatures was poor and sublingual temperature was about 1.5°C less than the tympanic temperature at extreme body temperatures (Figure 2). Mean difference between infrared sublingual and tympanic temperature was 0.21°C (SD 0.48°C, 95% CI 0.16°C-0.27°C) (Table 1).

Figure 1. Summary of the study.

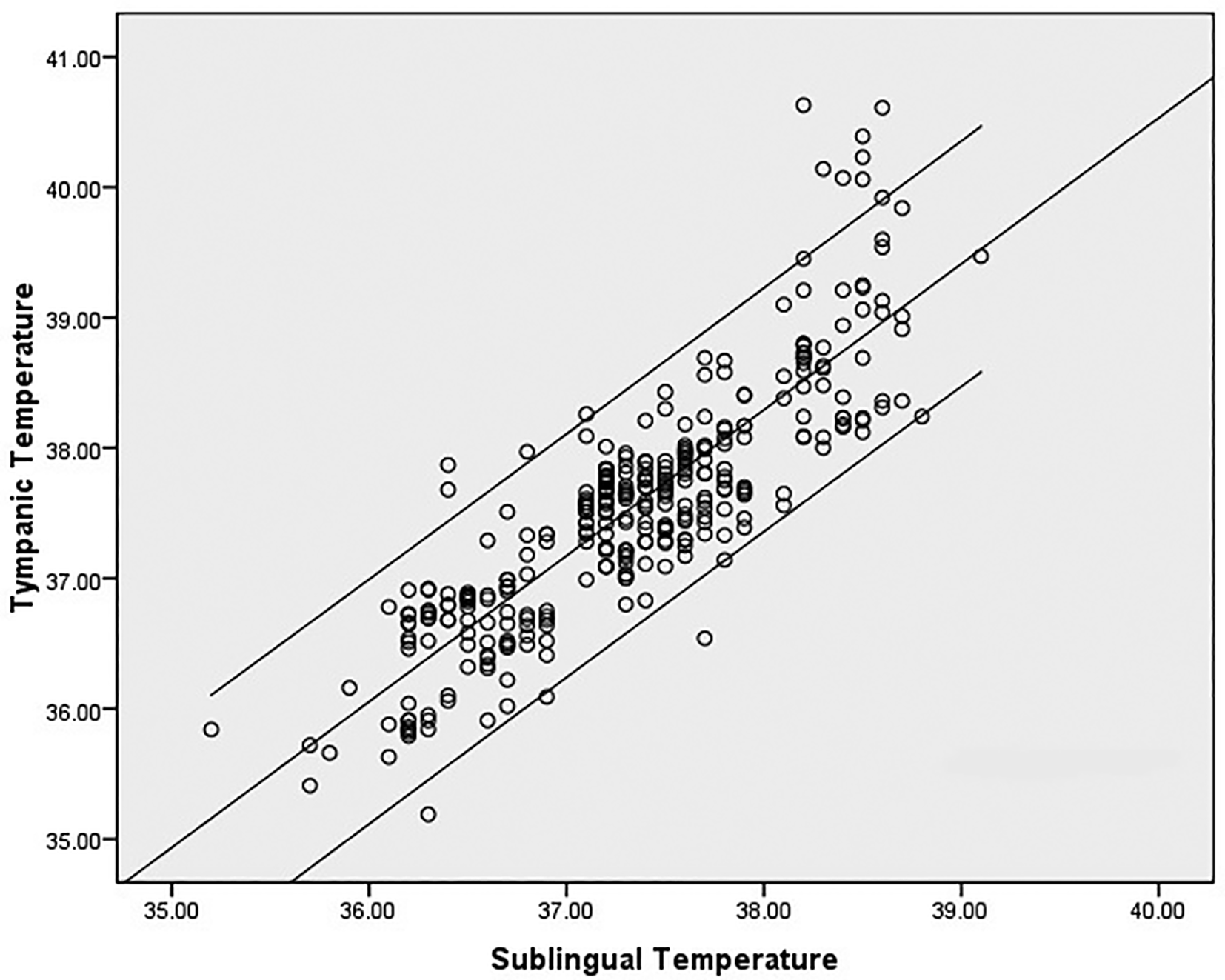

Figure 2. Correlation between tympanic and sublingual temperature (°C) recordings.

The intra-class correlation co-efficient (ICC) between core and sublingual temperatures was 0.830°C (95% CI: 0.794 to 0.861) p < 0.001. Fever was defined as >38°C. In total, 83 recordings (21.84%) had temperature > 38°C (Table 2). Sublingual infrared (IR) temperature had area under the curve (AUC) of 0.96 (95% CI 0.93 to 0.98) p < 0.001 for Core temperature of 38°C (Figure 3). Sensitivity of sublingual IR temperature of 37.65°C was 90%, specificity was 89%, positive predictive value was 73.5% and negative predictive value was 96.5% (Figure 1). The Kappa coefficient which is a measure of agreement was 0.738, p < 0.001, suggesting a good agreement between sublingual IR and tympanic temperature for diagnosing fever (Temperature > 38°C) (Figure 4).

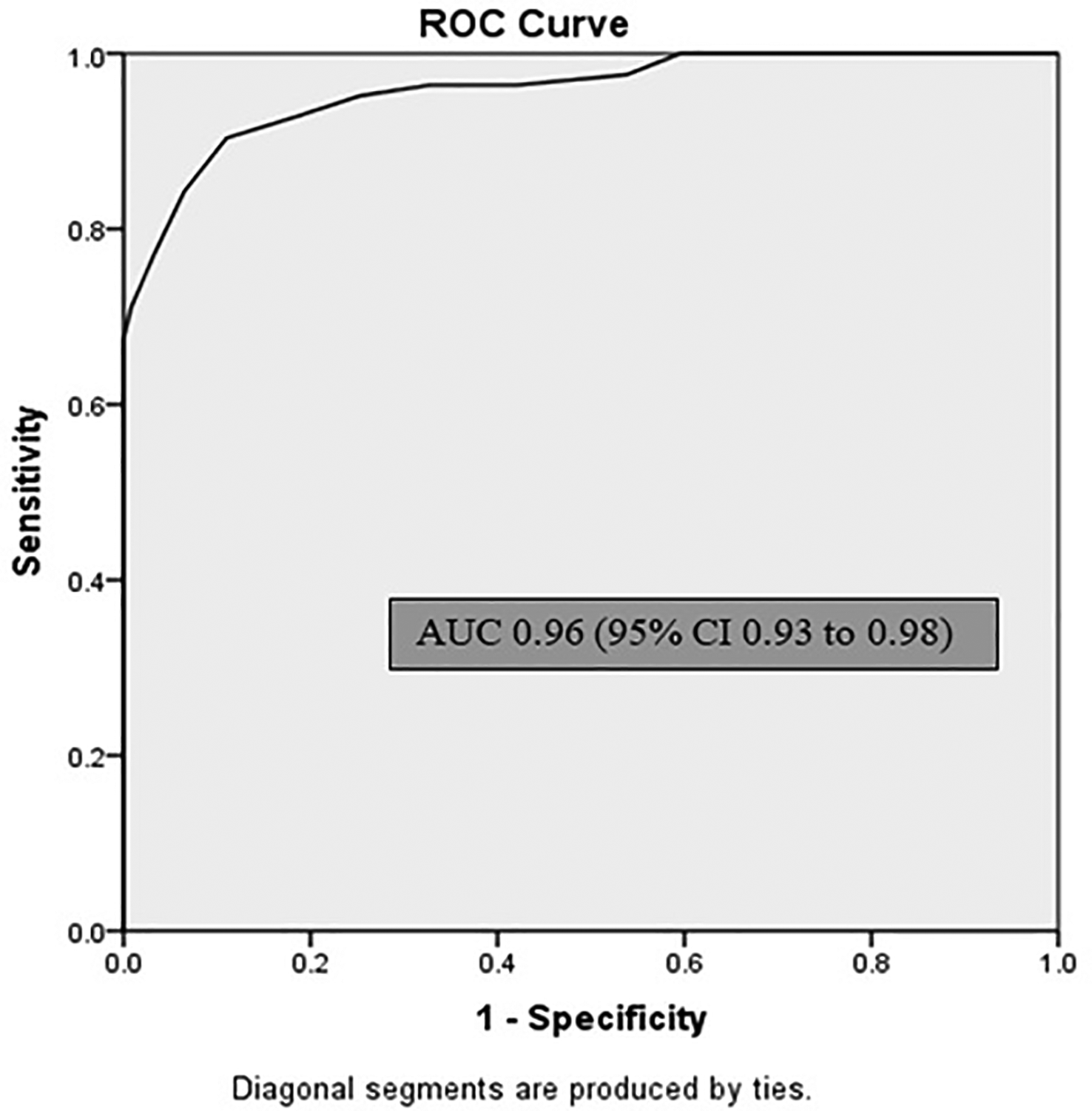

Figure 3. Receiver operating characteristic (ROC) curve for sublingual infrared temperature recordings.

AUC = area under curve; CI = confidence interval.

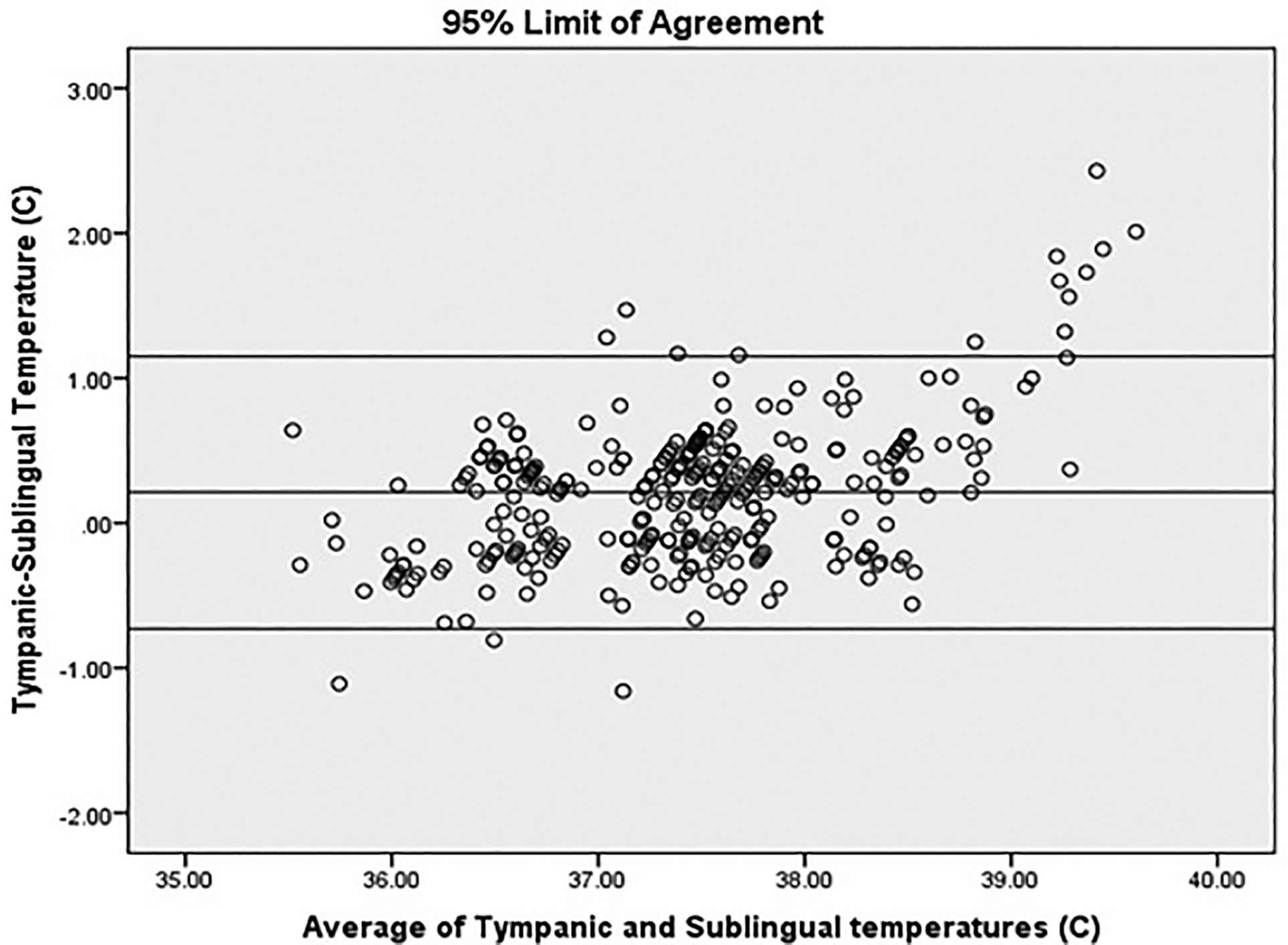

Figure 4. Agreement analysis.

Discussion

We took a sublingual infrared non-contact thermometer recording by keeping the thermometer about 1 cm from the upturned undersurface of the tongue and compared the reading with tympanic temperature which represents core temperature. Subjects with fever and a variety of underlying clinical condition were included. We observed that there was a statistically significant degree of correlation between the non-contact sublingual infrared recording and the core temperature. There was very good agreement for diagnosing fever (temperature >38°C) between the two methods with sensitivity and specificity of about 90%.

In our study, mean difference was 0.21°C (95% CI 0.16-0.27). 95% limit of agreement (LOA) was −0.73 to 1.15. This value is consistent with other studies reporting temperature differences with various devices/sites. 95% LOA for mercury thermometers for rectal temperature is −0.44°C to 1.27°C and for electronic devices for rectal temperatures −0.46°C to 1.34°C. The inherent biological variations also contribute to the variations. The difference between oral temperature and criterion temperature has been found to be −0.50°C ± 0.31°C in steady state but increased to 1.5°C at temperatures above 39°C.¹⁴ Analysis of the LOA plot in our study also revealed that the difference increases above 39°C. Sublingual temperature lags behind the tympanic temperature by an average of 0.21°C. The difference widens at very high body temperatures as shown in the scatter plot (Figure 2). Similar observations were noted in previous studies also. Oral temperature was compared with rectal temperatures and the oral temperature lagged behind the rectal temperature by about 1.5°C at temperatures of >39°C¹⁴ which is similar to our findings.

Sublingual temperatures closely reflect the core temperature, but current methods use contact devices which require sterilisation or change of probe after each use. Using our modification, it is possible to accurately record sublingual temperature quickly without the need to sterilise the equipment. Mass screening can be done quickly and accurately. It may be noted that mass screening with an infrared forehead thermometer is not accurate though convenient.⁹ This will also result in significant saving of nursing time since the present method of recording takes about 5 minutes, 4-6 times per day for each patient which includes the recording time and the time taken for cleaning the device. In addition, sublingual infrared thermometers are cost effective, easily accessible and can be self-utilised even in a home-based setting.The simpler technique provides an extra advantage that even general population could be easily trained regarding recording methods.

Scientific studies have documented close correlation between sublingual and tympanic temperatures. In one study, sublingual temperature was measured by mercury thermometer and compared with tympanic temperature.¹⁵ The mean difference between the two measurements was 0.09 °C (95% CI 0.07-0.12). The clinically acceptable difference for oral temperature compared to reference standard is 0.27°C (0.5° F).¹⁴ The difference in our study was 0.21°C, which is well within the clinically acceptable difference.

The non-contact infrared device used in our study is approved for measuring forehead temperature at a distance of 1-5 cm. We used the same device to record the temperature at the sublingual site at a distance of about 1 cm. It is possible to measure from a longer distance if distance to spot ratio is enhanced. If the distance to spot ratio is 12:1, which is possible with many of the routinely used infrared thermometers, readings can be taken from a distance of 1 foot (12 inches) to sample an area of 1 inch diameter of the sublingual area. This will allow the examiner to maintain a safe distance from the patient to avoid droplet infections. A guiding laser beam can be incorporated in the device to accurately select the sublingual area. This will improve the efficacy of mass screening of fever patients which is extremely important in the setting of highly contagious infective diseases. The entire procedure can be incorporated in mobile devices which will allow the mobile devices to work as accurate thermometers.

The main strength of our study is the fact that the measurements were done in varied clinical conditions and in hospital settings. Studies done in healthy volunteers or in controlled laboratory conditions may not be true reflections of their performance in actual clinical scenarios. Moreover, the measurements were correlated with tympanic temperature which is a close measure of core temperature.¹⁶

A limitation of our study is the relatively small number of subjects. The study needs to be repeated in a larger number of patients and multiple users to establish its validity. This method may not be accurate in emergency departments and critical care settings since a wide variation of tympanic and oral temperatures have been observed in these settings, probably due to the circulatory compromise.¹⁷

Our method satisfies all the requirements of an ideal thermometer defined by Sollali et al.¹ It has high accuracy for core temperature, it is easy and comfortable to use since it is non-contact, it is rapid since it gives instantaneous readings, does not cause cross infection since it is non-contact and non-invasive, it is not influenced by ambient temperature and is cost effective since initial cost is low and there are no recurring expenses except for the battery.

In conclusion, innovative modification of using the forehead infrared thermometer to measure the sublingual temperature offers an accurate, rapid and non-contact estimation of core temperature.

Conclusion

The novel modified use of an infrared non-contact thermometer could be better method to record the sublingual temperature of patients quickly and accurately. Implementation of this method could increase the working efficiency of the nursing staff in general patient wards, which is cost effective and there is no need to sterilise the device between patients.

In addition, sublingual temperature recording using an infrared non-contact thermometer could be implemented in mass screening of people in airports, railway stations etc., during global pandemic situations like coronavirus disease 2019 (COVID-19) and Ebola virus disease for example. Because the sublingual temperature closely reflects the core body temperature and could be more accurate and convenient without any influence of ambient temperature. This novel modified method could improve the efficacy and accuracy of body temperature recording.
