HIF-1α regulated pathomechanism of low birth weight through angiogenesis factors in placental Plasmodium vivax infection

Ethics approval and consent

This research was conducted according to the guidelines of the Declaration of Helsinki and approved by the Faculty of Medicine Universitas Brawijaya Ethics Committee number 307/EC/KEPK/11/2018. Written informed consent, consisting of consent stating the baby's data to be used, was obtained from all subjects before they participated in this study.

Characteristics of research participants

This study used a cross-sectional research design in T.C. Hillers Regional Hospital, Maumere, Sikka Regency, East Nusa Tenggara Province, a malaria-endemic area in Indonesia. This study used a purposive sampling technique in managing research participants. Thus, all of the subjects which met the inclusion criteria were included. This study was conducted for 10 months and the subjects were pregnant women who came to T.C. Hillers Regional Hospital in 2018 and met the inclusion criteria. The inclusion criteria were pregnant women who gave birth to babies with low birth weight (LBW) (< 2500 g) and small for gestational age (SGA) (birth weight < 10th percentile for gestational age at birth). Women who were primigravidae (being pregnant for the first time) and multigravidae (being pregnant more than once) were included in this study. Subjects were divided into two groups. They were (i) the case group, pregnant women who met the inclusion criteria and the malaria diagnosis criteria, and (ii) the control group, pregnant women who met the inclusion criteria and did not meet the malaria diagnosis criteria. All the participants were in term pregnancy, and the gestational age ranged from 37 to 42 weeks³⁷. Malaria cases were determined based on the discovery of Plasmodium parasites on examination of thin or thick blood smears and/or the discovery of Plasmodium DNA in maternal blood and or umbilical cord blood by polymerase chain reaction (PCR) examination, and or the discovery of Plasmodium parasites or hemozoin in the placenta.

Diagnosis of placental malaria

The diagnosis of malaria case in this study was confirmed by the discovery of either the asexual form of Plasmodium on examination of thick or thin blood smears derived from maternal blood and or umbilical cord blood and Plasmodium DNA obtained by polymerase chain reaction (PCR) examination and finding of placental malaria, which is determined by placental tissue histopathological examination based on infected erythrocyte sequestration, monocyte infiltration, and hemozoin deposition³⁸. Hemozoin is a brown pigment crystal that forms in the digestive vacuole of Plasmodium as a product of hemoglobin catabolism³⁹. Hemozoin was seen as greenish-black or yellowish-brown granules using a light microscope and deposited intra or extra erythrocytes. Observations were made using a light microscope with 1000x magnification in 100 fields of view. Identification of infected erythrocytes was carried out by observing 100 fields of view. Hemozoin deposition was identified by observing 100 fields, and then the total number of hemozoin was calculated by dividing all fields by 100. The count includes hemozoin found within and outside infected erythrocytes, hemozoin attached to connective tissue, in the intervillous space (free hemozoin), or hemozoin inside free macrophages or macrophages covered by fibrin in the intervillous space.

Definition of low birth weight

Low birth weight is a birth weight of less than 2500 g³⁷. In this study, what is meant by low birth weight is the difference between birth weight and the 10th percentile of the mean birth weight curve for boys and girls by gestational age from the reference curves of birth weight, length, and head circumference for gestational ages in Yogyakarta, Indonesia⁴⁰.

Maternal peripheral blood sample preparation

In total, 10 milliliters of maternal venous blood were drawn from the median vein and put into a vacutainer containing anticoagulant (BD Vacutainer EDTA Tubes, 366643) for making blood smear preparations, plasma, and dried blood spots on filter paper. Microscopic examination was carried out on blood smear preparations. Dried blood spots were then used for PCR examination to confirm malaria diagnosis. Plasma was stored at 20°C and sent to Malang City (in collaboration with the Prodia Laboratory) in less than 48 hours. Using the ELISA method, these samples were then used to examine plasma levels of VEGF, PlGF, VEGFR-1 (sFlt-1), VEGFR-2, and HIF-1α.

Umbilical artery blood sample preparation

In total, five milliliters of blood were drawn from the neonates' umbilical arteries and collected in an anticoagulant tube (BD Vacutainer EDTA Tubes, 367863) for hemoglobin and leukocyte count testing. Blood smears were made to identify malaria parasites, as well as dried blood spots on filter paper for PCR analysis.

Parasitemia examination

The blood sample was dropped on an object glass, where a thin smear was made and dried. Furthermore, the smears were fixed evenly using absolute methanol and dried. The smears were stained with Giemsa solution (a mixture of Giemsa stain (Merck, HX612241) and Giemsa buffer (Bioanalytica, Indonesia) with a ratio of 1:9), then rinsed and dried. The thin smear slides were examined microscopically at 100 times magnification under the objective lens with immersion oil on at least 100 visual fields for each examination. To calculate the degree of parasitemia, 1000x magnification was carried out using a light microscope (Olympus Biological Microscope, CX23), counting the number of erythrocytes infected with malaria parasites per 1000 erythrocytes¹¹.

Placental sampling for histopathological preparation

Samples obtained from the central part of the gross placental anatomy with a size of 2 cm and fixation with 10% neutral buffer formalin were then embedded into paraffin for immunofluorescence examination to determine the expression of VEGF, PlGF, VEGFR-1, VEGFR-2, and HIF-1α, the sequestration of infected erythrocytes and or hemozoin, as well as placental parasitemia. Placental histology preparations were made by cutting tissue that had previously been fixed with 10% neutral buffer formalin and inserted into a tissue cassette. Then, the samples were put into a basket and processed using a tissue processor tool (Thermo Scientific Microm STP 120 Spin Tissue Processor). The process of casting into paraffin blocks was done using a tissue embedding tool (Sakura Tissue-Tek TEC 5 Embedding Station). The paraffin blocks were cooled in a freezer before cutting with a microtome (Leica, RM2245). Then, the tissue was put into an incubator (Memmert, UN30) for 30 minutes in a 70–80°C temperature setting to maximize further deparaffination. Furthermore, after the tissue was removed from the incubator, deparaffination and Hematoxylin-Eosin staining were performed using the Tissue Tex DRS 2000 Multiple Slide Stainer tool.

Immunofluorescence preparation

Immunofluorescence examination procedure on placental tissue was used to measure the placental expression of variables VEGF (anti-VEGFA antibody, SC 7269 FITC), PlGF (anti-PLGF antibody, SC 518003), VEGFR-1 (anti-VEGFR-1 antibody, SC 271789 PE), VEGFR-2 (anti-VEGFR-2 antibody, SC 6251 FITC), and HIF-1α (anti-HIF-1α antibody (SC 13515 PE). The immunofluorescence procedure was performed by single staining for HIF-1α and double staining for other variables. The immunofluorescence images were observed using a fluorescence microscope Olympus IX71 with 400x magnification. The results of the immunofluorescence images were then quantified using ImageJ 1.52p Fiji software. The parameter used was integrated density (IntDent), defined with the sum of the pixel value in selection (RawIntDen) multiplied by area in scaled units, then divided by area in pixel (RawInden * (Area in scaled units) / (Area in pixels)).

Nested Polymerase Chain Reaction (PCR) examination to detect Plasmodium falciparum and Plasmodium vivax DNA

According to the manufacturer's instructions, DNA samples were obtained from blood sample extraction using PureLinkTM Genomic DNA Kits (Invitrogen, Carlsbad, California, USA). After purification, all samples were stored at -20°C till ready for the nested PCR. For the amplification of Plasmodium genus sequences, outer primer pairs (rPLU1 and rPLU5) were used. In the second reaction, two inner primers were used to detect P. falciparum (rFal1-rFal2) and P. vivax (rVIV1-rVIV2). PCR was performed using a Go Tag® Green Master Mix (Promega, Madison, Wisconsin, USA). 1 l template was treated with the following conditions: 1 l of each primer (10 M), 12.5 l of PCR master mix, and 9.5 l of double-distilled H₂O₂. The second nest reactions were carried out similarly using different primers. Sterile distilled water was used as a control¹¹.

Enzyme-Linked Immunosorbent Assay (ELISA)

ELISA examination was performed to measure plasma levels of VEGF (human VEGF ELISA kit, Biolegend, Catalog No. 446507), PlGF (human PGF ELISA kit, bt-Lab, Catalog No. EO138Hu), VEGFR-1(sFlit1) (human VEGFR-1 ELISA kit, Invitrogen, REF#BMS268-3), VEGFR-2 (human VEGFR-1 ELISA kit, Invitrogen, REF#BMS2019), and HIF-1α (human HIF-1α ELISA kit, Invitrogen, REF#EHIF1A). The technique used was a quantitative sandwich enzyme immunoassay with the following procedure. The ELISA's standard was pipetted into a microplate that had been pre-coated with a specific antibody to the antigen according to the manufactured ELISA Kit. Each sample was pipetted into each well so the antigen would be bound to the immobilized antibody. Unbound materials were discarded. Then, a biotin-conjugated antibody specific to the antigen was added to the wells and washed. Afterwards, avidin-conjugated Horseradish Peroxidase (HRP) was added and washed to remove unbound materials. Staining was done by adding a solution substrate, incubating for 30 minutes, and adding a stop solution to stop the reaction. The preparations were read with a microplate reader (ZENIX-320).

Neonatal examination

The obstetrician examined newborns for birth weight, length, head circumference, mid-upper arm circumference, chest circumference, Apgar score, placental size, and placental weight. The birth weight was measured immediately after birth using calibrated weighing scales. The birth length, head circumference, mid-upper arm circumference, and chest circumference were measured using a measuring tape. Apgar score was noted at the first minute of birth. The placental size was measured using a ruler, and the weight was measured using calibrated weighing scales.

Statistical analysis

All statistical analyses were conducted using the SPSS 23 Statistic Program for Windows. The techniques for analyzing data include the normality test using the Shapiro-Wilk test to determine the normal data distribution. Comparative analysis between the case and control groups was carried out using a one-way ANOVA test for normally distributed data and the Kruskal Wallis test for non-normally distributed data to assess dysregulation of angiogenesis in the pathomechanism of low birth weight due to malaria-inhibited fetal growth in the placenta. The correlation test used was a Pearson test for normally distributed data and Spearman's rho test for non-normally distributed data to assess the correlation between the variables observed in the study. Path analysis was used to determine the conceptual research framework, i.e., whether the authors' concepts are relevant to the research findings. Data analysis was carried out with a confidence level of 95% and a degree of significance by p≤0.05.

Subject characteristics

A total of 33 subjects met the inclusion criteria of this study Table 1. This study showed no statistically significant differences between the case and control groups in maternal age, gestational age, and maternal leukocyte count. In the case group, the age distribution of pregnant women is slightly lower than the age distribution of pregnant women in the control group, but this is not statistically different. Statistically significant differences were only found in maternal hemoglobin levels in the case group (p=0,00<α), lower than in the control group. The subject characteristics and distributions are shown in Table 1.

The laboratory tests were carried out to identify the control and case groups, as shown in Table 2.

Plasmodium vivax was identified in all subjects of the case group, and no Plasmodium falciparum nor mixed infection was found. Histopathological examination of placental tissue from the case group showed sequestration of infected erythrocytes and/or hemozoin, followed by monocyte infiltration in the intervillous space in all samples. Two of the 19 malaria cases were identified from cord blood PCR. The examination of maternal peripheral blood smear can at least identify parasites compared to PCR and histopathological examination of the placenta, which is about 36.84%. The blood smears from the malaria case group are shown in Figure 1. Histopathological examination of placental tissue, which showed placental malaria compared to normal placental tissue, are shown in Figure 2.

Figure 1. Blood smears from the malaria case group.

In panel A, the arrow indicates the amoeboid form of Plasmodium vivax, panel B shows young schizonts of Plasmodium vivax, and panel C displays the mature schizont of Plasmodium vivax. The image size is the only modification made; no changes to brightness or contrast have been made. The examination was performed by using a light microscope (Olympus Biological Microscope, CX23) with 1000x magnification. The figures were captured using a mobile device, which could explain the absence of a scale bar.

Figure 2. Histopathological examination of placental tissue.

A: Normal placental tissue. B: Placental malaria. The red arrow indicates infected erythrocyte sequestration, the blue arrow indicates monocyte infiltration, and the black arrow indicates free hemozoin in the intervillous space. The image size is the only modification made; no changes to brightness or contrast have been made. The examination was performed by using a light microscope (Olympus Biological Microscope, CX23) with 1000x magnification. The figures were captured using a mobile device, which could explain the absence of a scale bar.

The characteristics of the babies in this study were recorded, as shown in Table 3. There was a significant difference (p=0,00<α) in the mean Δ 10th percentile growth curve of birth weight between the case group (413.16±460,33 g) and the control group (-42.86±129.88 g). However, there was no significant difference (p=0.33>α) in the mean birth weight (g) between the case group (2189.47 ±182.06 g) and the control group (2239.29 ±190.85 g). The mean value of birth weight in the case group appears to be significantly smaller than the mean in the control group. It can be said that pregnant women with malaria are likely to give birth to a baby with a smaller birth weight than a baby born to a non-malaria pregnant woman.

Association of angiogenic factors expression with birth weight

VEGF in the placenta of the case group was lower (64,404±28,942) than the control group (226,693±39,025). In both the case and control groups, VEGF expression was more abundant in the trophoblast cells of the placental villi than in the intervillous space. PlGF expression in the placenta of the case group was lower (22,814,440±9,497,663) than the control group (84,693,238±29,981,727). PlGF expression in the case group was abundant in trophoblast cells of the placental villi, whereas it was primarily found in the intervillous space in the control group. PlGF expression in the placenta of the case group was significantly lower than that of the control group.

The expression of VEGFR-1 in the placenta of the case group was lower (107,444±46,696) than the control group (213,410±35,251). VEGFR-1 expression was more abundant in trophoblast cells in the placental villi than in the intervillous space in the case and control groups. The expression of VEGFR-1 in the case group's placenta was significantly lower than that of the control group. VEGFR-2 expression in the placenta of the case group was lower (96,968,870±24,300,623) than the control group (167,673,566±90,824,566). VEGFR-2 expression was abundant in trophoblast cells in the placental villi in the case and control groups. The expression of VEGFR-2 in the case group's placenta was significantly lower than that of the control group. The expression of HIF-1α in the placenta of the case group was higher (80,375,094±40,647,360) than the control group (25,286,646±27,238,953). In the case and control groups, HIF-1α expression was more commonly found in the trophoblast cells of the placental villi. HIF-1α expression in the placenta of the case group was significantly higher than that of the control group, as seen in Figure 3.

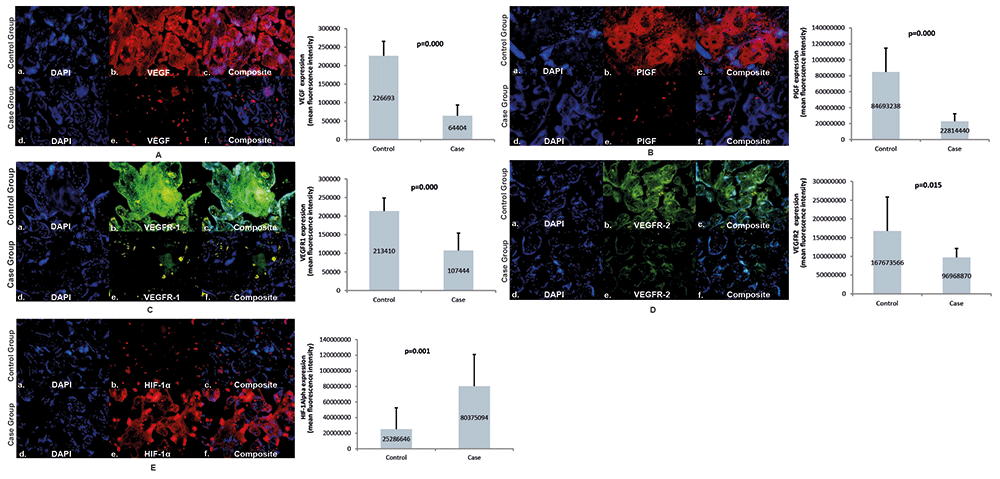

Figure 3. Angiogenic factors expression in placenta.

Panel A to E shows the angiogenic expression in the placenta using immunofluorescence staining of VEGF, PlGF, VEGFR-1, VEGFR-2, and HIF-1α, respectively, with its semiquantitative analysis; VEGF: vascular endothelial growth factor; PlGF: placental growth factor; VEGFR-1: vascular endothelial growth factor receptor-1; VEGFR-2: vascular endothelial growth factor receptor-2; HIF-1α: hypoxia-inducible factor-1α. The examination was conducted using a fluorescence microscope Olympus IX71 with 400x magnification. The immunofluorescence figures were captured using a mobile device, which could explain the absence of a scale bar.

The path analysis test results showed a significant direct effect (p=0.04) on HIF-1α expression on VEGF expression with an effect coefficient of -0.55. Likewise, there was a significant direct effect (p=0.03) of HIF-1α expression on PlGF expression with an effect coefficient of -0.60. VEGF expression had no direct effect on VEGFR-1 expression (p=0.89) but had a direct effect on VEGFR-2 expression (p=0.00) with a coefficient of effect of 0.75. There was a significant direct effect (p=0.00) on PlGF expression on VEGFR-1 expression, with an effect coefficient of 0.94. VEGFR-1 expression had no direct effect on birth weight (p=0.46), but VEGFR-2 expression had a significant direct effect (p=0.02) on birth weight with an effect coefficient of 0.74.

Comparison test of angiogenic factor in the placenta and maternal plasma

The mean maternal plasma VEGF levels in the case and control groups were almost the same; statistical results showed no statistically significant difference (p=0.77). The mean maternal plasma PlGF, VEGFR-1, and VEGFR-2 levels in the case group were lower than in the control group. Statistically, there is a significant difference (p=0.03, 0.04, 0.04, respectively). Similar to the VEGF plasma level, the HIF-1α plasma levels in the case and control groups had values that were not much different, which showed no significant difference (p=0.40). The angiogenic factor levels in the case and control group are presented in Figure 4.

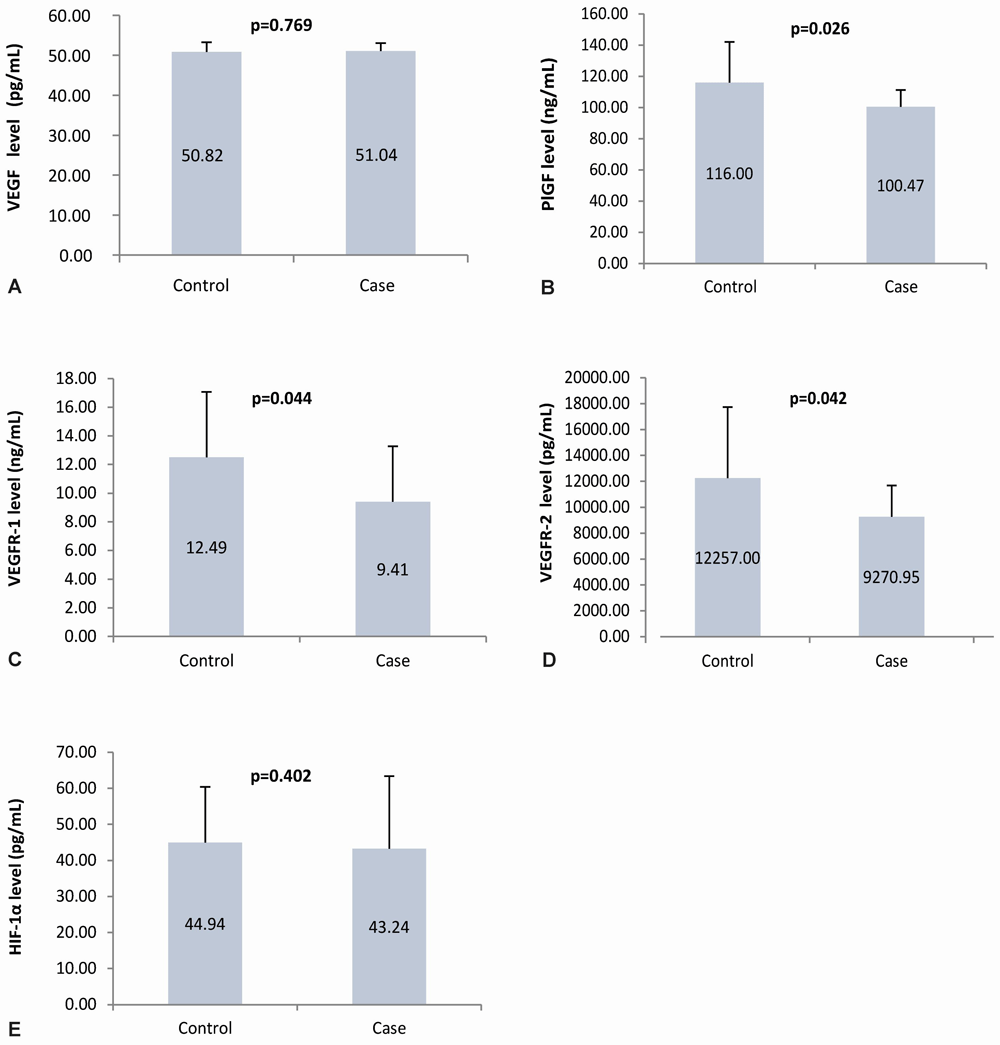

Figure 4. Angiogenic factors level in maternal plasma.

Panel A to E shows the angiogenic factors level in the maternal plasma using ELISA of VEGF, PlGF, VEGFR-1, VEGFR-2, and HIF-1α, respectively; VEGF: vascular endothelial growth factor; PlGF: placental growth factor; VEGFR-1: vascular endothelial growth factor receptor-1; VEGFR-2: vascular endothelial growth factor receptor-2; HIF-1α: hypoxia-inducible factor-1α.

Comparison test of the placenta and maternal plasma data

There was a significant difference in the mean expression of VEGF, PlGF, VEGFR-1, and VEGFR-2 placenta between the case and control groups. The mean value of placental VEGF, PlGF, VEGFR-1, and VEGFR-2 expression in the case group was lower than the mean in the control group. In addition, there was a significant difference in the mean placental HIF-1α expression between the case and the control groups. However, in contrast to other angiogenic factors, the mean placental HIF-1α expression in the case group was higher than the mean placental HIF-1α expression in the control group. The comparison of angiogenic factor expression in the placenta is shown in Table 4.

There was no significant difference in the mean VEGF plasma levels between the case and control groups. The mean value of VEGF plasma levels in the case group was slightly higher than the average VEGF level in the control group. However, this increase was not statistically significant. Similar to VEGF, the mean plasma levels of HIF-1α between case and control groups did not show a significant difference. However, HIF-1α in the case group was slightly lower than the mean HIF-1α expression in the control group. The plasma levels of PlGF, VEGFR-1, and VEGFR-2 between the case and control groups showed significant differences. The mean levels of PlGF, VEGFR-1, and VEGFR-2 in the case group were lower than in the control group. The comparison of maternal plasma angiogenic factor levels is shown in Table 4.

Characteristics of subjects and their distribution

Characteristics of mothers. This study showed significant differences in the mean hemoglobin levels in women infected with Plasmodium vivax during pregnancy compared to those not infected. At the same time, gestational age, maternal age, and leukocyte count showed no significant difference. The average hemoglobin level of pregnant women infected with malaria was 1.22 g/dL lower than the control group (mean ± standard deviation [SD]; 9.88±0.62 vs 11.10±1.20, p=0.00). This finding aligned with several previous studies, which also showed that vivax malaria infection is associated with maternal anemia, abortion, premature birth, congenital malaria, and other severe complications^36,50–54. Single Plasmodium vivax infection during pregnancy had a significant association with a twofold increased risk of maternal anemia compared to the group of mothers who did not experience malaria infection^36,55. The occurrence of maternal anemia is closely correlated with nutritional status³⁶. However, one of the other risk factors that can increase anemia in pregnant women with Plasmodium vivax infection is young age pregnancy⁵⁶. In this study, the mean age of pregnant women in the case group was lower than the control group (mean ± SD; 27.68 ± 7.21 vs. 32.21 ± 6.25, p = 0.08); there was no significant difference. This factor may be considered one of the critical risk factors in the subsequent study involving many subjects.

The parity distribution in the case group was mainly primiparity (11/19; 57.9%), while in the control group, the highest number was mothers with a third parity (6/14; 42.9%). This result has a distribution pattern similar to Bardaji et al.. In their study, most malaria pregnant women were primigravida, and malaria prevalence tended to decrease as gravidity increased³⁵. In a study of Karen women in Thailand involving a comparable number of participants, Plasmodium vivax was more common in primigravida than in multigravida, and this was associated with anemia and an increased risk of LBW⁵¹.

Both case and control groups showed no significant difference (mean ± SD: 39.47±1.39 vs. 38.64±0.84, p=0.078) in gestational age, but all participants gave birth at term. In the study of Bardaji et al., it was found that the average gestational age was 38.6 weeks, with 12.6% of all participants giving birth prematurely (<37 weeks)³⁵. From the results of their study, it cannot be concluded that there is a related relationship because it requires a joint analysis with other factors such as the severity of malaria infection, the onset of malaria infection, and pregnancy outcomes, which in this case includes the baby's birth weight. As in this study, all infants were born at term but had a significant effect of small for gestational age with malaria infection status in the form of the chronic active or previous history of malaria.

Characteristics of babies. This study showed a significant difference in the mean Δ 10th percentile growth curve of birth weight between the case groups. However, there were no significant differences in the average birth weight of the baby, the length of the baby's birth weight, head circumference, upper arm circumference, chest circumference, Apgar score, placental weight, placenta size, and hemoglobin levels. However, the baby's mean hemoglobin level in the case group was 1.39 g/dL lower than the control group. The result was consistent with a previous study, which reported that a single episode of P. vivax infection during pregnancy was associated with a significant reduction in neonatal birth weight and maternal hemoglobin levels³³. The results of the meta-analysis study also stated that there was an increased risk of 1-2 times the occurrence of LBW in pregnant women infected with malaria compared to those who were not infected⁵⁷.

Meanwhile, babies in both the case and control groups were included in LBW criteria, so it is unknown whether the leading cause of LBW in the case group is influenced by the main factor of Plasmodium vivax infection, as in the previous studies^33,56. According to Bardaji et al., there is no direct relationship between Plasmodium vivax infection and an increased risk of LBW, but they stated that Plasmodium vivax infection during pregnancy is closely associated with maternal anemia, where this condition may harm the health of the newborn³⁵. In addition, maternal anemia is a risk factor for the occurrence of LBW with an odds ratio (OR) value of 1.23 (95% confidence interval [CI]: 1.06–1.43)⁵⁸.

The results showed significant differences in the LBW leukocyte count parameters in the case and control groups (mean ± SD: 12.70 × 10³±2.81/μL vs. 10.24 × 10³±2.11/μL, p<0.05). In general, the leukocyte count values in newborns can range from 10,000–26,000/μL, which is also highly dependent on the time of sampling⁵⁹. Meanwhile, the results of the leukocyte count in newborns at Bantul Hospital, Indonesia, in 195 infants showed an average leukocyte count of 14.62 × 10³±3.49/μL⁶⁰. The leukocyte count in newborns in the case and control groups showed values within normal limits, with the leukocyte count in the case group significantly higher than the control group. Several factors can increase the leukocyte count in newborns, including infection, inflammation, medication history, and stress^61–63.

Sequestration of hemozoin, infected erythrocytes, and monocytes in histopathology result

Sequestration is the attachment of infected erythrocytes to host cells associated with severe malaria, such as cerebral malaria and malaria in pregnancy. Sequestration occurs in the capillaries and post-capillary venules of specific organs such as the brain, lungs, and placenta. Sequestration correlates with mechanical obstruction of blood flow in the microvasculature and the activation of vascular endothelial cells, leading to pathological outcomes. Some parasitic and host proteins as ligands and receptors for sequestration have been identified and explored further⁶⁴.

The sequestration phenomenon occurred in Plasmodium falciparum infection^45,65,66. Interestingly, none of the subjects in this study were infected with Plasmodium falciparum. However, hemozoin depositions were found in all 19 positive samples, while Plasmodium vivax-infected erythrocyte sequestrations were found in some samples. The result indicates that the Plasmodium vivax could cause sequestration of infected erythrocytes. Submicroscopic placental infection of Plasmodium vivax confirmed by placental histopathology means that Plasmodium vivax can be selectively sequestered in the placenta even at low densities in peripheral blood⁶⁷. The finding of Plasmodium vivax-infected erythrocytes sequestration was also mentioned by Carvalho et al. through an ex vivo study, which found that Plasmodium vivax-infected erythrocytes could adhere to the placental tissue. This study also demonstrated the cytoadherence of Plasmodium vivax-infected erythrocytes on endothelial cells by in vitro approach. It was known to have the same strength as cytoadherence of Plasmodium falciparum-infected erythrocytes²⁹. Toda et al. found that Plasmodium vivax-infected reticulocytes could bind to human spleen fibroblasts (hSF). The binding involves the transcription factor of the NF-kB signaling pathway by plasma-derived extracellular vesicles that act as cargo for the Plasmodium vivax parasite. This process facilitates the expression of ICAM-1 on the surface of hSF as a receptor for Plasmodium vivax sequestration⁴⁹. Other evidence supporting placental malaria due to other non-falciparum Plasmodium species is a submicroscopic infection of Plasmodium malariae and Plasmodium ovale in the placenta confirmed by PCR of placental blood samples. Plasmodium malariae infection was detected higher in placental blood samples than in peripheral blood samples, indicating a possibility of Plasmodium malariae binding affinity to the placenta. However, the study of non-falciparum placental infection was not supported by histopathological examination of the placenta⁶⁸.

Malaria infection causes changes in the placenta structure in the form of hemozoin deposition and an increase in monocyte infiltration in the intervillous space, which interferes with maternal-fetal circulation⁴⁶. Sequestration of infected erythrocytes, hemozoin deposition, and monocyte infiltration in placental histopathology are the main signs of placental malaria^12,69,70. The pathomechanism of sequestration of infected erythrocytes in the placenta is clearly described in Plasmodium falciparum infection. However, Plasmodium vivax, which has been considered to cause a mild latent infection than Plasmodium falciparum, has also been reported to cause placental malaria. Histopathological changes of placental malaria due to Plasmodium falciparum can show a different representation of placental malaria due to Plasmodium vivax. However, these differences have not yet been delineated⁴⁶. The histopathological appearance of the placenta due to Plasmodium vivax infection is similar to that of Plasmodium falciparum. Plasmodium vivax has also demonstrated the sequestration mechanism of infected erythrocytes in placental tissue structures^47,71. These findings are consistent with the results of this study.

Several mechanisms can explain the Plasmodium vivax-infected erythrocytes sequestration phenomenon. First, the Plasmodium vivax-infected erythrocyte sequestration can occur under low shear stress conditions in the placental intervillous space and causes a local inflammatory process of the placenta³¹. Second, Plasmodium vivax lacks surface proteins, such as Plasmodium falciparum Erythrocyte Membrane Protein-1 (PfEMP-1) called Variant Surface Antigen-2-CSA (VAR2CSA) for adhesion and sequestration of CSA in the placental intervillous space^72,73. However, the Plasmodium vivax genome contains a subtelomeric multigene family called VIR proteins. VIR proteins can mediate the adhesion of infected erythrocytes to ICAM-1 by VIR14 and the CSA by VIR2 and VIR24. The bindings are speculative and require further research^71,72,74. The discovery of VIR binding in ICAM-1 and CSA proved the presence of Plasmodium vivax sequestration in the previous study²⁹. The third mechanism that can explain the sequestration of Plasmodium vivax is the formation of rosettes by interacting with the Glycophorin C receptor present on normal erythrocytes, which has the adhesive power as in Plasmodium falciparum. However, further research is needed to determine the specific mechanism of rosette formation^71,75,76.

On histopathological examination of the placenta, it was found that pigment/hemozoin depositions were trapped in the fibrin or freely circulating in the intervillous space and monocyte infiltration in all 19 positive samples. This finding indicates that the mother had experienced malaria infection during her pregnancy^45,77. The presence of pigment/hemozoin and monocyte depositions in the placenta suggests malaria infection does not occur in late pregnancy. The infection process has occurred long enough to cause deposition and accumulation of inflammatory cells in the placenta acquired early in pregnancy or before pregnancy^67,68. However, the time required for placental malaria's appearance is unknown and requires further research.

The placental expression and plasma level of VEGF, PlGF, VEGFR-1, VEGFR-2, and HIF-1α in placenta malaria

Vascular Endothelial Growth Factor (VEGF). In this study, VEGF expression in the placenta of the case group was lower than in the control group. In the case and control groups, VEGF expression was more abundant in trophoblast cells in the placental villi than in the intervillous space. VEGF expression in the case group placenta was significantly lower than in the control group (p=0.00). Expression of VEGF placental IUGR was inconsistent between several studies that have been carried out. The results of this study are consistent with several studies, which reported a decrease in VEGF expression accompanied by increased placental PlGF expression of IUGR^78,79. Several studies reported an increase in the expression of VEGF, VEGFA, bFGF, and eNOS in the IUGR placenta due to placental hypoxia^80–82. However, another study concluded no decrease in VEGF expression of IUGR compared to normal placentas^83,84. In addition, VEGF expression and plasma VEGF levels could not predict late-onset pre-eclampsia, small gestational age (SGA), or premature delivery⁸⁵.

Plasma VEGF levels in the case group were lower and not significantly different from the control group in this study (p=0.77). The findings were consistent with several studies, which found that maternal plasma VEGF levels of IUGR and SGA did not show significant differences compared to pre-eclampsia⁸⁶ or normal pregnancy⁸⁷. Moreover, Tang et al. reported that maternal plasma VEGF levels in pregnancies with pre-eclampsia were lower than in normal pregnancies and were associated with impaired fetal growth⁸⁸. However, Boras et al. found that maternal free plasma levels of VEGF and sFlt-1 were higher in IUGR than in normal pregnancies⁸⁹.

Besides regulating development and vascular remodeling during placentation, VEGF, PlGF, and Angiopoietin are also involved in trophoblast invasion. Failure of trophoblast invasion and remodeling of the spiral arteries causes placental hypoxia, which involves pregnancy complications such as pre-eclampsia and IUGR⁹⁰, causing the fetus to experience hypoxia. At low oxygen concentrations, there should be an increase in VEGF expression. The mechanism that can explain the decrease in placental VEGF expression in this study is increased soluble VEGFR-1 (sFlt-1) in the placental intervillous space. sFlt-1 is a form of the VEGFR-1 gene physiologically secreted by the placenta. sFlt-1 physiologically binds to free VEGF and PlGF with solid affinity and inhibits their binding to VEGFR-1 and VEGFR-2 receptors, decreasing placental VEGF and PlGF expression. HIF-1α regulates placental sFlt-1 expression; under conditions of placental hypoxia, there will be an increase in placental sFlt-1 expression^91,92. The sFlt-1 expression was also reported to increase in IUGR placentas^93,94. An in vivo study in transgenic mice by Vogtmann et al. found that an increase in placental sFlt1 would disrupt the vascular endothelial growth factor signaling pathway, resulting in decreased expression of VEGFA, VEGFB, and PlGF and also increased the expression of band and mRNA of Caspase-9⁹⁵. Placental hypoxia will increase placental VEGF expression^90,91; however, the source of circulating VEGF is not only from the placenta but also from other organs⁹⁶, which can explain why the plasma levels of VEGF in the case group and the control group were not different.

This study's finding of decreased placental VEGF expression can describe early-onset IUGR because placental hypoxia correlated with placental HIF-1α expression. However, histo-morphological studies of placental villi were not performed to confirm the dominance of branching angiogenesis in placental villi. Early-onset IUGR in this study can be caused by malaria infection before pregnancy or early pregnancy⁴⁵, as evidenced in this study.

Placental Growth Factor (PlGF). The placenta is the only organ that produces PlGF⁹⁶. PlGF significantly functions in the activation, proliferation, and migration of endothelial cells and trophoblast invasion into the maternal spiral arteries⁹⁷. In this study, the expression of PlGF in the placenta in the case group was lower than in the control group (p=0.00). In the case group, PlGF expression was more abundant in trophoblast cells in the placental villi, whereas in the control group, it was primarily found in the intervillous space. Studies on PlGF expression in placental IUGR have also shown inconsistent results. The results of this study support previous studies that reported that placental PlGF expression in severe IUGR was significantly lower than in controls, and inhibition of PlGF/Flt-1 signalling will interfere with trophoblast proliferation and migration^97–99. However, Alahakoon et al. found an increase in PlGF and KDR expression in IUGR and pre-eclampsia placentas⁸⁴. It explained that hyperoxia conditions in IUGR due to impaired oxygen extraction to the fetus increase PlGF expression and decrease placental VEGF expression, with the consequence of reduced capillary branching and terminal villi resulting in placental dysfunction^{90,91,100,101}.

Placental hypoxia conditions that occur early in pregnancy decrease placental PlGF production by the syncytiotrophoblast, so PlGF expression and PlGF levels in maternal circulation decrease^90,91,98. In this study, the plasma levels of PlGF in the case group were significantly lower than in the control group (p=0.03). Previous studies have also shown that plasma or plasma PlGF levels are lower in pregnancies with IUGR^93,102,103, pregnancies with pre-eclampsia^95,104–106, and pregnancies with pre-eclampsia and IUGR^{86,88,94,107–113}. Decreased maternal plasma PlGF levels in pregnancy complications due to defective placentation are associated with increased production of sFlt-1 in the ischemic placenta, which is then secreted into the maternal circulation^102,104. Furthermore, significantly lower PlGF levels in the case group indicate that the causes of IUGR in the two groups may be different. Malaria infection in the placenta causes the activation of complement C5a, which will stimulate the accumulation of monocytes to release sFlt-1¹⁸, explaining that the plasma levels of PlGF in the case group were significantly lower than the control group.

Vascular Endothelial Growth Factor Receptor (VEGFR)-1 and VEGFR-2. This study showed that VEGFR-1 expression in the placenta was lower in the case group than in the control group (p=0.00). VEGFR-1 expression was more abundant in trophoblast cells in the placental villi than in the intervillous space, both in the case and control group. VEGFR-1 is a receptor for VEGF and PlGF. Helske et al. found that VEGFR-1 expression was increased in preeclamptic and IUGR placentas compared with normal placentas. The upregulated expression is not exactly found on all preeclamptic samples but may be associated with hypoxia and abnormal function of the placenta¹¹⁴. However, the down-regulation of both receptors was also reported during mid-pregnancy with IUGR¹¹⁵.

In line with VEGFR-1, the expression of VEGFR-2 in the case group's placenta was lower than in the control group (p=0.02). In the case and control groups, VEGFR-2 expression was more abundant in trophoblast cells in the placental villi. VEGFR-2 is a significant receptor for VEGF and plays a role in endothelial proliferation and normal vascular formation. In the placenta, the role of VEGFR-2 is to change trophoblasts into intravascular trophoblasts and form spiral arteries. VEGFR-2 is expressed in low amounts under hypoxic conditions because oxygen levels regulate VEGFR-2 expression. Placental VEGFR-2 and sFlt-1 expression was also reported to decrease in cases of pre-eclampsia^93,116.

In this study, plasma levels of VEGFR-1 in the case group were lower and significantly different from the control group (p=0.04). Anna et al. found that serum VEGFR-1 concentrations in women with IUGR were decreased, along with a decrease in PlGF. At low oxygen concentrations, PlGF and VEGFR-1 levels decrease¹¹⁷. Besides that, serum levels of VEGFR-2 in the case group were lower and significantly different from the control group (p=0.04). Chaiworapongsa et al. found soluble VEGFR-2 (sVEGFR2) concentration increased in women with preeclamptic pregnancies and interpreted that sVEGFR-2 in maternal plasma could reflect endothelial cell function¹¹⁸.

Hypoxia-Inducible Factor-1α (HIF-1α). This study revealed that the expression of HIF-1α in the case group's placenta was higher than in the control group (p=0.00). In the case group and the control group, HIF-1α expression was more commonly found in trophoblast cells in the placental villi. There are few studies in humans examining HIF-1α expression in the placenta of pregnancies with complications such as pre-eclampsia, IUGR, and SGA. The results of this study support an in vivo study on the IUGR mice model conducted by Robb et al., who found an increase in HIF-1α expression in the placenta¹¹⁹.

In this study, plasma levels of HIF-1α in the case group were lower and not significantly different from the control group (p=0.40). So far, studies of HIF-1α have been mainly carried out in placental tissue, as in the discussion on placental HIF-1α expression above. Ashur-Fabian et al. found elevated HIF-1α and p21 mRNA expression in all pregnancy plasma samples with hypoxia and IUGR and recommended them as markers for hypoxic pregnancy and/or IUGR¹²⁰. In pregnancy, HIF-1α is expressed in the placenta early in normal pregnancy and throughout pregnancy under hypoxic conditions¹²¹. Those explain no statistically significant difference in plasma HIF-1α levels in the case and control groups.

Under normoxic conditions, HIF-1α will undergo rapid degradation so that it is considered inactive. HIF-1α will regulate genes that control cell growth, differentiation, and metabolism at low oxygen levels. The active form of HIF-1α continuously exposed to cultured cells inhibited trophoblast differentiation. In placental IUGR, impaired invasion and remodeling of the spiral arteries result in placental ischemia throughout pregnancy because of the increased expression of HIF-1α. The increase in placental HIF-1α expression in this study represents early-onset IUGR. However, this study has not determined whether placental hypoperfusion causes hypoxia as the main factor driving the increase in HIF-1α because other factors, such as reactive oxygen species (ROS) and inflammation induced by nuclear factor kappa (NF-κB), can also modulate HIF-1α accumulation.

Association between low birth weight and VEGF, PlGF, VEGFR-1, VEGFR-2, HIF-1α expression in placenta

Path analysis revealed the effect of placental angiogenesis and HIF-1α transcription factors on LBW. This analysis showed that the signaling pathway from HIF-1α to placental VEGF expression, then from placental VEGF expression to placental VEGFR-2 expression, and from placental VEGFR-2 expression to LBW showed statistically significant results. In contrast, HIF-1α could not cause a direct effect on LBW (p=0.88). Placental VEGF expression significantly affected placental VEGFR-1 expression. The signaling pathway of HIF-1α significantly affected placental PlGF expression, and then placental PlGF expression significantly affected placental VEGFR-1 expression, but this pathway did not significantly affect the incidence of LBW (p=0.50).

VEGF and VEGFR regulate vasculogenesis during early embryogenesis and angiogenesis in later stages of pregnancy. VEGF binds to VEGFR-1/Flt-1 and VEGFR-2/KDR, which is essential in physiological and pathological angiogenesis¹²². PlGF binds to the VEGFR-1 receptor and plays a role in angiogenesis in the later stages of pregnancy¹²³. VEGFR-2 is the primary receptor mediating the proangiogenic effects of VEGF¹²⁴. sFlt1, the free form of Flt-1, can bind strongly to VEGFA, PlGF, and VEGFB. Because the trophoblast lies between the maternal and fetal vascular systems, it is thought that sFlt1 functions as a separator between the maternal and fetal circulations in the placenta by suppressing excessive angiogenesis and abnormal vascular permeability. Therefore, sFlt1 levels are maintained in the suitable range under physiological conditions. The increased expression of sFLT-1, triggered by hypoxic conditions, will bind to VEGF, causing disturbances in vasculogenesis and angiogenesis, leading to obstetric complications. Several studies have reported overexpression of sFlt1 and decreased expression of VEGFA in preeclamptic patients¹²⁵.

In placental malaria infection, Plasmodium-infected erythrocytes accumulate in the intervillous space of the placenta. Several histopathological characteristics of placental malaria, including thickening of the basement membrane and infiltration of monocytes in the intervillous space of the placenta (intervillositis), can increase the resistance to oxygen transport across the placenta. Accumulation of inflammatory cells and infected erythrocytes can cause placental hypoxia due to oxygen consumption by these cells and decreased blood perfusion due to reduced effective surface area for feto-maternal exchange. Such placental dysfunction can result in stunted fetal growth, characterized by low birth weight babies²⁷.

Increased expression of HIF-1α is a marker of placental hypoxia, which should increase the expression of VEGF, VEGFR-1, and VEGFR-2. Decreased VEGFR, VEGFR-1, and VEGFR-2 expression is possible through increased sFlt-1 binding to VEGF with strong affinity. sFlt-1 of the placenta increases its expression under hypoxic conditions^91,92. Further studies are needed to prove this.

The pathway analysis results indicate a dysregulation of the angiogenic factor VEGF and its receptor VEGFR-2 due to the regulation of HIF-1α in placental malaria on the incidence of LBW. It can be interpreted that the occurrence of LBW in placental malaria is due to the influence of angiogenesis factors VEGF and VEGFR-2, which are regulated by HIF-1α and are more significant than LBW in non-malaria cases.

Association between low birth weight and hemoglobin, PlGF levels, VEGFR-1 levels, and VEGFR-2 levels in plasma

The effect of plasma angiogenesis and HIF-1α transcription factors on the incidence of LBW was observed using binary logistic regression as bivariate analysis. Based on the observational test of data in maternal plasma, four parameters were significantly different between the case group and the control group: hemoglobin, PlGF levels, VEGFR-1 levels, and VEGFR-2 levels. It showed that hemoglobin levels were the most significant (p=0.01) in influencing the incidence of LBW, followed by plasma levels of PlGF (p=0.02) and plasma levels of VEGFR-1 (p=0.05). The plasma levels of VEGFR-2 did not affect the incidence of LBW (p=0.13).

The hematological effect of Plasmodium vivax malaria is anemia with its consequent increased morbidity and mortality and more frequent blood transfusions. Although the parasitemia of Plasmodium vivax malaria is lower than that of Plasmodium falciparum malaria, it can cause severe anemia, as in Plasmodium falciparum malaria. Anemia in Plasmodium vivax malaria can be explained by two mechanisms. First, production/transfer of infected and uninfected erythrocytes are more in Plasmodium vivax malaria, with 34 uninfected erythrocytes for one infected erythrocyte (in Plasmodium falciparum malaria, the ratio is 8:1). Second, Plasmodium vivax-infected erythrocytes undergo more rapid deformity limiting erythrocytes that are expelled through the microvessels of the spleen during the 'spleen clearance' phase. In addition to these two mechanisms, activation of the immune system due to Plasmodium vivax infection increases the detection and removal of abnormal infected and uninfected erythrocytes⁵⁵.

In this study, maternal anemia significantly affected the incidence of LBW. Several publications also reported the same thing. Plasmodium vivax malaria infection in pregnant women in Bolivia was more at risk of anemia and giving birth to low birth weight babies than pregnant women who were not infected³⁶ as well as in a multicenter study in an area of low malaria transmission³⁵ and Mangaluru, India¹²⁶.

Based on the above discussion, in this study, it can be concluded that angiogenesis factors and HIF-1α transcription factors in the placenta or local environment play a more critical role in the incidence of low birth weight than those in the systemic. Those indicated that there is dysregulation of placental angiogenesis factors VEGF, PlGF, and their receptors VEGFR-1 and VEGFR-2, which is triggered by placental hypoxia conditions (marked by increased placental HIF-1α expression) during placental Plasmodium vivax infection. Further research with an increased sample size is needed to reveal this conclusion.
