Staining ability of herbal tea preparations on a nano-filled composite restorative material – an in-vitro study

Introduction

Failure of aesthetics is one of the common causes for replacement of existing restorations.¹ Surface or sub-surface changes lead to microleakage resulting in staining of the superficial layer of composite materials contributing to the aesthetic failure of the restoration.² The discoloration of composites can be due to intrinsic and extrinsic staining.^3,4 Foods and beverages that are a part of everyday diet lead to discoloration of composites either by absorption or adsorption of colorants.⁵ Nano-fillers and nanoclusters enhance the long-term stability of composite resin material. The composites with filler particle <0.4 μm tend to retain surface polish for a more extended period.⁶

Tea is a popular and highly accepted beverage among the Indian population. Various health benefits are claimed by the manufacturers of herbal teas like lowering blood pressure, weight loss, boosting of liver health, immunity, antioxidants, antiageing etc. Due to potential benefits, there is an increasing acceptance among the public for these herbal tea preparations.⁷ Green tea (GT) is a traditional beverage‚ derived from the Camellia sinensis, loaded with antioxidants and nutrients.⁷ Moringa tea (MT) is derived from extracts of Moringa oleifera, which has nutrients, vitamins, minerals, proteins, essential amino acids, chlorophyll, omega-3 oils, and many such phytonutrients.⁸ Hibiscus tea (HT) is abundant in vitamins A and C, and rich in flavonoids and pro-anthocyanins, which are antioxidants.⁹

The Z350XT Nanofill Universal Restorative composite resin (3M™ ESPE™ Filtek™) is a nano-filled restorative material with good strength and wear resistance. The manufacturer claims superior polishability and improved fluorescence for excellent aesthetics and a wide variety of shades for natural-looking restorations.

Due to the potential role of dietary factors on the discoloration of composite resin restorations, many studies evaluated the staining potential of various tooth-colored restorations.¹⁰ However, there is a dearth of research on the effects of herbal tea preparations on the color stability of nano-filled composite resin. Given this background, the present study aimed to compare the staining potential of GT, HT, and MT on universal nano-filled composite restorative material. The null hypothesis was that there would be no significant difference in the staining ability of these herbal tea preparations.

Methods

Results

Intra-group comparisons showed that baseline values were the lowest, followed by 30 days, with the highest being at 45 days in GT, MT, HT, and control solutions (Table 1). The inter-group comparison demonstrated significant differences at the end of 30 days (P<0.001) and 45 days (P<0.001), respectively (Table 2). The post-hoc test illustrated that the highest discoloration was seen in GT followed by HT, MT with the least being in the control group. (Figure 1)

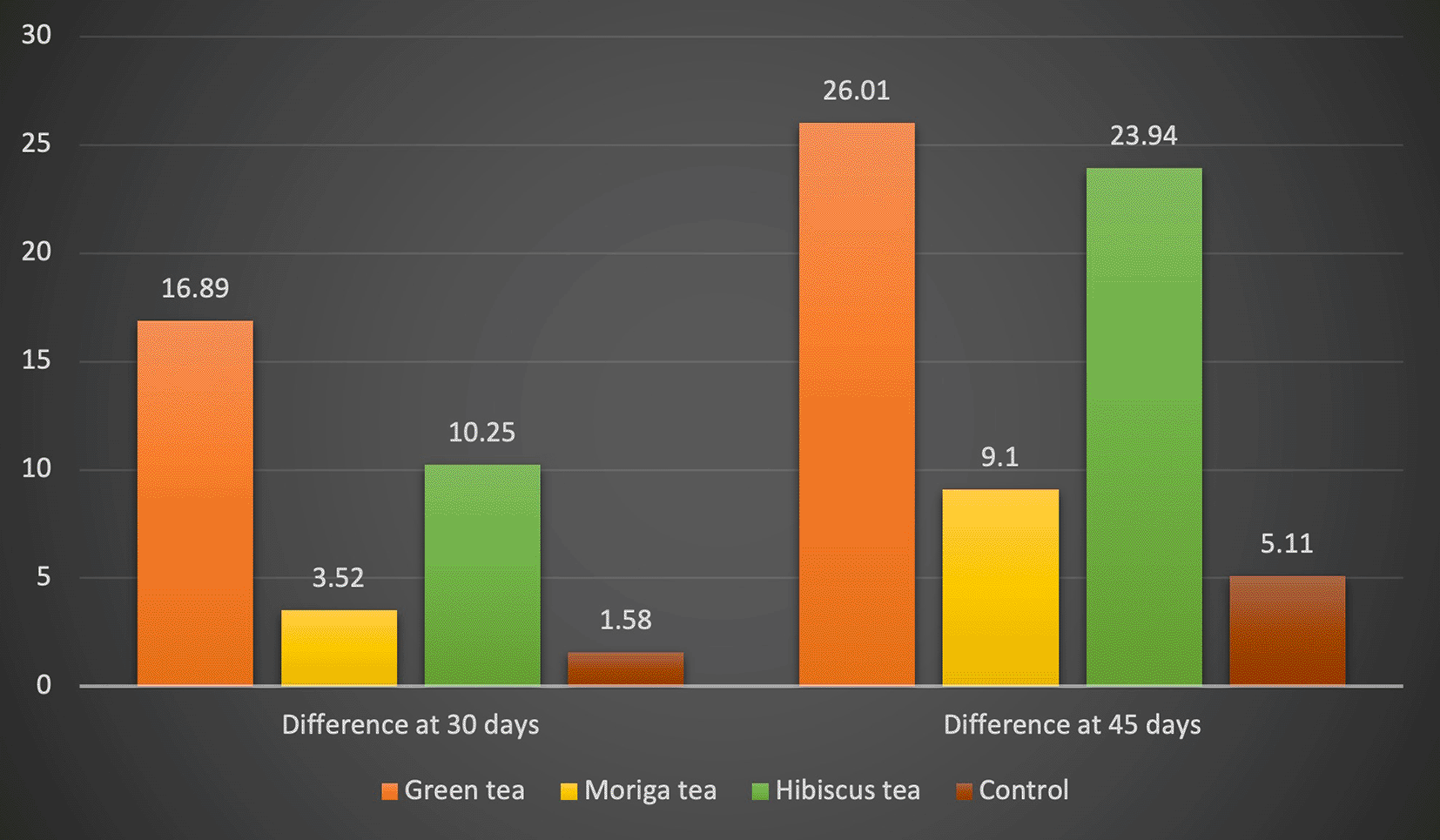

Figure 1. Mean ΔE value of all the test solutions at the end of 30 days and 45 days.

Discussion

Discoloration of dental restorative material in the aesthetic zone has been a matter of concern among clinicians and often requires replacement of the restoration. The current in-vitro study assessed the staining ability of herbal teas on commonly used composite restorative material Filtek™ Z350XT (3M ESPE). Nanocomposites utilize nanofiller incorporation into the resin matrix to amplify the mechanical and aesthetic properties.⁶ The performance of the nanocomposites is still being investigated in various clinical and in-vitro studies.

Since the use of mylar strips have been proven to produce the smoothest finish, samples were prepared using a brass mould lined by mylar strips.^13–15 Researchers proposed numerous techniques of accelerated aging to study the color changes. Various solutions such as tea, coffee, herbal drinks, cola, chlorhexidine, etc., have been advocated over varying time intervals to assess the discoloration on various aesthetic restorative materials.^16–18 The herbal tea preparations included in the current study have gained popularity and increased acceptance due to the inclination towards a healthy lifestyle. Due to the brief contact of these preparations with the oral cavity, the specimens were immersed for 15 minutes per day. The samples were kept in artificial saliva to simulate the oral environment. The color changes were assessed using a spectrophotometer which is capable of detecting minute variations.¹⁹ The application of CIEL *a*b* system along with the correlated colour difference metrics have been devised so as to meliorate the visual interpretation of colorimetric data. This system has also been proven to accurate for the analysis of ΔE* values²⁰ alongwith additional advantages of repeatabilty and objectivity.²¹ The variations in L*, a*, and b are denoted by ΔL*, Δa*, and Δb* respectively, where in, L* corresponds to the degree of discoloration of the test samples. The parameter a* stands for red (+a*) and green (-a*), in the contrary, b* represents yellow (+b*) and blue (-b*).²² The value of ΔE* is more crucial compared to the individual values of L*, a* and b*.²³

Many factors such as the size of the particle, the form of the organic matrix, percentage of the particle in the matrix, degree of polymerization, finishing and polishing,²⁴ staining material used, etc., have a potential role on the vulnerability of the dental restorative material to staining.²⁵

The composite restorative material in this study had undergone substantial color change due to the immersion in the tea preparations due to the softening potential of the staining solutions²⁶ The composite resin’s physicochemical characteristics help regulate the harmony of the material in response to extrinsic stains, with water sorption being the most important amongst them.^27–29 The hydrophilicity of the resin matrix of the restorative material is associated with the sensitivity of water sorption and solubility behavior of the resin composite materials.^30,31 Microcracks, voids, or interfacial gaps result from elevated levels of osmotic pressure at the matrix-filler interphases and are prone to stain initiation.^32–34

GT had the maximum potential for discoloration, followed by HT and MT, which may be attributed to the tannin content in GT³⁵ and MT⁸ and the anthocyanin content in HT.¹¹ The exposure time to the staining solutions determines restorative materials color stability. The results of the present study are in accordance with the previous literature that illustrates the increase in discoloration of composites with an increase in the immersion time.³⁶

Color changes that are imperceptible to the human eye are represented by ΔE values between 0 and 2. In contrast, ΔE values between 2 and 3 represent color changes that are only detectable by the human eye on close inspection. For 50% of qualified observers, values more than or equal to 3.3 are visually apparent at a glance and clinically unacceptable.³⁷ In our study, all the tea preparations showed values of more than 3.3, which was clinically detectable.

Our study highlights the staining potential of these newer herbal teas, affecting dental restorations’ longevity. The patients should be made aware of the aesthetic consequences of these preparations on long-term consumption, and the clinicians should be knowledgeable regarding the staining potential.

Conclusion

The universal nano-filled composite material showed clinically detectable discoloration when exposed to green tea, hibiscus tea, and moringa tea which increased with time. The staining potential increased with the duration of exposure to the tea preparations. Dentists should be aware of the patient’s dietary preferences and their implications on the longevity of composite restorations.
