An updated version of the Madagascar periwinkle genome

[version 1; peer review: 2 approved]

Clément Cuello¹^*, Emily Amor Stander¹^*, Hans J. Jansen², [...] Thomas Dugé De Bernonville^1,3, Audrey Oudin¹, Caroline Birer Williams¹, Arnaud Lanoue¹, Nathalie Giglioli Guivarc'h¹, Nicolas Papon⁴, Ron P. Dirks², Michael Krogh Jensen⁵, Sarah Ellen O'Connor⁶, Sébastien Besseau¹, Vincent Courdavault ¹

Clément Cuello¹^*, Emily Amor Stander¹^*, [...] Hans J. Jansen², Thomas Dugé De Bernonville^1,3, Audrey Oudin¹, Caroline Birer Williams¹, Arnaud Lanoue¹, Nathalie Giglioli Guivarc'h¹, Nicolas Papon⁴, Ron P. Dirks², Michael Krogh Jensen⁵, Sarah Ellen O'Connor⁶, Sébastien Besseau¹, Vincent Courdavault ¹

^* Equal contributors

PUBLISHED 21 Dec 2022

Author details Author details

¹ EA2106 Biomolécules et Biotechnologies Végétales, Université de Tours, Tours, 37200, France
² Future Genomics Technologies, Leiden, 2333BE, The Netherlands
³ Present address: Centre de Recherche, Limagrain, Chappes, 07745, France
⁴ IRF, SFR ICAT, Univ Angers, Univ Brest, Angers, 49000, France
⁵ Novo Nordisk Foundation Center for Biosustainability, Technical University of Denmark, Kongens Lyngby, 2800, Denmark
⁶ Department of Natural Product Biosynthesis, Max Planck Institute for Chemical Ecology, Jena, 07745, Germany

Clément Cuello
Roles: Formal Analysis, Investigation, Visualization, Writing – Original Draft Preparation, Writing – Review & Editing

Emily Amor Stander
Roles: Formal Analysis, Investigation, Resources, Writing – Review & Editing

Hans J. Jansen
Roles: Data Curation, Formal Analysis, Investigation, Resources, Writing – Review & Editing

Thomas Dugé De Bernonville
Roles: Conceptualization, Investigation, Resources, Writing – Review & Editing

Audrey Oudin
Roles: Investigation, Writing – Review & Editing

Caroline Birer Williams
Roles: Investigation, Writing – Review & Editing

Arnaud Lanoue
Roles: Investigation, Writing – Review & Editing

Nathalie Giglioli Guivarc'h
Roles: Investigation, Writing – Review & Editing

Nicolas Papon
Roles: Investigation, Writing – Review & Editing

Ron P. Dirks
Roles: Data Curation, Formal Analysis, Investigation, Resources, Writing – Review & Editing

Michael Krogh Jensen
Roles: Conceptualization, Funding Acquisition, Project Administration, Writing – Review & Editing

Sarah Ellen O'Connor
Roles: Conceptualization, Writing – Review & Editing

Sébastien Besseau
Roles: Conceptualization, Writing – Review & Editing

Vincent Courdavault
Roles: Conceptualization, Funding Acquisition, Project Administration, Writing – Review & Editing

OPEN PEER REVIEW

REVIEWER STATUS

This article is included in the Nanopore Analysis gateway.

This article is included in the Genomics and Genetics gateway.

This article is included in the Plant Science gateway.

Abstract

The Madagascar periwinkle, Catharanthus roseus, belongs to the Apocynaceae family. This medicinal plant, endemic to Madagascar, produces many important drugs including the monoterpene indole alkaloids (MIA) vincristine and vinblastine used to treat cancer worldwide. Here, we provide a new version of the C. roseus genome sequence obtained through the combination of Oxford Nanopore Technologies long-reads and Illumina short-reads. This more contiguous assembly consists of 173 scaffolds with a total length of 581.128 Mb and an N50 of 12.241 Mb. Using publicly available RNAseq data, 21,061 protein coding genes were predicted and functionally annotated. A total of 42.87% of the genome was annotated as transposable elements, most of them being long-terminal repeats. Together with the increasing access to MIA-producing plant genomes, this updated version should ease evolutionary studies leading to a better understanding of MIA biosynthetic pathway evolution.

Keywords

Monoterpene indole alkaloids, Catharanthus roseus, Apocynaceae

Corresponding author: Vincent Courdavault

Competing interests: Ron P. Dirks and Hans J. Jansen are CEO and CTO of Future Genomics Technologies, respectively.

Grant information: This work was supported by EU Horizon 2020 research and innovation program [MIAMi project, grant number 814645; MKJ, SEO, VC]; ARD CVL Biopharmaceutical program of the Région Centre-Val de Loire [ETOPOCentre project, VC]; and ANR [project MIACYC – ANR-20-CE43-0010, VC].

Copyright: © 2022 Cuello C et al. This is an open access article distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited.

How to cite: Cuello C, Stander EA, Jansen HJ et al. An updated version of the Madagascar periwinkle genome [version 1; peer review: 2 approved]. F1000Research 2022, 11:1541 (https://doi.org/10.12688/f1000research.129212.1) First published: 21 Dec 2022, 11:1541 (https://doi.org/10.12688/f1000research.129212.1) Latest published: 21 Dec 2022, 11:1541 (https://doi.org/10.12688/f1000research.129212.1)

Introduction

The Madagascar periwinkle, Catharanthus roseus (L.) G. Don, is an Apocynaceae plant native to Madagascar. C. roseus produces several specialized metabolites including monoterpene indole alkaloids (MIA; O’Connor and Maresh, 2006). These molecules are produced by plants to face biotic and abiotic pressures accounting for their wide range of bioactive properties (Dugé de Bernonville et al., 2015). Above all, MIAs produced by C. roseus are well-known for being part of the human pharmacopoeia against cancer, such as the well-known vinblastine and vincristine, and other MIA derivatives, including vinorelbine (O’Connor and Maresh, 2006).

Due to its high economic importance, C. roseus has extensively been studied within the last three decades becoming the model species for MIA biosynthetic pathway studies (see Pan et al., 2016 and Kulagina et al., 2022 for extensive review). C. roseus genome was firstly sequenced in 2015 (Kellner et al., 2015). Recently, a more contiguous version (v2) was generated to ease inter-species genomic comparison (Franke et al., 2019). To date, C. roseus genome sequencing and assembly did not benefit from the development of third generation sequencing technologies that lead to more contiguous genome (Jiao and Schneeberger, 2017). Thanks to these new technologies, we present here an even more contiguous genome assembly. This updated version (v2.1) should ease inter-species studies in order to better understand the diversification of MIAs and the evolution of their biosynthetic pathways.

Methods

Sample collection, DNA extraction and sequencing

C. roseus cv ‘SunStorm^® Apricot’ seeds (variety ID: 70001114, Syngenta flowers, Basel, Switzerland) were greenhouse-grown at the University of Tours for 1 month before sampling. DNA was extracted from C. roseus leaves using Qiagen Plant DNeasy kit (ID: 69204, Qiagen, Hilden, Germany) following the manufacturer’s instructions. Illumina sequencing library were constructed using the TruSeq DNA PCR-free kit (ID: 20015962, Illumina, San Diego, USA) and sequenced in paired-end mode (2 × 150 bp) by Eurofins Genomics (Les Ulis, France) using Illumina NextSeq500 technology. Future Genomics Technologies (Leiden, The Netherland) constructed ONT library using ONT 1D ligation sequencing kit (SQK-LSK109, Oxford Nanopore Technologies Ltd, Oxford, United-Kingdom) subsequently sequenced on Nanopore GridION flowcell and Nanopore PromethION flowcell (Oxford Nanopore Technologies Ltd, Oxford, United-Kingdom) with the GuPPy (RRID:SCR_022353) version 3.2.6 high-accuracy basecaller. A total of 114,329,683 paired-end reads were obtained from the Illumina HiSeq sequencing, 908,999 and 2,588,997 from the ONT GridION and ONT PromethION sequencing, respectively.

De novo genome assembly

The C. roseus genome was assembled by Future Genomics Technologies (Leiden, The Netherlands). After adapters removal using Porechop (RRID:SCR_016967) (Wick et al., 2017), ONT reads were first assembled into contig using Flye (RRID:SCR_017016) assembler (v.2.5, Kolmogorov et al., 2019) with the following options: --min-overlap 10000 -i 2. Redundant contigs were removed using Purge_haplotigs (RRID:SCR_017616) (v.1.1.0) followed by two rounds of polishing with Illumina paired-end reads using Pilon (RRID:SCR_014731) (v.1.23, Walker et al., 2014).

Gene model prediction and gene functional annotation

RNA-seq data were retrieved from the NCBI Sequence Read Archive (SRA) (RRID:SCR_004891) database using the following accession numbers: ERS1229288, ERS1229289, ERS1229290, ERS1229291, ERS1229292, ERS1229293, ERS1229294, ERS1229295, ERS1229296, ERS1907920, ERS2396963, ERS2396964, ERS2396965, ERS2396966, SRR20661631. These data were individually aligned to the C. roseus genome using HISAT2 (RRID:SCR_015530) (v.2.2.1, Kim et al., 2019). Transcripts were subsequently assembled using the resulting RNA-seq alignments and StringTie (RRID:SCR_016323) (v.2.1.7, Pertea et al., 2015). These individual transcriptomes were further merged using stringtie-merge to a non-redundant set of transcripts. A combination of similarity search using BLASTX (RRID:SCR_001653) and BLASTP (v.2.6.0-1, Camacho et al. 2009) against UniProt (RRID:SCR_002380) database (v.2022-10-12) and hmmscan (v.3.1b2, Finn et al., 2011) against the Pfam (RRID:SCR_004726) database was used to assign putative function to each gene model.

Assembly completeness assessment

The stat program from BBmap (RRID:SCR_016965) tool (v.38.94, Bushnell, 2014) was used to assess assembly quality. Benchmarking Universal Single-Copy Orthologs (BUSCO v.5.2.2, Simão et al., 2015) (RRID:SCR_015008) with default settings was used to assess genome and gene models completeness using a plant-specific database of 2,326 single copy orthologs (eudicots_odb10). The agat_sp_statistics perl script from the AGAT package (v.0.8.0, Dainat et al., 2022) was used to get the gene models statistics.

Transposable elements (TE) prediction and annotation

Identification and annotation of transposable elements was determined using extensive de novo TE annotator (EDTA v.1.9.5, Ou et al., 2019) (RRID:SCR_022063) using the sensitive mode. This pipeline annotates long-terminal repeat (LTR) using LTR_Finder (RRID:SCR_015247) (v. 1.07, Xu and Wang, 2007) and LTRharvest (RRID:SCR_018970) included in GenomeTools (RRID:SCR_016120) (v.1.5.10, Ellinghaus et al., 2008); terminal inverted repeat (TIR) using Generic repeat finder (v.1.0, Shi and Liang, 2019) and TIR-learner (v.2.5, Su et al., 2019); and Helitrons using HelitronScanner (v.1.1, Xiong et al., 2014). TE size thresholds are further used to prevent false discoveries. Hence, TIR shorter than 80 bp as well as LTR and Helitrons shorter than 100 bp are considered as tandem repeats and short sequences. To prevent false LTR discoveries, LTR are further filtered using LTR_retriever (RRID:SCR_017623) (v.2.9.0, Ou and Jiang, 2018). TIR candidates are classified as MITEs if not exceeding 600 bp. TIR and Helitrons are further filtered using EDTA advanced filters (see Ou et al., 2019 for details). The genome is then masked using the obtained TE library. Unmasked part of the genome is then scanned by RepeatModeler (RRID:SCR_015027) (v.2.0.1, default parameters, Flynn et al., 2020) to identify non-LTR retrotransposons and unclassified TE missed by structure-based TE identification tools. Finally, EDTA uses the provided CDS sequences to remove gene-related sequences.

Results

Genome assembly

C. roseus genome was assembled from ONT long-reads using Flye (v.2.5) resulting in a 651.9 Mb assembly distributed across 788 contigs. This assembly was collapsed using purge_haplotigs into 173 scaffolds reducing length to 585,8 Mb but increasing N50 from 10.3 Mb to 12.3 Mb. Assembly polishing was performed twice using Illumina short-reads with pilon (v. 1.23). C. roseus final assembly consisted in 173 scaffolds with a total length of 581.45 Mb. Even though C. roseus v.2.1 displayed similar BUSCO scores compared to C. roseus v.2 based on Eudicotyledons Benchmarking Universal Single-Copy Orthologs (BUSCO), this new version v.2.1 turns out to be much more contiguous with a 12 time less contigs and a six-fold larger N50 (Table 1) (Cuello et al., 2022).

Table 1. Genome assembly metrics.

Version	Assembly size (Mb)	No. of scaff.^a	N50 (Mb)	BUSCO scores (genome mode) C [S; D]; F; M^b	Protein coding genes	Ref.
C. roseus v.2	541.13	2,090	2.58	97.0 [95.5; 1.5]; 1.3; 1.7	34,363	Franke et al., 2019
C. roseus v.2.1	581.45	173	12.2	97.1 [94.2; 2.9]; 1.0; 1.9	21,061	This study

a Number of scaffolds.

b BUSCO scores (genome mode) % Complete [% Complete and single-copy; % Complete and Duplicated]; % Fragmented; % Missing (n = 2,326).

Gene annotation

RNA-seq based gene model prediction using publicly available data resulted in a total of 21,061 genes. Despite less genes were annotated; a higher BUSCO score was obtained (Figure 1). The combination of BLASTP and BLASTX against UniProt database and hmmscan against the PFAM database led to the functional annotation of 76.5% of the predicted genes (16,118 of the 21,062 genes, Supplementary Table S1 in Underlying data (Cuello et al., 2022)). All functionally validated MIA biosynthetic genes from C. roseus could be found in this new version v.2.1 of the genome with identity and coverage percentage ranging from 95 to 100% and 94 to 100%, respectively, with the exception of G10H and DAT (Supplementary Table S2-S3 in Underlying data (Cuello et al., 2022)).

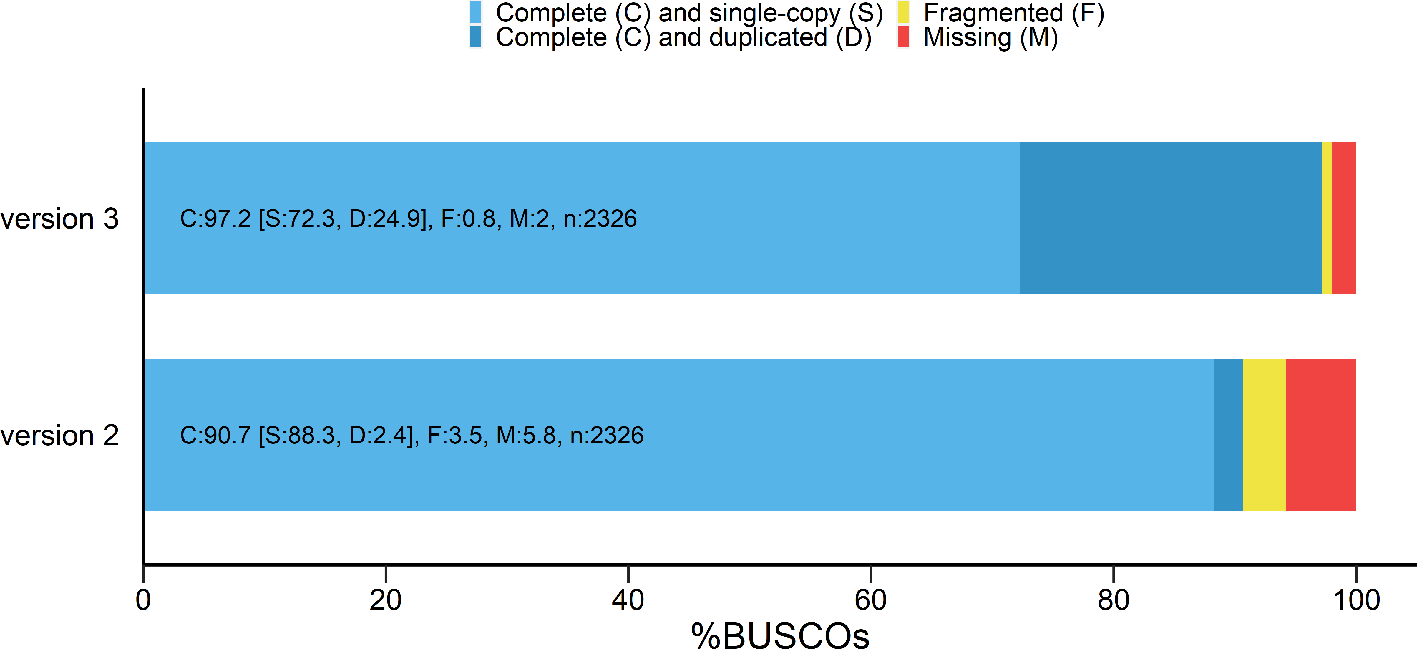

Figure 1. BUSCO scores of the predicted gene set.

BUSCO: Benchmarking Universal Single-Copy Orthologs.

Transposable element annotation

Finally, we analyzed TE composition of this updated C. roseus genome. While 38.78% of the genome consisted in TE in C. roseus v.2, a higher proportion (42.87%) was annotated as TE in this new version (v.2.1) with similar distribution across the different TE families (Figure 2). It is worth noting that TE proportion of this v.2.1 is closer to the one in its recently sequenced closely related species Vinca minor (Stander et al., 2022).

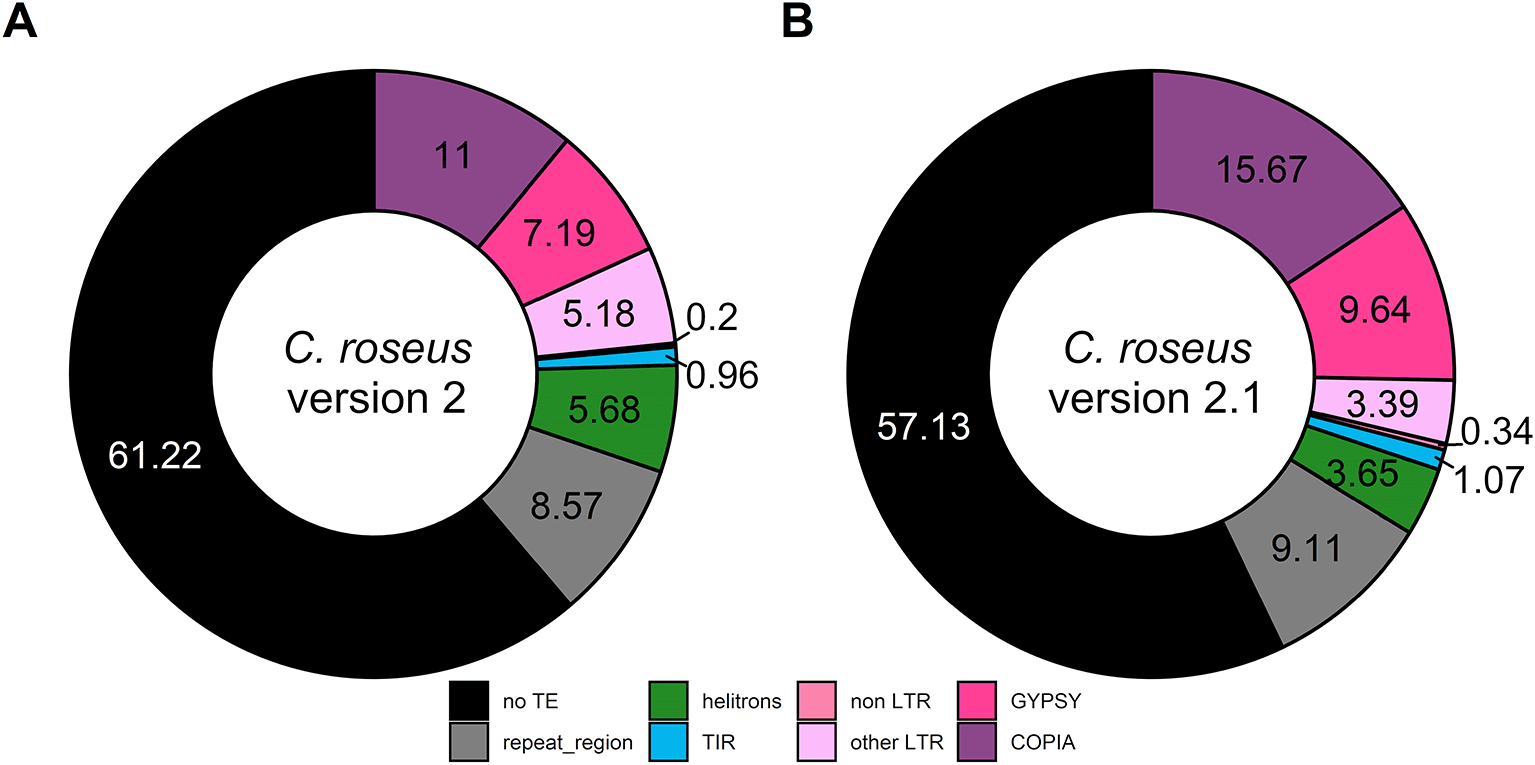

Figure 2. Proportion of transposable element (TE) in C. roseus assembly version 2 (A) and version 2.1 (B).

TIR: terminal inverted repeat, LTR: long terminal repeat, non LTR: retrotransposons without LTR sequence, other LTR: LTR containing retrotransposons except for Gypsy and Copia.

Data availability

Underlying data

BioProject: Catharanthus roseus genome sequencing. Raw sequence reads, complete genome. Accession number PRJNA907167, https://identifiers.org/NCBI/bioproject:PRJNA907167 (Tours University, 2022a).

BioSample: Plant sample from Catharanthus roseus, Accession number SAMN31953452, https://identifiers.org/NCBI/biosample:SAMN31953452 (Tours University, 2022b).

Figshare: An updated version of Catharanthus roseus genome. 10.6084/m9.figshare.21641111 (Cuello et al., 2022).

This project contains the following underlying data:

• Catharanthus_roseus_v2.1_UT.cds (Predicted CDS).
• Catharanthus_roseus_v2.1_UT.gff (Genome annotation file (GFF)).
• Catharanthus_roseus_v2.1_UT.pep (Predicted proteins).
• Catharanthus_roseus_v2.1_UT.tr (Predicted transcripts).
• Cuello et al – F1000R – SuppMat.xlsx (Supplementary tables).

Data are available under the terms of the Creative Commons Attribution 4.0 International license (CC-BY 4.0).
