Malaria prevalence in Commune 5 in Tumaco (Nariño, Colombia)

[version 1; peer review: 1 approved, 1 approved with reservations]

Pablo Enrique Chaparro Narváez ¹, Monica Marcela Jimenez-Serna², Maria Luz Gunturiz Albarracin³, Gabriel Carrasquilla Gutierrez⁴

PUBLISHED 21 Apr 2022

Author details Author details

¹ Observatorio Nacional de Salud, Instituto Nacional de Salud, Bogotá, 111321, Colombia
² Fundación Santa Fe de Bogotá, Bogotá, 110111, Colombia
³ Dirección de Investigación en Salud Pública, Instituto Nacional de Salud, Bogotá, 111321, Colombia
⁴ Fundacion Santa Fe de Bogotá, Bogotá, 110111, Colombia

Pablo Enrique Chaparro Narváez
Roles: Conceptualization, Formal Analysis, Funding Acquisition, Investigation, Methodology, Writing – Original Draft Preparation, Writing – Review & Editing

Monica Marcela Jimenez-Serna
Roles: Conceptualization, Formal Analysis, Funding Acquisition, Investigation, Methodology, Project Administration, Resources, Supervision, Writing – Original Draft Preparation, Writing – Review & Editing

Maria Luz Gunturiz Albarracin
Roles: Conceptualization, Formal Analysis, Funding Acquisition, Investigation, Methodology, Writing – Original Draft Preparation, Writing – Review & Editing

Gabriel Carrasquilla Gutierrez
Roles: Conceptualization, Funding Acquisition, Methodology, Validation, Writing – Review & Editing

OPEN PEER REVIEW

REVIEWER STATUS

This article is included in the Emerging Diseases and Outbreaks gateway.

Abstract

Background

Urban malaria is a public health problem in Colombia and there is still lack of knowledge about its epidemiological characteristics, which are key to the implementation of control measures. The presence of urban malaria cases and disease diagnosis are some of the challenges faced by malaria elimination programs. The objective of this research was to estimate malaria prevalence, explore associated factors and detect pfhrp 2/3 genes, in the urban area of Tumaco between July and December 2019.

Methods

A prevalence study was conducted by using a stratified random probability sample. Structured surveys were administered and blood samples were taken and examined through optical microscopy, rapid diagnostic tests (RDT) and polymerase chain reaction (PCR). A logistic regression model was used to explore associated factors.

Results

1,504 people living in 526 households were surveyed. The overall prevalence was 2.97% (95% CI: 2.1 - 4.3%). It was higher in males, in the 10-19 age group and in asymptomatic cases. The prevalence of pfhrp2 amplification was 2.16% (95% CI: 1.6 - 2.9%). Households with three or more people had a higher risk of malaria infection (adjusted odds ratio (ORa) 4.05; 95% confidence interval (CI) 1.57-10.43). All cases were due to P. falciparum.

Conclusions

The prevalence of urban malaria was low. Strategies to eliminate malaria in urban areas should be adjusted considering access to early diagnosis, asymptomatic infection, and the RDTs used to detect the presence of the pfhrp2 gene.

Keywords

prevalence, diagnosis, chromosome deletion, urban malaria, Colombia

Corresponding author: Pablo Enrique Chaparro Narváez

Competing interests: No competing interests were disclosed.

Grant information: This study was funded by Minciencias “Malaria Elimination: A Challenge for Colombia” Project. Code: 622177757170.
The funders had no role in study design, data collection and analysis, decision to publish, or preparation of the manuscript.

Copyright: © 2022 Chaparro Narváez PE et al. This is an open access article distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited.

How to cite: Chaparro Narváez PE, Jimenez-Serna MM, Gunturiz Albarracin ML and Carrasquilla Gutierrez G. Malaria prevalence in Commune 5 in Tumaco (Nariño, Colombia) [version 1; peer review: 1 approved, 1 approved with reservations]. F1000Research 2022, 11:448 (https://doi.org/10.12688/f1000research.110361.1) First published: 21 Apr 2022, 11:448 (https://doi.org/10.12688/f1000research.110361.1) Latest published: 19 Jul 2023, 11:448 (https://doi.org/10.12688/f1000research.110361.3)

Introduction

Malaria elimination programs face several challenges, including urban malaria and disease diagnosis. Both in Colombia and worldwide, malaria transmission is mainly rural, but cases of malaria in urban and peri-urban areas have been continuously reported over the last decade, most of them in the Pacific region.¹^,² These problems are compounded by the diagnosis of asymptomatic and submicroscopic malaria.

Despite the fight against malaria, the World Health Organization (WHO) observed an increase in cases worldwide, increasing from 227 million in 2019 to 241 million in 2020 in the 85 countries where the disease is endemic. Similarly, in terms of mortality, 558,000 deaths were registered in 2019 and 627,000 in 2020. However, in the Americas region, the WHO reported a reduction in cases, from an estimated 893,000 in 2019 to 652,000 in 2020, 77% of them in Venezuela, Brazil and Colombia. Meanwhile, there was a reduction in deaths, from 509 in 2019 to 409 in 2020.³

It is worth mentioning that 91% of the Colombian territory has eco-epidemiological conditions that promote malaria transmission and it is estimated that 22% of the population lives in these areas. In 2020, 81,363 cases were registered (annual parasite index (API) 8.4 cases per 1,000 inhabitants) and 5 deaths were confirmed in the country. The predominant parasites were Plasmodium vivax (49.7%) and Plasmodium falciparum (49.5%).⁴ On the Pacific coast, in the department of Nariño, where Tumaco is located, 17,421 cases were reported (API 31.9 cases per 1,000 inhabitants).⁴ According to the Vector-Borne Disease Prevention and Control Program, cases of urban malaria have been identified mainly in the neighborhoods that are part of Commune 5 in Tumaco, where 1,024 cases were reported in 2015 (API 42.2 per 1,000 inhabitants) and 770 in 2016 (API 31.7 per 1,000 inhabitants).

In Colombia, the strategic action route for comprehensive care, health promotion, prevention, surveillance, control and elimination of malaria has been based on the “2019-2022 National Malaria Strategic Plan” which, among other aspects, includes disease diagnosis through the use of optical microscopy and rapid diagnostic tests (RDTs), and the elimination of urban and peri-urban malaria in 18 municipalities on the Pacific coast.⁵

Optical microscopy can detect from 50 to 100 parasites/μL but it can lead to diagnostic errors when parasitemia is low.⁶ The purpose of RDTs is to detect one of three antigens in parasites: lactate dehydrogenase (LDH), aldolase, and histidine-rich protein 2 (hrp2), with significant differences from each other.⁷ The detection limit for RDTs is between 100-200 parasites/μL.⁸ It should be noted that hrp2 is specific for P. falciparum and that pfhrp2-based RDTs often detect the pfhrp3 antigen, rendering test interpretation difficult.⁹ Test performance may be affected by the antigenic variability of the target protein, the persistence of the antigen in blood after parasite elimination, and parasite density below the detection threshold. The presence of parasites with deletions or mutations of the pfhrp2 gene can lead to false-negative results, which has implications for RDT implementation, case diagnosis and treatment, and malaria control and elimination efforts.¹⁰

To overcome the limitations of optical microscopy and RDTs, molecular detection of malaria parasites through the polymerase chain reaction (PCR) was used, as it can detect parasitemia below 0.05 μL.⁷ On the other hand, PCR provides better information on the prevalence and distribution of parasitic species in endemic areas compared to that provided by optical microscopy and RDT.¹¹

Regarding urban malaria, there are challenges in terms of what is meant by “urban”, “peri-urban”, “rural” and “urban malaria”, because of the lack of established definitions to describe the socioeconomic and ecological contexts where the disease is transmitted.¹^,¹² This situation is compounded by the failure to establish the origin of malaria cases, to identify mosquito breeding sites, and to confirm the vector's transmission capacity in these environments.¹ Despite these difficulties, it has been established that urban and peri-urban malaria is caused by population traveling from rural to urban and peri-urban areas¹³ and trips from rural areas to urban areas and vice versa.¹⁴ In Latin America, peri-urban transmission has been reported in Brazil (Porto Velho)¹⁵ and Peru (Iquitos, Sullana, Piura y Lima).¹⁶^–¹⁸ In Colombia, urban malaria has been identified in municipalities on the Pacific coast, where Tumaco is located. Peri-urban malaria is caused by the displacement of rural populations to peri-urban areas as a result of the armed conflict, presence of paramilitary groups, illicit crops, and illegal mining.¹

Most studies conducted in Colombia have addressed the prevalence of malaria in rural areas. Research focused on urban malaria has been scarce, reporting on total prevalence and the prevalence of asymptomatic and submicroscopic infections.¹^,¹²^,¹⁹^–²⁵ Also, research aimed at detecting the pfhrp 2/3 gene deletion has been limited (Guapi 6%).²⁶ Given the limited research on malaria prevalence carried out in the Colombian territory and the detection of pfhrp 2/3 genes in urban areas, this study was aimed at estimating malaria prevalence, detecting pfhrp 2/3 genes, and exploring associated factors in the urban area (Commune 5) in Tumaco during 2019.

Methods

Ethics and consent

This study was approved by the ethics committees of the National Institute of Health (April 4, 2017 Minutes) and Fundación Santa Fe de Bogotá (April 22, 2019 Minutes). Participants’ written consent was obtained prior to data collection and blood sampling. The research with mosquitoes considered the Colombian scientific, technical, and administrative standards for biomedical research with animals. The mosquitoes were anesthetized with triethylamine before dying.

Study design

Between July and December 2019, a prevalence study was conducted in Commune 5 of Tumaco, a malaria-endemic urban area. This Colombian municipality is divided into communes and, in turn, each commune is made up of neighborhoods. A stratified (by neighborhoods) multistage random sample with proportional allocation was established. In the first stage, the primary sampling units were the Commune 5 neighborhoods. In the second stage, the secondary sampling units were groups of adjoining blocks. A grid was placed on the map of each selected neighborhood. Each cell included the residential units that make up a block. Sampling was carried out proportional to size, taking into account the number of inhabitants per block. Using the Teaching Sampling package of the statistical package R, the blocks in each of the selected neighborhoods were chosen. In the third stage, in the selected block, the house in the lower-left corner (southwest point) was located with the help of the Global Positioning System (GPS). In this dwelling began the collection of information. Then the selection of the next dwelling to the right or to the left depended on the outcome of a coin toss. Once the address was established, the collection of information continued until completing 12 contiguous houses. The units of analysis and observation were all individuals in the selected households.

To calculate sample size, a prevalence of 4.22% was considered, as reported by the “Vector-Borne Disease Prevention and Control Program in the Nariño Department” study in 2015. Accuracy was estimated to have a 15.0% expected relative standard error,²⁷ 95% confidence, and a 1.5 cluster design effect. Adjusting for a non-response rate of 10%, the final sample size was 1,424 individuals from households in Commune 5.

Officials from the departmental and municipal Vector-Borne Disease Prevention and Control Program, community leaders, and researchers informed the population of Commune 5 about the study. This ensured community participation in the study.

The inclusion criteria for the study were: (1) inhabitants of the selected dwelling who voluntarily wish to participate and who at the time of the visit were in the dwelling, (2) minors who have the authorization of the responsible adult or guardian, (3) people who have adequately filled out the informed consent. The exclusion criteria were: (1) people with mental problems unable to sign informed consent and (2) those for whom a blood sample was not possible to obtain.

Study area

Tumaco is located in southwestern Colombia (1° 48' 24” N; 78° 45' 53” W), on the Pacific coast, Nariño Department. It spreads over 3,778 km² and the urban area is about 38 km². This area is made up of three islands (El Morro, La Viciosa and Tumaco), which are divided into five communes and 82 neighborhoods.²⁸ (Figure 1). The municipality is located 2 meters above sea level and has a warm humid weather. It has an average annual temperature of 26.1°C, a relative humidity of 84.8%, and annual precipitation ranging from 109 to 373 mm³. In 2021, its population was estimated at 257,042 inhabitants, out of which 33.7% lived in the urban area.²⁹ Its economy is based on the production of African palm, cocoa and coconut and, to a lesser extent, tourism. In Tumaco, in the urban area, malaria is concentrated in Commune 5, where nearly 70% of the cases are found and there are breeding sites of Anopheles spp.

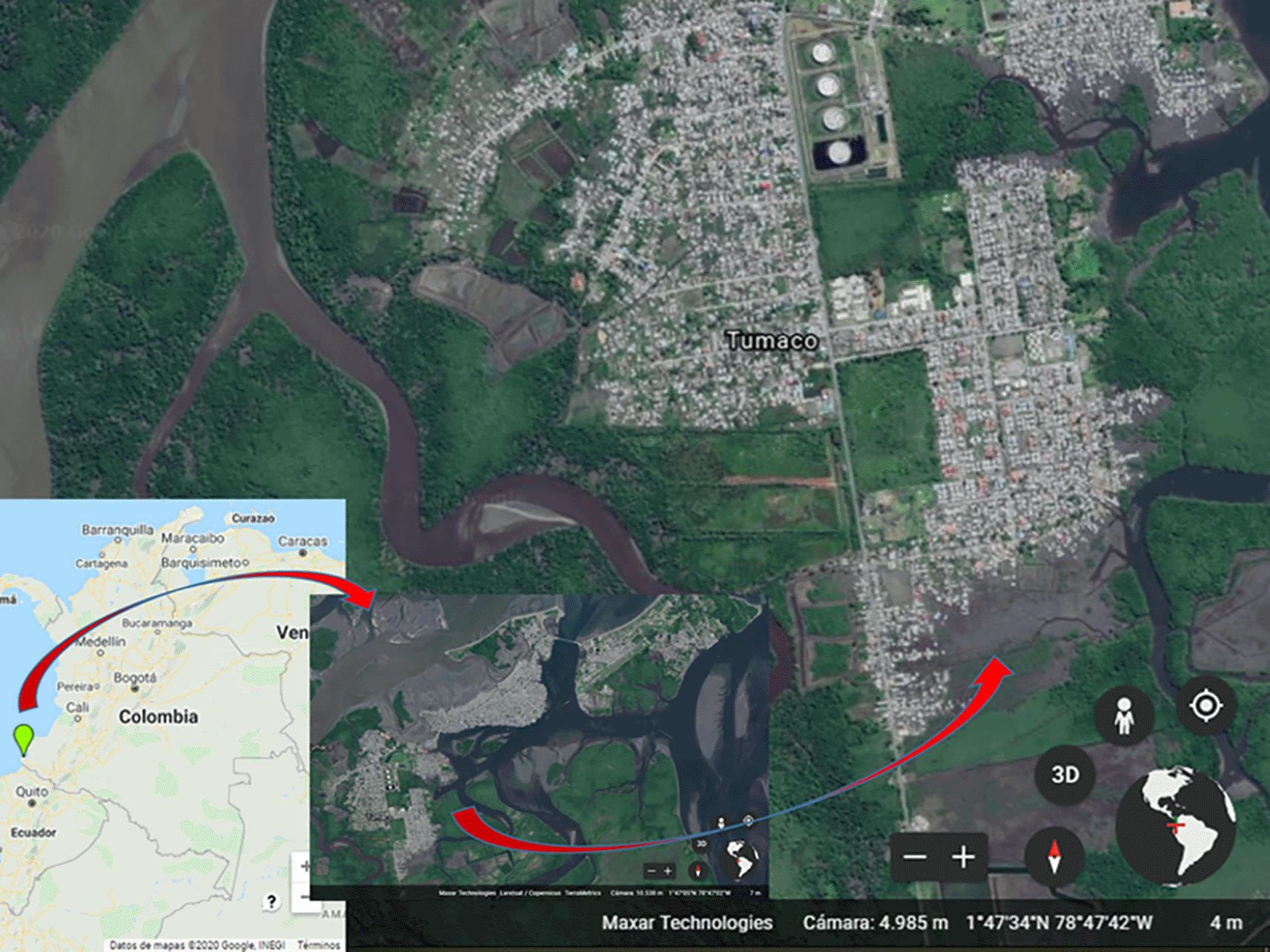

Figure 1. Study area in Tumaco (Nariño, Colombia).

Data collection

Two structured questionnaires were designed. The first one included variables related to households characteristics, such as basic services and the presence and use of long-lasting insecticide-treated nets. The second one included sociodemographic variables (age, sex, ethnicity, marital status, occupation, educational level, socioeconomic stratum, belonging to the General Social Security Health System), symptoms, diagnosis and history of malaria. The questionnaires, created on mobile data capture devices (Android phones), were applied face-to-face by previously trained personnel. Interviews were conducted in Spanish. At the end of each study day, data collected were reviewed by the study coordinator, and any quality issues were flagged for immediate correction.

Laboratory procedures

Optical microscopy

Blood samples were taken through finger puncture with a sterile lancet and each sample was then put on a clean film. Blood samples was taken at the household and thick smear was taken to the “Vector-Borne Disease” (VBD) control program and read by a bacteriologist according to national guidelines.³⁰ Parasitemia was estimated based on a 200-leukocyte count (assuming a standard value of 8,000 leukocytes/μL of blood) and was expressed as parasites/μL (p/μL). The National Institute of Health performed quality control on 10% (153) of the samples. All participants with positive thick blood film received antimalarial treatment according to national guidelines.

Rapid diagnostic tests (RDTs)

For RDTs, a second drop of blood was obtained from the same finger puncture and it was then put in the RDT device, according to the manufacturer's instructions. The RDT used (SD BIOLINE Malaria Ag P.f/P.v) was the one distributed by the National VBD Prevention and Control Program to all municipalities in the country. The same bacteriologists who performed the optical microscopy diagnosis analyzed the RDTs at the household. The National Institute of Health performed quality control on 10% (153) of the RDT devices used.

Polymerase chain reaction (PCR)

For the PCRs, the Invitrogen™ DNA polymerase Taq recombinant kit was used (Includes: Taq DNA Polymerase (5 U/μL); 10× PCR buffer (200 mM Tris-HCl pH 8.4, 500 mM KCl); Magnesium Chloride (50 mM). Bio-Rad C1000 Thermal Cycle was used for PCRs. Glyceraldehyde-3-phosphate dehydrogenase (GAPDH) was used as housekeeping gene. The Table 1 shows the standardized amplification conditions for each gene, primers and expected fragment sizes.

Table 1. Standardized amplification conditions for each gene, primers and expected fragment sizes (PCR: polymerase chain reaction).

Gene name	Acronym gene	Primers	Expected product size	PCR amplification conditions
Gene that codes for histidine-rich protein 2 of Plasmodium falciparum	PfHRP2	Pfhrp2-F 5´-CAAAAggACTTAATTTAAATAAgAg-3´ Pfhrp2-R 5´-AATAAATTTAATggCgTAggCA-3´	882 bp	95°C/5 min 39 cycles: 95°C/1 min; 55°C/1 min; 72°C/1 min 72°C/7 min 12°C/∞
Gene that codes for histidine-rich protein 3 of Plasmodium falciparum	PfHRP3	PfHRP3-F 5′-AAATAAgAgATTATTACACgAAAg-′3 PfHRP3-R 5′-TGGTgTAAgTGATgCgTAGT-′3	615 bp	95°C/5 min 35 cycles: 95°C/1 min; 51°C/1 min; 72°C/1 min 72°C/7 min 12°C/∞
Gene that codes for the small ribosomal RNA subunit of Plasmodium vivax	PvSSU	PvSSU-F 5′-gTTAAgggAgTgAAgACgATC-′3 PvSSU-R 5′-AACCCAAAgACTTTgATTTCTCA-′3	159 bp	95°C/5 min 35 cycles: 95°C/1 min; 50°C/45 sec; 72°C/1 min 72°C/5 min 12°C/∞
Gene that codes for Glyceraldehyde-3-phosphate dehydrogenase	GAPDH	GAPDH-F 5′-ATggCAgTAACAAAACT-′3 GAPDH-R 5′-TgAATCgTATTTAAgAgA-′3	389 bp	95°C/5 min 35 cycles: 95°C/1 min; 53°C/30 sec; 72°C/1 min 72°C/7 min 12°C/∞

Standardization of protocols for genomic DNA extraction from whole blood and filter paper samples

Genomic DNA (gDNA) extraction using filter paper

The saponin/chelex-100 method was used for DNA extraction. Briefly, a quarter of each dry droplet on filter paper was cut into small pieces and incubated at room temperature with a 0.5% saponin solution diluted in Phosphate buffered saline PBS. Then, the solution was mixed using a vortex and the supernatant was discarded. A wash was done with PBS, and 200 ul of a Chelex-100 solution diluted in water was added, then it was incubated at 56°C for 1 hour and at 100°C for 20 minutes. After incubation, the supernatant was transferred to sterile Eppendorf tubes and stored at -20°C until it was going to be used in the PCRs. gDNA was quantified by using a Nanodrop 2000, obtaining quality between 1.8 and 2.0. Once the gDNA had been extracted, diagnosis was performed through conventional PCR for the amplification of the gene fragments coding for the pfhrp2 and pfhrp3 proteins and the gene coding for the small subunit of Plasmodium vivax-PvSSU ribosomal RNA. DNA from reference strains was used as positive control. Negative controls without DNA and extraction controls obtained from filter paper without DNA were also included for each of the reactions. For the amplification of the different gene fragments mentioned before, specific primers were designed and PCR conditions were standardized for each of them. Guanine/cytosine (GC) content, dimer formation, loop formation, palindromes and melting temperature (MT) were taken into account for primer design. The sequences of the hrp2/hrp3 and PvSSU genes published in Genbank were used, an alignment was performed by using clustalW (Refseq), and primers were designed from conserved regions of the sequences obtained.

PCR products were fractionated on 1.8% agarose gels stained with ethidium bromide, using a 100 bp molecular weight marker (Promega) as reference. The amplified products were visualized on a UV transilluminator and were purified on 1.8% agarose gels by using the GFX PCR DNA kit and Gel Band purification system (GE Healthcare). The purified products were sequenced by using the oligonucleotides used in the PCR, through the BigDye Terminator v3.1 cycle sequencing kit (Applied Biosystems) and the ABI PRISM 310 genetic analyzer. Sequence editing and analysis was performed through the DNA Sequencing Analysis software version 5.3.1.³¹^,³² Sequence comparisons were made by using the blastn tool available at the National Center for Biotechnology Information (NCBI).

Entomological study

The entomological study did not use a probabilistic sample. The mosquito collection took place in homes that were included in the prevalence study and whose residents agreed to participate. Mosquitoes were collected through suction tubes and simultaneously with Centers for Disease Control and Prevention (CDC) and Shannon traps at rest (by the research group) and human bait (by the VBD staff) starting at 18:00 hours and ending at 6:00 hours in households in the Obrero neighborhood. Given the presence of illegal armed groups, collection in the Los Ángeles, Candamo, Unión Victoria and Ciudadela neighborhoods was authorized between 18:00 and 24:00 hours. From this time and until 6:00 hours, CDC traps were used. In the Once de Noviembre and Nuevo Milenio neighborhoods, permission was not obtained and mosquitoes were collected through traps that were installed between 18:00 and 6:00 hours. Mosquitoes were collected simultaneously inside and outside of selected households.

The collected mosquitoes were placed in containers labeled with date, neighborhood, house code, time of collection, number of mosquitoes and collector name. Specimens were killed with triethylamine and then individually packed in 1.5 ml vials with perforated caps. They were preserved in airtight bags with silica gel. Specimens of adult and immature mosquitoes were determined by using dichotomous keys for Anopheles in Colombia.³³^–³⁶

Also, immature forms were searched in breeding sites within a radius of 1,000 meters around the selected households. Each breeding site was geo-referenced and its physical and environmental characteristics were registered. Sampling was carried out with a standard ladle, ten dips per square meter. Larvae were stored in 120 ml Whirl-Pak plastic bags with ethanol for preservation. Each larvae container was labeled with date, code, larva number, neighborhood and collector name.

Definitions

Symptomatic malaria. Individual with positive microscopy/RDT and symptoms of malaria, such as fever, chills, vomiting, convulsions, malaise, headache and/or loss of appetite.

Asymptomatic malaria. Individual with positive microscopy/RDT or PCR, without symptoms.³⁷^,³⁸

Submicroscopic malaria. Individual with positive PCR and negative microscopy/RDT. Submicroscopic infections are almost exclusively asymptomatic.³⁸

Statistical analysis

The data were obtained through mobile devices. After quality control, they were exported and analyzed with the Stata^R version 12 statistical package. For statistical analysis, weights were generated according to strata, expansion factors and design effect, and the complex sample analysis module (svy command) was used. Categorical variables are presented as unweighted counts and weighted proportions with their corresponding 95% confidence intervals (95% CI), and continuous variables are expressed as means with 95% CI. The prevalence of malaria infection was estimated with the corresponding 95% CI. Malaria prevalence was calculated by age group, sex, symptoms and neighborhoods. The exploratory analysis of factors associated with urban malaria and households and urban malaria and individual was performed through logistic regression, first evaluating the relationship between each independent variable with the urban malaria variable. A p<0.05 value was considered statistically significant and those with p<0.05 were selected for the multivariate model.

Results

Housing and demographic characteristics

The total number of respondents was 1,504 people (60.0% female) residing in 526 households in the selected neighborhoods of Commune 5 in Tumaco. The average age of the respondents was 29.75 years (95% CI, 28.75 to 31.22).

Household characteristics are included in Table 2. More than half of the households' exterior walls were made of brick. More than two thirds had water service, while access to sewage service was scarce. Malaria was detected in 7.3% of households.

Table 2. Household characteristics.

Tumaco, July to December 2019.

Characteristics	Total
	Unweighted count	Weighted count
	n	(%)	95% Confidence Interval
	n	(%)	Lower	Upper
Exterior wall material
Wattle and daub	40	7.7	5.1	11.3
Brick	294	56.1	48.6	63.3
Wood	156	29.1	23.6	35.3
Others	36	7.1	5.2	9.6
The household has
Windows	484	92.5	88.6	95.1
Electricity	522	99.5	97.8	99.9
Gas	510	96.4	94.8	97.5
Water	405	72.5	63.9	79.7
Sewage	1	0.3	0	1.9
Garbage collection	479	91.5	85.8	95.1
Number of people living in the household
1 and 2	276	52.6	48.3	56.9
3 or more	250	47.4	43.1	51.7
Rooms where people sleep
1 and 2	301	57.3	52.1	62.4
3 or more	225	42.7	37.6	47.9
Socioeconomic stratum
1	525	99.8	98.4	100
2	1	0.2	0	1.6
Inhabited days per week
7 days	522	99.1	96.1	99.8
<7 days	3	0.9	0.2	3.9
Households where people use a protective net while sleeping	515	98.0	95.9	99.0
Households with malaria cases	35	7.3	5	10.5

Respondents' characteristics are shown in Table 3. There was higher participation of women and individuals between 20 and 49 years old. The majority were of African descent (95.2%). Nearly half of the individuals had lived in the households for over ten years (47%). Two-fifths of the respondents had high school education. One-third were workers and one-fourth were engaged in household activities. The family income for four-fifths of the participants was less than the minimum wage for one person. In the last year, 0.67% of the participants reported they had had malaria.

Table 3. Characteristics of the surveyed population.

Tumaco, July to December 2019.

Characteristics	Total
	Unweighted count	Weighted count
	n	%	95% Confidence Interval
Age groups
0-9	272	18.32	16.0	20.9
10-19	318	21.47	19.1	24.1
20-49	626	40.88	38.64	43.15
≥50	288	19.33	16.94	21.98
Sex
Male	531	35.56	33.5	37.7
Female	973	64.44	62.3	66.5
Ethnic group
Black, African descent	1,439	95.23	91.4	97.4
Others	65	4.77	2.6	8.6
Years living in the house
0 to 4	373	25.60	22.5	28.9
5 to 9	397	25.97	22.4	29.9
10 or more	714	47.03	42.6	51.5
No information	20	1.40	0.8	2.3
Educational level
Preschool, primary	574	38.37	35.0	41.9
High school	629	41.73	39.1	44.4
University	113	7.76	5.8	10.3
None	188	12.14	10.2	14.3
Civil status
Has a partner	590	39.25	36.3	42.3
No partner	914	60.75	57.7	63.7
Occupation
Worker	450	30.04	26.4	34.0
Housework	399	26.26	24.0	28.7
Early childhood	158	10.46	8.8	12.4
Childhood	178	12.26	10.7	14.0
Adolescence	218	14.49	12.7	16.5
Unemployed	36	2.29	1.6	3.2
Pensioner	14	0.86	0.5	1.4
Other	51	3.34	2.4	4.6
Family income
<1 MLW (Monthly Legal Wage)	1,219	79.37	72.8	84.7
1 or more MLW	281	20.33	15.1	26.8
Does not know	4	0.30	0.1	1.7
Malaria in the last year	10	0.67	0.32	1.40

Prevalence of malaria

The total prevalence of malaria was 2.97% (95% CI: 2.1-4.3%). The prevalence obtained through microscopy/RDT was 0.81%, and through PCR it was 2.16%. All cases were due to P. falciparum. The highest prevalence of infection was found in the Candamo neighborhood. Most infections were asymptomatic and submicroscopic (Table 4).

Table 4. Estimated prevalence of malaria.

Tumaco, July to December 2019.

	Total surveys	Unweighted count	Prevalence (%)	95% Confidence Interval		Standard error (%)
	Total surveys	Unweighted count	Prevalence (%)	Lower	Upper	Standard error (%)
Microscopy	1,504	11	0.81	0.38	1.74	0.31
Rapid Test	1,504	8	0.62	0.24	1.61	0.29
PCR	1,492	28	2.16	1.58	2.94	0.33
Total	1,504	39	2.97	2.06	4.27	0.54
Sex
Male	531	14	3.21	1.23	8.15	1.51
Female	973	25	2.84	1.94	4.15	0.54
Age (years)
0-9	272	9	4.06	1.38	11.36	2.13
10-19	318	12	4.42	2.37	8.09	1.34
20-49	626	12	2.06	0.55	1.20	3.51
≥50	288	6	2.26	1.00	5.03	0.90
Symptoms
Microscopy/RDT
With symptoms	1,504	6	0.51	0.17	1.51	0.27
Without symptoms	1,504	5	0.31	0.13	0.73	0.13
Total	1,504	11	0.81	0.38	1.74	0.31
PCR
With symptoms	1,492	1	0.05	0.01	0.38	0.05
Without symptoms	1,492	27	2.11	1.53	2.89	0.33
Total	1,492	28	2.16	1.58	2.94	0.33
Microscopy/RDT/PCR
With symptoms	1,504	7	0.56	0.20	1.53	0.28
Without symptoms	1,504	32	2.41	1.77	3.28	0.37
Total	1,504	39	2.97	2.06	4.27	0.54
Neighborhood
Once de Noviembre	159	7	4.40	1.27	14.14	1.93
Obrero	147	2	1.36	0.25	6.94	0.82
Ciudadela	336	9	2.68	0.93	7.48	1.19
Unión Victoria	145	5	3.45	2.08	5.68	0.63
Nuevo Milenio	487	6	1.23	0.50	3.03	0.52
Los Ángeles	159	3	1.89	0.43	7.89	1.00
Candamo	71	7	9.86	0.05	96.20	3.81

The symptoms expressed by individuals who tested positive for malaria at the time of the survey were: fever (26.7%, 95% CI 9.9% - 54.7%), shivers (26.7%, 95% CI 9.9% - 54.7%), headache (24.0%, 95% CI 8.1% - 52.9%), diaphoresis (19.2%, 95% CI 5.0% - 51.8%), limb pain (24.3%, 95% CI 7.9% - 54.5%), and weakness (24.3%, 95% CI 7.9% - 54.5%). The mean parasite count of individuals who tested positive for malaria through optical microscopy was 653.5 parasites/μL (95% CI 101.5 to 1,205.5).

Quality control performed by the National Institute of Health on the samples analyzed through optical microscopy and RDT indicated a 100% positivity rate concordance and 100% negativity rate concordance.

PCR

Out of the 1,504 blood samples collected, 1,492 were examined through PCR because some samples had very small amounts of blood. The prevalence of amplification of the pfhrp2 gene was 2.16% (95% CI: 1.58% - 2.94%), and for the pfhrp3 gene and the PvSSU gene it was 0. In the fragment sequences of the gene coding for pfhrp2, no polymorphisms were found when compared to the sequences reported in GenBank. We do not have many photographs of uncut gels available. The positive samples were obtained in different assays; there is not a gel with the amplification of all the positive samples.

Entomological study

The entomological study was conducted in 25 households in the Obrero, Los Ángeles, Candamo, Unión Victoria, Ciudadela, Nuevo Milenio and Once de Noviembre neighborhoods. The presence of immature and adult Anopheles mosquitoes was registered.

37 Anopheles mosquitoes belonging to the albimanus species were collected. The highest number of mosquitoes was identified in the Los Ángeles and Candamo neighborhoods. No malaria vector mosquitoes were identified in the Nuevo Milenio and Once de Noviembre neighborhoods. Between 18:00 and 19:00 hours, the highest activity occurred in the peri-domestic area, with a 0.018 human-biting rate (HBR) per hour and indoor between 21:00 and 22:00 hours, with a 0.007 HBR (Figure 2). The average human biting rate (HBR) at night was 0.74 and the HBR was 0.06 for all studied areas.

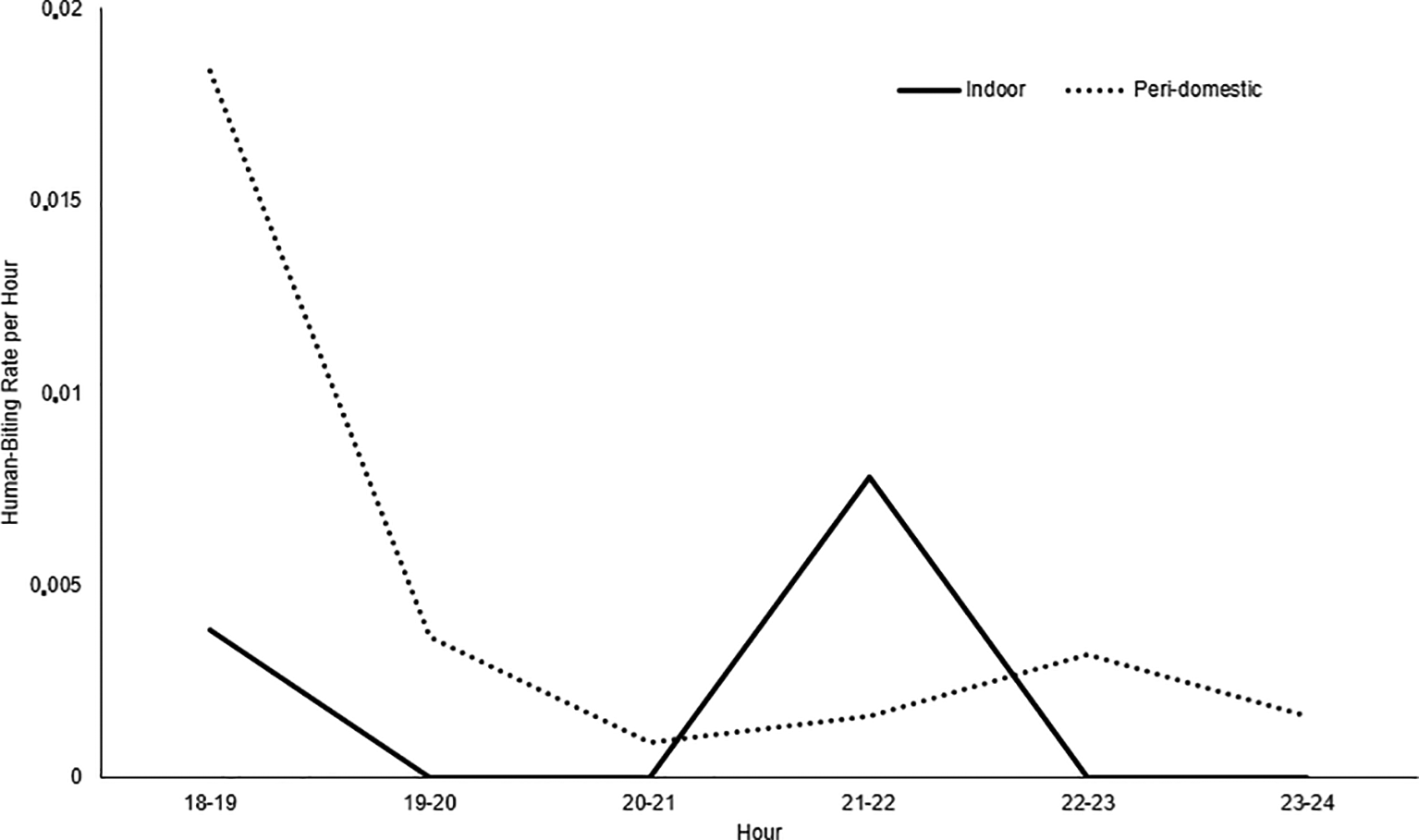

Figure 2. Indoor and Peri-Domestic Human-Biting Rate (HBR).

Commune 5 neighborhoods, Tumaco (Nariño, Colombia). October 2019.

83 breeding sites were found. Out of those, two had Anopheles mosquito larvae, one in the Unión Victoria neighborhood and the other one in the Obrero neighborhood. One breeding site was a pond and the other one was a well. 32 larvae were collected in both breeding sites. 27 of them were in late stages (3rd and 4th) and were identified as belonging to An. albimanus.

Related factors

The exploration of associated factors in households where malaria infections occurred is shown in Table 5. The presence of three or more people living in the households (OR 4.98; 95% CI 1.99-12.45) and having three and more sleeping rooms (OR 2.38; 95% CI 1.10-15.13) were suggested as risk factors, and the use of a protective net for sleeping (OR 0.18; 95% CI 0.03-0.97) was suggested as a protective factor. However, the multivariate analysis indicated that households with three or more people had a higher risk of malaria infection (ORa 4.05; 95% CI 1.57-10.43).

Table 5. Malaria-related factors in commune 5 households.

Tumaco, July to December 2019.

Variable	Prevalence (%)	95% Confidence Interval		Standard error	OR	95% Confidence Interval
Variable	Prevalence (%)	Lower	Upper	Standard error	OR	Lower	Upper
Wattle and daub wall
Yes	0.77	0.20	2.88	0.51	1.47	0.45	4.82
No	6.55	4.64	9.17	1.11
Brick wall
Yes	4.49	2.81	7.09	1.03	1.26	0.44	3.60
No	2.83	1.28	6.14	1.10
Wood wall
Yes	1.21	0.53	2.74	0.49	0.46	0.18	1.20
No	6.11	3.95	9.33	1.30
Wall – other materials
Yes	0.84	0.23	3.07	0.54	1.80	0.42	7.72
No	6.47	4.54	9.16	1.13
Windows
Yes	7.14	4.90	10.27	1.31	3.36	0.42	27.17
No	0.18	0.02	1.36	0.18
Electricity
Yes	0.00	0.00	0.00	0.00
No	7.32	5.04	10.50	1.33	-	-	-
Gas connection
Yes	0.49	0.07	3.44	0.48	2.05	0.23	18.20
No	6.82	4.86	9.49	1.13
Water
Yes	2.48	1.22	4.98	0.87	1.39	0.72	2.66
No	4.84	3.38	6.88	0.85
Sewage
Yes	7.32	5.04	10.50	1.33	-	-	-
No	0.00	0.00	0.00	0.00
Garbage collection
Yes	0.55	0.13	2.33	0.40	0.86	0.21	3.62
No	6.77	4.56	9.94	1.31
People living in the household
3 or more	5.87	4.02	8.50	1.09	4.98	1.99	12.45
1 or 2	1.45	0.66	3.17	0.57
Rooms where people sleep
3 or more	4.57	2.96	6.98	0.97	2.38	1.10	5.13
1 or 2	2.75	1.50	5.00	0.82
Use of protective net while sleeping
Yes	6.74	4.52	9.95	1.32	0.18	0.03	0.97
No	0.58	0.17	1.90	0.34

The exploration of risk factors for individuals with malaria infection is presented in Table 6. None of the evaluated factors was statistically associated with a higher probability of having malaria.

Table 6. Malaria-Related Factors in Commune 5 inhabitants in Tumaco, July to December 2019.

Variable	Prevalence (%)	95% Confidence Interval		Standard error	OR	95% Confidence Interval
Variable	Prevalence (%)	Lower	Upper	Standard error	OR	Lower	Upper
Age (years)
0-14	1.1	0.5	2.4	0.4	1.00
15 or more	1.9	1.4	2.5	0.3	1.50	0.67	3.35
Sex
Male	1.1	0.5	2.9	0.5	1.00
Female	1.8	1.3	2.7	0.3	1.14	0.35	3.66
Income
1 or more MLW	0.4	0.2	1.0	0.2	1.00
<1 MLW	2.6	1.6	4.2	0.6	1.71	0.54	5.37
Education
Some	3.0	2.1	4.3	0.5	1.00
None	0.0	0.0	0.0	-	-	-	-
Civil status
Has a partner	0.8	0.5	1.3	0.2	1.00
No partner	2.1	1.3	3.4	0.5	0.59	0.32	1.09
Time living in the household
10 or more years	1.6	1.1	2.3	0.3	1.00
< 10 years	1.4	0.7	2.8	0.5	1.22	0.57	2.60
Malaria episodes – last year
Yes	0.0	0.0	0.0	-	-	-	-
No	3.0	2.1	4.3	0.5	-	-	-
Pregnant
Yes	0.1	0.0	0.6	0.1	1.00
No	2.9	2.0	4.2	0.5	2.54	0.27	24.11
Have you taken antimalarial drugs over the last 15 days?
Yes	0.1	0.0	0.6	0.1	1.00
No	2.9	2.0	4.2	0.5	12.81	0.93	176.45
Ethnic group
African descent	3.0	2.1	4.3	0.5	1.00
Others	0.0	0.0	0.0	-	0.0	-	-

Discussion

This study conducted in Commune 5, urban area of Tumaco, estimated malaria prevalence, pfhrp2 gene amplification, and explored factors associated with infection. The prevalence of malaria was 2.97%. It was higher (4.42%) in the 10 to 19 age group, decreased with age, and was higher in cases of asymptomatic and submicroscopic infection. The pfhrp2 gene was found and the disease was positively associated with households inhabited by three or more people.

The study found malaria in Commune 5, an area believed to have high transmission according to reports from the Vector-Borne Disease Prevention and Control Program in the Nariño Department (API 2014 84.0 cases per 1,000 inhabitants; API 2015 220.5 and API 2016 165.8). In South America, the prevalence of symptomatic and asymptomatic infections have ranged from 0.1% to 33% in urban areas of Porto Velho,¹⁵ Manaos,³⁹ and Mâncio Lima⁴⁰ in Brazil. In Colombia, prevalence has ranged from 0% to 5.8%. In Quibdó, the estimated asymptomatic prevalence in a group of schoolchildren was 0% (95% CI: 0-1.4).⁴¹ Two cases of submicroscopic infection were reported in Yesquita, Silencio and Roma neighborhoods of Quibdó.⁴² In the Santa Mónica de Guapi neighborhood (Cauca Department, on the Colombian Pacific), four successive measurements reported asymptomatic prevalence of 2.7%, 1.2%, 0.6% and 0.3%, respectively.²⁶ In Buenaventura, the prevalence was 4.4%²⁰ and in the California neighborhood in Tumaco it was 5.8%.²⁵ These figures are not comparable with those reported in this study due to differences in terms of study design, type of sampling used, selection of individuals, diagnostic techniques, time of year in which the study was conducted, and the area where it was carried out. Concerning this last aspect, although there is no consensus on the definition of urban and peri-urban, the presence of symptomatic and asymptomatic malaria in Commune 5 of Tumaco was demonstrated, turning it into a potential human reservoir and a challenge for disease elimination strategies.

The persistence of urban malaria may be caused by people moving back and forth between urban and rural areas. People travel from urban to rural areas, where the endemic is higher, either for work or leisure. People also travel from endemic rural areas to urban areas to access health services or to engage in commercial activities, causing them to stay for a long period of time there.¹⁴ Rural areas are the main source of malaria infection in urban areas.⁴³

In urban areas, malaria infection is not expected to be prevalent due to better-designed households with better basic utilities, better access to health services, and the absence of mosquito breeding sites.³³ However, in the study area, most households were found to belong to a low socioeconomic stratum, lack sewage, have few mosquitoes and breeding sites, and have low biting rates, which could in part contribute to disease transmission.

In this study, households with higher occupancy showed higher malaria risk. Studies in Rwanda and Tanzania found that mosquitoes are more attracted to houses with many people⁴⁴^,⁴⁵ because there is a higher production of cues that attract them and increase the risk of transmission, compared to households with lower occupancy.⁴⁶

Something that stands out is the high percentage of households in which people slept with nets (98%). Although no distinction was made between untreated nets, those treated at some point in time, and those treated with insecticide, the bivariate analysis allows us to see their protective effect when households with and without malaria cases were compared. If nets are a major part of malaria elimination strategies, implementation, monitoring and evaluation of their use and efficacy should be routinely carried out in Commune 5 of Tumaco.⁴⁷

In terms of case detection, as in other studies, PCR had the highest diagnostic performance,³⁸ followed by microscopy. When comparing microscopy/RDT results with PCR results, lack of concordance was observed. Those with a positive diagnosis through microscopy/RDT were not detected through PCR and those with a positive diagnosis through PCR were not detected through microscopy/RDT. It is possible that people who were positive according to microscopy/RDT did not have the parasite's DNA so it could not be detected through PCR, as described by Mudare et al.,⁴⁸ or the sample may have had a low amount of parasitic DNA or it may have degraded. Another possibility is that there were changes in the primer ringing site, which would prevent amplification of the gene fragment under study.

The species detected through the various diagnostic tests was P. falciparum, a finding that also corresponds to the most frequently reported species for malaria on the Colombian Pacific coast.⁴

In this study, differences were found in terms of the prevalence of malaria among men and women. As reported in other studies, malaria was more prevalent in men. This could be due to the fact that they spend more time doing outdoor activities, arrive to their households late in the evening, and have an indifferent attitude towards malaria prevention.⁴⁹

In terms of age groups, the highest prevalence of malaria was observed in the 10 to 19 age group and as age increased, prevalence decreased. This result is similar to that reported in other studies. Older people are likely to have a lower risk of becoming ill because they may develop some immunity if they have been previously exposed to the infection.¹⁹^,²⁰ Recent studies in areas with high and low malaria transmission rates have revealed that asymptomatic infections contribute to malaria transmission.⁵⁰ Furthermore, asymptomatic malaria may precede symptomatic disease, and may confer partial immunity against infection.⁵¹

This study found the presence of the pfhrp2 gene in samples from the urban area of Commune 5 in Tumaco. The findings suggest that a low proportion of malaria infections are not detected through the RDTs used in Colombia. In South America, gene deletions have been reported in Peru (prevalence between 20.7% and 41.0%) and Brazil (one case).⁵² In Colombia, these deletions have been reported in the Amazonas Department, where they reached a prevalence of 67%⁵³; in Guapi (Cauca Department), where 6% of the parasite simples analyzed showed pfhpr2/3 gene deletion.²⁶ The factors promoting the appearance of these parasites in some regions still remain unknown.⁵⁴ The estimates obtained in this study do not exceed the minimum WHO criteria (>5%); however, it is important to monitor the hrp2-based RDTs used in the country. On the other hand, continuous monitoring related to submicroscopic infections and negative pfhrp2 results should be performed when using RDT. It is suggested that submicroscopic infections with parasites with pfhrp2/3 gene deletion could have infectious potential for mosquitoes and thus favor malaria transmission.⁵³

On the other hand, in the Commune 5 neighborhoods of Tumaco, An. albimanus was found in artificial ponds and wells, as described in the Buenaventura urban area.¹⁹ Breeding sites were found in all the neighborhoods that were part of the study, except in Nuevo Milenio and Once de Noviembre. The differences between neighborhoods are caused by the urbanization level. Stilt houses predominate in some neighborhoods, while there is no sewage system in others, which leads to the construction of ditches where water stagnates and mosquitos breed. Although there is ongoing entomological surveillance, mosquito control interventions need to be strengthened and the community should be involved. An. albimanus had greater hematophagic activity in peri-domestic areas between 18:00 and 19:00 hours, a time when people engage in social activities outdoors and when they can possibly contract the disease,²⁰ and indoors, between 21:00 and 22:00. However, given the low densities of An. albimanus and the limited observation, it was not possible to determine whether the mosquito was highly active at other times at night.

This study results should be studied with caution, given the limitations. First, the samples to be analyzed through PCR and pfhrp2/3 gene detection were taken on filter paper and were extracted after prolonged storage (due to the prioritization of PCR for Covid-19), which may have limited the amount of DNA to be used or may have promoted its degradation. Second, some samples collected on filter paper had little blood so the amount of gDNA was also variable. Third, the vast majority of individuals detected who were found to have malaria had no symptoms, which may not have allowed the researchers to detect the prevalence of pfhrp2/3 genes in symptomatic individuals. Fourth, the presence of illegal armed groups did not allow for an adequate entomological study because only partial observation was allowed in some neighborhoods, while in others the research group was not allowed. Fifth, due to study design, the participants were only questioned at sampling and there was no follow-up, so it is not possible to know if those who were asymptomatic later became symptomatic. Sixth, during survey application a memory bias may have been present, which could have altered the respondents' way of answering the questions.

A strength of this research was the participation of the “Vector-Borne Disease Prevention and Control Program in the Nariño Department” officials and the municipality of Tumaco. Their intervention will promote the use of these results for decision making in activities related to the pre-elimination of urban malaria in Tumaco.

In summary, the prevalence of malaria was estimated at 2.97% and the prevalence of asymptomatic infection was 2.16% in the urban area of Commune 5 of Tumaco. Parasites positive for the pfhrp2 gene were found. An. albimanus larvae were found in breeding sites and adult forms were found indoors and in peri-domestic areas. All of the cases were caused by P. falciparum. The disease was positively associated with households inhabited by three and more people. Based on these results, pre-elimination of urban malaria should include early diagnosis strategies and continuous active surveillance of asymptomatic infection, which requires the inclusion of molecular diagnostic tests. In addition, the RDTs used to diagnose should be monitored for potential pfhrp2 gene deletion, which will be focused on considering alternatives. Additionally, work should be coordinated with other sectors to establish activities aimed at improving basic sanitation and conduct continuous educational activities aimed at preventing the disease.

Data availability

Underlying data

Zenodo: Malaria Prevalence in Commune 5 in Tumaco (Nariño, Colombia). https://doi.org/10.5281/zenodo.6395340⁵⁵

This project contains the following underlying data:

- Malaria Prevalence in Commune 5 in Tumaco – house – readme.xlsx
- Malaria Prevalence in Commune 5 in Tumaco – house.xlsx
- Malaria Prevalence in Commune 5 in Tumaco – persons – readme.xlsx
- Malaria Prevalence in Commune 5 in Tumaco – persons.xlsx
- Breeding sites.xlsx
- Determination Anopheles.xlsx
- Malaria gel images.pdf

Extended data

Zenodo: Malaria Prevalence in Commune 5 in Tumaco (Nariño, Colombia). https://doi.org/10.5281/zenodo.6395340⁵⁵

This project contains the following extended data:

- Housing survey.docx
- Housing survey English.docx
- People survey.docx
- People survey English.docx

Data are available under the terms of the Creative Commons Attribution 4.0 International license (CC-BY 4.0).

Competing interests

No competing interests were disclosed.

Grant information

This study was funded by Minciencias “Malaria Elimination: A Challenge for Colombia” Project. Code: 622177757170.

References

1. Padilla JC, Chaparro PE, Molina K, et al.: Is there malaria transmission in urban settings in Colombia?. Malar. J. 2015; 14(1): 453. PubMed Abstract | Publisher Full Text
2. Méndez F, Carrasquilla JG: Epidemiología de la malaria en el area urbana de Buenaventura. Análisis de la ocurrencia en el período 1987-1993. Colomb. Med. 1995; 26(3): 77–85.
3. World Health Organization: World malaria report 2021. Geneva: World Health Organization; 2021. 1–322. Reference Source
4. Instituto Nacional de Salud: Informe de evento malaria, Colombia, 2020. Bogotá D.C.;.2020. Reference Source
5. Organizacion Panamerica de la Salud: Plan estratégico nacional de malaria 2019-2022. Bogotá D. C.2020; p. 4–45. Reference Source
6. Wongsrichanalai C, Barcus MJ, Muth S, et al.: A review of malaria diagnostic tools: Microscopy and rapid diagnostic test (RDT). Am J Trop Med Hyg. 2007; 77(SUPPL. 6): 119–127. PubMed Abstract | Publisher Full Text
7. Rosenthal PJ: How do we best diagnose malaria in Africa?. Am J Trop Med Hyg. 2012; 86(2): 192–193. PubMed Abstract | Publisher Full Text
8. Picot S, Cucherat M, Bienvenu AL: Systematic review and meta-analysis of diagnostic accuracy of loop-mediated isothermal amplification (LAMP) methods compared with microscopy, polymerase chain reaction and rapid diagnostic tests for malaria diagnosis. Int. J. Infect. Dis. 2020; 98: 408–419. PubMed Abstract | Publisher Full Text
9. Menegon M, L’Episcopia M, Nurahmed AM, et al.: Identification of Plasmodium falciparum isolates lacking histidine-rich protein 2 and 3 in Eritrea. Infect. Genet. Evol. 2017; 55(September): 131–134. PubMed Abstract | Publisher Full Text
10. Beshir KB, Sepúlveda N, Bharmal J, et al.: Plasmodium falciparum parasites with histidine-rich protein 2 (pfhrp2) and pfhrp3 gene deletions in two endemic regions of Kenya. Sci. Rep. 2017; 7(1): 1–10. Publisher Full Text
11. Okell LC, Ghani AC, Lyons E, et al.: Submicroscopic infection in plasmodium falciparum-endemic populations: A systematic review and meta-analysis. J. Infect. Dis. 2009; 200(10): 1509–1517. PubMed Abstract | Publisher Full Text
12. Molina Gómez K, Caicedo MA, Gaitán A, et al.: Characterizing the malaria rural-to-urban transmission interface: The importance of reactive case detection. PLoS Negl. Trop. Dis. 2017; 11(7): 1–15. Publisher Full Text
13. Recht J, Siqueira AM, Monteiro WM, et al.: Malaria in Brazil, Colombia, Peru and Venezuela: Current challenges in malaria control and elimination. Malar. J. 2017; 16(1): 1–18. Publisher Full Text
14. Johansen IC, Rodrigues PT, Ferreira MU: Human mobility and urban malaria risk in the main transmission hotspot of Amazonian Brazil. PLoS One. 2020; 15(11 November): e0242357–e0242318. PubMed Abstract | Publisher Full Text
15. Tada MS, Marques RP, Mesquita E, et al.: Urban malaria in the Brazilian Western Amazon Region I. High prevalence of asymptomatic carriers in an urban riverside district is associated with a high level of clinical malaria. Mem. Inst. Oswaldo Cruz. 2007; 102(3): 263–270. PubMed Abstract | Publisher Full Text
16. Branch OL, Casapia WM, Gamboa DV, et al.: Clustered local transmission and asymptomatic Plasmodium falciparum and Plasmodium vivax malaria infections in a recently emerged, hypoendemic Peruvian Amazon community. Malar. J. 2005; 4: 1–16. Publisher Full Text
17. Rosas-Aguirre A, Llanos-Cuentas A, Speybroeck N, et al.: Assessing malaria transmission in a low endemicity area of north-western Peru. Malar. J. 2013; 12(1): 1. Publisher Full Text
18. Arróspide N, Miranda E, Casas J: Malaria urbana por Plasmodium vivax en la Molina, Lima. Rev. Peru. Med. Exp. Salud Publica. 2007; 24(2): 193–194.
19. Olano V, Carrasquilla G, Méndez F: Transmision de la malaria urbana en Buenaventura, Colombia: Aspectos entomologicos. Rev. Panam Salud Publica/Pan. Am. J. Public Heal. 1997; 2(6): 378–385. Publisher Full Text
20. Mendez F, Carrasquilla G, Muñoz A: Risk factors associated with malaria infection in an urban setting. Trans. R. Soc. Trop. Med. Hyg. 2000; 94(4): 367–371. PubMed Abstract | Publisher Full Text
21. Ochoa J, Osorio L: Epidemiology of urban malaria in Quibdo, Choco. Biomedica. 2006; 26(2): 278–285. PubMed Abstract | Publisher Full Text
22. Buitrago LS, Brochero HL, McKeon SN, et al.: First published record of urban malaria in Puerto Gaitán, Meta, Colombia. Mem. Inst. Oswaldo Cruz. 2013; 108(8): 1045–1050. PubMed Abstract | Publisher Full Text
23. Chaparro PE, Molina K, Alzate A, et al.: Urban malaria transmission in a non-endemic area in the Andean region of Colombia. Mem. Inst. Oswaldo Cruz. 2017; 112(12): 797–804. PubMed Abstract | Publisher Full Text
24. Murillo OL, Padilla JC, Escobar JP, et al.: Desafíos hacia la eliminación de la malaria urbana/peri en Guapi (Colombia), 2016. Entramado. 2018; 14(2): 272–284. Reference Source
25. Cucunubá ZM, Guerra ÁP, Rivera JA, et al.: Comparison of asymptomatic plasmodium spp. infection in two malaria-endemic colombian locations. Trans. R. Soc. Trop. Med. Hyg. 2013; 107(2): 129–136. PubMed Abstract | Publisher Full Text
26. Knudson A, González-Casabianca F, Feged-Rivadeneira A, et al.: Spatio-temporal dynamics of Plasmodium falciparum transmission within a spatial unit on the Colombian Pacific Coast. Sci. Rep. 2020; 10(1): 1–16. Publisher Full Text
27. Statistic Canada Office: Canada’s National Statistical Survey–sampling error. Otawa.1985.
28. Cámara de Comercio de Tumaco: Dinámica social, económica y empresarial. Tumaco.2019. 342 p. Reference Source
29. DANE: Proyecciones y retroproyecciones de población municipal para el periodo 1985-2017 y 2018-2035 con base en el CNPV 2018.2021 [cited 2021 Dec 1]. Reference Source
30. Instituto Nacional Salud: Guía para la vigilancia por laboratorio de parásitos del género Plasmodium spp. Bogotá D.C.2017. p. 1–24. Reference Source
31. Howard RJ, Uni S, Aikawa M, et al.: Secretion of a malarial histidine-rich protein (Pf HRP II) from Plasmodium falciparum-infected erythrocytes. J. Cell Biol. 1986; 103(4): 1269–1277. PubMed Abstract | Publisher Full Text | Free Full Text
32. Parra ME, Evans CB, Taylor DW: Identification of Plasmodium falciparum Histidine-Rich Protein 2 in the Plasma of. Humans with Malaria. 1991; 29(8): 1629–1634. Publisher Full Text
33. González R, Carrejo N: Introducción al estudio taxonómico de Anopheles de Colombia: claves y notas de distribución. Cali: Programa Editorial Universidad del Valle; Segunda ed2018; 260.
34. Lane J, Cerqueira N: Os sabetíneos da América (Diptera, Culicidae). Arq Zool do Estado São Paulo. 1942; 3: 473–849.
35. Lane J: Neotropical Culicidae: Volumes I & II. 1st ed.Sao Paulo: University of Sao Paulo; 1953; 1111.
36. Forattini OP: Entomologia médica. São Paulo: USP; 1965.
37. OMS: Terminología del paludismo. Ginebra.2017. 48 p. Reference Source
38. Bousema T, Okell L, Felger I, et al.: Asymptomatic malaria infections: Detectability, transmissibility and public health relevance. Nat. Rev. Microbiol. 2014; 12(12): 833–840. PubMed Abstract | Publisher Full Text
39. Almeida ACG, Kuehn A, Castro AJM, et al.: High proportions of asymptomatic and submicroscopic Plasmodium vivax infections in a peri-urban area of low transmission in the Brazilian Amazon. Parasites Vectors. 2018; 11(1): 1–13. PubMed Abstract | Publisher Full Text
40. Johansen IC, Rodrigues PT, Tonini J, et al.: Cohort profile: The Mâncio Lima cohort study of urban malaria in Amazonian Brazil. BMJ Open. 2021; 11(11): e048073–e048078. Publisher Full Text
41. Osorio L, Todd J, Bradley D: Ausencia de malaria asintomática en escolares de Quibdó, Chocó. Biomedica. 2004; 24(1): 13. Publisher Full Text
42. Molina Gómez K, Caicedo MA, Gaitán A, et al.: Characterizing the malaria rural-to-urban transmission interface: The importance of reactive case detection. PLoS Negl. Trop. Dis. 2017; 11(7): e0005780. PubMed Abstract | Publisher Full Text
43. Kazembe LN, Mathanga DP: Estimating risk factors of urban malaria in Blantyre, Malawi: A spatial regression analysis. Asian Pac. J. Trop. Biomed. 2016; 6(5): 376–381. Publisher Full Text
44. Kateera F, Mens PF, Hakizimana E, et al.: Malaria parasite carriage and risk determinants in a rural population: A malariometric survey in Rwanda. Malar. J. 2015; 14(1): 1–11. Publisher Full Text
45. Lwetoijera DW, Kiware SS, Mageni ZD, et al.: A need for better housing to further reduce indoor malaria transmission in areas with high bed net coverage. Parasites Vectors. 2013; 6(1): 1. Publisher Full Text
46. Takken W, Knols BGJ: Odor-mediated behavior of Afrotropical malaria mosquitoes. Annu. Rev. Entomol. 1999; 44(May 2014): 131–157. PubMed Abstract | Publisher Full Text
47. Ipa M, Widawati M, Laksono AD, et al.: Variation of preventive practices and its association with malaria infection in eastern Indonesia: Findings from community-based survey. PLoS One. 2020; 15(5): e0232909–e0232918. PubMed Abstract | Publisher Full Text
48. Mudare N, Matsena-Zingoni Z, Makuwaza A, et al.: Detecting Plasmodium falciparum in community surveys: a comparison of Paracheck Pf^® Test and ICT Malaria Pf^® Cassette Test to polymerase chain reaction in Mutasa District, Zimbabwe. Malar. J. 2021; 20(1): 14–17. PubMed Abstract | Publisher Full Text
49. Awosolu OB, Yahaya ZS, Farah Haziqah MT, et al.: A cross-sectional study of the prevalence, density, and risk factors associated with malaria transmission in urban communities of Ibadan, Southwestern Nigeria. Heliyon. 2021; 7(1): e05975. Publisher Full Text
50. Quang HH, Chavchich M, Minh Trinh NT, et al.: Cross-sectional survey of asymptomatic malaria in Dak Nong province in the Central Highlands of Vietnam for the malaria elimination roadmap. PLoS One. 2021; 16(10 October 2021): e0258580–e0258518. PubMed Abstract | Publisher Full Text
51. Frimpong A, Amponsah J, Adjokatseh AS, et al.: Asymptomatic Malaria Infection Is Maintained by a Balanced Pro- and Anti-inflammatory Response. Front. Microbiol. 2020; 11(November). PubMed Abstract | Publisher Full Text
52. Cheng Q, Gatton ML, Barnwell J, et al.: Plasmodium falciparum parasites lacking histidine-rich protein 2 and 3: A review and recommendations for accurate reporting. Malar. J. 2014; 13(1): 1–8. Publisher Full Text
53. Murillo Solano C, Akinyi Okoth S, Abdallah JF, et al.: Deletion of Plasmodium falciparum Histidine-Rich Protein 2 (pfhrp2) and Histidine-Rich Protein 3 (pfhrp3) Genes in Colombian Parasites. PLoS One. 2015; 10(7): e0131576. PubMed Abstract | Publisher Full Text
54. Feleke SM, Reichert EN, Mohammed H, et al.: Emergence and evolution of Plasmodium falciparum histidine-rich protein 2 2 and 3 deletion mutant parasites in Ethiopia. medRxiv. 2021.
55. Chaparro-Narváez PE, Jiménez-Serna MM, Gunturiz-Albarracin ML, et al.: Malaria Prevalence in Commune 5 in Tumaco (Nariño, Colombia) [data]. Zenodo. 2022. Publisher Full Text

Comments on this article Comments (0)

Version 3

VERSION 3 PUBLISHED 21 Apr 2022

Author details Author details

Pablo Enrique Chaparro Narváez
Roles: Conceptualization, Formal Analysis, Funding Acquisition, Investigation, Methodology, Writing – Original Draft Preparation, Writing – Review & Editing

Maria Luz Gunturiz Albarracin
Roles: Conceptualization, Formal Analysis, Funding Acquisition, Investigation, Methodology, Writing – Original Draft Preparation, Writing – Review & Editing

Gabriel Carrasquilla Gutierrez
Roles: Conceptualization, Funding Acquisition, Methodology, Validation, Writing – Review & Editing

Competing interests

No competing interests were disclosed.

Grant information

This study was funded by Minciencias “Malaria Elimination: A Challenge for Colombia” Project. Code: 622177757170.
The funders had no role in study design, data collection and analysis, decision to publish, or preparation of the manuscript.

Article Versions (3)

version 3

Revised

Published: 19 Jul 2023, 11:448

https://doi.org/10.12688/f1000research.110361.3

version 2

Revised

Published: 08 Sep 2022, 11:448

https://doi.org/10.12688/f1000research.110361.2

version 1

Published: 21 Apr 2022, 11:448

https://doi.org/10.12688/f1000research.110361.1

© 2022 Chaparro Narváez PE et al. This is an open access article distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited.

Download

Export To

metrics

	Views	Downloads
F1000Research	-	-
PubMed Central Data from PMC are received and updated monthly.	-	-

Citations

SEE MORE DETAILS

CITE

how to cite this article

Chaparro Narváez PE, Jimenez-Serna MM, Gunturiz Albarracin ML and Carrasquilla Gutierrez G. Malaria prevalence in Commune 5 in Tumaco (Nariño, Colombia) [version 1; peer review: 1 approved, 1 approved with reservations]. F1000Research 2022, 11:448 (https://doi.org/10.12688/f1000research.110361.1)

NOTE: If applicable, it is important to ensure the information in square brackets after the title is included in all citations of this article.

track

receive updates on this article

Track an article to receive email alerts on any updates to this article.

Open Peer Review

Version 1

VERSION 1

PUBLISHED 21 Apr 2022

Views

Reviewer Report 23 May 2022

Meor Termizi Farah Haziqah, School of Biological Sciences, Universiti Sains Malaysia, Penang, Malaysia

Approved

https://doi.org/10.5256/f1000research.121958.r135483

This paper discusses malaria prevalence based on several methods (microscopy examination, RDT, and PCR), detection of pfhrp 2/3 genes as well as explores the associated factors for malaria infection in the urban area (Commune 5) in Tumaco, Colombia in 2019. The main contribution of the paper is mainly on the information on malaria infection in Tumaco, Colombia with the most recent status of malaria infection was found to be very low with only 2.97% prevalence out of 1,504 individuals being examined. Other than that, it was found that all the positive cases were caused by Plasmodium falciparum and this study also manages to detect the main vector species for this parasite which is the Anopheles albimanus. The larvae were detected in a pond and a well whereas the adults were detected indoors and in peri-domestic areas.

However, there are a few suggestions that need to be considered such as follows:

Figure 1: it is advisable to have a better mapping as the map provided is not clearly demonstrating the study areas. For example, putting the legends on the map indicating Commune 5 and the map becomes more legible.
The total number of samples for each of the laboratory procedures (i.e. techniques used to detect malaria) need to be stated clearly.
It would be better and more understandable to include a schematic diagram of the study sampling technique.
As for DEFINITION in methods, reword the sentence and provide it in the form of a paragraph which explains in detail the definition used in this paper.

Therefore, I recommend that this paper be Approved after minor revision.

Is the work clearly and accurately presented and does it cite the current literature?

Yes
Is the study design appropriate and is the work technically sound?

Yes
Are sufficient details of methods and analysis provided to allow replication by others?

Yes
If applicable, is the statistical analysis and its interpretation appropriate?

Yes
Are all the source data underlying the results available to ensure full reproducibility?

Yes
Are the conclusions drawn adequately supported by the results?

Yes

Competing Interests: No competing interests were disclosed.

Reviewer Expertise: Parasitology

I confirm that I have read this submission and believe that I have an appropriate level of expertise to confirm that it is of an acceptable scientific standard.

CITE

Report a concern

Author Response 08 Sep 2022

Pablo Enrique Chaparro Narváez, Observatorio Nacional de Salud, Instituto Nacional de Salud, Bogotá, 111321, Colombia

08 Sep 2022

Author Response

Thank you for your review. These are our answers for your review:

Figure 1: it is advisable to have a better mapping as the map provided is not clearly ... Continue reading Thank you for your review. These are our answers for your review:

Figure 1: it is advisable to have a better mapping as the map provided is not clearly demonstrating the study areas. For example, putting the legends on the map indicating Commune 5 and the map becomes more legible.
A: We have shown the study area on the map and have included the legends

The total number of samples for each of the laboratory procedures (i.e. techniques used to detect malaria) need to be stated clearly.
A: The prevalence was established from 1,504 microscopic examinations, 1,504 rapid diagnostic tests, and 1,504 PCR.

It would be better and more understandable to include a schematic diagram of the study sampling technique.
A: We have included the schematic diagram of the study's sampling technique

As for DEFINITION in methods, reword the sentence and provide it in the form of a paragraph which explains in detail the definition used in this paper.
A: This study assumed the definitions of symptomatic malaria, asymptomatic malaria, and submicroscopic malaria. Symptomatic malaria corresponded to an individual with positive microscopy/RDT and symptoms of malaria, such as fever, chills, vomiting, convulsions, malaise, headache and/or loss of appetite. Asymptomatic malaria corresponded to an individual with positive microscopy/RDT or PCR, without symptoms. ^38,39. Submicroscopic malaria corresponded to an individual with positive PCR and negative microscopy/RDT. Submicroscopic infections are almost exclusively asymptomatic. ³⁹
Thank you for your review. These are our answers for your review:

Figure 1: it is advisable to have a better mapping as the map provided is not clearly demonstrating the study areas. For example, putting the legends on the map indicating Commune 5 and the map becomes more legible.
A: We have shown the study area on the map and have included the legends

The total number of samples for each of the laboratory procedures (i.e. techniques used to detect malaria) need to be stated clearly.
A: The prevalence was established from 1,504 microscopic examinations, 1,504 rapid diagnostic tests, and 1,504 PCR.

It would be better and more understandable to include a schematic diagram of the study sampling technique.
A: We have included the schematic diagram of the study's sampling technique

As for DEFINITION in methods, reword the sentence and provide it in the form of a paragraph which explains in detail the definition used in this paper.
A: This study assumed the definitions of symptomatic malaria, asymptomatic malaria, and submicroscopic malaria. Symptomatic malaria corresponded to an individual with positive microscopy/RDT and symptoms of malaria, such as fever, chills, vomiting, convulsions, malaise, headache and/or loss of appetite. Asymptomatic malaria corresponded to an individual with positive microscopy/RDT or PCR, without symptoms. ^38,39. Submicroscopic malaria corresponded to an individual with positive PCR and negative microscopy/RDT. Submicroscopic infections are almost exclusively asymptomatic. ³⁹
Competing Interests: No competing interests were disclosed. Close
Report a concern
Respond or Comment

COMMENTS ON THIS REPORT

Author Response 08 Sep 2022

Pablo Enrique Chaparro Narváez, Observatorio Nacional de Salud, Instituto Nacional de Salud, Bogotá, 111321, Colombia

08 Sep 2022

Author Response

Thank you for your review. These are our answers for your review:

Figure 1: it is advisable to have a better mapping as the map provided is not clearly ... Continue reading Thank you for your review. These are our answers for your review:

Figure 1: it is advisable to have a better mapping as the map provided is not clearly demonstrating the study areas. For example, putting the legends on the map indicating Commune 5 and the map becomes more legible.
A: We have shown the study area on the map and have included the legends

The total number of samples for each of the laboratory procedures (i.e. techniques used to detect malaria) need to be stated clearly.
A: The prevalence was established from 1,504 microscopic examinations, 1,504 rapid diagnostic tests, and 1,504 PCR.

It would be better and more understandable to include a schematic diagram of the study sampling technique.
A: We have included the schematic diagram of the study's sampling technique

As for DEFINITION in methods, reword the sentence and provide it in the form of a paragraph which explains in detail the definition used in this paper.
A: This study assumed the definitions of symptomatic malaria, asymptomatic malaria, and submicroscopic malaria. Symptomatic malaria corresponded to an individual with positive microscopy/RDT and symptoms of malaria, such as fever, chills, vomiting, convulsions, malaise, headache and/or loss of appetite. Asymptomatic malaria corresponded to an individual with positive microscopy/RDT or PCR, without symptoms. ^38,39. Submicroscopic malaria corresponded to an individual with positive PCR and negative microscopy/RDT. Submicroscopic infections are almost exclusively asymptomatic. ³⁹
Thank you for your review. These are our answers for your review:

Figure 1: it is advisable to have a better mapping as the map provided is not clearly demonstrating the study areas. For example, putting the legends on the map indicating Commune 5 and the map becomes more legible.
A: We have shown the study area on the map and have included the legends

The total number of samples for each of the laboratory procedures (i.e. techniques used to detect malaria) need to be stated clearly.
A: The prevalence was established from 1,504 microscopic examinations, 1,504 rapid diagnostic tests, and 1,504 PCR.

It would be better and more understandable to include a schematic diagram of the study sampling technique.
A: We have included the schematic diagram of the study's sampling technique

As for DEFINITION in methods, reword the sentence and provide it in the form of a paragraph which explains in detail the definition used in this paper.
A: This study assumed the definitions of symptomatic malaria, asymptomatic malaria, and submicroscopic malaria. Symptomatic malaria corresponded to an individual with positive microscopy/RDT and symptoms of malaria, such as fever, chills, vomiting, convulsions, malaise, headache and/or loss of appetite. Asymptomatic malaria corresponded to an individual with positive microscopy/RDT or PCR, without symptoms. ^38,39. Submicroscopic malaria corresponded to an individual with positive PCR and negative microscopy/RDT. Submicroscopic infections are almost exclusively asymptomatic. ³⁹
Competing Interests: No competing interests were disclosed. Close
Report a concern

Views

Reviewer Report 16 May 2022

Martha Cecilia Suárez-Mutis, Instituto Oswaldo Cruz, Laboratório de Doenças Parasitárias, Fundação Oswaldo Cruz, Rio de Janeiro, Brazil

Approved with Reservations

https://doi.org/10.5256/f1000research.121958.r135485

Malaria prevalence in Commune 5 in Tumaco (Nariño, Colombia)

This is a very interesting study about the prevalence of malaria in an urban area of the Pacific Coast of Colombia. The data is relevant, but there are some areas that need further clarification before indexing.

Introduction

Page 3:

The authors said, “To overcome the limitations of optical microscopy and RDTs, molecular detection of malaria parasites through the polymerase chain reaction (PCR) was used”. It is true that optical microscopy and RDT have imitations, but it is important that the authors describe the context in which molecular assays are important.

The authors said, “Regarding urban malaria, there are challenges in terms of what is meant by “urban”, “peri-urban”, “rural” and “urban malaria”. “Urban malaria” is repeated in this sentence.

The authors said, “Despite these difficulties, it has been established that urban and peri-urban malaria is caused by population traveling from rural to urban and peri-urban areas¹³ and trips from rural areas to urban areas and vice versa”. This information is not exact. It depends on the context. Several African and Amazonian cities have larval habitats that determine autochthones malaria cases. On the other hand, what is the difference between “traveling from rural to urban and peri-urban” and “trips from rural areas to urban areas and vice versa”?

The authors said, “Given the limited research on malaria prevalence carried out in the Colombian territory and the detection of pfhrp 2/3 genes in urban areas, this study was aimed at estimating malaria prevalence, detecting pfhrp2/3 genes, and exploring associated factors in the urban area (Commune 5) in Tumaco during 2019”. From Public Health programs, it is important to detect the percentage of deletions of the Pfhrp2/3 genes in a population.

Page 4:

About the inclusion criteria, the authors said that “minors who have the authorization of the responsible adult or guardian” were included. Was there not a minimum age for inclusion of children? The authors said that “a prevalence study was conducted in Commune 5 of Tumaco, a malaria-endemic urban area”. The authors should inform the criteria for selection of Commune 5 in Tumaco municipality. Is this the only Commune that has malaria? A better description of Commune 5 is necessary. How many inhabitants live there? Where is Commune 5 located? In the middle or in the periphery of the city? In the figure it seems that there is a river? What is the name of the river? The authors said that “In Tumaco, in the urban area, malaria is concentrated in Commune 5, where nearly 70% of the cases are found and there are breeding sites of Anopheles spp.”. 70% of urban cases are originated of the Commune 5? The idea is not clear. It is much better to say: In the urban area of Tumaco, 70% of malaria cases are found in the Commune 5 where there are breeding sites (our larval habitats) for Anophelines spp. too. What kind of larval habitats are in this Commune 5?

Page 6:

The authors collected blood for thick smear, RDTs and whole blood and filter paper samples, but in the methods, there is no information about the methods and the quantity of total blood was collected for PCR and filter paper samples. Please add this information.

On the other hand, for better understanding, we suggest that data about DNA extraction will be added before PCR experiments. The authors only add information about DNA extraction from filter paper but not for the whole blood extraction. Was it made? If whole blood extraction was done, DNA was extracted from what quantity of blood?

Page 7:

Please add the reference of the protocol that was used for amplified Pfhrp2/3 genes.

For entomological collections, how many capture points were sampled? How many days, or how many times were the adult captures done?

The authors defined “Asymptomatic malaria as Individual with positive microscopy/RDT or PCR, without symptoms”. It is important to remember that with this definition, individuals could be in a prepatogenic period or be an asymptomatic individual. The same reasoning goes for “Submicroscopic malaria”. The individual can be in the prepathogenic period or she/he can be in recovering period. Questions about malaria in the last month or to use malaria drugs in the last month were done?

Results:

Table 3 included some categories that should not be included. For example, the variables “Educational level” and “civil status” for children under 5 years old.

Page 11:

Authors said that “and through PCR it was 2.16%”. Exclude “it” in this sentence. Notably, only one individual with symptoms was PCR (+) and 6 with thick smear/RDT were symptomatic. Were these individuals negative in the PCR or was the PCR not done in these patients?

Authors said that, “The prevalence of amplification of the pfhrp2 gene was 2.16% (95% CI: 1.58% - 2.94%), and for the pfhrp3 gene and the PvSSU gene it was 0”. The literature for Pfhrp2/3 usually shows the percentage of gene deletion not the percentage of detection of these genes. It is expected that P. falciparum samples carry the gene. It is extremally important that authors confirm if they effectively detected the gene or if they are showing the deletion of the gene. What does the percentage actually mean?

Page 14:

Discussion:

The authors said that “The prevalence of malaria was 2.97%. It was higher (4.42%) in the 10 to 19 age group”, but in the table 4, the 0-9 age group the prevalence was 4.06. Was there any statistical difference found in malaria cases in children between 0 and 9 years old and 10 and 19 years old?

The authors said that “The study found malaria in Commune 5, an area believed to have high transmission according to reports from the Vector-Borne Disease Prevention and Control Program in the Nariño Department (API 2014 84.0 cases per 1,000 inhabitants; API 2015 220.5 and API 2016 165.8)”. Please add a reference. A better discussion using previous knowledge of malaria in this area must be added. If this area was classified as high malaria risk in the past, why did the results show this low prevalence? How do we interpret these results? What´s causing the different prevalence between age groups? How do we understand this epidemiology?

In order to better interpret the results it is necessary to add more information. For example, when was the study done? (Year and month)? In this locality, is malaria seasonal? Was the study carried out during the high malaria season?

The authors said that “In urban areas, malaria infection is not expected to be prevalent due to better-designed households with better basic utilities, better access to health services, and the absence of mosquito breeding sites”. They use a reference about taxonomy and not specifically urban malaria. Studies about urban malaria around the world show that there are specific determinants for malaria transmission in these areas. Larval habitats usually are very near to these urban areas. This does not seem to be the case in this area where the prevalence was very low.

The authors found a lack of concordance between microscopy/RDT and PCR tests. As they did not separate microscopy and RDT is difficult to interpret this result. A technical problem can occur when a positive microscopy is comparing with PCR. One question is, did the authors do quality control for thick smears? As primers are very specific, it is difficult to explain a positive thick smear with a negative PCR.

On the other hand, a positive microscopy with a negative RDT is probably because the limit of detection of RDT. The same rational is true for negative RDT with positive PCR. Cases of negative thick smear with positive RDT could be explained because Pfhrp2 antigen could be detected in the blood until 30 days after a good malaria treatment.

Anyway, it is necessary that authors add this information in the discussion and include it in the results a separate data for microscopy, RDT and PCR results (including in symptomatic and asymptomatic individuals).

Page 15:

The authors said that “In terms of age groups, the highest prevalence of malaria was observed in the 10 to 19 age group and as age increased, prevalence decreased. This result is similar to that reported in other studies. Older people are likely to have a lower risk of becoming ill because they may develop some immunity if they have been previously exposed to the infection”. Was there any question about malaria antecedents in the questionnaire? How many malaria episodes did the participants have before the study? Or, how many participants had at least one previous malaria episode before the study? These are important questions that the authors did not address.

The authors said that “Furthermore, asymptomatic malaria may precede symptomatic disease, and may confer partial immunity against infection”. Asymptomatic Plasmodium infection is an important field of study and until now many questions continue open for discussion. It seems clear that asymptomatic infections occur in individuals with several past malaria episodes and this status is product of clinical immunity develop along time. This “status of Plasmodium asymptomatic infection” is different of those individuals whose blood were collected during the pre-pathogenic period before the beginning of malaria paroxysm. They could be in the “incubation period” and the number of parasites circulating in blood do not still reach the parasitic threshold for clinical symptoms. A better discussion about authors results and their interpretation must be added.

About discussion of Pfhrp2, we added above this sentence: “Authors said that “The prevalence of amplification of the pfhrp2 gene was 2.16% (95% CI: 1.58% - 2.94%), and for the pfhrp3 gene and the PvSSU gene it was 0”. The literature for Pfhrp2/3 usually show the percentage of gene deletion not the percentage of detection of these genes. It is expected that P falciparum samples carry the gene. It is extremally important that authors confirm if they effectively detected the gene or if they are showing the deletion of the gene. What does the percentage actually mean?”. For the discussion, it is very important to know what was really detected by the authors - the deletion of gene or the gene?

The authors said that “On the other hand, in the Commune 5 neighborhoods of Tumaco, An. albimanus was found in artificial ponds and wells”. This data was not added in the results section.

Regarding anopheline transmission in this study, it would be interesting if the authors added a discussion about ecological conditions for malaria transmission of An. albimanus. Furthermore, a critical analysis of the constraints of entomological studies must be incorporated.

Is the work clearly and accurately presented and does it cite the current literature?

Yes
Is the study design appropriate and is the work technically sound?

Partly
Are sufficient details of methods and analysis provided to allow replication by others?

Yes
If applicable, is the statistical analysis and its interpretation appropriate?

Partly
Are all the source data underlying the results available to ensure full reproducibility?

Yes
Are the conclusions drawn adequately supported by the results?

Partly

Competing Interests: No competing interests were disclosed.

Reviewer Expertise: Malaria epidemiology and molecular epidemiology of Plasmodium infections; malaria diagnosis, Pfhrp2/3 deletion detection; asymptomatic Plasmodium infections.

I confirm that I have read this submission and believe that I have an appropriate level of expertise to confirm that it is of an acceptable scientific standard, however I have significant reservations, as outlined above.

CITE

Report a concern

Author Response 08 Sep 2022

Pablo Enrique Chaparro Narváez, Observatorio Nacional de Salud, Instituto Nacional de Salud, Bogotá, 111321, Colombia

08 Sep 2022

Author Response
Thank you for your constructive review. These are our answers for your review:

Introduction
Page 3:
The authors said, “To overcome the limitations of optical microscopy and RDTs, molecular ... Continue reading
Thank you for your constructive review. These are our answers for your review:

Introduction
Page 3:
The authors said, “To overcome the limitations of optical microscopy and RDTs, molecular detection of malaria parasites through the polymerase chain reaction (PCR) was used”. It is true that optical microscopy and RDT have imitations, but it is important that the authors describe the context in which molecular assays are important.

The following paragraph was included: “PCR is a more sensitive diagnostic method to detect asymptomatic infections with very low parasite density. It may be useful in studies of submicroscopic infections, although its utility depends on the epidemiological importance of low-density infections, which have not yet been characterized” (Framework for malaria elimination)

The authors said, “Regarding urban malaria, there are challenges in terms of what is meant by “urban”, “peri-urban”, “rural” and “urban malaria”. “Urban malaria” is repeated in this sentence.

We corrected

The authors said,
“Despite these difficulties, it has been established that urban and peri-urban malaria is caused by population traveling from rural to urban and peri-urban areas13 and trips from rural areas to urban areas and vice versa”. This information is not exact. It depends on the context. Several African and Amazonian cities have larval habitats that determine autochthones malaria cases. On the other hand, what is the difference between “traveling from rural to urban and peri-urban” and “trips from rural areas to urban areas and vice versa”?

We adjusted: “Despite these difficulties, it has been established that urban and peri-urban malaria may be transmitted by population traveling from rural to urban and peri-urban areas (14,15) Local transmission has also been suggested in urban areas where the presence of Anopheles, as a competent vector, and infected people converge (13)”

The authors said, “Given the limited research on malaria prevalence carried out in the Colombian territory and the detection of pfhrp 2/3 genes in urban areas, this study was aimed at estimating malaria prevalence, detecting pfhrp2/3 genes, and exploring associated factors in the urban area
(Commune 5) in Tumaco during 2019”. From Public Health programs, it is important to detect the percentage of deletions of the Pfhrp2/3 genes in a population.

One of the objectives of the study was to detect gene fragments of Pfhrp2/3. The deletion of these genes was not evaluated. However, to improve malaria elimination programs, it is necessary to determine these deletions since, at least in Colombia, the RDTs used for diagnosis are based on these genes, and of course, deletions would generate false negatives.

Methods
Page 4:
About the inclusion criteria, the authors said that “minors who have the authorization of the responsible adult or guardian” were included. Was there not a minimum age for inclusion of children?

There is no minimum age for the inclusion of children.

The authors said that “a prevalence study was conducted in Commune 5 of Tumaco, a malaria-endemic urban area”. The authors should inform the criteria for selection of Commune 5 in Tumaco municipality. Is this the only Commune that has malaria?

We corrected: In the urban area of Tumaco, all five communes are endemic to malaria. In this city, 70% of malaria cases are reported from commune 5 in the last ten years

A better description of Commune 5 is necessary. How many inhabitants live there? Where is Commune 5 located? In the middle or in the periphery of the city? In the figure it seems that there is a river? What is the name of the river?

We corrected: Commune 5, with 26,000 inhabitants, is in the continental area of Tumaco on the low-tide land and nearby estuaries. The presence of Anophelines sppn breeding sites (ponds, puddles, and lakes for shrimp farming) and the high density of the population make this commune of high risk of malaria transmission.

In the figure, the image corresponds to an estuary. It's not a river.

The authors said that “In Tumaco, in the urban area, malaria is concentrated in Commune 5, where nearly 70% of the cases are found and there are breeding sites of Anopheles spp.”. 70% of urban cases are originated of the Commune 5? The idea is not clear. It is much better to say: In the urban area of Tumaco, 70% of malaria cases are found in the Commune 5 where there are breeding sites (our larval habitats) for Anophelines spp. too. What kind of larval habitats are in this Commune 5?

We included the suggested phrase and larval habitats.

Page 6:
The authors collected blood for thick smear, RDTs and whole blood and filter paper samples, but
in the methods, there is no information about the methods and the quantity of total blood was collected for PCR and filter paper samples. Please add this information.

We have included: For PCR, two drops of blood were obtained from the same finger puncture and were then put on the filter paper

On the other hand, for better understanding, we suggest that data about DNA extraction will be added before PCR experiments.

We have made the suggested change.

The authors only add information about DNA extraction from filter paper but not for the whole blood extraction. Was it made? If whole blood extraction was done, DNA was extracted from what quantity of blood?

We have included: 10 mm² of Whatman #3 filter paper impregnated with blood were taken and genomic DNA extraction was performed according to the protocol described in the article. This procedure was performed in duplicate.

Page 7:
Please add the reference of the protocol that was used for amplified Pfhrp2/3 genes.

We have included: For the amplification of the different fragments of the genes mentioned, we designed the specific primers and the PCR conditions for each of them were standardized. For the design of the primers, the GC content, dimer formation, loop formation, palindromes and Tm were taken into account. The sequences of the HRP2/HRP3 and PvSSU genes published in the Genbank were used, an alignment was performed using clustalW (Refseq) and the primers were designed from conserved regions of the sequences obtained.

For entomological collections, how many capture points were sampled? How many days, or how many times were the adult captures done?

We have included: Between October 1 and 23, 2019, 81 capture points were sampled in 25 homes and 83 breeding places.

The authors defined “Asymptomatic malaria as Individual with positive microscopy/RDT or PCR, without symptoms”. It is important to remember that with this definition, individuals could be in a
prepatogenic period or be an asymptomatic individual. The same reasoning goes for “Submicroscopic malaria”. The individual can be in the prepathogenic period or she/he can be in recovering period. Questions about malaria in the last month or to use malaria drugs in the last month were done?

In the applied questionnaire were included the questions:

Have you had malaria in the last year, apart from the current episode?

When was the last time you had malaria?

Have you taken antimalarial drugs in the last 15 days?

Results:
Table 3 included some categories that should not be included. For example, the variables
“Educational level” and “civil status” for children under 5 years old.

We corrected:

Table 3. Characteristics of the Surveyed Population. Tumaco, July to December 2019

Characteristics
Total

Unweighted count
Weighted count

n
%
95% Confidence Interval

Age groups

0-9
272
18,32
16,0
20,9

10-19
318
21,47
19,1
24,1

20-49
626
40,88
38,64
43,15

≥50
288
19,33
16,94
21,98

Sex

Male
531
35,56
33,5
37,7

Female
973
64,44
62,3
66,5

Ethnic group

Black, African descent
1.439
95,23
91,4
97,4

Others
65
4,77
2,6
8,6

Years living in the house

0 to 4
373
25,60
22,5
28,9

5 to 9
397
25,97
22,4
29,9

10 or more
714
47,03
42,6
51,5

No information
20
1,40
0,8
2,3

Educational level*

Preschool, primary
555
40,75
37,05
44,55

High school
628
45,79
42,88
48,73

University
113
8,54
6,43
11,24

None
72
4,93
3,57
6,77

Civil status**

Has a partner
585
52.78
49.08
56.45

No partner
526
47.22
43.55
50.92

Occupation

Worker
450
30,04
26,4
34,0

Housework
399
26,26
24,0
28,7

Early childhood
158
10,46
8,8
12,4

Childhood
178
12,26
10,7
14,0

Adolescence
218
14,49
12,7
16,5

Unemployed
36
2,29
1,6
3,2

Pensioner
14
0,86
0,5
1,4

Other
51
3,34
2,4
4,6

Family income

<1 MLW (Monthly Legal Wage)
1.219
79,37
72,8
84,7

1 or more MLW
281
20,33
15,1
26,8

Does not know
4
0,30
0,1
1,7

Malaria in the last year
10
0,67
0,32
1,40

* In the “Educational level” variable, 136 children under 5 years of age were excluded.
** In the “Civil status” variable, 393 children under 14 years of age were excluded.

Page 11:
Authors said that “and through PCR it was 2.16%”. Exclude “it” in this sentence.

We exclude “it” in this sentence.

Notably, only one individual with symptoms was PCR (+) and 6 with thick smear/RDT were symptomatic. Were these individuals negative in the PCR or was the PCR not done in these patients?

Yes, these individuals were negative in the PCR. All these persons were examined by PCR.

Authors said that, “The prevalence of amplification of the pfhrp2 gene was 2.16% (95% CI: 1.58% -
2.94%), and for the pfhrp3 gene and the PvSSU gene it was 0”. The literature for Pfhrp2/3 usually shows the percentage of gene deletion not the percentage of detection of these genes. It is
expected that P. falciparum samples carry the gene. It is extremally important that authors confirm if they effectively detected the gene or if they are showing the deletion of the gene. What does the percentage actually mean?

Fragments of the Pfhrp2/3 genes were detected by PCR amplification. No assays were performed to assess the deletion of these genes. The percentage shown corresponds to the percentage of amplification of the Pfhrp2/3 genes.

Discussion:
Page 14:
The authors said that “The prevalence of malaria was 2.97%. It was higher (4.42%) in the 10 to 19 age group”, but in the table 4, the 0-9 age group the prevalence was 4.06. Was there any statistical difference found in malaria cases in children between 0 and 9 years old and 10 and 19 years old?

There were no statistically significant differences (p: 0.83). We adjust: It was higher in the 10 to 19 (4.42%) and 0 to 9 (4.06%) age groups

The authors said that “The study found malaria in Commune 5, an area believed to have high transmission according to reports from the Vector-Borne Disease Prevention and Control Program
in the Nariño Department (API 2014 84.0 cases per 1,000 inhabitants; API 2015 220.5 and API 2016 165.8)”. Please add a reference.

We add: Pilar Perez, Vector-Borne Disease Prevention and Control Program in the Nariño Department, personal communication

A better discussion using previous knowledge of malaria in this area must be added. If this area was classified as high malaria risk in the past, why did the results show this low prevalence? How do we interpret these results? What´s causing the different prevalence between age groups? How do we understand this epidemiology?

We add: The decrease in the prevalence of malaria over time is possibly due to the intensification of actions to search for and eliminate breeding sites, massive use of mosquito nets, and social participation as measures implemented for Commune 5. Diagnosis and treatment actions also have contributed, despite the difficulties that exist in accessing services. In this way, it has reduced human contact (infected) —a vector that has contributed to the decline in the burden of this disease.

The higher prevalence of malaria in people under 20 years of age suggests that the infection may have been acquired locally. Unlike Africa, which has a high transmission and where the population, most affected in terms of morbidity and mortality is under 5 years of age, in areas of low transmission such as Colombia, malaria occurs in older age groups. Among the aspects that are considered to think that the transmission occurs in the urban area are confirming the infection in the residents of these areas; evidence of the presence of adult Anopheles that are biting the inhabitants of urban dwellings and identifying breeding sites near them (40).

In order to better interpret the results it is necessary to add more information. For example, when was the study done? (Year and month)? In this locality, is malaria seasonal? Was the study carried out during the high malaria season?

The blood samples were taken during the dry season, between July and September 2019. Malaria in the urban area of Tumaco has not shown a clear seasonal behavior.

The authors said that “In urban areas, malaria infection is not expected to be prevalent due to better-designed households with better basic utilities, better access to health services, and the absence of mosquito breeding sites”. They use a reference about taxonomy and not specifically urban malaria. Studies about urban malaria around the world show that there are specific determinants for malaria transmission in these areas. Larval habitats usually are very near to these urban areas. This does not seem to be the case in this area where the prevalence was very low.

We change the reference: Larson P, Eisenberg J, Berrocal V, Mathanga D, Wilson M. An urban-to-rural continuum of malaria risk: new analytic approaches characterize patterns in Malawi. Malaria Journal 20, 418 (2021) (ref 46)

The authors found a lack of concordance between microscopy/RDT and PCR tests. As they did not separate microscopy and RDT is difficult to interpret this result. A technical problem can occur when a positive microscopy is comparing with PCR. One question is, did the authors do quality control for thick smears? As primers are very specific, it is difficult to explain a positive thick smear with a negative PCR.

The National Institute of Health performed quality control on 10% (153) of the samples analyzed by optical microscopy in accordance with national recommendations.

On the other hand, a positive microscopy with a negative RDT is probably because the limit of detection of RDT. The same rational is true for negative RDT with positive PCR. Cases of negative thick smear with positive RDT could be explained because Pfhrp2 antigen could be detected in the blood until 30 days after a good malaria treatment.
Anyway, it is necessary that authors add this information in the discussion and include it in the results a separate data for microscopy, RDT and PCR results (including in symptomatic and asymptomatic individuals).

We add: “On the other hand, positive microscopy with a negative RDT is probably because of the limit of detection of RDT. The same rationale is true for negative RDT with positive PCR. Cases of negative thick smear with positive RDT could be explained because Pfhrp2 antigen could be detected in the blood until 30 days after a good malaria treatment.”

We include in the results:

Table 5. Test results according to symptoms. Unweighted count
Commune 5 neighborhoods, Tumaco (Nariño, Colombia). October 2019

Test
Symptoms
Total

Yes
No

Optical microscopy (RDT)
6 (5)
5 (3)
11 (8)

PCR
1
27
28

Total
7
33
39

In parentheses, the cases diagnosed with RDT

Page 15:
The authors said that “In terms of age groups, the highest prevalence of malaria was observed in the 10 to 19 age group and as age increased, prevalence decreased. This result is similar to that reported in other studies. Older people are likely to have a lower risk of becoming ill because they may develop some immunity if they have been previously exposed to the infection”. Was there any question about malaria antecedents in the questionnaire? How many malaria episodes did the participants have before the study? Or, how many participants had at least one previous malaria episode before the study? These are important questions that the authors did not address.

We included in the study the questions

Have you had malaria in the last year, apart from the current episode?

When was the last time you had malaria?

Have you taken antimalarial drugs in the last 15 days?

The results are presented in the corresponding section as follows:
Ten individuals had malaria in the last year. Of them, none had malaria in the last month. They also did not have positive test results for malaria in the last 15 days, and they had not consumed antimalarial drugs.

Less than 1% of participants had malaria in the last year and none in the last month. It is possible that in areas of low endemicity, such as Colombia, the lowest prevalence in older age groups is due to the fact that the population that may have less exposure was interviewed. For example, women who remain at home dedicated to household chores and individuals of school age who go to school.

The authors said that “Furthermore, asymptomatic malaria may precede symptomatic disease, and may confer partial immunity against infection”. Asymptomatic Plasmodium infection is an important field of study and until now many questions continue open for discussion. It seems clear that asymptomatic infections occur in individuals with several past malaria episodes and this status is product of clinical immunity develop along time. This “status of Plasmodium asymptomatic infection” is different of those individuals whose blood were collected during the pre-pathogenic period before the beginning of malaria paroxysm. They could be in the “incubation period” and the number of parasites circulating in blood do not still reach the parasitic threshold for clinical symptoms. A better discussion about authors results and their interpretation must be added.

In this study, participants were sampled at a single point in time. Those who were classified as asymptomatic had no history of illness in the last month and had not used antimalarial drugs in the last 15 days. For them, it is difficult to establish if they were in the incubation period of the disease or if they were carriers of a low number of parasites. Resolving a situation like this requires follow-up. In this regard, a study of 268 people followed for 29 months in western Kenya, in a high-transmission area, discovered that asymptomatic infections were highly likely to be followed by symptomatic disease (ref 55). However, this does not seem to be the case in Commune 5 of Tumaco, which has a low transmission and where complicated malaria and malaria mortality do not occur.

About discussion of Pfhrp2, we added above this sentence: “Authors said that “The prevalence of amplification of the pfhrp2 gene was 2.16% (95% CI: 1.58% - 2.94%), and for the pfhrp3 gene and the PvSSU gene it was 0”. The literature for Pfhrp2/3 usually show the percentage of gene deletion not the percentage of detection of these genes. It is expected that P falciparum samples carry the gene. It is extremally important that authors confirm if they effectively detected the gene or if they are showing the deletion of the gene. What does the percentage actually mean?”. For the discussion, it is very important to know what was really detected by the authors - the deletion of gene or the gene?

We included: In the context of our study due to insufficient resources, we did not evaluate the deletion of these genes, we only amplified a fragment of these genes by means of PCR. However, in order to improve the management of clinical cases and design strategies for diagnosis, the detection of deletions in the HRP2/3 genes is relevant, since, as has been described, these can affect the accuracy of PDR in malaria endemic regions and of course in malaria control programs.

The authors said that “On the other hand, in the Commune 5 neighborhoods of Tumaco, An.
albimanus was found in artificial ponds and wells”. This data was not added in the results section.

These data is in the results section: “83 breeding sites were found. Out of those, two had Anopheles mosquito larvae, one in the Unión Victoria neighborhood and the other one in the Obrero neighborhood. One breeding site was a pond and the other one was a well. 32 larvae were collected in both breeding sites. 27 of them were in late stages (3rd and 4th) and were identified as An. albimanus.”

Regarding anopheline transmission in this study, it would be interesting if the authors added a discussion about ecological conditions for malaria transmission of An. albimanus.

An albimanus is considered a primary malaria vector in Colombia and particularly in Tumaco (ref 59). The presence of An. albimanus in different neighborhoods of Commune 5 provides partial evidence of the possible local transmission of malaria. This mosquito has been considered an opportunistic species due to its ability to adapt to different breeding sites (ref 60). Despite the small number of adults collected, there is a risk of transmission, taking into account that the maximum biting activity occurs in the peridomicile between 18:00 and 19:00 hours.

Furthermore, a critical analysis of the constraints of entomological studies must be incorporated.

Particular attention requires the limitation related to entomological aspects. The results presented are only an approximation to the subject. The difficulties presented did not allow them an adequate study of the ecology of the vector and to characterize the aspects related to the vector's biting density, feeding patterns, biting activity, parity rates, and resting behavior, among other issues that represent important factors for malaria transmission within the Commune 5.
Thank you for your constructive review. These are our answers for your review:

Introduction
Page 3:
The authors said, “To overcome the limitations of optical microscopy and RDTs, molecular detection of malaria parasites through the polymerase chain reaction (PCR) was used”. It is true that optical microscopy and RDT have imitations, but it is important that the authors describe the context in which molecular assays are important.

The following paragraph was included: “PCR is a more sensitive diagnostic method to detect asymptomatic infections with very low parasite density. It may be useful in studies of submicroscopic infections, although its utility depends on the epidemiological importance of low-density infections, which have not yet been characterized” (Framework for malaria elimination)

The authors said, “Regarding urban malaria, there are challenges in terms of what is meant by “urban”, “peri-urban”, “rural” and “urban malaria”. “Urban malaria” is repeated in this sentence.

We corrected

The authors said,
“Despite these difficulties, it has been established that urban and peri-urban malaria is caused by population traveling from rural to urban and peri-urban areas13 and trips from rural areas to urban areas and vice versa”. This information is not exact. It depends on the context. Several African and Amazonian cities have larval habitats that determine autochthones malaria cases. On the other hand, what is the difference between “traveling from rural to urban and peri-urban” and “trips from rural areas to urban areas and vice versa”?

We adjusted: “Despite these difficulties, it has been established that urban and peri-urban malaria may be transmitted by population traveling from rural to urban and peri-urban areas (14,15) Local transmission has also been suggested in urban areas where the presence of Anopheles, as a competent vector, and infected people converge (13)”

The authors said, “Given the limited research on malaria prevalence carried out in the Colombian territory and the detection of pfhrp 2/3 genes in urban areas, this study was aimed at estimating malaria prevalence, detecting pfhrp2/3 genes, and exploring associated factors in the urban area
(Commune 5) in Tumaco during 2019”. From Public Health programs, it is important to detect the percentage of deletions of the Pfhrp2/3 genes in a population.

One of the objectives of the study was to detect gene fragments of Pfhrp2/3. The deletion of these genes was not evaluated. However, to improve malaria elimination programs, it is necessary to determine these deletions since, at least in Colombia, the RDTs used for diagnosis are based on these genes, and of course, deletions would generate false negatives.

Methods
Page 4:
About the inclusion criteria, the authors said that “minors who have the authorization of the responsible adult or guardian” were included. Was there not a minimum age for inclusion of children?

There is no minimum age for the inclusion of children.

The authors said that “a prevalence study was conducted in Commune 5 of Tumaco, a malaria-endemic urban area”. The authors should inform the criteria for selection of Commune 5 in Tumaco municipality. Is this the only Commune that has malaria?

We corrected: In the urban area of Tumaco, all five communes are endemic to malaria. In this city, 70% of malaria cases are reported from commune 5 in the last ten years

A better description of Commune 5 is necessary. How many inhabitants live there? Where is Commune 5 located? In the middle or in the periphery of the city? In the figure it seems that there is a river? What is the name of the river?

We corrected: Commune 5, with 26,000 inhabitants, is in the continental area of Tumaco on the low-tide land and nearby estuaries. The presence of Anophelines sppn breeding sites (ponds, puddles, and lakes for shrimp farming) and the high density of the population make this commune of high risk of malaria transmission.

In the figure, the image corresponds to an estuary. It's not a river.

The authors said that “In Tumaco, in the urban area, malaria is concentrated in Commune 5, where nearly 70% of the cases are found and there are breeding sites of Anopheles spp.”. 70% of urban cases are originated of the Commune 5? The idea is not clear. It is much better to say: In the urban area of Tumaco, 70% of malaria cases are found in the Commune 5 where there are breeding sites (our larval habitats) for Anophelines spp. too. What kind of larval habitats are in this Commune 5?

We included the suggested phrase and larval habitats.

Page 6:
The authors collected blood for thick smear, RDTs and whole blood and filter paper samples, but
in the methods, there is no information about the methods and the quantity of total blood was collected for PCR and filter paper samples. Please add this information.

We have included: For PCR, two drops of blood were obtained from the same finger puncture and were then put on the filter paper

On the other hand, for better understanding, we suggest that data about DNA extraction will be added before PCR experiments.

We have made the suggested change.

The authors only add information about DNA extraction from filter paper but not for the whole blood extraction. Was it made? If whole blood extraction was done, DNA was extracted from what quantity of blood?

We have included: 10 mm² of Whatman #3 filter paper impregnated with blood were taken and genomic DNA extraction was performed according to the protocol described in the article. This procedure was performed in duplicate.

Page 7:
Please add the reference of the protocol that was used for amplified Pfhrp2/3 genes.

We have included: For the amplification of the different fragments of the genes mentioned, we designed the specific primers and the PCR conditions for each of them were standardized. For the design of the primers, the GC content, dimer formation, loop formation, palindromes and Tm were taken into account. The sequences of the HRP2/HRP3 and PvSSU genes published in the Genbank were used, an alignment was performed using clustalW (Refseq) and the primers were designed from conserved regions of the sequences obtained.

For entomological collections, how many capture points were sampled? How many days, or how many times were the adult captures done?

We have included: Between October 1 and 23, 2019, 81 capture points were sampled in 25 homes and 83 breeding places.

The authors defined “Asymptomatic malaria as Individual with positive microscopy/RDT or PCR, without symptoms”. It is important to remember that with this definition, individuals could be in a
prepatogenic period or be an asymptomatic individual. The same reasoning goes for “Submicroscopic malaria”. The individual can be in the prepathogenic period or she/he can be in recovering period. Questions about malaria in the last month or to use malaria drugs in the last month were done?

In the applied questionnaire were included the questions:

Have you had malaria in the last year, apart from the current episode?

When was the last time you had malaria?

Have you taken antimalarial drugs in the last 15 days?

Results:
Table 3 included some categories that should not be included. For example, the variables
“Educational level” and “civil status” for children under 5 years old.

We corrected:

Table 3. Characteristics of the Surveyed Population. Tumaco, July to December 2019

Characteristics
Total

Unweighted count
Weighted count

n
%
95% Confidence Interval

Age groups

0-9
272
18,32
16,0
20,9

10-19
318
21,47
19,1
24,1

20-49
626
40,88
38,64
43,15

≥50
288
19,33
16,94
21,98

Sex

Male
531
35,56
33,5
37,7

Female
973
64,44
62,3
66,5

Ethnic group

Black, African descent
1.439
95,23
91,4
97,4

Others
65
4,77
2,6
8,6

Years living in the house

0 to 4
373
25,60
22,5
28,9

5 to 9
397
25,97
22,4
29,9

10 or more
714
47,03
42,6
51,5

No information
20
1,40
0,8
2,3

Educational level*

Preschool, primary
555
40,75
37,05
44,55

High school
628
45,79
42,88
48,73

University
113
8,54
6,43
11,24

None
72
4,93
3,57
6,77

Civil status**

Has a partner
585
52.78
49.08
56.45

No partner
526
47.22
43.55
50.92

Occupation

Worker
450
30,04
26,4
34,0

Housework
399
26,26
24,0
28,7

Early childhood
158
10,46
8,8
12,4

Childhood
178
12,26
10,7
14,0

Adolescence
218
14,49
12,7
16,5

Unemployed
36
2,29
1,6
3,2

Pensioner
14
0,86
0,5
1,4

Other
51
3,34
2,4
4,6

Family income

<1 MLW (Monthly Legal Wage)
1.219
79,37
72,8
84,7

1 or more MLW
281
20,33
15,1
26,8

Does not know
4
0,30
0,1
1,7

Malaria in the last year
10
0,67
0,32
1,40

* In the “Educational level” variable, 136 children under 5 years of age were excluded.
** In the “Civil status” variable, 393 children under 14 years of age were excluded.

Page 11:
Authors said that “and through PCR it was 2.16%”. Exclude “it” in this sentence.

We exclude “it” in this sentence.

Notably, only one individual with symptoms was PCR (+) and 6 with thick smear/RDT were symptomatic. Were these individuals negative in the PCR or was the PCR not done in these patients?

Yes, these individuals were negative in the PCR. All these persons were examined by PCR.

Authors said that, “The prevalence of amplification of the pfhrp2 gene was 2.16% (95% CI: 1.58% -
2.94%), and for the pfhrp3 gene and the PvSSU gene it was 0”. The literature for Pfhrp2/3 usually shows the percentage of gene deletion not the percentage of detection of these genes. It is
expected that P. falciparum samples carry the gene. It is extremally important that authors confirm if they effectively detected the gene or if they are showing the deletion of the gene. What does the percentage actually mean?

Fragments of the Pfhrp2/3 genes were detected by PCR amplification. No assays were performed to assess the deletion of these genes. The percentage shown corresponds to the percentage of amplification of the Pfhrp2/3 genes.

Discussion:
Page 14:
The authors said that “The prevalence of malaria was 2.97%. It was higher (4.42%) in the 10 to 19 age group”, but in the table 4, the 0-9 age group the prevalence was 4.06. Was there any statistical difference found in malaria cases in children between 0 and 9 years old and 10 and 19 years old?

There were no statistically significant differences (p: 0.83). We adjust: It was higher in the 10 to 19 (4.42%) and 0 to 9 (4.06%) age groups

The authors said that “The study found malaria in Commune 5, an area believed to have high transmission according to reports from the Vector-Borne Disease Prevention and Control Program
in the Nariño Department (API 2014 84.0 cases per 1,000 inhabitants; API 2015 220.5 and API 2016 165.8)”. Please add a reference.

We add: Pilar Perez, Vector-Borne Disease Prevention and Control Program in the Nariño Department, personal communication

A better discussion using previous knowledge of malaria in this area must be added. If this area was classified as high malaria risk in the past, why did the results show this low prevalence? How do we interpret these results? What´s causing the different prevalence between age groups? How do we understand this epidemiology?

We add: The decrease in the prevalence of malaria over time is possibly due to the intensification of actions to search for and eliminate breeding sites, massive use of mosquito nets, and social participation as measures implemented for Commune 5. Diagnosis and treatment actions also have contributed, despite the difficulties that exist in accessing services. In this way, it has reduced human contact (infected) —a vector that has contributed to the decline in the burden of this disease.

The higher prevalence of malaria in people under 20 years of age suggests that the infection may have been acquired locally. Unlike Africa, which has a high transmission and where the population, most affected in terms of morbidity and mortality is under 5 years of age, in areas of low transmission such as Colombia, malaria occurs in older age groups. Among the aspects that are considered to think that the transmission occurs in the urban area are confirming the infection in the residents of these areas; evidence of the presence of adult Anopheles that are biting the inhabitants of urban dwellings and identifying breeding sites near them (40).

In order to better interpret the results it is necessary to add more information. For example, when was the study done? (Year and month)? In this locality, is malaria seasonal? Was the study carried out during the high malaria season?

The blood samples were taken during the dry season, between July and September 2019. Malaria in the urban area of Tumaco has not shown a clear seasonal behavior.

The authors said that “In urban areas, malaria infection is not expected to be prevalent due to better-designed households with better basic utilities, better access to health services, and the absence of mosquito breeding sites”. They use a reference about taxonomy and not specifically urban malaria. Studies about urban malaria around the world show that there are specific determinants for malaria transmission in these areas. Larval habitats usually are very near to these urban areas. This does not seem to be the case in this area where the prevalence was very low.

We change the reference: Larson P, Eisenberg J, Berrocal V, Mathanga D, Wilson M. An urban-to-rural continuum of malaria risk: new analytic approaches characterize patterns in Malawi. Malaria Journal 20, 418 (2021) (ref 46)

The authors found a lack of concordance between microscopy/RDT and PCR tests. As they did not separate microscopy and RDT is difficult to interpret this result. A technical problem can occur when a positive microscopy is comparing with PCR. One question is, did the authors do quality control for thick smears? As primers are very specific, it is difficult to explain a positive thick smear with a negative PCR.

The National Institute of Health performed quality control on 10% (153) of the samples analyzed by optical microscopy in accordance with national recommendations.

On the other hand, a positive microscopy with a negative RDT is probably because the limit of detection of RDT. The same rational is true for negative RDT with positive PCR. Cases of negative thick smear with positive RDT could be explained because Pfhrp2 antigen could be detected in the blood until 30 days after a good malaria treatment.
Anyway, it is necessary that authors add this information in the discussion and include it in the results a separate data for microscopy, RDT and PCR results (including in symptomatic and asymptomatic individuals).

We add: “On the other hand, positive microscopy with a negative RDT is probably because of the limit of detection of RDT. The same rationale is true for negative RDT with positive PCR. Cases of negative thick smear with positive RDT could be explained because Pfhrp2 antigen could be detected in the blood until 30 days after a good malaria treatment.”

We include in the results:

Table 5. Test results according to symptoms. Unweighted count
Commune 5 neighborhoods, Tumaco (Nariño, Colombia). October 2019

Test
Symptoms
Total

Yes
No

Optical microscopy (RDT)
6 (5)
5 (3)
11 (8)

PCR
1
27
28

Total
7
33
39

In parentheses, the cases diagnosed with RDT

Page 15:
The authors said that “In terms of age groups, the highest prevalence of malaria was observed in the 10 to 19 age group and as age increased, prevalence decreased. This result is similar to that reported in other studies. Older people are likely to have a lower risk of becoming ill because they may develop some immunity if they have been previously exposed to the infection”. Was there any question about malaria antecedents in the questionnaire? How many malaria episodes did the participants have before the study? Or, how many participants had at least one previous malaria episode before the study? These are important questions that the authors did not address.

We included in the study the questions

Have you had malaria in the last year, apart from the current episode?

When was the last time you had malaria?

Have you taken antimalarial drugs in the last 15 days?

The results are presented in the corresponding section as follows:
Ten individuals had malaria in the last year. Of them, none had malaria in the last month. They also did not have positive test results for malaria in the last 15 days, and they had not consumed antimalarial drugs.

Less than 1% of participants had malaria in the last year and none in the last month. It is possible that in areas of low endemicity, such as Colombia, the lowest prevalence in older age groups is due to the fact that the population that may have less exposure was interviewed. For example, women who remain at home dedicated to household chores and individuals of school age who go to school.

The authors said that “Furthermore, asymptomatic malaria may precede symptomatic disease, and may confer partial immunity against infection”. Asymptomatic Plasmodium infection is an important field of study and until now many questions continue open for discussion. It seems clear that asymptomatic infections occur in individuals with several past malaria episodes and this status is product of clinical immunity develop along time. This “status of Plasmodium asymptomatic infection” is different of those individuals whose blood were collected during the pre-pathogenic period before the beginning of malaria paroxysm. They could be in the “incubation period” and the number of parasites circulating in blood do not still reach the parasitic threshold for clinical symptoms. A better discussion about authors results and their interpretation must be added.

In this study, participants were sampled at a single point in time. Those who were classified as asymptomatic had no history of illness in the last month and had not used antimalarial drugs in the last 15 days. For them, it is difficult to establish if they were in the incubation period of the disease or if they were carriers of a low number of parasites. Resolving a situation like this requires follow-up. In this regard, a study of 268 people followed for 29 months in western Kenya, in a high-transmission area, discovered that asymptomatic infections were highly likely to be followed by symptomatic disease (ref 55). However, this does not seem to be the case in Commune 5 of Tumaco, which has a low transmission and where complicated malaria and malaria mortality do not occur.

About discussion of Pfhrp2, we added above this sentence: “Authors said that “The prevalence of amplification of the pfhrp2 gene was 2.16% (95% CI: 1.58% - 2.94%), and for the pfhrp3 gene and the PvSSU gene it was 0”. The literature for Pfhrp2/3 usually show the percentage of gene deletion not the percentage of detection of these genes. It is expected that P falciparum samples carry the gene. It is extremally important that authors confirm if they effectively detected the gene or if they are showing the deletion of the gene. What does the percentage actually mean?”. For the discussion, it is very important to know what was really detected by the authors - the deletion of gene or the gene?

We included: In the context of our study due to insufficient resources, we did not evaluate the deletion of these genes, we only amplified a fragment of these genes by means of PCR. However, in order to improve the management of clinical cases and design strategies for diagnosis, the detection of deletions in the HRP2/3 genes is relevant, since, as has been described, these can affect the accuracy of PDR in malaria endemic regions and of course in malaria control programs.

The authors said that “On the other hand, in the Commune 5 neighborhoods of Tumaco, An.
albimanus was found in artificial ponds and wells”. This data was not added in the results section.

These data is in the results section: “83 breeding sites were found. Out of those, two had Anopheles mosquito larvae, one in the Unión Victoria neighborhood and the other one in the Obrero neighborhood. One breeding site was a pond and the other one was a well. 32 larvae were collected in both breeding sites. 27 of them were in late stages (3rd and 4th) and were identified as An. albimanus.”

Regarding anopheline transmission in this study, it would be interesting if the authors added a discussion about ecological conditions for malaria transmission of An. albimanus.

An albimanus is considered a primary malaria vector in Colombia and particularly in Tumaco (ref 59). The presence of An. albimanus in different neighborhoods of Commune 5 provides partial evidence of the possible local transmission of malaria. This mosquito has been considered an opportunistic species due to its ability to adapt to different breeding sites (ref 60). Despite the small number of adults collected, there is a risk of transmission, taking into account that the maximum biting activity occurs in the peridomicile between 18:00 and 19:00 hours.

Furthermore, a critical analysis of the constraints of entomological studies must be incorporated.

Particular attention requires the limitation related to entomological aspects. The results presented are only an approximation to the subject. The difficulties presented did not allow them an adequate study of the ecology of the vector and to characterize the aspects related to the vector's biting density, feeding patterns, biting activity, parity rates, and resting behavior, among other issues that represent important factors for malaria transmission within the Commune 5.
Competing Interests: No competing interests were disclosed. Close
Report a concern
Respond or Comment

COMMENTS ON THIS REPORT

Author Response 08 Sep 2022

Pablo Enrique Chaparro Narváez, Observatorio Nacional de Salud, Instituto Nacional de Salud, Bogotá, 111321, Colombia

08 Sep 2022

Author Response
Thank you for your constructive review. These are our answers for your review:

Introduction
Page 3:
The authors said, “To overcome the limitations of optical microscopy and RDTs, molecular ... Continue reading
Thank you for your constructive review. These are our answers for your review:

Introduction
Page 3:
The authors said, “To overcome the limitations of optical microscopy and RDTs, molecular detection of malaria parasites through the polymerase chain reaction (PCR) was used”. It is true that optical microscopy and RDT have imitations, but it is important that the authors describe the context in which molecular assays are important.

The following paragraph was included: “PCR is a more sensitive diagnostic method to detect asymptomatic infections with very low parasite density. It may be useful in studies of submicroscopic infections, although its utility depends on the epidemiological importance of low-density infections, which have not yet been characterized” (Framework for malaria elimination)

The authors said, “Regarding urban malaria, there are challenges in terms of what is meant by “urban”, “peri-urban”, “rural” and “urban malaria”. “Urban malaria” is repeated in this sentence.

We corrected

The authors said,
“Despite these difficulties, it has been established that urban and peri-urban malaria is caused by population traveling from rural to urban and peri-urban areas13 and trips from rural areas to urban areas and vice versa”. This information is not exact. It depends on the context. Several African and Amazonian cities have larval habitats that determine autochthones malaria cases. On the other hand, what is the difference between “traveling from rural to urban and peri-urban” and “trips from rural areas to urban areas and vice versa”?

We adjusted: “Despite these difficulties, it has been established that urban and peri-urban malaria may be transmitted by population traveling from rural to urban and peri-urban areas (14,15) Local transmission has also been suggested in urban areas where the presence of Anopheles, as a competent vector, and infected people converge (13)”

The authors said, “Given the limited research on malaria prevalence carried out in the Colombian territory and the detection of pfhrp 2/3 genes in urban areas, this study was aimed at estimating malaria prevalence, detecting pfhrp2/3 genes, and exploring associated factors in the urban area
(Commune 5) in Tumaco during 2019”. From Public Health programs, it is important to detect the percentage of deletions of the Pfhrp2/3 genes in a population.

One of the objectives of the study was to detect gene fragments of Pfhrp2/3. The deletion of these genes was not evaluated. However, to improve malaria elimination programs, it is necessary to determine these deletions since, at least in Colombia, the RDTs used for diagnosis are based on these genes, and of course, deletions would generate false negatives.

Methods
Page 4:
About the inclusion criteria, the authors said that “minors who have the authorization of the responsible adult or guardian” were included. Was there not a minimum age for inclusion of children?

There is no minimum age for the inclusion of children.

The authors said that “a prevalence study was conducted in Commune 5 of Tumaco, a malaria-endemic urban area”. The authors should inform the criteria for selection of Commune 5 in Tumaco municipality. Is this the only Commune that has malaria?

We corrected: In the urban area of Tumaco, all five communes are endemic to malaria. In this city, 70% of malaria cases are reported from commune 5 in the last ten years

A better description of Commune 5 is necessary. How many inhabitants live there? Where is Commune 5 located? In the middle or in the periphery of the city? In the figure it seems that there is a river? What is the name of the river?

We corrected: Commune 5, with 26,000 inhabitants, is in the continental area of Tumaco on the low-tide land and nearby estuaries. The presence of Anophelines sppn breeding sites (ponds, puddles, and lakes for shrimp farming) and the high density of the population make this commune of high risk of malaria transmission.

In the figure, the image corresponds to an estuary. It's not a river.

The authors said that “In Tumaco, in the urban area, malaria is concentrated in Commune 5, where nearly 70% of the cases are found and there are breeding sites of Anopheles spp.”. 70% of urban cases are originated of the Commune 5? The idea is not clear. It is much better to say: In the urban area of Tumaco, 70% of malaria cases are found in the Commune 5 where there are breeding sites (our larval habitats) for Anophelines spp. too. What kind of larval habitats are in this Commune 5?

We included the suggested phrase and larval habitats.

Page 6:
The authors collected blood for thick smear, RDTs and whole blood and filter paper samples, but
in the methods, there is no information about the methods and the quantity of total blood was collected for PCR and filter paper samples. Please add this information.

We have included: For PCR, two drops of blood were obtained from the same finger puncture and were then put on the filter paper

On the other hand, for better understanding, we suggest that data about DNA extraction will be added before PCR experiments.

We have made the suggested change.

The authors only add information about DNA extraction from filter paper but not for the whole blood extraction. Was it made? If whole blood extraction was done, DNA was extracted from what quantity of blood?

We have included: 10 mm² of Whatman #3 filter paper impregnated with blood were taken and genomic DNA extraction was performed according to the protocol described in the article. This procedure was performed in duplicate.

Page 7:
Please add the reference of the protocol that was used for amplified Pfhrp2/3 genes.

We have included: For the amplification of the different fragments of the genes mentioned, we designed the specific primers and the PCR conditions for each of them were standardized. For the design of the primers, the GC content, dimer formation, loop formation, palindromes and Tm were taken into account. The sequences of the HRP2/HRP3 and PvSSU genes published in the Genbank were used, an alignment was performed using clustalW (Refseq) and the primers were designed from conserved regions of the sequences obtained.

For entomological collections, how many capture points were sampled? How many days, or how many times were the adult captures done?

We have included: Between October 1 and 23, 2019, 81 capture points were sampled in 25 homes and 83 breeding places.

The authors defined “Asymptomatic malaria as Individual with positive microscopy/RDT or PCR, without symptoms”. It is important to remember that with this definition, individuals could be in a
prepatogenic period or be an asymptomatic individual. The same reasoning goes for “Submicroscopic malaria”. The individual can be in the prepathogenic period or she/he can be in recovering period. Questions about malaria in the last month or to use malaria drugs in the last month were done?

In the applied questionnaire were included the questions:

Have you had malaria in the last year, apart from the current episode?

When was the last time you had malaria?

Have you taken antimalarial drugs in the last 15 days?

Results:
Table 3 included some categories that should not be included. For example, the variables
“Educational level” and “civil status” for children under 5 years old.

We corrected:

Table 3. Characteristics of the Surveyed Population. Tumaco, July to December 2019

Characteristics
Total

Unweighted count
Weighted count

n
%
95% Confidence Interval

Age groups

0-9
272
18,32
16,0
20,9

10-19
318
21,47
19,1
24,1

20-49
626
40,88
38,64
43,15

≥50
288
19,33
16,94
21,98

Sex

Male
531
35,56
33,5
37,7

Female
973
64,44
62,3
66,5

Ethnic group

Black, African descent
1.439
95,23
91,4
97,4

Others
65
4,77
2,6
8,6

Years living in the house

0 to 4
373
25,60
22,5
28,9

5 to 9
397
25,97
22,4
29,9

10 or more
714
47,03
42,6
51,5

No information
20
1,40
0,8
2,3

Educational level*

Preschool, primary
555
40,75
37,05
44,55

High school
628
45,79
42,88
48,73

University
113
8,54
6,43
11,24

None
72
4,93
3,57
6,77

Civil status**

Has a partner
585
52.78
49.08
56.45

No partner
526
47.22
43.55
50.92

Occupation

Worker
450
30,04
26,4
34,0

Housework
399
26,26
24,0
28,7

Early childhood
158
10,46
8,8
12,4

Childhood
178
12,26
10,7
14,0

Adolescence
218
14,49
12,7
16,5

Unemployed
36
2,29
1,6
3,2

Pensioner
14
0,86
0,5
1,4

Other
51
3,34
2,4
4,6

Family income

<1 MLW (Monthly Legal Wage)
1.219
79,37
72,8
84,7

1 or more MLW
281
20,33
15,1
26,8

Does not know
4
0,30
0,1
1,7

Malaria in the last year
10
0,67
0,32
1,40

* In the “Educational level” variable, 136 children under 5 years of age were excluded.
** In the “Civil status” variable, 393 children under 14 years of age were excluded.

Page 11:
Authors said that “and through PCR it was 2.16%”. Exclude “it” in this sentence.

We exclude “it” in this sentence.

Notably, only one individual with symptoms was PCR (+) and 6 with thick smear/RDT were symptomatic. Were these individuals negative in the PCR or was the PCR not done in these patients?

Yes, these individuals were negative in the PCR. All these persons were examined by PCR.

Authors said that, “The prevalence of amplification of the pfhrp2 gene was 2.16% (95% CI: 1.58% -
2.94%), and for the pfhrp3 gene and the PvSSU gene it was 0”. The literature for Pfhrp2/3 usually shows the percentage of gene deletion not the percentage of detection of these genes. It is
expected that P. falciparum samples carry the gene. It is extremally important that authors confirm if they effectively detected the gene or if they are showing the deletion of the gene. What does the percentage actually mean?

Fragments of the Pfhrp2/3 genes were detected by PCR amplification. No assays were performed to assess the deletion of these genes. The percentage shown corresponds to the percentage of amplification of the Pfhrp2/3 genes.

Discussion:
Page 14:
The authors said that “The prevalence of malaria was 2.97%. It was higher (4.42%) in the 10 to 19 age group”, but in the table 4, the 0-9 age group the prevalence was 4.06. Was there any statistical difference found in malaria cases in children between 0 and 9 years old and 10 and 19 years old?

There were no statistically significant differences (p: 0.83). We adjust: It was higher in the 10 to 19 (4.42%) and 0 to 9 (4.06%) age groups

The authors said that “The study found malaria in Commune 5, an area believed to have high transmission according to reports from the Vector-Borne Disease Prevention and Control Program
in the Nariño Department (API 2014 84.0 cases per 1,000 inhabitants; API 2015 220.5 and API 2016 165.8)”. Please add a reference.

We add: Pilar Perez, Vector-Borne Disease Prevention and Control Program in the Nariño Department, personal communication

A better discussion using previous knowledge of malaria in this area must be added. If this area was classified as high malaria risk in the past, why did the results show this low prevalence? How do we interpret these results? What´s causing the different prevalence between age groups? How do we understand this epidemiology?

We add: The decrease in the prevalence of malaria over time is possibly due to the intensification of actions to search for and eliminate breeding sites, massive use of mosquito nets, and social participation as measures implemented for Commune 5. Diagnosis and treatment actions also have contributed, despite the difficulties that exist in accessing services. In this way, it has reduced human contact (infected) —a vector that has contributed to the decline in the burden of this disease.

The higher prevalence of malaria in people under 20 years of age suggests that the infection may have been acquired locally. Unlike Africa, which has a high transmission and where the population, most affected in terms of morbidity and mortality is under 5 years of age, in areas of low transmission such as Colombia, malaria occurs in older age groups. Among the aspects that are considered to think that the transmission occurs in the urban area are confirming the infection in the residents of these areas; evidence of the presence of adult Anopheles that are biting the inhabitants of urban dwellings and identifying breeding sites near them (40).

In order to better interpret the results it is necessary to add more information. For example, when was the study done? (Year and month)? In this locality, is malaria seasonal? Was the study carried out during the high malaria season?

The blood samples were taken during the dry season, between July and September 2019. Malaria in the urban area of Tumaco has not shown a clear seasonal behavior.

The authors said that “In urban areas, malaria infection is not expected to be prevalent due to better-designed households with better basic utilities, better access to health services, and the absence of mosquito breeding sites”. They use a reference about taxonomy and not specifically urban malaria. Studies about urban malaria around the world show that there are specific determinants for malaria transmission in these areas. Larval habitats usually are very near to these urban areas. This does not seem to be the case in this area where the prevalence was very low.

We change the reference: Larson P, Eisenberg J, Berrocal V, Mathanga D, Wilson M. An urban-to-rural continuum of malaria risk: new analytic approaches characterize patterns in Malawi. Malaria Journal 20, 418 (2021) (ref 46)

The authors found a lack of concordance between microscopy/RDT and PCR tests. As they did not separate microscopy and RDT is difficult to interpret this result. A technical problem can occur when a positive microscopy is comparing with PCR. One question is, did the authors do quality control for thick smears? As primers are very specific, it is difficult to explain a positive thick smear with a negative PCR.

The National Institute of Health performed quality control on 10% (153) of the samples analyzed by optical microscopy in accordance with national recommendations.

On the other hand, a positive microscopy with a negative RDT is probably because the limit of detection of RDT. The same rational is true for negative RDT with positive PCR. Cases of negative thick smear with positive RDT could be explained because Pfhrp2 antigen could be detected in the blood until 30 days after a good malaria treatment.
Anyway, it is necessary that authors add this information in the discussion and include it in the results a separate data for microscopy, RDT and PCR results (including in symptomatic and asymptomatic individuals).

We add: “On the other hand, positive microscopy with a negative RDT is probably because of the limit of detection of RDT. The same rationale is true for negative RDT with positive PCR. Cases of negative thick smear with positive RDT could be explained because Pfhrp2 antigen could be detected in the blood until 30 days after a good malaria treatment.”

We include in the results:

Table 5. Test results according to symptoms. Unweighted count
Commune 5 neighborhoods, Tumaco (Nariño, Colombia). October 2019

Test
Symptoms
Total

Yes
No

Optical microscopy (RDT)
6 (5)
5 (3)
11 (8)

PCR
1
27
28

Total
7
33
39

In parentheses, the cases diagnosed with RDT

Page 15:
The authors said that “In terms of age groups, the highest prevalence of malaria was observed in the 10 to 19 age group and as age increased, prevalence decreased. This result is similar to that reported in other studies. Older people are likely to have a lower risk of becoming ill because they may develop some immunity if they have been previously exposed to the infection”. Was there any question about malaria antecedents in the questionnaire? How many malaria episodes did the participants have before the study? Or, how many participants had at least one previous malaria episode before the study? These are important questions that the authors did not address.

We included in the study the questions

Have you had malaria in the last year, apart from the current episode?

When was the last time you had malaria?

Have you taken antimalarial drugs in the last 15 days?

The results are presented in the corresponding section as follows:
Ten individuals had malaria in the last year. Of them, none had malaria in the last month. They also did not have positive test results for malaria in the last 15 days, and they had not consumed antimalarial drugs.

Less than 1% of participants had malaria in the last year and none in the last month. It is possible that in areas of low endemicity, such as Colombia, the lowest prevalence in older age groups is due to the fact that the population that may have less exposure was interviewed. For example, women who remain at home dedicated to household chores and individuals of school age who go to school.

The authors said that “Furthermore, asymptomatic malaria may precede symptomatic disease, and may confer partial immunity against infection”. Asymptomatic Plasmodium infection is an important field of study and until now many questions continue open for discussion. It seems clear that asymptomatic infections occur in individuals with several past malaria episodes and this status is product of clinical immunity develop along time. This “status of Plasmodium asymptomatic infection” is different of those individuals whose blood were collected during the pre-pathogenic period before the beginning of malaria paroxysm. They could be in the “incubation period” and the number of parasites circulating in blood do not still reach the parasitic threshold for clinical symptoms. A better discussion about authors results and their interpretation must be added.

In this study, participants were sampled at a single point in time. Those who were classified as asymptomatic had no history of illness in the last month and had not used antimalarial drugs in the last 15 days. For them, it is difficult to establish if they were in the incubation period of the disease or if they were carriers of a low number of parasites. Resolving a situation like this requires follow-up. In this regard, a study of 268 people followed for 29 months in western Kenya, in a high-transmission area, discovered that asymptomatic infections were highly likely to be followed by symptomatic disease (ref 55). However, this does not seem to be the case in Commune 5 of Tumaco, which has a low transmission and where complicated malaria and malaria mortality do not occur.

About discussion of Pfhrp2, we added above this sentence: “Authors said that “The prevalence of amplification of the pfhrp2 gene was 2.16% (95% CI: 1.58% - 2.94%), and for the pfhrp3 gene and the PvSSU gene it was 0”. The literature for Pfhrp2/3 usually show the percentage of gene deletion not the percentage of detection of these genes. It is expected that P falciparum samples carry the gene. It is extremally important that authors confirm if they effectively detected the gene or if they are showing the deletion of the gene. What does the percentage actually mean?”. For the discussion, it is very important to know what was really detected by the authors - the deletion of gene or the gene?

We included: In the context of our study due to insufficient resources, we did not evaluate the deletion of these genes, we only amplified a fragment of these genes by means of PCR. However, in order to improve the management of clinical cases and design strategies for diagnosis, the detection of deletions in the HRP2/3 genes is relevant, since, as has been described, these can affect the accuracy of PDR in malaria endemic regions and of course in malaria control programs.

The authors said that “On the other hand, in the Commune 5 neighborhoods of Tumaco, An.
albimanus was found in artificial ponds and wells”. This data was not added in the results section.

These data is in the results section: “83 breeding sites were found. Out of those, two had Anopheles mosquito larvae, one in the Unión Victoria neighborhood and the other one in the Obrero neighborhood. One breeding site was a pond and the other one was a well. 32 larvae were collected in both breeding sites. 27 of them were in late stages (3rd and 4th) and were identified as An. albimanus.”

Regarding anopheline transmission in this study, it would be interesting if the authors added a discussion about ecological conditions for malaria transmission of An. albimanus.

An albimanus is considered a primary malaria vector in Colombia and particularly in Tumaco (ref 59). The presence of An. albimanus in different neighborhoods of Commune 5 provides partial evidence of the possible local transmission of malaria. This mosquito has been considered an opportunistic species due to its ability to adapt to different breeding sites (ref 60). Despite the small number of adults collected, there is a risk of transmission, taking into account that the maximum biting activity occurs in the peridomicile between 18:00 and 19:00 hours.

Furthermore, a critical analysis of the constraints of entomological studies must be incorporated.

Particular attention requires the limitation related to entomological aspects. The results presented are only an approximation to the subject. The difficulties presented did not allow them an adequate study of the ecology of the vector and to characterize the aspects related to the vector's biting density, feeding patterns, biting activity, parity rates, and resting behavior, among other issues that represent important factors for malaria transmission within the Commune 5.
Thank you for your constructive review. These are our answers for your review:

Introduction
Page 3:
The authors said, “To overcome the limitations of optical microscopy and RDTs, molecular detection of malaria parasites through the polymerase chain reaction (PCR) was used”. It is true that optical microscopy and RDT have imitations, but it is important that the authors describe the context in which molecular assays are important.

The following paragraph was included: “PCR is a more sensitive diagnostic method to detect asymptomatic infections with very low parasite density. It may be useful in studies of submicroscopic infections, although its utility depends on the epidemiological importance of low-density infections, which have not yet been characterized” (Framework for malaria elimination)

The authors said, “Regarding urban malaria, there are challenges in terms of what is meant by “urban”, “peri-urban”, “rural” and “urban malaria”. “Urban malaria” is repeated in this sentence.

We corrected

The authors said,
“Despite these difficulties, it has been established that urban and peri-urban malaria is caused by population traveling from rural to urban and peri-urban areas13 and trips from rural areas to urban areas and vice versa”. This information is not exact. It depends on the context. Several African and Amazonian cities have larval habitats that determine autochthones malaria cases. On the other hand, what is the difference between “traveling from rural to urban and peri-urban” and “trips from rural areas to urban areas and vice versa”?

We adjusted: “Despite these difficulties, it has been established that urban and peri-urban malaria may be transmitted by population traveling from rural to urban and peri-urban areas (14,15) Local transmission has also been suggested in urban areas where the presence of Anopheles, as a competent vector, and infected people converge (13)”

The authors said, “Given the limited research on malaria prevalence carried out in the Colombian territory and the detection of pfhrp 2/3 genes in urban areas, this study was aimed at estimating malaria prevalence, detecting pfhrp2/3 genes, and exploring associated factors in the urban area
(Commune 5) in Tumaco during 2019”. From Public Health programs, it is important to detect the percentage of deletions of the Pfhrp2/3 genes in a population.

One of the objectives of the study was to detect gene fragments of Pfhrp2/3. The deletion of these genes was not evaluated. However, to improve malaria elimination programs, it is necessary to determine these deletions since, at least in Colombia, the RDTs used for diagnosis are based on these genes, and of course, deletions would generate false negatives.

Methods
Page 4:
About the inclusion criteria, the authors said that “minors who have the authorization of the responsible adult or guardian” were included. Was there not a minimum age for inclusion of children?

There is no minimum age for the inclusion of children.

The authors said that “a prevalence study was conducted in Commune 5 of Tumaco, a malaria-endemic urban area”. The authors should inform the criteria for selection of Commune 5 in Tumaco municipality. Is this the only Commune that has malaria?

We corrected: In the urban area of Tumaco, all five communes are endemic to malaria. In this city, 70% of malaria cases are reported from commune 5 in the last ten years

A better description of Commune 5 is necessary. How many inhabitants live there? Where is Commune 5 located? In the middle or in the periphery of the city? In the figure it seems that there is a river? What is the name of the river?

We corrected: Commune 5, with 26,000 inhabitants, is in the continental area of Tumaco on the low-tide land and nearby estuaries. The presence of Anophelines sppn breeding sites (ponds, puddles, and lakes for shrimp farming) and the high density of the population make this commune of high risk of malaria transmission.

In the figure, the image corresponds to an estuary. It's not a river.

The authors said that “In Tumaco, in the urban area, malaria is concentrated in Commune 5, where nearly 70% of the cases are found and there are breeding sites of Anopheles spp.”. 70% of urban cases are originated of the Commune 5? The idea is not clear. It is much better to say: In the urban area of Tumaco, 70% of malaria cases are found in the Commune 5 where there are breeding sites (our larval habitats) for Anophelines spp. too. What kind of larval habitats are in this Commune 5?

We included the suggested phrase and larval habitats.

Page 6:
The authors collected blood for thick smear, RDTs and whole blood and filter paper samples, but
in the methods, there is no information about the methods and the quantity of total blood was collected for PCR and filter paper samples. Please add this information.

We have included: For PCR, two drops of blood were obtained from the same finger puncture and were then put on the filter paper

On the other hand, for better understanding, we suggest that data about DNA extraction will be added before PCR experiments.

We have made the suggested change.

The authors only add information about DNA extraction from filter paper but not for the whole blood extraction. Was it made? If whole blood extraction was done, DNA was extracted from what quantity of blood?

We have included: 10 mm² of Whatman #3 filter paper impregnated with blood were taken and genomic DNA extraction was performed according to the protocol described in the article. This procedure was performed in duplicate.

Page 7:
Please add the reference of the protocol that was used for amplified Pfhrp2/3 genes.

We have included: For the amplification of the different fragments of the genes mentioned, we designed the specific primers and the PCR conditions for each of them were standardized. For the design of the primers, the GC content, dimer formation, loop formation, palindromes and Tm were taken into account. The sequences of the HRP2/HRP3 and PvSSU genes published in the Genbank were used, an alignment was performed using clustalW (Refseq) and the primers were designed from conserved regions of the sequences obtained.

For entomological collections, how many capture points were sampled? How many days, or how many times were the adult captures done?

We have included: Between October 1 and 23, 2019, 81 capture points were sampled in 25 homes and 83 breeding places.

The authors defined “Asymptomatic malaria as Individual with positive microscopy/RDT or PCR, without symptoms”. It is important to remember that with this definition, individuals could be in a
prepatogenic period or be an asymptomatic individual. The same reasoning goes for “Submicroscopic malaria”. The individual can be in the prepathogenic period or she/he can be in recovering period. Questions about malaria in the last month or to use malaria drugs in the last month were done?

In the applied questionnaire were included the questions:

Have you had malaria in the last year, apart from the current episode?

When was the last time you had malaria?

Have you taken antimalarial drugs in the last 15 days?

Results:
Table 3 included some categories that should not be included. For example, the variables
“Educational level” and “civil status” for children under 5 years old.

We corrected:

Table 3. Characteristics of the Surveyed Population. Tumaco, July to December 2019

Characteristics
Total

Unweighted count
Weighted count

n
%
95% Confidence Interval

Age groups

0-9
272
18,32
16,0
20,9

10-19
318
21,47
19,1
24,1

20-49
626
40,88
38,64
43,15

≥50
288
19,33
16,94
21,98

Sex

Male
531
35,56
33,5
37,7

Female
973
64,44
62,3
66,5

Ethnic group

Black, African descent
1.439
95,23
91,4
97,4

Others
65
4,77
2,6
8,6

Years living in the house

0 to 4
373
25,60
22,5
28,9

5 to 9
397
25,97
22,4
29,9

10 or more
714
47,03
42,6
51,5

No information
20
1,40
0,8
2,3

Educational level*

Preschool, primary
555
40,75
37,05
44,55

High school
628
45,79
42,88
48,73

University
113
8,54
6,43
11,24

None
72
4,93
3,57
6,77

Civil status**

Has a partner
585
52.78
49.08
56.45

No partner
526
47.22
43.55
50.92

Occupation

Worker
450
30,04
26,4
34,0

Housework
399
26,26
24,0
28,7

Early childhood
158
10,46
8,8
12,4

Childhood
178
12,26
10,7
14,0

Adolescence
218
14,49
12,7
16,5

Unemployed
36
2,29
1,6
3,2

Pensioner
14
0,86
0,5
1,4

Other
51
3,34
2,4
4,6

Family income

<1 MLW (Monthly Legal Wage)
1.219
79,37
72,8
84,7

1 or more MLW
281
20,33
15,1
26,8

Does not know
4
0,30
0,1
1,7

Malaria in the last year
10
0,67
0,32
1,40

* In the “Educational level” variable, 136 children under 5 years of age were excluded.
** In the “Civil status” variable, 393 children under 14 years of age were excluded.

Page 11:
Authors said that “and through PCR it was 2.16%”. Exclude “it” in this sentence.

We exclude “it” in this sentence.

Notably, only one individual with symptoms was PCR (+) and 6 with thick smear/RDT were symptomatic. Were these individuals negative in the PCR or was the PCR not done in these patients?

Yes, these individuals were negative in the PCR. All these persons were examined by PCR.

Authors said that, “The prevalence of amplification of the pfhrp2 gene was 2.16% (95% CI: 1.58% -
2.94%), and for the pfhrp3 gene and the PvSSU gene it was 0”. The literature for Pfhrp2/3 usually shows the percentage of gene deletion not the percentage of detection of these genes. It is
expected that P. falciparum samples carry the gene. It is extremally important that authors confirm if they effectively detected the gene or if they are showing the deletion of the gene. What does the percentage actually mean?

Fragments of the Pfhrp2/3 genes were detected by PCR amplification. No assays were performed to assess the deletion of these genes. The percentage shown corresponds to the percentage of amplification of the Pfhrp2/3 genes.

Discussion:
Page 14:
The authors said that “The prevalence of malaria was 2.97%. It was higher (4.42%) in the 10 to 19 age group”, but in the table 4, the 0-9 age group the prevalence was 4.06. Was there any statistical difference found in malaria cases in children between 0 and 9 years old and 10 and 19 years old?

There were no statistically significant differences (p: 0.83). We adjust: It was higher in the 10 to 19 (4.42%) and 0 to 9 (4.06%) age groups

The authors said that “The study found malaria in Commune 5, an area believed to have high transmission according to reports from the Vector-Borne Disease Prevention and Control Program
in the Nariño Department (API 2014 84.0 cases per 1,000 inhabitants; API 2015 220.5 and API 2016 165.8)”. Please add a reference.

We add: Pilar Perez, Vector-Borne Disease Prevention and Control Program in the Nariño Department, personal communication

A better discussion using previous knowledge of malaria in this area must be added. If this area was classified as high malaria risk in the past, why did the results show this low prevalence? How do we interpret these results? What´s causing the different prevalence between age groups? How do we understand this epidemiology?

We add: The decrease in the prevalence of malaria over time is possibly due to the intensification of actions to search for and eliminate breeding sites, massive use of mosquito nets, and social participation as measures implemented for Commune 5. Diagnosis and treatment actions also have contributed, despite the difficulties that exist in accessing services. In this way, it has reduced human contact (infected) —a vector that has contributed to the decline in the burden of this disease.

The higher prevalence of malaria in people under 20 years of age suggests that the infection may have been acquired locally. Unlike Africa, which has a high transmission and where the population, most affected in terms of morbidity and mortality is under 5 years of age, in areas of low transmission such as Colombia, malaria occurs in older age groups. Among the aspects that are considered to think that the transmission occurs in the urban area are confirming the infection in the residents of these areas; evidence of the presence of adult Anopheles that are biting the inhabitants of urban dwellings and identifying breeding sites near them (40).

In order to better interpret the results it is necessary to add more information. For example, when was the study done? (Year and month)? In this locality, is malaria seasonal? Was the study carried out during the high malaria season?

The blood samples were taken during the dry season, between July and September 2019. Malaria in the urban area of Tumaco has not shown a clear seasonal behavior.

The authors said that “In urban areas, malaria infection is not expected to be prevalent due to better-designed households with better basic utilities, better access to health services, and the absence of mosquito breeding sites”. They use a reference about taxonomy and not specifically urban malaria. Studies about urban malaria around the world show that there are specific determinants for malaria transmission in these areas. Larval habitats usually are very near to these urban areas. This does not seem to be the case in this area where the prevalence was very low.

We change the reference: Larson P, Eisenberg J, Berrocal V, Mathanga D, Wilson M. An urban-to-rural continuum of malaria risk: new analytic approaches characterize patterns in Malawi. Malaria Journal 20, 418 (2021) (ref 46)

The authors found a lack of concordance between microscopy/RDT and PCR tests. As they did not separate microscopy and RDT is difficult to interpret this result. A technical problem can occur when a positive microscopy is comparing with PCR. One question is, did the authors do quality control for thick smears? As primers are very specific, it is difficult to explain a positive thick smear with a negative PCR.

The National Institute of Health performed quality control on 10% (153) of the samples analyzed by optical microscopy in accordance with national recommendations.

On the other hand, a positive microscopy with a negative RDT is probably because the limit of detection of RDT. The same rational is true for negative RDT with positive PCR. Cases of negative thick smear with positive RDT could be explained because Pfhrp2 antigen could be detected in the blood until 30 days after a good malaria treatment.
Anyway, it is necessary that authors add this information in the discussion and include it in the results a separate data for microscopy, RDT and PCR results (including in symptomatic and asymptomatic individuals).

We add: “On the other hand, positive microscopy with a negative RDT is probably because of the limit of detection of RDT. The same rationale is true for negative RDT with positive PCR. Cases of negative thick smear with positive RDT could be explained because Pfhrp2 antigen could be detected in the blood until 30 days after a good malaria treatment.”

We include in the results:

Table 5. Test results according to symptoms. Unweighted count
Commune 5 neighborhoods, Tumaco (Nariño, Colombia). October 2019

Test
Symptoms
Total

Yes
No

Optical microscopy (RDT)
6 (5)
5 (3)
11 (8)

PCR
1
27
28

Total
7
33
39

In parentheses, the cases diagnosed with RDT

Page 15:
The authors said that “In terms of age groups, the highest prevalence of malaria was observed in the 10 to 19 age group and as age increased, prevalence decreased. This result is similar to that reported in other studies. Older people are likely to have a lower risk of becoming ill because they may develop some immunity if they have been previously exposed to the infection”. Was there any question about malaria antecedents in the questionnaire? How many malaria episodes did the participants have before the study? Or, how many participants had at least one previous malaria episode before the study? These are important questions that the authors did not address.

We included in the study the questions

Have you had malaria in the last year, apart from the current episode?

When was the last time you had malaria?

Have you taken antimalarial drugs in the last 15 days?

The results are presented in the corresponding section as follows:
Ten individuals had malaria in the last year. Of them, none had malaria in the last month. They also did not have positive test results for malaria in the last 15 days, and they had not consumed antimalarial drugs.

Less than 1% of participants had malaria in the last year and none in the last month. It is possible that in areas of low endemicity, such as Colombia, the lowest prevalence in older age groups is due to the fact that the population that may have less exposure was interviewed. For example, women who remain at home dedicated to household chores and individuals of school age who go to school.

The authors said that “Furthermore, asymptomatic malaria may precede symptomatic disease, and may confer partial immunity against infection”. Asymptomatic Plasmodium infection is an important field of study and until now many questions continue open for discussion. It seems clear that asymptomatic infections occur in individuals with several past malaria episodes and this status is product of clinical immunity develop along time. This “status of Plasmodium asymptomatic infection” is different of those individuals whose blood were collected during the pre-pathogenic period before the beginning of malaria paroxysm. They could be in the “incubation period” and the number of parasites circulating in blood do not still reach the parasitic threshold for clinical symptoms. A better discussion about authors results and their interpretation must be added.

In this study, participants were sampled at a single point in time. Those who were classified as asymptomatic had no history of illness in the last month and had not used antimalarial drugs in the last 15 days. For them, it is difficult to establish if they were in the incubation period of the disease or if they were carriers of a low number of parasites. Resolving a situation like this requires follow-up. In this regard, a study of 268 people followed for 29 months in western Kenya, in a high-transmission area, discovered that asymptomatic infections were highly likely to be followed by symptomatic disease (ref 55). However, this does not seem to be the case in Commune 5 of Tumaco, which has a low transmission and where complicated malaria and malaria mortality do not occur.

About discussion of Pfhrp2, we added above this sentence: “Authors said that “The prevalence of amplification of the pfhrp2 gene was 2.16% (95% CI: 1.58% - 2.94%), and for the pfhrp3 gene and the PvSSU gene it was 0”. The literature for Pfhrp2/3 usually show the percentage of gene deletion not the percentage of detection of these genes. It is expected that P falciparum samples carry the gene. It is extremally important that authors confirm if they effectively detected the gene or if they are showing the deletion of the gene. What does the percentage actually mean?”. For the discussion, it is very important to know what was really detected by the authors - the deletion of gene or the gene?

We included: In the context of our study due to insufficient resources, we did not evaluate the deletion of these genes, we only amplified a fragment of these genes by means of PCR. However, in order to improve the management of clinical cases and design strategies for diagnosis, the detection of deletions in the HRP2/3 genes is relevant, since, as has been described, these can affect the accuracy of PDR in malaria endemic regions and of course in malaria control programs.

The authors said that “On the other hand, in the Commune 5 neighborhoods of Tumaco, An.
albimanus was found in artificial ponds and wells”. This data was not added in the results section.

These data is in the results section: “83 breeding sites were found. Out of those, two had Anopheles mosquito larvae, one in the Unión Victoria neighborhood and the other one in the Obrero neighborhood. One breeding site was a pond and the other one was a well. 32 larvae were collected in both breeding sites. 27 of them were in late stages (3rd and 4th) and were identified as An. albimanus.”

Regarding anopheline transmission in this study, it would be interesting if the authors added a discussion about ecological conditions for malaria transmission of An. albimanus.

An albimanus is considered a primary malaria vector in Colombia and particularly in Tumaco (ref 59). The presence of An. albimanus in different neighborhoods of Commune 5 provides partial evidence of the possible local transmission of malaria. This mosquito has been considered an opportunistic species due to its ability to adapt to different breeding sites (ref 60). Despite the small number of adults collected, there is a risk of transmission, taking into account that the maximum biting activity occurs in the peridomicile between 18:00 and 19:00 hours.

Furthermore, a critical analysis of the constraints of entomological studies must be incorporated.

Particular attention requires the limitation related to entomological aspects. The results presented are only an approximation to the subject. The difficulties presented did not allow them an adequate study of the ecology of the vector and to characterize the aspects related to the vector's biting density, feeding patterns, biting activity, parity rates, and resting behavior, among other issues that represent important factors for malaria transmission within the Commune 5.
Competing Interests: No competing interests were disclosed. Close
Report a concern

Comments on this article Comments (0)

Version 3

VERSION 3 PUBLISHED 21 Apr 2022

Open Peer Review

Reviewer Status

Reviewer Reports

	Invited Reviewers
	1	2	3
Version 3 (revision) 19 Jul 23			read
Version 2 (revision) 08 Sep 22	read	read
Version 1 21 Apr 22	read	read

Martha Cecilia Suárez-Mutis, Fundação Oswaldo Cruz, Rio de Janeiro, Brazil
Meor Termizi Farah Haziqah, Universiti Sains Malaysia, Penang, Malaysia
Ebenezer Krampah Aidoo, Accra Technical University, Accra, Ghana

Comments on this article

All Comments(0)

Add a comment

Browse by related subjects

Back to all reports

Reviewer Report

10 Views

01 Mar 2024 | for Version 3

Ebenezer Krampah Aidoo, Accra Technical University, Accra, Ghana

10 Views Cite this report Responses(0)

Approved With Reservations

The authors conducted a study in Tumaco, Columbia “aimed at estimating malaria prevalence, detecting pfhrp 2/3 genes, and exploring associated factors in the urban area (Commune 5) in Tumaco during 2019”. Generally, the manuscript is well written. However, the authors can further improve the manuscript by considering these suggestions.

Title: “Malaria prevalence in Commune 5 in Tumaco (Nariño, Colombia)”. Consider a broader title that captures the essence of the aim of the study.
Abstract (Abstract in its original version was translated into English by the reviewer to get a quick overview of the study)
Background
“pfhrp 2/3” should be written in full for first-time usage. Thereafter, it can be shortened.
Methods
Rapid diagnostic testing (RDT) should read rapid diagnostic test (RDT) kits.
Results
Consider starting with words (One thousand five hundred and four individuals) other than figure as in 1,504 people. 2.97% (95% CI: 2.1 - 4.3%) should be without the percent at the end of the bracket as in 2.97% (95% CI: 2.1 - 4.3). The same should be for 2.16% (95% CI: 1.6 - 2.9%). “(adjusted odds ratio [aOR]”, should be adjusted odds ratio [AOR]. For consistency, maintain one of these formats below throughout the manuscript.
(95% CI: 2.1 - 4.3) or 95% confidence interval [CI] 1.57-10.43)
P. falciparum. Plasmodium should be written in full for first-time usage. Thereafter, it can be shortened and italicized.
Introduction
“……. aimed at estimating malaria prevalence, detecting pfhrp 2/3 genes, and exploring associated factors in the urban area (Commune 5) in Tumaco during 2019”. Please clarify what you mean by associated factors. Specificity is key.
Ethics and consent
“This study was approved by the ethics committees of the National Institute of Health (April 4, 2017, Minutes) and Fundación Santa Fe de Bogotá (April 22, 2019, Minutes)”. Consider quoting the reference number issued by the committee and as used in your ethical approval letter.
Study area.
“The presence of Anophelines spp.” should read The Presence of Anopheles spp.

Laboratory procedures
Optical microscopy
“Blood samples were taken through finger puncture with a sterile lancet and each sample was then put on a clean film”. Consider rewording the sentence. Blood samples were collected by and not taken through. What do you mean by each “sample was then put on a clean film”? Use a trained malaria microscopist rather than a Bacteriologist.
Polymerase chain reaction (PCR)
“10 mm 2 of Whatman #3 filter paper……”. Make the necessary correction.
Standardization of protocols for genomic DNA extraction from filter paper samples
Could you provide references for the saponin/chelex-100 method of DNA extraction and conventional PCR used?
Definitions
Move the definition of the 3 terminologies on page 7 to the introduction.
Page 11 “In the last year, 0.67% of the participants reported they had had malaria”. State the year wherever it appears in the manuscript.
Prevalence of malaria
“The prevalence obtained through microscopy/RDT was 0.81%”. From Table 4, it’s true for microscopy but not so for RDT. How do you explain this?
How do you reconcile these two statements below?
“The prevalence was established from 1,504 microscopic examinations, 1,504 rapid diagnostic tests, and 1,504 PCR”.
“Out of the 1,504 blood samples collected, 1,492 were examined through PCR because some samples had very small amounts of blood”.
Martha Cecilia Suárez-Mutis (one of the reviewers) asked “In total, how many samples were actually positive? What is the denominator? Table 5 shows 39 positive samples. If the denominator is 1,504, the prevalence was 2.59 and not 2.97%. Please add all the information and clarify the number and prevalence of positive samples’’. Find below your response:
“The prevalence of 2.97% corresponds to the stratified multistage random sampling with proportional assignment used by us. We have indicated this in the methods section. The prevalence of 2.59% would correspond to a simple random sampling that was not used in this study”.
How you arrived at the above analyses should be “captured” in the statistical analysis section of the manuscript and also indicated as a footnote as part of Table 4

Discussion
Page 16 “Concerning this last aspect, although there is no consensus on the definition of urban and peri-urban” .............Reference will be needed.
Page 17 - “Less than 1% of participants had malaria in the last year and none in the last month”. Be specific about the year and month wherever it appears.
Page 17 “………where 6% of the parasite simples analyzed showed pfhpr2/3 gene deletion”. Should be samples.
Page 17 PDR, Is it PCR? If not, write in full.
Page 17 “This study results should be studied with caution, given the limitations”. Consider using limitations of the study include…….
Page 18- “Particular attention requires the limitation related to entomological aspects. The results presented are only an approximation to the subject”. The statement should be reworded so the meaning comes out clearer.
“In addition, the RDTs used to diagnose should be monitored for potential pfhrp2 gene deletion, which will be focused on considering alternatives”. What do you mean? Please explain further.
General observation
Were you able to detect pfhrp 3 genes and explore the associated factors?
“Plasmodium falciparum specific RDTs specifically recognize HRP2 antigen that encodes for the pfhrp2 gene and whose antibodies cross-react with histidine-rich protein 3 (pfhrp3) antibodies due to high degree of similarity in amino acid sequence” (WHO. Malaria Policy Advisory Committee Meeting, 14–16 September 2016, Background document for Session 7; P. falciparum hrp2/3 gene deletions, conclusions and recommendations of a technical consultation. Geneva: World Health Organization, 2016.Malaria Policy Advisory Committee meeting report (September 2016) (who.int))
The associated factors should be delineated from Tables 6 and 7 to inform the discussion and not generalized.
The quality of the language will have to be improved.

Is the work clearly and accurately presented and does it cite the current literature?

Yes
Is the study design appropriate and is the work technically sound?

Yes
Are sufficient details of methods and analysis provided to allow replication by others?

Yes
If applicable, is the statistical analysis and its interpretation appropriate?

I cannot comment. A qualified statistician is required.
Are all the source data underlying the results available to ensure full reproducibility?

Yes
Are the conclusions drawn adequately supported by the results?

Partly

Competing Interests

No competing interests were disclosed.

Reviewer Expertise

My research interests are in the areas of malaria epidemiology, host-parasite interactions, dynamics of disease transmission, antimalarial drug resistance and use of molecular tools to better understand the transmission of malaria, other infectious diseases (COVID-19, Helicobacter pylori infection etc) and neglected tropical diseases (Schistosomiasis, Soil-transmitted helminth infection etc).

Respond to this report

Responses (0)

Back to all reports

Reviewer Report

17 Views

12 Oct 2022 | for Version 2

Martha Cecilia Suárez-Mutis, Instituto Oswaldo Cruz, Laboratório de Doenças Parasitárias, Fundação Oswaldo Cruz, Rio de Janeiro, Brazil

17 Views Cite this report Responses(1)

Approved With Reservations

Some questions were not answered by the authors and thus, new doubts arose: the main question is in the interpretation of pfhrp2/3 prevalences (and malaria prevalence):

1) In total, how many samples were actually positive? What is the denominator? table 5 shows 39 positive samples. If denominator is 1,504, the prevalence was 2.59 and not 2.97%. Please add all the information and clarify the number and prevalence of positive samples.

On the other hand, it is assumed that all P. falciparum should have the pfhrp2/3 gene. Its absence indicates a deletion of this gene or that the PCR used was not able to detect it. What was the PCR protocol used for detection of pfhrp2/3?. Please, add the reference. These data are extremamely important for quality of the work. Was it and "in house" method?. If this was the case, the complete protocol must be added to methods sections.

It is probably that authors used as denominator for pfhrp2 gene detection, almost all the samples collected (n=1.492). As authors only found 39 P. falciparum positive samples, the denominator for pfhrp amplification should be 39 (as in table 5) and not 1.492. Maybe this is the cause of finding only 2.16% pfhrp gene amplification. As data are incomplete this is an assumption. Authors must clarify. It is very confusing.

Minor English and taxonomic corrections are necessary:

All taxonomic names with only generic names must have spp. at the end (ex. Anopheles spp.).

page 6/40:
"In this city, 70%of malaria cases are reported from Commune 5 in the last ten years".

As authors are talking about malaria in the last ten years (in past), the verb should be written in past time: ...In this city, 70%of malaria cases were reported..;

Page 6/40:
"Polymerase chain reaction (PCR)
For PCR, two drops of blood were obtained from the same finger puncture and were then put on the filter paper. 10 mm² of Whatman #3 filter paper impregnated with blood were taken and genomic DNA extraction was performed according to the protocol described in the article".
Authors did not give information about this article. Please add a reference.

Pag 6/40:
Authors said that: "Standardization of protocols for genomic DNA extraction from whole blood and filter paper samples". However, methods only explain about DNA extraction and PCR from filter paper samples. No mention about whole blood experiments was found in the manuscript. If authors collected whole blood samples (not filter paper) these data should be in the methods. If not, this part of the sentence should be excluded.

Page 7/40:
The sentence: "For the amplification of the different fragments of the genes mentioned, we designed the specific primers and the PCR conditions for each of them were standardized. For the design of the primers, the GC content, dimer formation, loop formation, palindromes and Tm were taken into account. The sequences of the HRP2/HRP3 and PvSSU genes published in the Genbank were used, an alignment was performed using clustalW (Refseq) and the primers were designed from conserved regions of the sequences obtained" is repeated at the end of page 6. Please excluded the repeated sentence.

Discussion:
Page 16/40: Authors said: "In terms of case detection, as in other studies, PCR had the highest diagnostic performance,⁴⁰ followed by microscopy. When comparing microscopy/RDT results with PCR results, lack of concordance was observed. Those with a positive diagnosis through microscopy/RDT were not detected through PCR and those with a positive diagnosis through PCR were not detected through microscopy/RDT. It is possible that people who were positive according to microscopy/RDT did not have the parasite's DNA so it could not be detected through PCR, as described by Mudare et al.,⁵¹ or the sample may have had a low amount of parasitic DNA or it may have degraded. Another possibility is that there were changes in the primer ringing site, which would prevent amplification of the gene fragment under study.". This part is a little confusing. For better clarification, we suggested to separate RDT results, thick smear results and PCR results and to discuss each finding (negative RDT with positive PCR, etc.).

Competing Interests

No competing interests were disclosed.

Reviewer Expertise

Malaria epidemiology and molecular epidemiology of Plasmodium infections; malaria diagnosis, Pfhrp2/3 deletion detection; asymptomatic Plasmodium infections.

Respond to this report

Responses (1)

Author Response

19 Jul 2023

Pablo Enrique Chaparro Narváez, Observatorio Nacional de Salud, Instituto Nacional de Salud, Bogotá, 111321, Colombia

Thank you for your new review. These are our answers:

Some questions were not answered by the authors and thus, new doubts arose: the main question is in the interpretation of pfhrp2/3 prevalence’s (and malaria prevalence):

1) In total, how many samples were actually positive? What is the denominator? table 5 shows 39 positive samples. If denominator is 1,504, the prevalence was 2.59 and not 2.97%. Please add all the information and clarify the number and prevalence of positive samples.

Answer: The prevalence of 2.97% corresponds to the stratified multistage random sampling with proportional assignment used by us. We have indicated in the methods section. The prevalence of 2.59% would correspond to a simple random sampling that was not used in this study.

On the other hand, it is assumed that all P. falciparum should have the pfhrp2/3 gene. Its absence indicates a deletion of this gene or that the PCR used was not able to detect it. What was the PCR protocol used for detection of pfhrp2/3?. Please, add the reference. These data are extremely important for quality of the work. Was it and "in house" method?. If this was the case, the complete protocol must be added to methods sections.

Answer: As indicated in the methods section, PCRs were performed for the individual amplification of the HRP2 and HRP3 genes. It is not possible to confirm the deletion of these genes with this study, since the sequencing of the complete genes was not carried out, but only fragments of them.

It is probably that authors used as denominator for pfhrp2 gene detection, almost all the samples collected (n=1.492). As authors only found 39 P. falciparum positive samples, the denominator for PfHRP amplification should be 39 (as in table 5) and not 1.492. Maybe this is the cause of finding only 2.16% PfHRP gene amplification. As data are incomplete this is an assumption. Authors must clarify. It is very confusing.

Answer: The prevalence for the detection of the pfhrp2 gene was also calculated taking into account multistage stratified random sampling with proportional assignment.

Minor English and taxonomic corrections are necessary:
All taxonomic names with only generic names must have spp. at the end (ex. Anopheles spp.).

Answer: The adjustment was made on pages 9, 15, 16, 19.

page 6/40:

"In this city, 70% of malaria cases are reported from Commune 5 in the last ten years".

As authors are talking about malaria in the last ten years (in past), the verb should be written in past time: ...In this city, 70% of malaria cases were reported.

Answer: The adjustment was made.

Page 6/40:

"Polymerase chain reaction (PCR)
For PCR, two drops of blood were obtained from the same finger puncture and were then put on the filter paper. 10 mm2 of Whatman #3 filter paper impregnated with blood were taken and genomic DNA extraction was performed according to the protocol described in the article".
Authors did not give information about this article. Please add a reference.

Answer: The adjustment was made.

Pag 6/40:

Authors said that: "Standardization of protocols for genomic DNA extraction from whole blood and filter paper samples". However, methods only explain about DNA extraction and PCR from filter paper samples. No mention about whole blood experiments was found in the manuscript. If authors collected whole blood samples (not filter paper) these data should be in the methods. If not, this part of the sentence should be excluded.

Answer: The adjustment was made. The whole blood extraction was eliminated since it is not mentioned in the manuscript.

Page 7/40:

The sentence: "For the amplification of the different fragments of the genes mentioned, we designed the specific primers and the PCR conditions for each of them were standardized. For the design of the primers, the GC content, dimer formation, loop formation, palindromes and Tm were taken into account. The sequences of the HRP2/HRP3 and PvSSU genes published in the Genbank were used, an alignment was performed using clustalW (Refseq) and the primers were designed from conserved regions of the sequences obtained" is repeated at the end of page 6. Please excluded the repeated sentence.

Answer: Removed the repeated paragraph.

Discussion:

Page 16/40: Authors said: "In terms of case detection, as in other studies, PCR had the highest diagnostic performance,40 followed by microscopy. When comparing microscopy/RDT results with PCR results, lack of concordance was observed. Those with a positive diagnosis through microscopy/RDT were not detected through PCR and those with a positive diagnosis through PCR were not detected through microscopy/RDT. It is possible that people who were positive according to microscopy/RDT did not have the parasite's DNA so it could not be detected through PCR, as described by Mudare et al.,51 or the sample may have had a low amount of parasitic DNA or it may have degraded. Another possibility is that there were changes in the primer ringing site, which would prevent amplification of the gene fragment under study.". This part is a little confusing. For better clarification, we suggested to separate RDT results, thick smear results and PCR results and to discuss each finding (negative RDT with positive PCR, etc.).

Answer: The adjustment was made.

The correlation between techniques is made to be able to explain why there is not a 100% positivity between tests.
Specifically, for negative PCR results it can be inferred that:
1. The ringing site of the primers may have some modification that does not allow their hybridization.
2. Although the degradation of genomic DNA is improbable because the verification of its quality and integrity was carried out through quantification and the 260/280 ratio, which for all DNA was between 1.8 and 2.0 and by electrophoresis, respectively, but it is not unlikely that the reactions have contaminants that interfere with amplification.
3. The sequences of the selected fragments may contain variable regions that are not recognized by the designed primers.

View more View less

Competing Interests

No competing interests were disclosed.

Back to all reports

Reviewer Report

7 Views

09 Sep 2022 | for Version 2

Meor Termizi Farah Haziqah, School of Biological Sciences, Universiti Sains Malaysia, Penang, Malaysia

7 Views Cite this report Responses(0)

Approved

No further comments are needed. Thank you.

Competing Interests

No competing interests were disclosed.

Reviewer Expertise

Parasitology

I confirm that I have read this submission and believe that I have an appropriate level of expertise to confirm that it is of an acceptable scientific standard.

Respond to this report

Responses (0)

Back to all reports

Reviewer Report

17 Views

23 May 2022 | for Version 1

Meor Termizi Farah Haziqah, School of Biological Sciences, Universiti Sains Malaysia, Penang, Malaysia

17 Views Cite this report Responses(1)

Approved

Figure 1: it is advisable to have a better mapping as the map provided is not clearly demonstrating the study areas. For example, putting the legends on the map indicating Commune 5 and the map becomes more legible.
The total number of samples for each of the laboratory procedures (i.e. techniques used to detect malaria) need to be stated clearly.
It would be better and more understandable to include a schematic diagram of the study sampling technique.
As for DEFINITION in methods, reword the sentence and provide it in the form of a paragraph which explains in detail the definition used in this paper.

Therefore, I recommend that this paper be Approved after minor revision.

Is the work clearly and accurately presented and does it cite the current literature?

Yes
Is the study design appropriate and is the work technically sound?

Yes
Are sufficient details of methods and analysis provided to allow replication by others?

Yes
If applicable, is the statistical analysis and its interpretation appropriate?

Yes
Are all the source data underlying the results available to ensure full reproducibility?

Yes
Are the conclusions drawn adequately supported by the results?

Yes

Competing Interests

No competing interests were disclosed.

Reviewer Expertise

Parasitology

I confirm that I have read this submission and believe that I have an appropriate level of expertise to confirm that it is of an acceptable scientific standard.

Respond to this report

Responses (1)

Author Response

08 Sep 2022

Pablo Enrique Chaparro Narváez, Observatorio Nacional de Salud, Instituto Nacional de Salud, Bogotá, 111321, Colombia

Thank you for your review. These are our answers for your review:

Figure 1: it is advisable to have a better mapping as the map provided is not clearly demonstrating the study areas. For example, putting the legends on the map indicating Commune 5 and the map becomes more legible.
A: We have shown the study area on the map and have included the legends

The total number of samples for each of the laboratory procedures (i.e. techniques used to detect malaria) need to be stated clearly.
A: The prevalence was established from 1,504 microscopic examinations, 1,504 rapid diagnostic tests, and 1,504 PCR.

It would be better and more understandable to include a schematic diagram of the study sampling technique.
A: We have included the schematic diagram of the study's sampling technique

As for DEFINITION in methods, reword the sentence and provide it in the form of a paragraph which explains in detail the definition used in this paper.
A: This study assumed the definitions of symptomatic malaria, asymptomatic malaria, and submicroscopic malaria. Symptomatic malaria corresponded to an individual with positive microscopy/RDT and symptoms of malaria, such as fever, chills, vomiting, convulsions, malaise, headache and/or loss of appetite. Asymptomatic malaria corresponded to an individual with positive microscopy/RDT or PCR, without symptoms. ^38,39. Submicroscopic malaria corresponded to an individual with positive PCR and negative microscopy/RDT. Submicroscopic infections are almost exclusively asymptomatic. ³⁹

View more View less

Competing Interests

No competing interests were disclosed.

Back to all reports

Reviewer Report

25 Views

16 May 2022 | for Version 1

Martha Cecilia Suárez-Mutis, Instituto Oswaldo Cruz, Laboratório de Doenças Parasitárias, Fundação Oswaldo Cruz, Rio de Janeiro, Brazil

25 Views Cite this report Responses(1)

Approved With Reservations

Is the work clearly and accurately presented and does it cite the current literature?

Yes
Is the study design appropriate and is the work technically sound?

Partly
Are sufficient details of methods and analysis provided to allow replication by others?

Yes
If applicable, is the statistical analysis and its interpretation appropriate?

Partly
Are all the source data underlying the results available to ensure full reproducibility?

Yes
Are the conclusions drawn adequately supported by the results?

Partly

Competing Interests

No competing interests were disclosed.

Reviewer Expertise

Malaria epidemiology and molecular epidemiology of Plasmodium infections; malaria diagnosis, Pfhrp2/3 deletion detection; asymptomatic Plasmodium infections.

Respond to this report

Responses (1)

Author Response

08 Sep 2022

Pablo Enrique Chaparro Narváez, Observatorio Nacional de Salud, Instituto Nacional de Salud, Bogotá, 111321, Colombia

Thank you for your constructive review. These are our answers for your review:

Introduction
Page 3:
The authors said, “To overcome the limitations of optical microscopy and RDTs, molecular detection of malaria parasites through the polymerase chain reaction (PCR) was used”. It is true that optical microscopy and RDT have imitations, but it is important that the authors describe the context in which molecular assays are important.

The following paragraph was included: “PCR is a more sensitive diagnostic method to detect asymptomatic infections with very low parasite density. It may be useful in studies of submicroscopic infections, although its utility depends on the epidemiological importance of low-density infections, which have not yet been characterized” (Framework for malaria elimination)

The authors said, “Regarding urban malaria, there are challenges in terms of what is meant by “urban”, “peri-urban”, “rural” and “urban malaria”. “Urban malaria” is repeated in this sentence.

We corrected

The authors said,
“Despite these difficulties, it has been established that urban and peri-urban malaria is caused by population traveling from rural to urban and peri-urban areas13 and trips from rural areas to urban areas and vice versa”. This information is not exact. It depends on the context. Several African and Amazonian cities have larval habitats that determine autochthones malaria cases. On the other hand, what is the difference between “traveling from rural to urban and peri-urban” and “trips from rural areas to urban areas and vice versa”?

We adjusted: “Despite these difficulties, it has been established that urban and peri-urban malaria may be transmitted by population traveling from rural to urban and peri-urban areas (14,15) Local transmission has also been suggested in urban areas where the presence of Anopheles, as a competent vector, and infected people converge (13)”

The authors said, “Given the limited research on malaria prevalence carried out in the Colombian territory and the detection of pfhrp 2/3 genes in urban areas, this study was aimed at estimating malaria prevalence, detecting pfhrp2/3 genes, and exploring associated factors in the urban area
(Commune 5) in Tumaco during 2019”. From Public Health programs, it is important to detect the percentage of deletions of the Pfhrp2/3 genes in a population.

One of the objectives of the study was to detect gene fragments of Pfhrp2/3. The deletion of these genes was not evaluated. However, to improve malaria elimination programs, it is necessary to determine these deletions since, at least in Colombia, the RDTs used for diagnosis are based on these genes, and of course, deletions would generate false negatives.

Methods
Page 4:
About the inclusion criteria, the authors said that “minors who have the authorization of the responsible adult or guardian” were included. Was there not a minimum age for inclusion of children?

There is no minimum age for the inclusion of children.

The authors said that “a prevalence study was conducted in Commune 5 of Tumaco, a malaria-endemic urban area”. The authors should inform the criteria for selection of Commune 5 in Tumaco municipality. Is this the only Commune that has malaria?

We corrected: In the urban area of Tumaco, all five communes are endemic to malaria. In this city, 70% of malaria cases are reported from commune 5 in the last ten years

A better description of Commune 5 is necessary. How many inhabitants live there? Where is Commune 5 located? In the middle or in the periphery of the city? In the figure it seems that there is a river? What is the name of the river?

We corrected: Commune 5, with 26,000 inhabitants, is in the continental area of Tumaco on the low-tide land and nearby estuaries. The presence of Anophelines sppn breeding sites (ponds, puddles, and lakes for shrimp farming) and the high density of the population make this commune of high risk of malaria transmission.

In the figure, the image corresponds to an estuary. It's not a river.

The authors said that “In Tumaco, in the urban area, malaria is concentrated in Commune 5, where nearly 70% of the cases are found and there are breeding sites of Anopheles spp.”. 70% of urban cases are originated of the Commune 5? The idea is not clear. It is much better to say: In the urban area of Tumaco, 70% of malaria cases are found in the Commune 5 where there are breeding sites (our larval habitats) for Anophelines spp. too. What kind of larval habitats are in this Commune 5?

We included the suggested phrase and larval habitats.

Page 6:
The authors collected blood for thick smear, RDTs and whole blood and filter paper samples, but
in the methods, there is no information about the methods and the quantity of total blood was collected for PCR and filter paper samples. Please add this information.

We have included: For PCR, two drops of blood were obtained from the same finger puncture and were then put on the filter paper

On the other hand, for better understanding, we suggest that data about DNA extraction will be added before PCR experiments.

We have made the suggested change.

The authors only add information about DNA extraction from filter paper but not for the whole blood extraction. Was it made? If whole blood extraction was done, DNA was extracted from what quantity of blood?

We have included: 10 mm² of Whatman #3 filter paper impregnated with blood were taken and genomic DNA extraction was performed according to the protocol described in the article. This procedure was performed in duplicate.

Page 7:
Please add the reference of the protocol that was used for amplified Pfhrp2/3 genes.

We have included: For the amplification of the different fragments of the genes mentioned, we designed the specific primers and the PCR conditions for each of them were standardized. For the design of the primers, the GC content, dimer formation, loop formation, palindromes and Tm were taken into account. The sequences of the HRP2/HRP3 and PvSSU genes published in the Genbank were used, an alignment was performed using clustalW (Refseq) and the primers were designed from conserved regions of the sequences obtained.

For entomological collections, how many capture points were sampled? How many days, or how many times were the adult captures done?

We have included: Between October 1 and 23, 2019, 81 capture points were sampled in 25 homes and 83 breeding places.

The authors defined “Asymptomatic malaria as Individual with positive microscopy/RDT or PCR, without symptoms”. It is important to remember that with this definition, individuals could be in a
prepatogenic period or be an asymptomatic individual. The same reasoning goes for “Submicroscopic malaria”. The individual can be in the prepathogenic period or she/he can be in recovering period. Questions about malaria in the last month or to use malaria drugs in the last month were done?

In the applied questionnaire were included the questions:

Have you had malaria in the last year, apart from the current episode?
When was the last time you had malaria?
Have you taken antimalarial drugs in the last 15 days?

Results:
Table 3 included some categories that should not be included. For example, the variables
“Educational level” and “civil status” for children under 5 years old.

We corrected:

Table 3. Characteristics of the Surveyed Population. Tumaco, July to December 2019

Characteristics
Total

Unweighted count
Weighted count

n
%
95% Confidence Interval

Age groups

0-9
272
18,32
16,0
20,9

10-19
318
21,47
19,1
24,1

20-49
626
40,88
38,64
43,15

≥50
288
19,33
16,94
21,98

Sex

Male
531
35,56
33,5
37,7

Female
973
64,44
62,3
66,5

Ethnic group

Black, African descent
1.439
95,23
91,4
97,4

Others
65
4,77
2,6
8,6

Years living in the house

0 to 4
373
25,60
22,5
28,9

5 to 9
397
25,97
22,4
29,9

10 or more
714
47,03
42,6
51,5

No information
20
1,40
0,8
2,3

Educational level*

Preschool, primary
555
40,75
37,05
44,55

High school
628
45,79
42,88
48,73

University
113
8,54
6,43
11,24

None
72
4,93
3,57
6,77

Civil status**

Has a partner
585
52.78
49.08
56.45

No partner
526
47.22
43.55
50.92

Occupation

Worker
450
30,04
26,4
34,0

Housework
399
26,26
24,0
28,7

Early childhood
158
10,46
8,8
12,4

Childhood
178
12,26
10,7
14,0

Adolescence
218
14,49
12,7
16,5

Unemployed
36
2,29
1,6
3,2

Pensioner
14
0,86
0,5
1,4

Other
51
3,34
2,4
4,6

Family income

<1 MLW (Monthly Legal Wage)
1.219
79,37
72,8
84,7

1 or more MLW
281
20,33
15,1
26,8

Does not know
4
0,30
0,1
1,7

Malaria in the last year
10
0,67
0,32
1,40

* In the “Educational level” variable, 136 children under 5 years of age were excluded.
** In the “Civil status” variable, 393 children under 14 years of age were excluded.

Page 11:
Authors said that “and through PCR it was 2.16%”. Exclude “it” in this sentence.

We exclude “it” in this sentence.

Notably, only one individual with symptoms was PCR (+) and 6 with thick smear/RDT were symptomatic. Were these individuals negative in the PCR or was the PCR not done in these patients?

Yes, these individuals were negative in the PCR. All these persons were examined by PCR.

Authors said that, “The prevalence of amplification of the pfhrp2 gene was 2.16% (95% CI: 1.58% -
2.94%), and for the pfhrp3 gene and the PvSSU gene it was 0”. The literature for Pfhrp2/3 usually shows the percentage of gene deletion not the percentage of detection of these genes. It is
expected that P. falciparum samples carry the gene. It is extremally important that authors confirm if they effectively detected the gene or if they are showing the deletion of the gene. What does the percentage actually mean?

Fragments of the Pfhrp2/3 genes were detected by PCR amplification. No assays were performed to assess the deletion of these genes. The percentage shown corresponds to the percentage of amplification of the Pfhrp2/3 genes.

Discussion:
Page 14:
The authors said that “The prevalence of malaria was 2.97%. It was higher (4.42%) in the 10 to 19 age group”, but in the table 4, the 0-9 age group the prevalence was 4.06. Was there any statistical difference found in malaria cases in children between 0 and 9 years old and 10 and 19 years old?

There were no statistically significant differences (p: 0.83). We adjust: It was higher in the 10 to 19 (4.42%) and 0 to 9 (4.06%) age groups

The authors said that “The study found malaria in Commune 5, an area believed to have high transmission according to reports from the Vector-Borne Disease Prevention and Control Program
in the Nariño Department (API 2014 84.0 cases per 1,000 inhabitants; API 2015 220.5 and API 2016 165.8)”. Please add a reference.

We add: Pilar Perez, Vector-Borne Disease Prevention and Control Program in the Nariño Department, personal communication

A better discussion using previous knowledge of malaria in this area must be added. If this area was classified as high malaria risk in the past, why did the results show this low prevalence? How do we interpret these results? What´s causing the different prevalence between age groups? How do we understand this epidemiology?

We add: The decrease in the prevalence of malaria over time is possibly due to the intensification of actions to search for and eliminate breeding sites, massive use of mosquito nets, and social participation as measures implemented for Commune 5. Diagnosis and treatment actions also have contributed, despite the difficulties that exist in accessing services. In this way, it has reduced human contact (infected) —a vector that has contributed to the decline in the burden of this disease.

The higher prevalence of malaria in people under 20 years of age suggests that the infection may have been acquired locally. Unlike Africa, which has a high transmission and where the population, most affected in terms of morbidity and mortality is under 5 years of age, in areas of low transmission such as Colombia, malaria occurs in older age groups. Among the aspects that are considered to think that the transmission occurs in the urban area are confirming the infection in the residents of these areas; evidence of the presence of adult Anopheles that are biting the inhabitants of urban dwellings and identifying breeding sites near them (40).

In order to better interpret the results it is necessary to add more information. For example, when was the study done? (Year and month)? In this locality, is malaria seasonal? Was the study carried out during the high malaria season?

The blood samples were taken during the dry season, between July and September 2019. Malaria in the urban area of Tumaco has not shown a clear seasonal behavior.

The authors said that “In urban areas, malaria infection is not expected to be prevalent due to better-designed households with better basic utilities, better access to health services, and the absence of mosquito breeding sites”. They use a reference about taxonomy and not specifically urban malaria. Studies about urban malaria around the world show that there are specific determinants for malaria transmission in these areas. Larval habitats usually are very near to these urban areas. This does not seem to be the case in this area where the prevalence was very low.

We change the reference: Larson P, Eisenberg J, Berrocal V, Mathanga D, Wilson M. An urban-to-rural continuum of malaria risk: new analytic approaches characterize patterns in Malawi. Malaria Journal 20, 418 (2021) (ref 46)

The authors found a lack of concordance between microscopy/RDT and PCR tests. As they did not separate microscopy and RDT is difficult to interpret this result. A technical problem can occur when a positive microscopy is comparing with PCR. One question is, did the authors do quality control for thick smears? As primers are very specific, it is difficult to explain a positive thick smear with a negative PCR.

The National Institute of Health performed quality control on 10% (153) of the samples analyzed by optical microscopy in accordance with national recommendations.

On the other hand, a positive microscopy with a negative RDT is probably because the limit of detection of RDT. The same rational is true for negative RDT with positive PCR. Cases of negative thick smear with positive RDT could be explained because Pfhrp2 antigen could be detected in the blood until 30 days after a good malaria treatment.
Anyway, it is necessary that authors add this information in the discussion and include it in the results a separate data for microscopy, RDT and PCR results (including in symptomatic and asymptomatic individuals).

We add: “On the other hand, positive microscopy with a negative RDT is probably because of the limit of detection of RDT. The same rationale is true for negative RDT with positive PCR. Cases of negative thick smear with positive RDT could be explained because Pfhrp2 antigen could be detected in the blood until 30 days after a good malaria treatment.”

We include in the results:

Table 5. Test results according to symptoms. Unweighted count
Commune 5 neighborhoods, Tumaco (Nariño, Colombia). October 2019

Test
Symptoms
Total

Yes
No

Optical microscopy (RDT)
6 (5)
5 (3)
11 (8)

PCR
1
27
28

Total
7
33
39

In parentheses, the cases diagnosed with RDT

Page 15:
The authors said that “In terms of age groups, the highest prevalence of malaria was observed in the 10 to 19 age group and as age increased, prevalence decreased. This result is similar to that reported in other studies. Older people are likely to have a lower risk of becoming ill because they may develop some immunity if they have been previously exposed to the infection”. Was there any question about malaria antecedents in the questionnaire? How many malaria episodes did the participants have before the study? Or, how many participants had at least one previous malaria episode before the study? These are important questions that the authors did not address.

We included in the study the questions
- Have you had malaria in the last year, apart from the current episode?
- When was the last time you had malaria?
- Have you taken antimalarial drugs in the last 15 days?

The results are presented in the corresponding section as follows:
Ten individuals had malaria in the last year. Of them, none had malaria in the last month. They also did not have positive test results for malaria in the last 15 days, and they had not consumed antimalarial drugs.

Less than 1% of participants had malaria in the last year and none in the last month. It is possible that in areas of low endemicity, such as Colombia, the lowest prevalence in older age groups is due to the fact that the population that may have less exposure was interviewed. For example, women who remain at home dedicated to household chores and individuals of school age who go to school.

The authors said that “Furthermore, asymptomatic malaria may precede symptomatic disease, and may confer partial immunity against infection”. Asymptomatic Plasmodium infection is an important field of study and until now many questions continue open for discussion. It seems clear that asymptomatic infections occur in individuals with several past malaria episodes and this status is product of clinical immunity develop along time. This “status of Plasmodium asymptomatic infection” is different of those individuals whose blood were collected during the pre-pathogenic period before the beginning of malaria paroxysm. They could be in the “incubation period” and the number of parasites circulating in blood do not still reach the parasitic threshold for clinical symptoms. A better discussion about authors results and their interpretation must be added.

In this study, participants were sampled at a single point in time. Those who were classified as asymptomatic had no history of illness in the last month and had not used antimalarial drugs in the last 15 days. For them, it is difficult to establish if they were in the incubation period of the disease or if they were carriers of a low number of parasites. Resolving a situation like this requires follow-up. In this regard, a study of 268 people followed for 29 months in western Kenya, in a high-transmission area, discovered that asymptomatic infections were highly likely to be followed by symptomatic disease (ref 55). However, this does not seem to be the case in Commune 5 of Tumaco, which has a low transmission and where complicated malaria and malaria mortality do not occur.

About discussion of Pfhrp2, we added above this sentence: “Authors said that “The prevalence of amplification of the pfhrp2 gene was 2.16% (95% CI: 1.58% - 2.94%), and for the pfhrp3 gene and the PvSSU gene it was 0”. The literature for Pfhrp2/3 usually show the percentage of gene deletion not the percentage of detection of these genes. It is expected that P falciparum samples carry the gene. It is extremally important that authors confirm if they effectively detected the gene or if they are showing the deletion of the gene. What does the percentage actually mean?”. For the discussion, it is very important to know what was really detected by the authors - the deletion of gene or the gene?

We included: In the context of our study due to insufficient resources, we did not evaluate the deletion of these genes, we only amplified a fragment of these genes by means of PCR. However, in order to improve the management of clinical cases and design strategies for diagnosis, the detection of deletions in the HRP2/3 genes is relevant, since, as has been described, these can affect the accuracy of PDR in malaria endemic regions and of course in malaria control programs.

The authors said that “On the other hand, in the Commune 5 neighborhoods of Tumaco, An.
albimanus was found in artificial ponds and wells”. This data was not added in the results section.

These data is in the results section: “83 breeding sites were found. Out of those, two had Anopheles mosquito larvae, one in the Unión Victoria neighborhood and the other one in the Obrero neighborhood. One breeding site was a pond and the other one was a well. 32 larvae were collected in both breeding sites. 27 of them were in late stages (3rd and 4th) and were identified as An. albimanus.”

Regarding anopheline transmission in this study, it would be interesting if the authors added a discussion about ecological conditions for malaria transmission of An. albimanus.

An albimanus is considered a primary malaria vector in Colombia and particularly in Tumaco (ref 59). The presence of An. albimanus in different neighborhoods of Commune 5 provides partial evidence of the possible local transmission of malaria. This mosquito has been considered an opportunistic species due to its ability to adapt to different breeding sites (ref 60). Despite the small number of adults collected, there is a risk of transmission, taking into account that the maximum biting activity occurs in the peridomicile between 18:00 and 19:00 hours.

Furthermore, a critical analysis of the constraints of entomological studies must be incorporated.

Particular attention requires the limitation related to entomological aspects. The results presented are only an approximation to the subject. The difficulties presented did not allow them an adequate study of the ecology of the vector and to characterize the aspects related to the vector's biting density, feeding patterns, biting activity, parity rates, and resting behavior, among other issues that represent important factors for malaria transmission within the Commune 5.

View more View less

Competing Interests

No competing interests were disclosed.

Alongside their report, reviewers assign a status to the article:

Approved - the paper is scientifically sound in its current form and only minor, if any, improvements are suggested

Approved with reservations - A number of small changes, sometimes more significant revisions are required to address specific details and improve the papers academic merit.

Not approved - fundamental flaws in the paper seriously undermine the findings and conclusions

[1] 1. Padilla JC, Chaparro PE, Molina K, et al.: Is there malaria transmission in urban settings in Colombia?. Malar. J. 2015; 14(1): 453. PubMed Abstract | Publisher Full Text

[2] 2. Méndez F, Carrasquilla JG: Epidemiología de la malaria en el area urbana de Buenaventura. Análisis de la ocurrencia en el período 1987-1993. Colomb. Med. 1995; 26(3): 77–85.

[3] 3. World Health Organization: World malaria report 2021. Geneva: World Health Organization; 2021. 1–322. Reference Source

[4] 4. Instituto Nacional de Salud: Informe de evento malaria, Colombia, 2020. Bogotá D.C.;.2020. Reference Source

[5] 5. Organizacion Panamerica de la Salud: Plan estratégico nacional de malaria 2019-2022. Bogotá D. C.2020; p. 4–45. Reference Source

[6] 6. Wongsrichanalai C, Barcus MJ, Muth S, et al.: A review of malaria diagnostic tools: Microscopy and rapid diagnostic test (RDT). Am J Trop Med Hyg. 2007; 77(SUPPL. 6): 119–127. PubMed Abstract | Publisher Full Text

[7] 7. Rosenthal PJ: How do we best diagnose malaria in Africa?. Am J Trop Med Hyg. 2012; 86(2): 192–193. PubMed Abstract | Publisher Full Text

[8] 8. Picot S, Cucherat M, Bienvenu AL: Systematic review and meta-analysis of diagnostic accuracy of loop-mediated isothermal amplification (LAMP) methods compared with microscopy, polymerase chain reaction and rapid diagnostic tests for malaria diagnosis. Int. J. Infect. Dis. 2020; 98: 408–419. PubMed Abstract | Publisher Full Text

[9] 9. Menegon M, L’Episcopia M, Nurahmed AM, et al.: Identification of Plasmodium falciparum isolates lacking histidine-rich protein 2 and 3 in Eritrea. Infect. Genet. Evol. 2017; 55(September): 131–134. PubMed Abstract | Publisher Full Text

[10] 10. Beshir KB, Sepúlveda N, Bharmal J, et al.: Plasmodium falciparum parasites with histidine-rich protein 2 (pfhrp2) and pfhrp3 gene deletions in two endemic regions of Kenya. Sci. Rep. 2017; 7(1): 1–10. Publisher Full Text

[11] 11. Okell LC, Ghani AC, Lyons E, et al.: Submicroscopic infection in plasmodium falciparum-endemic populations: A systematic review and meta-analysis. J. Infect. Dis. 2009; 200(10): 1509–1517. PubMed Abstract | Publisher Full Text

[12] 12. Molina Gómez K, Caicedo MA, Gaitán A, et al.: Characterizing the malaria rural-to-urban transmission interface: The importance of reactive case detection. PLoS Negl. Trop. Dis. 2017; 11(7): 1–15. Publisher Full Text

[13] 13. Recht J, Siqueira AM, Monteiro WM, et al.: Malaria in Brazil, Colombia, Peru and Venezuela: Current challenges in malaria control and elimination. Malar. J. 2017; 16(1): 1–18. Publisher Full Text

[14] 14. Johansen IC, Rodrigues PT, Ferreira MU: Human mobility and urban malaria risk in the main transmission hotspot of Amazonian Brazil. PLoS One. 2020; 15(11 November): e0242357–e0242318. PubMed Abstract | Publisher Full Text

[15] 15. Tada MS, Marques RP, Mesquita E, et al.: Urban malaria in the Brazilian Western Amazon Region I. High prevalence of asymptomatic carriers in an urban riverside district is associated with a high level of clinical malaria. Mem. Inst. Oswaldo Cruz. 2007; 102(3): 263–270. PubMed Abstract | Publisher Full Text

[16] 16. Branch OL, Casapia WM, Gamboa DV, et al.: Clustered local transmission and asymptomatic Plasmodium falciparum and Plasmodium vivax malaria infections in a recently emerged, hypoendemic Peruvian Amazon community. Malar. J. 2005; 4: 1–16. Publisher Full Text

[17] 17. Rosas-Aguirre A, Llanos-Cuentas A, Speybroeck N, et al.: Assessing malaria transmission in a low endemicity area of north-western Peru. Malar. J. 2013; 12(1): 1. Publisher Full Text

[18] 18. Arróspide N, Miranda E, Casas J: Malaria urbana por Plasmodium vivax en la Molina, Lima. Rev. Peru. Med. Exp. Salud Publica. 2007; 24(2): 193–194.

[19] 19. Olano V, Carrasquilla G, Méndez F: Transmision de la malaria urbana en Buenaventura, Colombia: Aspectos entomologicos. Rev. Panam Salud Publica/Pan. Am. J. Public Heal. 1997; 2(6): 378–385. Publisher Full Text

[20] 20. Mendez F, Carrasquilla G, Muñoz A: Risk factors associated with malaria infection in an urban setting. Trans. R. Soc. Trop. Med. Hyg. 2000; 94(4): 367–371. PubMed Abstract | Publisher Full Text

[21] 21. Ochoa J, Osorio L: Epidemiology of urban malaria in Quibdo, Choco. Biomedica. 2006; 26(2): 278–285. PubMed Abstract | Publisher Full Text

[22] 22. Buitrago LS, Brochero HL, McKeon SN, et al.: First published record of urban malaria in Puerto Gaitán, Meta, Colombia. Mem. Inst. Oswaldo Cruz. 2013; 108(8): 1045–1050. PubMed Abstract | Publisher Full Text

[23] 23. Chaparro PE, Molina K, Alzate A, et al.: Urban malaria transmission in a non-endemic area in the Andean region of Colombia. Mem. Inst. Oswaldo Cruz. 2017; 112(12): 797–804. PubMed Abstract | Publisher Full Text

[24] 24. Murillo OL, Padilla JC, Escobar JP, et al.: Desafíos hacia la eliminación de la malaria urbana/peri en Guapi (Colombia), 2016. Entramado. 2018; 14(2): 272–284. Reference Source

[25] 25. Cucunubá ZM, Guerra ÁP, Rivera JA, et al.: Comparison of asymptomatic plasmodium spp. infection in two malaria-endemic colombian locations. Trans. R. Soc. Trop. Med. Hyg. 2013; 107(2): 129–136. PubMed Abstract | Publisher Full Text

[26] 26. Knudson A, González-Casabianca F, Feged-Rivadeneira A, et al.: Spatio-temporal dynamics of Plasmodium falciparum transmission within a spatial unit on the Colombian Pacific Coast. Sci. Rep. 2020; 10(1): 1–16. Publisher Full Text

[27] 27. Statistic Canada Office: Canada’s National Statistical Survey–sampling error. Otawa.1985.

[28] 28. Cámara de Comercio de Tumaco: Dinámica social, económica y empresarial. Tumaco.2019. 342 p. Reference Source

[29] 29. DANE: Proyecciones y retroproyecciones de población municipal para el periodo 1985-2017 y 2018-2035 con base en el CNPV 2018.2021 [cited 2021 Dec 1]. Reference Source

[30] 30. Instituto Nacional Salud: Guía para la vigilancia por laboratorio de parásitos del género Plasmodium spp. Bogotá D.C.2017. p. 1–24. Reference Source

[31] 31. Howard RJ, Uni S, Aikawa M, et al.: Secretion of a malarial histidine-rich protein (Pf HRP II) from Plasmodium falciparum-infected erythrocytes. J. Cell Biol. 1986; 103(4): 1269–1277. PubMed Abstract | Publisher Full Text | Free Full Text

[32] 32. Parra ME, Evans CB, Taylor DW: Identification of Plasmodium falciparum Histidine-Rich Protein 2 in the Plasma of. Humans with Malaria. 1991; 29(8): 1629–1634. Publisher Full Text

[33] 33. González R, Carrejo N: Introducción al estudio taxonómico de Anopheles de Colombia: claves y notas de distribución. Cali: Programa Editorial Universidad del Valle; Segunda ed2018; 260.

[34] 34. Lane J, Cerqueira N: Os sabetíneos da América (Diptera, Culicidae). Arq Zool do Estado São Paulo. 1942; 3: 473–849.

[35] 35. Lane J: Neotropical Culicidae: Volumes I & II. 1st ed.Sao Paulo: University of Sao Paulo; 1953; 1111.

[36] 36. Forattini OP: Entomologia médica. São Paulo: USP; 1965.

[37] 37. OMS: Terminología del paludismo. Ginebra.2017. 48 p. Reference Source

[38] 38. Bousema T, Okell L, Felger I, et al.: Asymptomatic malaria infections: Detectability, transmissibility and public health relevance. Nat. Rev. Microbiol. 2014; 12(12): 833–840. PubMed Abstract | Publisher Full Text

[39] 39. Almeida ACG, Kuehn A, Castro AJM, et al.: High proportions of asymptomatic and submicroscopic Plasmodium vivax infections in a peri-urban area of low transmission in the Brazilian Amazon. Parasites Vectors. 2018; 11(1): 1–13. PubMed Abstract | Publisher Full Text

[40] 40. Johansen IC, Rodrigues PT, Tonini J, et al.: Cohort profile: The Mâncio Lima cohort study of urban malaria in Amazonian Brazil. BMJ Open. 2021; 11(11): e048073–e048078. Publisher Full Text

[41] 41. Osorio L, Todd J, Bradley D: Ausencia de malaria asintomática en escolares de Quibdó, Chocó. Biomedica. 2004; 24(1): 13. Publisher Full Text

[42] 42. Molina Gómez K, Caicedo MA, Gaitán A, et al.: Characterizing the malaria rural-to-urban transmission interface: The importance of reactive case detection. PLoS Negl. Trop. Dis. 2017; 11(7): e0005780. PubMed Abstract | Publisher Full Text

[43] 43. Kazembe LN, Mathanga DP: Estimating risk factors of urban malaria in Blantyre, Malawi: A spatial regression analysis. Asian Pac. J. Trop. Biomed. 2016; 6(5): 376–381. Publisher Full Text

[44] 44. Kateera F, Mens PF, Hakizimana E, et al.: Malaria parasite carriage and risk determinants in a rural population: A malariometric survey in Rwanda. Malar. J. 2015; 14(1): 1–11. Publisher Full Text

[45] 45. Lwetoijera DW, Kiware SS, Mageni ZD, et al.: A need for better housing to further reduce indoor malaria transmission in areas with high bed net coverage. Parasites Vectors. 2013; 6(1): 1. Publisher Full Text

[46] 46. Takken W, Knols BGJ: Odor-mediated behavior of Afrotropical malaria mosquitoes. Annu. Rev. Entomol. 1999; 44(May 2014): 131–157. PubMed Abstract | Publisher Full Text

[47] 47. Ipa M, Widawati M, Laksono AD, et al.: Variation of preventive practices and its association with malaria infection in eastern Indonesia: Findings from community-based survey. PLoS One. 2020; 15(5): e0232909–e0232918. PubMed Abstract | Publisher Full Text

[48] 48. Mudare N, Matsena-Zingoni Z, Makuwaza A, et al.: Detecting Plasmodium falciparum in community surveys: a comparison of Paracheck Pf^® Test and ICT Malaria Pf^® Cassette Test to polymerase chain reaction in Mutasa District, Zimbabwe. Malar. J. 2021; 20(1): 14–17. PubMed Abstract | Publisher Full Text

[49] 49. Awosolu OB, Yahaya ZS, Farah Haziqah MT, et al.: A cross-sectional study of the prevalence, density, and risk factors associated with malaria transmission in urban communities of Ibadan, Southwestern Nigeria. Heliyon. 2021; 7(1): e05975. Publisher Full Text

[50] 50. Quang HH, Chavchich M, Minh Trinh NT, et al.: Cross-sectional survey of asymptomatic malaria in Dak Nong province in the Central Highlands of Vietnam for the malaria elimination roadmap. PLoS One. 2021; 16(10 October 2021): e0258580–e0258518. PubMed Abstract | Publisher Full Text

[51] 51. Frimpong A, Amponsah J, Adjokatseh AS, et al.: Asymptomatic Malaria Infection Is Maintained by a Balanced Pro- and Anti-inflammatory Response. Front. Microbiol. 2020; 11(November). PubMed Abstract | Publisher Full Text

[52] 52. Cheng Q, Gatton ML, Barnwell J, et al.: Plasmodium falciparum parasites lacking histidine-rich protein 2 and 3: A review and recommendations for accurate reporting. Malar. J. 2014; 13(1): 1–8. Publisher Full Text

[53] 53. Murillo Solano C, Akinyi Okoth S, Abdallah JF, et al.: Deletion of Plasmodium falciparum Histidine-Rich Protein 2 (pfhrp2) and Histidine-Rich Protein 3 (pfhrp3) Genes in Colombian Parasites. PLoS One. 2015; 10(7): e0131576. PubMed Abstract | Publisher Full Text

[54] 54. Feleke SM, Reichert EN, Mohammed H, et al.: Emergence and evolution of Plasmodium falciparum histidine-rich protein 2 2 and 3 deletion mutant parasites in Ethiopia. medRxiv. 2021.

[55] 55. Chaparro-Narváez PE, Jiménez-Serna MM, Gunturiz-Albarracin ML, et al.: Malaria Prevalence in Commune 5 in Tumaco (Nariño, Colombia) [data]. Zenodo. 2022. Publisher Full Text

Malaria prevalence in Commune 5 in Tumaco (Nariño, Colombia)

Abstract

Keywords

Introduction

Methods

Ethics and consent

Study design

Study area

Figure 1. Study area in Tumaco (Nariño, Colombia).

Data collection

Laboratory procedures

Table 1. Standardized amplification conditions for each gene, primers and expected fragment sizes (PCR: polymerase chain reaction).

Entomological study

Definitions

Statistical analysis

Results

Housing and demographic characteristics

Table 2. Household characteristics.

Table 3. Characteristics of the surveyed population.

Prevalence of malaria

Table 4. Estimated prevalence of malaria.

PCR

Entomological study

Figure 2. Indoor and Peri-Domestic Human-Biting Rate (HBR).

Related factors

Table 5. Malaria-related factors in commune 5 households.

Table 6. Malaria-Related Factors in Commune 5 inhabitants in Tumaco, July to December 2019.

Discussion

Data availability

Underlying data

Extended data

Competing interests

Grant information

References

Comments on this article Comments (0)

Open Peer Review

Comments on this article Comments (0)

Open Peer Review

Reviewer Status

Reviewer Reports

Comments on this article

Browse by related subjects

Competing Interests Policy

Stay Updated
