Observation of SARS-CoV-2 genome characteristics and clinical manifestations within eight family clusters from GH and GK clades in Jakarta, Indonesia

[version 1; peer review: 1 approved with reservations, 1 not approved]

Fera Ibrahim ^1,2, Augustine Natasha^1,3, Andi Yasmon¹, [...] Fithriyah Fithriyah¹, Anis Karuniawati^1,2, Rivia Gina Rahmawaty^1,2, Yulia Saharman^1,2, Pratiwi Sudarmono^1,2

Fera Ibrahim ^1,2, Augustine Natasha^1,3, [...] Andi Yasmon¹, Fithriyah Fithriyah¹, Anis Karuniawati^1,2, Rivia Gina Rahmawaty^1,2, Yulia Saharman^1,2, Pratiwi Sudarmono^1,2

PUBLISHED 02 Aug 2022

Author details Author details

¹ Clinical Microbiology Department, Faculty of Medicine, Universitas Indonesia, Jakarta, Jakarta, Indonesia
² Clinical Microbiology Department, Dr. Cipto Mangunkusumo Hospital, Jakarta, Jakarta, Indonesia
³ Clinical Microbiology, Genomik Solidaritas Indonesia Laboratory, Jakarta, Jakarta, Indonesia

Fera Ibrahim
Roles: Conceptualization, Formal Analysis, Methodology, Supervision, Validation, Writing – Review & Editing

Augustine Natasha
Roles: Conceptualization, Data Curation, Formal Analysis, Funding Acquisition, Project Administration, Visualization, Writing – Original Draft Preparation, Writing – Review & Editing

Andi Yasmon
Roles: Formal Analysis, Investigation, Methodology, Supervision, Validation, Writing – Review & Editing

Fithriyah Fithriyah
Roles: Data Curation, Investigation, Methodology, Supervision, Writing – Review & Editing

Anis Karuniawati
Roles: Investigation, Supervision, Validation

Rivia Gina Rahmawaty
Roles: Data Curation, Investigation, Methodology

Yulia Saharman
Roles: Conceptualization, Supervision, Writing – Review & Editing

Pratiwi Sudarmono
Roles: Conceptualization, Funding Acquisition, Project Administration, Supervision, Validation, Writing – Original Draft Preparation, Writing – Review & Editing

OPEN PEER REVIEW

REVIEWER STATUS

This article is included in the Genomics and Genetics gateway.

This article is included in the Nanopore Analysis gateway.

This article is included in the Coronavirus (COVID-19) collection.

Abstract

Background: SARS-CoV-2 rapid mutation generates many concerning new strains. Although lockdown had been applied to contain the disease, the household remains a critical place for its transmission. This study aimed to assess the variation of SARS-CoV-2 strains and their clinical manifestations within family clusters in Jakarta, Indonesia.
Method: Naso-oropharyngeal swab specimens from family clusters positive for SARS-CoV-2 were collected for whole-genome sequencing. Their baseline data, symptoms, and source of infection were recorded. The whole-genome data was then analyzed with the bioinformatics program to evaluate the SARS-CoV-2 genome characteristic and submitted to GISAID for strain identification. The phylogenetic tree was built to observe the relationship between virus strain within the family cluster and its clinical manifestation.
Result: This study obtained eight family clusters from twenty-two patients. Half of the cluster's source of infection was a family member who had to work at the office. The infection rate ranged from 37.5% to 100%. The phylogenetic tree showed that the same virus within a cluster could generate various clinical outcomes. Five clusters had one family member with pneumonia, while others had mild to no symptoms. Four breakthrough cases were detected in this study, which were infected by the virus from GH and GK clade.
Conclusion: Our study observed the SARS-CoV-2 transmission to the household setting through the workplace, which might become a common pathway if the pandemic status is removed. Although vaccination is expected to reduce the burden of COVID-19, adequate control measures remain essential, given that breakthrough infections are evident.

Keywords

SARS-Cov-2, Family Cluster, Whole-Genome Sequence, Next Generation Sequencing, Breakthrough infection.

Corresponding author: Fera Ibrahim

Competing interests: No competing interests were disclosed.

Grant information: The author(s) declared that no grants were involved in supporting this work.

Copyright: © 2022 Ibrahim F et al. This is an open access article distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited.

How to cite: Ibrahim F, Natasha A, Yasmon A et al. Observation of SARS-CoV-2 genome characteristics and clinical manifestations within eight family clusters from GH and GK clades in Jakarta, Indonesia [version 1; peer review: 1 approved with reservations, 1 not approved]. F1000Research 2022, 11:886 (https://doi.org/10.12688/f1000research.122019.1) First published: 02 Aug 2022, 11:886 (https://doi.org/10.12688/f1000research.122019.1) Latest published: 16 Oct 2023, 11:886 (https://doi.org/10.12688/f1000research.122019.2)

Introduction

SARS-CoV-2 was first detected in late 2019; however, its rapid mutations have resulted in several dominant strains that threaten the efficacy of current treatment and control protocols. D614G was the first reported mutation to rapidly emerge among the dominant viral strains worldwide.¹ This mutation then increased and generated the emergence of the variants of concern, such as Alpha, Beta, Gamma, and Delta, which alternately became the dominant strain in many countries.¹ These variants had been reported to have higher transmissibility, more severe clinical manifestations, and the ability to potentially escape the immunity conferred by the current vaccines.²

Lockdown and quarantine have been the main actions applied to contain the spread of SARS-CoV-2 in the population. Nonetheless, the household setting has been a critical SARS-CoV-2 transmission pathway.³^,⁴ The rate of secondary transmission among household contacts has varied from 16.6% to 30%.³^,⁵ Household transmission is more challenging to control, given the frequent unavoidable contacts among family members sharing the same home.⁶ In addition, transmission within households has been reported to be increased in families of greater size.⁷ The urban areas of Indonesia are less likely to have a family size of fewer than four individuals.⁸ The basic reproduction number in Jakarta during the early spread of COVID-19 was 1.75,⁹ which has made the household setting one of the vital arenas for COVID-19 transmission in Indonesia.

SARS-CoV-2 surveillance has been implemented in many referral laboratories in Indonesia since the middle of 2020, and it has supported researchers in examining the dynamics of SARS-CoV-2 variants throughout the year. This study was performed to assess the variation of SARS-CoV-2 strains and their clinical manifestations within family clusters in Jakarta, Indonesia.

Methods

Ethics and patient sampling

This study was conducted after obtaining ethical clearance from the Research Ethics Committee of Universitas Indonesia (protocol number 20-05-0516). Patients were informed before providing written consent. All the patients involved in this study agreed to have their medical information and specimens used for analysis.

Specimen collection and processing

We selected naso-oropharyngeal swab specimens from family clusters positive for SARS-CoV-2 for whole-genome sequencing, choosing at least two patients to represent each family cluster. The specimens were stored in -80⁰C from the date of detection to the sequencing process. The 200-μl of specimen extraction was performed according to the manufacturer’s instructions (PureLink™ Viral RNA/DNA Mini Kit, Thermo Fisher Scientific, USA). The real-time reverse transcription polymerase chain reaction (PCR) US Centers for Disease Control and Prevention validation test targeting N1 and N2 was performed according to the manufacturer’s instructions (SensiFAST™, Meridian Bioscience, USA).

The total RNA from positive extraction was then cleaned with DNase I and concentrated (RNA Clean & Concentrator^TM-5, Zymo Research, USA). The libraries were prepared according to the ARTIC multiplex PCR method, using an nCoV-19 V3 panel.¹⁰ The libraries were then processed with Oxford Nanopore’s GridION sequencer, employing MinKNOW version 20.06.9 and MinKNOW core version 4.0.11.¹⁰ High accuracy basecalling was conducted using Guppy version 4.0.11.¹¹ All generated reads were assembled using EPI2ME Labs platform employing ARTIC workflow.¹⁰

Variant analysis and phylogenetic tree construction

The complete genome sequences were uploaded to GISAID for identification of clade, lineage, and mutations. The sequences were further annotated using SnpEff v4.3.¹² The phylogenetic tree was built using Geneious Prime 2021.1.1, using UPGMA as the tree build method and Tamura-Nei as the genetic distance model, with NC_045512 as the reference sequence.

Results

This study included 22 patients from eight family clusters, performed from January 2021 to August 2021. The patient characteristics are shown in Table 1. The phylogenetic tree is shown in Figure 1.

Table 1. Characteristics of the patients included in the study.

Patient	Cluster	Sex	Age range (y.o.)	Dates of detection	Symptoms						Confirmed pneumonia	Severity degree	Vaccination history before infection	Clade	Pango lineage
Patient	Cluster	Sex	Age range (y.o.)	Dates of detection	Fever	Anosmia	Cough	Malaise	Myalgia	Gastrointestinal problem	Confirmed pneumonia	Severity degree	Vaccination history before infection	Clade	Pango lineage
Patient 1	A	Male	20-29	Jan 2021	+		+				No	Mild	No	GH	B.1.459
Patient 2		Female	< 10	Jan 2021		+					No	Mild	No	GH	B.1.459
Patient 3		Male	60-69	Jan 2021	+		+	+		+	Yes	Moderate	No	GH	B.1.459
Patient 4	B	Female	20-29	Jan 2021				+	+	+	No	Mild	No	GH	B.1.
Patient 5		Female	50-59	Jan 2021	+	+		+	+	+	No	Mild	No	GH	B.1.
Patient 6		Female	20-29	Jan 2021	+		+	+	+	+	Yes	Moderate	No	GH	B.1.
Patient 7	C	Male	40-49	Jan 2021	+		+	+		+	Yes	Moderate	No	GH	B.1.466.2
Patient 8		Male	< 10	Jan 2021							No	Asymptomatic	No	GH	B.1.466.2
Patient 9		Male	< 10	Jan 2021							No	Asymptomatic	No	GH	B.1.466.2
Patient 10	D	Female	40-49	Feb 2021			+	+			No	Mild	No	GH	B.1.466.2
Patient 11		Male	40-49	Feb 2021	+		+	+			Yes	Moderate	No	GH	B.1.466.2
Patient 12		Female	10-19	Feb 2021		+		+			No	Mild	No	GH	B.1.466.2
Patient 13	E	Female	50-59	Apr 2021	+		+	+		+	No	Mild	Yes (Sinovac, 2 doses)	GH	B.1.466.2
Patient 14	E	Male	10-19	Apr 2021							No	Asymptomatic	No	GH	B.1.466.2
Patient 15	F	Female	20-29	May 2021	+		+	+		+	No	Mild	Yes (Sinovac, 2 doses)	GH	B.1.1.526
Patient 16	F	Male	60-69	Jun 2021							No	Mild	Yes (Sinovac, 2 doses)	GK	B.1.617.2 + AY24
Patient 17	G	Female	40-49	Jun 2021	+	+	+		+		No	Mild	Yes (Sinovac, 1 doses)	GK	B.1.617.2 + AY23
Patient 18		Female	50-59	Jun 2021	+	+	+		+		No	Mild	No	GK	B.1.617.2 + AY23
Patient 19		Male	50-59	Jun 2021	+	+	+		+		No	Mild	No	GK	B.1.617.2 + AY23
Patient 20	H	Female	30-39	Aug 2021	+		+	+	+	+	Yes	Moderate	Yes (Sinovac, 2 doses)	GK	B.1.617.2 + AY23
Patient 21		Female	< 10	Aug 2021	+					+	No	Mild	No	GK	B.1.617.2 + AY23
Patient 22		Female	50-59	Aug 2021	+		+	+	+	+	No	Mild	No	GK	B.1.617.2 + AY23

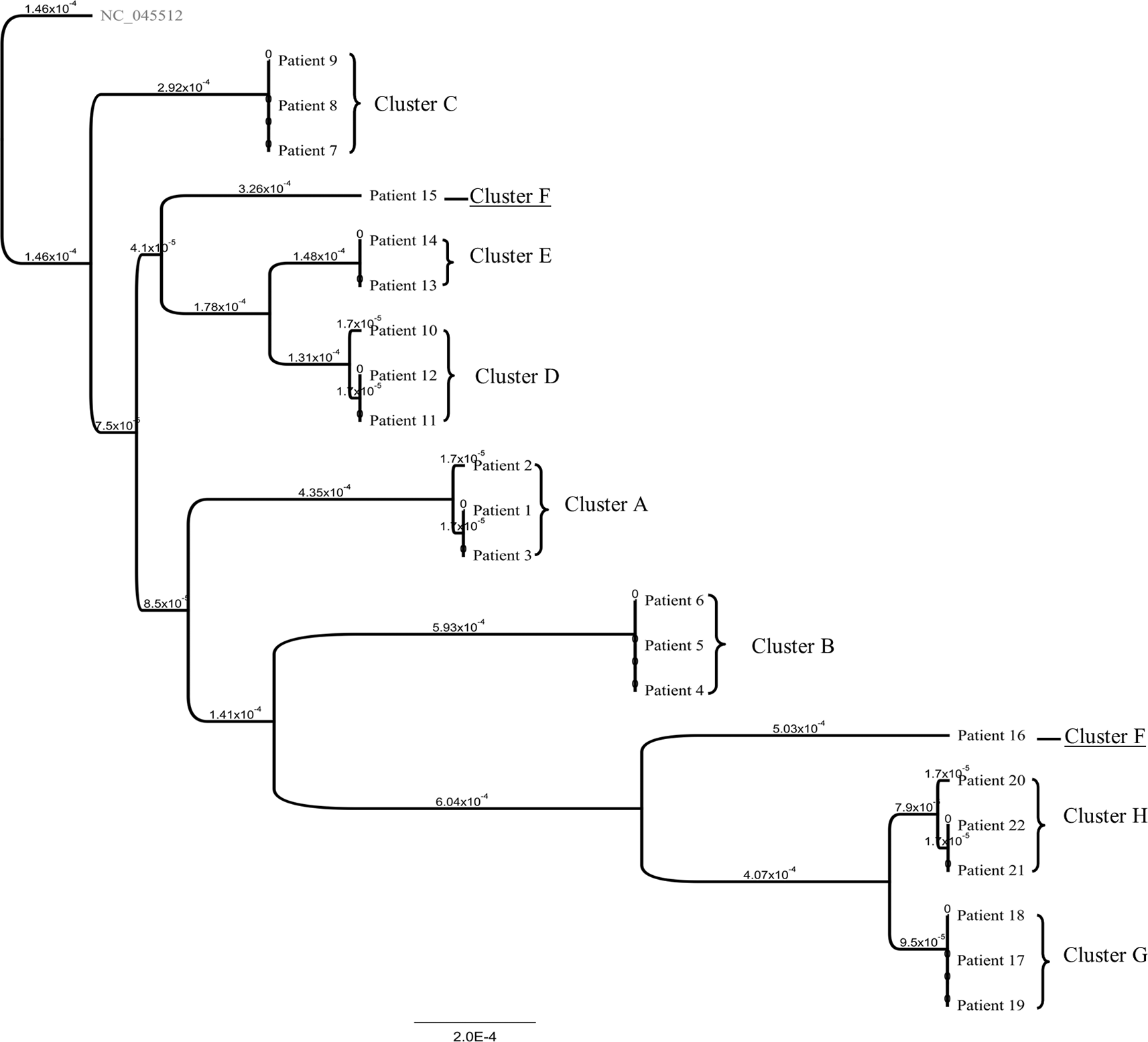

Figure 1. Phylogenetic tree of all the clusters.

The source of infection in clusters A and D was unknown, and the infections were detected due to the screening program; the source of infection in clusters B, C, E, and F was a family member who had a history of working from the office during the pandemic; the source of infection in cluster G was a family member who had a history of traveling to another province via airplane for business assignments; and the source of infection in cluster H was the nanny who worked in the house during the day. Five patients had been vaccinated, with four of them completing the second dose.

In clusters C (4 of 4), D (5 of 5), E (5 of 5), F (3 of 3), G (4 of 4), and H (4 of 4), the whole family had become infected with SARS-CoV-2. For cluster A, only three of eight family members became infected with COVID-19. For cluster B, 4 of 5 family members caught COVID-19. The infection rate ranged from 37.5% to 100%.

Nineteen of the 22 patients isolated at home, with patients six, seven, 11, and 20 having pneumonia during their isolation, but who were not able to be admitted to the hospital because of the lack of available beds. However, these patients had access to the outpatient COVID-19 clinics to obtain doctor assessment, symptomatic medications, and radiology tests. The only patient with pneumonia who was able to be admitted to the hospital was patient three. Most patients did not have their blood tested during their early days after being detected positive due to difficulties reaching the healthcare service at the peak of the first and second wave. The Pango lineages circulating within the clusters were B.1.459, B.1., B.1.466.2, B.1.1.526, B.1.617.2 + AY23, and AY24. Most clusters had the same strain within each patient, except cluster F. For cluster F, patient 16 was detected positive after regular screening because he took care of patient 15, which explains the distance between the dates of the SARS-CoV-2 positive results between the patients.

This study had 2 dominant clades, GH and GK. The evaluation of the variation rates, transition-transversion (ti/tv) ratio, total single nucleotide polymorphism (SNP), total deletion, total variation, missense-silent ratio, spike (S) and nucleocapsid (N) gene nonsynonymous mutations, and total nonsynonymous mutation are shown in Table 2.

Table 2. Bioinformatics analysis results between clade GH and GK.

	GH	GK
Variation rate (Median, IQR)	0.00083 (0.0002)	0.0013 (0.0003)
Ti/Tv ratio (Median, IQR)	4 (0.83)	1.8 (0.10)
Transition (Median, IQR)	40 (12)	48 (19)
Transversion (Median, IQR)	10 (6)	18 (9)
Total variant (Median, IQR)	25 (6)	40 (9)
Total SNP (Median, IQR)	24 (6)	37 (9)
Total Deletion (Median, IQR)	1 (1)	3 (0)
Missense-silent Ratio (Median, IQR)	1.11 (0.49)	3.4 (1.72)
Total nonsynonymous mutation (Median, IQR)	16 (5)	32 (4)
Total S mutation (Median, IQR)	3 (1)	11 (1)
Total N mutation (Median, IQR)	2 (1)	4 (1)
Total SNP mutation (Median, IQR)	6 (7)	12 (0)

In addition, given that the spike gene had the highest number of mutations, the distribution of its nonsynonymous mutations within the patients is shown in Table 3.

Table 3. The distribution of the nonsynonymous mutations of the SARS-CoV-2 spike gene.

Patient	Cluster	A222V	D614G	D950N	E156G	F157del	G142D	H49Y	L18F	L452R	N439K	P26L	P681R	R158del	S689R	S494P	T19R	T478K	T716I	V1264L
Patient 1	A		+						+						+				+
Patient 2			+						+						+				+
Patient 3^*			+						+						+				+
Patient 4	B		+					+	+							+
Patient 5			+					+	+							+
Patient 6^*			+					+	+							+
Patient 7^*	C		+								+
Patient 8			+								+
Patient 9			+								+
Patient 10	D		+								+		+
Patient 11^*			+								+		+
Patient 12			+								+		+
Patient 13	E		+								+		+
Patient 14	E		+								+		+
Patient 15	F		+								+		+
Patient 16	F	+	+	+	+	+	+			+			+	+			+	+
Patient 17	G		+	+	+	+	+			+			+	+			+	+		+
Patient 18			+	+	+	+	+			+			+	+			+	+		+
Patient 19			+	+	+	+	+			+			+	+			+	+		+
Patient 20^*	H		+	+	+	+	+			+		+	+	+			+	+		+
Patient 21			+	+	+	+	+			+		+	+	+			+	+		+
Patient 22			+	+	+	+	+			+		+	+	+			+	+		+

* Patients with pneumonia.

Discussion

Four clusters in our study had an index patient with a history of working in an office. Cases of SARS-CoV-2 infection from office workers outside the healthcare setting were scarcely reported.¹³ Six of eight family clusters had a 100% infection rate, showing the efficacy of SARS-CoV-2 transmission within the family group. As reported by several studies, the household infection rate ranged between 75% and 100%.³^,¹⁴ The high infection rate within households combined with poor preventive measures in the workplace could generate a spike in COVID-19 cases.

This study also found SARS-CoV-2 infections in patients who had been vaccinated (breakthrough cases). Infection after complete vaccination was possible, no matter which type of vaccine had been administered.¹⁵^,¹⁶ Duarte et al. reported the breakthrough cases mainly were mild, and that other factors might have influenced the symptomatic infections, given that they were not correlated with lack of vaccine-induced immunity.¹⁵ Although our study could not represent the general population, the concern of vaccine efficacy in the face of new variants with more mutations has become relevant since Christensen et al. reported an increase in breakthrough cases caused by the Delta variant (as part of the GK clade).¹⁷ Therefore, preventive measures such as wearing a mask are still necessary, even after full vaccination.

The clinical manifestation varied within the patients in each family cluster. This situation was in concordance with several case reports, which have mentioned variations in disease severity within a family cluster.¹⁸ However, seven clusters were monophyletic, which showed that the same virus could generate a different outcome. Furthermore, we found the virus genome of the patients with pneumonia was similar to the other patients without pneumonia (Table 1, Figure 1). No specific variation or combination in the genome mutation could generate a particular clinical outcome (Table 3). The D614G spike mutation was also distributed evenly within the patients. This finding was in concordance with Korber et al. and Lorenzo-Redondo et al., who noted that the D614G mutations did not correlate with more severe outcomes.¹⁹^,²⁰

Our study showed a ti/tv ratio decline between the GH and GK clades. This decline was in concordance with the study by Duchêne et al., which revealed the ti/tv scaled negatively over time, especially for rapidly evolving RNA viruses.²¹ We also found an increase in the GK total spike gene mutations compared with the GH clade. Given that the GK clade appeared later in our study, it was expected to have more mutations because the RNA virus would utilize various mechanisms of genetic variation to guarantee its survival.²² The evolving behavior can facilitate the virus to evade the current vaccine-generated immunity, resulting in breakthrough infections.

One limitation of our study was the small number of patients and family clusters. This study could not provide serological test results, especially from patients with vaccination history, given that there were no guidelines to confirm an immune response after vaccination. Our study showed that the same virus within a cluster could generate various clinical outcomes. Our observation showed the SARS-CoV-2 transmission in the household setting through the workplace, which could be a common pathway in the future of COVID-19 once the pandemic status is lifted. Although vaccination is expected to reduce the burden of COVID-19, control measures are crucial, given that breakthrough infections due to a new variant are evident.

Data availability

The virus genome included in this study was published at GISAID with accession ID:

EPI_ISL_2692986, EPI_ISL_2692987, EPI_ISL_2692989, EPI_ISL_2993633, EPI_ISL_2993659, EPI_ISL_2993632, EPI_ISL_2692990, EPI_ISL_2692991, EPI_ISL_2692992, EPI_ISL_2993434, EPI_ISL_2993539, EPI_ISL_2993658, EPI_ISL_2692909, EPI_ISL_2692981, EPI_ISL_2692983, EPI_ISL_3000155, EPI_ISL_3456060, EPI_ISL_4847411, EPI_ISL_4847413, EPI_ISL_5054899, EPI_ISL_5054915, EPI_ISL_5054918.

Acknowledgements

The authors would like to thank Universitas Indonesia, through PUTI Grant with contract number NKB-1493/UN2.RST/HKP.05.00.2020.

References

1. Choi JY, Smith DM: Sars-cov-2 variants of concern. Yonsei Med. J. 2021; 62(11): 961–968. Publisher Full Text
2. Harvey WT, Carabelli AM, Jackson B, et al.: Sars-cov-2 variants, spike mutations and immune escape. Nat. Rev. Microbiol. 2021; 19(7): 409–424. PubMed Abstract | Publisher Full Text
3. Wang Z, Ma W, Zheng X, et al.: Household transmission of sars-cov-2. J. Infect. 2020; 81(1): 179–182. PubMed Abstract | Publisher Full Text
4. Luo L, Liu D, Liao X, et al.: Contact settings and risk for transmission in 3410 close contacts of patients with covid-19 in guangzhou, china: A prospective cohort study. Ann. Intern. Med. 2020; 173(11): 879–887. PubMed Abstract | Publisher Full Text
5. Madewell ZJ, Yang Y, Longini IM Jr, et al.: Household transmission of sars-cov-2: A systematic review and meta-analysis. JAMA Netw. Open. 2020; 3(12): e2031756. PubMed Abstract | Publisher Full Text
6. Haroon S, Chandan JS, Middleton J, et al.: Covid-19: Breaking the chain of household transmission. BMJ (Clinical research ed). 2020; 370: m3181. Publisher Full Text
7. Martin CA, Jenkins DR, Minhas JS, et al.: Socio-demographic heterogeneity in the prevalence of covid-19 during lockdown is associated with ethnicity and household size: Results from an observational cohort study. EClinicalMedicine. 2020; 25: 100466. PubMed Abstract | Publisher Full Text
8. Laksono AD, Wulandari RD: The factors correlate to family size in indonesia. Aspirasi: Jurnal Masalah-masalah Sosial. 2021; 12(1): 1–13.
9. Aldila D, Khoshnaw SHA, Safitri E, et al.: A mathematical study on the spread of covid-19 considering social distancing and rapid assessment: The case of jakarta, indonesia. Chaos, Solitons Fractals. 2020; 139: 110042. PubMed Abstract | Publisher Full Text
10. Tyson J, James P, Stoddart D, et al.: Improvements to the artic multiplex pcr method for sars-cov-2 genome sequencing using nanopore. bioRxiv. 2020.
11. Wick RR, Judd LM, Holt KE: Performance of neural network basecalling tools for oxford nanopore sequencing. Genome Biol. 2019; 20(1): 129. PubMed Abstract | Publisher Full Text
12. Cingolani P, Platts A, Wang le L, et al.: A program for annotating and predicting the effects of single nucleotide polymorphisms, snpeff: Snps in the genome of drosophila melanogaster strain w1118; iso-2; iso-3. Fly. 2012; 6(2): 80–92. PubMed Abstract | Publisher Full Text
13. Agius RM, Robertson JFR, Kendrick D, et al.: Covid-19 in the workplace. BMJ (Clinical research ed). 2020; 370: m3577. Publisher Full Text
14. Maltezou HC, Vorou R, Papadima K, et al.: Transmission dynamics of sars-cov-2 within families with children in greece: A study of 23 clusters. J. Med. Virol. 2021; 93(3): 1414–1420. PubMed Abstract | Publisher Full Text
15. Duarte LF, Gálvez NMS, Iturriaga C, et al.: Immune profile and clinical outcome of breakthrough cases after vaccination with an inactivated sars-cov-2 vaccine. Front. Immunol. 2021; 12: 742914. PubMed Abstract | Publisher Full Text
16. Tenforde MW, Self WH, Naioti EA, et al.: Sustained effectiveness of pfizer-biontech and moderna vaccines against covid-19 associated hospitalizations among adults - United States, March-July 2021. MMWR Morb. Mortal. Wkly Rep. 2021; 70(34): 1156–1162. PubMed Abstract | Publisher Full Text
17. Christensen PA, Olsen RJ, Long SW, et al.: Delta variants of sars-cov-2 cause significantly increased vaccine breakthrough covid-19 cases in houston, texas. Am. J. Pathol. 2021.
18. Chen D, Li Y, Deng X, et al.: Four cases from a family cluster were diagnosed as covid-19 after 14-day of quarantine period. J. Med. Virol. 2020; 92(10): 1748–1752. PubMed Abstract | Publisher Full Text
19. Korber B, Fischer WM, Gnanakaran S, et al.: Tracking changes in sars-cov-2 spike: Evidence that d614g increases infectivity of the covid-19 virus. Cell. 2020; 182(4): 812–827.e19. PubMed Abstract | Publisher Full Text
20. Lorenzo-Redondo R, Nam HH, Roberts SC, et al.: A unique clade of sars-cov-2 viruses is associated with lower viral loads in patient upper airways. medRxiv. 2020.
21. Duchêne S, Ho SY, Holmes EC: Declining transition/transversion ratios through time reveal limitations to the accuracy of nucleotide substitution models. BMC Evol. Biol. 2015; 15: 36. Publisher Full Text
22. Domingo E, Holland JJ: Rna virus mutations and fitness for survival. Annu. Rev. Microbiol. 1997; 51: 151–178. Publisher Full Text
