The patent landscape in the field of stem cell therapy: closing the gap between research and clinic

In the patent arena, regulation matters

We may say that WARF's patent controversy is the clearest example of how the scope of IPR and policy contexts affect stem cell technology. WARF is a nonprofit foundation that manages intellectual property generated by researchers at the University of Wisconsin at Madison. In the mid-1990s, James Thomson and coworkers developed an approach to maintain long-lasting ESC lines from two species of primates. Afterward, in 1998, the group created an analogous hESC; due to governmental prohibits for using federal funds in research with human embryos, Geron Corporation funded the research in exchange for exclusive and nonexclusive rights under patents that might result. The first application for the IPR patent family was filed by WARF in the US in 1996 and awarded in 2006. However, in 2004 the European Patent Office (EPO) refused the application on moral grounds. While in the US, the controversy around WARF's patent family was centered on technical issues alleging obviousness and lack of novelty, in Europe, WARF's efforts to protect their inventions through the European Patent Office (EPO) failed due to morality concerns as the only means to obtain hESC with the claimed method involved destroying human embryos, making the method unpatentable under the Rule 28 of the European Patent Convention.¹⁴

WARF's protection strategy unleashed aggressive critics and accusations of asserting control over a primary science platform needed for health-related research. WARF was challenged by Consumer Watchdog, a California-based consumer rights organization, on the grounds of obviousness at the USPTO in 2006 before the patent was granted. However, it was dismissed. In 2007 WARF liberalized its patents' licensing by eliminating the prohibition against academic researchers from sharing WARF's hESC and extending exemption on licensing fees; by 2009, they had completed 35 licensing agreements for hESC with 27 companies.¹⁴ In 2014, after the Leahy–Smith America Invents Act (AIA) was declared and one year before WARF´s patent expiration, Consumer Watchdog challenged USPTO's 2006 decision on the US Court of Appeals for the Federal Circuit appealing to the US Supreme Court's decision on Association for Molecular Pathology vs. Myriad Genetics Inc. on gene patenting. The US Court dismissed the petition again as there was no legal injury related to the patent, considering that Consumer Watchdog was never sued or threatened to be sued by WARF.¹⁸

Despite the challenges, inventive activity around clinical applications of stem cells has been growing during the last three decades, reflected in the steady growth of patent filing activity in stem cells since the 1990s.¹⁹ A peak and drop in the first decade of the 21st century were observed, being at a stable pace until 2010.¹¹ However, by 2010, the hype of stem cell technology had dropped: added to the ethical and sociopolitical controversy, the timespan for these technologies to reach the clinic, the slow entrance of industry into the field, and the lack of business models specifically engineered for stem cell-based therapies, and regulatory uncertainties created a hard shell for investment.^11,13

Stem cell therapeutic applications are an area of continuous growth and innovation.

The evolution in the number of patent documents (applications and grants) from 2011 to 2020 is presented in Figure 1. From 2013 to 2015, the number of patent documents produced annually remained relatively constant. However, as of 2015, a gradual increase in annual applications began, presenting a maximum peak in 2019. For 2020, the number of submitted patent applications decreased discreetly since the search results were inconclusive, considering that we did not carry out the query at the end of the year.

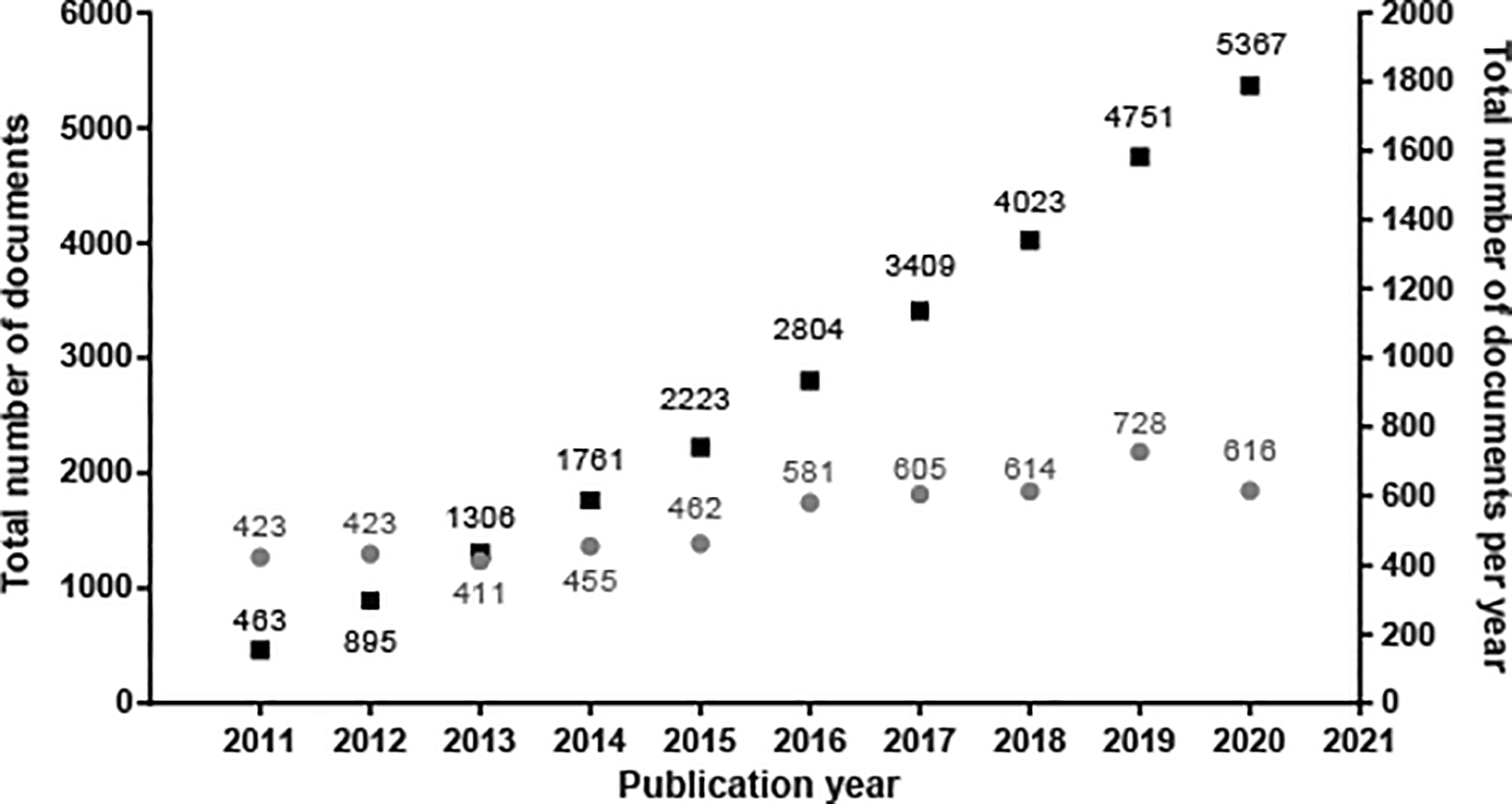

Figure 1. Patent documents (applications and grants) in stem cell therapies from 2011 to 2020.

Own elaboration with data of PatentScope.¹⁶

Against the odds, the increasing number of patent filings in the last decade mapped in our research demonstrates that the stem cell field has been an arena of continuous growth and innovation since 2015. This switch resulted logically as discourses and policies changed during the first years of the decade. For example, in 2012, the Nobel Prize in Physiology or Medicine was granted to John B. Gurdon and Shinya Yamanaka for the discovery of reprogramming: mature cells can be reprogrammed to become pluripotent,²⁰ enforcing this new avenue in stem cell therapy; also, in the US, during Obama's administration the AIA was enacted, changing the game in stem cell patent activity, making it a more attractive and competitive environment as it makes more accessible and cheaper to challenge stem cell patents as they become issued.¹⁸ After that, in 2014, the EU overturned laws that banned stem cell patents, allowing patent granting if the biological materials are accurately described and have an industrial application.⁴

Territoriality of patent documents' filling: leading countries in the field

We integrated a core collection of published patent documents constructed to encompass all stem cell applications from the USPTO, the EPO, WIPO's Patent Cooperation Treaty (PCT) filing system, and seven countries, including Australia, Canada, New Zealand, South Africa, United Kingdom, Israel, and South Korea (Figure 2). PCT filings represent the majority of global patent documents, followed by the USA domination as the most prominent target market. The fact that patent documents are being filed through the PCT suggests the intention to protect the invention simultaneously in different countries.

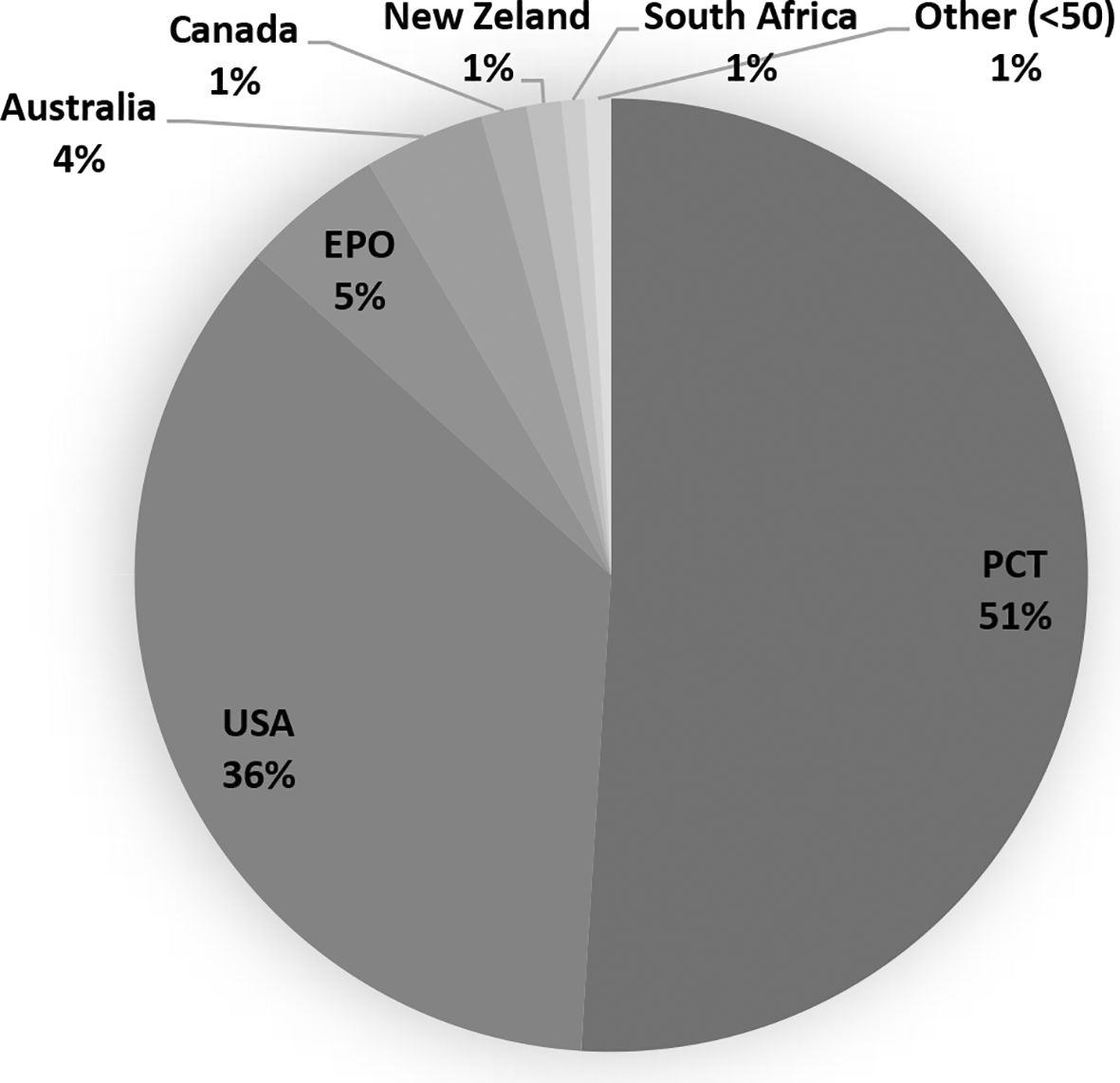

Figure 2. Distribution of the number of patent documents (applications and grants) in the field of stem cell therapies through the Patent Cooperation Treaty (PCT) international pathway, European Patent Office (Regional), and eight countries (2011-2020).

Own elaboration with data of PatentScope.¹⁶

The United Kingdom National Stem Cell Network (UK NSC) patent watch landscape is a dataset of published patent applications and granted patents to provide a bigger picture regarding the patenting of stem cell technology. However, the UK NSC patent watches dataset is limited to published applications with WO, US, EP, and GB designations, and the granted patents on the USA, EP, and GB. Hence, to place the results of the UK patent watching a more global context and to give a fuller picture of the worldwide activity concerning stem cells, an overview of the complete global dataset would be beneficial given the recent rise in worldwide patent filings from countries such as China and India.²¹

Japan has been a substantial actor in the stem cell patent during the last decades.^19,21,22 Even if not listed in our research among the most active countries - maybe because patents are filed through the PCT pathway– Japan's policies have fostered stem cell innovation. Liberal Democratic Party, elected in 2012, strongly supported research in the field with over 220 million US dollars as part of a stimulus package to lift the Japanese economy from recession.²³ Through time, these storylines change the relevance of policy designs, reinforcing the notion that patent law, and national policies (Economic, Educational, and Science-Technology-and-Innovation) affect how novel technologies are fostered to attain societal wellbeing.

Universities and private companies are the leading players in the field

Table 1 presents the institutions and private corporations with more patent productivity on stem cell therapies. Almost one-quarter of the patents related to stem cell therapeutic applications are concentrated in ten organizations, with more than 59 contributions each. It is essential to mention that this search considers only the principal patent applicant. In this top ten, six applicants belong to academia, and four can be classified as private corporations. Five institutions are highly prestigious USA universities within academia, and only one is a research center (Memorial Sloan-Kettering Cancer Center). In addition, three organizations are large pharmaceutical companies (Janssen Biotech, Inc., Novartis Ag., and Celgene Corporation) and a research-focused hospital (The General Hospital Corporation DBA Massachusetts General Hospital).

Figure 3 illustrates how patent documents are distributed among holders of different institution types. 73% of the patent documents are held by Academia-related institutions, while private companies presented less than one quarter (24%) of those. The dominant presence of universities in the field suggests that, as stated above, long incubation periods within academia are required for this technology to be ready. Therefore, technology transfer offices and licensing agreements could be fundamental in bringing stem cell technology to society.

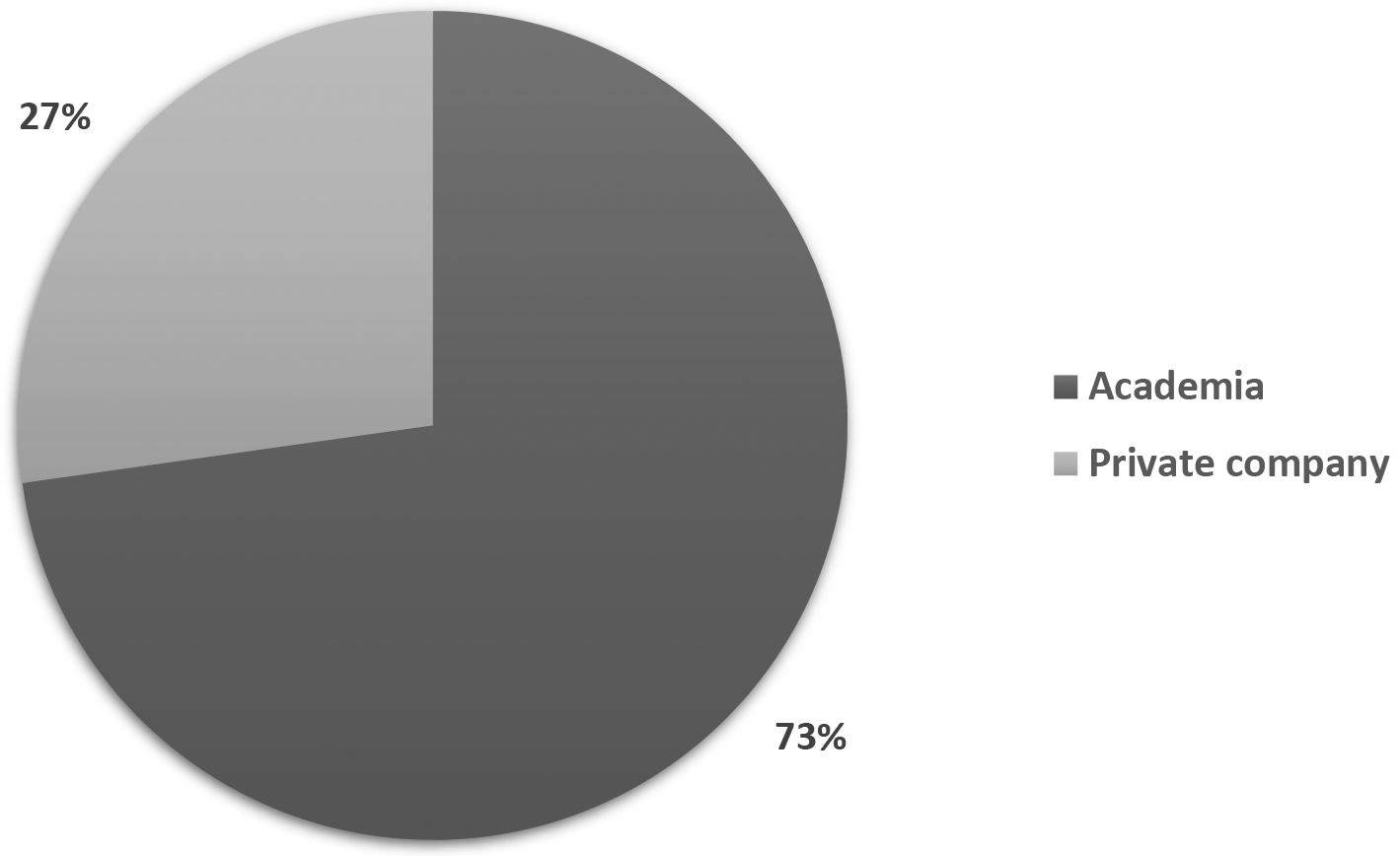

Figure 3. Distribution of institution type of patent documents holders in the field of stem cell therapies.

Own elaboration with data of PatentScope.¹⁶

A recent patent analytics report of the Centre for Stem Cell Systems of the University of Melbourne investigated technology development related to mammalian pluripotent stem cells.²² Patent families in this technology are predominately directed at differentiation (28%) and stem cell production (26 %). The high number of patent families granted or with protection being sought (98%) for stimulation and tissue engineering indicates the importance of patent protection in this technology. This analysis showed that innovation in mammalian pluripotent stem cells is dominated by universities and research institutes and has a healthy level of collaboration, which indicates that the technology is in the early stages of development. Nevertheless, it is a growing field with enormous opportunities for translating research into applications as technology matures.

Commercialization of innovations is essential to make them affordable

Stem cell and genomic research share controversies around IPR and policy contexts. However, they also have in common the complex and lengthy translational pathways of a complex innovation ecosystem based on working with human materials.¹¹ After that, an essential lesson from genomics can be learned: the progress and use of technology improve its speed and quality while reducing associated costs.

In 2002, after an international 13-year effort, the Human Genome Project satisfactorily concluded, making publicly available 99% of 3000 million bases comprising the whole sequence of human DNA.²⁴ After this breakthrough event, genome sequencing costs decreased by 10,000 times, from 1000 to 0.1 US dollars per megabase from 2007 to 2015.²⁵

Like genomics before the Human Genome Project, stem cell research for therapeutical applications may be unattainable, so reducing the price of this technology becomes essential to impact the health and life of people around the world. However, clear paths around IPR and a congruent business model are required to make this possible.¹³

Assembly of pre-existing technologies may bring closer science to clinics

A decade ago, the field of Regenerative Medicine – stem cell therapies included - was dominated by small biotechnology companies focused only on tools and nontherapeutic products or their services and manufacturing.¹¹ However, our findings suggest a shift in this behavior, not only because the two medical facilities focused on clinical research rank among the leaders in the field, but, more patents have been filed under more than one category, and selected IPC codes relate to medical preparations and therapeutical activities of compounds or preparations, implying that on-the-edge technologies tend to incorporate different innovations to achieve a therapeutical alternative.

Advanced therapies involve a variety of inventions in many technical fields to manufacture a product, such as tissue selection, cell isolation, purification, culture, and specific therapeutical modifications – lineage differentiation, genetic changes, co-culture, and scaffold assembling-, GMP and quality assurance, transportations strategies, and strategies to transplant into the patient. These are just some of the scientific breakthroughs needed to be assembled through diverse technological developments – potentially patentable - to manufacture a stem cell therapy product. Thus, patent strategies used to protect small-molecule compounds are not likely to work well in the stem cell field; a technology portfolio is essential to cover and protect a commercial product.²⁶

A possible strategy to integrate these patent portfolios and seize opportunities to expand new business areas is to take advantage of the existing technological strengths of different institutions. However, under the current patent systems, these results are unthinkable.

Alternative strategies for technology transfer

Technology transfer is the span to close the gaps between academic research, industrial applications that allow commercialization of the result, and research's ultimate purpose: social welfare.

Typical licensing agreements had proved wrong for biotechnologies - as stem cells - to be transferred. The enormous fees involved hinder innovation instead of promoting novel developments – as WARF patent licensing fees slowed the advance of stem cells for a timespan.²⁷ Hence, new ventures for technology transfer promise to close the gaps: academic spin-offs to transfer research to industry, corporate spinouts to share technology between private companies, and internal company start-ups to overcome innovation barriers within corporations.²⁸ Nevertheless, endless jigsaws can be arranged based on those approaches.

In the early 2000s, financing stem cell research with strategies based on classic pharmaceutical models resulted in a "disappointing commercial history of cell therapy and contributed to the cool reception stem cell companies receive from venture capitalists".¹³ However, the scenery changed after these new models matured: "some of the largest rounds of venture capital ever seen went into 2019 biotech startups".²⁹

New stem cell arose start-up companies, whose individual funding accounts for no less than 2 million US dollars, are scattered around the world, with 18 in North America (16 in the USA and two in Canada), seven in the European Union (three in the UK, one in Belgium, Netherlands, Germany, and Switzerland), three at Israel and only one in India.³⁰ By analyzing the behavior in patenting activity of these stem cell-based start-ups, we can give a closer picture of the landscape in this emerging field. The scatter plot in Figure 4 presents patent portfolio size compared to funding amount for the top ten start-ups; funding data was retrieved from Medical Startups³⁰ at the same time, patent information was collected from the Lens patent database³¹ by searching the number of patent records and families for each patent stakeholder listed (start-ups and associates). The trend shows more funding for start-ups with more solid patent portfolios – more patents with broader cover-, such as Celularity, Century Therapeutics, and Via Cyte; opposite to Rubius Therapeutics, a startup with limited patent families receiving more funding, and Cellular Dynamics, a less funded company with more patent families. Other start-ups listed within the top ten show emerging patent portfolios with more recent patent applications and families, ranging from 1 to 35 patent documents. However, optimistic as this may sound, future challenges will arise when these recently created enterprises consolidate as freedom-to-operate entities with existing patent grants.

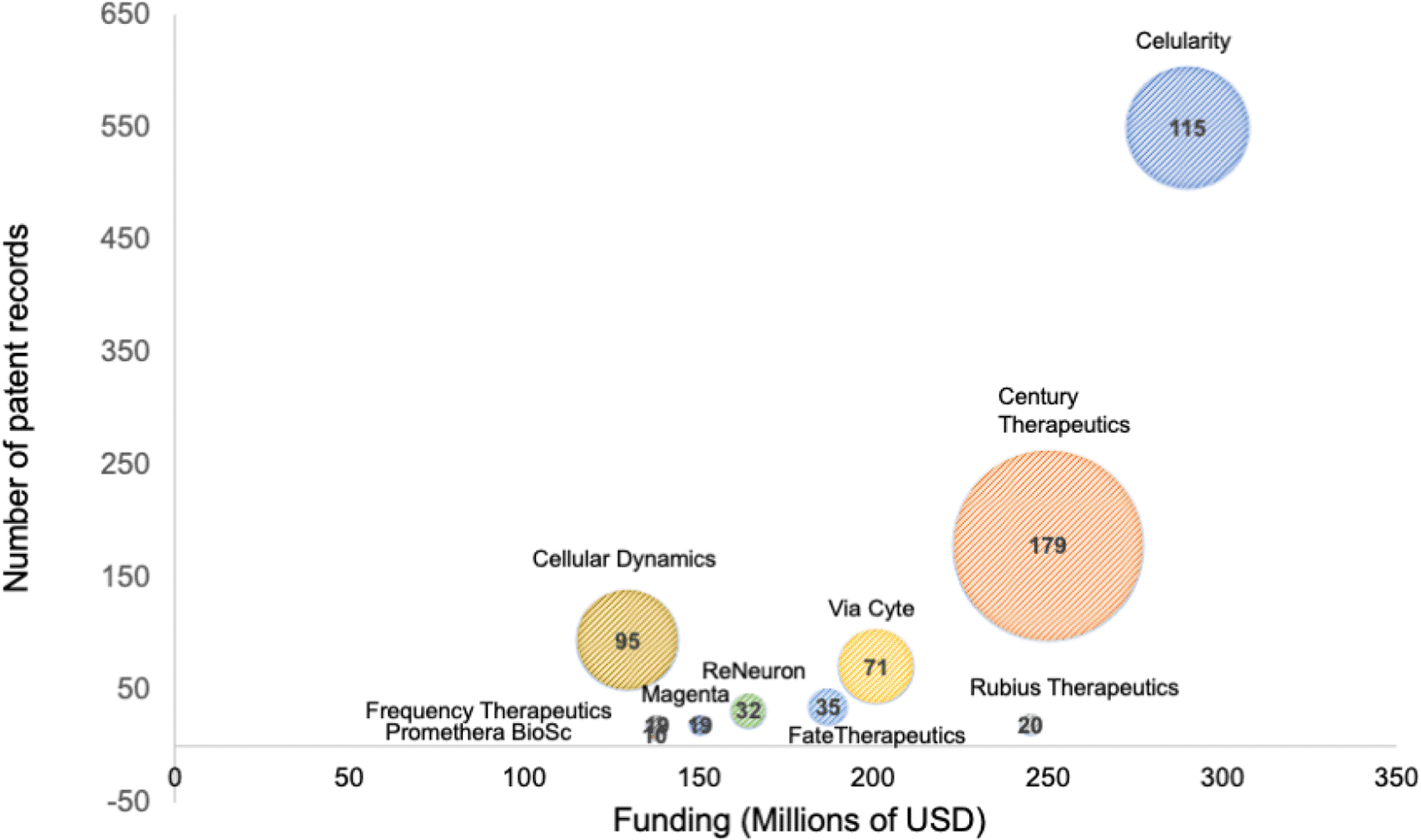

Figure 4. The top ten of stem cell startups.

Funding and size of the patent portfolio.

The diameter of the bubble represents the number of simple patent families. Own elaboration with data from Lens³¹ and Medical Startups.³⁰

Celularity, a $290 million funded Celgene Corporation spinout with a mature patent portfolio, aims to use placenta-derived stem cells as an alternative approach against blood cancer by developing therapies across autoimmune, degenerative disease, immuno-oncology, and functional regeneration. Noteworthy, Celgene Corporation performed as the seventh most productive institution in the stem cell patent filling landscape.³⁰

Source data

Patent data was obtained from WIPO’s patent database Patentscope (https://patentscope.wipo.int/search/es/search.jsf) on March 2021 through the Advanced Search tool with the query: “CL: ((stem cell* NEAR10 (treat* OR transplant*)) ANDNOT ALL: (“plant” OR “vegetal”))”.
