Research Article
Revised

Artificial intelligence based glaucoma and diabetic retinopathy detection using MATLAB — retrained AlexNet convolutional neural network

[version 2; peer review: 2 approved]
PUBLISHED 03 Apr 2024
Author details Author details
OPEN PEER REVIEW
REVIEWER STATUS

This article is included in the Artificial Intelligence and Machine Learning gateway.

This article is included in the AI in Medicine and Healthcare collection.

Abstract

Background

Glaucoma and diabetic retinopathy (DR) are the leading causes of irreversible retinal damage leading to blindness. Early detection of these diseases through regular screening is especially important to prevent progression. Retinal fundus imaging serves as the principal method for diagnosing glaucoma and DR. Consequently, automated detection of eye diseases represents a significant application of retinal image analysis. Compared with classical diagnostic techniques, image classification by convolutional neural networks (CNN) exhibits potential for effective eye disease detection.

Methods

This paper proposes the use of MATLAB – retrained AlexNet CNN for computerized eye diseases identification, particularly glaucoma and diabetic retinopathy, by employing retinal fundus images. The acquisition of the database was carried out through free access databases and access upon request. A transfer learning technique was employed to retrain the AlexNet CNN for non-disease (Non_D), glaucoma (Sus_G) and diabetic retinopathy (Sus_R) classification. Moreover, model benchmarking was conducted using ResNet50 and GoogLeNet architectures. A Grad-CAM analysis is also incorporated for each eye condition examined.

Results

Metrics for validation accuracy, false positives, false negatives, precision, and recall were reported. Validation accuracies for the NetTransfer (I-V) and netAlexNet ranged from 89.7% to 94.3%, demonstrating varied effectiveness in identifying Non_D, Sus_G, and Sus_R categories, with netAlexNet achieving a 93.2% accuracy in the benchmarking of models against netResNet50 at 93.8% and netGoogLeNet at 90.4%.

Conclusions

This study demonstrates the efficacy of using a MATLAB-retrained AlexNet CNN for detecting glaucoma and diabetic retinopathy. It emphasizes the need for automated early detection tools, proposing CNNs as accessible solutions without replacing existing technologies.

Keywords

Glaucoma, Classification, AlexNet, Convolutional Neural Network (CNN), Diabetic Retinopathy

Revised Amendments from Version 1

This revised version of the manuscript incorporates improvements suggested by reviewers during the peer review process. Notably, it introduces a section on "Operational Resources" to detail the software and hardware employed throughout this research. A more thorough description regarding data partitioning and training parameter configuration has also been provided.

Furthermore, a significant addition includes a benchmarking of models to evaluate the performance of AlexNet, ResNet50, and GoogLeNet, accompanied by training/validation graphs and model training duration times. A Grad-CAM analysis was conducted for each trained model and detection condition.

The revision of the previous version was undertaken to correct grammatical errors and improve the overall presentation. It is important to note that previously cited works or reported results have not been altered or replaced. The aim of the presented new version is to enrich the content through updated citations, figures, and sections. Finally, it is worth mentioning that the generated algorithms and scripts are available to readers via a Zenodo repository.

See the authors' detailed response to the review by Creed Jones
See the authors' detailed response to the review by Tae Keun Yoo

Introduction

The leading causes of blindness and poor vision around the globe are primarily age-related eye diseases such as glaucoma and diabetic retinopathy (DR).14 Glaucoma is a condition caused by elevated intraocular pressure.1 The most common are open-angle glaucoma, angle-closure glaucoma, normal-tension glaucoma, and congenital glaucoma.2 On the other hand, DR is the most frequent complication of diabetes mellitus.3 It occurs because the small blood vessels in the retina swell and bleed or leak fluid, causing retinal damage and vision problems.3,4 DR has five stages or classes: normal, mild, moderate, severe and proliferative DR.4

Ophthalmic examination is essential for the diagnosis of glaucoma and DR. The following tests are carried out by physicians in order to perform a diagnosis for glaucoma: measuring intraocular pressure (tonometry),5 analyzing optic nerve damage with a dilated eye exam, checking areas of vision loss (visual field test),6 measuring corneal thickness (pachymetry)7 and inspecting the angle of drainage (gonioscopy).8 As most of these are imaging tests of the eye, it is essential to have accurate high quality images in order to perform a correct diagnosis of the disease.

Similarly, DR is usually detected by physicians through comprehensive ophthalmologic examinations requiring pupil dilation. This to facilitate detailed cross-sectional imaging that show the thickness of the retina where fluid may be leaking from damaged blood vessels (optical coherence tomography)9 and injecting a special dye that place blood vessels with blockages plus blood vessels leaking blood (fluorescein angiography).10 Diagnosing these conditions necessitates the expertise of specialized medical professionals, resulting in significant time and financial costs.

Furthermore, discrete diagnostic approaches are essential for each disease. Given the potential coexistence of diabetes with both conditions, a diagnosis of diabetes does not preclude the possibility of glaucoma.11 This knowledge from medical professionals in identifying glaucoma and diabetic retinopathy is beneficial, enabling the creation of accurately labelled large databases. Such groundwork allows for the analysis of data based on established truths, facilitating the development of classification models by non-medical experts.

Artificial intelligence (AI), through deep learning methods, enables classification models with the capability to identify patterns within extensive image datasets for predictive analysis.1215 Consequently, employing AI for the automated analysis of fundus images can assist physicians by facilitating accessible, reliable, and affordable detection of glaucoma and other related visual pathologies (Table 1).

Table 1. Different deep learning systems for optical pathology detection.

PurposeMethodDatabase (size)Number of classesPerformance measureRef.
Accuracy (%)Sensitivity (%)Specificity (%)AUC
Diabetic retinopathy detection and classificationFused CNN512, CNN299, and CNN (YOLOv3, EfficientNetB0)DDR (13673), and Kaggle (3662)589.0089.0097.300.9716
Diabetic retinopathy detection and classificationGoogleNetKaggle (200)588.0075.0052.00-17
Automated Identification of Diabetic RetinopathyCustomized deep CNNEyePacs, MESSIDOR 2 and E-Ophtha (75137)2-74.00-94.0080.00-98.000.94-0.9718
Diabetic retinopathy detection and classificationCNN (modified AlexNet)Messidor (1190)495.60-96.6088.00-96.0097.30-96.60-19
Classification of cataract fundus imageCNN (five layers)(7851)2 to 490.82-94.07---20
Cataract diagnosis and gradeCNN (ResNet-18)(1352)692.66---21
Glaucoma detectionCNN (LeNet & U-net)RIM-ONE, DRISHTI-GS, DRIONS-DB, JSIEC, NIO and DRIVE298.8-99-22
Glaucoma detectionCNNCGSA (269601)3-82.270.40.8223

Convolutional neuronal networks (CNNs) are a class of deep learning method, most commonly applied to analyse visual imagery. Characteristically, CNNs comprise a sequence of fundamental layers: the convolutional layer for extracting features, the pooling (sub-sampling) layer for dimensionality reduction, fully connected (dense) layers for pattern recognition, and the softmax layer for classification probabilities.1623

Among the diverse CNNs, AlexNet, by Krizhevsky et al. achieved a new state-of-the-art recognition accuracy against all conventional machine learning and computer vision approaches that offer the opportunity to be retrained.24 AlexNet has sustained its significance as a neural network, attributed to the simplicity of its architecture, enabling its operation without necessitating substantial computational resources. As a result, AlexNet is structured with eight main layers, incorporating five convolutional layers—max pooling after the first, second and fifth convolutional layer—and three fully connected layers. Activation via the Rectified Linear Unit (ReLU) function is applied after each layer, with the exception of the final layer, which employs a softmax layer to function as the classification mechanism of the trained network.24,25

Transfer learning involves utilizing a pre-trained network as a base model to learn a new task. This approach, notably through fine-tuning, proves being more efficient and simpler than training a network from the ground up with randomly initialized weights. As a result, the pre-trained CNN quickly transfer learned features using a smaller number of training images. In this paper, a transfer learning method to retrain the MatLab - AlexNet CNN is applied for an effective glaucoma and DR detection, aiming to make the aided recognition procedure through a low-complexity CNN accessible. Additionally, the final trained model is benchmarked against the ResNet5026 and GoogLeNet27 architectures to evaluate comparative performance (Figure 1). Furthermore, a Grad-CAM analysis across these architectures is conducted to elucidate the focal points of observation within different models.

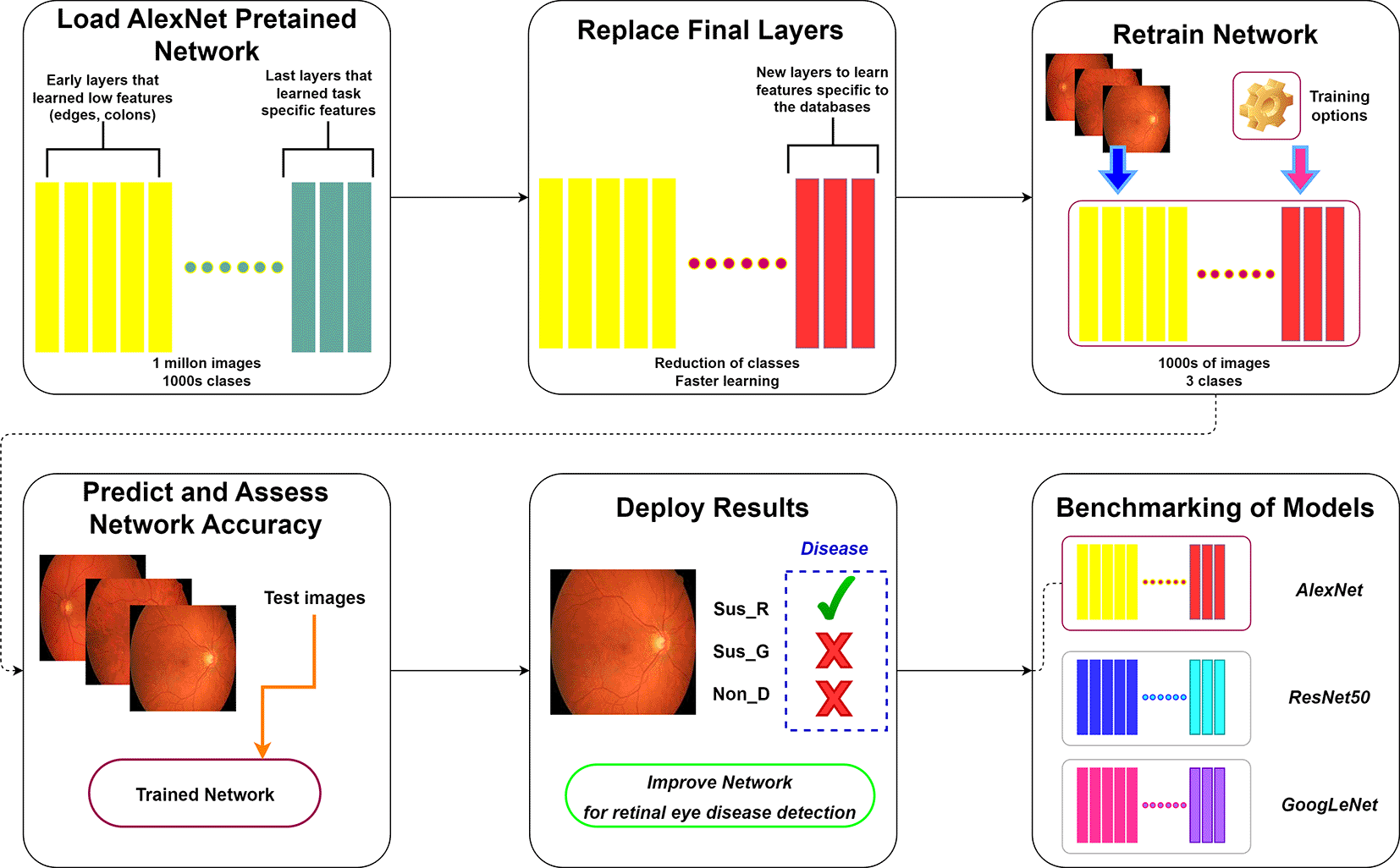

Figure 1. Retraining and benchmarking of AlexNet for non-disease (Non_D), glaucoma (Sus_G) and diabetic retinopathy (Sus_R) detection.

Retinal fundus images retrieved from High-Resolution Fundus (HRF) Image Database.

Methods

To carry out the detection of glaucoma and DR through CNN, image pre-processing and processing techniques are required. The different steps are summarized in Figure 2.

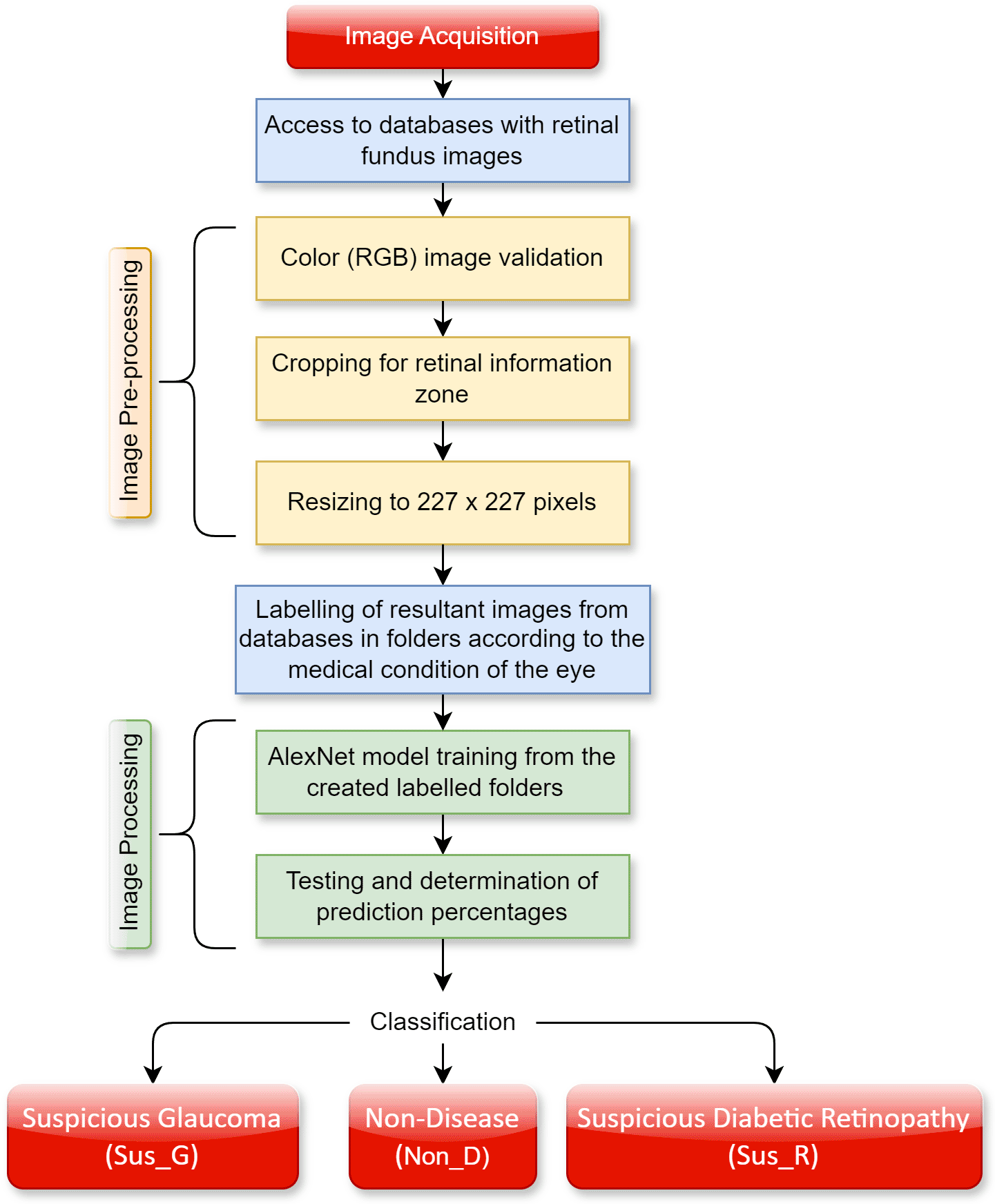

Figure 2. Proposed system for glaucoma and diabetic retinopathy detection using AlexNet.

Image acquisition

For the training of the CNN it is necessary to use retinal fundus images of the eye. Several public databases that compile different eye conditions are available on the internet. In this sense, it is possible to find free access databases and databases with access upon request. The following were used in this work:

  • - Free access - databases

    • Asia Pacific Tele-Ophthalmology Society (APTOS). Contains 3662 images of diabetic retinopathy that were used in the APTOPS 2019 blindness screening competitions. Each image has been resized and cropped to have a maximum size of 1024px. A certified clinician rated each image according to the severity of diabetic retinopathy on a scale of 0 to 4. A directory file is provided according to the previous scale: No diabetic retinopathy (0), Mild (1), Moderate (2), Severe (3), and Proliferative diabetic retinopathy (4).28

    • High-Resolution Fundus (HRF) Image Database. Contains 15 images of healthy patients, 15 images of patients with diabetic retinopathy and 15 images of glaucomatous patients. They were captured by a Canon CR-1 fundus camera with a field of view of 45 degrees with a resolution of 3504×2336px.29

    • Sungjoon Choi High-Resolution Fundus (sjchoi86-HRF). Created by Sungjoon Choi, assistant professor at Korea University, contains 601 fundus images of different pixel sizes divided into 4 groups: normal (300 images), glaucoma (101 images), cataract (100 images) and retina disease (100 images).30

  • - Access upon request – databases

    • Large-scale attention based glaucoma (LAG). Contains fundus images with positive (1711 images) and negative glaucoma (3143 images) samples obtained from Beijing Tongren Hospital with a resolution of 500×500px. Each fundus image is diagnosed by qualified glaucoma specialists, taking into consideration of both morphologic and functional analysis.31

    • Ocular Disease Intelligent Recognition (ODIR). Contains images of 5000 patients with various eye diseases collected by Shanggong Medical Technology Co., Ltd. from different hospitals/medical centers in China. The fundus images are captured with various cameras on the market, resulting in varied image resolutions. They classify patients into eight labels based on the images of both eyes. A directory file is provided according to the following label: Normal Fundus (N), Diabetes (D), Glaucoma (G), Cataract (C), Age related Macular Degeneration (A), Hypertension (H), Pathological Myopia (M), Other diseases/abnormalities (O).32

In the case of the ODIR database, photographs labeled in their directory file as “glaucoma” (G) and “normal fundus” (N) were extracted for a total of 200 images and 2873 images, respectively. On the other hand, for the APTOS database, photographs labeled in their directory as “moderate” (2), “severe” (3) and “proliferative diabetic retinopathy” (4) were extracted for a total of 1487 images in general.

Operational resources

All data were processed according to the following specifications:

Software:

  • MATLAB® (R2020a, By MathWorks, Natick, MA, USA)

  • Deep Network Designer - MATLAB®

Hardware:

  • AMD Ryzen 5 4600H with Radeon Graphics (3.00 GHz)

  • NVIDIA GeForce GTX 1650 GPU

  • 16 GB RAM DDR4 Memory

Image pre-processing

AlexNet architecture is specifically designed for processing color (RGB) images with a resolution of 227×227 pixels. Image pre-processing from databases is conducted using the custom function Convertidor_227_final.m (refer to software availability), which includes a user interface for cropping black areas and resizing images of any dimension to the required 227×227 pixel format.

The function of cropping black areas in the photograph by Convertidor_227_final.m is applied to each database. This is done to have more information on the retinal area and eliminate areas of no interest. This function binarizes the original image to obtain a black and white image of equal dimensions. Since the area where a color pixel existed now has a value of 1 and the black areas have a value of 0, the pixel location index by row and column where the value is equal to 1 is extracted as a list. Using the value of the pixel location index as image coordinates, the maximum and minimum value per row and column is determined to establish the cropping edges of the image. It should be mentioned that due to its code design, this function does not affect previously cropped images that no longer contain black areas.

Following the removal of black borders, the Convertidor_227_final.m function is employed to resize the photographs. Subsequently, all images within the database are standardized to a uniform dimension of 227×227 pixels. According to their original medical classification, the obtained retinal fundus images were labeled as non-disease (Non_D), suspicious glaucoma (Sus_G) and suspicious diabetic retinopathy (Sus_R). For the purposes of CNN re-training, five distinct storage folders were organized (Table 2).

Table 2. Quantity of pre-processed images used from each database for the storage folders.

Storage FolderDatabaseTotal images
LAGSjchoi86-HRFHRFAPTOSODIR
Non_DSus_GNon_DSus_GNon_DSus_GSus_RSus_RNon_DSus_G
131431711--------4854
23001015255
31515155300
414876787
528732009860

Image processing

To develop the predictive software for eye disease detection, transfer learning is utilized to retrain the CNN AlexNet. The pre-trained AlexNet network is loaded alongside the different databases (LAG, APTOS, HFR, ODIR, and sjchoi86-HRF) that containing the images of the different pathologies to be classified, specifically glaucoma and retinopathy. Information from Refs. 3340 is employed to develop our algorithm.

To initiate dataset training, image storage folders as outlined in Table 2 are created. Images are stored in a primary folder with corresponding subfolders Non_D, Sus_G, and Sus_R, based on the original classification assigned within their respective databases. The primary database is loaded as an “imds” variable, and the data contained within the subfolders are segmented into training and validation sets. A conventional data division approach is applied, allocating 70% of the images for training and 30% for validation using the “splitEachLabel (imds,0.7,‘randomized’)” function.40 This method randomly splits the data in the image datastore “imds” into two new datastores.

MATLAB allocates 70% of the images from each label (or subfolder) in “imds” for training and the remaining 30% for validation, with the selection done in a randomized manner. This ensures that the training and validation datasets are representative of the overall dataset, enhancing the generalizability of the model trained on this data. A representation of the data split generated by MATLAB is presented for the maximum data volume of 9,680 observations see Figure 3.


Figure 3. Data Organization generated by MATLAB for Training and Validation Sets.

Glossary: Non-disease (Non_D), glaucoma (Sus_G) and diabetic retinopathy (Sus_R).

Alexnet was applied to binary classification, distinguishing retinal fundus images as Non_D vs. Sus_G (NetTransfer I & II), and multi-class classification, differentiating among Sus_G, Sus_R and Non_D categories (NetTransfer III, IV & V). Each image storage folder, as detailed in Table 2, underwent training with the corresponding NetTransfer model number. The subsequent pseudocode outlines the procedure for both binary and multi-class classification tasks in AlexNet.

Training algorithm for transfer learning

Input ->Retinal fundus images (X, Y); Y = {y {Non-disease, Suspicious-Glaucoma, Suspicious-Diabetic-Retinopathy}

Output-> Re-trained model that classifies the retinal fundus images into respective Y

------------------------------------------------------------------------------------------------------------------

Import the pre-trained model AlexNet Network with its corresponding weights.

Replace the last three layers of the Network:

-Fully connected layer (Set the 'WeightLearnRateFactor' to 20 and the 'BiasLearnRateFactor' to 20; and set its output to the number of elements of Y).

-Softmax layer

-Classification layer

Training-progress settings

MinibatchSize->It is the number of elements into the group of inputs for each iteration

MaxEpoch->It is the maximum number of times that the network is going to use all the input elements

InitialLearnRate ->The learning rate is a tuning parameter that determines the step size at each iteration while moving toward a minimum of a loss function.

Shuffle->It is the action of mixing randomly various elements from our databases

ValidationData ->It is a group of images from the dataset that the network is using to Validate how good the network is getting at classification

ValidationFrequency ->It is the number of iterations that the system does before doing a validation process to assess in real time how the training is going

Verbose->Verbose mode is an option that provides additional details as to what the computer is doing and what drivers and software it is loading during startup

Training Code

options = trainingOptions('sgdm', …

'MiniBatchSize',10, …

'MaxEpochs',6, …

'InitialLearnRate',1e-4, …

'Shuffle','every-epoch', …

'ValidationData',augimdsValidation, …

'ValidationFrequency',3, …

'Verbose',false, …

'Plots','training-progress');

The MiniBatchSize (MBS) parameter specifies the number of observations processed and used to update the weights of the model in each iteration. By setting the MBS to 10, the observations in the Training Set (TS) are divided by this number to calculate the Iterations Per Epoch (IPE). This division ensures each observation is utilized once per epoch, reducing biases in the training process. Thus, every iteration involves processing a mini-batch of data, executing a forward pass through the network, calculating the error, and adjusting the weights.

Models employed in transfer learning technique have previously undergone training on extensive and generalized datasets, such as ImageNet for CNNs,24 emphasizing fine-tuning over learning from scratch. Consequently, “MaxEpochs” is set as 6 for model evaluation, given transfer learning technique typically requires “tuning” the weights of the pre-trained model to suit a new specific task rather than acquiring all features once again. This fine-tuning process demands fewer modifications to the weights, achievable within a limited number of epochs. Table 3 provides a comprehensive overview of the underlying mathematics for each model, detailing calculations related to database size and the corresponding derived training parameters.

Table 3. Mathematical framework for model training parameters based on database size.

Net
Transfer
OBSTS
(OBS x 70%)
VS
(OBS x 30%)
MBSIPE
(TS/MBS)
EPOCHSMI
(EPOCH X IPE)
I48543398 ≈ (4854 x 0.7)1456 ≈ (4854 x 0.3)10340 ≈ (3398/10)62040 = (6 x 340)
II52553678 ≈ (5255 x 0.7)1577 ≈ (5255 x 0.3)10368 ≈ (3678/10)62208 = (6 x 368)
III53003710 ≈ (5300 x 0.7)1590 ≈ (5300 x 0.3)10371 ≈ (3710/10)62226 = (6 x 371)
IV67874751 ≈ (6787 x 0.7)2036 ≈ (6787 x 0.3)10475 ≈ (4751/10)62850 = (6 x 368)
V98606902 ≈ (9860 x 0.7)2958 ≈ (9860 x 0.3)10690 ≈ (6902/10)64140 = (6 x 690)

Furthermore, a “ValidationFrequency” of 3 was chosen due to the relatively low epoch count of the model (six in this instance), and an “InitialLearnRate” of 0.0001 was selected as a conservative value to facilitate gradual adjustments to the weights of the model. The following figure resumes the architecture of all the new networks designed during the transfer learning technique (Figure 4).

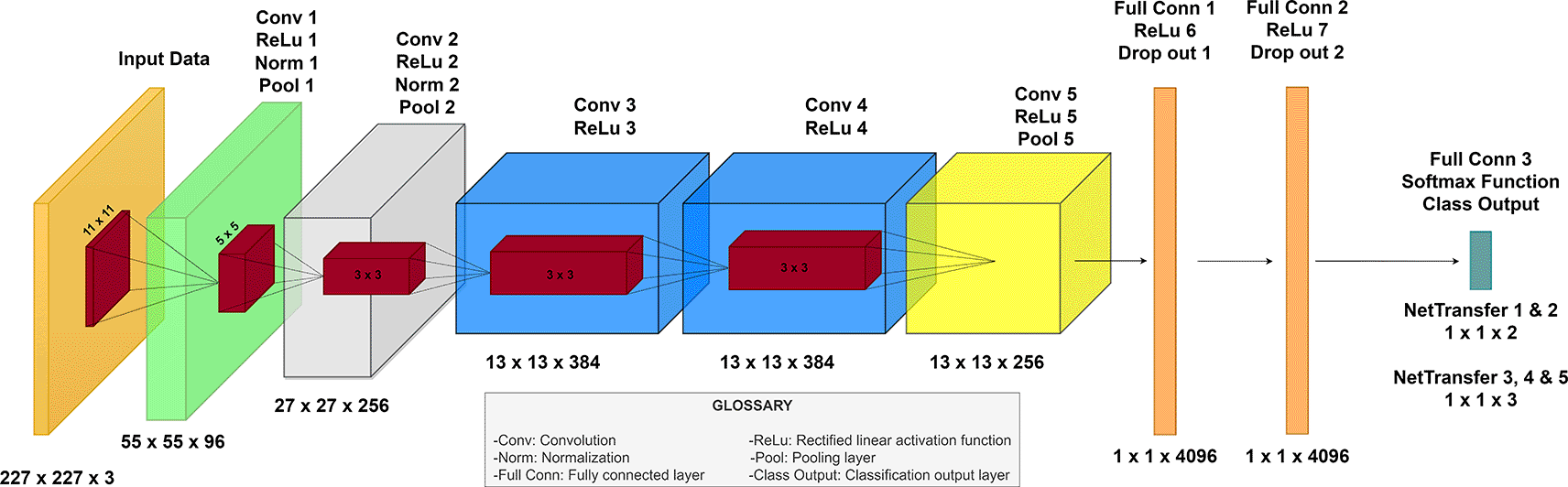

Figure 4. Proposed neural network architecture for eye diseases detection based on AlexNet.

Benchmarking of models

The performance comparison between the architectures of AlexNet, GoogLeNet, and ResNet50 was conducted through multi-class classification of the categories Sus_G, Sus_R, and Non_D. Given that data storage 5 represents the most complete dataset, it was chosen as the input data storage for the training of three new models (netALEXNET, netRESNET50, and netGOOGLENET). To accelerate the model design of these networks, the “deepNetworkDesigner” function was utilized, application aimed for network architecture and transfer learning techniques through a user-friendly interface (refer to software availability).

In this context, the construction and training of the models were carried out under identical conditions for data loading and handling as those used in NetTransfer I-V, with feedback provided only for the parameters MBS, EPOCHS, and ValidationFrequency. For ResNet50, the model loading exceeded our computational capabilities, necessitating a reduction in MBS to align it with the IPE (see Table 4).

Table 4. Computational Adjustments for AlexNet, GoogLeNet, and ResNet50 Training Parameters.

MODELOBSTS
(OBS x 70%)
VS
(OBS x 30%)
MBSIPE
(TS/MBS)
EPOCHSMI
(EPOCH X IPE)
AlexNet98606902 ≈ (9860 x 0.7)2958 ≈ (9860 x 0.3)13850 ≈ (6902/138)301500 = (30 x 50)
ResNet5050138 ≈ (6902/50)304140 = (30 x 138)
GoogLeNet13850 ≈ (6902/138)301500 = (30 x 50)

Consequently, the decision was made to extend the epoch count to 30 for all three models, given the necessity to examine the behavior of AlexNet, ResNet50, and GoogLeNet across a broader range of iterations. This adjustment aligns with a more coherent approach to studying CNNs for classification purposes. Additionally, the validation frequency was set to match the IPE, thereby conducting a validation at the end of each epoch. This strategy aims to be more conservative in computational cost, consequently reducing training time.

Upon completion of the training phase, algorithms were developed to generate Grad-CAM diagrams for each architecture by loading the trained models netALEXNET, netRESNET50, and netGOOGLENET (refer to software availability). The Grad-CAM analysis for multi-class classification of the categories Sus_G, Sus_R, and Non_D was conducted for each model.

Results

The outcomes achieved through the application of transfer learning technique culminated in the development of five retrained AlexNet networks, hereafter referred to as NetTransfer networks. The confusion matrices for these NetTransfer networks are depicted in Figure 5, encompassing precision, recall, false positive (FP), false negative (FN), and accuracy values (highlighted in a yellow box). Furthermore, the matrices are structured such that the rows represent known values, while the columns indicate predicted values.

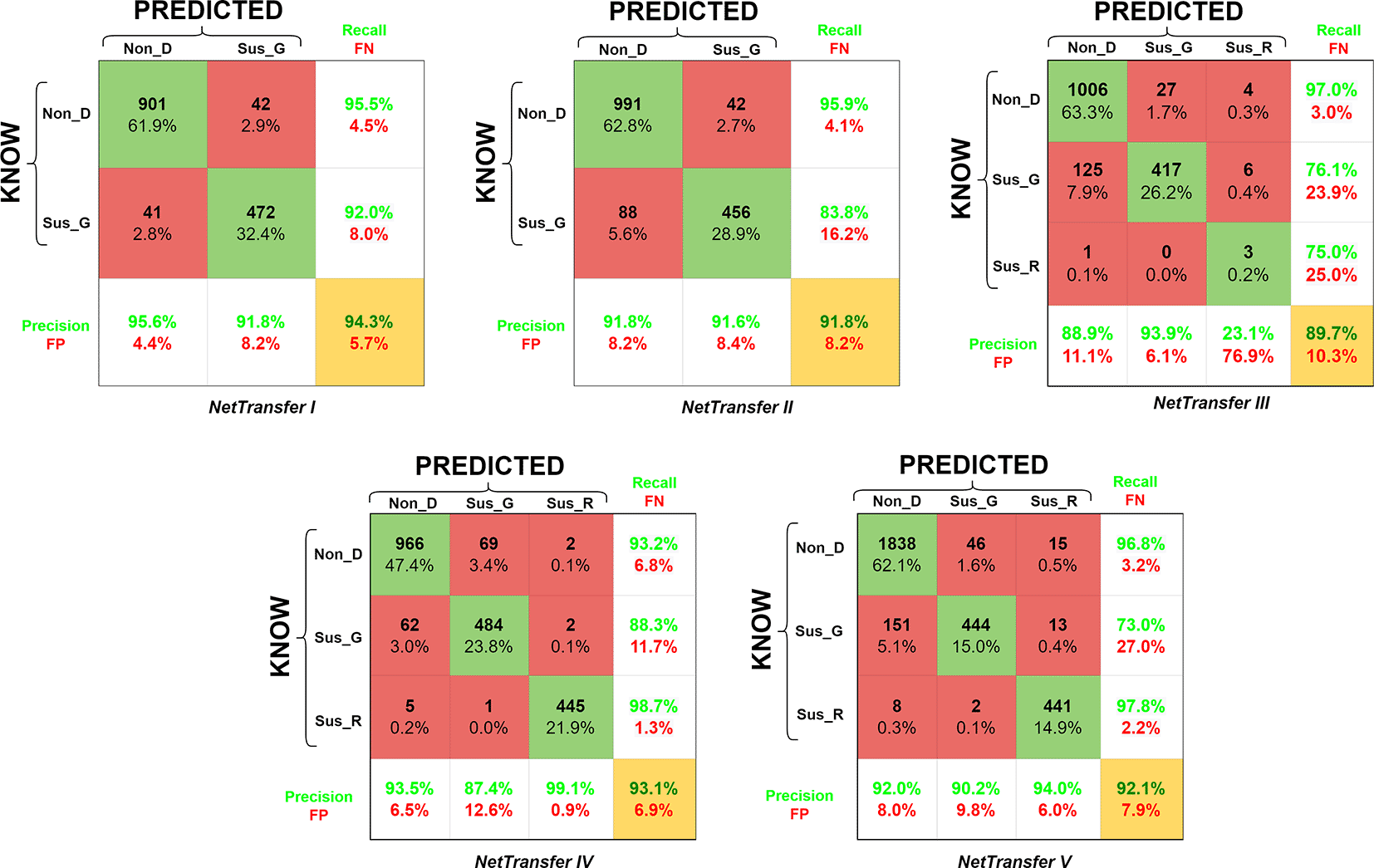

Figure 5. Confusion matrix for accuracy of the retrained AlexNet convolutional neural network on all datasets for the eye disease detection.

Glossary: False Negative (FN), False Positive (FP), Non-disease (Non_D), glaucoma (Sus_G) and diabetic retinopathy (Sus_R).

NetTransfer I network was only based on glaucoma and non-disease image cases existing in the LAG-database (Table 2), training with these datasets lead to values of validation accuracy of 94.3%. Besides that, Non_D detection also presented values of 95.5% for recall (4.5% for FN), and values of 95.6% for the precision of the system (4.4% for FP).

NetTransfer II network was based on glaucoma and non-disease images cases existing in the LAG-database and the sjchoi86-HRF database (Table 2), training with these datasets lead to values of validation accuracy of 91.8%. Besides that, Non_D detection presented values of 95.9% for recall (4.1% for FN), and values of 91.8% for the precision of the system (8.2% for FP).

NetTransfer III network was based on glaucoma, diabetic retinopathy and non-disease images cases existing in the LAG-database, sjchoi86-HRF database and the HRF database (Table 2), training with these datasets lead to values of validation accuracy of 89.7%. Besides that, Non_D detection presented values of 97.0% for recall (3.0% for FN), and values of 88.9% for the precision of the system (11.1% for FP).

NetTarnsfer IV network was based on glaucoma, diabetic retinopathy and non-disease images cases existing in the LAG-database, sjchoi86-HRF database, HRF database and the APTOS database (Table 2), training with these datasets lead to values of validation accuracy of 93.1%. Besides that, Non_D detection presented values of 93.2% for recall (6.8% for FN), and values of 93.5% for the precision of the system (6.5% for FP).

NetTransfer V network was based on glaucoma, diabetic retinopathy and non-disease images cases existing in the LAG-database, sjchoi86-HRF database, HRF database, APTOS database and ODIR database (Table 2), training with these datasets lead to values of validation accuracy of 92.1%. Besides that, Non_D detection presented values of 96.8% for recall (3.2% for FN), and values of 92.0% for the precision of the system (8.0% for FP).

Similarly, the study includes an analysis of the transfer learning performance of the AlexNet network in comparison with other significant architectures, specifically ResNet50 and GoogLeNet. The models to which transfer learning was applied have been designated as netAlexNet, netResNet, and netGoogLeNet (see Figure 6).


Figure 6. Confusion matrix for accuracy of the retrained AlexNet, ResNet50 & GoogLeNet convolutional neural networks for the eye disease detection.

Glossary: False Negative (FN), False Positive (FP), Non-disease (Non_D), glaucoma (Sus_G) and diabetic retinopathy (Sus_R).

The netAlexNet network was based on glaucoma, diabetic retinopathy, and non-diseased images from the LAG-database, sjchoi86-HRF database, HRF database, APTOS database, and ODIR database (Table 4). Training with these observations returned a validation accuracy of 93.24%. Furthermore, detection of Non_D cases achieved a recall rate of 97.4% (2.6% for FN) and a precision of 92.5% (7.5% for FP). ResNet50 achieved a maximum validation accuracy of 93.8%, with recall and precision for Non_D detection at 96.8% and 93.8%, respectively. GoogleNet architecture attained a maximum validation accuracy of 90.4%, with its Non_D detection showing recall and precision rates of 94.8% and 90.9%, respectively. Additionally, training graphs for netAlexNet, netResNet50 network model are provided for enhanced understanding in a live-script (refer to software availability). These graphs detail the performance evolution during training and validation phases, alongside the training configurations and the duration of model training (see to Figure 7).

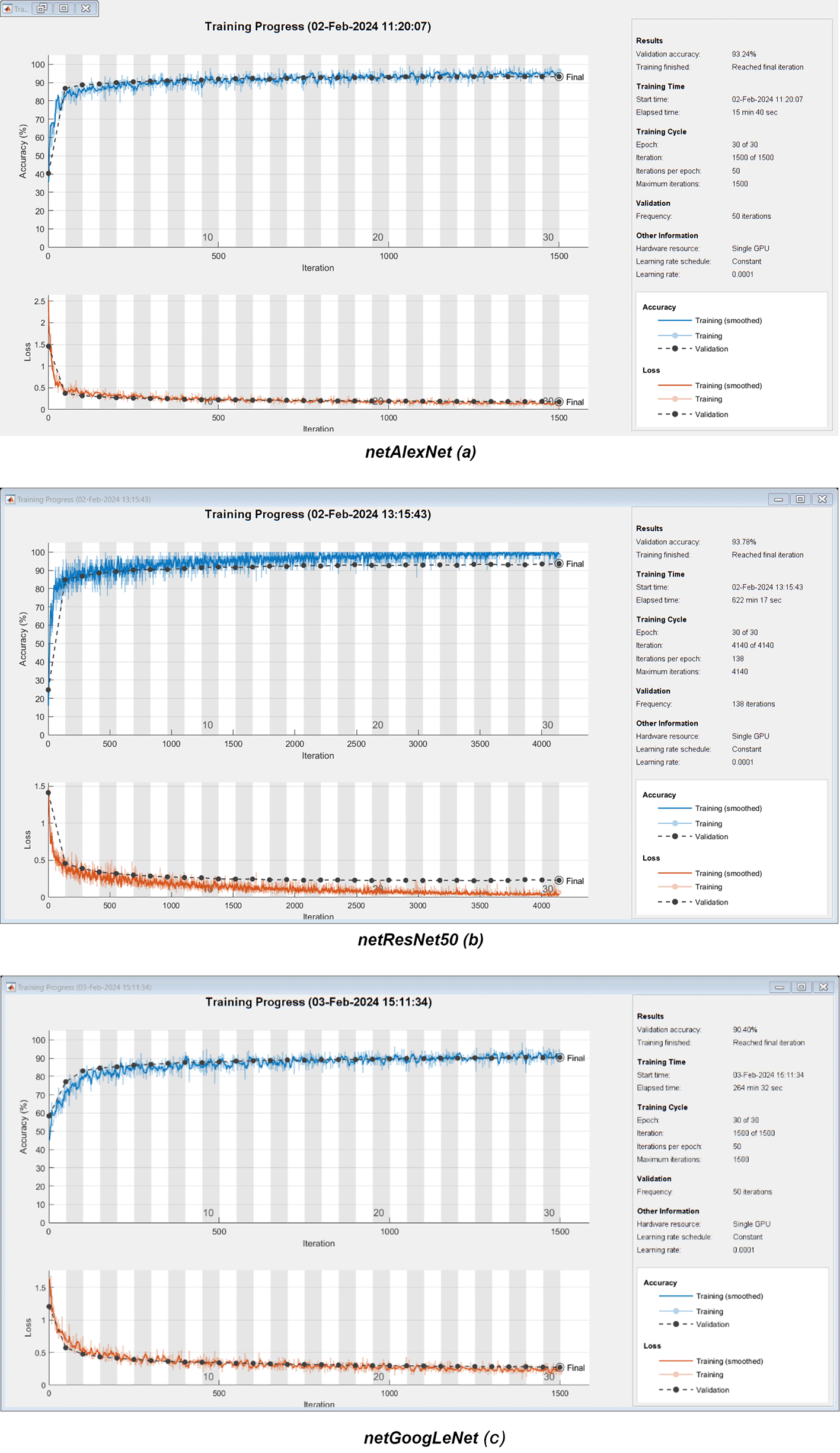

Figure 7. Performance Evolution and Training Metrics of netAlexNet, netResNet50, and GoogleNet Models.

Training duration for the netAlexNet network was observed at 15 minutes and 40 seconds, netResNet50 at 622 minutes and 17 seconds, and netGoogLeNet at 264 minutes and 32 seconds. Parameters such as EPOCHS, IPE, Validation Frequency, and Learning Rate are described for each model. Employing the netAlexNet model, in conjunction with the netResNet50 and netGoogLeNet neural networks, nine Grad-CAM heatmaps were generated to illuminate subtle differences in feature prioritization across the networks. This Grad-CAM involved a multi-class register across evaluated eye conditions, including Non_D, Sus_G, and Sus_R (see Figure 8).


Figure 8. Grad-Cam for AlexNet, ResNet50 & GoogLeNet convolutional neural networks for the eye disease detection.

Glossary: Non-disease (Non_D), glaucoma (Sus_G) and diabetic retinopathy (Sus_R).

Discussion

Several works were presented for glaucoma detection using fundus photographs by calculating cup-disk-ratio (CDR). For example, Carrillo and coworkers41 developed an autonomic detection method and a novel method for cup segmentation with a percentage of success of 88.5%. Another work from Anum Abdul and peers,42 an algorithm was provided to detect CDR and hybrid textural and intensity features. Those features were used to classify the autonomous system, and it gave improvements in the results from previous studies that only used CDR, thanks to their hybrid approach, they reached an accuracy of 92%. Although the CDR characteristic was not utilized, the AlexNet methodology demonstrates comparable accuracy levels with NetTransfer V (92.1%) and netAlexNet (93.2%), matching the performance of previously cited methods without requiring CDR calculation.

In other more rigorous studies such as Xiangyu Chen work,43 a deep CNN was developed with a total of six layers: two fully connected layers and four convolutional layers. The results drop scores of prediction from 71% to 83% from real images. On the other hand, Hanruo Liu and peers23 made a deep learning system using a total of 241,032 images from 68,013 patients. In this work, every image was subjected to a multiple layers of grading system, in which graders were from students to senior specialists on glaucoma, from these they obtained good levels of sensitivity and specificity (82.20% and 70.40%). Compared to other CNN systems, the AlexNet-based detection systems (NetTransfer V & netAlexNet) exhibited results that are comparable and, in some cases, arguably superior in terms of accuracy, sensitivity, and specificity for detecting glaucoma and diabetic retinopathy.

Another related work from Almeida and peers,44 uses image processing in MATLAB to improve the accuracy of glaucoma tests by extracting the most pertinent qualities of the images obtaining promising results with an accuracy, specificity, and sensitivity greater than 90%, which indicates that it gives an excellent start for us to assess the glaucoma diagnosis through AI. Although the system developed by Almeida and colleagues appears more specialized for glaucoma detection, NetTransfer V and netAlexNet offers the added benefit of simultaneously detecting multiple pathologies, including DR, which was another condition integrated into the detection framework.

Another study demonstrating superior results in glaucoma detection is that of Shinde,45 where the application of two distinct architectures enabled perfect prediction (100%) of their images. However, as noted earlier, the versatility of the AlexNet network provides a comparative advantage by facilitating the differentiation and classification of multiple diseases. In contrast, a monolithic classification system may identify the absence of one disease (glaucoma), but overlook the presence of other pathologies, such as DR.

NetTransfer V & netAlexNet are also able to detect DR, it is also pertinent to compare it to other deep learning systems that were developed for DR detection. In the study realized by Rishab Gargeya and Theodore Leng,18 they developed and evaluated a data-driven deep learning algorithm as a novel diagnostic tool for automated DR detection, which proved to reach high efficacy computer-aided model, with low-cost, which lead to correct DR diagnostics without depending on clinicians to examine and grade images manually.

A different study made by Shanthi and Sabeenian,19 used a modified AlexNet CNN system for the detection of DR in a big data training of the network. Additionally, Amnia Salma and peers17 develop a similar system, but they used GoogLeNet instead of AlexNet. While all of these systems follow similar principles to the NetTransfer V & netAlexNet propose systems, it is important to remark that the pre-trained networks acquired higher accuracies, sensitivities and specificities than the previously mentioned systems, mostly due to using a higher number datasets. The decision was made to extend the application of AlexNet for simultaneous classification of multiple diseases. The subsequent table provides a summary and comparison of the detection capabilities of the AlexNet pathology detection systems (NetTransfer V & netAlexNet) with those of all previously mentioned research, in addition to other significant studies not previously discussed (Table 5).

Table 5. Comparison between related studies.

Detectable pathologyDetection methodDataset (Size)Type of channelsNumber of classesPerformance measureRef.
Accuracy (%)Sensitivity (%)Specificity (%)AUC
Glaucoma and diabetic retinopathy (NetTransferV)CNNLAG, APTOS, HRF, and ODIR (9860)RGB392.0673.0 (Glaucoma) 97.80 (Retinopathy)97.93 (Glaucoma)
98.78 (Retinopathy)
--
Glaucoma and diabetic retinopathy (netAlexNet)CNNLAG, APTOS, HRF, and ODIR (9860)RGB393.2475.80 (Glaucoma) 99.30 (Retinopathy)97.99 (Glaucoma)
99.83 (Retinopathy)
GlaucomaAlgorithm to improve glaucoma detection using cup segmentationSet of fundus images from the CPAG in Bucaramanga, ColombiaGray scale, each RGB color channel independently288.50---41
GlaucomaAlgorithm to detect glaucoma using a fusion of CDR and hybrid textural and intensity featuresLocal database of 50 fundus images with 15 glaucoma and 35 healthy imagesBinary image, Green and RGB292.00100.0088.00-42
GlaucomaDCNNORIGA (650) and SCES (1676)RGB2---0.83 (ORIGA) and 0.88 (SCES)43
GlaucomaCNNCGSA (241032)Gray scale and RGB3-82.2070.400.8223
GlaucomaDirect Feed Neural NetworkACRIMA (705)Green, gray scale and binary image294.6194.5795.00-44
GlaucomaCNN (LeNet & U-net)IM-ONE, DRISHTI-GS, DRIONS-DB, JSIEC, NIO and DRIVRGB298.8 (ROI extraction) 100 (classification)100100-45
Diabetic retinopathyCustomized DCNNEyePacs, MESSIDOR 2 and E-Ophtha (for testing) (75137)RGB2-74.00-94.0080.00-98.000.94-0.9718
Diabetic retinopathyCNN (modified AlexNet)Messidor (1190)Green and RGB495.60-96.6088.00-96.0097.30-96.60-19
Diabetic retinopathyGoogleNetKaggle (200)RGB588.0075.0052.00-17
Diabetic retinopathyFused CNN512, CNN299, and CNN (YOLOv3, EfficientNetB0)DDR (13673), and Kaggle (3662)RGB589.0089.0097.300.9716
Diabetic retinopathyResNet (50 and 101) and VggNet-161607RGB2ResNet-101 (98.88) ResNet-50 (93.00) VggNet-16 (71.39)ResNet-101 (97.14)ResNet-101 (97.65)ResNet-101 (0.98)46

In the benchmarking of AlexNet against other recognized architectures, specifically ResNet50 and GoogLeNet, the confusion matrices affirm that the netResNet50 model exhibits superior overall performance compared to the three models (refer to Figure 5). This superiority is partly attributed to flawless performance in the Sus_R category and enhanced performance in the Non_D category. The netResNet50 model is closely followed by its counterpart netAlexNet and, to a lesser extent, by GoogLeNet. However, the presentation of the training process through performance/validation graphs indicates a shorter training duration for netAlexNet in comparison to netResNet50 and netGoogLeNet (Figure 6). This is largely attributed to the fewer number of layers in AlexNet, as opposed to GoogLeNet and ResNet50, the latter of which even necessitated a reduction in the MBS at the expense of increasing the IPE. Furthermore, within the performance graphs record, netResNet50 exhibited signs of overfitting, as evidenced by superior training performance over validation in consecutive epochs. Meanwhile, netGoogLeNet demonstrated performance similar to netAlexNet in the performance/validation process, which, despite a lower accuracy, did not show signs of overfitting.

The second row of images offers a detailed visualization of Grad-CAM outputs for the three networks applied to glaucomatous retinal images (see Figure 7). Initial examination of these images highlights a shared emphasis on the optic disk (OD) and optic nerve by all networks. However, a deeper analysis reveals significant differences in the degree and specificity of feature focus. ResNet50, recognized for its extensive reach, displays an extensive region of interest that goes beyond the OD boundaries, covering adjacent retinal areas. While this wide-ranging observation might seem beneficial, it adds complexity by including features outside the OD, which could complicate the classification task. On the other hand, GoogLeNet, known for its broad and encompassing analysis, indicates the widest area of interest, covering the entire OD and optic cup (OC), as well as the surrounding periphery. This extensive observation potentially facilitates a thorough evaluation of areas prone to pathological changes. However, its challenge lies in the indiscriminate encompassment of adjacent areas, possibly including anomalies not related to the disease under investigation, thus affecting diagnostic precision. Conversely, Grad-CAM outputs from the netAlexNet model, despite focusing on a more confined area, concentrate on crucial aspects such as the OD-OC ratio.

In the examination of DR images depicted in the third row of images (see Figure 8), a noticeable shift from the OD-focused analysis seen in glaucoma heatmaps is apparent. The GoogLeNet heatmap highlights a significant focus in the upper regions of the eye, likely due to increased vascularity. However, this focus might overlook potential manifestations of the disease in the lower regions and the OD, leading to possible misrecognition, especially in cases where DR pathology is primarily present in these areas. In contrast, the heatmap from ResNet50, while covering a wider area, demonstrates a less precise focus, capturing various ocular regions. This broad coverage aims to identify a wide range of retinal blood vessels and neurons but may result in a compromise between breadth and specificity, potentially affecting discernment capabilities.

Examination of eyes without disease reveals a focus on regions around ocular blood vessels and the OD in all three Grad-CAMs. The networks of AlexNet and ResNet50 extensively outline these areas. In contrast, GoogLeNet markedly neglects the OD, crucial for diagnosing both glaucoma and diabetic retinopathy, potentially leading to false negatives by missing clinically significant features, thus impacting recognition precision. This variation highlights the necessity for thorough feature assessment, particularly when minor anomalies are diagnostically critical.

Additionally, for the implementation of the AlexNet architecture on open-source language, the use of TensorFlow is endorse as a free open-source self-learning platform based on the Python language, mainly developed by Google.47 Among its many available, Keras is identified as deep learning application programming interface (API) developed for Python and built on TensorFlow, where a user can build the proposed AlexNet equivalent model. The recommended model is the sequential model of Keras which allows a user to define the model as a series of convolutional layers with max pooling.48

Conclusions

In the presented research, the training of a CNN through the use of MATLAB software and its AlexNet tool, allowed the effective recognition of two eye diseases (glaucoma and DR) through retinal fundus images. Additionally, the use of open access databases allows the replicability and reproducibility of the present study. Being the APTOS, HRF and sjchoi86-HRF databases of immediate access. Meanwhile, LAG and ODIR are databases with access upon request. The implementation of the different databases (LAG, APTOS, HRF, ODIR, sjchoi86-HRF), proved to be effective in improving the prediction percentages of the different neural network trainings.

In general, the most common eye affections are presented through a series of symptoms, such as blurred vision, spots, glare, eye fatigue, dry eyes, among others. In this way, glaucoma proves to be a condition that damages the optic nerve and generally does not present any symptoms, until the person suffering from it perceives a decrease in vision in the final stages of the disease. Based on the foregoing, it is necessary to create tools that allow an effective detection of this type of affectation, for example CNN systems as an alternative, highly reliable in the automation of processes. Similarly, the study does not replace state-of-the-art technologies in the recognition of retinal pathology, nor to compete with identification systems that represent a new paradigm in the recording and analysis of retinal fundus images. Instead, offer an initial approach to enthusiasts interested in accessible recognition techniques through CNN models. Additionally, the research expanded its detection objective by incorporating a benchmark of models, complemented by a Grad-CAM analysis, through multi-class classification on the categories Sus_G, Sus_R and Non_D.

Future improvements to this algorithm could include the creation of a more user-friendly graphical interface for users who are not experts in programming language. In this way, the detection tasks will be based on the selection of options and not on the coding of algorithms. On the other hand, as previously mentioned, it is possible to replicate the AlexNet-CNN using Python, by using existing tools such as TensorFlow and Keras API. Therefore, a subsequent study will concentrate efforts on implementing the recognition system in the open-source language, to endorse the use of non-proprietary software in order to increase reproducibility.

Software availability

MATLAB codes and scripts related to image processing, pre-processing & Training versions of the AlexNet Convolutional Neural Network (NetTransfers I-V).

Source code available from: https://github.com/IscArias/EyeEvaluationSourceCode

Archived source code as at time of publication: https://doi.org/10.5281/zenodo.709887949

License: 2-Clause BSD License

MATLAB codes and live scripts related to benchmarking of models & Grad-CAM (netAlexNET, netResNet50 & netGoogLeNet)

Archived source code as at time of publication: https://doi.org/10.5281/zenodo.10826326.50

License: 2-Clause BSD License

Comments on this article Comments (0)

Version 2
VERSION 2 PUBLISHED 05 Jan 2023
Comment
Author details Author details
Competing interests
Grant information
Copyright
Download

Export To
metrics
Views Downloads
F1000Research - -
PubMed Central
Data from PMC are received and updated monthly.
- -
Citations
CITE
how to cite this article
Arias-Serrano I, Velásquez-López PA, Avila-Briones LN et al. Artificial intelligence based glaucoma and diabetic retinopathy detection using MATLAB — retrained AlexNet convolutional neural network [version 2; peer review: 2 approved]. F1000Research 2024, 12:14 (https://doi.org/10.12688/f1000research.122288.2)
NOTE: If applicable, it is important to ensure the information in square brackets after the title is included in all citations of this article.
track
receive updates on this article
Track an article to receive email alerts on any updates to this article.

Open Peer Review

Current Reviewer Status: ?
Key to Reviewer Statuses VIEW
ApprovedThe paper is scientifically sound in its current form and only minor, if any, improvements are suggested
Approved with reservations A number of small changes, sometimes more significant revisions are required to address specific details and improve the papers academic merit.
Not approvedFundamental flaws in the paper seriously undermine the findings and conclusions
Version 2
VERSION 2
PUBLISHED 03 Apr 2024
Revised
Views
6
Cite
Reviewer Report 31 May 2024
Tae Keun Yoo, Ophthalmology, B&VIIT Eye Center, Seoul, South Korea
Approved
VIEWS 6
The authors well addressed my concerns.

Since there are more diseases in ophthalmology, such as macular degeneration and ERM, the method proposed by the authors needs to be expanded to more classes in the future.

... Continue reading
CITE
CITE
HOW TO CITE THIS REPORT
Yoo TK. Reviewer Report For: Artificial intelligence based glaucoma and diabetic retinopathy detection using MATLAB — retrained AlexNet convolutional neural network [version 2; peer review: 2 approved]. F1000Research 2024, 12:14 (https://doi.org/10.5256/f1000research.163934.r262369)
NOTE: it is important to ensure the information in square brackets after the title is included in all citations of this article.
Views
10
Cite
Reviewer Report 05 Apr 2024
Creed Jones, Electrical and Computer Engineering, Virginia Tech, Blacksburg, VA, USA
Approved
VIEWS 10
The revisions to the article are helpful. They improve the content without ... Continue reading
CITE
CITE
HOW TO CITE THIS REPORT
Jones C. Reviewer Report For: Artificial intelligence based glaucoma and diabetic retinopathy detection using MATLAB — retrained AlexNet convolutional neural network [version 2; peer review: 2 approved]. F1000Research 2024, 12:14 (https://doi.org/10.5256/f1000research.163934.r262370)
NOTE: it is important to ensure the information in square brackets after the title is included in all citations of this article.
Version 1
VERSION 1
PUBLISHED 05 Jan 2023
Views
34
Cite
Reviewer Report 27 Oct 2023
Tae Keun Yoo, Ophthalmology, B&VIIT Eye Center, Seoul, South Korea
Approved with Reservations
VIEWS 34
The authors built a CNN model to classify glaucoma, diabetic retinopathy, and controls in the fundus photography domain using MATLAB.
  1. Alexnet is the first CNN model known in the world and the most primitive structure. It
... Continue reading
CITE
CITE
HOW TO CITE THIS REPORT
Yoo TK. Reviewer Report For: Artificial intelligence based glaucoma and diabetic retinopathy detection using MATLAB — retrained AlexNet convolutional neural network [version 2; peer review: 2 approved]. F1000Research 2024, 12:14 (https://doi.org/10.5256/f1000research.134260.r213588)
NOTE: it is important to ensure the information in square brackets after the title is included in all citations of this article.
  • Author Response 13 Apr 2024
    Angel Arias, School of Biological Sciences and Engineering, Universidad Yachay Tech, Urcuquí, 100119, Ecuador
    13 Apr 2024
    Author Response
    1. Alexnet is the first CNN model known in the world and the most primitive structure. It is one of the oldest architecture of CNNs. Why did the authors choose alexnet ... Continue reading
COMMENTS ON THIS REPORT
  • Author Response 13 Apr 2024
    Angel Arias, School of Biological Sciences and Engineering, Universidad Yachay Tech, Urcuquí, 100119, Ecuador
    13 Apr 2024
    Author Response
    1. Alexnet is the first CNN model known in the world and the most primitive structure. It is one of the oldest architecture of CNNs. Why did the authors choose alexnet ... Continue reading
Views
39
Cite
Reviewer Report 06 Feb 2023
Creed Jones, Electrical and Computer Engineering, Virginia Tech, Blacksburg, VA, USA
Approved with Reservations
VIEWS 39
The article presents a CNN implementation using MATLAB to determine the presence of glaucoma using labeled retinal images. The result and its conclusions are very interesting, and the open and freely verifiable nature of the work is great.

... Continue reading
CITE
CITE
HOW TO CITE THIS REPORT
Jones C. Reviewer Report For: Artificial intelligence based glaucoma and diabetic retinopathy detection using MATLAB — retrained AlexNet convolutional neural network [version 2; peer review: 2 approved]. F1000Research 2024, 12:14 (https://doi.org/10.5256/f1000research.134260.r161036)
NOTE: it is important to ensure the information in square brackets after the title is included in all citations of this article.
  • Author Response 13 Apr 2024
    Angel Arias, School of Biological Sciences and Engineering, Universidad Yachay Tech, Urcuquí, 100119, Ecuador
    13 Apr 2024
    Author Response
    1. The abstract should clarify the "two classes" and "three classes" referred to.The abstract should clarify the "two classes" and "three classes" referred to.
    Thank you for this observation, as ... Continue reading
COMMENTS ON THIS REPORT
  • Author Response 13 Apr 2024
    Angel Arias, School of Biological Sciences and Engineering, Universidad Yachay Tech, Urcuquí, 100119, Ecuador
    13 Apr 2024
    Author Response
    1. The abstract should clarify the "two classes" and "three classes" referred to.The abstract should clarify the "two classes" and "three classes" referred to.
    Thank you for this observation, as ... Continue reading

Comments on this article Comments (0)

Version 2
VERSION 2 PUBLISHED 05 Jan 2023
Comment
Alongside their report, reviewers assign a status to the article:
Approved - the paper is scientifically sound in its current form and only minor, if any, improvements are suggested
Approved with reservations - A number of small changes, sometimes more significant revisions are required to address specific details and improve the papers academic merit.
Not approved - fundamental flaws in the paper seriously undermine the findings and conclusions
Sign In
If you've forgotten your password, please enter your email address below and we'll send you instructions on how to reset your password.

The email address should be the one you originally registered with F1000.

Email address not valid, please try again

You registered with F1000 via Google, so we cannot reset your password.

To sign in, please click here.

If you still need help with your Google account password, please click here.

You registered with F1000 via Facebook, so we cannot reset your password.

To sign in, please click here.

If you still need help with your Facebook account password, please click here.

Code not correct, please try again
Email us for further assistance.
Server error, please try again.
