Plastid genome of Passiflora tripartita var. mollissima (poro-poro) from Huánuco, Peru

Plant materials

In November 2022, the fresh leaves of Passiflora tripartita var. mollissima were collected from Raccha Cedrón locality of Quisqui District, Huánuco Province from Peru (9°53′37″S, 76°26′02″W, altitude 2,945 m.a.s.l.). A herbarium voucher specimen (USM<PER>:MHN331530) was deposited in the Herbario San Marcos (USM) of the Museo de Historia Natural (MHN) at the Universidad Nacional Mayor de San Marcos (UNMSM) (see the Extended data, Aliaga et al., 2023a).

DNA extraction

Total genomic DNA was extracted from approximately 100 mg fresh leaves (from voucher number USM<PER>:MHN331530) according to Doyle’s (1991) method with slight modifications. The DNA isolation buffer consisted of buffer cetyl-trimethyl ammonium bromide (CTAB) 3% (30g/L CTAB, 100 mM Tris-HCl pH 8.0, 10nM EDTA, 1.4 M NaCl, 0,2% 2-mercaptoethanol), 70% ethanol, chloroform-isoamyl alcohol (24:1), 10 mM ammonium acetate, isopropanol, TE buffer (10 mM Tris-H, 1 mM EDTA), and RNAase A (10 ug/ml). Genomic DNA quality was assessed using a fluorometry-based Qubit (Thermo Fisher Scientific, USA, catalog number: Q33238) coupled to a Broad Range Assay kit (Thermo Fisher Scientific, USA, catalog number: Q33230). High-quality DNA (230/260 and 260/280 ratios >1.8) were normalized (20 ng/μL) to examine its integrity using 1% (w/v) agarose gel electrophoresis (see the Extended data, Aliaga et al., 2023b) with the following equipment: Horizontal gel system (Fisher Scientific, Denmark, catalog number: 11833293, 150mm (length), 100 mm (width)), Transilluminator (Fisher Scientific, Spain, catalog number: 12864008), and digital camera (Canon, Spain, catalog number: 2955C002); Reagents: TAE buffer (40 mM Tris, 20mM NaAc, 1mM EDTA, pH 7.2), loading buffer 6X (Promega, USA, catalog number: G1881, 0.4% orange G, 0.03% bromophenol blue, 0.03% xylene cyanol FF, 15% Ficoll^® 400, 10mM Tris-HCl pH 7.5 and 50mM EDTA pH 8.0) and Ethidium bromide (Promega, USA, catalog number H5041, 10 mg/ml), and 1 Kb Plus DNA Ladder (ThermoFisher, USA, catalog number: 10787018).

Genome sequencing, assembly, and annotation

Qualified DNA was fragmented, and the TruSeq Nano DNA kit (Illumina, San Diego, CA, USA, catalog number: FC-121-4001) was used to construct an Illumina paired-end (PE) library. PE sequencing (2 × 150 bp) was performed using the Illumina NovaSeq 6000 platform (Modi et al., 2021) (Illumina, San Diego, Ca, USA, catalog number: 20012850) (Macrogen, Inc., Seoul, Republic of Korea). All adapters and low-quality reads were removed using the FastQC (Wingett & Andrews, 2018) and Cutadapt (Martin, 2011) programs. PE reads (2 × 150 bp) were evaluated for quality using QUAST (Gurevich et al., 2013) analysis, and subsequent steps used clean data. Then, clean reads obtained were assembled into a circular contig using NOVOPlasty v.4.3 (Dierckxsens et al., 2017), with P. edulis (NC_034285) as the reference (Cauz-Santos et al., 2017). The plastid genome was annotated using the Dual Organellar GenoMe Annotator GeSeq (Tillich et al., 2017) and CpGAVAS2 (Shi et al., 2019). A circular genome map was constructed using OGDRAW v.1.3.1 (Greiner et al., 2019). Finally, the completed sequences were submitted to the NCBI GenBank under the accession number OQ910395 (GenBank, 2023).

Phylogenetic analysis

We used 26 complete plastome sequences to infer the phylogenetic relationships among Passiflora species, and Vitis vinifera was used as an outgroup (see the Extended data, Aliaga et al., 2023c). Single-copy orthologous genes were identified using the Orthofinder version 2.2.6 pipeline (Emms & Kelly, 2019). For each gene family, the nucleotide sequences were aligned using the L-INS-i algorithm in MAFFT v7.453 (Katoh & Standley, 2013). A phylogenetic tree based on maximum likelihood (ML) was constructed using RAxML v8.2.12 (Stamatakis, 2014) with the GTRCAT model. A phylogenetic ML tree was reconstructed and edited using MEGA 11 (Tamura et al., 2021) with 1000 replicates.

Plastome of Passiflora tripartiva var. mollissima

The plastid genome sequences of P. tripartita var. mollissima (poro-poro) (Figure 1) was 163,451 bp in length, with a typical quadripartite structure consisting of a large single-copy (LSC) region of 85,525 bp (52.32% in total) and a small single-copy (SSC) region of 13,518 bp (8.27%), separated by a pair of inverted repeat regions (IRs) of 32,204 bp (19.70%). The poro-poro plastome is 12,045 bp longer than that of one of the most economically important species, passion fruit (P. edulis) (Cauz-Santos et al., 2017), and is only 7,117 bp longer than that of the longest Passiflora plastome reported, i.e., P. arbelaezii (Shrestha et al., 2019). The plastome sequence of poro-poro has a similar quadripartite architecture to other plants (Ohyama et al., 1986; Shinozaki et al., 1986; Nguyen et al., 2021). However, the LSC region is 4,150 bp longer than that of P. xishuangbannaensis but is 98bp, 195 bp, and 1,927 bp shorter than that of P. caerulea, P. edulis, and P. arbelaezii, respectivety. The SSC region is 121 bp, 140 bp, 359 bp, and 754 bp longer than that of P. caerulea, P. edulis, P. xishuangbannaensis, and P. arbelaezii, respectively. The IRs regions are 6,024 bp, 6,050 bp, and 11,600 longer than that of P. caerulea, P. edulis, and P. xishuangbannaensis, respectively; however, it is 2,972 bp shorter than that of P. arbelaezii (Cauz-Santos et al., 2017; Shrestha et al., 2019; Hao & Wu, 2021; Niu et al., 2021). The plastome structure of the P. tripartita var. mollissima consisted of A = 30.79%, T(U) = 32.34%, C = 18.67% and G = 18.20%. The overall AT content of the plastid genome was 63.13%, whereas the overall GC content was 36.87% as similar to that of other reported chloroplast genomes from the same family, such as 36.90% in P. arbelaezii (Shrestha et al., 2019), 37% in P. edulis and P. serrulata (Cauz-Santos et al., 2017; Mou et al., 2021), 37.03% in P. caerulea (Niu et al., 2021), and 37.1% in P. xishuangbannaensis (Hao & Wu, 2021).

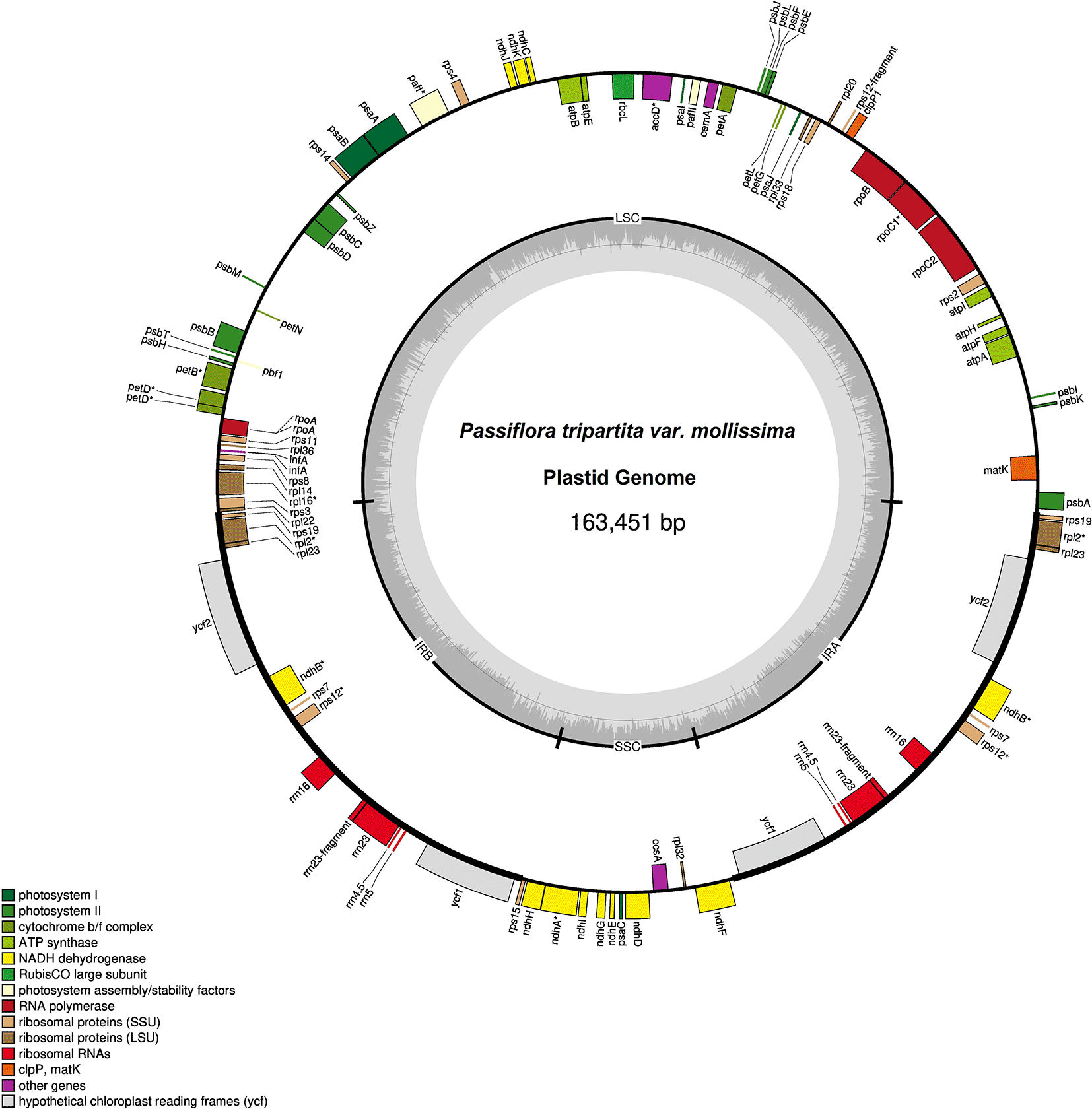

Figure 1. Plastid genome of Passiflora tripartita var. mollissima.

The thick lines indicate the IR1 and IR2 regions, which separate the large single-copy (LSC) and small single-copy (SSC) regions. Genes marked inside the circle are transcribed clockwise, and genes marked outside the circle are transcribed counterclockwise. Genes are color-coded based on their function, shown at the bottom left. The inner circle indicates the inverted boundaries and guanine and cytosine (GC) content.

Poro-poro plastid genome annotation identified 129 genes, of which 112 were unique, and 17 were duplicated in the inverted repeat (IR) region. The plastome contained 85 protein-coding genes, 37 transfer RNA (tRNA)-coding genes, seven ribosomal RNA (rRNA)-coding genes, and 14 genes with introns (12 genes with one intron and two genes with two introns), as shown in Table 1. The poro-poro plastid genome contained 112 unique genes, of which there were 29 tRNA genes, four rRNA genes, and 79 protein-coding genes. The latter comprised 20 ribosomal subunit genes (nine large subunits and 11 small subunit), four DNA-directed RNA polymerase genes, 46 genes were involved in photosynthesis (11 encoded subunits of the NADH oxidoreductase, seven for photosystem I, 15 for photosystem II, six for the cytochrome b6/f complex, six for different subunits of ATP synthase, and one for the large chain of ribulose biphosphate carboxylase), eight genes were involved in different functions, and one gene was of unknown function (Table 2).

In the plastid genome, 14 genes contained introns distributed as follows: the LSC, SSC, and IRs regions contained eight genes (petD, rpl16, rpoC1, trnG-UCC, trnK-UUU, trnL-UAA, trnV-UAC, and ycf3), one gene (ndhA), and five genes (ndhB, rpl2, rps12, trnA-UGC, and trnI-GAU) respectively. Similarly, these genes included six protein-coding genes, each with a single intron (petD, ndhA, ndhB, rpoC1, rpl2, and rpl16); six tRNA genes, each with a single intron (trnA-UGC, trnG-UCC, trnI-GAU, trnK-UUU, trnL-UAA, and trnV-UAC); and two protein-coding genes with two introns (ycf3 and rps12). Except for 17 genes that were duplicated in the IR region (ndhB, rps19, rpl2, rpl23, rps12, ycf15, rrn5, rrn16, rrn23, trnA-UGC, trnI-CAU, trnI-GAU, trnL-CAA, trnM-CAU, trnN-GUU, trnR-ACG, and trnV-GAC) all genes contained a single copy, as shown in Table 2. The plastome of P. tripartita var. mollissima contained eight genes (ycf1, ycf2, ycf15, rps16, rpl20, rpl22, accD, infA) that were lost or non-functional genes in P. edulis; and compared to P. edulis, it has one absent gene (trnfM-CAU), as previously reported (Cauz-Santos et al., 2017). In this study, the ycf1 sequence encodes a protein essential for plant viability and a vital component of the translocon on the inner chloroplast membrane (TIC) complex (Kikuchi et al., 2013), and ycf2 is a component of the ATPase motor protein associated with the TIC complex (Kikuchi et al., 2018).

Phylogenetic reconstruction

To identify the evolutionary position of Passiflora tripartita var. mollissima in the Passifloraceae family, phylogenetic relationships based on the OrthoFinder clustering method were used to avoid erroneous rearrangements in phylogenetic tree reconstruction and provides a more reliable evolutionary analysis (Gabaldón, 2005; Zhang et al., 2012). The phylogenetic tree was constructed based on single-copy orthologous genes (Emms & Kelly, 2019) and maximum likelihood analysis with the complete annotated protein sequences of 27 plastid genomes, of which 26 were from Passiflora species. One species, Vitis vinifera, was chosen as the outgroup.

Maximum likelihood (ML) bootstrap values ranged from 38%–92% for seven of the 25 nodes. All nodes except the indicated ones (seven nodes) exhibited bootstrap support (BS) values of 100%. These Passiflora species were divided into four groups: subgenus Passiflora (P. nitida, P. quadrangularis, P. cincinnata, P. caerulea, P. edulis, P. laurifolia, P. vitifolia, P. serratifolia, P. serrulata, P. ligularis, P. serratodigitata, P. actinia, P. menispermifolia and P. oerstedii), subgenus Tetrapathea (P. tetrandra), subgenus Decaloba (P. microstipula, P. xishuangbannaensis, P. biflora, P. lutea, P. jatunsachensis, P. suberosa and P. tenuiloba), and subgenus Deidamoides (P. contracta and P. arbelaezii). The relationships between the four subgenera of Passiflora species (Passiflora, Tetrapathea, Decaloba, and Deidamoides) were congruent and strongly supported by the same patterns as previously reported (Cauz-Santos et al., 2020; Pacheco et al., 2020). These results resolved Passiflora tripartita var. mollissima belonging to the subgenus Passiflora, which was closely related to P. menispermifolia and P. oerstedii with 100% BS, and was sister to P. tetrandra (subgenus Tetrapathea), P. biflora (subgenus Decaloba), and P. contracta (subgenus Deidamoides), as shown in the cladogram (Figure 2).

Figure 2. Phylogenetic tree of 27 plastid genomes using maximum likelihood analysis based on single-copy orthologous protein.

Bootstrap values on the branches were calculated from 1000 replicates.
