Brain-localized CD4 and CD8 T cells perform correlated random walks and not Levy walks

Introduction

Different agents starting with large animals such as tigers and wolves and ending with individual cells such as T lymphocytes typically search for resources/targets. Theoretically, different search strategies may have different efficacies depending on the energy used for search, the number and distribution of targets in the environment, the effective dimension of the environment and other details.¹ Finding that a particular type of agent, e.g., T cells, undergo a walk type that is highly efficient in some respects (e.g., in time to find a target) may indicate that such walk types may be evolutionarily selected.² However, whether observed movement patterns are driven by agent-intrinsic programs or are the consequences of constraints in the environment has rarely been investigated.^1,3–5

Different search strategies can be roughly subdivided into two large classes: based on Brownian walks and on Levy walks (LWs).⁶ The key feature of Brownian walkers is that their displacements are short, consistent with a thin-tailed distribution that has a finite mean and variance.⁶ Pure Brownian walkers typically exhibit mean squared displacement (MSD) that changes linearly with time.^6–8 In actual data, agents rarely show MSD to change linearly with time; it is more typical to observe super-diffusion at short time scales due to correlation between sequential speed vectors (so called correlated random walks, CRWs) and sub-diffusion at longer time scales due to environmental constraints.^5,8–10 In contrast, Levy walkers typically perform both short and long displacements often consistent with a heavy-tailed distribution composed of a finite mean and infinite variance or both an infinite mean and infinite variance.⁶ Levy walkers exhibit super-diffusive behavior that is their MSD increases faster than being linear with time.^6,8 Realistically, however, super-diffusion of Levy walkers may not be always observed over long periods of time due to environmental constraints and other experimental limitations. Both Brownian and Levy walk strategies may have multiple variations; for example, generalized LWs are a type of Levy walk in which there are both pauses and runs.²

Unfortunately, there is no unique, well-established methodology that allows to fully characterize movement strategies of different agents. MSD is often used to determine if agents exhibit normal diffusion (Brownian) or super-diffusion (Levy); however, there are limitations of this method to infer movement types.^2,8–15 An alternative method is to analyze the distribution of movement/displacement lengths and determine how quickly the tail of cumulative distribution declines with larger movement lengths.^6,16 Finally, the distribution of turning angles made by the agents with every displacement can inform about specific movement strategies.^7,17 Using these methods, many studies including those in immunology have reported movement patterns consistent with LWs.^2,18–24 While it has been common to attribute specific movement patterns to agent-intrinsic programs, the relative contribution of internal and external processes in determining why agents move in a specific manner remains typically unknown. For example, we have recently shown that movement patterns of activated CD8 T cells in murine livers such as crawling or floating can be well explained by the physiological aspects of the liver blood vessels (sinusoids) and blood flow.⁵

Intravital microscopy is typically used to record movement of various types of immune cells such as T cells or neutrophils in vivo.²⁵ In such imaging experiments, cells to be imaged must express fluorescent markers (e.g., green fluorescent protein (GFP)). A small area of the tissue is then scanned by a microscope; a volume of 500×500×50 μm is typically scanned every 30 sec. The generated movies are then processed (segmented) by specialized software to determine individual cells and their positions over time. While the movies are typically very impressive at the details of how immune cells behave in tissues in vivo, the resulting coordinate data have many limitations. In particular, 1) cell positions are recorded only at specific time points while cell movements are often continuous; 2) cells may come into or leave the imaging volume over time reducing the amount of data available for each cell; 3) segmentation programs may allow the cells temporarily to leave imaging volume and introduce missing time frames into the data for individual cell trajectories; 4) while cells are typically moving, 3D imaging sometimes only records cell positions in 2D that may bias the interpretation. Exposing tissues to the laser may also impact tissue physiology which in turn may introduce artifacts into the cell position data.

One influential study suggested that brain-localized activated CD8 T cells, specific to Toxoplasma gondii, perform generalized LWs allowing these T cells to efficiently locate and eliminate T. gondii-infected cells.² This movement pattern was different from movements T cells exhibit in other tissues such as lymph nodes or the liver, suggesting that brain may be a special organ allowing for a unique movement strategy.^5,26 In this paper, we processed recently generated imaging data on brain-localized CD4 and CD8 T cells, specific to Plasmodium berghei,²⁷ and characterized movement patterns of these cells using several alternative methodologies. Interestingly, we found that these T cells undergo CRWs that are characterized by a relatively short persistence time (∼ 5 min) and high speeds (7-10 um/min) that are similar to activated T cells localized to the liver. Importantly, brain-localized T cells undergo relatively small displacements that are fully consistent with Brownian walks and are not consistent with generalized LWs. We also analyzed the coordinate data of T. gondii-specific T cells from Harris et al.² and found that the data contained missing timeframes for several cells that unless accounted for creates an impression of rare long displacements. After cleaning the data, main characteristics of the movement of T. gondii- and P. berghei-specific CD8 T cells such as MSD plots and displacement distribution were nearly identical. Our results thus suggest that movement patterns of activated CD8 T cells in the brain are similar to that of the liver and are consistent with correlated (Brownian-like) random walks.

Methods

Movement data. There are several different datasets used in our analyses. We obtained movies of previously published movements of CD4 and CD8 T cells, specific to Plasmodium berghei, in the brains of Plasmodium-infected mice,²⁷ which were then segmented using Imaris (RRID:SCR_007370) (Bitplane). We also re-analyzed previously published data,² provided by Dr. Chris Hunter to Dr. Vitaly V. Ganusov. This dataset focuses on the movement of activated CD8 T cells, specific to Toxoplasma gondii, in the brains of T. gondii-infected mice.

Imaging Plasmodium-specific CD4 and CD8 T cells in the brain. Imaging was performed in a previous study.²⁷ Female C57BL/6 (B6) and the transgenic strains PbT-I and PbT-II mice along with the rodent malaria line Plasmodium berghei ANKA (PbA) clone 15cy1 were used in this study. The mice were injected intravenously (i.v.) with purified naive PbT-I (CD8) and PbT-II (CD4) T cells (5 × 10⁴) in 0.2 ml PBS. One day later, the mice were infected i.v. with 10⁴ PbA infected red blood cells (iRBCs). For the data used in this experiment, the brains were imaged 6.5 or 7 days post-infection (Figure 1A).

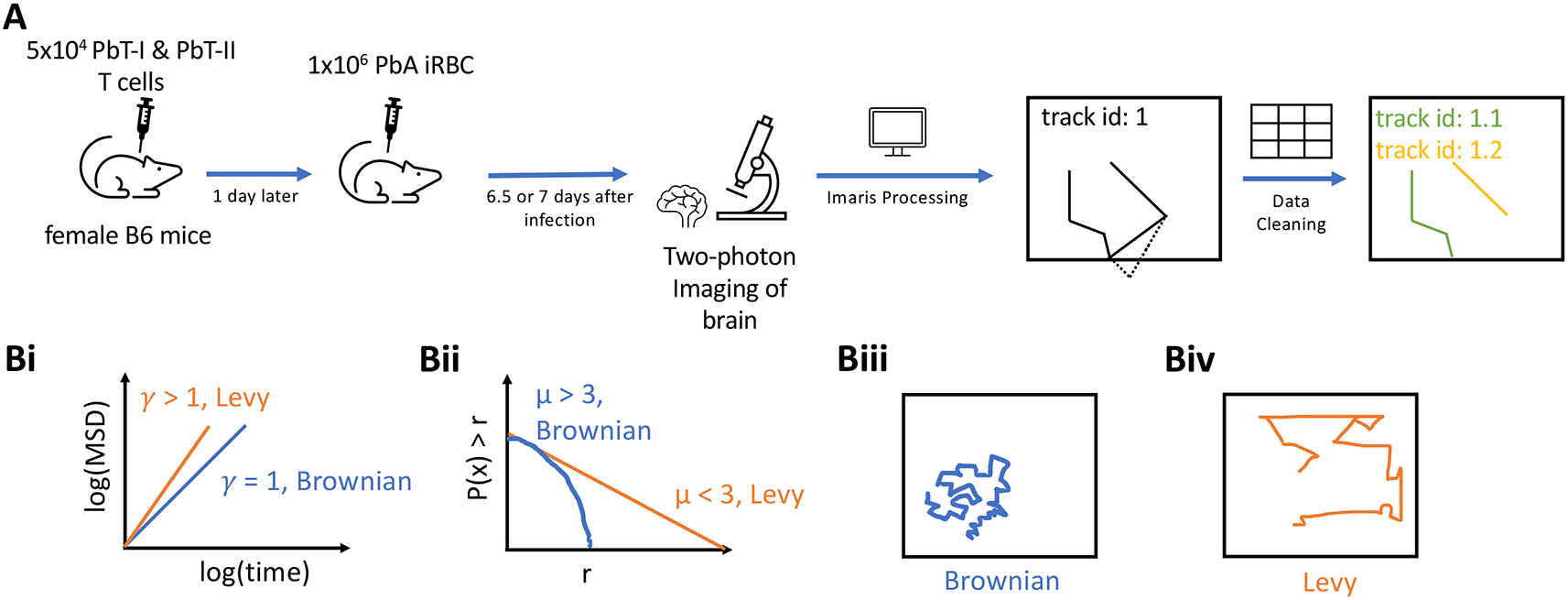

Figure 1. Experimental design and steps in analysis of movement data.

A: 5×10⁴ CD8+ (PbT-I) and CD4+ (PbT-II) T cells were injected i.v. into female B6 mice. 24 hours later, the mice were infected i.v. with 10⁴ Plasmodium berghei ANKA (PbA)-infected red blood cells (iRBCs). 6.5 or 7 days post-infection, brains of infected mice were surgically exposed and imaged using two photon microscope at approximately 30 second intervals. Five movies were then processed in Imaris to trace coordinates of CD4 and CD8 T cells. Any tracks that contained gaps in time were split. B: To characterize cell movement, we calculated the mean square displacement (MSD, B(i)) and the movement length distribution (B(ii)); estimated parameters γ and μ allowed to determine if the cells exhibit Brownian (B(iii)) or Levy (B(iv)) walks.

Processing movies from PbA-infected mice with Imaris. We analyzed a total of five movies from Ghazanfari et al.²⁷ experiments (Figure 1A). Within each movie there were multiple channels; however, only the channels containing signal of the CD8 T cells (PbT-I) and CD4 T cells (PbT-II) were relevant to our analysis, and these were the channels we used for the analysis. We used function “Spots” in Imaris (https://imaris.oxinst.com/) to identify and track individual T cells. Depending on the cell parameters chosen in Imaris, it is typical for Imaris’ basic algorithm to identify many more objects that there may be in reality. Every movie was manually inspected and objects that would not likely correspond to T cells were removed. We also removed objects that may result in biased interpretation including i) T cells being close to the imaging border, ii) cells sliced in half, or iii) immobile cells. By visually inspecting each movie and each track, we manually joined tracks of cells that were incorrectly split into independent tracks by Imaris. We also manually traced T cells that were clearly visible but missed by the standard algorithm of Imaris. Additional details of data segmentation are shown in Supplemental Information.

Cleaning cell position data. When tracking cells, default settings of Imaris allow several positions of a cell to be missing and still be considered as a single track. Unless correct, such segmentation results in missing timeframes in the cell coordinate data that may result in misspecification of cell movement types. All of our datasets contained cell trajectories with missing time frames. Following our previously outlined methodology, we “cleaned” the cell position data as follows (Figure 1A and Ref. 5):

We initially had the data for 264 PbA-specific CD4 T cells; we generated 149 new (split) trajectories resulting in 413 T cells. After removing trajectories with only a single position, we were left with data for 355 tracks with 5247 positions. Similarly, for a total of 589 PbA-specific CD8 T cells, we generated 458 new trajectories resulting in 1047 T cells. After removing trajectories with only a single position, we were left with data for 873 tracks with total 10563 positions.

Time standardization. Intravital imaging movies were generated with slightly different imaging frequencies: 30 sec, 30.68 sec, and 32.76 sec. To combine all track data into one dataset, we assumed that all movements were done in 30 sec time intervals.

Published dataset on movement of Toxoplasma gondii-specific CD8 T cells in the brain. We obtained the data from Harris et al.² on movement of brain-localized CD8 T cells, specific to T. gondii. The data consisted of two separate datasets with different imaging frequencies (19.25 sec and 22 sec). To increase the power of analysis, we merged the datasets into one with the assumed imaging frequency of 20 sec. These data also had many cell trajectories that had missing timeframes that were split to ensure consistent time intervals between sequential cell movements. We initially had the data for 657 CD8 T cells; we generated 217 new cells resulting in a total of 874 T cell trajectories. After removing tracks with only a single position, we were left with data for 812 T cells with 18848 positions.

Results

Experimental design and modeling analyses to rigorously characterize movement pattern of brain-localized T cells. T cells are typically activated in secondary lymphoid organs, and following activation and differentiation, migrate to peripheral tissues to control infections. Whether T cells utilize specific, evolutionary-selected strategies to locate and eliminate infections in peripheral tissues remains debated. Brain is an immunopriviledged site, and movement strategies of brain-localized T cells may be unique.² Ghazanfari et al.²⁷ developed novel TCR transgenic mice with T cells recognizing antigens of PbA on MHC-I and MHC-II molecules, allowing to track PbA-specific CD8 and CD4 T cell response with intravital imaging (Figure 1). In these experiments, mice received fluorescently labeled naive PbA-specific T cells, PbA-infected RBCs, and the movement of the labeled T cells in murine brains was followed with intravital microscopy. We then processed the imaging data with Imaris and cleaned the resulting cell trajectory data to avoid instances where cell positions were not clearly defined (Figure 1A and see Methods for more detail). In total, data from five movies were analyzed: three movies for 6.5 days post-infection and two movies for 7 days post-infection. We then applied a number of statistical methods to rigorously characterize movement pattern of T cells and whether these movements are consistent with Brownian walks or LWs (Figure 1B).

From our imaging analyses, we found that in the imaging area of 512×512×44 μm there were more PbA-specific CD8 T cells than CD4 T cells, and while the number of CD4 T cells slightly declined with time (84 versus 81 cells/movie for 6.5 versus 7 days post-infection), the number of CD8 T cells increased with time since infection (145 versus 305 cells/movie, Figure 2A and Supplemental Movie S1); both changes, however, were not statistically significant due to a small number of movies analyzed. The constancy/decrease in CD4 T cell numbers is not fully consistent with flow cytometry data on kinetics of brain-localized endogenous T cell response to PbA.²⁷ Given the number of cells observed in these imaging experiments, we next calculated the potential number of brain-localized T cells after PbA infection. The total volume imaged in these experiments was 512×512×44 μm³=0.0115 mm³, and given the volume of the brain of B6 mice is 509 mm³,³³ the scaling factor to calculate the total number of cells per brain given the number of cells in the imaging area is 509/0.0115=4.42×10⁴. This translates to 3.71×10⁶ and 3.55×10⁶ PbA-specific CD4 T cells at 6.5 and 7 days post-infection, and 6.38×10⁶ and 1.35×10⁷ PbA-specific CD8 T cells at 6.5 and 7 days post-infection. Interestingly, 100-fold lower numbers were calculated for brain-localized T cells obtained using flow cytometry.²⁷

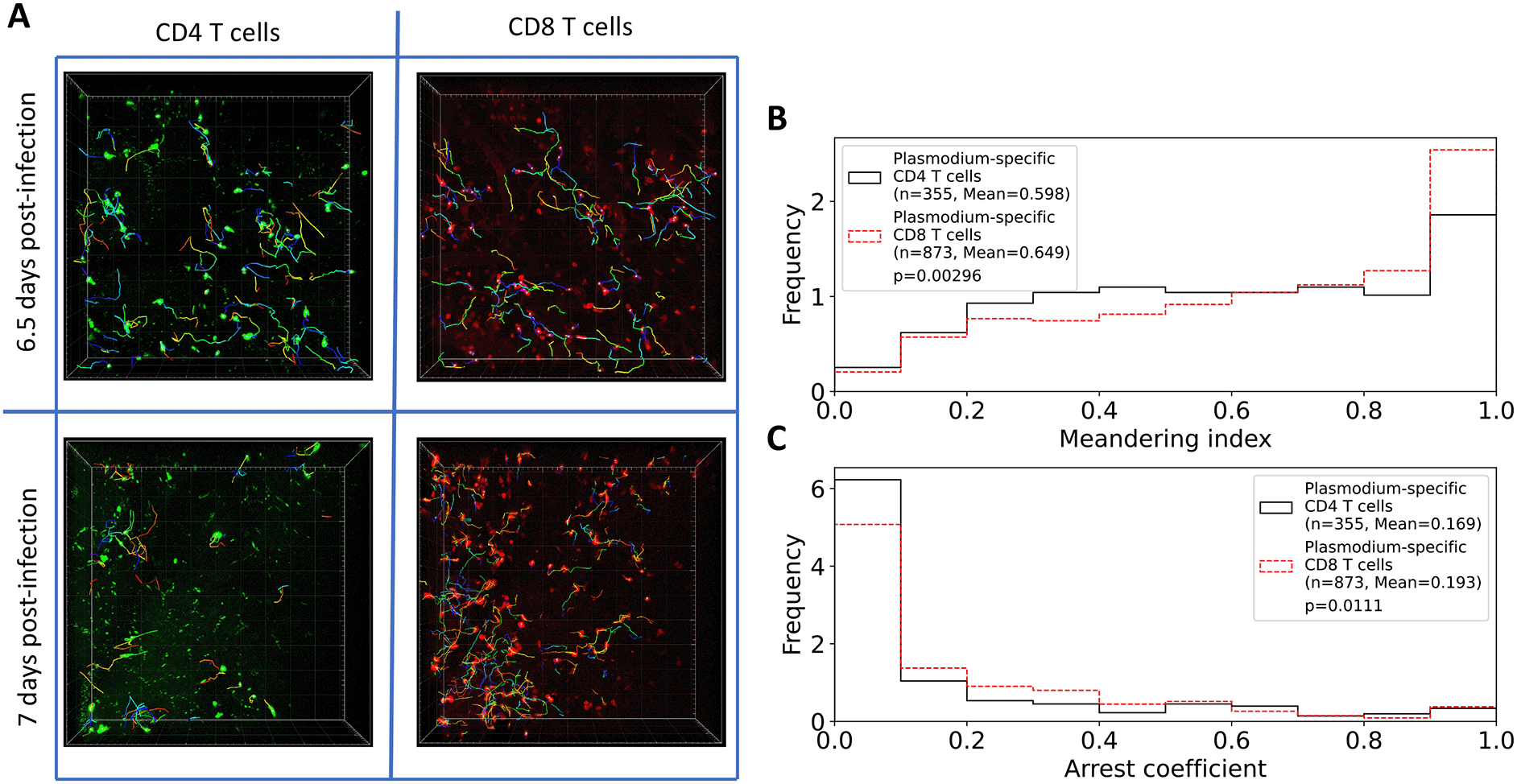

Figure 2. Brain-localized Plasmodium-specific CD4 and CD8 T cells differ in kinetics of accumulation in the tissue and movement.

A: Following experimental design (Figure 1), we segmented three movies for 6.5 days and two movies for 7 days since PbA infection and calculated positions of brain-localized CD4 and CD8 T cells (A). Tracking of T cells was done using Imaris (see Methods for more detail). In total, we analyzed tracks for n=252 CD4 and n=434 CD8 T cells at 6.5 days post-infection, and for n=161 CD4 and n=613 CD8 T cells at 7 days post-infection. B: meandering index for all CD4 and CD8 T cells. C: arrest coefficient for all CD4 and CD8 T cells. Examples of the movies are shown in Supplemental Movie S1. Statistical comparison in panels B-C was done using Mann-Whitney test with p-values from the test indicated on individual panels.

In addition to the difference in the number between CD4 and CD8 T cells, we found that their overall movement patterns were also slightly different: CD4 T cells have lower meandering index than CD8 T cells indicating less straight paths between sequential time frames (0.598 versus 0.649, p= 0.003); CD4 T cells also spend less time pausing (speeds<2 μm/min) with a slightly lower arrest coefficient (0.169 versus 0.193, p=0.01, Figure 2B-C).

CD4 and CD8 T cells in the brain undergo correlated random walks (CRWs). A previous pioneering study proposed that brain-localized CD8 T cells perform generalized LWs characterized by rare but long displacements [Ref. 2, Figure 1B(iv)]. Visual inspection of the five movies did not reveal any long displacements by T cells; however, there were some visible cell-like objects moving rapidly with the blood flow similar to what we have observed for liver-localized CD8 T cells.⁵ We therefore performed rigorous analyses of the cell trajectory data by pooling data from different experiments together. An important step in the analysis was our recent recognition of missing timeframes in cell position data generated by Imaris and providing methodology to “clean” such data (see Methods for more detail).⁵

We first calculated the MSD for brain-localized Plasmodium-specific CD4 and CD8 T cell trajectories (equation (1)). Both cell populations displayed super-diffusive MSD that increased faster than linearly with time (slopes γ=1.59 and γ=1.39, for CD4 and CD8 T cells, respectively, Figure 3A). The super-diffusion was transient for about 5–7 min as MSD saturated at longer times as expected. Interestingly, fitting Furth equation to the MSD plots suggested much shorter persistence time of T cells of 1 min, [Ref. 34 results not shown]. While super-diffusion is the main feature of Levy walkers,⁸ some types of Brownian walks, such CRWs can also display super-diffusion.¹¹

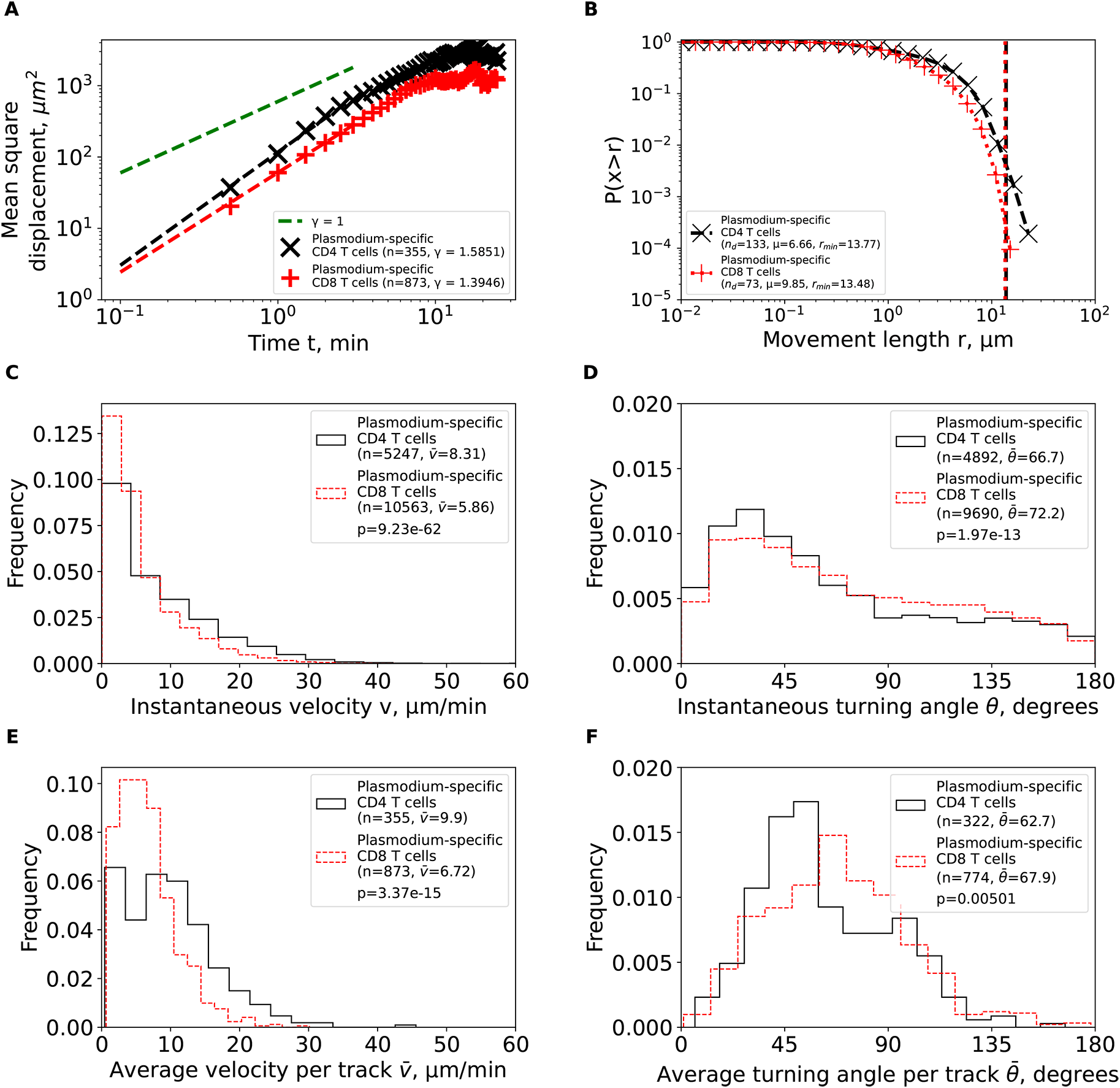

Figure 3. Brain-localized Plasmodium-specific CD4 and CD8 T cells undergo correlated random walks with transient super-diffusive displacement.

We calculated basic movement characteristics for CD4 and CD8 T cells in brains of PbA-infected cells (Figure 1) such as mean squared displacement (MSD, A), movement length distribution (B), instantaneous speeds (C) and turning angles (D), and average speed (E) and turning angle (F) for each track. The slope of the linear regression for the log (MSD) with respect to log(t) for first several minutes is denoted by γ. Estimated parameters of the Pareto distribution (equation (3)) fitted to the tails of the step length distribution are denoted as μ and r_min (see Methods for details). Difference in averages/medians was calculated using Mann-Whitney tests with associated p-values from the test indicated on individual panels (C-F). All panels indicate the number of measurements/data points n used in analysis and the average values for the parameters. Note that all calculations were performed on cleaned T cell tracks in which tracks with missing time frames were split into separate tracks (Figure 1A and see Methods for more detail).

We then analyzed the cumulative distribution of movement lengths which was similar for CD4 and CD8 T cells; interestingly, there were no very long displacements in these data (Figure 3B). By using an established “tail” analysis that fits the Pareto distribution to the tail of the cumulative movement length distribution (i.e., to a subset of data with longest movements), we found shape parameters for CD4 T cells (μ=6.66) and CD8 T cells (μ=9.85) to be consistent with Brownian (μ>3) and not Levy (μ<3) walks (Figure 3B). To ensure that data sub-selection in the tail analysis did not bias the results, we fitted the GP distribution (equation (2)) to all data using a likelihood approach (equation (4)); we have previously found that GP distribution provides the best fit of the movement lengths data for liver-localized CD8 T cells.⁵ Importantly, GP distribution fitted the data well and predicted a finite mean and variance for data for both T cell populations (Supplemental Table S1). A finite mean and variance are features of Brownian movement and not of Levy walkers.⁶

We finally investigated if other cell movement characteristics may be inconsistent with CRWs. Distribution of instantaneous speeds suggested that no cell had extraordinary speeds with maximum not exceeding 40 μm/min (Figure 3C). Turning angle distribution for both cell types was biased towards acute angles, which is a key feature of CRWs (Figure 3D). On average, CD4 T cells had higher instantaneous speeds than CD8 T cells ($\overline{v}$=8.31 μm/min versus $\overline{v}$=5.86 μm/min, Figure 3C) and smaller turning angles ($\overline{\theta }$=66.7° versus $\overline{\theta }$ = 72.2°, Figure 3D). There were more CD4 T cells displaying high speeds (>20 μm/min) than CD8 T cells (Figure 3E), and CD4 T cells exhibited lower average turning angles (and thus higher persistence in movement in one direction) as compared to CD8 T cells ($\overline{\theta }$=62.7° versus $\overline{\theta }$=67.9°, Figure 3F). Taken together, our analyses suggest that Plasmodium-specific, brain-localized CD4 and CD8 T cells performed CRWs with relatively high speeds and low turning angles and displayed transient superdiffusive displacement.

T cells show increased speeds and turning as time after infection increases. For our first set of analyses, we pooled the trajectory data from imaging performed at 6.5 or 7 days after infection. We next sought to determine if movement patterns were different between the two times since infection. Importantly, regardless of the time after infection, all cell populations exhibited features of CRWs with transient super-diffusion (γ>1 in Supplemental Figure S1A and Supplemental Figure S2A) and relatively short movement lengths (μ>3 in Supplemental Figure S1B and Supplemental Figure S2B). Additionally, best fits of the GP distribution predicted a finite mean and variance further supporting that these cells exhibited Brownian-like walks.⁶

Time since infection had a different impact on other movement characteristics of T cells. CD4 T cells increased their instantaneous speeds and turning angles between 6.5 and 7 days post-infection ($\overline{v}$=7.92 μm/min versus $\overline{v}$=9.49 μm/min and $\overline{\theta }$=65.7° versus $\overline{\theta }$=69.8°, respectively, Supplemental Figure S1C-D). Interestingly, however, the average speed or average turning angle per cell did not significantly change between 6.5 to 7 days post-infection (Supplemental Figure S1E-F). In contrast, CD8 T cells increased their instantaneous and average per cell speeds between 6.5 and 7 days post-infection ($\overline{v}$=5.67 μm/min versus $\overline{v}$=6.03 μm/min and $\overline{v}$=6.29 μm/min versus $\overline{v}$=7.04 μm/min, Supplemental Figure S2C&E) and the instantaneous and average (per cell) turning angles also increased with time since infection ($\overline{\theta }$=68° versus $\overline{\theta }$=76.2° and $\overline{\theta }$=64° versus $\overline{\theta }$=70.9°, Supplemental Figure S2D&F). The overall (although inconsistent) increase in speed and turning angle of both CD4 and CD8 T cells with time since infection may be related to the need for T cells increased efficiency of search for pathogen at later times after infection.^35–37

Uncleaned trajectory data may result in misspecification of the walk type. In our analyses, we found that brain-localized CD4 and CD8 T cells perform Brownian-type (correlated random) walks which contradict a previous result suggesting that movement patterns of CD8 T cells in the brain are consistent with generalized LWs.² We obtained the coordinate data of brain-localized CD8 T cells from Harris et al.² and carefully inspected these data. We found that there were several technical issues with the data. First, the data had many missing timeframes (n_gaps=217, Supplemental Figure S3A) which, if not cleaned, can produce long displacements between two-assumed-to-be-sequential timeframes. Several of these gaps are substantial (6 and 16 time-steps, Supplemental Figure S3A). Second, the data contained a duplicate name tag for a track that eventually diverged. This resulted in an extremely long displacement (80.4 μm, Supplemental Figure S3B) in the span of one timeframe (22 seconds). We performed tail analysis on the movement length distribution data and found that the best fit is found with the shape parameter μ=3.17 which is consistent with Brownian walks and not LWs (Supplemental Figure S3C). However, by varying the scale parameter r_min, we did find instances with shape parameter μ<3 suggesting that these data may be consistent with LWs (Supplemental Figure S3C). However, after cleaning the trajectory data (by splitting trajectories that have missing time frames), tail analysis resulted in highly consistent estimates of the shape parameter μ>3 for all reasonable values of r_min>5 μm consistent with Brownian walks (Supplemental Figure S3D).

Plasmodium- and Toxoplasma-specific, brain-localized CD8 T cells behave similarly. To more rigorously characterize movement pattern of Toxoplasma-specific, brain-localized CD8 T cells from Harris et al.² study, we performed the same analyses as we did for Plasmodium-specific T cells. Similar to Plasmodium-specific CD8 T cells, the Toxoplasma-specific CD8 T cells also displayed super-diffusive displacement (γ=1.54, Figure 4A), with rapidly declining distribution of movement lengths (μ=5.34, Figure 4B). Fits of the GP distribution to the movement length distribution data also predicted finite mean and variance (Supplemental Table S1). Despite targeting different parasites, other movement parameters were quite similar between Toxoplasma- and Plasmodium-specific CD8 T cells including similar instantaneous and average (per cell) speeds and turning angles (Figure 4C-F). Taken together, our analysis suggests that movement patterns of brain-localized CD8 T cells are similar between two infections and two independent studies, and are consistent with Brownian rather than LWs.

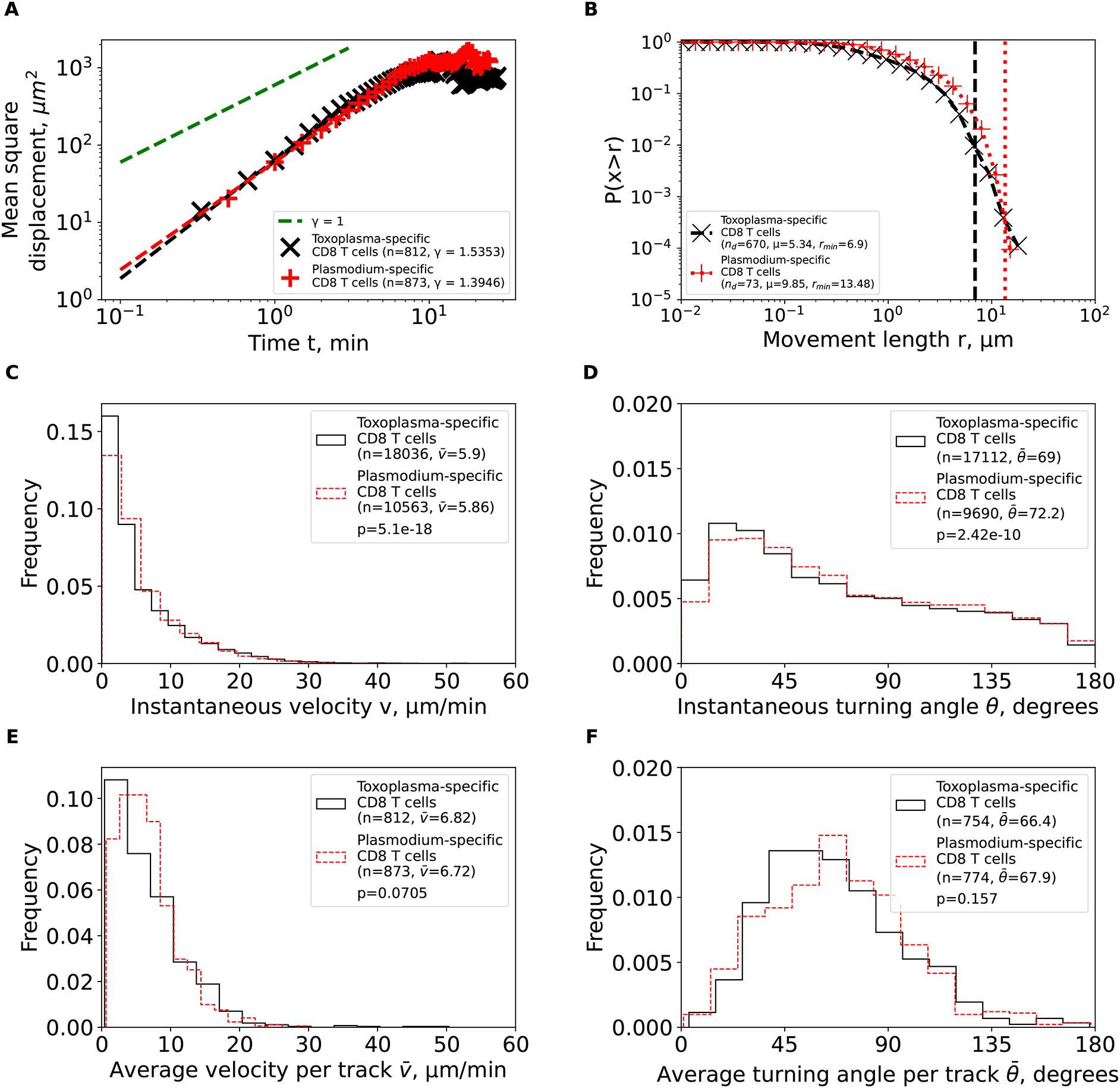

Figure 4. Brain-localized CD8 T cells specific to Plasmodium berghei or Toxoplasma gondii behave similarly as Brownian and not Levy walkers.

We calculated the same characteristics as in Figure 3 for Toxoplasma gondii-specific CD8 T cells from the previous publication² after cleaning and renaming the cell tracks (see Methods for more detail). For comparison, the estimated characteristics for PbA-specific CD8 T cells from Figure 3 are plotted on the same graph to illustrate similarities in movement characteristics.

Our methods of determining walk type are robust. While we have used previously proposed methods to determine the type of cell walk,^16,38 there may be a possibility that these methods may fail for our trajectory data. Therefore, to check validity of these methods, we simulated cell movements as Levy walkers, generalized Levy walkers, and bullet motion walkers and fitted the GP distribution to these data (see Methods for details on simulations). In cases of Levy walkers, we found that variance of the best fit GP distribution is infinite, which is consistent with LWs.⁶ However, in all cases, when simulated movements were non-Brownian, we found that GP fits indicated infinite variance (and sometimes mean) suggesting that this approach allows to detect deviations from Brownian walks. Additionally, we also determined the walk type by fitting the Pareto distribution to the tail of the movement length data for simulated generalized Levy walkers when using a large range of possible parameters. We found that the tail analysis accurately determined the shape parameter μ (Supplemental Figure S4). We only found few exceptions when we used μ≈3 but found μ>3 in the fits which we believe is likely due to a combination of chance and package sensitivity.

Discussion

One could expect that T cells should utilize different movement strategies when responding to diverse pathogens and migrating to different lymphoid or non-lymphoid (peripheral) tissues. Brain is an important immunopriviledged site, and one recent study suggested that brain-localized CD8 T cells search for infection using generalized LWs that may increase the search efficiency, thus, may potentially minimize bystander damage to the delicate brain tissue.² Here we rigorously analyzed data from novel experiments imaging movement of Plasmodium-specific CD4 and CD8 T cells in brains of PbA-infected mice (Figure 1). By using alternative complementary tools we found that brain-localized T cells display transient superdiffusive displacement, which is achieved by making small movements in the same direction (i.e., small turning angles) — both are cardinal features of Brownian-like (correlated random) walks (Figure 2).

While the overall pattern of T cell movements was consistent with CRWs, there were differences between CD4 and CD8 T cells in details of the movement and how the movement was impacted by the time since infection. In particular, CD4 T cells moved faster and turned less than CD8 T cells (Figure 3). T cells also had higher speeds and higher turning angles between day 6.5 and 7 days post-infection even though specific details slightly varied whether we compared instantaneous or per cell average speeds and turning angles (Supplemental Figures S1 and S2). Increasing speeds and turning may allow for a more thorough search of the infection but also could be a stress response. Imaging did allow to detect some parasites in brains of PbA-infected mice²⁷ suggesting that the parasites are likely to be present in the brain blood vessels and thus may result in mechanical obstruction of the vessels as observed in human cerebral malaria.^35–37 Obstruction of brain blood vessels can lead to hypoxia,³⁵ which may have caused the T cells to enter a “panic mode” later in infection. This would explain the increase in speed and turning angle with respect to time after infection in same cell types.

By using these imaging data, we predicted that brains of PbA-infected mice should contain 3−10 × 10⁶ CD4 or CD8 T cells. However, flow cytometry-based measurements suggest only the presence of 0.1−5 × 10⁴ T cells at these early (6.5 days) times since infection.²⁷ Calculating the number of T cells in the whole brain from imaging only 0.002% of its total volume may be problematic as T cells tend to leave and enter the imaging area. Using the number of T cells identified per only one time frame did not dramatically change the estimate of the total number of cells in the brain (results not shown). These results are consistent with a previous observation of gross under-estimation of the number of T cells isolated from many nonlymphoid tissues for flow cytometry-based analyses.³⁹ Because extraction of lymphocytes from nonlymphoid tissues may generate biases (e.g., non-specific enrichment for some cell subtypes³⁹) caution needs to be taken when interpreting differences in numbers and phenotypes of brain-localized T cells from flow cytometry analyses.

Our results that brain-localized, PbA-specific T cells perform CRWs are in contrast with results of another study suggesting that brain localized, Toxoplasma-specific CD8 T cells perform generalized LWs.² When we cleaned and reanalyzed the data by Harris et al.² we found that movement patterns of PbA- and Toxoplasma-specific CD8 T cells are very similar, both displaying transient super-diffusion and short movement lengths (Figure 4). We believe that the difference arose in part because of how the original position data were analyzed – we found that missing timeframes for some cell trajectories created unreasonably long movements that provided some support for LWs (Supplemental Figure S3); when we split these movements into new tracks, we found no long movements, and this ultimately allowed us to classify movement of Toxoplasma-specific CD8 T cells as Brownian-like walkers. Another limitation of the Harris et al.² study was relatively poor description of how the models were fitted to movement length data and how the quality of the model fits was evaluated.

Our finding that brain-localized T cells undergo correlated random walks is consistent with finding of a similar movement program of activated CD8 T cells in the liver or skin and naive/resting CD8 T cells in lymph nodes.^5,26,40 CD8 T cell movements in other non-lymphoid tissues such as the lung have not been tested if they are consistent with BWs or LWs.⁴¹ Given the ability of T cells in tissues to do a persistent walk in a given direction (cell “inertia”¹⁷) and inability of T cells to make very long displacements in constrained tissue environments, it is likely that Brownian-like, correlated random walks are the rule for T cell movements in tissues rather than exception. Yet, specific details of these Brownian-like, persistent movements may vary significantly between different tissues including differences in instantaneous and average (per cell) speeds and turning angles. These details may dramatically impact the overall efficiency at which T cells survey the organ, and could be a result of specific sub-populations of T cells entering different tissues or could simply be due to different physiological constraints imposed by the environment. For example, CD8 T cells in the skin have much lower average speeds than CD8 T cells in the liver (3−4 μm/min versus 5−15 μm/min,^5,40,42) although as far as we know, none of the previous studies have imaged T cells in multiple tissues in the same animal. Other factors such as the degree of inflammation in the tissue and imaging frequency may also influence inferred parameters such as speeds and turning angles.^17,32

Several recent studies have suggested there may be a cell-intrinsic program that links the ability of cells to move and to turn so that cells with higher speeds turn less.^14,43 We found that indeed, T cells that have higher speeds tend to have lower turning angles (so they turn less); for example, PbA-specific CD4 T cells have higher average speeds and lower average turning angles than PbA-specific CD8 T cells (Figure 2). Furthermore, we found a strong negative correlation between average speed and average turning angle per cell for the whole population of CD4 or CD8 T cells (results not shown). We have recently shown that a negative correlation between average speed and average turning angle may simply arise as a sampling artifact.¹⁷ Indeed, we found that between 6.5 and 7 days post PbA infection, both speeds and turning angles of T cells increase, challenging the idea that the correlation between speed and turning is cell-intrinsic (Supplemental Figure S2).

Our study has several limitations. Intravital imaging involved only a small cross-section of the brain, which limited the sample size and created a bias of generating longer trajectories for slower and more centrally located cells. Our analysis also assumed homogeneity among cells in a population as for most of our analyses, we pooled the data from individual movies to increase the statistical power. It may be possible that there are subpopulations of cells that exhibit different movement patterns. Given that in intravital imaging experiments it is typically hard to follow individual T cells for longer than 15-20 time frames, characterizing heterogeneity of movement of individual cells in vivo remains difficult (but see Ref. 14). Missing time frames for some cell trajectories necessitate to “clean” such data (split the tracks) further reducing the amount of data available to rigorously quantify heterogeneity in T cell movement behavior in vivo. We found that different metrics used to evaluate how persistent T cells are in their movement may give different answers. For example, CD4 T cells had lower turning angles than CD8 T cells and yet CD8 T cells had larger meandering index – lower turning angles and larger meandering index suggest straighter trajectories (Figure 2B and Figure 3F). There is a need for rigorous studies that compare these and other metrics such as persistence time to better understand conditions under which these metrics truly characterize the ability of T cells to exhibit persistent movement. We only had access to five movies to analyze, and it is possible that collecting more data may reveal deviations of T cell movement patterns from Brownian-like walks. However, it remains hard to justify long displacements of T cells found in some studies (e.g., Ref. 2) given the physiological constraints imposed by tissues on moving T cells. One exception to this rule are cells located in vasculature that allows such cells to float with the blood flow exhibiting Levy flights.⁵ Physiological relevance of these floating events to the search efficiency remains to be established, however. While imaging frequency used in the study by Ghazanfari et al.²⁷ (30 sec) was sufficient to accurately detect movement of brain-localized T cells, it was clearly insufficient to better understand movement patterns of T cells in the vasculature, and as these cells move from the blood vessels into the parenchymal tissues. Using a higher frequency imaging may be needed to quantify movement patterns of T cells, located in the blood vessels of the brain.⁴² Finally, we did not have access to the original imaging data from Harris et al.² study, and therefore, in our analysis we only relied on the coordinate data for wild-type CD8 T cells provided by Harris et al.² and cannot comment on validity of the data except some technical issues such as missing timeframes for some cell trajectories.

Our results raise questions for future research. There is a need for sanity checks of the coordinate data generated from intravital imaging experiments; in particular, whether such data have missing time frames and thus may require cleaning. We have provided a python-based script for cleaning trajectory data. It may be interesting to extend our calculations of the total number of T cells found from intravital imaging experiments and using more traditional approaches, e.g., flow cytometry, to other tissues and infections. It is possible that many more T cells localize to the peripheral sites that sometimes is assumed and this is likely to provide better estimate of the overall magnitude and kinetics of T cell responses to pathogens.³⁹ Whether there are true differences in the movement patterns (e.g., speeds, turning angles) between CD4 and CD8 T cells in other infections and tissues may need to be explored. While we know that T cell populations are heterogeneous, we need better tools to track individual T cells from longer periods of time so we can rigorously evaluate the degree of kinetic heterogeneity of these cells in different settings. While we have shown that GP distribution can well describe movement length data of T cells in the liver and the brain, we need to test if the same model fits the data best in other cases. Furthermore, we need additional parametric distributions to describe other features of T cell movements, e.g., turning angles. Using vMF distribution may be particularly useful for that purpose.^17,32 We expect that environmental constraints should influence movement patterns of T cells⁵; thus, there is a need to visualize and quantify these constraints. Finally, basic motility parameters for T cells in various tissues should be used in mathematical models to predict the optimal numbers of T cells needed to prevent or control infections. This would require a close collaboration between experimentalists and modellers and such collaborations should be explicitly supported by funding agencies.
