Morphological, structural, chemical, vibrational, thermal, pasting, and functional changes in pea starch during germination process

Germination process

The San Isidro pea variety, cultivated in Nariño state at the south of Colombia, was used, purchased at the central supply center of the city of Armenia-Quindio. Initially, 1500 g of peas were used, and a manual selection process was carried out to eliminate impurities and broken and/or irregularly shaped kernels. Then, 250 g were weighed for each day of germination for four days and subjected to a 12 hour soaking process in potable water (20°C) using twice the volume of water occupied by the dried peas, during which time rehydration of the peas was ensured. After the extra water was removed, the germination time started and was measured from time zero (0), until it reached 4 days (Figure 1), the period of time during which the hypocotyl had fully developed.

Figure 1. Images of pea a) dry pea, b) soaked pea, c) pea-day 1, d) pea-day 2, e) pea-day 3, f) pea-day 4 of the germination process.

Every four hours during the four-day germination period, the peas were soaked and flipped over to ensure appropriate humidification and the excess water drained, to prevent the embryo from decaying and dying. Following the conclusion of each germination period, the starch was promptly extracted as explained below.

The germinated flours were produced once the germination process was complete by drying the germinated peas for 48 hours at 40°C in an oven with forced ventilation. To obtain flours, the dry germinated seed were milled using a coffee mill (Krups) and each one of the flours were then placed in zip-top bags and maintained in a controlled environment of temperature (20°C) and relative humidity (65%). The flour were named as follows: pea flour without germination (PF), the flour for the first day of germination (PF-1), second day (PF-2), third day (PF-3) and fourth day (PF-4). After drying, the flour was ground and sieved through 100 mesh (150 μm).

Proximal analysis of germinated flours

Methodologies reported by AOAC (2005) were used for moisture (925.10), lipids (920.39), fiber (978.10), ash (942.05) and protein (920.15), where the moisture content was determined by the oven drying method (105°C, to constant mass); the total fat content was determined by the Soxhlet method; the fiber content by calcination of the dry residue remaining after acid and alkaline digestion of the sample; the ash content by incineration at 550°C; and the protein content was determined by the Kjeldahl method using 6.25 as a factor.

Starch extraction

The isolated starch both without germination and germinated for each day was obtained following the methodology proposed by Contreras-Jiménez et al. (2018) and Londoño-Restrepo et al. (2018), where samples were ground with a blender (Krups) using distilled water, filtered on a 100 mesh, kept at 4°C for 24 h with distilled water, centrifuged 2270 x g (3000 rpm, Model TD5 Table Top Low Speed Centrifuge, Yingtai Instrument, Changsha, Hunan, China) at 25°C for 15 min, and the clean starch was dried at 45°C for 24 h. After drying, the starch was ground and sieved through 100 mesh (150 μm).

Amylose content

The amylose content of native and germinated pea starch was determined by the spectrophotometric method (620 nm) based on the formation of the amylose-iodine complex (Juliano et al., 1981), for which starch was dispersed in 1 M sodium hydroxide, brought to volume with distilled water (100 ml), the starch was gelatinized and the amylose concentration was determined using an iodine solution (2 g KI + 0.2 g I₂) against a standard curve with known amylose concentration.

Percentage of grain germination

The number of grains that show the existence of a root is determined by obtaining three random samples of 100 grains. Every day, the development of the root was observed, and it was deemed to have germinated when the radicle ruptured the cell wall. When the pedicel was twice the size of the grain, germination had finished. A manual selection of the grains was done to eliminate broken and damaged grains in order to calculate this parameter (Hernández-Becerra et al., 2020).

Morphological changes in the starch

SEM images of the pea isolated starches (PIS) for different germination times were studied using a high vacuum scanning electron microscope (JEOL, JSM-6060LV at high vacuum; Jeol, Tokyo-Japan) with a resolution in HV mode. Each sample was fixed on a specimen holder with carbon tape and sputtered with gold. The analyses conditions used 20 kV electron acceleration voltage at 12–20 Pa pressure (Quintero-Castaño et al., 2020).

Particle size distribution (D10, D50, and D90)

Particle sizes were determined as percentiles D10, D50, and D90, using the Mastersizer 3000 (Malvern Instrument Ltd., Worcestershire, UK). The samples were dispersed in 500 mL of distilled water until a darkening value of 10±1% was obtained, considering the size distribution from Mie’s theory and using the refraction index of 1.52 (Lucas-Aguirre et al., 2019).

X-ray diffraction analysis

X-ray diffraction patterns of isolated starch along germination process were carried out on a Rigaku-Ultima 4 diffractometer (Rigaku Miniflex, Texas, EE.UU). The operating conditions were 35 kV and 15 mA, with a CuK_α radiation wavelength of λ=0.1540 nm, and the measurements were done from 5 to 35° on a 2θ scale. The patterns were carried out using High-Resolution X-ray diffraction with a step size of 0.01° to have a better intensity and resolution of each one of the possible diffracted peaks. The powder samples were packed into an aluminum pan (Quintero-Castaño et al., 2020).

Vibrational analysis

Isolated pea starches were characterized by FTIR spectrophotometer (Perkin Elmer, Spectrum Two) using ATR (attenuated total reflectance) to identify the main functional groups, and the transmittance was recorded from 600 to 4000 cm^-1 (Contreras-Jiménez et al., 2018).

Thermal properties of starch

The gelatinization temperature and enthalpy of starches obtained from PSI, and isolated starches from each day of the germination process, were analyzed using a differential scanning calorimeter (Mettler Toledo, Greifensee, Switzerland). Calibration was performed using an Indium standard. The samples (2.0±0.1 mg) were prepared by adding deionized water to the samples until they reached 85% moisture (w/w). A similar ratio of starch/water was used for the viscosity measures. The pans were hermetically sealed using a press. Sample scanning was from 30 to 120°C at 7.5°C/min. Each measurement was conducted in duplicate (Contreras-Jiménez et al., 2018).

Pasting properties

Apparent viscosity profiles of the PIS, and isolated starches obtained along the germination time, were obtained using a starch cell of an Anton Paar MCR 102 (St Albans, United Kingdom) rheometer following the methodology proposed by Rincón-Londoño et al. (2016). Each sample was heated from 50 to 92°C in 5.3 min and then held at a constant temperature of 92°C for another 5.3 min. After that, samples were cooled down to 50°C in 5.3 min and held at that temperature for 1 min. All the tests were carried out at a constant frequency of 193 rpm.

Functional properties of starches

The water absorption index (WAI), the water solubility index (WSI) and the swelling power (SP) of the isolated starches were measured and determined using the methodology reported by Contreras-Jiménez et al. (2018), where a 2% W/V starch suspension was heated in a water bath at 90°C for 30 min. The starch samples were centrifuged at 2000 rpm for 20 min. The supernatant was removed and the sediment was weighed. Aliquots of supernatant were dried in an oven at 100°C to a constant weight, then the respective weights were taken and calculations were performed.

Statistical analysis

All the analysis were performed following a completely randomized design with three replications. An analysis of variance was performed (ANOVA) with 95% of confidence and Tukey test of mean comparison using Statgraphics Centurion XVIII software.

Morphological changes during germination

The morphological changes of the pea beans during germination are depicted in Figure 1(a) to (f). There are no noticeable morphological changes on the surface of the bean after soaking; instead, the bean swelled to nearly double its initial volume, due to hydration of the cotyledons and embryo (Figure 1(a) and (b)), while from the first day of germination, the hemicellulose enzymes were activated, the cell wall was broken, the radicle emerged (Figure 1(c)) and the tegument or testa began to separate from the grains. On days 2 and 3, the hypocotyl emerges, which initially remains curved (protected) (Figure 1(d) and (e)), and continues to grow up to three times the size of the grain. The teste continues to separate more easily and finally on day four, the hypocotyl straightens (Figure 1f), at which time germination stops and they are dried at 40°C for 48 h.

Proximal analysis of flours

The proximate composition of the pea flours (PF) and flours obtained from day 1 to day 4 (PF-1 to PF-4) as a function of the germination day is shown in Table 1, presenting statistically significant differences in each of the evaluated variables (p<0.05). In fact, the germination process resulted in a large decrease in total fat content, equal to 74.52%, compared to its value on day 0. As a result of the energy-intensive metabolic activities required for this decrease in fat content, the respiratory rate increased (Aguilar et al., 2020; Hernández-Becerra et al., 2020; Oseguera-Toledo et al., 2020). Chemical composition is affected by genotype, agronomic conditions, growing conditions such as soil, moisture, temperature, pests, and diseases, and production management (Oseguera-Toledo et al., 2020).

Ash content, which is correlated to the mineral content of the sample, also showed a decrease throughout the germination process, dropping as much as 50.0% by day 4, in comparison to its initial content. Several minerals are needed as coenzymes during germination in order to catalyze the transfer of proteins and carbohydrates to the radicle. These minerals can be lost during the hydration process and/or during germination and can be leached in water during soaking. Consequently, some of these minerals can be lost when the radicles are separated (debarking). The same behavior was seen during the malting of three quinoa varieties by Aguilar et al. (2020), and with two maize varieties by Hernández-Becerra et al. (2020).

During germination, the protein and fiber contents of the peas increased proportionally by 107.84% and 36.46% respectively, with respect to the initial content. Some proteins can be anabolized from stored carbohydrates during germination, raising the protein content of the grain. All these differences depend on the metabolism of the grain; in addition, the permeability of the seed coat to water depends on its composition. For instance, the presence of phenols and flavonoids can lower permeability (Bewley et al., 2012; Aguilar et al., 2020). The previous behavior is contrary to that reported by Hernández-Becerra et al. (2020), with two maize varieties, where the protein content in the meals does not undergo changes throughout malting, which could be interpreted to mean that proteins can be degraded to polypeptides, peptides and amino acids that provide substances for de novo protein synthesis in the growing embryo, but all of them contribute to total nitrogen. Oseguera-Toledo et al. (2020) reports an increase in protein content in sorghum malt, indicating that enzymes can contribute to the increase in protein and that this process continues during fermentation, obtaining in both cases raw materials with higher nutritional value. This increase in protein content in pea would be important attribute that affects yeast nutrition, fermentation, foam stability and beer flavor, thinking about this possibility of use (Alfeo et al., 2018). Table 1 shows the changes on amylose content over the germination time. Germination is a kinematic process governed by enzymatic processes α and β-amylose hydrolyzed during of germination. In this table, the apparent amylose does not significantly change, but when amylopectin degrades, it transforms into amylose, so the values at the end are the same.

Percentage of grain germination

Peas were once classified manually with broken, sick, or damaged beans being thrown away. Figure 2 shows the germination percentage as a function of time for the peas, showing that during the soaking time (12 h), the grains reach moisture values from 13.13±0.08% to values close to 40.53±0.52% moisture (wb) and an average of 5 grains germinate (Figure 1); during the first day of germination, germination percentages of over 95% are reached and over 98% during the second day (Figure 1).

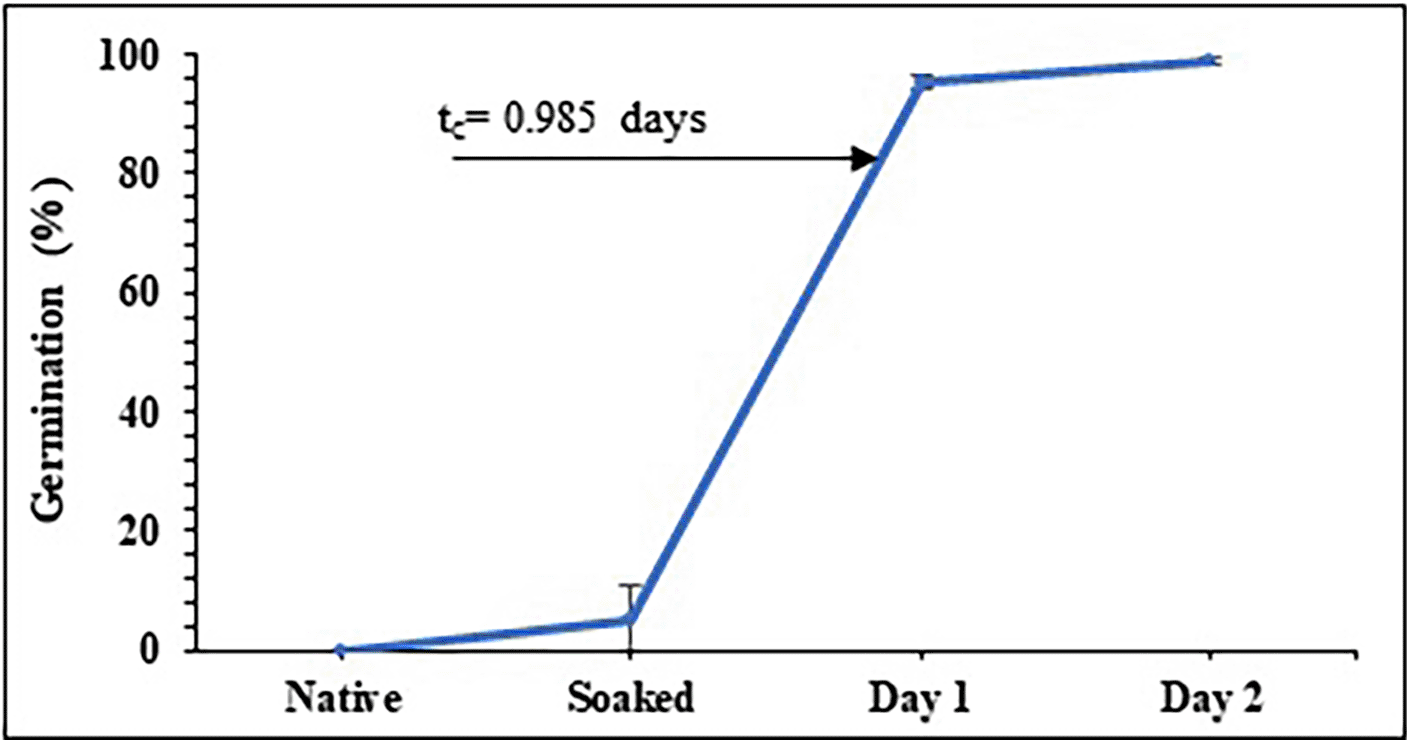

Figure 2. Germination percentage as a function of germination time for pea beans.

According to Contreras-Jiménez et al. (2018), who studied barley malting; Hernández-Becerra et al. (2020), who studied two types of maize; and Oseguera-Toledo et al. (2020), who studied sorghum malting, the behavior of germination % exhibits a sigmoidal and/or logistic shape curve. This kind of curve illustrates a second order kinetics in which the system passes through a localized transition between two saturation values. The crucial germination time, or t_c, is a point at which the shift fundamentally takes place. For pea, t_c is around 1 day, but for other products like maize, it is between 1.92 and 1.94 days and for barley, it is between 1.92 and 2.92 days.

As evidenced by the radicle shattering the cell wall on the second day of germination, peas reach their peak value before corn and barley, which germinated on the third and fourth days, respectively. This fact shows that extending of the period for peas boosts their uses when thinking about industrial processes. Other aspects of germination that need to be assessed include the activation of gibberellins, which are phytohormones that cause the interruption of the dormant stage of the seeds and cause them to germinate, and the beginning of latent enzymatic processes with the α and ß-amylases, which use starch and fats as energy sources. These include the grain’s level of hydration. This explains why germination suddenly increased by 60% about t_c. For two days, gibberellins are created, therefore for the third day decreases (Gupta et al., 2010; Evans et al., 2009; Bradford et al., 2008).

Morphological analysis of isolated starches

The SEM images of the PIS and isolated starches obtained from day 1 to day 4 of germination (PIS-1 to PIS-4) are shown in Figure 3a to j, where Figure 3a and b represent the PIS, Figure 3c and d represent day1 (PIS-1), Figure 3e and f represent day2 (PIS-2), Figure 3g and h represent day 3 (PIS-3), and Figure 3i and j represent day 4 (PIS-4) of germination. No significant alterations to the starch surface were seen during pea germination. However, there is evidence of some protein and fat removal. As was reported for barley, α and β-amylase form micro-holes during this stage of germination (Contreras-Jiménez et al., 2018), for corn (Hernández-Becerra et al., 2020) and (Oseguera-Toledo et al., 2020).

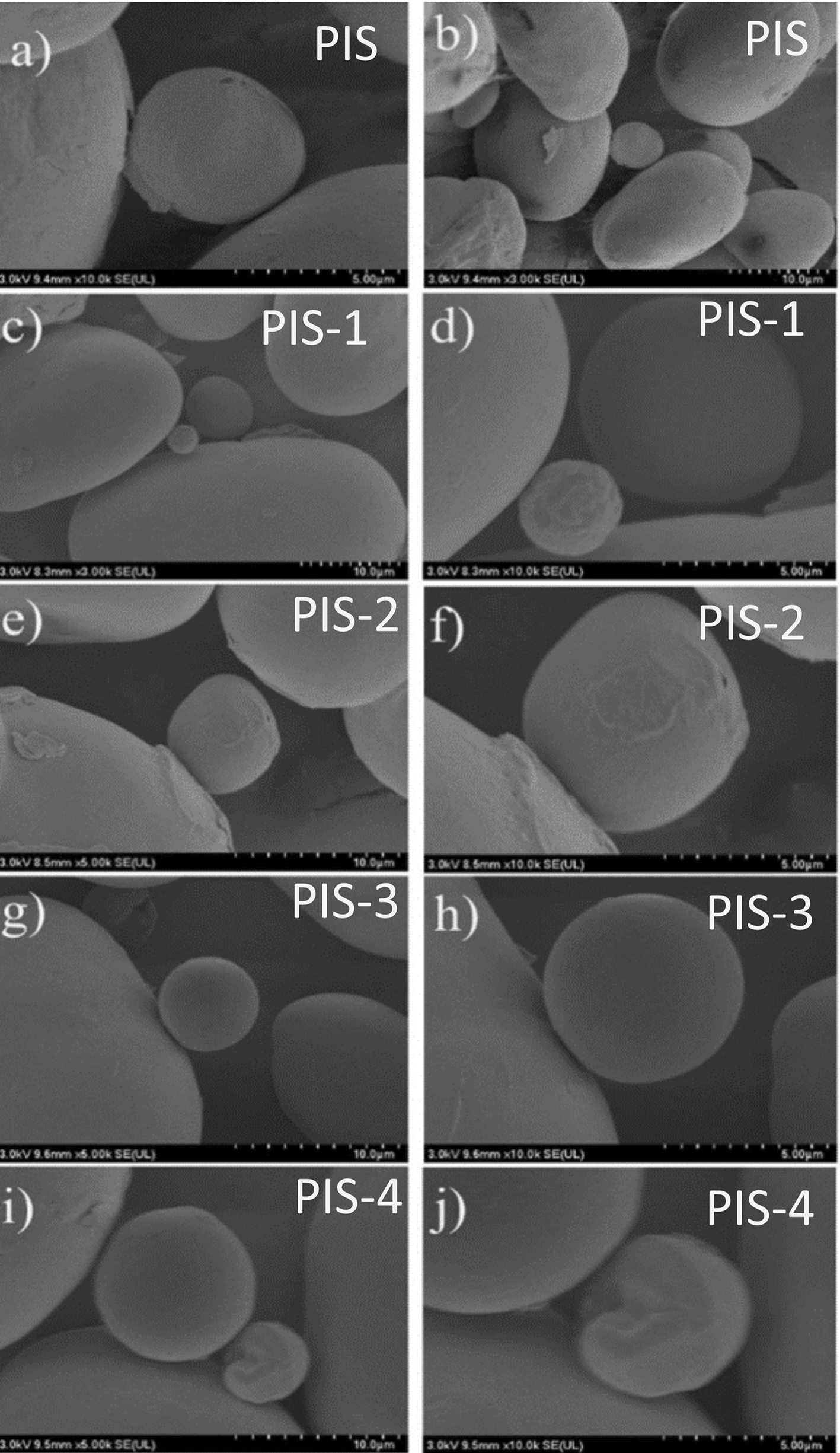

Figure 3. SEM images of the pea isolated starches along the germination, PIS, PIS-1, PIS-2, PIS-3, and PIS-4.

The starch granules, which coincide with those described by Gao et al. (2022), have oval and kidney shapes with a few surface indentations. But with few changes during the germination process. Some starch granules presented only small changes on their surface, observing some indentations or rough surfaces, where an enzymatic attack could have occurred. All of this contrasts with what Gao et al. (2022), which states that after the first day of germination, the majority of the starch granules had notches on the surface, with obvious pores and more undulations on the surface of the germinated starch granules as germination progressed, changes that affect the other physical and thermal properties. These changes were produced by the enzymes responsible for amylolysis, in 2 varieties of pea.

Particle size distribution

The particle size distribution of starch granules D10, D50, and D90 indicate that 10, 50, and 90% of the starch granules have a smaller diameter than this value (Table 2). In general, D50 was used to describe the mean diameter. The D50 of the starch granules ranged from 53.72±4.65 μm to 56.8±3.41 μm.

In general, statistically significant differences were found in the average diameter in each of the percentiles (p<0.05), presenting a slight increase in the average diameter with advancing germination time, in percentiles D10 and D50, coinciding with what was reported by Gao et al. (2022), with starches from two pea varieties. In the D90 percentile, the average diameter of the starch decreased, which could be an effect of the enzymes in the germination process, which could penetrate inside the granules and hydrolyze from the helium region to the outside. This could result in the formation of surface pores, surface erosion, sponge-like erosion and degraded granules, for the grains where there is enzyme activity, which could be occurring superficially in the pea starch granules according to the SEM images obtained in this study, although no enzymatic activity is observed (Li et al., 2017).

Structural characterization of isolated starches

The X-ray diffraction patterns for the PIS and starches obtained from peas subjected to germination for four days are shown in Figure 4. For indexing these patterns, tables provided by Rodríguez-García et al. (2021) were used. It was found that pea starches with and without germination contain a mix of hexagonal and orthorhombic glucopyranose crystals. Starches presenting this kind of mix are classified as C-type. These patterns revels that these crystalline structures do not suffer any damage during germination. Rodríguez-García et al. (2021) indexed the orthorhombic structure for A-type starch and hexagonal structure for B-Type B starch, and the dash lines in this figure correspond to the indexation of both structures. Gao et al. (2022) studied the structural transformation along with the germination process in two pea varieties. They results indicated that during germination the crystalline structures present in starch do not exhibit significant changes. However, they did not index the patterns to confirm that peas starch can be classified as C-Type. Liu et al. (2020) reported that different crystallinity degrees can indicate the differences in the chemical structure and composition of starches. However, from a crystallographic point of view the term chemical structure does make sense.

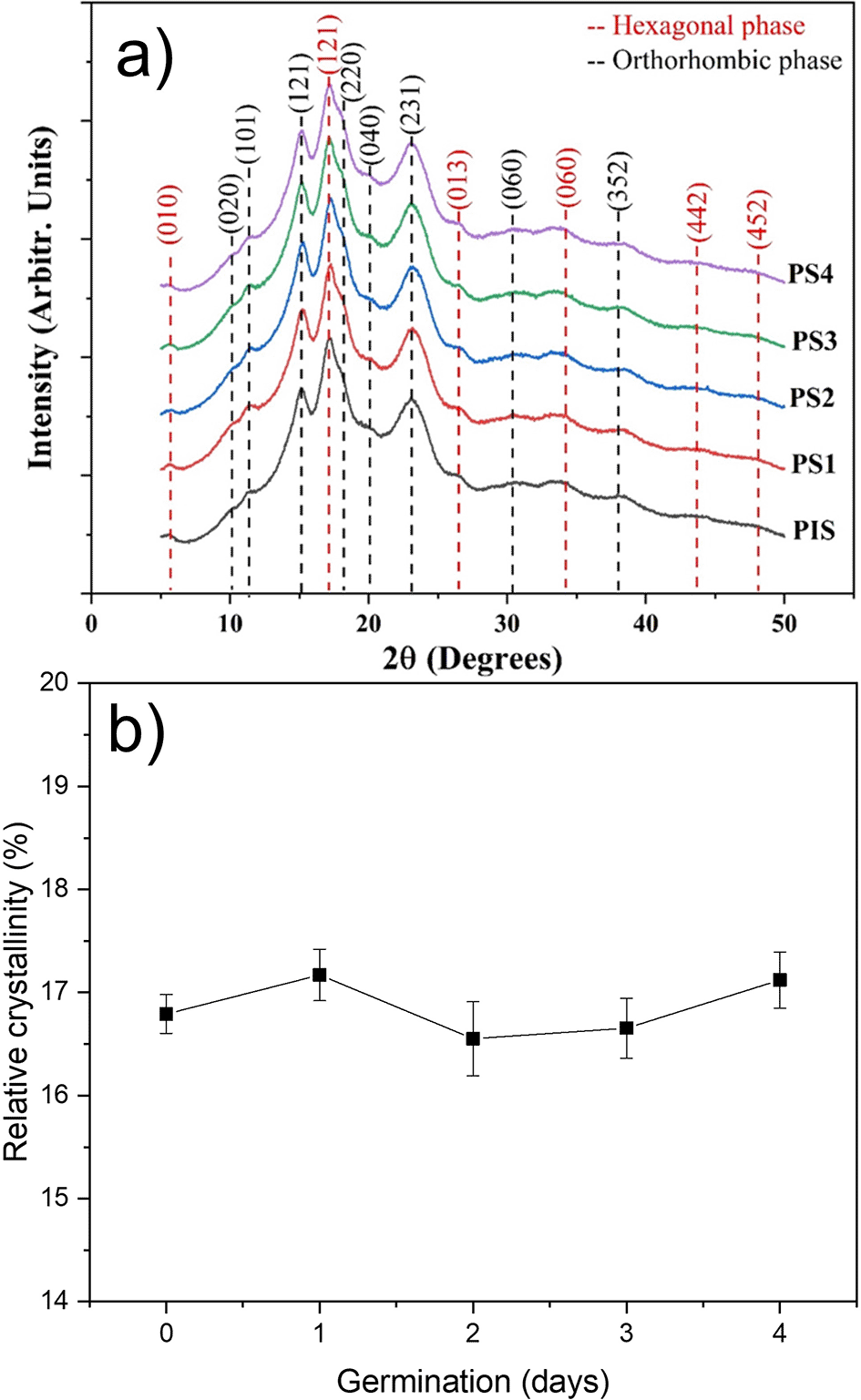

Figure 4. a) X-ray diffraction patterns of pea isolated starch (PIS) and PIS-1, PIS-2, PIS-3, and PIS-4 obtained during germination, b) changes in the apparent crystallinity.

The variations in the relative crystalline percent as a function of germination day were shown in Figure 4b. The relative crystalline percent is around 17%, and this result showed that enzymatic attack during germination does not induce structural alterations. The tiny variations in this parameter may be related to the sample’s moisture content. While Rodríguez-García et al. (2021) assert that the crystallinity is directly related to the orthorhombic and hexagonal crystalline structures, Rupollo et al. (2011) noted that the relative crystallinity is typically related to the content and average chain length of amylopectin, the internal orientation and interaction degree of the double helix, and the moisture content of starch granules. Of course, the determinations of these patterns were performed at very low moisture (around 10%). This suggests that the out diffusion of bound water into these nanocrystalline formations altered their crystalline structure (Kim and Huber (2008, 2010) and Gong et al., 2016).

Thermal properties

Figure 5a displays the DSC thermograms of of native starch (PIS) and starches with different germination times (PIS-1 to PIS-4). This figure shows an endothermic thermal transition for PIS around 65.3°C, which corresponds to an ordered to disordered transition produced by the solvation of the orthorhombic nanocrystals and corresponds to the gelatinization. The gelatinization is a second order thermal event (irreversible transition).

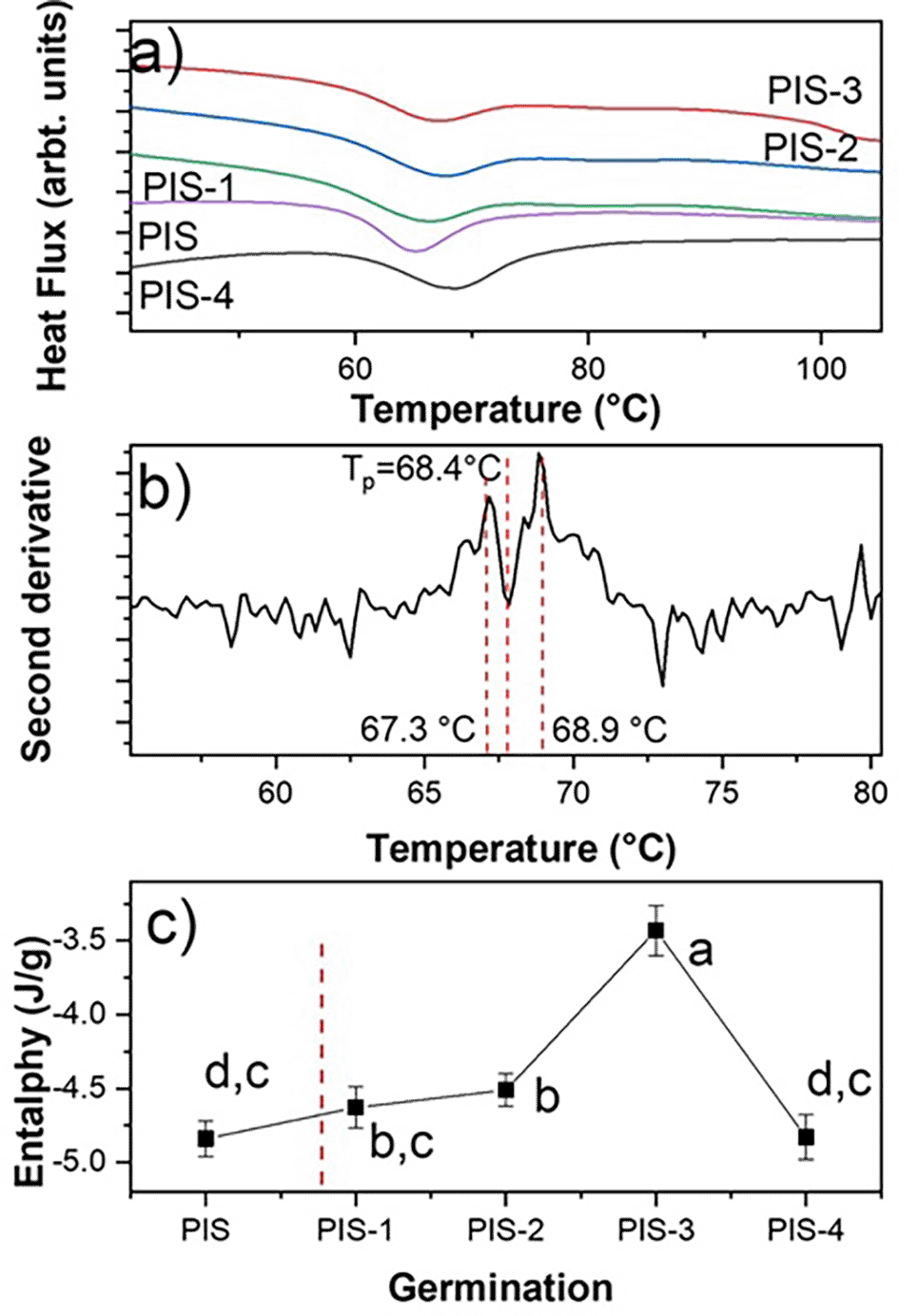

Figure 5. a) DSC thermograms of the PIS, PIS-1, PIS-2, PIS-3, and PIS-4, b) a characteristic second derivative for sample PIS-4, and c) changes in the enthalpy as a function of the germination day.

The values correspond to average of enthalpy and standard deviation. Different letters in panel c show significant differences using α = 0.05.

When employing the second derivative criterion presented in Figure 5b, it is evident that gelatinization corresponds to two thermal events even if a preliminary inspection of the endothermic transition does not indicate the presence of more than one transition. These events are directly related to the solvation of orthorhombic and hexagonal nanocrystals, which are what make up this starch according to Figure 4a, which demonstrated this. The first occurrence involves the solvation of the orthorhombic structure, which contains eight water molecules in its structure, and the second involves the solvation of the hexagonal structure, which has 32 water molecules in its crystalline structure (Esquivel-Fajardo et al., 2022).

For the nanocrystals solvation, a step known as gelatinization must occur. An ordered-disordered transition has been connected to starch gelatinization (Zobel et al., 1988). There is, however, no mention of the type of structure that is engaged in this transition. The endothermic event can be represented in two steps from a thermodynamic perspective. In the case of pea starch, the orthorhombic and hexagonal nanocrystals absorb energy to raise the temperature, the vibrational states reflect the energy, and the amplitude of the vibrations increases from T_o to T_p. From a quantum perspective, each vibrational state increases its amplitude, and each vibrational mode only reaches its maximum amplitude at T_p.

The endotherm peak returns to the initial level because each vibrational state is obliterated sequentially from T_p to T_e. The ordered system is represented by the first stage of the endothermic transition, while the disordered system is represented by T_p. It is evident from a close examination of Figure 4a that neither orthorhombic nor hexagonal nanocrystals alter during germination.

Vibrational analysis

Figure 6 shows the changes in the vibrational spectrum of isolated native starch and germinated starches. In this section, attention was focused on the region in which the vibrational modes were changed due to the germination process. The description of the well-known bands is as follows: a germination split signal from day 1 to day 4 located at 1240, 1407 and 1456 cm^-1 of the C-H group stretch corresponds to carbohydrates were observed.

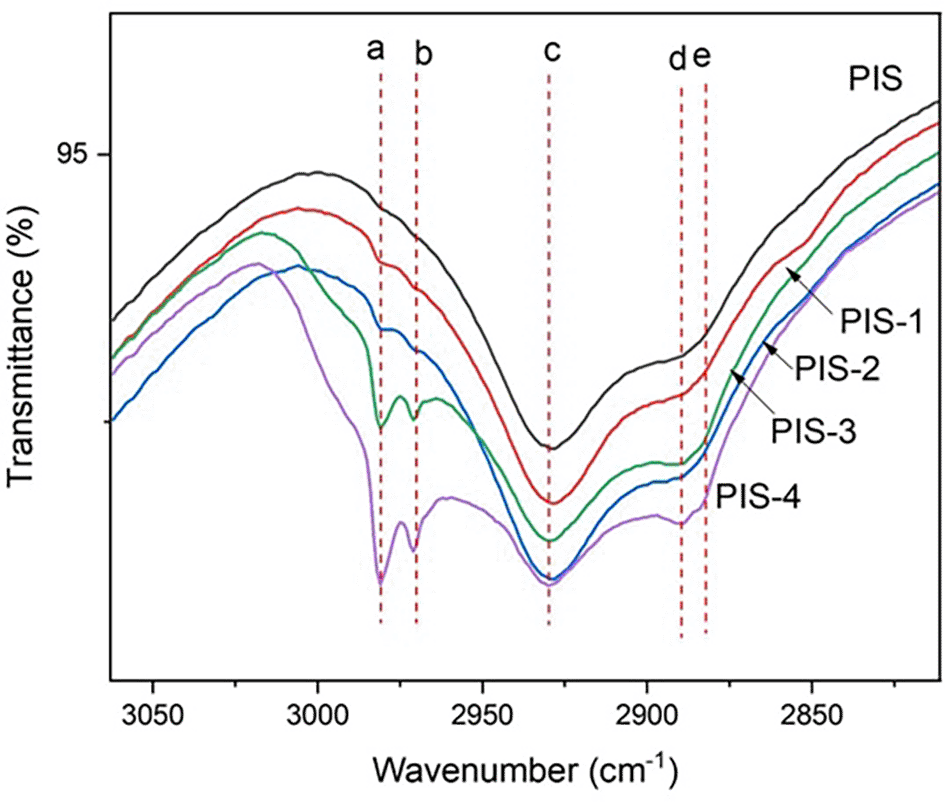

Figure 6. IR spectra for pea isolated starch (PIS) and isolated starches during germination time.

According to the results presented, the most important changes occurred during day 3 and day 4 of germination. At this time, the enzymatic process initiates the modification in the starch granules. No significant changes are shown after soaking. This can be explained because during soaking the seed hydrates and some starch granules can swell. At the same time, an internal enzymatic process in the pea is activated, although the granules remain intact. Germination modified the chemical bonds of the amylose and amylopectin to produce sugar chains that will be used by the grain as a source of energy and carbon for growth. Changes in the signal corresponding to –OH were found at 1275 cm^-1, possibly showing the modifications of the glycosidic linkages in α(1–4) and α(1–6). The modification of the signal in the different stages of malting demonstrates the changes in the structure of the starch (Oseguera-Toledo et al., 2020).

In turn, the presence of characteristic vibrations for functional groups typical of starch could be evidenced (-CH-, -CH₂-, C-OH, and groups -OH) to wavelengths to 3100, 2915, 2850, 1680, 998, and 855 cm^-1 (Quintero-Castaño et al., 2020). The bands at 1640 and 1545 cm^-1 can be attributed to amide vibrations. These bands are present due to the modification that the proteins undergo at the time of germination and that causes the vibration of the amino acids that are released (Contreras-Jiménez et al., 2018). Other authors have reported similar bands in the germination process of the pea. Xing et al. (2021) showed changes in the malting process of quinoa starch, mainly due to 1047 y 1022 cm^-1 associated with the fingerprint region of the compound product of the vibration of bonds C-O-H. Chinma et al. (2022) reported significant changes to 2930 cm^-1 for germinated pea fluor. These changes are associated with changes in the C-H vibrations typical of amylose and amylopectin chains.

The band at 2980 cm⁻¹ (a) with absorber water (Chang et al., 2014). 2970 cm^-1 is due to CH₂ stretching vibration (b), 2930 cm^-1 (c) to υ(C-H (Oniszczuk et al., 2019); the band at 2890 cm^-1(d) to υst(C-H) or υ(C-H) in CH₂/CH₃ group, and the band at 2882 cm^-1 (e) corresponds to υst(C-H) or υ(C-H) in CH₂/CH₃ group. The expression of these IR bands are an indicative of the amylose or amylopectin debranching produce more vibrational centers (quantum states).

Pasting properties

The viscosity profiles of the PIS and germinated pea starches PIS-1, PIS-2, PIS-3, and PIS-4 are shown in Figure 7a, and the changes in maximum viscosity during germination are shown in Figure 7b. It was found that during germination time there were no significant changes in the viscosity profiles of the isolated starch, which agrees with the morphological analysis of the starches (SEM), where there were no changes on the grains surface. The behavior is in contrast to that observed in Puma and Palomero corn starches by Hernández-Becerra et al. (2020), malted barley by Contreras-Jiménez et al. (2018), and sorghum malting by Oseguera-Toledo et al. (2020), where it was discovered that during the germination and malting processes, peak and final viscosities decrease where starch is degraded. Indicating that the long chains of amylose and amylopectin were fractionated, producing an increase in reducing sugars and a decrease in apparent viscosity, due to the activation of α-amylases that degrade the amorphous component of starch, obtaining mono and disaccharides used as an energy source during malting, and therefore affecting viscosity and by the interaction of water with the starch crystals, which is corroborated by SEM images, where the starch grains are almost completely broken. X-ray analysis showed that the crystalline structures of the starch remains unchanged throughout the malting process (Contreras-Jiménez et al., 2014; Oseguera-Toledo et al., 2020). Londoño-Restrepo et al. (2018) showed that along with the pasting profile, the corn starch granules are disrupted, and at the end of the peak viscosity they showed that there are not any crystalline compounds, because of the X-ray pattern does not exhibit any crystalline phase. Recently, Esquivel-Fajardo et al. (2022) showed that at the end of the pasting profile of isolate avocado starch, some fraction of the crystalline components of the starch retains some grade of crystallinity.

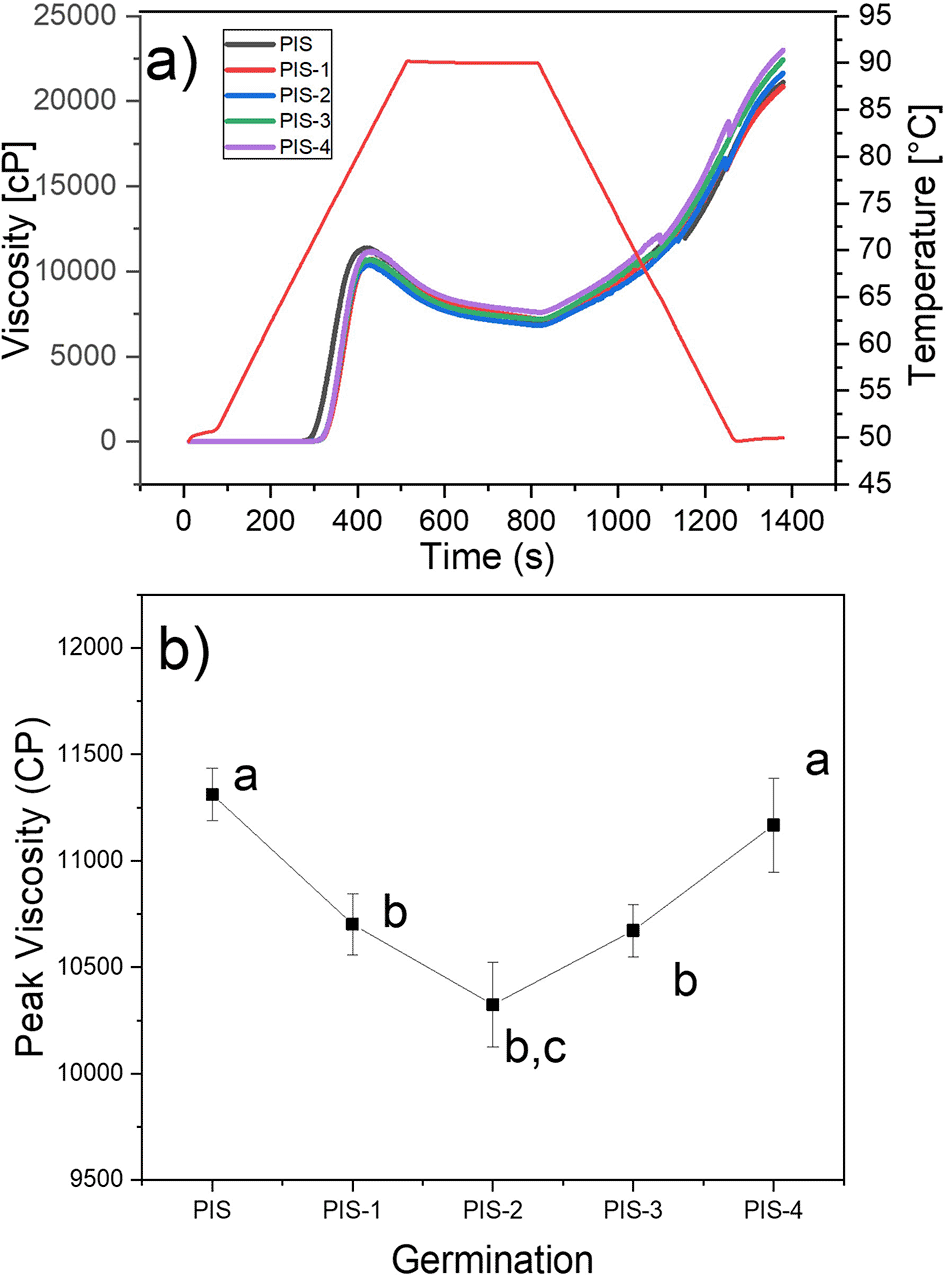

Figure 7. a) Pasting profiles of PIS, PIS-1, PIS-2, PIS-3, and PIS-4 and b) changes in the peak viscosity as a function of the germination.

Different letters in panel b show significant differences using α = 0.05.

They also go against the findings of Gao et al. (2022), who found that as germination time increased, the parameters of the viscosity profiles of starches isolated from two native and germinated pea varieties revealed substantial statistical variations. When germination time was extended, the peak viscosity first rose and then fell, reaching its maximum values on days 3 for Xiwan variety 1 and day 1 for Xiwan variety 2, respectively. According to Xing et al. (2021), the peak viscosity of mung bean starch decreased when the germination time was extended to 72 h, while the peak viscosity of quinoa starch decreased as the germination time increased (Liu et al., 2020). The temperature at which the paste of germinated starches begins to gelatinize is likely to have increased when compared to native starch. According to some authors, this characteristic relates to the initial alteration of starch granules, which is the change from starch suspension in water to gel formation (Rincón-Londoño et al., 2016). Additionally, the thermal characteristics of starch are proportional to the pasting temperature. The same behavior was reported by Hernández-Becerra et al. (2020) for Puma and Palomero corn starches, which presented an increase in pasting temperature.

At the same time, native and germinated pea starches discovered in this study displayed higher peak and final viscosities than those obtained in malted Puma and Palomero corn (Hernández-Becerra et al., 2020); in malted barley (Contreras-Jiménez et al., 2018); and in two varieties of pea (Gao et al., 2022). According to the results of starch morphological analysis (SEM) and X-ray, higher viscosities are the result of less enzymatic modification of pea starches. These differences may be related to the amylose-amylopectin relationship, aggregation of starch grains, the fine structure of amylopectin, and the size of starch granules (Gao et al., 2022). At the same time, once native and germinated pea starch paste was cooled, their final viscosities often increased by a factor of two, from 10.000 cP to more than 20.000 cP.

It is important to highlight the possible presence of fat and protein residues in isolated pea starches at different germination times, which could influence the greater resistance of the starch granules to swelling and rupture, due to the formation of lipid-amylose and/or amylopectin complexes that increase the gelatinization onset temperature (T_g), increasing the integrity of the starch granule, where lipids act as adhesive material and contribute to the formation of granules that fuse to become compound granules.

Additionally, because of heating, protein residues are denatured and deformed, which encourages protein aggregation and the formation of disulfide bonds between proteins. These effects contribute to protein-protein and protein-starch interactions, which by binding exogenous proteins to the starch grains and preventing water from diffusing through it, affect T_g. Denatured proteins also reveal several hydrophilic groups (like -COOH, -NH₂, -OH, and -SH) and hydrophobic amino acids (like Pro, Leu, Phe, Val, and Ile), which may all bind to the surfaces of starch granules by hydrogen bonding or hydrophobic interactions, increasing T_g. A similar effect was seen by Ribotta et al. (2012), who found that pea protein isolate (PPI) dramatically changed how corn and cassava starches pasted during the heating-cooling cycle, resulting in an increase in viscosity. In the samples of maize starch, the pasting temperature was lowered by the addition of PPI. Conversely, the inclusion of PPI enhanced the PV (peak viscosity), FV (final viscosity), BD (breakdown), and SB (setback) of both starch pastes during the heating-cooling process. The pasting temperature (PT) also increased marginally with protein isolates in cassava samples.

Functional properties of starches

Table 2 shows the results of the functional properties and the type of gel formed by pea isolated starch (PIS) and for day 1 to day 4 (PIS-1 to PIS-4) as a function of the germination (see Figure 7b), where it is initially observed that although in general there are statistically significant differences between WAI, WSI, and SP (p<0.05) and germination time, these are not large enough. At the same time, when comparing the functional properties, with respect to cassava starch, the report reference values are: WAI varies between 0.82 and 15.52 g gel/g sample; WSI: 0.27-12.32% and SP: 0.79 and 15.45% (Aristizábal and Sánchez, 2007; Wang et al., 2022). It can be concluded that pea starch has medium quality characteristics by developing medium WAI and SP values, and low values in WSI. Contreras-Jiménez et al. (2018), with isolated quinoa starch and Ozcan and Jackson (2005), with corn starch, reported values of 2.35±0.03 g gel/g starch and 1.77 g gel/g starch in WAI, respectively, low values with respect to pea starch (Table 2).

Different letters in the same column show significant differences using α = 0.05.

Regarding WSI, pea starch reported less than 2.63%, much lower than the figures reported by Contreras-Jiménez et al. (2018) for quinoa starch (4.56±0.0%). This finding indicates that pea starch presents an important number of soluble compounds, which can be included as fiber and other carbohydrates different from starch. In relation to the swelling power (SP) of pea starch, higher values were found with respect to quinoa starch 2.98±0.07% (Contreras-Jiménez et al., 2018); this last behavior may be related to viscosity, as the higher the SP values, the higher the viscosity value is expected, which is related to the type of gel (solid) obtained with pea starch.
