A guide to selecting high-performing antibodies for Stearoyl-CoA desaturase (SCD1) (UniProt ID: O00767) for use in western blot, immunoprecipitation, and immunofluorescence

Introduction

Stearoyl-CoA desaturase (SCD1) is a membrane-bound enzyme which catalyzes the rate-limiting step in the conversion of saturated fatty acids into mono-unsaturated fatty acids.^1,2 The regulation of SCD1 is physiologically important as maintaining a proper ratio of saturated to monounsaturated fatty acids is essential for membrane fluidity. Disruption to this ratio can lead to pathological conditions, including cardiovascular disease, obesity, non-insulin dependent diabetes mellitus, hypertension, neurological diseases, immune disorders and cancer.^2–7

SCD1 is of particular importance in Parkinson’s disease (PD) research as its inhibition has been found toto rescue α-Synuclein cytotoxicity and inclusion formation, both hallmarks of PD progression. The neurotoxic mechanisms underlying PD progression are not yet clearly defined.^8–10 Mechanistic studies would be facilitated with the availability of high quality SCD1 antibodies.

This research is part of a broader collaborative initiative in which academics, funders and commercial antibody manufacturers are working together to address antibody reproducibility issues by characterizing commercial antibodies for human proteins using standardized protocols, and openly sharing the data.^11–13 Here we evaluated the performance of nine commercial antibodies for SCD1 for use in western blot, immunoprecipitation, and immunofluorescence, enabling biochemical and cellular assessment of SCD1 properties and function. The platform for antibody characterization used to carry out this study was endorsed by a committee of industry academic representatives. It consists of identifying human cell lines with adequate target protein expression and the development/contribution of equivalent knockout (KO) cell lines, followed by antibody characterization procedures using most commercially available antibodies against the corresponding protein. The standardized consensus antibody characterization protocols are openly available on Protocol Exchange (DOI: 10.21203/rs.3.pex-2607/v1).¹⁴

The authors do not engage in result analysis or offer explicit antibody recommendations. A limitation of this study is the use of universal protocols – any conclusions remain relevant within the confines of the experimental setup and cell line used in this study. Our primary aim is to deliver top-tier data to the scientific community, grounded in Open Science principles. This empowers experts to interpret the characterization data independently, enabling them to make informed choices regarding the most suitable antibodies for their specific experimental needs. Guidelines on how to interpret antibody characterization data found in this study are featured on the YCharOS gateway.¹⁵

Results and discussion

Our standard protocol involves comparing readouts from WT (wild type) and KO cells.^16,17 The first step was to identify a cell line(s) that expresses sufficient levels of a given protein to generate a measurable signal using antibodies. To this end, we examined the DepMap transcriptomics database to identify all cell lines that express the target at levels greater than 2.5 log₂ (transcripts per million “TPM” + 1), which we have found to be a suitable cut-off (Cancer Dependency Map Portal, RRID:SCR_017655). The HeLa expresses the SCD1 transcript at 6.7 log₂ (TPM+1) RNA levels, which is above the average range of cancer cells analyzed. A SCD KO HeLa cells were obtained from Abcam ( Table 1).

For western blot experiments, WT and SCD KO protein lysates were ran on SDS-PAGE, transferred onto nitrocellulose membranes, and then probed with nine antibodies in parallel ( Table 2, Figure 1).

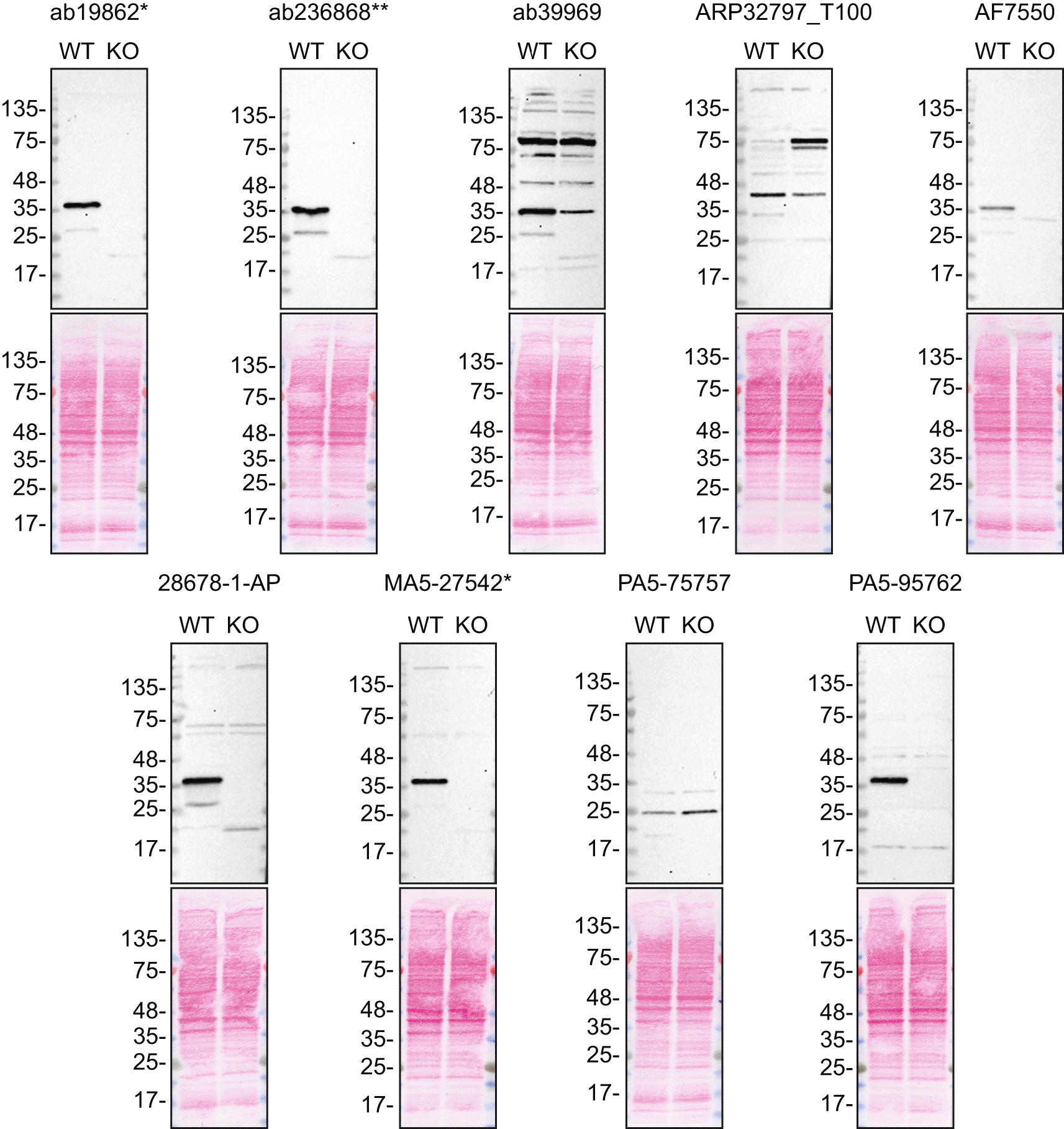

Figure 1. SCD1 antibody screening by western blot.

Lysates of HeLa WT and SCD KO were prepared, and 35 μg of protein were processed for western blot with the indicated SCD1 antibodies. The Ponceau stained transfers of each blot are presented to show equal loading of WT and KO lysates and protein transfer efficiency from the acrylamide gels to the nitrocellulose membrane. Tris-Glycine 4-20% gels were used. Antibody dilutions were chosen according to the recommendations of the antibody supplier. An exception was given for antibody AF7550 which was titrated because the signal was too weak when following the supplier’s recommendations. Antibody dilution used: ab19862* at 1/1000, ab236868** at 1/1000, ab39969 at 1/1000, ARP32797_T100 at 1/1000, AF7550 at 1/200, 28678-1-AP at 1/1000, MA5-27542* at 1/1000, PA5-75757 at 1/200 and PA5-95762 at 1/1000. Predicted band size: 41.5 kDa *Monoclonal antibody, **Recombinant antibody.

We then assessed the capability of all nine antibodies to capture SCD1 from HeLa protein extracts using immunoprecipitation techniques, followed by western blot analysis. For the immunoblot step, a specific SCD1 antibody identified previously (refer to Figure 1) was selected. Equal amounts of the starting material (SM), the unbound fraction (UB), as well as the whole immunoprecipitate (IP) eluates were separated by SDS-PAGE ( Figure 2).

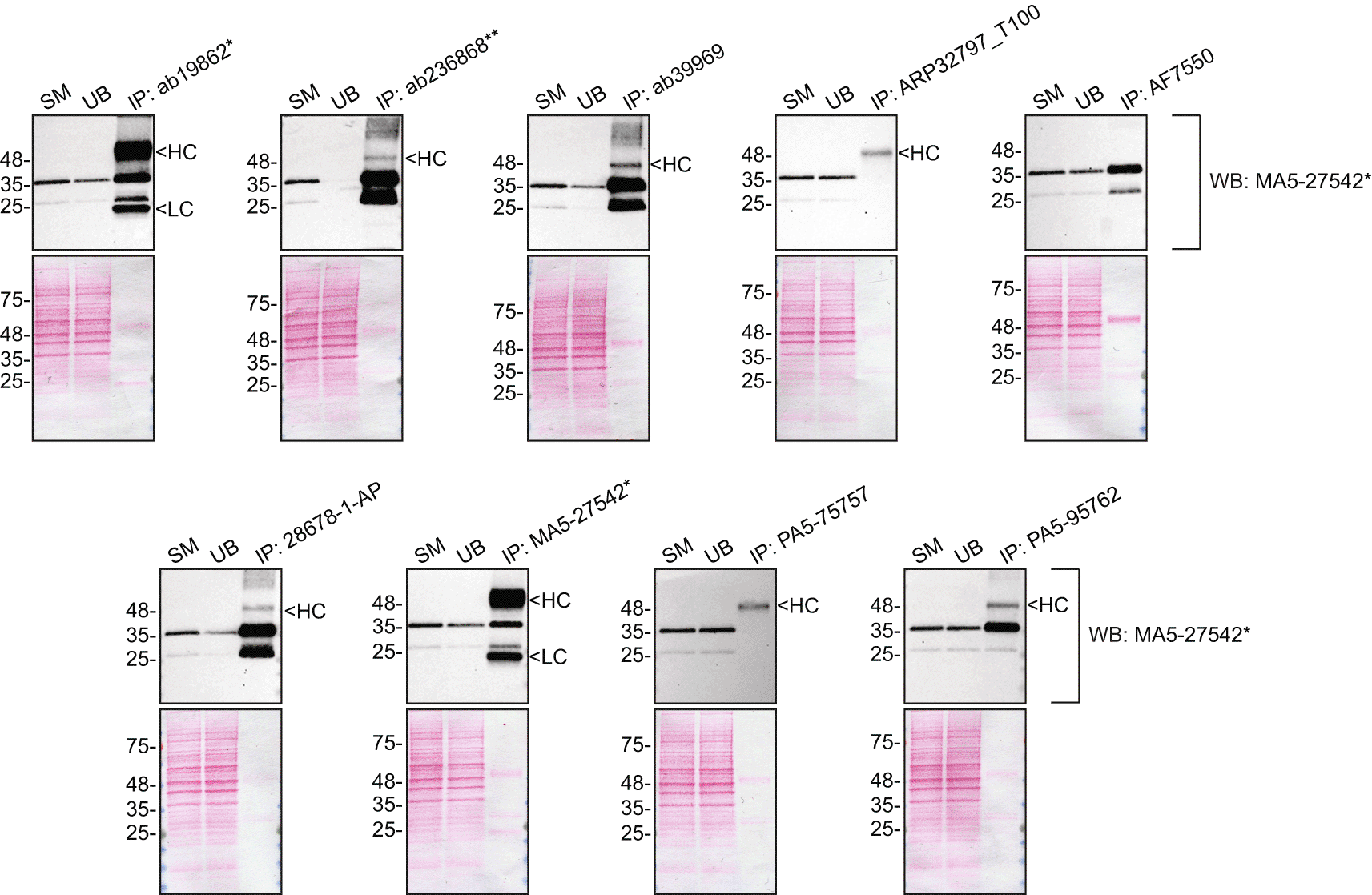

Figure 2. SCD1 antibody screening by immunoprecipitation.

HeLa lysates were prepared, and immunoprecipitation was performed using 1 mg of lysate and 2.0 μg of the indicated SCD1 antibodies pre-coupled to Dynabeads protein A or protein G. Samples were washed and processed for western blot with the indicated SCD1 antibody. For western blot, MA5-27542* was used at 1/1000. Tris-Glycine 4-20% gels were used. The Ponceau stained transfers of each blot are shown. Predicted band size: 41.5 kDa. SM=4% starting material; UB=4% unbound fraction; IP=immunoprecipitate, HC= antibody heavy chain, LC= antibody light chain. *Monoclonal antibody, **Recombinant antibody.

For immunofluorescence, nine antibodies were screened using a mosaic strategy. First, HeLa WT and SCD KO cells were labelled with different fluorescent dyes in order to distinguish the two cell lines, and the SCD1 antibodies were evaluated. Both WT and KO lines imaged in the same field of view to reduce staining, imaging and image analysis bias ( Figure 3). Quantification of immunofluorescence intensity in hundreds of WT and KO cells was performed for each antibody tested, and the images presented in Figure 3 are representative of this analysis.¹⁴

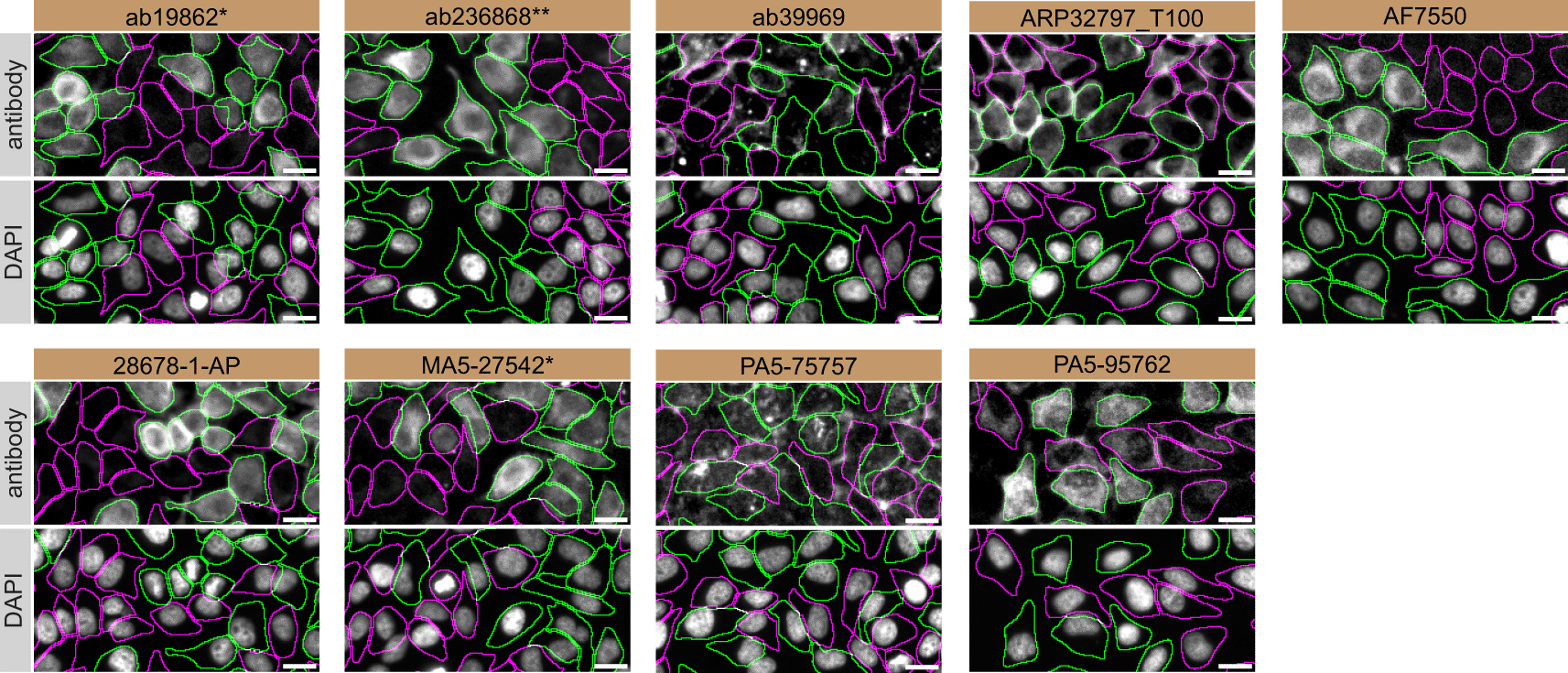

Figure 3. SCD1 antibody screening by immunofluorescence.

HeLa WT and SCD KO cells were labelled with a green or a far-red fluorescent dye, respectively. WT and KO cells were mixed and plated to a 1:1 ratio on coverslips. Cells were stained with the indicated SCD1 antibodies and with the corresponding Alexa-fluor 555 coupled secondary antibody including DAPI. Acquisition of the blue (nucleus-DAPI), green (WT), red (antibody staining) and far-red (KO) channels was performed. Representative images of the merged blue and red (grayscale) channels are shown. WT and KO cells are outlined with green and magenta dashed line, respectively. When an antibody was recommended for immunofluorescence by the supplier, we tested it at the recommended dilution. The rest of the antibodies were tested at 1 and 2 μg/mL and the final concentration was selected based on the detection range of the microscope used and a quantitative analysis not shown here. Antibody dilution used: ab19862* at 1/1000, ab236868** at 1/600, ab39969 at 1/150, ARP32797_T100 at 1/500, AF7550 at 1/200, 28678-1-AP at 1/400, MA5-27542* at 1/1000, PA5-75757 at 1/1000 and PA5-95762 at 1/1300. Bars = 10 μm. *Monoclonal antibody, **Recombinant antibody.

In conclusion, we have screened nine SCD1 commercial antibodies by western blot, immunoprecipitation, and immunofluorescence by comparing the signal produced by the antibodies in human HeLa WT and SCD KO cells. Several high-quality and renewable antibodies that successfully detect SCD1 were identified in all applications. Researchers who wish to study SCD1 in a different species are encouraged to select high-quality antibodies based on the results presented and investigate the predicted species reactivity of the manufacturer before extending their research.

Method

The standardized protocols used to carry out this KO cell line-based antibody characterization platform was established and approved by a collaborative group of academics, industry researchers and antibody manufacturers. The detailed materials and step-by-step protocols used to characterize antibodies in western blot, immunoprecipitation and immunofluorescence are openly available on Protocol Exchange (DOI: 10.21203/rs.3.pex-2607/v1).¹⁴
